USER MANUAL Super 160.3 Gerni

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Icon of an open book with an information symbol inside, set against a solid black circular background (no text or numbers)

User Guide

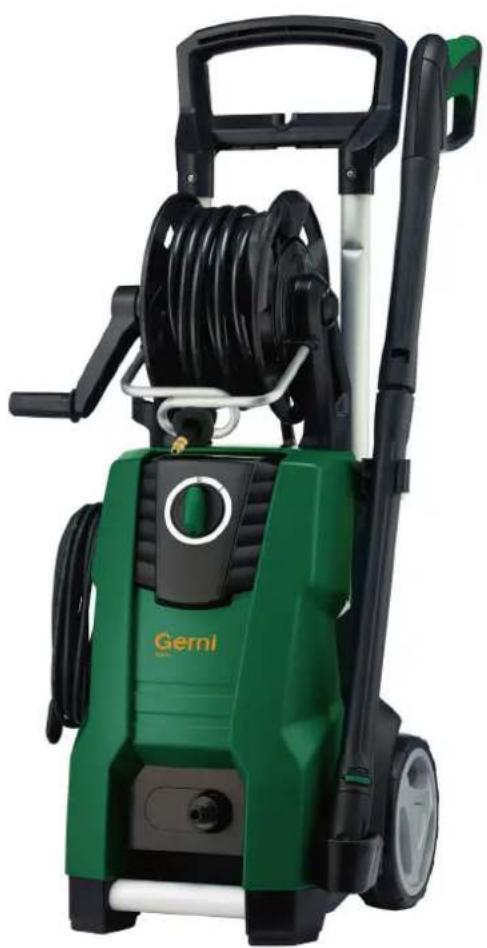

Green Gerni water heater with black handle and coiled cable (no visible text or symbols)

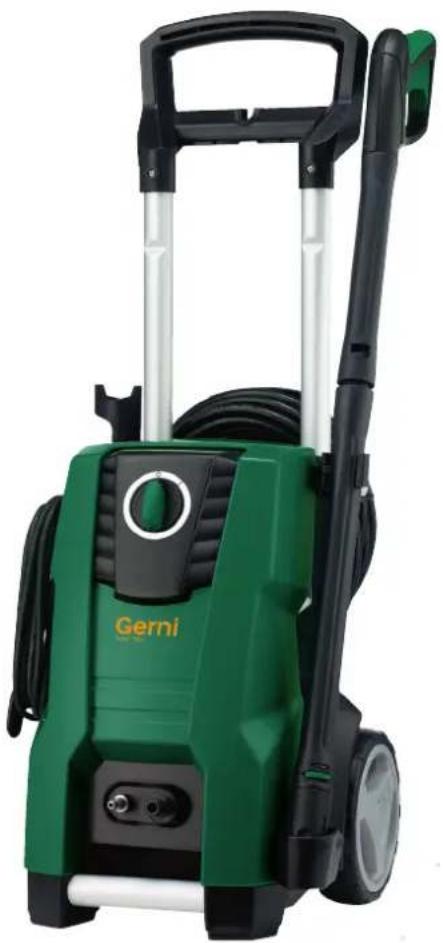

Green Gerni water heater with black handle and white base (no visible text or symbols)

The instruction consists of 4 parts. Part 1:3 Safety Instructions. Part 2:3 User Guide. Part 3:3 Troubleshooting, Technical Data and Disposal. Part Warranty Conditions.

Part 1:3 - Safety Instructions

Before first use of the machine, read the instructions carefully. Save instructions for later use.

Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property.

WARNING

This machine has been designed for use with cleaning agents supplied or recommended by Gerni. The use of other cleaning agents or chemicals may adversely affect the safety of the machine.

High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.

⚠ Do not use the machine within range of persons unless they wear protective clothes.

⚠️ Do not direct the jet against yourself or others in order to clean footwear.

⚠️ Risk of explosion – Do not spray flammable liquids.

⚠️ High pressure washers shall not be used by children or untrained personnel.

High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by Gerni.

⚠️ To ensure machine safety, use only original spare parts recommended by Gerni.

⚠️ Water that has flown through back-flow preventers is considered to be non-potable.

Don't use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

Inadequate extension cords can be dange rous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by a cord reel which keeps the socket at least 60 mm above the ground.

Switch off and unplug the machine when leaving it unattended, when finished using it or when con-

verting it to another function, when doing repair and maintenance.

During use of high pressure washers, aerosols may be formed. Inhalation of aerosols can be hazardous to health, for the protection against aerosols a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment.

Intended Use and Terms of Liability

• The Super-series have been developed for domestic cleaning pur poses only and for use in an upright position. Any other use is considered as improper use.
• A high pressure washer operates with different levels of pressure and cleaning detergents for various cleaning tasks and results. Always follow instructions on detergents for use, emergency and disposal.
• Do not operate the machine at temperatures below 0°C. Never start a frozen machine, never use it indoor and never cover it during use. This is considered improper and wrongful use. Use of wrongful pressure, detergent and/or applications may cause damage to machine, surfaces, material and devices.

All of the above is considered improper and wrongful use. Gerni accepts no liability for any damage resulting from any improper or wrongful use.

Safety devices and their functioning

The machine automa tically stops when releasing the trigger. The machine will start again when re-activating the trigger. The spray handle features a locking device. When activated, the spray handle cannot be operated.

The machine has an automatic self-resetting thermal protector. If the machine is overheated, the thermal protector will cut the power supply. In this case, wait for the machine to cool down. An integrated hydraulic safety valve protects the system from excessive pressure.

Precautions

The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove earth circuit.

- Use motor start/delayed fuses with characteristic C or D according to IEC/EN 60898-1 / IEC 947-2 or corresponding standards outside IEC.

• If the supply cord is damaged, it must be replaced by an authorized Gerni distributor or similar qualified person in order to avoid a hazard.
• No actions needed for adjusting machines marked with dual voltage and frequency.
• Supervise children not to play with the machine.
• The operator and any one in the immediate vicinity of the site for cleaning should take action to protect oneself from being struck by debris dislodged during operation.
• Always wear safety boots, respiratory mask, ear protection, goggles and protective clothing during operation.
• The high pressure generated by the machine is a particular source of danger. Hold the spray lance firmly with both hands. The spray lance is affected by a kickback force and a sudden torque during operation.
• See PART 3:3 for the actual size of the kickback force.
• During transportation: Position the machine horizontally on the backside and secure with straps.
• High pressure washers shall not be used nor maintained by children or untrained people or people with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

Part 2:3 - User Guide

Provides a general overview of the machine and operation elements along with illustrated sections on preparation, operation, water connection, storage, and user maintenance.

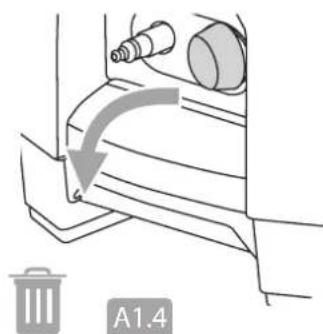

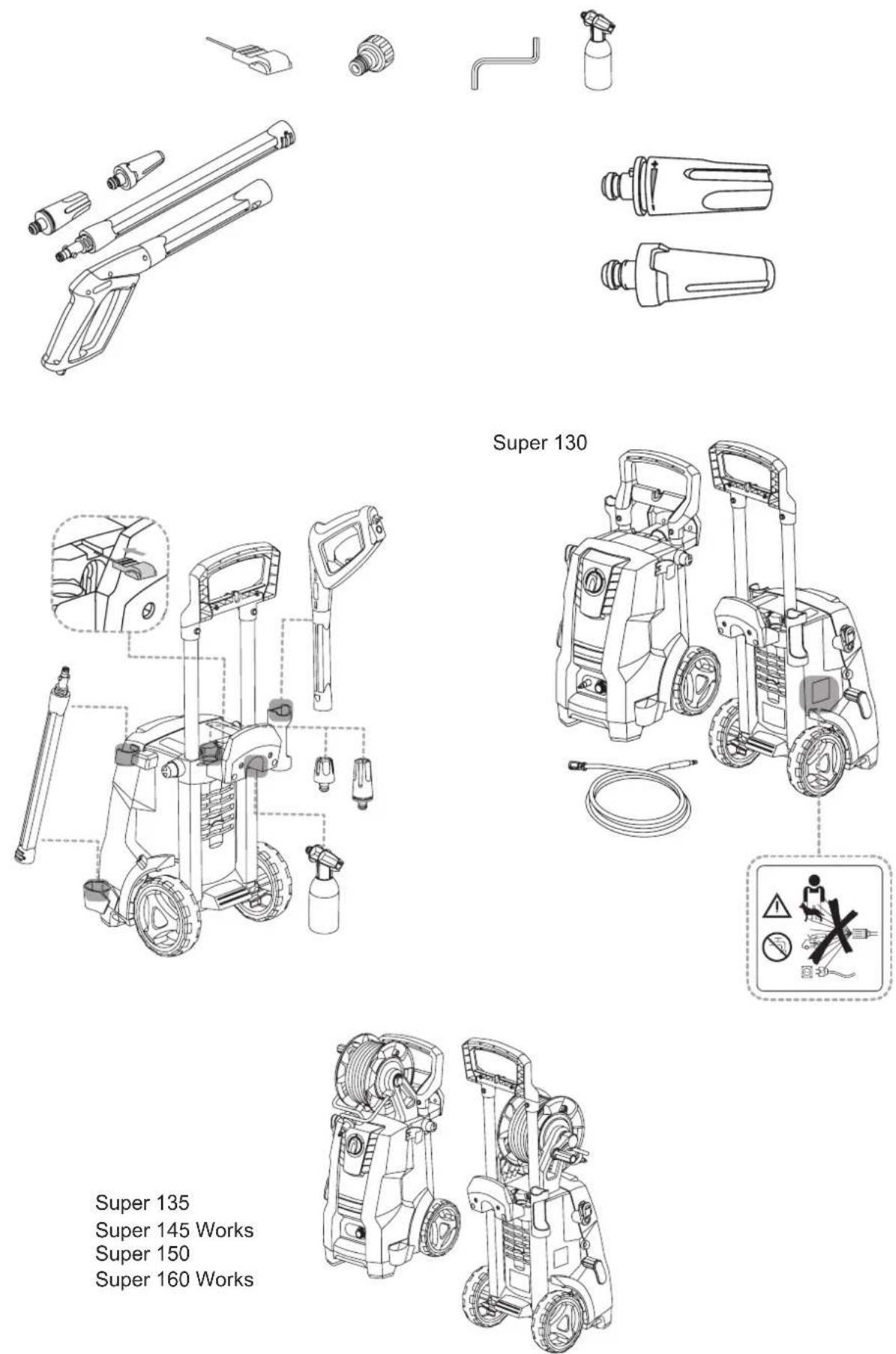

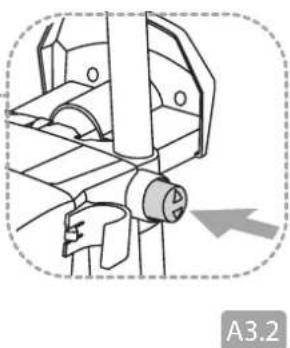

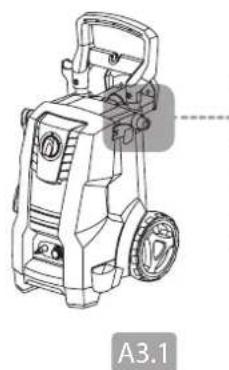

A Unpacking and preparing for use

Follow illustrations in A.

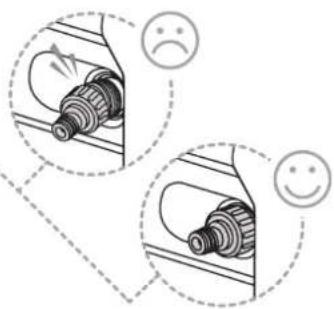

B Connection to potable water mains

High pressure washers are not suitable for connection to the potable water mains. Always check national regulations before connecting the machine to potable water mains and use a back-flow preventer if required.

• Use 12 " garden hose, 10-25 m.
• Follow illustrations in B.

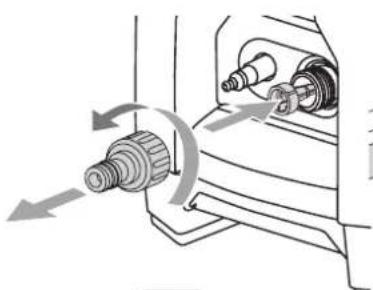

C Connection to other water sources

You can connect the machine to e.g. rain water vessels, rivers, lakes and cisterns etc. and operate it in suction mode. Follow illustrations in C.

D Pairing of spray handle and machine Not relevant.

E Leaving the machine unattended > 5 min.

⚠️ See listed warnings. Follow the illustrations in E.

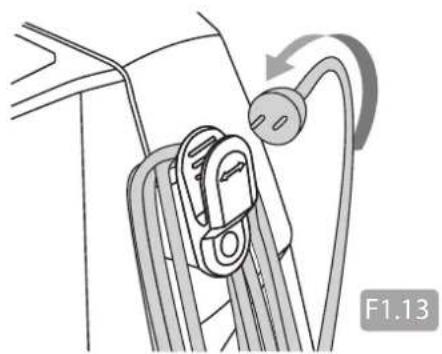

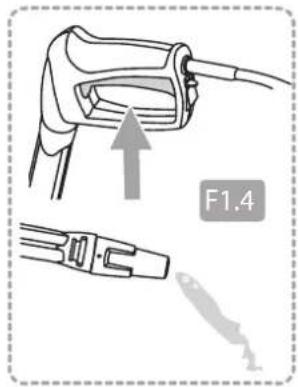

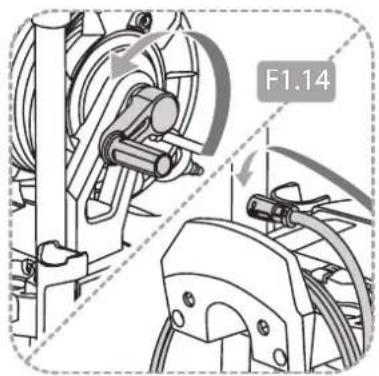

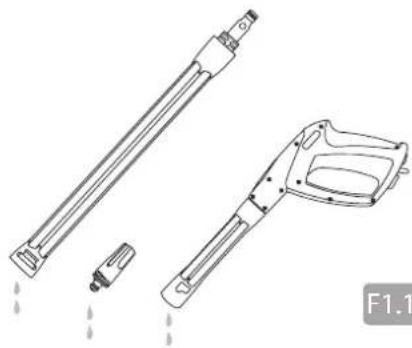

F After use and storage

After use always: Turn off the machine. Empty machine and accessories of water to avoid frost damage. Remove the plug from socket. Disconnect water inlet hose. Wind up electrical cable and high pressure hose to avoid damage of cable, high pressure hose and fittings. Storage of machine shall be frost free.

- Follow illustrations in F.

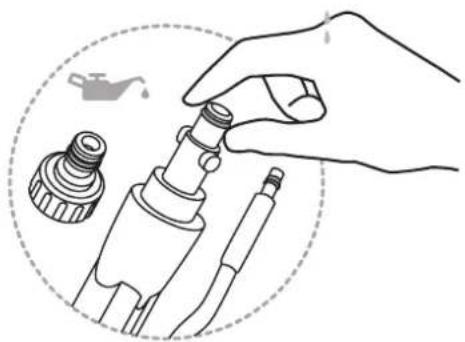

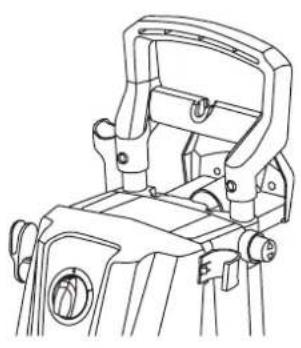

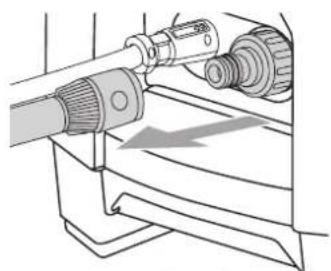

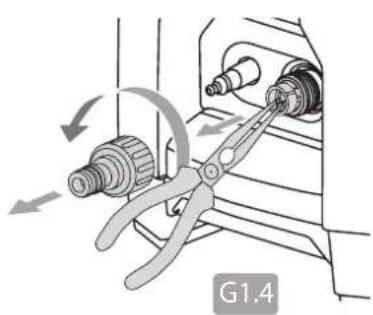

G Maintenance, inspection and repair

Maintenance of the machine should always be done when starting up after long time of storage.

Before use, always inspect the machine and equipment for damages. In case of damages, act according to listed warnings.

Do not attempt any maintenance not described in the instructions. If the machine refuses to start, stops, pulsates, pressure fluctuates, motor buzzes, fuse blows or no water comes out, check Part 3.3 Troubleshooting.

- User maintenance according to illustrations in G.

Part 2:3 User Guide

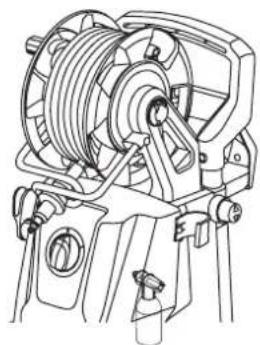

Super 135
Super 145 Works
Super 150
Super 160 Works

Technical line drawing of a mechanical assembly with no visible text or symbols

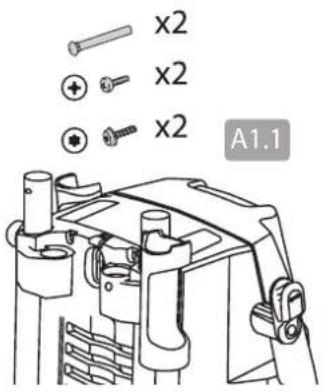

x2 x2 x2 A1.1

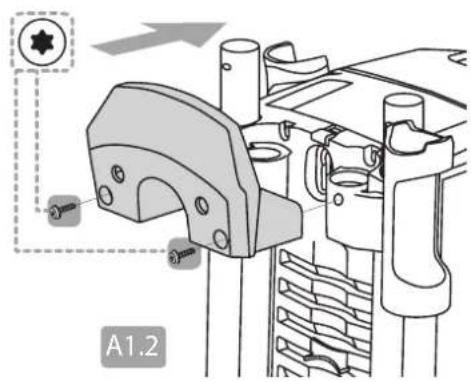

A1.2

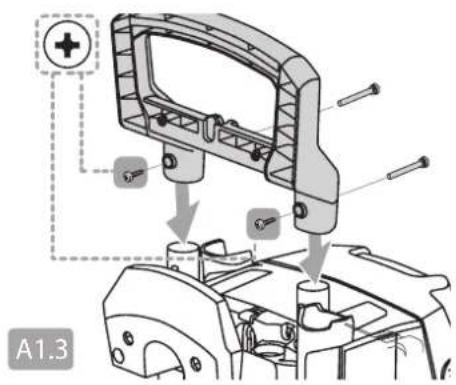

A1.3

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

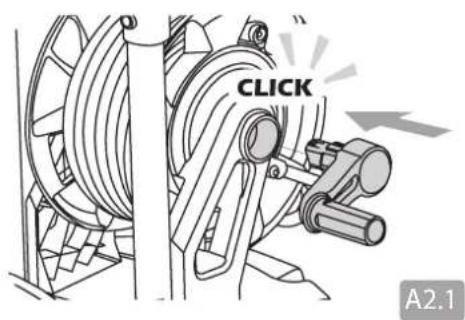

CLICK A2.1

Diagram of a car interior showing a lever and wheel assembly with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

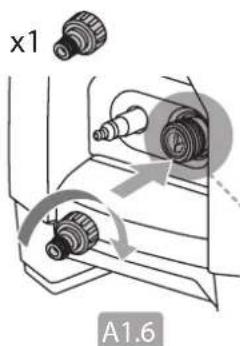

x1 A1.6

Diagram showing mechanical components with sad face and smiling face, no text or symbols present

Line drawing of a water heater device (no text or symbols on the device itself)

Mechanical assembly diagram showing a hand pressing a button on a workbench (no text or symbols visible)

Line drawing of a water heater with bidirectional arrow indicating upward motion (no text or symbols)

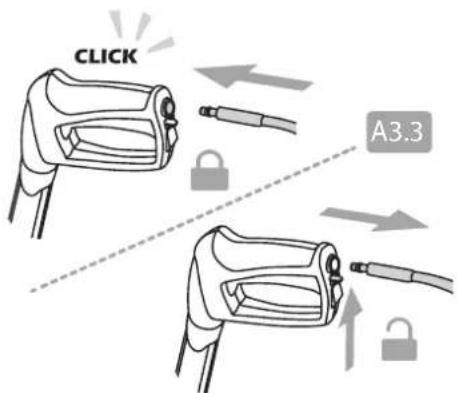

CLICK A3.3

A

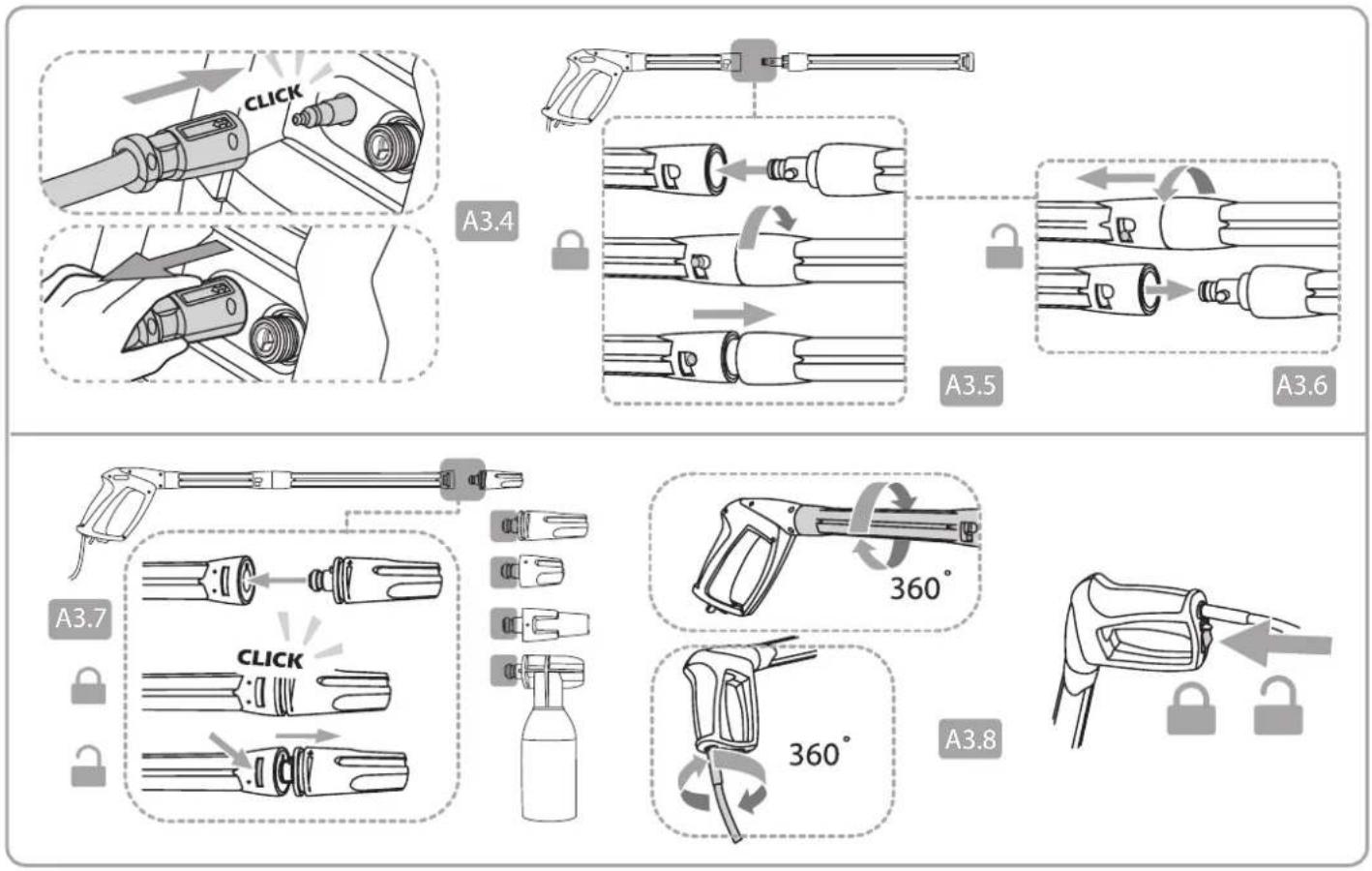

CLICK A3.4 A3.5 A3.6 A3.7 A3.8 360°

B

B

Diagram of a hand holding a tool with a downward arrow indicating force or movement (no text or symbols present)

B1.9

0 I

B1.10

Diagram of a handheld device with an arrow indicating upward motion (no text or symbols present)

B1.11

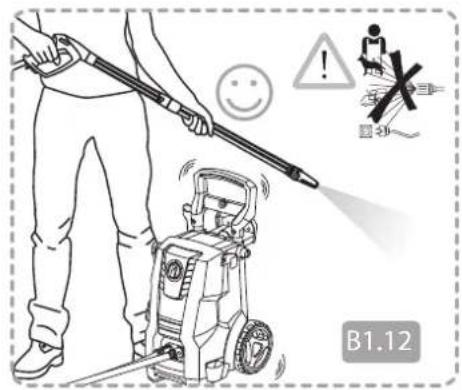

B1.12

Technical line drawing of a mechanical component with no visible text or symbols

B2.1

MPa bar

Technical line drawing of a mechanical component emitting a conical light (no text or symbols)

B2.2

Technical line drawing of a mechanical component with no visible text or symbols

MPa bar

Line drawing of a car with a sad face emoji nearby (no text or symbols)

C

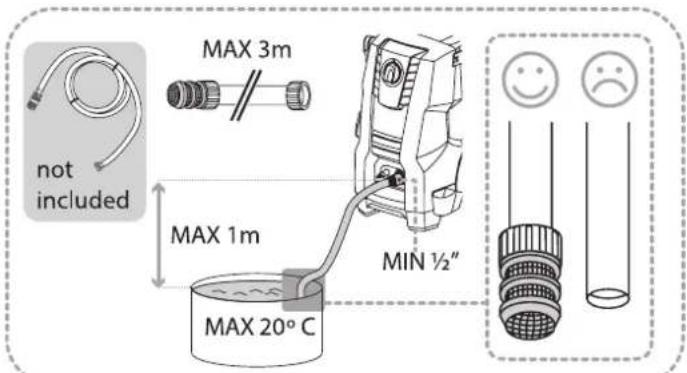

MAX 3m MAX 1m MAX 20°C MIN ½" not included

Mechanical assembly diagram showing gear meshing and rotational motion (no text or symbols)

C1.1

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

C1.2

Line drawing of a mechanical device with a handle and lever (no text or symbols)

C1.3

C1.4

0 I

C1.5

MAX 2 min

C1.6

C

0 1

C1.7

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

C1.8

0 I

C1.9

Line drawing of a handheld device with an upward arrow indicating motion or force (no text or symbols)

C1.10

C1.11

D

Not relevant

E

5min

Illustration of a hand holding a pen with an arrow pointing to a padlock (no text or symbols)

E1.1

0 1

E1.2

E1.3

E1.4

F

Illustration of a faucet with a curved arrow indicating rotation (no text or symbols)

Illustration of faucet, valve, and bulb components with downward arrows indicating flow or movement (no text or symbols)

0 I

Technical illustration of a mechanical component with an arrow indicating force application (no text or symbols)

Line drawing of a person using a tool on a machine, with a smiley face icon above (no text or symbols)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

F1.6

Line drawing of a hand holding a mechanical device with a handle and lever (no text or symbols)

F1.7

0 I

F1.8

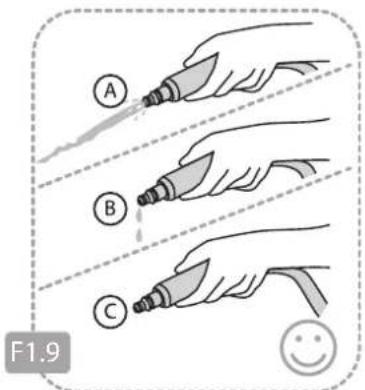

A B C F1.9

0 I

F1.10

Diagram of a mechanical device with a rotating wheel and shaft, showing a downward arrow (no text or symbols)

F1.11

Technical line drawing of a mechanical tool assembly (no text or symbols)

F1.12

Mechanical diagram showing a pulley system with a curved arrow indicating rotational motion (no text or symbols)

Mechanical assembly diagram showing gear and motor components (no text or symbols)

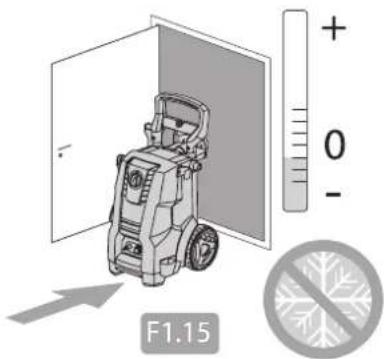

F1.15

G

G1.1 0 I

G1.2

Technical line drawings of mechanical components, including a vertical rod and a handle assembly (no text or symbols)

Illustration of cleaning and cleaning tools including a hand, clean water spray, and a tool (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, labeled G1.4 (no text or symbols on the diagram itself)

Illustration of a faucet with water flowing from a pipe fitting (no text or symbols)

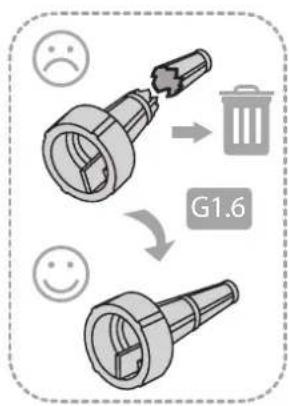

G1.6

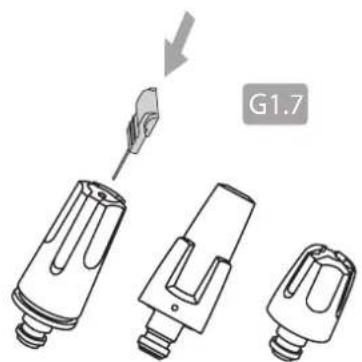

G1.7

Illustration of a hand using a power tool to adjust a component, with an oil drop symbol nearby (no text or labels)

128500382

Water

Suction Kit

Illustration of a coiled hose with a handle, no text or symbols present

128500671

Inlet Water

Suction Hose 3 m

128500385

Click&Clean

Auto Brush

128500386

Click&Clean

Underchassis Nozzle

128500387

Click&Clean

Auto Nozzle

128470460

Multi Brush

(incl. car brush head)

Illustration of a brush and a mechanical component (no text or symbols)

128500464

Car Brush Head

128470462

Rim Brush Head

128500461

Garden Brush Head

128500380

Rotary Brush

28500388

Drain & Tube

Cleaner - 15 m

128500701

Classic Patio

128500976

Power Patio

Part 3:3 - Troubleshooting, Technical Data and Disposal

Troubleshooting

To avoid unnecessary disappointments, you should check the following before contacting the Gerni service organization.

Symptom Cause Recommended action
Machine refuses to start	Machine not plugged inDefective socketFuse has blownDefective extension cable	Plug in machineTry another socket.Replace fuse. Switch off other machines.Try without the extension cable.
Fluctuating pressure Pump	sucking airValves dirty, worn out or stuckPump seals worn out	Check that hoses and connections are airtight.Contact tour local Gerni Service centre.Clean and replace or refer to local Gerni distributor.
Machine stops Fuse has blown	Incorrect mains voltageThermal sensor activated Nozzle partially blocked	Replace fuse. Switch off other machines.Check that the mains voltage corresponds to specification on the model tag.Leave the washer for 5 minutes to cool down.Clean the nozzle (see Part 2.3 User Guide, G)
Fuse blows Fuse too small	Change to an installation higher than the amp. consumption of the machine. You may try without the extension cable.
Machine pulsating	Air in inlet hose/pumpInadequate supply of mains waterNozzle partially blockedWater filter blockedHose kinked	Allow machine to run with open trigger until regular working pressure resumes.Check that the water supply corresponds to specifications required (see model tag)NB! Avoid using long, thin hoses (min. 1/2")Clean the nozzle (see Part 2.3 User Guide, G)Clean the filter (see Part 2.3 User Guide, G)Straighten out hose.
Machine often starts and stops by itself	Pump/spray handle is leaking	Contact your nearest Gerni Service Centre.
Machine starts, but no water comes out	Pump/hoses or accessory frozenNo water supplyWater filter blockedNozzle blocked	Wait for pump/hoses or accessory to thaw.Connect inlet water.Clean the filter (see Part 2.3 User Guide, G)Clean the nozzle (see Part 2.3 User Guide, G)

In case problems other than the above occur, please phone [phone] or check our website www.gerni.com.au for your nearest service agent.

Technical Data

		Super 130.3 Super 135.3		Super 145.3 Works	Super 150.3	Super 160.3 Works
Electric specifications Unom 230-	240 V
	fnom 50 Hz
	Pnom 2.1 kW	2.0 kW 2.1 kW	2.3 kW 2.3 kW
	Inom 9 A 9 A	10.5 A 10A 10.5 A
Protection Class Class I/	Class II	Class I
Protection degree IP XX IP X5
Hydraulic specifications	p_nom	12.5 MPa / 125 bar	12.5 MPa / 125 bar	14.0 MPa / 140 bar	14.5 MPa / 145 bar	14.5 MPa / 145 bar
	p_max	13.0 MPa / 130 bar	13.5 MPa / 135 bar	14.5 MPa / 145 bar	15.0 MPa / 150 bar	16.0 MPa / 160 bar
	Q	7.5 l/min / 450 l/h	7.5 l/min / 450 l/h	6.7 l/min / 402 l/h	6.7 l/min / 410 l/h	6.7 l/min / 410 l/h
	Q_max	8.3 l/min / 500 l/h
Max. water inlet pressure	p_inlet max	1 Mpa / 10 bar
Max water inlet temperature	t_inlet max	40°C
Max water inlet temp. suction mode	t_inlet max	20°C
Kick-back force	F_kickback	< 20N
Weight	M_machine	18 kg	18.6 kg	22.1 kg	20.6 kg	22.1 kg
Hand-arm vibration according to: Standard nozzle	a_ha	< 2.5 ± 1 m/s2
Sound pressure level	LpA-standard	70 ±3 dB(A)				73 ±3 dB(A)
Sound power level	LwA-standard	83 dB(A)				87 dB(A)

We reserve the right to make alterations.

Correct disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Warranty Conditions

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Gerni high pressure washers for domestic use are warranted for 2 years from the date of purchase by:

AUSTRALIA: Nilfisk Pty LTd, Unit 1/13 Bessemer Street, Blacktown NSW 2148, Phone: [phone], E-mail: [e-mail]

Equipment defects covered by this warranty will be repaired or replaced by one of the service centres of the Gerni organisation. Find your local service agent here: http://www.gerni.com.au/. If your high pressure washer or accessories are handed in for repair, it must be followed by a description/specification of the fault, and the original purchase receipt, or a copy, must be enclosed. Packing and postage/carriage is not covered by the warranty. This warranty is provided in addition to the other rights and remedies of the purchaser under the laws in relation to the goods to which the warranty relates. Guarantee repairs are made on the following conditions:

• that defects are attributable to flaws or defects in materials or workmanship (wear and tear as well as misuse are not covered by the guarantee).
• that the directions of the instruction manual have been thoroughly observed.
• that repair has not been carried out or attempted by other than Gerni-trained service staff.
• that only original Gerni accessories have been applied.
• that the product has not been exposed to abuse such as knocks, bumps or frost.
• that only water without any impurities has been used.
• that the high pressure washer has not been used for rental nor used commercially in any other way.

Repairs not covered by the guarantee conditions will be invoiced. (i.e. malfunctions due to Causes mentioned in section Troubleshooting of Part 3:3.

Please phone [phone] (Australia) or 09 9682610 (NZ) for service or warranty assistance only after checking possible causes in Part 3:3.

AUSTRALIA:

Nilfisk Pty Ltd

Unit 1/13 Bessemer Street

Blacktown NSW 2148

Phone: [phone]

E-mail: [e-mail]
