Product Type	Chest Freezer
Model	SCF142WE
Brand	Aldi
Net Capacity	142 Liters
Energy Efficiency Class	E (estimated)
Annual Energy Consumption	Approx. 200 kWh
Freezing Capacity	10 kg / 24h
Temperature Range	-18°C to -24°C
Defrost Type	Manual Defrost
Refrigerant	R600a
Noise Level	41 dB(A)
Climatic Class	SN-N-ST
Dimensions (W x D x H)	54.5 x 60 x 85 cm
Net Weight	30 kg
Power Supply	220-240 V, 50 Hz
Star Rating	4 Stars
Storage Time in Case of Failure	15 hours
Adjustable Thermostat	Yes
Interior Light	No (estimated)
Lock	Yes (with key)
Wheels / Castors	Yes
Defrost Water Drain	Yes
Laundry / Care	Clean with damp cloth, do not use abrasive cleaners
Spare Parts Availability	Contact Aldi customer service

Frequently Asked Questions - SCF142WE Aldi

How do I adjust the temperature on my Aldi SCF142WE freezer?

Use the thermostat dial located inside the freezer. Turn it to a lower number for warmer temperature or a higher number for colder. A setting of 3-4 is usually adequate for normal operation.

How often should I defrost the SCF142WE?

Defrost when ice buildup reaches 5-10 mm thickness. This typically occurs every 6-12 months depending on usage and humidity.

What is the maximum storage time for frozen food?

For best quality, consume frozen food within 3-6 months. The freezer can store food for up to 12 months at -18°C.

Why is my freezer not cooling properly?

Check if the thermostat is set correctly, the door is fully closed, and the condenser coils (back or bottom) are clean. Also ensure the freezer is not overfilled.

How do I clean the freezer?

Unplug the freezer, remove all food, and let it defrost. Wipe interior with a mixture of warm water and mild detergent. Rinse and dry thoroughly before plugging back in.

What does the lock on the SCF142WE do?

The lock secures the lid to prevent unauthorized access. Use the supplied key to lock or unlock. Keep the key in a safe place.

How much electricity does this freezer use?

The SCF142WE has an estimated annual energy consumption of 200 kWh, which translates to around 0.55 kWh per day. Actual usage depends on settings and usage patterns.

Can I use an extension cord with the freezer?

It is not recommended. Plug the freezer directly into a properly grounded outlet. If an extension cord is necessary, use a heavy-duty cord rated for at least 10 amps.

How to replace the door seal?

Contact Aldi customer service for a replacement seal. To replace, remove the old seal by pulling it out of the groove, then press the new one firmly into place.

Where can I find spare parts for the SCF142WE?

Spare parts can be ordered through Aldi customer service or authorized service centers. Refer to the user manual for part numbers.

USER MANUAL SCF142WE Aldi

White stainless steel refrigerator with digital display, set against a blue abstract background (no visible text or symbols)

142L Chest Freezer

Model Number SCF142WE

INSTRUCTION MANUAL

Issue Date: 10/2018IM Vers

Welcome

Congratulations on choosing to buy a STIRLING® product.

All products brought to you by STIRLING® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. We hope you will enjoy using your purchase for many years to come.

Contents

2 Welcome
4 Warranty
5 General Safety Instructions
8 Product Overview
10 Getting Started
10 Installation
11 Using Your Chest Freezer
13 Tips for Using the Appliance
13 Tips for Energy Saving
14 Maintenance and Cleaning
16 FAQs and Troubleshooting
17 Specifications
18 Repair and Refurbished Goods or Parts Notice
19 Warranty Returns

[Non-Text]

ALDI

STIRLING®

142L Chest Freezer

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3 YEAR WARRANTY

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings.

Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. If you sell or transfer ownership of this product, pass on these instructions to the new owner.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

IMPORTANT: Pay particular attention to messages that contain the words DANGER, WARNING or CAUTION. These words are used to alert you to a potential hazard that can seriously injure you and others. The instructions will tell you how to reduce the chance of injury and let you know what can happen if the instructions are not followed.

Warning sign depicting a flame symbol in yellow and black on white background

CAUTION
RISK OF FIRE

This symbol alerts you to take care as this appliance contains a flammable refrigerant (isobutane) and insulation blowing gas (cyclopentane). Do not expose it to high heat, sparks and open flames.

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged.

WARNING: Do not damage the refrigerant circuit! Never use an appliance with a damaged refrigerant circuit! If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.

DANGER: It is hazardous for anyone other than an authorised service person to service this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.

The room for installing the appliance must be at least 1 m^3 per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications on page 17 and on the rating plate, found on the appliance.

Usage Conditions and Restrictions

• Domestic use only: This appliance is intended for indoor household use only. It is not intended for commercial, industrial or outdoor use. It is not intended for use in a recreational vehicle.
• Purpose: Do not use this appliance for anything other than its intended purpose. Other uses are not recommended and may cause fire, electric shock or personal injury.
• Attachments: The use of attachments is not recommended by the appliance manufacturer and distributor as they may be hazardous.
• Improper use: Damage due to improper use, or repairs made by unqualified personnel will void your warranty. We assume no liability for any eventual damages caused by misuse of the product or noncompliance with these instructions.

General Safety Instructions Cont.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Usage restriction: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the appliance. Never allow children to operate, play with or crawl inside the appliance.
• WARNING: Do not use electrical appliances inside the appliance, unless they are of the type recommended by the manufacturer.
• Explosive or flammable substances: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Do not store or use petrol or any other flammable vapours and liquids in the vicinity of this or any other appliance. Do not use such substances for cleaning the appliance. The fumes can create a fire hazard or an explosion.
• Damage: Do not use the appliance if the power cord, plug or the appliance itself is damaged. If the cord is damaged, contact the after sales support line and have the cord replaced by qualified personnel in order to avoid a hazard.
• WARNING: Do not damage the refrigerant circuit.
• Do not modify: Do not attempt to alter or modify this appliance in any way.
• Repair: Do not attempt to repair or replace any part of this appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. Contact the after sales support line for advice.

Electrical Safety

• Voltage: Before connecting and turning on the appliance, ensure the electrical voltage and circuit frequency correspond to that indicated on the appliance rating label.
• Earthing: This appliance should be properly earthed for your safety. The power cord of this appliance is equipped with a three-prong plug for use in standard wall outlets to minimise the possibility of electrical shock. Do not modify the cord and/or plug provided with the appliance. Improper use of the earthed plug can result in the risk of electric shock.
• Connection: This appliance requires a standard 220-240 V AC 50Hz electrical outlet. Do not overload the electrical circuit.
• Power cord: Do not kink or damage the power cord; do not leave it exposed or dangling. Secure it at the back of the appliance so no one steps on or places anything on the cord or against it. Keep the cord out of reach of children. When moving the appliance, make sure not to damage the power cord.
• Auxiliary Items: Do not use an inverter, adaptor or extension cord with this appliance. If the cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension cord and an inverter can negatively affect the performance of the unit.
• Protect from moisture: To protect against the risk of electric shock, do not immerse the unit, cord or plug in water or spray it with any other liquid. Do not connect or disconnect the electric plug when your hands are wet. Turn the power switch off before removing the plug from the socket.
• WARNING: Disconnect! To reduce the risk of fire, electric shock or personal injury, always unplug the appliance from the socket when not in use, when moving and before cleaning or servicing. Never unplug the unit by pulling the power cord. Always grip the plug firmly and pull straight out from the power point.
• Electrical work: Any electrical work required for the installation of this appliance should be carried out by a qualified electrician.

Never use this appliance with a damaged refrigerant circuit! If the coolant circuit becomes damaged, avoid proximity to open fires and all types of heat sources. The room in which the appliance is located should be ventilated for a few minutes.

General Safety Instructions Cont.

Installation

Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two person lift or mechanical aid when installing it. Failure to do so can result in back or other injury.

Damage: When unpacking, check the appliance carefully for damage. If it is damaged, do not install the appliance. Contact our after sales support centre on 1300 43 57 for advice on examination or return of the damaged appliance.

Protect from moisture: Install the appliance in an indoor area protected from wind, rain, water spray or drips.

Protect from heat: Do not install the appliance next to an oven, grill or other source of high heat, or where it will be exposed to direct sunlight for prolonged periods of time.

WARNING: Ventilation: To ensure proper ventilation, keep any ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstructions. Ensure adequate air circulation around the appliance to prevent overheating.

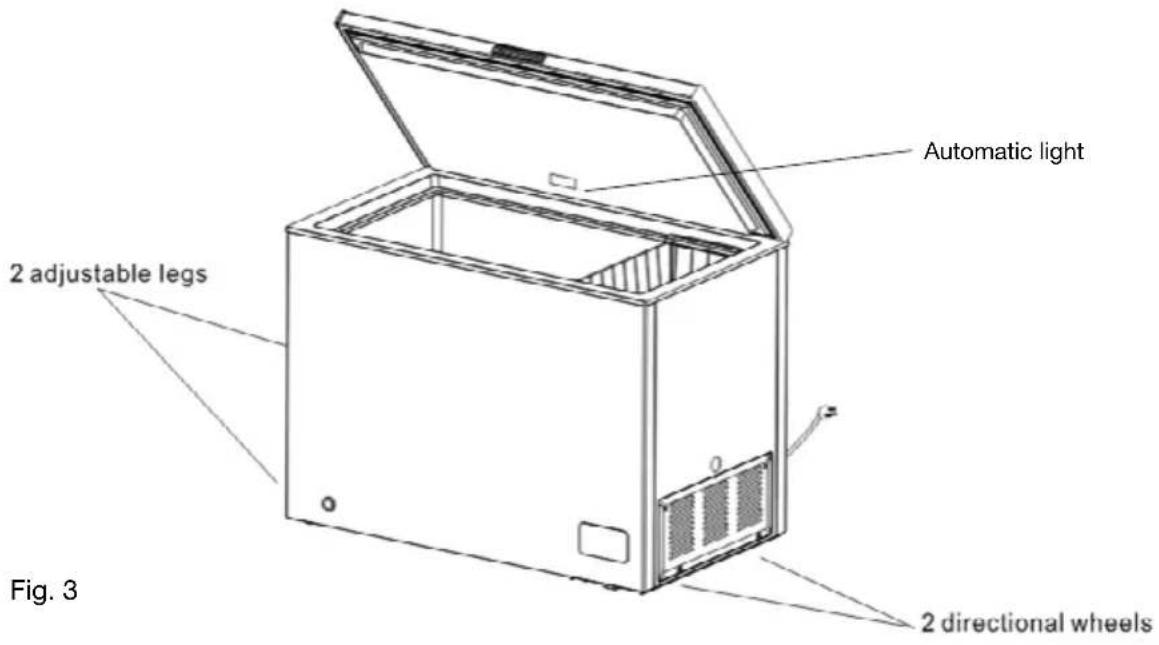

Level: Install the appliance level in order to ensure proper operation.

Cleaning and Maintenance

Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet.

Flames: Do not let open flames or ignition sources enter the appliance.

Flammable/explosive substances: Never clean this appliance with flammable fluids. Do not store or use volatile, flammable or explosive propellants or liquids in or close to this or any other appliance. The fumes can create a fire hazard or explosion.

Solvents: Do not use solvent based cleaning agents or abrasives on the interior as these may damage or discolour the surfaces of the appliances.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process. Never use a sharp or metal instrument to remove frost or clean the appliance. Use a plastic scraper, if necessary.

Service: Do not attempt to repair, modify or replace any part of the appliance unless specifically recommended in this manual. Refer all other servicing to a qualified technician, or contact the after sales support line for advice on examination or repair of the appliance.

Responsible disposal

Note: At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and blowing agent. Contact your municipal authorities for advice on recycling facilities in your area.

WARNING! This refrigeration appliance contains flammable refrigerants and insulation blowing gases, which must be removed before disposal. Contact your municipal authorities for any codes or regulations concerning the disposal of such materials.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Product Overview

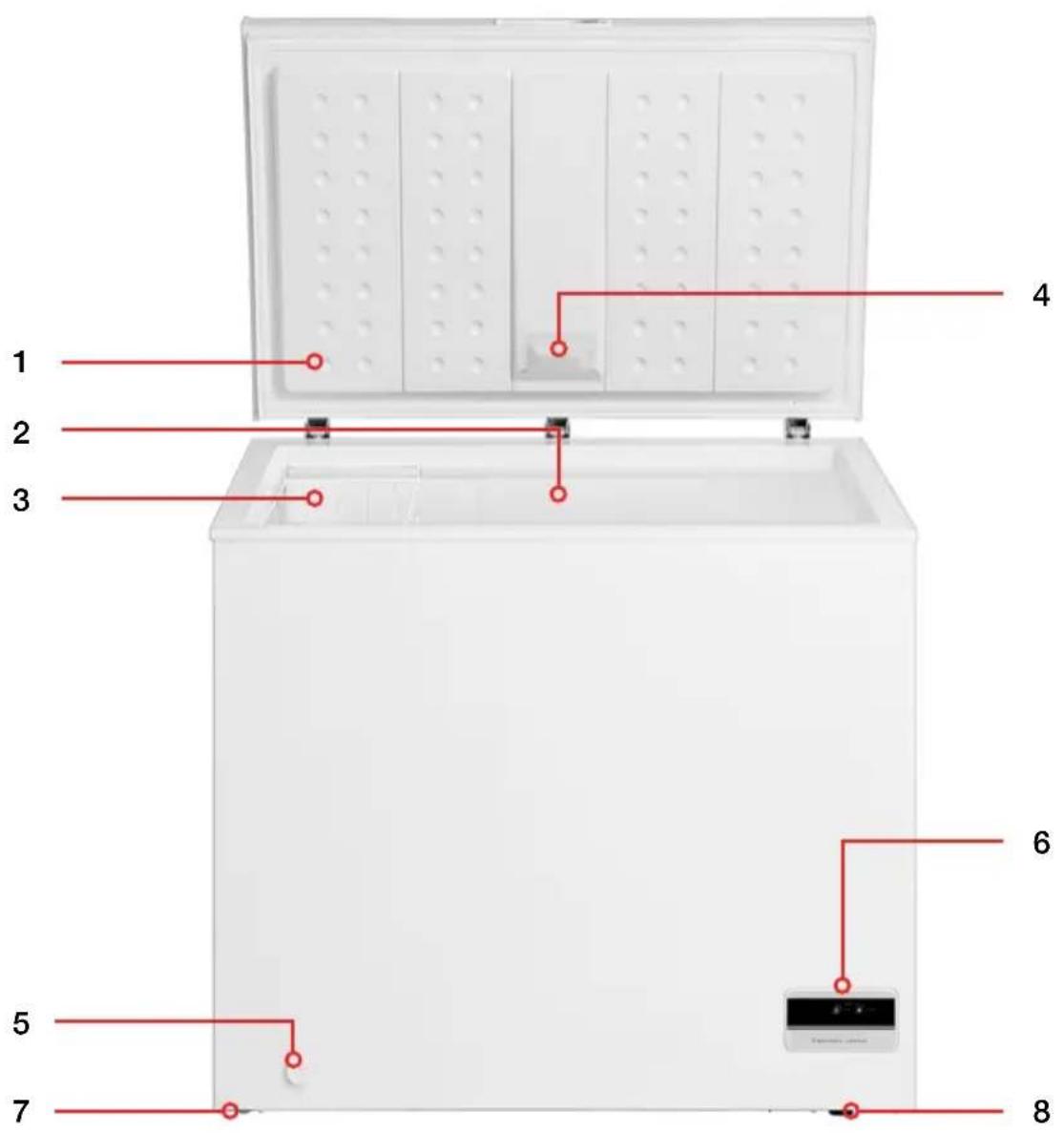

Chest Freezer Layout

1 2 3 4 5 6 7 8

Key:

1. Counter balanced lid
2. Freezer compartment
3. Wire storage basket (removable)
4. Automatic light
5. Drainage hole
6. LED Display & Controls
7. 2 × Adjustable legs (front + back)
8. 2 × wheels (front + back)

Not shown but also included:

• 1 × Instruction manual
• 1 × Quick start guide
• 1 × Warranty certificate

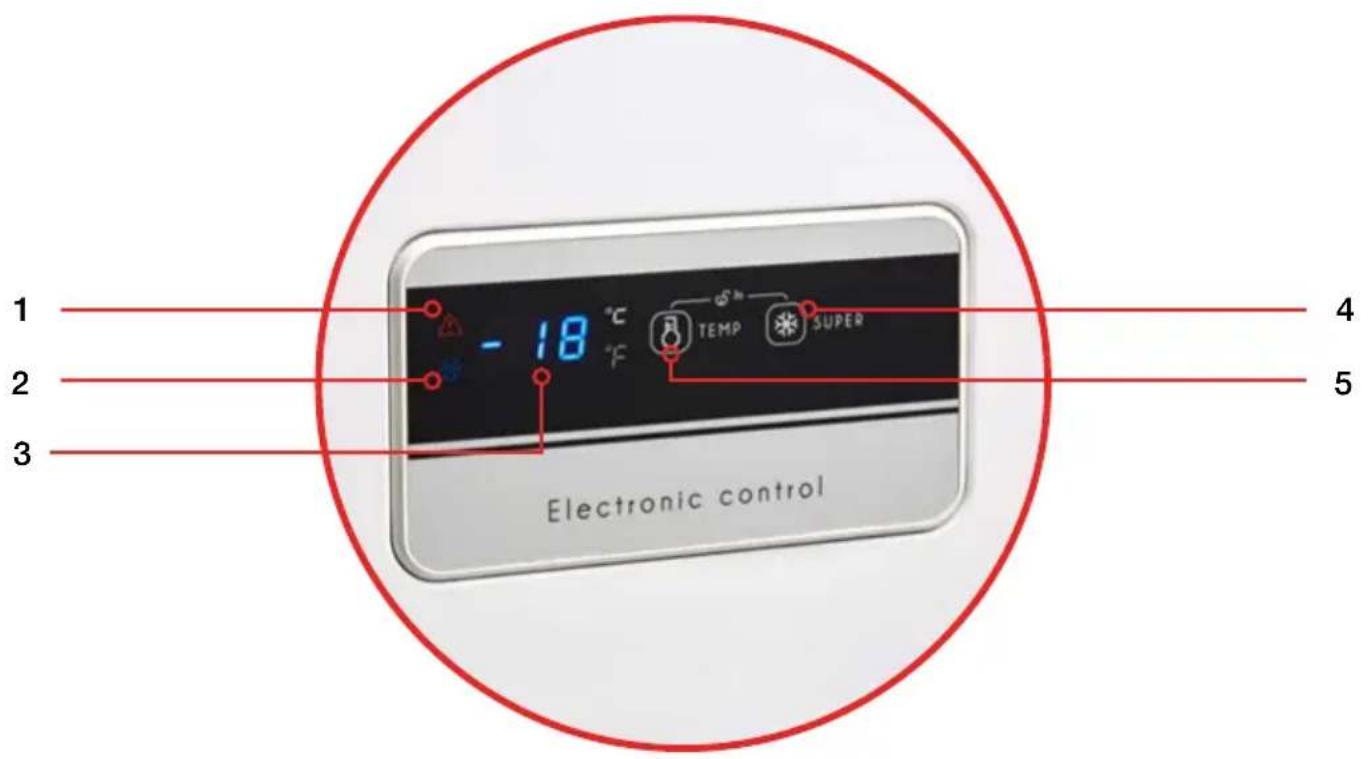

Control Panel Layout

1 2 3 Electronic control 4 5

Key:

1. AlarmLamp

This warns you if the temperature is rising and your food may be spoiled.

2. Quick Freeze Lamp

This indicates that the Quick Freeze function has been activated.

3.LEDDisplay

Displays the set temperature inside the freezer.

4. Quick Freeze Button

Press this to activate or deactivate the Quick Freeze Function.

5. Temperature Adjusting Button

Press the button to set the temperature.

For more details on this, see page 11.

Note.

•TemperatureUnits

Press and hold the Temperature Adjusting button for 3 seconds to change the temperature display units from Celsius to Fahrenheit

Getting Started

Unpacking

• Packaging materials: This appliance has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event the carton is to be disposed of, please recycle all packaging materials where possible.
• Check: to see if all items are present.
• Inspect: the equipment and accessproes for transport damage. In case of complaints, the supplier is to be informed immediately.
• Suffocation: Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
• Power cord: Unwind the power cord to its full length and inspect it for damage. Do not use the appliance if it or its cord have been damaged or are not working properly. In case of damage, contact our after sales support line for advice on examination, repair or return of the damaged product.
• Read the manual: Read this manual to familiarise yourself with the appliance. Pay particular attention to the safety instructions on the previous pages.
• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces of the appliance with lukewarm water and a soft cloth. Dry thoroughly. Important: do not use harsh or abrasive detergents or powders as these will damage the finish.

Installation

• Two person installation: Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
• Freestanding design: This appliance is designed to be freestanding only, and should not be recessed or built-in.
• Floor surface: This appliance must be properly positioned on a dry, sturdy, level surface that is strong enough to support it when it is fully loaded.
• Ambient temperature: The ambient temperatures must correspond to the climate class (T) indicated on the rating plate of the appliance: 16° C – 43° C.
• Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. Allow at least 12cm clear space at the back and 5cm at the sides of the unit.
• Wall Units Above: Ideally, the appliance should not be positioned below overhanging wall units. However, if the appliance must be positioned below an overhanging wall unit, make sure to allow sufficient room so you can comfortably open the lid and access the contents.

Do NOT install/use the appliance in the following locations/situations:

• In moist areas or areas of high humidity.
• In a recreational vehicle, or for use with an inverter.
• In direct sunlight, near heat sources, next to an open flame, cooking or heating appliance, or near any other source of high heat.
• Direct sunlight may affect the acrylic coating and heat sources may increase the unit's power consumption. For best energy efficiency install the appliance in the coolest area of the room.
• In an area with extreme cold ambient temperatures.
• In an area with excessive moisture and high humidity. Make sure it is protected from elements such as wind, rain, water spray or drips.
• In an area where petrol or other explosive and/or flammable liquids or fumes are used or stored. The fumes can create a fire hazard or explosion.

Electrical connection

• WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.
• Before plugging in your new freezer, let it stand upright for at least 2 hours. This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system.
• The appliance must be earthed. The plug of the power supply cord is equipped with a contact for this purpose. Do not under any circumstances cut or remove the third (earth) prong from the power cord. If the plug does not fit your outlet, consult a licensed electrician for advice to have the outlet changed.
• Plug the unit into a dedicated, properly earthed wall outlet. Ensure that your outlet voltage and circuit frequency correspond to the voltage stated on the rating label.
• Secure the freezer's supply cord behind the unit. Do not leave it exposed or dangling to prevent injury and accidental disconnection from the power supply.
• Adjust the temperature control as described below.
• When first starting up, and after a period out of use, allow the unit to cool down for at least 2–3 hours (4 hours if starting up during warm weather in summer) before placing food in the freezer.

Using Your Chest Freezer

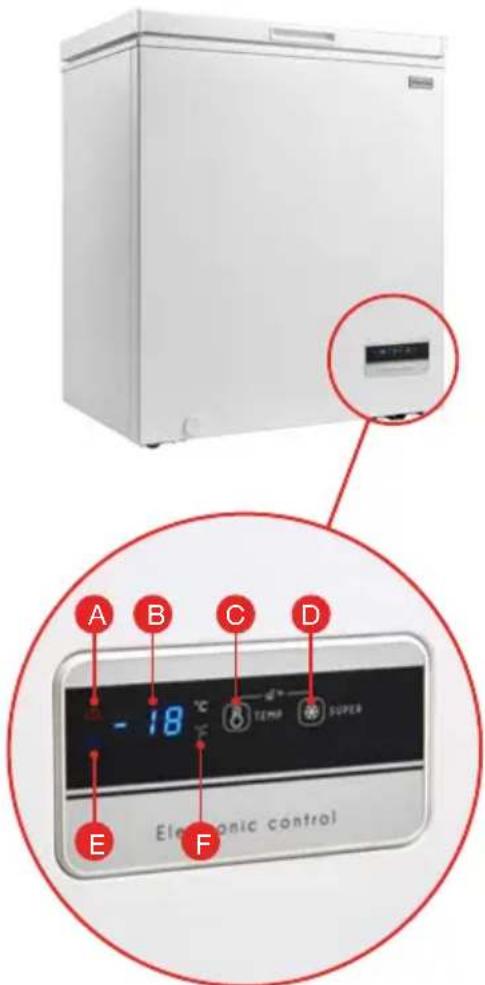

The temperature control is located at the front of the freezer cabinet, in the bottom right corner (Fig.1).

• Display: When powering on the freezer, the display window (Fig. 1, B) illuminates fully for 3 seconds before entering into 'normal' display showing the default temperature: -18^ ( 0^ ). If no error occurs the display panel shows the set temperature or mode (if an error has occurred, the code will show in the display).
• Locking: Press the Temperature Adjustment button (Fig. 1, C) and the Quick Freeze button (Fig. 1, D) for 3 seconds at the same time. The display will flash for several seconds and the controls will be locked.
• Unlocking: Press the Temperature Adjustment button (Fig. 1, C) and the Quick Freeze button (Fig. 1, D) for 3 seconds at the same time. The controls will exit locked mode, and the temperature can be adjusted.

NOTE: If any functions are attempted while the unit is locked, the display will flash for 3 seconds, signaling an invalid operation.

- Swapping between Celsius and Fahrenheit: Press the Temperature Adjustment button (Fig. 1, C) for 3 seconds and the unit of measurement (Fig. 1, F) will swap.

A B C D - 18 °C TEMP SUPER E F Electronic control

Fig. 1

Using Your Chest Freezer Cont.

• Swapping the Unit from Freezer to Fridge: While in freezer mode, press the Temperature Adjustment button (Fig. 1, C) until the display shows -24°C / -11°F. Pressing the Temperature Adjustment button (Fig. 1, C) again will convert the freezer into a fridge and the display will show 1°C / 34°F.
• Swapping the Unit from Fridge to Freezer: While in fridge mode, press the Temperature Adjustment button (Fig. 1, C) until the display shows 10^ / 50^ . Pressing the Temperature Adjustment button (Fig. 1, C) again will convert the fridge into a freezer and the display will show -12^ / 10^ .
• Adjusting the Temperature while in Freezer mode: Press the Temperature Adjustment button (Fig. 1, C) to change the set temperature. For each press of the button, the set temperature will drop by -1^ / ^ .
• Adjusting the Temperature while in Fridge mode: Press the Temperature Adjustment button (Fig. 1, C) to change the set temperature. For each press of the button, the set temperature will go up by 1^ C / ^ F .

NOTE: The unit may not work at the set temperature on particularly hot days, or if the lid is opened too frequently. To ensure efficient operation, do not open the lid unnecessarily or for prolonged periods of time.

NOTE: When the unit is set to -24^ C / -11^ F, the compressor will continuously run.

IMPORTANT: Once the unit has started, continuous operation is recommended. Please try and avoid turning the unit off and on as this may affect the service life.

- Quick Freeze Mode: To enter Quick Freeze Mode press the Quick Freeze button (Fig. 1, D). The Quick Freeze indicator light will light up (Fig. 1, E). To exit Quick Freeze Mode, press the Quick Freeze button (Fig. 1, D). The Quick Freeze indicator light will then go out.

NOTE: If running in Quick Freeze Mode for a continuous 24 hours, the unit will automatically exit the mode as a safeguard.

• High Temperature Alarm: The High Temperature indicator light (Fig. 1, A) will illuminate if the unit rises above a set temperature and your food may be at risk of spoiling. This may be caused by the lid not being closed properly, by a fault in the unit or a number of other causes. Please contact our after sales support on 1300 11 43 57 if this is an issue you cannot resolve.
• Power Off Memory: In case of power failure, the previous settings will be memorised until the power returns.
• Failure Code: When the failure code E2 appears on the display screen it means that the temperature sensor has failed. Please contact the after sales support on 1300 11 43 57.

Tips for Using the Appliance

• Do not store food uncovered in the freezer. Always use good quality, freezer-proof packaging to maintain food quality. Remove air from packages of solid food and seal bags tightly before freezing.
• Keep portions small to ensure they are frozen (and subsequently defrosted) rapidly.
• Make sure that fresh, unfrozen food packages do not touch food that is already frozen, thus avoiding a temperature rise in the frozen food.
• When freezing food, do not push food together too much, leave some space for air to circulate around each item. Do not place packages directly against the back wall.
• When buying frozen food, only buy quantities that you can store straight away; use an insulated container for your shopping and when you get home, place the food in the freezer immediately.
• When storing pre-packed, commercially frozen food, follow the food manufacturer's instructions for storing the food in a home freezer. Do not exceed any storage times listed on the packaging.
• Once you have opened a packet of frozen food, re-wrap it airtight to prevent surface evaporation which causes drying or freezer burn.
• Do not place carbonated liquids such as bottles of fizzy drink in the freezer as the container could explode under pressure and damage the freezer.
• Do not refreeze food once it has been defrosted.
• Frozen food which has thawed accidentally should either be used immediately or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted, it may be cooked and then refrozen.
• CAUTION! Do not remove items from the freezer if your hands are damp or wet as this could cause skin abrasions.

Tips for Energy Saving

• The appliance should be placed in the coolest area of the room, away from heat producing appliances or heating ducts. Please avoid placement in direct sunlight.
• Let hot foods cool to room temperature before placing them in the appliance.
• Do not overload the appliance with unfrozen food as this may cause it to freeze slowly and risk food spoilage.
• Be sure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts down on frost building up inside in the unit.
• Please do not wrap items in aluminium foil, wax paper or paper towel. This materials interfere with cold air circulation, making the appliance less efficient.
• Organise and label food to reduce door openings and extended searches. Remove as many items as needed at one time, ensuring the unit is opened as few times as possible.

Maintenance and Cleaning

Defrosting

The chest freezer requires manual defrost. For efficient operation and minimum energy consumption, defrost the freezer compartment when the frost on the freezer walls is building up. Do not let frost build up to more than 3–4mm thickness. For efficiency, choose a time when your stock of frozen food is low.

• Unplug the freezer and open the door. Remove the food and storage basket. (Keep any frozen food temporarily in a fridge or cooler bag to keep defrosting to a minimum.)
• During defrosting, any ice and frost that has accumulated will melt into the freezer cabinet. To drain the water, open the drainage hole (Fig. 2). When the ice softens, an ice scraper can be used to help speed up the process.

White refrigerator with a red circular mark on the front door (no visible text or symbols)

Fig. 2

Cleaning

WARNING

Before cleaning the appliance, make sure it is switched off and disconnected from the power supply.

Failure to do so can result in electric shock or injury.

• Wash the inside surfaces and the interior accessories with a damp, warm cloth moistened in a water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 1 litre of water. Rinse and wipe dry with a soft cloth.
• Clean the outside of the unit with a damp, well wrung out cloth, keeping the area of the controls dry. Keep the lid gasket (seal) clean.
• Never use boiling water to accelerate defrosting as it may damage the plastic components.
• Regularly check the drain in the freezer for defrost water. If necessary, clean the drain. If the drain is blocked, water will collect in the base of the appliance.
  • After cleaning/defrosting, push the drain plug in and also re-plug the drain plug inside the freezer cabinet.
  • After everything is dry, place appliance back into service.
• Allow approximately 1–2 hours for the cabinet to cool down again (depending on the length of time the freezer was disconnected from the power).

WARNING

Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent. Never use flammable fluids or sprays for cleaning as the fumes from these substances can create a fire hazard or Explosion.

Maintentance and Cleaning Cont.

Interior light

This chest freezer has an interior LED light bulb built into the lid (Fig. 3). It alights and extinguishes automatically when the lid is opened and closed. If the light bulb needs replacing, contact our after sales support on 1300 11 4357 to book a service call. The light bulb can only be replaced by properly qualified service personnel.

Service, repair and spare parts

Do not attempt to alter or modify this appliance in any way, or to repair or replace any part unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician. Contact our after sales support on 1300 11 43 57 for advice.

Our after sales support centre stocks a selection of spare parts for the STIRLING 142L Chest Freezer. To enquire about purchasing a part, call us on 1300 11 43 57 or email [e-mail]

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimise the number of times the door is opened. If the power is going to be off for a longer period of time, take proper steps to protect the contents.

Levelling the Unit

The appliance has 2 adjustable legs and 2 directional wheels. (Fig. 3)

Automatic light 2 adjustable legs Fig. 3 2 directional wheels

To adjust the height of the legs:

• Turn the adjustable leg clockwise to raise the chest freezer. (Fig. 4)
• Turn the adjustable leg anti-clockwise to lower the chest freezer. (Fig. 4)

Pure mechanical diagram showing a lever and curved arrows without any text or symbols

Fig. 4

FAQs & Troubleshooting

Problem Possible Cause Possible Solution
The appliance does not operate.	The appliance is not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.	Plug in the appliance.Turn on power point.Reset circuit breaker/replace fuse.
The appliance is not cold enough.	Check the temperature control setting.The door is opened too often, or is kept open for too long; the door is not closed completely; hot food has been placed inside.The appliance has recently been disconnected for a period of time.	Reduce the temperature.Do not open door for 2+ hours; Check that the door is closed properly and for any obstructions preventing the door closing properly; Remove hot food and let it cool first before replacing it.Plug in the appliance.
The appliance has an odd odour.	Food may not be wrapped properly.Food may be rotten.The interior may not be clean.	Check that the food is wrapped tightly.Check for rotten food and remove.Clean the interior of the appliance.
The internal light does not illuminate.	The appliance is not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.The light is damaged.	Plug in the appliance.Turn on power point.Reset circuit breaker/replace fuse.Please contact after sales support.
The door will not close properly.	The appliance is not level.The gasket is dirty.Food is stacked too high.	Level the appliance.Clean gasket with warm water and a soft cloth.Re-position food so it does not obstruct.
The door is difficult to open.	A difference in pressure between the air inside and outside of the unit.	This is a normal phenomenon and cannot be avoided.
Moisture forms on the inside freezer walls.	Hot and humid weather increases the internal rate of frost build-up.The lid is slightly open.The lid is kept open too long, or is opened too frequently.	This is normal.Close the lid.Open the lid less often
Moisture forms on the outside of the appliance.	The lid is slightly open, causing cold air from inside the freezer to meet warm, moist air from the outside.	Close the lid or check for obstructions.
There are vibrations.	The appliance is not level.The floor is uneven or weak.The freezer is touching the wall.	Level the appliance.Be sure your floor can adequately support the freezer.Move the appliance away from the wall and check it is level.

Specifications

Product Dimensions: W: 730mm, D: 523mm, H: 850mm

Weight: 29.8kg (Net) / 32.8kg (Gross)

Gross Capacity: 142L

Other Features:

142 litre gross capacity, Electronic thermostat control (not mechanical), Fridge/freezer interchangable, High temperature alarm, Quick Freeze function, Anti-condensation technology, Silent hinge, Removable wire storage basket, Automatic interior LED lighting, Defrost drain system, Digital temperature control

Energy Rating: 3.5 Stars MEPS

Standards

This product complies with AS/NZS 60335.1 and AS/NZS 60335.2.24 electrical safety, and with EN 55014-1:2006+A1:2009+A2:2011 for electromagnetic compatibility.

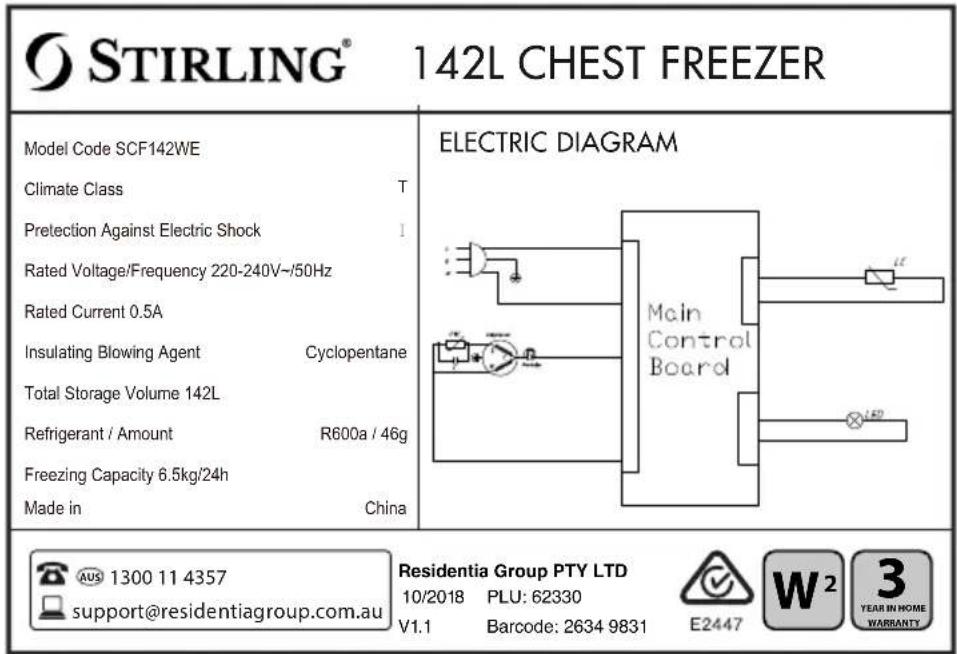

Rating Label

STIRLING® 142L CHEST FREEZER Model Code SCF142WE Climate Class T Pretection Against Electric Shock I Rated Voltage/Frequency 220-240V-/50Hz Rated Current 0.5A Insulating Blowing Agent Cyclopentane Total Storage Volume 142L Refrigerant / Amount R600a / 46g Freezing Capacity 6.5kg/24h Made in China ELECTRIC DIAGRAM Main Control Board AUS 1300 11 4357 [e-mail] Residentia Group PTY LTD 10/2018 PLU: 62330 V1.1 Barcode: 2634 9831 E2447 W² 3 YEAR IN HOME WARRANTY

HEAVY 16.1 to 40kg CONSIDER Two person lift or mechanical aid CAUTION

CAUTION: Due to the weight of this product, it is advised that two people or a mechanical aid when lifting to avoid muscle strain or back injury. If lifting, proper lifting techniques when removing or replacing are necessary.

STIRLING®

60cm/20cm Gangor Rangehood

Repair and Refurbished Goods or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.

We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 11 43 57 or write to us at:

Residentia Group

118 Campbell Street

Collingwood VIC 3066

Australia

Email: [e-mail]

Helpline hours of operation:

Mon-Fri

9:00 AM - 5:00 PM

3 YEAR WARRANTY

Icon showing a person reading a book with an exclamation mark symbol (no text or numbers present)

Please read the manual

It will help you get the best out of your product.

Still have questions?

Call After Sales Support

1300 11 4357

Or visit

www.residentiagroup.com.au

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 11 4357.

For an electronic copy of this manual, go to www.stirlingappliances.com.au and download a copy.

This page is intentionally left blank
