Product Type	Color Video Camera for Surveillance
Model	LCB5100-BN / LCB5100-BP (NTSC/PAL)
Image Sensor	1/3 Type Exview HAD II CCD
Horizontal Resolution	650 TV Lines (Color), 700 TV Lines (B/W)
Minimum Illumination	0.03 lx (Sens-up Off), 0.0003 lx (Sens-up Auto)
Lens Mount	C/CS Mount
Video Output	1 Vp-p Composite (75 Ω), BNC
Power Supply	DC 12 V / AC 24 V (240 mA)
Power Consumption	240 mA
Dimensions (W x H x D)	68.6 mm x 54.0 mm x 121.5 mm
Weight	362 g
Sync System	Internal / Line Lock
White Balance	ATW, AUTO, AWC→SET KEY, MANUAL
Exposure Control	ALC / ELC
Day & Night	Digital (AUTO / DAY / NIGHT)
Backlight Compensation	BLC / HSBLC / OFF
Motion Detection	8 Zones
Privacy Masking	14 Mask Zones
3D-DNR (Noise Reduction)	0–100 Adjustable
Digital Zoom	Up to x16
Digital Effects	Mirror, V-Flip, Rotate
Control Method	Coaxial Communication
Operating Temperature	-10°C to 50°C (0% RH to 80% RH)
Storage Temperature	-20°C to 60°C (0% RH to 85% RH)
Safety Compliance	FCC Part 15 Class A
Cleaning Instructions	Use dry soft cloth; blower for lens; avoid solvents

Frequently Asked Questions - LCB5100 LG

How do I connect power to the camera?

Connect the power cable to the POWER terminal. The camera accepts DC 12 V or AC 24 V (Class 2 only). Ensure the power adapter is certified and complies with LPS. Strip the insulation, attach terminal tips, and connect to a suitable power source.

How do I adjust the flange-back for lens focus?

Loosen the flange-back fixing lever, then move the flange-back adjustment lever up or down while watching the monitor until the image is in focus. Tighten the lever once focused. This is needed for lenses without a focus mechanism.

How do I set a privacy mask?

Go to the PRIVACY MASK menu and set it to ON. Choose between RECTANGLE, CIRCLE, or POLYGON shapes. You can adjust position, size, and display type (MOZAIC, COLOR1-8) for each mask up to 14 zones.

What type of lens does the camera support?

The camera supports C/CS mount lenses. For C-mount lenses, a C-mount adapter (optional) is required. Auto-iris lenses with DC control are supported; connect the lens plug to the LENS connector.

How should I clean the camera lens and body?

For the lens, use a blower to remove dust. For the body, use a dry soft cloth. If very dirty, dampen the cloth with a mild neutral detergent and wipe dry. Avoid thinners, alcohol, benzene, or insecticides.

What should I do if there is no video output?

Check that the camera is powered (power indicator should light). Verify the video cable is connected to the VIDEO OUT BNC connector and the display device. If still no video, try a factory reset or contact service.

How do I reset the camera to factory settings?

Enter the SYSTEM menu from the main OSD. Select FACTORY RESET and press SET to confirm. All settings will revert to defaults.

Can the camera be used outdoors?

The camera is designed for indoor use but can operate in temperatures from -10°C to 50°C and humidity up to 80% RH. It is not weatherproof; protect it from rain, moisture, and direct exposure.

How do I set up motion detection?

In the MOTION DET menu, set it to ON. Then go to AREA SETUP to define up to 8 detection zones. Adjust POSITION, SIZE, and SENSITIVITY for each zone. You can also enable alarm output.

What is the digital zoom feature?

The D-ZOOM function provides up to x16 digital zoom. Enable it in the SPECIAL menu, then adjust ZOOM, PAN, and TILT to zoom and move the view. Note that digital zoom reduces image quality.

USER MANUAL LCB5100 LG

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

LCB5100-BN

LCB5100-BP

LCB5100 Series

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

- A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

Warning: Do not install this equipment in a confined space such as a bookcase or similar unit.

Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

Warning: The product has been dropped or the case is broken, turn off the power and unplug the power cord. (This may cause fire, electric shock, or injury.)

Warning: If the product has no video out or sound, please stop using. Unplug the power cable immediately and contact the service center. (This may cause fire or electric shock.)

Caution: This installation should be made by a qualified service person and should conform to all local codes.

Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution: Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.

To disconnect power from mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC and 2011/65/EU.

European Standards Centre:

Krijgsman 1, 1186 DM Amstelveen The Netherlands

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

1. Only use attachments/accessories specified by the manufacturer.
2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Cautions for Safe Operation

Power Supply

This camera must always be operated DC 12 V or AC 24 V. Certified/Listed Adaptor which comply with LPS.

Handling of the unit

Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to get cause of fire or electric shock.

• Remove dust or dirt on the surface of the lens with a blower.
• Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small quantity of neutral detergent then wipe dry.
• Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They may damage the surface finish and/or impair the operation of the camera.

Operating and storage location

Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid operating or storing the unit in the following locations.

• Extremely hot or cold places (operating temperature -10 °C to 50 °C, however, we recommend that the unit be used within a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

Contents

Features......8

Part Names and Functions 9

Connections 11

Precautions....11

Connection Overview....11

Connecting Display device 12

Connecting Power Source....12

Mounting the Lens....13

Flange-back Adjustment 15

Mounting the camera....16

Menu Operation.... 17

OSD Menu control buttons....17

OSD Menu Overview....18

General Operation....20

Exposure Settings....20

White Balance settings 24

Day & Night Setting 25

Motion Detection Setting......26

3D-DNR Setting....27

Privacy Mask Setting 28

Special Menu Settings 29

SYSTEM Setting 33

Specification 34

Features

This Color Video Camera is designed for installation in a video surveillance system.

This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance system.

Should you require any technical assistance, please contact authorized service center.

• High resolution and high sensitivity with a 6 mm (1/3 Type) Exview HAD II CCD.
• Automatically switch between DC 12 V and AC 24 V.
• Smart motion detector.

Part Names and Functions

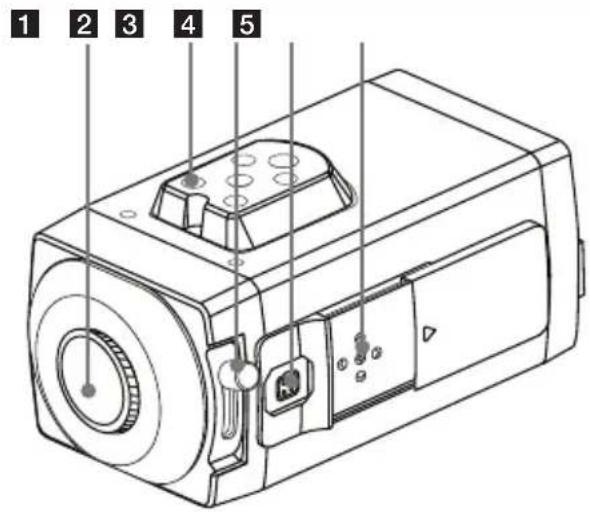

1 Lens mount cap

The lens mount of the camera is covered using a cap to protect it. Remove the lens cap covering the lens.

2 Camera installation bracket

The bracket can be fixed at the top or bottom of the camera.

3 Flange-back adjustment lever

4 Lens iris output connector (LENS)

This 4-pin connector is used to send the Iris control signal and power supply to an auto-iris type lens.

5 Setup menu control buttons

Use these buttons to set the menu options.

Part Names and Functions

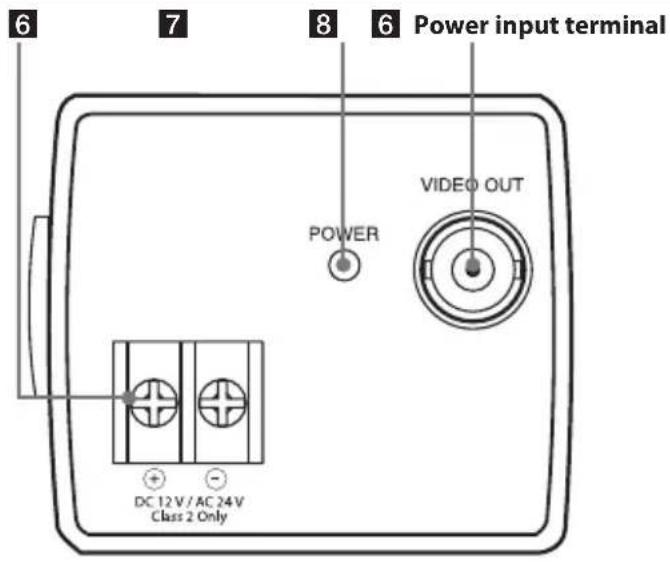

Supplies AC 24 V or DC 12 V from an external power source.

7 Power indicator

Lights when the camera is powered.

8 Video output connector (BNC type)

Supplies analog video signal (composite) to the connected device such as a DVR or monitor.

Connections

Precautions

• Be sure to switch off the unit before installation and connection.
  • A qualified service person, complying with all applicable codes, should perform all required hardware installation.
  • Do not expose the power and connection cable to moisture, which may cause damage to the unit.

Connection Overview

Connections

Connecting Display device

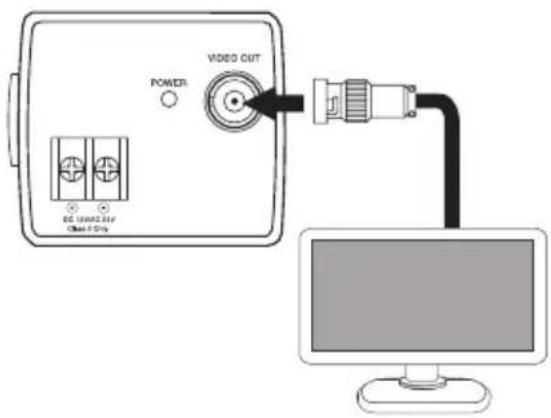

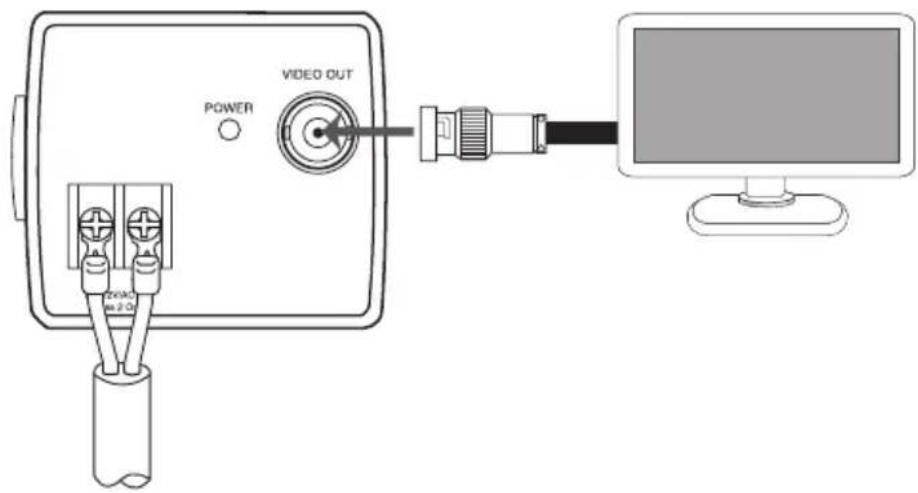

The video signal connection between the camera and the monitor.

Connecting Power Source

Connect power, using the method listed below:

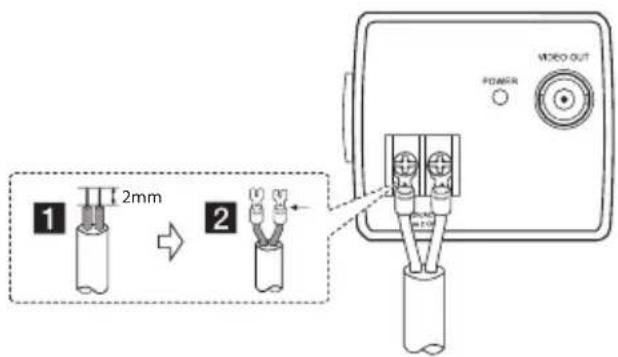

1. Remove the insulation on the power cable as illustrated. (1)
2. Attach the terminal tips. (2)
3. Connect the power source. (recommended power adapter is AC 24 V/0.5 A, DC 12 V/0.5 A or above)

Connections

Mounting the Lens

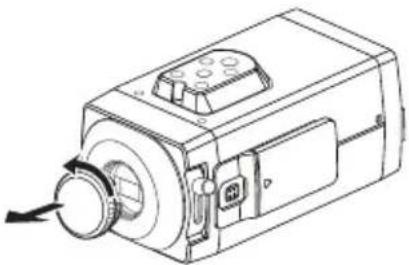

1. Remove the lens mount cap from the camera.

Technical line drawing of a mechanical device with no visible text or symbols

1. Install the auto-iris lens.

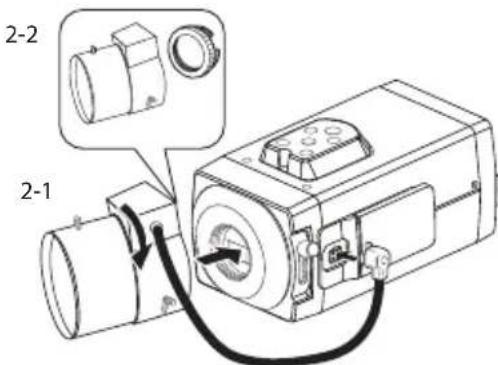

2-1. CS mount type lens

Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.

2-2. C mount type lens

To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount, then carefully align the lens mount with the camera opening and turn the lens slowly to install it.

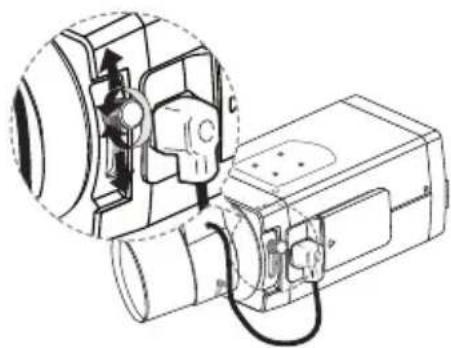

1. Connect the lens plug to the lens iris output connector (LENS) on the side of the camera.

When using lenses from other makers, the plug shape may not correspond to the terminal on the camera.

In such a case, remove the original plug and using a soldering iron, connect a lens iris plug according to the diagram.

Note:

Turn off the camera essentially before the lens connection or replacement.

Connections

Lens iris output connector

Pin layout for the lens iris output connector.

No. DC type lenses

1 Damping -

2 Damping +

3 Drive +

4 Drive -

Rewire the lens iris plug

1. Cut off the plug of the lens cable, cut off approximately 8 mm of the insulation, and then strip approximately 2 mm of the ends of the cable sheaths.

1. Solder the ends of the cable wires to the ends of the pins, and then attach the cover of the lens iris plug.

Diagram showing two connected electrical connectors with arrows indicating assembly or transformation (no text or symbols)

Connections

Flange-back Adjustment

The adjustment is required only when a lens without focus-adjusting mechanism is mounted, or when a lens with adjusting mechanism is mounted and focus that is more accurate is needed.

1. Loosen the flange-back fixing lever.
2. Up and down the flange-back adjusting lever to obtain a focused point while watching the monitor screen.
3. Tighten the flange-back fixing lever.

Note:

The object may be out of focus when using a source of near-infrared light than using the visible light.

Technical line drawing of a mechanical device with internal components and a magnified inset showing a rotating component (no text or symbols)

Connections

Mounting the camera

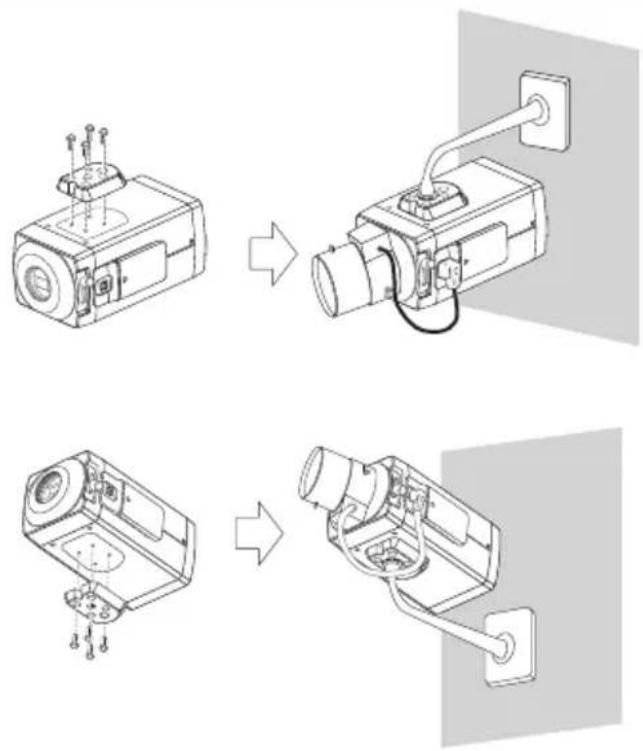

The mounting bracket can be secured on either the top or bottom of the camera. Use the same set of screws to attach the mounting bracket on the camera.

Note:

If using a camera mounting bracket, select a location that is strong enough to bear the full weight of the camera and the mounting bracket for long periods, and install the camera and mounting bracket securely.

Menu Operation

OSD Menu control buttons

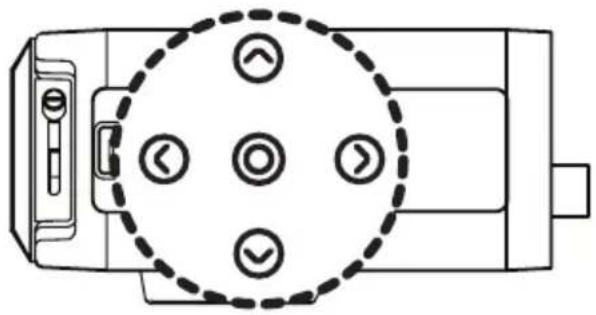

This camera utilizes an on-screen user MENU. To set items on the menu, use the following buttons.

Top-down schematic of a device housing with six circular buttons and directional arrows (no text or labels)

BUTTON Description
UP button	Used to move upper direction on the menu screen. Use this button to select an item or adjust the parameters.
DOWN button	Used to move lower direction on the menu screen. Use this button to select an item or adjust the parameters.
RIGHT button	Moves the cursor to the right. Used to increment the value selected in the menu. The parameter changes each time this button is pressed.
[KD0A]LEFT button	Moves the cursor to the left. Used to decrement the value selected in the menu. The parameter changes each time this button is pressed.
[H028]SET button	Executes selections and displays a submenu for an item with the mark.

Menu Operation

OSD Menu Overview

The following table shows the list of menu items and options. You can adapt the camera to your requirements by setting up the respective items in these menus.

Main Menu	Sub Menu Contents
EXPOSURE	ALC /ELC	BACKLIGHT OFF/BLC/HSBLC
		BRIGHTNESS to 100
		AGC OFF/LOW/MIDDLE/HIGH
		SHUTTER	x512, ..., x2, AUTO, OFF,A.FLK, 1/160, ..., 1/120 000
		SENS-UP OFF / AUTO
		EXIT	RET/TOP/ END
WHITE BAL	ATW -
	AUTO -
	AWC → SET KET	-
	MANUAL	RED -100	to 100
		BLUE -100	to 100
	EXIT	RET/TOP/ END

DAY/ NIGHT	AUTO	BURST ON	/OFF
		LEVEL	LOW/ MIDDLE/ HIGH/USER
		DWELL TIME	3 SEC to 60 SEC
	DAY	-
	NIGHT	BURST ON	/OFF
	EXIT	RET/ TOP/ END
MOTION DET	OFF	-
	ON	AREA SETUP	AREA SELECTION	1 to 8
			STATE	ON / OFF
			POSITION ←→	0 to 7
			POSITION ↑↓	0 to 5
			SIZE ←→	1 to 8
			SIZE ↑↓	1 to 6
		SENSITIVITY	0 to 100
		DISPLAY	OUTLINE / MASK1 / MASK2 / OFF
		ALARM OUT	MESSAGE / OFF
		EXIT	RET/ TOP/ END
3D-DNR	0 to 100

Menu Operation

PRIVACY MASK	OFF -
	ON	RECTANGLE	MASK SELECTION	1 to 8
			DISPLAY	OFF,MOZAIC,COLOR1 to COLOR 8
			POSITION ←→	2 to 98
			POSITION ↑↓	2 to 98
			SIZE ←→ 4 to 100
			SIZE ←→ 4 to 100
			EXIT	TOP/RET/END
		CIRCLE	MASK SELECTION	1 to 4
			DISPLAY	OFF,MOZAIC,COLOR1 to COLOR8
			POSITION ←→	0 to 100
			POSITION ↑↓	0 to 100
			SIZE ←→ 1 to 15
			SIZE ←→ 1 to 15
			RADIOUS 1 to 100
			EXIT	TOP/RET/END

PRIVACY MASK	ON	POLYGON	MASK SELECTION	1 to 2
			DISPLAY	OFF,MOZAIC,COLOR1 to COLOR 8
			SHAPE -
			POSITION -
			EXIT	TOP/RET/END
		EXIT TOP	RET/END
SPECIAL	D-ZOOM	OFF -
		ON	ZOOM	x 1.0 to x 16.0
			PAN -100 to 100
			TILT -100 to 100
	D-EFFECT	OFF / MIRROR / V-FLIP / ROTATE
	SHARPNESS	0 to 100
	COLOR	0 to 100
	SYNC	INT / LL
	USER TITLE	ON / OFF
	LANGUAGE	ENG/CHN/KOR/JAP/FRE/ITA/SPA/POR/DUT/GER/POL/RUS/TUR/ARA/HEB
	EXIT	RET/ TOP/ END
SYSTEM	FACTORY RESET	-
	EXIT	RET/ TOP/ END
EXIT	RET/ TOP/ END

Menu Operation

General Operation

1. Press [SET] button.

[CAMERA SETTING] menu appears on the monitor.

1. Use [UP] or [DOWN] button to select an option then press [SET] button. Submenu appears on the monitor.
2. Use [UP] or [DOWN] button to select a submenu option.
3. Use [LEFT] or [RIGHT] button to select a value.
4. Select [EXIT] option then press [SET] to exit the setup menu. In the submenu, use [UP] or [DOWN] button to select the [RET] then press [SET] to return to the

previous setup menu.

• RET: Return to the previous.
• TOP: Return to the CAMERA SETTING menu screen.
• END: Exit the setup menu.

Exposure Settings

You can set the exposure options using the EXPOSURE menu.

1. Select [EXPOSURE] option on the [CAMERA SETTING] menu.
2. Use [LEFT] or [RIGHT] button to select a mode.
3. Press [SET] button and the [EXPOSURE] menu appears.

Menu Operation

Backlight setting

Use Backlight option to view the object clearly in backlight conditions.

1. Select [Backlight] option.

2. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

3. BLC: Camera's backlight compensation feature helps alleviate issues of visibility in high contrast areas. Set the BLC limit.

4. HSBLC: Use for masking brightness of the specific area to view the subject more clearly. The HSBLC mode is automatically activated regardless of Day and Night mode.

AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN] button to select a [ON] or [OFF]. Press [SET] to exit the Area setting menu.
GRAY SCALE: Use [LEFT] or [RIGHT] button to select a gray scale. (GRAY, D.GRAY, BLACK)
USER SCALE: Use [LEFT] or [RIGHT] button to select a bright level. (5 level)
MASK: Use [LEFT] or [RIGHT] button to select [ON] or [OFF].

If you set the [MASK] to [ON], the mask function is activate only when the [HSBLC] is automatically activated in low luminance scene.

- OFF: Not used.

Menu Operation

BRIGHTNESS setting

You can increase the brightness of the darkened video. If you set the brightness to lower value, the image is darkened. If you set the brightness to higher value, the image gets bright.

1. Select [BRIGHTNESS] option.
2. Use [LEFT] or [RIGHT] button to set the bright level.

AGC (Automatic Gain Control) setting

If the images are too dark, change the maximum [AGC] value to make the images brighter. But noise is increase.

1. Select [AGC] option.
2. Use [LEFT] or [RIGHT] button to select a mode.

Menu Operation

SHUTTER (Shutter Speed) setting

Select the desired shutter speed for camera exposure. You can change the shutter speed to higher speed to capture fast-moving subjects, though the image becomes darker.

1. Select [SHUTTER] option.
2. Use [LEFT] or [RIGHT] button to set shutter speed.

• AUTO: Adjust the [LOW LIMIT] and [HIGH LIMIT].

LOW LIMIT: Use [LEFT] or [RIGHT] button to set the [LOW LIMIT].
HIGH LIMIT: Use [LEFT] or [RIGHT] button to set the [HIGH LIMIT].

Notes:

• When the SHUTTER is set to AUTO, the picture may become unstable if the camera faces a bright fluorescent light directly. Therefore, take care when installing.
• Set the Shutter OFF when Color Rolling occurs in the indoor scene. Recommend the Shutter Auto in the outdoor scene.

SENS-UP setting

If pictures are not clear due to darkness, this SENS-UP operation would increase the sensitivity of picture.

Menu Operation

1. Use [UP] or [DOWN] button to select [SENS-UP] option.
2. Use [LEFT] or [RIGHT] button to select mode.

• AUTO: Adjust the sensitivity of the picture automatically.

SENS-UP LIMIT: Use [LEFT] or [RIGHT] button to set the SENS-UP limit.

- OFF: Not used.

Note:

If you set to one of the [SHUTTER] options except [AUTO] on the [SHUTTER] menu, the [SENS-UP] setting is not available and [---] mark is displayed.

White Balance settings

Select the method by which the camera shifts its output colors to compensate for the color of a light source.

1. Select [WHITE BAL] option.
2. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

- ATW (Auto-Tracing White Balance): Use [LEFT] or [RIGHT] button to select the ATW.

- AUTO : Use [LEFT] or [RIGHT] button to select the [AUTO].

Menu Operation

• AWC→SET KEY: If you select the [AWC→SET KEY] mode, you will be able to set up the White Balance automatically.
• MANUAL: You can set the white balance options manually. Push the [AWC→SET KEY] mode, and then adjust White Balance. You can set the RED and BLUE in the [MANUAL] mode.

RED: Obtains the optimum amount of red gain.
BLUE: Obtains the optimum amount of blue gain.

Day & Night Setting

1. Select [DAY/NIGHT] option.
2. Use [LEFT] or [RIGHT] button to select mode for Day/Night function.

• AUTO: You will be able to change the Day/Night mode automatically.

Note:

If you set the AGC to [OFF] on the [EXPOSURE] menu, the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.

BURST: Use [LEFT] or [RIGHT] button to

Menu Operation

select [ON] or [OFF].

LEVEL: Use [LEFT] or [RIGHT] button to select a level.
DWELL TIME: Use [LEFT] or [RIGHT] button to select a dwell time.

• DAY: Color mode enabled.

• NIGHT: Black-and-white mode enabled.

BURST: Use [LEFT] or [RIGHT] button to select [ON] or [OFF].

Motion Detection Setting

The motion detection detects the moving objects in the scene by monitoring changes in brightness level. You can select the level of sensitivity for motion detection to 8 zone.

1. Select [MOTION DET] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The [MOTION DETECTION] menu appears.
3. Select [AREA SETUP] option.

- Use [LEFT] or [RIGHT] button to select a area on the [AREA SELECTION].

- Use [LEFT] or [RIGHT] button to set up the [ON] or [OFF] on the [STATE].

Menu Operation

- Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

POSITION ←→: Moves horizontal position of the mask.
POSITION ↑↓: Moves vertical position of the mask.
SIZE ↔ : Enlarge or decrease the horizontal size of the mask.
SIZE ↑↓ : Enlarge or decrease the vertical size of the mask.

1. Use [SENSITIVITY] option to obtain the optimum detection level.
2. Use [LEFT] or [RIGHT] button to select the [DISPLAY] option.
3. Use [LEFT] or [RIGHT] button to select the [ALARM OUT] option.

3D-DNR Setting

1. Select [3D-DNR] option. If pictures are not clear due to brightness, this option would reduce the noise of picture.
2. Use [LEFT] or [RIGHT] button to select a value.

Menu Operation

Privacy Mask Setting

This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in the screen. Up to 14 zones can be registered.

1. Select [PRIVACY] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The PRIVACY SETUP menu appears.

- RECTANGLE :

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the [DISPLAY] option.

Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

• POSITION←→: Moves horizontal position of the mask.
• POSITION ↑↓: Moves vertical position of the mask.
• SIZE ←→: Enlarge or decrease the horizontal size of the mask.
• SIZE ↑↓: Enlarge or decrease the vertical size of the mask.

• CIRCLE :

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the [DISPLAY] option.
Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

- POSITION ←→: Moves horizontal position of the mask.

- POSITION ↑↓: Moves vertical position

Menu Operation

of the mask.

• SIZE ←→: Enlarge or decrease the horizontal size of the mask.
• SIZE ↑↓: Enlarge or decrease the vertical size of the mask.
• RADIUS SIZE : You can adjust the RADIUS SIZE.

- POLYGON :

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the [DISPLAY] option.
Use the [LEFT], [RIGHT], [UP], [DOWN], [SET] button to draw the polygon on the [SHAPE].
Use the [LEFT], [RIGHT], [UP], [DOWN], [SET] button to move the polygon on the [POSITION].

Notes:

• You can adjust the mask color manually except for COLOR 8.
  • RED, GREEN, BLUE and TRANSPARENCY

adjustments are applied in common from COLOR 1 to COLOR 7, after mask setting.

Special Menu Settings

This menu lets you adjust and set up D-ZOOM, D-EFFECT, SHARPNESS, COLOR, SYNC, USER TITLE, LANGUAGE function by yourself in the [SPECIAL] menu.

1. Select [SPECIAL] option.
2. Press [SET] button and the [SPECIAL] menu appears.

Menu Operation

D-ZOOM (Digital Zoom) Setting

You can select the digital zoom level.

1. Select [D-ZOOM] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET] the DIGITAL ZOOM menu appears. When you set to ON, the displayed image can be shaking.
3. Use [UP] or [DOWN] to select a option then use [LEFT] or [RIGHT] button to select a level.

• ZOOM: Use [LEFT] or [RIGHT] button to enlarge the screen.
• PAN: Use [LEFT] or [RIGHT] button to move the screen.

- TILT: Use [LEFT] or [RIGHT] button to move the screen.

Note:

If you set the [D-ZOOM] to [ON], the ZOOM level is set to [x1.0] automatically.

D-EFFECT (Digital effect) Setting

You can select the digital effect.

1. Select [D-EFFECT] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a digital effect.

• MIRROR: Turn on the mirror effect.
• ROTATE: Rotate the picture. (180°)

Menu Operation

• V-FLIP: Flip the picture vertically.
• OFF: Turn off the digital effect.

SHARPNESS Setting

The degree to which the boundary of the two portions is clearly distinguished.

1. Select [SHARPNESS] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to change a adjust the option. If you set the sharpness value to higher, the image outline becomes sharp. If you set to lower value, the image outline becomes dim.

COLOR Setting

You can switch the displayed picture to gray scale or color.

1. Select [COLOR] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to change a adjust the option.

Menu Operation

SYNC Setting

1. Select [SYNC] option on the [SPECIAL] menu.
2. The [SYNC] option is set to [INT] automatically.

Note:

AC24V Adaptor have to use for the [LL] mode setting.

USER TITLE Setting

You can use the camera identification to assign a number and character to the camera. To disappear the user title, select [OFF].

1. Select [USER TITLE] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET]. The USER TITLE menu appears.

1. Use [UP], [DOWN], [LEFT] or [RIGHT] button to select a character or number then press [SET] button.

• CLR: Clear all entered characters and numbers.
• POS: Move the USER TITLE position on the screen using the arrow buttons.
• END: Confirm your selection or exit the setting
• 1 (Blank): Inserts a space at the cursor position.

Menu Operation

• Moves cursor to left or right.

LANGUAGE Setting

Select the viewer language for the camera setup menu and OSD information display.

1. Select [LANGUAGE] option on the [SPECIAL] screen.
2. Press [LEFT] or [RIGHT] button to select a language.

SYSTEM Setting

1. Select the [SYSTEM] menu.
2. Press [SET] button and the [SYSTEM] menu appears.
3. Use [UP] or [DOWN] button to select the option.
4. FACTORY RESET: To reset the camera setting to factory setting, select the [FACTORY RESET] option.
5. Press [SET] button to confirm your selection.

Specification

Item LCB5100-BN LCB5100-BP
Signal System NTSC PAL
Total Pixels number 520 000	Pixels 610 000 Pixels
Effective Pixels number 480 000	Pixels 570 000 Pixels
Image Sensor 6 mm (1/3 Type) Exview HAD II CCD
ISP XDI-V
Lens C/CS Mount
Horizontal Resolution 650 TV Lines (Color), 700 TV Lines (B/W)
S/N Ratio 50 dB
Day & Night Digital (AUTO / DAY / NIGHT)
Sens-up	OFF / AUTO(x2, ... x512) /MANUAL(x2, ... x512)
Minimum Illumination(F1.2, 30 IRE)	0.03 lx (Sens-up Off), 0.0003 lx (Sens-up Auto), 0.000 001 (Sens-up x512)
White Balance	ATW / AUTO / AWC→SET KEY /MANUAL
Digital Zoom	X16
IRIS Control	DC
Scanning Frequency (H/V)	15.734 kHz / 59.94 Hz	15.625 kHz / 50 Hz
Sync. System	Internal / Line Lock
Auto Gain Control	OFF/ LOW/ MIDDLE/ HIGH
Exposure	ALC / ELC

Specification

Item LCB5100-BN LCB5100-BP
Video Output 1 Vp-p Composite (75 Ω)
Electronic Shutter 1/60 to 1/120 000 1/50 to 1/120 000
Backlight Compensation BLC / HSBLC / OFF
Motion Detection 8 Zones
Privacy Masking 14 Mask Zones
DNR 2D + 3D-DNR
Digital Effect OFF / MIRROR / V-FLIP / ROTATE
Control Method Coaxial Communication
Power Source DC 12 V / AC 24 V
Power Consumption 240 mA
Operating Temperature/ Humidity	-10 °C to 50 °C / 0 % RH to 80 % RH
Storage Temperature/ Humidity	-20 °C to 60 °C / 0 % RH to 85 % RH
Dimension (W x H x D)	68.6 mm x 54.0 mm x 121.5 mm
Weight	362 g

LG

Life's Good
