| Product Type | Condenser Tumble Dryer (Heat Pump) |
| Brand | Hisense |
| Model | DCGE802B |
| Dimensions (Width x Height x Depth) | 600 x 850 x 625 mm (depth without door), 653 mm (depth with door closed) |
| Weight | Approx. 45 kg (varies by model) |
| Rated Voltage | 220-240 V ~, 50/60 Hz |
| Fuse Rating | 10 A (typical, refer to rating plate) |
| Maximum Load | 8 kg (cotton) |
| Control Unit | Electronic with LED display and programme selector knob |
| Programmes | Cotton (Storage, Standard, Iron), Mix, Wool, Delicates, Air Refresh, Down Wear, Baby Care, Sportswear, Shirts, Bedding, Timed Dry (30'/60'/90') |
| Extra Functions | Extra Dry, Gentle Care (lower temperature), Start Delay (up to 24h), Anti Crease (1h/2h/3h), Child Lock |
| Energy Efficiency Class | A++ (based on EU regulation) |
| Annual Energy Consumption | See rating plate (approx. 236 kWh for 7 kg model) |
| Condensate Tank Capacity | Not specified; empty after each cycle |
| Installation | Freestanding; can be stacked on compatible Hisense washing machine using stacking kit |
| Maintenance | Clean net filter after each cycle; clean condenser unit regularly; empty condensate tank after each cycle |
| Safety Features | Child lock, overheating auto shut-off, door safety switch, automatic switch-off in standby |
| Spare Parts | Belt only replaceable by authorized service; use original parts (e.g., OPTIBELT EPH 1906) |
| Noise Level | Not specified but normal operation below 65 dB(A) typical for condenser dryers |
| Standby Power Consumption | <0.5 W |
Frequently Asked Questions - DCGE802B HISENSE
User questions about DCGE802B HISENSE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tumble drier in PDF format for free! Find your manual DCGE802B - HISENSE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DCGE802B by HISENSE.
USER MANUAL DCGE802B HISENSE
Before operating this unit, please read this manual thoroughly, and retain for future reference.
The following symbols are used throughout the manual and they have the following meanings:
Information, advice, tip, or recommendation
Warning – general danger
Warning – danger of electric shock
Warning – danger of hot surface
Warning – danger of fire
It is important that you carefully read the instructions.
TABLE OF CONTENTS
| 4 SAFETY PRECAUTIONS | INTRODUCTION | |
| 12 DESCRIPTION OF THE DRYER | ||
| 13 Technical information | ||
| 14 Control unit | ||
| 16 INSTALLATION AND CONNECTION | PREPARING | |
| 16 Selecting the room | THE DRYER | |
| 19 Adjusting the dryer feet | BEFORE FIRST | |
| 20 Draining the condensate | USE | |
| 21 Connecting to the power mains | ||
| 22 Moving and transport after installation | ||

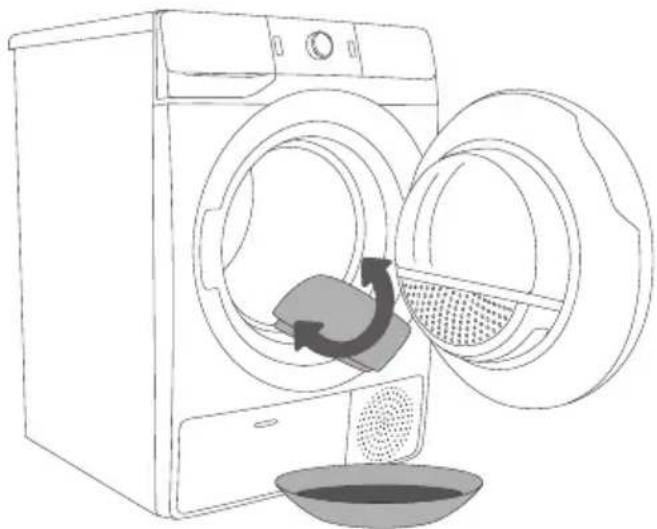

| 23 BEFORE USING THE APPLIANCE FOR THE FIRST TIME | ||
| 24 DRYING PROCESS, STEP BY STEP (1 - 6) | DRYING | |
| 24 Step 1: Heed the labels on the laundry | PROCESS, | |
| 25 Step 2: Preparing for the laundry drying process | STEP BY STEP | |
| 29 Step 3: Choosing the drying programme | ||
| 32 Step 4: Selecting extra functions | ||
| 37 Step 5: Starting the drying programme | ||
| 37 Step 6: End of the drying programme | ||
| 38 INTERRUPTIONS AND CHANGING THE PROGRAMME | ||
| 40 MAINTENANCE & CLEANING | DRYER | |
| 41 Cleaning the net filter in the door | CLEANING AND | |
| 41 Cleaning the net filter in the door | MAINTENANCE | |
| 42 Cleaning the condenser unit | ||
| 43 Emptying the condensate tank | ||
| 44 Cleaning the dryer | ||
| 45 TROUBLESHOOTING | TROUBLE- | |
| 45 What to do ...? | SHOOTING | |
| 46 Troubleshooting table | ||
| 49 Servicing | ||
| 50 TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER | MISCELLANE- | |
| 51 DISPOSAL | OUS | |
| 52 TYPICAL CONSUMPTION TABLE | ||
SAFETY PRECAUTIONS
Carefully read the instructions for use before using the dryer.
Please, do not use the dryer without reading and understanding these instructions for use first.
These instructions for use of a dryer are supplied with different types or models of dryers. Therefore, they may include descriptions of settings or equipment that are not available in your dryer.
Failure to observe the instructions for use or inappropriate use of the dryer may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual handy, near the dryer.
Instructions for use are available through Hisense customer service centers.
Your dryer is intended solely for household use. If the dryer is used for professional, for-profit purpose or purpose exceeding normal use in a household, or if the dryer is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.
Follow the instructions for correct installation of the Hisense dryer and connection to the power mains (see chapter »INSTALLATION AND CONNECTION«).
All and any repairs or maintenance tasks on the dryer should only be done by trained experts. Unprofessional repair may result in an accident or major malfunction.
To avoid danger, a damaged power cord may only be replaced by the manufacturer, a service technician, or an authorized person.
After installation, the dryer should stand still for two hours before it is connected to the power mains.
At least two persons are required to install the tumble dryer on top of a washing machine.
The dryer may not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair dryer.
Do not connect the dryer to power mains using an external switching device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.
In case of a defect, only use approved spare parts by authorized manufacturers.
In case of incorrect dryer connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage as such damage shall not be covered by warranty.
Always use the ducts or hoses supplied with the dryer.
Install the dryer in a room with adequate ventilation and a temperature between 10°C and 25°C.
Place the dryer on a level and stable solid (concrete) base.
Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened.
Never block the air exhaust (evacuation opening).
Do not place the dryer on a carpet with long fibres as this may impede air circulation.
Air in the dryer environment should not contain dust particles. The air where the dryer is installed should be thoroughly ventilated to prevent reverse flow of gases released from the gas appliances with open fire (e.g. a fireplace).
Make sure the fibres do not accumulate around the dryer.
The appliance may not be in contact with a wall or adjacent furniture.
Do not use the dryer to dry any laundry that has not been washed.
Laundry stained with oil, acetone, alcohol, oil derivatives, stain removers, turpentine, wax, and wax removers should be washed in a washing machine with hot water and detergent before it is dried in the dryer.
Clothing that includes latex, rubber parts, shower and bathing caps, and laundry or covers with rubber foam may not be dried in the dryer.
Use laundry conditioners or similar products in compliance with manufacturer's instructions.
⚠️ Remove all objects such as lighters and matches from the pockets.
If the condensate tube is blocked or clogged, then tumble dryer operation is stopped (see chapter »PAUSING AND CHANGING THE PROGRAMME/Full condensate tank«).
Before moving the dryer or before storing it in a non-heated room during the winter, the condensate tank has to be emptied.
Clean the dryer filter after each drying cycle. If you have removed the filter, replace it before the next drying cycle.

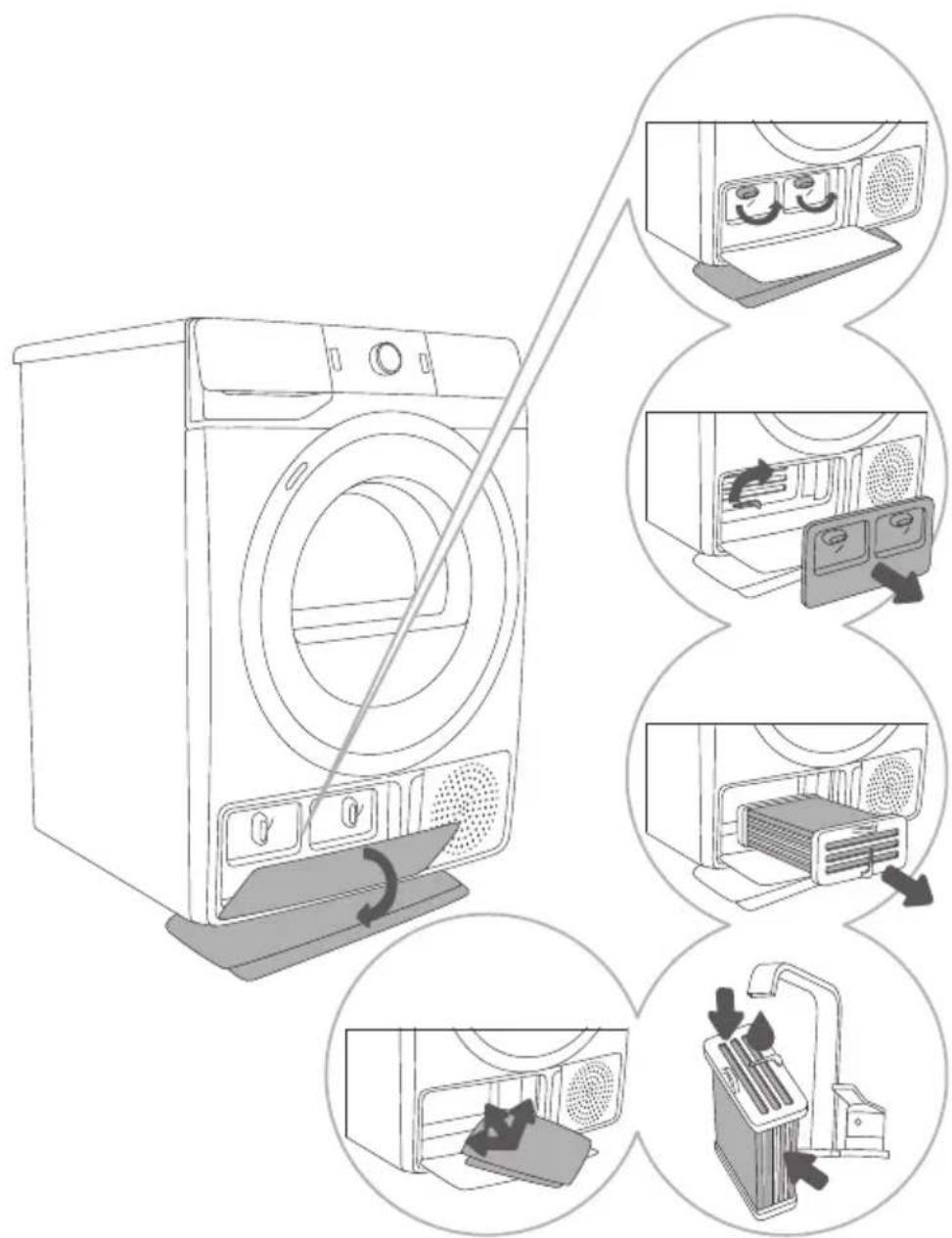

After each cleaning cycle, replace the condenser unit into the air duct. Dryer operation without the condenser unit or with a damaged condenser unit is hazardous and could result in a fire (see chapter »DESCRIPTION OF THE DRYER and CLEANING THE CONDENSER UNIT«).
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
Never add chemicals or fragrances into the condensate tank (see chapter »DESCRIPTION OF THE DRYER and EMPTYING THE CONDENSATE TANK«).
After the drying process, unplug the dryer power cord from the power outlet.
The dryer is not intended for use by persons (including children) with physical or mental impairments, or persons with lacking experience and knowledge. These persons should be instructed about the use of the dryer by a person responsible for their safety.
The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the dryer, and aesthetic defects on components, which do not affect the dryer's functionality and safety.
CHILD SAFETY
Do not allow children to play with the dryer.
Prevent your children and pets from entering the dryer drum.
Before closing the dryer door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child climbed into the dryer drum and closed the door from the inside).
Activate the child lock. See chapter »STEP 4: SETTING THE EXTRA FUNCTIONS/Child lock«.
Do not let children younger than three years to come near the tumble dryer, unless they are under constant supervision.
The dryer is made in compliance with all relevant safety standards.
This dryer may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they are supervised during the use of the appliance, if they have been provided relevant instructions regarding safe use of the dryer, and if they understand the hazards of inappropriate use. Make sure children do not play with the dryer. Children may not clean the dryer or perform any maintenance tasks without supervision.
DANGER OF HOT SURFACE
At higher drying temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass.
The back of the dryer may get very hot during operation. Wait for the dryer to cool down completely before touching its back side.
If you open the dryer door during the drying process, the clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if you do interrupt the cycle for any reason, be careful when removing the laundry from the drum as it is very hot. Quickly remove the laundry from the drum and spread it to allow it to cool down as quickly as possible.
SAFETY
Only use the dryer to dry laundry that was washed with water. Do not dry any laundry that was washed or cleaned with flammable cleaners or substances (such as gasoline, trichloroethylene etc.) as this may result in an explosion.
If you have cleaned your clothes with industrial cleaners or chemical substances, do not dry them in the dryer.
The dryer is protected with an automatic switch-off system in case of overheating. This system will switch off the dryer if the temperature is too high.
If the net filter is clogged, the overheating automatic switch-off system may be activated. Clean the filter, wait for the dryer to cool down, and try running it again. If the dryer still fails to start, call a service technician.
DESCRIPTION OF THE DRYER
FRONT
1 Condensate tank
2 On/off button
3 Programme selector knob
4 Start/pause button
5 Control unit
6 Door
7 Net filter
8 Air vent
9 Condenser unit
10 Rating plate

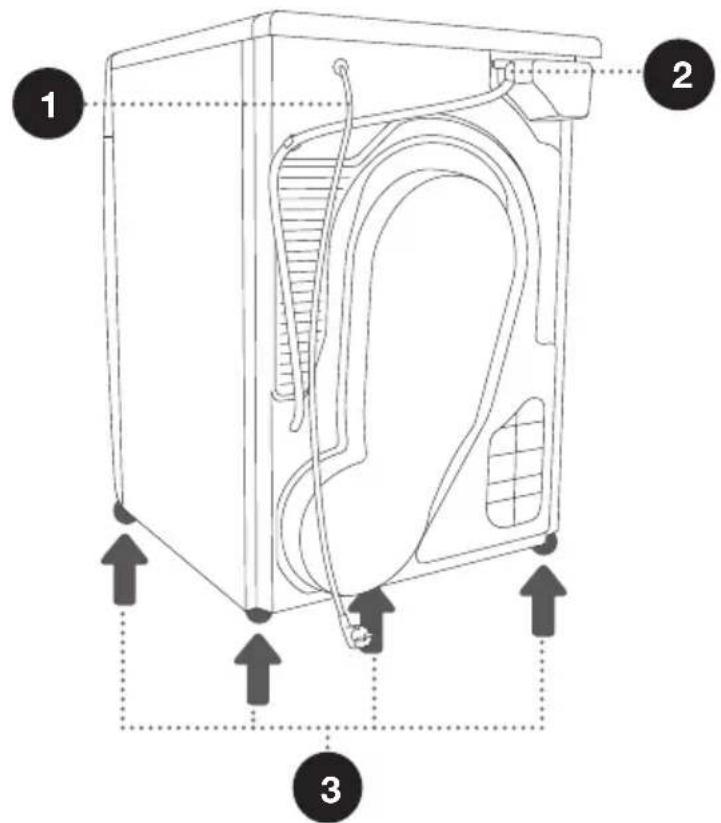

BACK
1 Power cord
2 Condensate discharge hose
3 Adjustable feet
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
Rating plate with basic information about the dryer is fitted on the front wall of the dryer door opening (see chapter »DESCRIPTION OF THE DRYER«).
| Width 600 mm | |
| Height 850 mm | |
| Dryer depth (a) 625 mm | |
| Depth with door closed 653 mm | |
| Depth with door open (b) 1134 mm | |
| Weight XX/YY kg (depending on the model) | |
| Rated voltage See rating plate | |
| Fuse See rating plate | |
| Nominal power See rating plate | |
| Maximum load See rating plate |
Rating plate
TYPE: SP15/XXX MODEL: XXXXXX/X
Art.No.: XXXXXX Ser.No.: XXXXXXXX IPX4
220-240 V \~ XX Hz ☐ XX A
Pmax.: XXXX W XXXW
MADE IN SLOVENIA

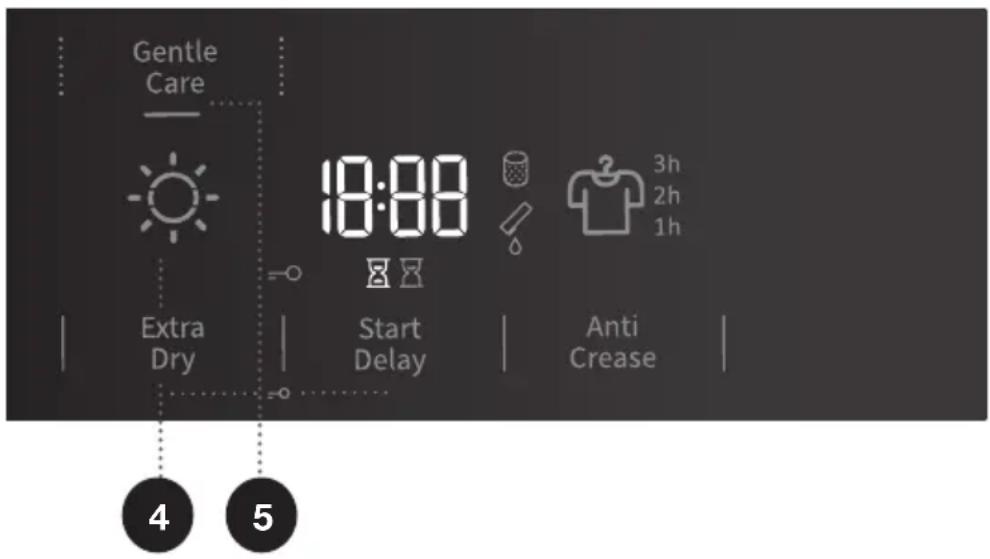

CONTROL UNIT

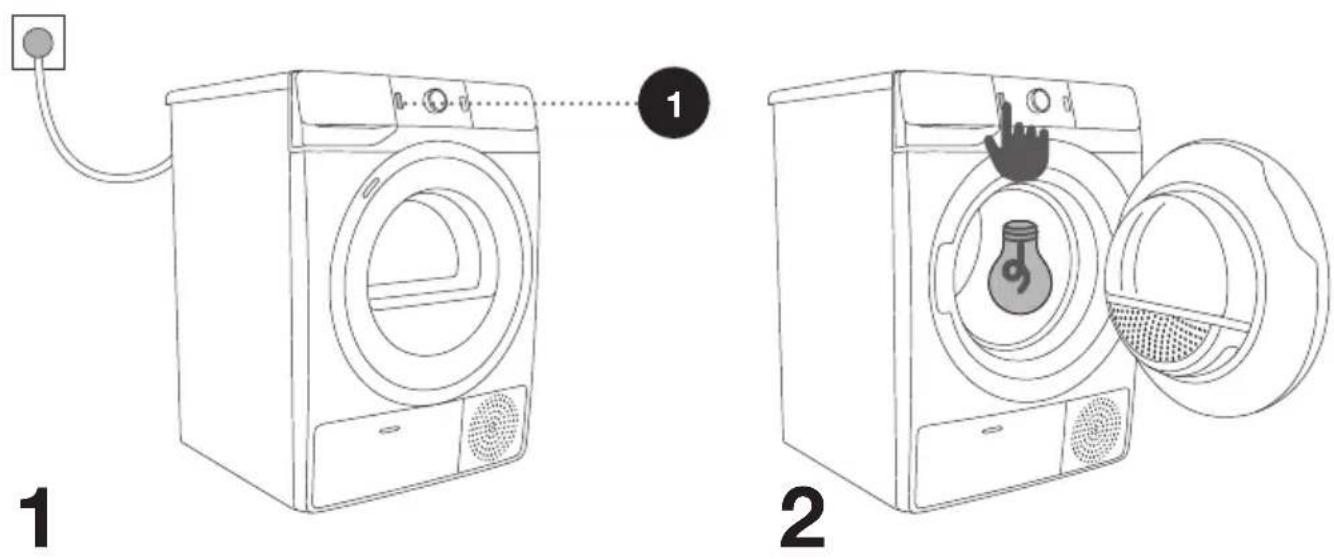

1 ON/OFF BUTTON Switching the dryer on and off.

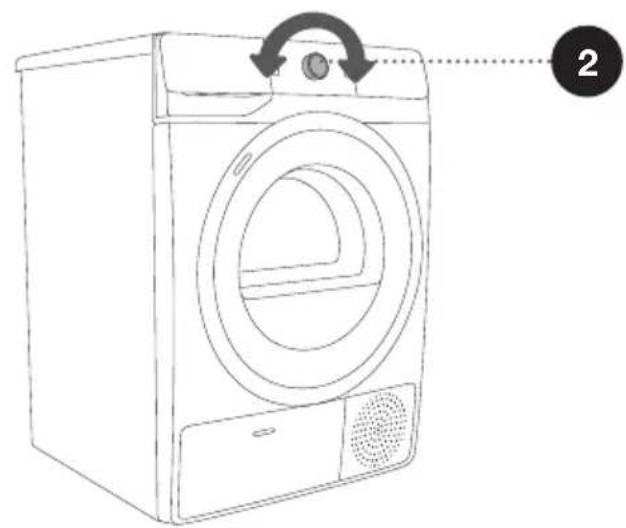

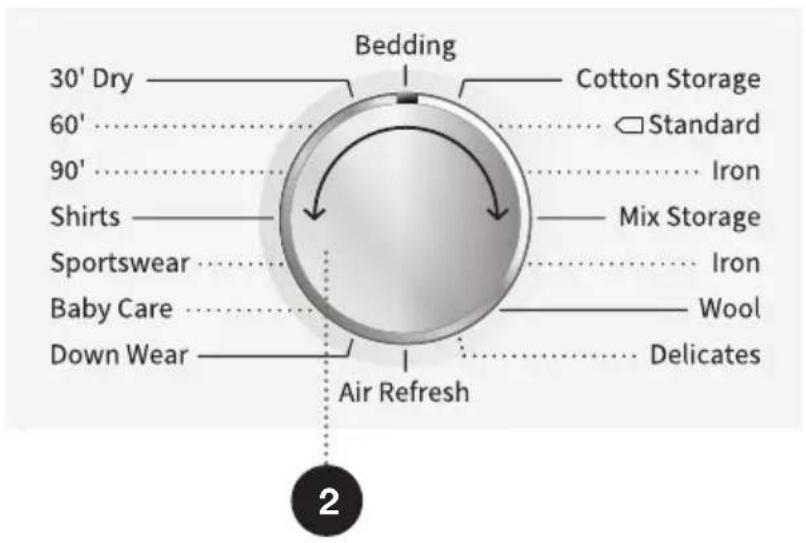

2 PROGRAMME SELECTOR KNOB
3 START/PAUSE BUTTON Use this button to start or stop the programme.
Upon start-up or during pause, the button light will flash; when the programme is started and in progress, it will be lit continuously.
4 EXTRA DRY Lighting of the ⚙ symbol when the function is selected
5 GENTLE CARE (LOWER TEMPERATURE)

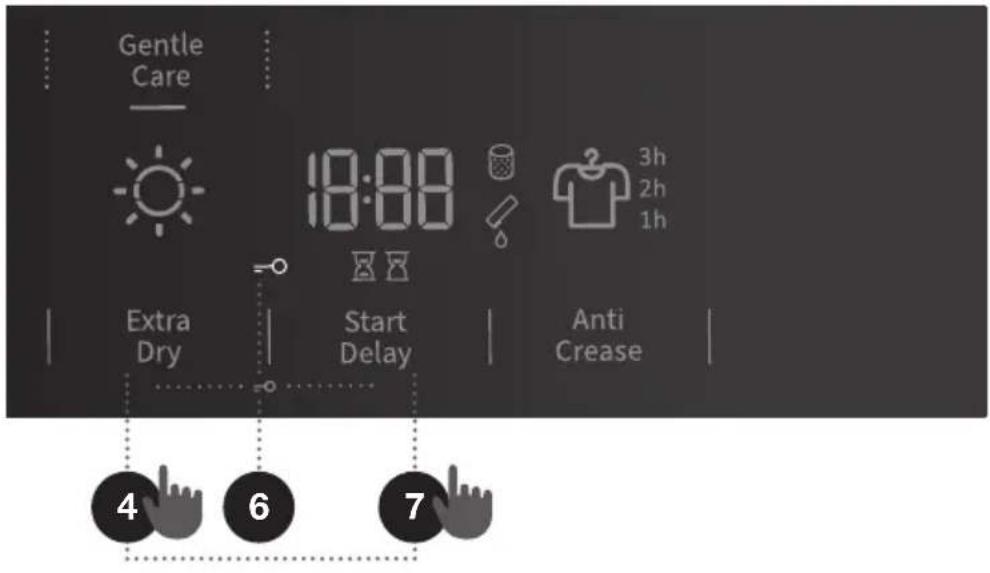

6 CHILD LOCK -symbol lighting Press the positions 4+7 and hold them for 3 seconds.
7 START DELAY Option to set a start delay
8 CLEAN THE FILTER symbol lighting
9 EMPTY THE CONDENSATE TANK symbol lighting
10 ANTI CREASE Lighting of the symbol and anti-crease time.
INSTALLATION AND CONNECTION
Remove all packaging. When removing the packaging, make sure not to damage the dryer with a sharp object.
SELECTING THE ROOM

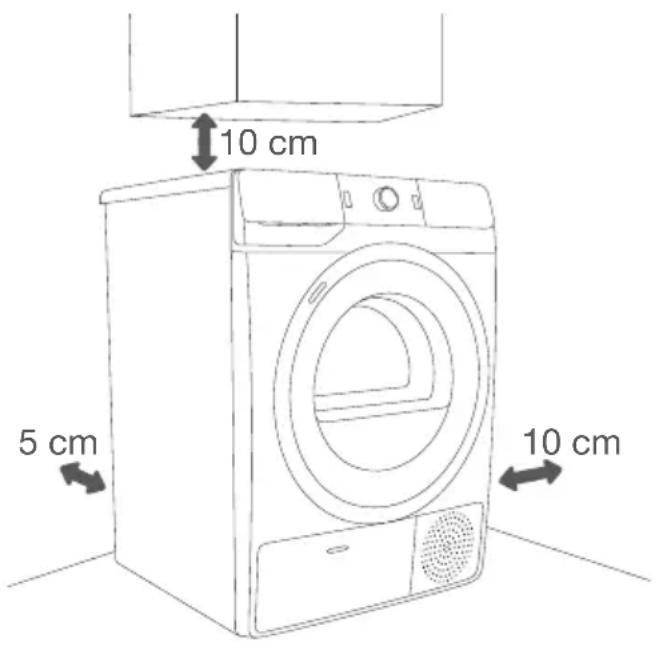

The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation, we recommend observing the clearance from the walls as indicated in the figure. In case of failure to heed the required minimum clearance, the dryer may overheat.
Vents on the back wall and the air exhaust opening on the front side of the dryer should never be obstructed.
The room in which you will install the dryer should be sufficiently ventilated, with a temperature between 10^ C and 25^ C. Dryer operation at a lower environment temperature may result in condensate accumulation in the dryer interior. Do not place the dryer into a place where there is danger of freezing. Frozen water in the condensate tank and pump may damage the dryer.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may take longer due to limited amount of available air.
Lighting in the room should be sufficient to allow reading the information on the display unit on the control panel.

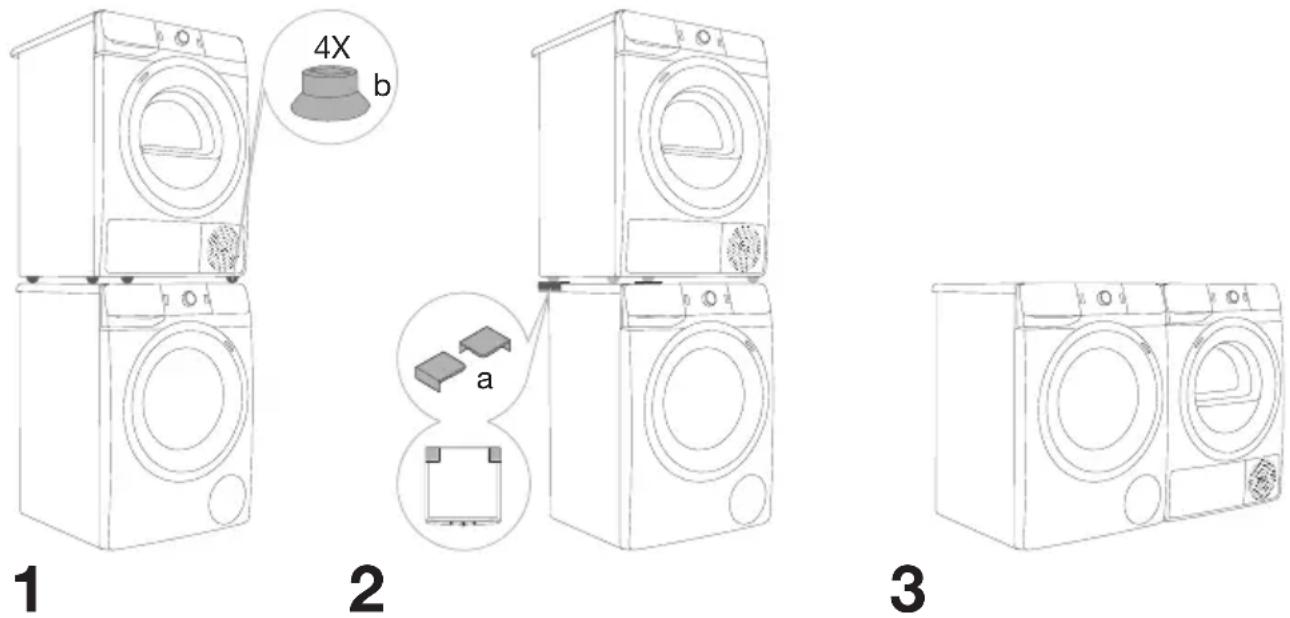

DRYER PLACEMENT
If you also have a Hisense dryer of corresponding (same) dimensions, it can be placed on top of the Hisense washing machine; in this case, vacuum feet must be used. Alternatively, the dryer can be placed next to the washing machine (figures 1 and 3).
If your Hisense washing machine is smaller (minimum depth 545 mm) than your Hisense dryer, then the dryer support has to be purchased extra (figure 2). The supplied vacuum feet must be used; they are designed to prevent the dryer from slipping.
Additional equipment (dryer support (a) and vacuum feet (b) if they are not supplied) are available for purchase at the service units.
The surface on which the appliance is placed should be clean and level.
Hisense washing machine onto which you intend to place the Hisense dryer should be able to hold the weight of the Hisense dryer (see chapter »DESCRIPTION OF THE DRYER/Technical information«).
At least two persons are required to install the tumble dryer on top of a washing machine.

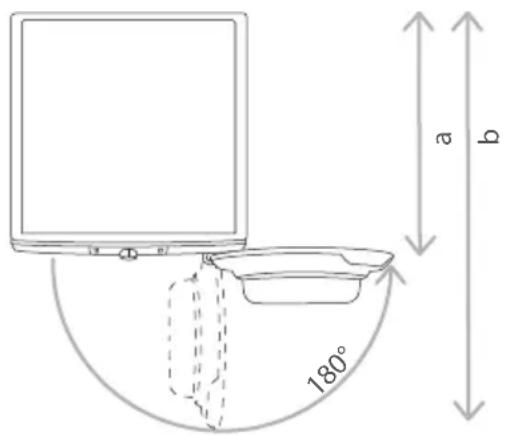

Opening the dryer door (bird's-eye view)
See chapter »DESCRIPTION OF THE DRYER/Technical information«.
$$ a = 6 2 5 \mathrm{mm} $$
$$ b = 1 1 3 4 \mathrm{mm} $$
Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened.
Do not place the dryer on a carpet with long fibres as this may impede air circulation.

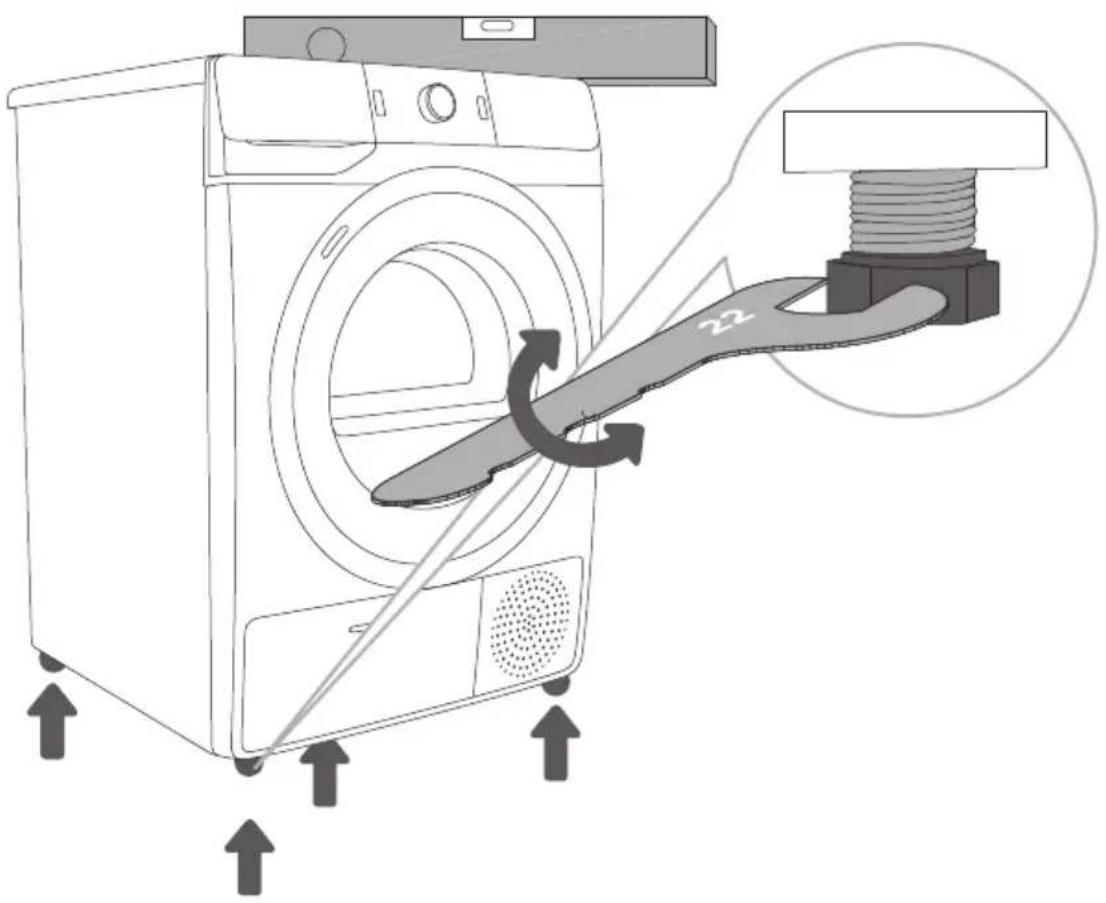

Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow levelling by +/- 1 cm. Use a spirit level and spanner No. 22.
Floor on which the dryer is placed must have a concrete base. It should be clean and dry; otherwise, the dryer may slide. Also clean the adjustable feet.
The dryer must stand level and stable on a solid base.
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.
DRAINING THE CONDENSATE
The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank.
During the drying process, an indicator light (symbol ⚙ (9) is lit on the display unit) warns when the condensate tank is full and needs to be emptied.

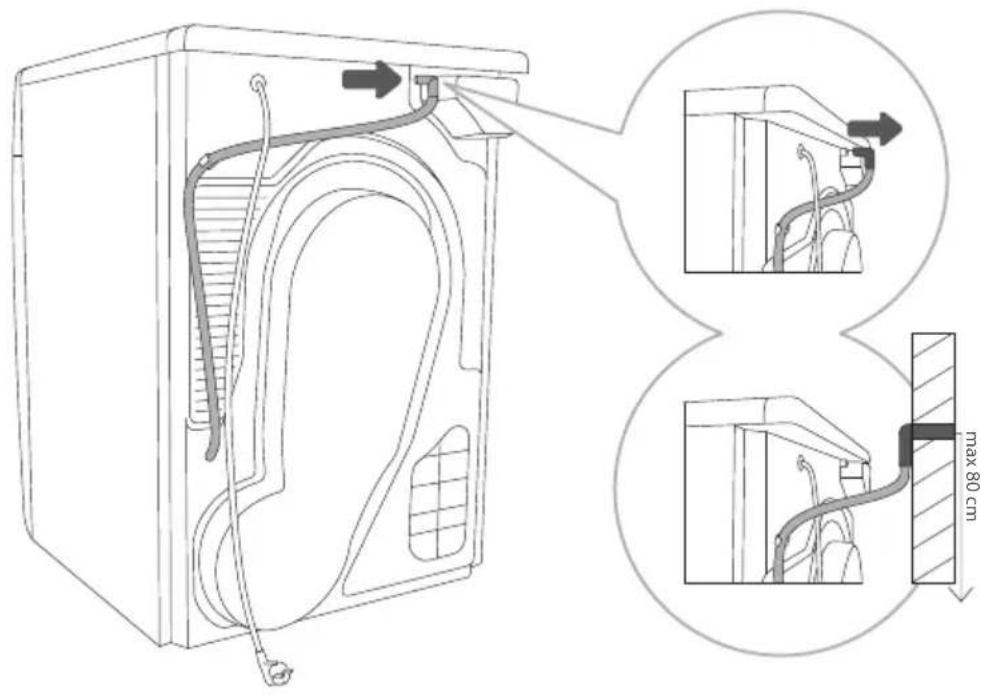

To avoid emptying the condensate tank, run the condensate discharge hose located at the back of the appliance directly into a drain.
1 Release the hose from the holder on the back wall of the dryer (left hand side, below the top cover).
2 Run the hose into a drain at a height of no more than 80 cm from the floor.
If you decide to run the condensate drain hose into a drain, make sure the hose is securely fastened. This will prevent any water spillage which could result in unexpected damage.
⚠️ Always use the hoses supplied with the dryer.
CONNECTING TO THE POWER MAINS

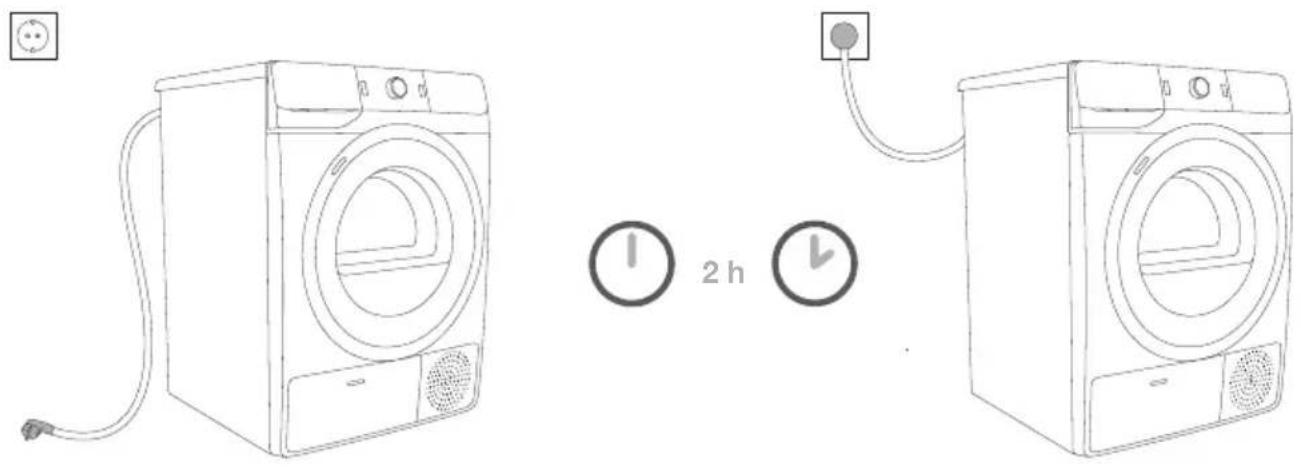

After installation, the dryer should stand still for two hours before it is connected to the power mains; this allows the dryer to stabilize.
Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).
Information on your dryer is indicated on the rating plate (see chapter »DESCRIPTION OF THE DRYER/Technical information«).
⚠️ We recommend using over-voltage protection to protect the appliance in case of a lightning strike.
⚠ The dryer may not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair dryer.
Any repair and maintenance pertaining to safety or performance should be done by trained experts.
A damaged power cord may only be replaced by a person authorized by the manufacturer.
MOVING AND TRANSPORT AFTER INSTALLATION
After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the dryer and choose one of the programmes, then let the appliance operate for approximately half a minute. This will pump out the remaining water and prevent damage to the dryer during transport.
After transport, the dryer should be left to stand still for at least two hours before it is connected to the power mains. The appliance should be installed and connected by a trained technician.
If the appliance was not transported in compliance with the instructions, the dryer should be left to stand still at least two hours before it is reconnected to the power mains.
⚠️ Carefully read the instructions for use before connecting the dryer. Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty.
The belt may only be replaced by a service technician authorized by the manufacturer, who can supply the original spare part with the code OPTIBELT EPH 1906, code 104265; OPTIBELT 8 EPH 1941, code 160165; POLY-V 7PH 1956 HUTCHINSON, code 562038; HUTCHINSON 8 PHE 1942, šifra 270313 (depending on the model).

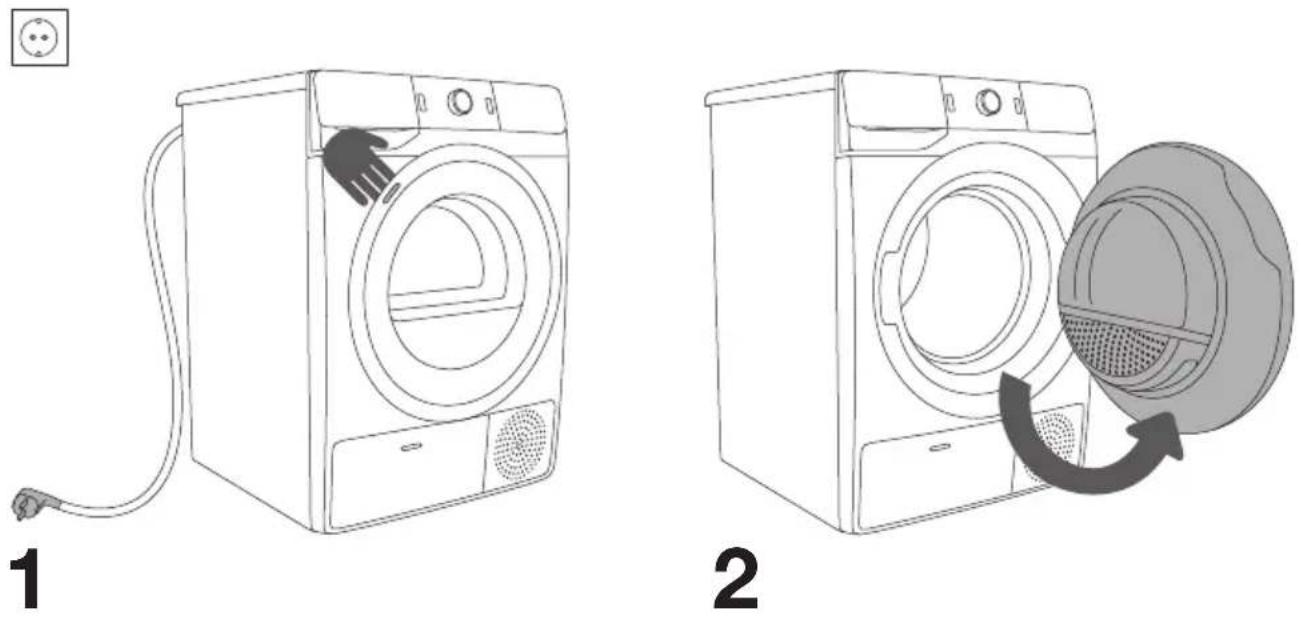

BEFORE USING THE APPLIANCE FOR THE FIRST TIME
Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left side of the door towards you (figures 1 and 2).
Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and water (figure 3).
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
DRYING PROCESS, STEP BY STEP (1 - 6)
STEP 1: HEED THE LABELS ON THE LAUNDRY
| Normal wash;Sensitive laundry | Max.washing temp.95°C | Max.washing temp.60°C | Max.washing temp.40°C | Max.washing temp.30°C | Hand wash only | Do not wash |
Bleaching Bleaching in cool water | Bleaching not allowed | |||||
Dry cleaning Dry cleaning with all agents | Petroleum solvent R11, R113 | Dry cleaning in kerosene, pure alcohol, and R113[ZZA3] | Dry cleaning not allowed | |||
Ironing Hot ironing,max.200°C | Hot ironing,max.150°C | Hot ironing, max.110°C | Ironing not allowed | |||
Drying Dry flat (place on a flat surface) | Drip dry[III] Line dry | High temperature[●] Low temperature | Do not tumble dry | |||

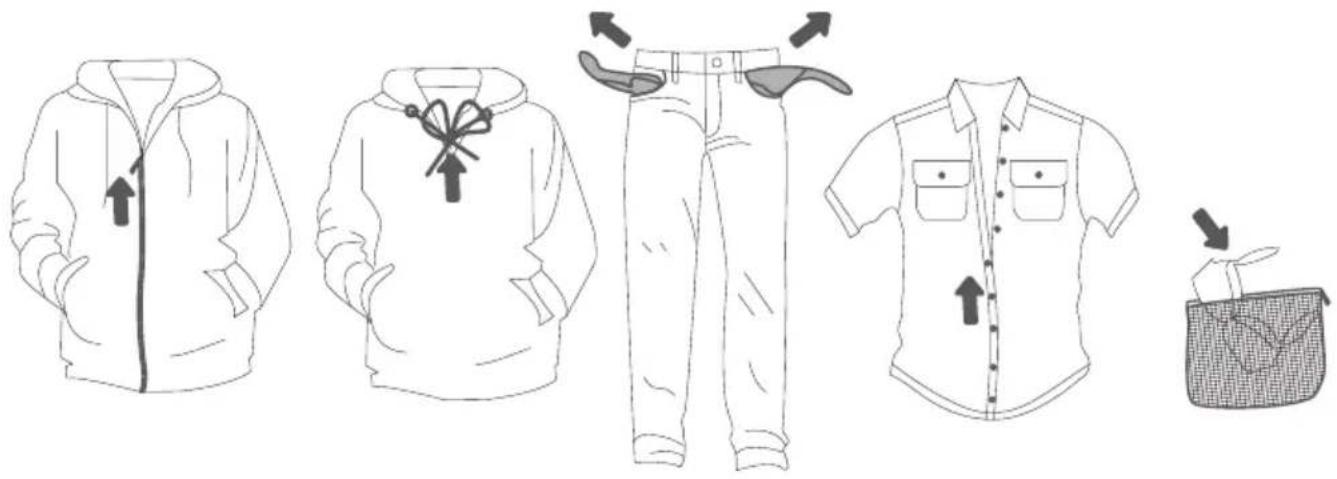

STEP 2: PREPARING FOR THE LAUNDRY DRYING PROCESS
- Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
- Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
- Place very sensitive clothes in a special-purpose laundry bag.
(The special-purpose laundry bag is available as an optional accessory.)
• leather garments and other leather products;
• garments that are waxed or treated in any other way;
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.

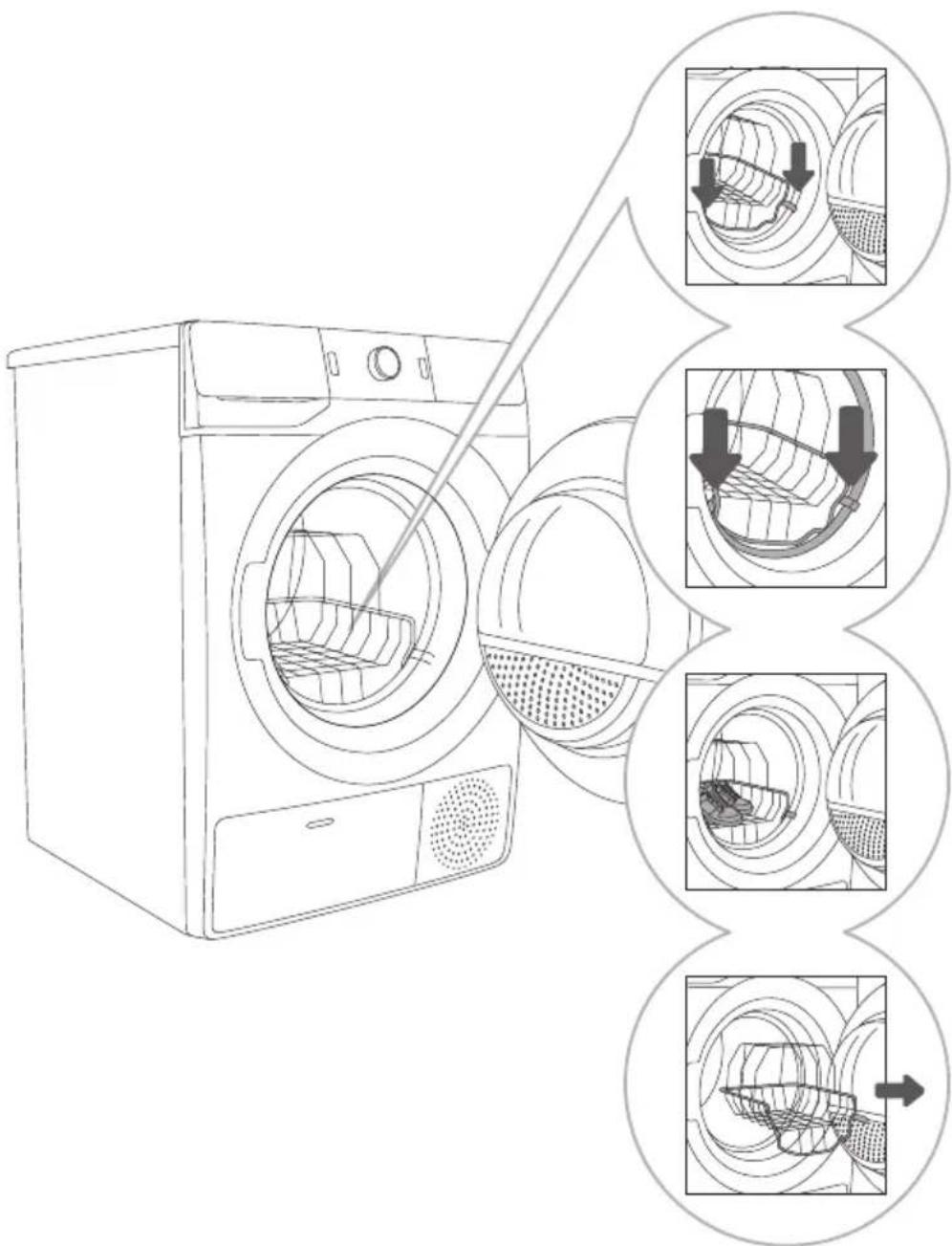

DRYING IN A BASKET (DEPENDING ON THE MODEL)
Before the first drying cycle, remove the basket and all packaging from the drum.
Laundry may only be dried in the basket when using the timed drying programme. (The basket is available for purchase as an optional accessory at the service centre.)
1 Open the dryer door and insert the laundry.
2 Insert the drying basket by securing it to the door gasket (as shown in the figure).
3 The basket can be used for drying of sports shoes, slippers, or any other item you do not wish tumbled around the dryer drum during the drying process (max. load: 2.5 kg).
4 After the drying process, remove the drying basket and close the dryer door.
Only dry clean sports shoes or slippers that have been wrung just enough to prevent water from dripping from them.
As the drum rotates, the laundry basket will be still. Therefore, make sure the items you are drying in the basket are not in contact with the drum, as this could result in damage to the item and the dryer.
SWITCHING ON THE DRYER
Connect the dryer to the power mains by plugging in the power cord.
Press the (1) ON/OFF button to switch on the dryer (figure 1).
With some models, the dryer drum is lit as well (figure 2).
(The light in the dryer drum is not suitable for any other use.)
The light in the dryer drum may only be replaced by the manufacturer, a service technician or an authorized person.

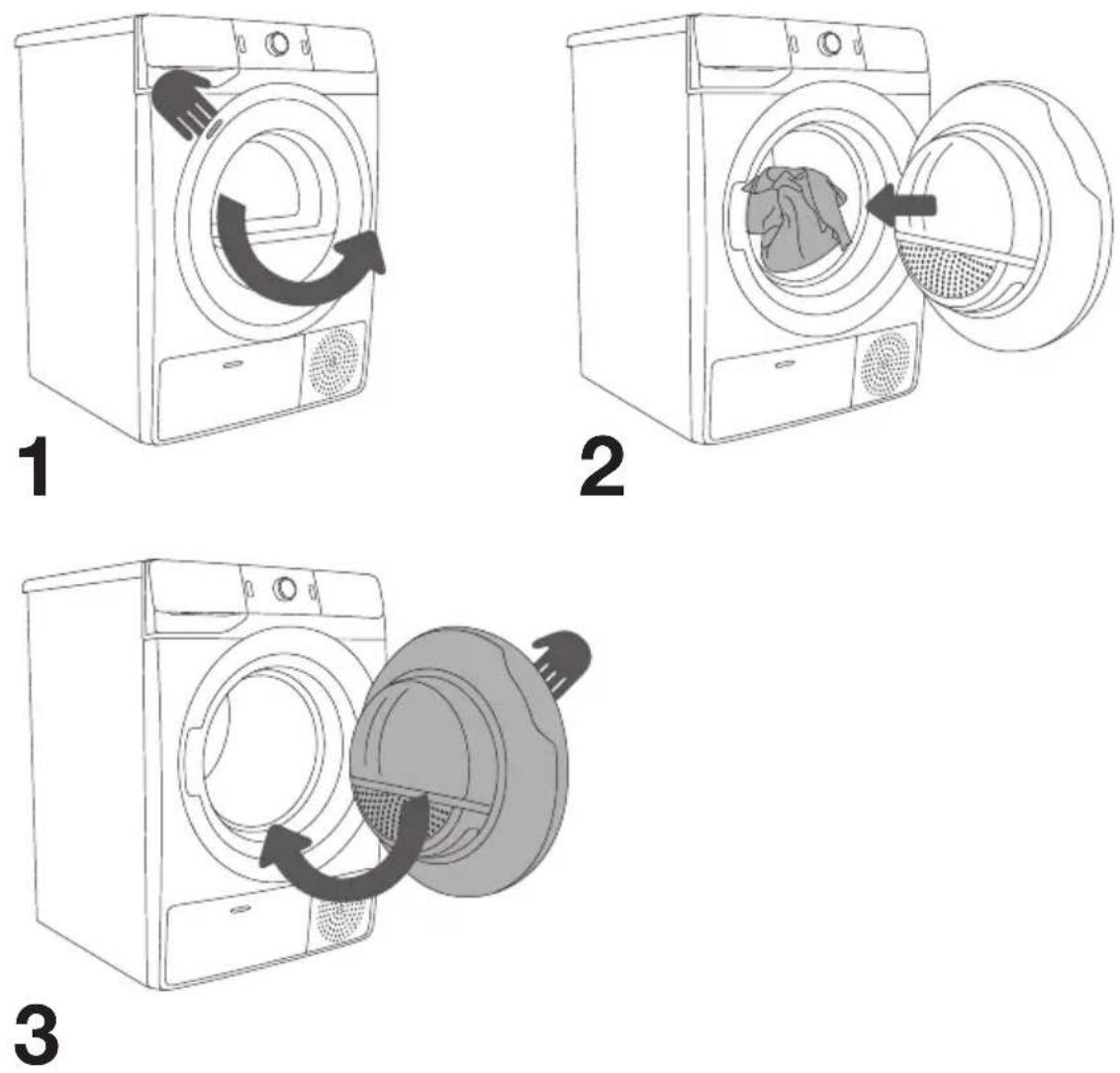

LOADING THE DRYER
Open the dryer door by pulling the left side of the door towards you (figure 1). Insert the laundry into the drum (after making sure the drum is empty) (figure 2). Close the dryer door (figure 3).
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum spinning cycle: 800 rpm).
Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on the rating plate.
If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.
When drying larger items (bedding, towels, tablecloths etc.), loosen them and then insert them into the dryer drum.
STEP 3: CHOOSING THE DRYING PROGRAMME
Choose the programme by rotating the programme selector knob (2) to the left or to the right (depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE.
PROGRAMME TABLE
| ProgrammeDryness levels | Max. load | Programme description |
| Cotton | ||
| Storage(Cupboard dry) | 7 kg/8 kg | Use this programme for thicker non-sensitive cotton laundry. After drying, it will be dry and ready to be stored in the cupboard. |
| Standard* 4 kg/ | 8 kg | Use this programme for thicker non-sensitive cotton laundry of approximately the same thickness. After drying, it will be dry. |
| Iron(Moist for ironing) | 7 kg/8 kg | Use this programme for non-sensitive cotton laundry. After drying, it will be ready for ironing. |
| Mix (Mixed laundry/Synthetics) | ||
| Storage(Cupboard dry) | 3,5 kg Use this programme for sensitive laundry made of a mixture of synthetic and cotton fibres. After the drying cycle, the laundry will be dry. | |
| Iron(Moist for ironing) | 3,5 kg Use this programme for sensitive laundry made of a mixture of synthetic and cotton fibres. After drying, the laundry will be slightly moist. | |
| Wool 2 kg This short programme is intended for softening or fluffingof clothes made of wool and silk, which have to be dried thoroughly according to manufacturer s instructions. | ||
| Delicates 1 kg Use this programme to dry highly delicate laundry madeof synthetic fibres, which may be slightly moist after the drying process. We recommend using a special-purpose laundry bag. | ||
| Air Refresh 2 kg In this programme, the heater is switched off. Theprogramme is suitable for refreshing your laundry. | ||
| Down Wear 1,5 kg Use this programme to dry textiles stuffed or paddedwith down (pillows, duvets, jackets etc.). Dry large items separately and use the EXTRA DRY function or the TimeProgramme if necessary. | ||
| Baby Care(Baby clothes) | 4 kg Use this programme to dry baby clothes. Clothes dried with this programme are usually normally dry. | |
| Sportswear 3 kg Use this programme for clothing with a membrane, for sportswear made of mixed materials, and breathable fabrics. | ||
| Shirts 2 kg Use this programme to dry shirts and blouses. Adjusteddrum rotation prevents the laundry from creasing. | ||
| Dry(Timed drying program)90'60'30' | 4 kg Use this programme for non-sensitive laundry that is still slightly moist and has to be thoroughly dried. In the time programme, remaining moisture is not detected automatically. If the laundry is still damp after the programme is complete, repeat the programme; if it is too dry and therefore creased and rough to touch, the drying time you selected was too long. | |
| Bedding 5 kg Use this programme for larger items. When the programme is complete, they will be dry. Adjusted drum rotation prevents the laundry from tangling. | ||
* Testing programme according to EN 61121
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.
STEP 4: SELECTING EXTRA FUNCTIONS
Activate/deactivate the function by pressing the desired position (before pressing the (3) START/USE button).
Adjust the settings by pressing the relevant function button (before pressing the (3) START/PAUSE button).
Functions that can be changed or adjusted with the selected drying programme are partly lit (dimmed).
Certain settings cannot be selected with some programmes. Such settings will not be lit, and the button will flash when pressed (see FUNCTION TABLE).
Description of lighting of functions for the selected drying programme:
- Lit (Basic/preset setting);
- Dimmed (Functions that can be adjusted) and
- Unlit (Functions that cannot be selected).
4
EXTRA DRY
Press on the EXTRA DRY position to adjust the dryness level – the dryer the laundry, the longer the drying cycle. This setting can be adjusted before the start of the drying process. After the drying programme, this setting is not stored.
5
GENTLE CARE (LOWER TEMPERATURE)
For delicate laundry. Lower temperature depends on the programme for which the function was selected. This setting can be adjusted before the start of the drying process. After the drying programme, this setting is not stored.
7
START DELAY
Desired time when the drying programme should start can be set in advance, which allows more flexibility.
Press the position (7) START DELAY (to choose from 0 to 6 in 30-minute steps, and from 6 to 24 hours in 1-hour steps (7a) of start delay; when you press the (3) START/PAUSE button, the selected time is displayed.
When the set delay time expires, the selected drying programme will start automatically.
To deactivate the start delay, press the position (7) START DELAY and hold it for 3 seconds.
In case of a power supply failure before the delay time has elapsed, press the START/PAUSE (3) button to resume the countdown.
The symbol ☒ (7b) is lit when the DRYING TIME is in progress/counting down.
The symbol (7c) is lit when the START DELAY function (7) is selected.
10
ANTI CREASE
If you do not intend or cannot remove the laundry from the dryer immediately after the completion of the drying programme, we recommend using the (10) ANTI CREASE function which has to be selected before the start of the drying process.
Press on the position (10) ANTI CREASE to choose between 1h, 2h, and 3h (10a) or deactivating this function. When you open the dryer door after the completion of the drying programme, the function is automatically deactivated.
CHILD LOCK
To activate or deactivate the child lock, press the positions (4) EXTRA DRY and (7) START DELAY simultaneously and hold them for at least 3 seconds until the symbol =0 (6) lights up or goes off, respectively. If the child lock is activated, programme or additional functions cannot be changed. The child lock remains active after the dryer is switched off. Therefore, it has to be deactivated before a new programme can be selected. It can also be switched off during the drying process.
Some functions are not available and cannot be selected with certain programmes; an acoustic signal and a flashing light will indicate such cases (see EXTRA FUNCTION TABLE).
After disconnecting the dryer from the power mains, all settings will be reset to their default factory values, except for the acoustic signal loudness, anti-crease, and child lock setting.
EXTRA FUNCTION TABLE
| Programi | GENTLE CARE (LOWER TEMPERATURE) | EXTRA DRY | START DELAY | ANTI CREASE |
| Cotton | ||||
| Storage (Cupboard dry) • | • | • | • | |
| Standard • | • | • | ||
| Iron (Moist for ironing) • | • | • | • | |
| Mix (Mixed laundry/Synthetics) | ||||
| Storage (Cupboard dry) • | • | • | • | |
| Iron (Moist for ironing) • | • | • | • | |
| Wool | ||||
| Delicates | • | • | • | |
| Air Refresh | ||||
| Down Wear | • | • | • | • |
| Baby Care (Baby clothes) | • | • | • | • |
| Sportswear | • | • | • | |
| Shirts | • | • | • | • |
| Dry (Timed drying program) | ||||
| 90' | • | • | ||
| 60' | • | • | ||
| 30' | • | • | ||
| Bedding | • | • | • | • |
- Extra functions can be used
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.
STEP 5: STARTING THE DRYING PROGRAMME
Press the button (3) START/PAUSE.
STEP 6: END OF THE DRYING PROGRAMME
At the end of the drying programme, »End« will appear on the display unit End, the two red indicator lights will light up, and the (3) START/PAUSE button light and ANTI CREASE (10a) time indicator, if activated or selected, will flash.
- Open the dryer door.
- Clean the filter (see section »CLEANING« ...).
- Take the laundry from the drum.
- Close the door!
- Switch off the dryer (press the (1) ON/OFF button).
- Empty the condensate tank.
- Unplug the power cord from the outlet.
After the end of the drying programme, immediately remove the laundry from the dryer to prevent it from creasing again.
INTERRUPTIONS AND CHANGING THE PROGRAMME
INTERRUPTIONS
Interrupting the programme process
Press the (3) START/PAUSE button to pause/resume a programme.
To stop and cancel the drying programme, press the (3) START/PAUSE button and hold it for 3 seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down time depends on the selected programme. After this process, the drying programme can be selected again.
Open door
If the dryer door is opened during the drying process, the drying cycle will be interrupted. When the door is closed and the (3) START/PAUSE button is pressed, the drying will resume from the point at which it was interrupted.
The dryer door will heat up during the drying process. Make sure you do not burn yourself when opening the dryer door.
Full condensate tank
When the condensate tank is full, the drying programme will pause (symbol 9 ) will be lit up). Empty the condensate tank (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate tank«). Press the (3) START/PAUSE button to resume the drying programme from the point at which it was interrupted.
Power supply failure
When power supply is resumed, the signal light on the (3) START/PAUSE button will flash. To resume the drying process, press the (3) START/PAUSE button.
CHANGING THE PROGRAM/FUNCTIONS
Switch off the dryer by pressing the button (1) ON/OFF; then, switch it on again by pressing the button (1) ON/OFF and rotate the (2) programme selector knob to the desired programme, or choose extra functions.
Select another program/function and press the (3) START/PAUSE button again.
ADDING LAUNDRY AFTER THE START OF THE PROGRAM
Open the dryer door and press the (3) START/PAUSE button. Insert the laundry and press the button (3) START/PAUSE.
When loading the laundry, make sure you do not burn yourself when you open the dryer door.
Drying time may be extended.
SAVING PERSONAL SETTINGS
Initial settings may be changed.
When the programme and additional functions are selected, you may store such combination by pressing the (3) START/PAUSE button and holding it for five seconds. An indicator light on the (3) START/PAUSE button and an acoustic signal will confirm your selection. »S C« (settings changed) will be displayed briefly on the display.
Press the (3) START/PAUSE button to start the drying process.
The changed combination will appear every time you switch on the dryer.
Follow the same procedure to change a previously saved combination.
PERSONAL SETTINGS MENU
Switch on the dryer by pressing the (1) ON/OFF button. To open the personal settings menu, simultaneously press the positions (7) START DELAY and (10) ANTI CREASE and hold them for 3 seconds. The symbols (7c) START DELAY, (7b) DRYING TIME, (8) FILTER, and (9) CONDENSATE TANK will be lit on the display unit. Number 1 will appear on the LED display, indicating the settings function. Rotate the programme selector knob (2) to the left or to the right to choose the function to change. Number 1 indicates sound settings and number 2 indicates resetting of Personal programme settings to factory defaults. If the desired settings are not selected in 20 seconds, the programme will automatically return to main menu. Press the (7) START DELAY position to confirm the desired functions and their settings; press the (4) EXTRA DRY position to go back one step. Acoustic signal volume can be set at four levels (0 means the sound is off; 1 means that the button sound is activated; 2 means low volume, and 3 means high volume). Choose the volume level by rotating the programme selector knob (2) to the left or to the right. The lowest setting means that the acoustic signal is switched off.
MAINTENANCE & CLEANING
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains (unplug the power cord from the outlet).
The dryer is fitted with a filtering system consisting of one filter.
1 Net filter
2 Water condenser unit
3 Condensate tank
The dryer may never be operated without the filter in place, or with damaged filter, as excessive amount of accumulated fibres from the fabric could cause malfunction or failure of the dryer.

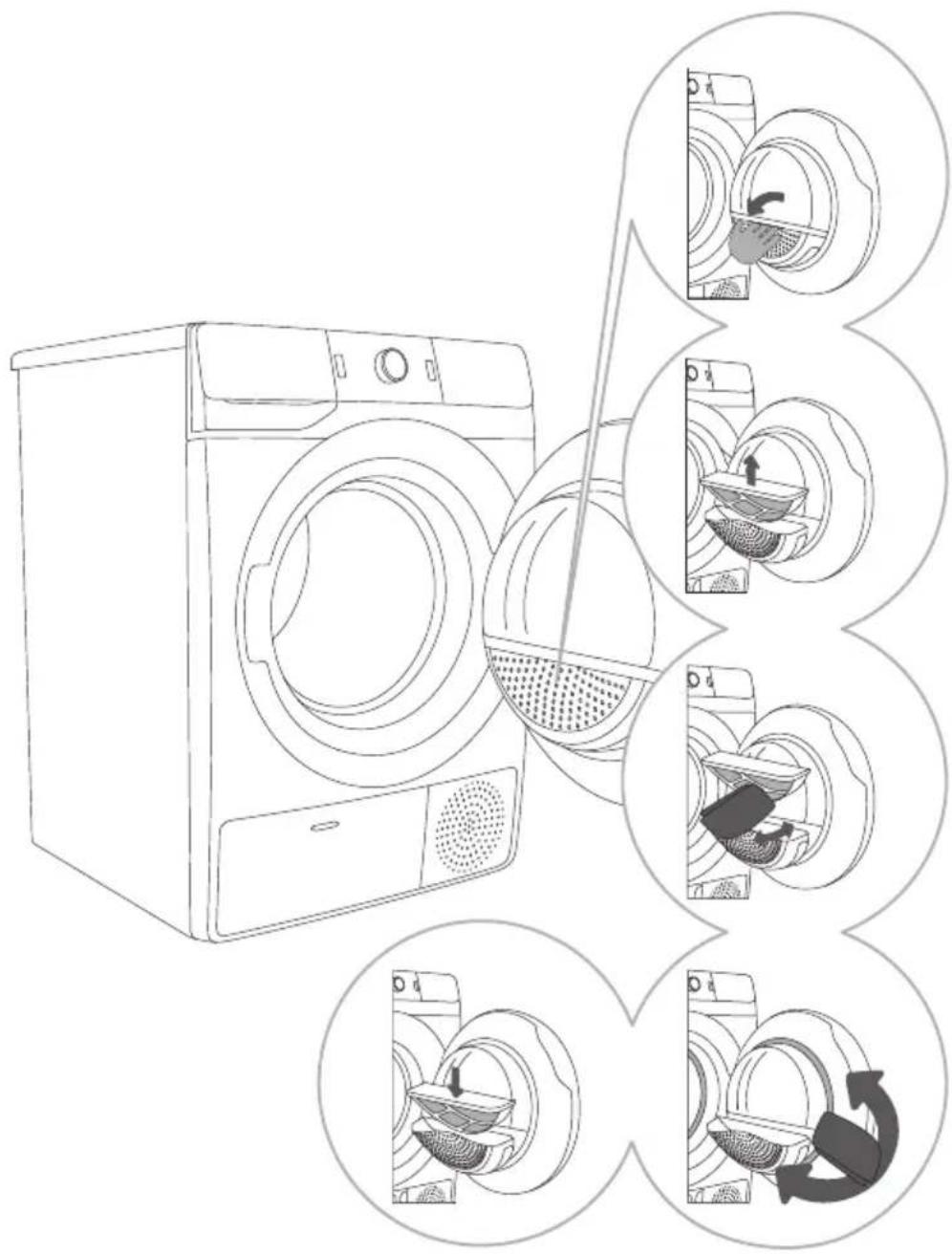

CLEANING THE NET FILTER IN THE DOOR
Clean the net filter after each drying cycle.
1 Open the filter housing.
2 Pull out the net filter.
3 Gently scrape the filter to remove the lint, i.e. the lining of fibres and threads, with your hand or with a cloth.
4 If necessary, clean the filter housing and door gasket as well.
5 Insert the net filter and close the filter housing.
Make sure you do not pinch your fingers with the filter cover.
CLEANING THE CONDENSER UNIT
During cleaning, some water may be spilled. It is therefore recommended to place an absorbent cloth on the floor.
1 Open the outer cover. Hold the levers on the inside cover and rotate them upwards. Remove the inside cover.
2 Remove the inside cover. Rotate the condenser unit lever up.
3 Use the handle to pull out the condenser unit.
4,5 Rinse the inside of the condenser unit with running water on both sides; drain it thoroughly and replace it. Use a soft damp cloth to clean the space behind the condenser unit (reach deep into the opening as far as the back wall with your hand); then, clean all gaskets and sealing surfaces on the condenser unit housing and door.
Do not poke into the openings between the condenser unit ribs as this may damage the condenser unit.
Do not wash the condenser unit in a dishwasher.

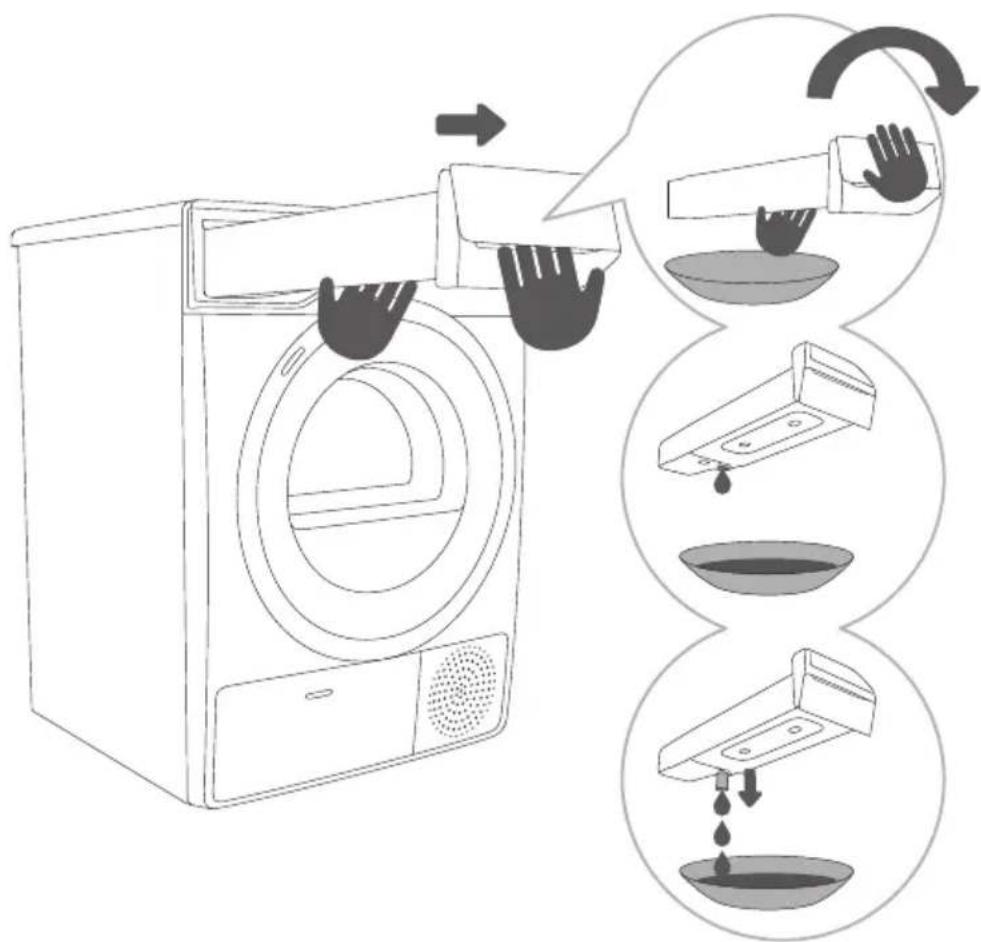

EMPTYING THE CONDENSATE TANK
Empty the condensate tank after each drying cycle.
If the condensate tank is full, the drying programme will be paused automatically.
Symbol ⚙ (9) will light up on the display unit, indicating that the condensate tank should be emptied.
1 Pull out the condensate tank from the dryer (using both hands as shown in the figure), then turn it upside down over a washbasin, sink, or any suitable vessel.
2,3 Empty the condensate tank. When emptying the tank, pull out the spout that simplifies pouring the water from the tank, and be careful to avoid burns as the water may be hot.
Replace the condensate tank.
Water from the condensate tank is not potable. If thoroughly filtered, it can be used for ironing.
⚠️ Never add chemicals or fragrances into the condensate tank.
It is not necessary to empty the condensate tank if the drain hose is connected directly to a drain (see chapter »INSTALLATION AND CONNECTION/Draining the condensate«).

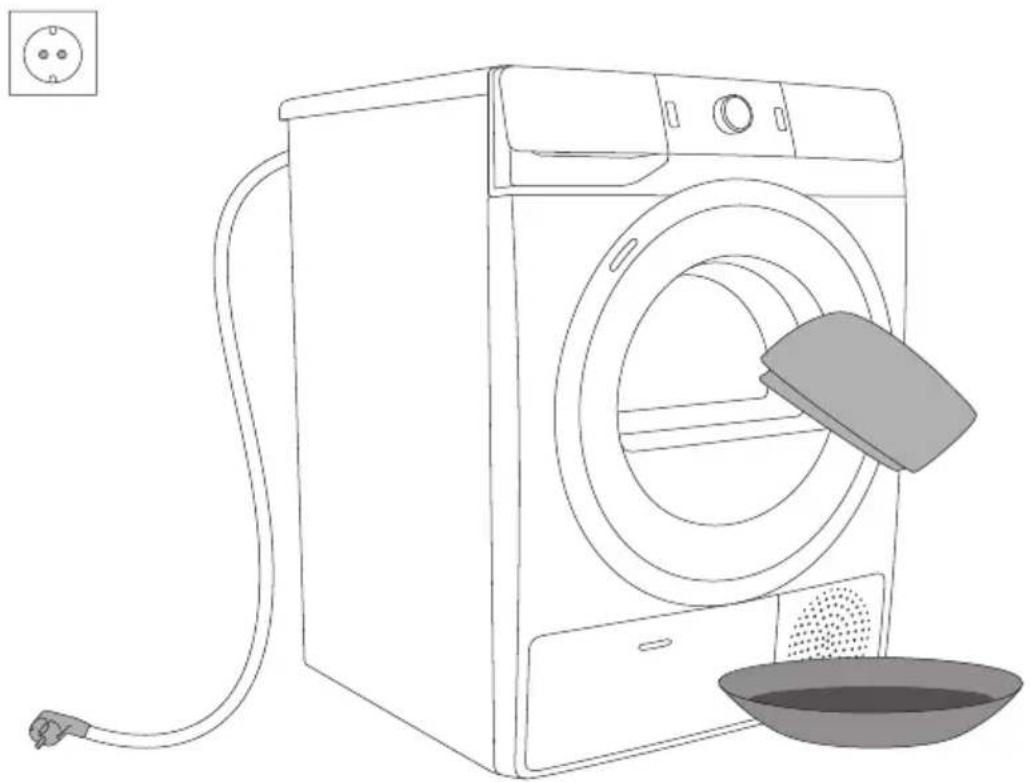

CLEANING THE DRYER
⚠️ Always disconnect the dryer from the power mains before cleaning.
Clean the dryer exterior using a soft damp cotton cloth.
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
Wipe all parts of the dryer with a soft cloth until dry.
Do not clean the dryer with a jet of water!
WHAT TO DO ...?
Disturbances from the environment (e.g. the power grid) may result in various error reports (see TROUBLESHOOTING TABLE). In such case:
- Switch off the dryer and wait at least one minute.
- Switch on the dryer and repeat the drying programme.
- Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
- If the error persists, call an authorized service unit.
• Repairs may only be carried out by an adequately trained person. - Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
The warranty does not cover the errors or failures resulting from disturbances from the environment (lightning strike, power grid failures, natural disasters etc.).
TROUBLESHOOTING TABLE
| Problem/error Cause | What to do? | |
| The machine will not start. | ·The main switch is not switched on. | ·Check whether the main switch is on. |
| ·There is no voltage in the power outlet. | ·Check the fuse.·Check if the power cord plug is correctly inserted into the power outlet. | |
| There is voltage in the outlet, but the drum does not spin and the appliance does not work. | ·Open the door. ·Check if the door is closed properly. | |
| ·The condensate tank is full. ·Empty the condensate tank (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate tank«). | ||
| ·Perhaps the START DELAY function was set.·Programme was not started in accordance with the instructions. | ·To cancel the start delay, press the position (7) START DELAY and hold for 3 seconds.·Re-read the instructions for use again. | |
| The appliance stops heating completely during a programme. | ·The net filter may be clogged. As a result, the temperature in the dryer rises, which in turn causes overheating, and therefore heating is switched off. | ·Clean the net filter (see chapter »CLEANING AND MAINTENANCE/Cleaning the net filter in the door«).·Wait for the appliance to cool down, and try running it again. If the dryer still fails to start, call a service technician. |
| A slight hitting noise appears. | ·If the dryer is out of use for a long period of time, the support elements are under stress at the same point. | ·The noise will subside without any intervention. |
| The door opens during drying. | ·Excessive load on the door (too much laundry in the drum). | ·Reduce the amount of laundry. |
| Unevenly dried laundry. | ·Laundry of varying types and thickness, or excessive amount of laundry. | ·Make sure you have sorted the laundry by type and thickness, whether you have added a suitable amount of laundry to the drum, and whether you have selected a suitable programme (see PROGRAMME TABLE). |
| Laundry not dried or drying takes too long | Filter is not cleaned. Clean the filter (see chapter »CLEANING AND MAINTENANCE/ Cleaning the net filter in the door«). | |
| Dryer is placed in a closed room; room that is too cold; or room that is too small and the air overheats as a result. | Make sure there is adequate supply of fresh air to the dryer; for example, open the door and/or window.Check if the temperature in the room where the dryer is installed is too high or too low. | |
| Laundry was not sufficiently wrung or spun. | If the laundry is still wet after the drying cycle, repeat the drying and select an appropriate drying programme (after cleaning the filter). | |
| Amount of laundry dried in the appliance is too large or insufficient. | Use a suitable programme or extra functions. | |
| Laundry (such as bedding) gets tangled into large balls. | Close the buttons or zippers on the laundry before drying. Select a suitable programme (e.g. the Bedding program).After the drying process, loosen the laundry and select an additional drying programme (e.g. Dry (Timed drying program)). | |
| Drum lighting error | There is no lighting when the dryer door is opened. | Disconnect the dryer from the power mains and call an authorized service unit. |
Errors indicated on the display unit may include the following:
| Problem/error Indication on the display unit and description of error | What to do? | |
E0 Control unit failure | Call service centre. | |
E1 Temperature sensor failure | Call service centre. | |
| E2 | Communication error | Call service centre. |
E3 Pump error | Call service centre. | |
E4 System overheating | Clean the filter. See chapter »CLEANING AND MAINTENANCE/Cleaning the net filter in the door« or call a service technician. | |
E6, E7, E8 Control unit failure   | Disconnect the tumble dryer from the power supply.Call service centre. | |
Warnings indicated on the display unit may include the following:
| Warning Indication on | the display unit and description of warning | What to do? |
| [CK82] | Condensate tank warning Empty the condensate tank before resuming the programme (see chapter »CLEANING AND MAINTENANCE/ Emptying the condensate tank«). | |
| »PF« Power supply failure warning |  | Drying interrupted due to power supply failure. Press the (3) START/PAUSE button to restart or resume the drying programme. |
Write down the error code (e.g. E0, E1), switch off the dryer, and call the nearest authorized service (call centre).
Sounds
In the initial drying stage, the heat pump causes noise; this, however, does not affect the tumble dryer operation.
Pumping or liquid flowing sound: the pump is pumping the condensate into the condensate tank. Rumbling or rattling noise: during drying when the laundry also includes hard parts (such as buttons, zippers etc.)
SERVICING
Before calling a service technician
When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3), and serial number (4).
Type, code/ID, model, and serial number are indicated on the rating (type) plate located on the front side of the dryer door opening.
⚠ In case of a failure, only use approved spare parts by authorized manufacturers.
⚠️ Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
Additional information, equipment and accessories for maintenance can be obtained through Hisense customer service centers.
TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER
The most economical way of drying is to dry the recommended amount of laundry in each batch (see PROGRAMME TABLE).
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying in the dryer. Drying time will be shorter and power consumption will be lower if the garments are thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you will avoid over-drying your laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.
When drying smaller amounts of laundry or individual garments, the sensor may not perceive the actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or amounts with programmes for dryer laundry or with the timed programme.
DISPOSAL
Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately.
The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing.
When disposing of the dryer at the end of its useful life, remove all power cords, and destroy the door latch and switch to prevent the door from locking or latching (child safety).
Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product.
TYPICAL CONSUMPTION TABLE
The table lists the values for drying time and power consumption for drying of a test batch of laundry with various spinning rpm in the washing machine.
| SPK B | Load | Spinning [rpm] | Electric energy consumption [kWh] | Drying time [min] | ||
| Programme 7 kg 8 kg 7 kg 8 kg | ||||||
| Cotton Standard Total 1000 4,25 4,75 125 145 | ||||||
| Partial 1400 2,45 2,60 85 94 | ||||||
| Low 1000 2,30 2,54 79 91 | ||||||
| Low 1400 2,15 2,23 75 80 | ||||||
| Cotton moist for ironing Total | 1000 3,70 3,75 90 115 | |||||
| Partial 1400 2,25 2,45 82 84 | ||||||
| Low 1400 2,05 2,15 72 75 | ||||||
| Mixed laundry/Synthetics moist for ironing | Partial 1000 1,50 1,50 55 55 | |||||
measured by standard EN 61121
Standard programmes for cotton laundry in compliance with the currently effective regulation EU 392/2012
| Programme Amount of laundry Max./half load [kg] | Programme duration [min] | Electric energy consumption [kWh] |
| Cotton Standard □ | 7/3,5 125/79 4,25/2,30 | |
| Cotton Standard □ | 8/4 | 150/96 4,75/2,54 |
The Cotton Standard programme ☐, is intended for drying of normally wet cotton laundry. It is the most efficient programme for drying cotton laundry in terms of power consumption.
Due to deviations in terms of type and amount of laundry, power supply oscillation, and environment temperature and humidity, the values measured at the end user may differ from the one stated in the table.
LOW STANDBY MODE
If you do not run a programme or do anything else after switching on the dryer, the dryer will switch off automatically after 5 minutes to save energy. Indicator light on the (3) START/PAUSE button will flash.
The display will be reactivated if you rotate the programme selector knob or press the (1) ON/OFF button or open the dryer door. If you do not do anything for 5 minutes after the end of the programme, the display unit will be switched off as well. Indicator light on the (3) START/PAUSE button will flash.
| P o = weighted power when off [W] < 0,5 | |
| P I = weighted power when in standby [W] < 0,5 | |
| T I = standby time [min] 5,00 |
Low mains voltage and different drying loads may affect the drying time; the remaining time displayed is adjusted accordingly during the drying process.
We reserve the right to any changes and errors in the instructions for use.
PRODUCT FICHE according to EU-Regulation No. 392/2012
Legend
| A Modelna oznaka XXXXXX | |
| B Condenser tumble dryer Vented tumble dryer | YES=YES; NO=NO YES=YES; NO=NO |
| C Automatic tumble dryer YES=YES; NO=NO | |
| D »EU Ecolabel award« Regulation (EC) No 66/2010 YES=YES; NO=NO | |
| E Energy consumption of the standard cotton programme at full load (E_dry) [kWh] | X,XX |
| F Energy consumption of the standard cotton programme at partial load (E_dry1/2) [kWh] | X,XX |
| G Power consumption of the off-mode (P_0) [W] X,XX | |
| H Power consumption of the left-on mode (P_1) [W] X,XX | |
| I The duration of the left-on mode [min] XX | |
| J Standard cotton programme, used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. Cotton Standard □ program is intended for drying of normally wet cotton laundry. In terms of total energy consumption, it is the most efficient program for drying cotton laundry. | |
| K Weighted programme time (T_t) of the standard cotton programme at full and partial load [min] | XX |
| L Programme time of the standard cotton programme at full load (T_dry) and partial load (T_dry1/2) [min] | XX/XX |
| M Average condensation efficiency (C_dry) / (C_dry1/2) XX/XX | |
| N Weighted condensation efficiency (C_t) | XX |
| O Built-in appliance YES=YES; NO=NO |
Based on 160 standard drying cycles with the Cotton Standard program □ with full and half load, in compliance with EN61121.
Actual power consumption will depend on the way the appliance is used.
On a scale from D (the least efficient) to A+++ (the most efficient).
Hisense
life reimagined
