Introduction

The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby®, and DTS® audio from HDMI® sources. It features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.

The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The HDR-M2C includes Atlona's award-winning 10-year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Features

• Downmixes multichannel audio to two-channel audio
• Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
  • LED indicators provide power status and audio format identification
• Compatibility with new and emerging 4K/UHD and HDR-capable sources and displays
• Adjustment of output volume, plus bass and treble settings via AMS and the web GUI
• Manages EDID communications with the source through a display's EDID or internally stored EDID

Package Contents

1 x AT-HDR-M2C
1 x Phoenix terminal block, 3-pin
1 x Phoenix terminal block, 2-pin
1 x 5V DC power supply
1 x Wall/table mounting brackets
1 x Installation Guide

Panel Description

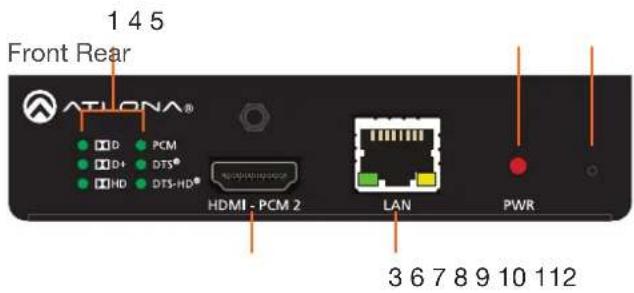

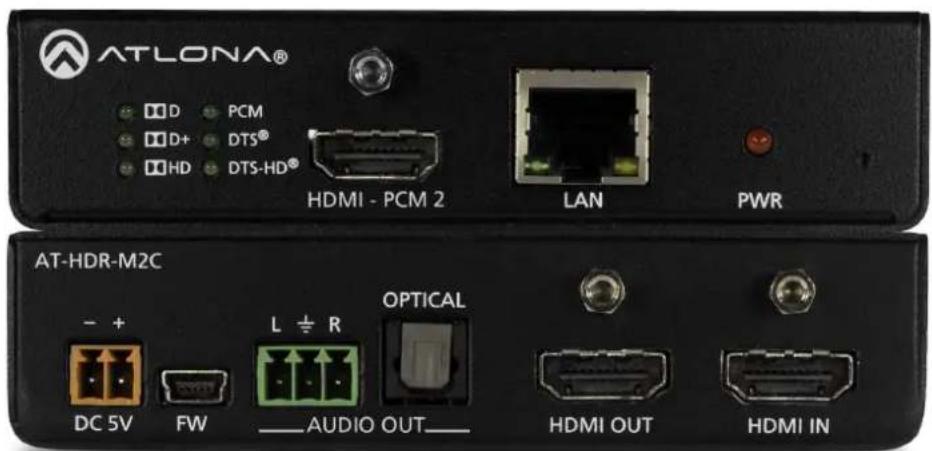

1 4 5 Front Rear ATLONA® D D PCM D+ DTS® HD DTS-HD® HDMI - PCM 2 LAN PWR 3 6 7 8 9 10 112

1 Audio Indicators

These LED indicators will glow green to indicate the current audio format of the input signal.

2 HDMI - PCM 2

Connect an HDMI cable from this port to to an HDMI display, extender, or switcher. This output only supports two-channel audio.

3 LAN

Connect an Ethernet cable from this port to a Local Area Network (LAN). This port provides access to the web GUI.

4 PWR

This LED indicator will glow red when the unit is powered.

5 IP Mode Button

Press this button to set the unit to toggle between static IP and DHCP mode. Refer to Toggling the IP Mode (page 12) for more information.

6 DC 5V

Connect the included 5V DC power supply to this power receptacle.

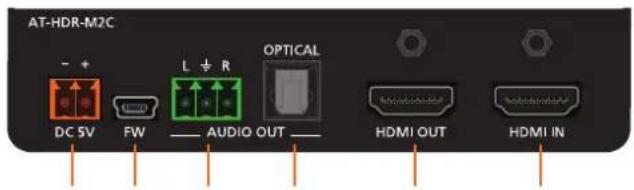

AT-HDR-M2C - + DC 5V FW L ÷ R AUDIO OUT OPTICAL HDMI OUT HDMI IN

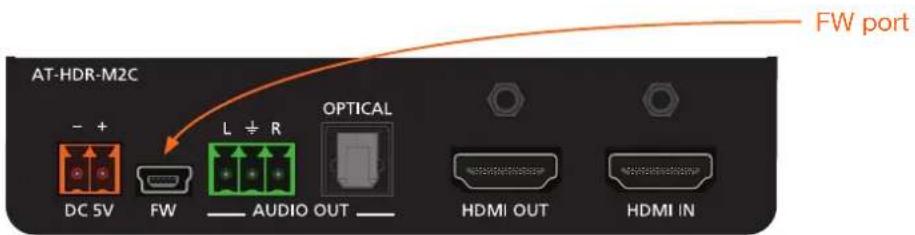

7 FW

Connect a mini USB type-B cable to this port to update the firmware.

8 L/R

Connect the included 3-pin Phoenix connector from this port to a two-channel audio output device.

9 OPTICAL

Connect an optical audio cable from this TOSLINK port to an audio output device. This output only supports two-channel audio.

10 HDMI OUT

Connect an HDMI cable from this port to a display or other sink device. This output supports multichannel audio.

11 HDMI IN

Connect an HDMI cable from the source to this port.

Installation

Audio Connector

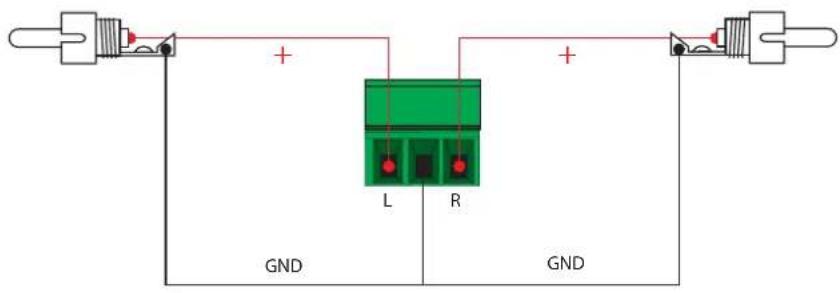

The AT-HDR-M2C provides analog audio output of two-channel audio, using the included 3-pin Phoenix terminal block.

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) from the insulation of each wire.
3. Insert the wires into the correct terminal on the included Phoenix block, as shown below.
4. Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or connector block.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

+ L R + GND GND

Power Connector

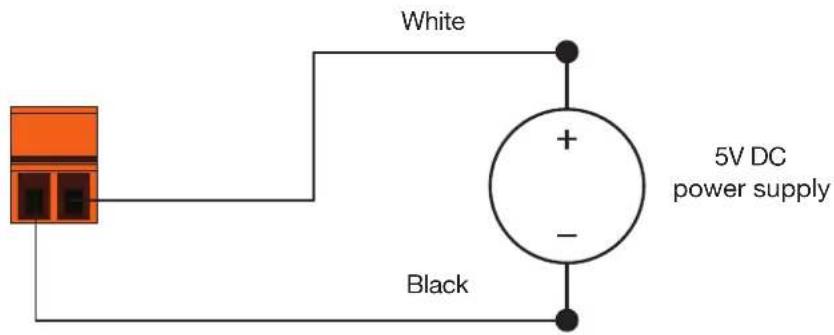

Locate the included orange Phoenix terminal block and wire the included power supply to the block, as shown below. Do not use high-torque devices, when securing the wires to the Phoenix terminal block, as this may damage the screws and/or block.

1. Insert the wires into the correct terminal on the included Phoenix block, as shown below.
2. Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or connector block.

3D rendered orange mechanical component with circular holes (no text or symbols)

White + - Black 5V DC power supply

Connection Instructions

1. Connect an HDMI cable from the UHD/HD source to the HDMI IN port on the AT-HDR-M2C.
2. Connect HDMI cables to the output ports:

• Multichannel Audio

Connect an HDMI cable from the HDMI OUT port, on the AT-HDR-M2C, to an AV receiver or other multichannel audio device.

- Two-channel audio

Connect an HDMI cable from the HDMI - PCM 2 port, on the AT-HDR-M2C, to a display or other sink device. Audio output is limited to two-channels.

IMPORTANT: The AT-HDR-M2C is a High Dynamic Range (HDR) device. For best performance, use premium HDMI cables that are HDR-certified.

1. Connect an optical audio cable from the OPTICAL port, on the AT-HDR-M2C, to a soundbar or other audio output device. Audio output is limited to two-channels.
2. Connect an Ethernet cable from the LAN port on the AT-HDR-M2C, to the Local Area Network (LAN).
3. Connect the green Phoenix block to the AUDIO OUT connector.
4. Connect the orange Phoenix block to the DC 5V connector.
5. Connect the 5V DC power supply to an available AC outlet.

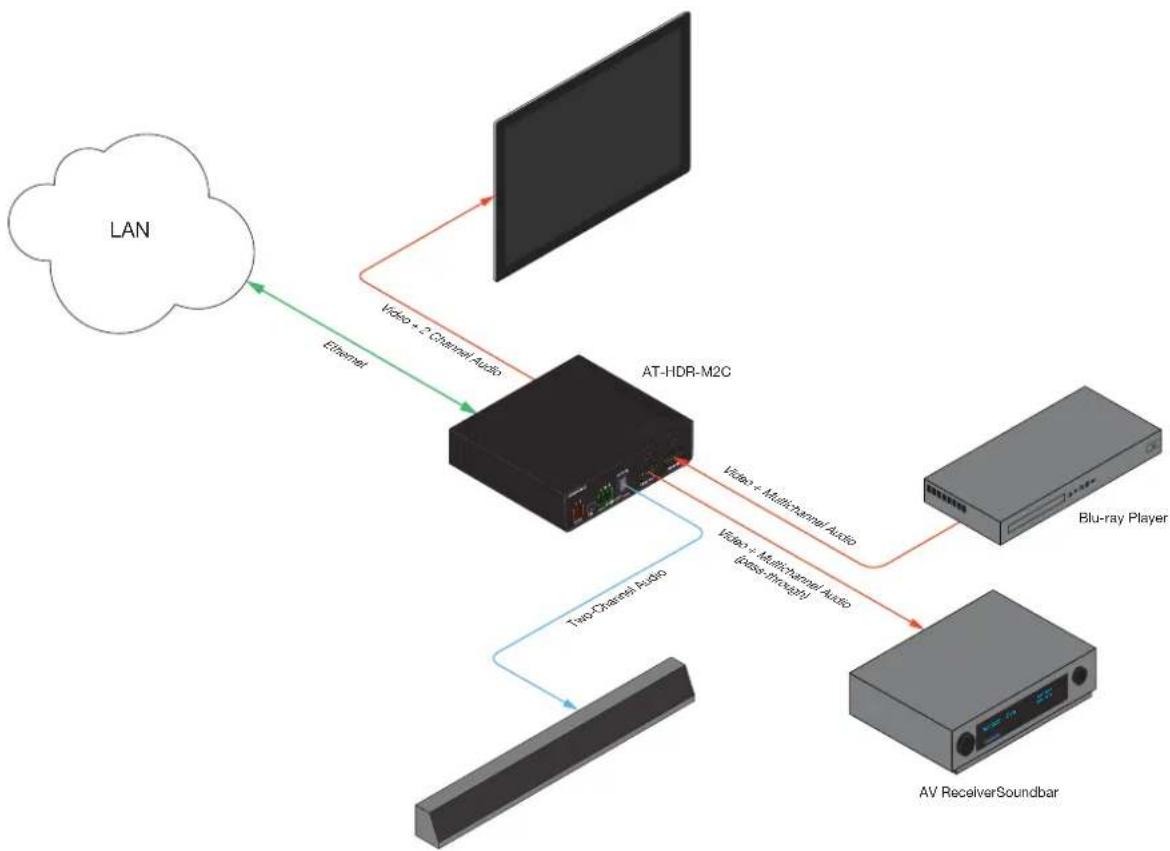

Connection Diagram

Basic Operation

Audio Input Indicators

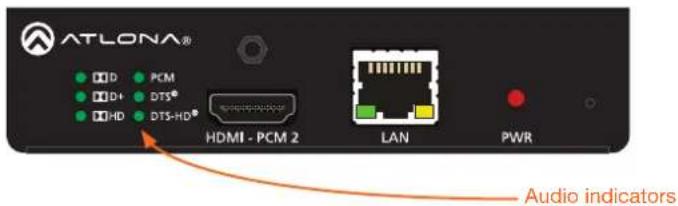

The front panel of the AT-HDR-M2C provides six LED indicators which will display the audio format detected on the HDMI IN port. When a recognizable audio format is detected, the associated indicator will glow solid green.

ATLONA® D PCM D+ DTS® HD DTS-HD® HDMI - PCM 2 LAN PWR Audio indicators

LED Description

D Dolby Digital; lossy audio format supporting up to 5.1 channels
D+ Dolby Digital Plus; lossy audio format supporting up to 5.1 channels plus support for higher bitrates.
HD Dolby TrueHD; lossless audio format supporting up to 7.1 channels
PCM Indicates the presence of two-channel, 5.1, or 7.1 LPCM audio formats
DTS® Indicates either DTS 5.1 or DTS:X
DTS-HD DTS-HD Master Audio™; combined lossy/lossless audio format supporting up to 7.1 channels

Toggling the IP Mode

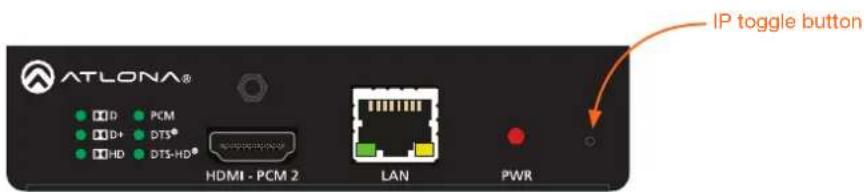

The recessed button on the front panel of the AT-HDR-M2C is used to toggle between DHCP and static IP mode. The factory-default setting for the AT-HDR-M2C is DHCP mode, which allows the device to be automatically assigned an IP address by the DHCP server (if present), after it is connected to a Local Area Network (LAN).

ATLONA® ● 📄 P ● PCM ● 📄 D+ ● DTS® ● 📄 HD ● DTS-HD® HDMI - PCM 2 LAN PWR IP toggle button

1. Insert the tip of a pencil or paper clip into the hole.
2. Press and hold the button until the PWR indicator blinks.

PWR LED Description

2 blinks Device is in static IP mode.
4 blinks Device is in DHCP mode.

The default static IP address is 192.168.1.254. The default subnet mask is 255.255.255.0.

The WebGUI

Introduction to the webGUI

The AT-HDR-M2C includes a built-in webGUI. Atlona recommends that the web GUI be used to set up the AT-HDR-M2C, as it provides intuitive management of all features.

The AT-HDR-M2C is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-HDR-M2C. If a DHCP server is not available or if a static IP address is desired, it can be assigned using the IPStatic command or through the System page (page 19). The default static IP address of the AT-HDR-M2C is 192.168.1.254.

1. Launch a web browser.
2. In the address bar, type the IP address of the AT-HDR-M2C.

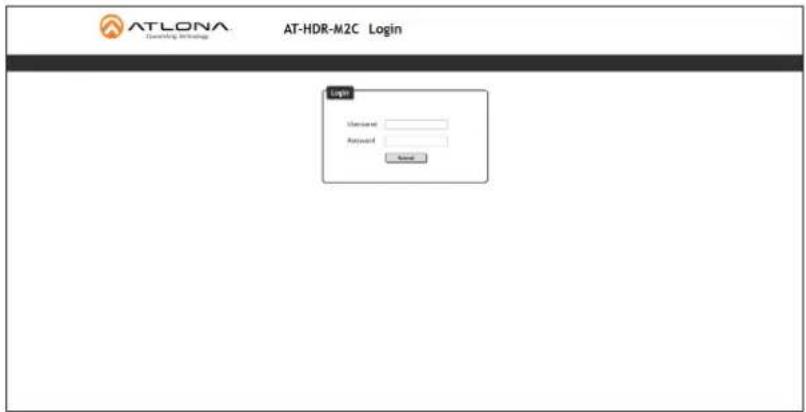

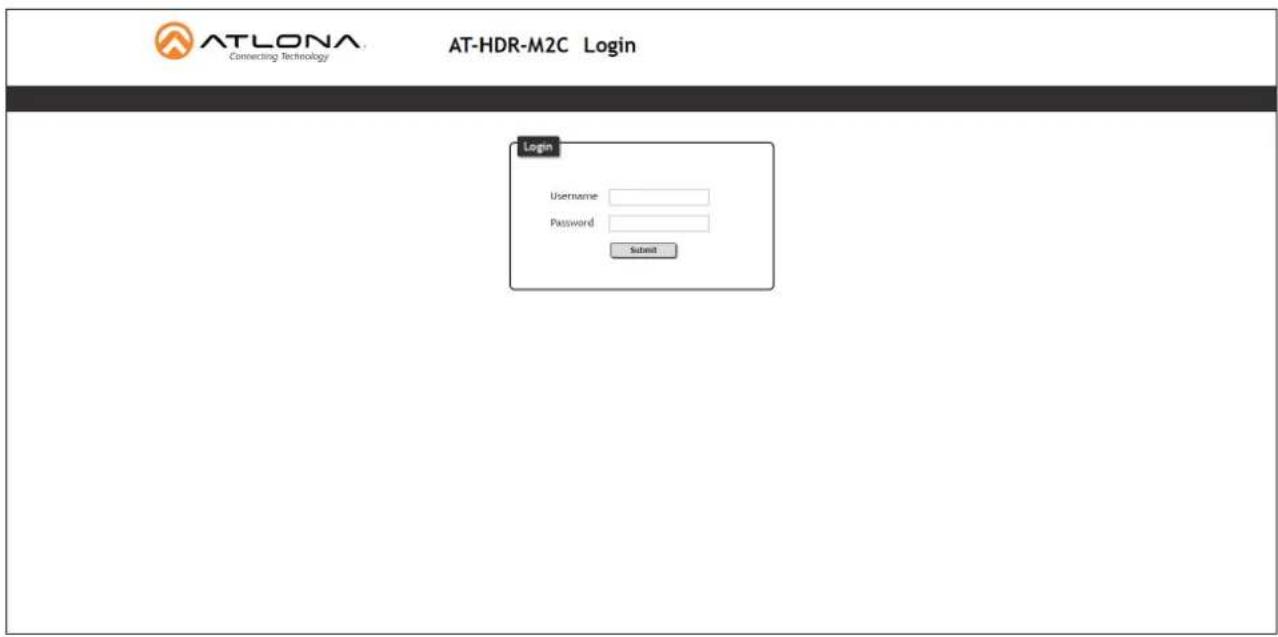

3. The Login page will be displayed.

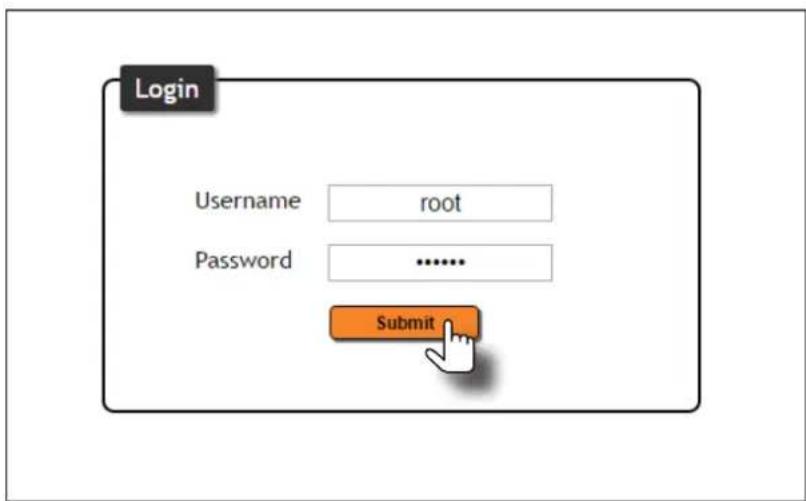

ATLONA Tecnoaching Technologies AT-HDR-M2C Login Login Password Password Password Password

1. Type root, using lower-case characters, in the Username field.
2. Type Atlona in the Password field. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the Config page (page 18) for more information.
3. Click the Submit button or press the ENTER key on the keyboard.

Login Username root Password .......... Submit

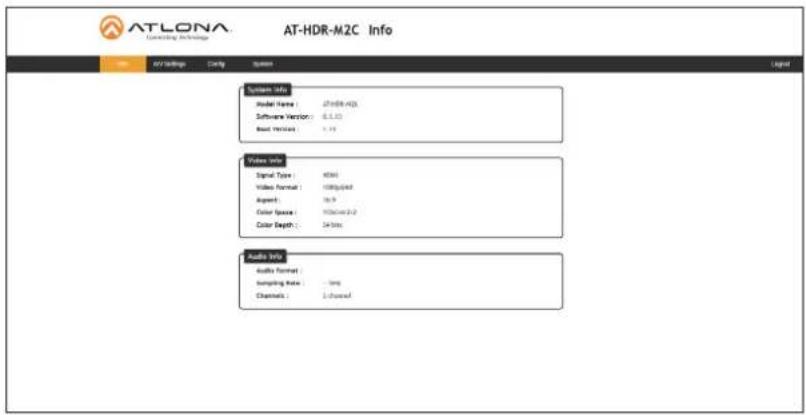

7. The Info page will be displayed.

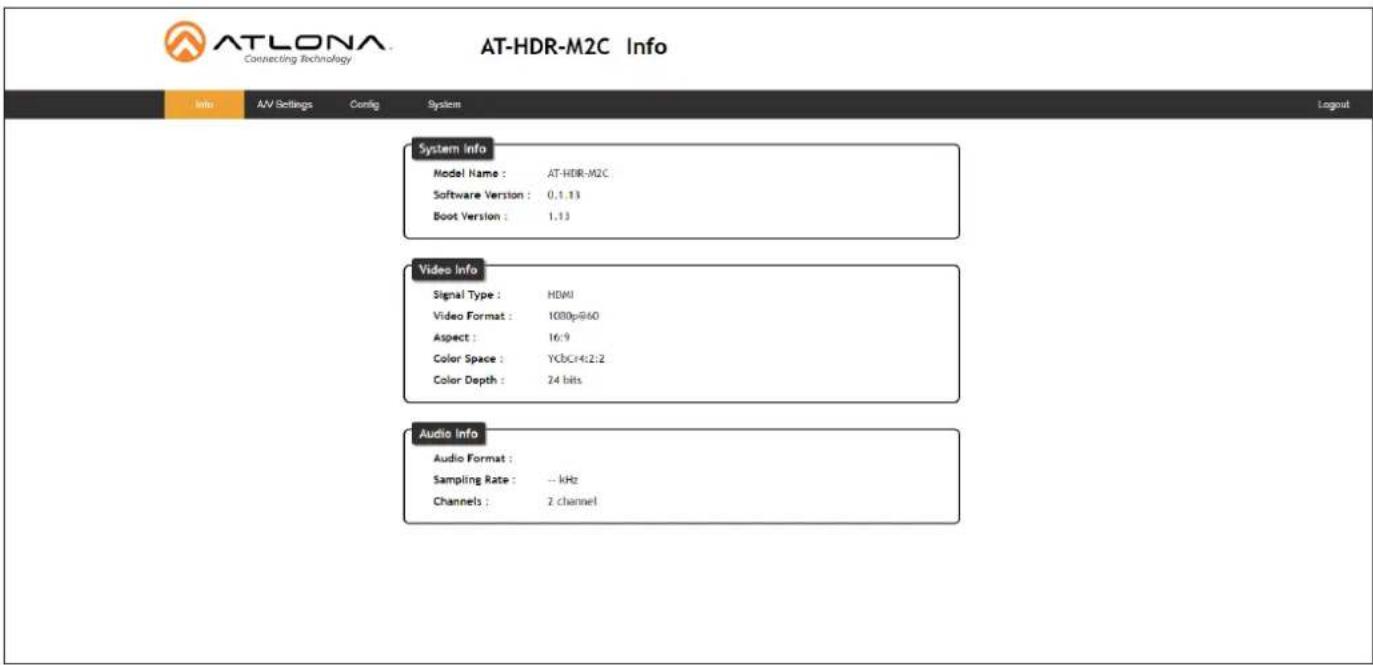

ATLONA Connecting Technologies AT-HDR-M2C Info System Info Model Name: 27HDB-433 Software Version: 6.1.10 Base Version: 1.19 Value Info Signal Type: 45MHz Video Format: 100dpi/ul Segment: 16.9 Color Space: 100pcs/2.2 Color Depth: 240mm Audio Info Audio Format: Sampling Rate: -1mg Channels: 1-channel

Menu Bar

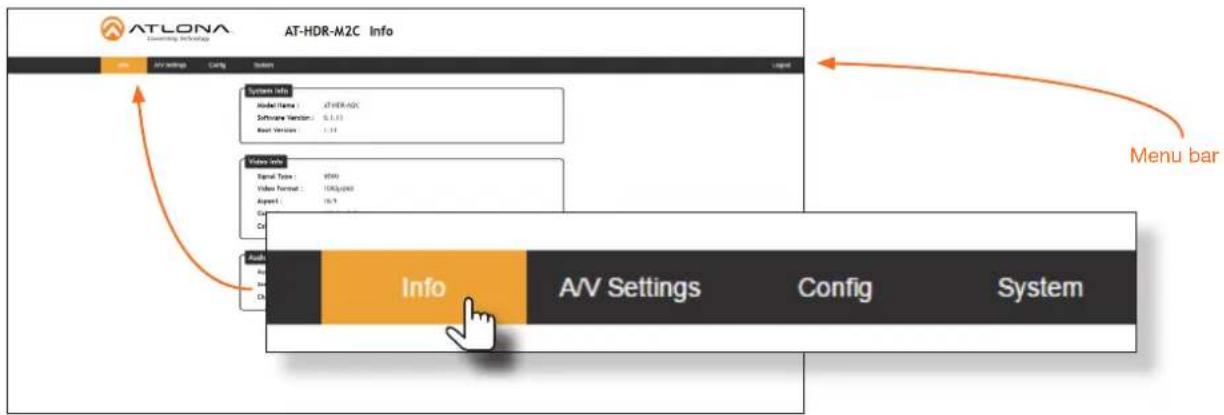

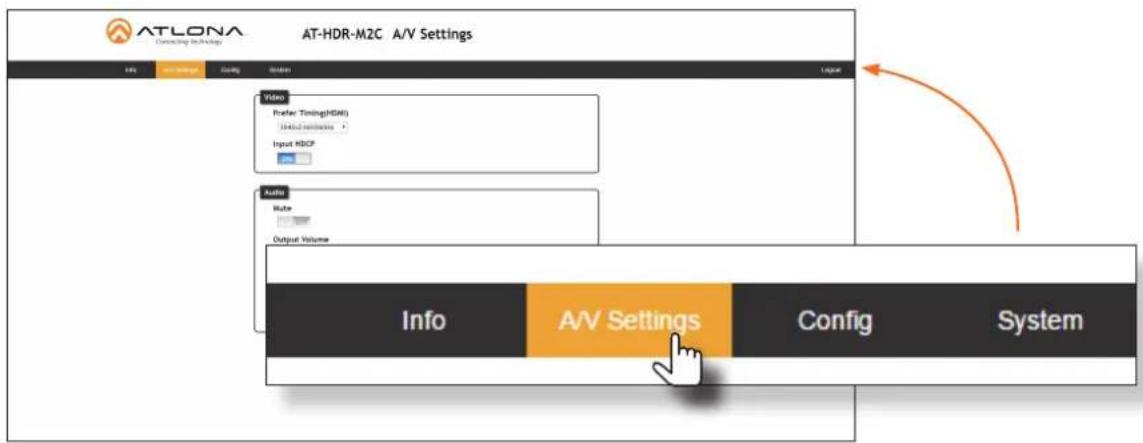

The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu.

ATLONA AT-HDR-M2C Info System Info Model Name: AT-HDR-M2C Software Version: 0.1.13 Real Versions: 1.11 Video Info Signal Type: VSM Video Format: 100dpi/100 August: 16.7 Audio Info AV Settings Config System Menu bar

In this example, clicking A/V Settings, in the menu bar, will display the A/V Settings page.

ATLONA Adding Technology AT-HDR-M2C A/V Settings File Edit View Config Substr Video Footer: Timing(HDMI) Input HBCP Audio Route Output Volume Info A/V Settings Config System

Toggles

Several settings within the Web GUI use toggles, which enable, disable, or assign one of two settings. Generally, when the toggle is blue, it means that the feature is enabled or ON. If a feature is disabled, then the toggle will appear gray and be labeled as OFF. Toggle buttons may also indicate its current setting and, when enabled or set to a particular state, may also provide access to another set of controls or text fields within the Web GUI, as shown with the IP Mode toggle.

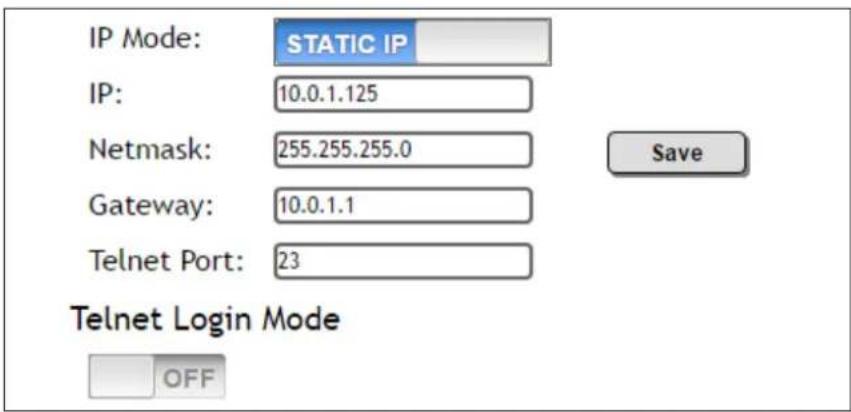

IP Mode: STATIC IP IP: 10.0.1.125 Netmask: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23 Telnet Login Mode OFF Save

Sliders

Click and drag slider controls to change their value.

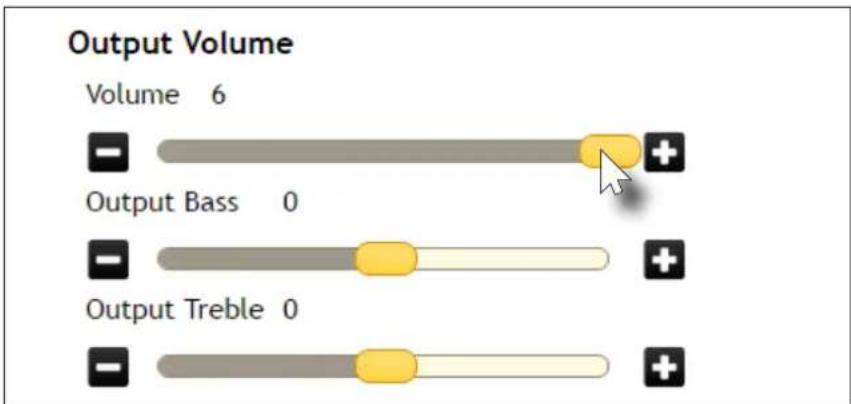

Output Volume Volume 6 Output Bass 0 Output Treble 0

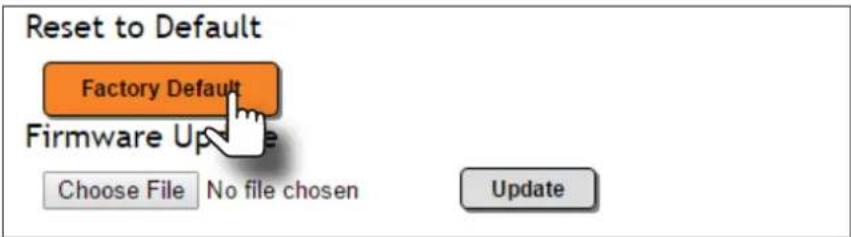

Buttons

Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDR-M2C to factory-default settings.

Reset to Default Factory Default Firmware Up Choose File No file chosen Update

Info page

After logging in, the Info page will be displayed. The Info page is divided into three sections: System Info, Video Info, and Audio Info. The System Info section displays general information about the AT-HDR-M2C, such as the model name, software, and boot loader version. The Video Info section displays information about the input video signal. The Audio Info section displays information about the audio format, sampling rate, and the number of audio channels.

AT-LONA Connecting Technology AT-HDR-M2C Info Info A/V Settings Config System System Info Model Name : AT-HDR-M2C Software Version : 0.1.13 Boot Version : 1.13 Video Info Signal Type : HDMI Video Format : 1080p@60 Aspect : 16:9 Color Space : YCbCf4:2:2 Color Depth : 24 bits Audio Info Audio Format : Sampling Rate : -- kHz Channels : 2 channel

System Info

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-HDR-M2C is running. Always make sure to check the AT-HDR-M2C product page, on the Atlona web site, for the latest version of firmware.

Boot Version

The version of the boot loader.

Video Info

Signal Type

The type of input signal.

Video Format

The input resolution of the source device.

Aspect

Aspect ratio of the input signal.

Color Space

Displays the color space and chroma sub-sampling of the input signal.

Color Depth

The color depth of the input signal.

Audio Info

Audio Format

The audio format detected on the input.

Sampling Rate

The sampling rate of the input audio signal, expressed in kilohertz (kHz).

Channels

The number of audio channels detected on the input signal.

A/V Settings page

The A/V Settings page is divided into two sections: Video and Audio. The Video section allows the preferred input timing to be selected as well as whether or not HDCP content is allowed to pass. The Audio section provides options to control the output audio volume, muting, treble, and bass.

AT-LONA Connecting Technology AT-HDR-M2C A/V Settings Info A/V Settings Config System Video Prefer Timing(HDMI) 3840x2 160/16kHz Input HDCP ON Audio Mute OFF Output Volume Volume 6 Output Bass 0 Output Treble 0

Video

Prefer Timing (HDMI)

Click this drop-down list to select the desired input.

Available Resolutions
800x600 1280x800 1920x1080 3840x2160@30Hz
1024x768 1366x768 1920x1200 3840x2160@60Hz
1280x720 1600x900 2560x1440

Input HDCP

Click this toggle to report HDCP compliance or non-compliance to the source device.

• ON - Reports to the source device that the AT-HDR-M2C is an HDCP-compliant sink.
• OFF - Reports to the source device that the AT-HDR-M2C is a non-HDCP-compliant sink.

Audio

Mute

Click this toggle to the OFF position to mute all audio on the output.

Volume

Click and drag this slider bar to adjust the audio volume. Range: -80 to 6.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -15 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -15 to 15.

Config page

The Config page provides management of usernames and passwords. The administrator username ("root") cannot be changed.

ATLONA

Connecting Technology

AT-HDR-M2C Config

info

AV Settings

Cinergy

System

Logwin

Configuration
Web & Telnet Login Settings

All User Login Settings

Configuration

Old Username

This field cannot be changed. "root" is the administrator user.

Old Password

Enter the current password for the "root" username in this field. The default password is "Atlona".

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password fro the "root" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to edit the username and password in the row.

• Del

Click the Remove button to delete the user in the row. This button will only be available if a username and password have been created.

System page

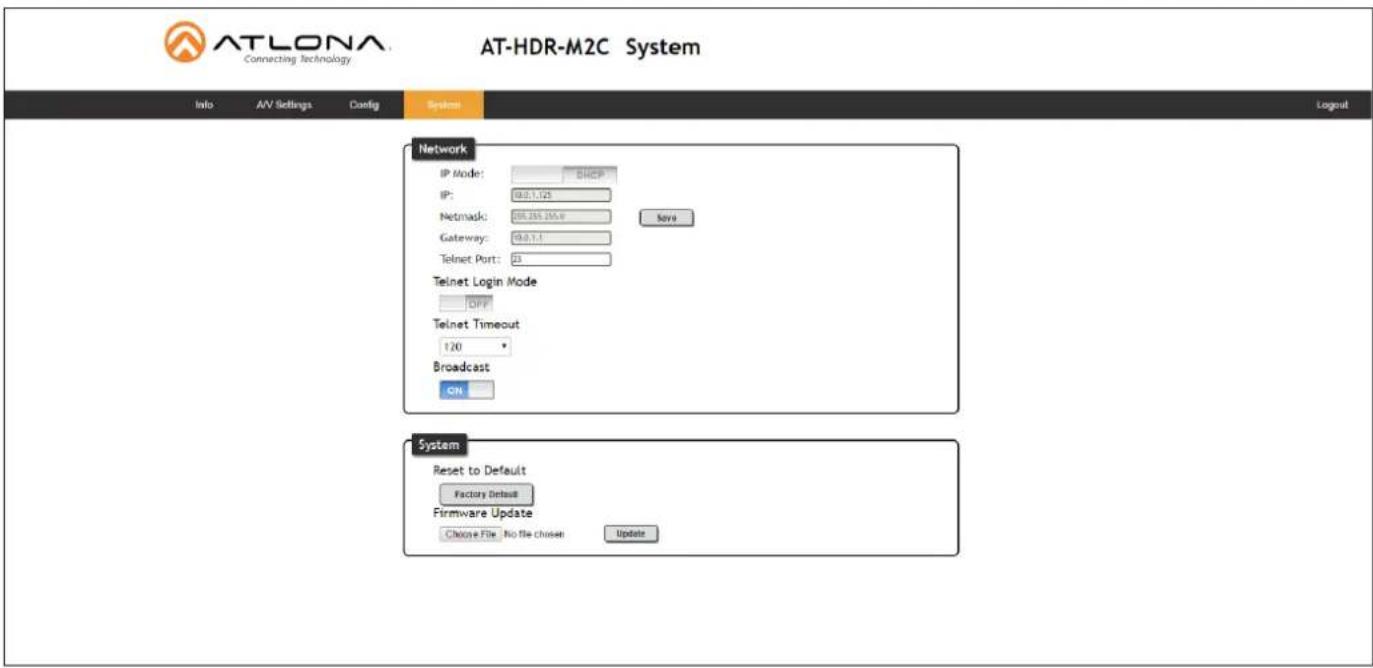

The System page is divided into two sections: Network and System. The Network section allows configuration of the IP settings of the AT-HDR-M2C. The System provides controls for resetting the AT-HDR-M2C to factory-default settings and updating the firmware.

ATLONA Connecting Technology AT-HDR-M2C System Info A/V Settings Config System Network IP Mode: BHCP IP: 08.0.1.03 Netmask: C58.265.265.0 Save Gateway: 08.0.1.1 Telnet Port: 25 Telnet Login Mode DFP Telnet Timeout 120 Broadcast ON System Reset to Default Factory Default Firmware Update Choose File No file chosen Update

Network

IP Mode

Click this toggle to set the AT-HDR-M2C to DHCP or static mode. By default, the AT-HDR-M2C is in DHCP mode.

IP

Enter the IP address of the AT-HDR-M2C in this field. This field will only be available when the IP Mode is set to Static. The default static IP address is 192.168.1.254.

Netmask

Enter the subnet mask of the AT-HDR-M2C in this field. This field will only be available when the IP Mode is set to Static.

Save

Click this button to save all changes in the Network group.

The Web GUI

Gateway

Enter the gateway (router) address in this field. This field will only be available when the IP Mode is set to Static.

Telnet Port

Enter the Telnet port in this field. Telnet uses a default port number of 23.

Telnet Login Mode

Click this toggle to set the Telnet Login Mode to ON or OFF.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds.

Broadcast

Click this toggle to set the Broadcast mode ON or OFF.

System

Factory Default

Click this button to reset the AT-HDR-M2C to factory-default settings.

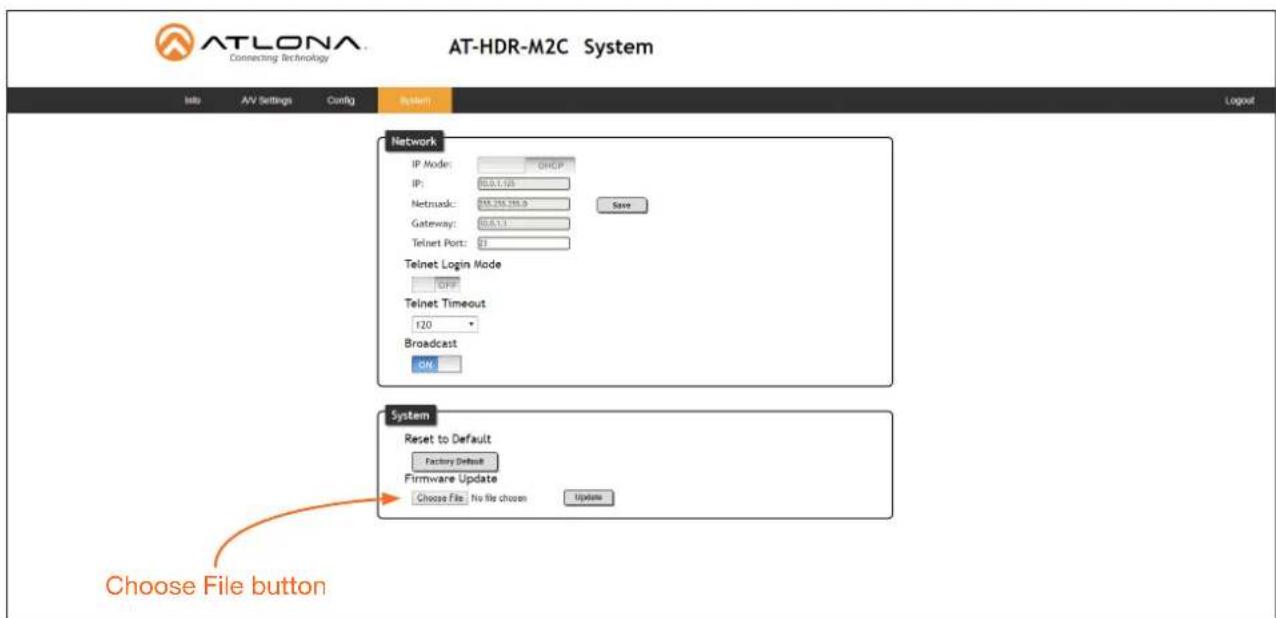

Choose File

Click this button to select the firmware file.

Update

Click this button to begin the firmware update procedure.

Refer to Updating the Firmware (page 30) for more information on firmware updates.

Commands

The following tables provide an alphabetical list of commands available on the AT-HDR-M2C. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is "Command FAILED".

IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).

Command Description
AudioOut1 Enables / disables PCM audio on the HDMI output
BASS1 Adjusts the bass on the audio output
Broadcast Enables / disables broadcast mode
HDCPSet1 Sets the HDCP mode on the HDMI input
HDMIAud Enables / disables audio on the HDMI output
IPAddUser Adds a user to TCP/IP control
IPCFG Displays the IP settings of the AT-HDR-M2C
IPDelUser Deletes the specified user from TCP/IP control
IPDHCP Enables / disables DHCP mode
IPLogin Enables / disables IP login
IPPort Sets the TCP/IP port number
IPQuit Ends the TCP/IP session
IPStatic Sets the static IP address of the AT-HDR-M2C
IPTimeout	Sets the TCP/IP timeout interval before the connection is terminated
Mreset	Resets the AT-HDR-M2C to factory-default settings
PrefTimg	Sets the preferred timing on the output
RAtIMac	Displays the MAC address of the AT-HDR-M2C
TREBLE1	Adjusts the treble on the audio output
Type	Displays the model information of the AT-HDR-M2C
UARTPara Assigns the RS-232 settings for the serial port
Version	Displays the firmware version of the AT-HDR-M2C
VOUT1	Adjusts the volume of the audio output
VOUTMute1	Mutes / un-mutes the audio on the analog AUDIO OUT and HDMI - PCM 2 ports

Commands

AudioOut1

Enables / disables audio on the HDMI - PCM 2, OPTICAL, and analog output port. on = enables the audio output; off = disables audio output; sta = displays the current AudioOut1 setting.

Syntax

AudioOut1 X

Parameter Description Range

X State on, off, sta

Examples

AudioOut1 on

Feedback

AudioOut1 on

BASS1

Increases / decreases the amount of bass on the HDMI - PCM 2, OPTICAL, and analog output port. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the bass by 1 value, respectively. To display the current value, execute the BASS1 command without any arguments.

Syntax

BASS1 X

Parameter Description Range

X Value -15 ... 15

Example

BASS1 -5

BASS1 +

Feedback

BASS1 -5

BASS1 -4

Broadcast

Enables / disables broadcast mode. By default, broadcast mode is set to off. When set to on, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off. on = enables broadcast mode; off = disables broadcast mode; sta = displays the current Broadcast setting.

Syntax

Broadcast X

Parameter Description Range

X Value on, off, sta

Example

Broadcast on

Feedback

Broadcast on

Commands

HDCPSet1

Set the HDCP reporting mode of the HDMI IN port. Some computers will send HDCP content if an HDCP-compliant display is detected. Setting this value to off, will force the computer to ignore detection of HDCP-compliant displays. Disabling this feature will not decrypt HDCP content. on = enables HDCP detection; off = disables HDCP detection; sta = displays the current HDCPSet1 setting.

Syntax

HDCPSet1 X

Parameter Description Range

X Value on, off, sta

Example

HDCPSet1 on

Feedback

HDCPSet1 on

HDMIAud

Enables / disables HDMI audio output. on = enables HDMI audio output; off = disables HDMI audio output; sta = displays the current HDMIAud setting.

Syntax

HDMIAud X

Parameter Description Range

X Value on, off, sta

Example

HDMIAud off

Feedback

HDMIAud off

Help

Displays a list of all available commands.

Syntax

Help

This command does not require any parameters

Example

Help

Feedback

Command List

Help

IPCFG

IPDHCP

...

...

TREBLE1

Commands

IPAddUser

Adds a user for Telnet control. This command performs the same function as adding a user within the Config page of the web GUI. Refer to Config page (page 18) for more information.

Syntax

IPAddUser X Y

Parameter Description Range

X User name 20 characters (max)

Y Password 20 characters (max)

Example

IPAddUser BigBoss b055man

Feedback

IPAddUser BigBoss b055man

TCP/IP user was added

IPCFG

Displays the current network settings for the AT-HDR-M2C.

Syntax

IPCFG

This command does not require any parameters

Example

IPCFG

Feedback

IP Addr : 192.168.1.38

Netmask: 255.255.255.0

Deletes the specified TCP/IP user. This command performs the same function as removing a user within the Config page of the web GUI. Refer to Config page (page 18) for more information.

Syntax

IPDelUser X

Parameter Description Range

X User User name

Example

IPDeIUser BigBoss

Feedback

IPDeIUser BigBoss

TCP/IP user was deleted

Commands

IPDHCP

Enables / disables DHCP mode on the AT-HDR-M2C. on = enables DHCP mode; off = disables DHCP mode; sta = displays the current IPDHCP setting. If this feature is disabled, then a static IP address must be specified for the AT-HDR-M2C. Refer to the IPStatic command.

Syntax

IPDHCP X

Parameter Description Range

X Value on, off, sta

Example

IPDHCP on

Feedback

IPDHCP on

IPLogin

Enables / disables the use of login credentials when starting a Telnet session on the AT-HDR-M2C. If this feature is set to on, then the AT-HDR-M2C will prompt for both the username and password. Use the same credentials as the web GUI. on = login credentials required; off = no login required; sta = displays the current IPLogin setting.

Syntax

IPLogin X

Parameter Description Range

X Value on, off, sta

Example

IPLogin off

Feedback

IPLogin off

IPPort

Sets the Telnet listening port for the AT-HDR-M2C. Use the sta argument to display the current port setting.

Syntax

IPPort X

Parameter Description Range

Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDR-M2C. Before using this command, DHCP must be disabled on the AT-HDR-M2C. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address is 192.168.1.254.

Syntax

IPStatic X Y Z

Parameter Description Range

X IP address 0 ... 255 (per byte)

Y Subnet mask 0 ... 255 (per byte)

Z Gateway (router) 0 ... 255 (per byte)

Example

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

Feedback

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

IPTimeout

Specifies the time interval of inactivity before the Telnet session is automatically closed.

Syntax

IPTimeout X

Parameter Description Range

X Interval (in seconds) 0 ... 300

Example

IPTimeout 60

Feedback

IPTimeout 60

Commands

Mreset

Resets the AT-HDR-M2C to factory-default settings.

Syntax

MReset

This command does not require any parameters

Example

Mreset

Feedback

Mreset

PrefTimg

Sets the preferred timing of the video output signal.

Syntax

PrefTimg X

Parameter Description Range

X Value 0 ... 10

Preferred Timing List

0 = 1280 × 800

1 = 1920 × 1080

2 = 1024 × 768

3 = 1280 × 720

4 = 1920 × 1200

Example

PrefTimg 2

5 = 1366 × 768

6 = 800 × 600

7 = 1600 × 900

8 = 2560 × 1600

9 = 3840 × 2160 @ 30 Hz

10 = 3840 × 2160 @ 60 Hz

Feedback

PrefTimg 2

RAtIMac

Displays the MAC address of the AT-HDR-M2C.

Syntax

RAtIMac

This command does not require any parameters

Example

RAtIMac

Feedback

b8-98-b0-00-00-c6

Commands

TREBLE1

Increases / decreases the amount of treble HDMI - PCM 2, OPTICAL, and analog output port. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the amount of treble by 1 value, respectively. To display the current value, execute the TREBLE1 command without any arguments.

Syntax

TREBLE1 X

Parameter Description Range

X Value -15 ... 15

Example

TREBLE1 8

TREBLE1 -

Feedback

TREBLE1 8

TREBLE1 7

Type

Displays the model information for the AT-HDR-M2C.

Syntax

Type

This command does not require any parameters

Example

Type

Feedback

AT-HDR-M2C

UARTPara

Sets the baud rate, data bits, parity bit, and stop bits for the AT-HDR-M2C. All arguments must be separated by a comma. The data bits, parity bit, and stop bits for this product must be 8, 0, and 1, respectively.

Syntax

UARTPara W X Y Z

Parameter Description Range

W Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200

X Data bits 7, 8

Y Parity bit 0, 1, 2 (None, Odd, Even)

Z Stop bits 1, 2

Example

UARTPara 38400,8,0,1

Feedback

UARTPara 38400,8,0,1

Commands

Version

Displays the current firmware version of the AT-HDR-M2C.

Syntax

Version

This command does not require any parameters

Example

Version

Feedback

0.2.05

VOUT1

Increases / decreases the audio volume HDMI - PCM 2, OPTICAL, and analog output port. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the volume by 1 value, respectively. To display the current value, execute the VOUT1 command without any arguments.

Syntax

VOUT1

Parameter Description Range

X Value

-80

...

6

Example

VOUT1 4

VOUT1 +

Feedback

VOUT1 4

VOUT1 5

VOUTMute1

Mutes / unmutes the audio on the HDMI - PCM 2, OPTICAL, and analog output port. on = enables muting; off = disables muting; sta = displays the current VOUTMute1 setting.

Syntax

VOUTMute1 X

Parameter Description Range

X Value on, off, sta

Example

VOUTMute1 on

Feedback

VOUTMute1 on

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, If a network connection is not available, the AT-HDR-M2C firmware can be updated using a USB-A to USB mini-B cable.

Using the Web GUI

Requirements

• AT-HDR-M2C
• Firmware file (.bin file)

• Computer

• Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-HDR-M2C is connected.

• Go to the System page (page 19) in the web GUI.

ATLONA Connecting Technology AT-HDR-M2C System Info A/V Settings Config System Logout Network IP Mode: DHCP IP: BLA.T.125 Netmask: FXR.218.218.9 Save Gateway: BLA.T.1 Telnet Port: 37 Telnet Login Mode OFF Telnet Timeout 120 Broadcast OK System Reset to Default Factory Default Firmware Update Choose File: No file chosen Update Choose File button

1. Click the Choose File button, under the Firmware Update section.
2. Browse to the location of the firmware file, select it, and click the Open button.
3. Click the Update button.

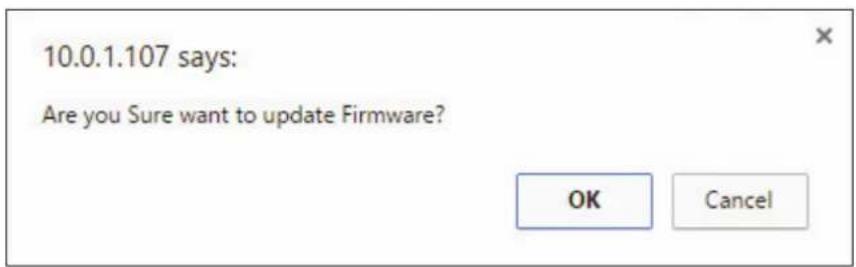

4. The following dialog will be displayed.

10.0.1.107 says: Are you Sure want to update Firmware? OK Cancel

Appendix

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
2. The update process will take approximately 60 seconds and will automatically reboot the AT-HDR-M2C.
3. After the firmware update process is complete, the Login screen will be displayed.

ATLONA Connecting Technology AT-HDR-M2C Login Login Username Password Submit

Using USB

Requirements

• AT-HDR-M2C
• Firmware file (.bin file)

• Computer
  • USB-A to USB mini-B cable

• Make sure the AT-HDR-M2C is powered.

• Connect the USB-A to USB mini-B cable from the computer to the FW port on the AT-HD-SC-500.

AT-HDR-M2C - + DC 5V FW L ÷ R AUDIO OUT OPTICAL HDMI OUT HDMI IN FW port

After a moment, the USB UPDATE folder will be displayed.

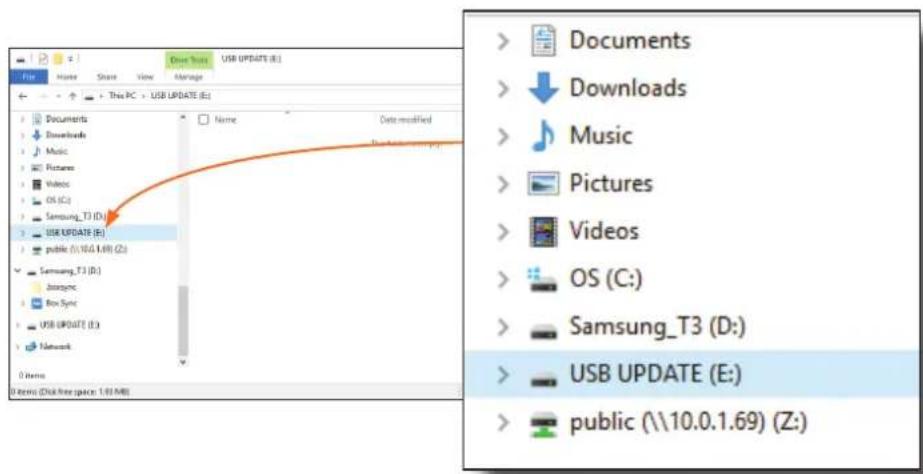

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer, as shown on the next page.

Appendix

Screenshot of a file explorer window showing USB UPDATE files and a context menu with folder options like Documents, Downloads, Music, and USB UPDATE.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDR-M2C.
4. The AT-HDR-M2C will automatically reboot, completing the firmware update process.

Mounting Instructions

The AT-HDR-M2C includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets.

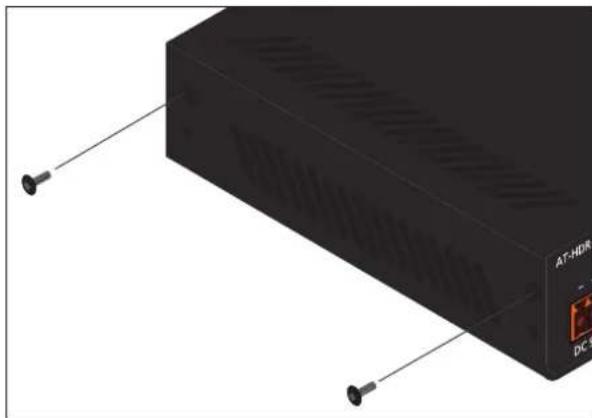

1. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure.

Exterior view of a black server unit with ventilation slots and a labeled port (no readable text or symbols beyond branding)

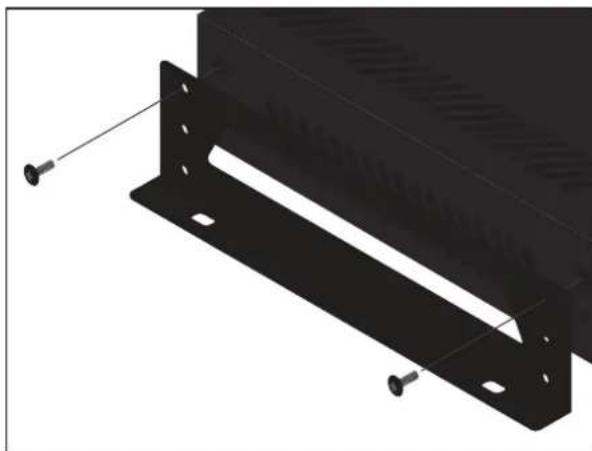

1. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.

2. Repeat steps 1 and 2 to attach the second mounting bracket to the opposite side of the unit.

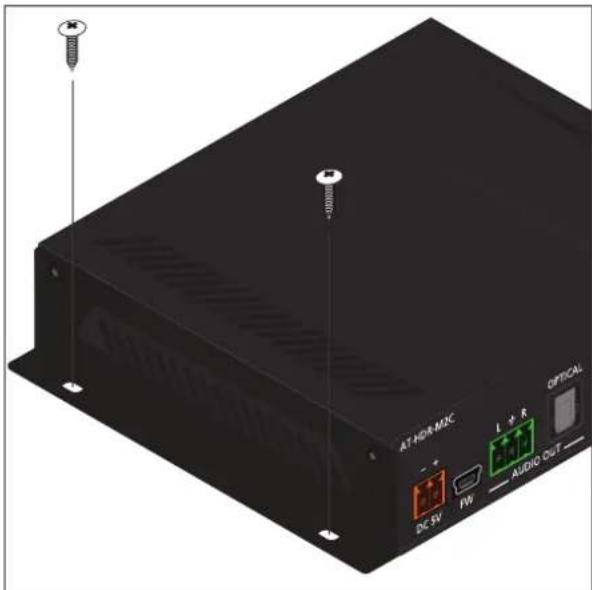

3. Mount the unit to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.

3D rendering of a black metal bracket with two screws inserted, no text or symbols visible

3D rendering of a black electronic device with labeled ports and screw tips (no readable text or symbols beyond labels)

NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface.

Default Settings

The following tables list the factory-default settings for the AT-HDR-M2C.

A/V Settings
Video Preferred Timing	(HDMI)Input HDCP	1920 x 1080ON
Audio Mute		OFF
	Output Volume	6
	Output Bass	0
	Output Treble	0

Config
Configuration Username	(cannot be changed)Password	rootAtlona

System
Network IP Mode		DHCP
	IP	192.168.1.254
	Netmask	255.255.255.0
	Gateway	192.168.1.1
	Telnet Port	23
	Telnet Login Mode	OFF
	Telnet Timeout (seconds)	120
	Broadcast	ON

NOTE: When the AT-HDR-M2C is set to static IP mode, then the IP, Netmask, and Gateway settings will be used by default.

Specifications

Video
HD/SD 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048×1080p,1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×1600, 2048×1536,	1920×1200, 1680×1050, 1600×1200, 1440×900,1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800, 1152×768, 1024×768,800×600, 640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit

Audio
Audio Formats PCM 2Ch, LPCM	5.1, LPCM 7.1, Dolby® Digital, Dolby Digital Plus, Dolby TrueHD, DTS® 5.1, DTS-HD Master AudioTM, DTS:XTM, Dolby Atmos®
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate 24-bit (max.)

Resolution / HDMI cable length	4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI @ 60 Hz 6 2 30 10
HDMI @ 24 Hz 16 5 50 15

Signal
Bandwidth 18 Gbps
CEC Yes
HDCP	2.2

Temperature	Fahrenheit	Celsius
Operating	32 to 122	0 to 50
Storage	-4 to 140	-20 to 60
Humidity (RH)	20% to 90%, non-condensing

Appendix

Power
Consumption 6.5 W
Supply Input: 100 - 240 V AC, 50/60 HzOutput: 5 V DC, 1 A

Dimensions Inches Millimeters
H x W x D 1.02 x 5.00 x 4.29 26 x 127 x 109
H x W x D (w/ ears) 1.02 x 5.39 x 4.29 26 x 137 x 109

Weight Pounds Kilograms
Device 0.6 0.27

Certification
Power Supply CE, FCC, cULus, RoHS, CCC, RCM
Product CE, FCC

Index

A

Audio

connector 10

indicators 9, 12

muting 18,29

B

Bass

adjusting 18, 22

C

Commands

AudioOut1 22

BASS1 22

Broadcast 22

HDCPSet1 23

HDMIAud 23

Help 23

IPAddUser 24

IPCFG 24

IPDelUser 24

IPDHCP 25

IPLogin 25

IPPort 25

IPQuit 26

IPStatic 26

IPTimeout 26

Mreset 27

PrefTimg 27

RAtIMac 27

TREBLE1 28

Type 28

UARTPara 28

Version 29

VOUT1 29

VOUTMute1 29

Connection

diagram 10

instructions 10

Contents

package 8

Customer support 3

D

Default settings 34

DHCP

setting 12, 25

F

FCC statement 6

Features 8

Firmware

displaying 16

updating 30

G

Gateway

setting 20

H

HDCP

reporting 23

HDMI OUT 9

|

Installation 10

IP address

default 19

setting 19

IP mode

button 9

setting 12

IP settings

default 34

L

LED

5V 9

SOURCE 9

M

MAC address

displaying 27

Mounting instructions 33

Muting

audio 18,29

O

Operating notes 3

Output volume

adjusting 29

P

Panel descriptions 9

Password

setting 18

Power

connector 10

R

Reset

factory-default 20, 27

Resolution

setting 17,27

S

Safety information 6

Specifications 35

Static IP

setting 12, 26

Subnet mask

setting 19

T

Telnet port

default 20

setting 20

Treble

adjusting 18,28

U

Users

adding 19,24

editing 19

removing 19,24

V

Volume

muting 29

output, adjusting 18, 29

W

Warranty 4

Web GUI 13
