Product Type	PTZ Video Conferencing Camera
Image Sensor	1/2.8-inch CMOS
Effective Pixels	2.1 Megapixels
Video Resolution	1080p (1920x1080) up to 30fps
Optical Zoom	12x
Digital Zoom	12x
Horizontal Field of View	72.5°
Pan Range	±170°
Tilt Range	+90° to -30°
Connectivity	USB 2.0 (UVC), HDMI 1.4, 3.5mm audio in
Dimensions (W x H x D)	168 x 132 x 144 mm
Weight	1.1 kg
Power Supply	DC 12V (via included adapter)
Power Consumption	12W max
Mounting Options	Tabletop, tripod, ceiling mount (optional)
Preset Positions	10
Control Interface	IR remote, RS-232, USB
Built-in Microphone	Dual omnidirectional, 3m pickup radius
Auto Framing	Yes (SmartFrame)
Image Flip	Horizontal, vertical
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Relative Humidity	20% to 80% non-condensing
Included Accessories	IR remote, power adapter, USB cable, HDMI cable, mounting bracket
Cleaning Instructions	Wipe lens with soft, dry cloth; use compressed air for vents
Repairability	Contact authorized service center; no user-serviceable parts

Frequently Asked Questions - PTC310U AVer

How do I connect the AVer PTC310U to my computer?

Connect the camera to your computer using the provided USB cable. The camera supports USB Video Class (UVC) and works with most video conferencing software like Zoom, Microsoft Teams, and Skype for Business without additional drivers.

Can I control the camera remotely?

Yes. You can control the PTC310U via the IR remote control included, or through RS-232 serial commands. It also supports control via USB using the AVer PTZ Management software or third-party control systems.

What is the maximum zoom capability?

The camera features 12x optical zoom and an additional 12x digital zoom, providing up to 144x total zoom. The optical zoom retains full 1080p resolution, while digital zoom may reduce image quality.

Does the camera support auto framing?

Yes. The PTC310U includes AVer’s SmartFrame technology that automatically detects participants in the room and frames the shot accordingly. This feature can be enabled via the remote or software settings.

What video resolutions and frame rates are supported?

The camera supports resolutions up to 1080p at 30 frames per second (fps) via USB and HDMI. Lower resolutions include 720p at 30fps and 480p. The output format is H.264 or MJPEG depending on the connection.

Can I use the camera with a tripod or ceiling mount?

Yes. The camera has a standard 1/4-inch tripod screw hole on the bottom for tabletop or tripod mounting. For ceiling mounting, an optional ceiling mount kit (sold separately) is recommended.

How do I clean the camera lens?

Use a soft, lint-free microfiber cloth slightly dampened with water or lens cleaning solution. Gently wipe the lens in a circular motion. Avoid using abrasive materials or solvents. For the camera body, use a dry cloth to remove dust.

What should I do if the camera is not detected by my computer?

First, check that the USB cable is securely connected to both the camera and the computer. Try a different USB port (preferably USB 3.0). Ensure your video conferencing software is set to use the AVer PTC310U as the camera source. If issues persist, restart the computer or update the camera firmware.

Can I store preset positions?

Yes. The camera stores up to 10 preset positions. Use the IR remote to set and recall presets: pan, tilt, and zoom positions can be saved. Presets can also be managed via the AVer PTZ Management software.

Is the camera compatible with macOS?

Yes. The AVer PTC310U is compatible with macOS (10.13 or later) as a USB Video Class device. It works with popular video conferencing apps like Zoom, FaceTime, and Google Meet without additional drivers.

USER MANUAL PTC310U AVer

Line drawing of a medical imaging device with a coiled cable and base (no text or symbols)

AI Auto Tracking PTZ Camera

PTC310/ PTC310H /PTC310U

PTC330/ PTC330U

*NDI model:PTC310N/PTC310UN/PTC330N

User Manual

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC Rules. The operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Class A ITE

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning - This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive 2014/30/EU.

Warning - This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures to correct this interference.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

COPYRIGHT

©2021 AVer Information Inc. All rights reserved.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

NOTICE

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.

Remote Control Battery Safety Information

• Store batteries in a cool and dry place.
• Do not throw away used batteries in the trash. Properly dispose of used batteries through specially approved disposal methods.
• Remove the batteries if they are not in use for long periods of time. Battery leakage and corrosion can damage the remote control. Dispose of batteries safely and through approved disposal methods.
• Do not use old batteries with new batteries.
• Do not mix and use different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Do not dispose of batteries in a fire.
• Do not attempt to short-circuit the battery terminals.

CAUTION

• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries in a safe and proper manner.

WARNING

■ To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Warranty will be void if any unauthorized modifications are done to the product.
■ Do not drop the camera or subject it to physical shock.
■ Use the correct power supply voltage to avoid the damaging camera.
■ Do not place the camera where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.

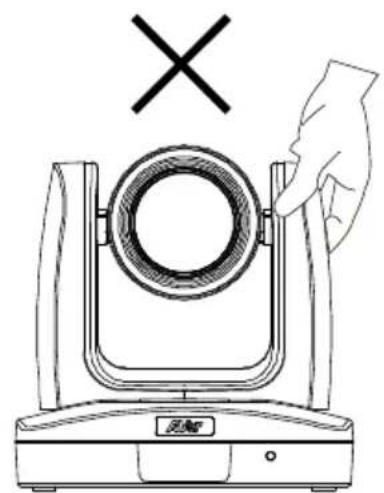

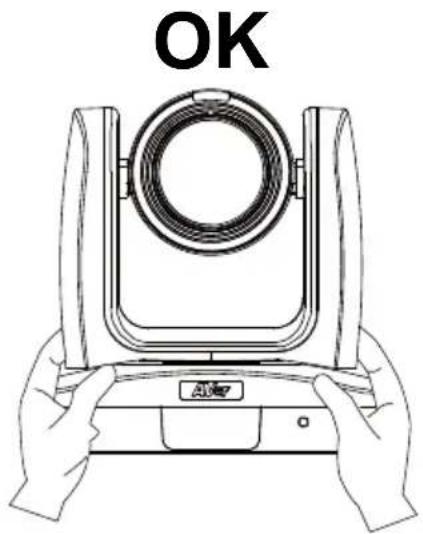

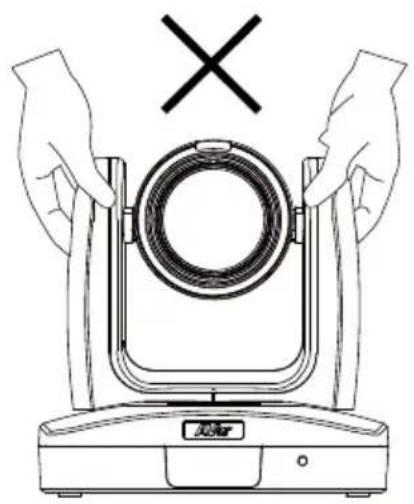

■ Hold the bottom of the camera with both hands to move the camera. Do not grab the lens or lens holder to move the camera.

Line drawing of hands holding a circular device with a cross symbol above (no text or labels)

Line drawing of a mechanical device with a hand adjusting its top component (no text or symbols)

Line drawing of hands holding a camera lens with 'OK' text above (no other symbols or text)

Contents

Package Contents....1

Product Introduction....2

Sources 2

Overview 2

LED Indicator....3

Pan and Tilt Angle 3

Dimension 4

Device Connection .... 5

Video Output Connection 6

RS232 and RS422 Connection 7

Audio Input Connection ....11

PoE Connection ....11

Install Cable Fixing Plate 13

Ceiling installation 14

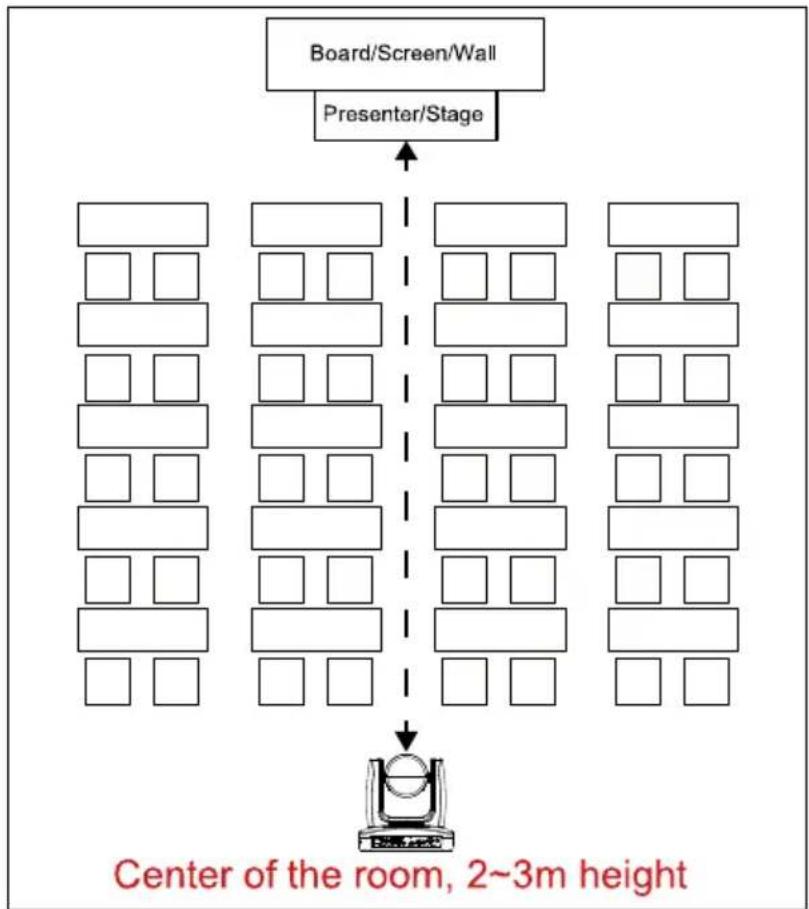

Installation for Auto Tracking Performance.... 15

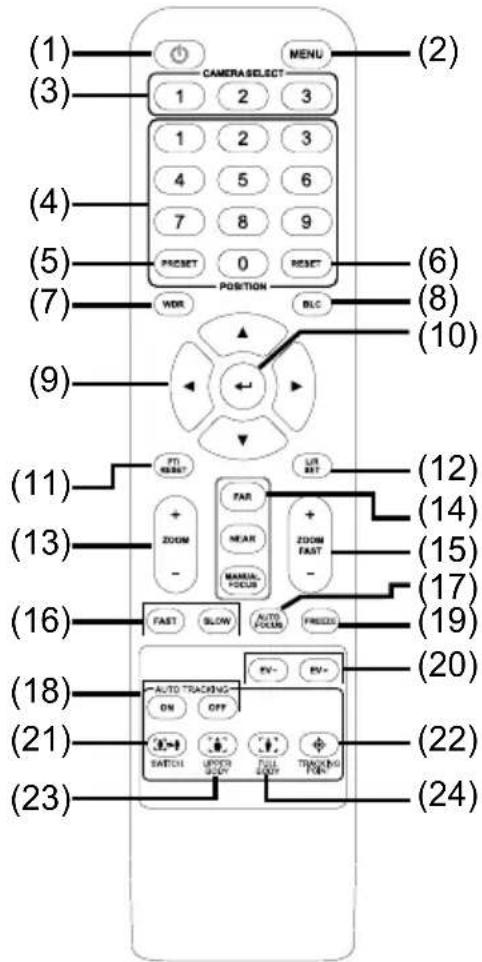

Remote Control 16

Setup the Camera.... 18

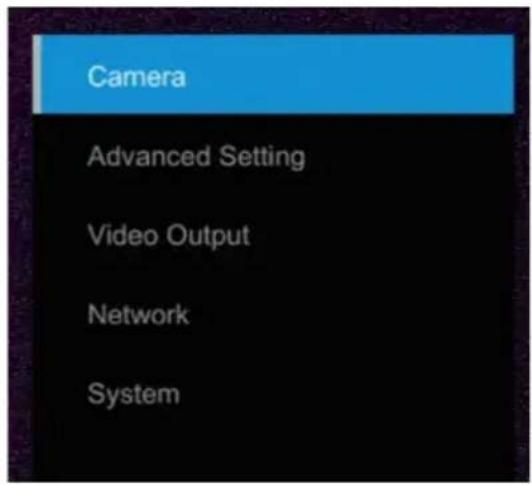

OSD Menu....18

Setup IP Address of the Camera 18

Static IP 18

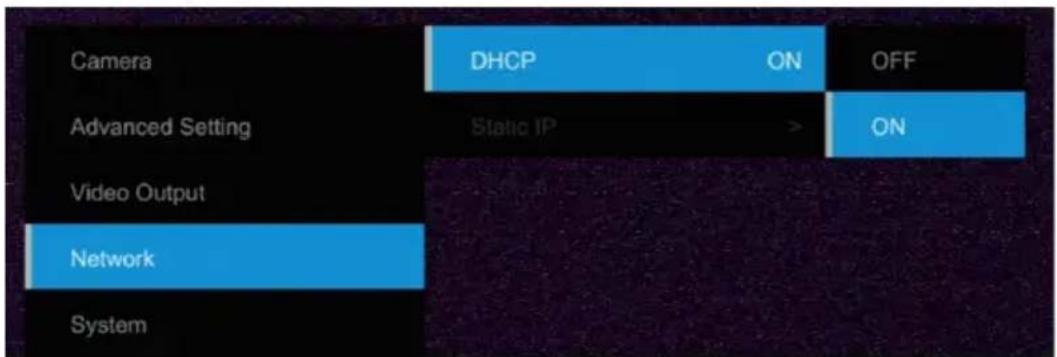

DHCP 19

OSD Tree 20

Camera....20

Advanced Setting....21

Video Output....21

Network 21

System....22

Web Setup....23

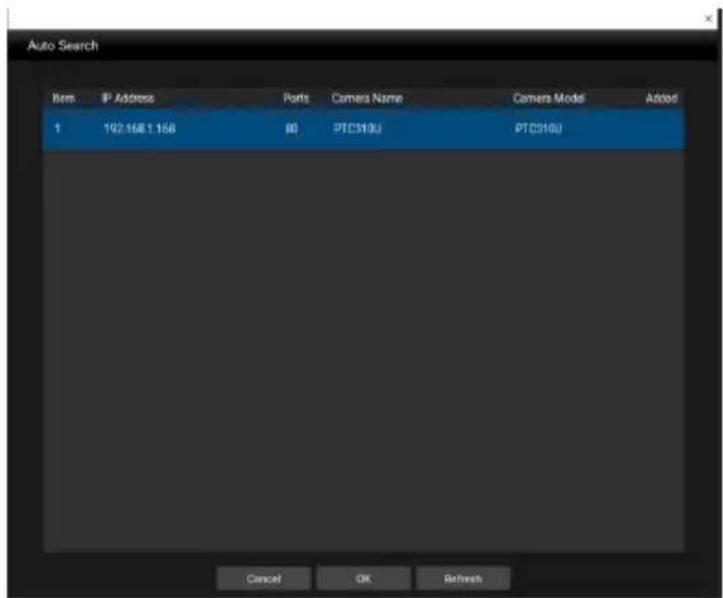

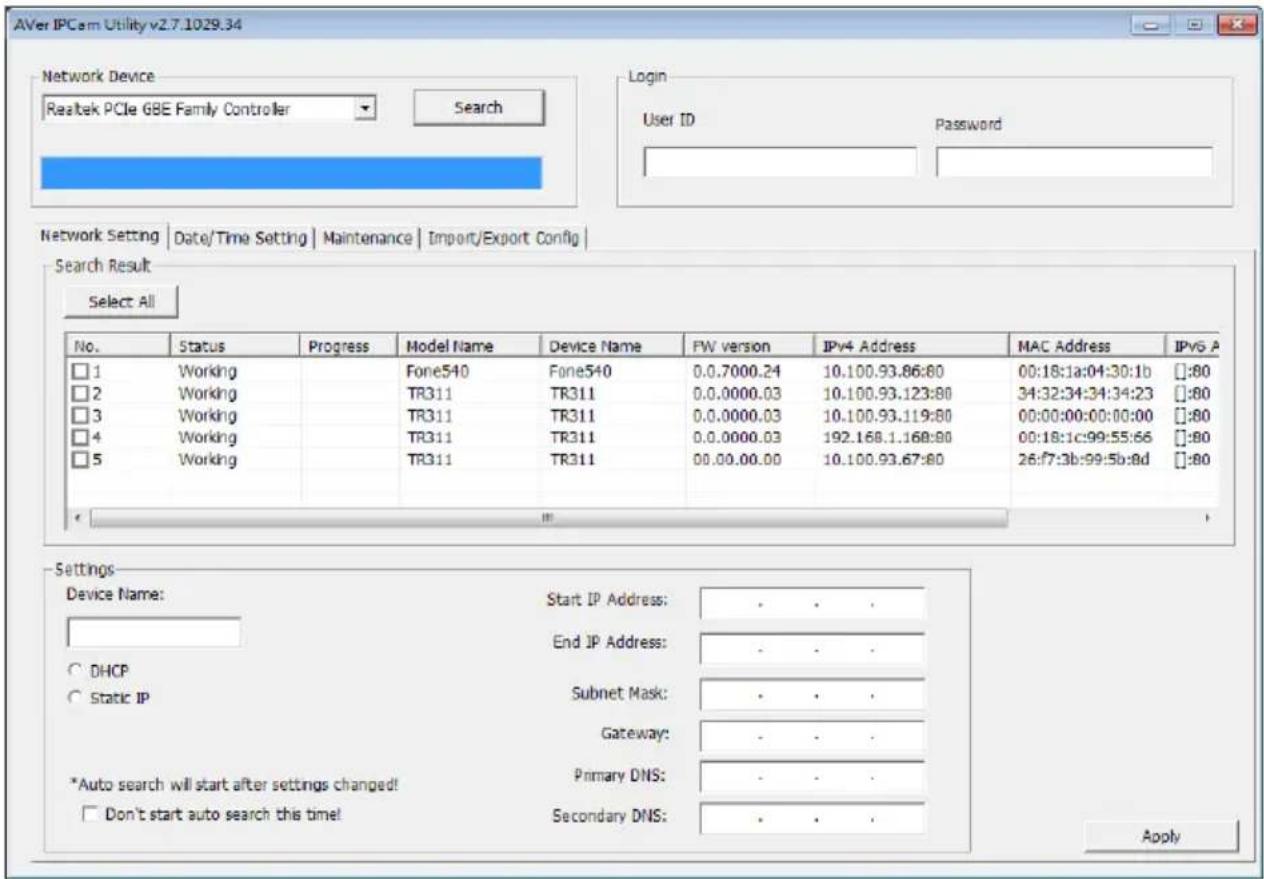

Using the AVer IPCam Utility to Find the Camera.... 23

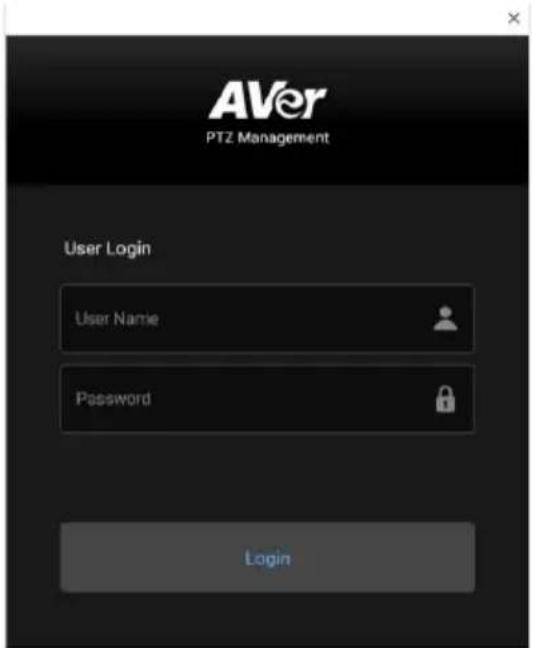

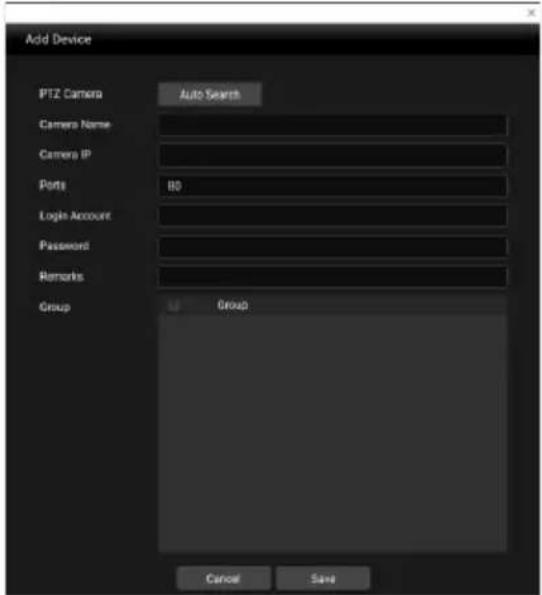

Using AVer PTZ Management Software to Find the Camera.... 24

Make a Connection to the Camera via Browser 25

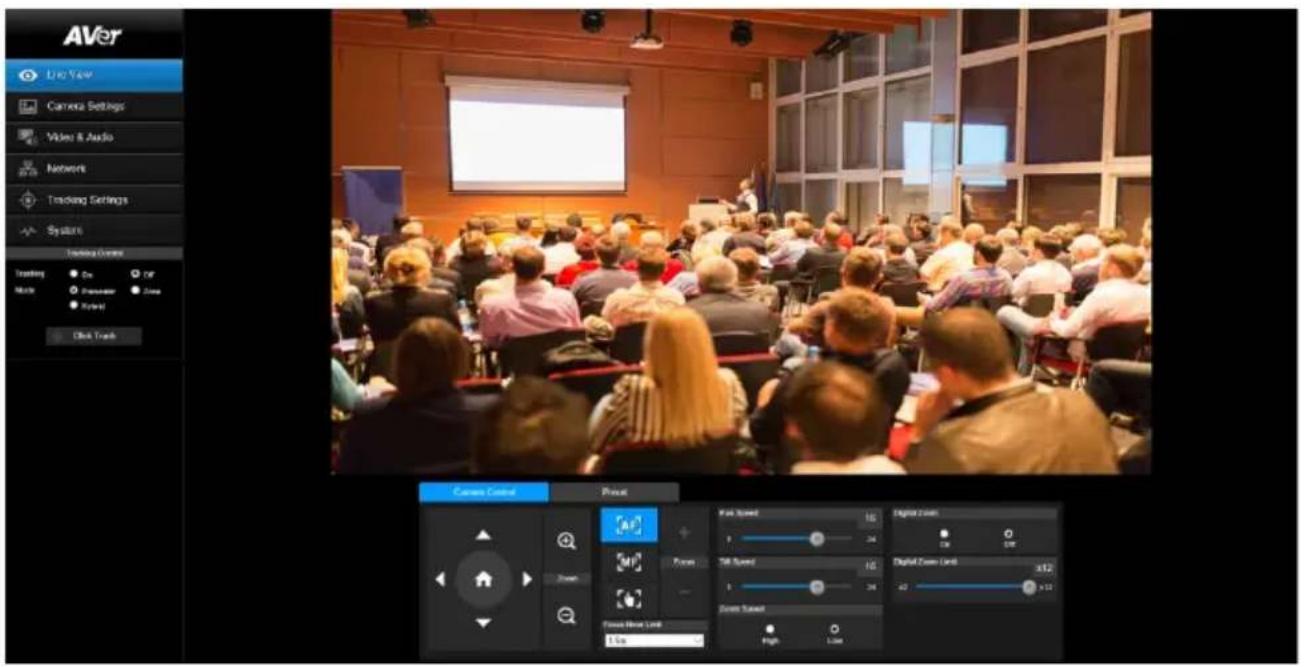

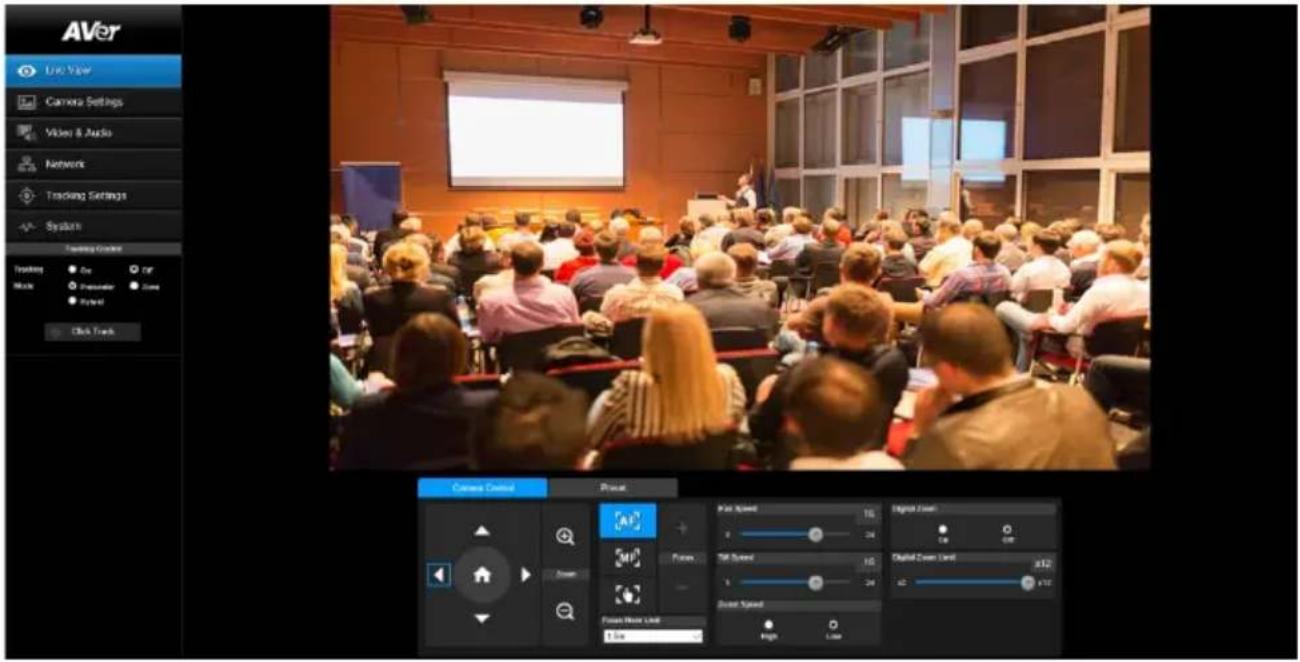

Live View 26

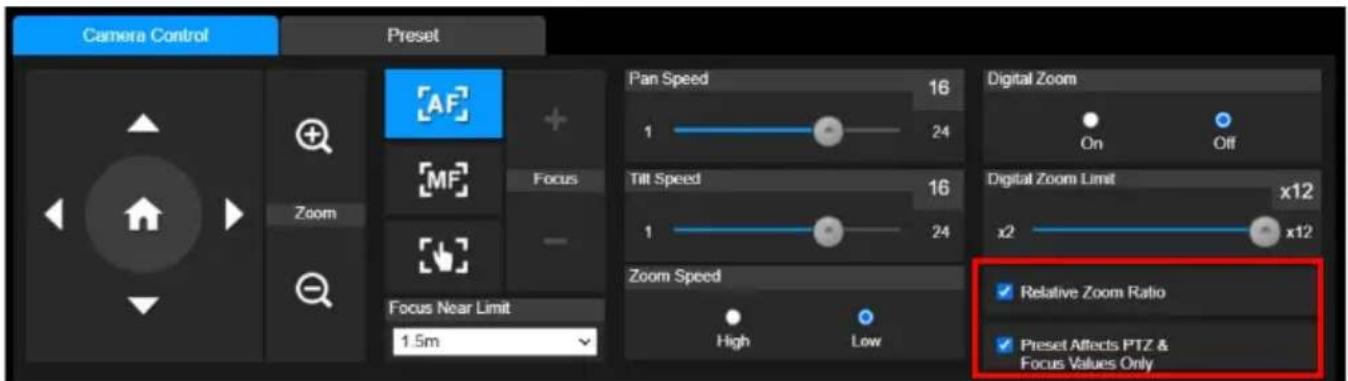

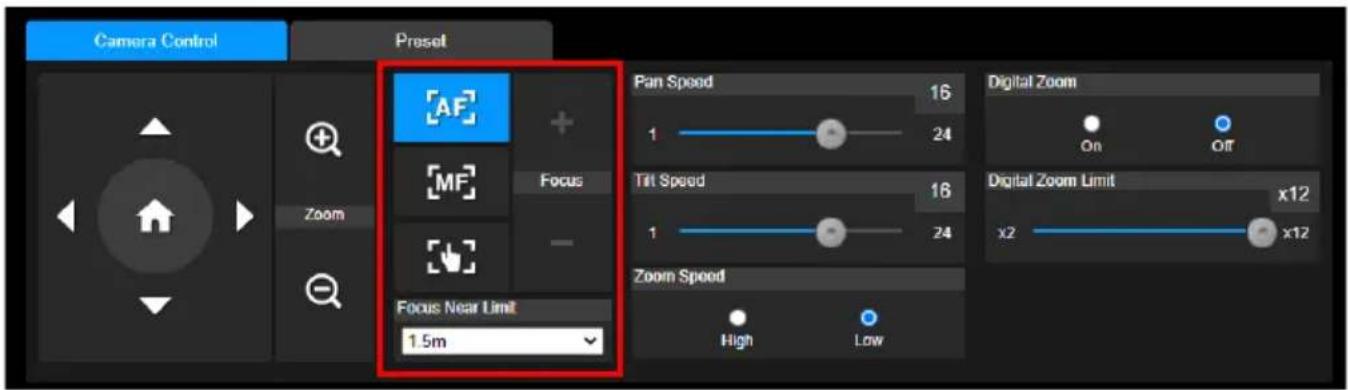

Pan-Tilt-Zoom Control....26

Focus....27

Manual Pan-Tile-Zoom and Preset Speed Adjustment ....27

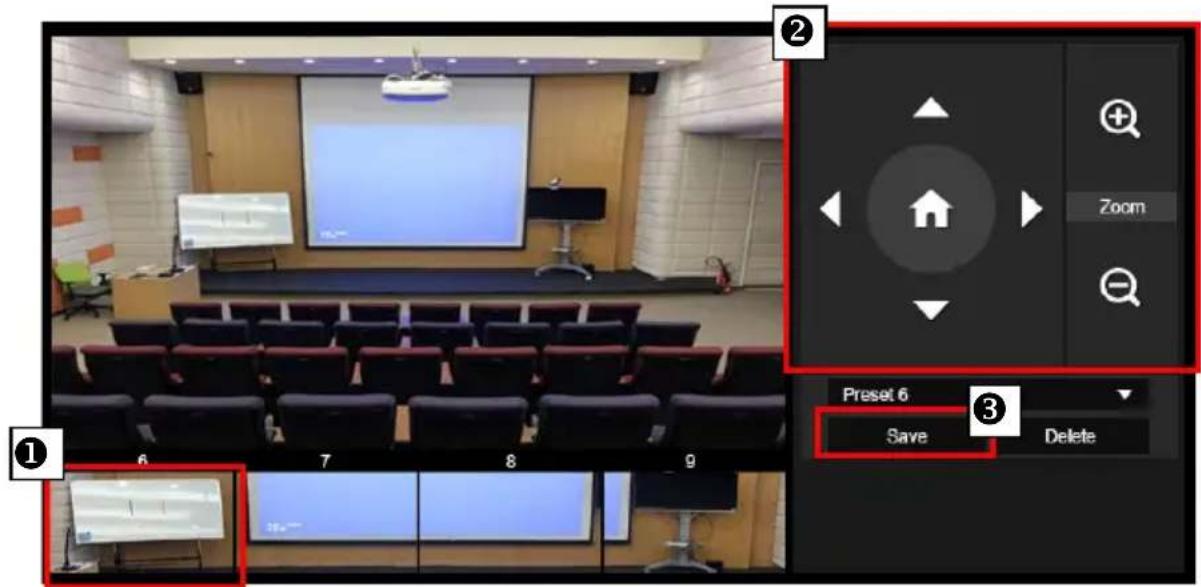

Preset Setting 28

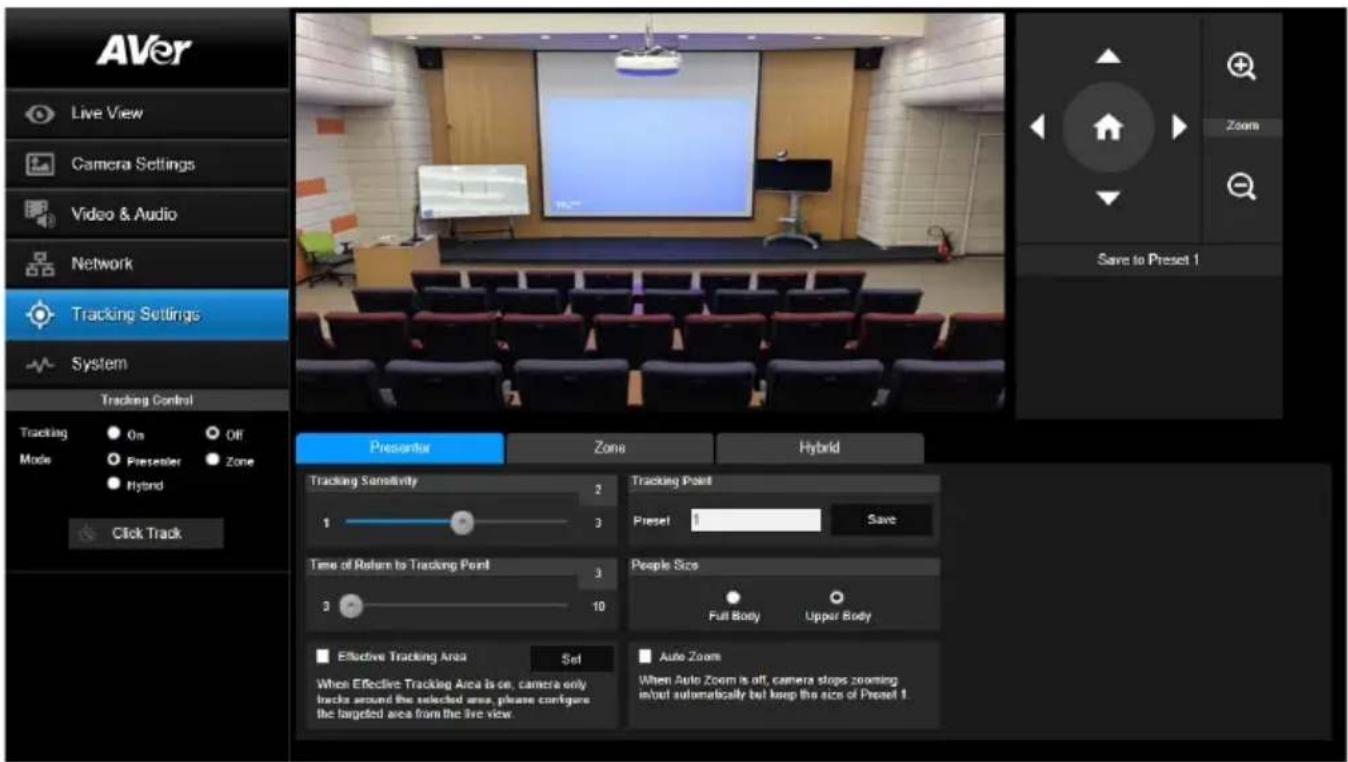

Tracking Control 28

Click Tracking Function....29

Camera Settings....30

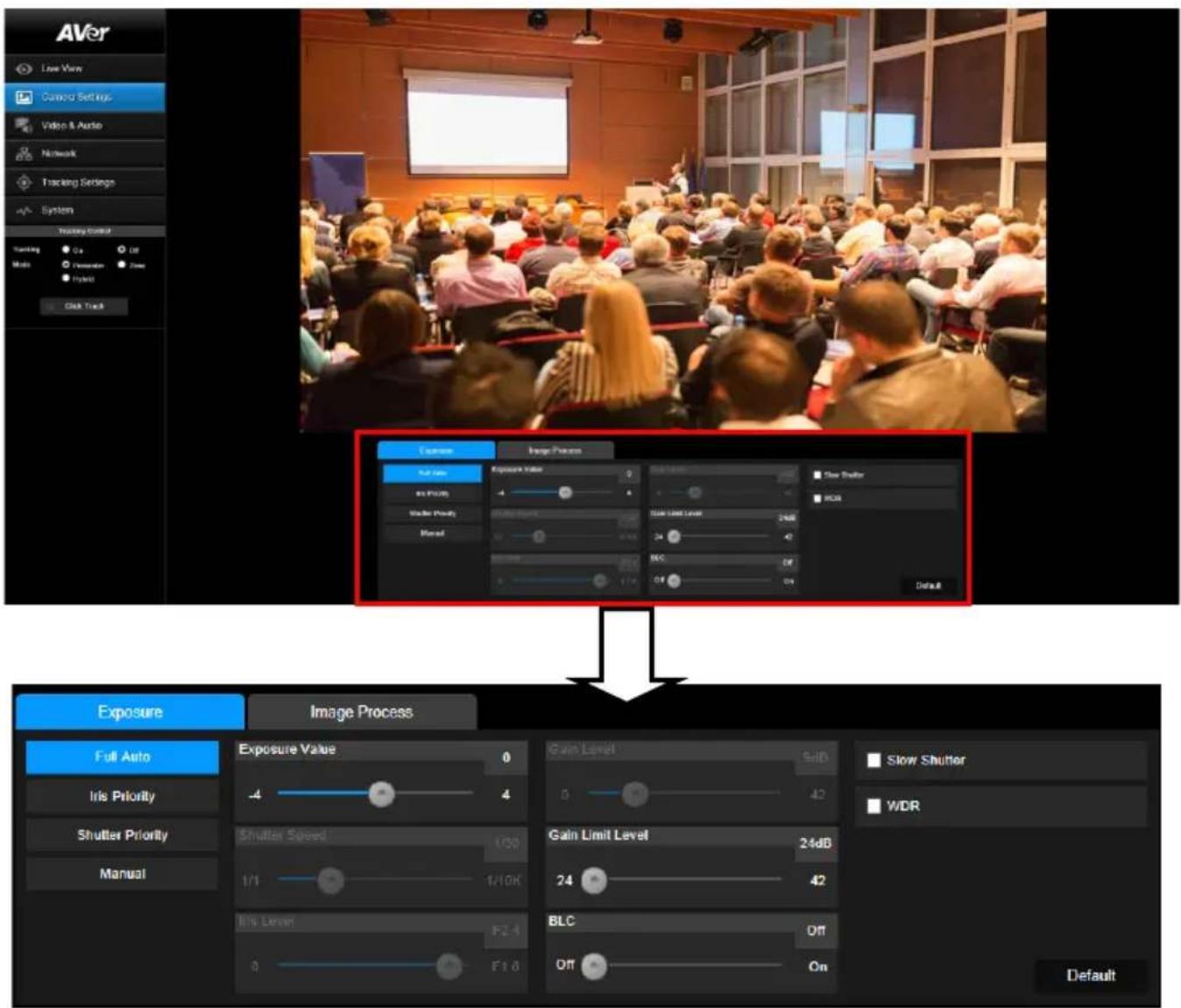

Exposure 30

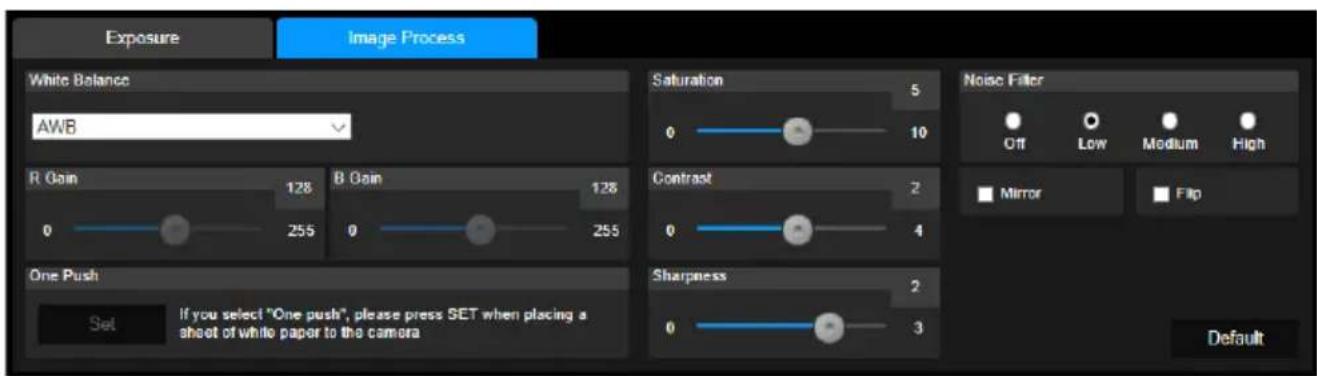

Image Process....30

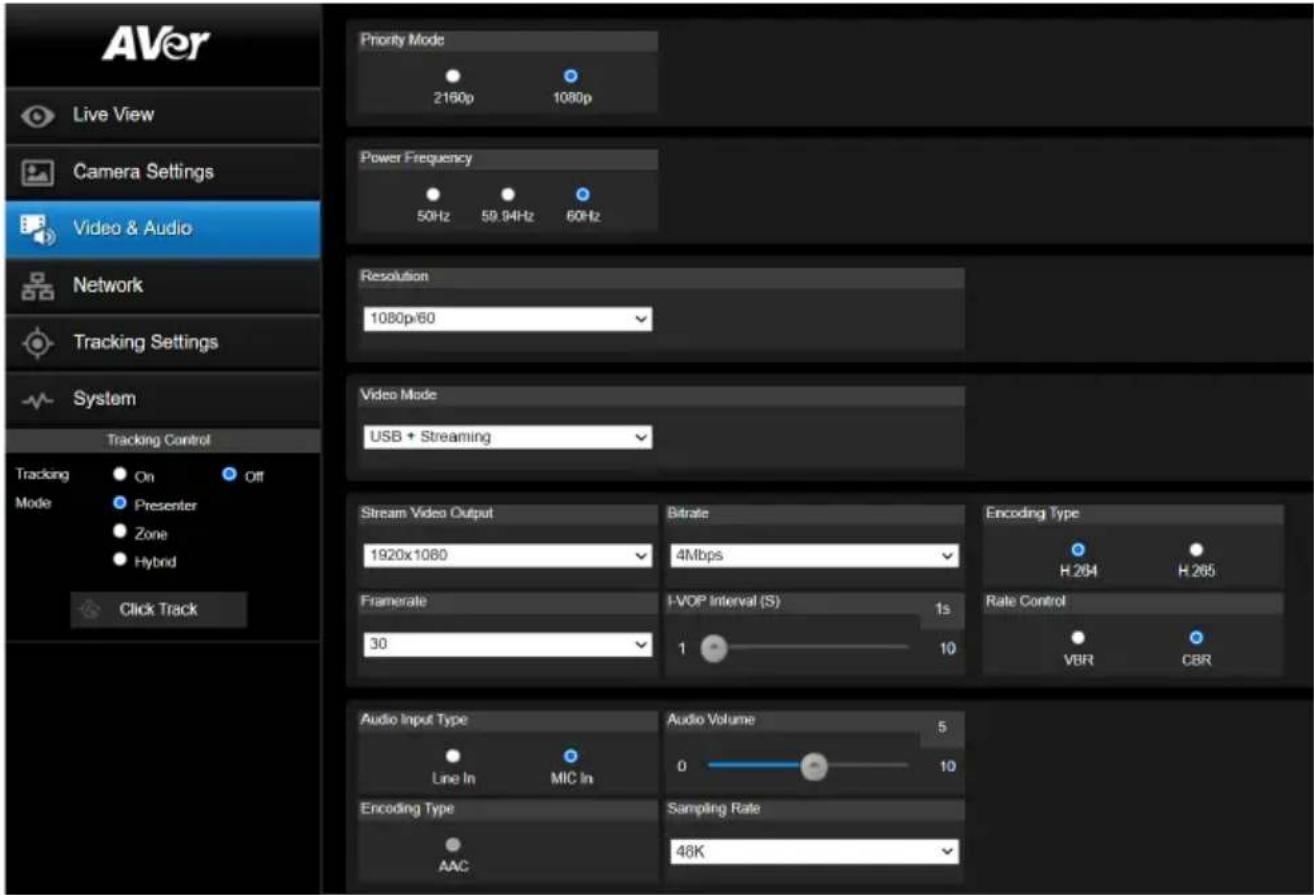

Video & Audio 31

Get 4K (2160p) output ....31

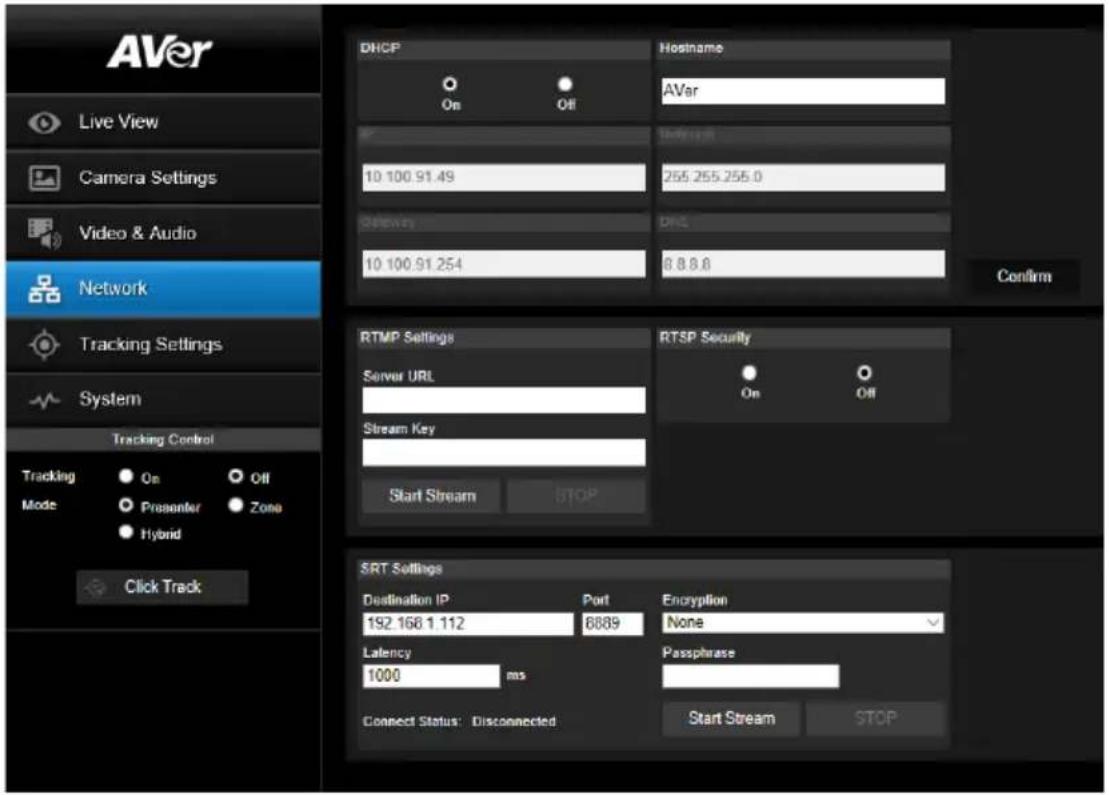

Network 34

RTMP Setting 34

Using RTSP Connect to Camera 35

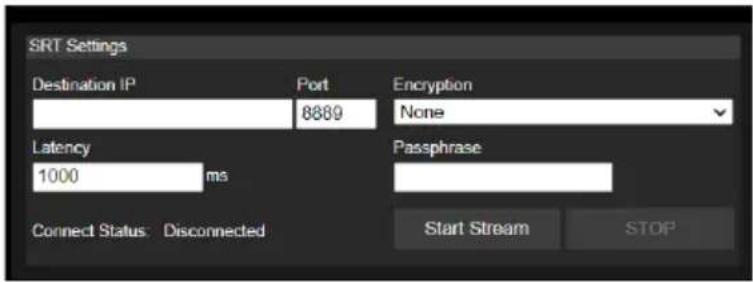

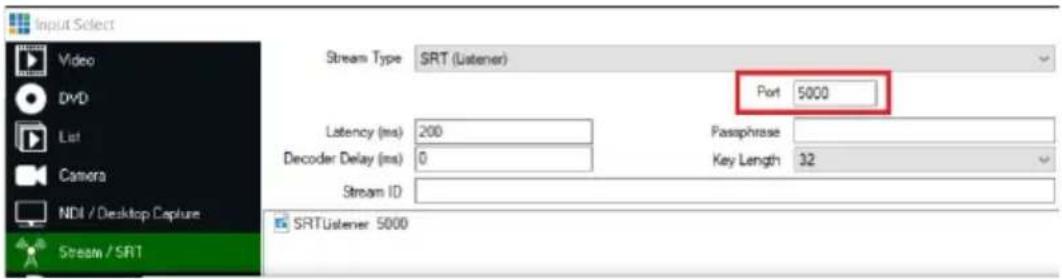

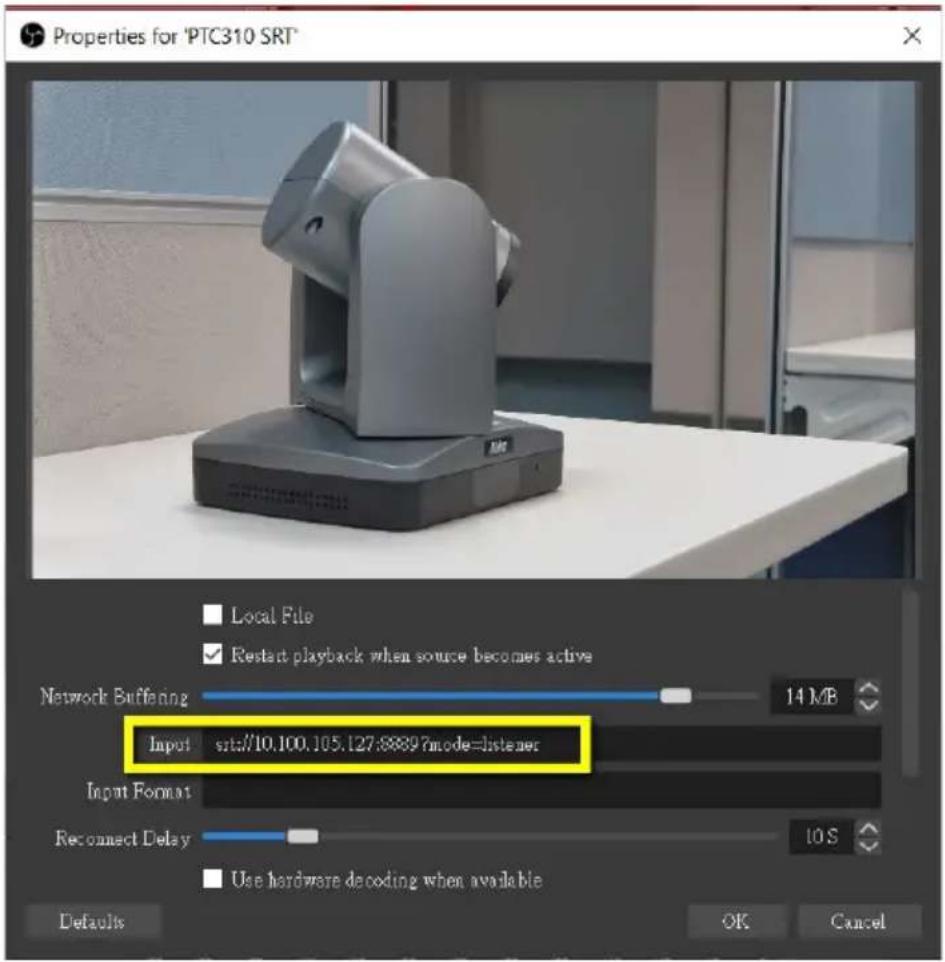

SRT Stream....36

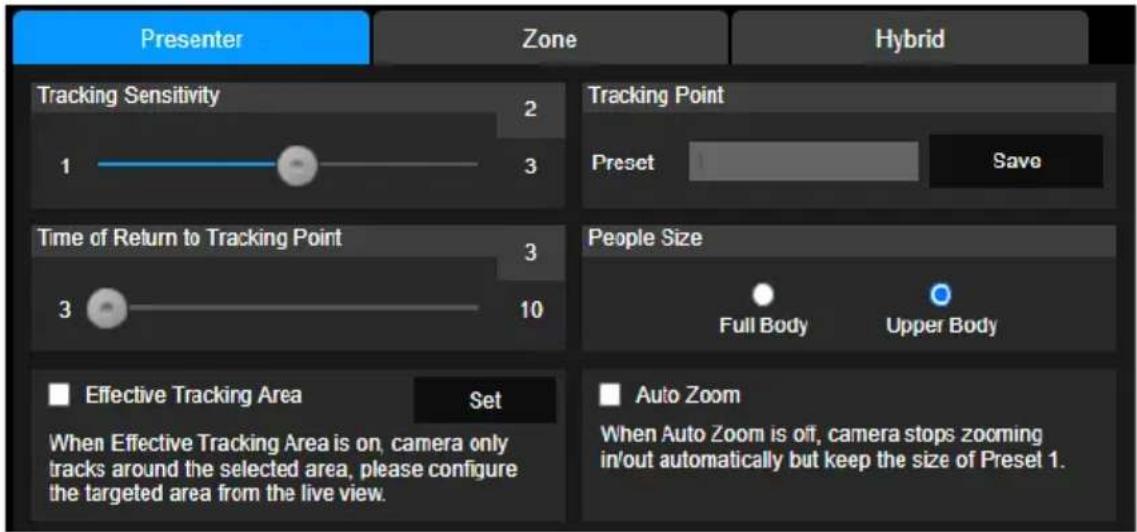

Tracking Setting....38

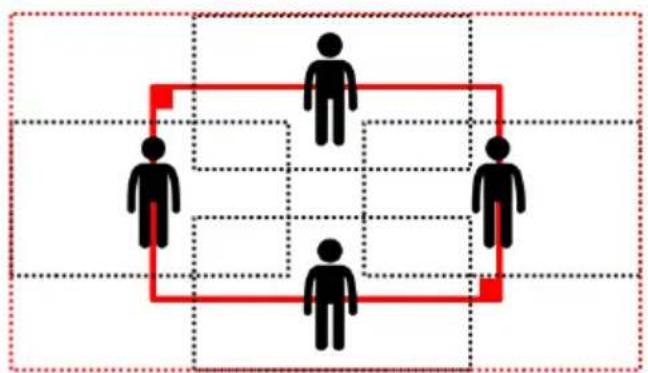

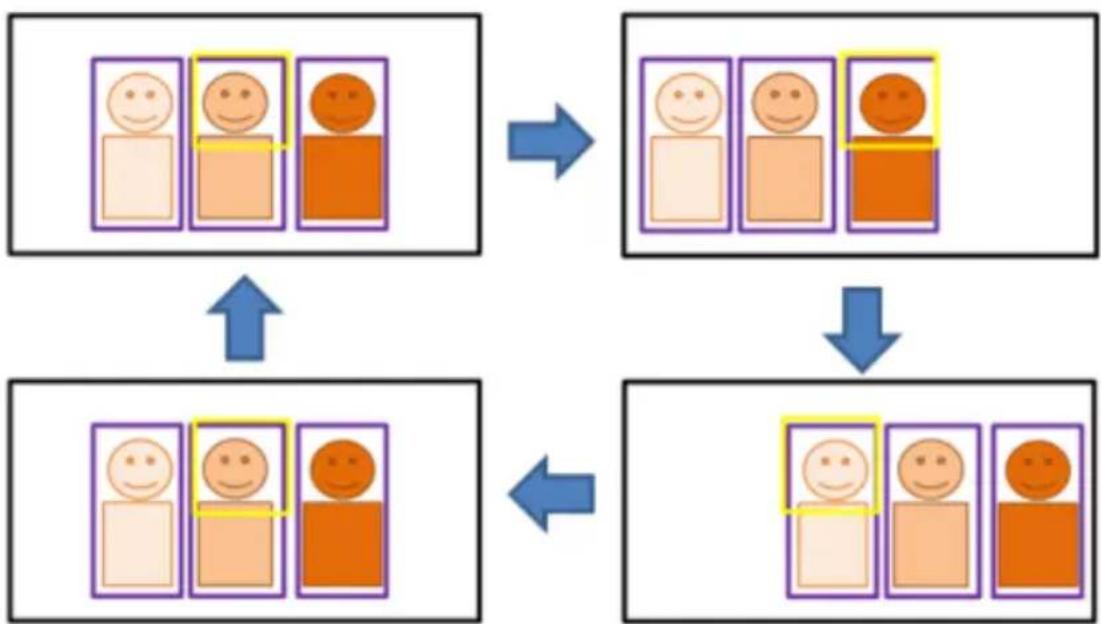

Presenter Mode 38

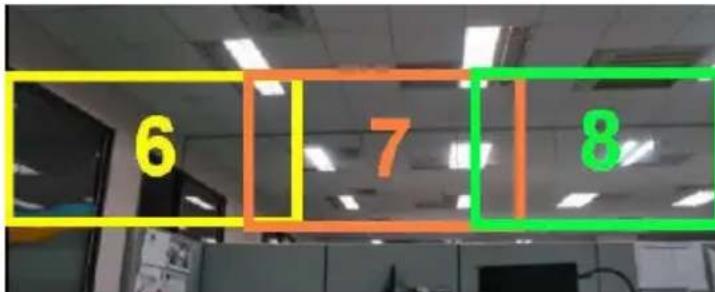

Zone Mode ....40

Hybrid Mode 42

Quick Setup for Tracking....44

Presenter Mode 44

Zone Mode 44

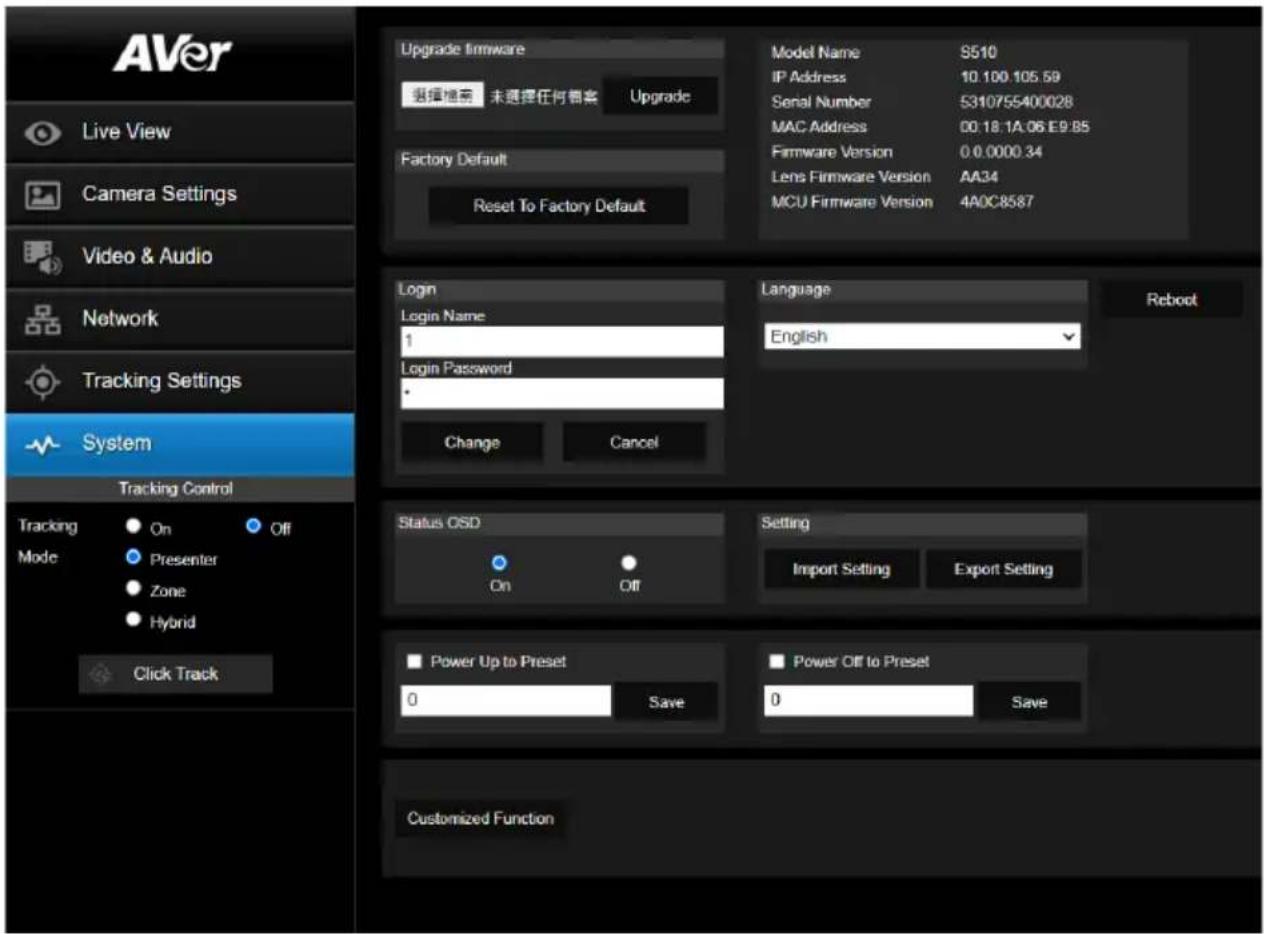

System 45

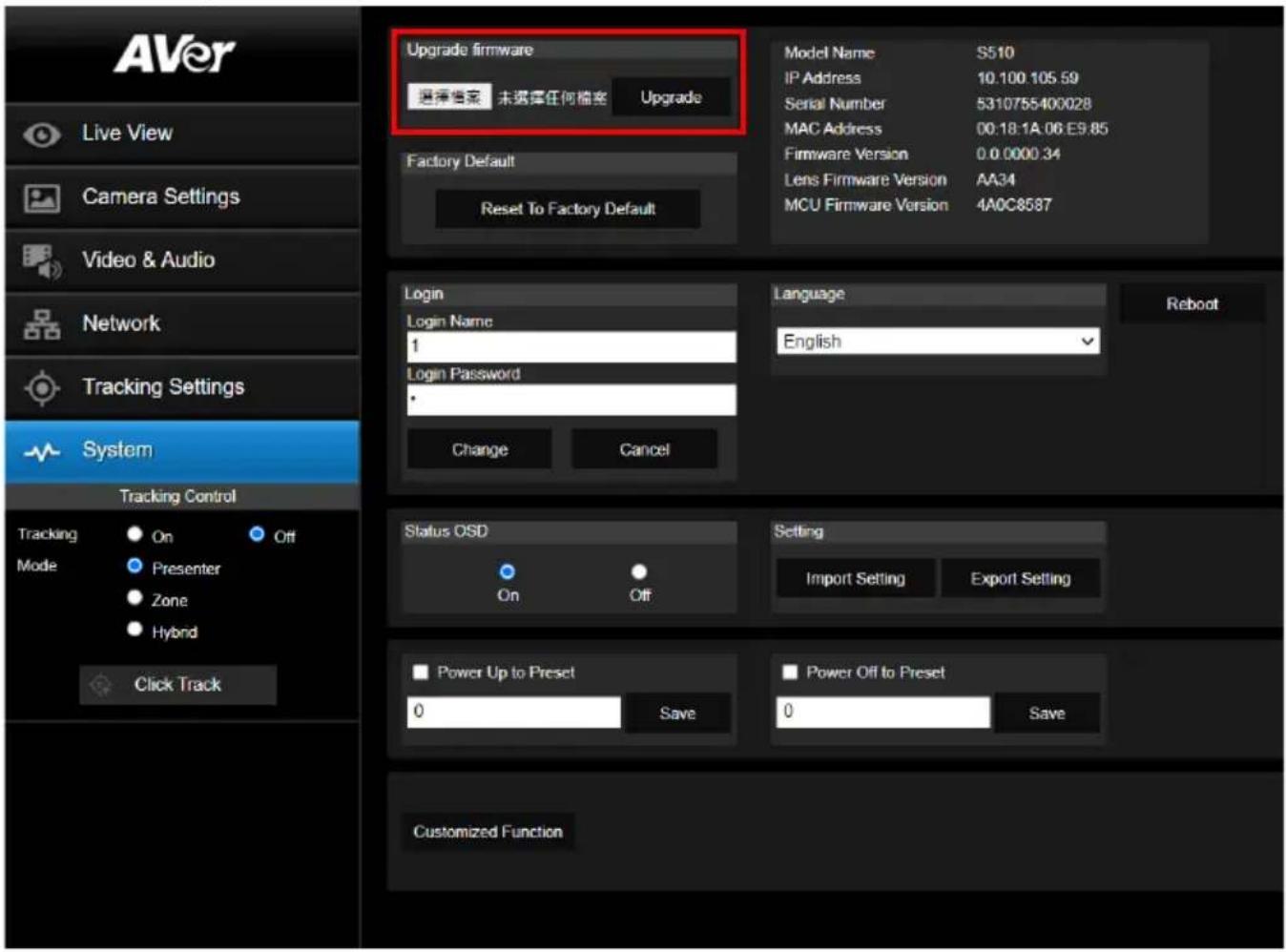

Upgrade Firmware 46

VISCA RS232 Command Table 47

Visca over IP Settings 48

CGI command 49

Specification....51

PTC310 51

PTC310H....54

PTC310N....57

PTC310U....61

PTC310UN 64

PTC330 68

PTC330N....71

PTC330U....75

Package Contents

Camera unit

Remote control

Cable ties(x5)

Quick Start Guide

Cable Fixing plates(x2)

M2 x 4mm Screw(x4)

Power adapter & Power cord

1/4"-20L=6.5mm Screw(x3)

Ceiling mount bracket(x2)

M3 x 6mm Screw(x3)

*The power cord will vary depending on the standard power outlet of the country where it is sold.

Optional accessory

RS232 Din8 to D-Sub9 Cable

RS232 In/Out Y Cable

Wall mount bracket

Camera Controller (CL01)

* For detail on optional accessories, consult your local dealer.

Product Introduction

Sources

PTC300 Intro Video

https://www.youtube.com/watch?v=j25xQbkSmPc

PTC300 Series Feature Video

https://www.youtube.com/watch?v=VJh1m5RWhLw

AVer Tech (Setup)

https://www.youtube.com/channel/UC8rQt7Pe3_4Rh-K4p1eXfNw

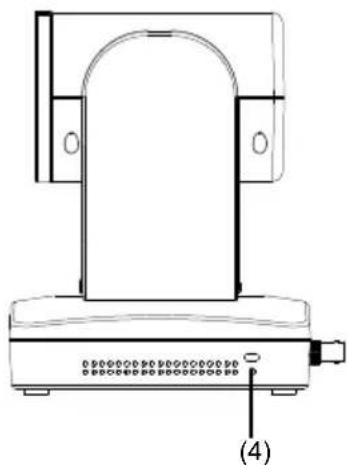

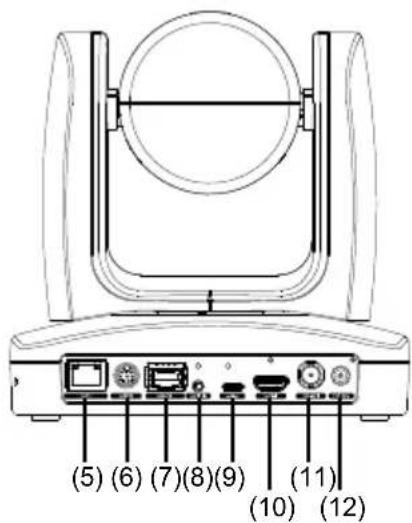

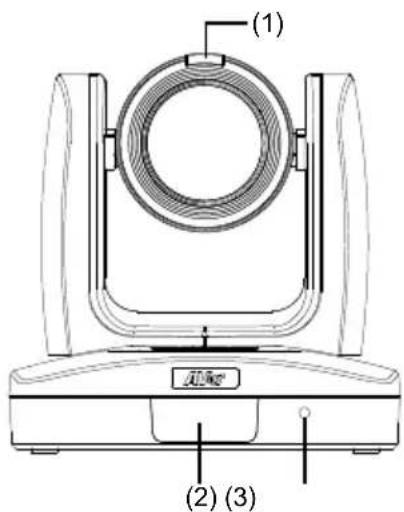

Overview

Technical line drawing of a mechanical device with mounting base and control panel (no text or symbols)

(1) Tally Lamp (*1)	(5) PoE+ IEEE 802.3AT	(9) USB 3.0 Port (Type C)
(2) IR Sensor	(6) RS232 Port	(10) HDMI Port
(3) Power Indicator	(7) RS422 Port	(11) 3G-SDI Port (*2)
(4) Kensington Lock (8) Audio In (12) DC Power Jack

*1: Line input level: 1Vrms (max.).
Mic input level: 50mVrms (max.); Supplied voltage: 2.5V
*2: This feature (3G-SDI) is not supported on PTC310H & PTC310HN.

LED Indicator

LED	Status
Blue(Solid) Normal Operation
Blue(Blinking) Auto Tracking On
Orange(Blinking) Camera Initialization
Orange(Solid) Standby
Red(Blinking) FW Updating

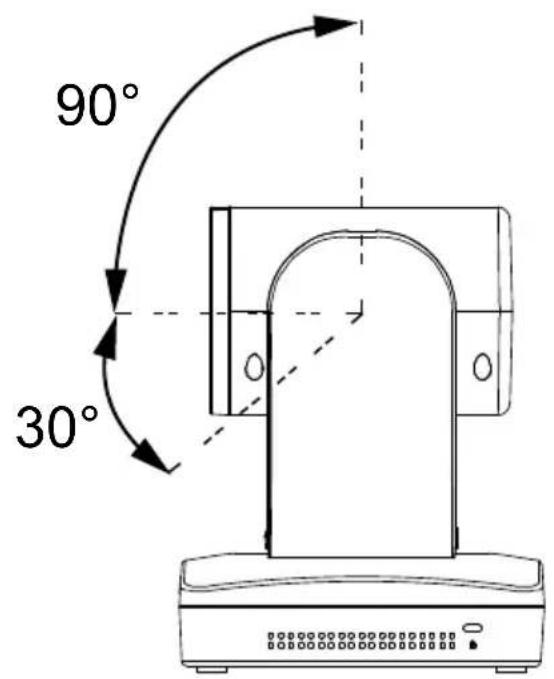

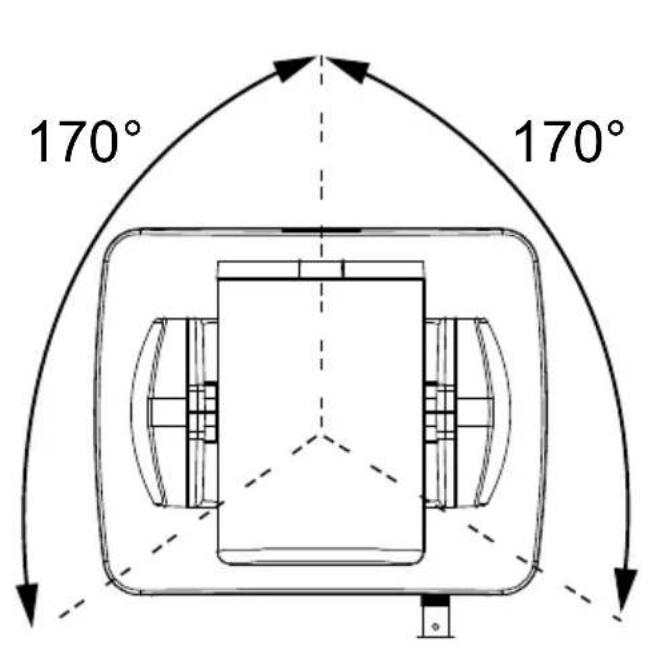

Pan and Tilt Angle

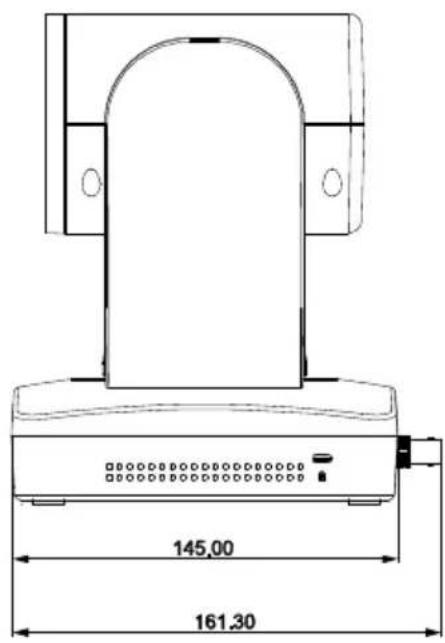

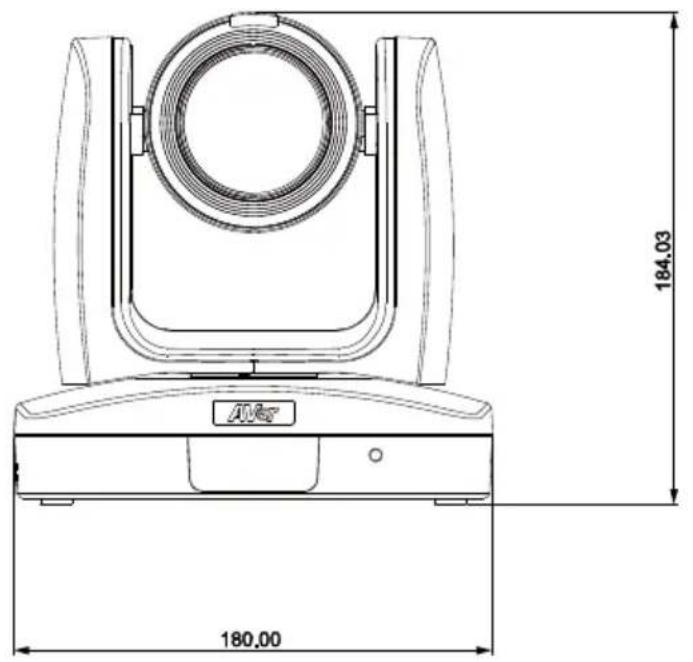

Dimension

Unit: mm

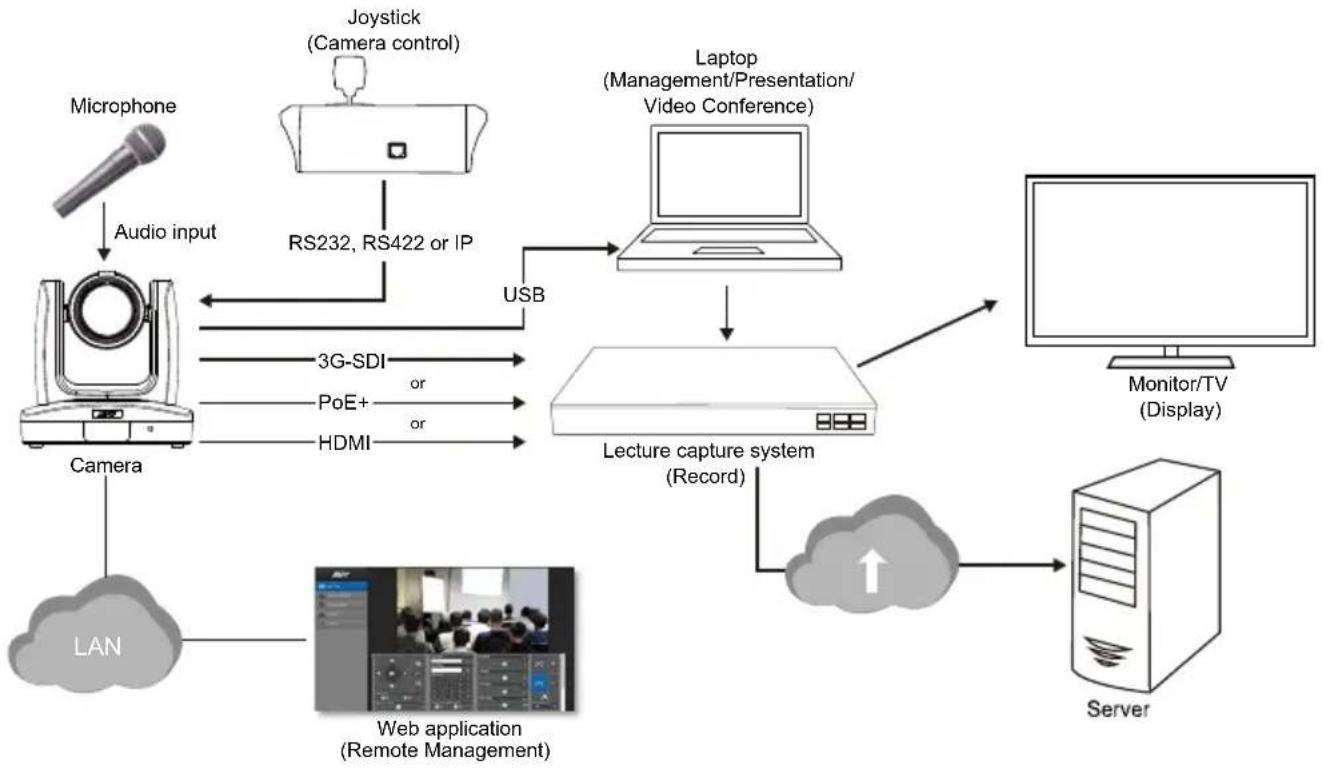

Device Connection

Video Output Connection

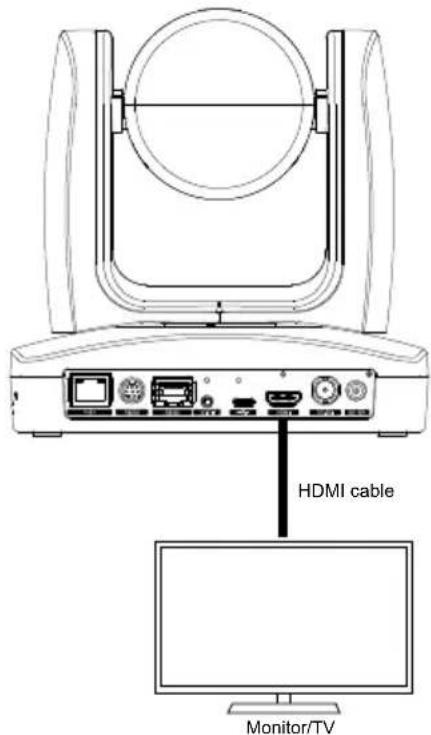

HDMI

Use the HDMI cable to connect with monitor or TV for video output.

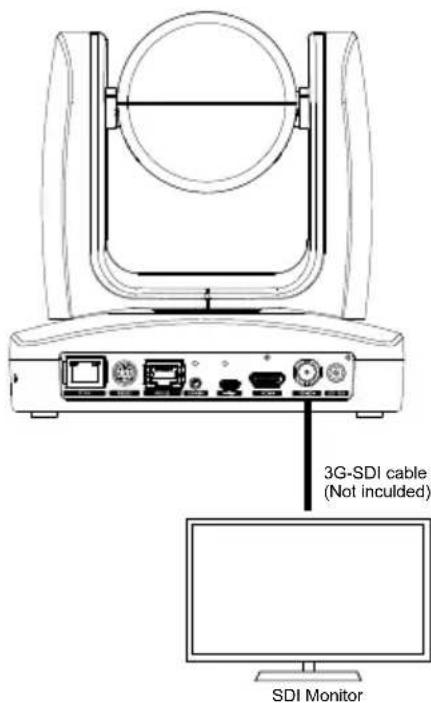

3G-SDI

Connect to 3G-SDI monitor for video output. (This feature "3G-SDI" is not supported on PTC310H & PTC310HN.)

[Note] HDMI and 3G-SDI monitors can be connected to camera and output live video simultaneously; Assuming HDMI monitor is well connected before the camera turned on, the OSD menu will be displayed on HDMI monitor in default."

RS232 and RS422 Connection

Connect through the RS232 or RS422 for camera control.

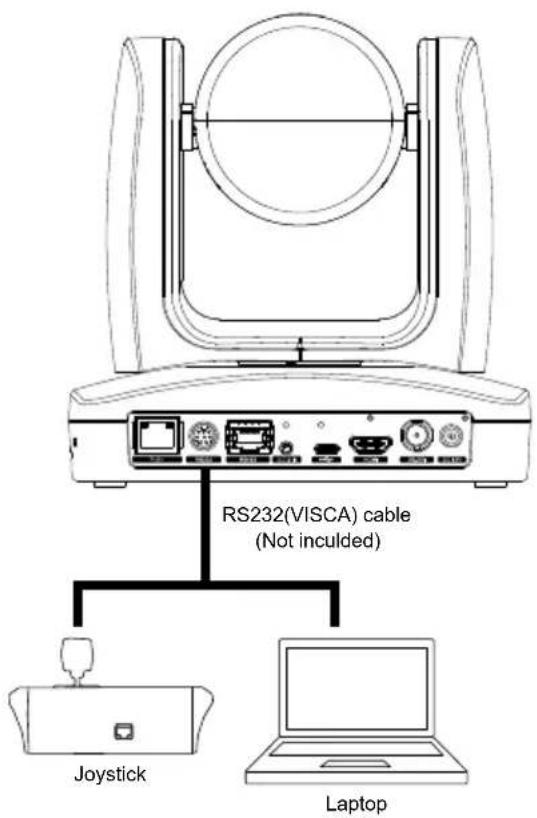

RS232

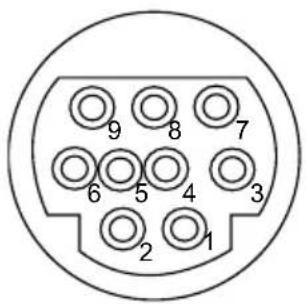

● RS232 Port Pin Definition

Function	Mini DIN9 PIN #	I/O Type	Signal Description
VISCA IN	1 Output DTR Data Terminal Ready
	2 Input DSR Data Set Ready
	3 Output TXD Transmit Data
	6 Input RXD Receiver Data
VISCA OUT	7 Output DTR Data Terminal Ready
	4 Input DSR Data Set Ready
	8 Output TXD Transmit Data
	9 Input RXD Receiver Data
	5	---	---	Not connect

No.	Signal
1	DTR
2	DSR
3	TXD
4	GND
5	RXD
6	GND
7	NC
8	NC

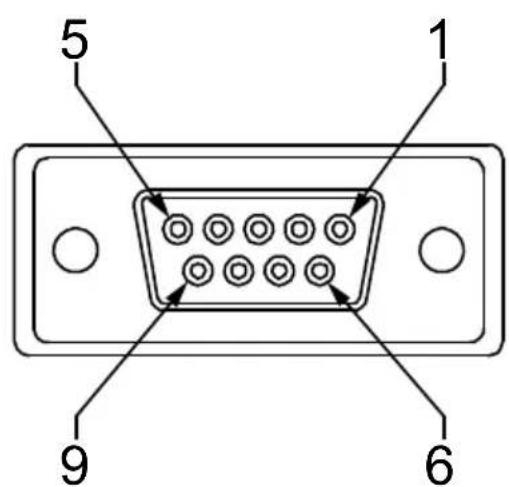

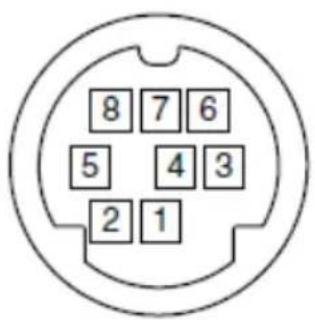

● Din8 to D-Sub9 Cable Pin Definition

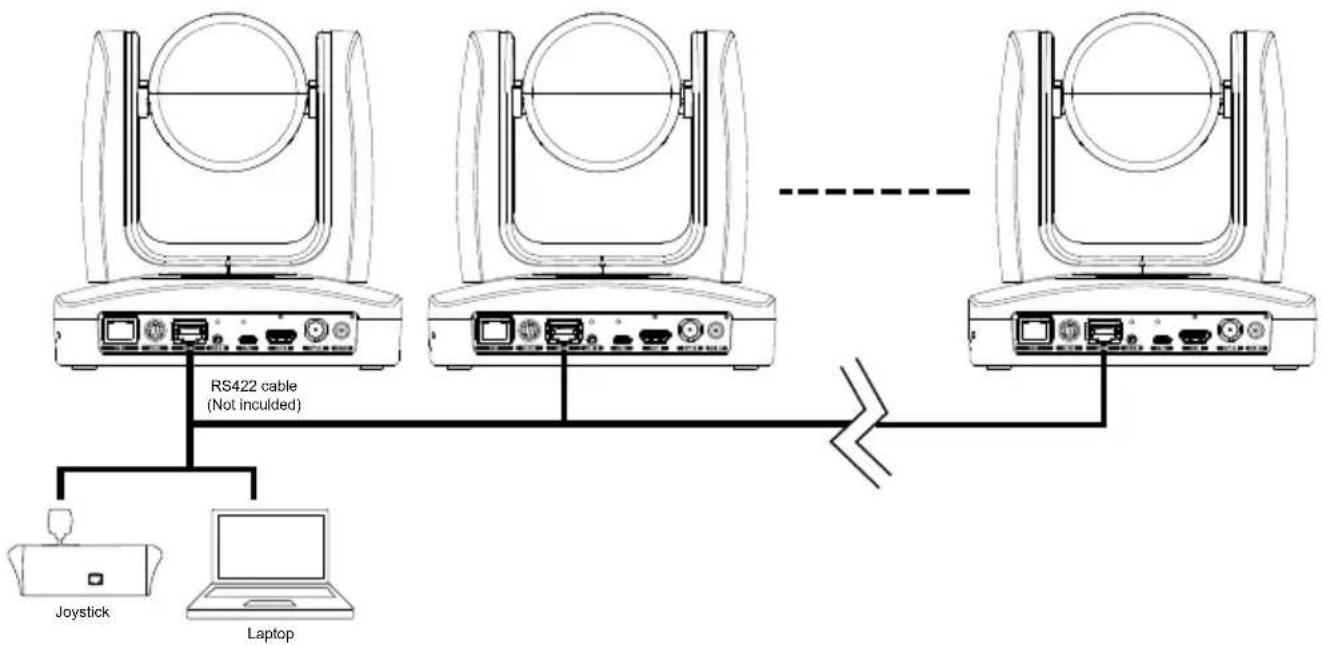

RS422

[Note] Use cat5e splitter for multi-camera connection.

RS422 Pin
No.	Pin No.	Pin
1	TX- 5	TX+
2	TX+ 6	RX+
3	RX- 7	RX-
4	TX- 8	RX+

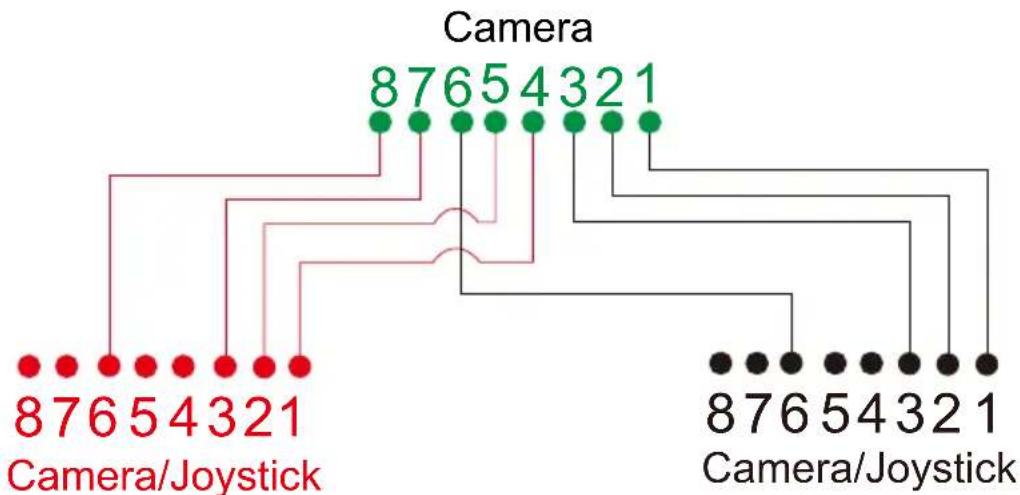

Cat5e splitter pin assignment:


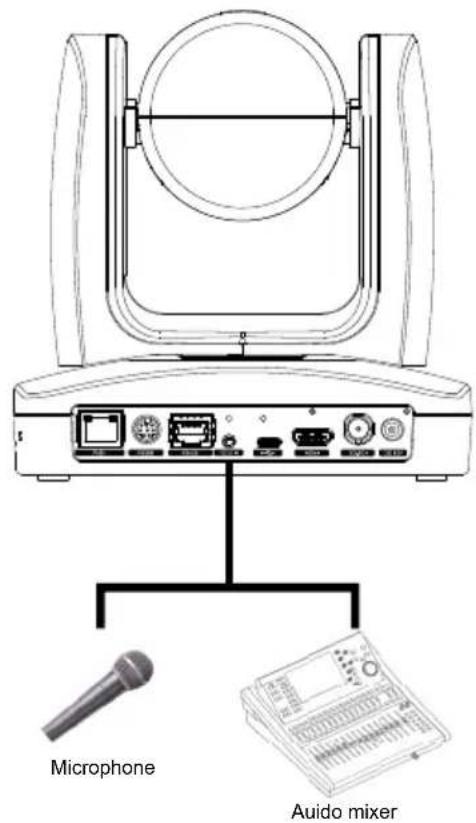

Audio Input Connection

Connect the audio device for audio receiving.

[Note]

• Line input level: 1Vrms (max.).
• Mic input level: 50mVrms (max.); Supplied voltage:2.5V.

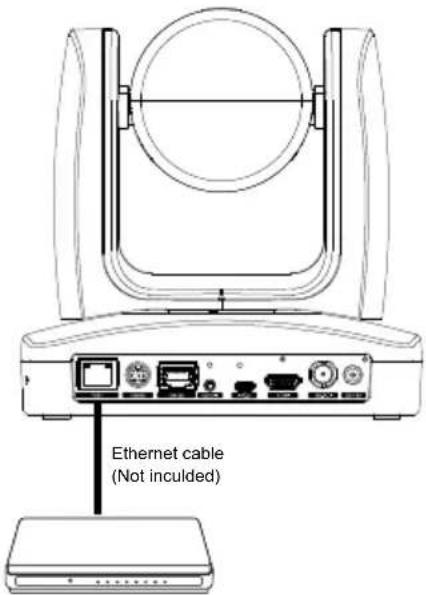

PoE Connection

Connect the camera to the router or switch through the PoE+ port.

[Note] Only support IEEE 802.3AT PoE+ standard.

Router/PoE Switch

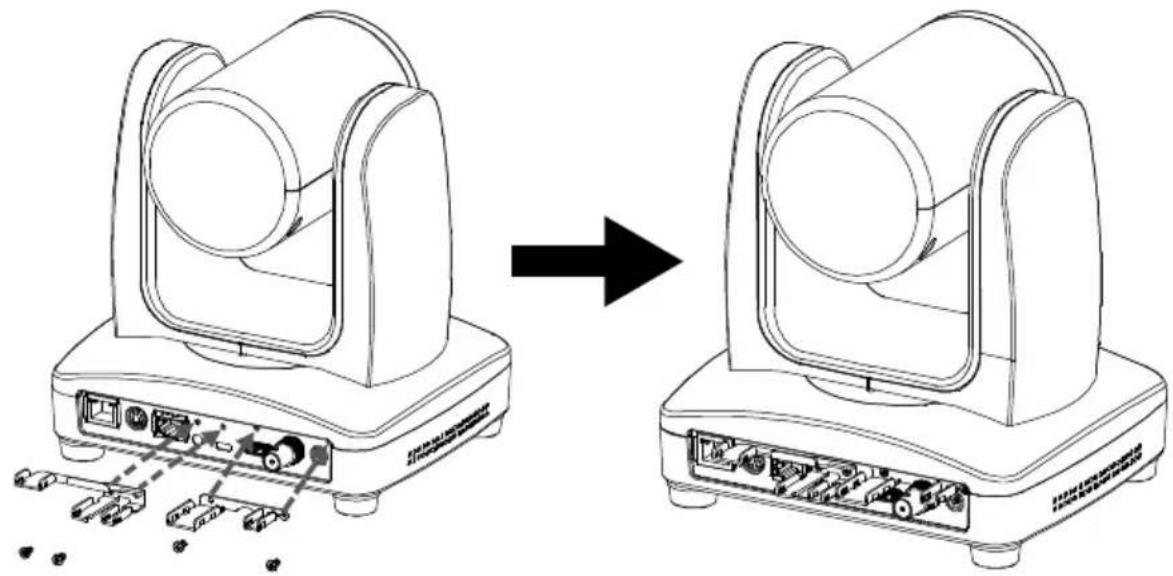

Install Cable Fixing Plate

① Secure the cable fixing plate to the camera with screws.

Screw: 4screws, M2 x 4mm(Included in the package)

Diagram showing device transformation from a multi-stage optical array to a multi-stage optical array, with no visible text or symbols.

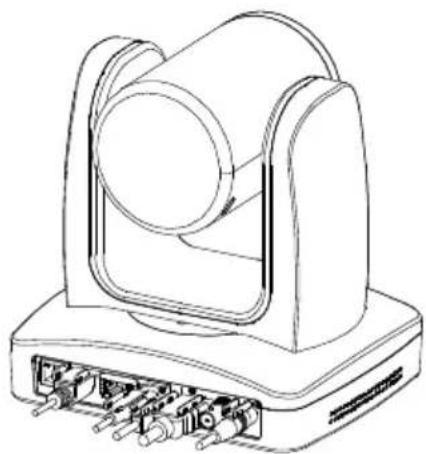

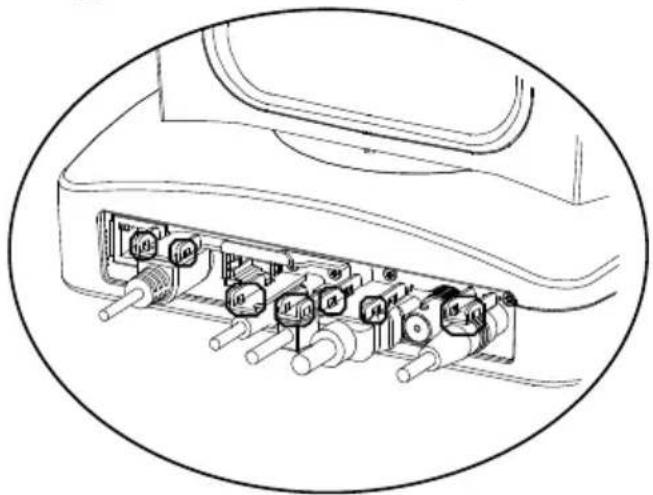

② Plug-in cables.

Technical line drawing of a mechanical device with ports and housing (no text or symbols)

③ Using cable ties to secure the cable and cable fixing plate.

Technical line drawing of an electronic device internal structure with multiple ports and connectors (no text or symbols)

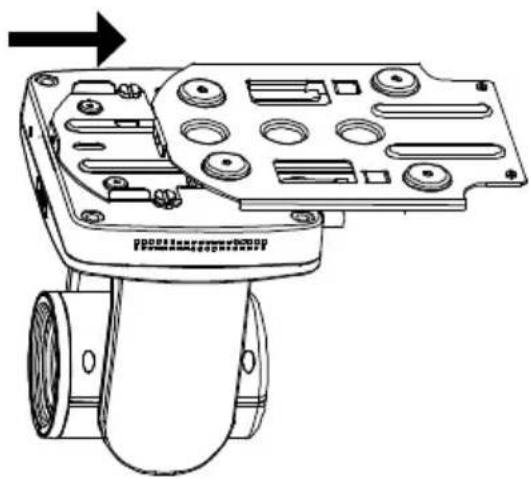

Ceiling installation

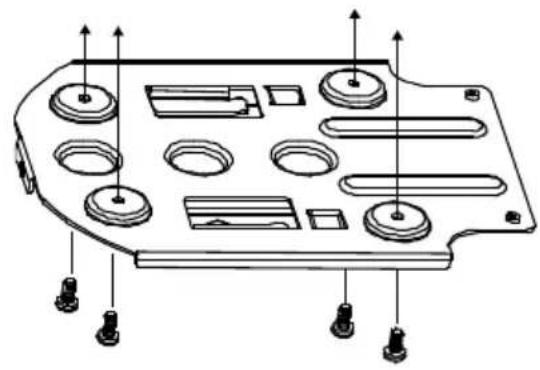

1. Secure the mount bracket on the ceiling.

Screw: 4 screws, M4 x 10mm (Not Included in the package)

Technical line drawing of a mechanical component with multiple circular features and mounting holes (no text or symbols)

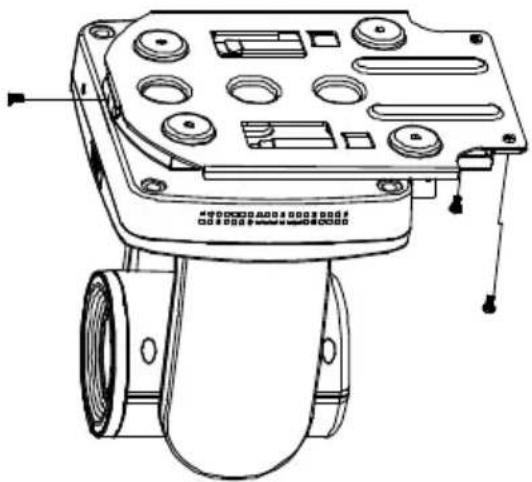

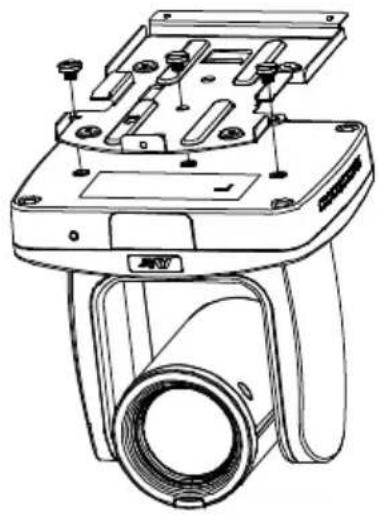

1. Install the mount bracket on the camera.

Screw: 3 screw, 1/4"-20 L=6.5mm(Included in the package)

Technical line drawing of a camera module with mounting holes and a cylindrical lens (no text or symbols)

1. Slide the mount bracket with the camera into the mount bracket which secured on the ceiling.

Technical line drawing of a mechanical device with mounting holes and a cylindrical component (no text or symbols)

1. Secure the camera with screws.

Screw: 3 screws, M3 x 6mm( Not Included in the package)

Technical line drawing of a mechanical device with multiple ports and mounting holes (no text or symbols)

[Note] Connects necessary cables after sliding the camera into the mount bracket.

Installation for Auto Tracking Performance

• Maximum/Minimum distance from the camera to tracking target

Upper body tracking Full body tracking
PTC310	1.3~16 meters	2.2~28 meters
PTC330	1.4~44 meters	2.5~76 meters

• Installed 2\~3 meters high from the floor.
- No human-outline figure on posters/screens/monitors/TVs in the background.
• Less than three people in a single camera view.
    note right of L "Center of the room, 2~3m height"

Remote Control

Name Function
(1) Power	Turn the unit on/standby.
(2) Menu	Open and exit the OSD menu.
(3) Camera Select	CAM1 to CAM3 buttonSelects a camera to operate.
(4) Numeric Pad	■ Use for setting the preset position 0~9.■ Press number button (0~9) to move the camera to pre-configure preset position 0~9.
(5) Preset	Press and hold “Preset” + “Number button (0~9)” to set the preset position.
(6) Reset	Press and hold “Reset” + “Number button (0~9)” to cancel pre-configure preset position.
(7) WDR	Turn on/off WDR function.
(8) BLC	Turn on/off backlight compensation.
(9) ▲,▼,◀, & ▶ Pan and tilt the camera.
(10) Enter	When open the OSD menu and Confirm the selection or make a selection in OSD menu.
(11) PT Reset	Reset the Pan-Tilt position. (Re-calibration)
(12) L/R DIR	Left and right orientation setting.- Press and hold “L/R DIR” button + number button “1” to set the direction of the camera panning movement opposite to that indicated by the arrow of the ◀/► buttons.- Press and hold“L/R DIR” button + number button “2” to set the direction of the camera panning movement same as the arrow of the ◀/► buttons.
(13) Zoom +/-	Zoom in/out slow.
(14) MF/Far/Near	Enable manual focus. Use Far/Near to adjust the focus.
(15) Zoom Fast +/-	Zoom in/out fast.
(16) Pan-tilt Fast/Slow	Pan-Tilt speed adjustment.(24-speed)
(17) AF	Auto focus.
(18) Auto Tracking	Auto Tracking on/off.
(19) Freeze	Freeze the live image
(20) EV +/-	EV level adjustment.
(21) Switch	Change presenter (Tracking target)
(22) Tracking Point	When presenter enters this area, the camera will start tracking.Short press the button will recall preset1,Long press(over 0.5sec) the button will switch tracking mode (v0.0.0000.21 or later FW).
(23) Upper Body	Presenter's size on screen is upper body.
(24) Full Body	Presenter's size on screen is Full body.

Setup the Camera

OSD Menu

Press MENON on the remote controller to call out the OSD menu and use

▲, ▼, ◀, ▶ and

button to operate the OSD menu.

Setup IP Address of the Camera

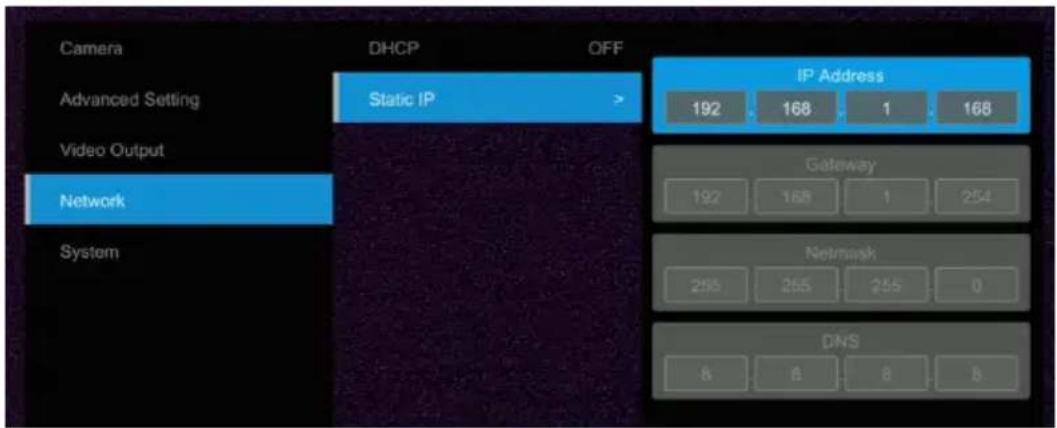

Static IP

1. Press button on the remote controller to call out OSD menu.
2. Go to Network > Static IP.

[Note] Turn the DHCP off before setup static IP (Network > DHCP > Off).

1. Select the IP address, Gateway, Mask, and DNS to configure. Press ⬇ and use◀, ▶, number pad to enter the data.

DHCP

1. Press button on the remote controller to call out OSD menu.
2. Go to Network > DHCP > On.

1. After turn the DHCP on, the user can go to System > Information to view IP address.

OSD Tree

Camera

Setup camera parameters – Exposure mode, White balance, Pan-Tilt Zoom, Noise reduction, Frequency, Saturation, Contrast, Sharpness, Mirror, and Flip.

Camera Exposure Mode
Full Auto		Exposure Value/Gain Limit Level/Slow Shutter
Shutter Priority		Exposure Value/Shutter Speed/Gain Limit Level
Iris Priority		Exposure Value/Iris Level/Gain Limit Level/Slow Shutter
Manual		Iris Level/Shutter Speed/Gain Level
	Bright	0 - 31
White Balance	Auto/AWT/Indoor/Outdoor	[Note] AWB auto range is about 3500K color temperature, when the color temperature is less than 3500K, please use AWT.
	R Gain	0~255
	B Gain	0~255
	Pan Tilt Zoom	Pan/Tilt Slow /Preset Speed/Digital Zoom/Digital Zoom Limit
	Noise Filter	OFF/Low/Medium/High
	Saturation	0~10
	Contrast	0~4
	Sharpness	0~3
	Mirror	OFF/ON
	Flip	OFF/ON

Advanced Setting

Advanced Setting	Audio
Input Type		Mic in/Line in
Auto Gain Control		OFF/ON
Noise Suppression		OFF/Low/Normal
Audio Volume		0 ~ 10
	Control
	Type	RS232/RS422
	Protocol	VISCA/Pelco-P/ Pelco-D
Camera Address		1~7
Baud Rate		2400/4800/9600/38400
	Tracking	ON/OFF

Video Output

Select video resolution.(2160p is supported on PTC310U and PTC330U only)

Priority Mode 2160P/1080P

Frequency 50Hz/59.94Hz/60Hz

Video Format 2160p/30 2160p/29.97 2160p/25 1080p/60

1080p/59.94 1080p/30 1080i/60 1080i/59.94

720p/60 720p/59.94 1080p/50 1080p/25

1080il/50 720i/50

Network

Setup IP mode – DHCP or static IP.

Network	DHCP	Off/On
	Static IP	IP Address
		Gateway
		Netmask
		DNS

System

■ Status OSD: Enable/disable Preset status (Save Preset, Call Preset, Cancel Preset) display on the screen.
■ Camera Selector: Set the camera ID 1\~3 for using remote controller on multiple cameras control (also see (2) Camera select in Remote Control chapter).
■ NDI: Enable/disable NDI function. For detail setting refer to Setup NDI Function chapter.
■ Tally: Enable tally function.

System Camera Selector 1~3
Status OSD	OFF/ON
Language English/繁中
NDI OFF/ON
Tally Disable/Enable
Information Model Name/Firmware	Version/IP /MAC
Factory Default OFF/ON

Web Setup

Connect the camera from a remote site through the internet.

Using the AVer IPCam Utility to Find the Camera

To find the IP address of your cameras, you can execute the IPCam Utility installer. Follow the below steps to find the IP address of the camera.

1. Download the IPCam Utility from http://www.aver.com/download-center.
2. Run the IPCam Utility
3. Click Search, and all available devices will be listed on the screen
4. Select a camera from the list.

5. The corresponding fields of IP address will display.

6. Double-click on the IP address of the camera from the list can connect to the camera through the browser.

[Note] If IPCam utility cannot find the camera, please check following:

1. Please make sure the Ethernet connection of camera is well connected.
2. The camera and PC (IPCam utility) are in the same LAN segment.

Using AVer PTZ Management Software to Find the Camera

To find the IP address of your cameras, you can download the install the AVer PTZ Management Software. Follow the below steps to find the IP address of the camera.

1. Download the AVer PTZ Management Software from https://www.aver.com/download-center
2. Select the "Software" tab and download the Windows program and install it.
3. After setting up the user ID and password, login to the software(default Username/Password: admin/admin) then

1. Select "Setup", "Add" and then "Auto Search".

Make a Connection to the Camera via Browser

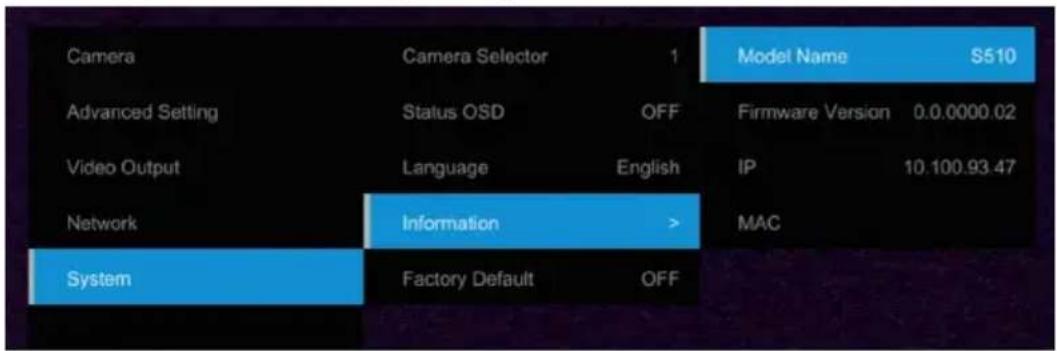

1. Find the IP address of the camera. Call out OSD menu and select "System" > "Information" Or use AVer IPCam utility to find the IP address of the camera.

Camera	Camera Selector	1	Model Name	S510
Advanced Setting	Status OSD	OFF	Firmware Version	0.0.0000.02
Video Output	Language	English	IP	10.100.93.47
Network	Information	>	MAC
System	Factory Default	OFF

1. Open the browser and enter the IP address of the camera. The PC/laptop is required an internet access.

After connecting to the camera, enter the user account and password (default is admin/admin) to login Web.

Live View

In live view, the user can setup Camera Control (zoom in/out, focus, camera direction control), Preset setting, and Tracking Control(on, off, tracking mode).

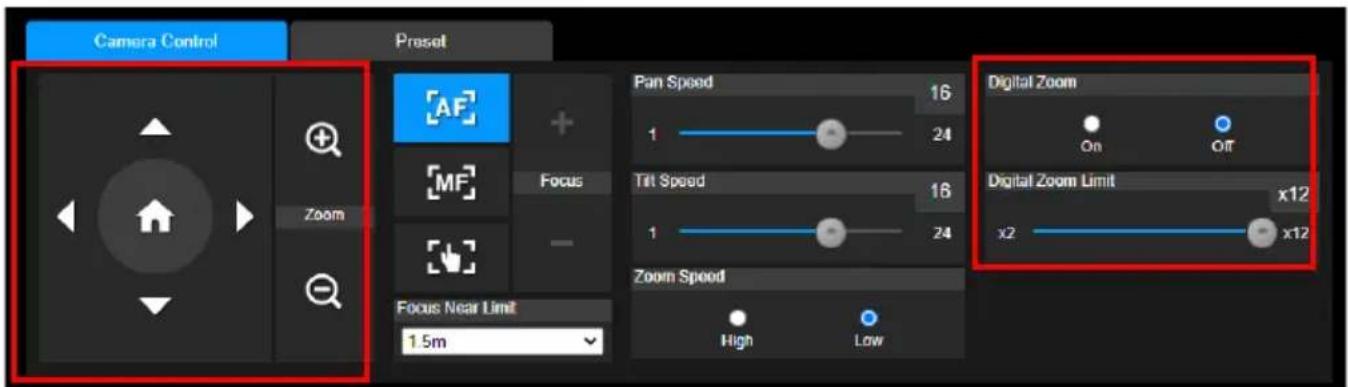

Pan-Tilt-Zoom Control

To operate the PTZ Camera motion.

Use △, , , and to adjust the camera view position and use and

to zoom. Select to back to default position.

Digital Zoom: Enable/disable digital zoom function. Move the scroll to adjust the limit of digital zoom.

Focus

Switch to auto (AF) or manual (MF) focus. The manual focus use + and – to adjust focus. Press “+” to adjust focus to the far end and focusing on a far subject; press “-” to adjust focus to near end and focusing on a near subject.

One push focus(

By clicking the button to adjust Lens focus automatically once.

Focus Near Limit: Set the focus distance limit.

Manual Pan-Tile-Zoom and Preset Speed Adjustment

Adjust the speed of manual Pan-Tilt-Zoom and Preset operation. Enable/Disable the slow mode for manual pan-tilt operation. There are totally 24 levels for manual pan-tilt speed adjustment and 2 levels (Low/High) for zoom speed adjustment. There are 5 levels for preset speed adjustment.

■ Pan/Tilt Slow: When this option is set to ON, the maximum speed of manual pan-tilt operation is 40^/sec ; when this option is set to Off, the maximum speed of manual pan-tilt operation is 100^/sec .
■ Relative Zoom Ratio: When the camera zoomed in to a high ratio, pan and tilt movement will automatically slow down.
■ Preset Affects PTZ & Focus Values Only: When enable this button, the preset point affects PTZ & Focus values only.

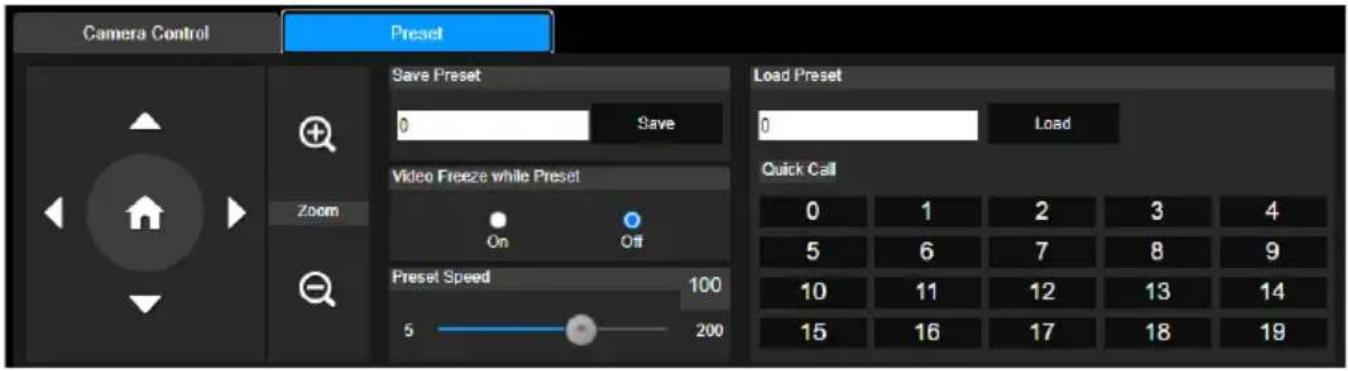

Preset Setting

Setup preset position and view preset position.

1. Select the "Preset" tab in live view interface.
2. Use , , , and to adjust camera view position.
3. Enter preset position number (0\~255) in Save Preset column and select "Save" to save the position.
4. To call the preset position, enter a preset number (0\~255) in Load Preset column or select the preset number (0\~19) from Quick Call section.(Recalling preset will disable auto tracking)
5. Video Freeze with Preset: On/Off the screen view freeze function. When "Video Freeze with Preset" is on, during the preset operation, the screen will freeze until the operation is done.

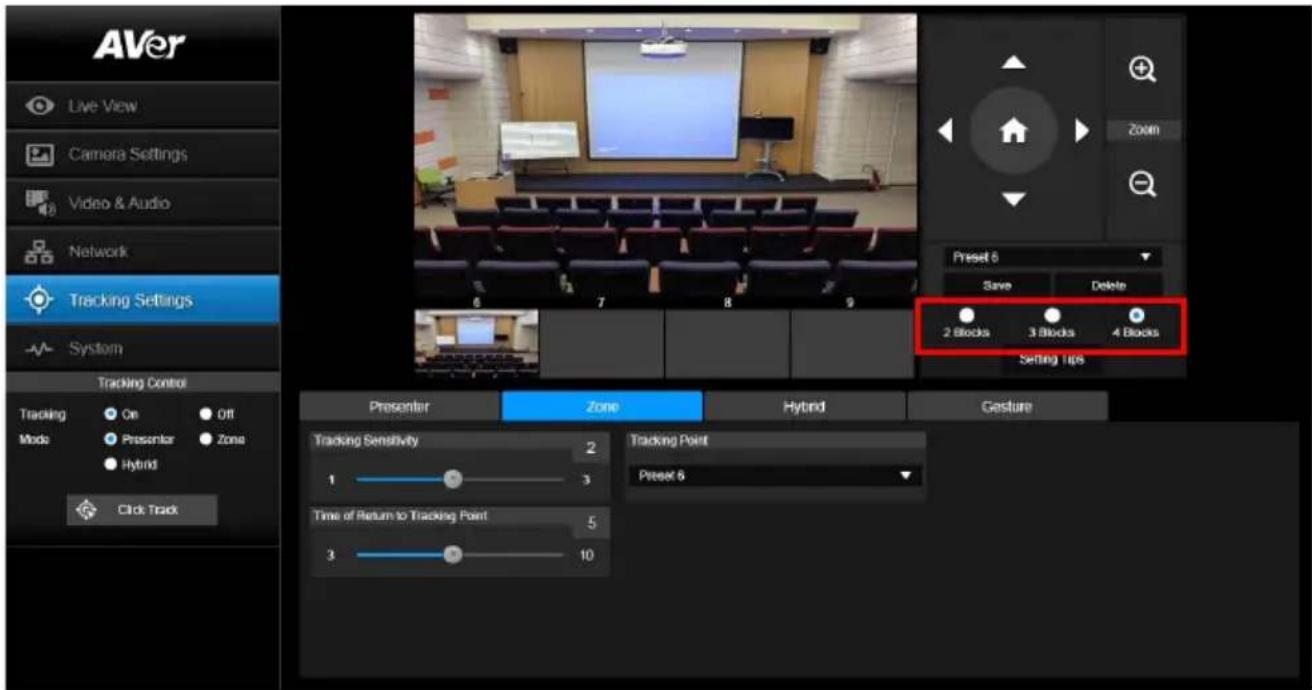

Tracking Control

Enable/disable tracking function, select tracking mode, and operate one-click tracking function.

■ Tracking mode(Tracking mode setup refer to Tracking Settings section)

➢ Presenter: Camera will start tracking when object enter the tracking point (preset point) and the face of object is detected.

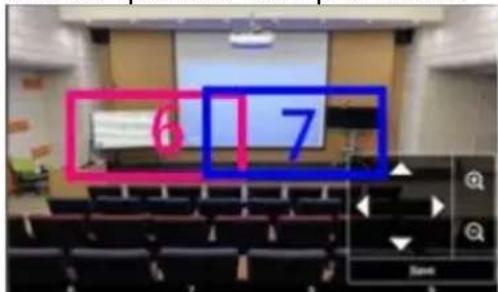

Zone: Camera will start tracking when object is moving between the preset tracking block area.
Hybrid: Mix the Presenter mode and Zone mode together.

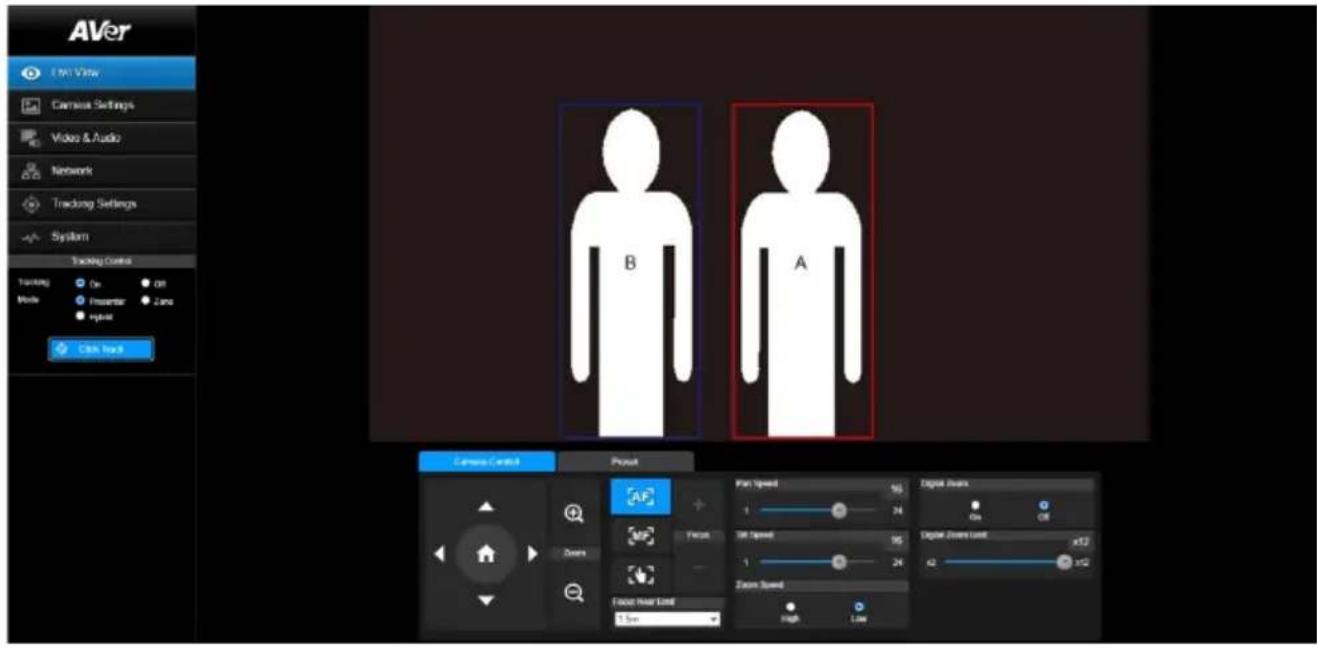

Click Tracking Function

This function allows user to change tracking object while auto tracking.

1. Select Click Track button. A red frame is targeted on the tracking object and a blue frame is targeted on another object on the live screen.

1. Click the object and when frame change to red means the tracking object is changed to the selected one.

Camera Settings

Exposure

Setup the exposure type -- Full auto, Iris priority, Shutter priority, or manual.

Image Process

Setup the white balance, saturation, contrast, sharpness, noise filter, power frequency, flip, and mirror. Select the "Image Process" tab in camera setting interface.

Video & Audio

The user can setup Video Mode, Video output, Framerate, Bitrate, I-VOP internal, Encode type, Rate control, Audio input type, Audio volume, and Sampling Rate.

Video mode in the stream only, the frame rate is up to 60fps and in USB+ Streaming mode is up to 30fps.

Get 4K (2160p) output

1. Make sure that your HDMI monitor and cable support 4K (HDMI2.0 or above), select 2160p at Priority Mode via either web or OSD menu. Select 2160p/30 resolution at OSD menu to get 4K HDMI output. (3G-SDI does not support 4K)
2. Select "USB Only" at Video Mode to get 4k USB output(live stream will be off)
3. Select "Stream Only" at Video Mode to get 4k live stream output (USB will be disabled)

Setup NDI Function

NDI service only support on NDI models: PTC310N, PTC310UN, PTC310HN, PTC330N.

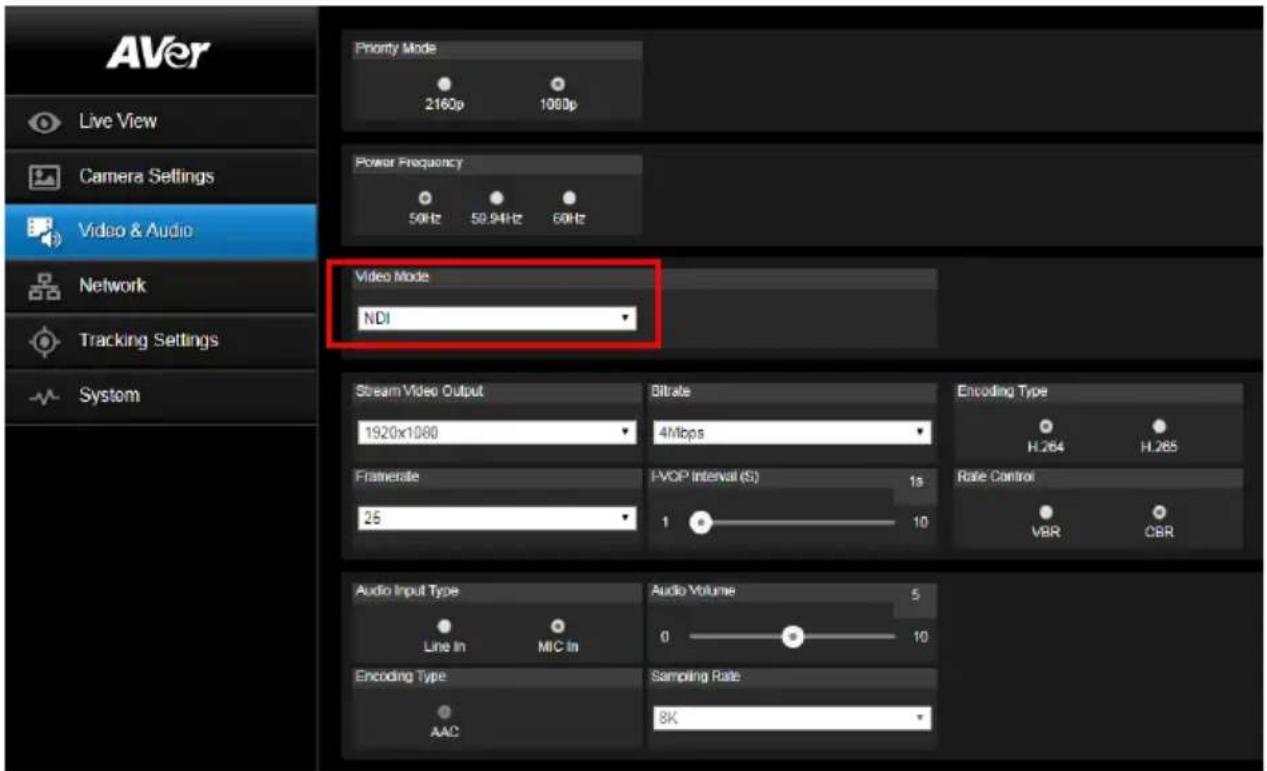

1. Enable NDI mode by selecting "NDI" as video mode in Video & Audio page. To disable the NDI function, select other mode. The camera will reboot after selecting NDI mode.

1. User can setup the following functions:

2. Stream Video Output: Select video output resolution.
   ● Framerate: Select framerate of the camera.

3. Encoding Type: Select encoding type – H.264 or H.265.
4. Sampling Rate: Select sampling rate value.
5. Audio Input Type: select audio input type – Line In or MIC In.
6. Bitrate: Select bitrate value – 521kbps, 1Mbps, 2Mbps, 4Mbps, 8Mbps, 16Mbps, 32Mbps.
7. I-VOP interval(S): Move scroll bra to set the value – 1s to 10s.
8. Audio Volume: Move scroll bra to set the volume value – 0 to 10.

9. Rate control: select the rate control type – VBR or CBR.

10. Set the identity name for display on NDI interface. Select System > Camera ID(NDI).

Enter the name as user wanted. The maximum character is 10. After entering the name, select the Set button to save and manually restart the PTZ camera for the settings to take effect.

The following characters can be displayed for camera ID:

Numeric characters	0123456789
Alphabetical characters (upper and lower cases)	ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz
Symbols	! @ # $ % ^ & * ( ) , . ∧ ; :” ’ + = < > ? [ ] { } | - _ ` ~ \ /

Network

Setup IP address of camera – DHCP or static IP, netmask, gateway, and DNS. After setting, select "Confirm" to apply settings.

Hostname: To change the display of Hostname, allow to name the camera in other device ex IP Router. The default Hostname of camera is AVer.

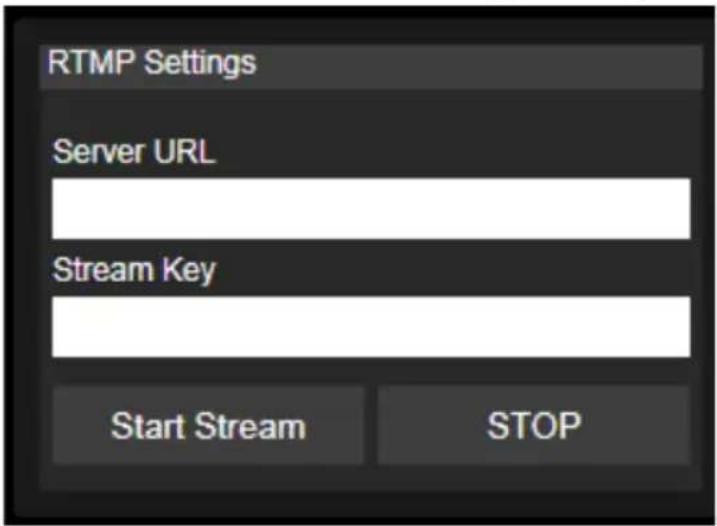

RTMP Setting

Setup for uploading the camera's live view to the broadcasting platform (ex: Youtube).

Get the RTMP server URL and stream key from the broadcasting platform and enter in "Server URL" and "Stream key" column.

Select "Start stream" to begin uploading the live video of the camera to the broadcasting platform. Select "Stop" to stop uploading the video.

[Note] To get the RTMP server URL and stream key, please refer to the instruction of broadcasting.

Using RTSP Connect to Camera

To use RTSP player connecting to the camera; please enter the following RTSP URL in your application such as VLC, PotPlayer or Quick Time.

"rtsp://IP address of camera/live_st1"

For Example: rtsp://192.168.1.168/live_st1

(the camera default IP address: 192.168.1.168)

Enable/disable RTSP security function if needed.

(When RTSP Security is On, the RTSP stream ID/Password will be synced to the web login User name/ Password.)

SRT Stream

Example 1 vMix:

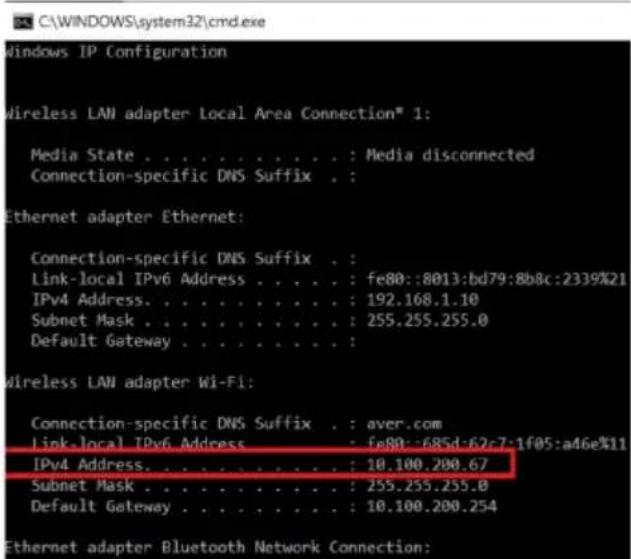

Set the workstation and the PTC300 camera in the same network. Check the workstation's IP address (Destination IP). Example:

Select SRT(Listener) from Stream Type in vMix Input Select window.

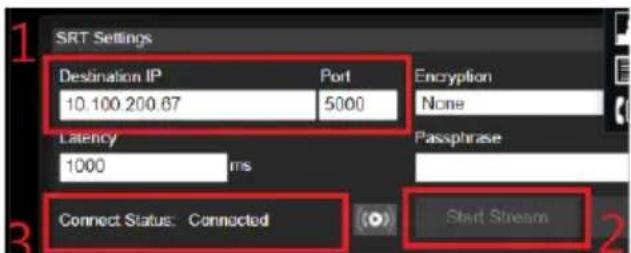

Enter the information into the SRT Settings PTC310 web interface, then click on "Start Stream", Connect Status shows "Connected".

Example2 OBS (Open Broadcaster Software)

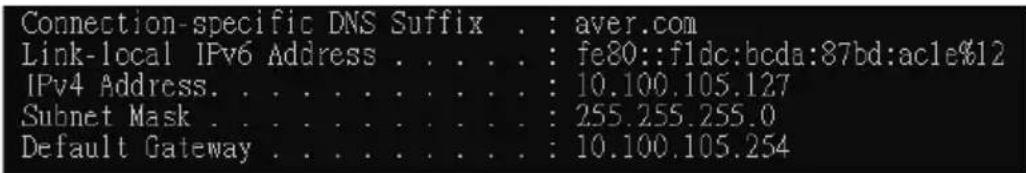

Set the workstation and the PTC300 camera in the same network. Check the workstation's IP address (Destination IP). Example:

Open OBS, add a scene, add a source, enter srt://Work Station IP:port?mode=listener

Example: srt://10.100.105.127:8889?mode=listener

[Note] If there is no image, please try right click on the source->Transform->Fit to screen to re-scale image.

Tracking Setting

Set up Tracking mode – Presenter, Zone, and Hybrid mode.

Presenter Mode

Camera will start tracking when object enters the tracking point (preset point).

1. Use

to adjust the camera to tracking point

(preset position).

1. Then, select Save to Preset 1 to save the tracking point.

1. Tracking Sensitivity: Set the sensitive level of tracking. Move bar to set the value. The current value is displayed at upper right corner.

1. Time of Return to Tracking Point: Set the idle time for camera returning to tracking point. Move bar to set the value (in seconds). The current value is displayed at upper right corner.

1. People Size: Select the people in full or half size while tracking.

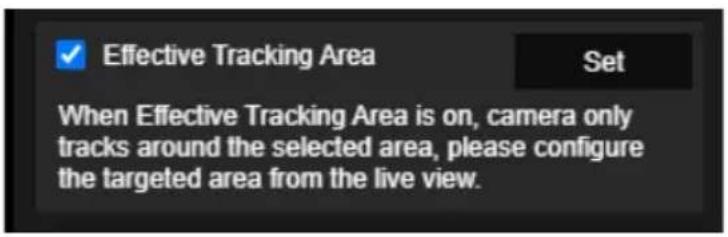

1. Effect Tracking Area: When Effective Tracking Area function is on, camera only tracks around the selected area. Check the box to turn on the Effective Tracking Area function then click Set to configure the targeted area in the live view. Move the upper left corner and the lower right corner of the red solid frame to define the targeted area.

[Note] The position of the red solid frame corresponds to the central position of the presenter. The black dotted frames represent the tracking areas for different positions of the presenter. Therefore, the red dotted frame is the actual effective tracking area of the red solid frame.

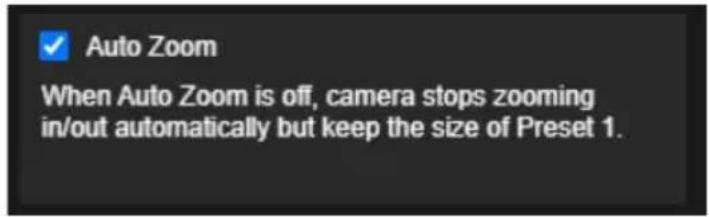

1. Auto Zoom: When Auto Zoom is off, camera stops zooming in/out automatically but keep the size of Preset 1.

Zone Mode

Setup the block area for the camera to detect object and follow-up the object to move the camera when the object is in block area that user has set.

1. Select the Blocks (2, 3, or 4). Each block is corresponding to one preset position. The maximum is 4 blocks (4 preset positions).

1. Select the block and Set the preset positions in order (preset 6 to preset 9). Use

Save" to save

the preset position. And, a snapshot of the preset image will show at corresponding image display box. Repeat the step to set another preset position.

[Note] Set each preset overlapping the next preset view (one man width overlap), no or less zoom between presets. Examples below:

[Note] Set the preset view to clearly see at least 60% upper body of the preseter to ensure tracking accuracy. Make sure there is no any other human-outline poster/TV/monitor in the background.

Preset for Zone Mode, Example:

1. Tracking Sensitivity: Set the sensitive level of tracking. Move bar to set the value. The current value is displayed at upper right corner.

1. Time of Return to Tracking Point: Set the idle time for camera returning to tracking point. Move bar to set the value (in seconds). The current value is displayed at upper right corner.

Hybrid Mode

This function allows the user to use two types of tracking modes: "Presenter mode" and "Zone mode" at the same time. When the presenter enters selected preset points, it will change to Zone position; when the presenter leaves the preset points, camera will follow presenter to do Auto Tracking function.

1. Mix two tracking modes "Presenter" and "Zone" at the same time. For Hybrid mode, do not set Zone preset points overlapping or close to each other. It is recommended to leave some distance between Zone preset points.

1. Use direction control panel to move the camera to desired position and select "save" to save the preset position. And, a snapshot of the preset image will show at corresponding image display box. Select preset position and select "Delete" to delete the saved preset position.(Preset 10,11,12,13)

1. Set the sensitive level of tracking. Move bar to set the value. The current value is displayed at upper right corner.

1. Set the idle time for camera returning to tracking point. Move bar to set the value (in seconds). The current value is displayed at upper right corner.

1. When losing tracking target and going back to Tracking Point.

1. Presenter size, Full body will show the whole Body on screen and Upper will only show half body.

Quick Setup for Tracking

Presenter Mode

1. Use IR remote to adjust the camera view properly then save to preset1 as the initial position

2. Press tracking "On" button on IR remote, here you go!

3. Press "UPPER BODY" key to get closer view (up to 60% body), or FULL BODY to see entire presenter in the view.

4. Press "Switch" key to switch between presenters. Initially the camera tracks the one who is in the center of view. Every switch follows the sequence: left to right, then back to far left one in the camera view(see picture below). To see which presenter is being tracked, press numeric key"7" for seven times to call/cancel engineering mode while tracking, you will see purple boxes shown on all human-outline objects, and who under yellow box is being tracked.

Zone Mode

2 blocks initially selected and preset 6 is initially the start position. But if you prefer 3 or 4 blocks for Zone mode tracking and prefer another preset as start position, go to web setting.

1. Use IR remote to adjust the camera view properly then save to preset6, preset7

2. Long press "Tracking Point" to switch tracking mode from Presenter Mode to Zone Mode (the hotkey supported at firmware v0.0.0000.21 or later)

3. Press "ON", here you go!

System

■ System information: It displays Model Name, IP Address, Serial Number, MAC Address and Firmware Version.
■ Factory Default: Reset the camera back to factory default value.
■ Login in: The default login in name and password are admin/admin. User can change if needed.
■ Status OSD: Enable/disable Preset status (Save Preset, Call Preset, Cancel Preset) display on the screen.
■ Language: Change the Web UI language.
■ Camera ID (NDI): Set the camera ID as identification for NDI function. To setup NDI function, please refer to NDI Function section.
■ Power Up to Preset/ Power off to preset: If enabling Power Up/Off to Preset function, the camera will move to the saved preset point in the field when the camera powers up/off.
■ Reboot: To restart the camera from web page.
■ Customized Function: Ability to execute some specific functions by using VISCA command.

Upgrade Firmware

1. Download the newest firmware from http://www.aver.com/download-center.
2. Connect to the camera through the browser.
3. Select System > Browse the FW file > Upgrade firmware
4. Select the firmware and select the "Upgrade" button.
5. After updating, refresh the browser.

VISCA RS232 Command Table

Command Set	Command Command	Packet Comments
CAM_Power	On 8x 01 04 00 02 FF		Power ON/OFF
	Off 8x 01 04 00 03 FF
CAM_Zoom	Stop 8x 01 04 07 00 FF
	Tele(Variable) 8x 01 04 07	2p FF	p=0 (Low) to 7 (High)
	Wide(Variable) 8x 01 04 07	3p FF
CAM_Focus	Stop 8x 01 04 08 00 FF
	Auto Focus 8x 01 04 38 02	FF
	Manual Focus	8x 01 04 38 03 FF
	One Push 8x 01 04 18 01	FF
	Direct	8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position
CAM_WB	Auto	8x 01 04 35 00 FF Normal Auto
	ATW 8x 01 04 35 04 FF
	Indoor	8x 01 04 35 01 FF
	Outdoor 8x 01 04 35 02 FF
	One Push WB 8x 01 04 35	03 FF One Push WB mode
	Manual	8x 01 04 35 05 FF Manual Control mode
	One Push 8x 01 04 10 05	FF One Push WB Trigger
CAM_RGain	Up	8x 01 04 03 02 FF Manual Control of R Gain
	Down	8x 01 04 03 03 FF
CAM_Bgain	Up	8x 01 04 04 02 FF Manual Control of B Gain
	Down	8x 01 04 04 03 FF
CAM_AE	Full Auto	8x 01 04 39 00 FF Automatic Exposure mode
	Manual	8x 01 04 39 03 FF Manual Control mode
	Shutter Priority	8x 01 04 39 0A FF	Shutter Priority Automatic Exposure mode
	Iris Priority	8x 01 04 39 0B FF	Iris Priority Automatic Exposure mode
	Bright	8x 01 04 39 0D FF	Bright Mode (Manual control)
CAM_Shutter	Up	8x 01 04 0A 02 FF	Shutter Setting
	Down	8x 01 04 0A 03 FF
CAM_Iris	Up	8x 01 04 0B 02 FF	Iris Setting
	Down	8x 01 04 0B 03 FF
CAM_Gain	Up	8x 01 04 0C 02 FF	Gain Setting
	Down	8x 01 04 0C 03 FF
CAM_Bright	Up	8x 01 04 0D 02 FF	Bright Setting
	Down	8x 01 04 0D 03 FF
	Up	8x 01 04 0E 02 FF	Exposure Compensation Amount Setting
	Down	8x 01 04 0E 03 FF
CAM_Backlight	On 8x 01 04 33 02 FF Back	Light Compensation ON/OFF
	Off 8x 01 04 33 03 FF
CAM_Preset	Reset	8x 01 04 3F 00 pp FF	pp: Preset Number 0x00~0xFF
	Set	8x 01 04 3F 01 pp FF
	Recall	8x 01 04 3F 02 pp FF
CAM_Menu	On/Off	8x 01 06 06 10 FF	Display ON/OFF
Pan-tilt Drive	Up	8x 01 06 01 VV WW 03 01 FF	VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed)WW: Tilt speed setting 0x01 (low speed) to 0x18 (high speed)
	Down	8x 01 06 01 VV WW 03 02 FF
	Left	8x 01 06 01 VV WW 01 03 FF
	Right	8x 01 06 01 VV WW 02 03 FF
	UpDownLeft	8x 01 06 01 VV WW 01 01 FF
	UpDownRight 8x 01 06 01 VV WW	W 02 01 FF
	DownLeft	8x 01 06 01 VV WW 01 02 FF
	DownRight	8x 01 06 01 VV WW 02 02 FF
	Stop 8x 01 06 01 VV WW	03 03 FF
	Home	8x 01 06 04 FF
	Reset	8x 01 06 05 FF
Absolute Position (v26 or above)		8x 01 06 02 VV WW 0Y 0Y 0Y 0Z 0Z 0Z FF	VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed)WW: Tilt speed setting 0x01 (low speed) to 0x18 (high speed)YYYY: Pan Position 8A14 to 762C (CENTER 0000)ZZZZ: Tilt Position 468B to E898 (Image Flip: OFF) (CENTER 0000)
CAM_Wdr	On	8x 01 04 3D 02 FF	Wdr ON/OFF
	Off 8x 01 04 3D 03 FF
CAM_MenuEnter		8x 01 7E 01 02 00 01 FF	Enter Submenu
Tally Lamp ON		8x 01 7E 01 0A 00 02 FF
Tally Lamp OFF		8x 01 7E 01 0A 00 03 FF
Freeze	Freeze On	81 01 04 62 02 FF	Freeze On Immediately
	Freeze Off	81 01 04 62 03 FF	Freeze Off Immediately
	Preset Freeze On	81 01 04 62 22 FF	Freeze On When Running Preset
	Preset Freeze Off	81 01 04 62 23 FF	Freeze Off When Running Preset
Auto Tracking	On 8x 01 04 7D 02 FF	Auto tracking ON/OFF
	Off 8x 01 04 7D 03 FF
CAM_Memory Special	Set	8x 01 04 3F 01 pp FF	pp: 0x00 To 0xFF normal presetpp: 0x5F => Trun on OSD menupp: 0xA0 => Full Bodypp: 0xA1 => Upper Bodypp: 0xA2 => Tracking Pointpp: 0xA3 => Switchpp: 0xA4 => Presenter mode (support with v25 or newer firmware)pp: 0xA5 => Zone mode (support with v25 or newer firmware)
Inquiry Command Command Packet Reply Packet Comments
CAM_PowerInq	8x 09 04 00 FF	y0 50 02 FF On
		y0 50 03 FF Off
CAM_WBModelInq	8x 09 04 35 FF	y0 50 00 FF Auto
		y0 50 01 FF In Door
		y0 50 02 FF Out Door
		y0 50 03 FF One Push WB
		y0 50 04 FF ATW
		y0 50 05 FF Manual
CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain
CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain
CAM_AEModelInq	8x 09 04 39 FF	y0 50 00 FF Full Auto
		y0 50 03 FF Manual
		y0 50 0A FF Shutter Priority
		y0 50 0B FF Iris Priority
		y0 50 0D FF Bright
CAM_ShutterPosInq	8x 09 04 4A FF	y0 50 00 00 0p 0q FF	pq: Shutter Position
CAM_IrisPosInq	8x 09 04 4B FF	y0 50 00 00 0p 0q FF	pq: Iris Position
CAM_GainPosInq	8x 09 04 4C FF	y0 50 00 00 0p 0q FF	pq: Gain Position
CAM_BrightPosInq	8x 09 04 4D FF	y0 50 00 00 0p 0q FF	pq: Bright Position
CAM_ExpCompPosInq	8x 09 04 4E FF	y0 50 00 00 0p 0q FF	pq: ExpComp Position
CAM_FocusModelInq	8x 09 04 38 FF	y0 50 02 FF Auto Focus
		y0 50 03 FF Manual Focus
CAM_FocusPosInq	8x 09 04 48 FF	y0 50 0p 0q 0r 0s FF	pqrs: Focus Position
zoom_Pos_Inq	8x 09 04 47 FF y0 50 0p 0q 0r 0s FF	pqrs: Zoom Posin	Zoom Position
PT_Pos_Inq	8x 09 06 12 FF	y0 50 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF	YYYY: Pan Position 8A14 to 762C (CENTER 0000)ZZZZ: Tilt Position 468B to E898 (Image Flip: OFF) (CENTER 0000)

The x value = VISCA Camera ID: 1 to 7 for RS232/RS422 connection.

Visca over IP Settings

VISCA over IP

PORT

Internet protocol	IPV4
Transport protocol	UDP
Port address	S2381

FORMAT

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte8	~~ byte23
func	Payload type		Payload length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16 (0x0001~0x0010)		0X00000000 ~ 0XFFFFFFF				VISCA Packet (see page VISCA)

Payload type

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command or VISCA inquiry

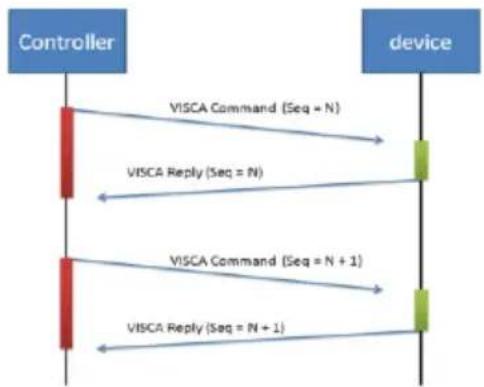

Sequence number

Sequence number = N

The x value should be 1 for Visca-over-IP string, e.g. 01 00 00 09 00 00 00 01 81 01 06 01 07 07 01 03 FF

CGI command

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get RTSP stream	rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL Command		Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1&(random)
up end	/cgi-bin?SetPtzf=	1,0,2&(random)
down start	/cgi-bin?SetPtzf=	1,1,1&(random)
down end	/cgi-bin?SetPtzf=	1,1,2&(random)
left start	/cgi-bin?SetPtzf=	0,1,1&(random)
left end	/cgi-bin?SetPtzf=	0,1,2&(random)
right start	/cgi-bin?SetPtzf=	0,0,1&(random)
right end	/cgi-bin?SetPtzf=	0,0,2&(random)
zoom_in start	/cgi-bin?SetPtzf=	2,0,1&(random)
zoom_in end	/cgi-bin?SetPtzf=	2,0,2&(random)
zoom_out start	/cgi-bin?SetPtzf=	2,1,1&(random)
zoom_out end	/cgi-bin?SetPtzf=	2,1,2&(random)
set preset:	/cgi-bin?ActPreset=	1,N&(random)			N : position
load preset:	/cgi-bin?ActPreset=	0,N&(random)			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N&(random)	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N&(random)	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img_contrast,3,N&(random)	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking,3,1&(random)
Tracking off:	/cgi-bin?Set=	trk_tracking,3,0&(random)
Tracking Presenter Mode:	/cgi-bin?Set=	trk_mode,3,1&(random)
Tracking Zone Mode:	/cgi-bin?Set=	trk_mode,3,2&(random)

Specification

PTC310

Camera
Image Sensor 1/2.8" 1080p Exmor CMOS
Effective Picture Elements 2 Megapixels
Output Resolutions	Auto1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50,720p/30, 720p/29.97, 720p/25
Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 900 (Center)
Shutter Speed 1/1 s to 1/10,000 sec
Exposure Control	Auto, Manual, Bright mode, Priority AE (Shutter, IRIS),BLC, WDR
White Balance	Auto, ATW, Indoor, Outdoor, One push, Manual
Optical Zoom 12X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 78° (Wide) to 9° (Tele)HFOV: 70° (Wide) to 8° (Tele)VFOV: 42° (Wide) to 5° (Tele)
Focal Length f = 3.9 mm (Wide) to 39 mm (Tele)
Aperture (Iris) F = 1.6 (Wide) to 3.0 (Tele)
Minimum Working Distance 0.3 m (Wide), 1.5 m (Tele)
Camera
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec AAC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 KHz
Interface
Video Outputs HDMI, IP, USB, 3G-SDI
Audio Outputs HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A or above
Power Consumption 18W
PoE	PoE+
Dimensions (W x D x H)	W180*D145*H183.5mm
Net Weight	1.7 (±0.1) kg
Application	Indoor
Tally	Yes
Security	Kensington Slot
Remote Control	Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 1080p 60fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI® | HX Capability No
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class (UVC) UVC 1.1
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool	Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year

PTC310H

Camera
Image Sensor 1/2.8” 4K Exmor CMOS
Effective Picture Elements 8 Megapixels
Output Resolutions	Auto2160p/30, 2160p/25, 2160p/29.97, 1080p/60,1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97,1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30,720p/29.97, 720p/25
Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 1400 (Center)
Shutter Speed 1/1 s to 1/10,000 sec
Exposure Control	Auto, Manual, Bright mode, Priority AE (Shutter, IRIS),BLC, WDR
White Balance	Auto, ATW, Indoor, Outdoor, One push, Manual
Optical Zoom 12X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 78° (Wide) to 7° (Tele)HFOV: 70° (Wide) to 6° (Tele)VFOV: 42° (Wide) to 3° (Tele)
Focal Length f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance	0.3 m (Wide), 1.5 m (Tele)
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec AAC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 KHz
Interface
Video Outputs HDMI, IP, USB
Audio Outputs HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption	18W
PoE	PoE+
Dimensions (W x D x H)	W180*D145*H183.5mm
Net Weight	1.7 (±0.1) kg
Application	Indoor
Tally	Yes
Security Kensington Slot
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 4K 30fps, 1080p 60fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 4K 30fps, 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP,SRT
NDI® | HX Capability No
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class (UVC) UVC 1.1
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows ® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year

PTC310N

Camera
Image Sensor 1/2.8" 1080p Exmor CMOS
Effective Picture Elements 2 Megapixels
Output Resolutions	Auto1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50,720p/30, 720p/29.97, 720p/25
Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 900 (Center)
Shutter Speed 1/1 s to 1/10,000 sec
Exposure Control	Auto, Manual, Bright mode, Priority AE (Shutter, IRIS),BLC, WDR
White Balance	Auto, ATW, Indoor, Outdoor, One push, Manual
Optical Zoom	12X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 78° (Wide) to 7° (Tele)HFOV: 70° (Wide) to 6° (Tele)VFOV: 42° (Wide) to 3° (Tele)
Focal Length f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance 0.3 m (Wide), 1.5 m (Tele)
Camera
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec	AAC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 KHz
Interface
Video Outputs	3G-SDI, HDMI, IP, USB
Audio Outputs	3G-SDI, HDMI, IP, USB
Audio Inputs	MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE PoE+
Dimensions (W x D x H) W180*D145*H183.5mm
Net Weight 1.7 (±0.1) kg
General
Application Indoor
Tally Yes
Security Kensington Slot
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 1080p 60fps
Network Video Compress Formats H.264, H.265, MJPEG, NDI
Maximum Frame Rate 1080p 60fps
Bit-rate Control Modes	VBR, CBR (selectable)
Range of Bit-rate Setting	512 Kbps to 32 Mbps
Network Interface	10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP,SRT, NDI
NDI® | HX Capability Yes
USB
Connector	USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class (UVC) UVC 1.1
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows ^® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year
Camera
Image Sensor 1/2.8" 4K Exmor CMOS
Effective Picture Elements 8 Megapixels
Output Resolutions	Auto4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60,720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 1400 (Center)
Shutter Speed	1/1 s to 1/10,000 sec
Exposure Control	Auto, Manual, Bright mode, Priority AE (Shutter, IRIS),BLC, WDR
White Balance	Auto, ATW, Indoor, Outdoor, One push, Manual
Optical Zoom 12X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 78° (Wide) to 7° (Tele)HFOV: 70° (Wide) to 6° (Tele)VFOV: 42° (Wide) to 3° (Tele)
Focal Length f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance 0.3 m (Wide),	1.5 m (Tele)
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec AAC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 KHz
Interface
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE	PoE+
Dimensions (W x W x H)	W180*D145*H183.5mm
Net Weight	1.7 (±0.1) kg
Application	Indoor
Tally	Yes
Security	Kensington Slot
General
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 4K 30fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 4K 30fps or 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP,SRT
NDI® | HX Capability No
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 2160p
USB Video Class (UVC) UVC 1.1
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year

PTC310UN

Camera
Image Sensor 1/2.8” 4K Exmor CMOS
Effective Picture Elements 8 Megapixels
Output Resolutions	Auto4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60,720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 1400 (Center)
Shutter Speed	1/1 s to 1/10,000 sec
Exposure Control	Auto, Manual, Bright mode, Priority AE (Shutter, IRIS),BLC, WDR
White Balance	Auto, ATW, Indoor, Outdoor, One push, Manual
Optical Zoom 12X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV : 78° (Wide) to 7° (Tele)HFOV : 70° (Wide) to 6° (Tele)VFOV : 42° (Wide) to 3° (Tele)
Focal Length f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris) F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance 0.3 m (Wide), 1.5 m (Tele)
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Camera
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec AAC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 KHz
Interface
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE	PoE+
Dimensions (W x W x H)	W180*D145*H183.5mm
Net Weight	1.7 (±0.1) kg
Application	Indoor
Tally	Yes
Security	Kensington Slot
General
Remote Control Infrared
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 4K 30fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 4K 30fps or 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP,SRT
NDI® | HX Capability Yes
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 2160p
USB Video Class (UVC) UVC 1.1
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year

PTC330

Camera
Image Sensor 1/2.5” 2M Exmor CMOS
Effective Picture Elements 2 Megapixels
Output Resolutions	Auto1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50,720p/30, 720p/29.97, 720p/25
Minimum Illumination 0.7 lux (IRE50, F1.5, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 900 (center/wide)
Shutter Speed 1/1 to 1/32,000 sec
Exposure Control Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance	Auto, Manual
Optical Zoom 30X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV : 72.9° (Wide) to 2.64° (Tele)HFOV : 65.1° (Wide) to 2.34° (Tele)VFOV : 38.4° (Wide) to 1.36° (Tele)
Focal Length f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris)	F = 1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance	Wide 0.01 m,Tele 1.2 m
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Camera
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols	VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode, Hybrid Mode
Audio
Channel	2ch Stereo
Codec	AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE PoE+
Dimensions (W x D x H) W180*D145*H183.5mm
Net Weight 1.7 (±0.1) kg
Application Indoor
Tally Yes
Security Kensington Slot
Remote Control Infrared
General
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 1080p60
Network Video Compress Formats	H.264, H.265, MJPEG
Maximum Frame Rate	1080p 60fps
Bit-rate Control Modes	VBR, CBR (selectable)
Range of Bit-rate Setting	512 Kbps to 32 Mbps
Network Interface	10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI® | HX Capability No
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class (UVC) UVC 1.1
USB Audio Class (UAC) UAC 1.0
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year

PTC330N

Camera
Image Sensor 1/2.5” 2M Exmor CMOS
Effective Picture Elements 2 Megapixels
Output Resolutions	Auto1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50,720p/30, 720p/29.97, 720p/25
Minimum Illumination	0.7 lux (IRE50, F1.5, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 900 (center/wide)
Shutter Speed 1/1 to 1/32,000 sec
Exposure Control Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance Auto, Manual
Optical Zoom 30X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 72.9° (Wide) to 2.64° (Tele)HFOV: 65.1° (Wide) to 2.34° (Tele)VFOV: 38.4° (Wide) to 1.36° (Tele)
Focal Length f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris)	F = 1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance	Wide 0.01 m,Tele 1.2 m
Pan / Tilt Angles Pan : ±170°, Tilt : +90° / -30°
Pan / Tilt Speed (Manual) Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
Camera
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions	10 (IR), 255 (RS-232)
Camera Control - Interface	RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols	VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing	Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency	50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode, Hybrid Mode
Audio
Channel 2ch Stereo
Codec AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE PoE+
Dimensions (W x D x H) W180*D145*H183.5mm
Net Weight 1.7 (±0.1) kg
Application Indoor
Tally Yes
Security Kensington Slot
Remote Control	Infrared
General
Operating Conditions	Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions	Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution	1080p60
Network Video Compress Formats	H.264, H.265, MJPEG
Maximum Frame Rate	1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI® | HX Capability Yes
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 1080p
USB Video Class (UVC) UVC 1.1
USB Audio Class (UAC) UAC 1.0
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address,	Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year
Camera
Image Sensor 1/2.5" 4K Exmor CMOS
Effective Picture Elements 8 Megapixels
Output Resolutions	Auto4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94,1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60,720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination 2.7 lux (IRE50, F1.5, 30fps)
S/N Ratio ≥ 50 dB
Gain Auto, Manual
TV Line 1400 (Center)
Shutter Speed 1/1 to 1/32,000 sec
Exposure Control Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance Auto, Manual
Optical Zoom 30X
Digital Zoom 12X
Sensor Zoom 2X
Viewing Angles	DFOV: 75° (Wide) to 3° (Tele)HFOV: 68° (Wide) to 2.8° (Tele)VFOV: 40° (Wide) to 1.6° (Tele)
Focal Length f = 4.8 mm (Wide) to 144 mm (Tele)
Aperture (Iris)	F = 1.5 (Wide) to 3.4 (Tele)
Minimum Working Distance	1.5 m to Infinity
Pan / Tilt Angles	Pan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual)	Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
Preset Speed Pan : 200° / sec, Tilt : 200° / sec
Preset Positions 10 (IR), 255 (RS-232)
Camera Control - Interface	RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control - Protocols VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Noise Reduction (2D / 3D), Flip, Mirror
Power Frequency Auto, 50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking Mode Presenter Mode, Zone Mode
Audio
Channel 2ch Stereo
Codec AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rate 48 / 44.1 / 32 / 24 / 16 / 8 KHz
Interface
Video Outputs 3G-SDI, HDMI, IP, USB
Audio Outputs 3G-SDI, HDMI, IP, USB
Audio Inputs MIC in, Line in
General
Power Requirement AC 100 - 240V to DC	12V/2A and above
Power Consumption 18W
PoE PoE+
Dimensions (W x D x H)	W180*D145*H183.5mm
Net Weight	1.7 (±0.1) kg
Application	Indoor
Tally	Yes
Security	Kensington Slot
Remote Control	Infrared
General
Operating Conditions Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions Temperature : -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
Resolution 4K 30fps
Network Video Compress Formats H.264, H.265, MJPEG
Maximum Frame Rate 4K 30fps or 1080p 60fps
Bit-rate Control Modes VBR, CBR (selectable)
Range of Bit-rate Setting 512 Kbps to 32 Mbps
Network Interface 10 / 100 / 1000 Base-T
Multi-stream Capability	2(RTSP / Web Page), 1080p 60fps (max.)
Network Protocols	IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP,DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI® | HX Capability No
USB
Connector USB 3.0
Video Format MJPEG
Maximum Video Resolution 2160p
USB Video Class (UVC) UVC 1.1
USB Audio Class (UAC) UAC 1.0
Web UI
Live Video Preview Yes
Camera PTZ Control Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment Exposure, White Balance, Picture
Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
Device IP Searching, Configuration Tool Support Windows® 7 or later
Warranty
Camera 3 Years
Accessories 1 Year
