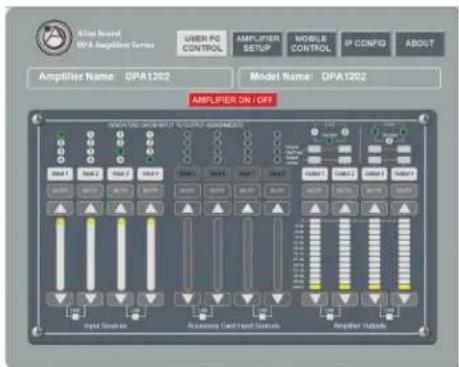

III. AtlasIED DPA Site Manager Software 13

IV. Smartphone or Tablet 14

V. Static IP - Accessing the DPA Outside the Local Network 15

Resetting the DHCP 15

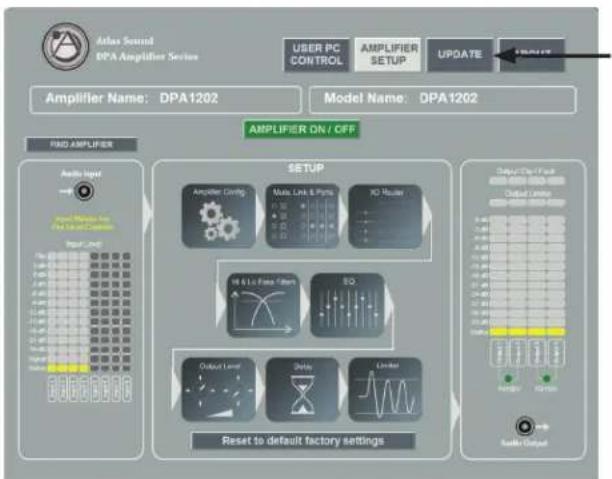

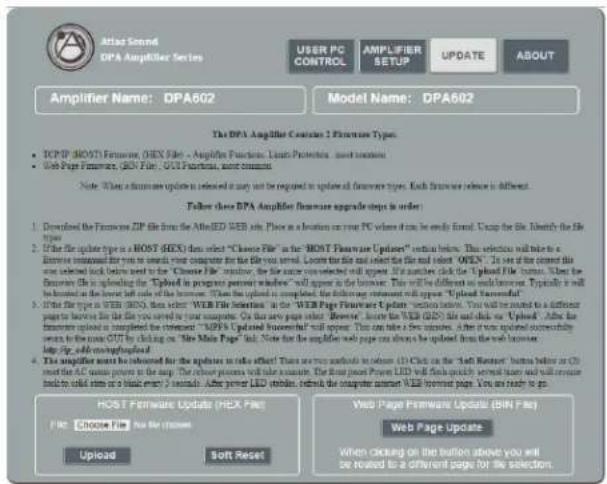

Identifying the Firmware Version.... 16

GUI Pages Defined....17

User / Home Page 17

Password Login....17

Setup Page 18

Amp Configuration Page 19

Mute, Link & Port Assign Page....20

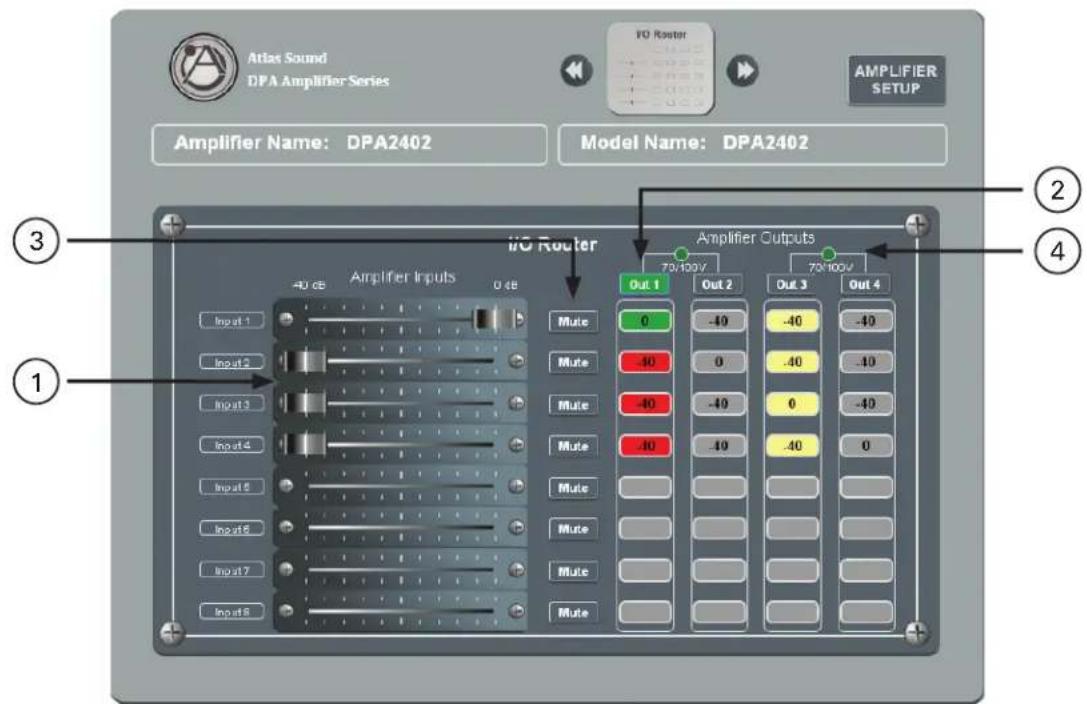

Input & Output Router Page 21

Hi & Lo Pass Filter Page 22

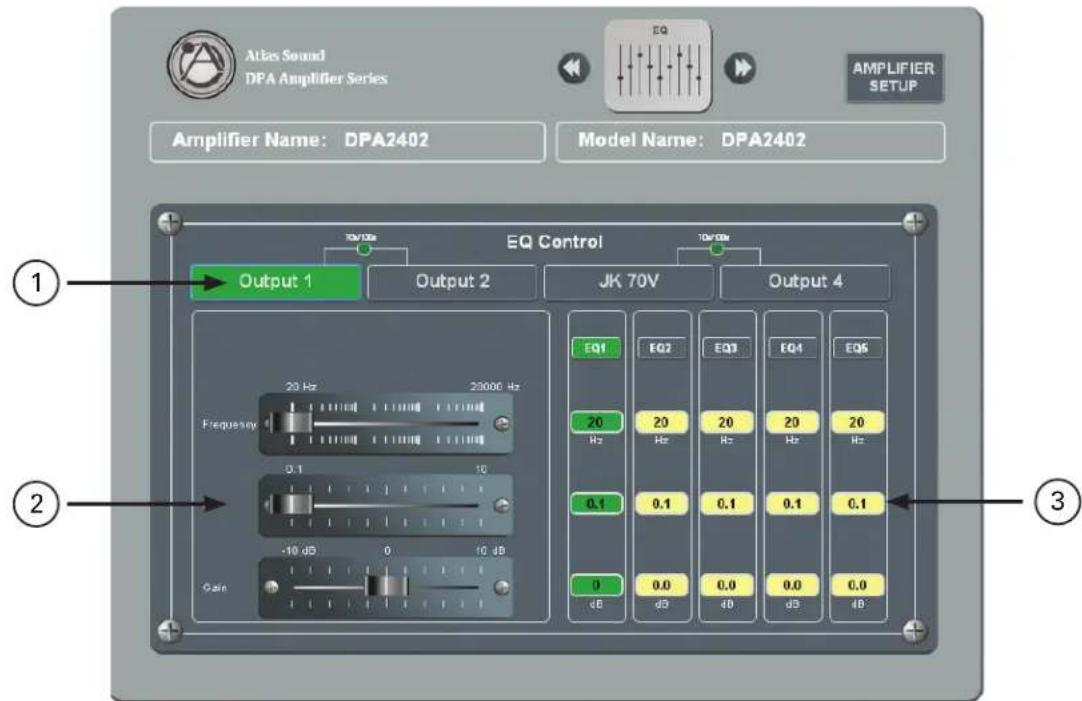

Output EQ Page 23

Output Level Page 24

Output Delay Page 25

Output Limiter Page 26

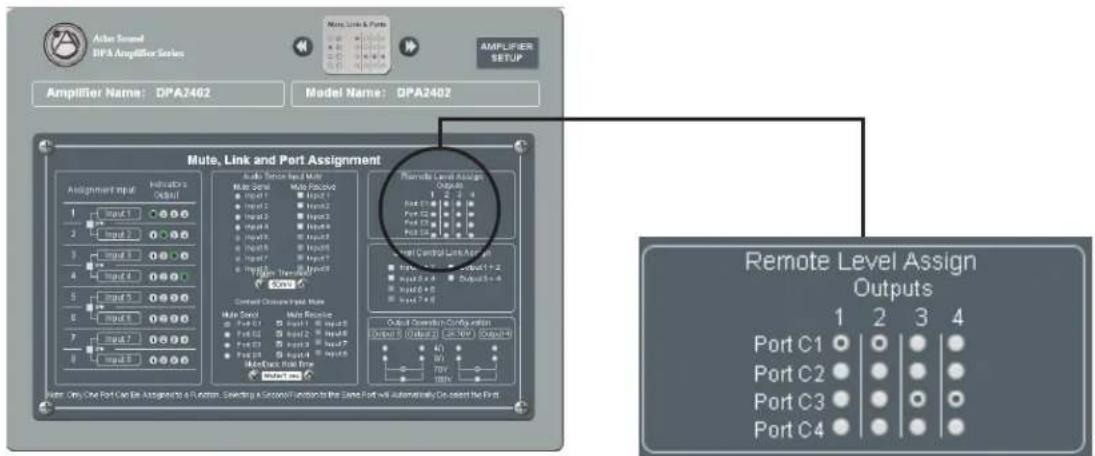

Remote Level Control Port Assignment & Wiring 27

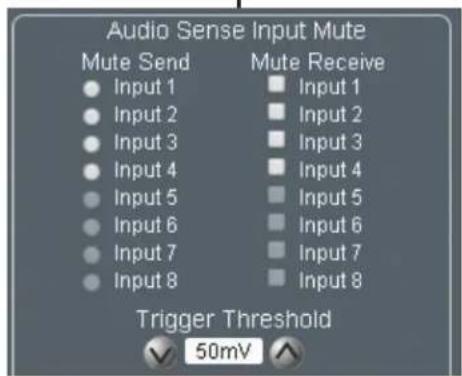

Input Mute Assignment 32

Accessory Card Installation....34

Installation and Considerations 34

Understanding the 3 AC Power Consumption Idle States 35

120V & 220V Operation....35

Specifications 36

Warranty 40

Important Safety Instructions
		The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION CAUTION
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION CAUTION
Important Safety Instructions ATTENTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION

1. Read these instructions.

2. Read these instructions.

3. Read these instructions.

4. Keep these instructions.

5. Heed all warnings.
6. Follow all instructions.
7. Do not use this device near water.
8. Clean only with dry cloth.
9. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
10. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
11. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices that produce heat.
12. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
13. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.
14. Only use attachments/accessories specified by the manufacturer.
15. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device. When a cart is used, use caution when moving the cart / device combination to avoid injury from tip-over.

1. This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
2. This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
3. Unplug this device during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
5. WARNING: To reduce the risk of fire or electric shock, this device should not be exposed to rain or moisture and objects filled with liquids, such as a vase, should not be placed on this device.
6. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle.
7. The mains plug of the power supply cord shall remain readily operable.
8. Protective earthing terminal. The apparatus should be connected to a mains socket with a protective earthing connection.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

IED.com

- 3 - AtlasIED.com

- 3 - AtlasIED.com

- 3 - AtlasIED.com

Specifications are subject to change without notice.

Specifications are subject to change without notice.

Specifications are subject to change without notice.

- 3 - AtlasLED.com Specifications are subject to change without notice.

NING - When The Device Is In Use

• WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
• WARNING: The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
• WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
• To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to AtlasLED.
• Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact AtlasLED. Do not to attempt to continue operation with the product as this may cause fire or electric shock:
• Smoke or strange smell coming from the unit.
• If the product falls or the case is damaged.
• If water or any metallic objects falls into the product.
• If the power supply cord is damaged in any way.
• If the unit is malfunctioning.
• Do not insert or drop metallic objects or flammable materials into the ventilation holes of the product's cover, as this may result in electric shock or fire.
• Do not place any containers with liquid or metallic objects on the top of the product. If any liquid spills into the unit, fire or electric shock may result.
• Never operate this product or touch the power supply cord during an electrical storm, electric shock may result.
• Never exceed the power rating on the product when connecting equipment. Fire and/or property damage may result.
• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a higher voltage is used.
• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not place heavy objects on the power cord, including the product itself, doing so may result in fire or electrical shock.
• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe as a catastrophic disaster may result.
• Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and cause injury or property damage.

TION - When Installing The Product

• Plugging in or unplugging the power cord with wet hands may result in electric shock.
• Never move the unit with the power cord plugged into the wall, as damage to the power cord may result.
• When unplugging the cord from the wall, grasp the plug, NOT the cord.
• Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke or steam are present. Fire and electric shock may result.
• Keep all sides of the unit at least 3 1/2 away from objects that may obstruct air flow to prevent the unit's internal temperature rise.

TION - When The Product Is In Use

• Never place heavy objects on the product, causing it to fall and/or break, resulting in personal injury and property damage. In addition, the product itself may fall and cause injury and property damage.
• Contact AtlasIED for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire.
• Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the power plug or inside the wall outlet.
• When cleaning the unit or the unit is not to be operated for an extended period, unplug the power cord from the wall.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Introduction

The AtlasIED DPA amplifier series features a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. The network based DPA602, DPA1202 and DPA2402 are DSP controlled 4-channel amplifiers that can be configured in three different amplification arrangements to meet the design requirements of any installation. These DPA models are factory preconfigured in a two-channel 70V mode. If the design requires four channels of low impedance amplification, the DPA amplifiers can be configured as 4-channel models with either 4-Ohm or 8-Ohm load impedances. Many system designs require both low and high impedance amplification. These DPA models can be configured to deliver 70V / 100V for a paging / background system on a single channel plus two additional 4/8-Ohm amplifier channels for a foreground stereo application.

These DPA models come standard with four balanced line inputs and an accessory slot for an optional DPA-DAC4 4-channel Dante ^™ receiver card or a DPA-AMIX (2) mic / line, (2) AUX input card, giving the DPA602, DPA1202 and the DPA2402 a total of 8 inputs. All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ's, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.

DPA Series amplifiers feature either local or network control making them a true "game changer" with amplifiers in the commercial audio world. The output level can be assigned to either the front panel potentiometers or to the on board GUI. Wired remote level control and input select can be configured to allow simple control for the end user. Each unit also features GUI based input and output level metering along with assignable mute functions that are triggered via an audio signal or contact closure. Access to the DSP settings is accomplished via computer, tablet or mobile device using a web browser. All settings can be password protected.

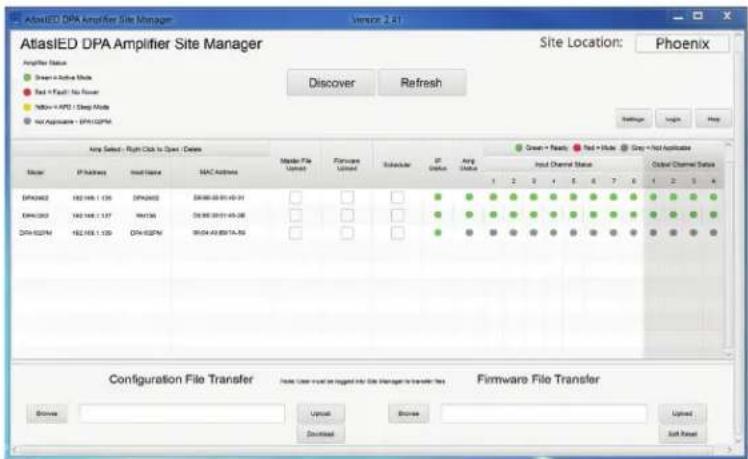

The DPA series amplifiers also include PC based site manager software that automatically searches within a specific network for all DPA amplifiers on the network. It will list them and allow a single click access to any unit. The DPA Site Manager software can do a variety of functions besides locating IP addresses such as; fault reporting, input & output status, standby status and remote activation via a scheduler timer.

The DPA602, DPA1202 and the DPA2402 is ready to use, out of the box for two channel 70V / 100V mode, with no configuration or network connectivity required making them a cost effective solution even for applications that do not require processing or network control.

Key Features

DPA602 configuration levels

• 2 x 300 Watt 70V / 100V
• 4 x 150 Watt @ 4Ω
  • 1 x 300 Watt 70V / 100V & 2 x 150 Watt @ 4Ω

DPA1202 configuration levels

• 2 × 600 Watt 70V / 100V
• 4 x 300 Watt @ 4Ω
  • 1 x 600 Watt 70V / 100V & 2 x 300 Watt @ 4Ω

DPA2402 configuration levels

• 2 x 1200 Watt 70V / 100V

• 4 × 500 Watt @ 4Ω
  • 1 x 1200 Watt 70V / 100V & 2 x 500 Watt @ 4Ω

• No computer required to use

• Configurable DSP
  • PC, iOS ^® , & Android ^® controllable
• User page with assignable input & output level control
• Site manager software with network auto-discovery fault reporting, input & output status, standby status and remote activation via a scheduler timer
• On board web GUI for remote monitoring of status & levels
• Mute assignments triggered via audio signal or contact closure
  • Audio sense, turn-on/off
• 4 balanced inputs (up to 8 inputs with optional accessory card)
• Optional accessory card slot for a DPA-DAC4 4-channel Dante ^19 receiver card or a DPA-AMIX (2) mic / line, (2) AUX input card
• Assignable level controls, on board GUI (security password protected) or by front panel pots with tamper deterring covers
• Wired remote level control when used with optional WPD-VC10K
• Wired remote input select & level control when used with optional WPD-RISRL

Atlas IED

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

- 5 - AtlasIED.com

Applications

The flexible DSP, remote web monitoring, and control of the DPA Series amplifiers makes them the perfect choice for presentation rooms, classrooms, conference rooms, and retail background / foreground music applications.

DPA Amplifier Configurations

Note: For illustration purposes, model DPA2402 is used for all examples. The DPA602 and DPA1202 will be wired and configured just like the DPA2402. All DPA models have the same features and panel layout. The differences between models are in the output power levels and the physical size, models DPA602 and DPA1202 are 1RU height while the DPA2402 is 2RU height.

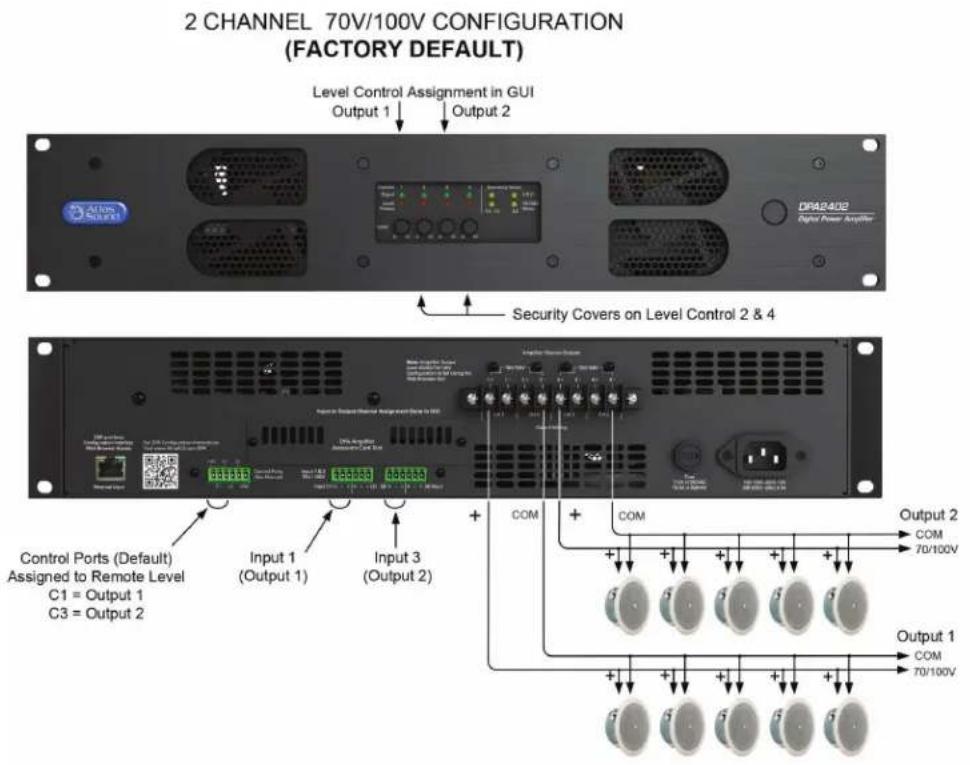

Configuration #1 2-Channel 70V / 100V (Factory Default)

2 CHANNEL 70V/100V CONFIGURATION (FACTORY DEFAULT) Level Control Assignment in GUI Output 1 Output 2 DRAS408 Digital Power Amplifier Security Covers on Level Control 2 & 4 Control Ports (Default) Assigned to Remote Level C1 = Output 1 C3 = Output 2 Input 1 (Output 1) Input 3 (Output 2) COM + COM Output 2 COM 70/100V Output 1 COM 70/100V

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 6 -

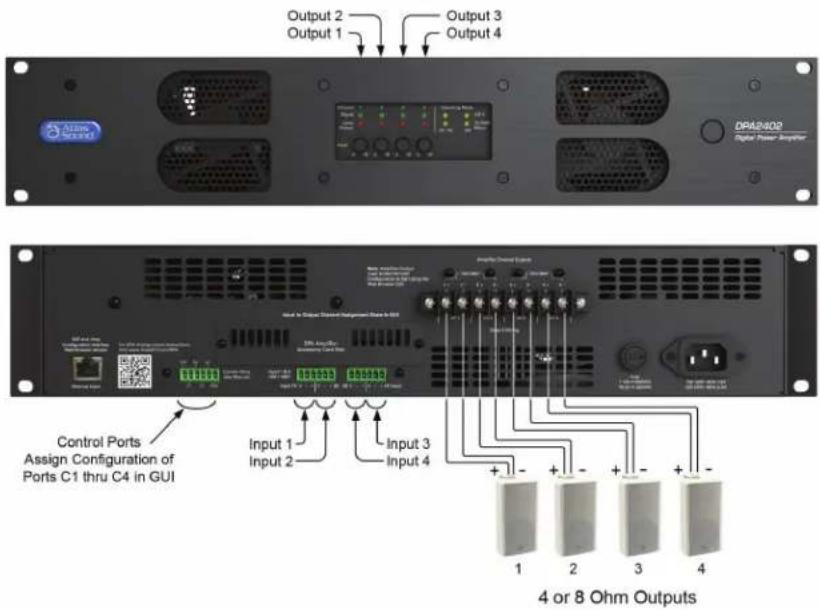

Configuration #2 Four-Channel 4/8-Ohm

4 CHANNEL 4 or 8 Ohm CONFIGURATION (Set in GUI)

Output 2 Output 1 Output 3 Output 4 DRA2-802 Digital Power Amplifier Control Ports Assign Configuration of Ports C1 thru C4 in GUI Input 1 Input 2 Input 3 Input 4 + - + - + - + - 1 2 3 4 4 or 8 Ohm Outputs

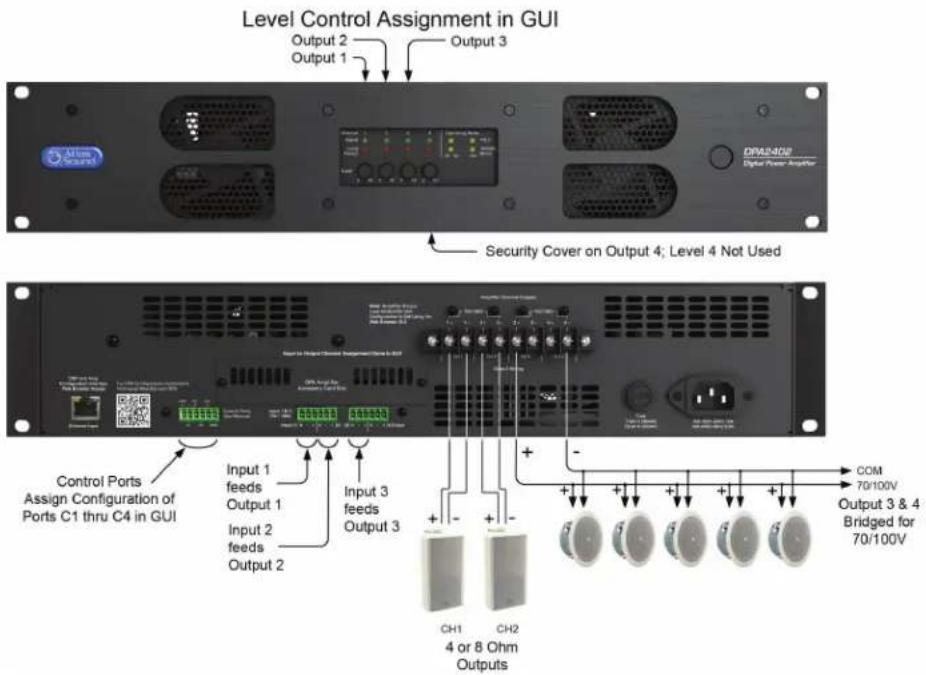

Configuration #3 1-Channel 70V / 100V & 2-Channel 4/8-Ohm

Split System Configuration

Output 1&2 = 4/8 Ohm; Outputs 3&4 = 70/100V

Level Control Assignment in GUI Output 2 Output 1 Output 3 Security Cover on Output 4; Level 4 Not Used Control Ports Assign Configuration of Ports C1 thru C4 in GUI Input 1 feeds Output 1 Input 2 feeds Output 2 Input 3 feeds Output 3 COM 70/100V Output 3 & 4 Bridged for 70/100V CH1 CH2 4 or 8 Ohm Outputs

Atlas

IED

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

- 7 - AtlasIED.com

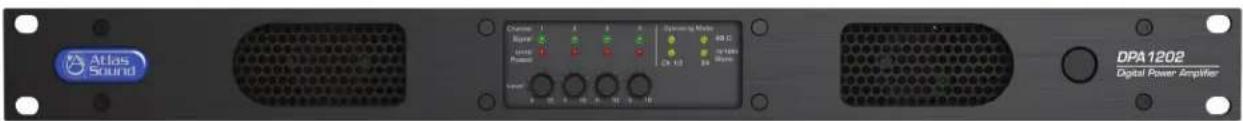

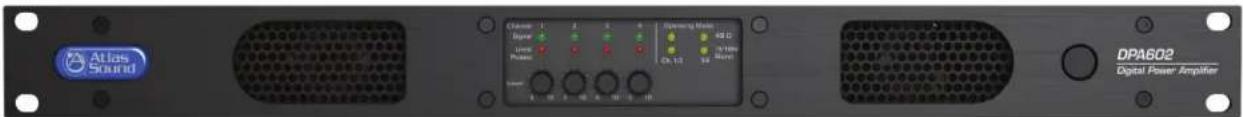

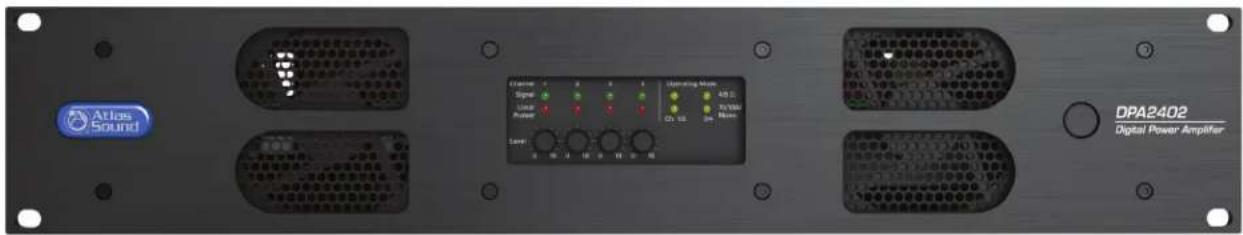

Front Panel

Atlas Sound Command 1 2 3 4 Operating Mode Signal 1 2 3 4 5 6 7 8 9 10 Power 1 2 3 4 5 6 7 8 9 10 DPA1202 Digital Power Amplifier ⑦ ⑦ ② ①

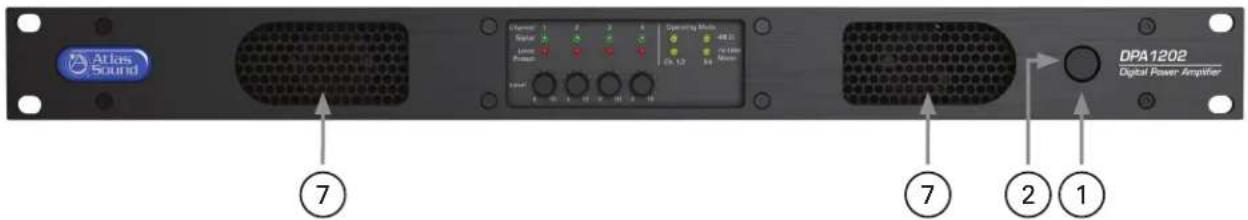

1. Power Switch

This toggles the amplifier between Active Mode or Sleep Mode. Refer to section "Understanding the 3 Amplifier Idle States"

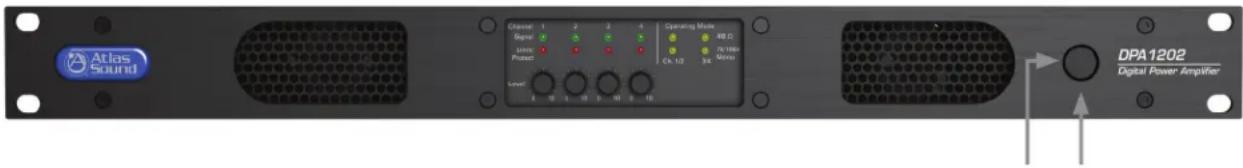

2. LED Power Indicator

The DPA amplifier has three states of Idle power that are indicated as follows:

A. Idle Active Mode - When the LED outer ring of the power switch illuminates a steady state blue color, the amplifier is in Active Mode and is ready to pass audio.
B. Sleep Mode - When the outer ring LED is Off, the amp is in Sleep Mode. In Sleep Mode, the Ethernet is active for access to the amplifiers on board GUI. The amplifier output stage and DSP is off. Audio will not pass in Sleep Mode.
C. Standby APD Mode - When the amplifier Auto Power Down (APD) is enabled and the amplifier is in the APD mode, the LED outer ring will blink blue once every 5 seconds.

For further information refer to section "Understanding the 3 Amplifier Idle States" on page 35.

Channel 1 2 3 4 Signal Limit/ Protect Operating Mode 4/8 Ω 70/100V Ch. 1/2 3/4 Mono Level 0 10 0 10 0 10 0 10 ③ ④ ⑤ ⑥

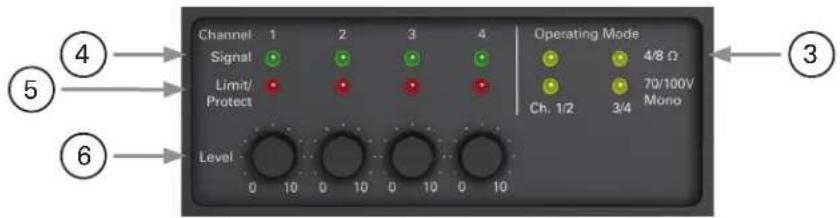

3. Operating Mode Indicators

The DPA 19" rack models are four-channel amplifiers that can be configured three ways. The LED's in this area indicate the configuration of the amplifier. These indicators illustrate if Channels 1/2 and 3/4 can be operated separately in 4/8Ω mode or if they are combined making a 70V / 100V output. Amplifier operation mode setting is completed using the internal DSP GUI.

A. 2-Channel High impedance 70V / 100V mode
B. 4-Channel Low impedance 4Ω or 8Ω mode
C. 1-Channel High impedance 70V / 100V mode & 2-Channel Low impedance 4/8Ω mode

4. Channel 1, 2, 3, 4 Signal LED

The Signal LED will illuminate green if audio signal is present at the Output of the amplifier.

5. Channel 1, 2, 3, 4 Limit/Protect/Mute LED

The Limit / Protect LEDs will illuminate Red if one of the following conditions occurs.

A. Any channel of the DPA amplifier reaches maximum output power. The DPA features an adjustable amplifier OUTPUT limiter which helps prevent the amplifier from hard clipping. An occasional flash of the LED is OK but if the LED illuminates continuously reduce the input level of the amp. If the Clip LED remains On after reducing the input level, recheck the load connected to the amplifier.

B. The OUTPUT has been Muted in the GUI.

C. A fault is detected within the amplifier. Once the fault is corrected, it may be required to reset the AC Mains power to reset the amplifier protect mode.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

AtlasIED.com - 8 -

Front Panel

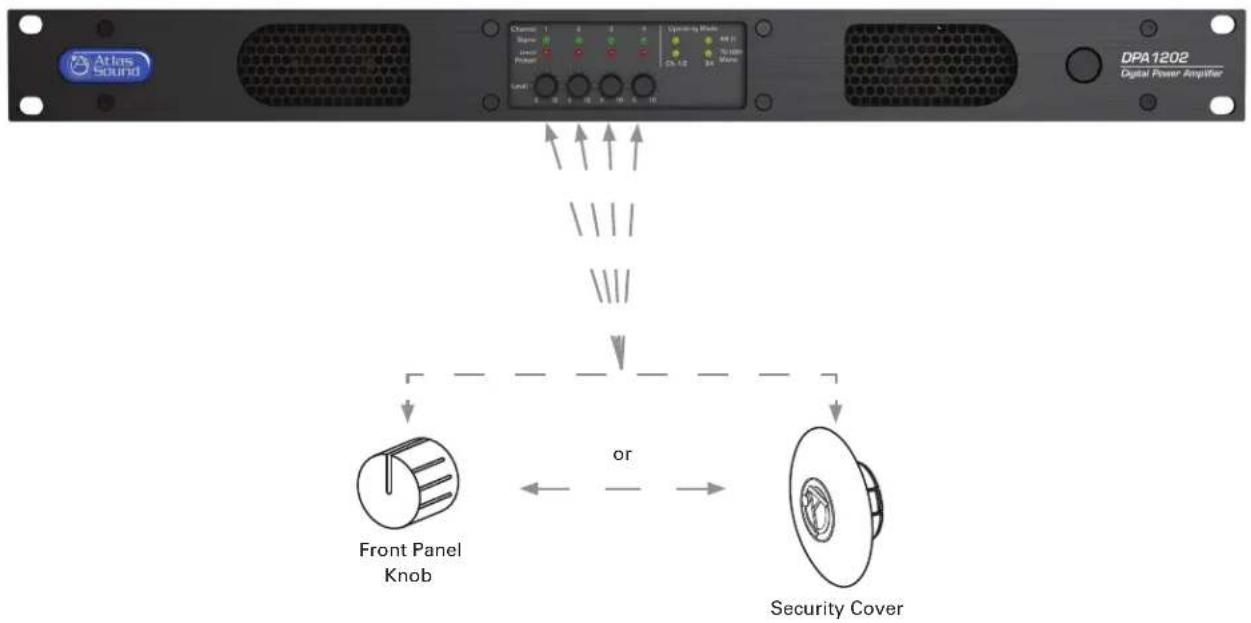

6. Channel 1, 2, 3, 4 Level Controls

Each model has four potentiometer level controls on the front panel, one level control for each of the four amplifier channels. Each model is shipped factory pre-configured for 2-CH 70V / 100V mode. CH 1/2 & 3/4 are combined to make two High Impedance 70V / 100V channels. The potentiometer for CH 1 controls the level for the CH 1/2 70V / 100V amplifier output, while the CH 3 potentiometer controls CH 3/4 70V / 100V amplifier output. Pots 2 & 4 are disabled. Note: The front panel level controls ship enabled but can be defeated in the DSP GUI. If the front panel level controls are used, knobs can be placed on the potentiometer shaft for ease of operation or can be removed and replaced with the included security covers to prevent tampering.

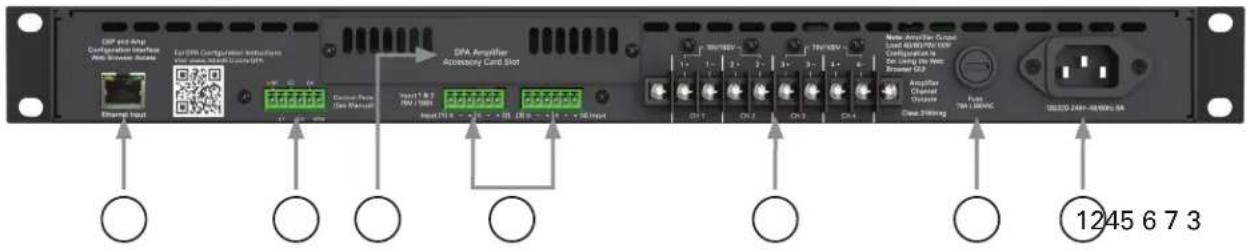

7. Air Exhaust

Each model includes convection cooling with dynamic fan assist for extreme conditions. If the unit is not being used or in Standby mode, the fan is not needed for cooling and remains Off until the unit is in heavy use. As heat is generated in the amplifier during use, the fan activates at a low speed and increases as needed to keep the amplifier at safe operating temperature. This cooling method eliminates the need for air filters that can become clogged and require maintenance. The DPA amplifier's air flow is from rear to front.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Rear Panel

USB port Configuration Interface Web Browser Guide Eur DNA Configuration Instructions USB ports: Web Browser Guide (USB) Ethernet Input Digital Signal (See Wafers) DPA Amplifier Accessory Card Slot Twin1 8.7 RW / 100% Reset FTR 6 - 325 - 500 DB 8 - 325 - 500 DIP 1245 6 7 3 New Amplifier Course Load application from the Configuration to One using the Web Driver DIP Amplifier Channel Discrete Reset TBI 1.6V/DC Circuit Stilling 1245 249V-96W/6A

1. IEC AC Receptacle

The DPA amplifier can operate from 110V - 120V & 220V - 240V. The amplifier will automatically sense the AC Mains voltage and will automatically change voltage settings. Note: The DPA602 & DPA1202 use the same fuse for 120V or 230V operation. The DPA2402 will need the fuse changed. For 120V operation the fuse rating is 12A and for 230V the fuse rating is 6.3A. The included IEC cord is designed to work with 110 - 120VAC. A separate IEC cord will need to be purchased for 220 - 240VAC operation.

2. AC Mains Fuse

• DPA602 T4AL 250v, 4A, Slow Blow, 5mm x 20mm, Glass, LITTELFUSE #: 0218004.HXP for 120V & 230V Operation
  • DPA1202 T8AL 250v, 8A, Slow Blow, 5mm x 20mm, Glass, LITTELFUSE #: 0218008.HXP for 120V & 230V Operation
  • DPA2402 T12AL 250v, 12A, Slow Blow, 5mm x 20mm, Ceramic, LITTELFUSE #: 0215012.MXP for 120V Operation
  • DPA2402 T6.3AL 250v, 6.3A, Slow Blow, 5mm x 20mm, Ceramic, LITTELFUSE #: 21506.3P for 230V Operation

3. Input Connections

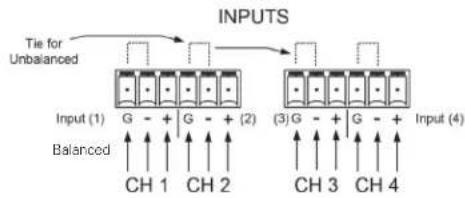

Inputs 1 - 4 accept balanced input signals via the removable 3.5mm Phoenix type connector. For wiring follow the labeling on the rear of the amp. For unbalanced signals connect the (−) and (GND) pins together.

Input 1 & 3 70V / 100V Input [1] G - + G - + [2] [3] G - + G - + [4] Input

Note: Amplifier Configuration and I/O Routing are done in the GUI. Any Input can be routed to any Output. The DPA is factory shipped preconfigured in a two-channel 70V / 100V mode. The I/O Router is configured as follows: Input 1 is routed to Outputs 1/2 and Input 3 is routed to Outputs 3/4.

2 CHANNEL 70V/100V CONFIGURATION (FACTORY DEFAULT) Input 1&3 70V/100V Input (1) G - + G - + (2) N/C CH 1 (3)G - + G - + N/C CH 2 Input (4) Note: Input 2 & 4 Not Used for 70V/100V

4 CHANNEL 4 or 8 ohm CONFIGURATION Tie for Unbalanced Input (1) G - + G - + (2) CH 1 CH 2 (3)G - + G - + Input (4) CH 3 CH 4

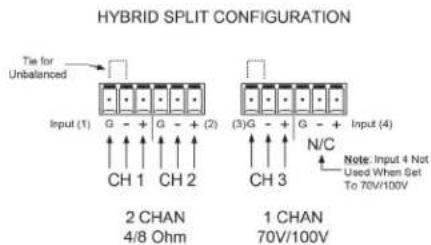

HYBRID SPLIT CONFIGURATION Tie for Unbalanced Input (1) G - + G - + (2) CH 1 CH 2 (3)G - + G - + Input (4) N/C CH 3 Note: Input 4 Not Used When Set To 70V/100V 2 CHAN 4/8 Ohm 1 CHAN 70V/100V

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 10 -

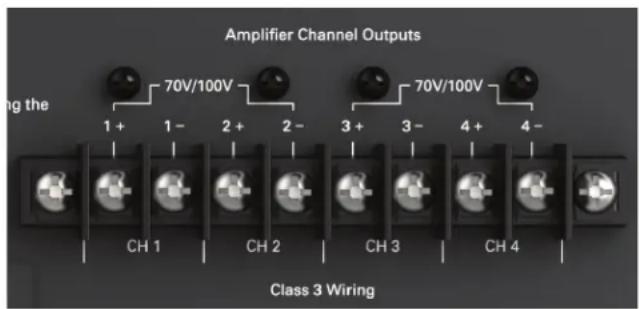

4. Speaker Connection

A screw terminal block connector is supplied to connect your speakers to the DPA amplifier. It is recommended to use Class 3 rated, 14-gauge wire or lower for speaker wiring. Amplifier output channel configurations are done in the amplifier GUI. The DPA is shipped with two speaker output terminal covers. AtlasIED recommends placing the security covers on the amplifier after wiring and before turning the amplifier on for configuration. Included in the carton are 8 (QTY) spade crimp terminals that accept 12-gauge wire and 4 (QTY) security cover screws (M3 x 8mm). Terminal block screws are M4.

Amplifier Channel Outputs 70V/100V 70V/100V 1+ 1- 2+ 2- 3+ 3- 4+ 4- 70V/100V 1+ 1- 2+ 2- 3+ 3- 4+ 4- CH 1 CH 2 CH 3 CH 4 Class 3 Wiring

3D rendered black plastic enclosure with mounting holes (no text or symbols)

Note: The DPA amp is preconfigured at the factory for two-channel 70V / 100V mode. Follow the manual wiring information to connect the distributed audio system.

5. Ethernet Port

Connect the amplifier to the network, local computer, or router/switch using CAT5 cable to access the amplifier's DSP and control settings.

6. Control Ports

The DPA Series allows you to assign / configure the four control ports located on the rear of the DPA amplifier to perform Remote Level or Mute functions. Note: Each Control Port pin can only be assigned to one function such as Mute or Level, but not both. Control Port assignment is done in the DPA GUI "Mute, Link, Port Assignment Page". See page 20 for details on how to connect / assign a Remote Level and a Contact Closure Mute. Note: The factory default assignments for the DPA Amplifier Control Ports are as follows:

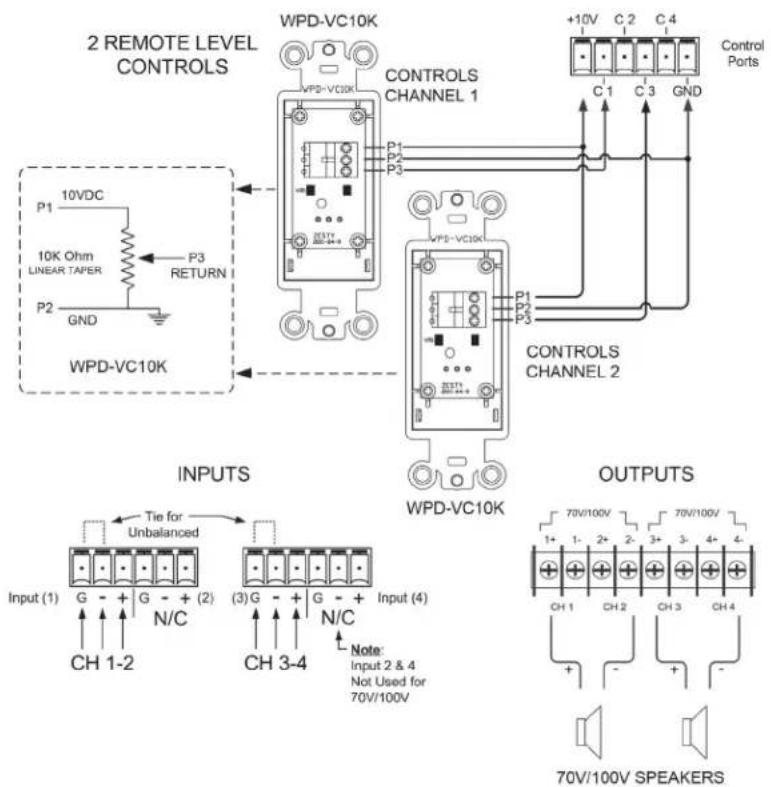

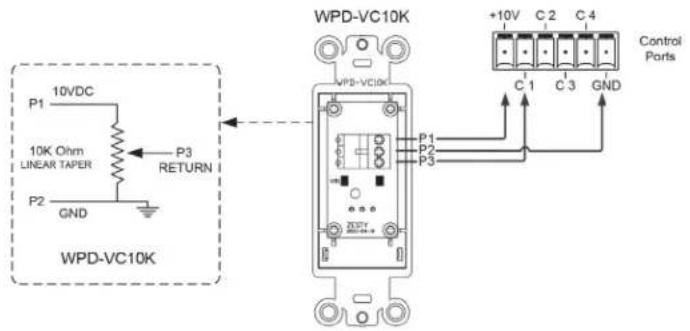

Control Port Factory Default Settings (Refer to Remote Level Control)

• C1 Controls CH 1/2 70V / 100V Output Remote Level
• C2 Not Assigned
• C3 Controls CH 3/4 70V / 100V Output Remote Level
• C4 Not Assigned

7. Accessory Card Slot

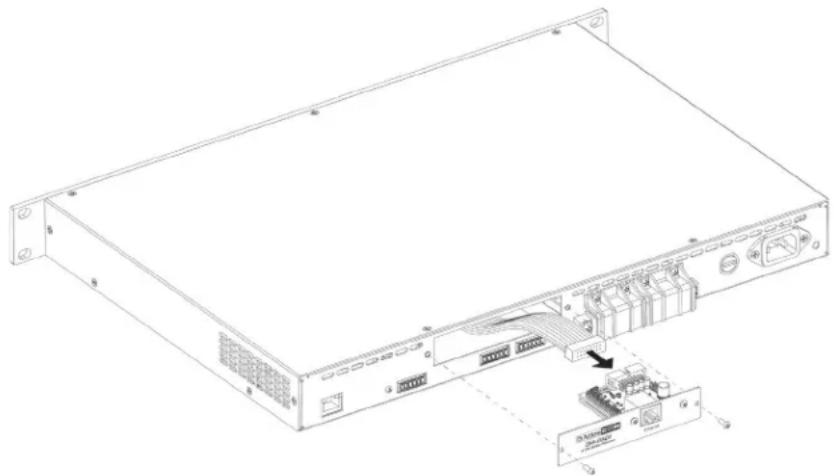

The DPA602, DPA1202, and DPA2402 offer 4 additional inputs that can be routed to any of the four output channels. Optional accessory cards DPA-DAC4 (Four-Channel Dante ^® Digital Audio Input Card) and DPA-AMIX (Four-Channel Analog Mic / Line, Auxiliary Input Card) are available. Contact AtlasLED for a list of accessory cards. See section "Accessory Card Installation" on Page 34 for information on installation or damage may occur. Note: Accessory card installation must be done by a qualified technician.

Note: In standby mode there are DC voltages present at the accessory card port. The the DPA amp must be removed from the AC Mains source in order to prevent damage to the card or amplifier.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Accessing the GUI Control Panel

DPA amplifiers include a unique set of features and configurations. All DPA amplifiers are configured from the factory out of the box to operate as traditional commercial power amplifiers. Ethernet connectivity is not required for operation of a DPA amplifier. However, to take full advantage of the DSP settings such as, EQ, High & Low Cut filters, level control / assignment and limiter settings, the DPA Control Panel must be accessed via the network or local computer. External software is not required to operate the DPA amplifier; the software is embedded onto the amplifier in what is called the web browser GUI Control Panel interface. To access the onboard control panel, follow one of the five methods listed below.

Accessing the GUI Control Panel

I. Direct Connection via Ethernet
II. Web Browser via Network Router
III. AtlasIED DPA Site Manager Software
IV. Smartphone or Tablet
V. Accessing the DPA Outside the Local Network

I. Direct Connection via Ethernet

Use this method if there is no network access available.

1. Connect an Ethernet cable from a laptop or desktop computer to the Ethernet Input on the DPA amplifier. Most computers will allow direct connection from the DPA amplifier using a standard CAT5 cable. Some older computers may require the use of a Crossover cable to connect to the DPA amplifier. If a connection cannot be made using a CAT5 cable, use a Crossover cable.
2. Turn OFF the computer's Wi-Fi.
3. Open a Web browser, AtlasLED suggests using Google Chrome or Mozilla Firefox.
4. In the Web Browser address bar, type in the following: http://DPA602 and hit enter. For this example we are connecting to the DPA model DPA602. An example is shown in Figure 1.

New Tab http://dpa602

Figure 1

1. Out of the box the amplifier's model number is all that is needed to connect. It is not case sensitive, but the full exact name is required. Note: During configuration, the amplifier's name can be changed. As an example at a school the amp may be renamed "ROOM1". After the name is changed, follow the same process to log onto the amp as outlined above, but change the name from "http://dpa602" to "http://room1".
2. The amplifier will be discovered and the DPA User PC Control Page will launch after pressing the "Enter" key. An example of the DPA User PC Control Page GUI web page is shown in Figure 2.
3. The DPA amplifier's IP address can be directly entered into the Web Browser to access the DPA GUI.

Example: "http://192.168.1.110".

Note: It is required to enter the Administrator Name and Password to access the home page. Factory default for User Name is "admin" and the password is "admin".

Note: When on the Mobile Page, on the Setup page, the faders will not function. To make setting changes the value of change must be entered in the data box. In the amp configure page the Level faders can be linked together for stereo level adjustment.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 12 -

II. Web Browser via Network Router

This method is very similar to the Direct Connection method covered in Section 1, but using a web browser on your local network to find the DPA amp.

1. Connect the DPA Amplifier using a standard Ethernet cable to a Router. Make sure the Router is in DHCP mode, the usual default.
2. Connect your computer to the same Router via an Ethernet cable or Wi-Fi.
3. Open a Web browser, AtlasLED suggests using Google Chrome or Mozilla Firefox.
4. In the Web Browser address bar, type in the following: http://DPA602 and hit enter. For this example we are connecting to the DPA model DPA602. An example is shown in Figure 1.
5. Out of the box the amplifier's model number is all that is needed to connect. It is not case sensitive, but the full exact name is required. Note: Once connected, the name of the amplifier can be changed to meet the install's naming orientation.
6. The amplifier will be discovered and the DPA User PC Control Page will launch after pressing the "Enter" key. An example of the DPA User PC Control Page GUI web page is shown in Figure 2.
7. If the DPA Amplifier's IP address is known, enter the IP number into the Web Browser to access the DPA GUI. Example: "http://192.168.1.110"

III. AtlasIED DPA Site Manager Software

This method is the easiest way to find and connect to any DPA Amplifiers on the Network. See Figure 3.

1. Download the DPA Amplifier Site Manager software at www.atlassound.com/dpa.
2. The DPA Amplifier Software is a small zip file and can be emailed but has to remain a zip file because it has an executable (.exe) file to launch the software. Most Internet security software will block any .exe file unless it is in zip file format. Also download the DPA Amplifier PC IP Site Manager Software user guide to make installation easier.
3. The DPA Site Manager software can do a variety of functions besides locating IP addresses such as; fault reporting, input & output status, standby status and remote activation via a scheduler timer. Refer to the DPA Site Manager instructions for the complete capabilities of the software.

IEEE Award 10.1 Amplifier Series USER PC CONTROL AMPLIFIER SETUP MOBILE CONTROL IP CONFIG ABOUT Amplifier Name: DPA1202 Model Name: DPA1202 AMPLIFIER ON OFF WATERING 10.1 AMP-10.1 COLD REFERENCE Input Sources AC Access Control Input Sources Amplifier Methods

Figure 2

AtlasLED DPA Amplifier Site Manager Site Location: Phoenix Amplifier Status Green = Active Mode Red = Fault = No Power Yellow = AFD / Sleep Mode Not Applicable - BPA/02PVA Any Select - Right Click to Open / Delete Marker File Used Firmware Used Substrate IP Direction Avg Status Input Channel Status Color Channel Status DPA0603 182.148.1.125 DPA0602 289.88.09.01-01-31 DPA0603 182.148.1.127 WAT36 289.88.09.01-01-28 DPA-H2274 182.148.1.126 DPA-H2274 WAT36.A9.89.07A-36 Configuration File Transfer Name: User may be logged into Site Manager to transfer Text Firmware File Transfer Browse Upload Browse Updated Soft Newer

Figure 3

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

IV. Smartphone or Tablet (Wi-Fi)

1. DPA amplifiers can be accessed remotely using a smartphone or tablet device using the IP address for the amplifier being accessed. Use method 1, 2, or 3 to create the initial DSP configurations and then access the amplifiers using the mobile device interface.
2. To access a DPA amplifier on a network using a smartphone or tablet requires that the smartphone or tablet be able to access the same network via Wi-Fi.
3. Open the Smartphone's or Tablet's Browser and enter the IP address in the address bar. Example: "192.168.1.110/mt1.html"
   Note: Some network firewalls may block access. If this occurs consult an IT technician for firewall setting adjustment.

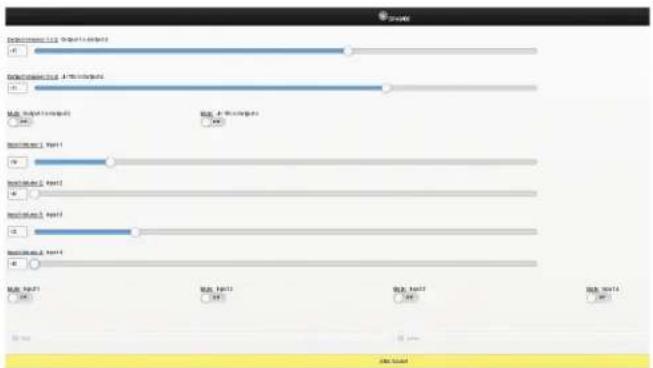

4. The GUI will open to a Mobile page as shown in Figure 4. Mobile access will allow for volume level adjustment and home page access once the administrator user name and password are accurately entered when prompted.
5. On the Mobile page of the GUI, the amplifier output level and mute can be adjusted and the Home page can be accessed. The page resolution size has been created to fit mobile devices when accessing via a mobile device.

Figure 4

Note: It is required to enter the Administrator Name and Password to access the home page. Factory default for User Name is "admin" and the password is "admin".

Note: When on the Mobile Page, on the Setup page, the faders will not function. To make setting changes the value of change must be entered in the data box. In the amp configure page the Level faders can be linked together for stereo level adjustment.

1. After accessing the Mobile web page, the IP connection can be saved to the device's screen as APP ICON short cut where its name can be changed to reflect its location or other description.

Apple ^® iOS

• Open the DPA amplifier mobile web page using Safari.
• At the bottom of the screen select the box with the arrow.
• Select "Add to Home Screen"
• Open the DPA amplifier mobile web page using the Safari browser.
• Press the Menu button and select Bookmarks.
• Select the top left thumbnail labeled Add.
• Press OK to add it.

V. Static IP - Accessing the DPA Outside the Local Network

Follow these instructions in order to access a particular DPA amplifier from outside of the Network the DPA is connected to. Example: An amplifier is in a school in Los Angeles and the volume in the classroom is not loud enough. The installer has the maximum level set via the limiter. Instead of the installer having to drive to the school which is three hours away, he can access the amplifier from his desk or phone. During the installation of the amp, the amplifier can be configured with a static IP address and a specific port assigned by the school's IT manager. This enables the installer access only to the specific DPA amplifier that needs the level adjusted. Below is a safe convenient way to allow limited access to a specific product via a protected network. Setting up an external IP address eliminates the requirement to VPN into a network to gain access to the LAN. This allows the person needing to maintain the device a single point of entry and keeps the LAN secure.

1. Plug DPA amp into local network, determine the IP address assigned to the amp, and change it to a static IP address.
2. Create a NAT (Network Address Translation) on the WAN router or firewall using port 80. An external static IP address will be needed for this process to work.
3. Once the external IP address is translated to the internal IP address, go to another Internet connection outside the Local Network where the DPA amp is present and try connecting to the external IP address. Verify correct NAT has been established.

This link is an example of a DPA602 amplifier connected to a Network that allows access from the Internet. Type this link into a web browser to access a live demonstration: http://atlasdpa102pm.atlassound.com. After connecting to the DPA amp, click the Setup tab and enter the USER NAME (admin) and PASSWORD (admin) to gain full access of the amplifier.

Resetting the DPA IP to Factory DHCP

1. Remove AC Power from DPA amp and wait 1 minute
2. Apply AC while at the same time, press and hold the front power button until the LED blinks 5 times at which point it will be reset. Note: typically the button must be held for about 10 seconds.
3. DHCP will be enabled
4. Follow standard login procedures

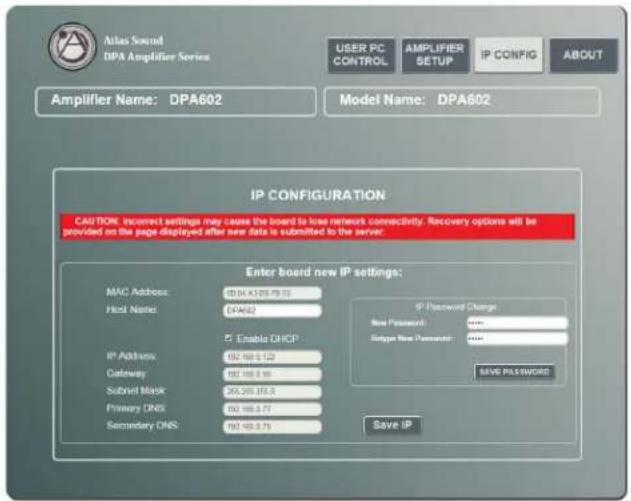

IP Config Page

Atlas Sound DPA Amplifier Series USER PC CONTROL AMPLIFIER SETUP IP CONFIG ABOUT Amplifier Name: DPA602 Model Name: DPA602 IP CONFIGURATION CAUTION: Incorrect settings may cause the board to lose network connectivity. Recovery options will be provided on the page displayed after new data is submitted to the server. Enter board new IP settings: MAC Address: 80.04.4129.73 55 Host Name: DPA602 IP Address: 82.98.9.122 Gateway: 82.98.9.96 Submit Mask: 86.26.25.8 Primary DNS: 82.98.9.77 Secondary DNS: 82.98.9.76 IP Password Change New Password: 0mm Suggest New Password: 0mm SAVE PASSWORD Save IP

Figure 5

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

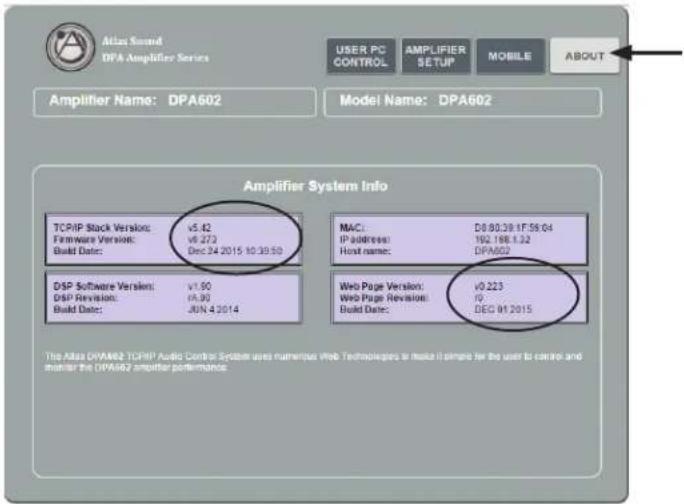

Identifying the Firmware Version

1. About Page-To gain access to feature enhancements or bug fixes, it may be required to update the firmware on the amp. The About Page contains information such as the MAC address and firmware versions. There are 2 types of firmware that may need upgrading, Host (HEX) firmware and Web (BIN) firmware. This is illustrated in Figure 6.

Visit www.atlassound.com/dpa, choose the DPA model being updated, and click the "support files" tab in the center of the page. Click the "About" page in the Control Panel and it will list the firmware versions installed on the amplifier. Compare these to the firmware versions available for download on the Atlas website. If they don't match, download the firmware versions that need to be updated. Read the DPA Amplifier Firmware Update Guide for instructions on how to install the firmware updates.

Atlas Sound DPA Amplifier Series USER PC CONTROL AMPLIFIER SETUP MOBILE ABOUT Amplifier Name: DPA602 Model Name: DPA602 Amplifier System Info TCP/IP Stack Version: v5.42 Firmware Version: v6.273 Build Date: Dec 34 2015 10:39:50 MAC: D8.90.39.17:59.04 IP address: YB2.188.1.32 Host name: DPA602 DSP Software Version: v1.90 DSP Revision: v8.90 Build Date: JUN 4 2014 Web Page Version: v0.223 Web Page Revision: VQ Build Date: DEG 01 2015 The Atlas DVAM62 TCP/IP Audio Control System uses numerous Web Technologies to make it similar for the user to control and matter the DPAS62 amplifier performance.

Figure 6

1. Update Page - As features and updates are created it may be required to update the firmware on the amp. This page provides directions on how to perform a firmware update as shown in Figure 7.

For a more detailed description on firmware upgrades visit www.atlassound.com/dpa to download the DPA amplifier upgrade Reference Guide and up-to-date firmware files.

Figure 7 Figure 8

Attar Sound DPA Amplifier Series USER PC CONTROL AMPLIFIER SETUP UPDATE ABOUT Amplifier Name: DPA602 Model Name: DPA602 The DPA Amplifier Console 1. Features Types. TCP/IP (HOST) Firmware, OHE File - Amplifier Function, Linux Protection - mount choices Web Page Firmware, (BIN File) - OUI Portugal, most common Note: When a waveform update is released at any time not be requested to update for features type. Each waveform release is different. Follow these DPA Amplifier firmware upgrade steps in order. 1. Downloaded the Features ZIP file from the ATHERD WEB site. Place as a location on your PC website can be easily found. Use the file. Identify the file types. 2. If the file update type is a HOST (HEX) data select "Chrome File" in the "HOST Features Updates" button below. This selection will take to a license to install for you to view the website or computer for the Web version. Learn the file set select the file and select "OPEN". It is set of the custom file one selected lock before next to the "Chrome File" icon, the file size can be selected will appear if the number click the Upload File button. Use the features file in uploading the "Upload in program format windows" will appear in the browser. This will be different on web browser. Typically it will be located in the lowest left side of the browser. "When the upload is completed, the following installation will appear 'Upload Therefore!' 3. If the file type is in WEB (BDO), then select "WEB File Settings" in the "WEB Page Features Update" section below. You will be moved to a different page to download for the file you served to your computer. On that new page should be better. Use the WEB (BDO) file and click or 'Upload'. Also the features update is completed for this project. "MIPS Updated Features" will appear. Then can take a few minutes. After how updated successfully moves to the route URL by clicking on "File Main Page" list. Note that the amplifies weekly page can also be updated from the web browser http://api.org/mg/mg/expressed. 4. The amplifier might be installed for the updates to take effect. Then we have methods to choose (1) Click on the "Soft Marker" button below (2) and add the AC music power to the app. The other process will take account. For the next point Power LED will find quickly saved them and will continue into solid form with a key event? After your LED button, check the computer update will be returned upon. You are ready to go. HOST Features Update (HEX File) File Choose File Has the Universe Upload Soft Reset Web Page Features Update (BIN File) Web Page Update When clicking on the button above you will be treated to a different page for the selections.

Atlas

IED

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 16 -

DPA GUI Pages Defined

User / Home Page

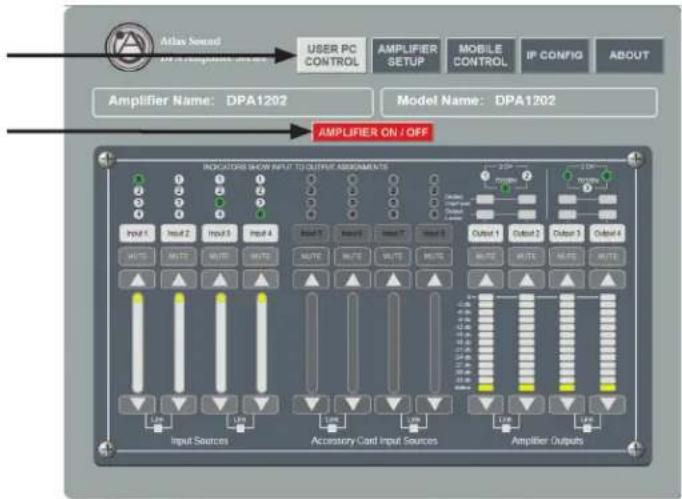

When the DPA GUI is accessed for the first time, the DPA amplifier is configured as a 2-channel 70V / 100V mode amplifier with the front panel level controls active and the USER level control on the GUI page deactivated. Note: The DPA amp Output Level can be controlled by either the front panel Level or by the GUI, but not both at the same time. To use the GUI User Level Control, the amp needs to be configured for that operation.

If the DPA amp GUI is open and looks like Figure 9, the front panel level controls are active. Notice the fader controls are invisible. This is the factory shipping default mode. If the Amplifier Activation Switch is illuminated red, the amplifier is on Sleep or APD Mode. If the switch is illuminated green, the amplifier is in Active Mode. Click to select between modes.

Atlas Sound MACs (regulator data) USER PC CONTROL AMPLIFIER SETUP MOBILE CONTROL IF CONFIG ABOUT Amplifier Name: DPA1202 Model Name: DPA1202 AMPLIFIER ON / OFF INSCRITORS SHOW INPUT TO OUTPUT ASSIGNMENTS Input 1 Output 2 Input 3 Input 4 Output 5 Output 6 Output 7 Output 8 Output 9 Output 10 Output 11 Output 12 Output 13 Output 14 Output 15 Output 16 Output 17 Output 18 Output 19 Output 20 Output 21 Output 22 Output 23 Output 24 Output 25 Output 26 Output 27 Output 28 Output 29 Output 30 Output 31 Output 32 Output 33 Output 34 Output 35 Output 36 Output 37 Output 38 Output 39 Output 40 Input Sources Accessory Cast Input Sources Amplifier Outputs

Figure 9

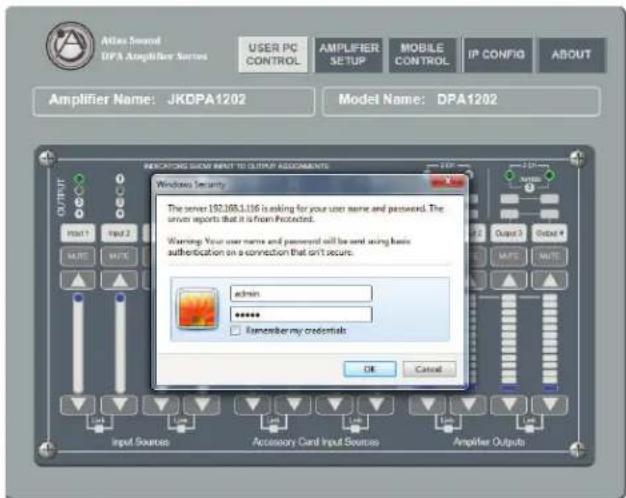

Password Log In

To access the full command of the DPA GUI, click on the Setup tab and enter the user name and password. Factory Default for User Name is "admin" and the Password is "admin". This is shown in Figure 10. Note: The user name and password can be changed anytime.

Atlas Sound DPA Amplifier Series USER PC CONTROL AMPLIFIER SETUP MOBILE CONTROL IP CONFIG ABOUT Amplifier Name: JKDPA1202 Model Name: DPA1202 INRACING SHOW INT TO OUTPUT ASSIGNMENTS Windows Security The server 192.168.1.106 is asking for your user name and password. The server reports that it is from Protected. Warning Your user name and password will be sent using basic authentication on a connection that isn't sure. admin ****** Remember my credentials OK Cancel Input Source Accessory Card Input Source Amplifier Outputs

Figure 10

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

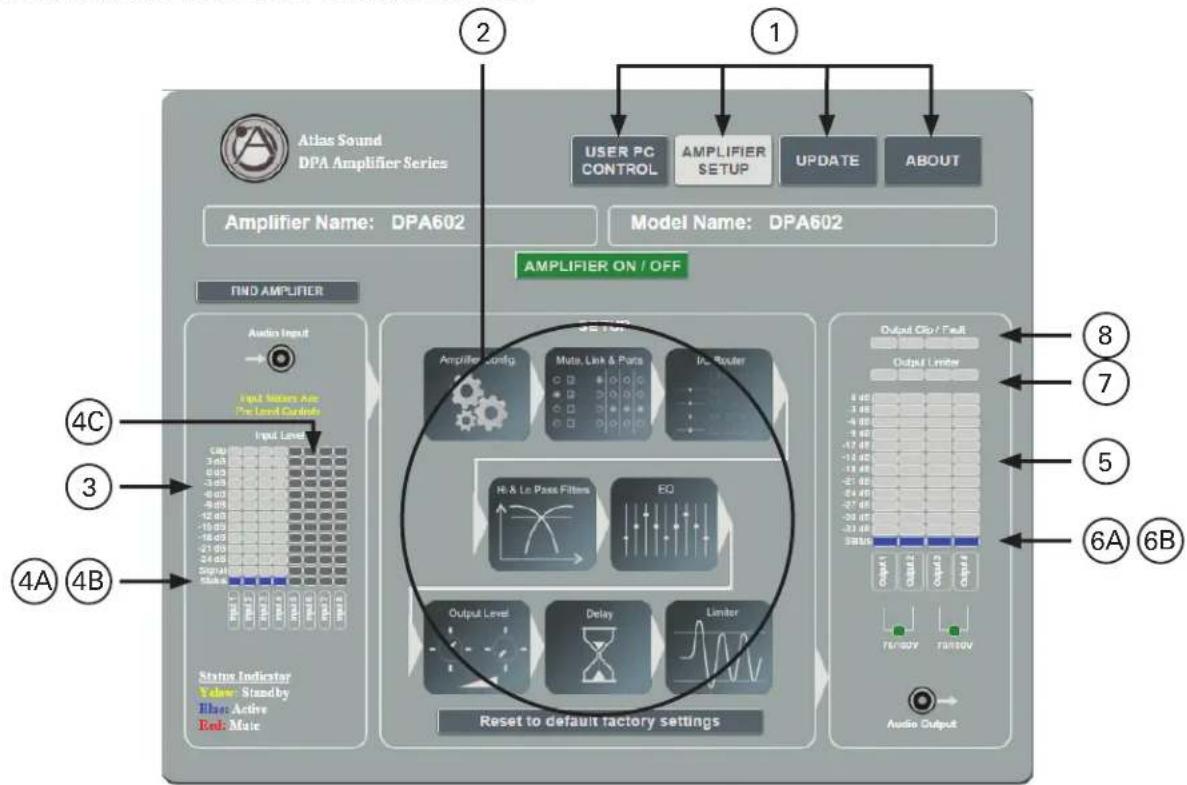

Setup Page

From the Setup Page the user can view and access the following:

1. Access the Home, Update and About page
2. Access the Amp Config, Mute Port & Link, I/O Route, HP & LP Filters, EQ, Output Level, Delay and Limiter control pages.
3. View Input Meters - Input Meter readings are Pre all Level Controls
4. Input Status Indicator - Located at the bottom of the Input meters.

A. Blue indicator means ready and active.
B. Red indicator means the channel is muted.
C. Grayed Out means not enabled (applies to inputs 5 - 8)

1. Output Level Meters

2. Output Status Indicator - Located at the bottom of the Output meters.

A. Blue indicator means ready and active.

B. Red indicator means the channel is Muted

1. Output Limiter - Illuminates yellow when the limiter is engaged.

2. Output Clip / Fault Indicator

A. Clip illuminates red when the amplifier output has reached its maximum output power.
B. Fault illuminates red when the channel has a fault condition such as an improper load applied for the configuration setting, short on the output or failed output channel. Note: It may be necessary to reset the AC Mains Power to clear the amplifier from protect mode.

1. Amplifier On/Off Status and Activation Switch - If illuminating red the amplifier is in Sleep or APD Mode. If illuminating green the amplifier is in Active Mode. Click to select between modes.

Atlas Sound DPA Amplifier Series Amplifier Name: DPA602 Model Name: DPA602 AMPLIFIER ON / OFF FIND AMPLIFIER Audio Input Input Pattern And The Level Control Input Level Status Indicator Level Standby Blue Active Red Male ② ① USER PC CONTROL AMPLIFIER SETUP UPDATE ABOUT ⑧ ⑦ ⑤ ⑥A ⑥B Reset to default factory settings Output Limiter 1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.40 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1.45 -1. Amplifier Config Mute, Link & Parts In Power Hi & Le Pass Filters EQ Output Level Delay Limiter Audio Output

Figure 11

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 18 -

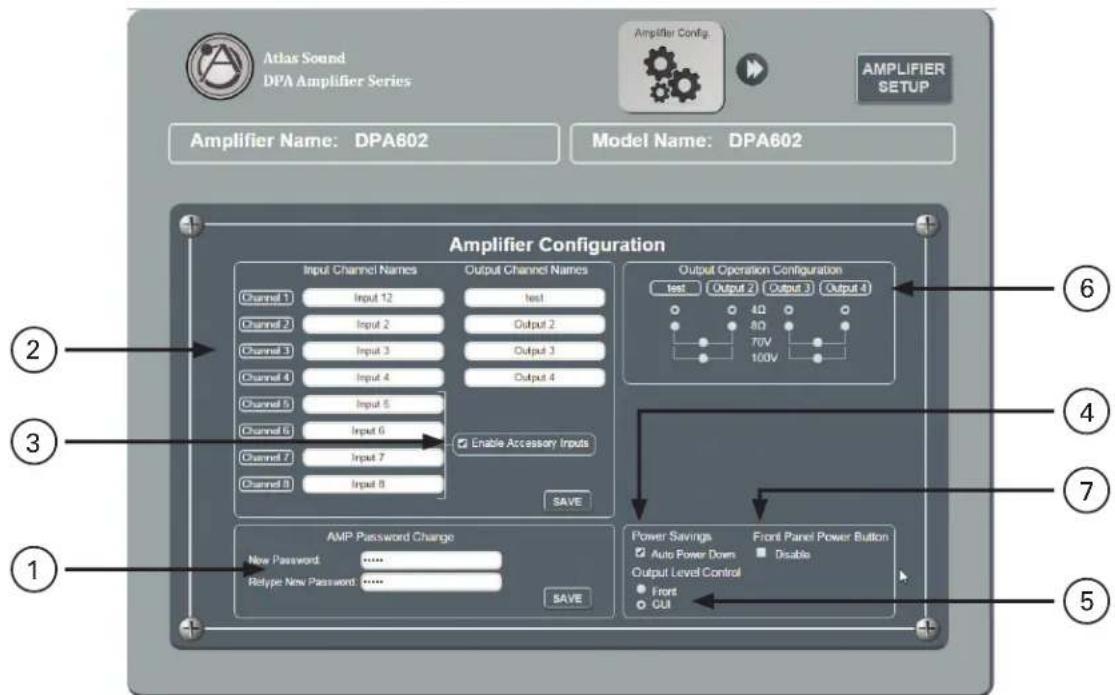

Amp Configuration Page

1. Password Name
2. Name Inputs and Outputs
3. Accessory Inputs - Enable / Disable Note: Factory default accessory inputs are not engaged.
4. Auto Power Down (APD) Enable / Disable. When this box is checked the amp is in Auto Power Down (APD) mode. After 30 minutes with no audio signal at the amplifier, the DPA amp will enter Standby APD Mode. In Standby Mode the amp will draw less power. The DPA amplifier has three states of idle power consumption to meet installation energy power consumption requirements. Refer to the amplifier specification page for power consumption data. Refer to the section on "Understanding the 3 AC Power Consumption Idle States" for a definition on how each idle state operates. When the amplifier senses signal on any of the 8 inputs, the amplifier will automatically switch from APD Mode to Active Mode. Note: Factory default APD is not engaged.
5. Level Control Assignment - Check the appropriate box for desired mode of output level control method. The DPA output level can be controlled by either Front Panel pots or by the GUI, but not both at the same time. Note: Factory default Front Panel Level Control is engaged.

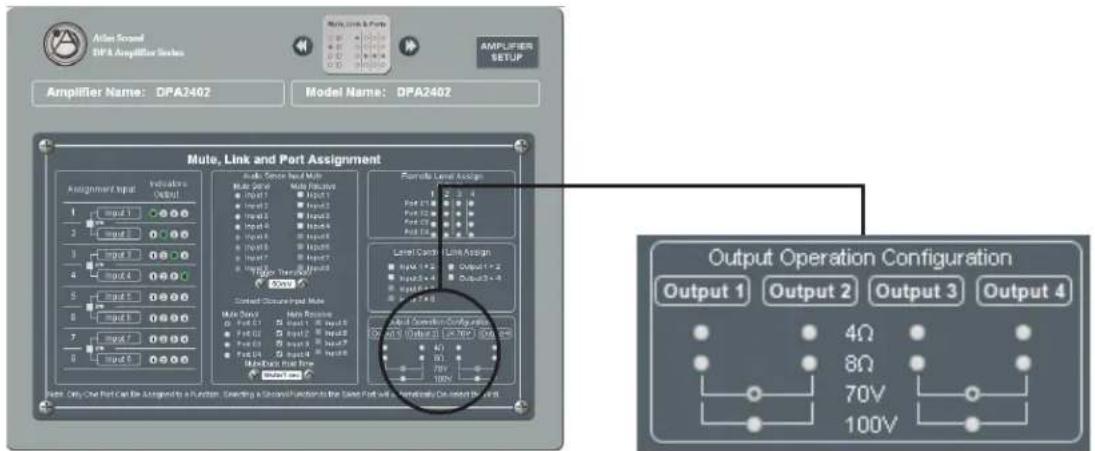

6. Amplifier Output Configuration - Configure the amplifier outputs to be either 70V / 100V or 4Ω / 8Ω. Note: Factory default is CH 1/2 & CH3/4 are 70V
7. Front Panel Power Disable Box - When selecting this box the front panel power switch is disabled. The amplifier can only be turned On/Off by removing the power cord. Note: Factory default Front Panel Power Button is engaged.

Atlas Sound DPA Amplifier Series Amplifier Name: DPA602 Model Name: DPA602 Amplifier Configuration Input Channel Names Output Channel Names Channel 1 Input 12 Test Channel 2 Input 2 Output 2 Channel 3 Input 3 Output 3 Channel 4 Input 4 Output 4 Channel 5 Input 5 Enable Accessory Inputs Channel 6 Input 6 Channel 7 Input 7 Channel 8 Input 8 SAVE AMP Password Change New Password: ****** Reltype New Password: ****** SAVE Output Operation Configuration Test Output 2 Output 3 Output 4 4Ω 8Ω 70V 100V Power Savings Auto Power Down Disable Output Level Control Front GUI Front Panel Power Button

Figure 12

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

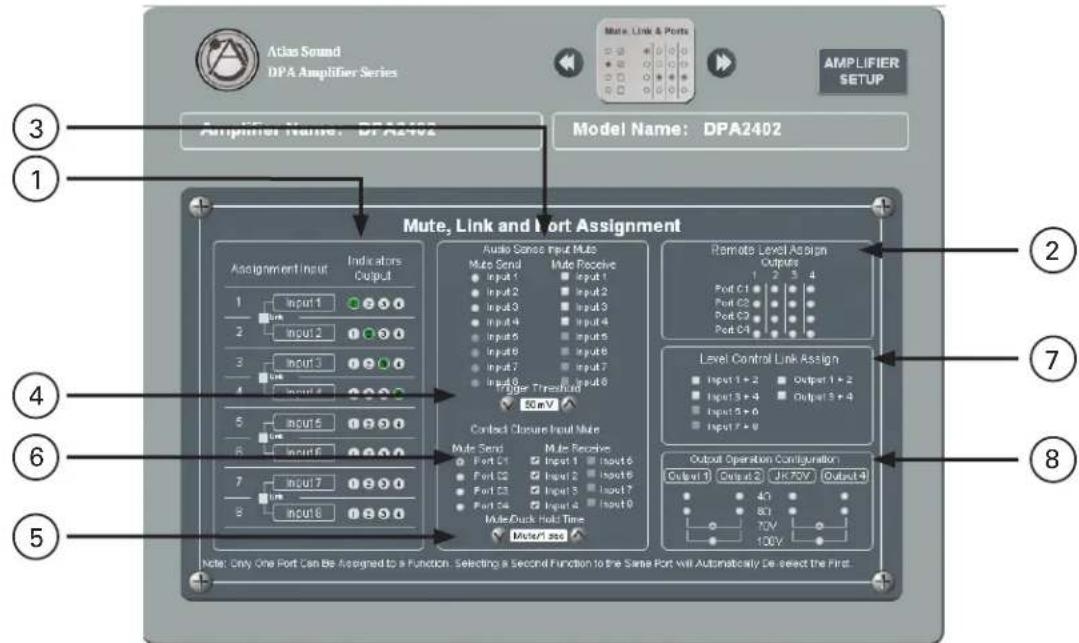

Mute, Link & Port Assignment Page

This page allows you to view the amplifiers configuration and assign VOX Mute & Contact Closure Mute, Remote Level and Link Level Faders.

1. Output Configuration Indicators - This section is a visual aide to see how the amplifier is configured. This is important information to know when assigning a Remote Level or Linking Faders.

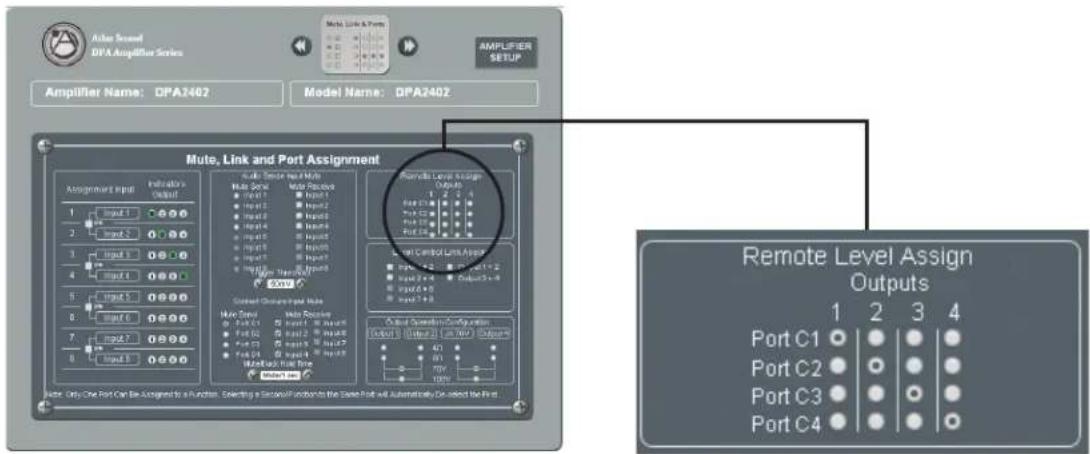

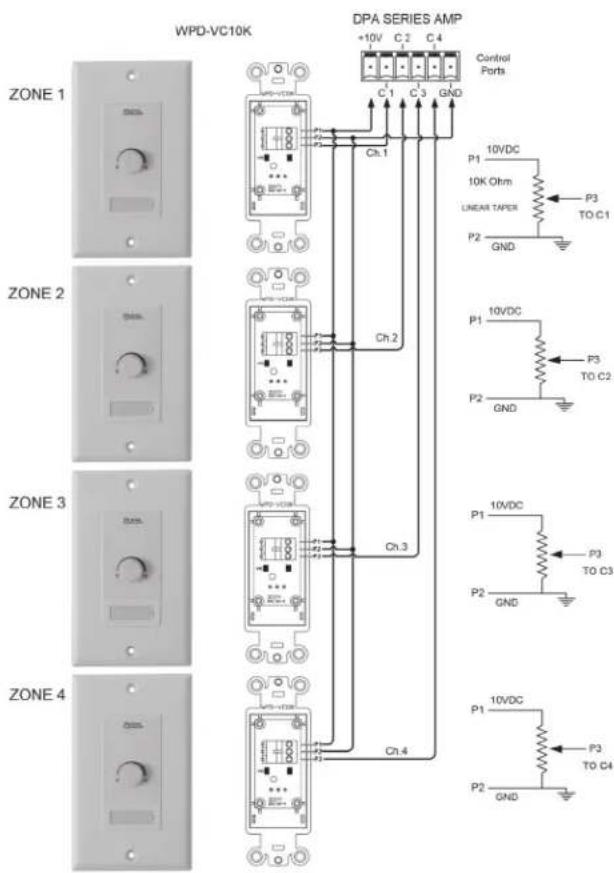

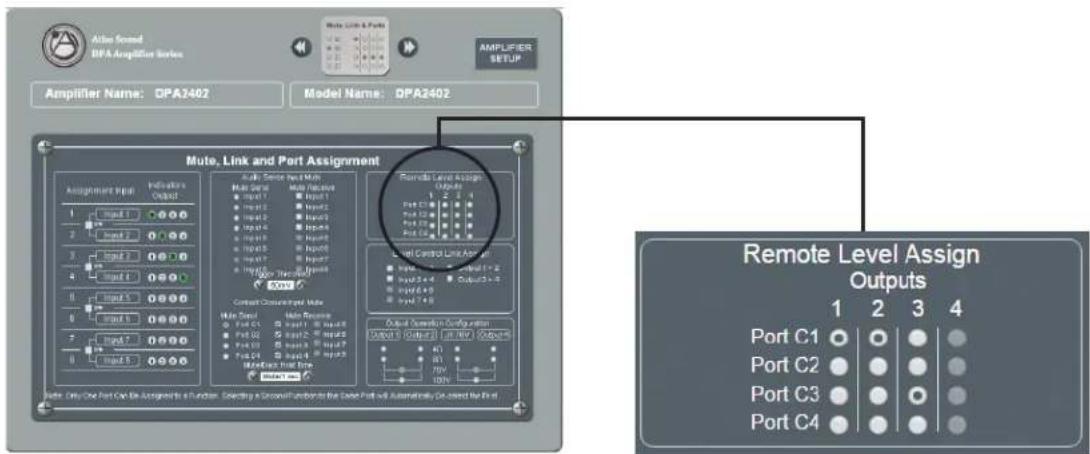

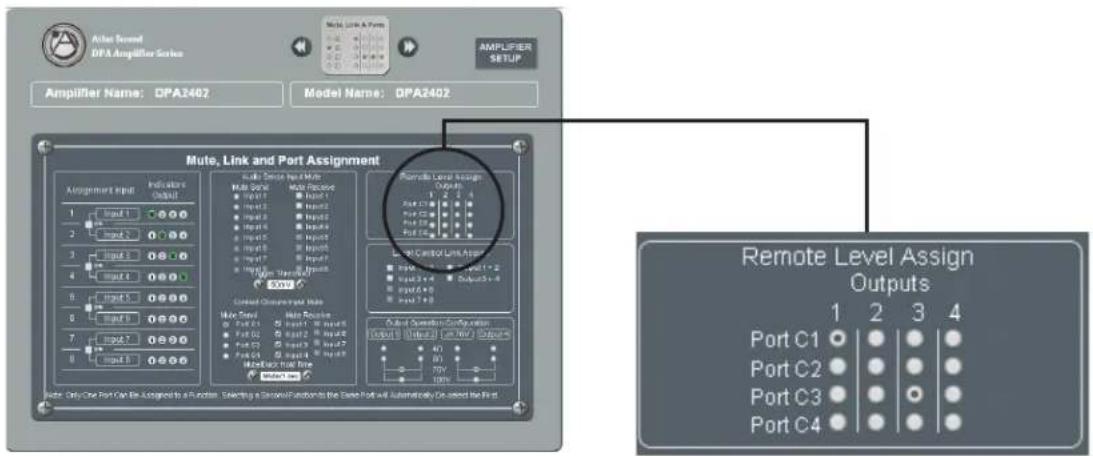

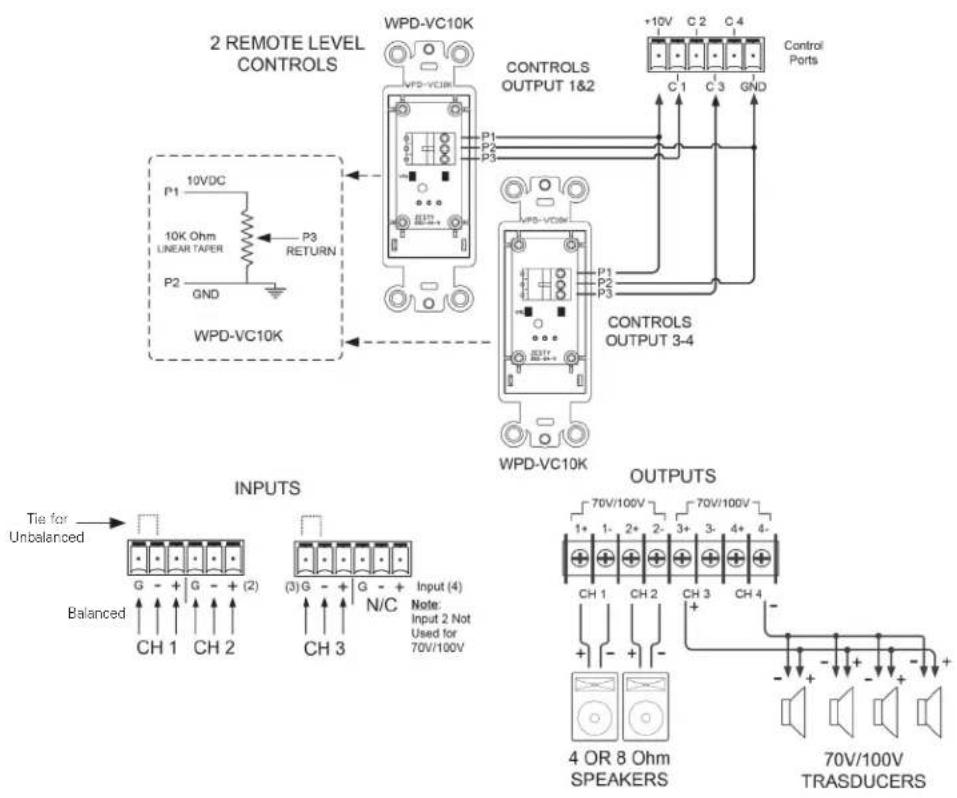

2. Remote Level Assign - This section allows the user to assign the Control Port on the rear of the amplifier to control the amplifier output selected by the user. Note: Factory Default C1 is assigned to control Outputs 1/2 70V and C3 is assigned to control Outputs 3/4 70V. Refer to Page 27 for information on configuring and wiring a remote level control.

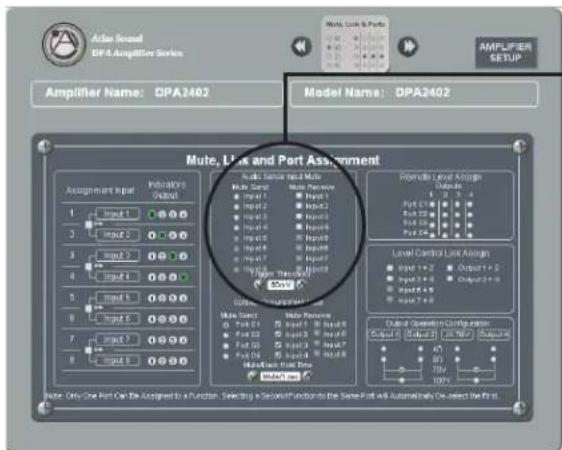

3. Auto Sense Input Mute (VOX) - This section allows the user to assign a selected input to be a Mute Send trigger when it senses an input signal. It will then send a Mute command to other inputs that are assigned to receive the mute command. There are two levels of priority that can be assigned. Refer to Page 32 for information on how to set up a VOX Auto Sense Mute.
4. Audio Sense Trigger Threshold - Audio levels vary and are dependent on the source material. Levels from a CD vary from a microphone. In the GUI the level to activate or trigger the Mute can be selected in 1mV increments up to 50mV. When setting the trigger level you need to allow for noise on the audio line and set the level high enough to avoid false triggers. The level sent applies to Mute Send #1 / Mute Receive #1 and Mute Send #2 / Mute Receive #2.
5. Mute / Duck Hold Time - How long or how much the selected input needs to be muted and reduced in level (Duck) will depend on the application. In the GUI there are four selections to choose from. Refer to Page 32 for information on selections. Note: This setting applies to both the Audio Sense Trigger and the Contact Closure Mute:

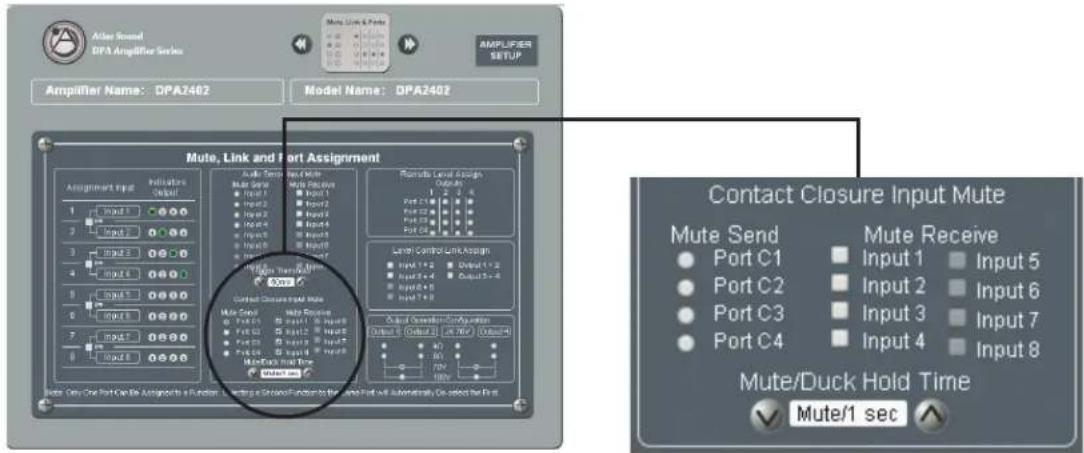

6. Contact Closure Input Mute - A rear panel control port can be assigned to mute any Input as seen in the Mute, Link, and Port Assignment GUI page shown below. A remote switch can be used to control the mute trigger as shown in the illustration below. Refer to Page 33 for setup.
7. Input Level Control Link Assign - The DPA amp has 4 line inputs with an additional optional 4 inputs. Some of the Inputs or Outputs may be used for stereo applications. For control convenience you can assign two faders to be linked together.
8. Level Control Assignment Indicators - This section displays a combination of settings gathered from other pages. This allows the user to see which Inputs are assigned to what Output, Input Names and if faders are linked together while making other configuration settings. The below example shows you that Input 1 is assigned to Output 1/2 and Input 3 is assigned to Output 3/4. The amps are configured as 2 CH 70V / 100V amplifier and no Inputs are linked together. This is also the factory default setting.

Arian Sound DPA Amplifier Series Mate Link & Ports AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input Indicators Output 1 Input 1 2 Input 2 3 Input 3 4 Input 4 5 Input 5 6 Input 6 7 Input 7 8 Input 8 Audio Sense Input Mute Mute Send Mute Receive Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 Input 9 Input 10 Input 11 Mute Pulse Threshold 50 mV Contact Closure Input Mute Mute Send Mute Receive Port 01 Input 1 Input 6 Port 02 Input 2 Input 6 Port 03 Input 3 Input 7 Port 04 Input 4 Input 9 Motor Lock Roll Time Motor size Level Control Link Assign Input 1+2 Output 1+2 Input 3+4 Output 3+4 Input 5+6 Input 7+8 Output Operation Configuration Output 1 Output 2 UK TGV Output 4 4G 8G 7CV 100V Note: Only One Port Can Be Assigned to a Function. Selecting a Second Function to the Same Port will Automatically Be select the First.

Figure 13

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 20 -

Input / Output Router Page

Any of the DPA 4 Line or optional 4 inputs can be mixed to any output. Select the channel and assign the input levels desired to go to the amplifiers output stage. If more than one Input is assigned to the same Output the signal will be summed.

1. Input Channel Level Faders - Inputs 5 - 8 need to be enabled in the Amp Configure page if you have an accessory card installed. The fader buttons for Inputs 5 - 8 are not visible because the inputs are not enabled. See Figure 14.
2. Output Channel Select Button - Click on the Output Channel and assign Input Levels 1 - 8. Note: Each Output Channel has its own independent Input level mix.
3. Input Mute Button - This button will turn red when selected, indicating the input is muted.
4. Amplifier Output 70V / 100V Indicator - When this indicator is Green it means that CH 1/2 or CH 3/4 are in 70V / 100V configuration mode. When in the 70V / 100V mode, Outputs 1 & 2 or 3 & 4 are connected together and whichever Input is assigned to the Output will be fed to both outputs. Output Meters 1/2 or 3/4 will show the same levels. If the box is not Green it means the amplifier is in 4Ω /8Ω mode and CH 1/2 and 3/4 are independent from each other. Amplifier Output configuration is done in the Amp Config page.

Atlas Sound DPA Amplifier Series I/O Router AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 I/O Router Amplifier Inputs 40 dB 0 dB 79/100V Out 1 Out 2 Out 3 Out 4 Mute -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -45 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40 -40

Figure 14

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

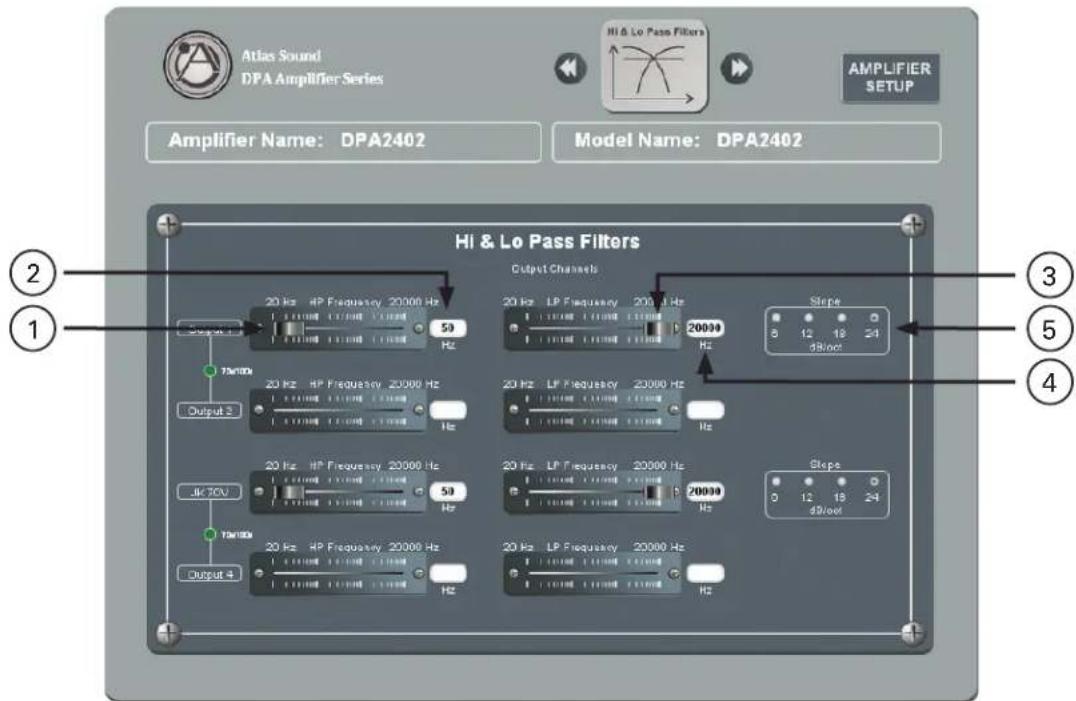

High / Low Pass Filter Page

Each Output Channel has a High Pass and Low Pass filter. Filter slope and frequency can be assigned by dragging the fader or typing a value.

1. High Pass Filter Frequency Fader - Slide the Fader to the desired Frequency the filter should start at. The data window indicates the frequency selected, which can be adjusted by clicking on the display window and entering the desired frequency.
2. High Pass Filter Frequency Display - This window will indicate the frequency of the filter that the fader has been set to. Click on the window and entering the desired frequency to change.
3. Low Pass Filter Frequency Fader - Slide the Fader to the desired Frequency the filter should start at. The data window indicates the frequency selected, which can be adjusted by clicking on the display window and entering the desired frequency.
4. Low Pass Filter Frequency Display - This window will indicate the frequency of the filter that the fader has been set to. Click on the window and entering the desired frequency to change.
5. Filter Slope Select - Click on the desired filter slope of 6dB, 12db, 18dB or 24dB. Note: this setting will apply to both the High and Low Pass Filters.

Atlas Sound DPA Amplifier Series HI & Lo Pass Filters AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 HI & Lo Pass Filters Output Channels 20 Hz 4P Frequency 20000 Hz 50 Hz Output 1 70Hz Output 2 20 Hz HP Frequency 20000 Hz 50 Hz Output 3 JK TCU 70Hz Output 4 20 Hz HP Frequency 20000 Hz 50 Hz Output 5 20 Hz LP Frequency 20000 Hz 50 Hz Output 6 20 Hz LP Frequency 20000 Hz 50 Hz Output 7 20 Hz LP Frequency 20000 Hz 50 Hz Output 8 20 Hz LP Frequency 20000 Hz 50 Hz Output 9 20 Hz LP Frequency 20000 Hz 50 Hz Output 10 20 Hz LP Frequency 20000 Hz 50 Hz Output 11 20 Hz LP Frequency 20000 Hz 50 Hz Output 12 20 Hz LP Frequency 20000 Hz 50 Hz Output 13 20 Hz LP Frequency 20000 Hz 50 Hz Output 14 20 Hz LP Frequency 20000 Hz 50 Hz Output 15 20 Hz LP Frequency 20000 Hz 50 Hz Output 16 20 Hz LP Frequency 20000 Hz 50 Hz Output 17 20 Hz LP Frequency 20000 Hz 50 Hz Output 18 20 Hz LP Frequency 20000 Hz 50 Hz Output 19 20 Hz LP Frequency 20000 Hz 50 Hz Output 20 20 Hz LP Frequency 20000 Hz 50 Hz

Figure 15

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 22 -

Output EQ Page

Each output channel has 5 parametric filters available.

1. Output Channel Select - Select the Output Channel and apply the EQ setting. Each Output has independent settings.
2. Frequency, Q, Gain Fader - Adjust all three the Faders to configure the desired filter. The data window indicates the frequency selected. Click on the window and enter the desired frequency to change.
3. Frequency, Q, Gain Display - This window will indicate the numerical values for each setting applied to the filter. Click on the window and enter the desired frequency to change.

Atlas Sound DPA Amplifier Series EQ AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 1 Output 1 EQ Control Output 2 JK 70V Output 4 Frequency 20 Hz 20000 Hz 0.1 10 -10 dB 0 10 dB Gain EQ1 EQ2 EQ3 EQ4 EQ5 20 20 20 20 20 Hz Hz Hz Hz 0.1 0.1 0.1 0.1 0.1 0 0.0 0.0 0.0 0.0 d8 d5 d0 d3 d8 d8 3

Figure 16

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Output Level Page

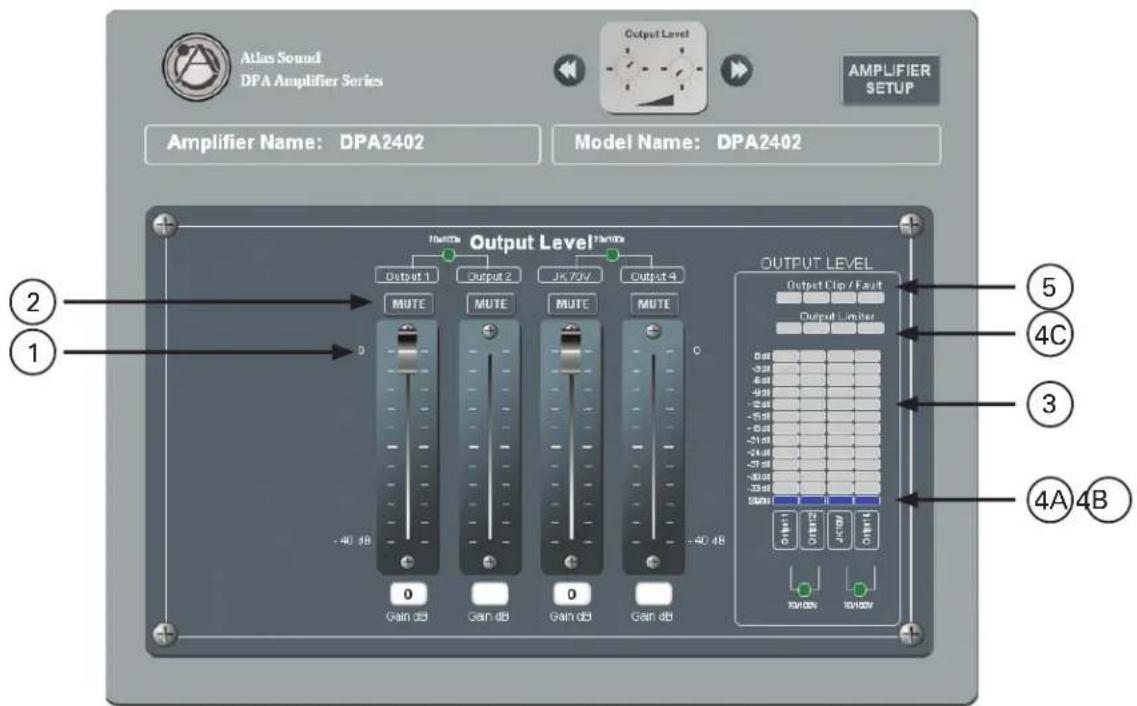

The output level controls have the accumulations of all the settings except the limiter. The output level is PRE limiter. Note: The output level is the same levels as the Home Page User Level Control.

1. Output Level Faders - Set the maximum level of the amplifier channel.
2. Output Mute - Illuminates red when in Mute mode. Click on it to release the mute.
3. Output Level Meters - Same meter as in the Setup Page
4. Output Status Indicator

A. Blue indicates ready & active.
B. Red indicates the channel is muted.
C. Yellow indicates the limiter is engaged.

1. Output Clip / Fault Indicator

A. Clip illuminates red when the amplifier output has reached its maximum output power.
B. Fault illuminates red when the channel has a fault condition such as an improper load applied for the configuration setting, short on the output or failed output channel. Note: It may be necessary to reset the AC Mains Power to clear amplifier from protect mode.

Atlas Sound DPA Amplifier Series Output Level AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Output Level MUTE Output 1 Output 2 JK 75V Output 4 -40 dB Gain db Gain db Gain db Gain db OUTPUT LEVEL Output Clip / Fault Output Limiter 0.00 -3.00 6.00 -9.00 -2.00 -5.00 -8.00 -11.00 -24.00 -57.00 -80.00 -33.00 50.00 Output11 Output12 Output13 Output14 4C 3 4A 4B

Figure 17

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 24 -

Output Delay Page

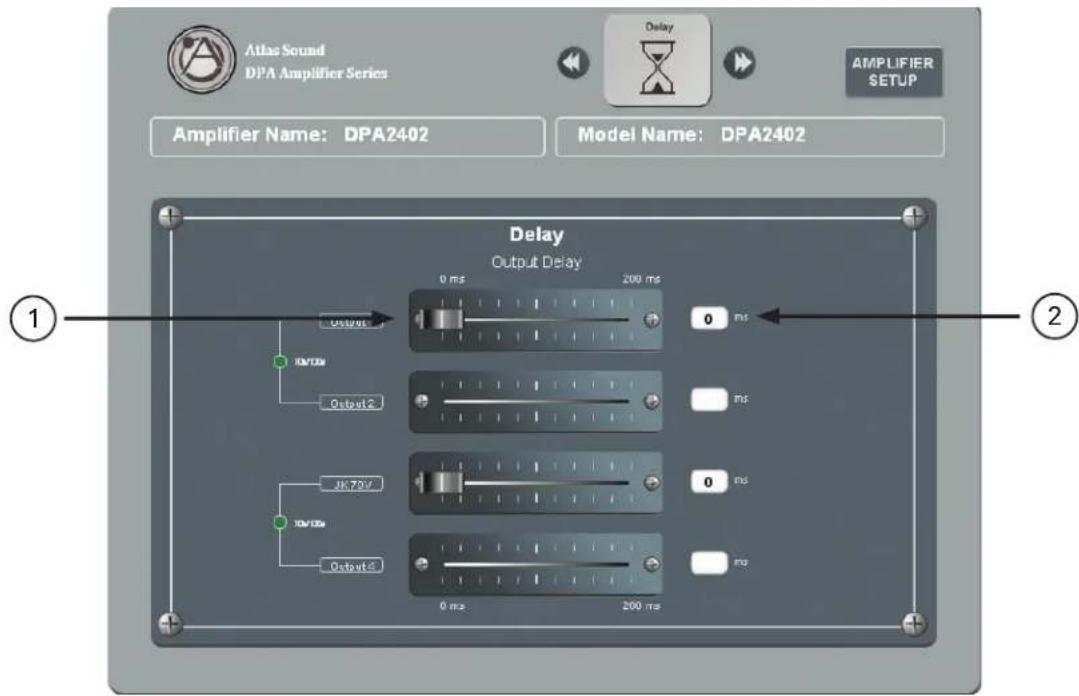

Each Output channel has up to 60mS of assignable delay.

1. Delay Fader - Adjust the fader for the desired amount of Delay.
2. Delay Data Display - Show the amount of Delay being applied to that specific Output. Double Click on the box and enter the desired time frame to change.

Atlas Sound DPA Amplifier Series Delay AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Delay Output Delay 0 ms 200 ms 0 ms 0 ns ns JK72V 0 ns JK100V 0 ns 200 ms 1 2

Figure 18

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Output Limiter Page

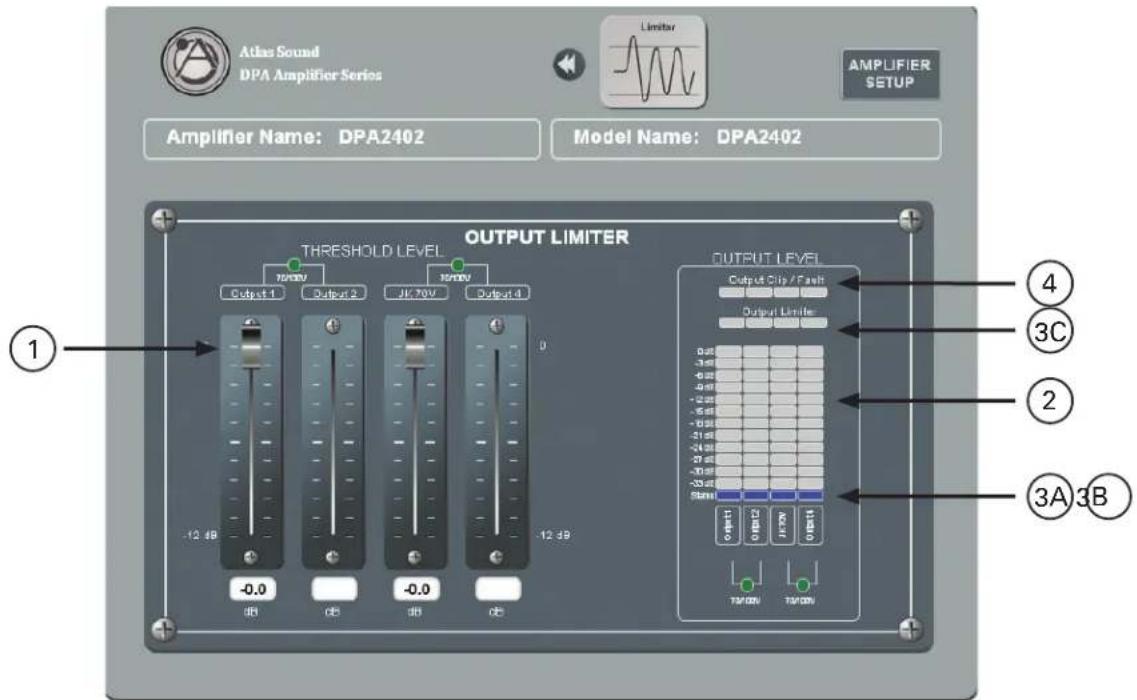

Each output channel has up to -12dB of limiting to be assigned. Note: The limiter threshold is fixed and is designed to be a hard limiter. All gain controls are PRE limiter.

1. Output Limit Faders - Set the maximum level of the amplifier channel.
2. Output Level Meters - Same meter as in the Setup Page
3. Output Status Indicator

A. Blue indicates ready & active.
B. Red indicates the channel is Muted.
C. Yellow indicates the limiter is engaged.

1. Output Clip / Fault Indicator

A. Clip illuminates red when the amplifier output has reached its maximum output power.

B. Fault illuminates red when the channel has a fault condition such as an improper load applied for the configuration setting, short on the output or failed output channel. Note: it may be necessary to reset the AC Mains Power to clear the amplifier from protect mode.

Atlas Sound DPA Amplifier Series Limitar AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 OUTPUT LIMITER THRESHOLD LEVEL Output 1 Output 2 Output 3 Output 4 -12 dB -0.0 dB -0.0 dB -12 dB OUTPUT LEVEL Output Clip / Fault Output Limiter ④ ③C ② ③A 3B ①

Figure 19

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 26 -

Remote Level Control Port Assignment & Wiring

Remote level control can be accomplished by wiring an external 10k potentiometer to the Control Port on the rear of the DPA Amplifier. Assign a Control Port pin to the amplifier channels that need to be level controlled remotely. The Remote Level topology is a VCA +10VDC based system. AtlasIED recommends using the optional AtlasIED WPD-VC10K wall control. Set the system's maximum levels using the amplifiers internal level controls and then use the remote 10KΩ potentiometer as an attenuator from the amplifiers preset level that was set on the front panel level controls or the internal GUI levels. Each WPD-VC10K will require using three conductor wire connecting the WPD terminals to the amp Control Port. Maximum distance can be up to 500 feet. Follow these steps before starting.

1. Decide how the amplifier output channels are to be configured for the install. There are three different amplification arrangements to meet your design requirements. Refer to the section on "How to Configure The DPA Amplifier Output Channels"

Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input 1 2 3 4 5 6 7 8 9 Output Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 Input 9 Input 10 Input 11 Input 12 Input 13 Input 14 Input 15 Input 16 Input 17 Input 18 Input 19 Input 20 Input 21 Input 22 Input 23 Input 24 Input 25 Input 26 Input 27 Input 28 Input 29 Input 30 Output Label Assign Port 1 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z X X X Y Z X X X Y Z X X X Y Z X X X Y Z X X X Y Z X X X Y Z X X Y Z X X Y Z X X Y Z X X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z X V Output Operation Configuration Output 1 Output 2 Output 3 Output 4 4Ω 8Ω 70V 100V

Figure 20 Figure 20

1. After configuring the amplifier output channels choose which channels to remotely control. This will be dependent on the amplifier configuration and installation requirements. If the factory default settings do not meet the installation requirements, configure / assign the output channels desired to control in the "Mute, Link & Port Assignment" page in DPA GUI. Select the Port and Output Channel desired to remotely control.

Acta Second DPA Amplifier Series Mute, Link & Ports AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute, Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment Mute,Link and Port Assignment

Figure 22
Figure 23

1. Note: Each channel of the DPA can have separate remote levels or all channels combined together onto one level control.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Remote Level Example for 2 Channel 70/100V Zone

The DPA Amplifiers are factory preconfigured in a two-channel 70V / 100V mode. Control Port Pin 1 is factory preconfigured to remotely control the Output level of CH 1 & 2 (combined to achieve 70V). Control Port Pin 3 is preconfigured to remotely control the Output level of CH 3 & 4. The illustrations below show the factory settings in the Mute, Link & Port Assignment Page and how to wire the Remote Level.

Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input Indicators Output 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 1 2 3 4 Remote Level Assign Outputs 1 2 3 4 Port C1 ● ● ● ● Port C2 ● ● ● ● Port C3 ● ○ ● ● Port C4 ● ● ● ●

Figure 24
Figure 25

2 REMOTE LEVEL CONTROLS WPD-VC10K P1 10VDC 10K Ohm LINEAR TAPER P2 GND WPD-VC10K P3 RETURN CONTROLS CHANNEL 1 +10V C2 C4 C1 C3 GND P1 P2 P3 P3 P1 P2 P3 CONTROLS CHANNEL 2 WPD-VC10K INPUTS Tie for Unbalanced Input (1) G - + G - + (2) N/C CH 1-2 (3)G - + G - + Input (4) CH 3-4 N/C Note: Input 2 & 4 Not Used for 70V/100V OUTPUTS 70V/100V SPEAKERS

Factory Default Control Port Setting

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 28 -

Remote Level Example for 4 Channel Zone

The DPA amplifier can be configured as a four-channel, low impedance 4Ω / 8Ω amplifier. The control ports can be assigned so each channel can have a separate remote level for each of the four channels. To do this it requires the use of all four control ports on the DPA amp or one remote level to control two, three or all four amplifier channels, assign the amplifier channels desired to control to the same Control Port. Below are illustrations of a single Remote Level Control assigned to one Control Port controlling all four amplifier channels and 4 Remote Level controls connected to four Control Ports controlling four amplifier channels separately. The illustrations below shows the settings in the Mute, Link & Port Assignment Page and how to wire the Remote Level

Option A – One External Remote Level Pot controlling all four amplifier output channels

Audio Sound DPA Amplifier Series Model Link & Port AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input Instructions Output 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 Absolute Mode: One Port Can Be Assigned to a function. Selecting a Cross-Section Function to the Source Port will Automatically Do select the First Mute, Link and Port Assignment Audio, Pulse, Net, Mute Mute Output: Mute Response Input: Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8 Input9 Input10 Input11 Input12 Input13 Input14 Input15 Input16 Input17 Input18 Input19 Input20 Input21 Input22 Input23 Input24 Input25 Input26 Input27 Input28 Input29 Input30 Input31 Input32 Input33 Input34 Input35 Input36 Input37 Input38 Input39 Input40 Input41 Input42 Input43 Input44 Input45 Input46 Input47 Input48 Input49 Input50 Input51 Input52 Input53 Input54 Input55 Input56 Input57 Input58 Input59 Input60 Input61 Input62 Input63 Input64 Input65 Input66 Input67 Input68 Input69 Input70 Input71 Remote Level Assign Output: Currents: One Port Can Be Assigned to a function. Selecting a Cross-Section Function to the Source Port will automatically Do select the First Port C1 Port C2 Port C3 Port C4

Figure 26
Figure 27

10VDC 10K Ohm LINEAR TAPER P2 GND WPD-VC10K P3 RETURN WPD-VC10K +10V C2 C4 C1 C3 GND Control Ports

4 CHANNEL 4 or 8 ohm CONFIGURATION

4 CHANNEL 4 or 8 ohm CONFIGURATION OUTPUTS

70V/100V 1+ 1- 2+ 2- 3+ 3- 4+ 4- CH 1 CH 2 CH 3 CH 4

4 OR 8 Ohm SPEAKERS

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Remote Level Example for 4 Channel Zone

Option B - Each Amplifier Output Channel has a Remote Level Pot

Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Remote Level Assign Outputs 1 2 3 4 Output Configuration: Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8 Output 9 Output 10 Output 11 Output 12 Output 13 Output 14 Output 15 Output 16 Output 17 Output 18 Output 19 Output 20 Output 21 Output 22 Output 23 Output 24 Output 25 Output 26 Output 27 Output 28 Output 29 Output 30 Output 31 Output 32 Output 33 Output 34 Output 35 Output 36 Output 37 Output 38 Output 39 Output 40 Output 41 Output 42 Output 43 Output 44 Output 45 Output 46 Output 47 Output 48 Output 49 Output 50 Output 51 Output 52 Output 53 Output 54 Output 55 Output 56 Output 57 Output 58 Output 59 Output 60 Output 61 Output 62 Output 63 Output 64 Output 65 Output 66 Output 67 Output 68 Output 69 Output 70 Output 71 Output 72 Output 73 Output 74 Output 75 Output 76 Output 77 Output 78 Output 79 Output 80 Output 81 Output 82 Output 83 Output 84 Output 85 Output 86 Output 87 Output 88 Output 89 Output 90 Output 91 Output 92 Output 93 Output 94 Output 95 Output 96 Output 97 Output 98 Output 99 Source: Only One Port Can Be Assigned to a Function. Eventing a Second Function for the Series Port. It Automatically On select the First

Figure 28
Figure 29
4 ZONE REMOTE VOLUME CONTROLS

DPA CONFIGURED IN
4 CHAN 4 Ohm MODE

WPD-VC10K DPA SERIES AMP +10V C2 C4 Control Ports C1 C3 GND Ch.1 P1 10VDC 10K Ohm P3 LINEAR TAPER TO C1 P2 GND Zone 1 Zone 2 Zone 3 Zone 4

Atlas

IED问

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 30 -

Remote Level Example 70V / 100V Zone with Stereo Zone

DPA amplifiers can be configured to deliver 1 channel High Impedance 70V / 100V for a paging / background audio system plus two channels amplification of Low Impedance 4/8-Ohm for foreground stereo applications. Below is an illustration on how to configure this application.

Active Sound BPA Amplifier Series Mute Line & Parts AMPLIFIER SETUP Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link and Port Assignment Assignment Input Indicators Output Multi-Node Link-Mute Multi-Node Link-Mute Multi-Node Link-Mute Input1 Input2 Input3 Input4 Input5 Input6 Input7 Input8 Input9 Input10 Input11 Input12 Input13 Input14 Input15 Input16 Input17 Input18 Input19 Input20 Input21 Input22 Input23 Input24 Input25 Input26 Input27 Input28 Input29 Input30 Input31 Input32 Input33 Input34 Input35 Input36 Input37 Input38 Input39 Input40 Input41 Input42 Input43 Input44 Input45 Input46 Input47 Input48 Input49 Input50 Output Level Assign: 1 2 3 4 Port C1 1 2 3 4 Port C2 1 2 3 4 Port C3 1 2 3 4 Port C4 1 2 3 4

Figure 30
Figure 31

2 REMOTE LEVEL CONTROLS WPD-VC10K P1 10VDC 10K Ohm LINEAR TAPER P2 GND P3 RETURN WPD-VC10K CONTROLS OUTPUT 1&2 +10V C2 C4 C1 C3 GND Control Ports P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 P37 P38 P39 P40 P41 P42 P43 P44 P45 P46 P47 P48 P49 P50 Tie for Unbalanced Balanced G - + G - + (2) CH 1 CH 2 (3)G - + G - + N/C Input (4) Note: Input 2 Not Used for 70V/100V OUTPUTS 70V/100V - 70V/100V - 1+ 1- 2+ 2- 3+ 3- 4+ 4- CH 1 CH 2 CH 3 CH 4 - + - + - 4 OR 8 Ohm SPEAKERS 70V/100V TRASDUCERS

Atlas

IED

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Input Mute Assignment

The DPA Amplifier Series offers two methods to trigger or activate an Input Mute. Combining the features of the Input Mute assignment with the I/O router allows the ability to assign paging or make announcements to a particular zone or multiple zones. Many installations require an emergency override, requiring all inputs to be muted except for the emergency page. Mute trigger or activation can be accomplished via an external Contact Closure (CC) or by sensing the audio signal on a particular assigned input.

A. Audio Signal Sensing Mute (VOX): The DPA Series offer two priority levels of VOX muting. The Send or Receive assignment is done in the Mute, Link and Port Assignment GUI page as shown below. Any Input can be assigned to Mute any other input. Follow the steps below on how to set up VOX mute.

Amplifier Name: DPA2402 Model Name: DPA2402 Mute, Link & Parts AMPLIFIER SETUP Mute, Link and Port Assignment Assignment Input Initiating Output 1 Input 1 2 Input 2 3 Input 3 4 Input 4 5 Input 5 6 Input 6 7 Input 7 8 Input 8 Audio Signal and Mode Multi-Channel Mode Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 Input 9 Input 10 Input 11 Input 12 Input 13 Input 14 Input 15 Input 16 Input 17 Input 18 Input 19 Input 20 Input 21 Input 22 Input 23 Input 24 Output Level Angle Output 1 - 2.5 - 4. Port C 1 - 2.5 - 4. Port D 1 - 2.5 - 4. Port E 1 - 2.5 - 4. Port F 1 - 2.5 - 4. Level Control Line Angle Input 1 + 2 - Output 1 + 2. Output 2 + 2 - Output 2 + 2. Output 3 + 2 - Output 3 + 2. Output 4 + 2 - Output 4 + 2. Output 5 + 2 - Output 5 + 2. Output 6 + 2 - Output 6 + 2. Output Power Configuration Output A (Output B) / AC (AC) / AC (AC) Dial Output Configuration 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Figure 32

Audio Sense Input Mute Mute Send Mute Receive ● Input 1 ■ Input 1 ● Input 2 ■ Input 2 ● Input 3 ■ Input 3 ● Input 4 ■ Input 4 ● Input 5 ■ Input 5 ● Input 6 ■ Input 6 ● Input 7 ■ Input 7 ● Input 8 ■ Input 8 Trigger Threshold ✓ 50mV

Figure 33

1. Assigning the Audio Sense Mute Send - Select the Input desired to be the trigger input. This is known in the GUI as Audio Sense Mute Send. Usually this input is the main paging input. The DPA offers two levels of Mute Send and Mute Receive assignment. Note: Only select one Mute Send per priority of #1 or #2. Start by selecting the Input you want to be Mute Send #1 audio signal trigger.
2. Assigning the Audio Sense Mute Receive - Select the Inputs desired to receive the Mute command from the Input selected the Audio Sense Mute Send. All channels can be selected to receive the Mute command except for the same associated Input. In other words Mute Send #1 Input 1 cannot be assigned to Mute Receive #1 Input 1. Note: Mute Send #1 / Mute Receive #1 and Mute Send #2 / Mute Receive #2 correspond to each other.
3. Setting the Audio Sense Trigger Threshold - Audio levels vary and are dependent on the source material. Levels from a CD vary from a microphone. In the GUI the level in which to the Mute to activate or trigger can be selected in 1mV increments up to 50mV. When setting the trigger level allow for noise on the audio line and set the level high enough to avoid false triggers. The level set applies to Mute Send #1 / Mute Receive #1 and Mute Send #2 / Mute Receive #2.

4. Setting the Mute / Duck Hold Time - In the GUI there are four selections to choose from for the mute duration and level reduction. Note: This setting applies to both the Audio Sense Trigger and the Contact Closure Mute.

5. Full Mute with a hold time of 1 Second

6. Full Mute with a hold time of 5 Seconds
7. 10dB Duck with a hold time of 1 Second
8. 10dB Duck with a hold time of 5 Seconds

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 32 -

Input Mute Assignment

B. Mute (Contact Closure) Port Assignment - A rear panel control port can be assigned to mute any Input as seen in the Mute, Link, and Port Assignment GUI page shown below. A remote switch can be used to control the mute trigger as shown in the illustration below. Follow the steps below to set up a Contact Mute function.

Mute, Link and Port Assignment Mute Send Mute Receive Port C1 Input 1 Port C2 Input 2 Port C3 Input 3 Port C4 Input 4 Input 5 Input 6 Input 7 Input 8 Mute/Duck Hold Time Mute/1 sec

Figure 34
Figure 35

1. Assigning the Contact Closure Mute Send - Select the Control Port to be the Mute Send trigger to Mute the inputs that are assigned Mute Receive inputs. This is known in the GUI as Contact Closure Mute Send.
2. Assigning the Contact Closure Mute Receive - Select the Inputs that are to receive the Mute command from the Control Port selected Mute Send. All channels can be selected to receive the Mute command.
3. Setting the Mute / Duck Hold Time - In the GUI there are four selections to choose from for the mute duration and level reduction. Note: This setting applies to both the Audio Sense Trigger and the Contact Closure Mute.
4. Control Port Wiring - After the Control Port has been assigned in the GUI, match the assign port to the corresponding Control Port Pin on the rear panel of the DPA. To activate the Mute Send trigger Control Port Pins P1 – P4, a +10V source needs to be applied to it. This can be done by connecting a switch between the +10V to the assigned Mute Send P1 – P4 Control Port on the rear panel of the DPA as shown below. If you want to use a remote +V source you may be required to connect the ground of the two devices together. Wiring for this is shown below. Current requirements are very low 2mA. Maximum wiring distances will vary with the wire gauge size used. It is typical to use 22-gauge wire to achieve distances over 500 ft.

REMOTE ACTIVATION OF MUTE OR PRIORITY USING A CONTACT CLOSURE EXAMPLE

+10V C2 C4 Control Ports C 1 C 3 GND Any External Control Device that has a Contact Closure Relay

Note: See Manual for GUI Port Assignment Configuration Settings

Factory Default = No Mute Assignments Activating a Function must be done in GUI

Contact Closure Input Mute Mute Send Port C1 Port C2 Port C3 Port C4 Mute/Duck Hold Time Mute/1 sec Mute Receive Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8

Note: Illustration represents, Port C4 to mute inputs 2,3,4, when C4 is activated by connecting C4 to +10V.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Accessory Card Installation

The DPA602, DPA1202, and DPA2402 offer 4 additional inputs that can be routed to any of the four output channels. Optional accessory cards DPA-DAC4 (4 Channel Digital Audio Input Card) and DPA-AMIX (4 Channel Analog Mic/Line, Auxiliary Input Card) are available. Contact AtlasIED for a list of accessory cards. Note: Accessory card installation must be done by a qualified technician.

1. Remove the DPA Amplifier from the AC Mains source.
2. Remove the two screws (M3 x 8mm Pan Head Black) holding the DPA Accessory blank panel.
3. Remove the ribbon cable from the cover plate.
4. Connect the accessory card to the ribbon cable by carefully aligning the ribbon cable connector to the mating PCB connector. Do not force. If aligned correctly the cable will mate easily.
5. Carefully guide the accessory card into the slot without forcing the PCB or cable.
6. After the card is inserted and the accessory panel is flush to the chassis, align the two screws holes and secure them together by using the M3 x 8mm screws.

Technical line drawing of a server rack with internal components and a highlighted internal portion (no text or symbols)

Installation and Considerations

Cabling - The DPA Series can be used with either balanced or unbalanced sources, provided the proper cabling is used. A balanced line is defined as two-conductor shielded cable with the two center conductors carrying the same signal but of opposite polarity when referenced to ground. An unbalanced line is generally a single-conductor shielded cable with the center conductor carrying the signal and the shield at ground potential.

Balanced Input - Use 20-22-gauge, 2 conductor shielded wire for low level signals. Maintain the proper polarity, + to +, - to - and shield to ground. For unbalanced signals using the Phoenix connector connect the (-) pin of the amplifier input to the GND center pin and the (+) pin to positive.

Speaker Outputs - Use 2 conductor unshielded wire of the appropriate gauge. The DPA Series is approved for Class 3 wiring. Contact AtlasLED Tech Support at 1-800-876-3333 if issues arise.

Placement And Mounting - Turn off all equipment before making connections. The amplifier can be mounted in a standard width 19' rack. It can be mounted above or below anything that does not generate excessive heat. Although the unit's chassis is shielded against radio frequency and electromagnetic interference, extremely high fields of RF and EMI should be avoided.

Ventilation - The amplifier should be situated so that its location or position does not interfere with its proper ventilation. For example, the DPA Series Amplifiers should not be situated in a sealed cabinet or on a shelf with obstacles that may impede the flow of air through the ventilation openings.

Heat - The DPA's should be installed away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce excessive heat. Ambient temperatures should not exceed 113^ F ( 45^ C)

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Understanding the 3 AC Power Consumption Idle States

The DPA amplifier has three states of Idle power consumption to meet the installation energy power consumption requirements. Refer to the amplifier specification page for power consumption data. Below is the definition how each idle state operates.

A. Idle Active Mode - When the LED outer ring of the power switch illuminates a steady state blue color, the amplifier is in Active Mode and is ready to pass audio.
B. Sleep Mode - If the outer ring LED is Off, the amp is in Sleep Mode. Sleep Mode allows the Ethernet to be active for access to the amplifiers on board GUI. The amplifier output stage and DSP is off. Audio will not pass audio in Sleep Mode. Press the front panel power switch to activate Idle Active Mode or press the AMP ON button in the amplifiers GUI to activate the amplifiers Active Mode. The LED outer ring of the power switch will illuminate a steady state blue color indicating the amplifier is in Active Mode.
Note: The DPA Site Manager software has a weekly scheduler timer that can toggle the DPA amplifier between Active Mode and Sleep Mode. Sleep Mode is the most efficient power consumption mode of the DPA amplifier.
C. Standby APD Mode - When the amplifier Auto Power Down (APD) is enabled and the amplifier is in the APD mode, the LED outer ring will blink blue once every 5 seconds. When the amplifier is in the APD state the amplifier can be toggled into Active Mode by pressing the front panel power switch, selecting the AMP ON button in the GUI, or applying input signal. When the amplifier is activated, the LED outer ring of the power switch will illuminate a steady state blue color.

Atlas Sound Channel 1 2 3 4 Operating Mode Signal 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 Level DPA1202 Digital Power Amplifier

Power SwitchPower LED Indicator

120V & 220V Operation

The DPA Series is designed to operate from 110V - 120V & 220V - 240V. All amplifiers will sense the AC Mains voltage and automatically change voltage internal settings. There are no internal or external switches for AC Mains voltage change over.

A. DPA602 and DPA1202 use the same fuse for both 120V & 230V operation. No need to change the fuse type.
B. DPA2402 - Use the fuse T12AL 250v, 12A, Slow Blow, 5mm x 20mm, Ceramic, LITTELFUSE #: 215012 for 120V Operation. This fuse ships installed in the amplifier.
C. DPA2402 - Change the fuse to T6.3AL 250v, 6.3A, Slow Blow, 5mm x 20mm, Ceramic, LITTELFUSE #: 21506.3P for 230V Operation. This fuse is included in the shipping carton.

Note: All fuses must be changed by a qualified technician. Always remove the amplifier from the AC mains before changing the fuse.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

DPA Series Specifications

Type 4 Channel Configurable Network Digital Commercial Power Amplifier

Amplifier Configurations 2 CH x 70V or 100V (Factory Default)

4 CH x 4Ω or 8Ω

1 CH x 70V or 100V, 2 CH x 4Ω or 8Ω

Amplifier Type Class AB Switching Hybrid

Power Supply Type Universal Switch Mode, DPA2402 has Power Factor Correction (PFC)

RoHS Compliant Yes

Safety Listings TUV 60065 Standard

Electrical Specifications

Power Output per CH: Note 1

DPA2402 DPA1202 DPA602

70V x 2 CH (Factory Default) 1200W 600W 300W

100V × 2 CH 1200W 600W 300W

Factory Default Setting (As Shipped)

Amplifier Configuration 2 CH 70V Mode (CH 1/2 = 70V, CH 3/4 = 70V)

Level Controls Front Panel Assigned, CH 1 & 3 Levels Active

I/O Matrix Input 1 Routed to Output CH 1/2, Input 3 Routed to Output CH 3/4

Gain DSP Level Set to 0dBu

EQ & Filters DSP Hi Pass Filters set to -3dB 50Hz, EQ Filters Flat

Output Limiter 0dB (Max Power)

Auto Power Down (APD) Disabled

Amplifier Inputs

Quantity 8 Total, 4 Balanced Plus 4 via Accessory Card Slot

Type & Connection Balanced, Euro Block Phoenix Type 3.5mm, 3 Position,

Accessory Card Slot Multi Pin Connector

Input Sensitivity 750mV Balanced, 0dBU

Input Impedance Balanced: 40K

Accessory Slot 4 Inputs, Optional Dante™ DPA-DAC4 or Mic / Line Analog DPA-AMIX

Maximum Input Level +14dBU Inputs 1-4, Inputs 5-8 Refer to Accessory Card Specification

Level Control (Assignable)

Front Panel Removable Knobs and Security Cover

GUI Control PC (Requires Ethernet Cable), iPhone, Android (Requires Ethernet Web Connection)

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 36 -

DPA Series Specifications

Amplifier Output Terminals

Type Barrier Strip with Safety Cover

Quantity 8 Screw Posts, M4 Thread

Current Rating 25A per Terminal,

Terminal Crimp Connector Spacing .300" (7.8mm),

Wire Size & Type Accepts 18-10 AWG Using Yellow Spade Lug .250 Terminal, Qty 8 Included,

Class 3 Wire Required

GPIO Control Ports (Rear Panel)

Quantity 6 Pins Total, Ground, +10VDC, C1, C2, C3, C4 (C1 - C4 Assignable)

Connection Euro Block PHX Type 3.5mm, 6 Pins, Ground, +10VDC, C1, C2, C3, C4

Functions Mute, Remote Level (Assignable)

Factory Setting C1 = Remote Level for CH 1 / 2 70V Output

C3 = Remote Level for CH 3 / 4 70V Output

C2 & C4 Not Assigned

Indicators (Front Panel)

Power ON Power On / Off Switch with Incorporated Blue Indicator

Output Signal Qty 4, Green

Output Limit / Protect Qty 4, Red

Operating Mode 4 / 8 Ohm (2 CH Mode) Qty 2 Yellow, CH 1 / 2 & CH 3 / 4

Operating Mode 70V / 100V Qty 2 Yellow, CH 1 / 2 & CH 3 / 4

Cooling

Type Idle Convection

In Use Signal Sense Variable Speed Fan Assist

Air Flow Rear to Front

Filters No

DSP Elements

I/O Matrix Mixer, Output Level, 5 Band Parametric EQ per channel, Hi & Lo Cut Filters, Delay 60mS per channel, Output Limiter

GUI Control

DPA2402, DPA1202, DPA602 Ethernet Base, On Board Web (No PC Software Required for Single Unit Configuration)

DPA Site Manager Software PC Base, IP Finder, Remote Monitoring, E-mail Fault Reporting,

Remote activation with Scheduler

Audio Power Down (APD)

Control GUI, Enable / Disable

On Trigger Threshold 5mV

Off, No Signal Sense 30 Minutes

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

DPA Series Specifications

General Electrical Specifications

THD 1% at Rated Output, Typical, .2%

Frequency Response -3dB 20Hz @ 20kHz (DSP Filters Set to Flat)

Signal to Noise Ratio -100dB Below Rated Output (A-weighted)

Crosstalk 70dB @ 1KHz

Protection Circuits Thermal, Short, Signal Limiter

DPA2402

DPA1202

DPA602

Max Output Peak Voltage 8-Ohm Per CH 55V 52V 36V

Max Output Peak Current 4-Ohm Per CH 11.5A 8.8A

7.2A

AC Mains Power Requirements

Voltage Supply Requirement (Recommended) 110V - 120V & 220V - 240V Auto Sense, 50/60Hz,

AC Mains Interface

IEC 15A Receptacle

Power Cord (Ships With)

1.5m, IEC C13 to NEMA 5-15P Plug, 18AWG DPA602 & DPA1202, 16AWG DPA2402

AC Mains

15A (120V), 7.5A (240V) See Power Consumption Chart Below

Power Consumption Watts 120V

DPA2402	DPA1202	DPA602
Sleep Mode	2.2W	3.5W	3.5W
Standby / APD Mode (Note 2)	19W 14W	14W
Idle Active Mode (Note 2)	26W	38W	38W
Average Power 4Ω, All CH Driven (Note 3)	375W	544W	285W
Average Power 70V, All CH Driven (Note 3)	415W	462W	224W
Max Power 4Ω, All CH Driven (Note 4)	1189W	1680W	718W
Max Power 70V, All CH Driven (Note 4)	1245W	1511W	704W

Power Consumption BTU 120V

Sleep Mode	8	12	12
Standby / APD Mode (Note 2)	65	48	48
Idle Active Mode (Note 2)	88	130	130
Average Power 4Ω, All CH Driven (Note 3)	426	1173	700
Average Power 70V, All CH Driven (Note 3)	446	941	546
Max Power 4Ω, All CH Driven (Note 4)	775	3178	1085
Max Power 70V, All CH Driven (Note 4)	1818	2450	390

Current Draw Amps 120V

Average Power 4Ω, All CH Driven (Note 3)	3.2A	5.13A	2.2A
Average Power 70V, All CH Driven (Note 3)	3.5A	3.94A	2A
Max Power 4Ω, All CH Driven (Note 4)	10.2A	14.9A	6.19A
Max Power 70V, All CH Driven (Note 4)	9.5A	13.2A	7.4A

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 38 -

DPA Series Specifications

Dimensions

DPA602 & DPA1202

Rack Mount Requirements 1 RU, 19"

Dimensions - Unit W 19" x H 1.77" x D 14.5" (483mm x 45mm x 368mm)

Dimensions - Shipping W 24.5" x H 3.5" x D 18.7" (635mm x 89mm x 477mm)

DPA2402

Rack Mount Requirements 2 RU, 19"

Dimensions - Unit W 19" x H 3.5" x D 14.5" (483mm x 89mm x 368mm)

Dimensions - Shipping W 24.5" x H 5" x D 18.7" (623mm x 127mm x 475mm)

Weight

DPA602 Unit - 13 lbs (5.92 Kg) / Shipping - 17.4 lbs (7.94 Kg)

DPA1202

Unit - 13 lbs (5.92 Kg) / Shipping - 17.4 lbs (7.94 Kg)

DPA2402

Unit - 20.8 lbs (9.53 Kg) / Shipping - 26 lbs (11.8 Kg)

Optional Accessories

Ethernet Base, On Board Web (No PC Software for Single Unit Configuration)

Accessories

DPA IP Discovery Software

DPA Site Manager Software

AA-YSUM - Passive Summing of Stereo Signal

WPD-VC10K - Potentiometer on Wall Plate for Remote Level Control

DPA-DAC4 - Dante™ 4-Channel Receiver Card

DPA-AMIX - 4-Channel Mic / Line AUX Mixer Amp Card

Notes

1. Power Level - Test is defined as follows: 1Hz sine wave signal burst of 20 cycles (20mS) at 1% THD+N, followed by 480 cycles of a 1kHz sine wave at 10% of the max power. Other power measurements available upon request.
2. Power measured with Ethernet connected. Without Ethernet connected deduct .2W
3. Average Power is defined as Pink Noise input signal applied to achieve 14 of the 4Ω or 70.7V power rating.
4. Max Power is defined as 1 KHz input signal applied to achieve the maximum power output before clip into a 4 or 70.7V load.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

Limited Warranty

All products manufactured by AtlasLED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasLED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasLED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible for defects caused by improper storage, misuse (including failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water immersion, lightning discharge, or malfunctions when products have been modified or operated in excess of rated power, altered, serviced or installed in other than a workman like manner. The original sales invoice should be retained as evidence of purchase under the terms of this warranty. All warranty returns must comply with our returns policy set forth below. When products returned to AtlasLED do not qualify for repair or replacement under our warranty, repairs may be performed at prevailing costs for material and labor unless there is included with the returned product(s) a written request for an estimate of repair costs before any nonwarranty work is performed. In the event of replacement or upon completion of repairs, return shipment will be made with the transportation charges collect.

EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLASIED SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.

Service

Should your DPA Series Digital Power Amplifier require service, please contact the AtlasIED warranty department at 1-877-689-8055, ext. 277 or support.atlasied.com to obtain an RA number.

AtlasIED Tech Support can be reached at 1-800-876-3333 or support.atlasied.com.

Visit our website at www.AtlasIED.com to see other Atlas products.

©2016 Atlas Sound L.P. and Innovative Electronic Designs, LLC. All Rights Reserved. Atlas Sound is a trademark of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs, LLC. All other trademarks are the property of their respective owners. ATS005331 RevB 4/16

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

AtlasIED.com - 40 -
