Product Type	Smartphone with Touch QWERTY Slider
Brand	Pantech
Model	P8000 (Crossover)
Dimensions	113 x 58 x 14.35 mm (4.45 x 2.28 x 0.56 inches)
Weight	148.5 g (5.23 oz) with battery
Display	3.1 inch TFT with 262k colors, 320x480 HVGA
Battery	Standard Lithium-Ion (Li-ion) 1500 mAh
Camera	Integrated 3.0 MP CMOS with Auto Focus, up to 2048x1536
Video Recording	Up to 800x480 resolution
Expandable Memory	microSD up to 32 GB (card included)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 2.1 + EDR, 3G HSDPA, GSM
Operating System	Android (version varies by carrier)
Keyboard	QWERTY Slider
Sensors	Proximity sensor, GPS, Compass
Audio Formats	MP3, AAC, AAC+, eAAC+, WMA
Special Features	AT&T applications, Social Net widget, S-Board group sharing
Maintenance Tips	Keep dry; avoid temperatures above 55°C or below -20°C; use only authorized accessories.
Safety Certifications	FCC and Hearing Aid Compatibility (HAC) compliant
Warranty	12-month limited warranty, with authorized service center repairs

Frequently Asked Questions - P8000 PANTECH

How do I install the SIM card and battery?

Remove the back cover by pressing and sliding the latch. Insert the SIM card with gold contacts facing the phone's contacts, then insert the battery aligning the contacts. Replace the cover until it clicks.

Can I use a microSD card with the P8000?

Yes, the device supports microSD cards up to 32 GB. Insert it into the slot under the battery cover after removing the back cover. Format the card before first use for optimal performance.

How do I take a screenshot?

The manual does not specify a screenshot method. Generally, on Android devices of that era, you can press and hold the Power and Volume Down buttons simultaneously. Alternatively, use third-party apps from the Market.

Why is my battery draining quickly?

Battery life depends on usage. To improve it, reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, close background apps, and use the Power saving features. The Li-ion battery lasts longer if you avoid full discharge and overcharging.

How do I set up email on the P8000?

Open Email from the menu. Enter your email address and password, then choose manual or automatic setup. For most providers, select POP3 or IMAP. If using Gmail, use the Gmail app instead.

How can I connect to Wi-Fi?

Go to Settings > Wireless & networks > Wi-Fi. Turn on Wi-Fi, select your network, enter the password if required, and tap Connect. You can also enable Wi-Fi during initial setup.

How do I update the software on my P8000?

Go to Settings > AT&T software update. Tap Check for updates. If an update is available, follow the prompts. Ensure your battery is charged and you have a stable internet connection.

What should I do if the phone freezes or is unresponsive?

Try a soft reset by pressing and holding the Power button for 10-15 seconds until the device restarts. If that fails, remove the battery, wait a moment, then reinsert it and turn on.

Is the P8000 hearing aid compatible?

Yes, it has an M4/T4 rating for hearing aid compatibility (per manual, phones rated M3/M4 meet FCC requirements). Disable Bluetooth and WLAN during a call for optimal performance.

Where can I get replacement parts or repairs?

Contact an authorized Pantech service center. For warranty repairs, call [phone] or email [e-mail]. Use only authorized batteries and chargers to avoid voiding the warranty.

USER MANUAL P8000 PANTECH

Thank you for choosing the Pantech Crossover, our latest smartphone. The Pantech Crossover has many features designed to enhance your mobile experience. With its unique, stylish design and QWERTY keypad, you will enjoy the entire Crossover experience.

This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech Crossover has to offer.

Some of the contents in this manual may differ from your phone depending on the software of the phone. Actual color may vary.

Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that some applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However, the AT&T privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated privacy policy for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone may be used to access the internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from third parties. AT&T provides tools for you to control access to the Internet and certain Internet content. These controls may not be available for certain devices which bypass AT&T controls.

Service provided by AT&T Mobility. Portions ©2011 AT&T Intellectual Property. All rights reserved. AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks contained herein are the property of their respective owners.

Copyright © 2011. Pantech. All Rights Reserved.

Important Safety Information

Safety information

The following list shows how to maintain your mobile phone and precautions to take as you use the device.

• Keep your mobile phone and its accessories out of the reach of children and pets.
• Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. It may be damaged at temperatures higher than 55°C/131°F or lower than -20°C/-4°F.
• Do not dry your phone in a microwave oven. Sparks may occur and cause an explosion or fire.
• Do not use or store your mobile phone in dusty, dirty areas.
  • Do not disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not clean your mobile phone with chemical products, cleaning solvents or detergents.
• Contact your dealer immediately if your mobile phone does not work properly.
• Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.
• Ensure that the battery and the battery charger do not come in contact with conductive objects.
• For optimal performance, use cases and accessories that do not contain magnets.

Safety precautions

• Using a mobile phone while driving is prohibited.
- Using a mobile phone while driving can distract your attention and cause an accident. Always switch your phone off to drive safely.
• In an emergency, use a hands-free device built into your car or pull over in a safe place first.
- Check local laws and regulations and comply with them, with regard to the prohibition of mobile phone use while driving.

Switch off in restricted areas

Always switch your phone off in areas where mobile phone use is restricted.

Switch off in an aircraft

Always switch your phone off or select the airplane mode (Tap Settings > Wireless & networks > Airplane mode) when you are in an aircraft. Electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.

Switch off in hospitals and near medical equipment

Always switch your phone off in hospitals and obey their regulations. Switch your phone off when using medical equipment for private purposes. Always consult with the medical equipment's manufacturer or an expert regarding phone use near the medical equipment.

Switch off in dangerous areas

Always switch your phone off in areas where explosive or dangerous materials (e.g. fuels or chemical products) are located and obey relevant instructions or signals. Do not insert or remove your mobile phone's battery in such areas.

Install a hands-free device in a safe location

Install a hands-free device away from the steering wheel and airbag expansion areas. Otherwise you can be injured in a car accident.

Keep away from other electronic devices

Mobile phones emit electromagnetic waves that may affect nearby electronic devices. After switching on your phone, do not place it close to other electronic goods.

About the battery usage

Your phone is powered by a Lithium Ion (Li-Ion) battery. In other words, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect."

• Do not use a damaged battery or charger.
• Do not disassemble, open crush, bend, deform, puncture or shred the battery.
• Do not modify or remanufacture, insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Do not put your battery in contact with conductive objects.

• Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode.

• Do not use an unauthorized charger or battery.
  • Use the battery only for the device for which it is specified.

• Use the battery with a charging device that has been qualified for the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
• Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006.
  • Children should be supervised when they use the battery.
• Avoid dropping the phone or the battery. If the phone or the battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
  • Use your battery for the specified purpose only.
• The closer you move to your network's base station, the longer you can use your phone because less battery power is required for connection.
• The battery recharging time varies depending on the remaining battery capacity and the battery and charger type.
  • Battery life inevitably shortens over time.
• Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce its capacity and life.
• To prevent injury or burns, ensure that no metal objects come into contact with the + and - terminals of the battery.

Basic instructions

Useful tips

To understand information contained in this user guide, please keep in mind the following:

- It is assumed that you start operating applications of Crossover from the Applications screen.

1. Tap from the home screen to access the Applications screen.
2. Flick the screen up or down and run the application you want to use.

Accessing Applications Navigating Applications

• Words in bold fonts refer to the relevant action on the screen. For example, "Tap Add to contacts" for the screen below means that you have to tap.

• Words in all capital letters refer to hard keys of Crossover. For example, LOCK/PWR indicates the lock/power key on the top right of the handset that locks the screen or turns on/off power.

• The symbol “>” refers to the next action. For example, “Tap Settings > Language & keyboard” means that you should tap Settings first and Language & keyboard next.

• Applications refers to the screen where all applications of Crossover appear.
  • Home screen refers to the screen that appears first when you unlock the screen.
• Idle mode refers to the status when you stay on the home screen ready to run an application.
• Channels through which you can share your items, e.g. contacts and pictures, increase as you subscribe to a service. For example, if you sign up for Facebook or Twitter, you can also share your information with others through Facebook or Twitter.

About Google accounts

It is recommended that you have a Google account to use some applications provided by Google, e.g. Calendar, Latitude, Market, Talk and Gmail of Crossover. For more information on setting up a Google account, refer to Activating Crossover on page 18.

AT&T Applications Overview

Using AT&T applications

Enjoy applications provided by AT&T.

AT&T FamilyMap: Allows you to locate your family members on the map

AT&T Navigator: Helps find your way to the destination and locate restaurants and more

YPmobile: Helps search for local businesses or map any location

Contacts: Recovers your contacts and manages your contacts online

DataManager: Helps manage data stored in Crossover

Live TV: Provides dozens of TV channels and hundreds of shows including sports, breaking news, kids shows and music entertainment

AT&T Mark the Spot: Allows you to submit AT&T's Network Operations problems or difficulties

myAT&T: Helps subscribe services and make payments for the bill

AT&T Code Scanner: Allows you to scan QR or Data matrix Mobile Barcodes in magazines, stores or on online

AllSport GPS: Record time, speed, calories burned and distance travelled

Table of contents

Important Safety Information 2

Safety information 2

Safety precautions....2

About the battery usage....3

Basic instructions....4

AT&T Applications Overview ....5

Using AT&T applications 5

1. Getting Started

Getting Started....10

Inside the package ....10

Installing the SIM/USIM card....10

Installing the microSD card....10

Inserting the battery 11

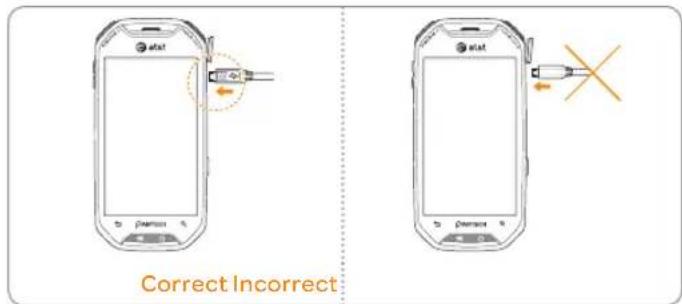

Charging the battery....11

Turning Crossover on/off....12

Unlocking the screen....12

Locking the screen....12

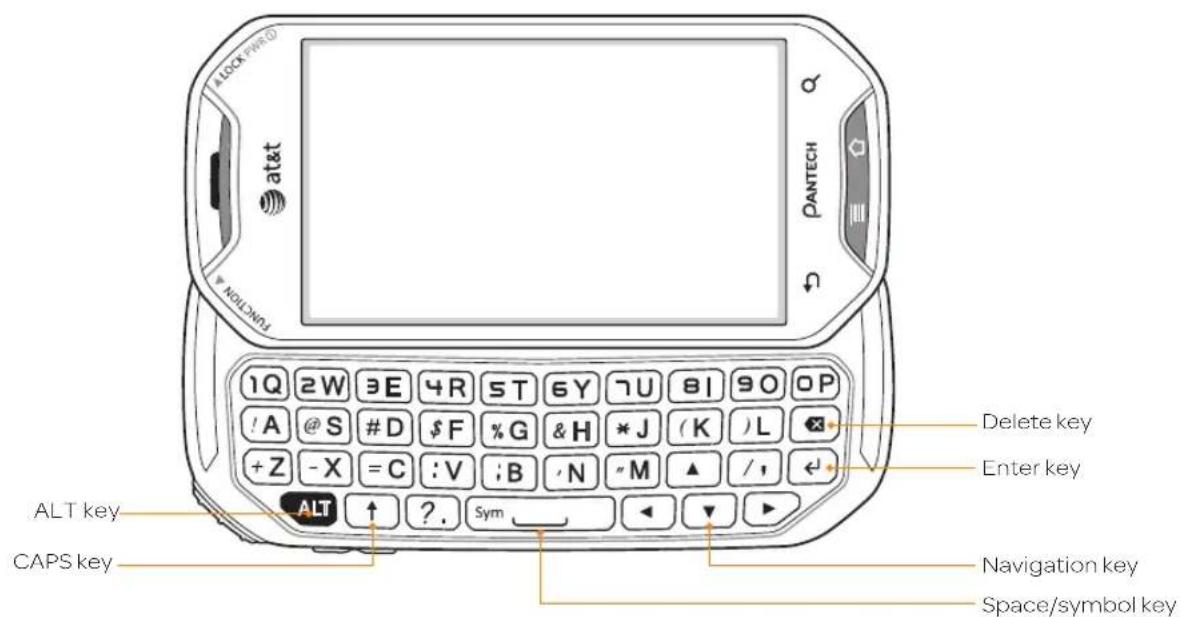

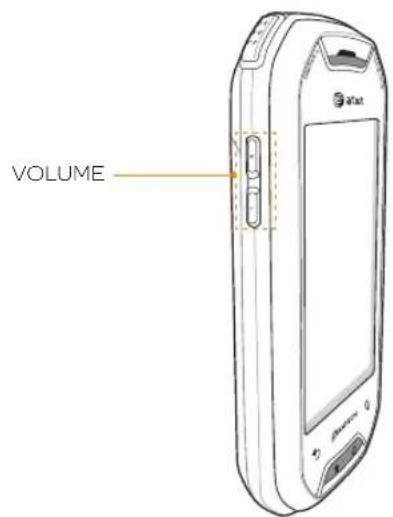

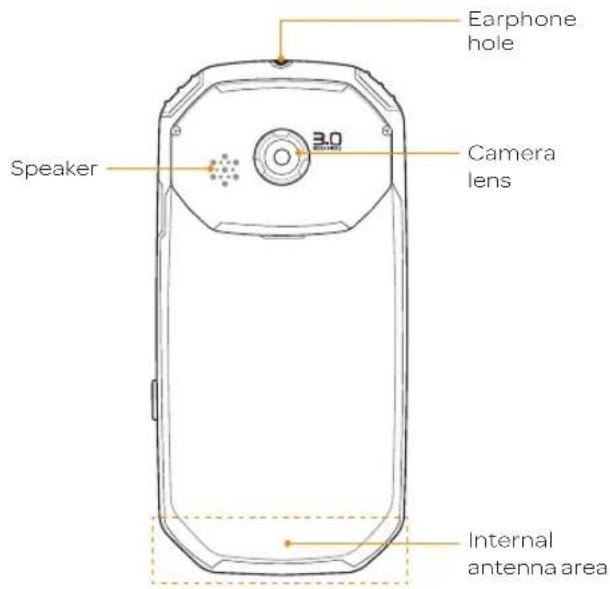

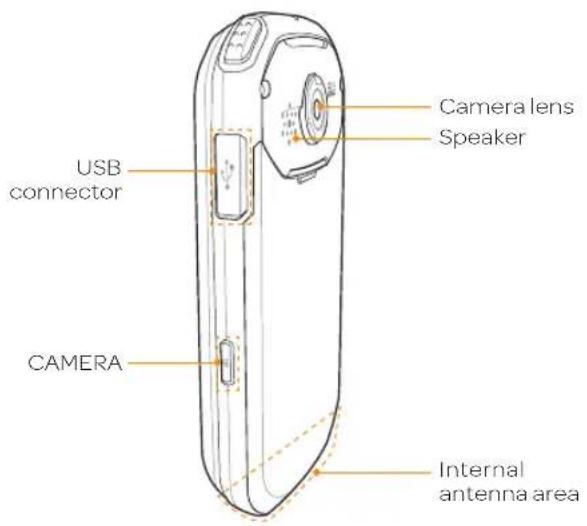

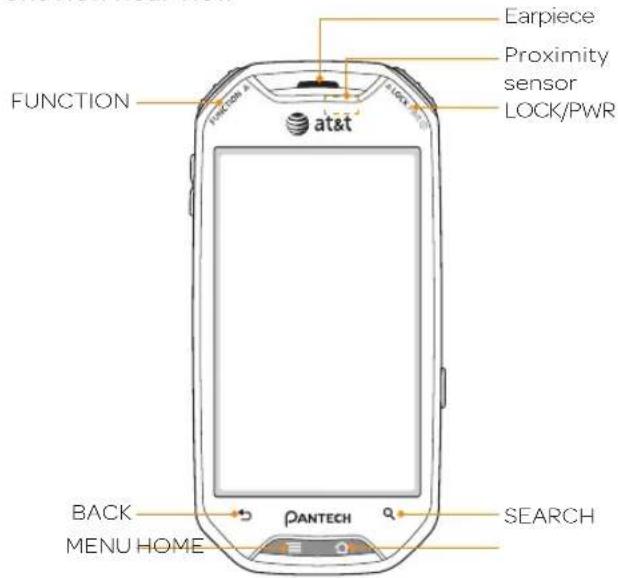

Product overview....13

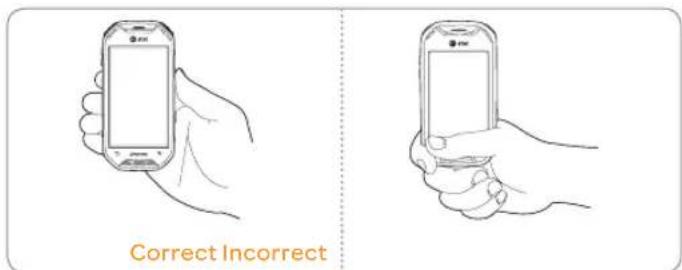

Gripping Crossover 16

Activating Crossover 16

Using the touch screen....17

Understanding the home screen....18

Customizing the home screen....20

2. Communication

Communication 24

Calling 24

Messaging 26

Receiving and sending emails 30

Using Gmail 31

Using Twitter 32

Using Facebook....33

Using the Social Net widget 34

S-Board 34

Google Talk 35

3. Entertainment

Entertainment 38

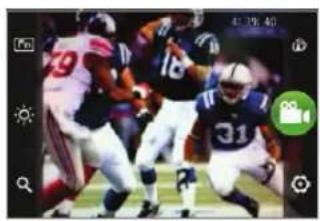

Using the camera....38

Using the gallery 41

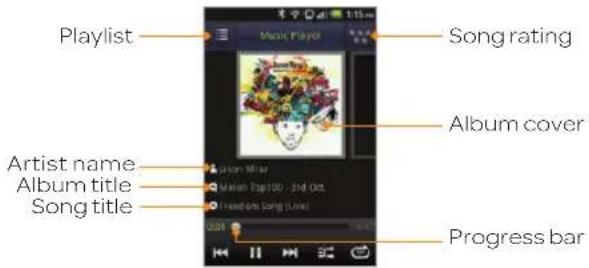

Listening to music 42

Enjoying YouTube....44

4. Personal Information

Personal Information 47

Managing contacts 47

Using the calendar 48

Creating a memo 49

Using voice memo 50

Table of contents

5. Documents

Documents 53

Viewing documents 53

6. Web

Web 56

Accessing the Internet 56

Shopping in the Android Market....58

Using Google Maps....59

Using Places ....59

Using Latitude 60

Searching with Google 62

News & Weather....62

7. Connectivity

Connectivity 65

Using a Wi-Fi network....65

Connecting to a 3G network....66

Using Bluetooth 66

Making Crossover a modem 67

8. Storage

Storage 70

Managing the memory card 70

Connecting to a PC 70

Using Crossover as Mass Storage 71

Transferring files through Media Transfer....71

9. Tools

Tools 73

Clock Tools....73

Clock 74

Calculator 75

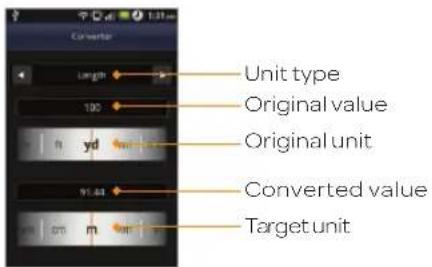

Converter 75

Sketch Pad 76

Voice Dialer 77

Voice Search....77

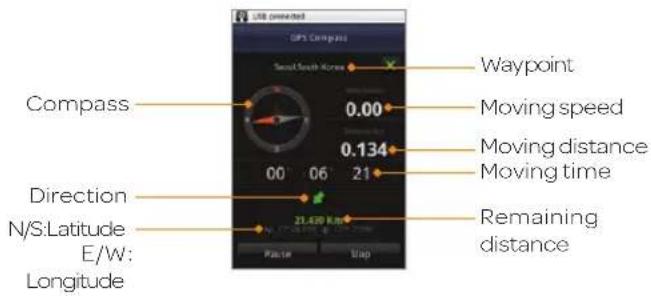

Compass 78

Navigation 79

Weather....80

Stocks 81

RSS Reader 83

10. Settings

Settings 85

Personalize 85

Wireless & networks....85

Call settings 86

Sound 87

Display 88

Location & security 88

Applications....90

Accounts & sync 91

Privacy 91

SD card & phone storage....91

Search....92

Language & keyboard....92

Voice input & output....93

Accessibility....94

Date & time....94

AT&T software update....94

About phone 94

Resetting Crossover....95

Appendix

Appendix 97

PC Suite 97

Troubleshooting checklist 97

Specifications 98

FCC Hearing-Aid Compatibility Regulations for

Wireless Devices....98

FCC Regulatory Compliance 99

Warranty 101

Legal notice....102

Index 103

1

Getting Started

Getting Started

Follow the outlined steps that should be taken first before using Crossover.

Inside the package

The package should contain the following items:

• Handset
• Battery
• MicroSD card
• Adapter
  • Getting Started CD
• USB cable

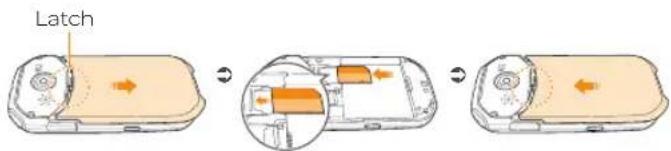

Installing the SIM/USIM card

1. Press and hold the latch and slide it to remove the battery cover.
2. Insert the SIM/USIM card into the slot. Ensure that the gold contacts of the card go against the metal contacts of Crossover.
3. Close the battery cover by sliding it up until you hear "click."

About the SIM/USIM card

When you subscribe to the network operator, you receive the Subscriber Identity Module (SIM) card or the Universal Subscriber Identity Module (USIM) card that contains your registration information, PIN code, etc. You should keep it secure and handle carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.

Installing the microSD card

1. Press and hold the latch and slide it to remove the battery cover.
2. Insert the microSD card into the slot. Ensure that the gold contacts of the card go against the metal contacts of Crossover.
3. Close the battery cover by sliding it up until you hear "click."

About the microSD card

A microSD card is a removable flash memory card where you can save data. Save pictures and contacts, and download applications to the SD card. You can expand the external memory up to 32GB.

It is recommended that you format the microSD card before using Crossover. For more information, refer to page 71.

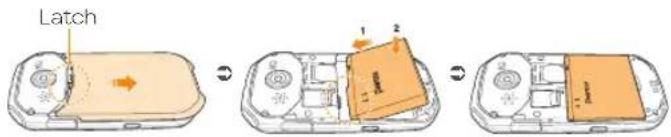

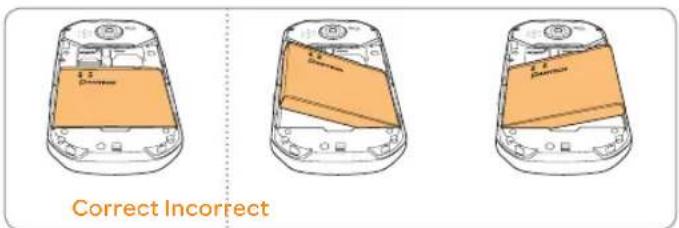

Inserting the battery

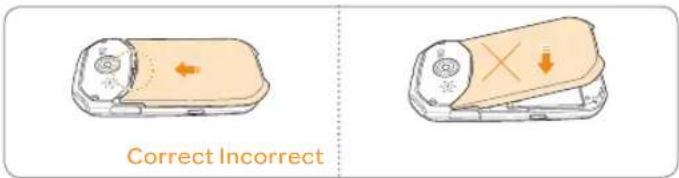

1. Press and hold the latch and slide it to remove the battery cover.
2. Align the gold contacts on the battery with the contacts located at the top of the battery compartment on the phone.
3. Press the battery down until it lays flat in the compartment.
4. Close the battery cover by sliding it up until you hear "click."

Correct method of inserting the battery

Correct method of installing the battery cover

About the battery

Crossover uses a Lithium Ion (Li-Ion) battery. Make sure to use the authorized battery and charger only. Maximum hours to use the battery might vary depending on service types offered by the service provider and temperatures. For more details, inquire at your nearest dealer.

① Note The Li-Ion battery can be recharged while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

Charging the battery

1. Open the protective cover on the right side of Crossover and connect the charger adapter to the USB connector of Crossover.

① Note Make sure to align the connector as indicated in the image. Otherwise, the charging connector will be damaged and the battery will not be charged.

1. Disconnect the charger from Crossover when the battery is fully charged.

Turning Crossover on/off

To turn on Crossover,

1. Press and hold the LOCK/PWR key for a few seconds.
2. Unlock the screen.

To turn Crossover off,

1. Press and hold the LOCK/PWR key.
2. Tap Power off.
3. Tap OK.

Unlocking the screen

The screen is locked by default when you turn on power. To unlock the screen,

1. Press the LOCK/PWR key, ≡ or ▲.
2. Drag the arrow symbol diagonally.
3. Draw a pattern if the screen is protected by pattern lock. Enter a PIN or a password if the screen is locked by a PIN or a password.

For more information on screen lock, refer to Location & security in Settings on page 89.

Locking the screen

Lock the screen to protect information in Crossover or save the usage of the battery.

To lock the screen, press the LOCK/PWR key.

Product overview

Touch mode

Front view Rear view

Key Function

FUNCTION Adds or deletes application shortcuts

BACK Ends an application; returns to the previous menu

MENU Displays options available; turns on the screen; rearranges the home screen

LOCK/PWR Locks the screen; turns on/off Crossover

Key Function

SEARCH Searches through the Internet; searches applications, contacts and messages that are saved

HOME Moves to the Home screen; turns on the screen; manages applications that are running

① Note Make sure not to cover the proximity sensor with the LCD protection film. If the sensor is covered, you might experience difficulties using the touch screen.

Side view

Hard keys from the touch mode

Key Function

VOLUME Adjusts all sound volumes; adjusts the ring mode

Key Function

USB connector Connects Crossover and your PC via the USB cable

CAMERA Turns on the camera; takes a picture

Internal antenna Receives data from other parties

QWERTY keypad

Hard keys from QWERTY keypad

Key Function
- +Z Enters the corresponding letter
+	Enters the secondary character (numbers, symbols) on the left of each key
+ +	Continuously enters secondary characters
+ ____ Enters symbols other than those in the keypad
+ Enters the capital letter for the key

Key Function

↑ + ↑ + !A Continuously enters capital letters

Sym Enters a space

▲ Moves the cursor; moves to the next field

◀ ▼ ▶

◀ Moves to the next line of text

◀ Deletes the character to the left of the cursor

Gripping Crossover

Hold Crossover in the right position for a call as indicated below:

• Make sure not to block the internal antenna embedded in Crossover. Check the location of the intenna on the illustration on page 14.
  • Metal accessories can affect the quality of calls.

Activating Crossover

Go through the following steps when you turn on Crossover for the first time.

Learning how to use Crossover

1. Press and hold the LOCK/PWR key to turn on Crossover.
2. Tap the android.
3. Select and tap a language for Crossover and tap Next.

4. Tap either Mobile network or Wi-Fi or Wi-Fi only, for Internet connection and tap Next.

5. Tap Connect to Wi-Fi network > Next if you want to establish a connection to the Wi-Fi network. Or tap Next if you want to connect to the network later.

6. Select and tap an available Wi-Fi network if you have tapped Connect to Wi-Fi network > Next in step 5. Follow the necessary steps to connect to the Wi-Fi network. For more information, refer to page 86.
7. Check the mobile network or Wi-Fi network and tap Next.
8. Tap See location in applications (such as Maps) using wireless networks to Use Google location, tap Agree for Location consent, and tap Next.
9. Tap Google account if you want to set up a Google account and follow the necessary steps, or just tap Next. For more information on creating a Google account, refer to the next section.
10. Check how to unlock screen and tap Next in the middle of the screen.
11. Check how to use the function key and tap Next.
12. Tap Tap here to start typing in the middle of the screen if you want to learn how to use the onscreen keyboard and follow the instructions. Or you can tap Skip and learn it later.
13. Tap Sync now for AT&T Address Book sync. You should insert a SIM/USIM card in Crossover. Tap Skip if you want to sync later and tap OK.
    ① Note You can do all of these steps later by tapping Tutorial.

Creating a Google account

After finishing learning how to use Crossover:

1. Tap Settings > Accounts & sync > Add account.

2. Tap Google > Next > Create.

3. Enter your first name, last name and user name for the account, and tap Next. The user name should be 6–30 characters long. You can select an alternative.

4. Tap Next > Connect to Wi-Fi if you have not connected Crossover to the Wi-Fi network and follow the instructions.

5. Enter a password and enter it again to confirm. You should enter at least 8 characters.

6. Tap Next.

7. Select and tap a security question and enter an answer.

8. Enter a secondary email address and tap Create.

9. Tap I agree, Next for the Google Terms of Service.

10. Tap Try again if your password is too weak for a password or contains invalid characters.

11. Repeat the steps 5 to 9.

12. Type the characters that appear on screen and tap Next.

13. Tap Sync Contacts if you want to synchronize your contacts. Tap Sync Gmail if you want to synchronize Gmail.

14. Tap Finish setup.

① Note Steps for connecting to Wi-Fi network and Google location service might not appear if you have already done with them.

Using the touch screen

Run an application or perform functions with the touch screen. The following finger actions help you easily understand how to use the touch screen and Crossover.

Tap: Tap once to access a menu or an option.

Double tap: Tap an item twice.

Drag: Tap and hold your finger on an item and move it without losing contact with the screen.

Flick: Place a finger on the screen and move the screen up or down, or left or right.

Pinch: Place two fingers on the screen and move them apart to zoom in a picture, a document or a web page, or move them together to zoom out.

Select and tap: Tap one in the list of options available.

Press and hold: Press a key for a few seconds.

① Note Use one finger at a time except when you deal with a picture or a document. Crossover will not recognize it when you use more than two fingers at the same time.

CAUTION

• Do not use sharp tools that can scratch the touch screen.
- Do not allow the touch screen to come in contact with water or chemicals. The touch screen may malfunction in humid conditions or in chemicals.
- Do not sit on Crossover. The touch screen can be damaged.

Understanding the home screen

Home screen is the starting point to use applications.

Access shortcuts, widgets or folders, and display a wallpaper according to your preference.

Portrait view Landscape view

① Note The screen changes to the landscape mode if you open the QWERTY keyboard.

Icons of the home screen

Icon Description
	Makes calls
	Opens messaging
	Accesses the Internet
	Opens Applications menu

Navigating the home screen

Crossover provides five different screens where you can place items according to your preference.

1. Flick the screen from the left to the right or vice versa.
2. Tap a desired application or widget to run.

Sample home screens

Screen indicators

Icon Description
	Connected to a Wi-Fi network
	An alarm has been set.
	Sync in progress
TTY	TTY is active.
	The GPS is active.
	There is a message that is not sent.
	New voicemail

Getting Started

Icon Description
	Bluetooth is connected.
	Bluetooth is active but not connected to other device.
	A file is ready to be delivered from other device.
	Portable Wi-Fi hotspot is active.
	USB tethering is active.
	USB tethering or Portable Wi-Fi hotspot is not active.
	The speakerphone is active.
	Strength of signal: The bar becomes bigger when the signal is strong.
	Airplane mode is active.
	There is no signal.
	A call is under way.
	There is a call on hold.
	There is a missed call.
	Strength of battery: The more green, the more it is charged.
	The battery is charging.
	There is an upcoming event.

Icon Description
	Music is being played.
	There is no SIM/USIM card.
	The phone vibrates when there is an incoming call.
	The other party cannot listen to you during a call.
	The phone doesn't ring when there is an incoming call.
	The memory disk is full.
	There is an error.

Managing running applications

1. Press and hold ☐ while you are using an application. Applications that are running in the background appear.
2. Select and tap an application in the screen if you want to resume your work with the application.
3. Tap ✗ you want to end the application by force and tap Yes. Press ≡ and tap Close all > Yes if you want to stop all applications at once that are running.
   ④ Note Make sure to press ↩ and move to the home screen if you want to finish using an application. Otherwise, the application continues to run and will take memory and consume battery.

Customizing the home screen

Adding a shortcut

1. Press and hold on an empty space on the home screen.
2. Tap Shortcuts.
3. Select and tap an item among those that can be added as a shortcut.
4. Select and tap a shortcut among those in the list.

① Note You can also make a shortcut of an application by pressing and holding the application in Applications.

Adding a widget

1. Press and hold an empty space on the screen.
2. Tap Widgets.
3. Tap either Android Widgets or Pantech Widgets.
4. Select and tap a widget among those in the list.

① Note Make sure to secure enough room on the screen for a widget. Depending on the type of the widget, you have to delete another widget or shortcut or rearrange them.

Creating a wallpaper from the Gallery

1. Press and hold an empty space on the home screen and tap Wallpapers, or press ≡ in idle mode and tap Wallpaper.
2. Tap Gallery.
3. Select and tap a picture and adjust the size.
4. Tap Save.
   ① Note If you want to create a live wallpaper, tap Wallpapers > Live wallpapers, select a wallpaper and tap Set wallpaper. Please remember that Maps consumes the battery relatively quickly. Even if you select wallpaper other than Maps, it is recommended that you save the battery consumption by tapping Force stop (Tap Settings > Applications > Manage applications > Maps).

Deleting a shortcut or a widget from the home screen

1. Press and hold a shortcut or widget you want to delete.
2. Drag it to the trash bin on the bottom of the screen and release it.

Changing the theme of the home screen

1. Press ≡ in idle mode and tap Themes. The User theme (Unsaved) is selected by default.
2. Select and tap a theme for the home screen among contextual themes and tap Done.
3. Tap Yes in the saving theme screen, enter the name of the user theme and tap Done. The home screen appears under the new name.

Deleting the user theme from home screen

1. Press ≡ in idle mode and tap Themes.
2. Select and tap one of the user themes on the top of the screen.
3. Press ≡ and tap Delete.
4. Tap the trash bin next to the user theme to delete and tap Done.

Changing the order of screens

1. Press and hold ≡ in idle mode.
2. Press and hold a screen and drag it to the new position.
3. Tap a screen or press 🔒 or ↩ if you want to go back to the home screen.

Adding a shortcut for the function key

1. Press FUNCTION and tap Add/Delete.
2. Select and tap an application to add for the function key, and tap Done. Applications that you have selected appear. Tap an application if you want to run it.

Deleting a shortcut from the function key

1. Press FUNCTION and tap Add/Delete.
2. Tap and deselect an application to delete from the function key, and tap Done.

Checking Easy Settings and Notifications

Easy Settings help manage a few important functions easily and check ongoing events.

1. Tap on the top of the home screen and drag it down, or press ≡ in idle mode and tap Notifications.
2. Tap an icon in Easy Setting that you want to run. The icon turns orange when the function is on.
3. Tap an ongoing event message if you want to run the relevant application.
4. Tap Clear if you want to remove notifications in the bar.

Opening Easy Setting Checking Notifications

Viewing Applications

1. Tap □press ≡ and tap Applications.
2. Press □ and tap List View if you want to see applications in the order of alphabet. In the list view, press □ and tap Grid View if you want to see applications at a glance.
3. Press □ and tap Rearrange if you want to place applications for your preference.
4. Press and hold an application and drag it to its new location and tap Done. If you want to undo your changes, tap Cancel or press ≡ and tap Reset.

Selecting the language

1. Tap Settings > Language & keyboard > Select language.
2. Select and tap a language that you want to use for Crossover.
   ① Note It is recommended to set the language option first before using other functions.

2

Communication

Communication

Calling

Making a call

1. Tap

2. Enter the area code and the phone number. Tap to delete the previous number. Press and hold to delete the whole number.

3. Tap

Answering and ending a call

1. Drag Answer to the right to answer the call.
2. Tap End to end a call during the conversation. After ending a call, its summary is shortly displayed.

Adjusting the volume

1. Press the volume key + to increase the volume during a call. Press the volume key - to decrease the volume during a call.
   ① Note Press the volume key in idle mode if you want to adjust the ringer volume. If you want to set it to the vibration mode, press the volume key all the way down until the mode appears.

Holding and unholding a call

1. Tap Hold during a call. The party will hear nothing.
2. Tap Unhold to resume the call.
3. Tap End to finish the call.

Swapping a call for a multiparty call

1. Tap Add call during a call. The first party will hear a waiting sound.
2. Tap Swap to change the calling party.
3. Tap End to finish the call.

Making a conference call

1. Tap .
2. Enter the area code and the phone number.
3. Tap Add call to invite a third party to the call.
4. Tap Merge calls to let all the parties to participate in the conversation.

Communication

Checking your voice mail

1. Tap
2. Press and hold 1 on the keypad.
   ① Note The screen moves to the voice mail contact editing screen if the number has not been designated for the voice mail.

Making a call from the Address Book

1. Tap
2. Tap Contacts, select and tap a contact to call.
3. Tap Call home, Call mobile or Call work according to your preferences.

Making an emergency call

1. Tap Emergency call when the screen is locked.
2. Tap 911 or other numbers for emergency calls.

Checking missed calls

1. Tap
2. Tap Call log and check missed calls.
3. Select and tap a number to call back.
4. Tap 📋 you want to make a call to the number.

Checking the call history

1. Tap
2. Tap Call log
3. Select and tap a contact to see.
4. Tap you want to make a call to the contact.
   ① Note The displayed call time is not equal to the call charge.

Saving a new contact

1. Tap .
2. Enter a telephone number.
3. Press ≡ and tap Add to contacts.
4. Tap Create new contact.
5. Enter necessary information of the contact and tap Save.

Talking through the speaker

1. Tap Speaker during a call. A white bar appears under Speaker when the function is on.
2. Tap Speaker if you want to stop using the function.
   ① Note If a headset is connected to Crossover, the speaker does not work.

Talking through the Bluetooth

1. Tap Bluetooth during a call. A white bar appears under Bluetooth when the function is on.
2. Tap Bluetooth if you want to stop using the function.
   ① Note Refer to the relevant manual of the Bluetooth headset for more information.

Muting the phone

1. Tap Mute during a call. A white bar appears under Mute when the function is on.
2. Tap Mute if you want to turn off the function.

Adding a call

1. Tap Add call to make a call to another party during a call with a party.
2. Enter the telephone number and tap
   ① Note The current call is held when you make a call with another party.

Using the Yellow Pages

1. Tap
2. Tap >YP.
3. Tap Change and enter the location if you want to change the location.
4. Select and tap a business name that you want to see from each category, or enter a business name and tap 🔒.

Messaging

Sending a new message

1. Tap Messaging from the applications menu
2. Tap New message.
3. Enter the recipient's number or tap Select and tap a contact.
4. Enter a message.
5. Tap Send.
   ① Note A failed message remains in the list. If you want to delete it, press and hold the message and tap Delete.

Entering a message using voice

1. Tap Messaging from the applications menu.
2. Tap New Message and tap in the body of the text.
3. Tap in the virtual keyboard and speak your message.
4. Tap Send.

Entering a message using the keyboard

Use different keyboard settings for different characters.

1. Tap Messaging from the applications menu.
2. Tap New message and tap in the body of the text.

3. Tap ☐ to select and enter letters for the message.

4. When is selected, the next letter entered is capitalized.

5. When is selected, all letters entered are capitalized.

6. Tap 127u want to enter a number or/and common symbols. Tap 123if 6u want to enter complicated symbols.

Capital letters Numbers and common symbols

Complicated symbols

Communication

Creating a message using Swype

1. Tap Messaging from the applications menu
2. Tap New message and tap on the empty space for the message.
3. Press and hold in the message field.
4. Tap Input method > Swype.
5. Drag your finger on the screen and enter the message.
   ① Note If you want to change the text input method, press and hold on the screen and tap Input method > Android keyboard.

About Swype

Swype is a fast and easy way to enter a message. For example, drag your finger on the screen keyboard as shown and input "Quick."

Entering "Quick"

Setting Swype options

1. Tap Options.
2. Tap Language if you want to change the language for Swype.
3. Tap Word prediction if you want to see predicted words while you enter a message.

4. Tap Enable tip indicator if you want to see the flashing indicator for quick help. The check box is selected by default.

5. Tap Swype help or Tutorial if you need to learn more about how to use Swype.

Deleting messages

1. Tap Messaging from the applications menu.

2. Press ≡ and tap Delete.

3. Select and tap the trash bin next to the conversation(s) to remove.

4. Tap Done.

Forwarding messages

1. Tap Messaging from the applications menu.
2. Select and tap a message that you want to deliver.
3. Press ≡ and tap Forward.
4. Enter the recipient's number or tap select and tap a contact.
5. Enter a message in the message field.
6. Tap Send.

Sending a message using a Quick Text

1. Tap Messaging from the applications menu.
2. Press
3. Tap Quick text and select and tap a message.
4. Press
5. Tap Send message.
6. Enter the recipient's number.
7. Tap Send.

Adding a Quick Text

1. Tap Messaging from the applications menu
2. Press ≡ and tap Quick text.
3. Press ≡ and tap Add new.
4. Enter a quick text.
5. Tap Save.

Adding a template

1. Tap Messaging from the applications menu
2. Press ≡ and tap Templates.
3. Press ≡ and tap Add new.
4. Enter the recipient's number and the message.
5. Tap Save.

Sending a message using a template

1. Tap Messaging from the applications menu
2. Press ≡, tap Templates and select a template.
3. Press ≡ and tap Send message.
4. Type a message in the message field.
5. Tap Send.

Attaching pictures to a message

1. Tap Messaging from the applications menu
2. Tap New message.
3. Enter the recipient's number.
4. Type a message in the message field.

5. Press ≡ and tap Attach > Picture.

6. Tap Capture picture, Gallery, Sketch Pad or Handy Memo (Drawing).

7. Select and tap a picture to attach.
8. Tap Send.

Attaching locations

1. Tap Messaging from the applications menu.
2. Tap New message.
3. Enter the recipient's number.
4. Enter a message in the message field.
5. Press ≡ and tap Attach > Location.
6. Tap either Searching for GPS signal or Find on map.
7. Place the indicator on the map and tap Done.
8. Tap either Address or Google maps Web link.
9. Tap Send.

Setting storage limits

1. Tap Messaging from the applications menu.
2. Press ≡ and tap Settings > Delete old messages if you want old messages to be deleted when the storage limit is reached.
3. Tap Text message limit, set the maximum number of messages and tap Set.
4. Tap Multimedia message limit, set the maximum number of messages and tap Set. Make sure to delete old messages before setting the maximum number of messages.
   ① Note Make sure to secure enough internal memory space: you might experience difficulties receiving or sending messages when the memory space is low.

Communication

Setting a signature

1. Tap Messaging from the applications menu
2. Press ≡ and tap Settings.
3. Tap Edit signature.
4. Enter a signature and tap Save.
5. Tap Signature auto-append if you want to add your signature automatically, and tap either Manual/off or Append on Compose and tap OK.

Checking used space

1. Tap Messaging from the applications menu
2. Press ≡ and tap More > Used space. You can see the number of the messages that you have saved. Used space only appears as a menu option if you have saved messages.

Searching messages

1. Tap Messaging from the applications menu.
2. Press ≡ and tap More.
3. Tap Search.
4. Enter a word to search for in messages and tap Q.

Viewing received messages

1. Tap Messaging from the applications menu
2. Select and tap a message to read. Unread messages are displayed in bold fonts.

Replying to a received message

1. Tap Messaging from the applications menu.

2. Select a message to reply to.

3. Press and hold the message and tap Reply.

4. Enter a message.
5. Tap Send.

Text message settings

1. Tap Messaging from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Manage SIM card messages if you want to manage messages that are stored in the SIM card.

Multimedia message settings

1. Tap Messaging from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Auto-retrieve if you want to retrieve messages automatically. The check box is selected by default.
4. Tap Extra settings and adjust settings as you prefer.

Setting notifications

1. Tap Messaging from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Notifications if you want to see in the status bar when a message is delivered. The check box is selected by default.
4. Tap Select ringtone and select and tap a ringtone for incoming messages, and tap OK.
5. Tap Vibrate and tap Always, Only when silent or Never, and tap OK.

Receiving and sending emails

Setting up an email account

1. Tap Email from the applications menu.
2. Enter your email address and password for the first use.
3. Tap either Manual setup or Next.
4. If you tap Manual setup, tap POP3, IMAP or Exchange, set the necessary options and tap Next.
5. Give a name for the account.
6. Give your name that will be displayed on the outgoing messages.
7. Tap Done.
   ① Note The screen varies depending on the email service provider.

Adding a new email account

1. Tap Email from the applications menu.
2. Press ≡ and tap More > Accounts.
3. Press ≡ and tap Add account.
4. Follow the steps to set up an email account.

Viewing incoming messages

1. Tap Email from the applications menu.
2. Select and tap an account, and tap a message you want to check.
   ① Note Make sure to secure enough internal memory space: you might experience difficulties receiving or sending emails when the memory space is low.

Sending an email

1. Tap Email from the applications menu.
2. Press ≡ and tap Compose.
   ① Note If you have added more than two email accounts, the first one is designated as the primary account for sending an email.
3. Enter the recipient's email address, or tap and select and tap the contact.
4. Enter the subject of the email and the message.
5. Tap Send.

Adding attachments to an email

1. Press ∈ in the composed message and tap Attach.
2. Tap Pictures if you want to add a picture.
3. Tap vCard if you want to add a vCard.
4. Tap Send when you are finished.

Designating emails as favorites

1. Tap Email from the applications menu.
2. In the Inbox screen, press ≡ and tap Add star.
3. Select and tap the message and tap Done. A red star icon appears next to the message.
4. Tap Email from the applications menu.
5. Press ≡ and tap More > Read/Unread in the Inbox screen.
6. Select and tap the message to display it as read.
7. Tap Read. The title of the message turns white.

Marking emails as read

Communication

Removing the email account

1. Tap Email from the applications menu.
2. Press ≡ and tap More > Accounts in the Inbox screen.
3. Press and hold the account that you want to remove.
4. Tap Remove account > OK.

Email settings

1. Tap Email from the applications menu
2. Tap an account.
3. Press ≡ and tap More > Account settings.
4. Tap Email check frequency, set the time interval to check email and tap OK.
5. Tap Default account if you want to set the email account as the basic account by default.

Using Gmail

Adding a Gmail account

1. Tap Gmail from the applications menu.
2. Tap Next.
3. Tap Sign in if you have a Gmail account.
4. Enter your user name and password.
5. Tap Sign in.
   ① Note For more information on adding a Gmail account, refer to Creating a Gmail account on page 18.

Reading incoming messages

1. Tap Gmail from the applications menu.
2. Select and tap the message to read.
3. Tap Archive if you want to preserve the message in a separate folder.
4. Tap Delete if you want to delete the message.

① Note You can read messages by label. Press 📄 in the Inbox screen and tap Go to labels.

Sending an email through Gmail

1. Tap Gmail from the applications menu.
2. Press ≡ and tap Compose.
3. Enter the recipient's email address, the subject and the message.
4. Tap or press ≡ and tap Send.

Designating emails as spam

1. Tap Gmail from the applications menu.
2. Select and tap an email.
3. Press ≡ and tap More.
4. Tap Report spam if you want to report the email and put it from your inbox.

Setting Gmail options

1. Tap Gmail from the applications menu.
2. Press ≡ and tap More > Settings.
3. Tap Confirm actions, tap Archive, Delete and/or Send to see the confirmation message for each action, and tap OK.
4. Tap Reply all if you want to make it default to reply all to incoming messages.
5. Tap Email notifications if you want to see if a new mail arrives. The check box is selected by default.

Using Twitter

Joining in Twitter

1. Tap Twitter from the applications menu.
2. Tap Sign In, enter Username or email address and password, and tap Sign In again. If you do not have an account, tap Sign Up and follow the necessary steps.

Posting Tweet

1. Tap Twitter from the applications menu.
2. Tap on the top of the screen.
3. Enter a message in the box. You can enter up to 140 words for a message.
4. Tap and select and tap a picture from your gallery if you want to attach a picture for the message. You can take a photo right away by tapping and running the camera.
5. Tap Tweet.

Sending messages

1. Tap Twitter from the applications menu.
2. Tap on the top of the screen.
3. Enter a message in the box.
4. Tap .@
5. Tap the check box next to the recipient you want to send to and tap OK.
6. Tap Tweet.

Searching Tweets or people

1. Tap Twitter from the applications menu
2. Tap
3. Type the keyword in the box and tap 🔒 you can also tap one of keywords that appear below the box.

Adjusting settings for notifications

1. Tap Twitter from the applications menu
2. Press ≡ and tap Settings.
3. Tap Notifications to make the function active. It is selected by default.
4. Tap Tweets if you want to know when there is a new Tweet for your account.
5. Tap Vibrate if you want Crossover to make vibrations when there is an incoming notification.
6. Tap Notification ringtone if you want to assign a ringtone for the notification. Then, select and tap one in the list and tap OK.

Adjusting settings for sync

1. Tap Twitter from the applications menu
2. Press □ and tap Settings.
3. Tap Sync Contacts > Sync all > Done if you want to synchronize data about the people you are following to Contacts of Crossover.
4. Tap Refresh interval, select and tap the time for refreshing Tweets.

Using Facebook

Accessing Facebook

1. Tap Facebook from the applications menu
2. Tap I agree for the end user license agreement screen.
3. Enter your email address and password.
4. Tap Login. If you don't have the account, tap Sign up and follow the necessary steps.
5. Select and tap an option for syncing and tap Finish to complete the process.

Posting messages

1. Tap Facebook from the applications menu.
2. Enter a message in the box on the top and tap Share if you want to display a new status to your friends.
   ① Note If your friend has posted a new message, it appears first. Then, press ↩, tap ▼ and post a message.

Sending messages

1. Tap Facebook from the applications menu
2. Tap Messages. If there are new feeds, press first.
3. Press ≡ and tap Compose. Or you can tap to post a message.
4. Enter the recipient's name, or tap, select and tap the check box next to the recipient you want and tap Done.
5. Enter the subject and contents of the message.
6. Tap Send.

Main screen Posting a message

Adjusting settings

1. Tap Facebook from the applications menu.
2. Press ≡ and tap Settings. If there are new feeds, press ➔ first.
3. Tap Refresh interval and set the frequency for refreshing.
4. Tap Messages if you want to see when a new message arrives. The check box is selected by default.
5. Tap Friend requests if you want to see when a friend wants to add you on Facebook. The check box is selected by default.

Using the Social Net widget

1. Press and hold an empty space on the home screen.
2. Tap Widgets.
3. Tap Pantech Widgets > Social Net.
4. Select and tap a style.
5. Tap the widget on the screen and log in to Twitter, Facebook or MySpace. When updated, the relevant icon changes color.

About the Social Net widget

The Social Net widget helps use the social networking services easily. Check updates in Twitter, MySpace and/or Facebook at a glance and post your messages.

S-Board

Form a group with your friends through S-Board and share contents and logs that you have created using Crossover. You can use S-Board in the landscape mode only.

Forming a group

1. Tap S-Board from the applications menu. The screen changes to landscape mode by default.
2. Tap Create New.
3. Tap Add Photo, select and tap a picture from the Gallery.
4. Enter the name of the group.
5. Enter the name or phone number of a member that you want to add to the group. You can also add by tapping selecting and tapping a contact, and tapping Done.
6. Tap Next on the top of the screen.
7. Enter a message in the empty space and tap Done.
8. Tap Send.

Editing a group

1. Tap S-Board from the applications menu.
2. Press and tap Edit group.
3. Tap Photo, select and tap a picture from the Gallery.
4. Change the name of the group.

Communication

1. Tap if you want to set the group as your favorite.
2. Tap Done.

Adding members to a group

1. Tap S-Board from the applications menu.
2. Press ≡ and tap Add members.
3. Enter the name or phone number of a member to add to the group. You can also add by tapping Electing and tapping a contact, and tapping Done.
4. Tap Next on the top of the screen.
5. Enter a message in the empty space and tap Done.
6. Tap Send.

Deleting members from a group

1. Tap S-Board from the applications menu.
2. Press ≡ and tap Delete members.
3. Select and tap a member you want to remove.
4. Tap Next on the top of the screen.
5. Enter a message in the empty space.
6. Tap Send.

Deleting a group

1. Tap S-Board from the applications menu.
2. Press ≡ and tap Delete group.
3. Tap Yes.
4. Enter a message in the empty space.
5. Tap Send.

Sharing media

1. Tap S-Board from the applications menu.
2. Tap Contents on the top left of the screen.
3. Tap a content icon.
4. Select content from a corresponding application.
5. Move the attached icon.
6. Resize the icon if it is resizable.
7. Tap Share.

Deleting logs

1. Tap S-Board from the applications menu.
2. Tap Logs.
3. Press ≡ and tap Delete Logs.
4. Select and tap logs you want to remove.
5. Tap Done.

Google Talk

Setting your status

1. Tap Talk from the applications menu.
2. Tap on the top of the screen where your Gmail address is displayed.
3. Tap the status bar on the top of the screen.

4. Tap Available, Busy or Invisible.
   ① Note The status message will not be displayed if your status is Invisible.

5. Enter the status message.

6. Tap if you want to insert a photo.
7. Select and tap a picture from your gallery, adjust the size of the picture and tap Save.
8. Tap Done. Your status is displayed at the top of the screen.

Inviting a friend to chat

1. Tap Talk from the applications menu.
   2 Press and tap Add friend.
   3 Enter the user name of the friend you want to add.
2. Tap Send invitation.

Chatting with friends

1. Tap Talk from the applications menu.
   2 Select and tap one of friends that appear on the screen.
2. Enter a message and tap Send.
3. Press □ and tap Add to chat if you want another friend to join the conversation.
   5 Press □ and tap More > Insert smiley, and select and tap one.
4. Press ≡ and tap End chat if you want to stop chatting with your friend.

Managing your friends list

1. Tap Talk from the applications menu.
2. Press ≡ and tap More.
3. Tap Invites. You can check pending invitations.

Setting the talk environment

1. Tap Talk from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Automatically sign in if you want to remain signed-in for Talk.
4. Tap Mobile indicator if you want your friends to see that you are on a mobile device.
5. Tap IM notifications if you want to see notifications in the status bar when a new IM arrives.

3

Entertainment

Entertainment

Crossover offers a variety of tools for entertainment purposes.

Using the camera

Take pictures and record videos with the built-in camera. They can be saved and sent via multimedia messages.

Taking pictures

1. Tap Camera or press the CAMERA key for a few seconds. The screen changes to landscape mode by default.
2. Tap on the screen and select options if necessary. Option buttons disappear in a few seconds.
3. Focus on the object and tap or press the CAMERA key. The picture is saved automatically.
4. Tap Share, Set as or Delete.
5. Press the CAMERA key or ↩ if you want to take another picture.

Field of grass under cloudy sky with camera icon overlay (no text or symbols on main scene)

Landscape photo showing a grassy field under a cloudy sky, with a green circular icon in the corner (no text or symbols)

Selecting options Focusing on the object
① Note The screen moves to Applications if you do not touch the screen or run the camera for two minutes.

Adding special effects

1. Tap on the screen or press ☐ while in the camera mode.
2. Tap and select special effects.
3. Tap Done.

Adjusting brightness

1. Tap on the screen or press ☐ while in the camera mode.
2. Tap
3. Drag to the left to reduce brightness, or to the right to increase brightness.

Zooming in/out

1. Tap on the screen or press ☐ while in the camera mode.
2. Tap
3. Drag to the left to zoom out, or to the right to zoom in.

Changing settings

1. Tap on the screen or press ≡ while in the camera mode.
2. Tap
3. Tap Resolution and adjust the resolution from 640x480 to 2048x1536.
4. Tap Shutter Sound if you want to make sound when taking a picture. The check box is selected by default.
5. Tap Focus mode, and tap Auto, Infinity or Macro.
6. Tap Store location if you want to take a picture with geo-information.

Entertainment

Camera menu options

Icon Name Description
	Shutter Takes a picture
	Function	Adds special effects: White Balance, Filter; and sets timer
	Shot	Selects shot modes: Single Shot, Multi Shot, Polaroid, Division Shot
	Brightness Adjusts brightness
	Zoom Zooms the object in or out
	Album Views saved pictures
	Setting	Changes settings: Resolution, Shutter Sound, Focus mode, Store location
	Video mode Changes to the camcorder mode

Sharing pictures

1. Tap on the screen and tap while in the camera mode, or tap Gallery in Applications.
2. Press and hold a picture to share. If you want to share all pictures, tap Select All. You can also select a few pictures.
3. Tap Share.
4. Tap Online Locker, Twitter, Picasa, Bluetooth, Facebook, Email, Gmail or Messaging. If you select more than one pictures, Picasa, Bluetooth, Messaging, Email and Gmail are available.

Cropping a picture

1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.
2. Select and tap a picture to crop.
3. Tap Menu > More > Crop.
4. Adjust the size of the picture and tap Save.

Setting a picture as wallpaper

1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.
2. Select and tap a picture to set as wallpaper.
3. Tap Menu > More > Set as > Wallpaper.
4. Adjust the size of the picture and tap Save.

Assigning a picture to a contact

1. Tap on the screen and tap while in the camera mode or tap Gallery in Applications.
2. Select and tap a picture to assign to a contact.
3. Tap Menu > More > Set as > Contact icon.
4. Select and tap a contact to set the picture for its icon.
5. Adjust the size of the picture and tap Save.

Deleting pictures

1. Tap while in the camera mode or tap Gallery in Applications.
2. Press and hold a picture to delete. If you want to delete all pictures, tap Select All. You can also select a few pictures.
3. Tap Delete > Confirm Delete.

Recording videos

1. Tap Camcorder from the applications menu. The screen changes to landscape mode by default.
2. Tap on the screen and select options if necessary. Option buttons disappear in a few seconds.
3. Focus on the object and press .Press ← if you want to cancel recording.
4. Tap to stop recording.
5. Tap Share, Play or Delete.
6. Press the CAMERA key or ↻ if you want to record another video.

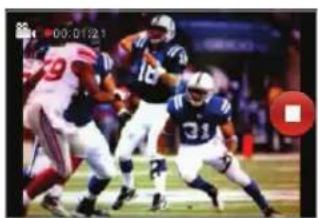

Action photo of American football players in mid-play on a field, wearing numbered jerseys (no visible text or symbols)

Action shot of a football game with players in action (no visible text or symbols)

Selecting options Recording a video

① Note The screen moves to Applications if you do not touch the screen or run an application for two minutes.

Recording videos for a certain period of time

1. Tap on the screen while in the camcorder mode.
2. Tap and tap Duration.
3. Select and tap a time duration and tap Done.
4. Tap .The video will record for the selected duration.

Adjusting brightness

1. Tap on the screen while in the camcorder mode.
2. Tap .
3. Drag to the left to reduce brightness, or to the right to increase brightness.

Zooming in/out

1. Tap on the screen while in the camcorder mode.
2. Tap
3. Drag to the left to zoom out, or to the right to zoom in.

Changing settings

1. Tap on the screen while in the camcorder mode.
2. Tap
3. Tap Resolution and adjust the resolution from 176x144(MMS) to 800x480.
4. Tap Shutter Sound if you want to make a sound when taking a video. The check box is selected by default.

Camcorder menu options

Icon Name Description
	Video Records a video
	Function Uses functions: White Balance, Filter, Duration
	Brightness Adjusts brightness
	Zoom Zooms the object in or out

Entertainment

Icon Name Description

	Album Views saved videos
	Settings	Changes settings: Resolution, Shutter Sound
	Camera mode	Changes to the camera mode

Sharing videos

1. Tap on the screen and tap while in the camcorder mode, or tap Gallery in Applications.
2. Tap on the first video on the screen.
3. Press and hold a video to share. If you want to share all videos, tap Select All. You can also select a few videos.
4. Tap Share.
5. Tap YouTube, Bluetooth, Online Locker, Email, Gmail or Messaging. If you select more than one videos, YouTube, Bluetooth, Email, Gmail and Messaging are available.

Selecting a video Sharing a video

Deleting videos

1. Tap on the screen and tap while in the camcorder mode or tap Gallery in Applications.
2. Tap on the first video on the screen.
3. Press and hold a video to delete. If you want to delete all videos, tap Select All. You can also select a few videos.
4. Tap Delete > Confirm Delete.

Using the gallery

Viewing pictures

1. Tap Gallery from the applications menu.
2. Select and tap a picture to view.
3. Tap the image on the screen to zoom in or out. Double-tap on the screen to zoom in to the maximum.
4. Flick the screen to the left or right if you want to see other pictures.
   ① Note Functions of the gallery disappear in a few seconds. Tap on the screen if you want to see functions available.

Viewing videos

1. Tap Gallery from the applications menu.
2. Select a video to view. An item with is a video.
3. Tap Movies or Video Player to run the video. You can choose a default application to open videos.
4. Tap on the screen to pause, fast-forward or rewind the video.

Video Player Movies

Action photo of a football player in mid-action, wearing helmet and purple helmet (no visible text or symbols)

Video Player icons

Icon Name Description
	Play Plays the video
	Pause Pauses the video
	Fast-forward Fast-forwards the video
	Rewind Rewinds the video

Video Player settings

1. Press ☐ while a video is playing through Video Player.
2. Tap Settings.
3. Tap Always Landscape Mode if you want to see videos in the landscape mode all the time. The check box is selected by default.
4. Tap Full Screen Mode if you want to see videos in the full screen mode all the time.
5. Tap Sound Effect, select and tap an effect from the 3D sounds and equalizer, and tap Done.

Viewing pictures in a slideshow

1. Tap Gallery from the applications menu.
2. Select and tap the pictures that you want to view in a slideshow.
3. Tap Slideshow.
4. Tap on the screen if you want to stop the slideshow.
5. Tap on the screen and tap Slideshow if you want to resume the slideshow.

Listening to music

Enjoy music on Crossover. Make sure to insert a microSD card to transfer music to Crossover and listen to it.

Playing music

1. Tap Music Player from the applications menu
2. Select and tap a file from the list sorted by the alphabetic order. Files that Crossover offers include MP3, AAC, AAC+, eAAC+ and WMA.
3. Tap Play All to listen to all files.

① Note Press and hold the artist name, album title or song if you want to search for related information with the Internet or YouTube.

Entertainment

Music Player icons

Icon Description
	Pauses and plays a file
	Moves to the next/previous fileFast-forwards or rewinds the file if you press and hold
	Shuffles files (blue); shuffle is off (white)
	Does not repeat the file
	Repeats all files
	Repeats current file only
	Shows the list of files that are being played
	Rates the file

Adding sound effects

1. Tap Music Player from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Sound Effect.
4. Add sound effects according to your preferences.
5. Tap Done,

Creating a playlist

1. Tap Music Player from the applications menu.
2. Tap Songs > Playlists.
3. Tap Add new playlist or press ≡ and tap New Playlist.
4. Enter the name of the playlist and tap Done.

Adding songs to a playlist

1. Tap Music Player from the applications menu
2. Tap Songs > Playlists.
3. Press and hold the playlist you would like to add songs to and tap Add Tracks.
4. Select and tap the check box next to the song(s) that you want to add to the playlist.
5. Tap Add.

Removing songs from a playlist

1. Tap Music Player from the applications menu
2. Tap Songs > Playlists.
3. Press and hold a playlist and tap Remove Tracks.
4. Select and tap the trash bin next to the song(s) to remove. You cannot remove a song that is playing.
5. Tap Done.

Music Player Settings

1. Tap Music Player from the applications menu
2. Press ≡ and tap Settings.
3. Tap Shuffle if you want to shuffle the songs in the playlist.
4. Tap Repeat and tap Repeat all, Repeat single track or Repeat off.
5. Tap Shake gesture if you want to listen to the previous or next track simply by shaking Crossover to the left or right.

Viewing information

1. Tap Music Player from the applications menu.
2. Press and hold a file to see information.
3. Tap Properties.
4. Scroll up or down to view information.

Sorting files by type

1. Tap Music Player from the applications menu.
2. Tap Songs on the top of the screen and select the option you would like to sort by. Songs is set up by default.

Rating a file

1. Tap Music Player from the applications menu.
2. Select and tap a file to rate.
3. Tap while the file is playing and rate from one to five stars.

Deleting files

1. Tap Music Player from the applications menu.
2. Press ≡ and tap Delete.
3. Tap 📂 the file to delete. When selected, the icon turns green.
4. Tap Done.

Enjoying YouTube

Watching videos

1. Tap YouTube from the applications menu.
2. Select and tap a video to watch.
3. Double-tap the screen to watch the video in full screen.

Outdoor scene with vehicles and trees, no visible text or symbols

Uploading videos

1. Tap YouTube from the applications menu.
2. Press ≡ and tap Upload.
3. Select and tap a video to upload.
4. Set a title for the video and tap Upload.

Checking upload status

1. Tap on the top of the screen and drag it down while the video is being uploaded.
2. Tap Uploading. You can see the status of the upload.
3. Press ≡ and tap Pause uploads if you want to pause uploading. Press ≡ and tap Resume uploads if you want to resume upload.
4. Tap the video on the top of the screen and tap Cancel if you want to cancel the upload.

Entertainment

Creating a YouTube account

1. Tap YouTube from the applications menu.
2. Press ≡ and tap My Channel > Add account.
3. Tap here on the bottom of the YouTube sign-in screen.
4. Follow the steps to create an account.

Sharing videos

1. Tap YouTube from the applications menu.
2. Select and tap a video to share.
3. Tap More > Share on the top of the screen.
4. Tap Bluetooth, Email, Facebook, Gmail, Messaging or Twitter.

Watching videos by category

1. Tap YouTube from the applications menu.
2. Press ≡ and tap Browse.
3. Select and tap a category.
4. Flick the screen to scroll, select and tap a video to watch.

Watching videos by upload date

1. Tap YouTube from the applications menu.
2. Press ≡ and tap Browse.
3. Select and tap a category.
4. Tap This week on the top of the screen.
5. Select and tap one among time intervals.

Viewing my account information

1. Tap YouTube from the applications menu.
2. Press ≡ and tap My Channel.
3. Tap your Google account. You can tap Add account and add an account for YouTube.
4. Tap each item for your account including Uploads, Favorites, Playlists and Subscriptions.

YouTube Settings

1. Tap YouTube from the applications menu.
2. Press ≡ and tap Settings.
3. Tap High quality on mobile if you want to watch high-quality videos.
4. Tap Caption font size and select and tap the font size if you want to adjust the size of the font.
5. Tap Clear search history if you want to remove search history from the search box and tap OK.
6. Tap SafeSearch filtering if you want to block videos that contain restricted content, and select and tap the filtering option.

4

Personal Information

Personal Information

This chapter explains how to manage contacts and to communicate via memos.

Managing contacts

Viewing contacts information

1. Tap Contacts from the applications menu.
2. Select and tap a contact for more information.

Creating contacts

1. Tap Contacts from the applications menu.
2. Press ≡ and tap New contact.
3. Enter related information and tap Save.
   ① Note You can create a contact by entering the telephone number first. Tap enter a telephone number, press and tap Add to contacts > Create new contact.

Editing contacts

1. Tap Contacts from the applications menu.
2. Press and hold a contact to edit, and tap Edit.
3. Edit information and tap Save.

Deleting contacts

1. Tap Contacts from the applications menu.
2. Press and hold a contact to delete and tap Delete.
3. Tap Yes.

Importing/Exporting contacts information

1. Tap Contacts from the applications menu.
2. Press ≡ and tap More > Import/Export.

3. Tap Import from SD card, Export to SD card or Share visible contacts.

4. Tap AT&T Address Books, SIM or your account if you tapped Import from SD card.

5. Tap OK if you want to export your contact list to the SD card, if you tapped Export to SD card.

6. Tap Bluetooth, Email, Gmail or Messaging if you tapped Share visible contacts. Follow the next steps to share contacts.

7. Tap OK.

Searching contacts information

1. Tap Contacts from the applications menu.
2. Press ≡ and tap Search.
3. Enter the name of contact. The search result appears instantly.

Setting up AT&T Address Book

1. Tap Contacts from the applications menu.
2. Press ≡ and tap Settings.
3. Tap AT&T Address Book > OK. Your contacts are backed up to your AT&T Address Book and changes to contacts are automatically saved.

Setting display options

1. Tap Contacts from the applications menu.

2. Press ≡ and tap Display options.

3. Tap Only contacts with phones if you want to see only contacts with phone numbers.

4. Tap Sort list by and tap either First name or Last name.
5. Tap AT&T Address Book, and tap ICE and/or All Other Contacts to display.
6. Tap your Google account, select and tap the category for system group.
7. Tap Done when you are finished.

Sharing contact details

1. Tap Contacts from the applications menu.
2. Press and hold a contact to share and tap Share.
3. Tap Bluetooth, Email, Gmail or Messaging.

Setting contact options

1. Tap Contacts from the applications menu.
2. Press and hold a contact, and tap Options.
   ① Note For a SIM contact, Options is not available.
3. Tap Ringtone, select and tap a ringtone for the contact and tap OK.
4. Tap Incoming calls if you want to send incoming calls from the contact to voicemail directly.

Managing accounts and sync

1. Tap Contacts from the applications menu.
   2 Press ≡ and tap More > Accounts.
   3 Tap Background data to allow applications to retrieve data at any time.

2. Tap Auto-sync if you want to sync data automatically.

3. Tap Add account if you want to add an account and follow the next steps for creating accounts.

Adding to favorite contacts

1. Tap Contacts from the applications menu.
2. Press and hold a contact to add to favorites, and tap Add to favorites. A orange star appears next to the contact.
   ① Note For a SIM contact, Add to favorites is not available.
3. Tap Favorites on the top of the screen if you want to see added favorite contacts.

Using the calendar

Manage your schedule with the calendar. Make sure to have a Google account. For details on Google account, refer to page 18.

Creating an event

1. Tap Calendar from the applications menu.
2. Tap a day in the calendar.
3. Press and hold the time that you want to add an event to and tap New event.

4. Enter necessary information. Press and tap Show extra options if you need more options.

5. Tap Done.

① Note You can also create an event by pressing ≡ and tapping More > New event.

Viewing the calendar

1. Tap Calendar from the applications menu.
2. Tap a day that you want to view events for the day. A blue dot indicates an event for a day.
3. Press ≡ and tap Week or Month if you want to see events for a weekly or monthly basis.
4. Tap Today if you want to view events for today.
5. Tap Agenda if you want to see events in the text mode.

Time	Men	Two	Wed	Thu	Fri	Sat
48	20	20	1	2	3	4
5	6	7	8	9	10	11
12	13	14	15	16	17	18
19	20	21	22	23	24	25
26	27	28	29	30	31
2	3	4	5	6	7	8

Monthly view Agenda

Calendar icons

Icon Description
	Today
	Day with events
	Highlighted day
	Highlighted day with events

Setting reminders

1. Tap Calendar from the applications menu.
2. Press ≡ and tap More > Settings.
3. Tap Set alerts & notifications and select and tap an option if you want to change the notification method.
4. Tap Select ringtone if you want to set a specific ringtone for calendar reminders, and select and tap one.

Editing events

1. Tap Calendar from the applications menu.
2. Tap the day that you want to edit events.
3. Press the event that you want to edit.
4. Press ≡ and tap Edit event.
5. Edit the details and tap Done.

Editing an event

Creating a memo

Create a memo with your finger, the keypad or your voice. Make sure to insert a microSD card to use the memo.

Creating a text memo

1. Tap Handy Memo from the applications menu.
2. Enter a memo. If there are saved memos, tap Create new > Text memo.
3. Tap Save.

Drawing a handy memo

1. Tap Handy Memo from the applications menu.
2. Draw a memo with your finger. If there are saved memos, tap Create new > Hand drawing memo.
3. Tap to select effects.
4. Adjust the thickness of the pencil and the eraser.
5. Tap Save.

Adding effects

① Note The screen for entering a text memo appears first if there are no memos saved. Press □ and tap Hand drawing memo if you want to change the memo type.

Editing a memo

1. Tap Handy Memo from the applications menu.
2. Press and hold a memo to edit and tap Edit.
3. Edit the memo and tap Save.

Sharing a memo

1. Tap Handy Memo from the applications menu.
2. Press and hold a memo to share, and tap Share.
3. Tap Bluetooth, Email, Facebook, Gmail, Messaging, Online Locker, Picasa or Twitter. Channels might vary depending on the memo type.

Deleting a memo

1. Tap Handy Memo from the applications menu.
2. Press and hold a memo to delete, and tap Delete.
3. Tap Yes.

Using voice memo

Record a memo using Crossover.

Recording Voice Memo

1. Tap Voice Memo from the applications menu.
2. Tap start recording your voice.
3. Tap □ stop recording your voice.
   ① Note Once you have recorded a voice memo, the screen to play it appears. Tap 🔒 to replay the recorded voice memo. Press ➕ if you want to record a new voice memo.

Ready to record Recording starts

Listening to recorded voices

1. Tap Voice Memo from the applications menu
2. Press ≡ and tap Open.
3. Select and tap a memo to listen.
4. Tap

Sharing a voice memo

1. Tap Voice Memo from the applications menu
2. Press ≡ and tap Open.
3. Press and hold a memo to share, and tap Share.
4. Tap Bluetooth, Email, Gmail or Messaging

Setting a memo as a ringtone

1. Tap Voice Memo from the applications menu.
2. Press ≡ and tap Open.
3. Press and hold a memo to use as a ringtone, and tap Set as Ringtone.

Deleting a voice memo

1. Tap Voice Memo from the applications menu.
2. Press ≡ and tap Open.
3. Press and hold a memo to delete, and tap Delete > Yes.

5

Documents

Documents

Viewing documents

Read Microsoft Office documents that are stored in a variety of formats in Crossover.

Reading documents

1. Tap Document Viewer from the applications menu.
2. Select and tap a folder where you have stored documents.
3. Select and tap a document to read.
4. Tap anywhere on the screen while a document is open.
5. Tap and tap to zoom in the document or tap to zoom out in landscape mode. Drag downwards or upwards to zoom in or out in portrait mode. You can also zoom in the document by pinching your fingers apart, and zoom out by pinching your fingers together.
6. Tap 📄 you want to fit the document to width.
7. Tap ☐ you want to fit the document to height.

→

Searching for words in a document

1. Tap Document Viewer from the applications menu.
2. Open a document.
3. Press ≡ and tap Word Search.
4. Enter a word to search for and tap in the virtual keyboard.
5. Tap ▼ see the word that you have searched for in the next sentence or page.
6. Tap Done if you want to stop searching for the word.

Moving to a page in a document

1. Tap Document Viewer from the applications menu.
2. Open a document.
3. Tap to move to the previous page. Tap to move to the next page.
4. Press ≡ and tap Go to Page.
5. Enter the page to go and tap

Sharing documents

1. Tap Document Viewer from the applications menu.
2. Select and tap a folder where you have stored documents.
3. Press and hold a document to share, and tap Share.
4. Tap Bluetooth, Email, Facebook, Gmail, Messaging or Twitter. Channels might vary depending on the document type.

Deleting documents

1. Tap Document Viewer from the applications menu.
2. Select and tap a folder where you have stored documents.
3. Press and hold a document to delete, and tap Delete > Yes.

Renaming documents

1. Tap Document Viewer from the applications menu.
2. Select and tap a folder where you have stored documents.
3. Press and hold a document to rename, and tap Rename.
4. Enter the new name and tap Save.

6

Web

Web

This chapter introduces useful applications that you can use through the Internet. Make sure to connect Crossover to a 3G or Wi-Fi network.

Accessing the Internet

Searching for information in the Internet

1. Tap Web from the applications menu.
2. Tap on the search box and type the keyword using the virtual keyboard.
3. Tap Go or tap the virtual keyboard.
4. Pinch two fingers apart on the screen if you want to zoom in the web page. You will not zoom in some web pages to the maximum if they are optimized for mobile devices.
5. Press ≡ and tap Back or Forward if you want to visit the previous web page again.

Changing the home page

1. Tap Web from the applications menu
2. Press ≡ and tap More.
3. Tap Settings > Set home page.
4. Enter a new URL if you want to change the home page, and tap OK.
5. Tap Use current page if you want to use the current page as the home page.

Using voice search

1. Tap Web from the applications menu.
2. Tap on the search box and tap in the virtual keyboard.
3. Speak a keyword as clearly as you can.
4. Select and tap the web page in the search result.

Refreshing a page

1. Tap to refresh the page.
2. Tap ✗ stop refreshing the page.

Visiting a new page

1. Tap Web from the applications menu.
2. Tap the address bar and enter a new URL.
3. Tap next to the address bar or tap in the virtual keyboard.

Opening a new window

1. Tap Web from the applications menu.
2. Press ≡ and tap New window. Another window appears.

Managing many windows

1. Tap Web from the applications menu.
2. Press ≡ and tap Windows.
3. Select and tap a window on the bottom of the screen that you want to see.
4. Tap on the screen. You can see the window in full screen view.

Adding bookmarks

1. Tap Web from the applications menu
2. Press ≡ and tap Bookmarks while you are visiting a web page.
3. Tap +Add on the top of the screen.
4. Enter the name and location of the website and tap OK.

Bookmarks Adding a bookmark

Viewing browser history

1. Tap Web from the applications menu
2. Press and tap Bookmarks.
3. Tap Most visited if you want to see web pages that you visit the most. Tap the star icon next to the website if you want to add it to bookmarks.
4. Tap History if you want to see past browsing activity. Press and tap Clear history if you want to delete the browsing history.

Using shortcuts

1. Tap Web from the applications menu.
2. Press ≡ and tap More. You can see shortcuts for several functions.
3. Tap Web from the applications menu.
4. Press ≡ and tap More > Settings.
5. Tap Text size, select and tap your preferred text size.
6. Tap Default zoom, select and tap your preferred zoom mode.
7. Tap Block pop-up windows if you want to prevent pop-up windows from appearing. The check box is selected by default.

Setting the display options

Setting privacy options

1. Tap Web from the applications menu.
2. Press ≡ and tap More.
3. Tap Settings.
4. Tap Clear all cookie data > OK if you want to delete all cookie data.
5. Tap Clear form data > OK if you want to delete all form data.

Shopping in the Android Market

Download useful applications from the Android Market and use them for your purposes.

Downloading applications

1. Tap Market from the applications menu.
2. Tap Next and follow the necessary steps for adding a Google account if you do not have a Google account.
3. Tap Accept on the Android Market Terms of Service if you are accessing the Android Market for the first time.
4. Tap Apps in the middle of the screen if you want to install useful applications.
5. Select and tap a category.
6. Tap Top paid, Top free or Just in.
7. Select and tap an application.
8. Tap Install > OK for free applications. Tap Buy > OK and follow the necessary steps for paid applications.

Application information Installing an application

Searching applications

1. Tap Market from the applications menu.
2. Tap and enter the name or the keyword of the application that you want to install and tap or
3. Select and tap the application and install it.

Running downloaded applications

1. Tap on the top of the home screen, drag the notifications down.
2. Tap the application that you have downloaded from the Android Market. Indicates that an application is completely downloaded. You can also run the application in the Applications screen.

Deleting applications from the Android Market

1. Tap Market from the applications menu.
2. Press ≡ and tap My apps.
3. Select and tap the application to delete.
4. Tap Uninstall > OK.

Deleting applications from Settings

1. Tap Settings from the applications menu.
2. Tap Applications > Manage applications.
3. Select and tap an application to delete.
4. Tap Uninstall > OK.
5. Tap OK.

Using Google Maps

Google Maps offers useful information based on your region. Make sure to connect Crossover to a Wi-Fi or 3G network. If you turn on the GPS function, you can obtain more accurate information.

Finding places

1. Tap Maps. You can see your current location on the map.
   ① Note Make sure to connect to wireless networks or GPS satellites by tapping Settings > Location & security and tapping either Use wireless networks or Use GPS satellites.
2. Tap on the search box and type the keyword using the virtual keyboard and tap 📋.
3. Tap 📄 you want to see the result list. appears when there are many results that match your search.
4. Select and tap the location that you want to see, and check the related information.

Zooming in and out of the map

1. Tap to zoom in the map.
2. Tap to zoom out of the map.
   ① Note You can double-tap the screen to zoom in the map.

Finding directions

1. Tap Maps from the applications menu.
2. Press ≡ and tap Directions.
3. Enter the name of the place you want to visit.
4. Decide whether you want to go to the end point by car, public transportation or foot.
5. Tap Go.

Finding the current location on the map

1. Tap Maps from the applications menu.
2. Tap .Your location is indicated as .

Using Places

Finding places

1. Tap Places from the applications menu.
2. Enter a keyword in the search box, or tap Restaurants, Coffee, Bars, Hotels, Attractions, ATMs, Gas Stations or Explore Nearby.
3. Select and tap a place in the search results.
   ① Note If you want to sort the result by distance or ratings by customers, tap Distance or Rating in the search results.

Viewing places at a glance

1. Tap Places from the applications menu.
2. Select and tap a category.
3. Press ≡ in the search results and tap See map. You can see related places in the map.

Adding a category for places

1. Tap Places from the applications menu.
2. Tap Add on the bottom of the screen and enter a category to add. The category appears on the screen.

Adding starred places

1. Tap Places from the applications menu.
2. Select and tap a category.
3. Select and tap a place that you want to see.
4. Tap the star icon for each place. When selected, the icon turns yellow.
   ① Note You can see stared places by pressing ≡ and tapping Starred Places in the first screen of Places.

Using Latitude

Share your location with your friends or check those of your friends. Make sure to have a Google account to use Latitude.

Joining Latitude

1. Tap Latitude from the applications menu.
2. Tap OK for the tip on the updated map.
3. Tap Allow & Share if you allow your location to be informed to your friends. The Latitude screen appears shortly where your personal information is displayed.
4. Press ↩ if you want to see your location in the map.

Adding friends from contacts

1. Tap Latitude from the applications menu.
2. Press ≡ and tap Add friends.
3. Tap Select from Contacts.
4. Select and tap the contact you want to add as your friend and tap Add friends.
   ① Note All contacts are displayed by default. If you want to classify contacts, tap All Contacts on the top of the screen, and select and tap a category of contacts.
5. Tap Yes if you want to send sharing requests.

Adding friends from email addresses

1. Tap Latitude from the applications menu.
2. Press ≡ and tap Add friends.
3. Tap Add via email address.
4. Enter the email address of your friend and tap Add friends.
5. Tap Yes if you want to send sharing requests.

Web

Accepting invitation from friends

1. Tap Latitude from the applications menu.
2. Tap 1 new sharing request on the top of the screen.
3. Tap Accept and share back. You can see the location of your friend shortly below.

Managing friends

1. Tap Latitude from the applications menu.
2. Tap one of the friends in the screen.
3. Tap Real-time updating, and select and tap the time interval for refreshing locations.
4. Tap Sharing options, and select and tap an option.
5. Tap Remove this friend and tap OK if you want to remove the friend from Latitude.

Checking personal settings

1. Tap Latitude from the applications menu.

2. Tap your name on the top of the screen. You can see your name, Gmail account and your current location.

3. Tap Change your photo, tap either Take a picture or Pick from gallery, and change your photo.

Adjusting privacy settings

1. Tap Latitude from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Detect your location, Set your location or Do not detect your location for a location reporting. Detect your location is selected by default.
4. Tap Enable location history if you want to store your locations in the past and visualize them on the Latitude website.
5. Tap Sign out of Latitude if you do not want to use Latitude. If you want to join Latitude again, press ≡ and tap Join Latitude.
   ① Note For more information on the map, refer to Using Google Maps on page 60.

Searching with Google

Searching for information with Google

1. Tap Google Search, or press Q in idle mode.
2. Enter a keyword in the search box and tap 📋. You can also tap and say it on the phone.

Setting search options

1. Tap Google Search from the applications menu.
2. Press ≡ and tap Search settings.
3. Tap Google search.
4. Tap Show web suggestions if you want to see suggestions from Google as you search through Google. The check box is selected by default.
5. Tap Use My Location if you allow your location to be used for Google search results.

Selecting items that can be searched

1. Tap Google Search from the applications menu.
2. Press ≡ and tap Search settings.
3. Tap Searchable items.
4. Select and tap items you want to include for the search result.

Managing search history

1. Tap Google Search from the applications menu.
2. Press ≡ and tap Search settings.

3. Tap Google search > Manage search history.

4. Enter the email address and password for your Google account.

5. Select and tap search history in the list and tap Remove if you want to remove the search history.

News & Weather

News and Weather offers news in various fields and weather information in your region.

Viewing weather information

1. Tap News & Weather from the applications menu. Information on your current region for the moment is provided by default.
2. Tap on the weather information in the middle of the screen if you want to check the weather forecast throughout the day.
3. Tap on the chart and drag the vertical bar on the screen to the left or right if you want to see weather information for a certain time of the day.

Weekly weather forecast Daily weather forecast

Selecting weather settings

1. Tap News & Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Weather settings.
4. Tap Use my location if you want to see information of your region automatically.
5. Tap Use metric if you want to change the unit for weather information.

Changing my location

1. Tap News & Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Weather settings.
4. Deselect Use my location.
5. Tap Set location and enter the name or postal code of a city you want.

Reading news articles

1. Tap News & Weather from the applications menu.
2. Tap Top Stories on the top of the screen.
3. Select and tap an article if you want to see the full story.
4. Flick the screen to the left or right if you want to see articles by category.

Customizing news topics

1. Tap News & Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap News settings > Select news topics.
4. Select and tap the topic you want to see. Tap it again if you want to delete the topic.

Adding news topics

1. Tap News & Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap News settings > Select news topics.
4. Tap Custom topic, enter the title and tap OK. You can see articles related to the title.

Setting refresh options

1. Tap News & Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Refresh settings.
4. Tap Auto-refresh if you want to update weather and news automatically. The check box is selected by default.
5. Tap Refresh interval, select and tap an interval to refresh.

7

Connectivity

Connectivity

This chapter introduces useful tips on how to connect to the network available that enables applications of Crossover to run.

Using a Wi-Fi network

Connecting to a Wi-Fi network

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to activate the technology.
4. Select and tap a network. You should enter the password if the network is secured. Indicates a secured Wi-Fi network.
5. Tap Connect. Once the network is remembered, Crossover will automatically connect to it when in range.

Activating Wi-Fi

Connecting to a Wi-Fi network

① Note The icon next to each network indicates the strength of the signal. For example, 📋 indicates the signal is poor while 🔺 indicates the signal is strong.

About network notifications

You are informed by default when a Wi-Fi network is available around you. The message 📄 in the status bar indicates a network is available. Tap Network notification in the Wi-Fi settings if you do not want to be informed the availability of the network.

Setting Wi-Fi networks

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to activate the technology.
4. Tap Automatic connection if you want Crossover to connect to AT&T Wi-Fi network automatically.
5. Tap WPS connection and tap Button connection or PIN connection if you want to establish a new wireless connection using the Wi-Fi Protected Setup (WPS). You should press WPS button or enter PIN on your Wi-Fi access point within two minutes.

Using the Easy Setting

1. Tap on the top of the home screen and drag it down, or press ≡ in idle mode and tap Notifications.
2. Tap in Easy Setting. The icon turns red when the function is on.

Searching for Wi-Fi networks

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to activate the technology. Crossover scans networks automatically every six seconds. The newly found networks appear on the bottom of the list.

Adding a Wi-Fi network

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to activate the technology.
4. Tap Add Wi-Fi network.

5. Tap Save.

6. Enter Network SSID and select the security type among Open, WEP, WPA/WPA2 PSK and 802.1x EAP. Aside from Open, you must enter a password for the network.

Disconnecting to a Wi-Fi network

1. Tap the network that is connected to Crossover.
2. Tap Forget to disconnect with the network.
   ① Note You can also disconnect to the Wi-Fi network by pressing and holding the network and tapping Forget network.

Connecting to a 3G network

Use 3G (or EDGE if available) to connect Crossover to the Internet and exchange multimedia messages. You will need a data plan to access a 3G network.

3G settings are already preconfigured on Crossover, and it is ready to use 3G services. Please do not change the settings: this may cause services to stop working.

① Note Using 3G loads Internet data faster in some cases, but may decrease battery performance. If you are making a lot of phone calls, you may want to turn 3G function off to extend battery performance.

Using Bluetooth

Bluetooth technology enables wireless connections between electronic devices. Using this technology, you can send images, text, and business cards.

With Bluetooth technology, Crossover provides:

• Connection to hands-free devices.
- Connection to electronic devices.

Pairing with devices

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Bluetooth settings.
3. Tap Bluetooth to activate the technology.
4. Tap Scan for devices.
5. Select and tap a device from the list.
6. Tap Pair to connect to and pair with the device.

Scanning devices Requesting pairing

Using the Easy Setting

1. Tap on the top of the home screen and drag it down, or press ≡ in idle mode and tap Notifications.
2. Tap in Easy Setting. The icon turns red when the function is on.

Bluetooth settings

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Bluetooth settings.
3. Tap Bluetooth to activate the technology.
4. Tap Discoverable if you want to let other people pair their devices with Crossover. The status lasts for 120 seconds.

Sharing a picture using Bluetooth

1. Tap Gallery from the applications menu.
2. Select and tap a picture to share.
3. Tap Menu > Share > Bluetooth.
4. Select and tap a device among those paired with Crossover. The other party will receive a message to accept the file.

Renaming the device

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Bluetooth settings.
3. Tap Bluetooth to activate the technology.
4. Tap Device name and enter a new name.
5. Tap OK.

Making Crossover a modem

Crossover provides other devices with an Internet connection by becoming a Wi-Fi hotspot.

Activating the USB Tethering

1. Connect Crossover with an electronic device using the USB cable.
2. Tap Settings from the applications menu.
3. Tap Wireless & networks > Tethering & portable hotspot.
4. Tap USB tethering to activate the technology. The electronic device that is connected to Crossover can now access the Internet.
   ① Note You cannot use a few applications that require Internet connection while using the tethering technology.

Becoming a portable Wi-Fi hotspot

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Tethering & portable hotspot.
3. Tap Portable Wi-Fi hotspot. Crossover can offer the Internet connection to other devices around you.

Setting options for portable Wi-Fi hotspot

1. Tap Settings from the applications menu.
2. Tap Wireless & networks > Tethering & portable hotspot > Portable Wi-Fi hotspot.
3. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi hotspot.

4. Enter a name for Network SSID. Tap Hide SSID if you want to hide the SSID.

5. Tap WPA2 PSK for Security and enter the related items if you want to allow limited devices to access the Internet through Crossover, and tap Save.

Wi-Fi hotspot for Open Wi-Fi hotspot for WPA2 PSK

① Note Security type for portable Wi-Fi hotspot is WPA2 PSK and the password is "12345678" by default.

8

Storage

Storage

The microSD card offers useful functions including mass storage and media file transfer.

Managing the memory card

You should manage the microSD card carefully. If you do not follow the steps described below to manage the memory card, you can incur serious damage to the card.

Viewing available memory

1. Tap Settings from the applications menu.

2. Tap SD card & phone storage.

3. Flick the screen and check the status of the SD card and internal phone storage.

Unmounting the SD Card

1. Tap Settings from the applications menu.

2. Tap SD card & phone storage > Unmount SD card > OK.

3. Press and hold the LOCK/PWR key.

4. Tap Power off > OK.

5. Open the battery cover.

6. Remove the battery.

7. Remove the SD card.

① Note If you want to mount the SD card, tap Settings > SD card & phone storage > Mount SD card.

Formatting the microSD card

1. Tap Settings from the applications menu.
2. Tap SD card & phone storage > Unmount SD card > OK.
3. Tap Format SD card > Format SD Card > Erase everything

Connecting to a PC

Synchronize files and exchange data with a computer using the PC data cable. Keep in mind that you cannot transfer media files if you turn on the USB debugging mode (Settings > Applications > Development > USB debugging).

Selecting the USB mode

1. Tap Settings from the applications menu.
2. Tap SD card & phone storage > USB Mode. If you have turned on the USB debugging function, tap OK to turn it off.
3. Select and tap a USB mode.

- Tap Media Transfer > OK if you want to transfer media files between Crossover and your PC when they are connected.

• Tap Mass storage > OK if you want to save mass files in Crossover.

• Tap Ask on connection > OK if you want to select the USB mode whenever Crossover is connected.

• Connect the USB cable to Crossover.

• Connect the other end of the cable to your computer.

Storage

Turning on/off the USB mode in the Easy Setting

1. Connect Crossover to your computer using the USB cable.
2. Tap on the top of the home screen and drag it down, or press ≡ in idle mode and tap Notifications.

3. Tap USB connected > Turn on USB storage. Keep in mind that you can use this function only when you have selected the USB mass storage mode.

4. Tap OK.

① Note Tap Turn off USB storage in the notifications screen if you want to turn off the function, and tap Turn off USB storage.

Using Crossover as Mass Storage

Copy files between your computer and the microSD card in Crossover. In the mass storage mode, a few applications—Handy Memo, Voice Memo, Sketch Pad, Music Player, Camera, Camcorder, Document Viewer—that need the microSD card will not run.

Copying files

1. Set the USB mode for mass storage.
2. Select and copy files to transfer from Crossover.
3. Paste files to your PC.

Transferring files through Media Transfer

Transfer media files between your computer and the microSD card in Crossover. Once you have turned on the MTP connection, media files are collected through Windows Media Player™.

Transferring files

1. Set the USB mode for Media Transfer.
2. Select files to transfer from Crossover or your PC.
3. Transfer files to your PC or Crossover.

9

Tools

Tools

Crossover offers a variety of tools that help you live a convenient life.

Clock Tools

Clock Tools offers the current time in major cities and time zones around the world. World time is displayed first by default.

Viewing the world time

1. Tap Clock Tools from the applications menu.
2. Tap Add new city and enter the name of a city. Type the first letter and you can find the city more easily.
3. Select and tap the city.

Rearranging the order of cities

1. Tap Clock Tools from the applications menu.
2. Press ≡ and tap Rearrange.
3. Select a city to relocate and drag 📄 or down to rearrange the order.
4. Tap Done.

Deleting a city

1. Tap Clock Tools from the applications menu
2. Press ≡ and tap Delete.
3. Select and tap the trash icon next to the city to delete.
4. Tap Done.
   ① Note You can delete a city by pressing and holding it and tapping Delete > Yes.

Using the timer

1. Tap Clock Tools from the applications menu.
2. Tap Timer.
3. Press ≡ and tap Set for setting the time.

4. Set the hour, minute and second and tap Save.

5. Tap Start.

① Note You can reset the time by tapping Reset while the timer is running.

Using the stopwatch

1. Tap Clock Tools from the applications menu
2. Tap Stopwatch.

3. Tap Lap > Lap. and tap Start. This function is used when you want to measure time that takes to run for a certain distance.

4. Tap Lap > Split on the top of the screen and tap Start. This function is used when you want to measure the accumulated time.

5. Tap Reset to restart the stopwatch.

Lapping time Splitting time

Clock

Clock helps set the alarm and see basic information on your region including time and weather. Desk clock is provided by default.

Adding a new alarm

1. Tap Clock from the applications menu
2. Tap and tap Add alarm.
3. Enter the hour and the minute and tap Set.
4. Adjust settings for alarm and tap Done. You will see a green bar under the set alarm.

Desk Clock Adding an alarm

Changing an alarm

1. Tap Clock from the applications menu.
2. Tap
3. Select and tap the alarm time to change.
4. Adjust settings and tap Done.

Deactivating an alarm

1. Tap Clock from the applications menu.
2. Tap
3. Tap ☑ the alarm to deactivate. A green bar indicates that the alarm is on. The color disappears when the alarm is turned off.

Deleting an alarm

1. Tap Clock from the applications menu.
2. Tap
3. Press and hold the alarm to delete, and tap Delete alarm.
4. Tap OK.

Tools

Setting an alarm

1. Tap Clock from the applications menu.
2. Tap 🤒
3. Press ≡ and tap Settings.
4. Tap Alarm in silent mode if you want to play the alarm even when Crossover is in silent mode. The check box is selected by default.
5. Tap Alarm volume if you want to adjust the volume, set the volume and tap OK.
6. Tap Snooze duration if you want to adjust the snooze duration, select and tap the duration and tap OK.
7. Tap Volume and Camera if you want to assign an action for the volume key and the camera key to take during an alarm, select and tap the option and tap OK.

Calculator

Perform basic mathematical calculations with the calculator in Crossover.

Doing calculations

1. Tap Calculator from the applications menu.
2. Enter a number and tap a mathematical sign you want to use.
3. Tap C to delete a number and hold C to delete the whole number.

① Note You can calculate numbers up to six decimal places.

Saving a calculation

1. Tap Calculator from the applications menu.
2. Press ≡ during a calculation.
3. Tap Save and enter the file name. The date of the day appears on the screen by default.
4. Tap Done.

Editing a saved calculation

1. Tap Calculator from the applications menu.
2. Press ≡ and tap List.
3. Select and tap a calculation to edit.
4. Tap the result and edit it.
5. Press ≡ and tap Save.

Deleting a calculation

1. Tap Calculator from the applications menu.
2. Press ≡ and tap List.
3. Press and hold the calculation to delete, and tap Delete.
4. Tap Yes.

Converter

Converter helps convert values for length, volume, weight, temperature, area and speed.

Converting values

1. Tap Converter from the applications menu.

2. Select a unit type. Length is selected by default. Change the unit type by tapping ▶ ▶

3. Tap on the box below the unit type, enter value, and tap Done.

4. Select the original unit by dragging the wheel in the middle of the screen.
5. Select a target unit. The changed value promptly appears below.

Resetting a conversion

1. Tap Converter from the applications menu.
2. Press ☐ during a conversion and tap Reset.

Sketch Pad

Sketch a drawing and share it with your friends.

Creating a drawing

1. Tap Sketch Pad from the applications menu.
2. Tap Create new if there are saved drawings. The sketch board appears first if there are no saved drawings.

3. Sketch a drawing and tap to open options for special effects.

4. Select the size and color of the brush and the size of the eraser.

5. Press □ and tap Background to select an image you want to set as background of the drawing.
6. Tap Save.
7. Enter the file name. A file name cannot contain any of the following characters: \/.*:?<>|.
8. Tap Save. You can see the saved drawing.

Sketch Pad icons

Icon Description
/	Sets the size of the brush
■	Sets the color of the brush
▲	Sets the size of the eraser
○	Undo the previous drawing

Deleting a drawing

1. Tap Sketch Pad from the applications menu.
2. Press and hold the drawing to delete, and tap Delete.
3. Tap Yes.

Tools

Editing a drawing

1. Tap Sketch Pad from the applications menu.
2. Press and hold the drawing to edit, and tap Edit.
3. Edit the drawing and tap Save.

Saving to the Gallery

1. Tap Sketch Pad from the applications menu.
2. Press and hold the drawing to save to the gallery, and tap Save to gallery.

Sharing a drawing

1. Tap Sketch Pad from the applications menu.
2. Press and hold the drawing to share, and tap Share.
3. Tap Bluetooth, Email, Facebook, Gmail, Messaging, Online Locker, Picasa or Twitter.

Changing the view mode

1. Tap Sketch Pad from the applications menu.
2. Press □ and tap List view. You can see the file name and file format of the drawings.
3. Press ≡ and tap Thumbnail view if you want to see drawings only.

Voice Dialer

Perform functions by speaking on the phone.

Searching for a contact

1. Tap Voice Dialer from the applications menu.
2. Say a contact's name, e.g. Mike, on the mic.
3. Tap on the message or OK. For example, if you have said "Mike," Call Mike on mobile will appear on the screen.

Voice Search

Search the Internet by speaking on the phone.

1. Tap Voice Search or press and hold Q.
2. Say a keyword on the mic.
3. Select and tap the result. Speak again when no matches are found for the keyword.

Voice search Search results

Compass

Compass helps you find your location using the speed and the distance of your moving. Turn on the GPS function to use.

Setting the way point

1. Tap Compass from the applications menu.
2. Press ≡ and tap Search Way Point.
3. Type the way point name in the box and select and tap the way point. You can see the distance and the direction from the current location.
   ① Note When there is interference on the compass, keep it away from the interfering items or wave Crossover in a figure 8 motion.

Moving toward the way point

1. Tap Start after you set the way point and start moving. The moving track begins to be recorded.
2. Tap Pause if you stop recording temporarily. Tap Resume if you want to resume recording.
3. Tap Stop if you want to end recording.
4. Tap Yes if you want to export data. The data is saved in the external memory card.
   ① Note You might experience difficulties using the compass if you are indoors or near metal materials.

Reviewing the moving track

1. Tap Compass from the applications menu.
2. Press ≡ and tap Map View. 📋 indicates your current location on the map.
3. Tap Start. The marker on the map starts moving.
4. Tap and move it up if you want to zoom in the map. Move it down if you want to zoom out the map.

Creating I'mark

1. Tap Compass from the applications menu.
2. Press ≡ and tap Add to I'mark.
3. Enter the name, latitude, longitude, proximate range and comment and tap Save.

Tools

Deleting I'mark

1. Tap Compass from the applications menu.
2. Press ≡ and tap I'mark list.
3. Press ≡ and tap Delete.
4. Select and tap the I'mark to delete.
5. Tap Done.
   Note You can delete a I'mark by pressing and holding the I'mark in the list and tapping Delete.

Adding a photo for I'mark

1. Tap Compass from the applications menu.
2. Press ≡ and tap Add photo.
3. Tap Take a photo if you want to take a picture.
4. Tap Picture if you want to add a photo from your gallery.

Navigation

Searching for the destination by voice

1. Tap Navigation from the applications menu.
2. Tap Speak Destination and speak your destination toward Crossover.
3. Select and tap a destination in the list when there are many possible destinations.

Finding directions using Google Maps

1. Tap Maps from the applications menu.
2. Press ≡ and tap Directions.
3. Enter the name of the end point.
4. Tap on and tap Go.
5. Select and tap a place in the results.

Setting the end point manually

1. Tap Maps from the applications menu.
2. Press ≡ and tap Directions.
3. Tap to the right of End point.
4. Tap Point on map if you want to set the end point.
5. Tap a point on the map.
6. Tap Tap to select this point.
7. Tap on and tap Go.
   ① Note You can also set your location following the same process.

Checking the traffic conditions

1. Press ≡ and tap Route Info while Navigation is running.
2. Flick the screen along the suggested route to the destination. Depending on the traffic conditions, the road appears in green (good), yellow (congested) or red (jammed).
3. Tap and tap the route if you want to set an alternative route.

Weather

Adding a new city

1. Tap Weather from the applications menu.
2. Tap Add new city.
3. Enter the name of the city you want, or flick the screen upwards and tap one. Weather information of the city appears on the list.

Viewing weather information

1. Tap Weather from the applications menu.
2. Select and tap a city in the list you want to see.
3. Flick the screen to the left to see forecasted weather information of the city. Or press ≡ and tap Forecast.

1. Tap Update to view updated information.

Current weather Weather forecast

Changing the temperature unit

1. Tap Weather from the applications menu.
2. Press ≡ and tap Settings.
3. Tap ▶ . The temperature changes from Fahrenheit to Celsius or vice versa.

Rearranging the order of cities

1. Tap Weather from the applications menu.
2. Press ≡ and tap Rearrange.
3. Select a city and drag ▲ or down to move the city.
4. Tap Done.

Deleting a city

1. Tap Weather from the applications menu.
2. Press ≡ and tap Delete.
3. Select and tap the trash icon next to the city to delete.
4. Tap Done.

Tools

Stocks

Check the current stock market conditions and establish your investment strategy with Crossover. Stocks is in synch with Google Finance by default.

Checking the current stock market conditions

1. Tap Stocks from the applications menu. You can see the overall stock market conditions for the moment.
2. Select and tap an index in the list. The fluctuation of the index for one day is displayed by default.
3. Tap Prev or Next above the graph in the middle of the screen if you want to adjust the period of the fluctuation.
   ① Note You can also change the period by tapping the graph and select and tap one from one day to the maximum when data is available.

Market
Dow	11,671.88
S&P 500	1,274.48
NASDAQ	2,716.83
Shanghai	2,820.60
NIKKEI 225	10,566.87
Hang Seng Index	23,760.34
FTSE 100	6,014.03
Sensex S&P 500	10,566.87
RSF Services	19,106.30

The overall market conditions

Detailed information

Renaming the stock market index

1. Tap Stocks from the applications menu
2. Press and hold an index to rename and tap Rename.
3. Enter a new name of the index and tap OK.
   ① Note You can also rename an index by pressing ≡ and tapping Edit, selecting and tapping an index to rename.

Deleting the stock market index

1. Tap Stocks from the applications menu.
2. Press and hold an index to delete and tap Delete.

① Note You can also delete an index by pressing and tapping Edit, selecting and tapping next to an index to delete. The trash bin appears in front of the index. Then, tap the trash bin.

Adding the stock market index

1. Tap Stocks from the applications menu.
2. Press ≡ and tap Edit.
3. Tap on the box in the bottom of the screen, enter the name of the index and tap 🙏.

Sharing the stock market information

1. Tap Stocks from the applications menu.
2. Select and tap an index to see the relevant information.
3. Press ≡ and tap Share.
4. Tap Bluetooth, Email, Facebook, Gmail, Messaging or Twitter.

Adjusting the alert

1. Tap Stocks from the applications menu.
2. Select and tap an index to receive the alert.
3. Press ≡ and tap Alert.
4. Enter the value for Above and tap; enter the value for Below and tap

Setting the alert

1. Tap Stocks from the applications menu.
2. Press ≡ and tap Settings.
3. Tap Ringtone, and select and tap a ringtone for the alert and tap OK.
4. Tap Check interval, and select and tap the refresh period.
5. Tap Check time, adjust the time for checking stock market indexes and tap OK.

Writing notes

1. Tap Stocks from the applications menu
2. Select and tap an index to write notes.
3. Press ≡ and tap Notes.
4. Tap on the screen and enter a message.
5. Press ◆ if you want to check the notes. Press ◆ again and you can see the note on the bottom of the screen.

Viewing related news articles

1. Tap Stocks from the applications menu
2. Select and tap an index to see the relevant news.
3. Flick the screen downwards, and select and tap an article to see.

Adjusting the appearance

1. Tap Stocks from the applications menu
2. Press ≡ and tap Settings.
3. Tap Sort, and select and tap the sorting order for the stock market indexes.
4. Tap Default Chart, and select and tap the refresh period. The comparing period of the graph for each index changes accordingly.

Adding the Stocks widget

1. Press and hold the empty space of the screen.
2. Tap Widgets.
3. Tap Android Widgets > Stocks.
4. Select and tap a market in the portfolio list and tap Save. You can see the stock market indexes on the home screen.

RSS Reader

RSS Reader helps check updated news from various sources.

Creating channels

1. Tap RSS Reader from the applications menu.
2. Tap All channels > Add Channel. If you have already subscribed to channels, Tap RSS Reader > All channels, and press ≡ and tap Add channel.

3. Tap URL, Google Reader or Recommendation.

4. Tap URL and enter the title and URL of the channel, tap Category, select the relevant category and tap Done. If there is no category you want, tap Create New and create a category.

5. Tap Google Reader, select and tap a channel, and tap Add.

① Note Make sure to register your Google account first by tapping RSS Reader, pressing ≡ and tapping Settings > Google ID.

- Tap Recommendation, select and tap a category you want to add, and select and tap a channel and tap Save.

Managing categories

1. Tap RSS Reader from the applications menu.
2. Tap Categories.
3. Press ≡ and tap Edit category.
4. Select and tap a category, enter a new name and tap Save.
5. Tap Create New if you want to make a new category, enter the name of the category and tap Save.

Viewing new feeds

1. Tap RSS Reader.
2. Tap New feeds.
3. Press ≡ and tap Update.
4. Select and tap updated new feeds to read.

Setting options

1. Tap RSS Reader.
2. Press ≡ and tap Settings.
3. Tap Automatic Update, select the interval of updating feeds and tap OK.
4. Tap Automatic Delete and select the timing to delete feeds automatically, and tap OK.
5. Tap Limited Update Size, select the size of updated feeds, and tap OK.

10

Settings

Settings

This chapter explains how to change the settings of Crossover. Access the settings from Applications or simply do it from the home screen by pressing ≡ and tapping Settings.

Personalize

Setting and managing home screen themes

1. Tap Settings > Personalize > Themes.
2. Select a predefined theme or a user saved theme that you want to apply to the home screen.
3. Tap Done. The selected theme will be applied to the home screen.

Setting home wallpaper

1. Tap Settings > Personalize > Home Wallpaper.
2. Tap Gallery, Live wallpapers or Wallpapers.
3. Select an image you want to use as wallpaper and tap Set wallpaper.
   ① Note Please remember that Maps consumes the battery relatively quickly. Even if you select wallpaper other than Maps, it is recommended that you save the battery consumption by tapping Force stop (Tap Settings > Applications > Manage applications > Maps).

Wireless & networks

Setting Airplane mode

1. Tap Settings > Wireless & networks > Airplane mode. If you turn on Airplane mode, Wi-Fi, Bluetooth and GPS functions are turned off at once. However, you can turn on each function for your preference.
2. Tap Airplane mode again to reactivate other functions.

Setting Wi-Fi networks

1. Tap Settings > Wireless & networks.
2. Tap Wi-Fi settings to manage the wireless network. Refer to page 66 for more information.

Setting Bluetooth

1. Tap Settings > Wireless & networks.
2. Tap Bluetooth settings to manage the wireless technology option. Refer to page 68 for more information.

Setting Tethering and portable hotspots

1. Tap Settings > Wireless & networks > Tethering & portable hotspot.
2. Tap USB tethering to provide Internet connection to other devices. You should connect Crossover with your other device through the USB cable.
3. Tap Portable Wi-Fi hotspot to make Crossover a portable Wi-Fi hotspot. Refer to page "Becoming a portable Wi-Fi hotspot" on page 68 for more information.

Setting VPN settings

1. Tap Settings > Wireless & networks > VPN settings > Add VPN.
2. Tap Add PPTP VPN, Add L2TP VPN, Add L2TP/IPSec PSK VPN or Add L2TP/IPSec CRT VPN.
3. Set up the network by entering necessary information.

Setting mobile networks

1. Tap Settings > Wireless & networks > Mobile networks.
2. Tap Data Services to allow access to data over mobile network.
3. Tap International Data roaming to connect to data services when roaming and tap OK.
   ① Note You may incur significant roaming charges.
4. Tap Access Point Names and tap the point name to edit it. Press ≡ and tap New APN if you want to add an APN.
5. Tap Network operators and select a network provider.

Call settings

Managing fixed dialing numbers

1. Tap Settings > Call settings > Fixed Dialing Numbers.
2. Tap Enable FDN, Change PIN2 or FDN list.
3. Enter the necessary information.

Setting your voicemail

1. Tap Settings > Call settings > Voicemail settings > Voicemail number.
2. Enter the voicemail number or tap and select a contact to designate as the voicemail number and tap OK.
3. Tap OK.

Setting Auto Redial

1. Tap Settings > Call settings > Auto Redial.

Setting TTY mode

1. Tap Settings > Call settings > TTY mode.
2. Tap TTY Off, TTY Full, TTY HCO or TTY VCO.
3. Tap OK.

Setting DTMF Tones

1. Tap Settings > Call settings > DTMF Tones.
2. Tap Normal or Long.
3. Tap OK.

Setting Caller ID

1. Tap Settings > Call settings > Caller ID.
2. Tap Network default, Hide number or Show number.
3. Tap OK.

Setting Call forwarding

1. Tap Settings > Call settings > Call forwarding.
2. Tap Always forward, Forward when busy, Forward when unanswered or Forward when unreachable.

Settings

Setting Call waiting

1. Tap Settings > Call settings > Call waiting > Call waiting.

Sound

Setting silent mode

1. Tap Settings > Sound > Silent mode. All other functions except the media volume and alarms are silenced if you select this option.
2. Tap Silent mode again to activate all functions.

Setting to vibrate

1. Tap Settings > Sound > Vibrate.
2. Tap Always, Never, Only in Silent mode or Only when not in Silent mode.
3. Tap OK.

Setting volume

1. Tap Settings > Sound > Volume. Make sure to deselect Silent mode.
2. Adjust the volume for ringtone, media and alarm. Tap Use incoming call volume for notifications if you want to use this function. Otherwise, deselect it and adjust the volume for notifications.
3. Tap OK.

Setting phone ringtone

1. Tap Settings > Sound > Phone ringtone.
2. Select and tap a ringtone in the list.
3. Tap OK.

Setting notification ringtone

1. Tap Settings > Sound > Notification ringtone.
2. Select and tap a ringtone for notifications.
3. Tap OK.

Setting feedback options

1. Tap Settings > Sound.
2. Tap Audible touch tones if you want to play tones when using the dial pad. It is selected by default.
3. Tap Audible selection if you want to play sound when making selection on the screen.
4. Tap Screen lock sounds if you want to play sound when locking and unlocking the screen.
5. Tap Haptic feedback if you want Crossover to vibrate when you press soft keys. It is selected by default.

Setting Sound effect

1. Tap Settings > Sound > NASH Sound Effect.
2. Select and tap an effect from 3D sounds and equalizers. You can choose the user set.
3. Tap Done.

Display

Setting brightness

1. Tap Settings > Display > Brightness.
2. Drag to the right to increase the brightness. Drag it to the left to decrease the brightness.
3. Tap OK.

Setting auto-rotate screen

1. Tap Settings > Display > Auto-rotate screen if you want to make the screen rotate automatically when you move Crossover horizontally or vertically.

Setting animation options

1. Tap Settings > Display > Animation.
2. Tap No animations, Some animations or All animations.
3. Tap OK.

Setting screen timeout

1. Tap Settings > Display > Screen timeout.
2. Select and tap the time interval to turn off the screen.
3. Tap OK.

Location & security

Setting my location

1. Tap Settings > Location & security > Use wireless networks.

2. Tap Agree to allow Google's location service to collect anonymous location data.

3. Tap Use GPS satellites if you want to find street-level locations.

Setting screen lock with a pattern key

1. Tap Settings > Location & security > Set up screen lock > Pattern.
2. Read "Securing your phone" page and tap Next.
3. Watch how to set up the pattern and tap Next.
   ① Note Steps 2–3 appear only when you set up the pattern lock for the first time.
4. Drag your pattern on the screen and tap Continue. Make sure to connect the pattern with at least four dots. Tap Retry and draw another pattern if you want to set up one.
5. Tap Continue.
6. Drag the pattern again and tap Confirm.

Setting the pattern lock Unlocking the pattern lock

① Note If you fail to drag the correct pattern to unlock the screen for five consecutive times, you have to wait for 30 seconds before you can try it again. If you forget your pattern lock, tap Forgot pattern, enter your account name and password for Google and create a new pattern lock. However, Forgot pattern will not appear if you have no Google account for Crossover.

Settings

Forgot your password for Google account?

If you have forgotten your password for Google account, reset it at the Google website.

1. Open your web browser on your computer and go to https://www.google.com/accounts/recovery.
2. Enter the email address or username that you use to sign in to your Google account and click Submit.

3. Enter the characters that you see on the screen and click Continue.

4. Select an option about recovering your account and click Continue.

5. Take necessary steps for each option:

6. Enter the answer for security questions if you have selected Answer your security question. This option will not be available if you have signed in to your Google account within last five days.

7. Check your email account you provided when you created your Google Account and follow the instructions if you have selected Email to ••••••@****.
8. Fill in the form for Google Accounts Help if you have selected I no longer have access to these, and click Submit on the bottom of the window.

Note Do not select Text message to 30: You cannot receive a code to reset your password on your mobile phone.

Setting screen lock with a password

1. Tap Settings > Location & security > Set up screen lock > Password.

2. Enter your password and tap OK. The password should be at least 4 characters.

3. Enter the password again to confirm.

4. Tap OK.

Setting the password lock Unlocking the password lock

① Note Tap Settings > Location & security > Visible passwords if you want to see passwords as you type.

Setting screen lock with a PIN

1. Tap Settings > Location & security > Set up screen lock > PIN.
2. Enter numbers as PIN and tap Continue. The PIN should be at least 4 characters.
3. Enter the numbers again to confirm.
4. Tap OK.

Setting PIN Entering PIN

① Note Tap Settings > Location & security > Change screen lock if you do not want to set up an additional process to unlock the screen.

Setting SIM card lock

1. Tap Settings > Location & security > Set up SIM card lock.
2. Tap Lock SIM card and enter the SIM PIN if you want to require a PIN to use the phone.
3. Tap Change SIM PIN and enter the old SIM PIN and a new SIM PIN if you want to change the SIM PIN.

Setting the credential storage password

1. Tap Settings > Location & security > Set password.
2. Enter a new password and enter it again to confirm.
3. Tap OK.

Applications

Setting keyboard shortcuts for applications

1. Tap Settings > Applications > Quick launch.
2. Select an application for the shortcut.

Managing applications

1. Tap Settings > Applications > Manage applications > Downloaded.
2. Tap an application and tap Force stop if you want to stop its operation by force. Tap Uninstall if you want to uninstall the application.
3. Tap Running on the top of the screen and tap an application to manage its operation.

Viewing running services and applications

1. Tap Settings > Applications > Running services.
2. Tap a service or an application to stop its operation or to edit its options.
3. Tap Force stop if you want to stop its operation.

Debugging USB

1. Tap Settings > Applications > Development.
2. Tap USB debugging to allow the debug mode when the USB cable is connected.
3. Read and tap OK on the USB debugging information page.

Settings

Maintaining the staying condition

1. Tap Settings > Applications > Development.
2. Tap Stay awake to keep Crossover awake while it is being charged.

Allowing mock locations

1. Tap Settings > Applications > Development.
2. Tap Allow mock locations to pretend to be in another location for development purposes.

Allowing installation of unknown applications

1. Tap Settings > Applications.
2. Tap Unknown sources to allow non-market applications to be installed on Crossover.

Accounts & sync

Managing background data

1. Tap Settings > Accounts & sync.
2. Tap Background data if you want to sync, send and receive data any time.

Allowing background data to sync automatically

1. Tap Settings > Accounts & sync.
2. Tap Auto-sync if you want to sync data automatically.

Adding an account

1. Tap Settings > Accounts & sync.

2. Tap Add account.

3. Select and tap an account type, and follow the necessary steps for creating an account.

Privacy

Backing up data

1. Tap Settings > Privacy.
2. Tap Back up my data if you want to back up your data.
3. Tap Automatic restore if you want to restore backed-up data for an application.

Resetting Crossover

1. Tap Settings > Privacy.
2. Tap Factory data reset if you want to erase all data from the phone.
3. Tap Reset phone.
4. Tap Erase everything.

SD card & phone storage

Selecting the USB mode

1. Tap Settings > SD card & phone storage.
2. Tap USB Mode. If you turn on the USB debugging function, tap OK to turn it off.
3. Tap Media Transfer, Mass storage or Ask on connection, tap OK, and follow the relevant steps.

Viewing the status of space

1. Tap Settings > SD card & phone storage. The status of space available for Crossover is displayed.
2. Tap Unmount SD card > OK if you want to remove the SD card from Crossover safely. Tap Mount SD card if you want to mount the card.

Search

Receiving suggestions from Google

1. Tap Settings > Search > Google search.
2. Tap Show web suggestions if you want to allow suggestions from Google to be displayed.
3. Tap Use My Location if you want to allow using your location for Google search results and other Google services.
4. Tap Search history if you want your search history to be displayed.
5. Tap Manage search history if you want to allow search history to be displayed.

Setting quick search box

1. Tap Settings > Search > Searchable items.
2. Select an item or items that will be included in the search and press ↗.
3. Tap Clear shortcuts > OK to delete shortcuts to recently clicked search results.

Language & keyboard

Selecting the language

1. Tap Settings > Language & keyboard > Select language.
2. Select and tap a language to use for Crossover.

Setting Swype

1. Tap Settings > Language & keyboard > Swype.
2. Tap Word prediction if you want to see predicted words as you type in the Swype.
3. Tap Word choice window and drag the bar to the left or the right if you want to adjust the frequency of the word choice window, and tap OK.
4. Tap Speed vs. accuracy, drag the bar to the left or the right if you want to adjust the response speed and tap OK.

Setting the Android keyboard

1. Tap Settings > Language & keyboard > Android keyboard.
2. Tap Vibrate on keypress if you want Crossover to vibrate when you press soft keys.
3. Tap Voice input if you want to change the method for voice input. Tap On main keyboard, On symbols keyboard or Off and tap OK.
4. Tap Input languages, select and tap the language for the keyboard and press ↩.

Settings

Setting the Android keyboard word suggestion

1. Tap Settings > Language & keyboard > Android keyboard.
2. Tap Quick fixes if you want to correct commonly typed mistakes. The check box is selected by default.
3. Tap Show suggestions if you want to see suggestions while you type. The check box is selected by default.

Setting the device keyboard

1. Tap Settings > Language & keyboard > Device keyboard.
2. Tap Auto-replace if you want to correct mistyped words. The check box is selected by default.
3. Tap Auto-cap if you want to capitalize the first letter in a sentence. The check box is selected by default.
4. Tap Auto-punctuate if you want to enter "." automatically by pressing space key twice. The check box is selected by default.

Managing the user dictionary

1. Tap Settings > Language & keyboard > User dictionary.
2. Press ≡ and tap Add.
3. Enter the name of the dictionary in the box and tap OK.

Voice input & output

Text-to-speech helps listen to a text file by transforming it to a speech file.

Setting input options

1. Tap Settings > Voice input & output > Voice recognizer settings.
2. Tap Language, select and tap a language that will be used for the input language.
3. Tap SafeSearch, and tap Off, Moderate or Strict for filtering input language.
4. Tap Block offensive words if you want to hide recognized offensive voice results. The check box is selected by default.
5. Tap Show hints if you want to see hints. The check box is selected by default.

Setting output options

1. Tap Settings > Voice input & output > Text-to-speech settings.
2. Tap Install voice data that is required for speech synthesis.
3. Select and tap related application from the Android market and install it. Voice is offered when you finish installing the application.
4. Tap Listen to an example if you want to listen to an example.
5. Tap Always use my settings when you want make your settings the default settings for Crossover.
6. Tap Speech rate, select and tap an option, and tap OK.
7. Tap Language, select and tap a language, and tap OK.

Accessibility

Setting the accessibility option

1. Tap Settings > Accessibility.
2. Tap OK in the No accessibility related applications found screen.
3. Select and tap related application from the Android Market and install it.
4. Tap Accessibility when you finish installing the application.
5. Tap Power button ends call if you want to end a call by pressing the LOCK/PWR key.

Date & time

Allowing date and time to be set automatically

1. Tap Settings > Date & time.
2. Tap Automatic.
   ① Note Set date, Select time zone and Set time will not work if you tap Automatic.

Setting the date

1. Tap Settings > Date & time > Set date.
2. Enter month, day and year for Crossover.
3. Tap Set.

Setting the time zone

1. Tap Settings > Date & time > Select time zone.
2. Select and tap a time zone in the list.

Setting time

1. Tap Settings > Date & time > Set time.
2. Enter the minute and the hour.
3. Tap Set.

Selecting date format

1. Tap Settings > Date & time > Select date format.
2. Select a preferred date format.
3. Tap OK.

AT&T software update

Checking for AT&T software updates

1. Tap Settings > AT&T software update.
2. Tap Check for updates > Continue.

About phone

Checking the status of the phone

1. Tap Settings > About phone.
2. Tap Status if you want to check the current status of the phone, including battery status, battery level and your phone number.

Checking battery use

1. Tap Settings > About phone.
2. Tap Battery use if you want to check how the battery is being used.

Settings

Seeing legal information

1. Tap Settings > About phone.
2. Tap Legal information if you want to see the open source licenses and Google's legal information.

Learning how to use Crossover

1. Tap Settings > About phone.
2. Tap System tutorial if you want to see how to use Crossover.
   ① Note Make sure to set Swype as the default keyboard. Refer to Language & keyboard for more information on setting Swype.
3. Follow the onscreen instructions.

Resetting Crossover

Solve repeated problems by resetting Crossover. Make sure to turn off Crossover first to protect information and software in Crossover.

1. Remove the battery cover and battery without turning off Crossover.
2. Insert the battery to Crossover right away.
3. Turn on Crossover.

Appendix

Appendix

To update software

You can update your software without visiting the nearest dealer.

1. Tap Settings > AT&T software update.
2. Tap Check for updates to check whether you need to update the software.
   ① Note After downloading the software, the device will ask you whether to update the software now. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you can select between 1 hour, 4 hours or 8 hours in Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you postpone the process, tap Continue Update.

To view the version of software

1. Tap Settings > About phone.
2. Scroll down to see the version of software.

PC Suite

PC suite is a Windows-based program that allows you to easily manage personal data and multimedia files by connecting your phone to a PC. The application can be downloaded at http://www.pantechusa.com.

System requirements

• Microsoft Windows 2000 or XP family, Windows7 and Vista 32 bit
• Minimum 300MB of free disk space
• Interface devices such as USB for connection with the phone

PC Suite features:

• PC Suite launcher
- Contact Manager
PC Sync
- Message Manager
- File Manager
- MMS PC Composer
- Internet Access

Troubleshooting checklist

When audio quality is poor: End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone.

When battery life is shorter than usual:

This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.

When you cannot turn on your phone:

Make sure your battery is charged. Check to see if your phone works while recharging the battery.

When you are unable to send a message:

Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.

When you are unable to make a call:

Your phone may be set to "fixed dial." Cancel the "fixed dial" function.

When you are unable to charge the battery:

This may be the result of one of the following three cases.

1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.
3. Your battery may have not been connected to the charger properly. Check the connector.

When you are unable to input data into your Address Book: Your Address Book memory may be full. Delete some entries from your Address Book.

When you are unable to select a certain function:

You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.

Specifications

Design

Touch QWERTY Slider

Displays

262k colors TFT with 3.1" display320*480 (HVGA) pixels in resolution

Melodies

MP3, AAC, AAC+, eAAC+ and WMA

Camera

Integrated 3M CMOS Camera with AF (Auto Focus)

• Resolution up to 2048 x 1536 (3,145,728 pixels)
• Video Encoding up to 24f/s; decoding up to 30f/s
• Photo album and video album

Dimensions & Weight

• Weight: 148.5g/5.23oz (with battery cell)
• Dimensions: 113 x 58 x 14.35mm (4.45" x 2.28" x 0.56")

Power Management (Performance)

Battery Type	Capacity Standby Time		Talk Time
Standard Lithium-Ion (Li-ion)	1500 mAh	Up to (maximum) hours	Up to (maximum) hours

Operating Frequency

• GSM/GPRS/EDGE 850/900/1800/1900 MHz, UMTS/HSDPA 850/1900/2100 MHz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported.
  • Automatic band switching

FCC Hearing-Aid Compatibility Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

Appendix

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their boxes or a label located on the boxes.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

• M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
• T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equals M5. This is synonymous for T ratings. This should provide the hearing aid user with "normal usage" while using their hearing aid with the particular wireless phone. "Normal usage" in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard. To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 67 for instructions to disable these components.

This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider about its return and exchange policies and for information on hearing aid compatibility.

FCC Regulatory Compliance

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.

Statement according to FCC part 15.105

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 20 mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.*

Appendix

* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.
** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.

Warranty

Protect Your Warranty

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit:

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident."

Many companies are making look alike accessories and in some cases, promoting that their products are equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.

If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by the reason of a non-compatible accessory, the Warranty will be voided. To protect your warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.

12-Month Limited Warranty

Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This warranty does not apply to:

(a) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Products damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing.

To locate Pantech Authorized Service Center, call: [phone] or email [e-mail]. Please have the following information available when you send the phone in for repair:

• A valid original Proof of Purchase
- Return address
• Daytime phone number or fax number
- Model number
- IMEI number (Look for the 15-digit IMEI number behind the battery of the device.)
• Complete description of the problem
• Transportation prepaid

Other Warranty Program

You may have other warranty program with your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.

- THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.

ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

For technical support in the U.S. & Canada, call [phone]. Or email us to [e-mail]. Or visit the web site at www.pantechusa.com.

For all other inquiries, write to:

PANTECH WIRELESS, INC.5607 Glenridge Dr. Suite 500 Atlanta, GA 30342, USA.

Legal notice

Bluetooth is a trademark of Bluetooth SIG, Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Google, YouTube, Picasa, Gmail, Google Maps and Android Market are trademarks of Google, Inc.

Appendix

Index

3G 57,60,67

A

Accessibility 95

Accounts & sync 18, 92

Airplane mode 3, 86

Android Market 59, 94

Applications 14, 17, 19-20, 23, 39-42, 58

Ask on connection 71, 92

AT&T Address Book 17, 48-49

AT&T software update 95, 98

Auto Redial 87

Automatic 84, 92, 94

Auto-replace 94

B

Background data 49, 92

Battery use 95

Bluetooth 20, 26, 67-68, 86, 100, 103

Bookmark 58

Brightness 39–41, 89

C

Calculator 76

Calendar 49-50

Call forwarding 87

Call log 26

Call waiting 88

Caller ID 87

Camcorder 40-41, 72

Camera 15, 39-42, 76, 99

Clock 74-75

Clock Tools 74

Connectivity 66

Contacts 5-6,18,26,48-49,61

Converter 76-77

D

Date format 95

Date & time 95

Display 48, 89, 99

Document Viewer 54, 55, 72

DTMF Tones 87

E

Email 18, 31-32

Erase everything 71, 92

F

Facebook 34-35

Factory data reset 92

FCC Hearing-Aid Compatibility Regulations for Wireless Devices 99

FCC Regulatory Compliance 100

Fixed dialing numbers 87

Force stop 91

FUNCTION 14, 22

G

Gallery 21, 33, 35, 40, 42-43, 62, 68, 78

Gmail 18, 32, 33, 36, 62

Google Search 63, 93

GPS satellites 60, 89

H

Handy Memo 29, 50-51, 72

Home screen 14, 19–22, 35, 86

K

Keyboard 5,17,23,27,91,93

L

Language & keyboard 23, 93

Latitude 61-62

Legal information 96

Legal notice 103

Lithium Ion (Li-Ion) battery 4,12

Location & security 13, 60, 89-90

Locations 29, 62, 92

LOCK/PWR14,17,71,95

M

Maps 21, 29, 60, 62, 80, 86

Mass Storage 71-72, 92

Media Transfer 71-72, 92

Messaging 19, 27-28

MicroSD card 11, 43, 50, 71-72

Mobile networks 87

Mock locations 92

Modem 68

Mount SD card 71, 93

Music Player 43-45

N

NASH Sound Effect 88

Navigation 80

News & Weather 63-64

Notifications 22, 30, 33, 59, 66, 72

P

Password 13, 18, 31, 32, 63, 66, 89

Pattern lock 13, 88

PC 15,71,98

Personalize 86

PIN 13,90

Places 60-61

Playlists 44, 46

Power button ends call 95

Privacy 62, 92

Q

Quick fixes 94

R

Reset phone 92

Ringtone 34, 52, 88

RSS Reader 84

S

Safety information 101

Safety precautions 3

S-Board 35-36

Screen lock 13, 88-90

Screen timeout 89

SD card & phone storage 71, 92

Set date 95

Setting 29-34, 36, 40, 48

Shortcuts 14, 19, 21, 58, 91

Silent mode 76,88

SIM card 11, 17, 20, 26, 91

Sketch Pad 72, 77-78

Social Net 35

Sound 15, 25, 39, 43, 88

Speech rate 94

Stopwatch 74

Swype 28, 93, 96

System tutorial 96

T

Talk 36

Tethering & portable hotspot 68, 86

Text-to-speech 94

Timer 40,74

Time zone 74, 95

Touch screen 14, 18

Trash bin 22, 44, 82

TTY mode 87

Tutorial 17, 28

U

Uninstall 59, 91

Unmount SD card 71, 93

USB debugging 71, 91-92

Use My Location 63-64, 93

User dictionary 94

V

Vibrate 30, 34, 88

Voice input & output 94

Voicemail 19, 49, 87

Voice Memo 51-52, 72

Voice Search 57,78

Volume 15, 25, 76, 88

VPN 87

Appendix

W

Wallpaper 19, 21, 40, 86

Warranty102-103

Weather 63, 75, 81

Web 57-58, 93

Widget 19, 21-22

Wi-Fi 17-19, 57, 60, 66-69, 86

Wireless & networks 3, 66-68, 86

World time 74

Y

YouTube 45-46

Z

Zoom 18, 39-42, 54, 57, 79
