Product Type	GPS Navigation Device
Brand	Mio
Model	Moov Spirit (N223/N224/N229)
Display	Touch screen, 3.5-inch (typical)
GPS	Built-in GPS receiver, SiRFstarIII (typical)
Battery	Internal lithium-ion polymer, non-replaceable
Battery Life	Up to 2 hours (full charge)
Charging Time	Up to 4 hours
Input Power	5V DC, 1A via USB or in-car charger
Memory	Internal memory + MicroSD card slot
Bluetooth	Yes, for hands-free calling and internet connection
TMC Traffic	Built-in or optional TMC receiver (depending on model)
FM Transmitter	Yes (not all models)
Audio	Built-in speaker, headphone jack
Media Playback	Music, video (not all models)
Dimensions (approx.)	130 x 80 x 20 mm (5.1 x 3.1 x 0.8 in)
Weight (approx.)	200 g (7 oz)
Mounting	Windshield suction cup or dash mount (included)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Languages	Multiple languages supported

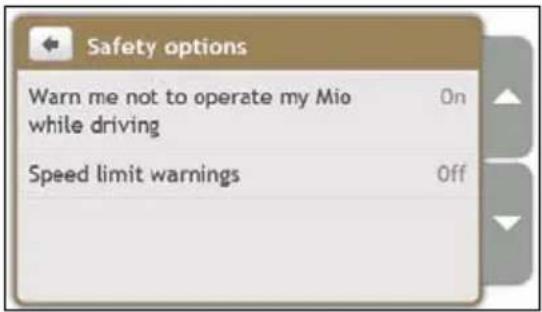

Safety Features	Safety camera alerts, speed limit warnings, back-on-track rerouting
Cleaning	Wipe with soft, lint-free cloth; do not use paper towels

Frequently Asked Questions - Moov Spirit MIO

How do I mount my Mio Moov Spirit in a vehicle?

Use the provided suction cup mount to attach the device to the windshield. Ensure it does not obstruct the driver's view or interfere with airbags. You can also use an alternative dash mount if included. Connect the in-car charger after starting the engine.

How do I charge the internal battery?

You can charge via the in-car charger (plug into vehicle power socket), via USB cable connected to a computer (ensure device is off), or using an optional home charger (5V DC, 1A). Full charge takes up to 4 hours and provides up to 2 hours of use.

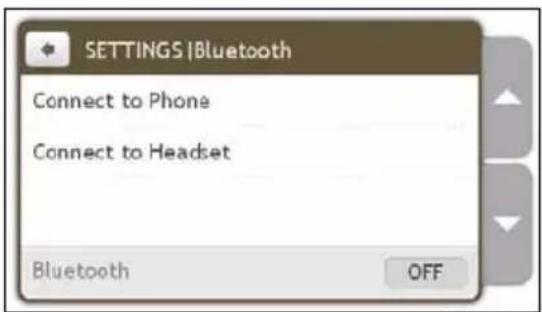

Can I use Bluetooth for hands-free calling?

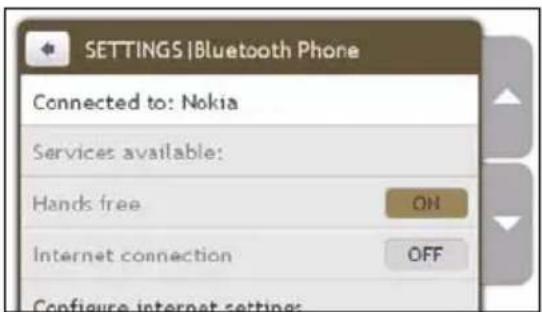

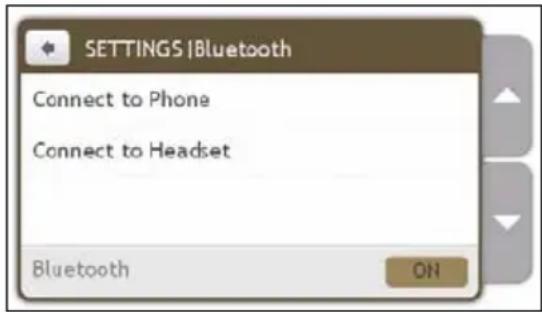

Yes, pair your Bluetooth mobile phone with the Mio. Go to Settings > Bluetooth, turn Bluetooth ON, and select Connect to Phone. Search for devices and enter PIN 1234 if prompted. Once paired, you can make and receive calls via the device.

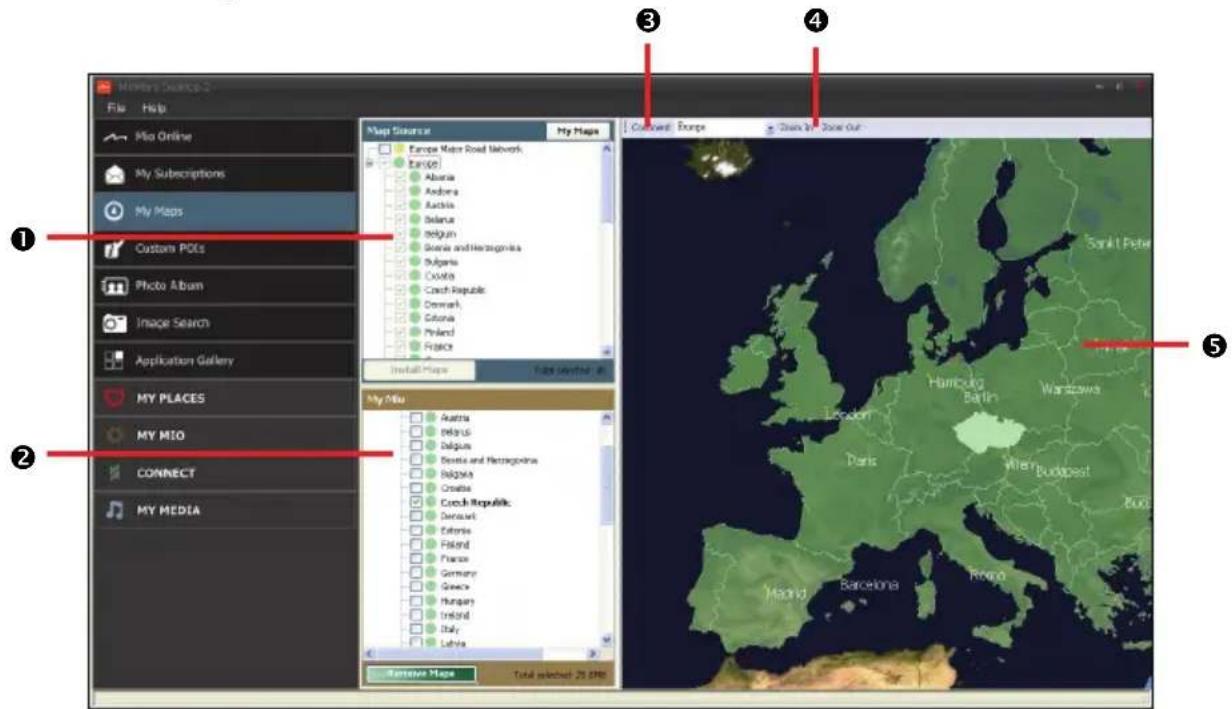

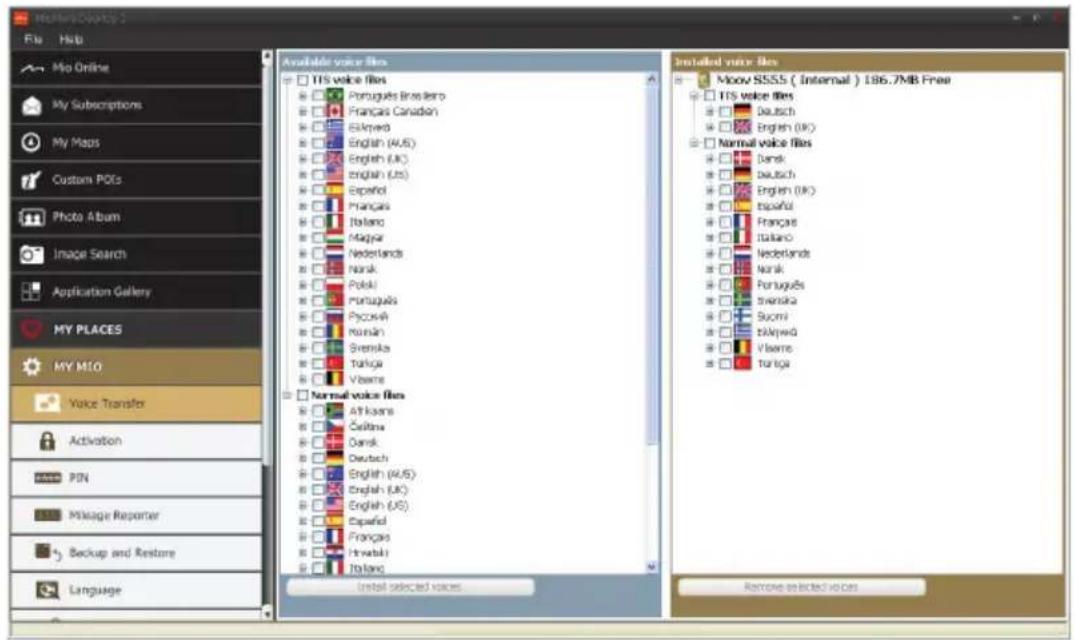

How do I update maps or software?

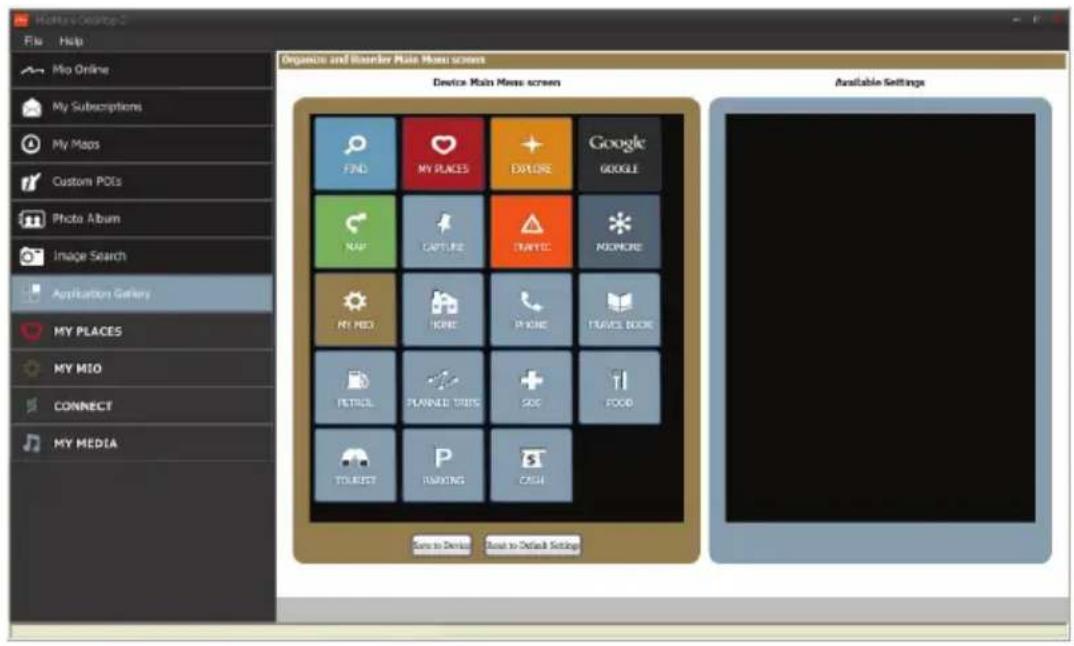

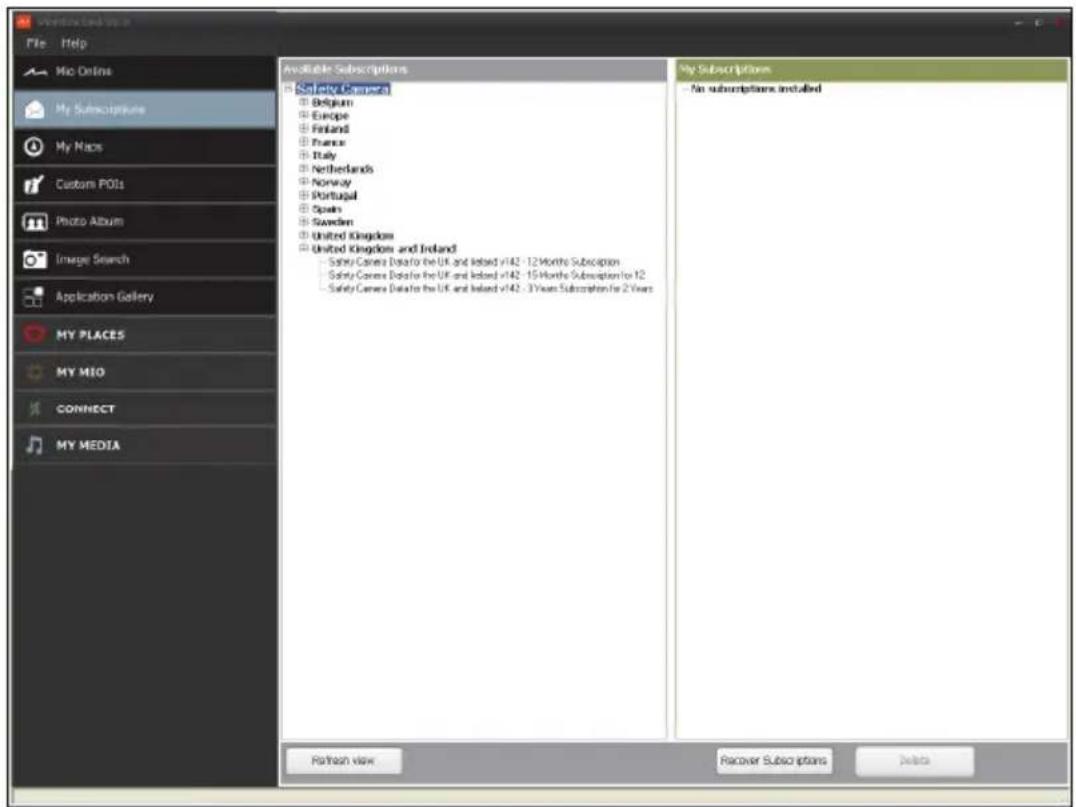

Connect your Mio to a computer via USB and use MioMore Desktop software. You can manage maps, back up data, and install updates. Registration at MioClub may be required for map updates.

What should I do if the screen freezes or becomes unresponsive?

Reset the device by sliding the power switch to the RESET position. Then slide it back to ON to restart. If the problem persists, ensure the battery is charged or perform a factory reset via the settings menu.

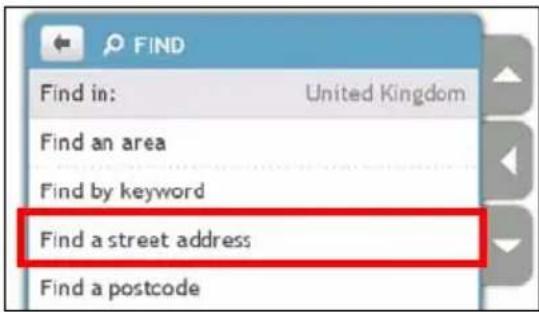

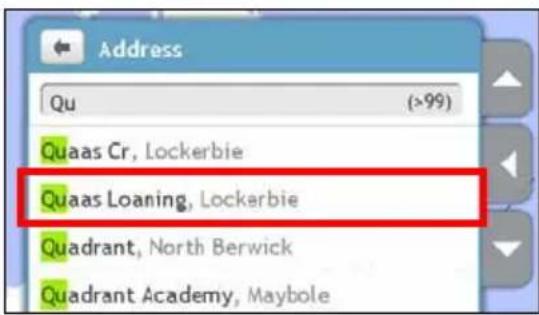

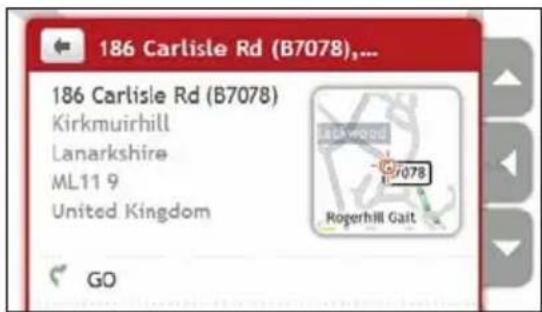

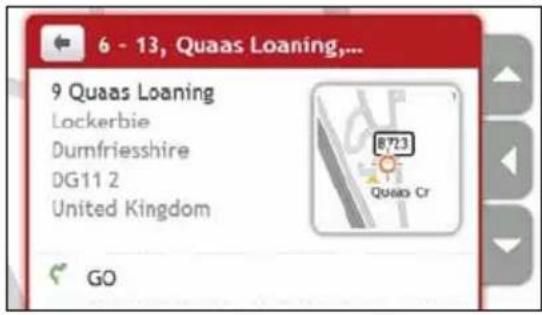

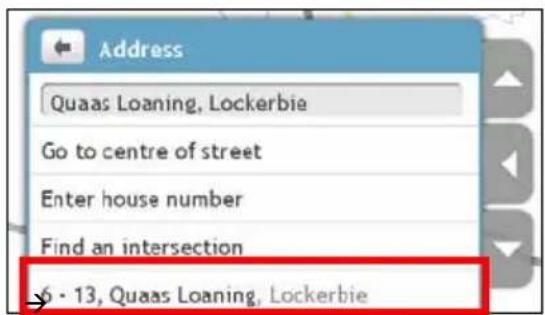

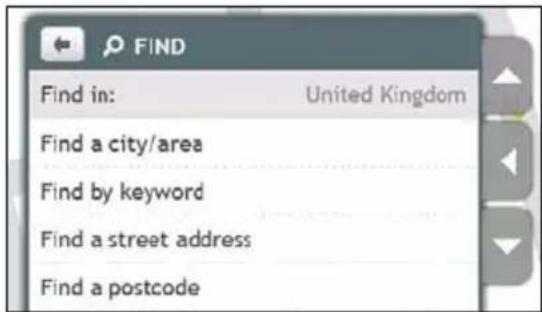

How do I set a destination and plan a route?

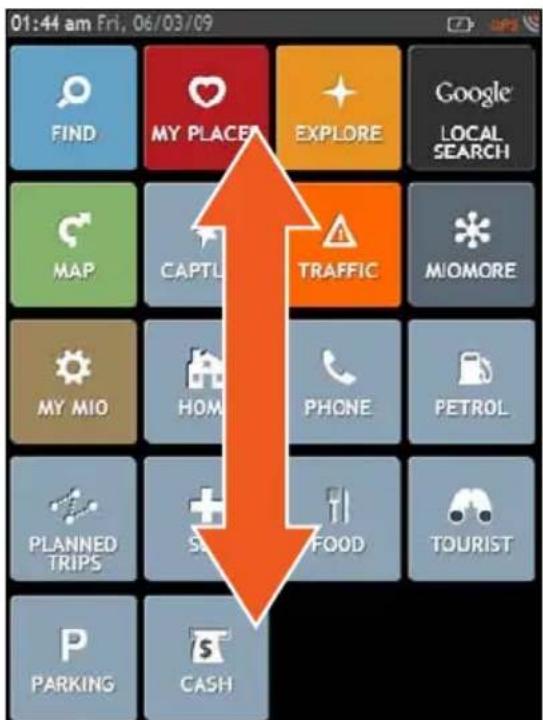

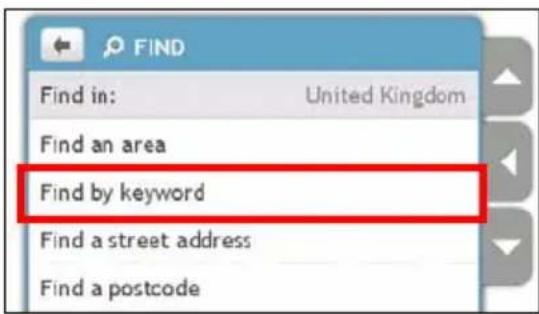

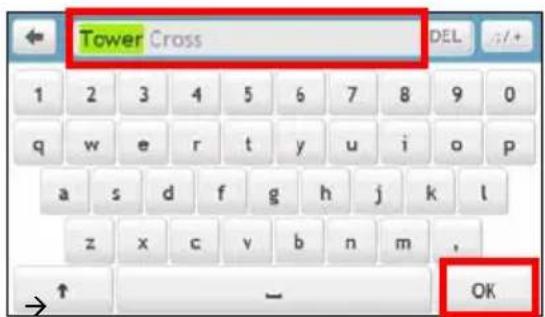

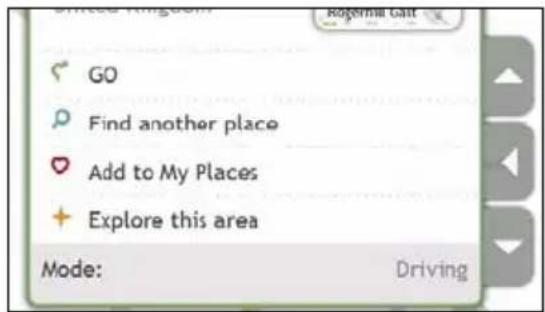

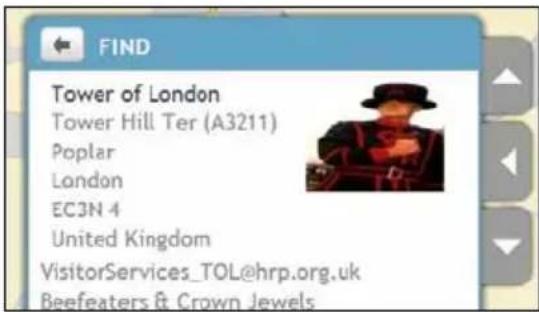

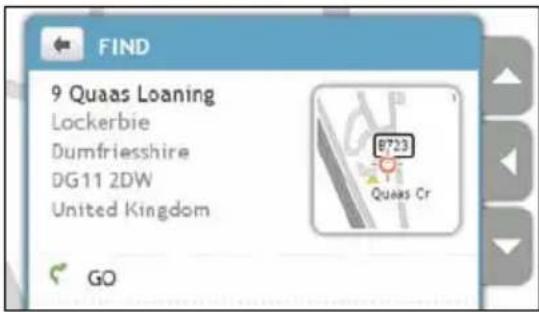

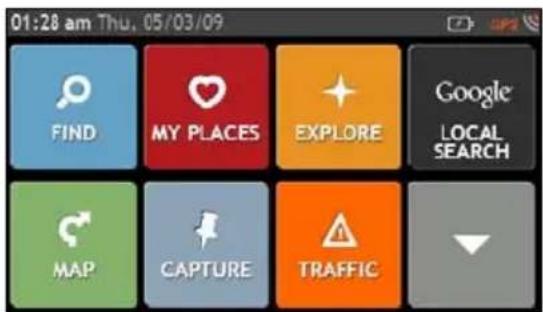

From the Main Menu, tap FIND and choose an option (e.g., street address, postcode, Point of Interest). Enter details using the on-screen keyboard, select the location, then tap GO. The device will calculate the route and provide turn-by-turn guidance.

Is real-time traffic information available?

Yes, if your model has a built-in TMC receiver or you have the TMC accessory kit. Enable traffic in settings. The in-car charger acts as an antenna. A subscription may be required in some countries.

Can I play music or videos on the Mio?

On supported models, you can play music and video files stored on the internal memory or MicroSD card. Use the Media option from the menu. Do not use video playback while driving; it must only be used when parked.

How do I care for and clean my Mio device?

Avoid extreme temperatures and direct sunlight. Clean with a soft, lint-free cloth. Do not use paper towels or abrasive cleaners. Do not disassemble the device; modifications will void the warranty.

What should I do if the GPS signal is weak?

Ensure the device has an unobstructed view of the sky. Avoid mounting behind metallic or athermic windshield coatings. If indoors, move closer to a window or outside. A GPS fix may take a few minutes after power-on.

USER MANUAL Moov Spirit MIO

Moov/Navman Spirit Series Hardware Manual

Important safety information

PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE

	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
	CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

WARNING

Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle's safety or make it illegal to operate in some jurisdictions.

Follow all product instructions and all instructions in your vehicle owner's manual regarding accessories or modifications.

Consult your country's and/or state's laws regarding operation of a vehicle with any accessories or modifications.

It is your sole responsibility to place, secure and use your Mio in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices.

Do not mount your Mio in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment.

Do not operate your Mio while driving.

Before you use your Mio for the first time, familiarize yourself with your device and its operation.

On main roads, the distance to an exit calculated by your Mio may be further than the distance shown on road signs. Road signs show the distance to the start of an exit while your Mio shows the distance to the next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance information on road signs.

The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are responsible for checking that you can legally use the information in your country or in the country where the information will be used.

The TV, video player and AV input features MUST NOT be used when driving. Using this feature may cause an accident. Please make sure you comply with this warning. Mio accepts NO liability whatsoever in this regard.

CAUTION

Do not handle your Mio while it is hot. Let the product cool, out of direct sunlight.

At full power, prolonged listening to your Mio via headphones or earphones can damage the ear of the user.

CAUTION

Do not expose your Mio to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.

To discourage theft, do not leave your Mio, mounting bracket or any cables in plain view in an unattended vehicle.

Warning Notice to Drivers in the United States

State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on their windshields while driving. Please make sure you research and follow your most current State laws. An alternative mounting option may be provided in the box with your product; or see our website for additional mounting alternatives. Mio does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice.

Home charger-specific safety information

WARNING

To charge your Mio from the mains power, use the home charger (Model: MII050100; Input: 100-240V AC 50-60Hz; Output: 5V DC 1A Max) supplied by Mio as an accessory (may be sold separately). Using other home chargers with your Mio could result in serious injury or property damage.

Never use the charger if the plug or cord is damaged.

Do not expose the charger to moisture or water. Do not use the charger in a high moisture environment. Exposure to water may cause electrical sparks or fires.

Never touch the charger when your hands or feet are wet.

Allow adequate ventilation around the charger when using it to operate your Mio or charge the internal battery. Do not cover the charger with paper or other objects that will reduce ventilation. Do not use the charger while it is inside a carrying case or other container.

Ensure that the charger is connected to a power source with the correct fitting and voltage requirements. The voltage requirements can be found on the home charger casing and/or packaging.

Do not attempt to service the charger as this could result in personal injury. Replace the charger if it is damaged or exposed to excess moisture.

Internal battery-specific safety information

Your Mio contains a non-replaceable internal lithium-ion polymer battery. The battery may burst or explode if mishandled, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush or puncture the battery.

Recycle or dispose of the battery safely and properly according to local laws and regulations. Do not dispose of the battery in fire or water.

Only use the correct home charger (sold separately) or in-car charger supplied by Mio to charge your Mio internal battery.

Only use your Mio internal battery with your Mio unit.

The Mio battery will stop charging when the ambient temperature is less than 0°C (32°F) or more than 45°C (113°F).

Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Mio disclaims all liability for installation or use of your Mio that causes or contributes to death, injury or property damage or that violates any law.

Important safety information....2

Home charger-specific safety information 2

Internal battery-specific safety information....3

Welcome....5

Important information for using the manual....5

Formatting 5

Icons....5

Terms 5

Mounting your Mio in a vehicle....6

S300 / S500 / Flat / Navman Spirit Series 6

Enabling Traffic (TMC) Reception 6

Getting to know your Mio 7

S300 Series 7

S500 / Flat / Navman Spirit Series 8

How do I turn on my Mio? 9

Using the power switch....9

How do I charge the battery? 10

How do I charge the battery in a vehicle? 10

How do I charge the battery via my computer? 10

How do I charge the battery at home or work?......10

How do I insert a memory card? 11

Other features....12

How do I make a hands-free call?......12

How do I search for a place using Connect?......12

How do I receive current traffic information?......12

How do I play music or video? 12

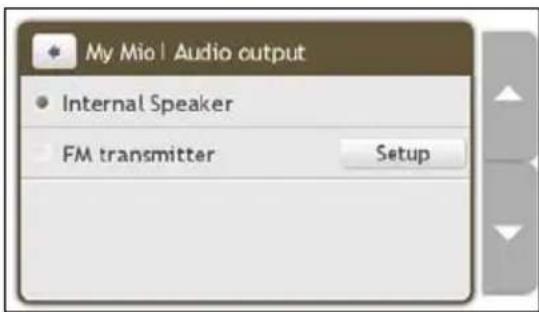

How do I receive audio through my vehicle speakers?......12

Reference 13

What is GPS? 13

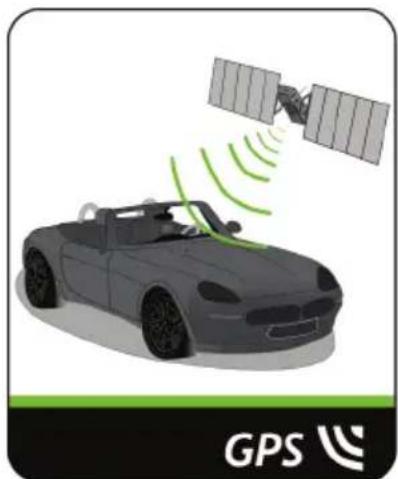

How does my Mio receive GPS signals? 13

Caring for your Mio 13

Troubleshooting....14

For more information....15

Online support 15

Register your Mio with MioClub....15

Disclaimer....15

Compliance....15

Copyright 16

Thank you for purchasing this Mio. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Formatting

The following formatting in the text identifies special information:

Convention Type of Information
Bold	Components or items displayed on screen, including buttons, headings, field names and options.
Italics	Indicates the name of a screen.

Icons

The following icons are used throughout this manual:

Icon Description
	Note
	Tip
	Warning

Terms

The following terms are used throughout this manual to describe user actions.

Term Description
Press Press and	release a button quickly.
Press and hold	Press and hold a button for 2-3 seconds.
Tap Press and	release an item displayed on the touch screen.
Tap and hold Tap	and hold an item displayed on the touch screen for 2-3 seconds.
Select Tap an item in a list or tap a command from a menu.

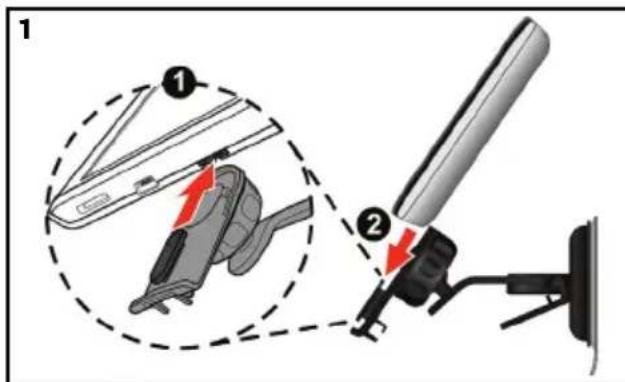

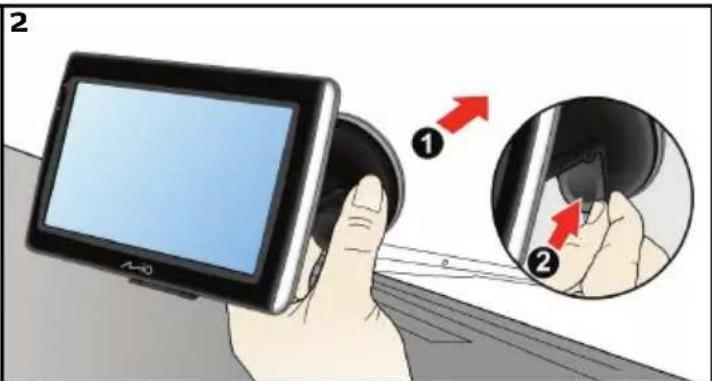

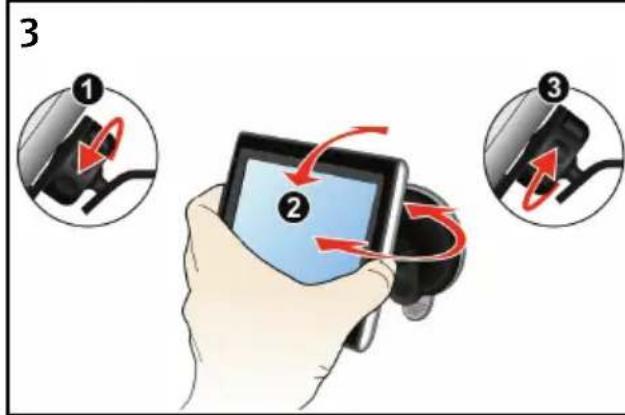

Mounting your Mio in a vehicle

CAUTION:

• Never mount your Mio where the driver's field of vision is blocked.
• If the windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In this instance, please mount your Mio where there is a “clear area” - usually just beneath the rear-view mirror.
• To protect your Mio against sudden surges in current, connect the in-car charger only after the car engine has been started.

S300 / S500 / Flat / Navman Spirit Series

Enabling Traffic (TMC) Reception

Traffic information is not available on all models and is only available in selected countries.

Depending on the model of your Mio you can receive live traffic information in one of two ways:

If your Mio has a built-in TMC receiver, you can receive live traffic information* via the in-car charger which is used as an antenna.
If your Mio does not have a built-in TMC receiver, you will need to install the TMC accessory kit (may be sold separately - see www.mio.com for details).

For information on using traffic information on your Mio, see the Software User Manual.

* Subscription may be required. See www.mio.com for more details.

Getting to know your Mio

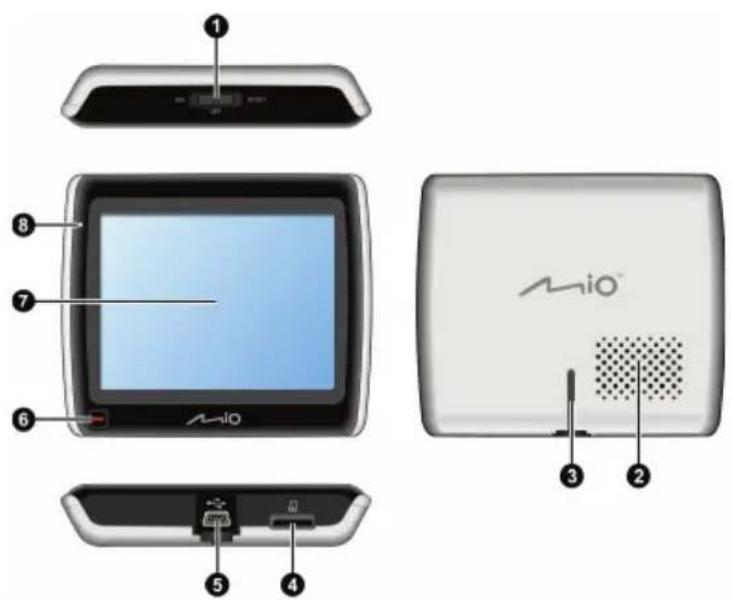

S300 Series

1	Power switch	5	Connector for in-car charger, USB cable, home charger (sold separately) and TMC accessory kit (may be sold separately)
2	Speaker	6	Main Menu button
3	Cradle slot	7	Touch screen
4	Slot for MicroSD memory card	8	Battery indicator

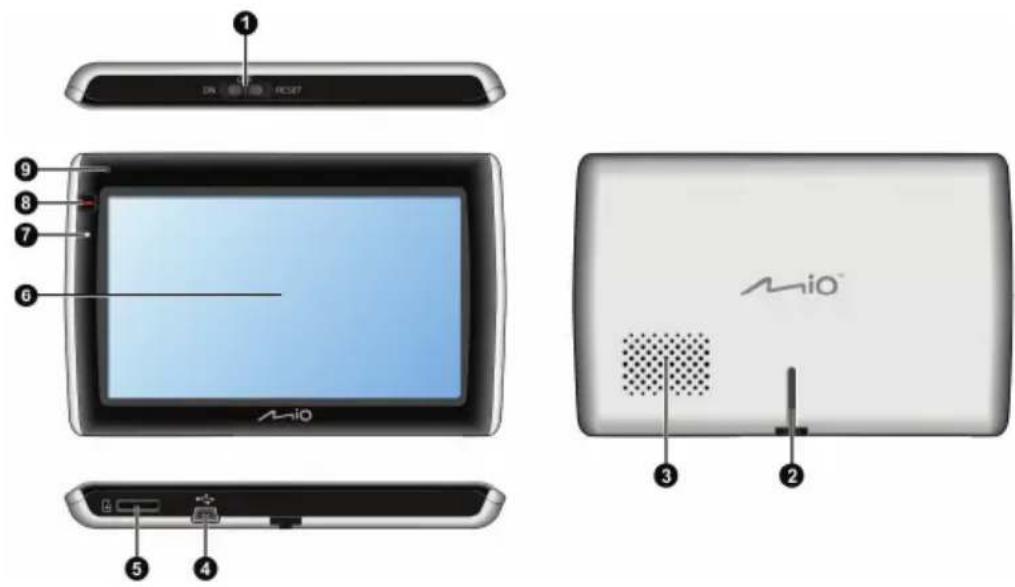

S500 / Flat / Navman Spirit Series

① Power switch

⑥ Touch screen

② Cradle slot

⑦ Battery indicator

③ Speaker

8 Main Menu button

4 Connector for in-car charger, USB cable, home charger (sold separately) and TMC accessory kit (may be sold separately)

9 Microphone (not on all models)

5 Slot for MicroSD memory card

How do I turn on my Mio?

Using the power switch

To turn on your Mio, slide the power switch to the ON position.

- To turn off your Mio, slide the power switch to the OFF position, then tap Sleep. Your Mio will enter a suspended state. When you next turn it on, your Mio will return to the last screen that you used.

To reset your Mio, slide the power switch to the RESET position. When your Mio has turned off, slide the power switch to the ON position

To lock the screen, slide the power switch to the OFF position, then tap Lock.

- To unlock the screen, slide the power switch to the ON position, then tap Unlock.

How do I charge the battery?

Your Mio has an internal battery that when fully charged, should provide power for up to 2 hours. The battery can take up to 4 hours to fully charge.

The battery may not be fully charged when you use your Mio for the first time.

CAUTION: For optimal performance of the battery, note the following:

• Do not charge the battery when the temperature is high (e.g. in direct sunlight).
• There is no need to fully discharge the battery before charging.
• When leaving your Mio for long periods, slide the power switch to the RESET position to save internal battery power.

The battery indicator light on your Mio indicates the level of internal battery charge:

■ Green - battery full
- Orange - battery charging

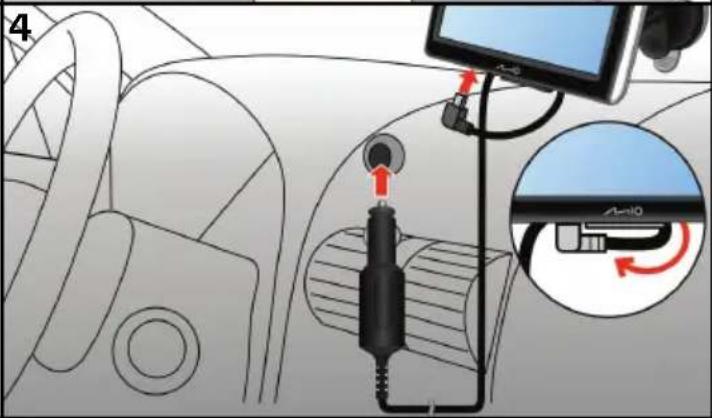

How do I charge the battery in a vehicle?

To charge your Mio in a vehicle, plug the in-car charger into 📋 on the bottom of your Mio and the other end into the vehicle power socket.

How do I charge the battery via my computer?

For optimal charging results, ensure that your Mio is turned off while connected to your computer.

1. Turn on your computer.
2. Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug the small end into 🧑️ on the bottom of your Mio.

CAUTION: When your Mio is turned on and connected to a computer, it is recognized as an external mass-storage device. Do NOT delete any files that are pre-installed on your Mio. Deleting the files can cause your Mio to crash

How do I charge the battery at home or work?

You can use an optional home charger to charge the battery.

To charge your Mio using a mains power socket, plug the home charger cable into ⬇ on the bottom of your Mio and the mains power charger into the power socket.

The home charger is not included with all models and may be purchased separately (see www.mio.com for ls).

How do I insert a memory card?

CAUTION: Do not apply pressure to the centre of the memory card.

Close-up of a USB flash drive with a red arrow pointing to the flash module (no text or symbols visible)

Close-up of a black electronic device handle with a red arrow pointing to a ports (no text or symbols visible)

S300 Series S500 / Flat / Navman Spirit Series

Hold the MicroSD card by the edges and gently insert it into the slot as shown in the above diagrams of your Mio.

- To remove a card, gently push the top edge of the card inwards to release it, then pull it out of the slot.

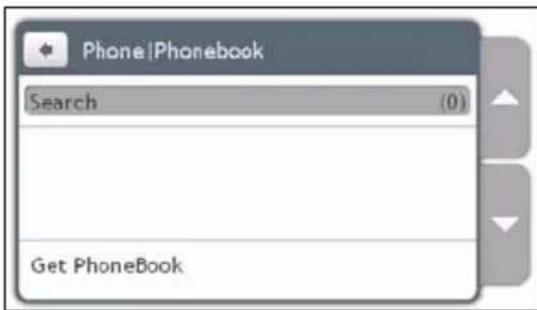

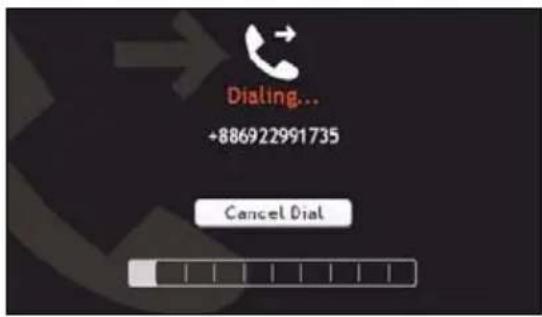

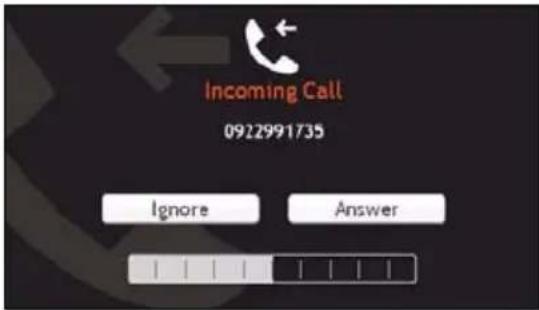

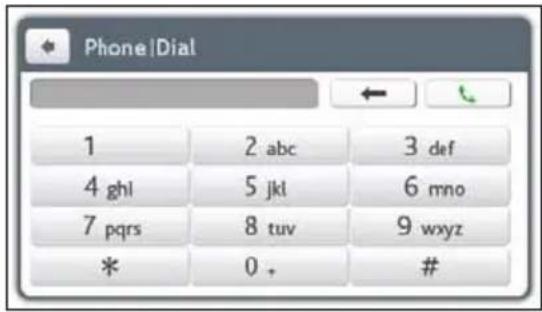

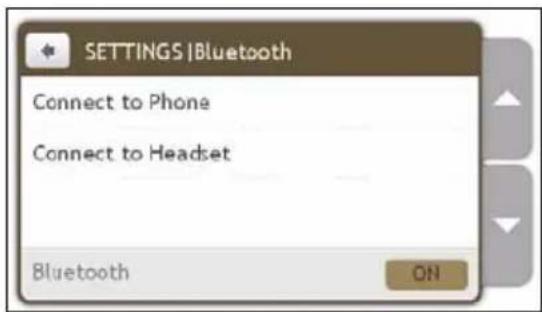

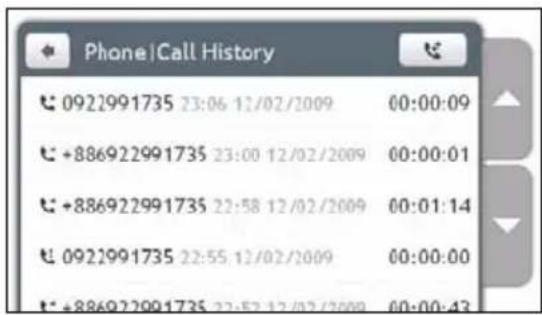

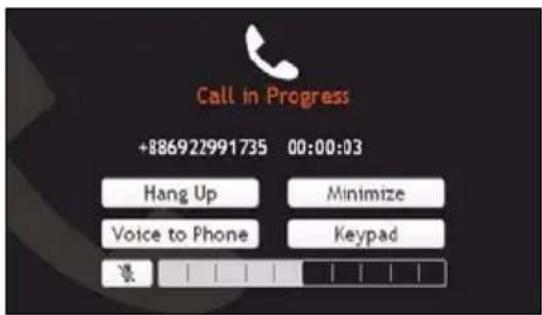

How do I make a hands-free call?

Hands-free calling is not available on all models.

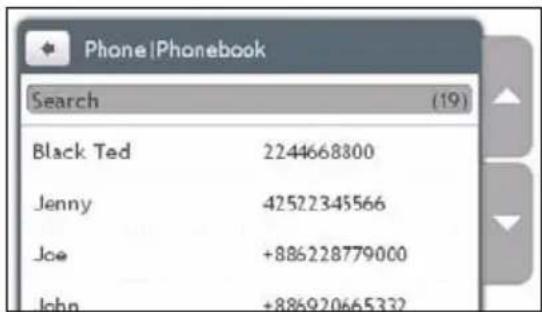

If you have a mobile phone with Bluetooth wireless technology, you can use your Mio as a hands-free car kit. Before you can use this feature you must pair your mobile phone with your Mio.

f Ensure that the Bluetooth wireless feature of your mobile phone is turned on before you begin pairing. Not all phones with Bluetooth wireless technology are compatible with your Mio. For a list of compatible phones, visit www.mio.com

- For information about pairing, making and receiving phone calls, refer to the Software User Manual.

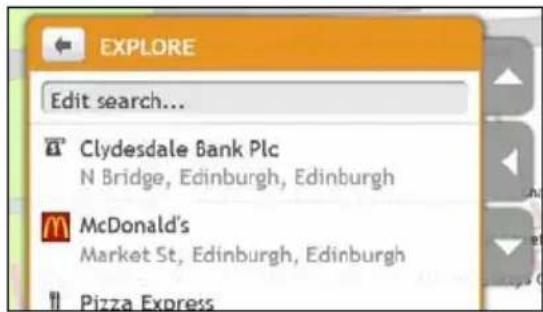

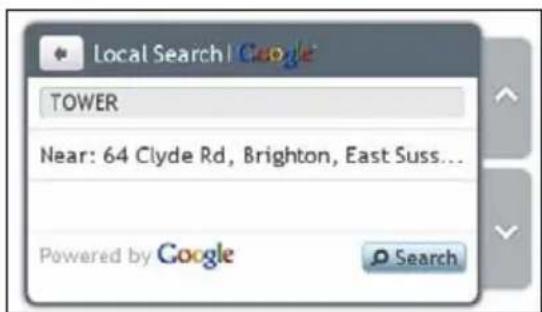

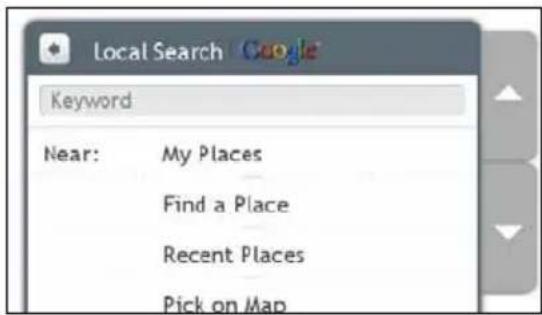

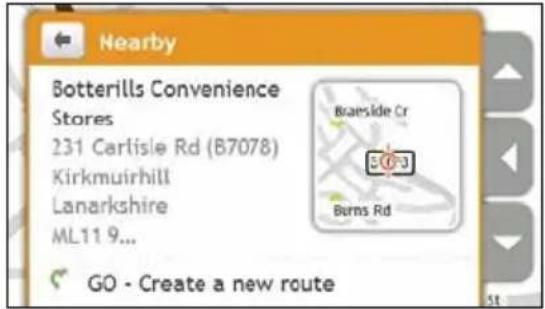

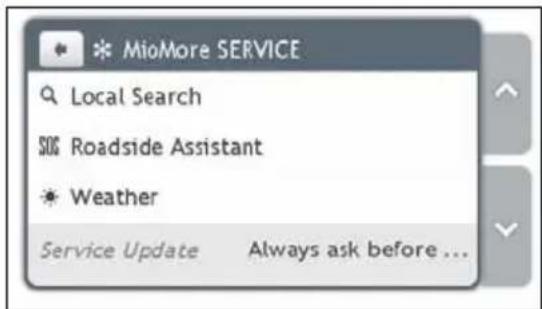

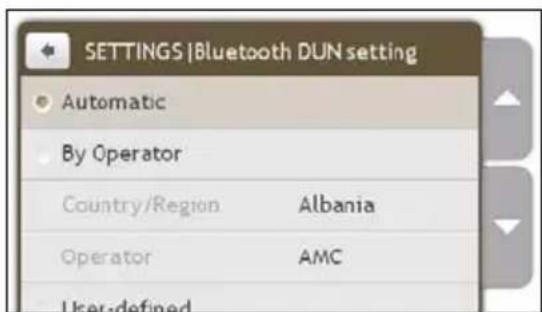

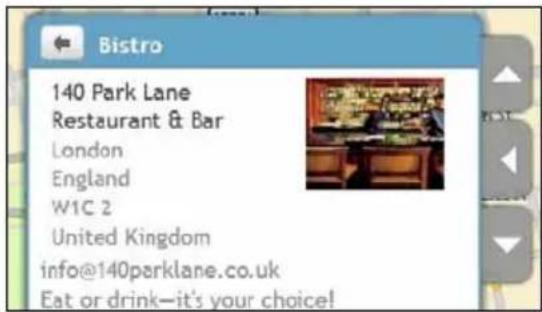

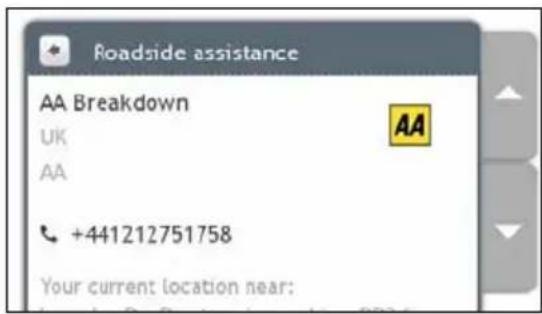

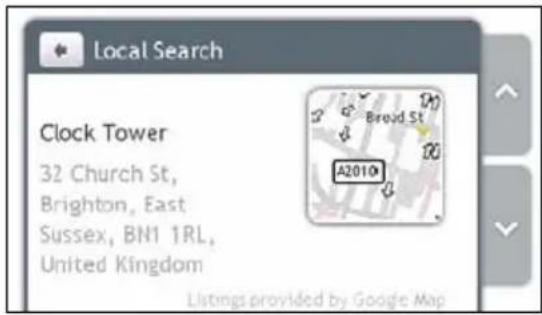

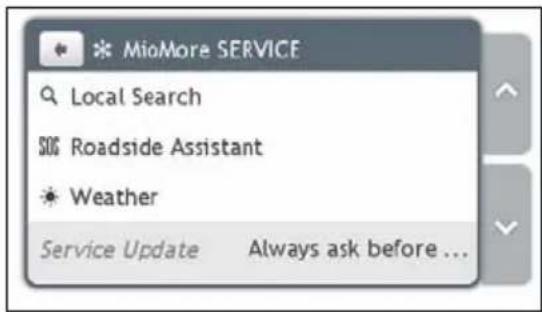

How do I search for a place using Connect?

Connect is not available on all models and is only available in selected countries.

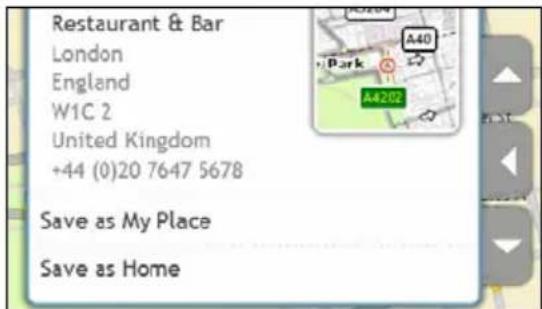

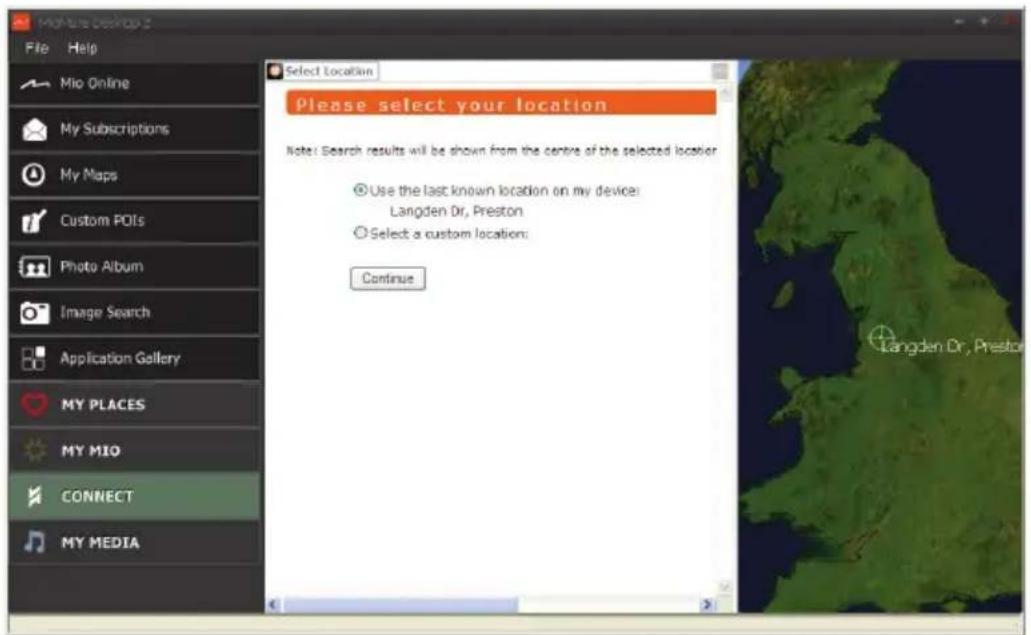

Using Connect, you can search online for places near a specific location.

To use Connect, you must pair your Mio with your mobile phone. If your Mio isn't paired with your mobile phone, then the Bluetooth screen will display. Not all phones with Bluetooth wireless technology are compatible with your Mio. For a list of compatible phones, visit www.mio.com

- For information about Connect and using Bluetooth wireless, refer to the Software User Manual.

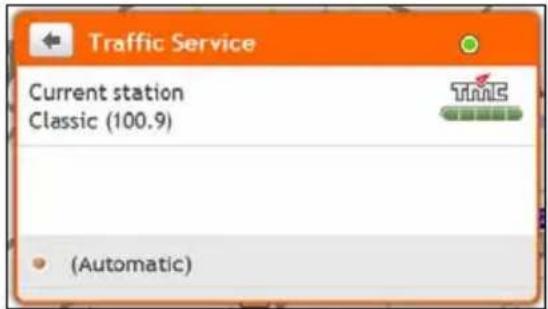

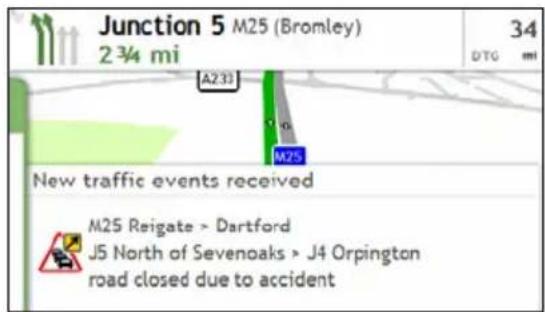

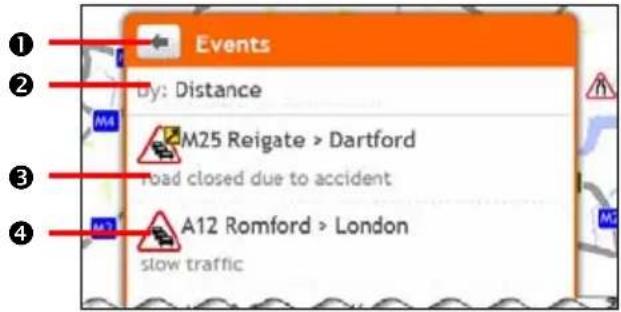

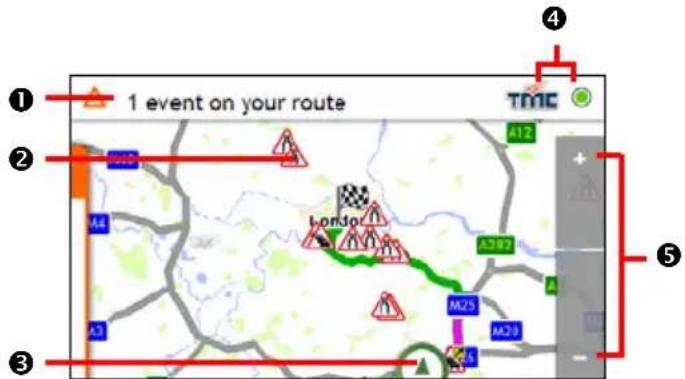

How do I receive current traffic information?

Traffic information is not available on all models and is only available in selected countries.

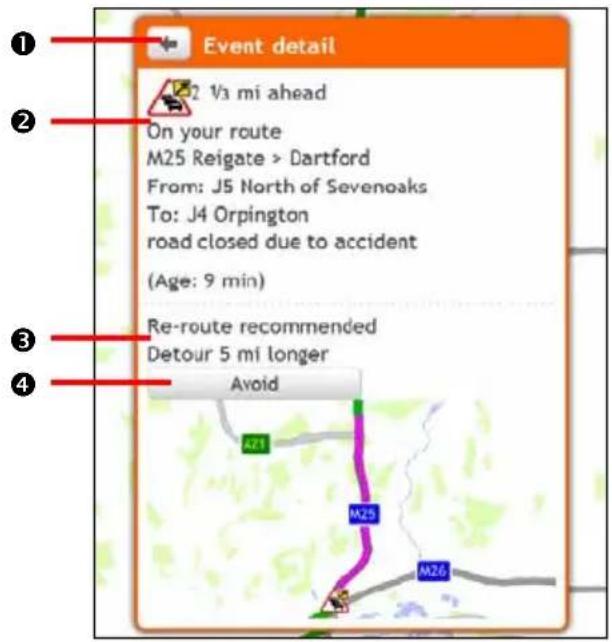

You can receive current traffic information on your Mio using the Traffic Message Channel (TMC) service. The TMC service may require a subscription in some countries. See www.mio.com for details. Depending on your Mio model you may require a TMC accessory kit (may be sold separately).

■ For more information about Traffic, refer to the Software User Manual.

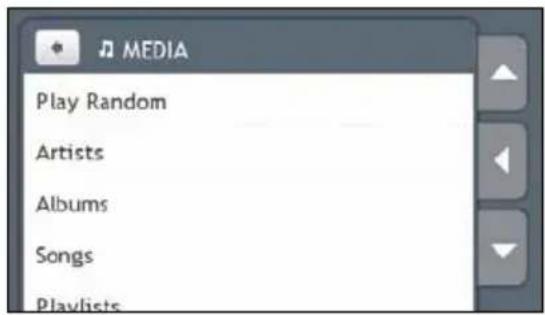

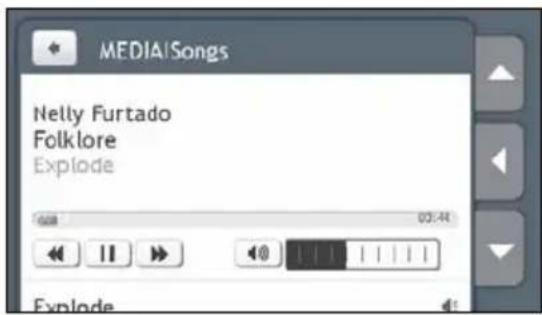

How do I play music or video?

Media playback is not available on all models and is only available in selected countries.

Using Media you can play music or video files that you have downloaded to your Mio, or from your MicroSD card.

WARNING: The video player feature MUST NOT be used when driving. Using this feature may cause an accident. Please make sure you comply with this warning. Mio accepts NO liability whatsoever in this regard.

■ For more information about playing music and video, refer to the Software User Manual.

How do I receive audio through my vehicle speakers?

FM transmitting and MP3 are not available on all models and are only available in selected countries.

Your Mio can be set to transmit sound at a particular FM frequency which you can then receive through your vehicle radio. This means that you can hear map voice guidance, mp3 files and video files clearly and loudly through your vehicle speakers.

- For more information about FM transmitting, refer to the Software User Manual.

What is GPS?

The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft). GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi). Each satellite transmits a range of signals which are utilized by GPS receivers, such as your Mio, to determine an exact location. Although a GPS receiver can detect signals from up to 12 satellites at any time, only four signals are required to provide a position or "GPS fix" (latitude and longitude), for vehicle navigation systems.

How does my Mio receive GPS signals?

Your Mio receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength, ensure your Mio is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS reception is not usually affected by weather, however, very heavy rain or snow may have a negative effect on your reception.

Illustration of a car with signal waves projecting to a satellite (no text or symbols)

Illustration of a car parked under a roof with signal waves and a satellite in the background (no text or symbols)

Caring for your Mio

Taking good care of your Mio will ensure trouble-free operation and reduce the risk of damage to your Mio:

• Keep your Mio away from excessive moisture and extreme temperatures.
• Avoid exposing your Mio to direct sunlight or strong ultraviolet light for extended periods of time.
• Do not place anything on top of your Mio or drop objects on your Mio.

- Do not drop your Mio or subject it to severe shock.

- Do not subject your Mio to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your Mio. In the event of moisture condensation, allow your Mio to dry out completely before use.

The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen from minor scratches.

- Never clean your Mio when it is turned on. Use a soft, lint-free cloth to wipe the screen and the exterior of your Mio.

- Do not use paper towels to clean the screen.

- Never attempt to disassemble, repair or make any modifications to your Mio. Disassembly, modification or any attempt at repair could cause damage to your Mio and even bodily injury or property damage and will void any warranty.

- Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your Mio, its parts or accessories.

Troubleshooting

If you encounter a problem you cannot solve, contact an authorized service centre for assistance.

Problems Solutions
Power does not turn on when using battery power.	The remaining battery power may be too low to operate your Mio. Charge the battery using the in-car charger, home charger (sold separately) or USB cable, then try again.
Screen responds slowly.	The remaining battery power may be too low to operate your Mio. If the problem still persists, reset your Mio.
Screen freezes. Reset your Mio.
Screen is hard to read. Increase the screen brightness.
Cannot establish a connection with a computer.	Ensure that your Mio and your computer are both turned on before trying to establish a connection.Make sure that the cable is securely plugged into the USB port on your computer and on your Mio. Connect the USB cable directly to your computer, not a USB hub.Reset your Mio before connecting the USB cable. Always disconnect your Mio before you restart your computer.

Online support

For 24/7 help and support with Mio products, visit our Technical Support website at: www.mio.com

Register your Mio with MioClub

If you have a faulty product or you would like to speak to a member of our Technical Support team, register your Mio on MioClub to obtain the Technical Support phone numbers for your region.

Disclaimer

Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.

Compliance

WARNING This product, its packaging and its components contain chemicals known to the State of California to cause cancer, birth defects or reproductive harm. This Notice is being provided in accordance with California's Proposition 65.

For regulatory identification purposes:

■ Moov/Navman Spirit 300 Series is assigned a model number of N223.
■ Moov/Navman Spirit 500 Series is assigned a model number of N224.
■ Moov/Navman Flat Spirit Series is assigned a model number of N229.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Marking labels located on the exterior of your Mio indicate the regulations that your model complies with. Please check the marking labels on your Mio and refer to the corresponding statements in this chapter. Some notices apply to specific models only.

Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EC), the Electromagnetic Compatibility Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) - issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Standards:

EN 301 489-1: Electronic compatibility and Radio spectrum Matters (ERM), Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements.

EN 301 489-9: (Bluetooth and FM Transmitter): Electromagnetic compatibility and Radio spectrum Matters (ERM), ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 9: Specific conditions for wireless microphones, similar Radio Frequency (RF) audio link equipment, cordless audio and in-ear monitoring devices.

EN 301 489-17: Electronic compatibility and Radio spectrum Matters (ERM), Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment.

EN 300 328 (Bluetooth): Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN 301 357-2 (FM Transmitter): Electromagnetic compatibility and Radio spectrum Matters (ERM); Cordless audio devices in the range 25 MHz to 2000 MHz; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive.

EN 55022: Radio disturbance characteristics

EN 55024: Immunity characteristics

EN 61000-3-2: Limits for harmonic current emissions

EN 61000-3-3: Limitation of voltage fluctuation and flicker in low-voltage supply system

IEC 60950-1:2001: Product Safety

The manufacturer cannot be held responsible for modifications made by the User and the consequences thereof, which may alter the conformity of the product with the CE Marking.

Declaration of conformity

Hereby, Mio Technology declares that this N223/N224/N225/N229 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Products with FM Transmitter feature may be operated in the following countries:

AT	BE		BG	CH	CZ	DE	DK
ES	FI	GB	HU	IE	IS IT	LI
LT	LU		LV		MT	NL	NO
RO	SE	SI		SK

EE

PT

The FM transmitter function is not allowed to use in Cyprus, France and Greece. Please turn off the FM Transmitter in those areas.

The software is based in part on the work of the Independent JPEG Group.

The software application uses modified versions of the Minimal XML Library, Flickr Library and Python Library. The libraries and their use are covered by the GNU Lesser General Public License (www.gnu.org/licenses/lgpl.html). The modified source code is available from the following URLs:

■ Minimal XML Library: http://download,mio.com/opnsource/gnu/mxml/zip
Flickr Library: http://download.mio.com/opnsource/gnu/FlickrNet.zip
■ Python Library: http://download.mio.com/opnsource/gnu/python25.zip

Copyright

© 2009 MiTAC International Corporation. Mio is either a registered trademark or trademark of MiTAC International Corporation and is used under licence by Mio Technology Limited. All rights reserved.

The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.

Back-On-Track, Drive-Away, Slide Touch, MioMore Desktop, Mio Spirit, Navman Spirit and Turn-by-Turn are either registered trademarks or trademarks of MiTAC International Corporation and are used under licence by Mio Technology Limited. All rights reserved.

Microsoft, Windows, Windows Vista, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.

© 2008 Microsoft Corporation. All rights reserved. Microsoft, MSN, and the MSN logo are trademarks of the Microsoft group of companies.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Mio Technology Limited is under license.

Location Identifiers © 2005 International Air Transport Association.

POI Data © 2007 InfoUSA.

All other trademarks and registrations are the property of their respective owners.

Revision: R01 (8/2009)

Moov/Navman Spirit Series User Manual

Important Safety Information

PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE

	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION	CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

WARNING

Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle's safety or make it illegal to operate in some jurisdictions.

Follow all product instructions and all instructions in your vehicle owner's manual regarding accessories or modifications.

Consult your country's and/or state's laws regarding operation of a vehicle with any accessories or modifications.

It is your sole responsibility to place, secure and use your Mio in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices.

Do not mount your Mio or attach the antenna in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment.

Do not operate your Mio while driving.

Before you use your Mio for the first time, familiarise yourself with your device and its operation.

On main roads, the distance to an exit calculated by your Mio may be further than the distance shown on road signs. Road signs show the distance to the start of an exit while your Mio shows the distance to the next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance information on road signs.

The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are responsible for checking that you can legally use the information in your country or in the country where the information will be used.

The TV, video player and AV input features MUST NOT be used when driving. Using this feature may cause an accident. Please make sure you comply with this warning. Mio accepts NO liability whatsoever in this regard.

CAUTION

Do not handle your Mio while it is hot. Let the product cool, out of direct sunlight.

At full power, prolonged listening to your Mio via headphones or earphones can damage the ear of the user.

CAUTION

Do not expose your Mio to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.

To discourage theft, do not leave your Mio, mounting bracket or any cables in plain view in an unattended vehicle.

Warning Notice to Drivers in the United States

State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on their windscreens while driving. Please make sure you research and follow your most current State laws. An alternative mounting option may be provided in the box with your product; or see mio.com for additional mounting alternatives. Mio does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice.

Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Mio disclaims all liability for installation or use of your Mio that causes or contributes to death, injury or property damage or that violates any law.

Important Safety Information....2

Welcome....6

How do I use the touch screen?....7

How do I get started? 8

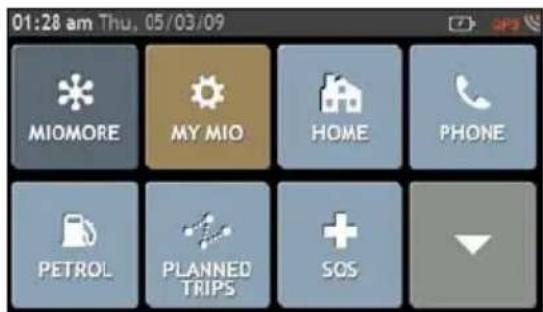

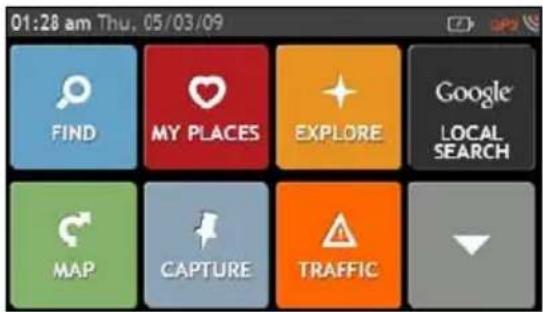

Main Menu 9

How do I go from A-B?......10

What if I miss a turn? 10

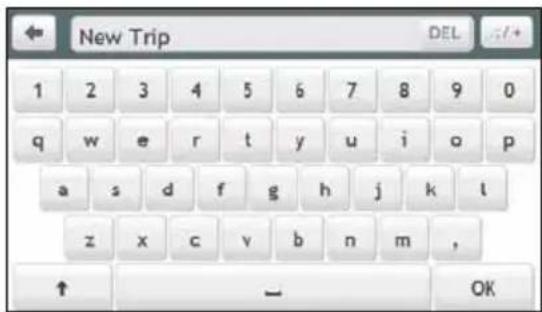

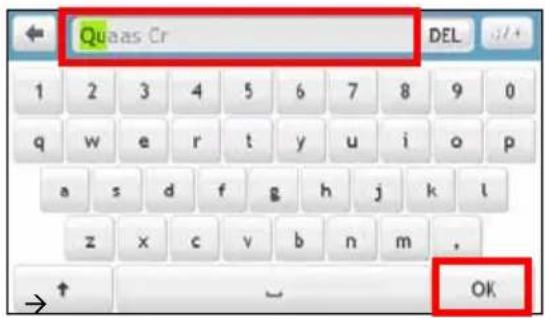

Using the Keyboard screen....10

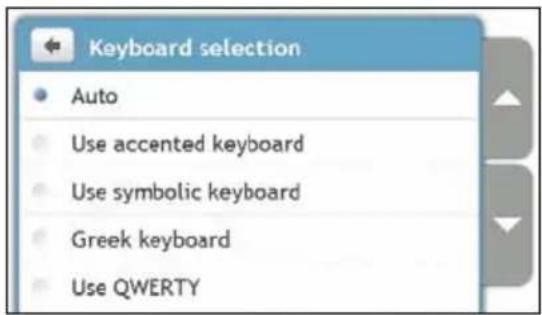

How can I set my keyboard preference?....11

How does predictive text (abc, def...) work?......11

How do I plan my first trip?......12

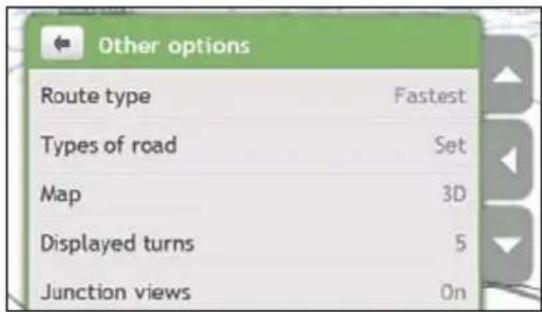

How do I set my route preferences?....14

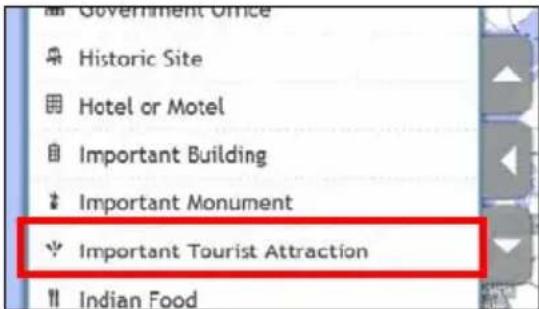

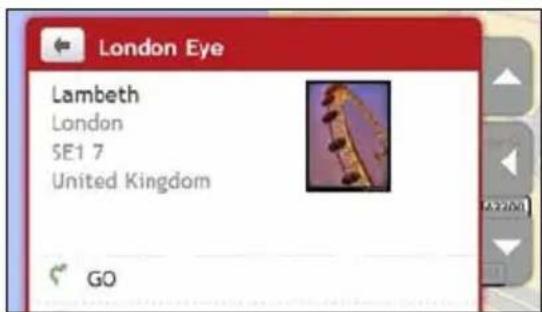

How do I search for a Point of Interest (POI)?......15

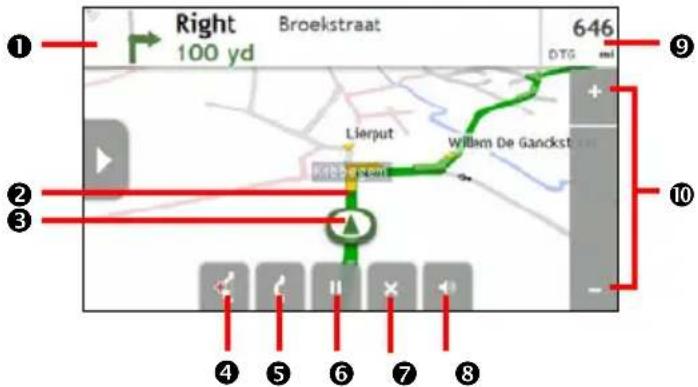

How do I view my route?......17

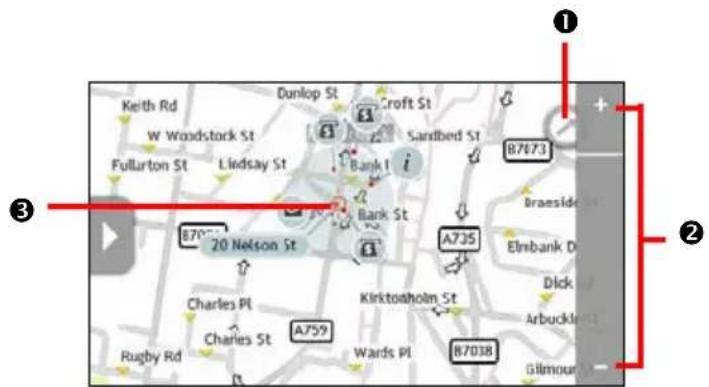

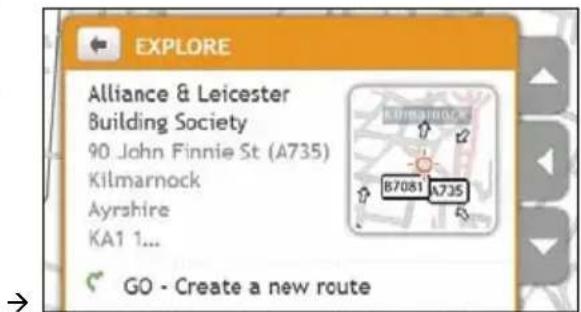

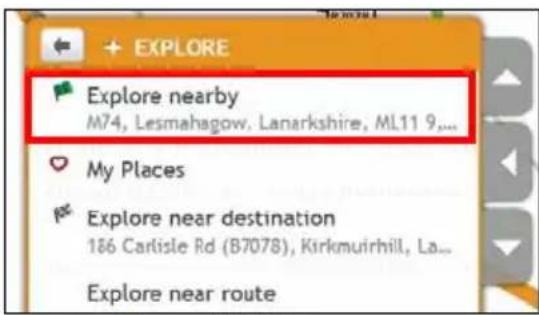

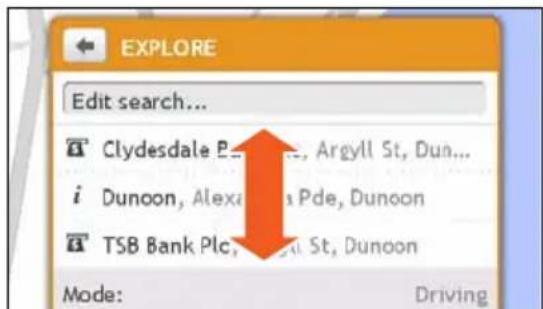

How do I use the Explore map?....18

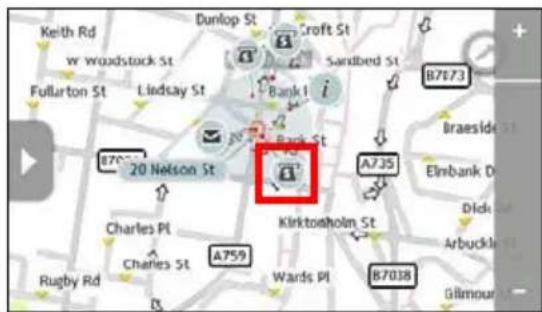

How do I find a POI using the POI Cluster?....18

How do I find a POI on my route?....19

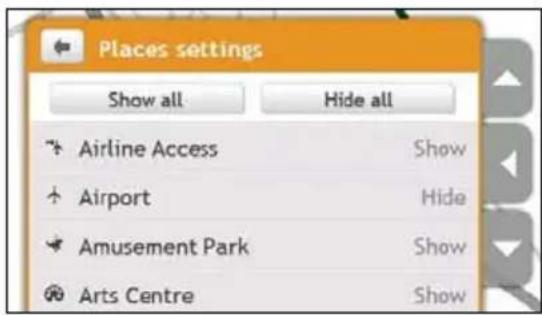

How do I set my POI preferences?......20

How do I preview a route?......21

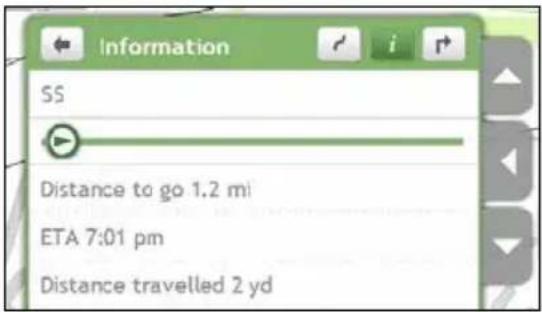

How do I view my route statistics? 22

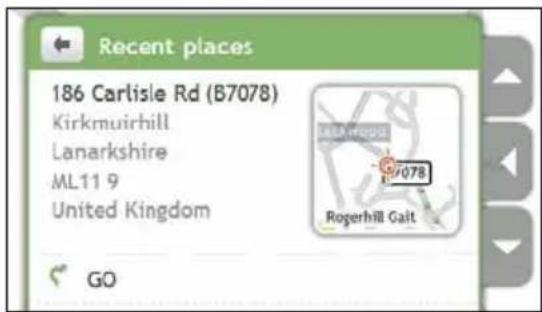

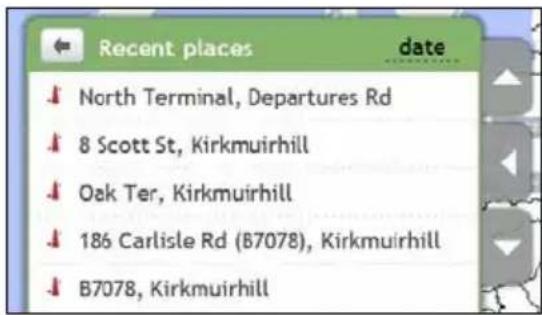

How do I navigate to a recent place? 23

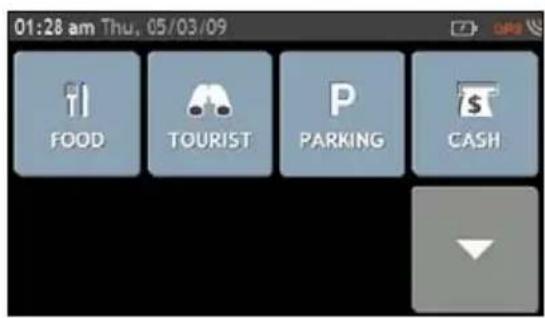

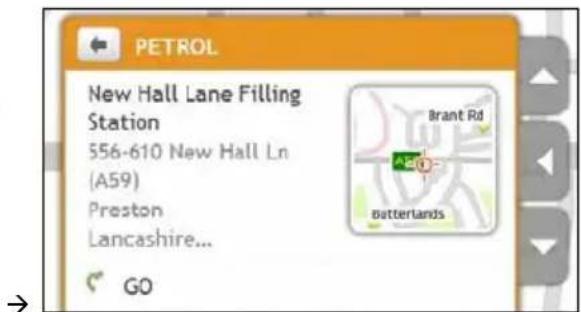

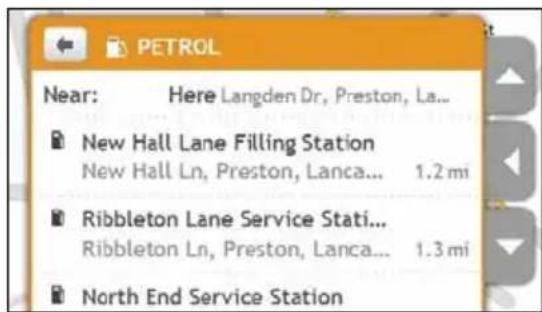

How do I find the nearest POIs?......25

My Places ....26

How do I save a location as My Place or Home? 26

How do I navigate to a location I have saved? 27

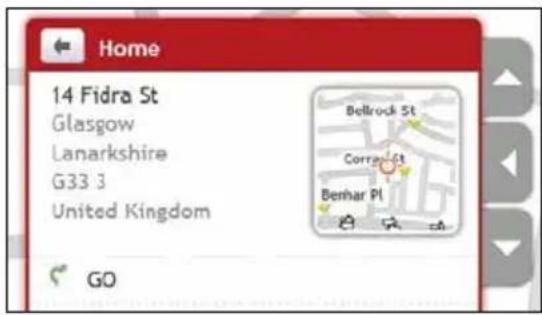

How do I navigate to Home? 27

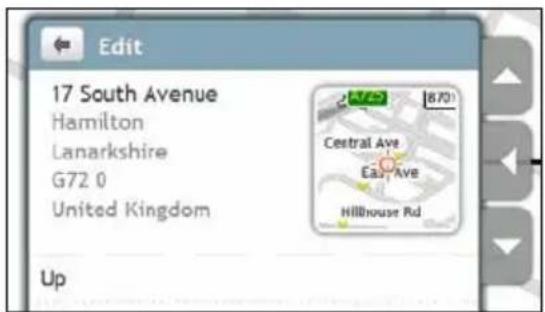

How do I edit the name of a location in My Places? 27

How do I delete a saved location?......28

How do I navigate to a NavPix™? 28

How do I navigate to a NavPix™ in an album?......29

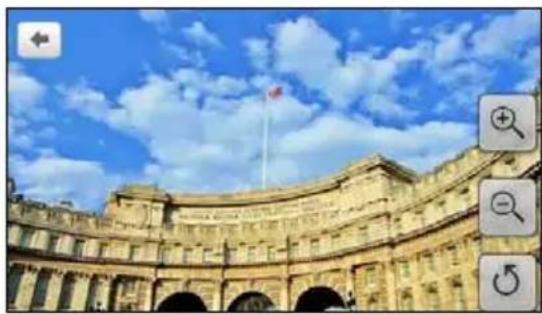

How do I view a NavPix™ in full-screen?......30

How do I save a NavPix ^TM as a favourite?......30

How do I add or edit a NavPix™ title? 31

How do I delete NavPix ^TM from an Album? 31

How do I capture a location or a journey? 32

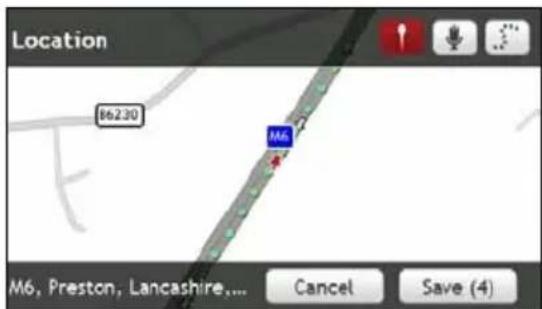

How do I capture the GPS co-ordinates of my location? 32

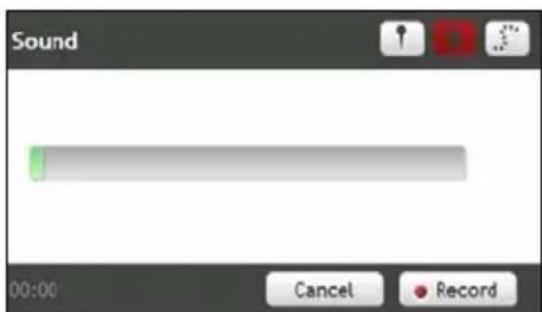

How do I capture a location with a voice recording? 32

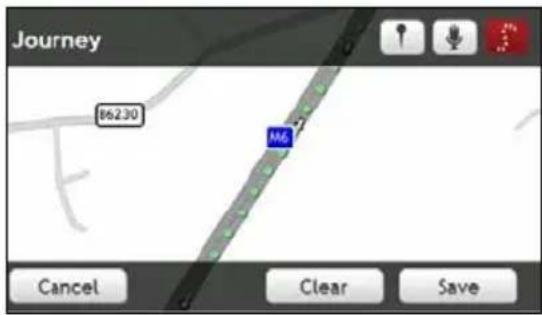

How do I capture a journey? 33

How do I navigate to a location I have captured?....33

How to view a journey I have captured? 33

How to share a journey I have captured? 33

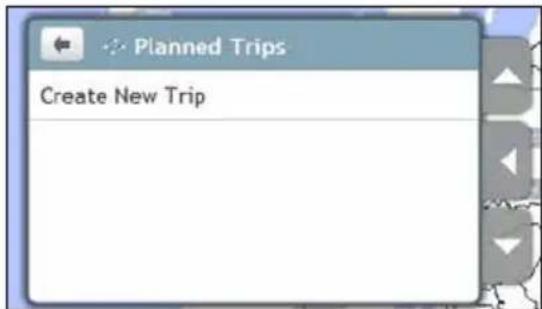

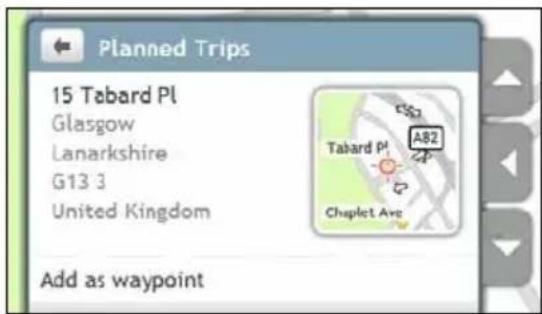

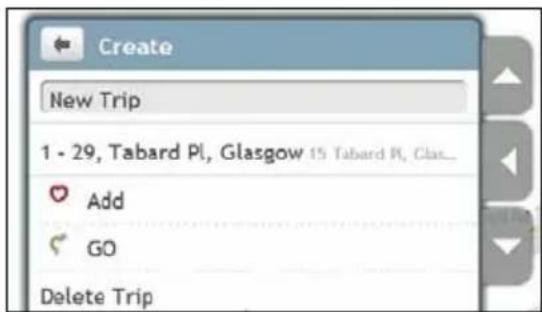

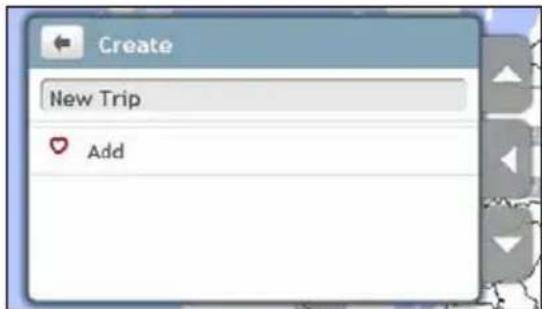

How do I create a trip with multiple stops? 34

How do I delete a waypoint from my trip? 36

How do I change the order of the waypoints? 36

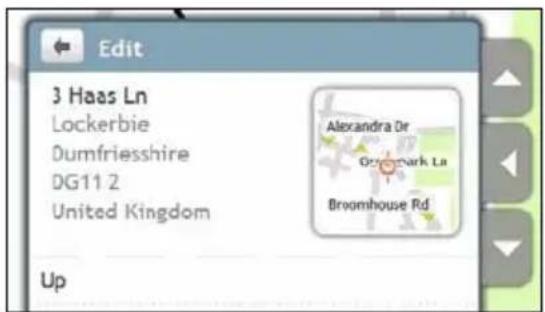

How do I edit a planned trip title? 36

How do I skip a waypoint during a multi-stop trip? 37

How do I make a hands-free call? 38

How do I pair my Mio with a Bluetooth mobile phone? 38

Paired phone detail screen....39

Configuring internet settings 39

How do I make a phone call? 40

How do I receive a phone call? 41

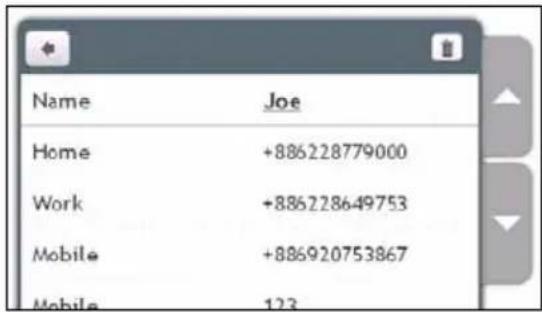

How do I add a contact to my Mio? 41

How do I search for a contact in my phonebook? 42

How do I make a phone call to a contact? 42

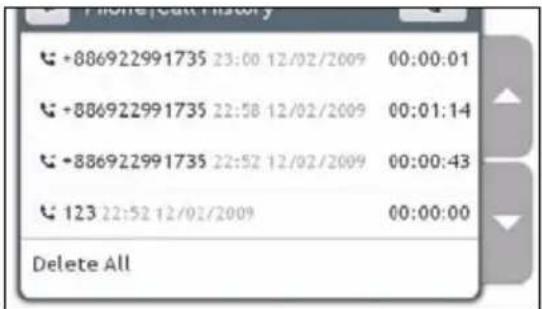

How do I view my call history? 43

How do I clear my call history? 43

How do I pair my Mio with a Bluetooth headset?......43

What is Google Local Search? 45

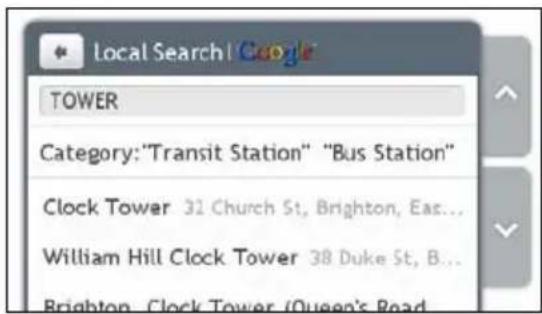

How do I search for a POI using Google Local Search?......45

What is MioMore Service? 47

How do I perform local search?......47

How do I search for roadside assistance?......47

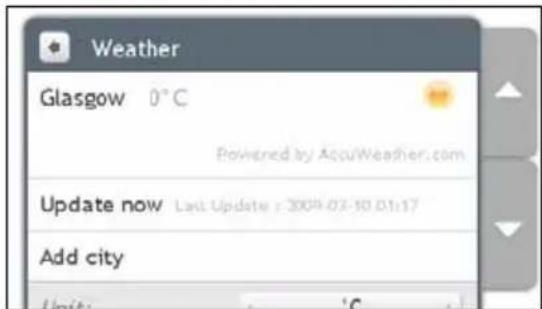

How do I find the weather information? 49

How do I download MioMore Service updates?......50

How do I play media?....51

Playing audio files....51

How do I listen to a music file on my Mio? 51

How do I receive audio through my vehicle speakers?....53

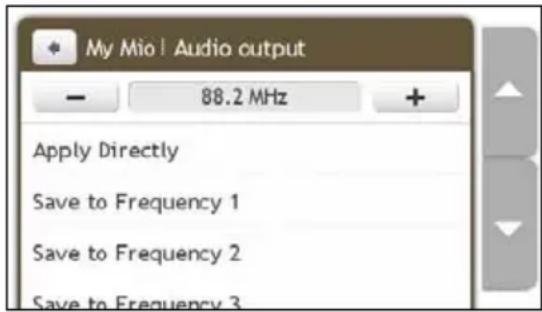

How do I set the audio output channel of my Mio through my car's FM radio? 53

How do I receive current traffic information via TMC? 54

How will I know when a Traffic Event occurs?......54

Traffic Overview screen 55

How do I view a list of all events on my route?......55

How do I view traffic details?......56

How do I know if a detour is recommended? 57

How do I avoid an event on my route?......57

How do I cancel a detour around an event on my route? 58

Traffic messages....59

Traffic preferences....60

TMC service 60

Traffic Event Notification....60

Select event sorting type....60

Walking mode 62

How can I set my navigation mode to walking?......62

What can I customise?....63

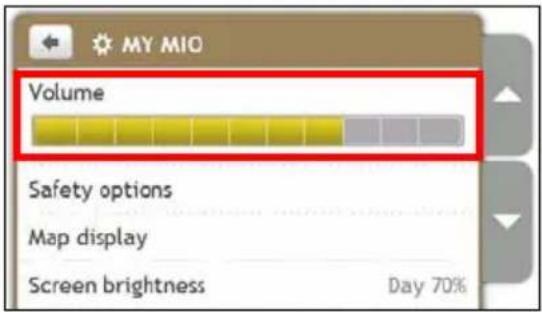

Volume....63

Safety options....63

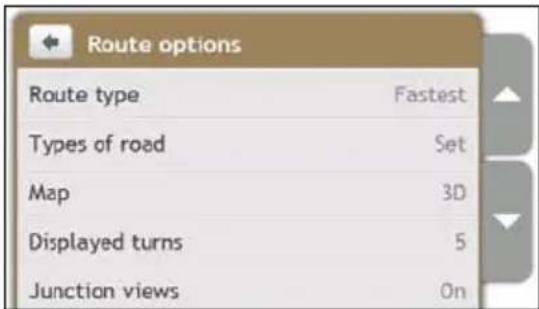

Route options....64

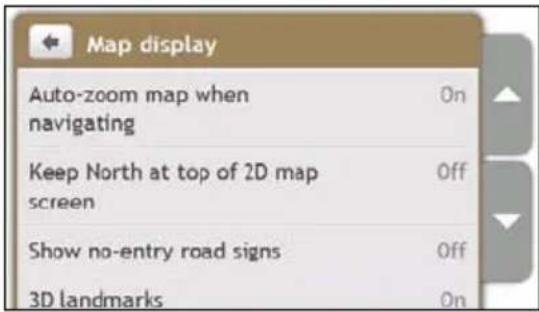

Map display....65

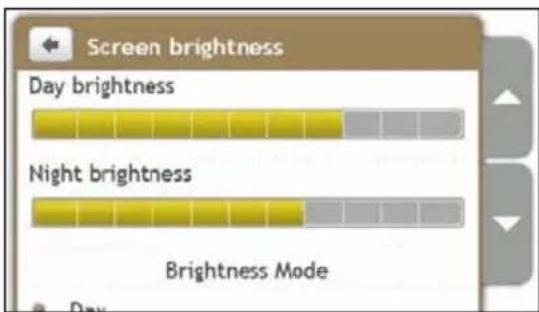

Screen brightness....65

Bluetooth....66

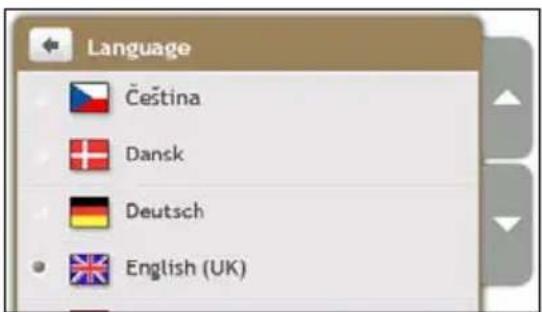

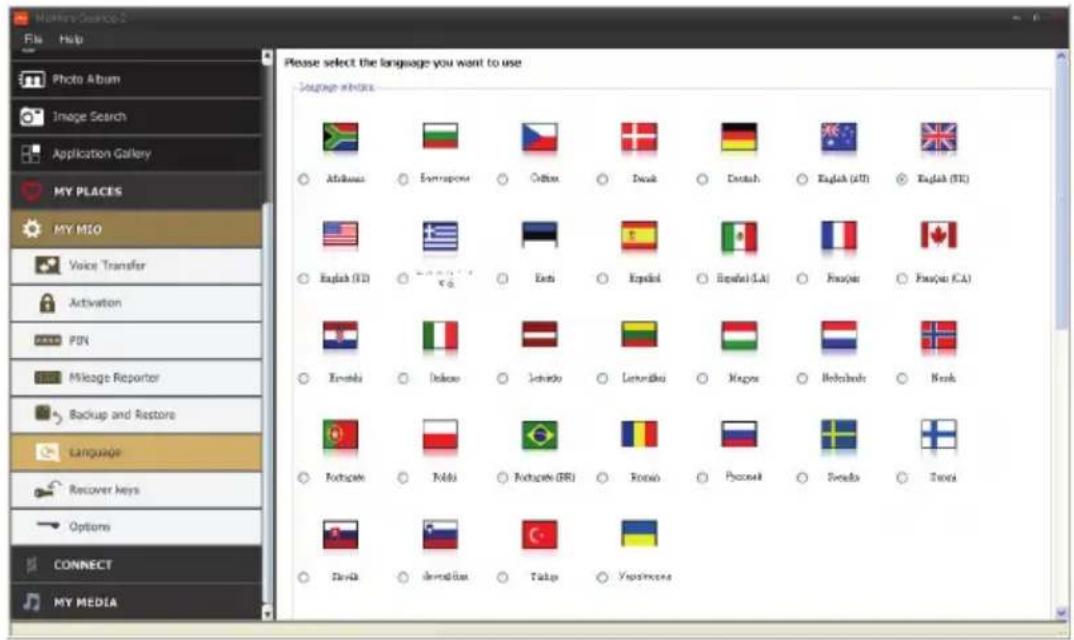

Language....66

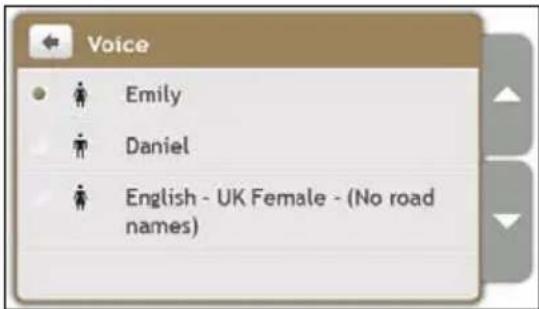

Voice....67

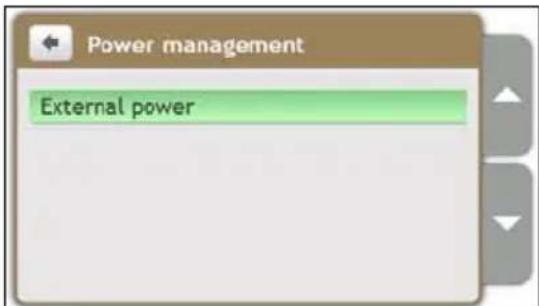

Power management....67

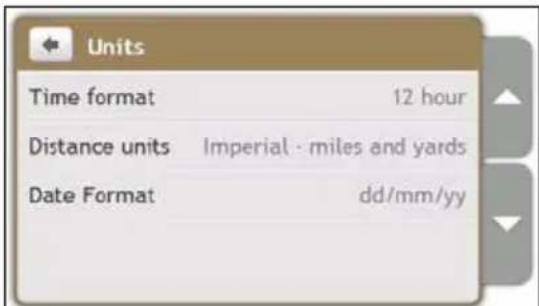

Units....67

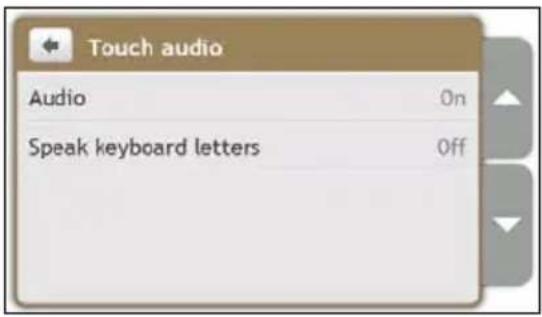

Touch audio....68

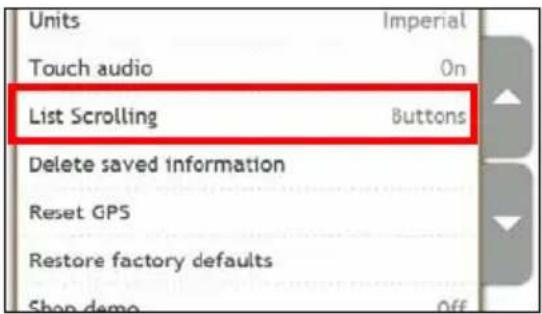

List scrolling....68

Audio output....68

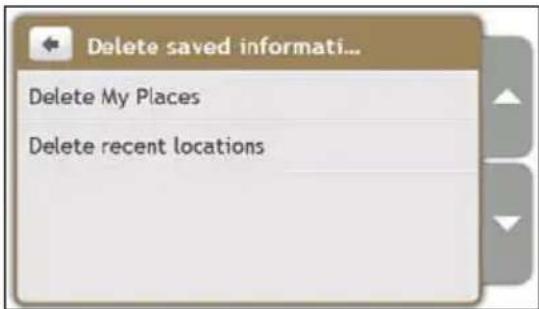

Delete saved information....69

Reset GPS....69

Restore factory defaults....69

Shop demo....70

Screen saver....70

About 70

Point of Interest categories....71

Traffic and other TMC Events 74

Appendices....75

For more information....75

Speed Limit....75

Safety Camera POIs....75

FM Transmitter 75

Disclaimer....75

Thank you for purchasing this Mio. This manual has been prepared to guide you through the operation of your Mio from first set-up through to continuous use. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Formatting

The following kinds of formatting in the text identify special information:

Convention Type	of Information
Bold	Mio components or items displayed on screen, including buttons, headings, field names and options.
Italics	Indicates the name of a screen.

Icons

The following icons are used throughout this manual:

Icon Description
	Note
	Tip
	Warning

Terms

The following terms are used throughout this manual to describe user actions.

Term Description
Tap Press and release an item displayed on the touch screen.
Tap and hold Tap and hold an item displayed on the touch screen for 2-3 seconds.
Select Tap an item in a list or tap a command from a menu.

How do I use the touch screen?

By default, your Mio starts in button mode, to scroll up or down, or dock/undock use the buttons to the right of the main page.

You can change to Slide Touch ^TM mode: tap MY MIO → List Scrolling.

In Slide Touch ^TM mode, your Mio touch screen options change dynamically:

• To see all options on a menu, drag the screen up or down.
• To display the next screen, tap an icon or select an option.
• To dock a menu to the left, tap the left edge of the menu. To dock a menu to the right, tap the right edge of the menu.

Main Menu options and the order of the options may differ from the above, depending on your region, maps called or model of Mio.

The first time you use your Mio it may take several minutes to establish a GPS connection.

How do I turn my Mio on for the first time?

To get started for the first time, complete the following steps:

1. Read the Important Safety Information (see "Important Safety Information" on page 2).

2. Position your Mio in your vehicle.

Follow the instructions in the Hardware User Manual.

CAUTION Ensure that your Mio does not obstruct the driver's view, or interfere with the operation of the vehicle airbags and safety devices.

1. Turn your Mio on

Your Mio will turn on and display the Language screen.

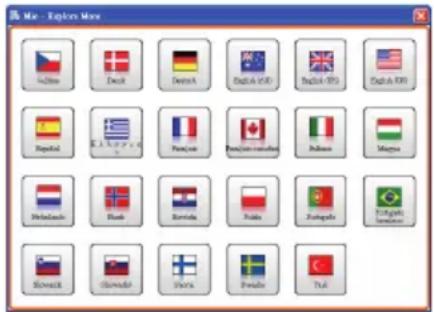

1. Select your preferred language

From the Select Language screen, tap your preferred language.

- You can change your preferred language while using your Mio, see "Language" on page 66.

1. Read the warning message

a) The Safety Agreement screen will display after you have selected your preferred language. Read the Safety Agreement message.
b) To confirm that you have read and understood the message, tap Accept. The Tutorial will display.

1. View the Tutorial

2. To skip the Tutorial screens, tap Skip.

3. To move forward through the Tutorial screens, tap Next.

To view the previous screen, tap

To prevent the Tutorial from displaying on each start-up, tap the Show on start-up option to deselect it.

When you have finished the Tutorial, the Map screen will display. If you have a GPS fix, your current location will display on the map.

The Main Menu is your starting point for searching for a destination. The Main Menu also allows you to customise your Mio, receive updated traffic information (not available on all models) and make and receive phone calls (not available on all models).

- To display the Main Menu, press 📄 on your Mio at any time.

Search for places, areas and streets to help plan your route.

Explore the area around your current position or destination.

Display the map screen. Undock the menu to enter an address to navigate to.

Receive live traffic information on your route and set traffic preferences.

Configure your Mio to enhance your navigation experience.

Use your Mio as a hands-free car kit.

Add or begin a planned trip with multiple waypoints

Search for the nearest restaurants, cafes, fast-food premises and other dining establishments.

Search for the nearest parking places.

Access your saved locations, journeys, etc.

Search Google online for live Point of Interest (POI) information.

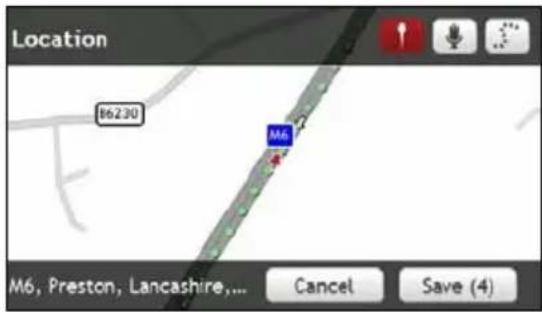

Record GPS co-ordinates of a location, a location with a voice recording, or a journey.

Search online for live POI information.

Set or navigate to your home address.

Search for the nearest petrol stations.

Search for the nearest emergency services, including hospitals and police.

Search for the nearest tourist attractions.

Search for the nearest banks and ATMs.

Main Menu options and the order of the options may differ from the above, depending on your region, maps called or model of Mio.

Your Mio is equipped with maps that provide street-level detail for door-to-door navigation, including Points of Interest such as accommodation, parking areas, petrol stations, railway stations and airports.

When you ... Then ...
need to search for an address	tap FIND then Find a street address to search for the address. If you know the address you are looking for, use the Map screen to enter an address
need to find a named site, feature, landmark or public venue	tap FIND then Find by keyword to search for a Point of Interest.
search for live POI information	tap MIOMORE to search for a POI.
want to navigate to a recently visited location	tap MY PLACES then Recent places.

WARNING For your safety, enter destination information before you start a journey. Do not enter a destination while driving.

What if I miss a turn?

Back-On-Track™ Automatic Rerouting

You will be redirected if you make a wrong turn. A message informing you that your route is being re-calculated will display at the top of the screen.

To cancel a route re-calculation, tap x. A warning will display asking you to confirm the cancellation. If confirmed, both the re-calculation and your current route will be cancelled.

Using the Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a street name. Search results will be listed in matching order, with the closest matches appearing on the screen. A maximum of 99 results will display.

The Keyboard screen can display with various layouts depending on the information you need to enter, including alphabet, number, alternate characters and combinations of these.

- To select a character, tap the character.

To enter upper case letters, tap

- To delete a character, tap

Tap and hold DEL to delete the entire text.

- To display more characters, tap

to select an alternate keyboard screen.

How can I set my keyboard preference?

From the Keyboard screen, tap .;/+ The Keyboard preference screen will dis

How does predictive text (abc, def...) work?

Predictive text allows addresses to be searched by a single key-press for each letter, as opposed to the multiple key-presses. As you enter a letter of an address, your Mio will compare all possible combinations against the maps you have installed and determine which address you intended to type.

For example:

To enter London, tap JKL MNO MNO DEF.

Your Mio will compare all possible combinations and display London in the list of search results. You can add further letters to narrow the search.

How do I plan my first trip?

Using your Mio to plan your first trip is easy. There are several ways to select your destination. Complete the following to navigate to a street address that you know using the FIND address wizard.

The below address is used as an example only.

9 Quaas Loaning

Lockerbie

Dumfriesshire

DG11 2DW

United Kingdom

→

→

→

Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	tapThe Map screen will display.
navigate to a different location	tapThe Find screen will display.tap any of the Find options to search for a location.
save the location as Home	tapThe Save screen will display.tap Save as Home.
save the location as a favourite	tap ♥.The Save screen will display.tap Save as My Place.
explore the area near the location	tap †.The Explore Map screen will display.tap the undock button or tap the docked menu in Slide TouchTMmode to see the menu options.complete one of the following:tap Streets to explore streets near your locationtap Areas to explore areas around your locationtap a POI category to explore POIs near your location

How do I set my route preferences?

You can enhance your navigation experience by modifying aspects of your route and route calculations.

1. From the MAP screen, tap the undock button and tap Other options.

The Other options screen will display.

1. Complete the following:

If you want to ... Then ...
set route type options for your route	tapRoute type.TheRoute typescreen will display.select your route type preference form the list.Shortest- The route with the shortest physical lengthEasiest- The simplest route with the least number of turns and favours motorways where appropriateEconomical- The route with least number of stops, turns and urban areas which should save on fuel usageFastest- The route that should be the fastest when navigatingSelectingShortestroute type overFastestroute type can cause a much longer journey time.
set types of road options for your route	tapTypes of road.TheTypes of roadscreen will display.select your road preference form the list.Avoiding ferry routes may prevent you from navigating between certain countries, even when a bridge or tunnel exists.
set your map screen preference	tap theMapoption to select between a 3D or 2D view of the Mapscreen.
Set the number of turns displayed on your turn list	tapDisplayedturns.TheDisplayed turnsscreen will display.select your turn preference form the list.
display Junction views on your route	tap theJunction viewsoption to turn itOnorOff.
set how you want to receive the safety camera alerts	tapMyPlaces alerts.TheMyPlaces alertsscreen will display.select a safety camera category from the list and select the desired setting.

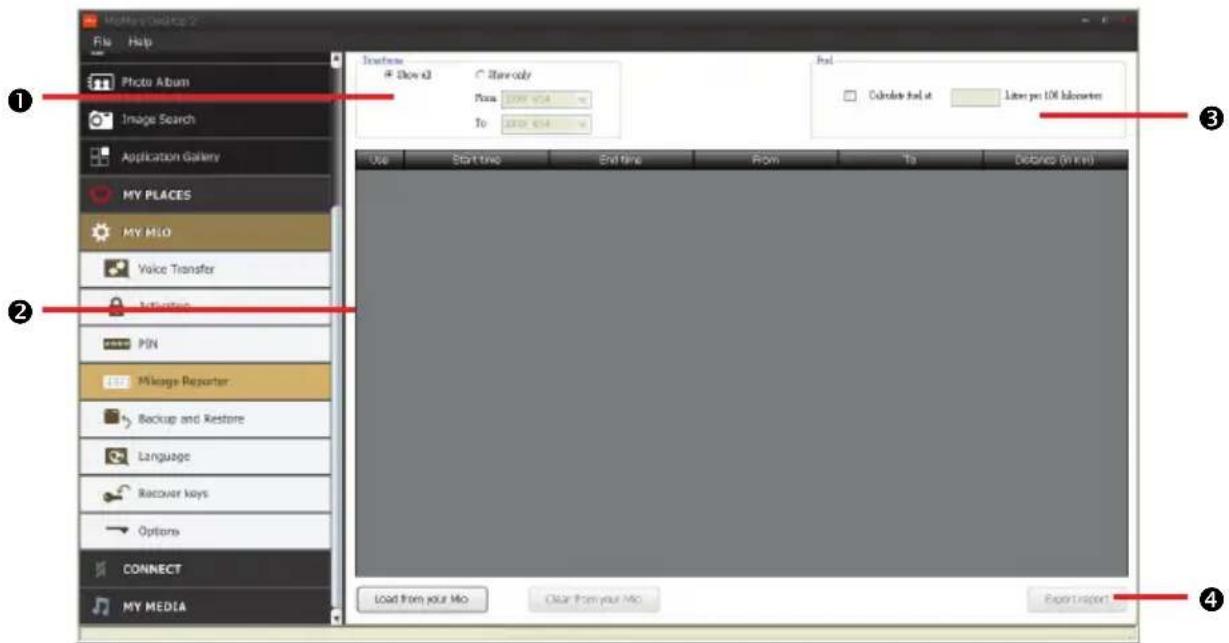

record mileage for your route to generate expense reports	tap theMileage recorderoption to turn itOnorOff.
record a GPS log of your trip	tap theGPS loggingoption to turn itOnorOff.
record your journey	tap theCapture Journeyoption to turn itOnorOff.

How do I search for a Point of Interest (POI)?

A POI is a named site, feature, landmark or public venue which can be displayed as an icon on the map. POIs are grouped by category, such as petrol stations, parks, beaches and museums.

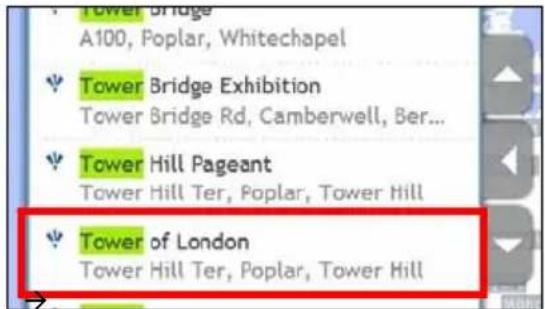

Tower of London, London

→

→

Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	tapThe Map screen will display.
navigate to a different location	tapThe Find screen will display.tap any of the Find options to search for a location.
save the location as a favourite	tapThe Save screen will display.tap Save as My Place.
place a phone call to the POI	tapThis feature is not available on all models.
explore the area near the location	tapThe Explore Map screen will display.tap the undock button or tap the docked menu in Slide TouchTMmode to see the menu options.complete one of the following:tap Streets to explore streets near your locationtap Areas to explore areas around your locationtap a POI category to explore POIs near your location

How do I view my route?

When a route has been calculated, the Map screen will display. You will be directed to your destination by spoken and visual instructions. Tap anywhere on the Map screen to show all options.

	Item Description
1	Direction and distance of next turn	The direction and distance to your next turn.▪ Tap 📋 to repeat the vocal instruction.
2	Current route Your current route is highlighted.
3	Current position	▪ In Driving mode, your current position is marked with [IMAGE].▪ In Walking mode, your current position is marked with [IMAGE].
4	Add waypoint to trip Adds a location as a waypoint on your trip.▪ Tap 📋 to remove the waypoint from your trip.
5	Detour Detours your route to avoid next 1, 2, 5, 10 or 20 miles.
6	Pause route Pauses your current route.▪ Tap ▶ to unpause your current route.
7	Cancel route Cancels your current route.
8	Volume Mutes or unmutes the volume.
9	Distance and Time Information	Tap to expand and select the following options:▪ DTG (Distance to Go)▪ TTG (Time to Go)▪ km/h or mph (speed) and compass heading▪ ETA (Estimated Time of Arrival)▪ Time
10	Zoom	▪ To zoom out, tap and hold –.▪ To zoom in, tap and hold +.

How do I use the Explore map?

The Explore map allows you to explore the local area to find Points of Interest (POIs) or navigate to an address. If you do not have a GPS fix, the map will display your last known position.

• Tap and drag the map to explore your desired local area.

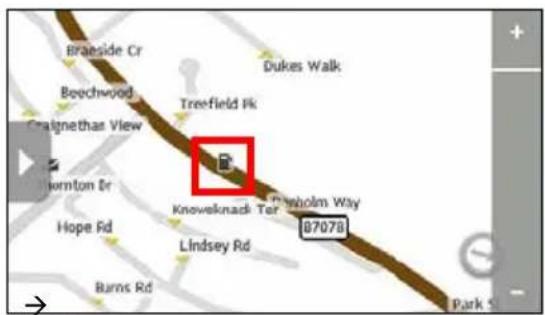

• Tap the map to display a POI Cluster showing POIs in the surrounding area. Tap a POI icon to show more information and navigate to the POI.

Item	Description
1	↗	Indicates the direction of your current position. Tap to return the map to your current position.
2	+, -	To zoom in or out, tap and hold - or +. Zooming in or out will increase or decrease the area contained within the Explore area.
3	POI Cluster	To display a POI Cluster, tap an area on the Explore map.▪ Tap an icon or street name in the POI Cluster to view information and options.
		increases or decreases the number of POIs displayed on your map, which will effect the number of results returned. Only visible POIs will be displayed in the POI cluster.*

* Zooming out too far will reduce the number of POIs displayed to zero and hence return no results.

How do I find a POI using the POI Cluster?

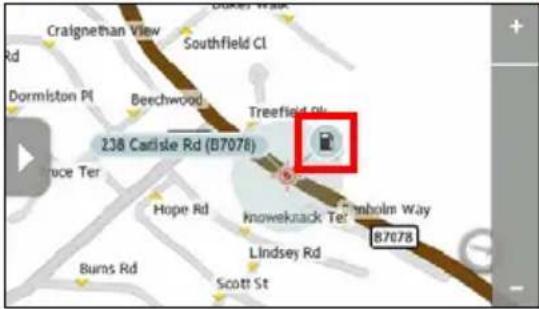

Tapping on the POI selected (in red square) will bring up the Explore menu with the POI destination details.

Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	▪ tap .The Map screen will display.
navigate to a different location	tapThe Find screen will display.tap any of the Find options to search for a location.
save the location as a favourite	tapThe Save screen will display.tap Save as My Place.
place a phone call to the POI	tapThis feature is not available on all models.

How do I find a POI on my route?

→

→

Complete the following:

If you want to ... Then ...
calculate a new route, open the Map screen and start navigating	tapThe Map screen will display.

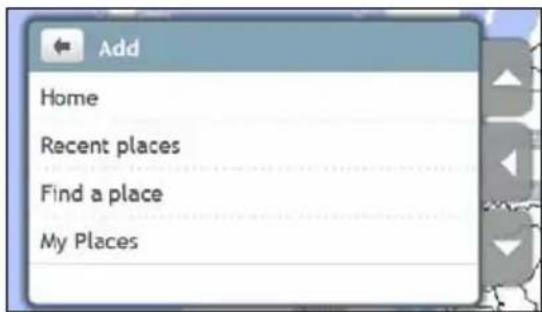

add the location as a waypoint	tap Add as waypoint.The Map screen will display and your route will be recalculated.
navigate to a different location	tapThe Find screen will display.tap any of the Find options to search for a location.
save the location as a favourite	tapThe Save screen will display.tap Save as My Place.
place a phone call to the POI	tapThis feature is not available on all models.

How do I set my POI preferences?

Points of Interest (POIs) are grouped into categories. You may choose to either display (or hide) icons of all POI categories on the map screens, or only display the icons from selected categories.

For example, you may only be interested in entertainment venues and want to disable other categories such as schools.

1. From the Explore screen, tap the undock button or tap the docked menu in Slide Touch™ mode and tap Places settings.

The Places settings screen will display.

1. Complete the following:

If you want to ... Then ...
display all POI icons (i.e. icons from all categories)	tap Show all.
display no POI icons tap Hide all.	Hiding POIs will stop you from finding them when using explore mode/cluster search.
select a specific POI category icon for display on the map screen	■ tap the required POI category to Show or Hide on the map screen.■ Repeat until all required categories are selected.

- Your preferences are automatically saved.

How do I preview a route?

Route demonstration allows you to:

• Preview a route.
• Plan and view a route without a GPS fix, such as when you are inside a building.

The following steps will show you how to preview a route.

1. Select a departure point.

If you have a GPS fix, you do not need to select a departure point unless you want the demonstrated route part elsewhere.

a)

The Find screen will display.

b) Tap the undock button or tap the docked menu in Slide Touch ^TM mode to undock the menu screen.
c) Scroll down and tap Leaving from. The Leaving from... screen will display.
d) Tap Find a place, then use the Address Wizard to find your departure point.

1. Select a destination point using the FIND address wizard, the My Places menu or the Explore map.

2. From the Preview screen, tap Your route is calculated and the Map screen will display.

3. Tap the undock button or the edge of the docked menu. The GO screen will display.

4. Tap Route simulation. The Map screen will display the calculated route in route simulation mode.

5. Complete the following:

If you want to ... Then ...
increase the speed of the simulation	tap
decrease the speed of the simulation	tap
pause the simulation	tap
cancel the simulation	tap .

How do I view my route statistics?

Your Mio provides information on your:

• distance to go
  ■ estimated time of arrival
• distance travelled
• average speed
• maximum speed
• time taken for trip
  ■ stationary time.

To view your route statistics during a planned route:

1.

The Map screen will display.

1. Tap the undock button or tap the docked menu in Slide Touch ™ mode to undock the menu screen.

3.

The Route Statistics screen will display.

How do I navigate to a recent place?

To make navigating to an address easier, your Mio will automatically save all your start locations and destinations in a list of recent places.

1.

→

The My Places screen will display.

1. Tap the undock button or tap the docked menu in Slide Touch ™ mode to undock the menu screen.

2. Tap Recent places.

The Recent Places screen will display.

1. Tap a recent place.

The Preview screen will display.

1. Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	tapThe Map screen will display.
navigate to a different location	tapThe Find screen will display.tap any of the Find options to search for a location.
save the location as a favourite	tapThe Save screen will display.tap Save as My Place or tap Save as Home.
explore the area near the location	tapThe Explore Map screen will display.tap the undock button or tap the docked menu in Slide TouchTM mode to see the menu options.complete one of the following:tap Streets to explore streets near your locationtap Areas to explore areas around your locationtap a POI category to explore POIs near your location
save it as a waypoint in your	→
current route	tap Recent places.select a location from the list.tap Add as waypoint.

How do I find the nearest POIs?

1. Complete the following:

If you want to ... Then ...
search for the nearest petrol stations
search for the nearest emergency services
search for the nearest restaurants
search for the nearest tourist attractions
search for the nearest parking places
search for the nearest banks and ATMs

1. A list of the selected POI category based upon your current location is displayed.

3. Tap the desired item from the list, then tap

on the Preview screen.

My Places has all your saved and captured locations. It also contains POIs, NavPix™ and albums you have downloaded onto your Mio via MioMore Desktop.

How do I save a location as My Place or Home?

1. Search for an address until the Preview screen is displayed.

1. Tap Add to My Places. The Save screen will display.

1. Tap Save as My Place. The Preview screen will display.

2. Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	■ tapC.The Map screen will display.
navigate to a different location	■ tapO.The Find screen will display.■ tap any of the Find options to search for a location.
explore the area near the location	■ tapA.The Explore Map screen will display.■ tap the undock button or tap the docked menu in Slide TouchTM mode to see the menu options.■ complete one of the following:○ tap Streets to explore streets near your location○ tap Areas to explore areas around your location○ tap a POI category to explore POIs near your location
add or edit location name	■ tap Rename.The Keyboard screen will display.■ after you have entered a name for the favourite, tap OK.The My Places preview screen will display.
delete the favourite location	■ tapB.

How do I navigate to a location I have saved?

1.

The My Places screen will display.

1. Tap the favourite destination you want to travel to.

The Preview screen will display.

3.

Tap

Your Mio will calculate the route from your current location. The Map screen will display.

How do I navigate to Home?

If you have not set an address as Home, the first time you try to navigate to Home you will be prompted to search for an address using the address-entry wizard.

1.

The My Places screen will display.

2.

Tap

Home.

The Preview screen will display.

3.

Tap

Your Mio will calculate the route from your current location. The Map screen will display.

How do I edit the name of a location in My Places?

1.

The My Places screen will display.

1. Select a location to edit.

The Preview screen will display.

1. Tap Rename.

The Keyboard screen will display.

1. After you have edited the name, tap OK.

The Preview screen will display.

How do I delete a saved location?

1.

The My Places screen will display.

1. Select the location you would like to delete.

The Preview screen will display.

1. Tap Delete.

The location is deleted. The My Places screen will display.

How do I navigate to a NavPix™?

NavPix ^TM is an image or picture, normally of a location, which contains embedded GPS co-ordinates that you can navigate to.

Sample NavPix™ images may be pre-installed on your Mio. You can search online and download NavPix™ images from the Flickr™ or NavPix™ website.

To navigate to a NavPix ^TM location, either a GPS fix must have been available when the NavPix ^TM was taken, or GPS co-ordinates have been added using MioMore Desktop. See the MioMore Desktop Manual for more information on importing NavPix ^TM to your Mio.

1.

The My Places screen will display.

1. Tap the NavPyou want to navigate to.

The NavPix Details screen will display.

1. Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	▪ tap .The Map screen will display.
navigate to a different location	tap[406D]The Find screen will display.tap any of the Find options to search for a location.
view NavPixTM location on the map	tap Show on map.The Explore Map screen will display.
explore the area near the NavPixTM location	tapThe Explore Map screen will display.tap the undock button or tap the docked menu in Slide TouchTM mode to see the menu options.tap on the map to explore POIs near the location.
edit NavPixTM name	tap Rename.The Keyboard screen will display.after you have entered a name for the favourite, tap OK.The NavPix Details screen will display.
delete the NavPixTM from My Places	tapThe My Places screen will display.

NavPix™ can be deleted from an Album on your Mio internal memory or your memory card. When a NavPix™ has been saved as a Favourite destination, you will not delete the Favourite if you subsequently remove the NavPix™.

How do I navigate to a NavPix™ in an album?

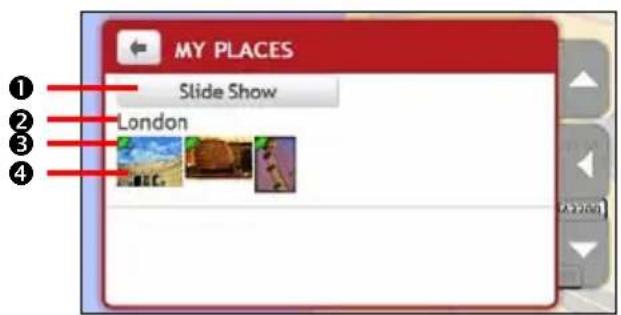

The albums contain all your pictures and displays them as thumbnails.

Item	Description
1	Slide Show Displays all images in the album as a full-screen slideshow.
2	Album title The title of the album.
3		Indicates that the picture is a NavPixTM, with embedded GPS co-ordinates.
4	NavPixTM thumbnail A	thumbnail of a NavPix TM contained in the album.To select a NavPix TM, tap the thumbnail.The NavPix Details screen will display.

How do I view a NavPix™ in full-screen?

1. From the NavPix Details screen, tap the thumbnail of the NavPix™. The NavPix™ will appear in full-screen.

OR

From the Album detail screen, tap Slide Show. The NavPix™ will appear in full-screen

1. Tap the screen to display the control buttons. The buttons disappear after a few seconds.

Exterior view of a grand neoclassical building with arched entrances under a blue sky with clouds (no signage or text visible)

1. Complete the following:

If you want to ... Then ...
zoom into the NavPixTM	tap
zoom out of the NavPixTM	tap

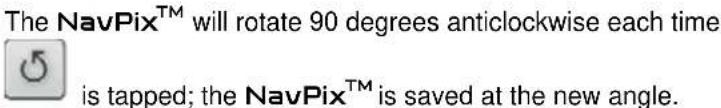

rotate the NavPixTM	tap
view parts of the NavPixTM not displayed on-screen
return to the NavPix Details screen

How do I save a NavPix™ as a favourite?

You cannot save a NavPix ^TM as a favourite if GPS co-ordinates are not available.

1. From the Album screen, tap a NavPix™. The NavPix Details screen will display.

2. Tap ♥. The Save screen will display.

3. Complete the following:

If you want to ... Then ...
save the NavPixTM as a Favourite tap	Save as My Place.The NavPixTM is saved and the NavPix Details screen will display.
save the NavPixTM as Home tap Save	as Home.The NavPixTM is saved and the NavPix Details screen willdisplay.

How do I add or edit a NavPix™ title?

A title can be added to your NavPix ^TM or an existing title can be edited. The title can be a maximum of 34 characters.

1. From the My Places screen, tap a NavPix ^TM you want to edit.
   The Preview screen will display.
2. Tap Rename.
   The Keyboard screen will display.
3. After you have edited the title, tap OK.
   The NavPix Details screen will display.

How do I delete NavPix™ from an Album?

1. From the Album screen, tap a NavPix™. The NavPix Details screen will display.

2. Tap

How do I capture a location or a journey?

The capture functionality is not available on all models.

Your Mio has a capture feature which allows you to record GPS co-ordinates of a location, capture a location with a voice recording and capture a journey and save them so you can navigate back at a later time.

How do I capture the GPS co-ordinates of my location?

1.

The Capture screen will display.

2. Tap Save.

You will hear a shutter sound to indicate that the GPS co-ordinates have been saved. The location is saved in My Places.

How do I capture a location with a voice recording?

i

This feature is not available on all models.

1.

The Capture screen will display.

2. Tap

The Sound screen will display.

1. Tap Record to start recording your voice.

Tap Stop to stop the recording.

1. Tap Save.

You will hear a shutter sound to indicate that the recording has been saved.

The location is saved is saved in My Places.

How do I capture a journey?

To enable capturing of journeys, you must first enable Capture Journey from > Other options.

1. At the beginning of the journey you would like to record, tap Clear. All travel that you have made (i) since midnight, (ii) the previous time you tapped Clear, or (iii) last captured a journey, will be deleted.

2. Travel on your journey. Your Mio will keep a record of where you travel.

3. At the end of your journey, The Capture screen will display.

4. Tap

The Journey screen will display.

1. Tap Save, then Yes.

The journey is saved is saved in My Places.

How do I navigate to a location I have captured?

1.

The My Places screen will display.

1. Tap the captured destination you want to travel to.

The Preview screen will display.

3.

Your Mio will calculate the route from your current location. The Map screen will display.

How to view a journey I have captured?

1.

The My Places screen will display.

1. Tap the captured journey you want to view.

The Preview screen will display.

How to share a journey I have captured?

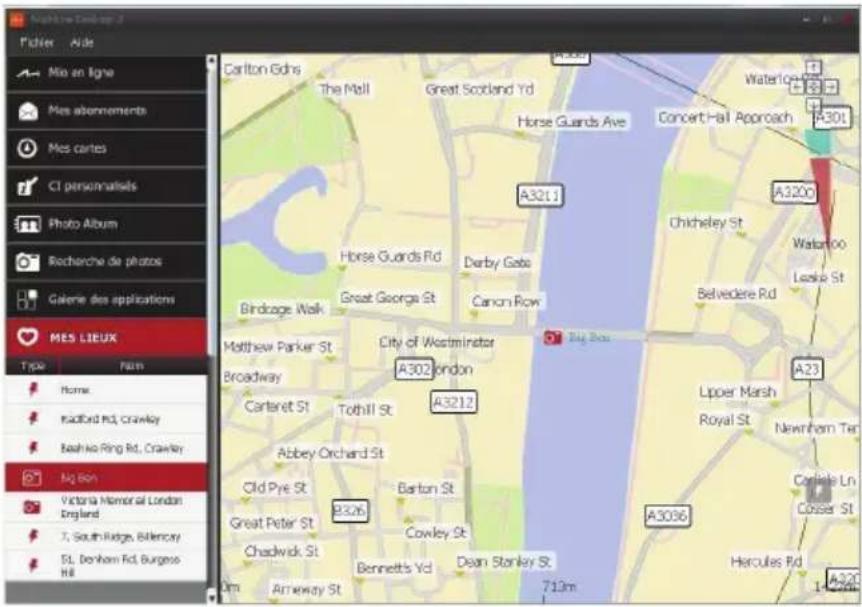

You can share a saved journey via MioMore Desktop. See the MioMore Desktop Manual for more information on sharing a saved journey.

How do I create a trip with multiple stops?

You can use the Planned Trips screen to set multiple stops or waypoints for your trip. Your route will be calculated to go via each of these points in the specified order.

1.

The Planned Trips screen will display.

1. Tap

Create New Trip.

The Edit screen will display.

1. Tap the location name.

The Keyboard screen will display.

1. After you have edited the name, tap OK.

The Edit screen will display.

1. Tap

Add.

The Add screen will display.

6. Tap Find a place.

The Search screen will display.

You can also add waypoints using Home, My Places and Recent places.

7. Using the Find address wizard, search for a location.

The Preview screen will display.

8. Tap Add as waypoint.

The waypoint is automatically saved and the Edit screen will display.

9. Complete one or more of the following:

If you want to ... Then ...
add another waypointi Waypoints added after a multi-stop trip has commenced will not be included in the current route.	tap ♥.The Add screen will display. return to step 4.
navigate to your selected destination	tap ♥.The Map screen will display the calculated route.
delete the trip	tap [W022]
Have this trip demonstrated tap Simulate.	The Map screen will display your trip in demo mode. ( See Shop Demo page 70.)

How do I delete a waypoint from my trip?

1.

The Planned Trips screen will display.

1. Tap the trip to edit.
2. Tap a waypoint on Edit screen. The Preview screen will display.

1. Tap Delete.

The Edit screen will display.

How do I change the order of the waypoints?

1.

The Planned Trips screen will display.

1. Tap the trip to edit.
2. Tap a waypoint on Edit screen. The Preview screen will display.

1. Tap Up or Down.

The Edit screen will display

How do I edit a planned trip title?

1.

The Planned Trips screen will display.

1. Tap the trip to edit.

2. Tap the current trip title. The Keyboard screen will display.

3. After you have edited the name, tap OK. The Edit screen will display.

How do I skip a waypoint during a multi-stop trip?

1. Tap the map screen.

2. Tap 📄. When the caution dialog box displays, tap Yes. The next waypoint will be skipped and the route recalculated to the following waypoint.

Hands-free calling is not available on all models.

If you have a mobile phone with Bluetooth wireless technology, you can use your Mio as a hands-free car kit or to provide an internet connection. It can also be used to connect to a Bluetooth mono/stereo earphone to output audio. Models with Bluetooth capabilities can exchange information over a distance of about 10 metres (30 feet) without requiring a physical connection.

Before you can use this feature you must pair your mobile phone with your Mio. Ensure that the Bluetooth wireless feature of your mobile phone is turned on before you begin pairing. When you search for or connect to a mobile phone/ headset, the Bluetooth on your Mio will be turned on automatically. To save power, Bluetooth is set to OFF by default.

Not all phones with Bluetooth wireless technology are compatible with your Mio.

How do I pair my Mio with a Bluetooth mobile phone?

1. The Settings screen will display.

2. Tap Bluetooth. The Bluetooth screen will display.

3. Tap Bluetooth ON to switch on the Bluetooth and set your Mio in discoverable mode.

1. Tap Connect to Phone. The Bluetooth Phone screen will display.

2. Tap Search for devices. The Searching screen will display a list of nearby Bluetooth-enabled devices.

3. Select a Bluetooth device from the list. The Pairing to device screen will display.

If you are prompted for a pass code or device PIN, enter 1234.

1. The Phone settings screen will display.

When you pair your mobile phone with your Mio, a connection is established between them.

Paired phone detail screen

The hands-free feature on your Mio can be turned ON or OFF. When turned ON, the following features can be used:

■ Display caller's number
■ Download phonebook
■ Answer or ignore incoming call
■ Dial a number through the Dial, Phonebook and Call history screens

Configuring internet settings

The Internet connection when turned on allows you to access live information over the internet.

1. To change internet settings, from the Phone settings screen tap OFF next to the Internet connection option.
2. Tap Configure internet settings.

The Internet settings screen will display.

1. Complete the following:

If you want to ... Then ...
change your country/region	■ tap By Operator, then Country/Region.The Select a country screen will display.■ Select your country from the list.The Internet settings screen will display.
change the operator for your region	■ tap By Operator, then Operator.The Select an operator screen will display.■ Select your operator from the list.The Internet settings screen will display.
enter your internet settings	■ tap User-defined and define your User Name, Password and Dial Number.■ tap Dial to connect.■ You Mio will connect to your operator via internet on your mobile phone.

When internet settings are not available, a warning message will be displayed. For more information, contact mobile phone service provider.

How do I make a phone call?

1. From the Phone screen tap Dial. The Dial screen will display.

1. Enter the number you want to call.

The number of the last call will display when you next access the Dial screen. The number will be cleared as start entering a new number.

- To delete the last digit entered, tap

- To clear the entire number, tap and hold

International calls require a country code to be included in the phone number. On your Mio, the country code is tarated from the rest of the number sequence by a +. If you are making an international call, tap and hold 0 until + sign displays.

1. Tap to place the call.

The Dialling screen will display. When the call is answered, the Call in progress screen will display.

→

1. Complete the following:

If you want to ... Then ...
enter other numbers such as an extension number	tap Keypad.
switch off the microphone so the receiving party cannot hear you	tap 🎨 to mute.tap 🎨 to unmute.
adjust the volume tap on the volume bar to increase or decrease the volume.	The phone volume adjustment does not change the device volume.
make and receive calls via your Mio	tap Voice to Device.
make and receive calls via your mobile phone	tap Voice to Phone.
access the map screen during a call	tap Minimize. To access the Call in progress screen, tap from the Main Menu.
end or cancel the call tap Hang Up.

How do I receive a phone call?

When you receive a call, the Incoming Call screen will display.

Tap Answer to answer the call, or Ignore to reject the call.
- Tap on the volume bar to increase or decrease the volume.
Tap Hang Up to end a call you have answered.

How do I add a contact to my Mio?

Your Mio uses contacts created on your mobile phone. To add a new contact to your Mio, you must first add it to your mobile phone. Refer to your mobile phone user manual for more information.

If there are no contacts on your Mio, you will be prompted to transfer the contact list from your phone. Your phone may disconnect, and then reconnect to your Mio during the transfer.

1. From the Phone screen tap Phonebook.

The Phonebook screen will display.

1. To synchronise the contact list with your mobile phone, tap Get phonebook then Yes. Your phone may disconnect, then reconnect to your Mio during the transfer. Contact names will be displayed in alphabetical order.

If a contact has more than one phone number, the numbers will be separated into multiple same name entries each with a different number.

How do I search for a contact in my phonebook?

Your contact names will be displayed in an alphabetical order on your Mio.

1. To search for a contact, tap Search. The Keyboard screen will display.
2. Enter your contacts name, then tap OK. The Phonebook results screen will display.
3. Tap a contact from the list.
4. Tap the phone number to call. The Dialling screen will display.

How do I make a phone call to a contact?

1. From the Phone screen tap Phonebook. The Phonebook screen will display.

1. Select a contact from the list. The View screen will display.

1. Complete the following:

If you want to ... Then ...
call the contact on their mobile phone	■ tap Mobile.The Dial screen will display.
call the contact on their home number	■ tap Home.The Dial screen will display.
call the contact on their work number or any other number	■ tap Work.The Dial screen will display.
delete the contact from your phonebook	■ tap [IMAGE].The contact is deleted and the Phonebook screen will display.

How do I view my call history?

From the Call History screen you can view a list of Incoming Calls, Outgoing Calls and Missed Calls.

The Call History screen lists the calls made during the time your Mio is connected to a mobile phone. Numbers are arranged by time with the most recent time at the top. Your Mio can store up to 30 numbers; limited to 10 entries for incoming, outgoing and missed calls each.

1. From the Phone screen tap Call History.

The Call History screen will display.

1. To call a number in your call history, tap a contact in the list.

- Tap the icon on the top right corner of the History screen to sort through Incoming Calls, Outgoing Calls and Missed Calls.

Icon Description
	All calls
	Outgoing calls
	Incoming calls
	Missed calls

How do I clear my call history?

From the Call History screen tap Delete All → Yes to delete all calls in call history. The Call information View screen will display.

How do I pair my Mio with a Bluetooth headset?

1.

The Settings screen will display.

1. Tap

Bluetooth.

The Bluetooth screen will display.

1. Tap Bluetooth ON to switch on the Bluetooth and set your Mio in discoverable mode.

1. Tap Connect to Headset.

The Bluetooth Headset screen will display.

1. Tap Search for devices.

The Searching screen will display a list of nearby Bluetooth-enabled devices.

1. Select a Bluetooth device from the list.

The Passcode screen will display.

1. Enter the passcode and tap OK.

See the documentation that came with your headset for the passcode.

1. The Headset settings screen will display.

When you pair your mobile phone with your Mio, a connection is established between them.

What is Google Local Search?

Google Local Search is not available on all models and is only available in some countries.

Google Local Search allows you to search online for live POI information.

To use Google Local Search, you must pair your Mio with your mobile phone. If your Mio isn't paired with your mobile phone then the Bluetooth screen will display.

How do I search for a POI using Google Local Search?

1.

1. Tap Accept on the agreement screen. The Google Local Search screen will display.

1. Tap and enter the keyword to search, then tap OK.

2. Complete the following:

If you want to ... Then ...
search for POI information near the location saved in My Places	tap My Places.The My Places screen will display.select a location from the list and tap Accept.
search for POI information near a new location	tap Find a place.The Find screen will display.search for a place and tap Accept.
search for POI information near a recent place	tap Recent Places.The Recent Places screen will display.select a location from the list and tap Accept.
search for POI information near a location on the map	tap Pick on Map.select a location on the map and tap OK.

1. Tap Search.

1. The List of Results screen will display.

1. Select a POI from the list.

The Preview screen will display.

1. Complete the following:

If you want to ... Then ...
calculate the route, open the Map screen and start navigating	▪ tap 🍻.The Map screen will display.
save the location as a favourite	▪ tap ♥.
explore the area near the location	▪ tap ✝.The Explore Map screen will display.▪ complete one of the following:○ tap Streets to explore streets near your location○ tap Areas to explore areas around your location○ tap a POI category to explore POIs near your location
place a phone call to the POI	▪ tap 🍻This feature is not available on all models.

MioMore Service is not available on all models and is only available in some countries.

MioMore Service allows you to search for live POI information and get updated parking information, weather, etc, when travelling (only available on Mio models that support Bluetooth).

To use MioMore Service, you must pair your Mio with your mobile phone. If your Mio isn't paired with your mobile phone then the Bluetooth screen will display.

Depending on the country you are navigating, the available search services may vary. Depending on the service selected you can search for POIs by name or by category.

How do I perform local search?

1.

The MioMore Service screen will display.

1. Tap Local Search.
2. Tap Yes to connect to the Internet.
3. Refer to the "How do I search for a POI using Google Local Search?" section on page 44 for the detailed information on using Google Local Search.

How do I search for roadside assistance?

i

The Roadside Assistance function does not give you membership of these services if you do not already have it.

1.

The MioMore Service screen will display.

1. Tap Roadside Assistance.
2. Tap Yes to set the home base before using this service.
3. Select your home base from the list.
4. The Assistance Details screen will display.

1. Complete the following:

If you want to ... Then ...
place a phone call to the assistance centre	▪ tap 📁. ⓘ This feature is not available on all models.
change the region for a new search	▪ tap Home base.▪ select your preferred region.
Change to another assistance centre	▪ tap Club.▪ select your preferred centre.

How do I find the weather information?

1.

The MioMore Service screen will display.

1. Tap Weather.
2. When prompted for download of the latest data, select to update immediately or use the previous data.
3. The Weather screen will display. Tap Add city.

1. Follow the prompts to select your preferred region, country and city. After a city is selected, MioMore Service will start updating the weather information and display it on the screen.

You can tap to change the temperature unit between °F and °C.

How do I download MioMore Service updates?

You can define how you want to download MioMore Service updates.

On the MioMore Service screen, tap Service Update and select if you want to be asked before update and allow or do not allow automatic update.

Media is not available for all models and is only available in selected countries.

Media allows users to play stored music files installed on your Mio.

Playing audio files

Only mp3, wma, wav audio formats are supported for the audio feature.

You can play music files that are stored on your Mio by a random order, artist and albums.

How do I listen to a music file on my Mio?

There are several ways to play audio files on your Mio.

1. Complete one of the following:

If you want to ... Then ...
play music files randomly tap Play	Random.
sort music files by an artist	tap Artists and select an artist from the Artists screen.
listen to music files in an album	tap Albums and select an album from the Albums screen.
play all music files	tap Songs and select a song to start with from the Songs screen.
play music files stores in a playlist	tap Playlists and select a playlist from the Playlists screen.

1. The Songs screen will display.

1. Complete one of the following:

If you want to ... Then ...
play a music file tap a music file from the list
listen to the previous music file	tap ←.
skip the current music file	tap
pause the music file	tap Tap to starting playing the audio file.
adjust the volume	tap
mute the volume	tap
unmute the volume	tap
set play settings	in the Play section, tap < or > to see all options:select Random to play music files randomly.select In Order to play music files in order.
set repeat settings	in the Repeat section, tap < or > to see all options:select Repeat All to repeat all the music files.select Repeat One and the current music file will be repeated once.select Off to play the music files only once.

How do I receive audio through my vehicle speakers?

FM transmitting is not available on all models and is only available in selected countries.

Your Mio can be set to transmit sound at a particular FM frequency which you can then receive through your vehicle radio. This means that you can hear map voice guidance, radio, mp3 files and video voice files clearly and loudly through your vehicle speakers.

How do I set the audio output channel of my Mio through my car's FM radio?

When you first access Audio output, the Internal speaker option is selected by default. If you select FM smitter the most recently used FM frequency will be used.

1. From the Settings screen tap Audio output.
   The Audio output screen will display.
2. Select the FM transmitter option and then tap Setup to set the frequency.
   The Set Frequency screen will display.
3. Tap OK on the guidance message to continue.
4. Tap Set Frequency to set a new output frequency for your Mio.
   The Set Frequency screen will display.

1. Tap - or + to set a frequency.

Tap and hold -/+ to decrease/increase by 1MHz. The fine-tuning frequency unit is 0.1MHz per unit.

1. Tap any of the save options.

The FM screen will display with the saved frequency.

You can only save four FM frequencies on your Mio. Tap Apply Directly to apply current frequency. Apply Directly option allows you to set the audio output channel automatically to FM (current frequency).

1. Tap and select the frequency you want to use.

To delete a saved frequency, you must set a new frequency and replace the frequency that you no longer ire.

How do I receive current traffic information via TMC?

Traffic information is not available on all models and is only available in selected countries.

Your Mio can receive current traffic information for all main roads and motorways, enabling you to avoid potential delays on your route. Event messages and traffic icons will display as they occur. If an event message obscures your current location, the map will adjust to display both the message and your location.

How does my Mio receive traffic information?

Depending on your model, you may receive current traffic information on your Mio using the built-in TMC receiver or via the Mio traffic accessory kit. The traffic accessory kit may be sold separately.

The Traffic Message Channel (TMC) broadcasts real-time traffic and weather information via the FM Radio Data System (RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of events able to be broadcast to TMC receivers.

You have to pay for TMC service in some models and in some countries.

Traffic status

Your current traffic status is indicated by the colour of the TMC icon.

To view your current traffic status, from the Main Menu, tap

The following table describes the three traffic status icons:

Traffic Status Description
	The TMC status is grey if traffic is currently inactive due to one of the following conditions:·Your Mio or traffic accessory kit is connecting to the TMC service.·Your Mio or traffic accessory kit cannot receive TMC data. This may be due to poor radio coverage in the local vicinity.·You are in a country that is not supported by the Mio traffic accessory kit.·Tap to display the Traffic Overview screen.
	The TMC status is orange if one of the following conditions apply:·You have navigated into a country that is not supported by Mio Traffic, but there are still traffic events listed on the Event List screen.·You have separated your Mio from the Mio traffic accessory kit, or the Mio traffic accessory kit is not receiving power but there are still traffic events listed on the Event List screen.·Tap to display the Traffic Overview screen.
	The TMC status is green if your Mio or traffic accessory kit is active and receiving traffic events.·Tap to display the Traffic Overview screen.

Your traffic status is displayed in more detail on the Traffic System Status screen.

How will I know when a Traffic Event occurs?

Incoming events are handled according to your Traffic preferences.

When travelling through an area in which you can receive traffic updates, your Mio will decode these events and display them on-screen. An icon will display at the event location on the map screens, and an audible warning is given if an event is on your route. Where an event spans a specific distance, the road will be highlighted and arrows will indicate the direction affected.

A message will display at the bottom of the screen with the road name, the section of road affected and the type of event that has occurred. The message remains on screen for 8 seconds and is added to the Event List.

Traffic Overview screen

Depending on your Mio model, traffic information may not be available, may require a subscription, or may require the Traffic Accessory Kit (may be sold separately).

The Traffic Overview screen displays a general overview of the traffic situation on your route, including all events in the immediate vicinity.

	Item Description
1	State Indicates the number of events on your route.
2	Event icon Displays icon to indicate type of event.
3	Current position	Your current position is marked with ▲.
4		Your current traffic status is indicated by the colour of the TMC icon.
5		To zoom in or out, tap and hold + or -

How do I view a list of all events on my route?

Your Mio creates a list of events as they are received, which is displayed on the Event List screen. This screen can only be viewed if the TMC icon is green or orange.

From the Traffic Overview screen, tap and undock the menu.

	Item Description
1		Tap to return to the previous screen.
2	Sort	Display the Set sort type screen. Select your traffic event sorting option from the list.
3	Event description Displays details of the Event, including:Name of road and direction in which Event is taking place.Location of where Event begins and ends.> indicates an Event from a location, to a location.<> indicates an Event between locations.Type of Event.
4	Event icon Displays an icon to indicate type of event.

How do I view traffic details?

There are several ways to view details of an event received by your Mio.

Choose one of the following:

Traffic Status Description
From any of the map screens used to view your route	Tap the Event message when it appears on the map screen.The Event Details screen will display.
From the Traffic Overview screen	Tap and undock the menu.The Event List screen will display.Select and tap the event you want to view.The Event Details screen will display.ORTap and hold the traffic icon, which displays at the location of the event.The Event Details screen will display.

	Item Description
1		Tap to return to the previous screen.
2	Event icon and description	Displays details of the Event, including:Name of road and direction in which Event is taking place.Location of where Event begins and ends.> indicates an Event from a location, to a location.<> indicates an Event between locations.Type of Event.
3	Detour information D	Displays details of detour recommendation, if any.
4	Avoid Tap to initiate a new route to avoid the event.Only available if a detour or re-route is available.The Unavoid Area button is displayed when a re-route has been calculated.

How do I know if a detour is recommended?

When a Traffic or Clearance event occurs on your route, a detour will often be recommended. The detour event message will display in the status bar on map screens.

Detours are only recommended for Traffic or Clearance Events on a calculated route.

How do I avoid an event on my route?

From the Traffic Overview screen, tap and undock the menu.

1. From the Event List screen, tap the event. The Event Details screen will display.

2. If a detour has been calculated to avoid an event on your route, Avoid is available; tap to accept the new route and avoid the event. The Map screen will display.

How do I cancel a detour around an event on my route?

If you have chosen to avoid an event and a new route has been calculated, you can cancel the detour around the event and return to your original route.

1. From the Event List screen, tap the Event you want to un-avoid.

The Event Details screen will display.

1. Re-route information displays at the bottom of the screen.

If a re-route has been calculated, Unavoid is available; tap to accept the new route.

The Map screen will display.

Traffic messages

The Event Details screen displays detour status information.

Detour Not Available messages

If a detour is not available, one of the following messages will display:

Message Description
This Event is not locatableThis clearance is not locatable	A specific location for the Event cannot be identified.
This Event does not affect your routeThis clearance does not affect your route	The Event is not on the current leg of your journey, or is behind your current position.
You are avoiding this EventYou have accepted this clearance	The Event is not on the current leg of your journey.
You are too distant to re-routeYou are too distant to accept this clearance	The Event is currently too distant to affect your journey.
Detour not foundClearance route not found	A detour / re-route could not be calculated.

Detour Recommended messages

If a detour is recommended, one of the following messages will display:

Message Description
Finding detour....Recalculating route.....	Your Mio is calculating a new route. During calculation, the % complete will display. Exiting this screen before the new route is calculated will cancel the operation.
Detour distance.....Clearance change	A detour has been calculated.The difference between the distance of your current route and the proposed route is displayed.

Traffic preferences

You can view your current traffic system status and change options by customising the traffic preferences.

TMC service

1. From the Traffic Events screen, tap Traffic service. The Traffic service screen will display.

The TMC service screen displays the frequency of the radio station currently used to receive traffic event information. A bar shows the strength of the traffic signal being received; the more green bars the stronger the signal.

1. Complete the following:

If you want to... Then...
change your preferred radio station	select your preferred radio station from the list.

Traffic Event Notification

1. From the Event List screen tap Preferences. The Preferences screen will display.

2. Complete the following:

If you want to... Then...
turn on/ off traffic event notification	select the Notify me about nearby traffic events button to receive traffic event notification.clear the Notify me about nearby traffic events button to turn off traffic event notification.Event icons will still display on the Map screen.
be notified about events that affect your current route	select the Only notify me about events on my route button.
be notified only when a detour is recommended	select the Only notify me if a detour is recommended button.

- Your preferences are automatically saved.

Select event sorting type

1. From the Traffic events screen tap the Sort field. The Set sort type screen will display.

2. Complete the following:

If you want to... Then...
sort events by distance select the Distance option.
sort events by road name select the Road name option.
sort events by age select the Age option.
view all traffic events	select the Show all events option.
view traffic events that appear only on your route	select the Only show events on my events option.

- Your preferences are automatically saved.

Walking mode is not available on all models.

Walking mode allows you to navigate to your destination using roads and paths appropriate for a pedestrian, including non-vehicle segments.

When in Walking mode, you will not be routed onto motorways and their associated slip roads. If your destination is more than 10 kilometres (6.3 miles) away, a warning message is displayed indicating that the route is a long way to walk.
i Some aspects of walking mode are not available on all models, but the function itself is.
i Navigation along paths and non-vehicle segments that require 2D city maps is not available on all models.

How can I set my navigation mode to walking?

1. Plan a route from the Find or Explore screen.
2. In the Mode section, tap < or > to select Walking.

Your route will be calculated and the Map screen will display using the walking icon:

There are various customisation options available to enhance your navigation experience.

Volume

Complete the following:

If you want to ... Then ...
increase or decrease the volume	tap to move the Volume slider to the right to increase the volume.tap to move the Volume slider to the left to decrease the volume.

- Your preferences are automatically saved.

Safety options

You can enhance your navigation experience by modifying aspects of your route and route calculation.

Complete the following:

If you want to ... Then ...
enable/disable a visual warning if the screen is accessed in a moving vehicle	tap Warn me not to operate my Mio while driving, to turn it On or Off.
enable/disable speed limit alerts, which warn you of the speed limit on any given road	tap Speed limit warnings, to turn it On or Off.When Speed limit warnings is set to On, the Set manual speed alert and Speed alert type, options will display.

- Your preferences are automatically saved.

Route options

Complete the following:

If you want to ... Then ...
set route type options for your route	TapRoute type.TheRoute typescreen will display.Select your route type preference from the list.Shortest– The route with the shortest physical lengthEasiest– The simplest route with the least number of turns and favours motorways where appropriateEconomical– The route with least number of stops, turns and urban areas which should save on fuel usage.Fastest– The route that should be the fastest when navigatingSelectingShortestroute type overFastestroute type can cause a much longer journey time.
set types of road options for your route	tapTypes of road.TheTypes of roadscreen will display.select your road preference from the list.Avoiding ferry routes may prevent you from navigating between certain countries, even when a bridge or tunnel exists.
set your map screen preference	tap theMapoption to select between a 3D or 2D view of the Mapscreen.
set the number of turns displayed on your turn list	tapDisplayed turns.TheDisplayed turnsscreen will display.select your turn preference from the list.
display junction views on your route	tap theJunction viewsoptions to turn itOn or Off.This feature is not available on all models.
Set how you want to notified of safety cameras	tap MyPlaces alerts.TheMyPlaces alertsscreen will display.select an option and then select your preference from the list.
record mileage for your route to generate expense reports	tap theMileage recorderoption to turn itOn or Off.This feature is not available on all models.
record a GPS log of your trip	tap theGPS loggingoption to turn itOn or Off.
record your journey	tap theCapture Journeyoption to turn itOn or Off.

• Your preferences are automatically saved.

Map display

Complete the following:

If you want to ... Then ...
enable/disable automatic zooming during navigation	tap the Auto-zoom map when navigating option to turn it On or Off.If selected, the Map screens will automatically zoom in or out,depending on your speed, to allow optimal viewing of your route.
display North at the top of the 2D Map screen	tap the Keep North at top of 2D map screen option to turn it On or Off.[2525] If set to Off, the direction you are travelling in will display at the top of the 2D Map screen.
display “no entry” icons on “no entry” roads on the Map screens	tap the Show no-entry road signs option to turn it On or Off. When turned on, the map display performance can slow down due to the number of no entry roads in some major cities.
display 3D landmarks on your route	tap the 3D landmarks option to turn it On or Off. 3D landmarks are not available on all models or in all countries
Change the map colour scheme	tap the Map scheme, then select a colour scheme from the list.

• Your preferences are automatically saved.

Screen brightness

Complete the following:

If you want to ... Then ...
change the screen brightness	tap to move theScreen Brightnessslider towards right to increase screen brightness.tap to move theScreen Brightnessslider towards left to decrease screen brightness.Warning:Your Mio can heat up when theBrightnessscale is set high, therefore, use lower brightness whenever acceptable.
set the screen contrast to automatically adjust	select theAutomatic day/night option.
improve screen contrast in light or dark condition	select either Day or the Night option to manually adjust screen contrast.

- Your preferences are automatically saved.

Bluetooth

Bluetooth is not available on all models.

The Bluetooth option allows you to pair and select a mobile phone or headset with your Mio.

Complete the following:

If you want to ... Then ...
enable/disable Bluetooth on your Mio	tap On or Off on the Bluetooth screen.
leave your Mio in discoverable mode	tap On or Off on the Bluetooth screen.
connect to a Bluetooth mobile phone	tap Connect to Phone, then select a mobile phone from the list. Tap Search for devices to search for a new Bluetooth enabled mobile phone.
connect to a Bluetooth headset	tap Connect to Headset, then select a headset from the list. Tap Search for devices to search for a new Bluetooth headset.

- Your preferences are automatically saved.

Language

Complete the following:

If you want to ... Then ...
change the on-screen language	tap your preferred language, then tap Yes. i The voice scheme will also change to the default scheme for the selected language.

- Your preferences are automatically saved.

Voice

Complete the following:

If you want to ... Then ...
change the voice scheme select your preferred voice scheme from the list.Only voice schemes that are compatible with the chosen language are displayed.

- Your preferences are automatically saved.

Power management

The Battery Status bar shows the percentage of power left in the Mio battery. The words External power will display when the battery is charging from an external power source. Otherwise it will show Internal battery when not connected to an external power source.

To charge the battery, refer to the Hardware User Manual.

Units

Complete the following:

If you want to ... Then ...
change the time format	tap Time format and then select your preferred time format from the Units screen.
change the distance units	tap Distance Units and then select your preferred distance unit type from the Units screen.
change the date format	tap Date Format and then select your preferred date format type from the Units screen.

- Your preferences are automatically saved.

Touch audio

The touch audio option allows you to hear a tone when you tap the touch screen.

Complete the following:

If you want to ... Then ...
hear which letter you have tapped when you tap the touch screen	tap the Audio option to turn it On or Off.
hear a tone when you use the on-screen keyboard for text input	tap the Speak keyboard letters option to turn it On or Off.

- Your preferences are automatically saved.

List scrolling

Complete the following:

If you want to ... Then ...
enable the Slide TouchTM interface and not use arrows to navigate on a screen	tap the List Scrolling option to select Slide Touch.
disable the Slide TouchTM interface and use the scroll tabs	tap List scrolling option to select Buttons.

- Your preferences are automatically saved.

Audio output

This feature is not available on all models.

Audio output allows you to change the audio output of your Mio.

Complete the following:

If you want to ... Then ...
Receive audio output through your Mio	Select the Internal Speaker option.
Receive audio output through the FM radio in your car	Select FM transmitter and then select your FM frequency. For more information, see “How do I receive audio through my vehicle speakers?” on page 53.

- Your preferences are automatically saved.

Delete saved information

Complete the following:

If you want to ... Then ...
delete My Places tap Delete My Places.
delete recent locations tap Delete recent locations.
clear all settings; for example, for use in a rental car	complete all of the above.

- When the warning dialog box displays, tap Yes.

Reset GPS

Occasionally, the GPS fix may need to be reset. This may occur if the receiver has been transported a long distance since last being used; for example, to a different country, and is still trying to establish the previous position.

Complete the following:

If you want to ... Then ...
reset the GPS	tap Reset GPS.When the warning dialog box displays, tap Yes.

Restore factory defaults

The restore factory defaults option allows you to restore default factory settings.

Complete the following:

If you want to ... Then ...
restore factory default settings	tapRestore Factory Defaults. Your Mio will restart.TheRestore Factory Defaultsoption does not delete recent locations or saved My Places destinations.

- Your preferences are automatically saved.

Shop demo

Complete the following:

If you want to ... Then ...
enable a shop demonstration of Mio Spirit to be played	tap Shop demo. Tap Yes and select a demonstration country. Tap OK. Your Mio will restart.When your Mio is in Shop demo mode, you will see the navigation demonstration of the pre-defined route without having to set a destination. You cannot operate your Mio properly in Shop demo mode.
stop a shop demonstration of Mio Spirit in playback	tap Shop demo. Tap Yes, then OK. Your Mio will restart.

Screen saver

Complete the following:

If you want to ... Then ...
enable the screen saver feature on your Mio	tap Screen saver.When your Mio is idle for 10/30/60 minutes, the screen saver will display. The screen saver will only display if your Mio is connected to a power supply.
Disable the screen saver feature on your Mio	tap Screen saver.Tap Off.

- Your preferences are automatically saved.

About

Tap About to display copyright and trademark information.

Point of Interest categories

Icon Description Icon Description
[H70X]	Airport Amusement park	[X370]
[CA2X]	Art centre ATM/Cash dispenser	[80T8]
[HD28]	Bank Bar/Pub	[W2H4]
[BTW5]	Beach Breakdown service/Car repair facility
[T060]	Bowling centre Business facility or company	[3H0X]
[TX4H]	Business office Bus station
[ZX02]	Camping ground Car dealer/Automobile dea	[SATC]
[C30D]	Casino Cemetery
	Church Cinema
	City hall City, town or village	[ADTY]
	Coffee shop College/University	[6H7W]
[OTX6]	Community centre Commuter railway station
[83ZT]	Courthouse	[C443]	Dentist
	Doctor Embassy
	Exhibition centre Ferry terminal	[AY6E]
[SD7D4]	Fire Brigade	[2206]	Golf course
	Government office Grocery store	[CY0W]
[24DW]	Guest house	[0H5A]	Higher education
	Hospital/Polyclinic		Hotel
	Ice skating	[SAT8]	Important tourist attraction
[3776]	Information/Tourist information office	[XST3]	Library
[854C]	Marina/Yacht basin	[50TY]	Medical
	MonumentMotoring organisation office Mountain pass	[XCTD]	Motorcycle dealer
	Museum		Music centre
	Natural attraction Nightlife
	Park and ride Parking
	Parking garage Park/Recreation area
[6YKS]	Performance art/Theater Petrol station
	Pharmacy Place of worship
	Police station Post office
	Public restroom/Toilet facilities Public sport
	Railway crossing Rental car agency
	Rest area Restaurant
	Road accident black spot Scenic/Panoramic
	School		School zone
	Shop		Shopping
	Ski resort/Ski lift station		Speed check
	Sport centre		Sports hall
	Sports complex		Stadium
	Tennis court		Travel agency
	Transport ferry		Veterinarian
	Winery	[6HBG]	Zoo

Branded Points of Interest

Branded Points of Interest are available on some maps. These include well known restaurants, accommodation providers, tourist attractions, Petrol stations, etc. The icon will usually display the company logo.

Point of Interest categories by subscription

Icon Description
	Safety Cameras
	Safety Camera (Mobile)
	Safety Camera (Average)
	Red Light Camera

My Places categories

Icon Description
	Album
	Home
	Saved locations
	Captured locations
	Captured journey
	Captured sound recording

Traffic and other TMC Events

Each TMC Event is sorted in to one of nine categories. When an Event is received, one of the following icons will display:

Event	Avoided Event	Message Type Event	Description
		Danger There is a dangerous situation on the route; for example, people are on the road.
		Traffic Any event that will cause a delay on a route.
		Weather Weather conditions are adversely affecting a route; for example, there is ice on the road.
		Warnings There is a situation of which you should be aware on the route, but it is not serious enough to be considered a dangerous situation; for example, a minor accident has taken place.
		Forecast An event is expected to occur on a route.
		Restrictions	There is a restricted flow of traffic on a route; for example, a lane has been closed on a motorway.
		Clearance	A traffic event that has now been cleared.
		Information All other events.
		Roadworks Roadworks are taking place on a route.

If a Traffic or Clearance event has a recommended detour, the following icons will display:

Event	Avoided Event	Message Type Event	Description
		Traffic Detour	A Traffic Event, for which a detour is recommended.
		Clearance Re-route A	Clearance Event, for which a re-route is recommended.

Avoided Event icons will only display on the Map screen, at the event location.

For more information

User Manuals

The latest User Manuals can be downloaded from our website: www.mio.com

Register with MioClub

To report a faulty product or speak to a member of our Technical Support team, register your Mio on MioClub to obtain the Technical Support phone numbers for your region.

Speed Limit

Mio products are designed to be used as an aid to safer driving. Mio does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In some countries the data information regarding speed limits may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

Safety Camera POIs

Mio products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras, which will enable you to monitor your speed through these areas. Mio does not warrant that all types and locations of safety camera data are available, as cameras may be removed, relocated or new cameras installed. Mio does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

FM Transmitter

Products with FM Transmitter feature may be operated in the following countries:

AT	BE BG CH CZ							DE	DK
ES	FI	GB	HU	IE	IS	IT	LI
LT	LU		LV		MT		NL	NO	PL
RO	SE		SI	SK

EE

PT

The FM transmitter function is not allowed to use in Cyprus, France and Greece. Please turn off the FM Transmitter in those areas.

Disclaimer

Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.

Copyright

© 2009 MiTAC International Corporation. Mio is a registered trademark of MiTAC International Corporation and is used under licence by Mio Technology Ltd. All rights reserved.

The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.

Back-On-Track, Drive-Away, MioMore Desktop, Mio Spirit, NavPix, Slide Touch and Turn-by-Turn are either registered trademarks or trademarks of MiTAC International Corporation and are used under licence by Mio Technology Ltd. All rights reserved.

Microsoft, Windows, Windows Vista and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.

Travel Book Data wcities.com © 2009

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by MiTAC International Corporation is under license.

Location Identifiers © 2005 International Air Transport Association.

POI Data © 2007 InfoUSA.

All other trademarks and registrations are the property of their respective owners.

Revision: R01

(8/2009)

Moov/Navman Spirit Series MioMore Desktop Manual

Welcome....4

What is MioMore Desktop? 5

How do I install MioMore Desktop onto my computer?......6

MioMore Desktop Menu 8

General Preferences....9

My Subscriptions....10

How do I purchase a subscription? 10

How do I activate my subscription? 10

How do I update subscriptions on my Mio?......11

My Maps 12

How do I download and install free map updates?......12

How do I install maps onto my Mio?....13

How do I remove maps from my Mio?......14

My Maps Preferences....15

Custom POIs....16

How do I install custom Points of Interest?......16

How do I delete a Custom POI file/category from my Mio? 17

Photo Album 18

Toolbar....19

How do I transfer pictures from Photo Album to my Mio?....19

How can I view and edit pictures or albums on my computer? 20

What else can I do with pictures and albums on my computer? 20

Photo Album preferences....21

Image Search....22

How do I download NavPix ^TM from the internet?......22

How do I import NavPix ^TM to Photo Album?......22

How do I import NavPix ^TM to My Places?......22

Application Gallery 23

How do I rearrange Main Menu applications on my Mio Main Menu?......23

How do I remove an application from my Mio?......23

How do I add an application to my Mio?......23

My Places 24

How do I sort My Place locations? 24

How do I edit a location name or notes in My Places? 24

How do I share a location from My Places? 25

How do I play a captured sound file? 25

How do I upload a NavPix™ from My Places to Flickr™? 25

How do I delete a location from My Places?......25

My Mio....26

Voice transfer....26

How do I install a voice file?......26

How do I remove a voice file? 26

Mileage Reporter 27

How do I import my trip data? 27

How do I export a mileage report? 28

How do I delete travel logs from my Mio? 28

Mileage Reporter preferences....28

Backup and Restore....29

How do I backup my Mio?......29

How do I restore a backup to my Mio?......29

How do I delete a backup? 29

Language....29

Recover keys....30

Connect 31

How do I search for a POI using Connect? 31

My Media ....33

Toolbar....33

How do I import a music file to my MioMore Desktop library? 34

How do I transfer a music file from MioMore Desktop to my Mio? 34

How do I remove a music file from my MioMore Desktop playlist? 34

How do I remove a music file from my Mio playlist? 35

How do I permanently delete a music file from my Mio playlist?......35

What else I can do with My Media? 35

Appendices....37

For more information....37

Compliance....38

Speed Limit....38

Safety Camera POIs 38

Disclaimer 38

Copyright 39

Thank you for purchasing this MioMore Desktop software. Please read this manual carefully before using MioMore Desktop for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Formatting

The following kinds of formatting in the text identify special information:

Convention Type of Information
Bold	Mio components or items displayed on screen, including buttons, headings, field names and options.
Italics	Indicates the name of a screen.

Icons

The following icons are used throughout this manual:

Icon Description
	Note
	Tip
	Warning

Terms

The following terms are used throughout this manual to describe user actions.

Term Description

Click Use the left mouse button to click a button or area on the screen.

Select Click an item in a list or click a command from a menu.

What is MioMore Desktop?

MioMore Desktop is a suite of tools you can use to access greater functionality and product information via your computer.

MioMore Desktop allows you to:

• obtain software updates
• manage maps
  ■ search online for local POIs
• manage custom POIs
  ■ manage safety camera subscriptions
  ■ report trip mileage
• browse the Mio website for special offers.

- transfer pictures to your Mio using Photo Album

Can I use MioMore Desktop with my computer?

Ensure your computer has the following minimum system requirements before installing MioMore Desktop:

• IBM compatible PC
  ■ Microsoft® Windows® XP SP2 or Vista x32
• Internet Explorer 6 or higher
  DVD drive
  USB port
• Internet connection for activation.

Microsoft .NET 2.0, 3.0 and 3.5 will be installed on your computer as part of the installation of MioMore Desktop.

How do I install a map for the first time?

The most common task performed using MioMore Desktop is the installation of a new map to your Mio internal memory or memory card. Complete the following procedures:

Step Action

1 Install MioMore Desktop on your computer.

2 Check for software updates for Mio Spirit on your Mio.

3 Install one or more maps on your Mio.

How do I install MioMore Desktop onto my computer?

Before you begin: Ensure that your computer meets the minimum system requirements for MioMore Desktop, especially:

i. Ensure that Internet Explorer 6 or higher is installed on you computer before you install MioMore Desktop, even if it is not your default browser.
ii. Windows XP users, ensure that Windows XP Service Pack 2 or higher has been applied before you install MioMore Desktop.

CAUTION: When your Mio is turned on and connected to a computer, it is recognized as an external mass-storage device. Do NOT delete any files that are pre-installed on your Mio. Deleting the files can cause your Mio to crash

1. Close all programs on your computer.
2. Insert the MioMore Desktop Application Installer DVD into your computer DVD drive. The MioMore Desktop installer will start.

If your computer does not automatically launch the DVD, start the installation manually: Start → Run.

Type D:\Install.exe where "D" is the letter assigned to your DVD drive, then click OK.

1. Select your preferred language for MioMore Desktop.
2. Click Install Software, then Install MioMore Desktop 2.
3. Follow the screen prompts to install MioMore Desktop:

■ Review and accept the Licence Agreement for MioMore Desktop when prompted.
- Select a destination folder for MioMore Desktop when prompted.
- When the installation is complete, click Finish. MioMore Desktop will open.

1. If prompted to connect your Mio to your computer, complete the following:

- Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug the small end into the USB Socket (●→) on the bottom of your Mio.

Where possible, plug the USB cable into a USB port at the back of your computer.

- Slide the Power switch to the ON position, to turn on your Mio. The following screen will display on your Mio:

1. If prompted to update your Mio software, follow the on-screen prompts.

You are now ready to use MioMore Desktop to install maps to your Mio.

From now on, you can access MioMore Desktop via: Start → All Programs → Mio → MioMore Desktop 2

MioMore Desktop Menu

Depending on your Mio model, certain MioMore Desktop Menu options may not be available.

	Component Description
1	Mio Online Display the Mio website, Mio Store and other online features.
2	My Subscriptions	Information on your current subscriptions, including safety camera subscriptions.
3	My Maps Install and manage maps.
4	Custom POIs	Application that allows you to import custom POIs.
5	Photo Album Import and edit NavPix ^TM images.
6	Image Search Search online and download NavPix ^TM which can be added to My Places or Mio. i This feature is powered by Flickr ^TM .
7	Application Gallery	Customise and rearrange applications available on the Main Menu screen of your Mio.
8	MY PLACES	View and modify all places including addresses, Points of Interest, NavPix ^TM , and others added using MioMore Desktop and stored on your Mio.
9	MY MIO	A collection of applications that allow you to transfer data to and from your Mio, including: · Voice transfer · Activation · Mileage reporter · Backup and restore · Langauge · Recover keys · Options
10	CONNECT Search for and add live POIs to My Places.
11	MY MEDIA	Application used to transfer media files (.wav, .mp3, .wma) from your computer to your Mio.

General Preferences

My Mio → Options → General

Complete one of the following:

If you want to ... Then ...
keep MioMore Desktop updated	select theAuto check for updatescheckbox.When you select this option, every time you open MioMore Desktop, any available service packs and bug fixes will be downloaded from the Mio server and applied to your Mio. i Updating software is different from upgrading software. To upgrade MioMore Desktop, you must first purchase a new version of MioMore Desktop from a retailer, then install it on your Mio.
change the units of measurement that MioMore Desktop uses	· select or clear theUse metric unitscheck box to change between imperial and metric units· select or clear theUse decimal degreescheck box to change between decimal degrees and latitude/longitude co-ordinates.

Subscription information is not available on all models and is only available in selected countries.

Your Mio contains pre-loaded subscriptions, such as safety camera and travel book information.

MioMore Desktop → My Subscriptions

For the latest subscription updates, visit: www.mio.com

Safety Camera alerts can be set to enable a warning sound or visual warning when on your route.

How do I purchase a subscription?

1. Select a type of subscription.

A list of regions will display.

1. Select a region.

A list of available subscriptions will display.

1. Select a subscription or offer, then click Purchase an activation key from the Mio store.

The Mio Store website will open.

1. Follow the prompts to purchase your subscription.

A product key will be sent to you via email when you have subscribed. You will need to use this product key to activate your subscription.

How do I activate my subscription?

MioMore Desktop → My Mio → Activation

1. Enter your product key.

2. Follow the prompts to activate your subscription.

How do I update subscriptions on my Mio?

The My Mio section will display a list of subscriptions already installed on your Mio:

Icon Description
Red	Expired subscriptions.▪ right click to purchase a new subscription.
Yellow	Available subscriptions.▪ right click to update and purchase new subscription.
Green	Active subscriptions. ⓘ No updates are available for these subscriptions.

My Maps allows you to install new maps, remove maps from your Mio and purchase new maps.

MioMore Desktop → My Maps

Click View Installed Maps.

Component Description
1	Map Source	A list of maps on the DVD or available for purchase via the Mio Store website.
2	My Mio A list of maps installed on your Mio.
3	Continent	A drop down list of continents that have maps available for your Mio.
4	Zoom In / Zoom Out Click to zoom in or out of the globe.
5	Globe A map of the world or selected continent indicating the maps:on the current DVD,installed on your Mio or memory card, oravailable from Mio.

How do I download and install free map updates?

Occasionally Mio will offer you free map updates. If a free map update is available and your Mio is connected to your computer, a message will display when you first start MioMore Desktop.

The message can be disabled from displaying by selecting Suppress Free Map Offer messages from the sage box or from: My Mio → Options → My Maps

How do I download a map update immediately?

1. Select the map updates that you would like to download, then click Download. Your default web browser will open and prompt you to save the map update files.

2. Navigate to your Loadable Maps Location and save the files.

The default Loadable Maps Location is the My Maps folder in your Documents folder. You can change the tion from: My Mio → Options → My Maps

How do I download a map update at a later time?

1. Click Close to close the Free Map Updates window.
2. When you are ready to download the map update, click My Maps. A list of available map updates will be displayed under Free to download in the Available Downloads section.
3. Select the map update that you would like to download, then click Yes. Your default web browser will open and prompt you to save the map update file.
4. Navigate to your Loadable Maps Location and save the files.

The default Loadable Maps Location is the My Maps folder in your Documents folder. You can change the tion from: My Mio → Options → My Maps

How do I install a map update that I have downloaded?

1. Click My Maps. A list of downloaded map updates will be displayed in the Loadable Maps section.
2. Click Open next to the map update that you would like to install. The globe will display. The free maps that you downloaded are yellow.
3. Click the map you want to install to your Mio. The map will change colour to a brighter yellow to indicate it has been selected.

- To deselect a map, click the map again.

You may need to install multiple maps to cover the required geographical area.

1. Select the destination media for the selected map, then click Transfer Now. The selected map will be installed and change colour to green.

2. To use your Mio, disconnect the USB cable.

WARNING: Do not disconnect the USB cable from the Mio USB Socket until the Globe has refreshed, and the installed map or maps have changed colour to green.

How do I install maps onto my Mio?

Your Mio comes with one or more pre-activated maps.

You can install maps from the DVD that came with your Mio or one that you ahve purchased separately to a memory card or your Mio internal memory; however you may need to purchase a Map Product Key to activate maps on the DVD that came with your Mio.

1. Open MioMore Desktop, if it is not already open: Start → All Programs → Mio → MioMore Desktop
2. Click My Maps. The My Maps application will display.
3. Insert a Map DVD into your computer DVD drive.

■ The maps already installed on your Mio are green.
The maps that are unlocked and ready to be installed to your Mio are yellow.
The maps that require activation before being installed to your Mio are red.
The maps that are available for purchase from Mio are blue.

If your computer opens Windows Explorer when the DVD is inserted, close the Windows Explorer window.

1. Complete the following:

If the map to be installed is ... Then ...
yellow go to step 7.
red the map needs to be activated via the Internet before it can be installed; continue to step 5.

1. If you connect to the Internet via a dial-up connection, connect to the Internet now.

2. Follow the prompts to activate your Map Product Key, including:

3. Enter the Map Product Key when prompted.

4. Your computer will connect to the Internet and activate your Map Product Key.

5. When activation has completed, the map will change colour to yellow; continue to step 7.

6. Click the map you want to install to your Mio.

The map will change colour to a brighter yellow to indicate it has been selected.

- To deselect a map, click the map again.

You may need to install multiple maps to cover the required geographical area.

1. Complete the following:

If you want to ... Then ...
install a yellow map	go back to step 7.
install a red map	the map needs to be activated via the Internet before it can be installed; go back to step 5.
install the selected maps to your Mio continue to step 9.

1. Select the destination media (Mio internal memory) for the selected maps, then click Transfer Now. The selected maps will be installed and change colour to green.

2. To use your Mio, disconnect the USB cable. You may need to manually reset your Mio.

WARNING: Do not disconnect the USB cable from the Mio USB Socket until the Globe has refreshed, and the installed map or maps have changed colour to green.

How do I remove maps from my Mio?

1. Click My Maps.
   The My Maps application will display.
2. From the My Mio panel, select the check box next to the map you want to remove.
3. Click Remove Maps to remove the selected maps.
4. Confirm that you want to remove the selected map when prompted.

The map is removed from your Mio.

You can reinstall these maps at any time via MioMore Desktop.

My Maps Preferences

My Mio → Options → My Maps

Complete one of the following:

If you want to ... Then ...
change the location of where downloaded maps and map updates will be saved	click Change.select a location for your maps.click Save or OK.The warning message will display and you will be prompted to confirm your action.Your maps are moved to the new location.
prevent offer messages from displaying	select the Suppress Free Map Offer messages check box.

Depending on your Mio model, some Custom POIs features may not be available.

The Custom POIs (Points of Interest) application allows you to create or import your own POI files. These are called custom POIs. Unlike preinstalled POIs, custom POIs can be removed from your Mio and can have audio as well as visual alerts associated with them.

MioMore Desktop → Custom POIs

How do I install custom Points of Interest?

Various POI files are available for download free or by subscription from third-party websites ^1 . Ensure that downloaded files are in .csv (Comma Separated Values) format.

1. In the Add new POIs section, click Browse to select a source file. The Open dialog box will open.
2. Select the file from your local or network drive, then click Open.
3. From the POI Category section:

If you want to... Then...
use an existing custom POI category	select the Existing category option, then select a type from the drop down list.
create a new custom POI category	select the New category option, then type a name for the POI category.

1. Set Alert setting as required:

If you want to... Then...
enable a visual warning when a POI of this category is in close proximity	select the Visual alert check box.
select an icon to display on the map screens for POIs of this category	Click Browse to select the icon file from your local or network drive. When you have located the icon file, select it and click Open.The icon file must be a bitmap (.bmp) graphic with a minimum size of 6x6 pixels and a maximum size of 32x32 pixels.If you do not select a custom icon, a default icon will display.
select the distance from a POI of this category at which the visual warning should display or the warning chime should sound	select the distance from the Distance box.To change the units used to measure distance for this POI category, from the tools menu click on options and from the general option select Use metric units check box.
enable a warning sound when a POI of this category is in close proximity	select the Audio alert check box.
select a custom sound alert file to play when a POI of this category is in close proximity	Either select a sound file from the list, orClick Add to select a sound file (.WAV format) from your local or network drive. When you have located the file, select it and click Open.If you do not select a custom sound file, a default sound alert will play.

1. Click Add to device to add the POI to your Mio.

Each file corresponds to a POI category; for example, Hotels.csv will be listed in your Mio as the Hotelsgory.

How do I delete a Custom POI file/category from my Mio?

1. In the Installed POIs section, click Delete next to the file name.

The file is removed from the list, but is not yet deleted.

1. Accept the warning message.

The selected file/category is deleted.

Depending on your Mio model, certain Photo Album features may not be available.

Photo Album is a MioMore Desktop application which allows you to copy, delete or move pictures or albums between the NavPix™ library on your Mio and the NavPix™ library on your computer.

MioMore Desktop → Photo Album

	Component Description
1	Desktop albums	Displays a list of all albums stored in theNavPixTMlibrary on your computer.Click an album to display its contents in theAlbum display area.ClickView all NavPixTMto display all pictures stored in theNavPixTMlibrary on your computer.
2	My Mio albums	Displays a list of albums stored on the Mio internal memory and on the memory card if one is inserted.Click an album to display its contents in theAlbum displayarea.
3	Selected picture When a thumbnail is selected it displays with a blue border.
4	Album display area	Displays thumbnails of pictures in the selected album.
5	Search Type to search for aNavPixTMby name.
6	Toolbar	When a picture is selected, the icons which can be used will be active.

Toolbar

The following options are available on the toolbar:

	Button Description
1	Create new album	Click to create a new album in the NavPixTM library you are viewing.
2	Add to My Places	Click to transd my Places NavPix
3	Transfer to your Mio or Transfer to your computer	If you are viewing NavPixTM in the NavPixTM library on your computer, this will display as Transfer to your Mio.Click to transfer the selected NavPixTM to your Mio.If you are viewing NavPixTM in the Mio library this will display as Transfer to your computer.Click to transfer the selected photo(s) to the NavPixTM library on your computer.
4	Import NavPixTM	Imports NavPixTM your computer to the NavPixTM library on your computer.
5	Export to disk	Click to TM to your computer or a NavPix drive.
6	View details Click to view	the selected NavPixTM and edit NavPixTM details, including:NavPixTM namelatitudelongitudedescription.
7	Rotate left	Rotates the selected NavPixTM 90° to the left.
8	Rotate right	Rotates the selected NavPixTM 90° to the right.
9	Delete NavPixTM	Click to delete the selected NavPixTM.

How do I transfer pictures from Photo Album to my Mio?

You can transfer pictures from your computer to your Mio. You can import any JPEG (.jpg) into Photo Album, add or edit GPS information, and then copy the picture to your Mio.

1. From the Toolbar section, select Import NavPix ^TM .

The Open dialog box will display.

1. Select a NavPix ^TM from a folder on your computer and click Open.

Thumbnails of the NavPix ^TM will display in the Album display area.

You can also drag and drop a NavPix™ from a folder on your computer to an Album on your MioMore ktop.

1. Either click and drag the required NavPix™ to an album in the Mio albums section, or click the Transfer to your Mio icon on the toolbar.

If you have transferred a NavPix ^TM with GPS coordinates you can then navigate to where the picture taken.

How can I view and edit pictures or albums on my computer?

If you want to ... Then....
rotate a picture to left	select the picture from the Album display area.clickRotate lefton the toolbar.
rotate a picture to right	select the picture from the Album display area.clickRotate Righton the toolbar.
view the picture details	select the picture from the Album display area.right-click and selectView Details, or clickView Detailson the toolbar.
edit GPS information	select the picture from the Album display area.double click on the picture or clickView Detailson the toolbar.The following information will display:NameLatitude and LongitudeDescriptionEdit the details you want to modify.ClickOKto save the changes.
delete a picture	select the picture from the Album display area.right click and selectDeleteor clickDeleteon the toolbar.

What else can I do with pictures and albums on my computer?

From the NavPix ^TM library on your computer, you can:
■ add a picture to another album
- remove pictures from an album
- add a NaupMy Places
■ view and edit details of a selected picture
■ upload pictures to Flickr™
- export to disk
- export pictures to Google Earth™
- search for pictures
■ view all pictures in the library

If you want to ... Then....
add a picture to another album	in theDesktopalbums section, select the album containing the NavPixTMyou want to include in another albumselect theNavPixdrag it to the other album.The selected NavPixTMis included in the new album, but is not moved, i.e., one instance of the NavPixTMin the library may be included in multiple albums.
remove a picture from an album	in theDesktopalbums section, select the album containing the NavPixTMyou want to removeselect theNavPixclick and selectRemove from album.Click theDeleteicon on the toolbar if you want to delete the NavPixTMfrom all albums.
add a NavPixTMto My Places	in theDesktopalbums section, select the album containing the NavPixTMyou want to add to My Places.select theNavPixclick and selectUpload to My Places.
view and edit picture details	select the picture then click theView Detailsicon on the toolbar.edit the fields as required.
upload picture to the Flickr website	in theDesktopalbums section, select the album containing the NavPixTMyou want to upload to the Flickr website.select theNavRght click and selectUpload to Flickr.You need a Flickr account to uploadNavPixTM. To create a Flickr account visitwww.flickr.com.
save a picture to your computer	select the picture from the Album display area.right click and selectExport to diskor clickExport to diskon the toolbar.navigate to a folder on your computer where you want to save the NavPixTM.
export to Google EarthTM(onlyNavPixTMwith GPS coordinates can be exported to Google Earth)	in theDesktopalbums section, select the album containing the picture you want to export to Google Earth.select theNavRght click and selectExport to Google Earth.navigate to a folder on your computer to save the file and then open it in Google Earth.You need to install the Google Earth software on your computer to be able to view the file you have created. You can download Google Earth from earth.google.com.
search for otherNavPixTMright-click on the desiredNavPixTMand selectSearch for NavPixTMnear this.
view all pictures in the library	clickView all picturesat the bottom of theDesktopalbum section.

Photo Album preferences

My Mio → Options → Photo Album

Complete one of the following:

If you want to ... Then....
change yourNavPixTMlocation on your computer	click Change.select a location for yourNavPixTMlibrary.click Save or OK.The warning message will display and you will be prompted to confirm your action.Your NavPixTM library is moved to the new location.
receive a warning message before deleting an image from your device	select Warn me when permanently deleting a NavPixTMfrom my Mio check box.
receive a warning message before deleting an image from your NavPixTM library	select Warn me when permanently deleting a NavPixTMfrom my library check box.
create a new folder every time you import new photos	select theImport photos to a new album checkbox.
view NavPixTMwhen on a route	select theShow NavPixTMon map checkbox.

Image Search is a MioMore Desktop application powered by Flickr™ allowing you to download photos and import them to Photo Album. You can then upload the photo to the Flickr website, transfer photos to your Mio, export pictures to Google Earth or search for other NavPix™ near the longitude and latitude of your NavPix™.

MioMore Desktop → Image Search

How do I download NavPix™ from the internet?

1. In the Description field enter a search description for the image you are looking for.

2. Select one of the Sort by options.

3. Click Search. Thumbnails of the NavPix ^TM will display in the NavPix ^TM display area.

You can narrow your search by selecting the Advanced search check box and then selecting a city from the drop down list or by entering latitude and longitude details.

How do I import NavPix ^TM to Photo Album?

1. Select a picture or group of pictures you want to add to your Photo Album.

2. Click Import to Photo Album. A new album is created in the Desktop album section of Photo Album.

How do I import NavPix™ to My Places?

1. Select a picture or group of pictures you want to add to your My Places.

2. Click Add to My Places. The selected image is added to My Places.

Application Gallery is a MioMore Desktop application that allows you to add, remove and rearrange applications on the Main Menu screen of your Mio.

MioMore Desktop → Application Gallery

How do I rearrange Main Menu applications on my Mio Main Menu?

1. Select any application from the Device Main Menu section.
2. Drag the application to the position that you would like it to appear on your Mio.
3. Click Save to Device.
   The order of the Main Menu screen is saved on your Mio.

Click Reset to Default Settings to restore the Main Menu screen to the factory default order.

How do I remove an application from my Mio?

The following applications cannot be removed from your Mio:

1. Select any application from the Device Main Menu section.
2. Drag and drop the application to the Available Settings section.
3. Click Save to Device.

The application is removed from the Main Menu screen on your Mio and is no longer accessible.

How do I add an application to my Mio?

1. Select any application from the Available Settings section.
2. Drag and drop the application to the Device Main Menu section.
3. Click Save to Device.
   The application is added to the Main Menu screen on your Mio.

My Places is a MioMore Desktop application that allows you to use GOOGLE Maps™ to view all places that you have saved on your Mio.

Make sure you have an active Internet connection for this feature.

My Places includes saved addresses, captured journeys and sound, Points of Interest, NavPix™, and other locations. You can select, modify and delete places. You can also add locations from Connect, Photo Album and Image Search to My Places.

You can install a maximum of 99 locations on your Mio via My Places.

MioMore Desktop → My Places

How do I sort My Place locations?

You can sort My Place locations by type and name:

If you want to ... Then ...
sort My Place locations by type	click Type on the My Places panel.
sort My Place locations by name	click Name on the My Places panel.

How do I edit a location name or notes in My Places?

1. From the My Places panel select the location you want to edit.
2. Click the location icon on the GOOGLE map.

The location summary pop-up will display.

1. Complete one of the following:

If you want to ... Then ...
edit the location name	click the location name.enter a new name or edit the existing name.The location name is changed in both MioMore Desktop and your Mio.
edit the location notes	click Edit notes.enter notes.The location notes is changed in both MioMore Desktop and your Mio.

How do I share a location from My Places?

1. From the My Places panel select a location you want to edit.

2. Click the location icon on the GOOGLE map.

The location summary pop-up will display.

1. Click

An email will open ready to send to your friends.

Your friend will receive the email with links to either save the image or to save the location in My Places in MioMore Desktop.

- If the location is a NavPix ^TM , your friend will receive the image as an attachment to the email.

If the location is a captured journey, your friend will receive the journey as a .KMZ file attached to the email. Your friend will need to have Google Earth installed on the computer to view the KMZ file.

If the location is a captured voice recording, your friend will receive the voice recording as a .WAV file attached to the email.

How do I play a captured sound file?

1. From the My Places panel select a captured sound that you want to listen to.

2. Click the location icon on the GOOGLE map. The location summary pop-up will display.

3. Click

The captured sound file will play.

How do I upload a NavPix™ from My Places to Flickr™?

1. From the My Places panel select a location you want to edit.

2. Click the location icon on the GOOGLE map. The location summary pop-up will display.

3. Click

then follow the prompts to upload a NavPix ^TM to Flickr.

You need a Flickr account to upload a NavPix™. To create a Flickr account, visit www.flickr.com.

How do I delete a location from My Places?

1. From the My Places panel select a location you want to edit.

2. Click the location icon on the GOOGLE map. The location summary pop-up will display.

3. Click

then click Yes to delete the location.

1. The location is deleted from My Places.

You can delete all locations in My Places by clicking on the My Places panel.

Voice transfer

My Mio → Voice Transfer

Voice Transfer is a MioMore Desktop application that allows you to install or remove voice files.

Voice files take up space on your Mio's internal memory. If you do not use a voice file, you can remove it to free up space. You can later reinstall it to your Mio if required.

How do I install a voice file?

In the Available voice files section, select the voice file you would like to install, then click Install selected voices.

How do I remove a voice file?

In the Available voice files section, select the voice file you would like to remove, then click Remove selected voices.

Mileage Reporter

Mileage Reporter is not available for all models.

Mileage Reporter is a MioMore Desktop feature that allows you to create expense reports (.csv format) based on the mileage and estimated fuel usage recorded by your Mio.

My Mio → Mileage Reporter

	Element Description
1	Timeframe specifies the time	for which the mileage report will be created.· select Show All to include all recorded mileage.
2	Report panel Displays your trip log data.
3	Fuel	· Select to include the amount of fuel (estimate) used for the mileage recorded. If selected, specify the number of miles traveled per gallon, or miles/kilometers traveled per litre.
4	Report data buttons	Import report data from your Mio, clear all report data from your Mio or export data to a report (.csv).

How do I import my trip data?

1. Select Show All in the Timeframe section.
2. Select the Calculate fuel at check box, then enter the fuel consumption.
3. Click Load from your Mio.

The Transfer Log progress bar will display.

All your trip logs can now be viewed in the Report panel section.

How do I export a mileage report?

1. Select a trip log from the Report panel section.
2. Click Export report. The Open dialog box will open.
3. Select the file from your local or network drive, enter a name for your mileage report, then click Save. The mileage report is saved in .csv format.

How do I delete travel logs from my Mio?

1. Select a trip log from the Report panel section.
2. Click Clear from your Mio.
3. Click Yes to delete all travel logs.

Mileage Reporter preferences

My Mio → Options → Mileage Reporter

If you want to ... Then ...
receive a warning when mileage logs are deleted from your Mio	select the Warn me when deleting all log files from my Mio check box.
calculate fuel economy preference by distance per volume	select the Distance per volume option.
calculate fuel economy preference by volume per distance	select the Volume per distance option.

Backup and Restore

You can save backups of data from your Mio, and later restore it if required.

My Mio → Backup and Restore

How do I backup my Mio?

1. Click Create new backup.

2. Select the data you would like to backup.

IMPORTANT: NavPix™, sound and video files will not be backed up.

1. Click OK.

The backup will be saved to your computer. The backup will be listed on the Backup & Restore window.

How do I restore a backup to my Mio?

1. Select the backup from the list that you would like to restore.
2. Click Restore, then click OK.
   The backup will be restored to your Mio.

How do I delete a backup?

1. Select the backup from the list that you would like to delete.
2. Click Delete, then click OK.
   The backup will be deleted.

Language

You can change the language for MioMore Desktop.

My Mio → Language

Simply select your preferred language.

Recover keys

i Make sure you have an active Internet connection for this feature.

In case you lose the license files for your Mio, you can recover them using this feature.

Use this feature before you re-install the maps.

My Mio → Recover keys

Follow the prompts to complete the process.

Connect is not available for all models.

Connect is a MioMore Desktop application that allows you to search and install local POIs information from your computer to your Mio. POI locations will be shown in My Places.

Before you begin, ensure your Mio is correctly plugged into your computer: Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub); plug the small end into—on the bottom of your Mio.

Make sure you have an active Internet connection for this feature.

MioMore Desktop → Connect

How do I search for a POI using Connect?

You can either search using the last known location on your Mio, or search for a new location by completing the following:

1. From the country drop down box, select a Country.
2. From the Region/State drop down box select a region or state if required.
3. In the Place name box, enter the first few letters of a city and then select your preference.
4. Click Continue.
   The Available Services page will display.
5. Select your preferred search service.
   The selected services page will display.

Depending on the country you are navigating, the available search services may vary.

1. Enter your search criteria, then click Search.

The Select search method page will display.

For some countries you are required to accept the terms of use.

1. Select your preferred search method, then click Search.

A list of search results will display.

1. Click next to the POI you want to install to your Mio. The POI will be added to My Places.
2. Repeat step 8 to install more POIs to your Mio.

My Media is not available for all models.

My Media is a MioMore Desktop application allowing you to import music (.wav, .mp3, .wma) and video files from your computer to your Mio.

Before you begin, ensure your Mio is correctly plugged into your computer: Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub); plug the small end into on the side of your Mio.

MioMore Desktop → My Media

	Element Description
1	My Library Displays a list of	music files stored in the library on your computer.▪ Click a field to display its contents in the Music display area.
2	My Mio Displays a list of folders	containing playlists stored on the Mio internal memory and memory card.▪ Click a folder to display its contents in the Music display area.
3	Music display area	Displays music file from the selected folder
4	Toolbar When a music file is	selected, the icons that can be used will be available.

Toolbar

The following options are available on the toolbar:

	Button Description
1	Import media to library	Imports the selected music files from your computer to the music library in MioMore Desktop.
2	Transfer to your Mio or Transfer to your computer	If you are viewing the music library in MioMore Desktop on your computer, this will display as Transfer to your Mio. Click to transfer the selected music files to your Mio.If you are viewing the music library on your Mio, this will display as Transfer to your computer. Click to transfer the selected music files to your computer.
3	Remove marked from list	Deletes the selected music files from the music library in MioMore Desktop on your computer.
4	Delete	Deletes the selected music files from the music library on your Mio.
5	Mark all Selects all music files.
6	Invert selection Reverse	the selected and unselected music files.

How do I import a music file to my MioMore Desktop library?

1. From the Toolbar section select Import media to library. The Open dialog box will display.

2. Navigate and select a music file you want to transfer.

3. Click Open. The selected music file is imported and can be viewed in the display area.

4. Repeat steps 1-3 to transfer more music files.

How do I transfer a music file from MioMore Desktop to my Mio?

1. From the display area select a music file by selecting the checkbox next to it.
2. Click Transfer to your Mio. The Select location window will display.
3. Select Mio or the MicroSD card as the destination for the file. The selected music file is transferred to your Mio.
4. Repeat step 1, 2 and 3 to transfer additional music files to your Mio.

You can also drag and drop the music file to your Mio or the memory card. You can save the music files either on your Mio's internal memory or the memory card if one is inserted.

How do I remove a music file from my MioMore Desktop playlist?

1. From the display area select a music file by selecting the checkbox next to it.
2. Click Remove marked from list. The selected file is removed from your MioMore Desktop playlist.

You can select multiple files to remove them from the playlist.

1. Repeat steps 1 and 2 to remove additional music files to your Mio.

Removing music files from the playlist will not delete the music files from your computer.

How do I remove a music file from my Mio playlist?

1. From the My Mio section select Albums.
   Music files on your Mio are displayed in the display area.

2. Select a music file you want to remove and then click Remove marked from list in the toolbar section. The selected music file is removed from the play list.

3. Repeat the process to remove additional music files from the playlist.

You can select multiple files to remove them from the playlist. Removing music files from the playlist will not be the music flies from your Mio.

How do I permanently delete a music file from my Mio playlist?

1. From the My Mio section select Albums.
   Music files on your Mio are displayed in the display area.

2. Select a music file you want to delete, right click and select Delete.

The selected music file is permanently deleted from the play list as well as your Mio.

1. Repeat steps 1 and 2 to delete additional music files from your Mio.

What else I can do with My Media?

From the My Media section you can:

■ sort music files by ratings, date, artist, album, etc
■ preview a music file
■ add your ratings to the music files

If you want to ... Then ...
sort media files	from My Library, expand a field and select your field preference.You can sort music files by the following fields:Album nameArtistYear of releaseRatingGenreDate Added
preview a media file	from the Music display area, select a music file you want to preview.to play the music fileto pause the music fileto stop the music fileto forward the music fileto rewind the music file
rate a music file	fromMusic display area, select a music file you want to rate.right click and selectRatingto rate the file.You can rate music files as:A BadAA OKAAA GoodAAAA Very goodAAAAA Excellent

For more information

User Manuals

The latest User Manuals can be downloaded from our website: www.mio.com

Register your Mio with MioClub

If you have a faulty product or you would like to speak to a member of our Technical Support team, register your Mio on MioClub to obtain the Technical Support phone numbers for your Mio and your region.

Compliance

The software is based in part on the work of the Independent JPEG Group.

The software application uses a modified version of the Minimal XML Library, Flickr Library and Python Library. The libraries and thier use are covered by the GNU Lesser General Public License (www.gnu.org/licenses/lgpl.html).

The modified source code is available from the following URLs:

■ Minimal XML Library: http://download.mio.com/opensource/gnu/mxml.zip
■ Flickr Library: http://download.mio.com/opensource/gnu/FlickrNet.zip
■ Python Library: http://download.mio.com/opensource/gnu/python25.zip

Speed Limit

Mio products are designed to be used as an aid to safer driving. Mio does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In some countries the data information regarding speed limits may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

Safety Camera POIs

Mio products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras, which will enable you to monitor your speed through these areas. Mio does not warrant that all types and locations of safety camera data are available, as cameras may be removed, relocated or new cameras installed. Mio does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

Disclaimer

Mio operates a policy of ongoing development. Mio reserves the right to make changes and improvements to any of the products described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.

Copyright

© 2009 MiTAC International Corporation. Mio is a registered trademark of MiTAC International Corporation and is used under licence by Mio Technology NZ Ltd. All rights reserved.

The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.

Back-On-Track, Drive-Away, MioMore Desktop, Mio Spirit, NavPix, Slide Touch and Turn-by-Turn are either registered trademarks or trademarks of MiTAC International Corporation and are used under licence by Mio Technology NZ Ltd. All rights reserved.

Microsoft, Windows, Windows Vista and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.

© 2008 Microsoft Corporation. All rights reserved. Microsoft, MSN, and the MSN logo are trademarks of the Microsoft group of companies.

Travel Book Data wcities.com © 2009

GOOGLE and Googe Earth are trademarks of Google Inc.

This product uses the Flickr API but is not endorsed or certified by Flickr.

POI Data © 2007 InfoUSA.

All other trademarks and registrations are the property of their respective owners.

Revision: R02

(8/2009)
