USER MANUAL AP61 Audix

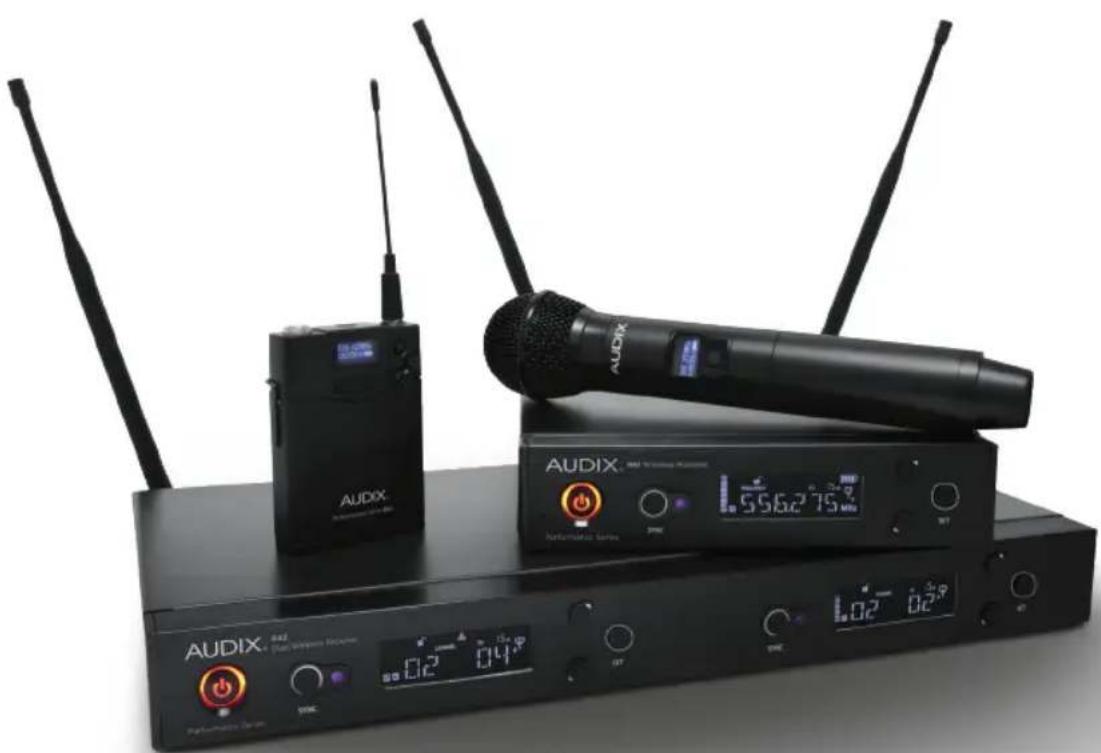

PERFORMANCE SERIES WIRELESS

AP61&AP62USERGUIDE

Exterior view of a black AudiX audio recording device with external antennas and control buttons (no readable text or symbols)

AUDIX.

TABLE OF CONTENTS

Safety Instructions & Certifications 4

Introduction 5

Quick Set Up Guide 6

R61 Receiver Front Panel 10

R61 Receiver Back Panel 11

R61 LCD Display 12

H60 Handheld Transmitter 13

B60 Bodypack Transmitter 15

Receiver Operating Instructions / Menu Functions 16

Using the H60 Handheld Transmitter 20

Using the B60 Bodypack Transmitter 22

Performance Tips 24

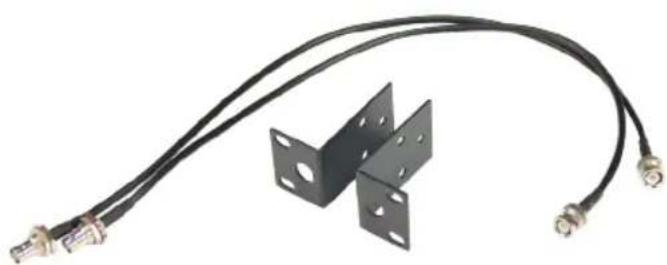

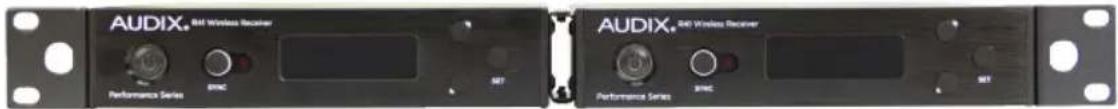

Rackmounts 25

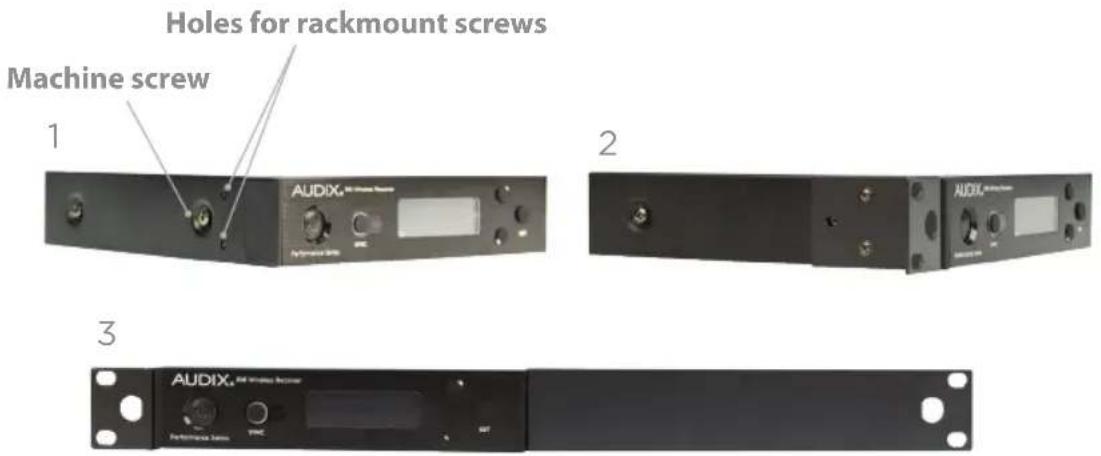

Rackmount Installation 26

Specifications 28

Troubleshooting 30

Group/Channel Charts 31

International Group/Channel Charts 32

SAFETY INSTRUCTIONS

Please read this instruction manual to ensure proper use and care of your system.

Quick Safety Tips

Unplug the receiver from the wall socket when not in use

Use only with the power supply provided

Keep away from water, moisture, heat generating devices and direct sunlight

Clean only with dry cloth

Do not block the receiver from ventilation

Use only with accessories produced by Audix

Operate and store in a safe temperature range 0^ C ( 32^ F) - 43^ C ( 110^ F)

CERTIFICATIONS

This product complies with FCC Part 74 regulations and conforms to CE standards.

Documentation available upon request. Operation of wireless devices may require a license in your area. Please comply with regulations pertaining to your area. Users of wireless microphones in the USA, on frequencies listed under FCC part 74.801, must comply with eligibility and licensing requirements under FCC Part 74.834.

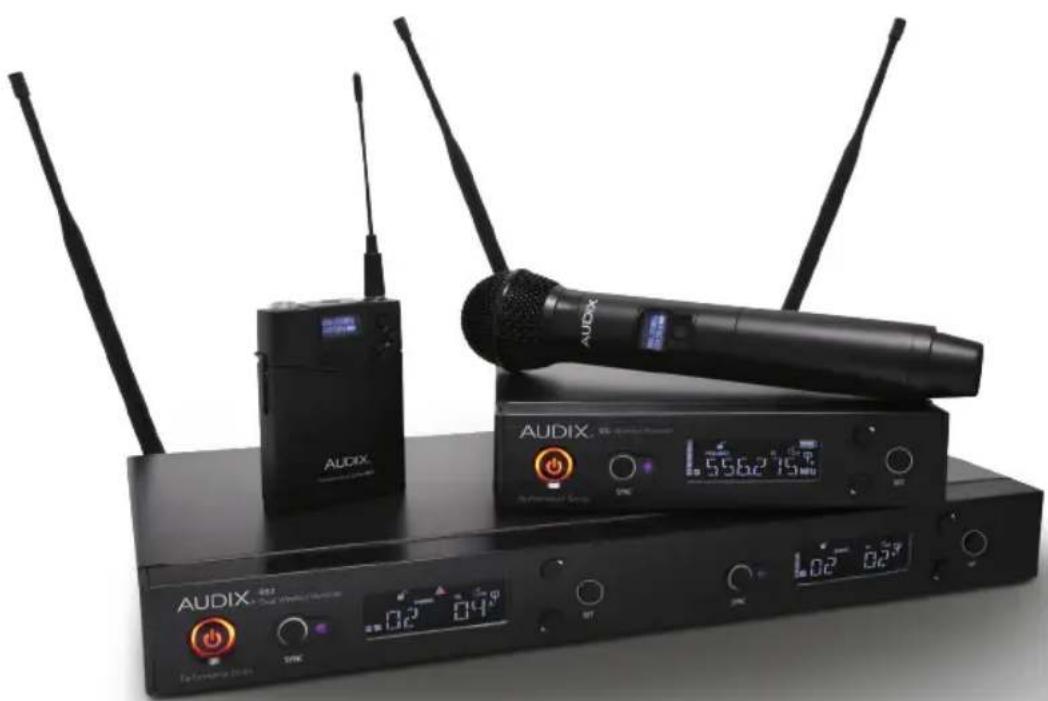

Exterior view of a black AudiX audio recording device with external antennas and control buttons (no readable text or symbols)

INTRODUCTION

Congratulations on the purchase of the Performance Series Wireless system from Audix! Your system is jam packed with features that will enable you to fine-tune the system as needed. However, the best part of our design is that the system is simple to use. For most applications, simply refer to the Quick Set Up Guide to get up and running (pgs 6-8).

Please take a few minutes and read through this manual in order to familiarize yourself with the system components and the menus. The menus are very intuitive and most questions about operating the system will be answered by understanding the structure of the menus.

QUICK SET UP GUIDE

Follow these instructions to get up and running in very little time.

Diagram showing two types of batteries: one open with internal components and labeled (1a) and (1b), both showing internal wiring and battery casing.

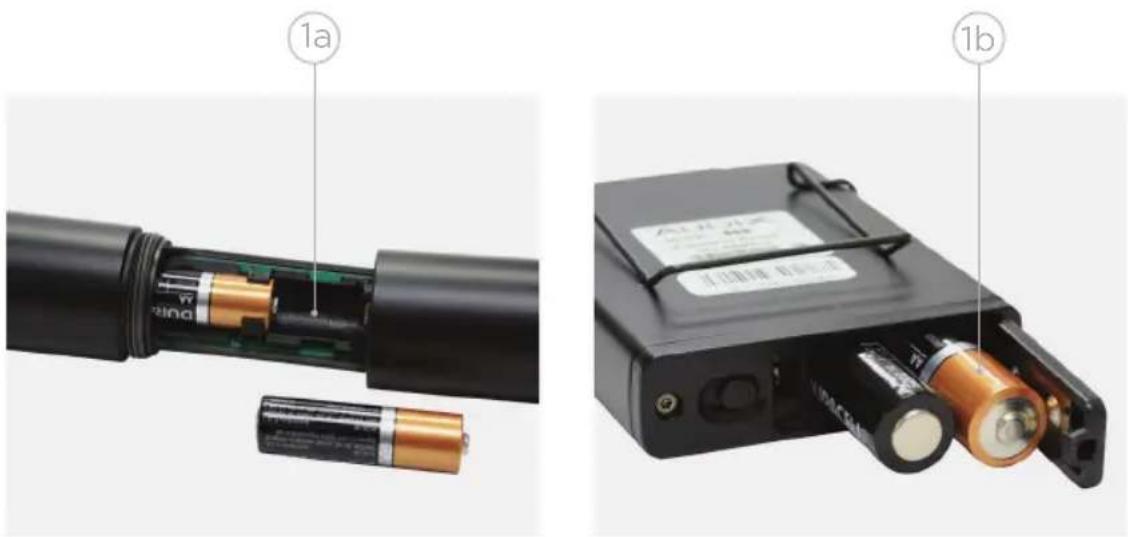

1. Install 2 AA batteries in the handheld transmitter and bodypack. Refer to the diagrams on the equipment to ensure batteries are positioned correctly.

a.) Handheld transmitter: Unscrew bottom portion of the transmitter to expose battery holder. Push the first battery up through the housing with negative side up. Place the second battery below the first with negative side up. The batteries are spring loaded and will settle into place. Screw the cover back into place.

b.) Bodypack transmitter: With bodypack face down, push the spring release to the right to open. Place left battery negative side up, and the right battery negative side down. Snap the battery cover to close.

2a DC OUTPUT OUTPUT PCC CE 0708 DC OUTPUT OUTPUT AT OUT BALANCED AT OCE 1640V AT OUT BALANCED AT OUT 2b DC OUTPUT OUTPUT PCC CE 0708 DC OUTPUT OUTPUT AT OUT BALANCED AT OCE 1640V

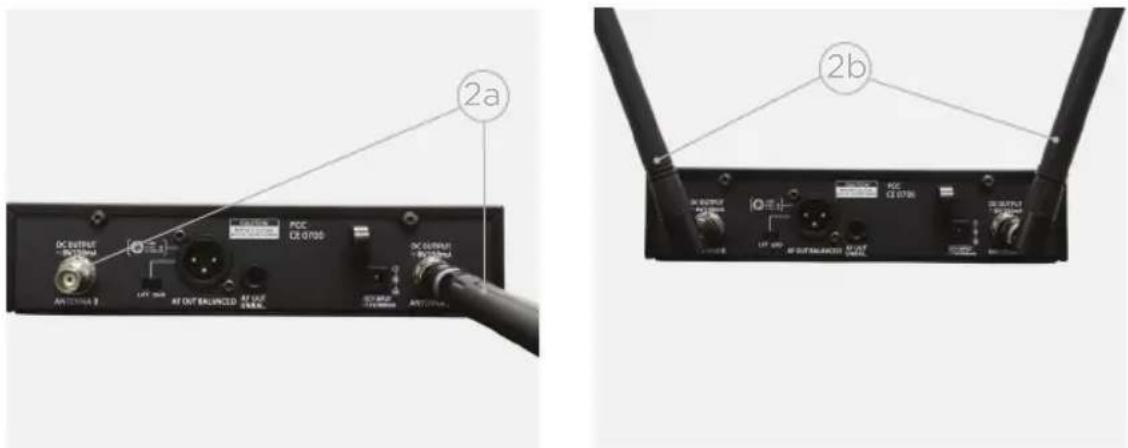

1. Attach antennas to the back of the receiver. Keep each antenna straight while screwing it into the connector (2a). After attached, bend antennas into position (2b).

3 DC OUTPUT CE 0700 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80

DC 0700 DC OUTPUT =8V/150mA DCY/IMP 22W/100mA 3

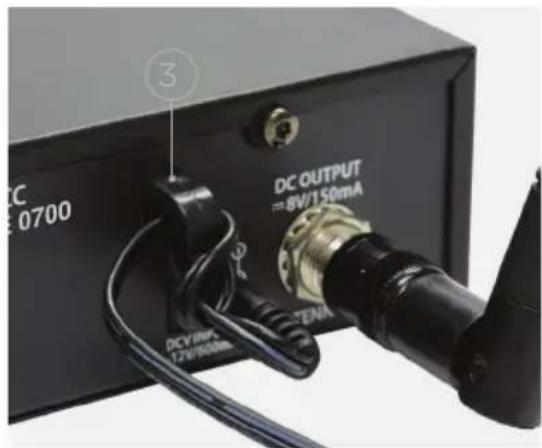

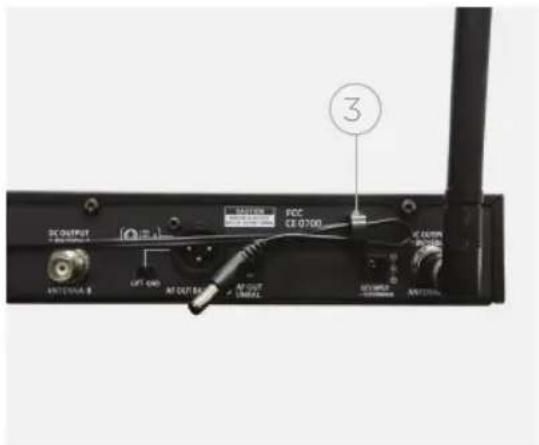

1. Connect power supply. Loop cable through the metal strain relief as shown above prior to connecting power supply to receiver. Plug into power outlet.

CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN LIFT GND AF OUT BAL 4a

CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN FCC CE 0700 LIFG D-PUT S-COLD LIFT GND AF OUT BALANCED AF OUT UNBALANCE ④b

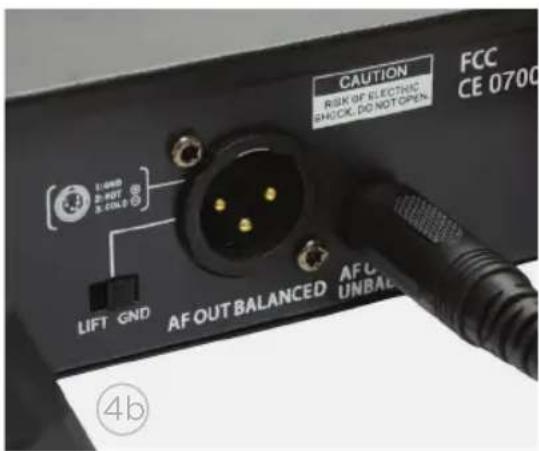

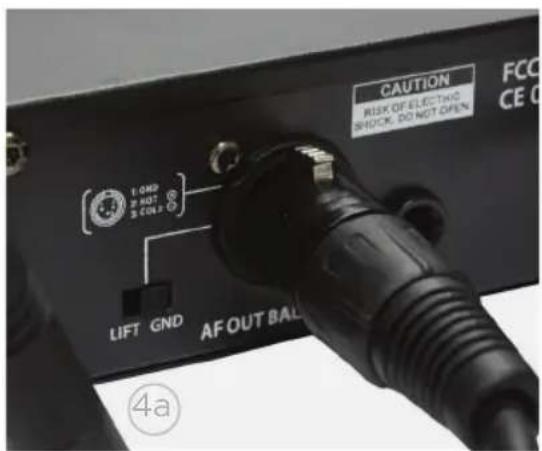

1. Connect receiver to mixer or amplifier. Make sure audio levels on the mixer are muted or off. For guitar, use the 1/4" AF output (line level unbalanced, 4b). For all other applications use the XLR output (mic level, 4a).

Close-up of a black audio recording device labeled 'AudiX' with connector and cable, showing no readable text beyond branding and number 5.

Close-up of a black audio jack microphone with a labeled button (no text or symbols on the device body)

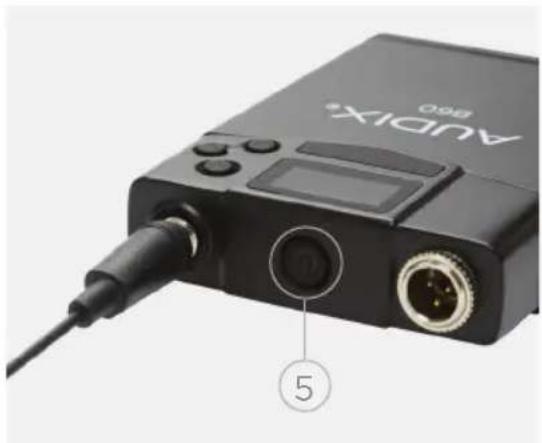

1. Turn on transmitter.

QUICK SET UP GUIDE

AUDIO SET OF CODE AUDIX® R61 Wireless Receiver CHANNEL 50 15 Φ 112 115 Performance Series SYNC SET ⑥ ⑦ ⑧

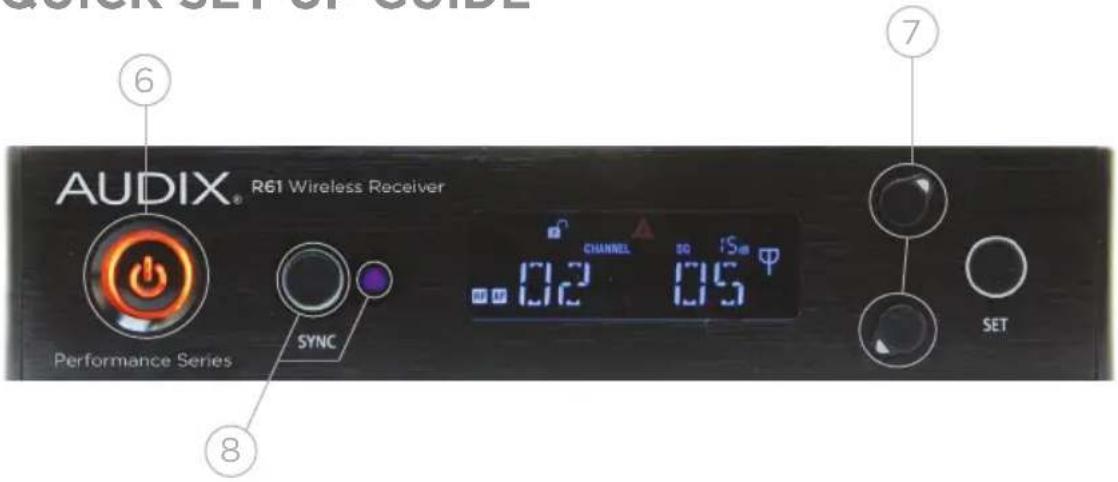

6. Turn on receiver.

1. On receiver, press and hold the UP or DOWN button to trigger Scan for a clear Group/Channel. After 8-20 seconds a "Group/Channel" will appear on the receiver.

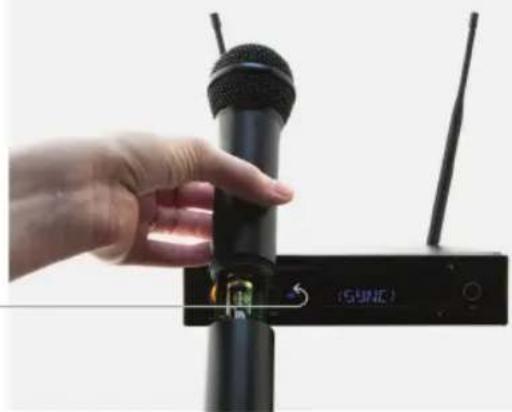

8. Sync handheld transmitter to

receiver. Unscrew the battery cover and locate the window housing infrared device. From a close proximity (6 inches / 152.40 mm), point the infrared window (located on the opposite side of the batteries) towards the infrared sensor next to the SYNC button on the receiver and press the SYNC button. Within a few seconds the transmitter Group/Channel and Frequency will match the receiver.

Hand interacting with a black microphone and wireless device (no visible text or symbols)

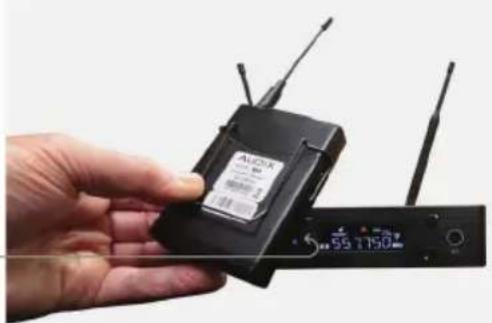

9. Sync bodypack transmitter to

receiver. Locate the window housing infrared device on the front of the bodypack. From a close proximity (6 inches / 152.40 mm) point the window below the LCD screen on the bodypack towards the infrared sensor next to the SYNC button on the receiver and press the SYNC button. Within a few seconds the transmitter Group/Channel and Frequency will match the receiver.

Hand holding a black Audi-UA3 audio recording device with two antennas, next to a digital display showing 55.1150 (no readable text or symbols on device)

MULTIPLE SYSTEMS

Setting up multiple systems utilizes the Scan – Sync functions described to the left. In general, compatible channels for synchronized use are organized by Group. (See the Group/Channel chart on page 31.)

Be sure all receivers and transmitters are powered OFF.

1. Power up receiver #1 and matching transmitter: Run the standard Scan and Sync routine as described in the previous section (Quick Set Up Guide). Leave the system ON. Move the transmitter at least 6 feet (2 meters) away from the receiver.

2. Power up receiver #2 and matching transmitter: Run the Scan and the receiver will find a clear channel in the same Group as the previous system. Sync the transmitter to the receiver.

Adding more systems will follow the same procedure as above.

IMPORTANT: Be sure that all transmitters are at least 6 feet (2 meters) from each other as you set up multiple systems.

Hint: If you are using more than one frequency band, be sure to set up all systems in the same band before moving to the next.

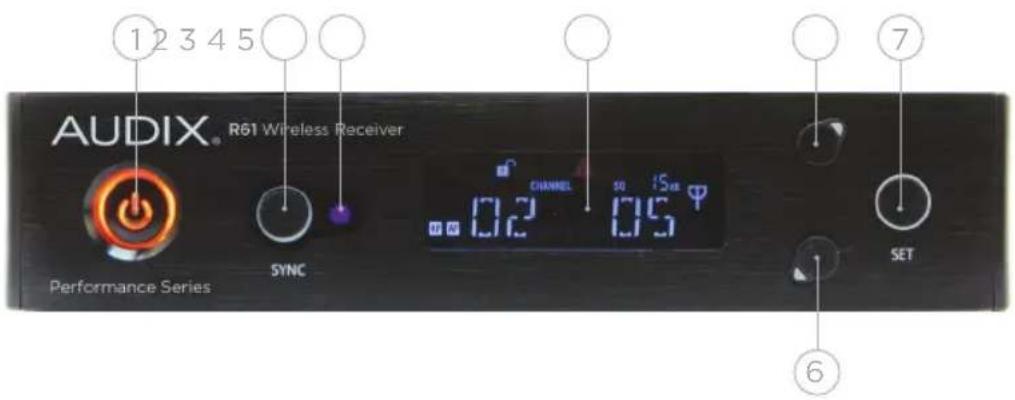

FRONT PANEL

R61 SINGLE RECEIVER

AUDIX® R61 Wireless Receiver Performance Series SYNC CHANNEL 10.2 10.5 Φ ① SET ⑥

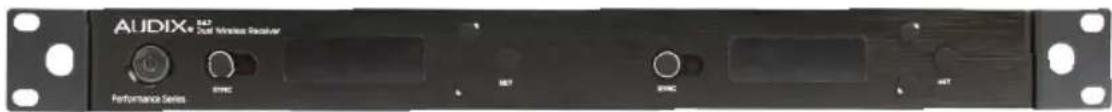

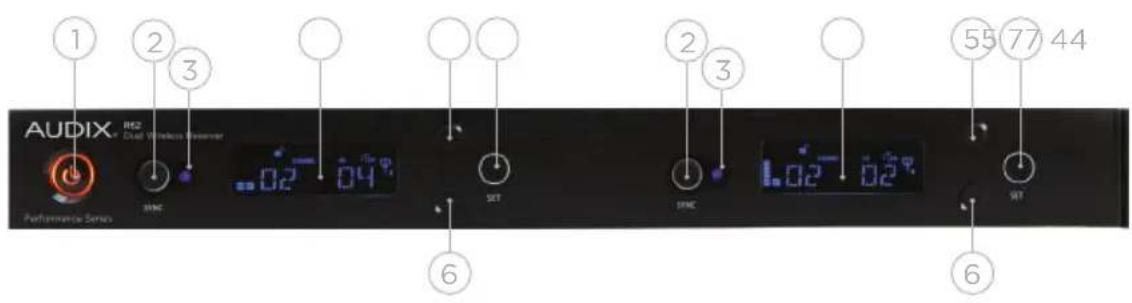

R62 DUAL RECEIVER

1 2 3 AUDIX - DAC Dual Wireless Reserver 0.2 0.4 ° SET 2 3 55 77 44 Performance Series SPAC SPAC 1.02 0.2 ° SET 6 6

1 POWER switch. Press for instant ON. Press and hold for 3 seconds to turn system OFF.
2 SYNC button. Automatically synchronizes the transmitter to the receiver.
3 Infrared sensor. Sends data from receiver to transmitter when SYNC function is engaged.
4 High contrast LCD display. See Menu Functions on page 16 for more details.
5 UP button. Only active in Menu mode. Scrolls forward through menus. Also acts as hot key for autoscan when pushed and held.

6 DOWN button. Only active in Menu mode. Scrolls backwards through menus. Also acts as hot key for autoscan when pushed and held.
7 SET button. Press and hold to enter the Menu mode. Also used to save settings, exit the Menu mode and toggle between "Frequency" and "Group/Channel" for quick reference.

BACK PANEL

R61 SINGLE RECEIVER

1 DC OUTPUT = 8W/150mA ANTENNA B 2 LIFT GND 3 CAUTION RISK OF ELECTRIC STOCK DO NOT DRAIN AF OUT BALANCED AF OUT UNBAL FCC CE 0700 5 DC OUTPUT = 8V/150mA DCY INPUT -12V 400mA ANTENNA 6

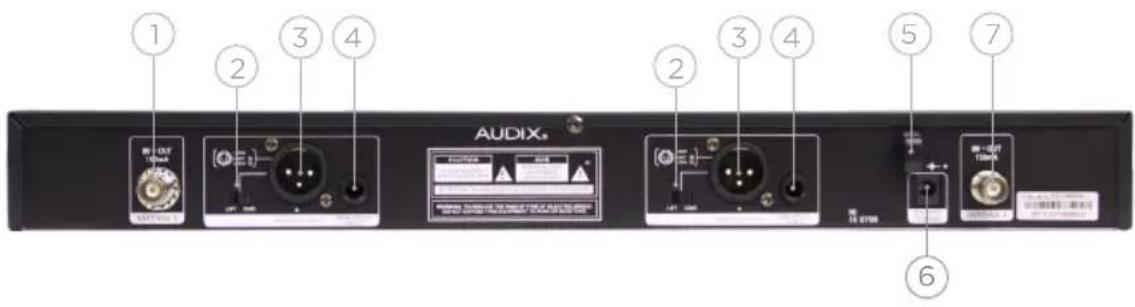

R62 DUAL RECEIVER

1 2 3 4 AUDIX. 2 3 4 5 7 6

1 BNC connector for Antenna B.
2 Ground lift switch to help eliminate ground loops or noise from other sources.
3 Mic level balanced XLR output for connecting receiver to an audio mixer.
4 Unbalanced 14 inch output for connecting receiver to an amplifier.

5 Metal strain relief. Allows power cable to loop through for added security.
6 DC power jack for external power supply (12 V).
7 BNC connector for Antenna A.

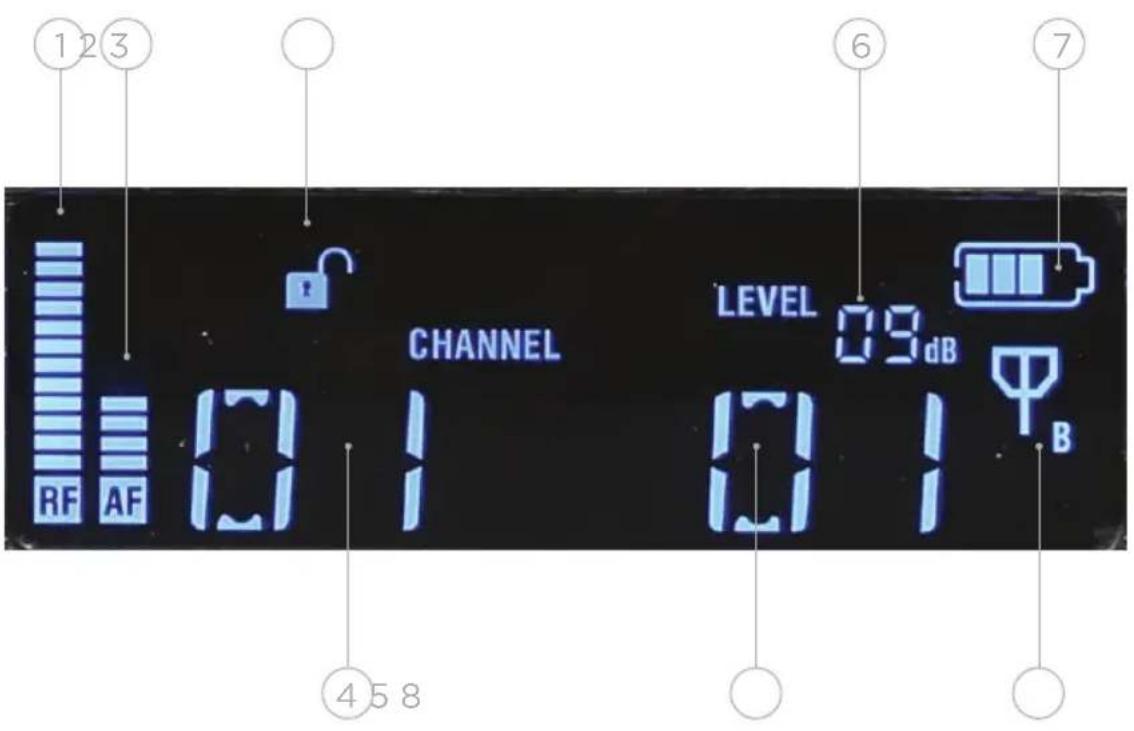

R61 LCD DISPLAY

123 CHANNEL RF AF 0 1 LEVEL 09 dB B 458 6 7

1 RF (Radio Frequency). Displays RF signal strength.
2 AF (Audio Frequency). Displays audio signal strength.
3 Indicates whether receiver is unlocked or locked for security.
4 Indicates active group when display is in Channel mode. Indicates active frequency when display is in Frequency mode.
5 Indicates active channel when display is in Channel mode. Indicates active frequency when display is in Frequency mode.

6 Displays Level (receiver gain) or Squelch (see Menu Functions, pg 16).
7 Battery level.

$$ 4 \text { bars } = \text { Up to 14 hours } $$

$$ 3 \text { bars } = 9 \text { hours } $$

$$ 2 \text { bars } = 7 \text { hours } $$

$$ 1 \text { bar } = 3 \text { hours } $$

$$ 0 \text { bars } = 1 \text { hour } $$

8 Active antenna indicator (A or B).

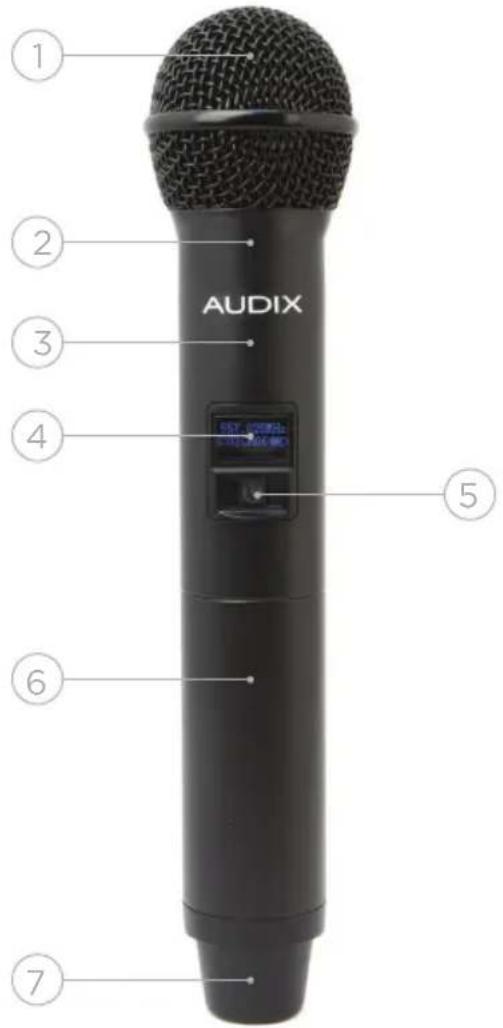

H60 TRANSMITTER - HANDHELD

The H60 is a 64 MHz wide spectrum transmitter. It covers the 522 mHz - 586 mHz frequency group (pg 27).

AUDIX 1 2 3 4 5 6 7

AUDIX MODEL: R60 Frequency Range: R21-8960Hz 10

1 Grill ball. Protects capsule. Replaceable part.
2 Capsule housing. Threads on to body of the transmitter housing. Interchangeable part.
3 Transmitter housing. Contains PCB boards and electronics for RF transmission.
4 LCD display. Indicates "Group/Channel", "Frequency" and "Battery Status".

5 Power ON/OFF and MUTE button.
6 Battery cover. Must be opened to replace batteries or change transmitter power selection.
7 Transmitter antenna housing.

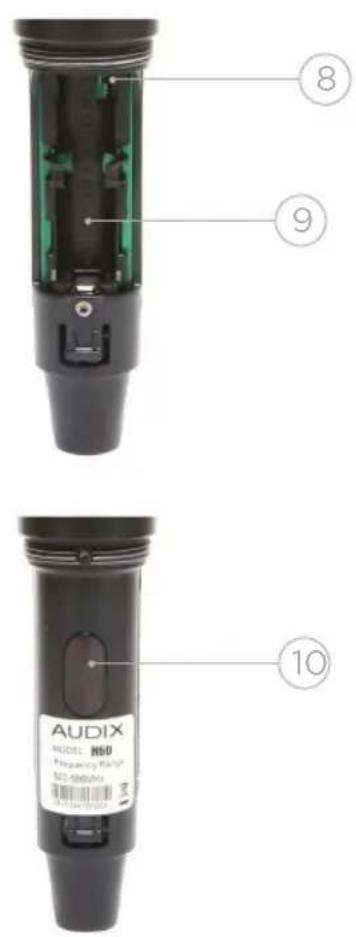

8 Power dip switch (pg 14).
9 Battery compartment.
10 Infrared sync circuit.

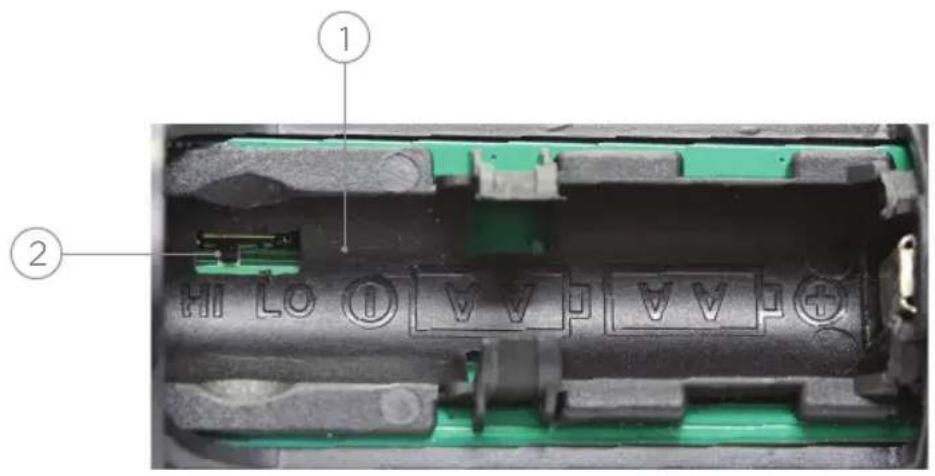

H60 TRANSMITTER - BATTERY COMPARTMENT

① ② HI LO ⭕ AV V V V ⊕

1 Houses AA batteries (see Quick Set Up Guide for installation instructions, pg 4).

2 Dip switch to choose between 30 Milliwatt (HI) and 10 Milliwatt (LO) RF power output.

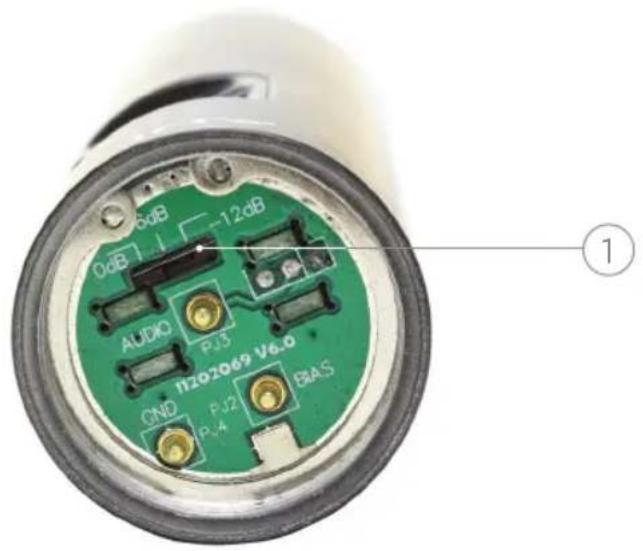

H60 TRANSMITTER - TOP

0dB 6dB 12dB AUDIO PJ3 CND PJ2 PJ4 BIAS ①

1 Dip switch with choice of 3 output gain settings for capsule (0 dB, -6 dB, -12 dB).

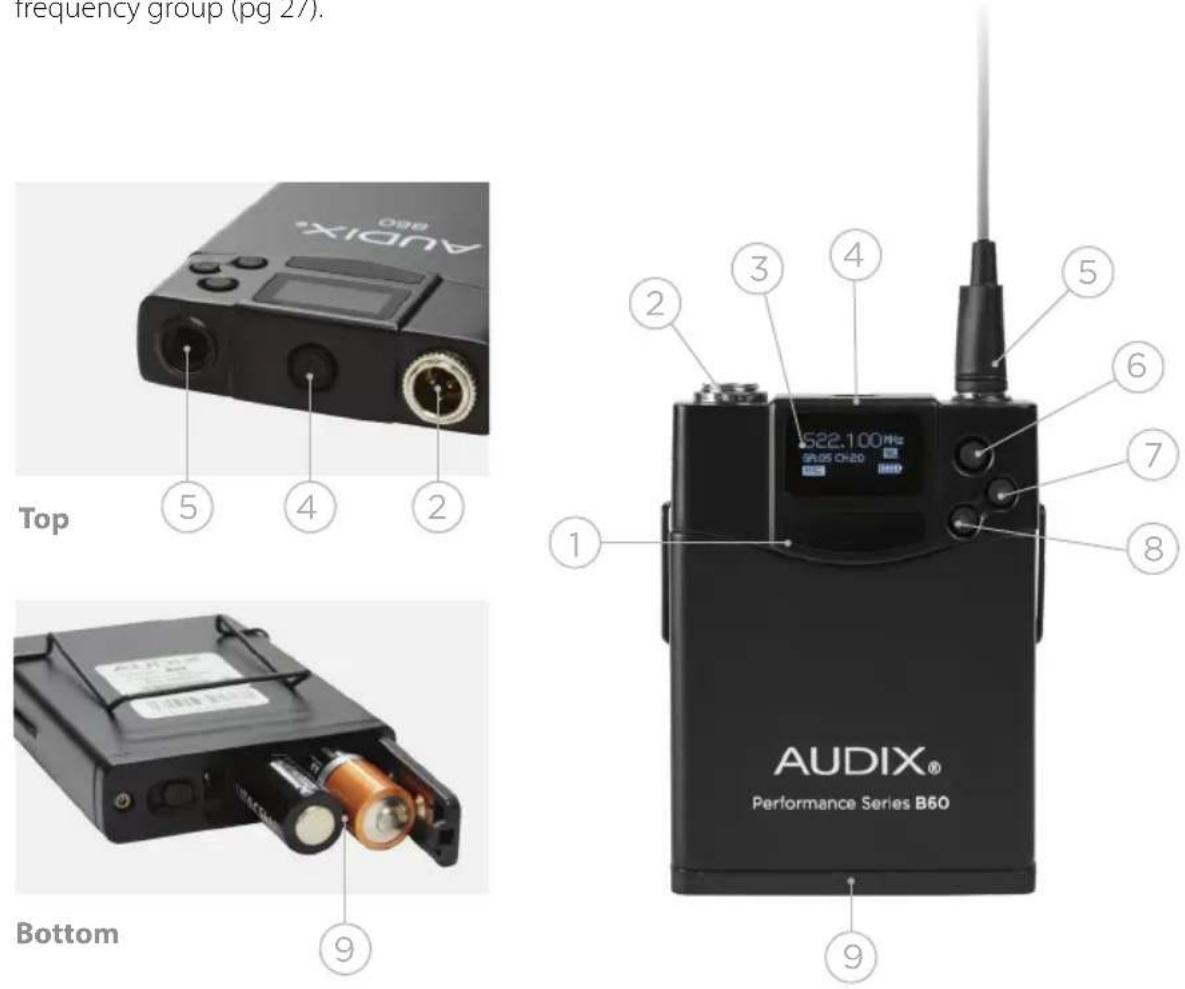

B60 BODYPACK - FRONT PANEL

The B60 is a 64 MHz wide spectrum transmitter. It covers the 522 mHz - 586 mHz frequency group (pg 27).

1 Infrared panel. Point towards the SYNC button on the receiver when locking the transmitter to the receiver.

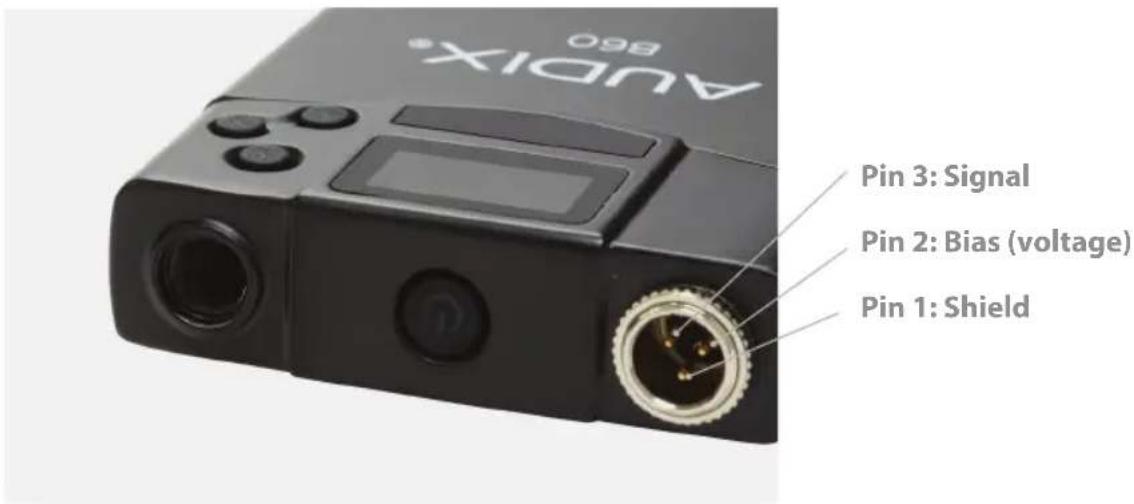

2 3-pin connector for microphone cable or guitar cable.
3 LCD Display. Indicates "Group/Channel", "Frequency" and "Battery Status".
4 Power ON/OFF and MUTE button.

5 Antenna. Plug into bodypack and thread on and off. Replaceable part.
6 SET button. Use to enter Menu and Save settings.
7 UP button. Scrolls forward through menu.
8 DOWN button. Scrolls backwards through menu.
9 Battery compartment.

RECEIVER OPERATING INSTRUCTIONS

By understanding the menu structure it is easy to operate and make adjustments to the system.

1. GROUP (1-10)

1. CHANNEL (1-7)

1. LEVEL (-12 to +9)

1. SQUELCH (5 - 45)

1. DISPLAY (FREQUENCY, CHANNEL, SQUELCH, LEVEL)

1. LOCK (ON, OFF)

1. PILOT (ON, OFF) 9. NAME

1. SCAN (SCAN FOR OPEN FREQUENCY)

1. T-LOCK (ON, OFF)

1. MODE

Activate Menu: To activate the menu, press the SET button until "GROUP" appears on the display.

Scroll Through Menu: Each of the menu functions are displayed on the screen in the order they appear in the grid above. To scroll through the menu press the UP button. Use the DOWN button to scroll in reverse. For example, if you are on "GROUP" and want to quickly get to "T-LOCK", press the DOWN button twice.

MENU FUNCTIONS

GROUP/CHANNEL

These two functions work hand-in-hand as they represent preselected frequency coordinates. See page 31 for a table of coordinated frequencies. Each time a SCAN is

performed (by pressing and holding the UP or DOWN button), a clear "Group/Channel" will be chosen and appear on the display. It will be one of the 207 predesignated frequencies available in your system (see page 31). The SCAN function takes the guesswork out of finding the best available frequency and is also handy for adding more systems into the mix.

"Group/Channel" can also be controlled manually from the menu. Activate the menu (see previous page). When "GROUP" appears, press SET. The current "Group" will be displayed. Press either the UP or DOWN button to scroll to another "Group" and then press SET. The new "Group" will be saved and will appear on left side of the display.

Hint: The word "CHANNEL" will appear to the upper right of the number. This means the display is in Channel mode. The menu displays "Group/Channel" as the default. Press the SET button (quickly) and the "Frequency" will appear on the screen. After 5 seconds it will default back to "Group/Channel". To set "Frequency" as the default display see "Display" (pg 18).

To change the channel, go to "CHAN" in the menu (it's next in line after "GROUP") and press SET. The current channel will be displayed. Scroll through the channels and select the one you want, then press SET. The same applies if "Frequency" has been selected as the default.

LEVEL

This setting allows for additional gain control over the receiver. The factory setting is +6, a good gain setting for Audix dynamic microphones. The VX5 condenser microphone has much more output than a dynamic microphone and is better suited in the -6 or -9 range.

Hint: The key to a good sound with the least amount of noise and distortion is finding the balance between the mixer, the receiver and the capsule gain. A soft singer, for example, will require more gain on the mixer and receiver, which could potentially add some noise into the system. Fine tuning the receiver setting can be helpful in these cases. A loud singer, on the other hand, will require less gain and possibly a gain reduction on the transmitter itself for control over distortion.

SQUELCH

Squelch is an important design facet of a wireless circuit. It mutes or suppresses noise from the receiver in the absence of a desired signal. Typically, the lower the squelch, the less signal it takes to activate the receiver. The higher or tighter the squelch, the higher the signal required. Squelch also affects operating distance. Unless you run into extreme conditions where you need more or less operating range than normal, we recommend keeping the squelch around the factory setting of +15.

DISPLAY

There are two default options for the LCD screen: "FREQUENCY" or "CHAN". Additionally, you have a choice of displaying either "SQ"(squelch) or "LEVEL" settings. Activate the menu screen and scroll to "DISPLY". Press SET and "FREQUENCY" will flash. Press the UP button and "CHANNEL" will flash. Press the UP button and "SQ" (squelch) will flash. Press the UP button and "LEVEL" will flash.

Once you decide whether you want "Frequency" or "Channel" as the default, press SET to save it. If you choose "Frequency", the receiver frequency will be displayed as the default. If you choose "Channel", then "Group/Channel" will be displayed as the default.

Hint: If "Frequency" is selected as the default, then by pressing the SET button quickly, the "Group/Channel" info will be displayed for a few seconds. If "Channel" is selected as the default, then by pressing the SET button quickly, the "Frequency" will be displayed for a few seconds.

The option of showing either "Level" or "Squelch" is also available. Whatever settings are chosen for those items will be displayed once selected and saved. "Level" is the factory default.

LOCK

You can lock the receiver to prevent someone from accidentally pressing SCAN, SYNC or the POWER buttons. Once everything is set and working, this is recommended.

PILOT

This is an inaudible tone generated by the transmitter to the receiver as additional insurance to keep the receiver from generating noise when there is no signal present. The Pilot should be left ON and only be turned OFF temporarily if troubleshooting the system for problems.

SCAN

The option to perform a scan for a clear channel. The Audix Performance Series Wireless Scan feature performs a scan to find clear and open frequencies as well as compatible frequencies when using multiple systems.

NAME

This function allows the receiver to be given a unique name. There are six characters available. Scroll to the "NAME" display on the menu and press SET. The display will move to the first character and blink. Scroll through the characters by pressing the UP button and there will be a choice of letters, numbers or symbols. Select the desired character and press SET. The cursor will now move to the second position. Repeat the sequence until all six characters are selected. Press SET to save.

Hint: Once a character is selected and set there is no way to move the cursor back. If changes are needed, the process will have to start from the beginning.

T-LOCK

Transmitter lock. This function disables the POWER and MUTE button on the handheld transmitter. This helps prevent the transmitter from accidentally being MUTED or turned OFF during a performance.

Hint: The bodypack has this feature built into the menu.

IMPORTANT

After making a change to one of the menu settings above, it is important to RE-SYNC the microphone to the receiver in order to clear the previously saved information.

MODE

The Mode menu toggles between "Channel" and "Tune".

"Channel" is the factory default setting. When in the "Channel" mode, the receiver will automatically SCAN, SELECT, and SYNC the optimal frequency from the 207 pre-coordinated frequencies available.

"Tune" allows for frequencies to be selected manually in steps of .025 MHz.

To enter the "Tune" mode, scroll to "MODE" in the display menu and press SET twice. The current frequency will be displayed with the first three digits flashing (for example, 545.500 with "545" flashing). Use the UP or DOWN button to change the number to the desired frequency.

Hint: The numbers will only change one number at a time; holding down the button will not speed up the process.

Once the desired frequency is displayed, press SET and the second set of three digits will flash (for example, 546.500 with "500" flashing). Use the UP or DOWN button to change the number by increments of .025. For example, if starting at 545.500, press the UP key four times and it will read 545.600. When the desired frequency is reached, press SET and the frequency will be saved and displayed. Now sync the transmitter to the receiver.

Hint: In the Tune mode, no group or channel is associated with the frequency. When SET is pressed in this mode, no group or channel data is displayed. The Group, Channel and Scan features are inactive in Tune mode. Engaging these buttons in Tune mode will result in no changes.

Change back to the Channel mode: Activate "Menu", scroll to "MODE", select "CHANNEL" and press SET twice. Doing this will take you back to the factory default setting.

Hint: Always remember to sync the transmitter following any changes to frequency settings.

USING THE H60 HANDHELD TRANSMITTER

POWER ON/ MUTE

The button below the display powers ON the transmitter. To power OFF the transmitter, press and hold the button for 2 seconds. A quick touch of the POWER button will MUTE the transmitter. Another quick touch will restore signal. This is a noiseless function and is very convenient for applications where a vocalist or presenter wants complete control of the microphone.

LCD DISPLAY

The display indicates the frequency of the transmitter along with "Group/Channel". In order for the microphone to work, the frequency of the microphone must match that of the receiver. If they do not match, go into the Sync mode (see Quick Set Up Guide, pg 6).

The same rules of acoustics that apply to a wired microphone also apply to the handheld transmitter.

OM SERIES

The OM Series capsules are designed to maximize gain before feedback on stage. The hypercardioid pickup pattern of the microphones are designed to reject sound from instruments on stage. For best results, sing within a few inches of the microphone.

Choice of 10 Milliwatt or 30 Milliwatt RF transmission levels (pg 14).

VX5

The VX5 condenser microphone has a more open supercardioid pickup pattern. The extended on-axis reach is ideal for singer/songwriters, keyboard players and vocalists who want more freedom to work the microphone from a distance.

INTERCHANGEABLE CAPSULES

It is very easy to change a capsule assembly. Simply unscrew the capsule assembly at the ring above the Audix logo.

Hint: Do not unscrew the grill ball as it is a separate threaded piece intended to be removed separately from the capsule housing.

CONTROLLING DISTORTION

Audix capsules are designed to handle very high sound pressure levels without distortion. If distortion is detected, try to minimize or eliminate it from the mixing console by turning down the trim and gain controls. If distortion persists, there is a gain setting at the capsule. First remove the capsule assembly. Locate the dip switch on the green PCB inside the housing. Use a miniature screwdriver to move the switch from 0 dB to -6 or -12.

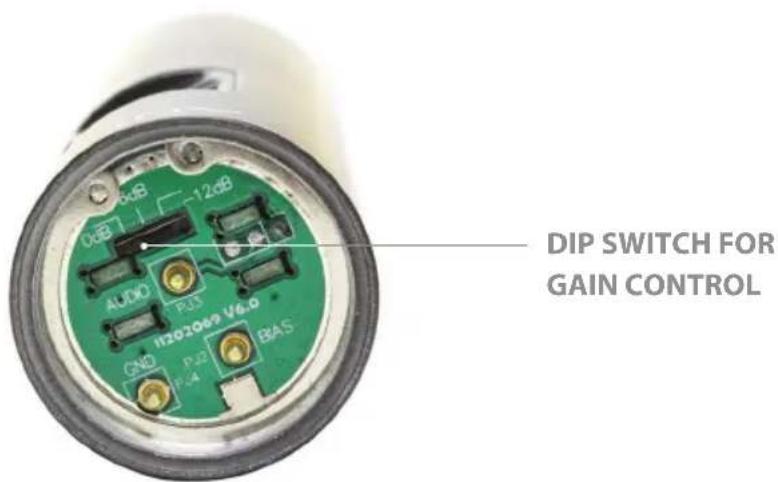

DIP SWITCH FOR GAIN CONTROL

Hint: Padding the sensitivity of the capsule at the source is the most effective way to control distortion without changing the natural sound quality or response of the microphone.

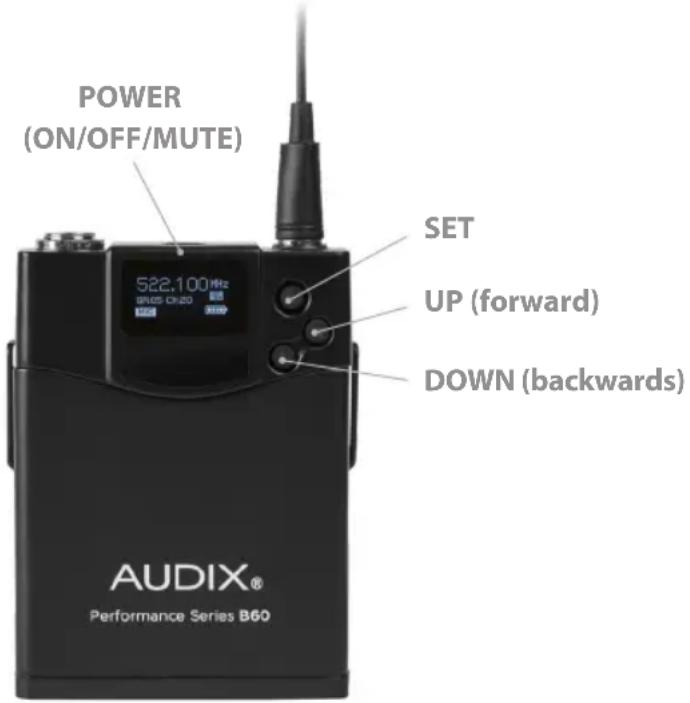

USING THE B60 BODYPACK TRANSMITTER

There are three buttons that control the menu functions—SET, UP (forward) and DOWN (backwards). The functions controlled by the buttons are RF OUTPUT, LEVEL and LOCK.

There are 3 menu functions: RF POWER OUTPUT, LEVEL, LOCK.

RF POWER OUTPUT

This controls the level of the RF output. LO = 10 Milliwatts or HIGH = 30 Milliwatts.

POWER (ON/OFF/MUTE) 522.100Hz DRUG ON/OFF SET UP (forward) DOWN (backwards) AUDIX® Performance Series B60

TO SET RF POWER OUTPUT

Make sure the bodypack is turned ON. Press and hold the SET button. Press the UP button until "RF AMP" or "RF OUTPUT" appears on the display. Press the SET button and the display will flash, indicating the current setting, either "HIGH" or "LO" or "10mW" or "30mW", depending on which bodypack model version you have. Press the UP button to toggle between HIGH = 30 milliwatt or LO = 10 milliwatt. Press SET to save the setting.

Hint: The Lo gain setting is helpful on a smaller stage with direct line of sight or in areas with a lot of wireless congestion. It also improves battery life.

GAIN CONTROLS

There are two level settings: Line Level and Mic Level. Mic level features three relative gain settings: 0, -6, -12. Line level features -24 dB for active guitar or bass pickups.

TO SET LEVEL

Press and hold the SET button until "LEVEL" appears on the display. Press the SET button once and Mic Level (gain) or Line Level will flash. Use the UP button or DOWN button to

select either Mic or Line Level. Press the SET button again. Use the UP button or DOWN button to select the gain level desired. Press SET and the current setting will appear. Use the UP or DOWN button to scroll through the settings. Press SET to save the one you want.

LOCK

This disables the POWER button from being active. This prevents the bodypack from being accidentally turned off or muted. RF Output and LEVEL are locked when the B60 is locked.

TO SET LOCK

Press and hold the SET button and use the UP or DOWN buttons until "LOCK" appears on the display. Press the SET button and the current setting will flash "ON" or "OFF". Use the UP or DOWN button to scroll through the two options. Press SET to save the setting.

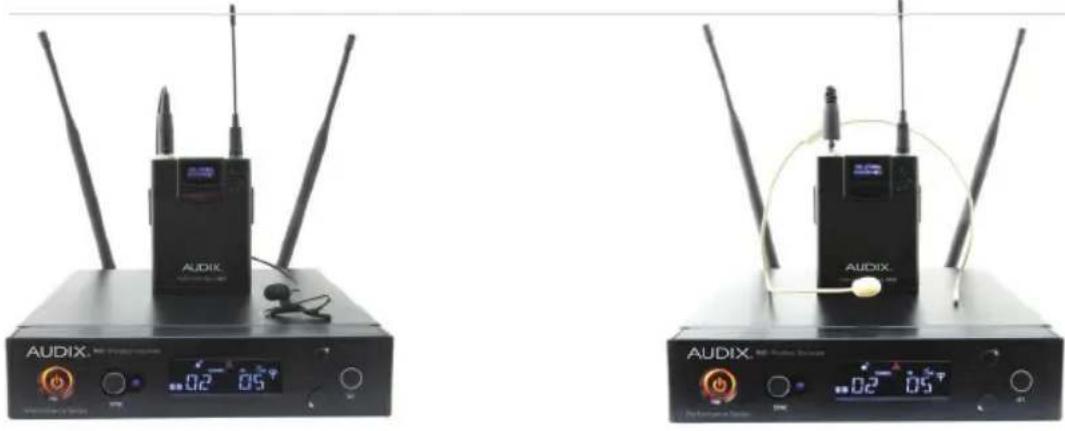

THERE ARE THREE USES FOR THE BODYPACK TRANSMITTER:

1. Lavalier microphones

(ADX10, L5)

(HT2, HT5, HT7)

1. Headworn microphones

Exterior view of a black AUDIX audio recording device with two antennas and a central lock (no visible text or symbols on the device body)

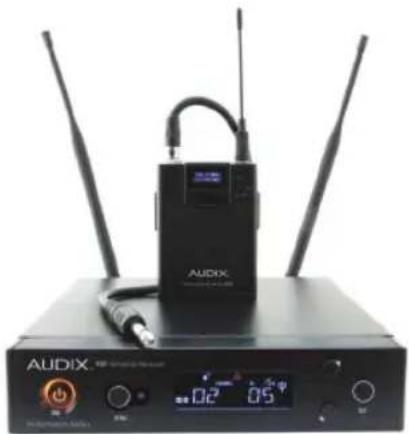

1. Sax, brass, flute and guitar

Hint: All microphones are available individually as well as with complete systems.

CONNECTOR

The bodypack uses a mini 3-pin XLR connector for all microphones. Other brands of microphones can be used with the Audix Performance Series Wireless system; however, it will be necessary to rewire the microphone connector to a mini 3-pin XLR (f). In this case, note the following pin configuration:

AudiX 860 Pin 3: Signal Pin 2: Bias (voltage) Pin 1: Shield

PERFORMANCE TIPS

The best position for a wireless receiver is within line of sight whenever possible. For more complex set ups, consider extending the antenna range by using the ANTDA4161 active antennas.

High quality batteries will provide the best results for handheld and bodypack transmitters. Rechargeable batteries typically have a shorter usage span. It is not possible to use two sets of transmitters simultaneously on the same frequency. It will not work. Each time a scan and sync is performed, the transmitter will always be tuned to the current frequency on the receiver. When using dual systems, always scan and sync each channel independently from one another.

ANTENNAS

Both antennas must be installed in order for the diversity function to work properly. Always attach both antennas to the receiver.

MULTIPLE SYSTEMS

It is fairly straightforward to get up to 24 channels of wireless to work simultaneously. This is done using a standard Scan and Sync method, adding one system. The systems will stay in the same Group until the group maxes out its channel selection. At this point, it may be necessary to manually select a different Group for additional pre-coordinated channels. More experienced users may use the Tune mode to manually set up their frequency selections.

RACKMOUNTS

Metal bracket with mounting holes and a triangular support (no text or symbols)

RMT 4161

Optional accessory. Adapts one R41 or R61 receiver into a single 19 inch rack space.

Black metal electrical connector with two coaxial cables, no visible text or symbols

RMT 41 Kit

Optional accessory. Includes RMT 4161 and BNC cables for front mounting antennas.

Three black metal bracket components with mounting holes, shown from different angles (no text or symbols visible)

RMT 241

Optional accessory. Adapts two R41 or R61 receivers into a single 19 inch rack space. Note: Antennas must remain rear mounted when using this rackmount.

Two black metal bracket components with circular holes, shown side by side (no text or symbols)

RMT 42

Optional accessory. Adapts one R42 or R62 two channel receiver into a single 19 inch rack space.

Coiled black cable with two metal bracket connectors, no text or symbols visible

RMT 42 Kit

Included accessory with AP42 and AP62 systems. Includes RMT42 rackmount and BNC cables for front mounting antennas.

RACKMOUNT INSTALLATION

RMT 4161

Holes for rackmount screws Machine screw 1 AUDIX® Audio System Performance Unit 2 AUDIX® Audio System 3 AUDIX® Audio System Performance Units

1 The holes for attaching rackmounts are located on the sides of the receiver.
2 The rackmounts are attached with two Phillips head screws and are intended to lay over the Torx machine screw that holds the receiver enclosure together. For additional support, the Torx screw may be removed and used as one of the fastening screws for the rackmount.
3 After both metal pieces are fastened to the receiver, it is ready to be mounted into the rack.

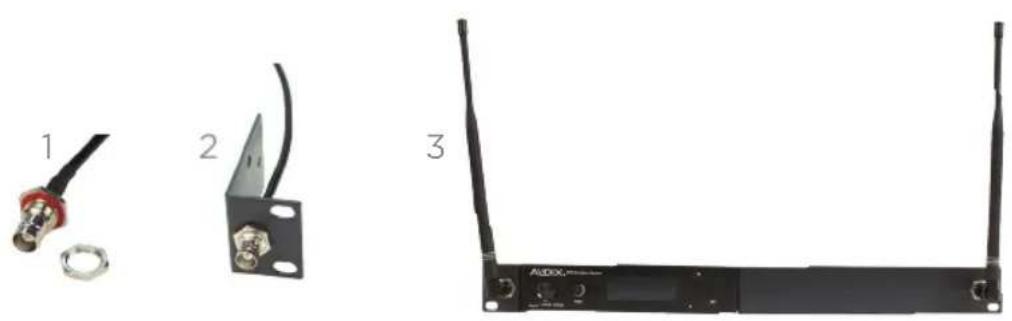

RMT 41 KIT

Three electronic devices: two connected cables and a network device (no visible text or symbols)

1 This kit includes the BNC cables needed for front mounting the antennas. Remove the hex nut from the threaded end of the BNC connector.
2 Note: The rackmount has a hole that is slotted on one side. The flat portion of the BNC connector must line up with the slotted portion of the hole in order to be pushed through. It can only go in one way. Once it is through the hole, screw the nut back into place and tighten.

3 After both sides are secure, connect the cables to Antenna A and Antenna B on the back of the receiver. The antennas may now be front mounted to the BNC connectors.

RMT 241

1

Black electronic device with ports and buttons (no visible text or symbols)

2

AUDIX® AIR Wireless Transistor Performance Garden

3

AUDIX® 840 Wireless Receiver Performance Series BNC NET AUDIX® 840 Wireless Receiver Performance Series BNC NET

1 Using the larger Phillips head screw, fasten the metal rackmount ears to the outside of each receiver. Fasten the flat connecting metal piece to the inside of each receiver.
2 Place the two receivers together and line up the holes in order to adjoin the two pieces. Once lined up, use the small screws to fasten the top side together. Then turn the receivers over and fasten the bottom side.
3 Tighten up all screws and the receivers are now ready to be mounted into the rack.

RMT 42

AUDIX® 4.0 Jitter Wireless Router Performance Series SYNC NET SYNC NET

Attach the metal rack ears in the normal fashion to each side of the receiver. See figure #2 under RMT 4161 on the previous page.

RMT 42 KIT

Front view of a black audio workstation with two antennas and control buttons (no visible text or labels)

After the RMT 42 is attached to the receiver, follow the instructions for RMT 4161 on the previous page for attaching BNC connectors and front mounting the antennas.

SPECIFICATIONS

	R61/R62 Receiver
Frequency Range 522 MHz – 586 MHz
Bandwidth 64 MHz
Compatible Systems Up to 24 systems (R61) / 12 systems (R62) simultaneous use
Switchable Frequencies 207 Pre-coordinated frequencies
Manual Mode 2560 Tunable frequencies (spaced 25 kHz apart)
Frequency Response 45 Hz – 18 kHz
Compander System 2:1
Pilot Tone 32 kHz
Receiving System Dual tuner, true diversity
Signal-to-Noise Ratio 112 db at 30 kHz deviation (A-weighted)
Total Harmonic Distortion ≤0.4% (33 kHz deviation at 1 kHz)
Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (Level=6)	Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load1/4": -18 dbv @ 25 kHz deviation, 10 k ohm load
Output Connectors 1/4", XLR
Audio Level Adjustment	-12 to +9 in 3 db steps
Range	450' / 137 m (R62)
Power Supply	100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
Dimensions (W / D / H)	205 mm / 8.07 in x 206 mm / 8.11 in x 44 mm / 1.73 in (R61)406 mm / 15.98 in x 209 mm / 8.23 in x 44 mm / 1.73 in (R62)
Net Weight	2.43 lb / 1.1 kg (R61)4.75 lb / 2.1 kg (R62)H60 Handheld Transmitter
RF Power Output	10 mW, 30 mW
Frequency Bandwidth	64 MHz
Gain Controls	0 dB, -6 dB, -12 dB
Input Connector	n/a
Batteries Included	2 AA 1.5 V
Current Consumption	110 mA typical
Battery Life	Approximately 14 hours (depending on battery type and usage)
Input Impedance	n/a
Max Sound Pressure Level	>140 dB (depending on capsule)
Dimensions	2.1" diameter body, 10.43" (L) / 53 mm diameter body, 265 mm (L)
Net Weight	11.0 oz / 312 g (without battery)

	B60 Bodypack Transmitter
RF Power Output 10 mW, 30 mW
Frequency Bandwidth 64 MHz
Gain Controls 0 db, -6 dB, -12 dB, -24dB
Input Connector 3 pin mini-XLR
Batteries Included 2 AA 1.5 V
Current Consumption 110 mA typical
Battery Life	Approximately 14 hours (depending on battery type and usage)
Input Impedance Mic: 10 k ohm, Line: 1 M ohm
Max Sound Pressure Level Approx. 128 db to140 dB (depending on microphone)
Dimensions (W / L / D) 67 mm / 2.6 in x 90 mm / 3.5 in x 17 mm / 0.67 in
Net Weight 3.0 oz / 85 g (without batteries)

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Receiver won't power up	Bad connection	Check your power cord to make sure it's plugged into the outlet and receiver correctly
Transmitter will not power up	Batteries	Make sure they are installed correctly (pg 6) or check the battery life indicator on the transmitter
	Lock mode may be ON	If T-Lock is ON, change to OFF (pg 19)
Transmitter locked up	Software conflict	Re-load batteries in order to clear memory
No RF signal	Transmitter is not synced to receiver	Sync transmitter to receiver (pg 8)
	Receiver is out of range Reduce the distance
RF signal is weak	Antennas may not be connected correctly	Adjust antennas or use remote antennas
	Possible frequency interference from another wireless device	Re-Scan and Sync to another frequency (pg 8) or try a lower power setting if on a smaller stage or venue (pgs 14, 22)
No AF	Transmitter muted	Check transmitter ON/OFF button
	Transmitter battery low or dead	Replace battery
	Receiver not hooked up properly	Check cable connections on both receiver and console, also check cable for continuity with a cable tester
AF Signal distorted	Transmitter sensitivity setting is too high	Reduce output level on transmitter (pgs 14, 21) or reposition vocal or instrument microphone
	Receiver level too high	Change gain level of receiver (pg 17)

R61 AND R62 GROUP/CHANNEL CHART

GROUP
CHANNEL

	1 2 3 4	5 6 7 8 9 10
1	583.475	585	575	584.50	584.675	584.400	584	825	583.350	584.675
2	583.075	584.850	578.125	582.600	582.350	579	125	581.600	582.600	584.500
3	582.450	559	600	571.450	579.400	581.475	578	625	573.825	581.750
4	581.625	558.975	565.60	571.600	579.125	574	475	572.800	579.400	580.600
5	580.500	557	750	564.975	570.975	577.600	567	550	571.550	578.375
6	579.575	557	025	564.150	570.150	576.975	566	000	570.775	577.150
7	578.350	555	675	563.025	569.750	576.150	561	100	569.050	576.650
8	545.625	554	650	561.675	569.025	575.025	557	075	565.700	575.300
9	544.500	541	475	560.125	567.675	573.675	555	300	561.075	574.450
10	543.575	541	075	547.475	556.6125	572.125	553	625	553.600	571.450
11	542.350	540	450	547.075	554.125	553.300	547	350	552.975	564.700
12	535.075	539	625	546.450	549.675	551.625	543	475	552.150	562.600
13	533.625	538	500	542.875	548.650	544.925	542	400	551.750	561.050
14	531.575	537	575	535.475	548.125	541.600	538	350	551.025	556.275
15	530.850	536	850	534.450	529.475	540.450	535	500	527.625	553.450
16	536.350	532	500	529.075	5527.325	533.950	526	500	549.700	550.500
17	530.350	528	450	526.075	5528.075	525.575	548	775	547.875	550.500
18	524.850	525	525	526.375	5523.475	547.325	546	425	549.575
19	524.350	524	525	525.800	523.075	544.700	545	500	548.125
20	522.100	522	450	543.475	541.750	545.500
21	534.625	538	925	544.275
22	532.750	537	475	535.425
23	530.675	534	150	533.550
24	530.250	532	600	531.475
25	525.150	530	500	531.050
26	522.350	528	100	525.950
27	523.750	523	150
28	522.525

INTERNATIONAL E FREQUENCY GROUP/CHANNEL CHART

Audix offers wireless systems that work with the international free frequency (823 – 832 MHz and 863 – 865 MHz).

GROUP
CHANNEL

18	23.625	823.825	823.175	827.450	823.500	823.250	824.025	824.975	823.000	823.975
28	28.275	825.000	827.200	828.575	824.500	823.750	826.225	826.025	824.225	825.775
38	29.100	825.575	827.825	829.250	825.750	825.250	826.975	828.000	824.975	828.625
48	30.225	826.550	829.375	830.275	827.250	826.500	829.300	828.700	828.000	829.500
58	30.625	827.075	829.875	830.700	828.250	827.500	829.700	829.100	829.100	831.900
68	31.625	829.700	830.625	831.725	863.150	828.250	863.125	863.150	829.500	863.475
78	34.000	831.500	863.625	863.625	863.550	863.125	863.525	863.550	863.125	863.900
88	38.825	863.350	864.350	864.325	864.600	863.525	864.175	864.175	863.525	864.550
98	46.625	863.900	864.875	864.175	864.625	864.600	864.175
108	48.4875	864.625	864.625

AUDIX®

www.audixusa.com

503.682.6933

©2018 Audix Corporation All Rights Reserved. Audix and the Audix Logo are trademarks of Audix Corporation.
