USER MANUAL NUC 7 Enthusiast INTEL

Intel® NUC 7 Home, a Mini PC with Windows® 10 – NUC7i5BNKP

Intel® NUC 7 Enthusiast, a Mini PC with Windows® 10 – NUC7i7BNKQ

User Guide

Before You Begin

CAUTION

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power or networks before you open the computer or perform any procedures can result in personal injury and/or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

This guide tells you how to:

• Upgrade system memory
• Change/install an M.2 SSD
• Use a VESA mount bracket
- Connect power
• Set up Microsoft® Windows® 10
• Install the latest device drivers and software
• Recover the operating system

Open the Chassis

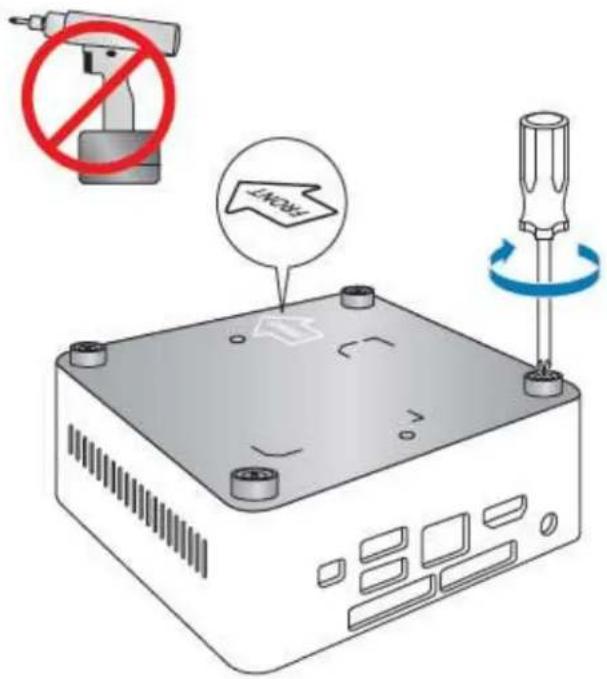

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Upgrade System Memory

The Intel NUC Mini PCs NUC7i5BNKP and NUC7i7BNKQ have two 260-pin DDR4 SO-DIMM sockets, that include pre-installed memory.

Pre-installed memory

NUC7i5BNKP	Two 4GB memory modules
NUC7i7BNKQ	Two 8GB memory modules

To upgrade memory, be sure to select memory modules that meet these requirements:

• 1.2V low voltage memory
• 2133 MHz SO-DIMMs
- Non-ECC

Find compatible memory modules in the Intel Product Compatibility Tool:

• NUC7i5BNKP
• NUC7i7BNKQ

To upgrade or add memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.

Upgrade to different memory

a. Remove the pre-installed memory module

i. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).
ii. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.

b. Install the new memory module

i. Align the space at the bottom edge of the memory module with the key in the socket.

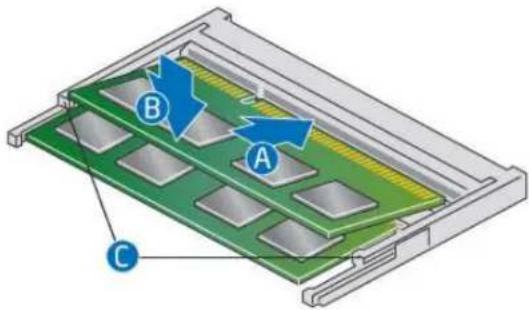

ii. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
iii. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

Install an additional memory module

a. Align the space at the bottom edge of the memory module with the key on the socket
b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
c. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

1. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

2. Replace the computer's cover and reconnect the power cord.

Changing an M.2 SSD

The Intel NUC Kits NUC7i5BNKP and NUC7i7BNKQ support either an 80mm or 42mm SSD. Both mini PCs come pre-installed with an m.2 SSD.

Pre-installed M.2

NUC7i5BNKP	One 256GB Intel® 600p NVMe SSD
NUC7i7BNKQ	One 512GB Intel® 600p NVMe SSD

Find compatible M.2 SSDs in the Intel Product Compatibility Tool

• NUC7i5BNKP
• NUC7i7BNKQ

To Change an M.2 SSD:

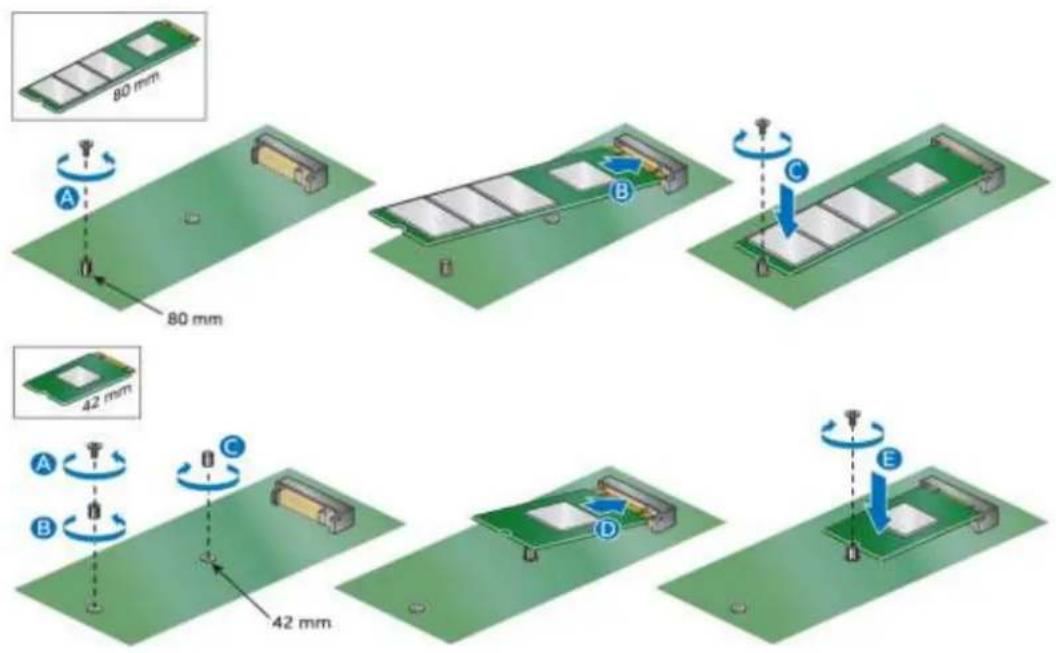

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).
2. Remove the pre-installed SSD from the connector.
3. Align the space at the bottom of the new M.2 SSD to the key on the connector.
4. Insert the bottom edge of the M.2 SSD into the connector (B).
5. Secure the card to the standoff with the small silver screw (C).

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

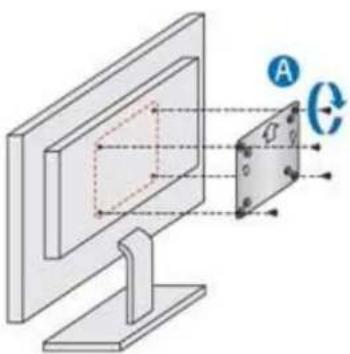

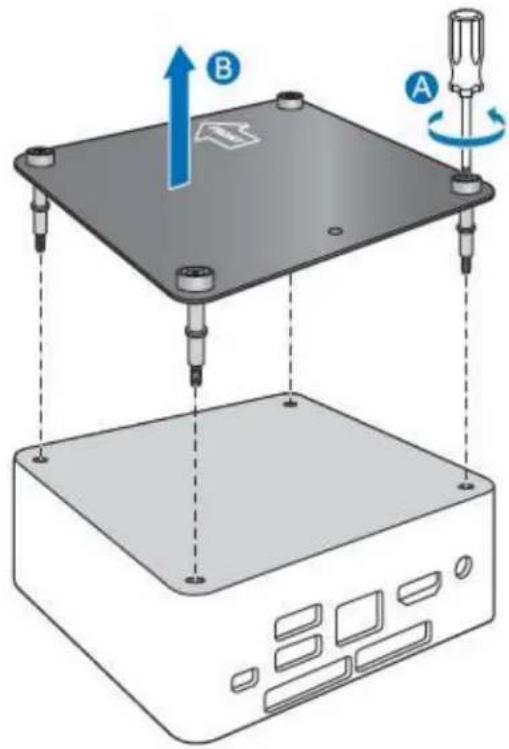

1. Using the four small black screws that are included in the box, attach the VESA bracket to the back of the monitor or TV.

Diagram of a computer monitor with an adjacent rectangular panel and circular arrow indicating rotation (no text or symbols)

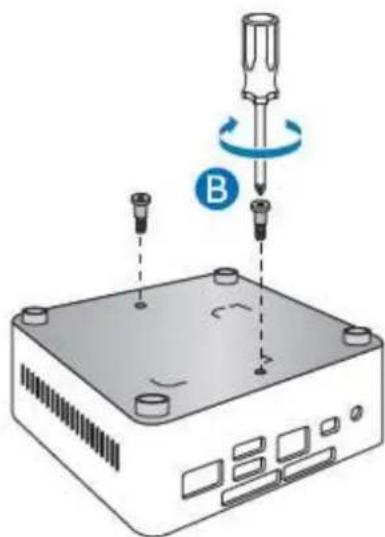

1. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Diagram of a screwdriver pressing down on a device casing with a labeled component 'B' (no text or symbols beyond label)

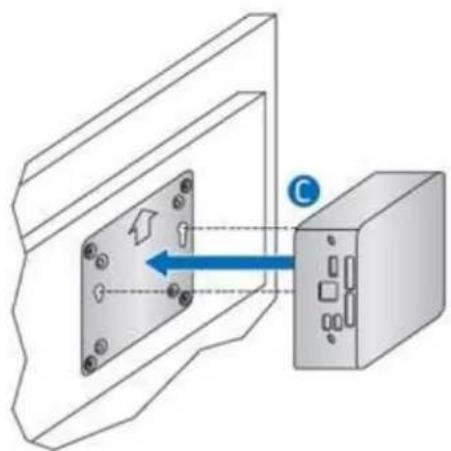

1. Slide the Intel NUC onto the VESA mount bracket.

Diagram showing a device with an open panel and a connected box, no text or symbols present

Power Adapters

Country-specific power plug adapters are included in the box.

1. Choose the correct adapter for your region.

Plug
Code	US	UK	EU	AUS
Country	United States	United Kingdom	European Union	Australia

Plug
Code	CHN	IND	KOR	ARG
Country	China	India	South Korea	Argentina

Plug
Code	BRA
Country	Brazil

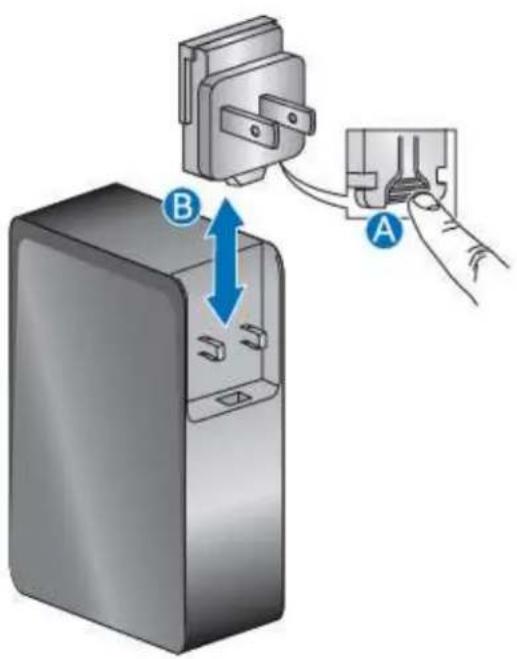

1. Slide the adapter (B) onto the power plug, locking it into place (A).

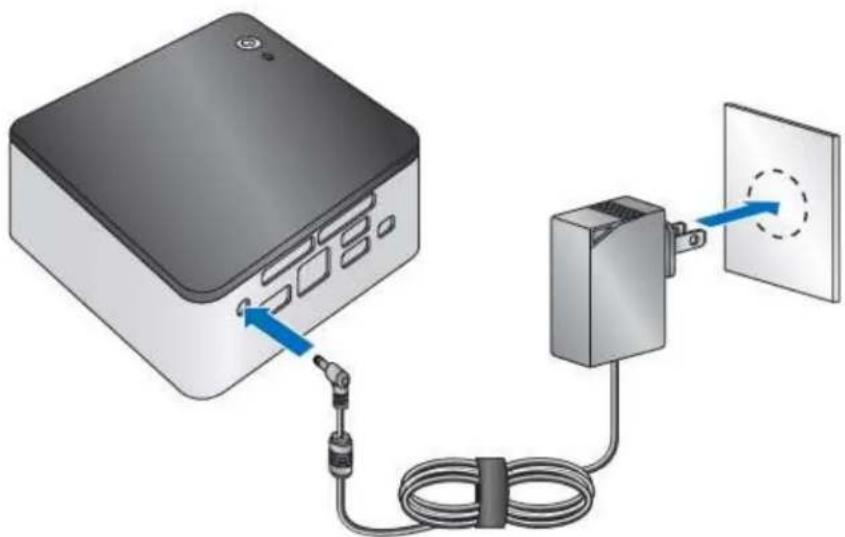

3. Connect AC power.

Diagram showing connection between a device and a power outlet, with no visible text or symbols

Set Up Microsoft® Windows® 10

Microsoft Windows 10 is already installed on the Intel NUC. The first time you start the computer, you're guided through the Windows 10 setup steps, including:

• Selecting your region and language.
• Accepting the Microsoft Windows license terms.
• Personalizing Windows and assign a PC Name.
• "Get Online" dialog to pick a wireless network (this step is optional).
• Choosing Express Settings or Customize.
• Assigning a User Name and Password.

Reinstalling the Operating System

If you upgrade or replace the computer's drive, you may need to install a new version of the operating system. See these resources:

• Supported Operating Systems
- Windows Setup Guide

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
• Manually download drivers, BIOS, and software from Download Center:
• NUC7i5BNKP
• NUC7i7BNKQ

The following device drivers and software are available.

• Intel® Chipset Device Software
• Intel® HD Graphics
• Intel® Management Engine
• Intel® Wireless
• Intel® Bluetooth
• Intel® Gigabit Ethernet
  • Thunderbolt™ Bus (NUC7i5BNH and NUC7i7BNH only)
  • Realtek* High Definition Audio
  • Realtek* Card Reader
• ITE Tech* Consumer Infrared
• Intel® Rapid Storage Technology
• Intel® Software Guard Extensions
• Thunderbolt™ 3 Controller Firmware
• HDMI Firmware

Operating System Recovery

There's a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset, or Restore Windows. Here is what each of these actions do:

Refresh	If your PC isn't performing as well as it once did, and you don't know why, you can refresh your PC. This action doesn't delete any of your personal files or change your settings. Refresh does the following:Files and personalization settings won't change.PC settings are changed back to their defaultsApps from the Windows Store are keptApps installed from disks or websites are removed.List of removed apps is saved on the desktop.
Reset	If you want to recycle your PC, give it away, or start over with it, you can reset it completely. This process removes everything. Reset does the following:All personal files and apps are removed.PC settings are changed back to their defaults.Windows is reinstalled.
Restore	If a recently installed app or driver is causing problems with your PC, you can restore Windows back to an earlier point in time, called a restore point. System Restore doesn't change your personal files, but it can remove recently installed apps and drivers.

Caution - Before performing a Refresh or Reset:

• Make sure to back up all personal data to external storage.
• Remove SD card from the card slot, if one is inserted.

To access the recovery media:

If Windows starts	From Windows Start, typeRecoveryand selectRecovery Options.SeeRecovery options in Windows 10for complete details on how to use the recovery options.
If Windows doesn't start	The recovery process should automatically start. If Recovery doesn't automatically start, you can try to initiate it as follows:1. Press F8during boot, when you see the prompt “F8 to Activate Windows 8.1/10 Recovery Mode”.2. Follow the recovery steps.
