Product Type	Desktop Computer (Mini PC Kit)
Brand	Intel
Model	NUC 10 Performance (NUC10i7FNH, NUC10i5FNH, NUC10i3FNH)
Dimensions (Approx.)	117 x 112 x 51 mm (4.6 x 4.4 x 2.0 in)
Weight (Barebone)	0.5 kg (1.1 lb)
Power Adapter	90W AC adapter, 19V DC output, with country-specific power cord
Processor Support	10th Gen Intel Core i7/i5/i3 (up to 6 cores)
Memory Support	2x DDR4 SO-DIMM slots, 2666 MHz, 1.2V, non-ECC, up to 64GB
Storage Options	1x M.2 2280/2242 (SATA or NVMe), 1x 2.5-inch SATA drive
Graphics	Integrated Intel UHD Graphics (depends on CPU)
Networking	Wi-Fi 6, Bluetooth 5.0, Gigabit Ethernet
Ports	USB 3.1 Gen 2, USB-C (Thunderbolt 3), HDMI 2.0, mini DP, audio jack
Operating System	None (supports Windows 10/11, Linux)
Main Functions	High-performance computing, home theater, office productivity, digital signage
Maintenance	User-replaceable memory and storage; refer to manual for disassembly steps
Cleaning	Disconnect power, use compressed air to remove dust; avoid liquids
Safety Precautions	Disconnect power before servicing; use ESD protection; avoid sharp edges and hot components
Spare Parts / Repairability	Memory modules, M.2 SSDs, 2.5-inch drives, power adapter; VESA mount bracket included
Certifications	FCC, CE, etc. (complies with regional regulations)
Warranty	Standard Intel warranty (varies by region)

Frequently Asked Questions - NUC 10 Performance INTEL

How do I install memory in my Intel NUC 10 Performance?

Turn off the device and disconnect power. Remove the bottom cover. Insert the DDR4 SO-DIMM at a 45-degree angle into the slot, then push down until the clips snap. Ensure you use 1.2V low voltage modules and check compatibility via Intel's tool.

What type of M.2 SSD does the NUC 10 Performance support?

It supports 80mm or 42mm M.2 SSDs (SATA or NVMe). Use the compatible standoff. Refer to the Intel Product Compatibility Tool for tested models.

Can I install a 2.5-inch hard drive in addition to an M.2 SSD?

Yes, the NUC 10 has a dedicated 2.5-inch drive bay for an SSD or HDD. Slide the drive into the bay, secure with screws, and connect to the SATA daughter card.

Which power cord is included with my NUC?

Depends on the product code: some include US, EU, UK, Australia/NZ, or China cords; others are sold separately. Check the manual table for your specific SKU.

How do I attach the VESA mount bracket?

Use the four small black screws to attach the bracket to the back of a monitor or TV. Then attach two larger screws to the NUC's bottom cover and slide it onto the bracket.

What operating systems are supported?

Windows 10/11 and various Linux distributions (e.g., Ubuntu) are validated. Refer to Intel's Supported Operating Systems page for details.

How do I update drivers and BIOS?

Use the Intel® Driver & Support Assistant (Intel® DSA) or download manually from the Download Center for your specific model (NUC10i7FNH, etc.). Drivers include chipset, graphics, Wi-Fi, Bluetooth, audio, and more.

What should I do before opening the chassis?

Always disconnect power and any network cables. Follow ESD precautions (use an antistatic wrist strap). Avoid touching sharp pins and hot components.

Can I use this NUC for gaming?

It can handle light gaming with integrated graphics, but for demanding games, consider an external GPU via the Thunderbolt 3 port.

Where can I find compatible memory and storage?

Use the Intel Product Compatibility Tool for your model (NUC10i7FNH, NUC10i5FNH, NUC10i3FNH) to list tested memory modules and SSDs.

USER MANUAL NUC 10 Performance INTEL

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
• Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

This guide tells you how to:

• Install and remove memory
• Install an M.2 SSD
• Install a 2.5" drive
• Install a VESA mount bracket
- Connect power
• Install an operating system
• Install the latest drivers

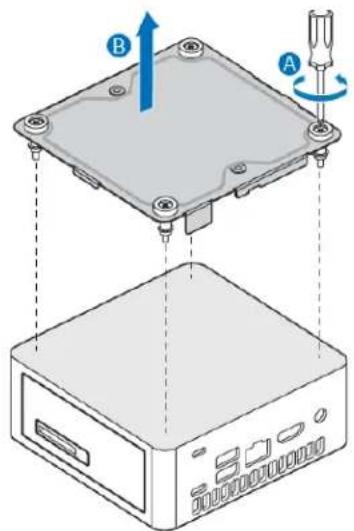

Open the Chassis

To open the Intel NUC chassis, follow these steps:

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Installing and Removing Memory

Intel NUC Kits NUC10i7FNH, NUC10i5FNH, and NUC10i3FNH have two 260-pin DDR4 SO-DIMM sockets.

Be sure to select memory modules that meet these requirements:

• 1.2V low voltage memory
• 2666 MHz SO-DIMMs
- Non-ECC

Find compatible memory modules in the Intel Product Compatibility Tool

• NUC10i7FNH
• NUC10i5FNH
  NUC10i3FNH

NOTE If you plan to install only one memory module, install it in the lower memory socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.

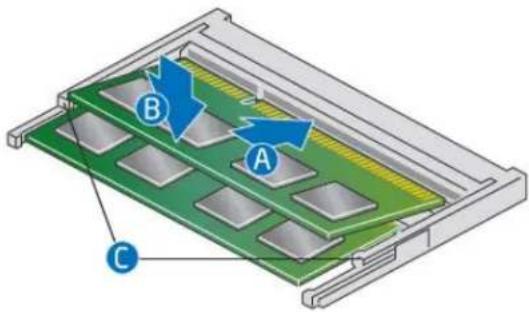

1. Align the small space at the bottom edge of the memory module with the key in the socket.
2. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
3. When the module is inserted, push down on the outer edge of module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.
4. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).
5. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.
7. Replace the computer's cover and reconnect the power cord.

Install an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Kits NUC10i7FNH, NUC10i5FNH, and NUC10i3FNH support an 80mm or 42mm SSD.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool

• NUC10i7FNH
• NUC10i5FNH
  NUC10i3FNH

NOTE Before changing the Intel Optane memory module, it needs to be disabled. Follow Removing Intel Optane Memory on this page first, before taking the module out.

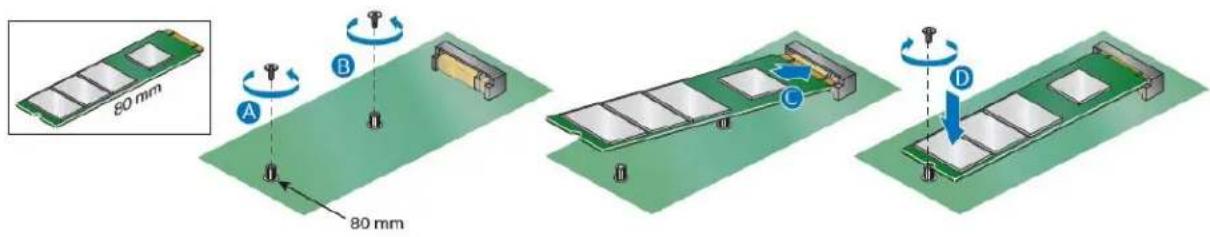

If you're installing an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm (A) and 42mm (B) metal standoff on the motherboard.
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (C).
4. Secure the card to the standoff with the small silver screw (D).

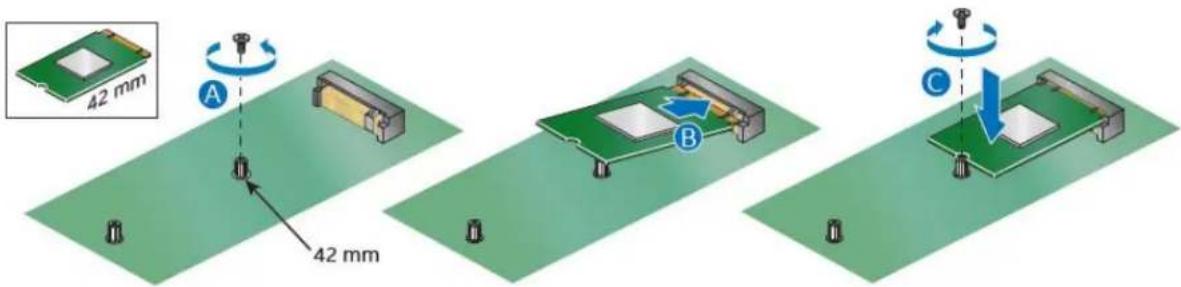

If you're installing a 42mm M.2 SSD:

1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).

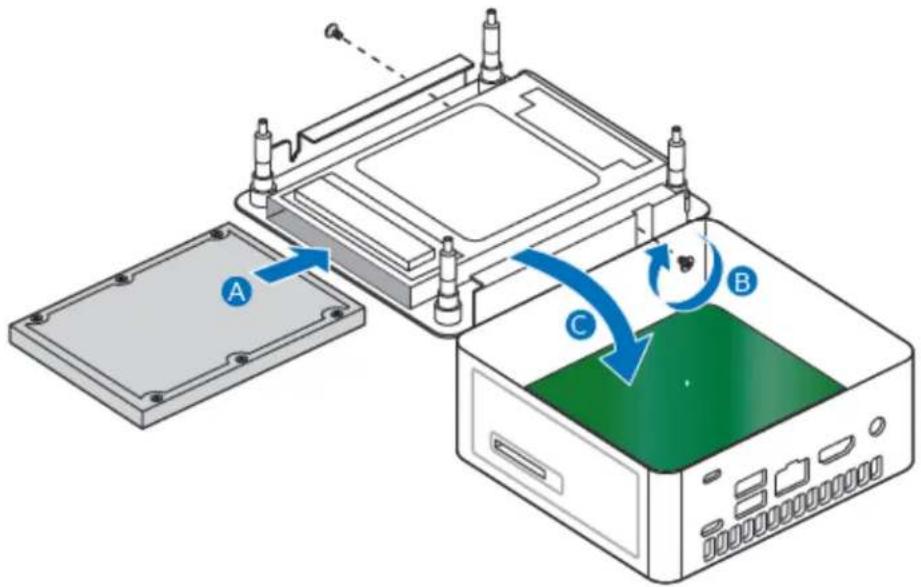

Install a 2.5" SSD or Hard Drive

The Intel NUC Kits NUC10i7FNH, NUC10i5FNH, and NUC10i3FNH support an additional 2.5" Solid State Drive (SSD) or Hard Disk Drive (HDD).

Find compatible 2.5" drives in the Intel Product Compatibility Tool:

• NUC10i7FNH
  NUC10i5FNH
  NUC10i3FNH

• Slide the new 2.5" drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).

• Secure the drive into the drive bay with the two small silver screws that were included in the box (B). Set the drive bay bracket down inside the chassis (C).

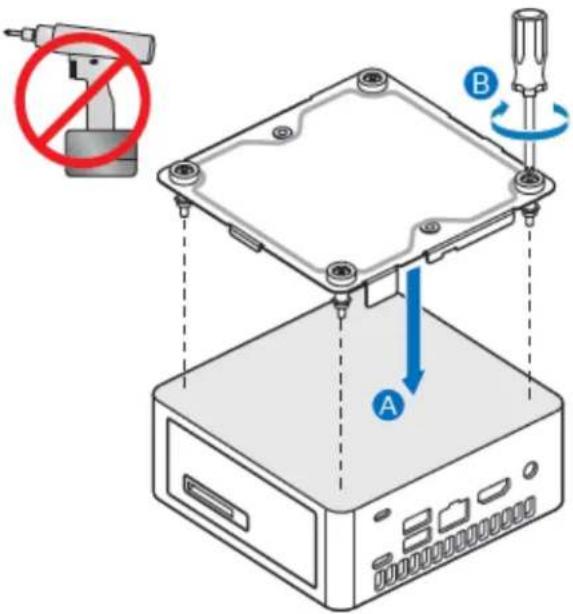

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

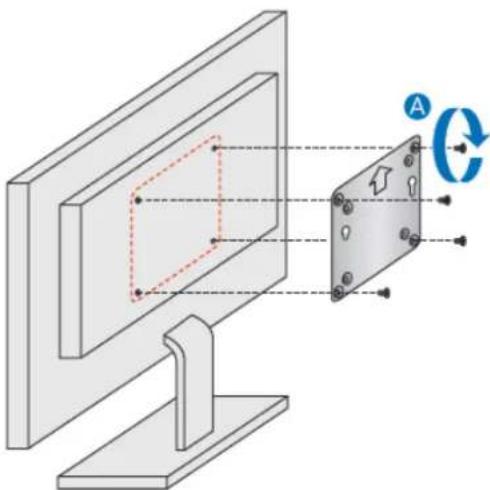

1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV.

3D diagram of a computer monitor with an attached plastic panel and a circular component labeled A (no text or symbols present)

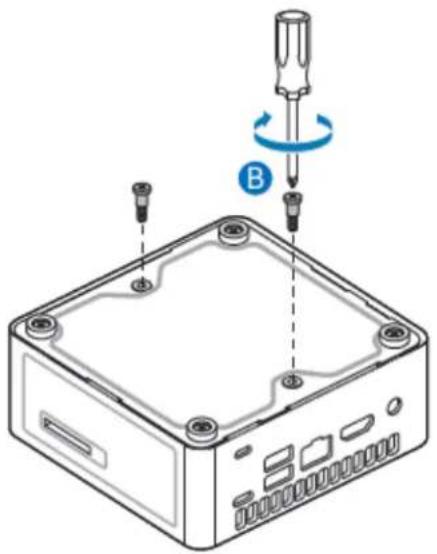

1. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Diagram of a computer case with screwdriver and labeled component (no text or symbols beyond basic diagram)

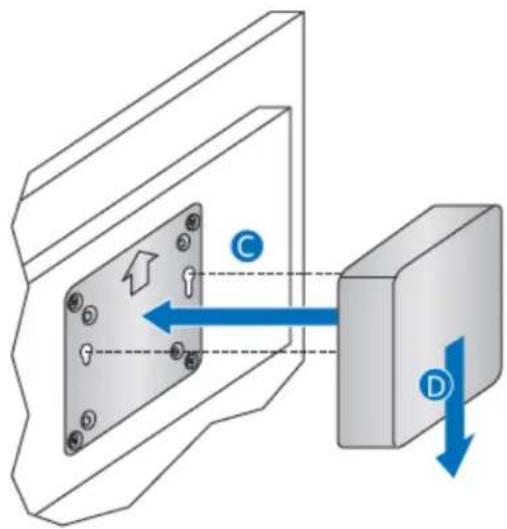

1. Slide the Intel NUC onto the VESA mount bracket.

Connect Power

Country-specific power cords are included in the Intel NUC Kit box.

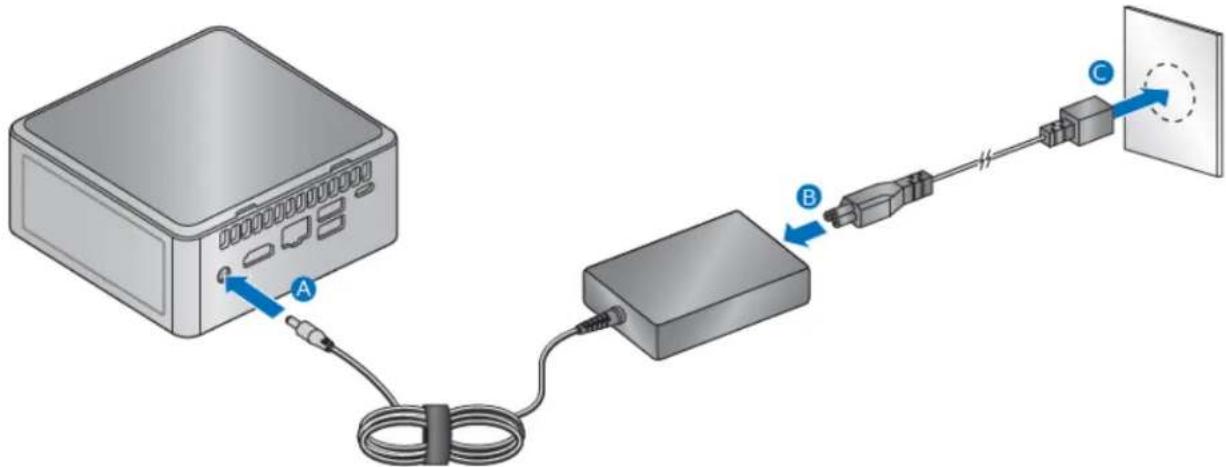

Connect AC power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter).

Product codes	Power cord type
BXNUC10i7FNH,BXNUC10i7FNHJA,BXNUC10i5FNHBXNUC10i5FNHJ,BXNUC10i5FNHJA,BXNUC10i3FNH,BXNUC10i3FNHFA,	No power cord included. An AC power cord needs to be purchased separately. Power cords are available at many Internet sites for use in multiple countries. The connector on the power adapter is a C5 type connector.
BXNUC10i7FNH1,BXNUC10i7FNHAA1,BXNUC10i7FNHJA1BXNUC10i5FNH1,BXNUC10i5FNHJA1BXNUC10i5FNHCA1,BXNUC10i3FNH1BXNUC10i3FNHCA1,BXNUC10i3FNHJA1,	US power cord included.
BXNUC10i7FNH2,BXNUC10i7FNHJA2,BXNUC10i5FNH2,BXNUC10i5FNHJA2BXNUC10i3FNH2BXNUC10i3FNHFA2,	EU power cord included.

User Guide for NUC10i7FNH, NUC10i5FNH, NUC10i3FNH

BXNUC10i7FNH3,BXNUC10i7FNHJA3,BXNUC10i5FNH3BXNUC10i5FNHJA3,BXNUC10i3FNH3,BXNUC10i3FNHFA3,	UK power cord included.
BXNUC10i7FNH4,BXNUC10i7FNHJA4,BXNUC10i5FNH4BXNUC10i5FNHJA4,BXNUC10i3FNH4BXNUC10i3FNHFA4,	Australia/New Zealand power cord included.
BXNUC10i7FNH6,BXNUC10i7FNHC6,BXNUC10i5FNH6,BXNUC10i5FNHF6,BXNUC10i3FNH6,BXNUC10i3FNHF6	China power cord included

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems and versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install Intel NUC Drivers

To download the latest Microsoft* Windows* drivers and BIOS updates, use the Intel® Driver & Support Assistant (Intel® DSA) or go to Download Center:

• NUC10i7FNH
  NUC10i5FNH
• NUC10i3FNH

Drivers are available for the following features:

• Chipset
• Graphics
• Intel® Management Engine
• Wireless and/or Gigabit Ethernet (depending on how you connect)
• Bluetooth®—required if you use Bluetooth devices
  • Audio—required if you use the 3.5mm audio jack
• Thunderbolt
• Consumer Infrared (CIR)—required if you use an infrared remote control
• Card Reader—required if you use an SD card for extra storage
  Intel® Rapid Storage Technology—required if you plan to configure RAID
