Product Type	Mini PC (Intel NUC 7 Business)
Model	NUC7i3DNHNC
Processor	Intel Core i3 (7th Gen)
Memory	4GB DDR4-2133 SO-DIMM (upgradable to 32GB)
Memory Type	260-pin DDR4 SO-DIMM, 1.2V, non-ECC
Storage	1TB 2.5" HDD (pre-installed) + M.2 slot (80/42mm) for SSD
M.2 SSD Support	SATA or PCIe NVMe, 80mm or 42mm
2.5" Drive Support	SATA SSD or HDD (up to 9.5mm height)
Operating System	Microsoft Windows 10 (pre-installed)
Dimensions (approx)	4.6 x 4.4 x 1.9 inches (117 x 112 x 48 mm)
Weight (approx)	1.5 lbs (680 g)
Power Supply	External adapter, 19V DC (C5 connector)
Power Cord	Region-specific (US, EU, UK, etc.) or sold separately
Video Output	HDMI
Network	Intel Gigabit Ethernet, Intel Wireless (Wi-Fi + Bluetooth)
Mounting	VESA mount bracket included (attaches to monitor/TV)
Memory Slots	2x SODIMM sockets (one occupied)
Recovery	Windows recovery partition for Refresh, Reset, or Restore
Driver Updates	Intel Driver & Support Assistant or manual download
Safety Precautions	ESD protection, disconnect power, avoid sharp edges
Compatibility Tool	Intel Product Compatibility Tool for memory and SSDs
Warranty	Standard Intel warranty (check retailer)

Frequently Asked Questions - NUC 7 Business INTEL

Can I upgrade the memory on the Intel NUC 7 Business?

Yes, the NUC7i3DNHNC has two DDR4 SO-DIMM slots. It comes with one 4GB module, and you can upgrade to a maximum of 32GB using 1.2V low-voltage, 2133 MHz, non-ECC memory modules. Refer to the Intel Product Compatibility Tool for compatible modules.

How do I install an M.2 SSD?

Remove the bottom cover, locate the M.2 connector. Remove the screw from the standoff (80mm or 42mm). Insert the M.2 SSD at a 45-degree angle, then press down and secure with the screw. Ensure the notch aligns with the key. Compatible drives include SATA and PCIe NVMe.

What type of storage drives are supported?

The NUC 7 Business supports a 2.5-inch SATA SSD or HDD (pre-installed with 1TB HDD) and an M.2 SSD (80mm or 42mm) in the M.2 slot. Use the Intel Product Compatibility Tool to verify compatibility.

How do I perform a factory reset?

If Windows starts, go to Settings > Update & Security > Recovery and choose 'Reset this PC'. If Windows doesn't start, press F8 during boot to enter recovery mode. You can refresh (keep files), reset (remove everything), or restore to a previous point. Always back up data first.

Does the NUC 7 Business come with a power cord?

It depends on the product code: BOXNUC7i3DNHNC includes no power cord (purchased separately), others (e.g., 1 for US, 2 for EU) include a region-specific cord. The adapter uses a C5 connector.

Can I mount the NUC behind a monitor?

Yes, the package includes a VESA mount bracket. Attach the bracket to the back of the monitor using small screws, then attach two larger screws to the NUC bottom and slide it onto the bracket.

How do I update drivers?

Use the Intel Driver & Support Assistant (Intel DSA) to automatically detect outdated drivers. Alternatively, manually download drivers from Intel's Download Center for chipset, graphics, wireless, Bluetooth, Ethernet, etc.

What are the safety precautions before opening the NUC?

Disconnect the computer from power and networks. Use an ESD workstation (antistatic wrist strap and conductive foam). Avoid touching sharp pins, edges, and hot components. Work in a static-safe area.

Can I use Intel Optane Memory?

Yes, the M.2 slot supports Intel Optane Memory modules. Before removing an Optane module, you must disable it via the Intel Optane Memory software. Refer to 'Removing Intel Optane Memory' in the manual.

How do I replace the 2.5-inch drive?

Remove the bottom cover, unscrew the four screws holding the drive bay, slide out the old drive. Insert the new 2.5-inch drive (SATA) ensuring the connectors align, then secure with the screws and close the chassis.

USER MANUAL NUC 7 Business INTEL

Intel® NUC7 Business, a Mini PC with Windows® 10 – NUC7i3DNHNC

User Guide

Before You Begin

CAUTIONS

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power or networks before you open the computer or perform any procedures can result in personal injury and/or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

This guide tells you how to:

• Upgrade memory (RAM)
• Change/install an M.2 SSD
• Change/install a 2.5-inch drive
• Use a VESA mount bracket
- Connect power
• Set up Microsoft® Windows® 10
• Install the latest device drivers and software
• Recover the operating system

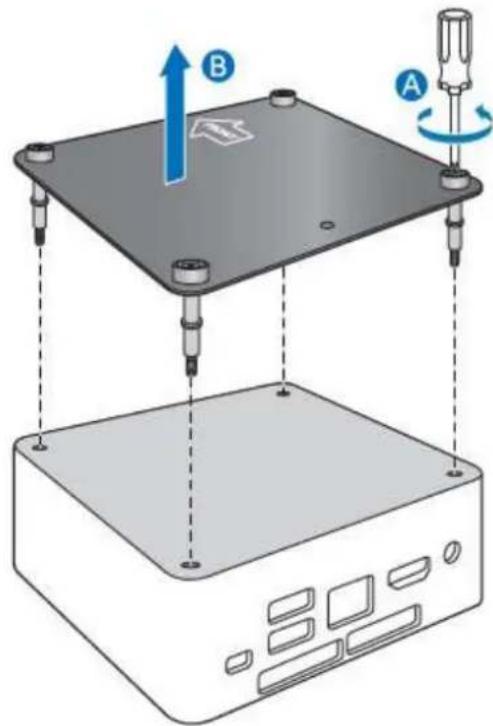

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Upgrade System Memory

The Intel NUC Kits NUC7i3DNHNC have two 260-pin DDR4 SO-DIMM sockets, pre-installed with one 4GB DDR4 2133 MHz SO-DIMM.

To upgrade memory, be sure to select memory modules that meet these requirements:

• 1.2V low voltage memory
• 2133 MHz SO-DIMMs
- Non-ECC

Find compatible memory modules in the Intel® Product Compatibility Tool.

NOTE If you plan to install only one memory module, install it in the lower memory socket.

To upgrade or add memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's bottom chassis cover.

Upgrade to different memory

a. Remove the pre-installed memory module

i. Gently spread the retaining clips at each end of the memory socket, which causes the module to pop out of the socket (C).

ii. Holding the module by the edges, lift it away from the socket, and store it in an anti-static package.

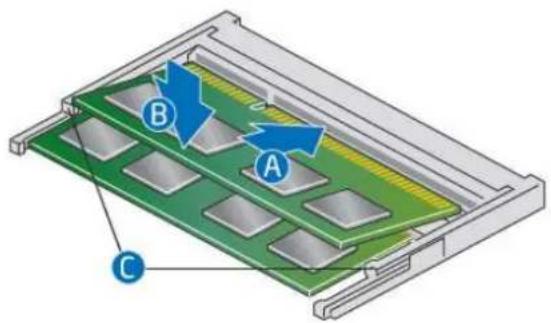

b. Install the new memory module

i. Align the small space at the bottom edge of the memory module with the key in the socket.

ii. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

iii. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

Install an additional memory module

a. Align the small space at the bottom edge of the memory module with the key on the socket.
b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).
c. When the module is inserted, push down on the outer edges of the module until the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

1. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

2. Replace the computer's cover and reconnect the power cord.

Changing an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Kits NUC7i3DNHNC support an 80mm or 42mm SSD.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool.

NOTE	Before changing the Intel Optane memory module, it needs to be disabled. Follow Removing Intel Optane Memory on this page first, before taking the module out.

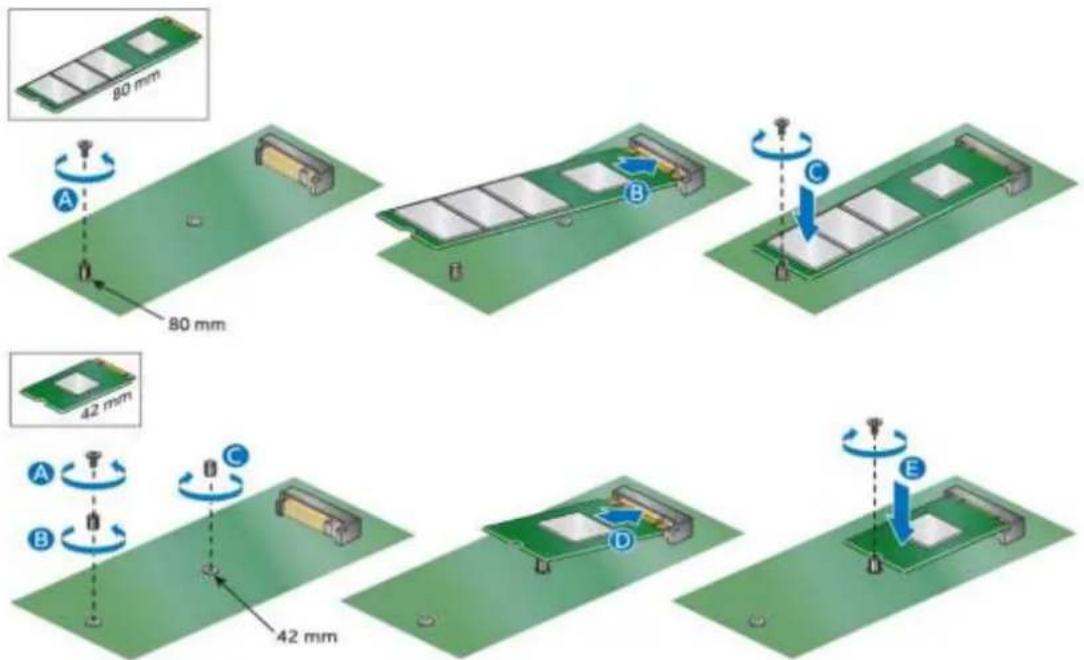

To Change an M.2 SSD:

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).
2. Remove the pre-installed SSD/Intel Optane Memory from the connector.
3. Align the space at the bottom of the new M.2 SSD to the key on the connector.
4. Insert the bottom edge of the M.2 SSD into the connector (B).
5. Secure the card to the standoff with the small silver screw (C).

Changing a 2.5" SSD or Hard Drive

The Intel NUC Kits NUC7i3DNHNC support an additional 2.5" Solid State Drive (SSD) or Hard Disk Drive (HDD), pre-installed with one 1TB HDD.

User Guide for NUC7i3DNHNC

Find compatible 2.5" drives in the Intel Product Compatibility Tool.

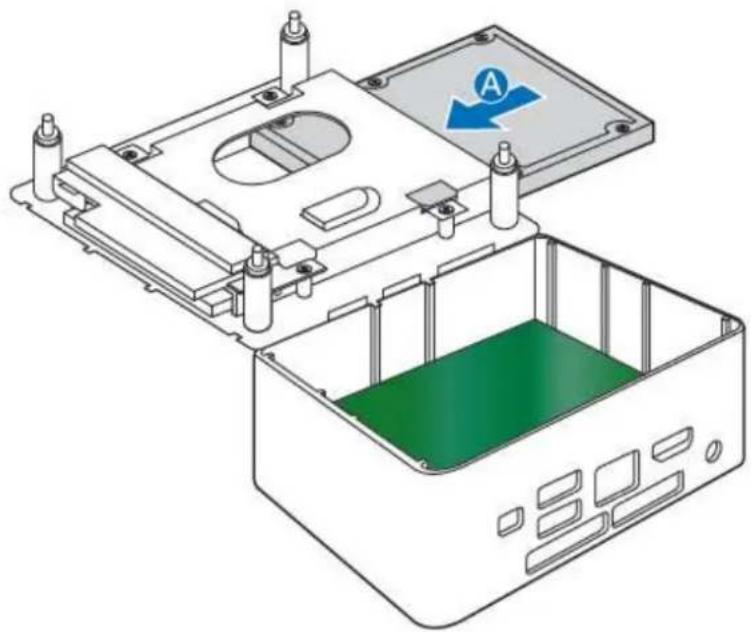

1. Unscrew the four screws holding the current drive in the bay.
2. Remove the pre-installed drive from the drive bay.
3. Slide the new 2.5" drive into the drive bay, ensuring the SATA connectors are fully seated into the connectors of the SATA daughter card (A).

Technical illustration of an open electronic device casing with internal components and a blue arrow indicating direction (no text or symbols present)

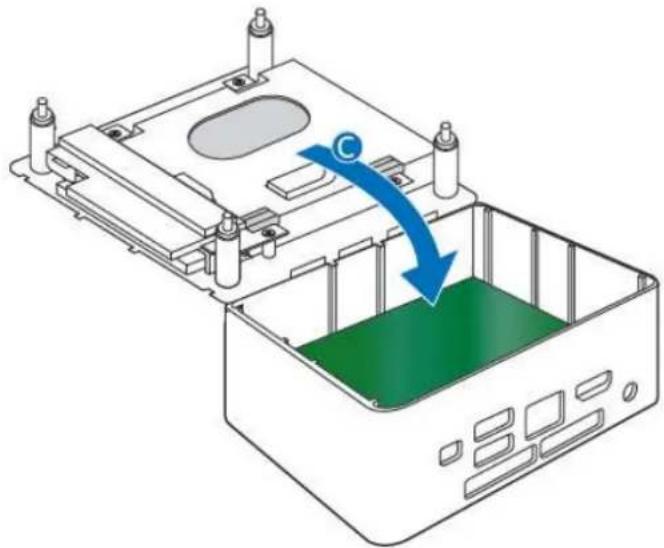

1. Secure the drive into the drive bay with the four screws that were used in step 1. Set the drive bay bracket down inside the chassis (C).

3D diagram of a computer chassis with a blue arrow indicating a process or transformation, showing internal components and casing (no text or symbols)

Close the Chassis

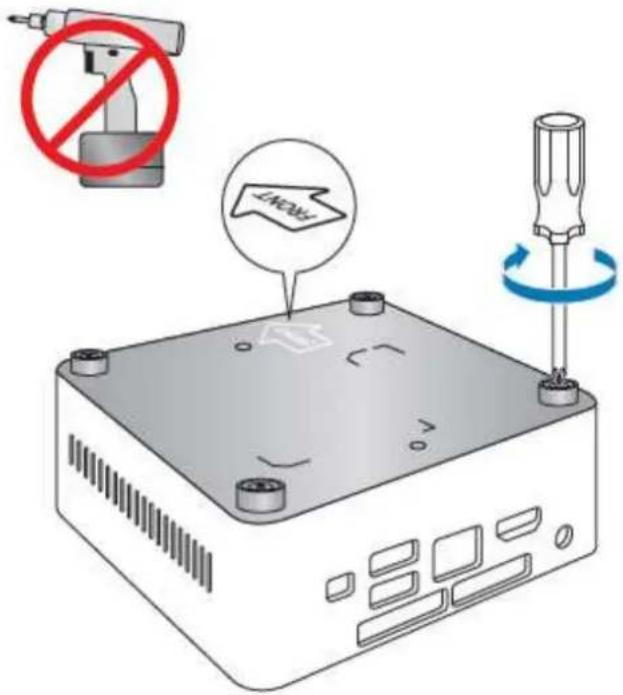

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

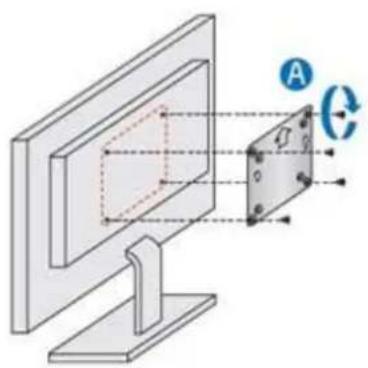

1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV.

Diagram of a computer monitor displaying an optical component with labeled point A and rotation arrow (no text or symbols beyond labels)

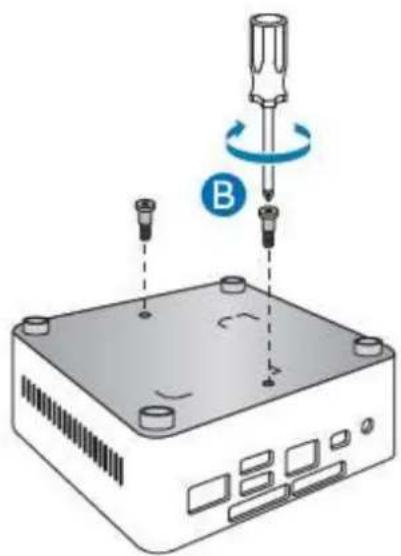

1. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

Diagram of a screwdriver pressing down on a device with labeled component B (no text or symbols beyond label)

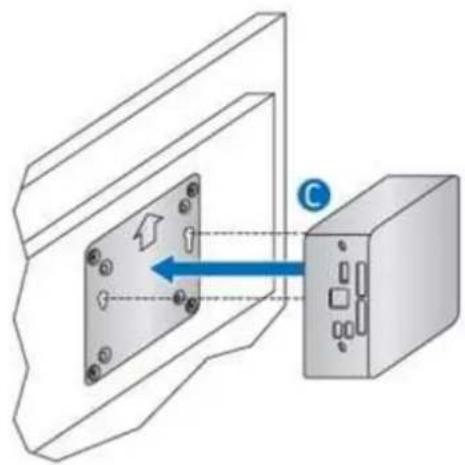

1. Slide the Intel NUC onto the VESA mount bracket.

Diagram showing a device with an open panel and a connected box, no text or symbols present

Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter).

Product codes	Power cord type
BOXNUC7i3DNHNC	No power cord included. An AC power cord needs to be purchased separately. Power cords are available at many Internet sites for use in multiple countries. The connector on the power adapter is a C5 type connector.
BOXNUC7i3DNHNC1	US power cord included.
BOXNUC7i3DNHNC2	EU power cord included.
BOXNUC7i3DNHNC3	UK power cord included.
BOXNUC7i3DNHNC4	Australia/New Zealand power cord included.
BOXNUC7i3DNHNC5	India power cord included.

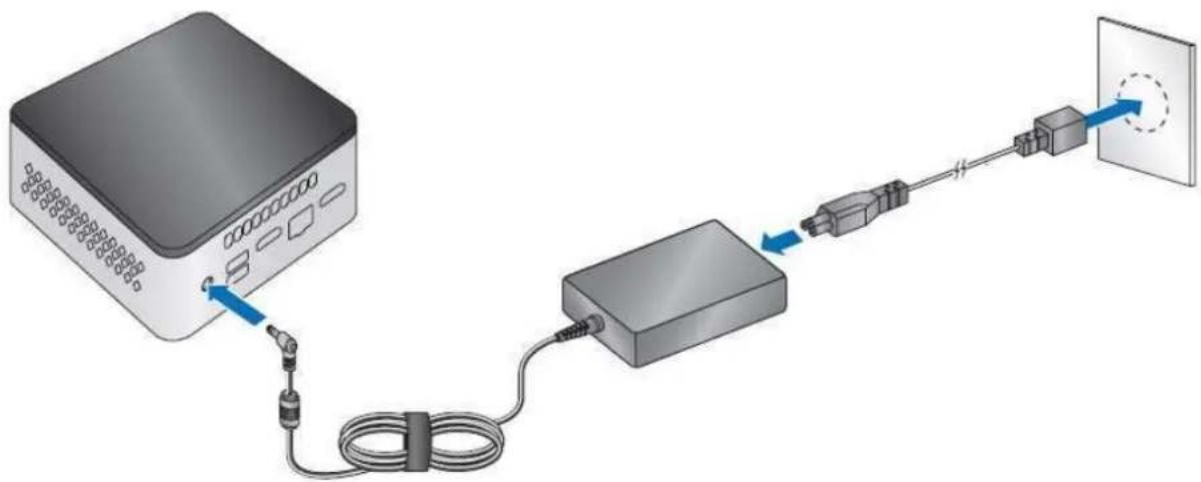

Connect AC power.

Diagram of a network device with cable, connector, and sensor connected to a screen (no text or symbols)

Set Up Microsoft® Windows® 10

Microsoft Windows 10 is already installed on the Intel NUC. The first time you start the computer, you are guided through the Windows 10 setup steps, including:

• Selecting your region and language.
• Accepting the Microsoft Windows license terms.
• Personalizing Windows and assign a PC Name.
• "Get Online" dialog to pick a wireless network (this step is optional).
• Choosing Express Settings or Customize.
• Assigning a User Name and Password.

Reinstalling the Operating System

If you upgrade or replace the computer's drive, you may need to install a new version of the operating system. See these resources:

• Supported Operating Systems
- Windows Setup Guide

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
  • Manually download drivers, BIOS, and software from Download Center.

The following device drivers and software are available.

• Intel® Chipset Device Software
• Intel® HD Graphics
• Intel® Management Engine
• Intel® Wireless
• Intel® Bluetooth
• Intel® Gigabit Ethernet
• Intel® Rapid Storage Technology
• Intel® Software Guard Extensions (Intel® SGX)
• HDMI Firmware

Operating System Recovery

There's a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset, or Restore Windows. Here is what each of these actions do:

Refresh	If your PC isn't performing as well as it once did, and you don't know why, you can refresh your PC. This action doesn't delete any of your personal files or change your settings. Refresh does the following:Files and personalization settings won't change.PC settings are changed back to their defaultsApps from the Windows Store are keptApps installed from disks or websites are removed.List of removed apps is saved on the desktop.
Reset	If you want to recycle your PC, give it away, or start over with it, you can reset it completely. This process removes everything. Reset does the following:All personal files and apps are removed.PC settings are changed back to their defaults.Windows is reinstalled.
Restore	If a recently installed app or driver is causing problems with your PC, you can restore Windows back to an earlier point in time, called a restore point.System Restore doesn't change your personal files, but it can remove recently installed apps and drivers.

User Guide for NUC7i3DNHNC

Caution - Before performing a Refresh or Reset:

• Make sure to back up all personal data to external storage.
• Remove SD card from the card slot, if one is inserted.

To access the recovery media:

If Windows starts	From Windows Start, typeRecoveryand selectRecovery Options.SeeRecovery options in Windows 10for complete details on how to use the recovery options.
If Windows doesn’t start	The recovery process should automatically start. If Recovery doesn’t automatically start, you can try to initiate it as follows:1. Press F8during boot, when you see the prompt “F8 to Activate Windows 8.1/10 Recovery Mode”.2. Follow the recovery steps.
