1500PTM - Subwoofer James - Free user manual and instructions

Product Type	Subwoofer
Brand	James
Model	1500PTM
Series	PowerPipe Marine
Enclosure Material	Sealed aluminum
Driver Size	12 inches (estimated)
Cone Material	Aluminum
Surround Material	Santoprene rubber
Power Handling	150W RMS (estimated)
Impedance	4 Ohms
Frequency Response	30 Hz - 200 Hz (estimated)
Sensitivity	88 dB (estimated)
Installation Type	Hidden enclosure with flexible tube
Tube Length	Up to 10 feet (customizable)
Grille Type	Low-profile, paintable, custom options
Marine Grade	Yes, corrosion-resistant hardware
Special Features	Flexible tube for remote bass placement
Included Accessories	Enclosure, tube, grille, mounting hardware
Warranty	5 years (typical)
Customization	Custom port shapes, sizes, and colors

Frequently Asked Questions - 1500PTM James

How do I install the James 1500PTM subwoofer?

The enclosure can be hidden in a compartment, bilge, or other out-of-sight location. Route the flexible tube from the enclosure to the desired bass port location. Secure the tube and attach the grille. All hardware is marine-grade stainless steel.

Where can the enclosure be placed?

The sealed aluminum enclosure is compact and can be concealed almost anywhere: under seats, in lockers, behind panels, or in dry bilge areas. Ensure adequate ventilation and that the tube is not kinked.

Is the 1500PTM waterproof?

It is marine-grade and built to withstand harsh environments, but the enclosure itself is not submersible. It is designed to resist moisture, salt, and UV. The grille is low-profile and color-matched.

What amplifier is recommended?

Use a marine-rated amplifier that delivers 150-200W RMS at 4 Ohms. James recommends a high-quality amplifier to ensure clean power and optimal performance.

Can the grille be painted to match my boat?

Yes, the grille is paintable. Use a marine-grade paint for best durability. The grille is low-profile and can be custom-matched to your décor.

How long is the flexible tube?

The standard tube length is up to 10 feet. Custom lengths are available upon request for unique installations.

What is the power handling of the 1500PTM?

The subwoofer is rated at 150W RMS (estimated) and handles peaks up to 300W. Match with an amplifier that provides clean power within this range.

Are custom port options available?

Yes, James offers custom port shapes, sizes, and colors to integrate seamlessly with your boat's interior. Contact your dealer for custom solutions.

How do I clean the grille?

Gently wipe the grille with a soft, damp cloth using mild soap and water. Avoid abrasive cleaners. The grille can be removed for thorough cleaning if needed.

Is the 1500PTM compatible with other James speakers?

Yes, it pairs well with James SA series, QXC series, and other marine speakers for a cohesive sound system. Use a compatible crossover for best integration.

USER MANUAL 1500PTM James

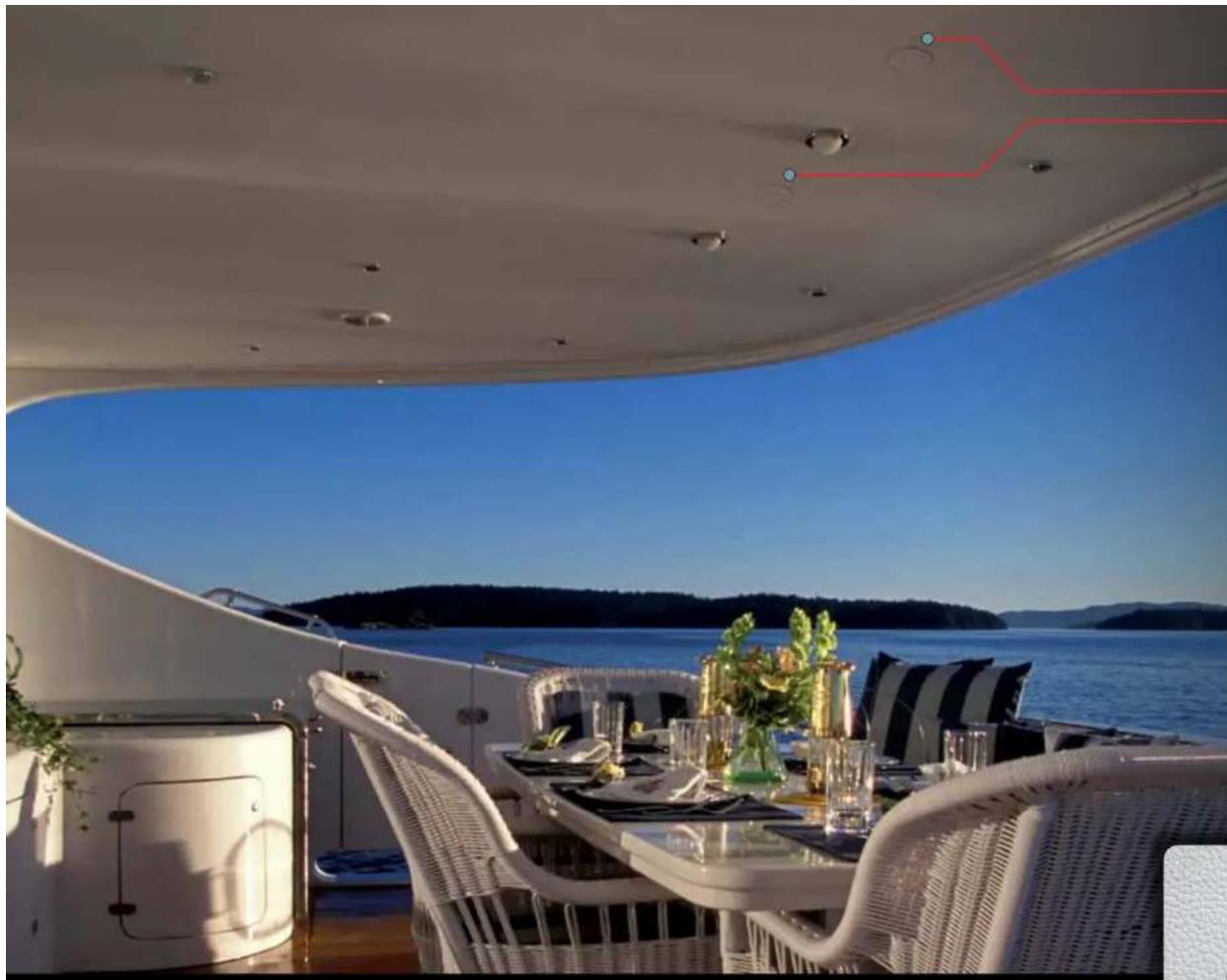

Interior view of a modern boat deck with white chairs, table, and ocean background (no visible text or symbols)

James Loudspeaker Small Aperture® (SA) Series are barely visible ultra-high-performance architectural speakers reproducing sound with the refinement of a studio monitor. All that is visible to the listener is a color-matched low-profile grille, which is available in 3-inch or 4-inch round or square flush mount style. We think the room-filling sound quality is nothing short of staggering!

Small Aperture®

2185 Park Place, Minden, NV 89423 | Ph: 775.461.7500 | www.jamesloudspeaker.com

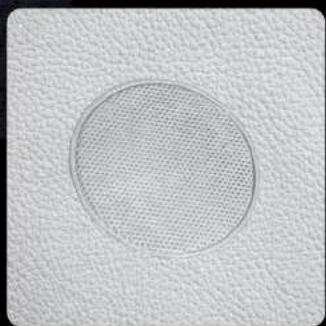

Circular mesh pattern on textured background (no text or symbols)

James Loudspeaker PowerPipe Marine subwoofers fill any space with rich, detailed bass frequencies without interfering with décor. The PowerPipe utilizes a flexible tube to move bass energy from a hidden location into the listening space through a visually unassuming grille. These subwoofers use a durable, sealed aluminum enclosure that can be concealed just about anywhere. The flexible tube is simply routed from the enclosure to a vast array of standard or custom port options, providing a seamless décor treatment for even the most discerning clients and designers. Custom port options can be configured in a multitude of shapes, sizes and colors.

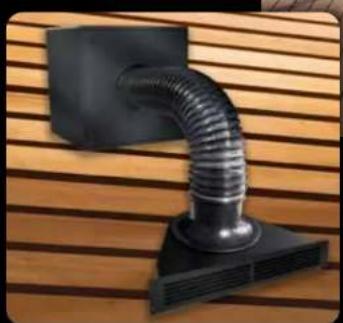

Close-up of a black PVC hose mounted on a wooden wall against a striped background (no text or symbols visible)

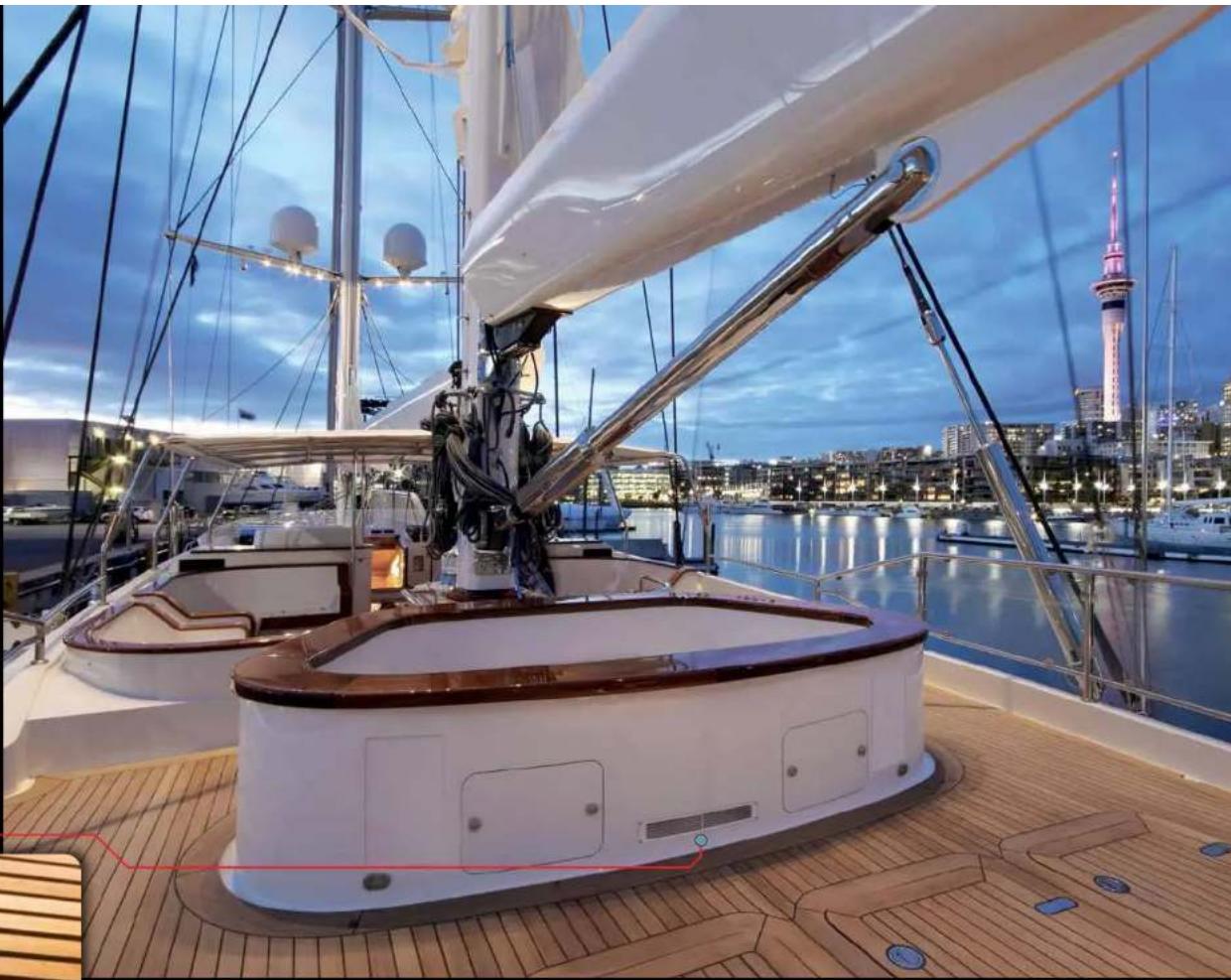

Exterior view of a modern sailboat on a wooden deck at dusk, with illuminated city skyline and a prominent tower in the background (no signage)

PowerPipe Series

2185 Park Place, Minden, NV 89423 | Ph: 775.461.7500 | www.jamesloudspeaker.com

SoundBar Series

2185 Park Place, Minden, NV 89423

Ph: 775.461.7500

www.jamesloudspeaker.com

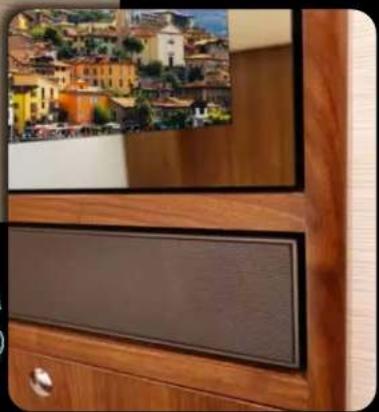

Interior view of a wooden cabinet with a cityscape photo on the wall (no visible text or symbols)

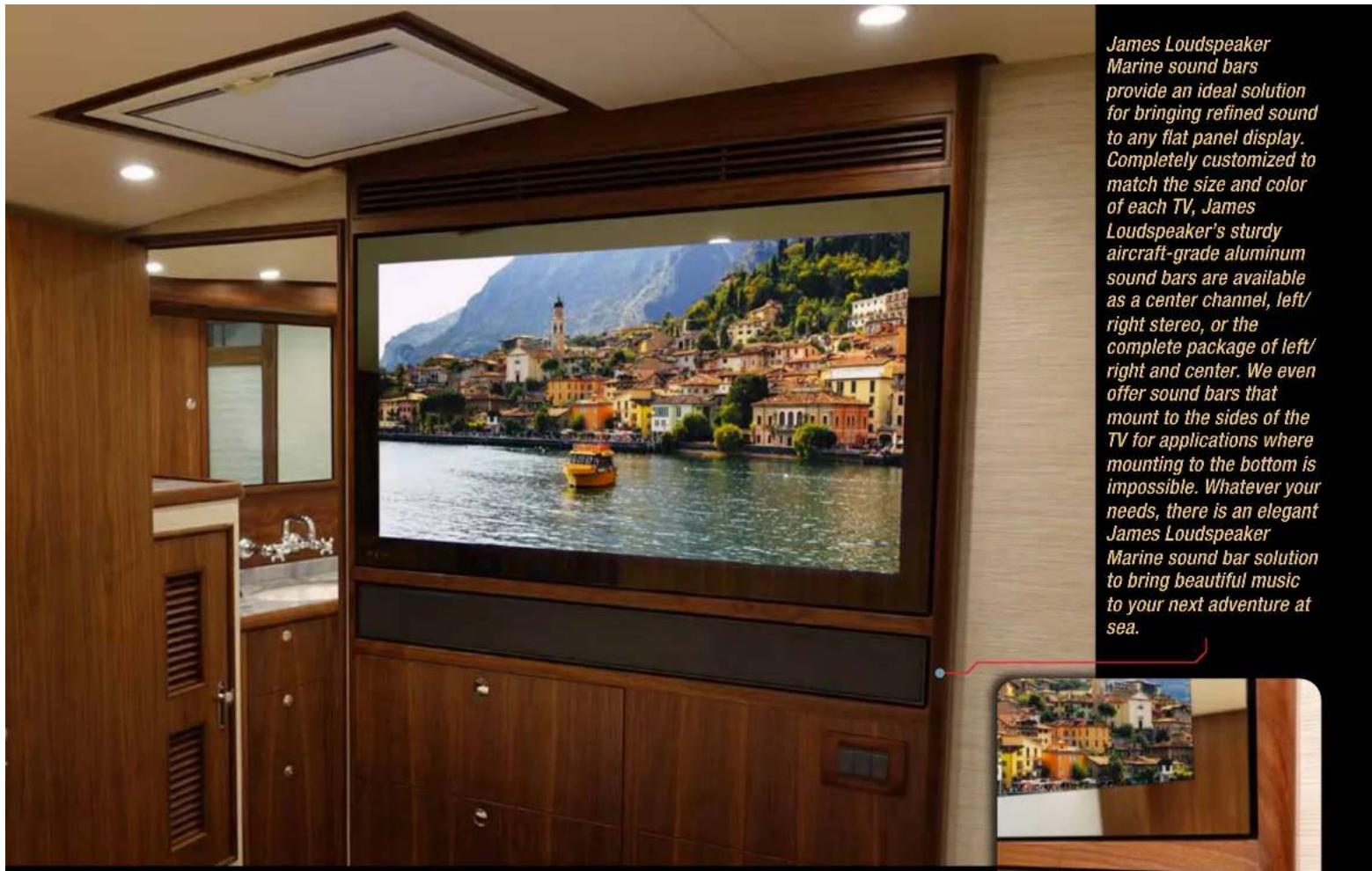

James Loudspeaker Marine sound bars provide an ideal solution for bringing refined sound to any flat panel display. Completely customized to match the size and color of each TV, James Loudspeaker's sturdy aircraft-grade aluminum sound bars are available as a center channel, left/ right stereo, or the complete package of left/ right and center. We even offer sound bars that mount to the sides of the TV for applications where mounting to the bottom is impossible. Whatever your needs, there is an elegant James Loudspeaker Marine sound bar solution to bring beautiful music to your next adventure at sea.

James Loudspeaker QXC Marine Series combine our legendary audio performance with low-profile borderless aluminum grilles that protrude less than 5 millimeters from the mounting surface. Each QXC speaker features an aluminum cone woofer with Santoprene™ rubber surrounds and our renowned Quad aluminum tweeter array that delivers reference-quality sound to a large area, even if the speaker is unavoidably off axis to the listener.

Plain white oval shape on a plain background, no text or symbols visible

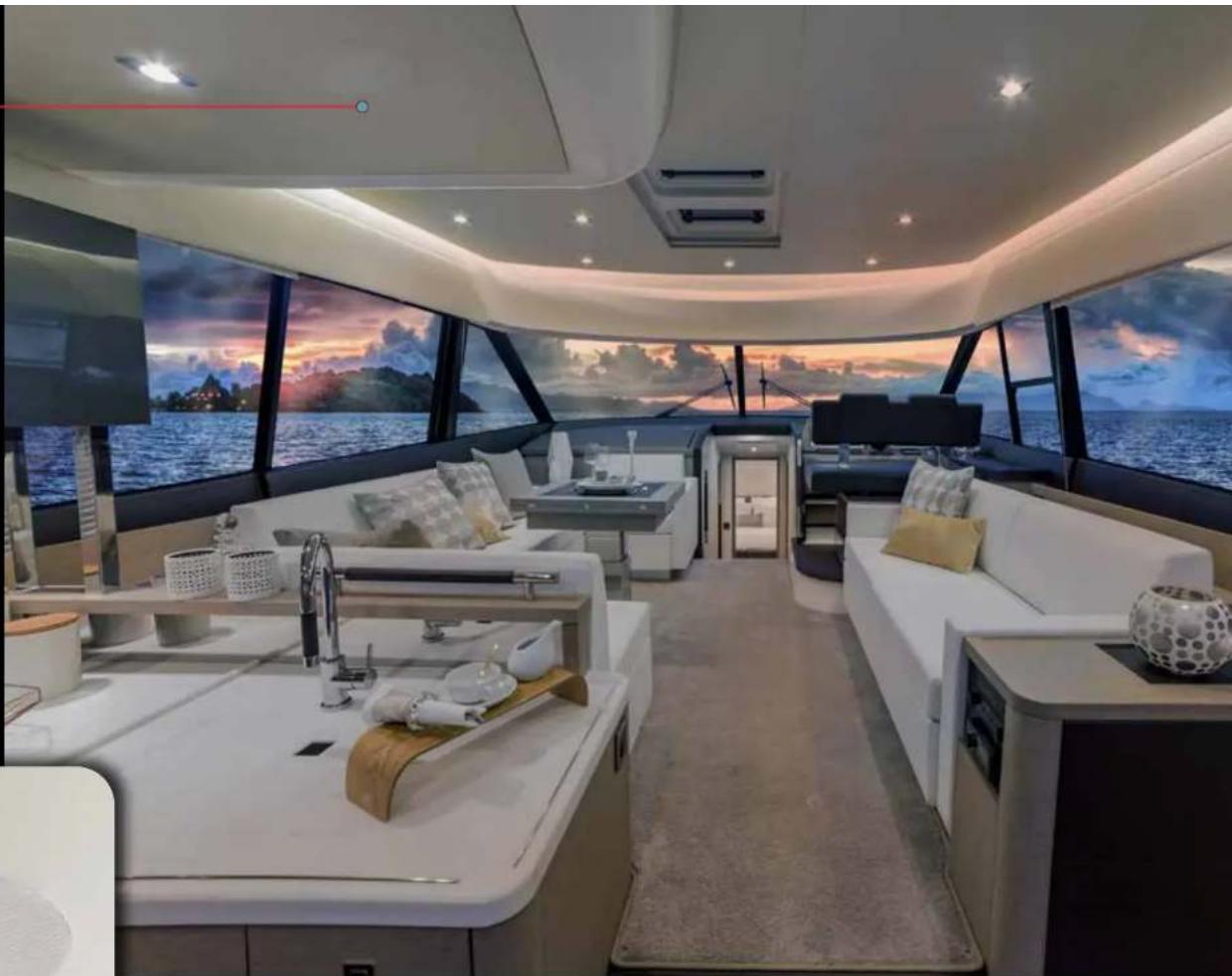

Interior view of a modern luxury yacht with white furniture and large windows overlooking the sea at sunset (no visible text or symbols)

QXC Series

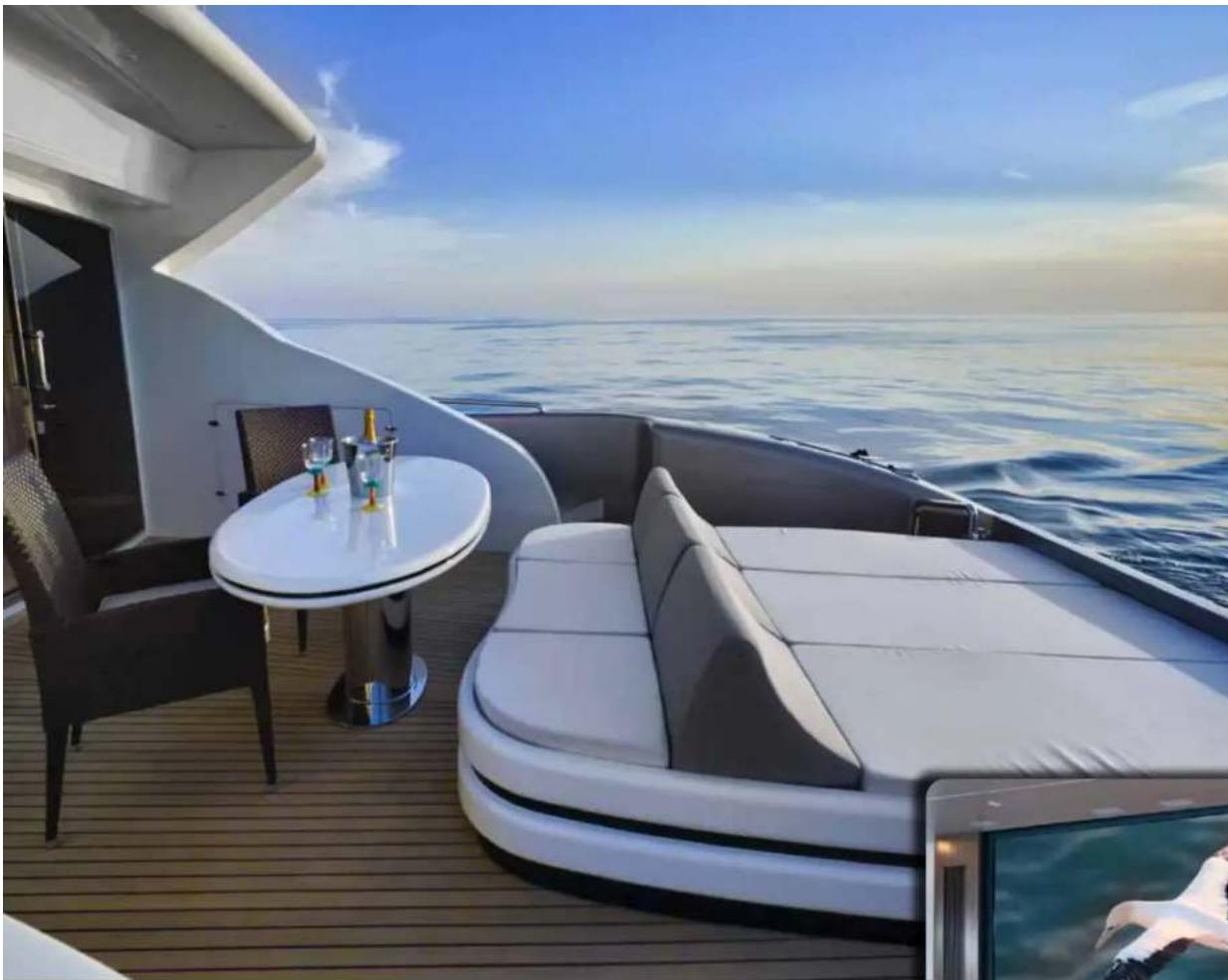

Modern luxury yacht interior with white sectional sofa, wooden deck, and side table overlooking ocean (no text or symbols visible)

James Loudspeaker Customized Solutions accommodate the unique requirements of each marine installation, providing outstanding custom-engineered speakers for our network of dealers and their clients. In some instances, our engineers create a loudspeaker to fit an unusual or confined space, match a unique finish, fabricate a grille or port from a specialty material or add some special feature. Because almost all of our enclosures are hand-fabricated from aircraft-grade aluminum, we can custom fabricate just about any shape or size with great precision. Set sail with James Loudspeaker customized marine solutions.

James Loudspeaker Marine delivers the finest entertainment experience possible from a discreet, décor-matched form factor. Each speaker undergoes a process to protect the enclosure and inner workings against the elements in even the harshest environments. We use the finest materials, from aircraft-grade aluminum to our durable, application-specific powder coating. Our proprietary drivers (woofers/midranges/tweeters) are made using aluminum cones and Santoprene™ surrounds, providing both durability and superb sound. All hardware is made from high-grade galvanized 316 stainless steel and applied using Tef-Gel to prevent fusion of dissimilar metals upon assembly.

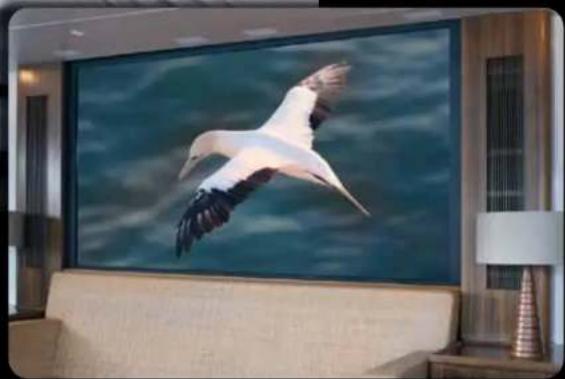

Large screen displaying a white bird in flight against a dark blue sky background, placed on a beige sofa near a wooden table lamp (no text or symbols visible)
