800PTM - Subwoofer James - Free user manual and instructions

Product Type	Subwoofer
Brand	James
Model	800PTM
Series	PowerPipe Marine
Enclosure Material	Sealed aluminum, corrosion-resistant
Driver Size	8 inches
Power Handling (RMS)	150 W
Impedance	4 ohms
Frequency Response	20 Hz – 200 Hz
Sensitivity	85 dB
Installation Type	Concealed with flexible tube to grille
Grille Options	Customizable shapes, sizes, and colors
Marine Certification	Designed for marine environments (saltwater resistant)
Hardware Material	316 stainless steel with Tef-Gel
Woofer Cone Material	Aluminum cone with Santoprene™ surround
Application	Marine audio systems (boats, yachts)
Recommended Amplifier Power	50–150 W RMS at 4 ohms
Grille Style	Low-profile, color-matched flush mount

Frequently Asked Questions - 800PTM James

What is the PowerPipe series subwoofer design?

The PowerPipe series uses a flexible tube to move bass energy from a concealed aluminum enclosure to a visible grille, allowing hidden installation without compromising décor.

What materials are used in the 800PTM subwoofer?

The enclosure is sealed aluminum with a durable powder coating. The woofer features an aluminum cone with Santoprene™ surround, and hardware is 316 stainless steel with Tef-Gel to prevent corrosion.

Is the James 800PTM subwoofer suitable for marine environments?

Yes, it is specifically designed for marine use. All components are treated for saltwater resistance, and the enclosure is sealed to protect the inner workings.

Can the grille be customized?

Yes, James Loudspeaker offers standard and custom port options in various shapes, sizes, and colors to match your décor.

What is the recommended amplifier power for the 800PTM?

A typical recommendation is 50–150 watts RMS per channel at 4 ohms. Always refer to the amplifier's specifications for compatibility.

How do I install the subwoofer?

Mount the sealed aluminum enclosure in a hidden location, route the flexible tube to the desired listening space, and attach the grille. Ensure all connections are secure and use marine-grade wiring.

What is the frequency response of the 800PTM?

The frequency response is approximately 20 Hz to 200 Hz, delivering deep and detailed bass.

How do I clean and maintain the subwoofer?

Wipe the grille and enclosure with a damp cloth. Avoid abrasive cleaners. Check connections periodically for corrosion on marine installations.

What sizes are available in the PowerPipe series?

The PowerPipe series includes various sizes; the 800PTM indicates an 8-inch driver. Contact James Loudspeaker for specific dimensions and options.

Does the subwoofer come with a warranty?

James Loudspeaker offers a limited warranty. Contact your dealer or James Loudspeaker for full warranty terms.

USER MANUAL 800PTM James

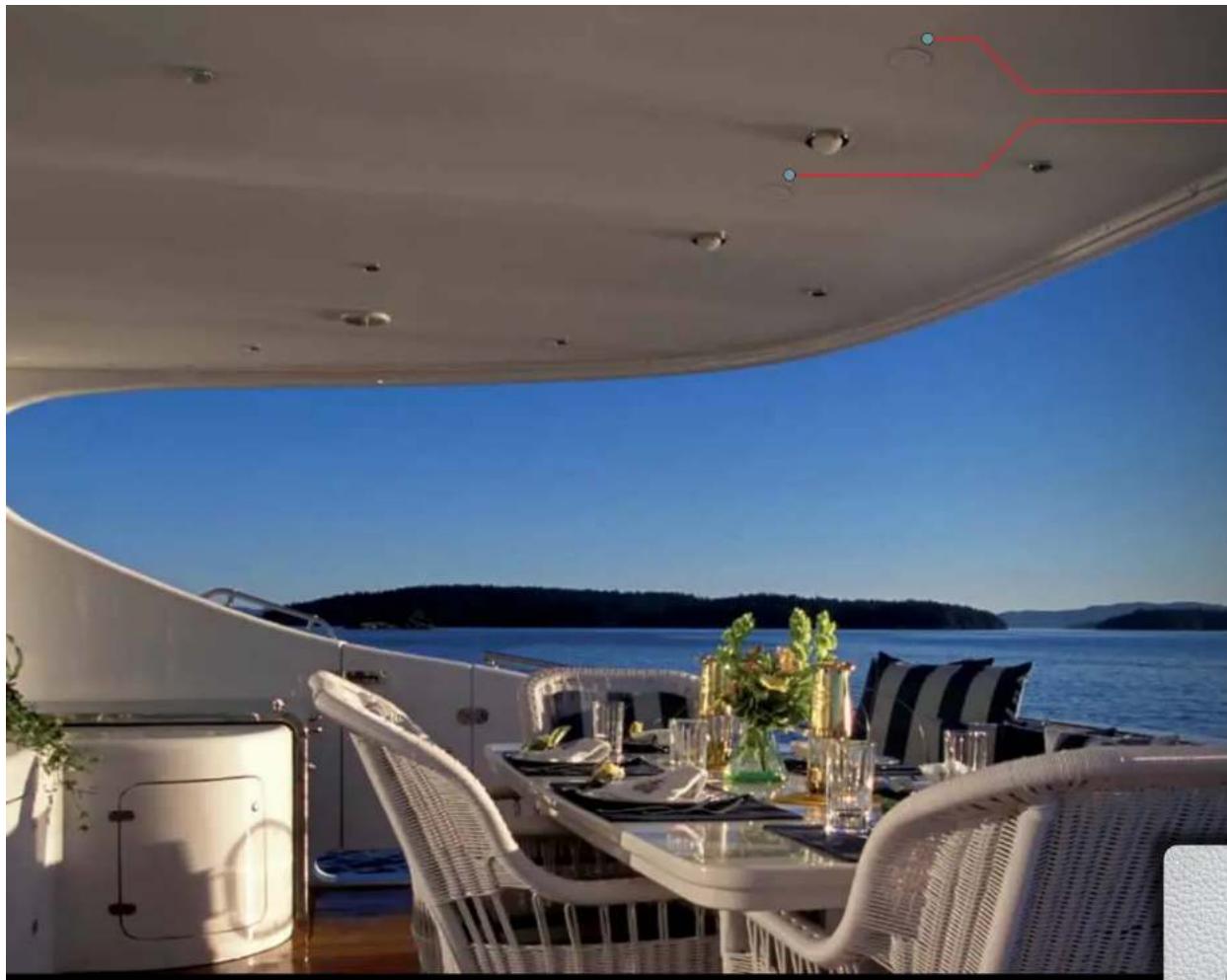

Interior view of a modern boat with white chairs, table, and ocean background (no visible text or symbols)

James Loudspeaker Small Aperture® (SA) Series are barely visible ultra-high-performance architectural speakers reproducing sound with the refinement of a studio monitor. All that is visible to the listener is a color-matched low-profile grille, which is available in 3-inch or 4-inch round or square flush mount style. We think the room-filling sound quality is nothing short of staggering!

Small Aperture®

2185 Park Place, Minden, NV 89423

Ph: 775,461.7500

www.jamesloudspeaker.com

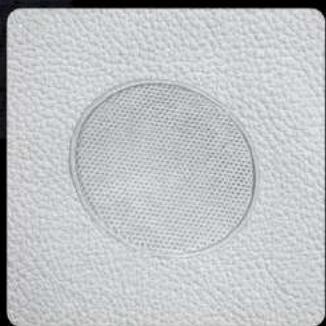

Circular mesh pattern on textured background (no text or symbols)

James Loudspeaker PowerPipe Marine subwoofers fill any space with rich, detailed bass frequencies without interfering with décor. The PowerPipe utilizes a flexible tube to move bass energy from a hidden location into the listening space through a visually unassuming grille. These subwoofers use a durable, sealed aluminum enclosure that can be concealed just about anywhere. The flexible tube is simply routed from the enclosure to a vast array of standard or custom port options, providing a seamless décor treatment for even the most discerning clients and designers. Custom port options can be configured in a multitude of shapes, sizes and colors.

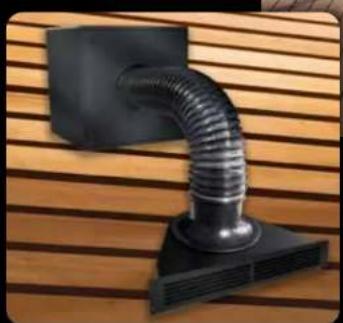

Close-up of a black PVC hose mounted on a wooden wall against a striped background (no text or symbols visible)

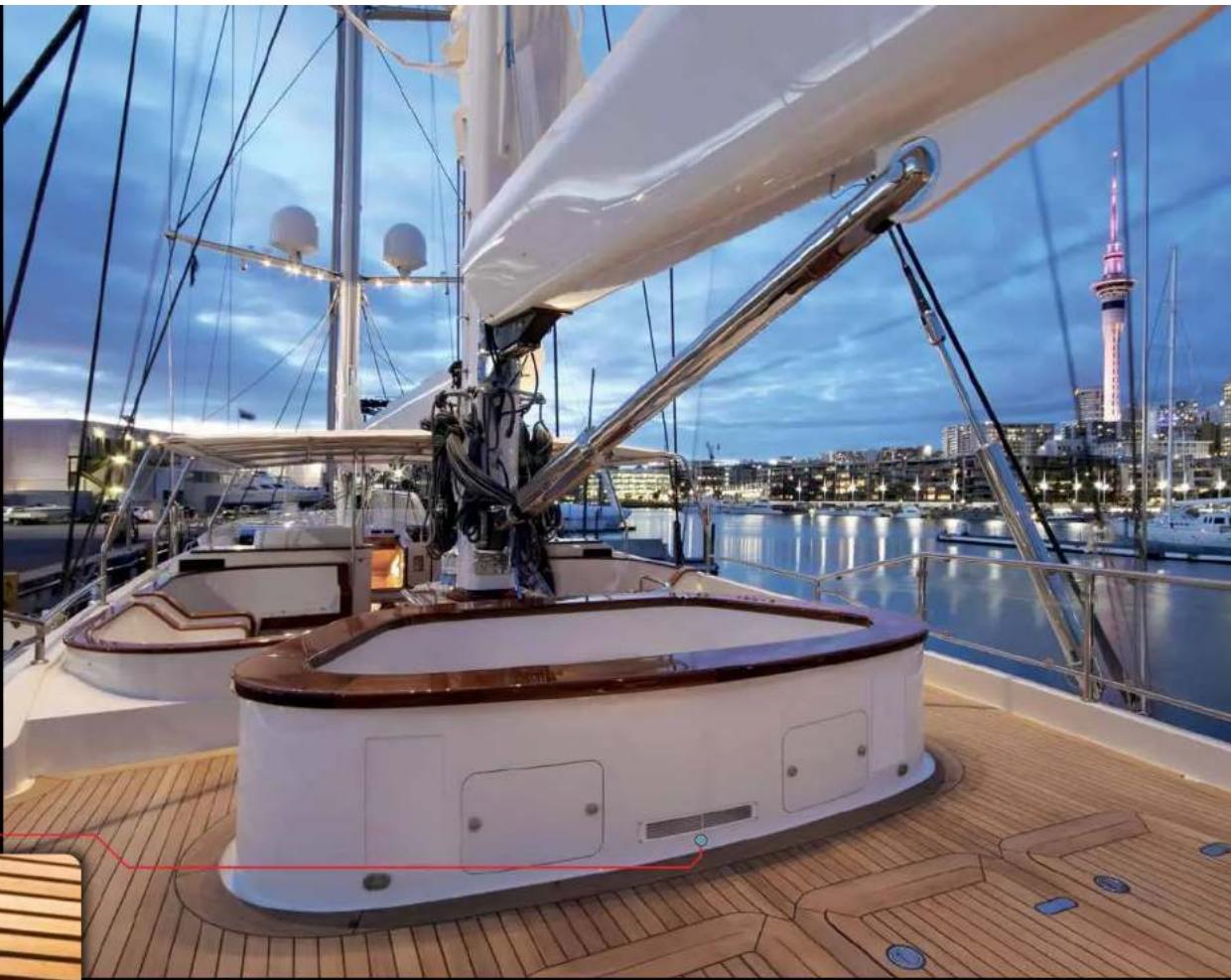

Exterior view of a modern sailboat on a wooden deck at dusk, with illuminated city skyline and a prominent tower in the background (no signage)

PowerPipe Series

2185 Park Place, Minden, NV 89423 | Ph: 775.461.7500 | www.jamesloudspeaker.com

SoundBar Series

2185 Park Place, Minden, NV 89423

Ph: 775.461.7500

www.jamesloudspeaker.com

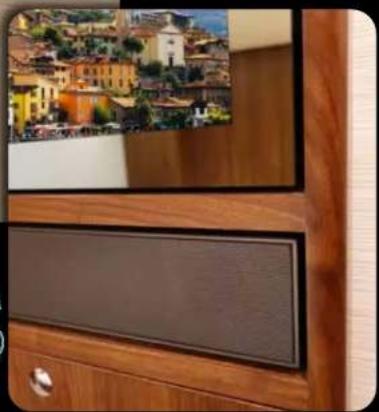

Interior view of a wooden cabinet with a cityscape photo on the wall (no visible text or symbols)

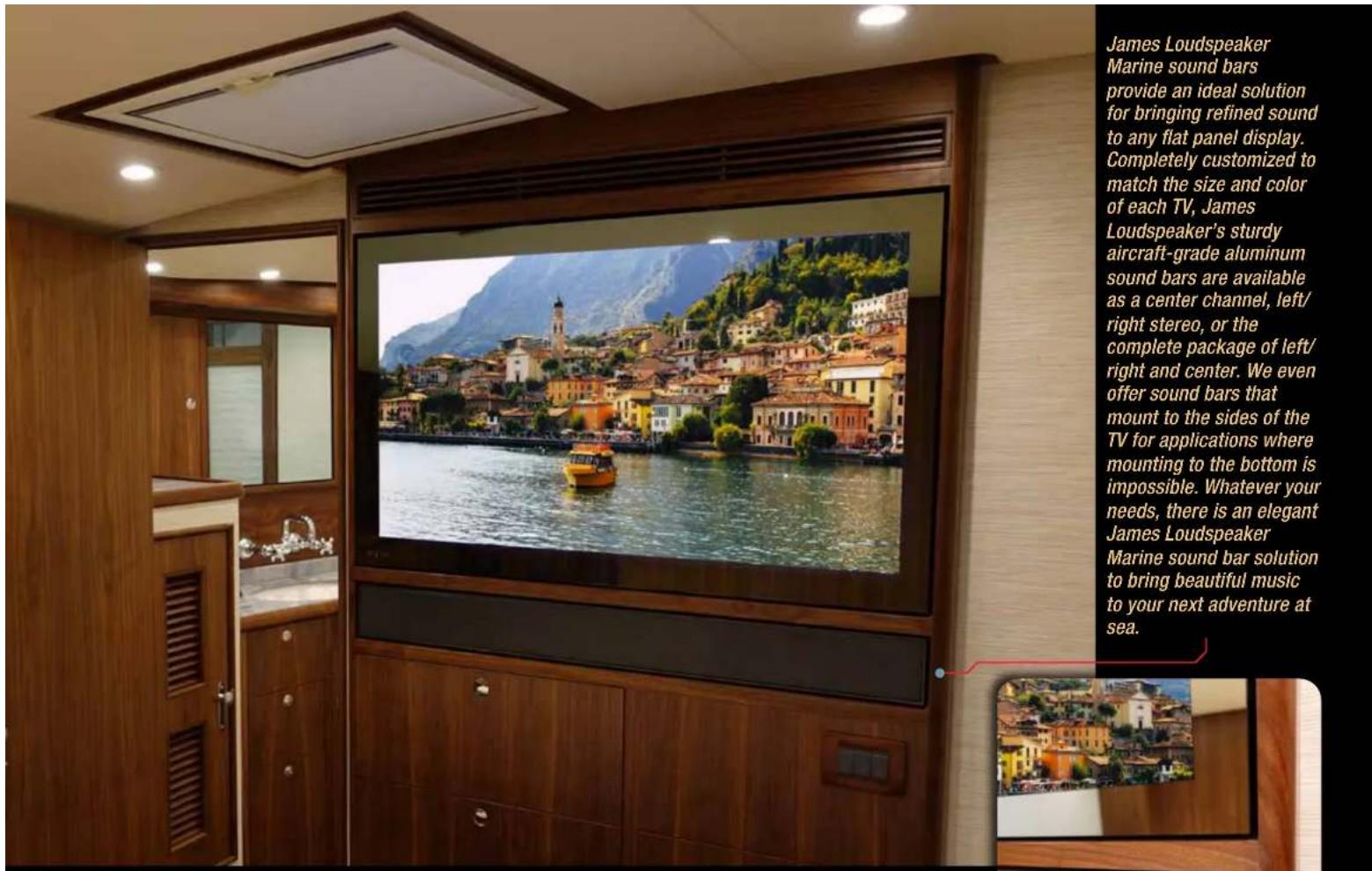

James Loudspeaker Marine sound bars provide an ideal solution for bringing refined sound to any flat panel display. Completely customized to match the size and color of each TV, James Loudspeaker's sturdy aircraft-grade aluminum sound bars are available as a center channel, left/ right stereo, or the complete package of left/ right and center. We even offer sound bars that mount to the sides of the TV for applications where mounting to the bottom is impossible. Whatever your needs, there is an elegant James Loudspeaker Marine sound bar solution to bring beautiful music to your next adventure at sea.

James Loudspeaker QXC Marine Series combine our legendary audio performance with low-profile borderless aluminum grilles that protrude less than 5 millimeters from the mounting surface. Each QXC speaker features an aluminum cone woofer with Santoprene™ rubber surrounds and our renowned Quad aluminum tweeter array that delivers reference-quality sound to a large area, even if the speaker is unavoidably off axis to the listener.

Plain white oval shape on a plain background, no text or symbols visible

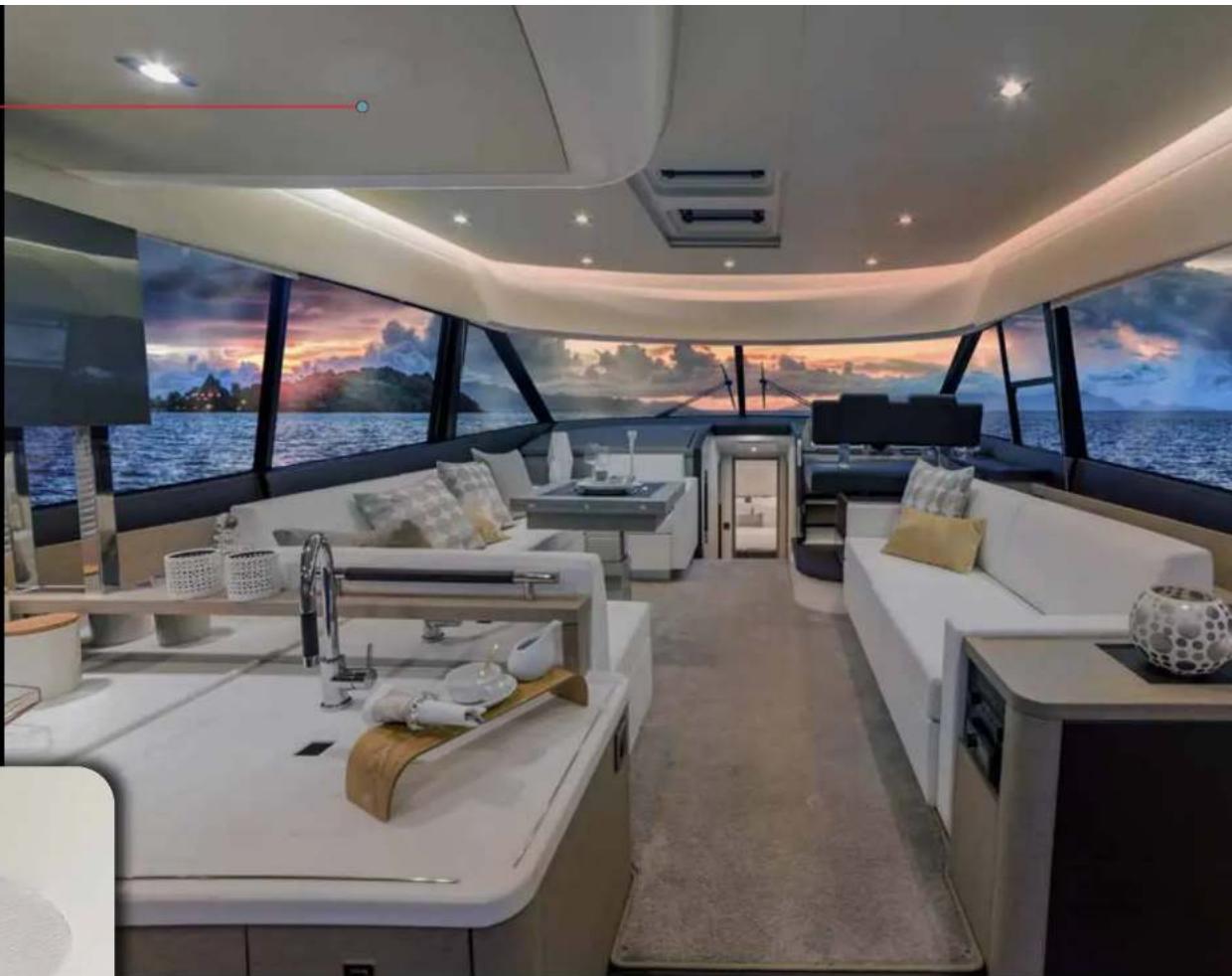

Interior view of a modern luxury yacht with white sofas, ocean views, and decorative lighting (no visible text or symbols)

QXC Series

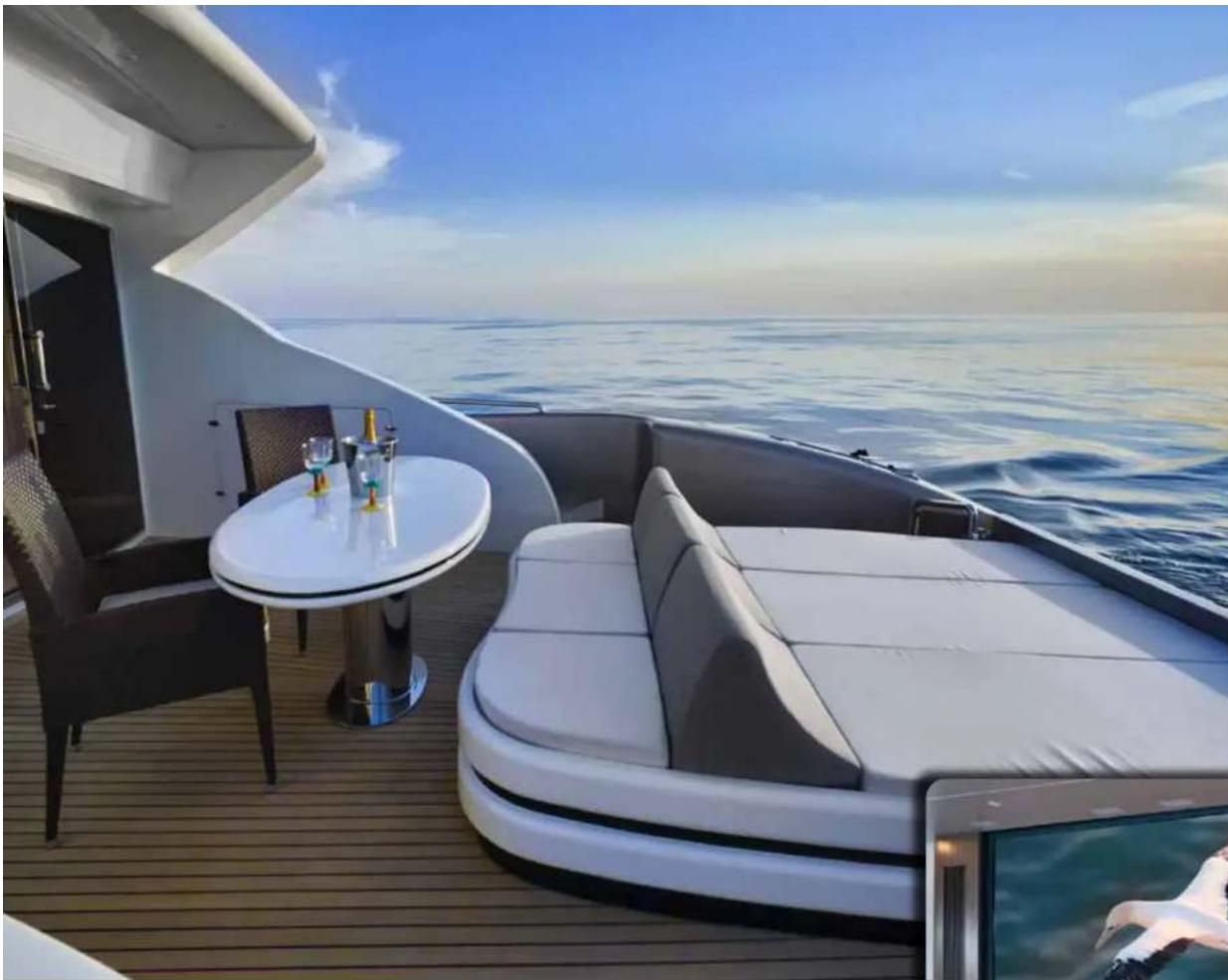

Modern luxury yacht interior with white sectional sofa, wooden deck, and side table overlooking ocean (no text or symbols visible)

James Loudspeaker Customized Solutions accommodate the unique requirements of each marine installation, providing outstanding custom-engineered speakers for our network of dealers and their clients. In some instances, our engineers create a loudspeaker to fit an unusual or confined space, match a unique finish, fabricate a grille or port from a specialty material or add some special feature. Because almost all of our enclosures are hand-fabricated from aircraft-grade aluminum, we can custom fabricate just about any shape or size with great precision. Set sail with James Loudspeaker customized marine solutions.

James Loudspeaker Marine delivers the finest entertainment experience possible from a discreet, décor-matched form factor. Each speaker undergoes a process to protect the enclosure and inner workings against the elements in even the harshest environments. We use the finest materials, from aircraft-grade aluminum to our durable, application-specific powder coating. Our proprietary drivers (woofers/midranges/tweeters) are made using aluminum cones and Santoprene ^™ surrounds, providing both durability and superb sound. All hardware is made from high-grade galvanized 316 stainless steel and applied using Tef-Gel to prevent fusion of dissimilar metals upon assembly.

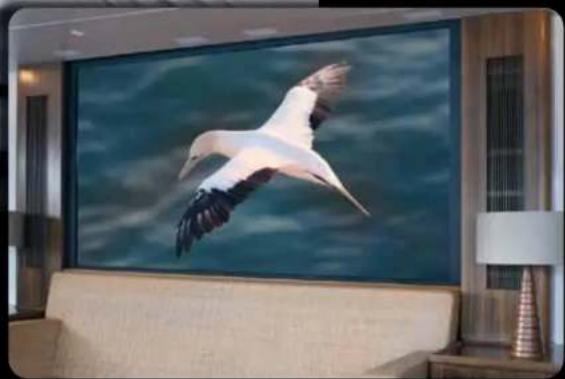

Large screen displaying a white bird in flight against a dark blue sky background, placed on a beige sofa near a wooden table lamp (no text or symbols visible)
