Product Type	Storage System (Server)
Brand	Hikvision
Model	DS-A72072R
Form Factor	Rackmount (typical 2U)
Processor	64-bit Hexa-Core
Network Interfaces	4 enterprise-class gigabit Ethernet (1 management + 2 data, bonding supported)
Max HDD Support	18 hard drives (enterprise-class)
RAID Levels	0, 1, 3, 5, 6, 10, 50
Storage Protocols	iSCSI, FC (Fibre Channel), HYBRID SAN
Maximum Capacity	Up to 72 TB (system total capacity shown)
Data Protection	RAID 6, hot spare HDDs, N+1 backup
Management Interface	Web browser (IE 8/11) via HTTPS
Power Supply	100-240VAC or 12VDC (SELV)
Cooling	Up to 6 chassis fans with speed control
Operating Temperature	Not specified in manual, typical 0-40°C
Dimensions	Not provided in manual, estimated 2U rackmount
Weight	Not specified
Security Features	Password protection, CHAP authentication, SNMP alarms, email alerts
Maintenance	HDD hot-swap, system log download, firmware upgrade, fan replacement
Spare Parts	Hard drives, fans, power supply units (redundant optional)
Regulatory Compliance	FCC Class A, CE, RoHS, WEEE
Warranty	Not specified, contact Hikvision

Frequently Asked Questions - DS-A72072R Hikvision

What is the maximum number of hard drives supported by the DS-A72072R?

The DS-A72072R supports up to 18 enterprise-class SATA hard drives. The manual shows HDD information with total 18 drives.

Which RAID levels are available on this storage server?

The device supports RAID 0, 1, 3, 5, 6, 10, and 50. RAID 6 is recommended for higher data protection.

How do I access the management interface?

You can access via a web browser using the default IP https://10.254.254.254:2004. Internet Explorer 8 or 11 is recommended. Login with admin credentials after activation.

Can I use iSCSI to connect to the server?

Yes, the storage system supports iSCSI. You can enable iSCSI service and add CHAP users for authentication. Multiple iSCSI targets can be created and mapped to logical volumes.

How do I replace a failed hard drive?

The HDDs are hot-swappable. Press the blue button to release the handle, pull out the dummy, replace the drive, and push it back. The system will automatically detect and rebuild the array if a hot spare is configured.

What is HYBRID SAN and how does it work?

HYBRID SAN is a feature that combines storage and video management for surveillance systems. It allows recording from encoding devices, creating record volumes, and managing N+1 redundancy for failover.

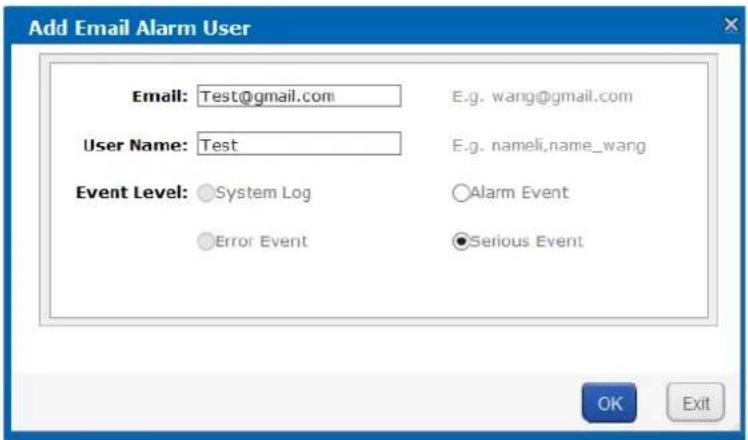

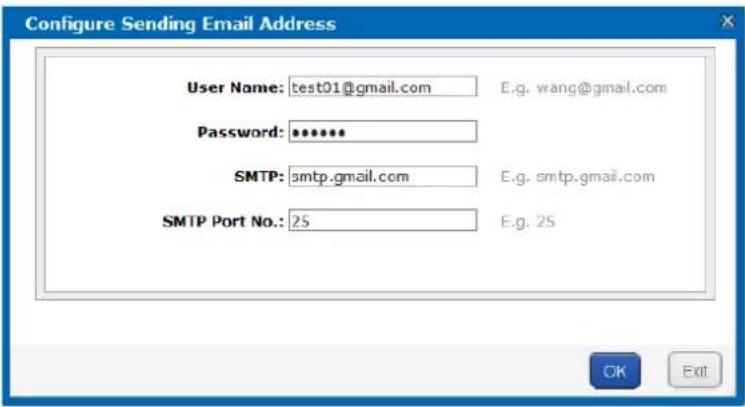

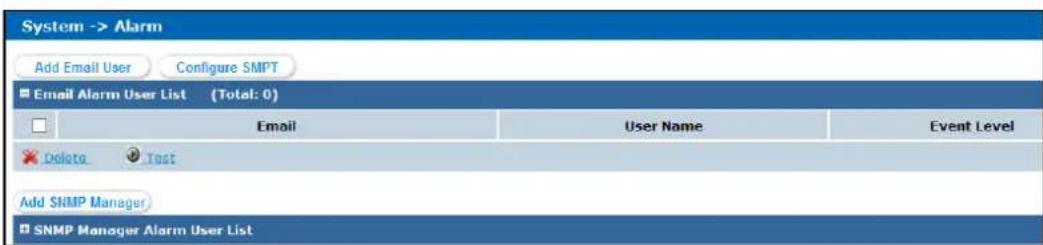

How do I set up email alerts for system alarms?

Go to System > Alarm and configure SMTP settings. Add a sending email account and receiving email addresses. You can test the connection. Alarms include temperature, fan, disk, and power issues.

Can I expand the storage capacity after initial setup?

Yes, you can add more HDDs (up to 18) and extend existing record volumes or storage pools. Logical volumes can also be enlarged if there is free capacity in the storage pool.

What security measures are recommended for this device?

Use a strong password (min 8 characters with uppercase, lowercase, numbers, and symbols). Enable CHAP for iSCSI, configure firewall rules, and keep firmware updated. The manual advises regular password changes.

Where can I download the user manual?

The manual is available on notice-facile.com (the site you are on) or from Hikvision's official website. The manual includes 94 pages of detailed instructions.

USER MANUAL DS-A72072R Hikvision

Abstract geometric composition with gray squares, white diamonds, and red diamonds arranged in a grid (no text or symbols)

Red background with white globe and hand symbol (no text or numbers)

Storage System User Manual

User Manual

COPYRIGHT © 2016 Hangzhou Hikvision Digital Technology Co., Ltd.

ALL RIGHTS RESERVED.

Any and all informaon, including, among others, wordings, pictures, graphs are the properes of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinaer referred to be "Hikvision"). This user manual (hereinaer referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, parally or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise spulated, Hikvision does not make any warranes, guarantees or representaons, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Storage System.

The Manual includes instrucons for using and managing the product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please nd the latest version in the company website (hp://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

HIKVISION and other Hikvision's trademarks and logos are the properes of Hikvision in various jurisdicons.

Other trademarks and logos menoned below are the properes of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Informaon

FCC Informaon

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The device is advised to note that as a seller or a business user (Class A) Devices and intended for use outside the Home area.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU, the LVD Directive 2014/35/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collecon

points. For more informaon see: www.recyclethis.info

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specific baery informaon. The baery is marked with this symbol, which may include leering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons"

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precauons to prevent potenal injury or material damage.

Warnings

• Proper conguraon of all passwords and other security sengs is the responsibility of the installer and/or end-user.
• In the use of the product, you must be in strict compliance with the electrical safety regulaons of the naon and region. Please refer to technical specicaons for detailed informaon.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100\~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical speciaons for detailed informaon.
• Do not connect several devices to one power adapter as adapter overload may cause over-heang or a re hazard.
• Please make sure that the plug is rmly connected to the power socket.
• If smoke, odor or noise rise from the device, turn o the power at once and unplug the power cable, and then please contact the service center.

Table of Contents

Chapter 1 Overview 7

Chapter 2 Geng Started....8

2.1 HDD Installaon....9
2.2 Accessing by Web Browser 10
2.3 Login....11

Chapter 3 Maintenance ....12

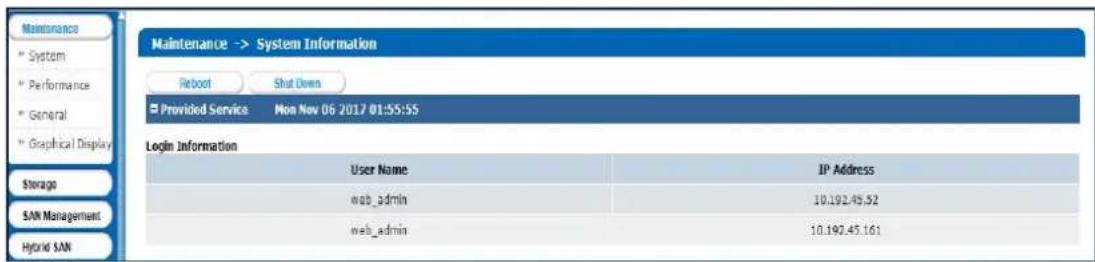

3.1 System 13

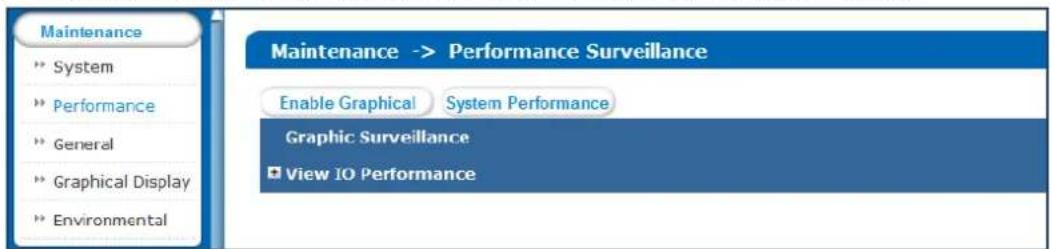

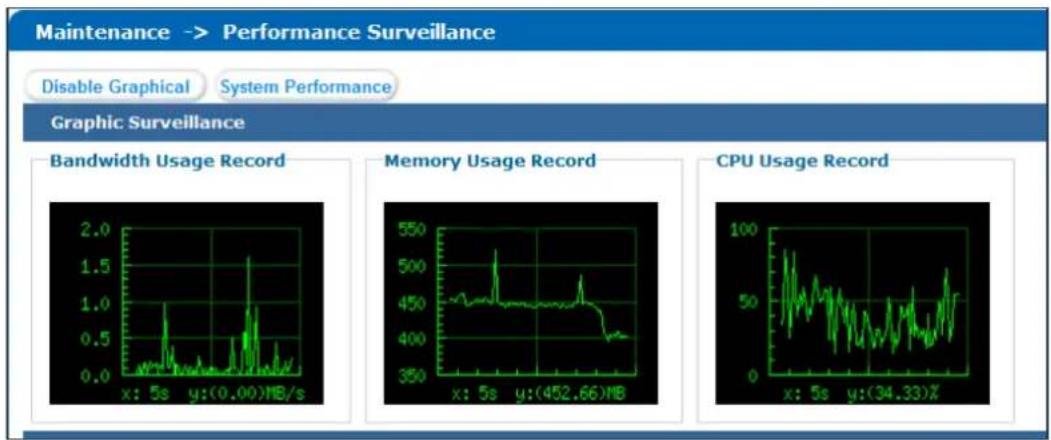

3.2 Performance....13

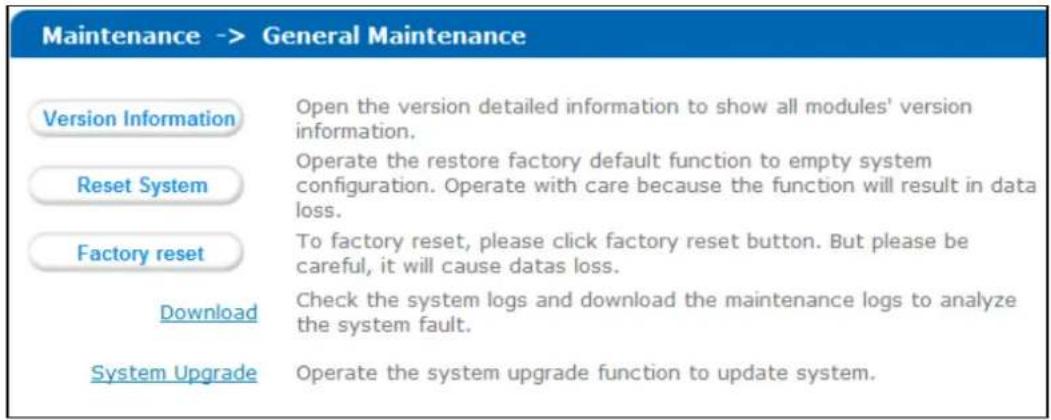

3.3 General 15

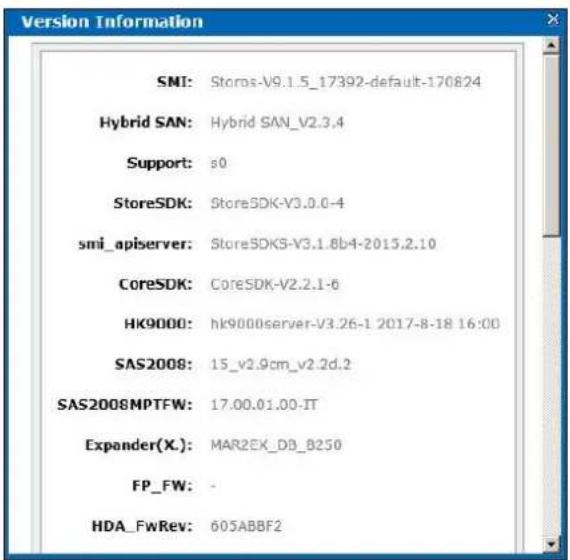

3.3.1 Viewing Version Informaon 15

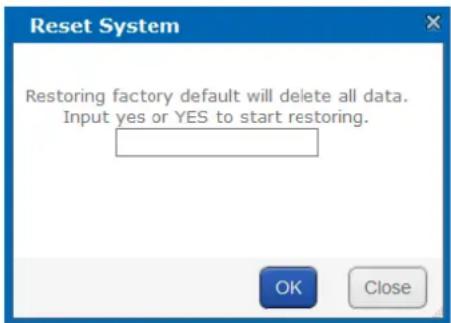

3.3.2 Default Sengs....16
3.3.3 Managing Maintenance Log....16

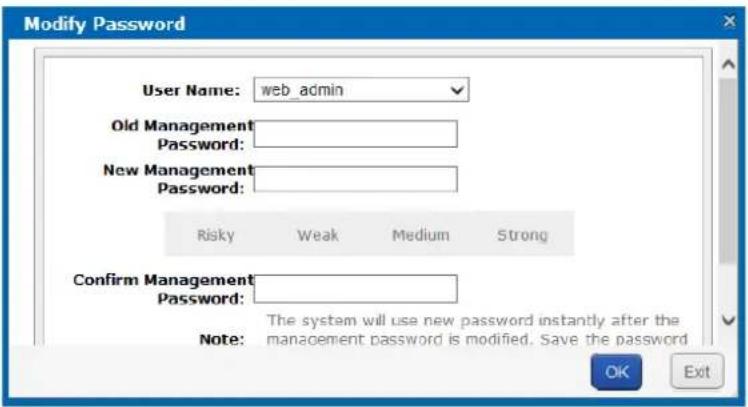

3.3.4 Modifying Password....16

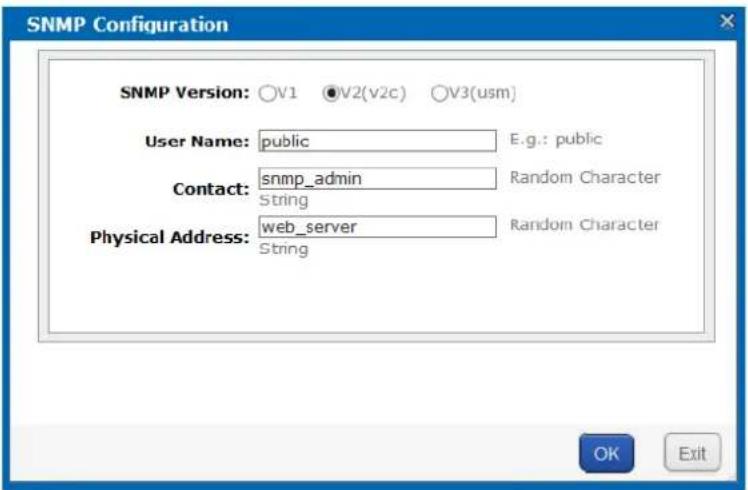

3.3.5 SNMP Conguraon 17
3.3.6 Modifying Host Name 17
3.3.7 Viewing Service Status....18

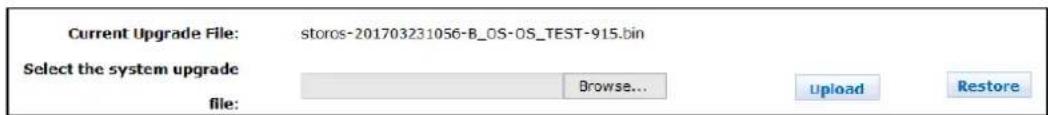

3.3.8 System Upgrade 18

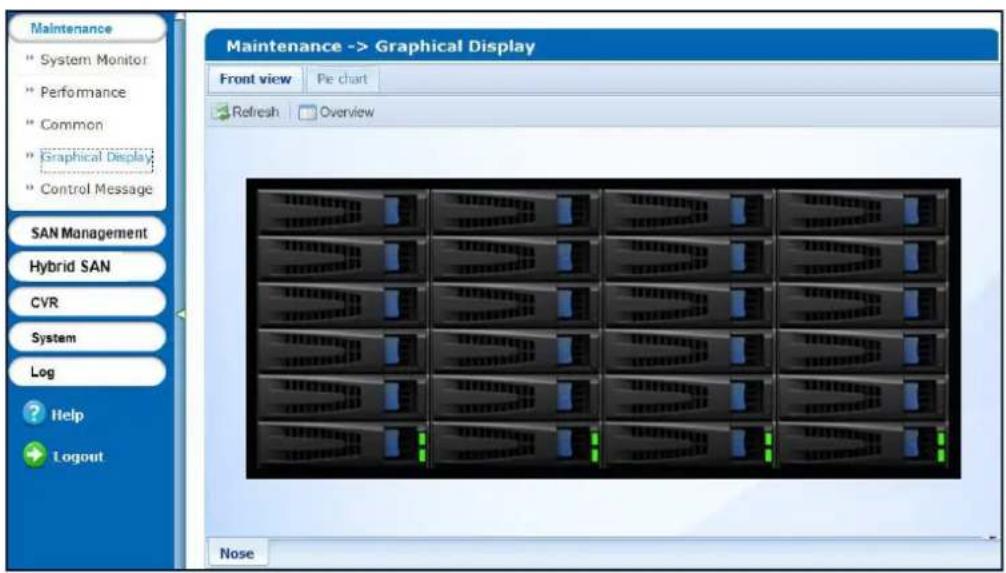

3.4 Graphical Display 19

3.4.1 Front View 19

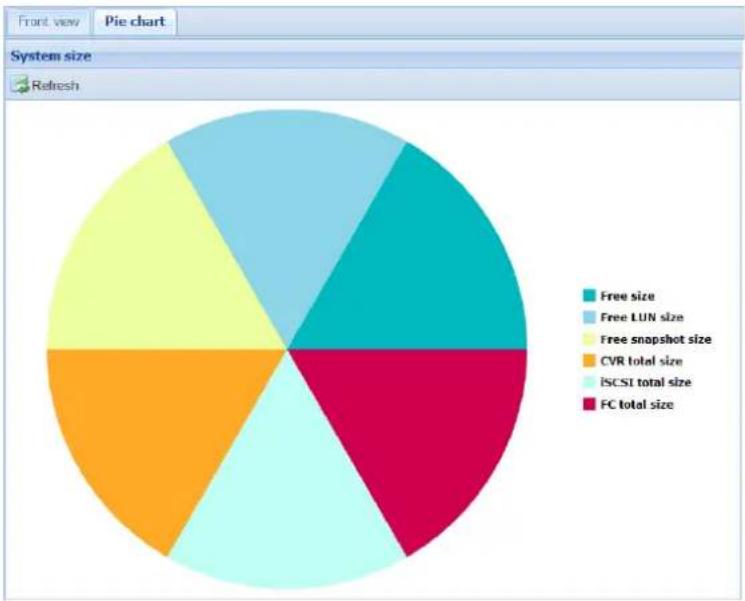

3.4.2 Pie Chart 20

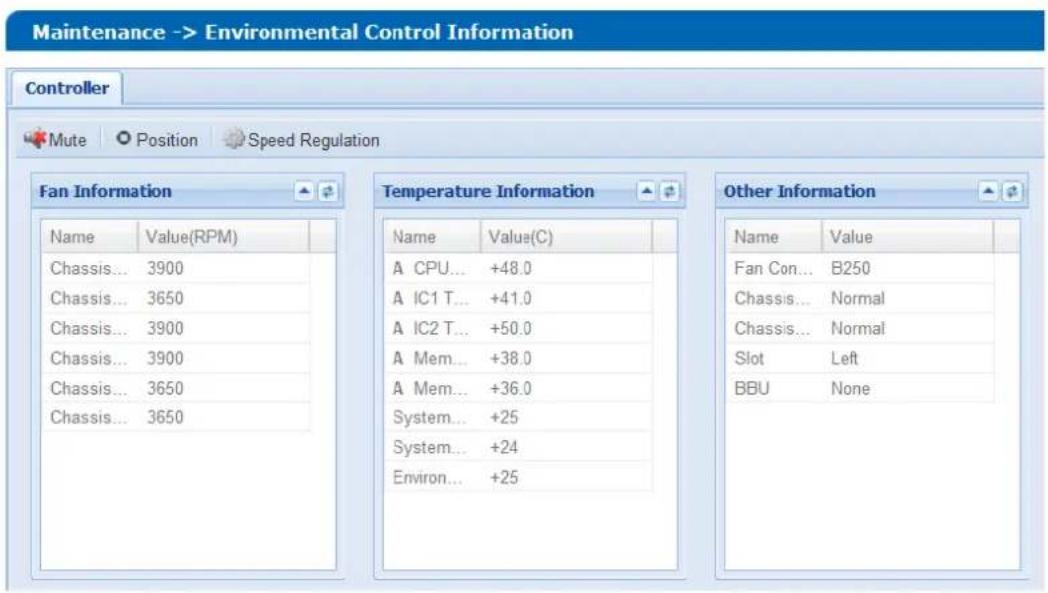

3.5 Environmental 20

Chapter 4 Storage Management....22

4.1 Managing Local HDD 23

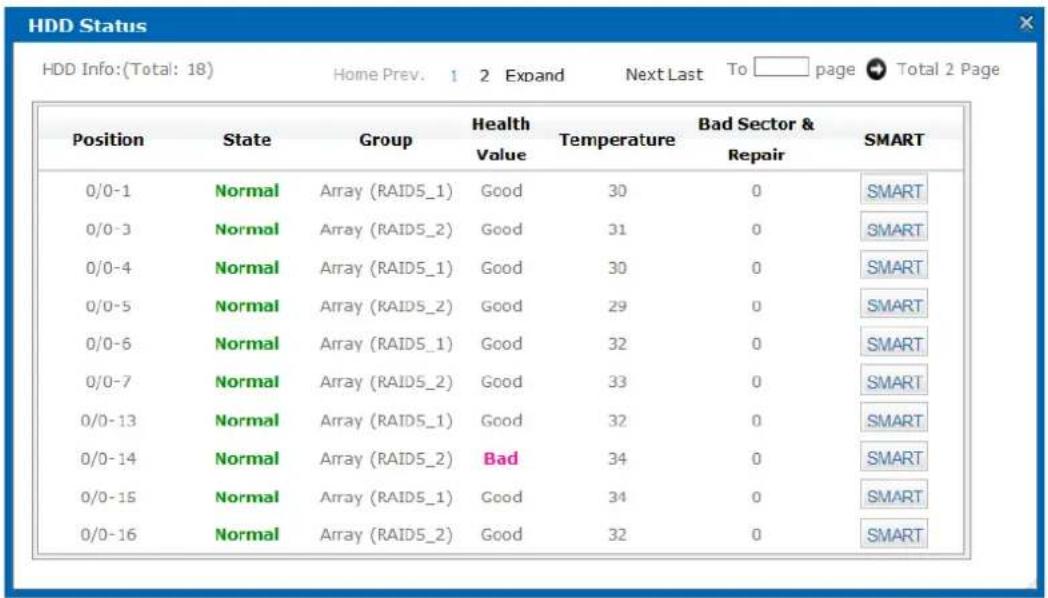

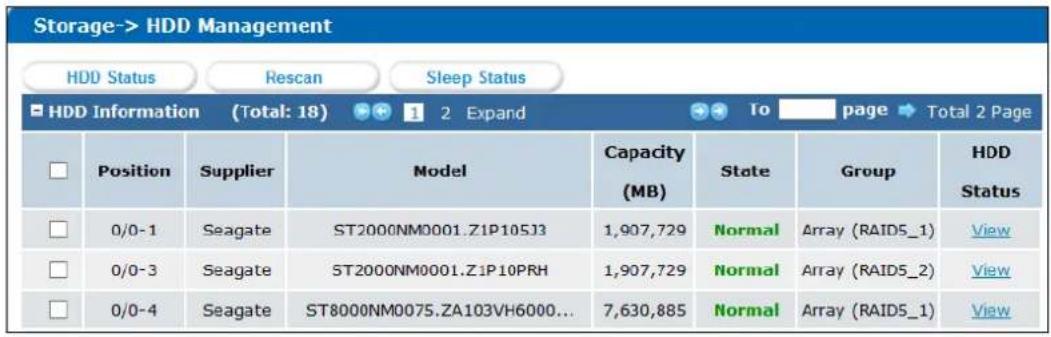

4.1.1 Viewing HDD Status....23
4.1.2 Rescanning HDD....24
4.1.3 Posioning HDD 24
4.1.4 HDD Inializaon 25

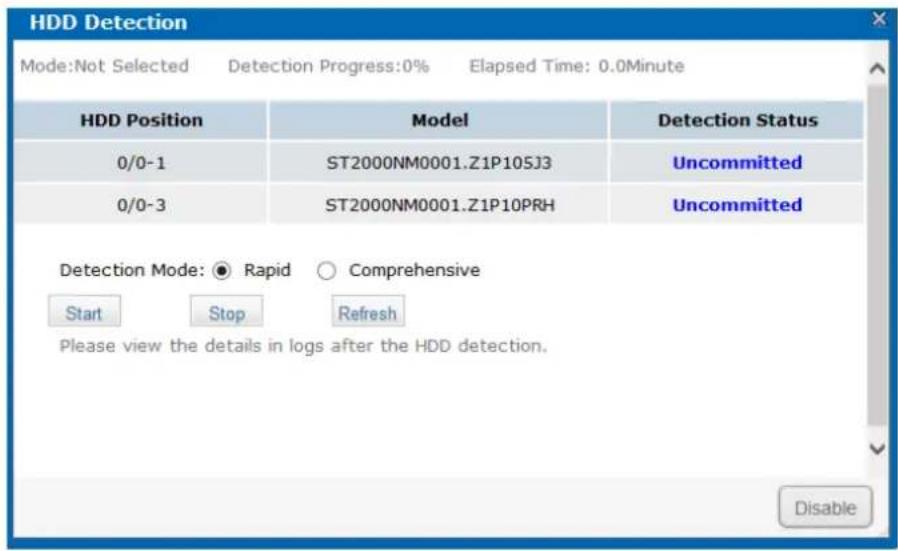

4.1.5 HDD Detecon 25

4.2 Array 26

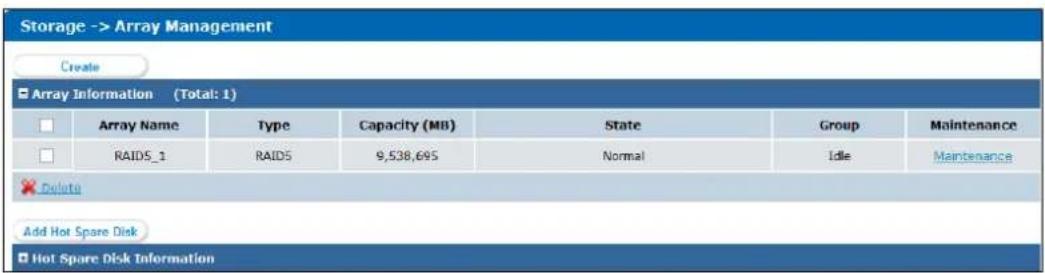

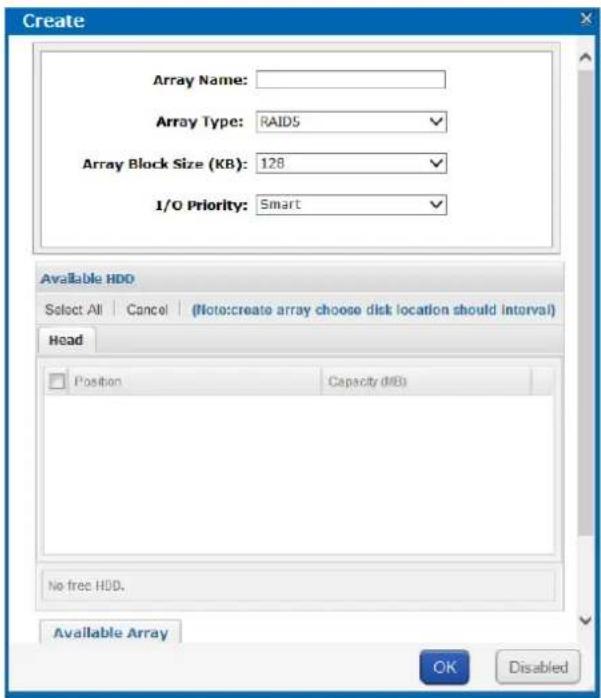

4.2.1 Creang Array 26
4.2.2 Array Excepon....28
4.2.3 Rebuilding Array....28
4.2.4 Detecng Array....29
4.2.5 Repairing Array 29
4.2.6 Renaming Array 29
4.2.7 Deleng Array 30

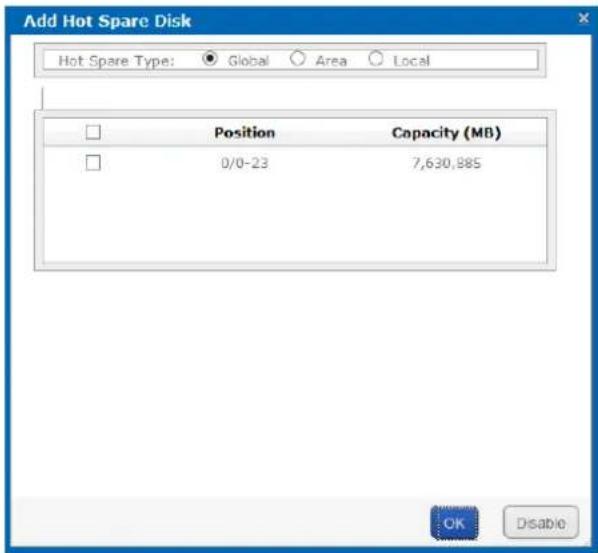

4.2.8 Adding Hot Spare 30
4.2.9 Deleng Hot Spare 31

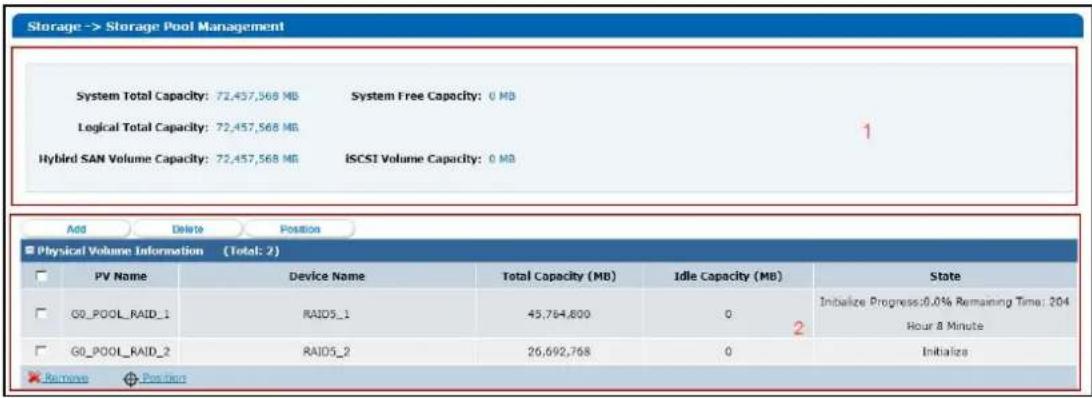

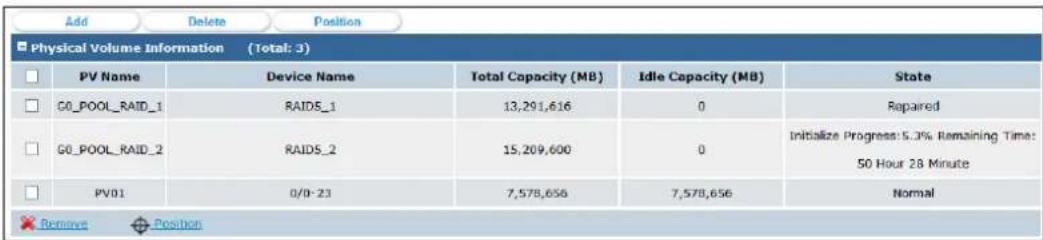

4.3 Storage Pool....31

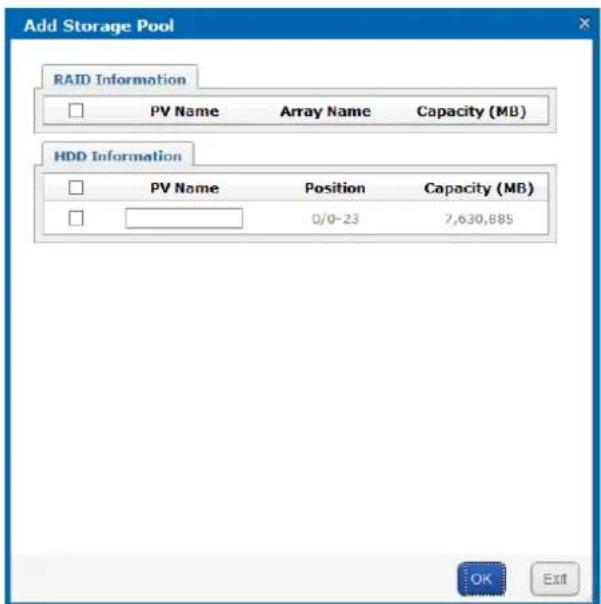

4.3.1 Adding Storage Pool....32
4.3.2 Deleng Storage Pool....33
4.3.3 Posioning Storage Pool 33

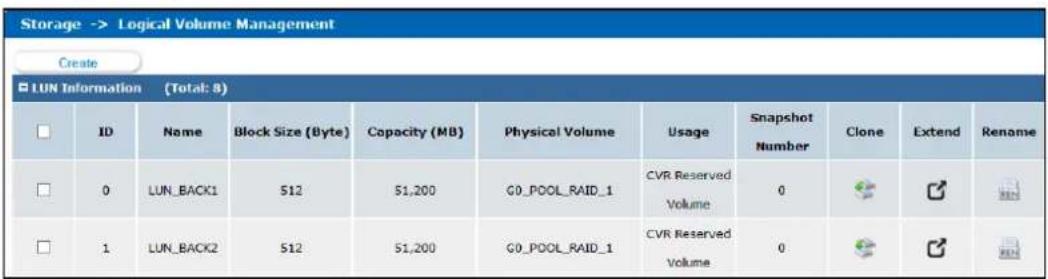

4.4 Logical Volume....33

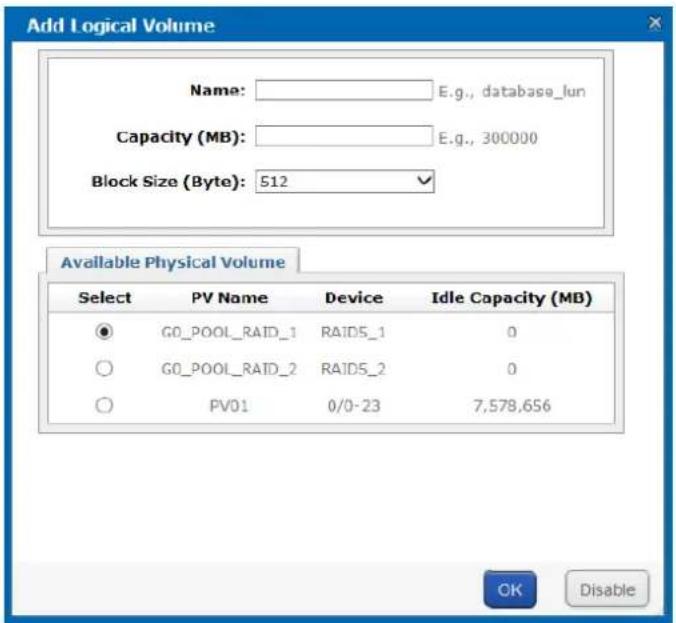

4.4.1 Creang Logical Volume....34
4.4.2 Deleng Logical Volume....34
4.4.3 Renaming Logical Volume 34

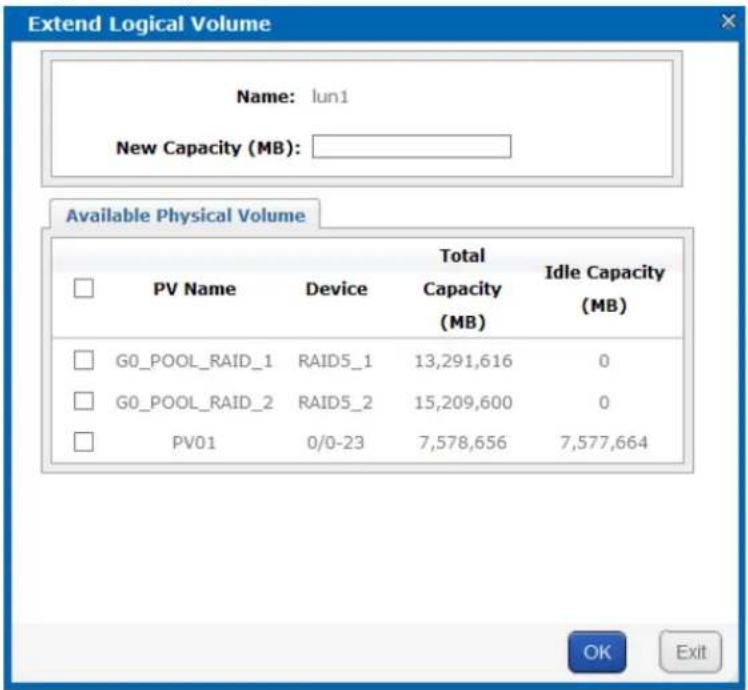

4.4.4 Enlarging Logical Volume 35

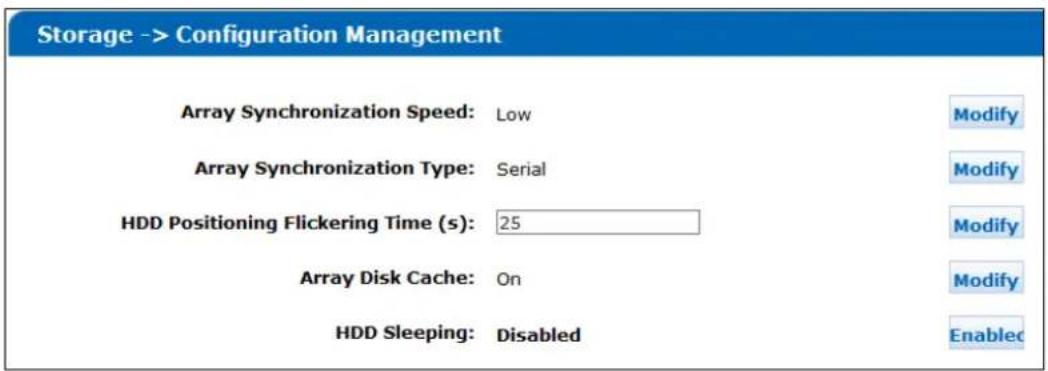

4.5 Conguraon....35

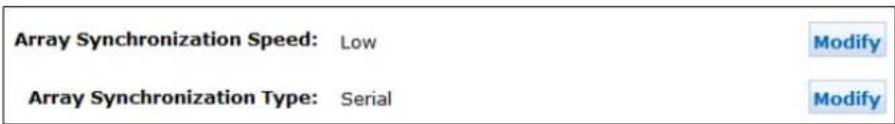

4.5.1 Synchronizaon Speed and Type 36
4.5.2 Flickering Time....36

Chapter 5 SAN ....37

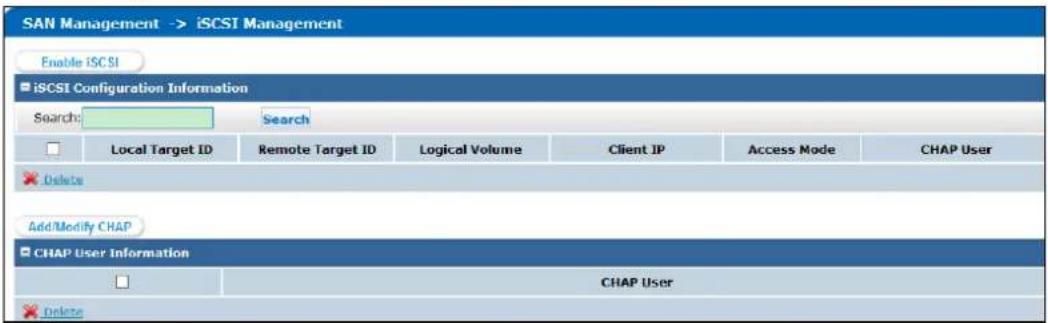

5.1 iSCSI....38

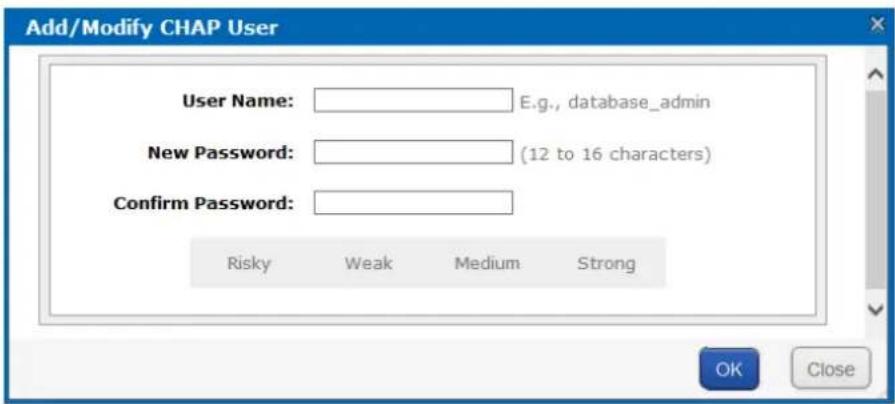

5.1.1 Adding CHAP User 38
5.1.2 Modifying CHAP User 38

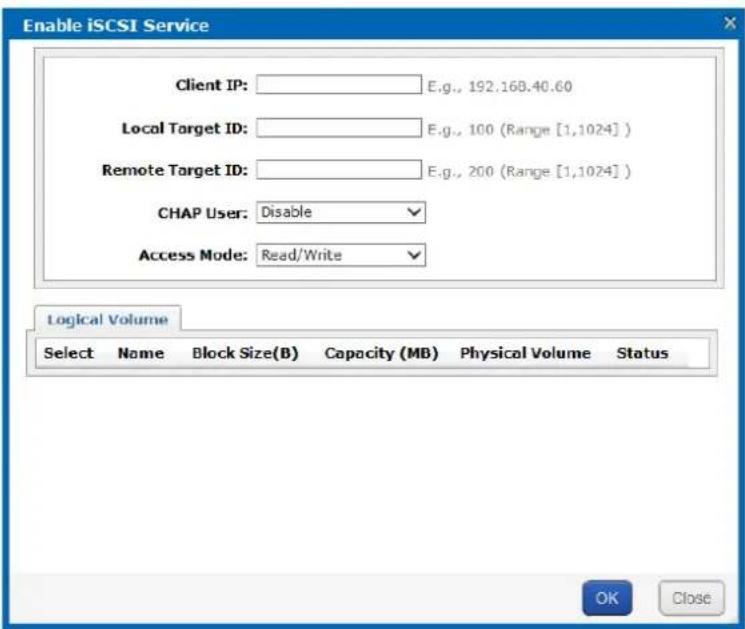

5.1.3 Enabling iSCSI....39
5.1.4 Disabling iSCSI....40

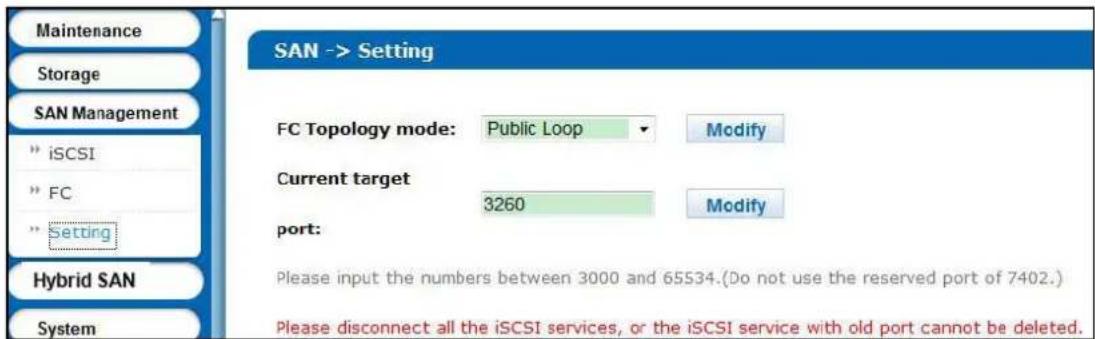

5.1.5 Modifying iSCSI Port....40

5.2 FC (Oponal)....40

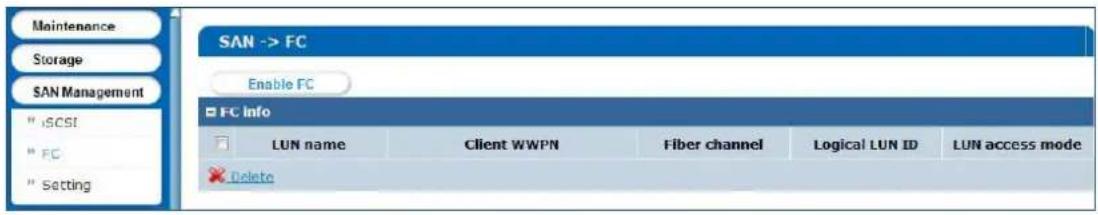

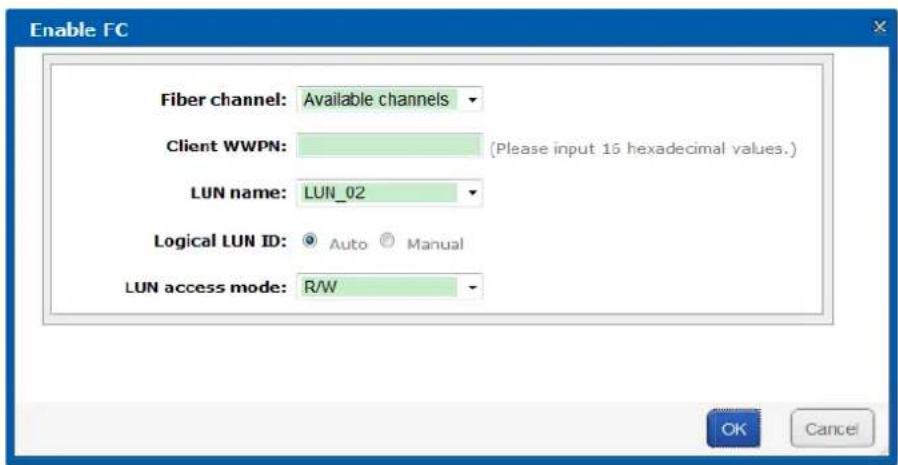

5.2.1 Enabling FC 41
5.2.2 Disabling FC....42

Chapter 6 HYBRID SAN....43

6.1 One-Key Conguraon 44

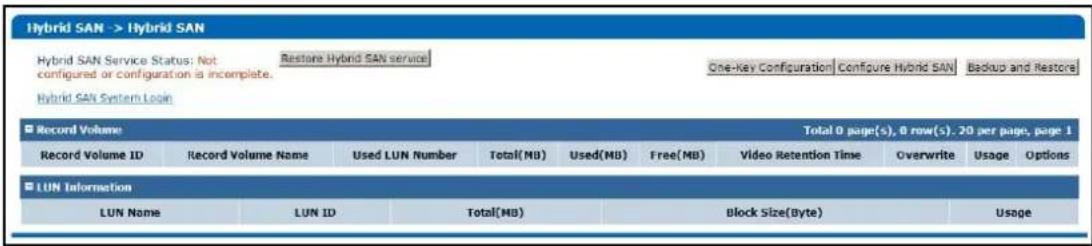

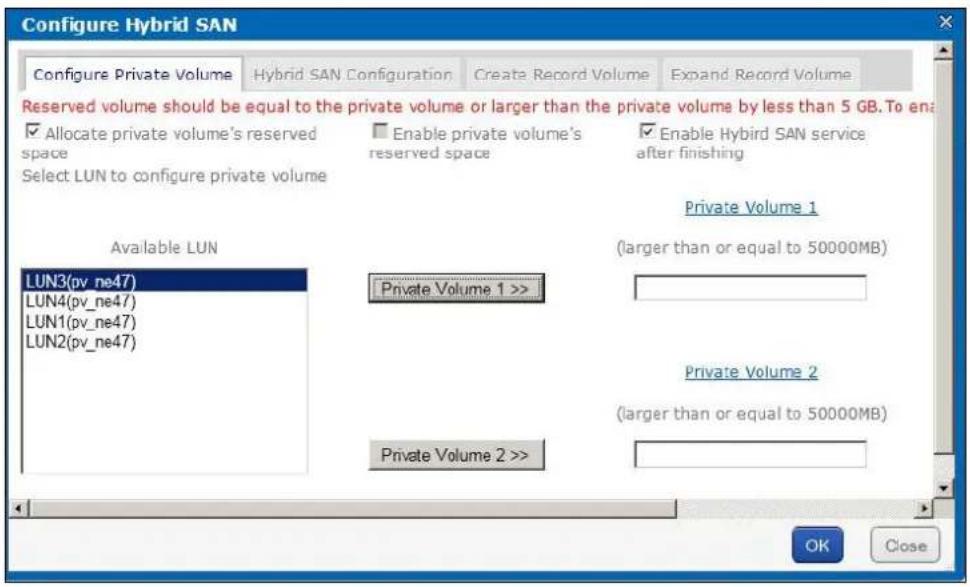

6.2 HYBRID SAN Conguraon 44

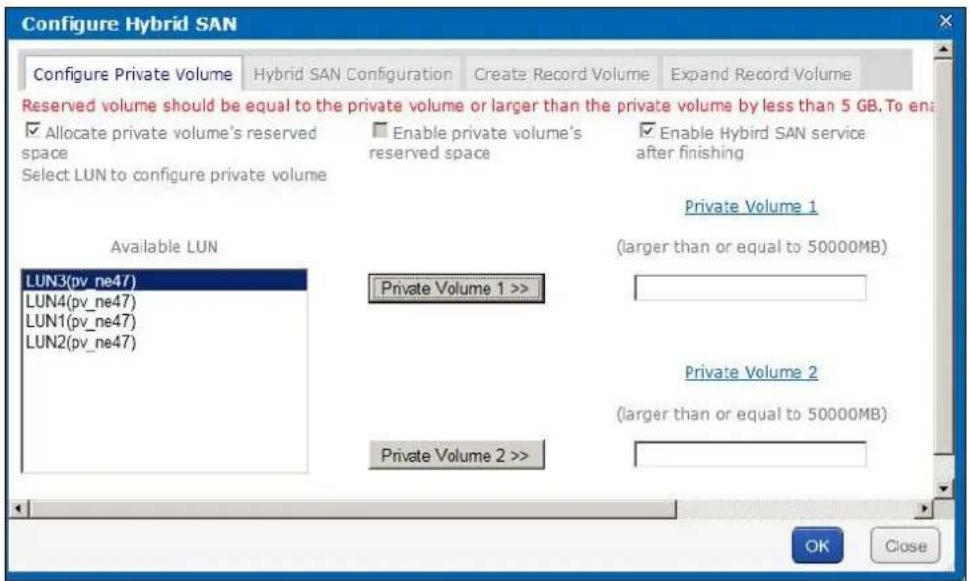

6.2.1 Starng HYBRID SAN 45

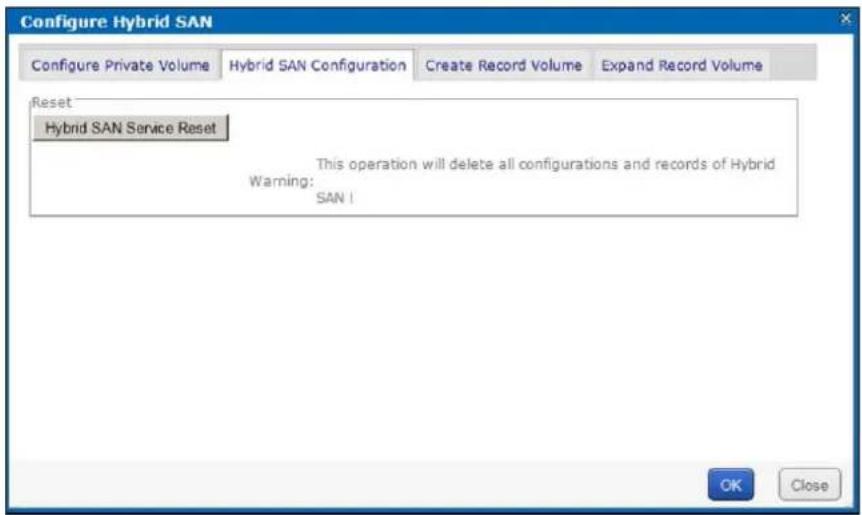

6.2.2 Reseng HYBRID SAN....47

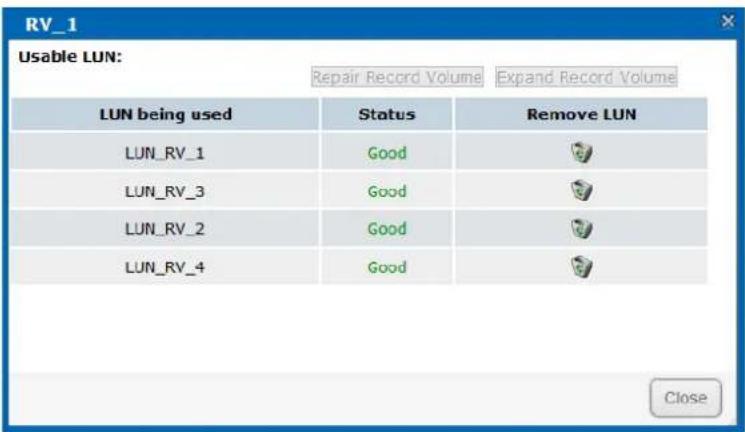

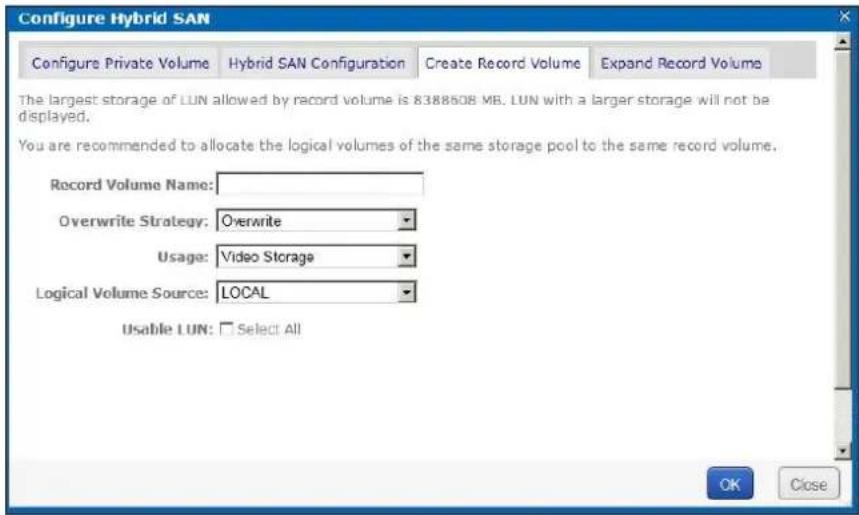

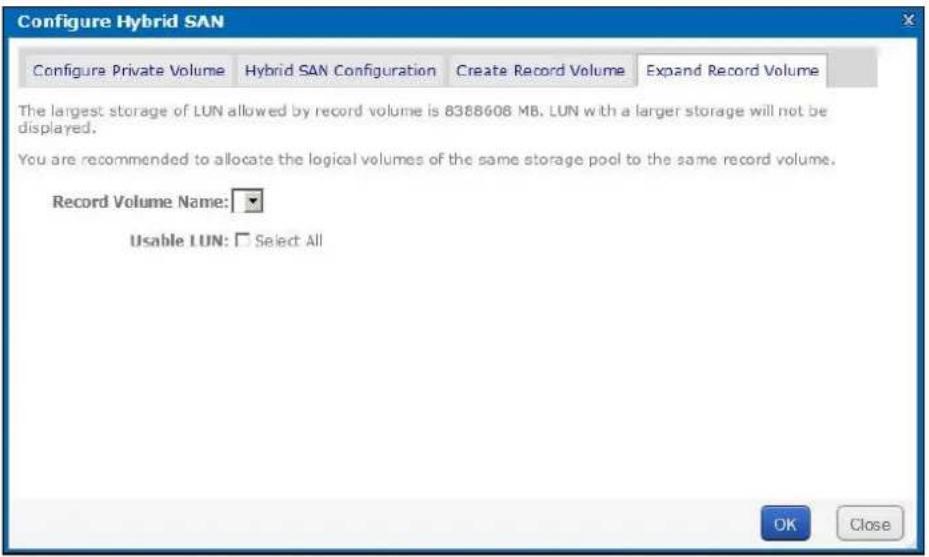

6.2.3 Record Volume....48

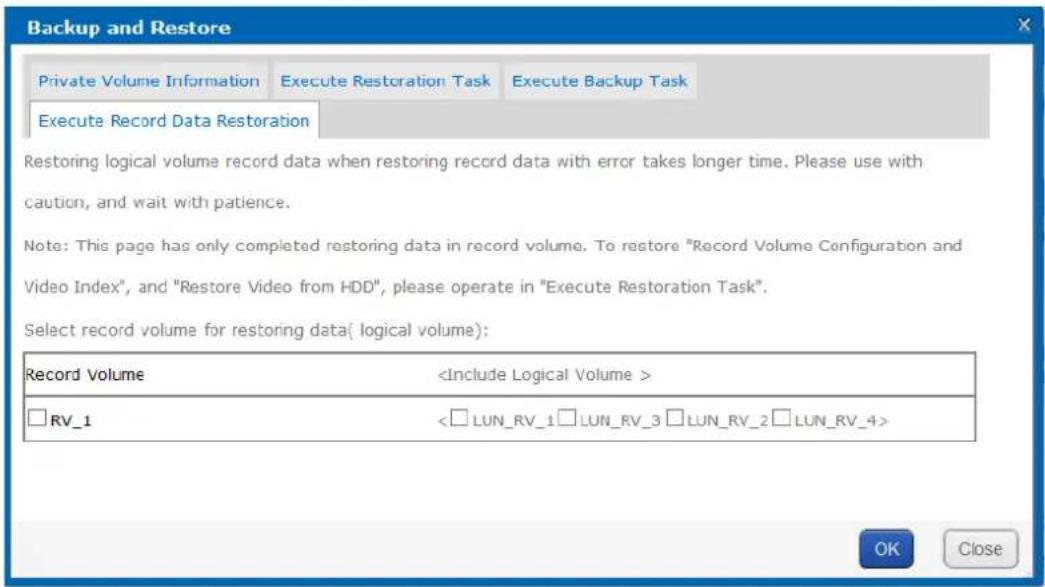

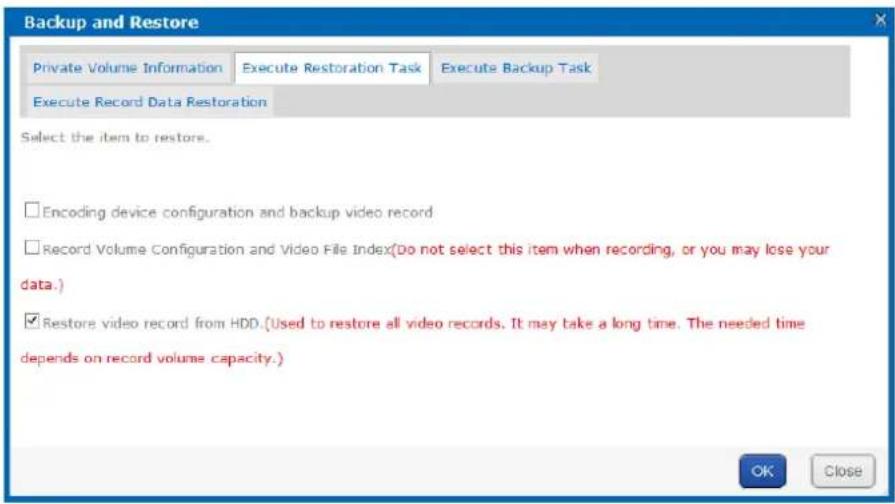

6.3 Backup and Restoring 50

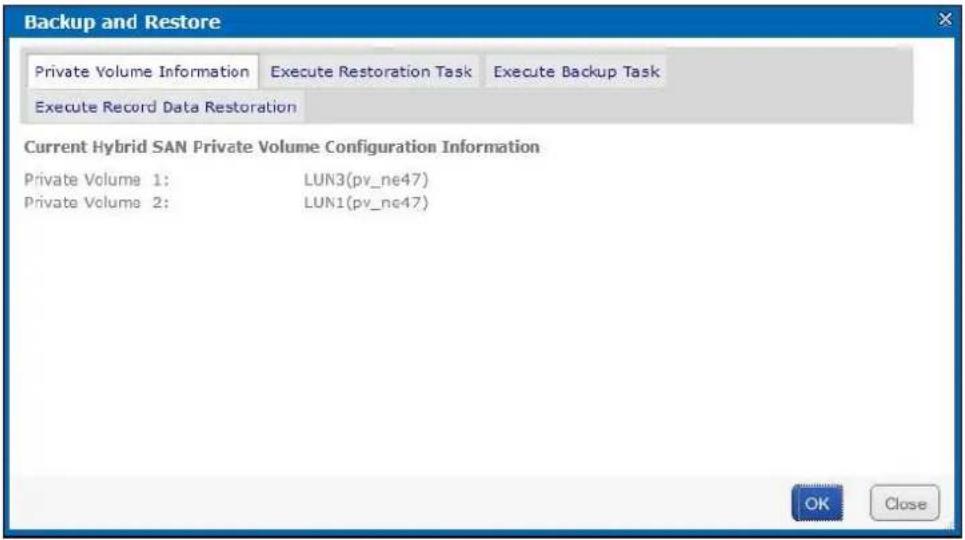

6.3.1 Viewing Private Volume Informaon....50
6.3.2 Restoring....51

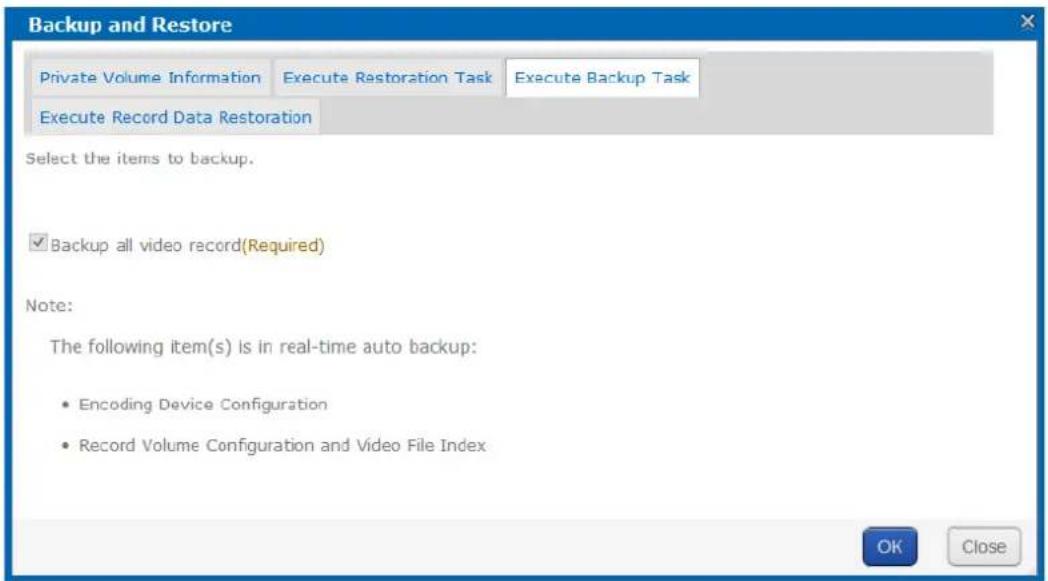

6.3.3 Backup 51
6.3.4 Recovering Video Data....52

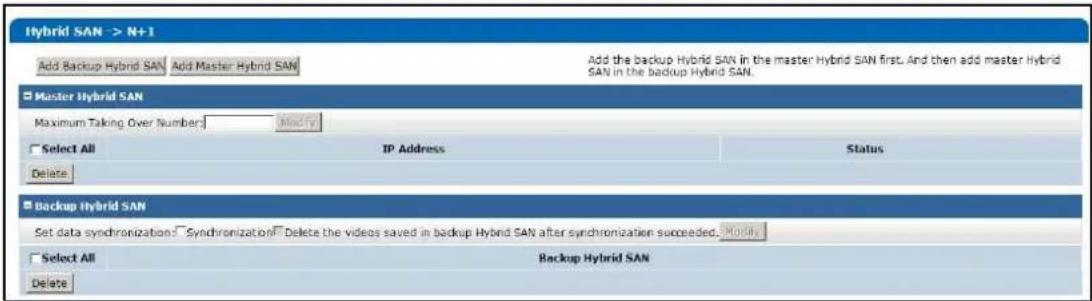

6.4 N+1 Management....53

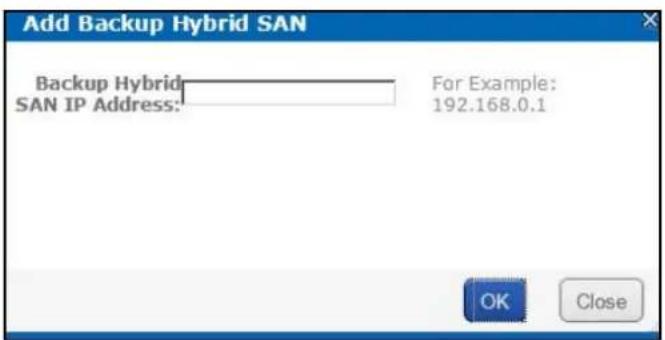

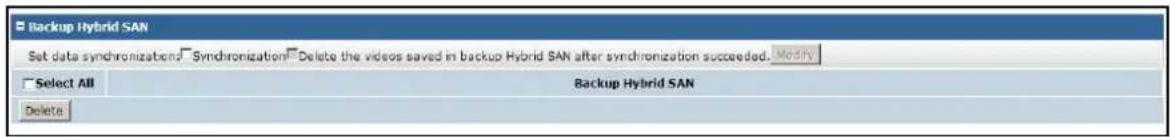

6.4.1 Adding Backup HYBRID SAN....53
6.4.2 Deleng Backup HYBRID SAN....54

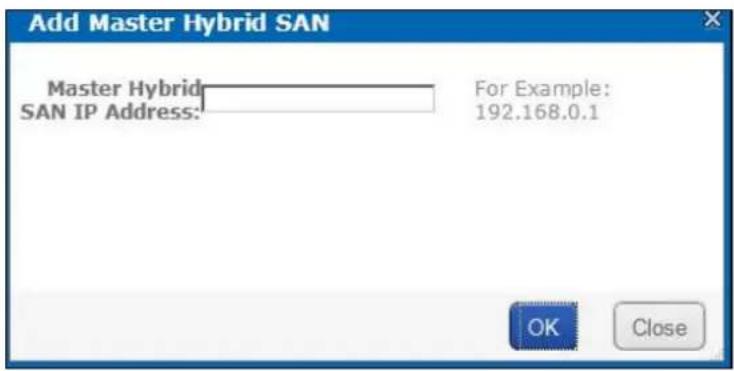

6.4.3 Adding Master HYBRID SAN 54

Chapter 7 HYBRID SAN Sub-System....56

7.1 Access by Web Browser....57

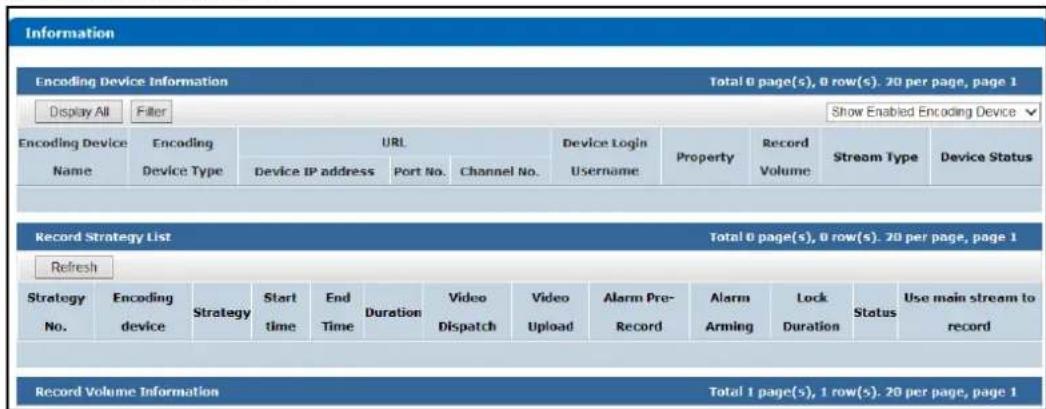

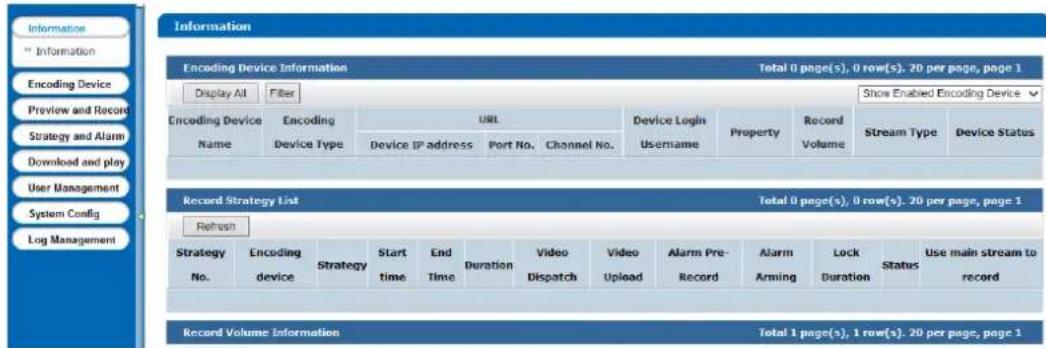

7.2 Informaon....57

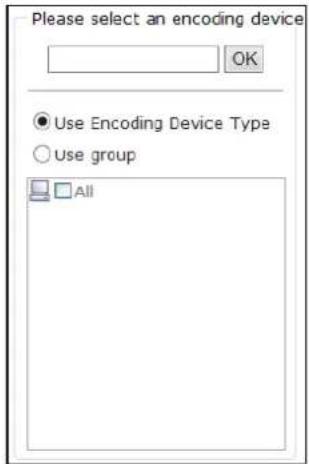

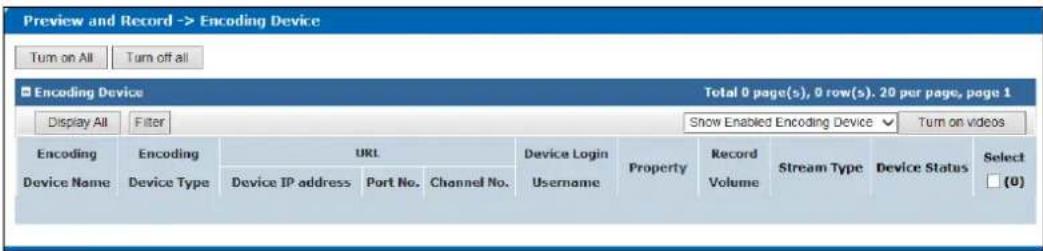

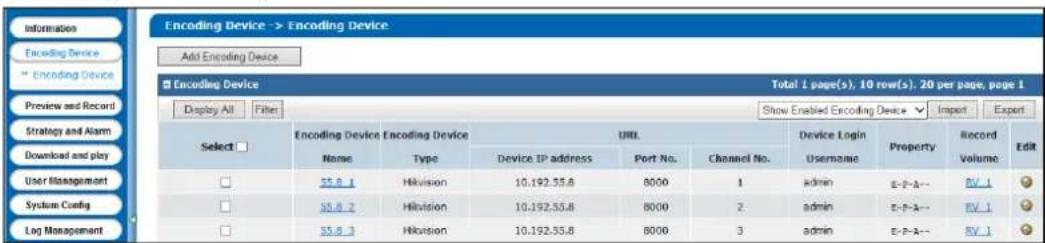

7.3 Encoding Device 58

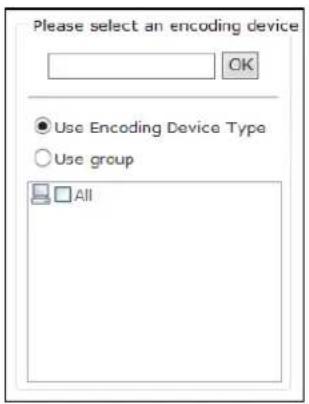

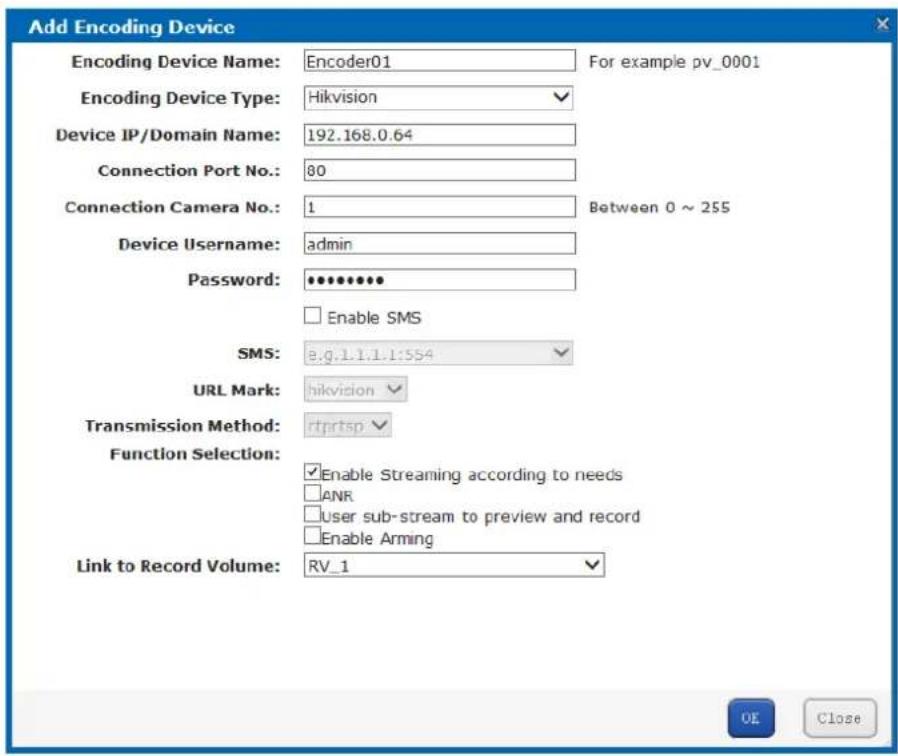

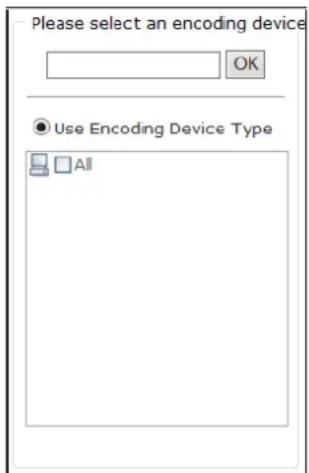

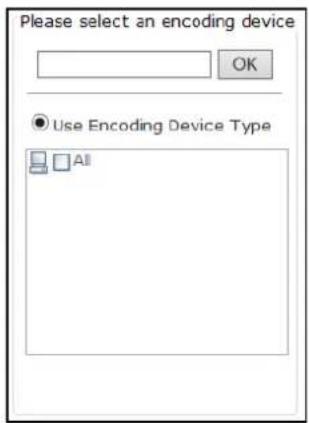

7.3.2 Adding Encoding Device....58
7.3.3 Modifying and Deleng 59

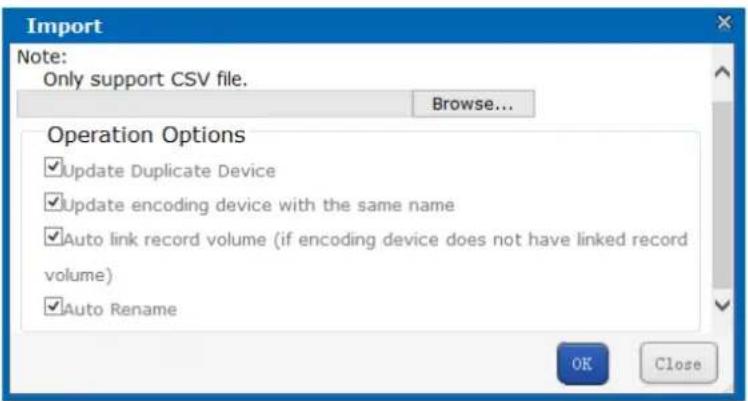

7.3.4 Exporng and Imporng Encoding Device....60

7.4 Previewing and Recording 61
7.5 Strategy and Alarm 62

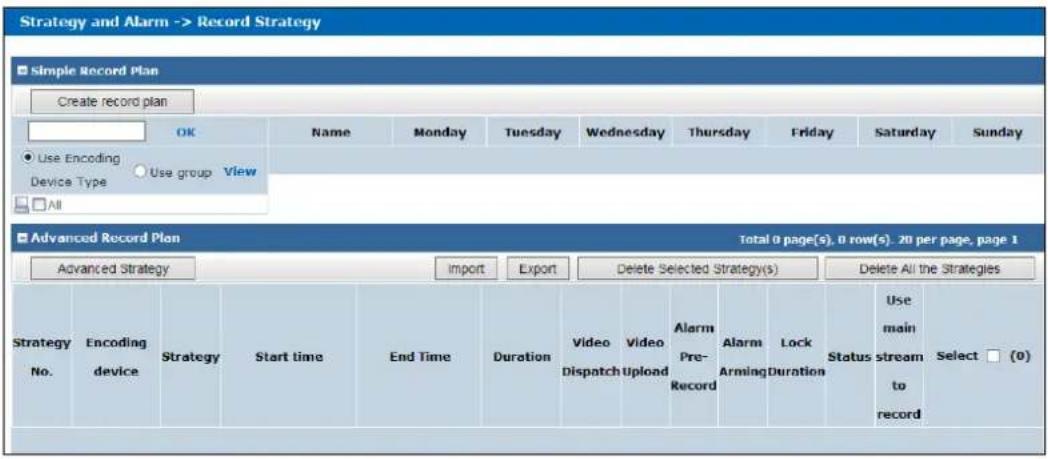

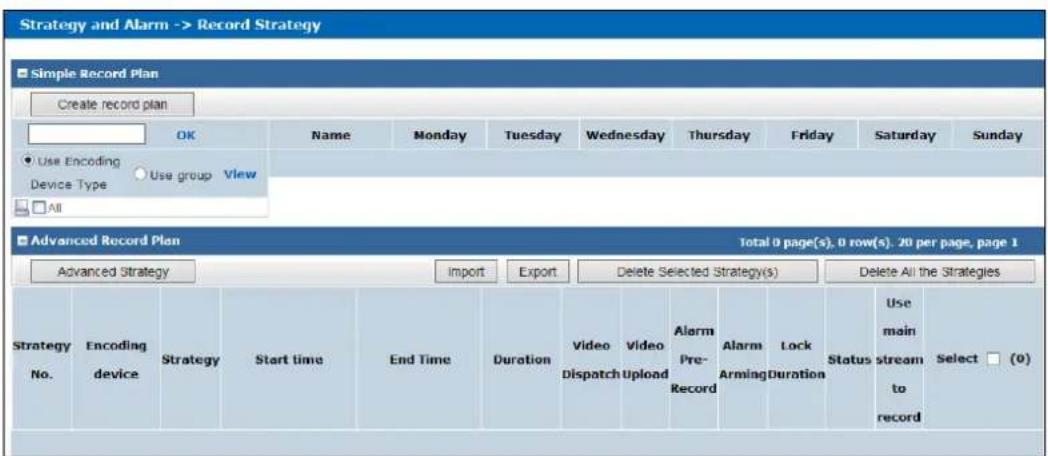

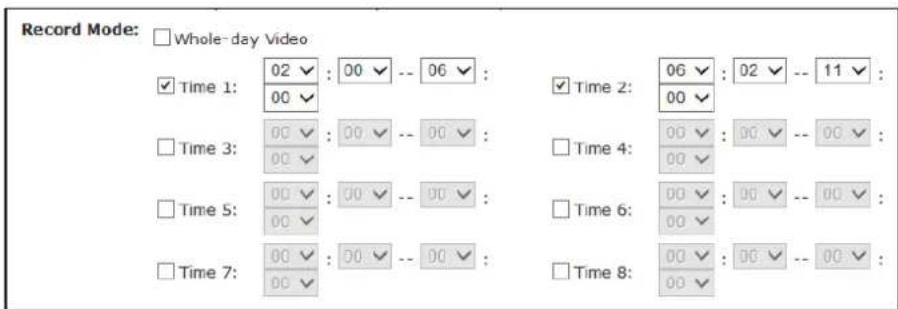

7.5.1 Record Plan....62

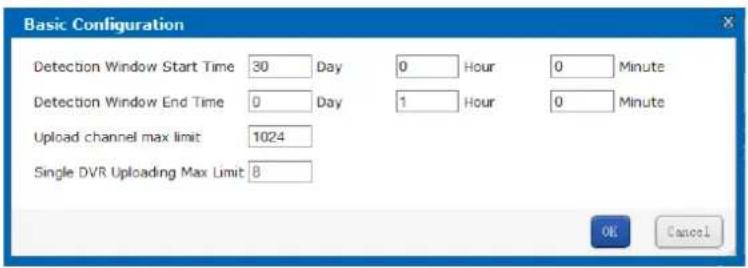

7.5.2 Upload Strategy....65

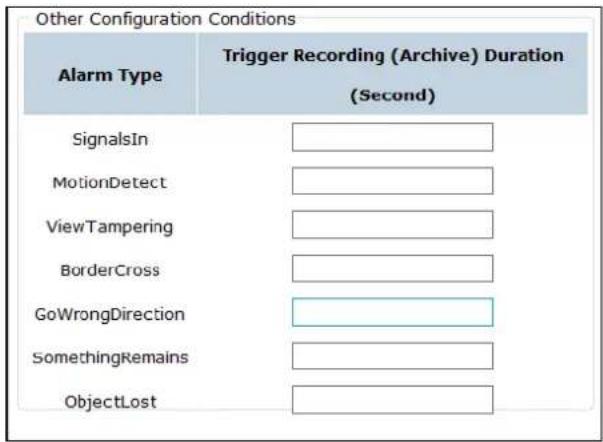

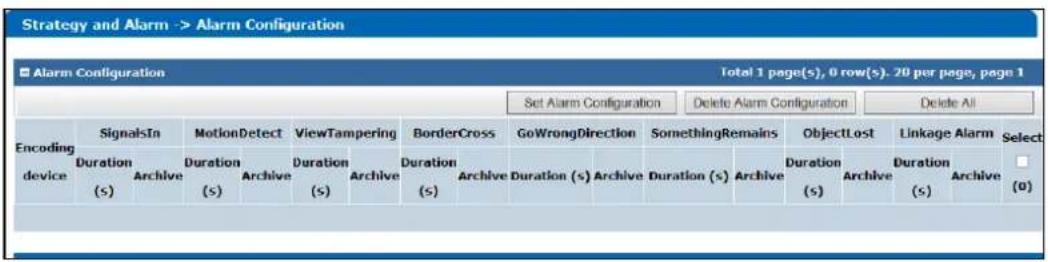

7.5.3 Alarm 67

7.6 Playing and Downloading 69

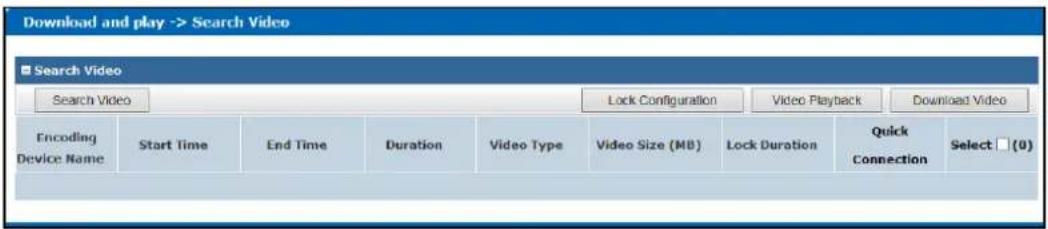

7.6.1 Searching Video 69

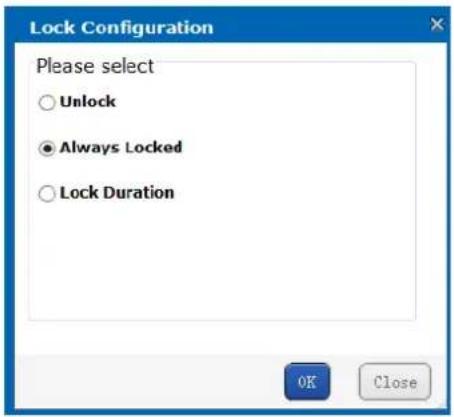

7.6.2 Locking Videos....69

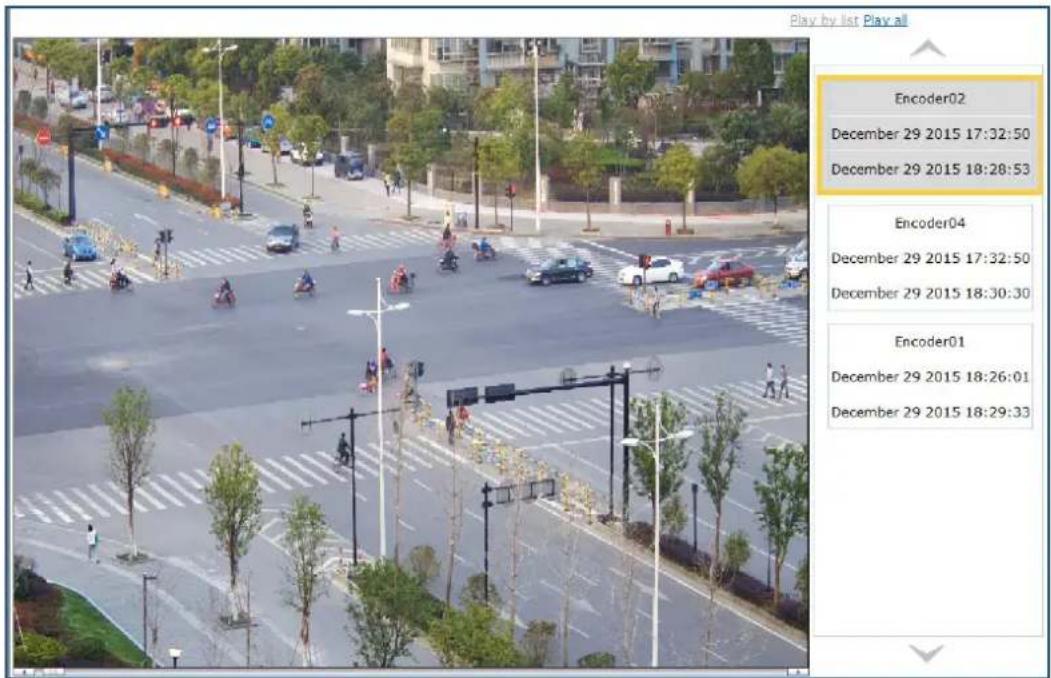

7.6.3 Playing Videos....70

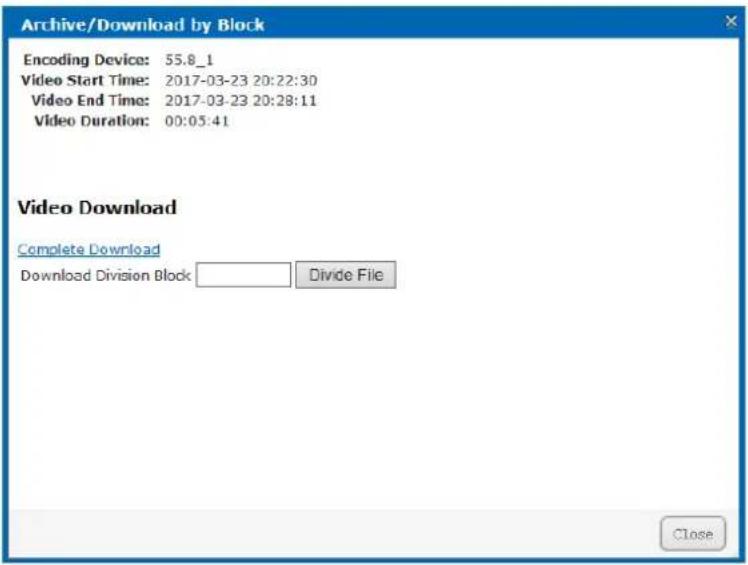

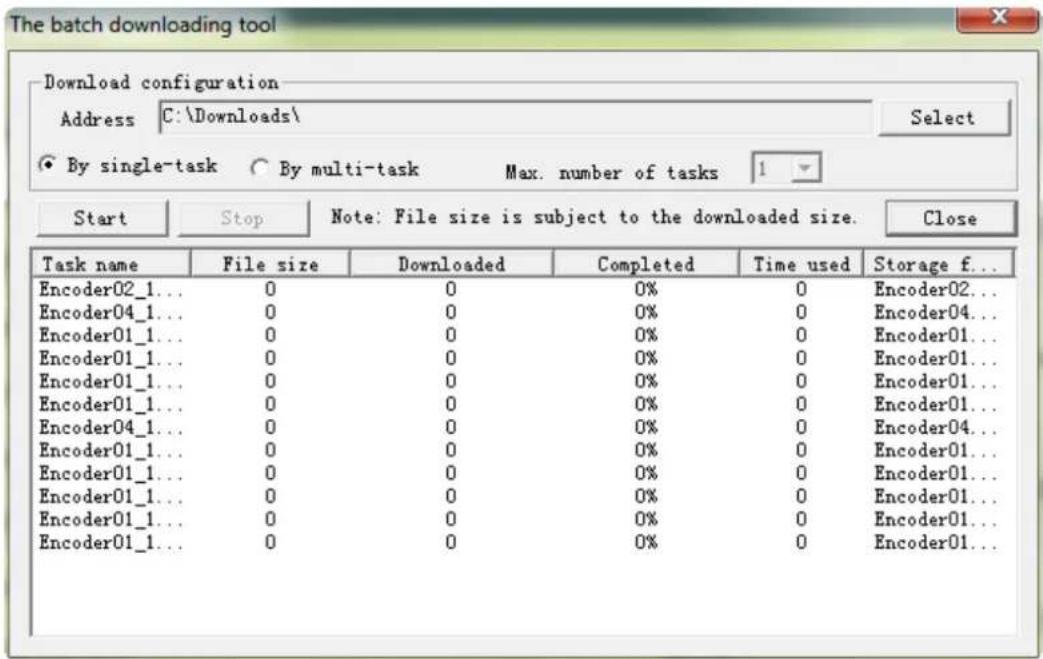

7.6.4 Downloading Videos....72

7.7 User 74

7.8 System Conguraon....74

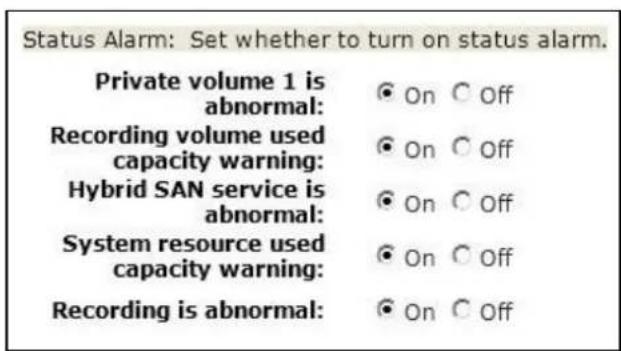

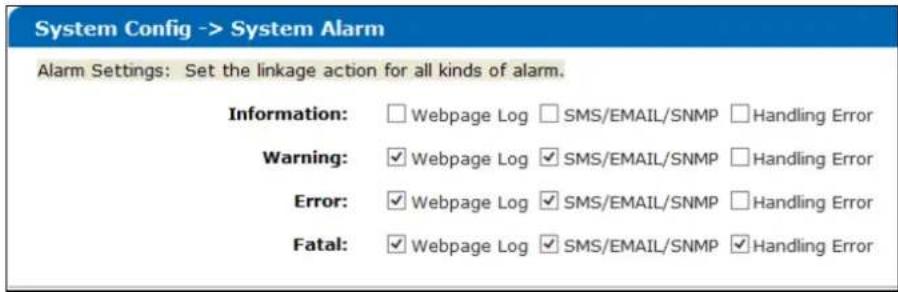

7.8.1 System Alarm 74

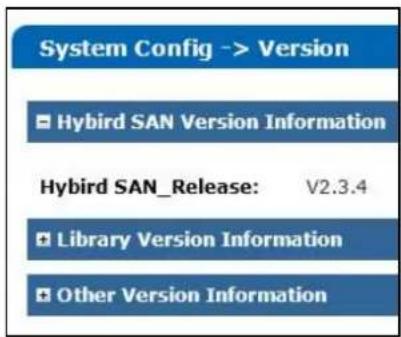

7.8.2 HYBRID SAN Version 75

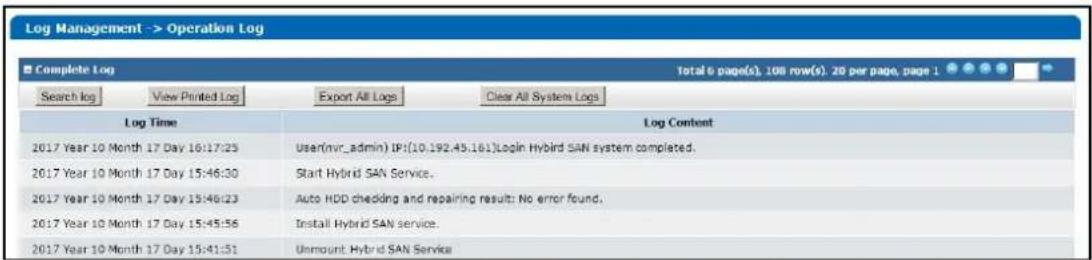

7.9 Log Management....76

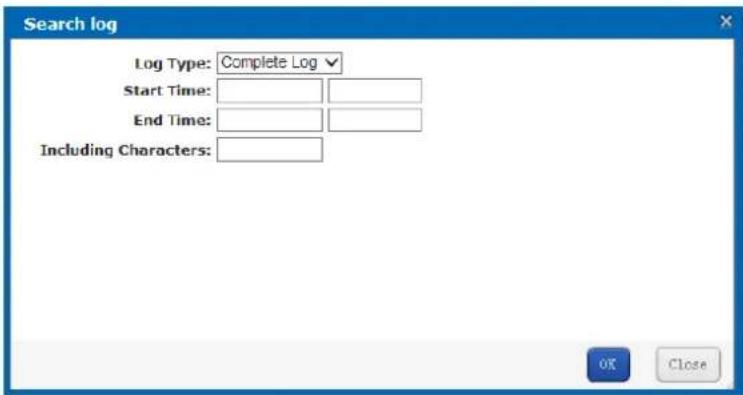

7.9.1 Searching Log....76

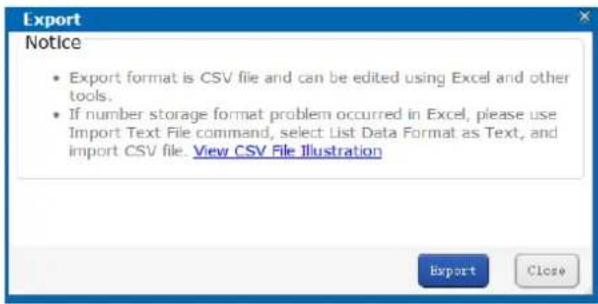

7.9.2 Exporng Log....77
7.9.3 Clearing Log 77

Chapter 8 System....78

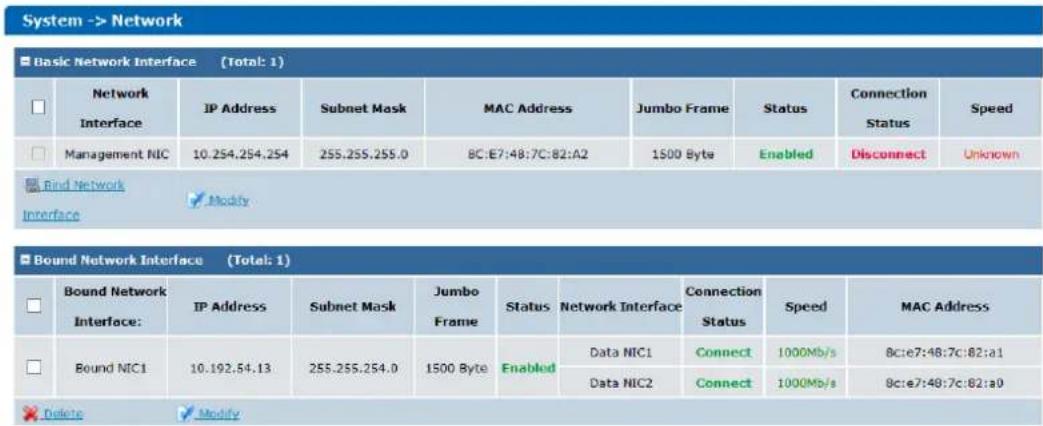

8.1 Network....79

8.1.1 Modifying Data Network Interface 79

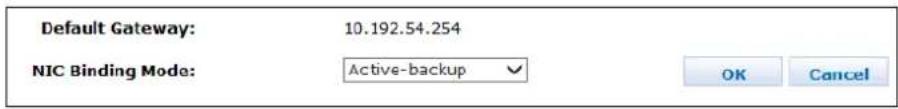

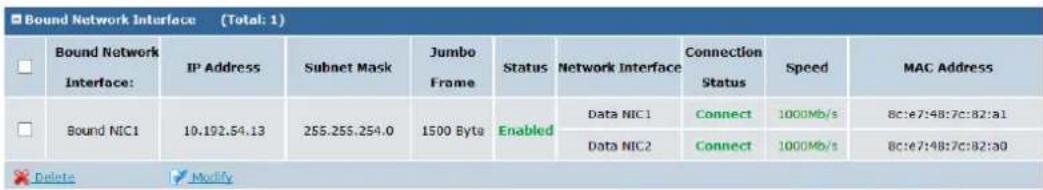

8.1.2 Binding Network Interfaces 79

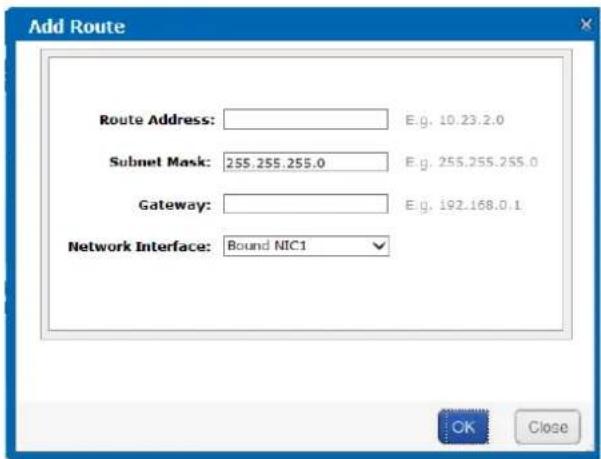

8.1.3 Adding Route 80

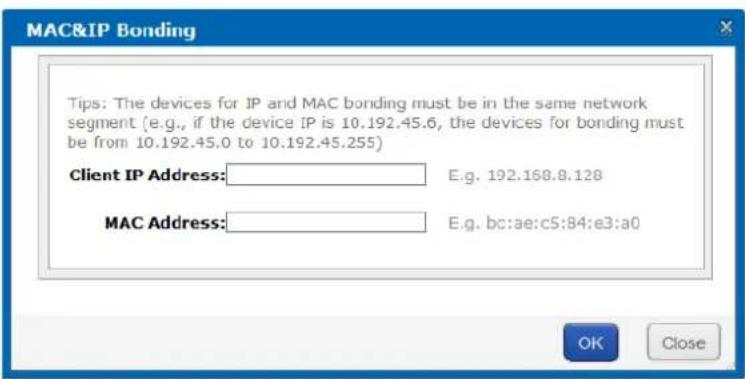

8.1.4 MAC and IP Bonding 81
8.1.5 Advanced Parameters 81

8.2 Alarm....84

8.2.1 Alarm Type 84
8.2.2 Adding Email....86
8.2.3 Tesng Email 87

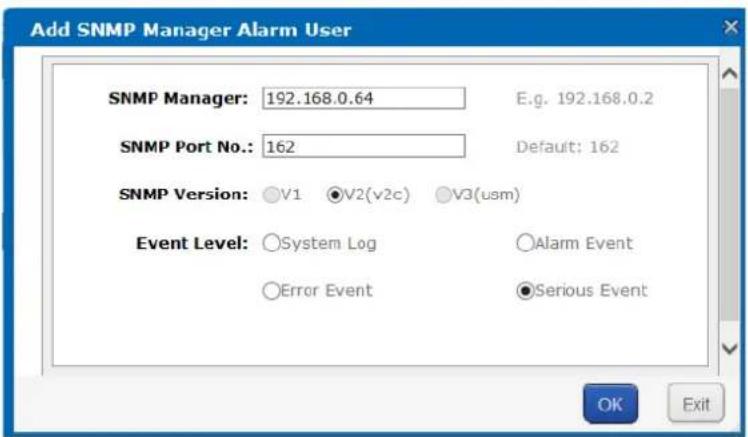

8.2.4 Adding SNMP Manager....87
8.2.5 Tesng SMTP Manager 88

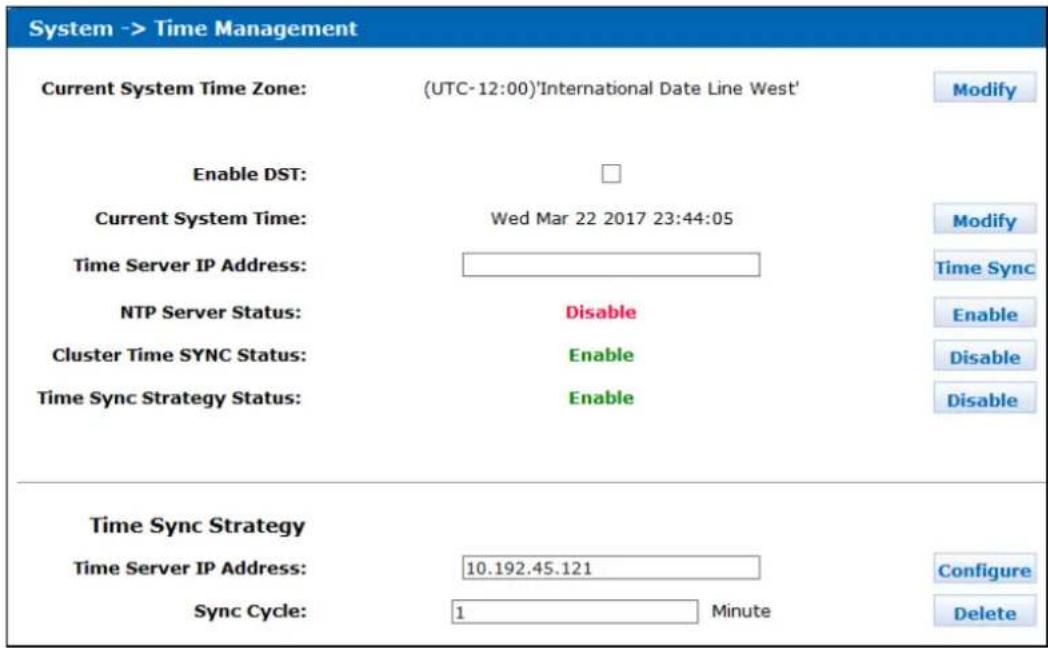

8.3 Time 88

8.3.1 Adjusting System Time....88

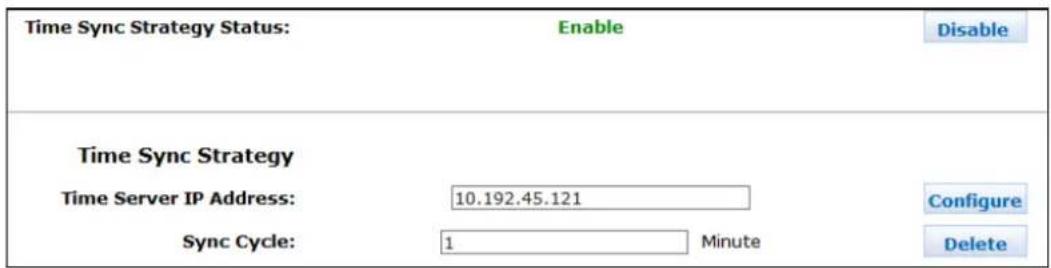

8.3.2 Synchronizing Time....89

Chapter 9 Log....90

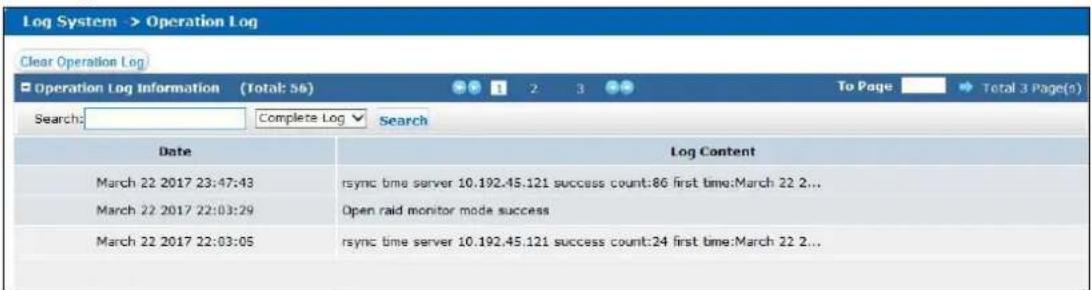

9.1 Operaon Log....91

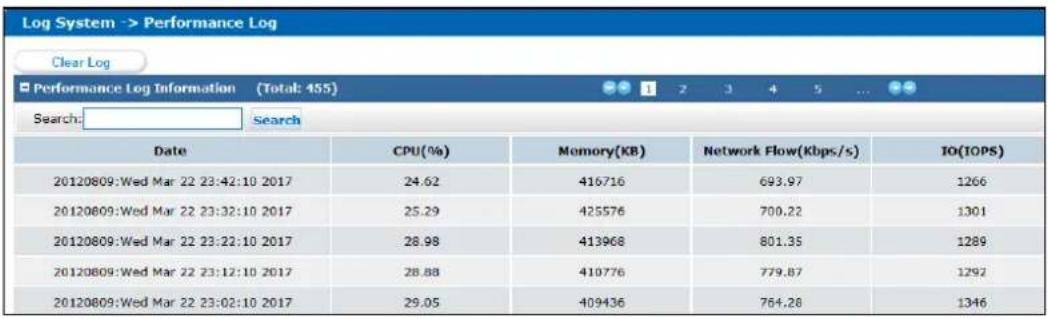

9.2 Performance Log....91

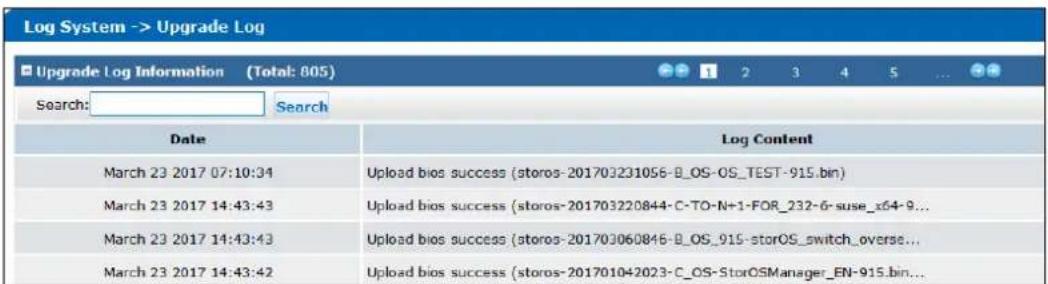

9.3 Upgrade Log....92

Chapter 1 Overview

Purpose:

DS-A80&81 series storage system is a high-performance and highly reliable storage system. Designed with four enterprise-class gigabyte network interfaces, it provides a bandwidth with 4 to 8G bps transmission capability and a huge storage space. It is integrated with multiple advanced technologies, including a 64-bit hexa-core processors, stable architecture, and the RAID 6 storage technology, thus to run reliably and protect user data security eecvely.

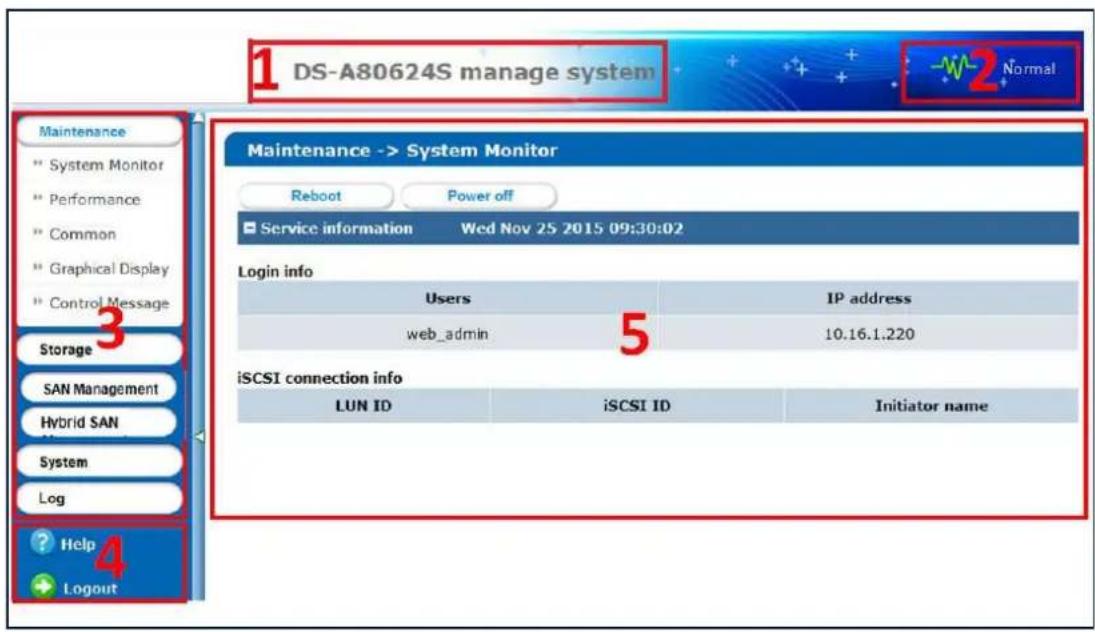

Figure 1. 1 GUI and Table 1. 1 GUI Introducon introduce the elements appear in the GUI (Graphical User Interface) and clarify names for each element.

Figure 1.1 GUI

Table 1.1 GUI Introducon

No.	Name	Descripon
1	Banner and device model	Shows the device model.
2	Running status	A shortcut for obtaining the real-me running status.
3	Navigaon Bar	Lists the storage system menu.
4	Help and logout	A shortcut for accessing user manuals, downloading soware, and logout.
5	Operaon window	Lists the parameters. You can congure parameters in the area.

Chapter 2 Geng Started

Purpose:

The chapter introduces HDD installaon steps, web browser access steps, and login steps.

Table 2.1 Module Descripon

Module	Descripon
HDD Installaon	Describes the steps of HDD installaon.
Web Browser Access	You can get access to the storage system via a server with the web browser installed.
Login	Introduces login storage system steps.

Key Words:

HDD Installaon, Web Browser Access, Login

2.1 HDD Installaon

In the event of device appearance shown in following steps conicts with real device, the later prevails.

Before you start:

Prepare the following equipment and accessories.

• A storage system
• Hard HDDs
  ● A pair of an-stac gloves
• A screwdriver

Steps:

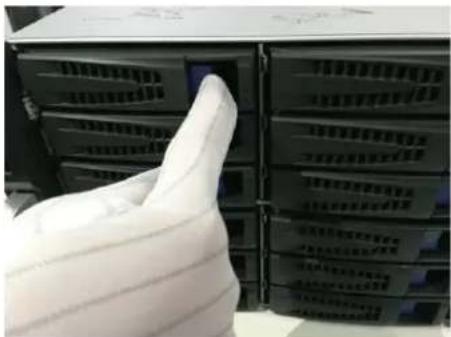

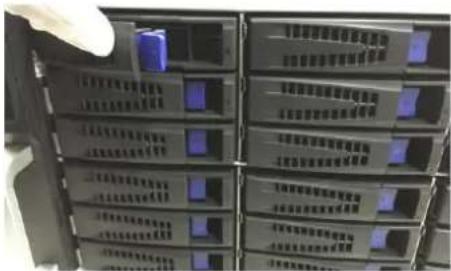

1. Press the blue buon. Then the handle pops up.

Close-up of a hand pointing at a server rack with multiple drive bays (no visible text or labels)

Figure 2.2 Press the Blue Buon

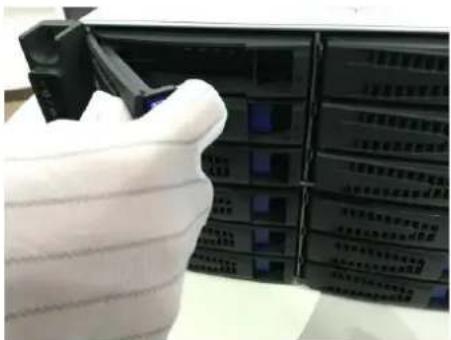

1. Hold the hander and pull the HDD dummy out of the slot.

Figure 2.3 Pull out the HDD Dummy

1. Use the screwdriver to uninstall the bae in the bottom of HDD slot.

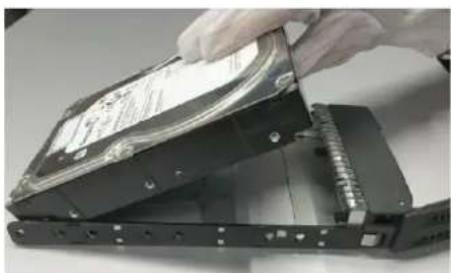

2. Place an HDD in the HDD dummy. The SATA interface must face the HDD dummy rear.

Close-up of a hand installing or adjusting a hard disk drive into a mechanical housing (no visible text or symbols)

Figure 2.4 Place HDD

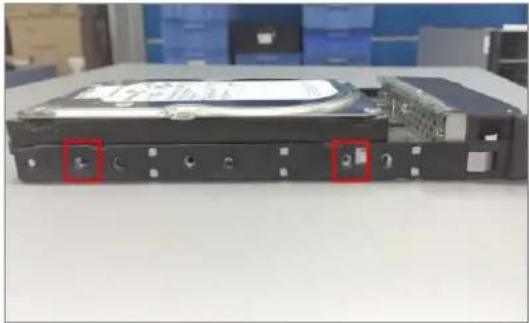

1. Adjust the HDD posion. Ensure the HDD rear aligning with HDD dummy rear and the two screw holes aiming at the holes that marked with red frame in Figure 2. 5 HDD Posion.

Close-up of a hard disk drive chassis with two red button indicators (no visible text or symbols)

Figure 2.5 HDD Posion

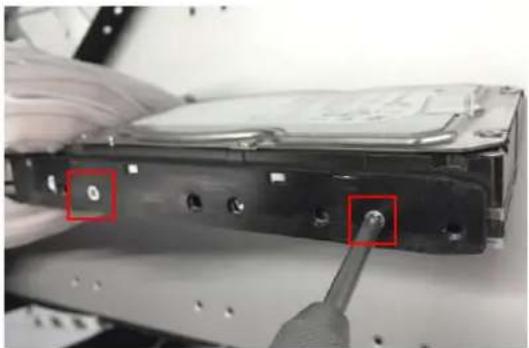

1. Use a screwdriver to fasten the four screws into the screw holes in both sides.

Close-up of a computer hard drive with a screwdriver inserted, showing mounting holes and a red circle highlighting a specific component (no text or symbols visible)

Figure 2.6 Install Screws

1. Push the HDD dummy back into the slot.

Figure 2.7 Push the HDD Dummy into Slot

2.2 Accessing by Web Browser

You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network aacks and informaon leakage, please strengthen your own protecon. If the product does not work properly, please contact with your dealer or the nearest service center.

Purpose:

You can get access to the storage system via a server with a web browser installed, without needing to install any other soware. The recommended web browsers are Internet Explorer 8 and Internet Explorer 11.

Before you start:

1. Use a network cable to connect the system Ethernet port and the storage system management network interface.
2. Congure the server IP address. Ensure it is in the same network segment with the IP address of management network interface is 10.254.254.254.

Steps:

1. Open web browser.
2. Input the storage system IP address (https://10.254.254.254:2004) in Web browser address bar.
3. Press Enter.

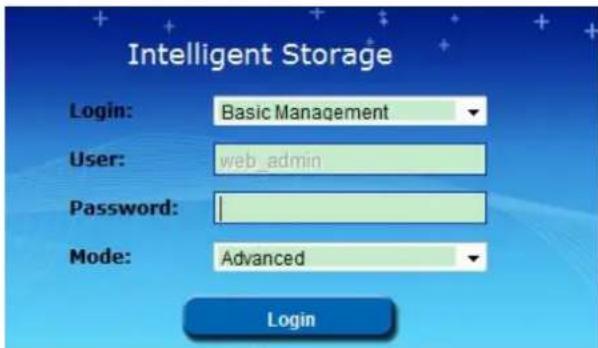

2.3 Login

Steps:

- If the device has not been acvated, you need to acvate the device rst before login.

1. Set the password for the admin user account.
2. Click OK to login to the device.

STRONG PASSWORD RECOMMENDED—We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

- If the device is already acvated:

1. Select Login account as Basic Management or HYBRID SAN Sub-system.

Basic Management: Used to congregate basic parameters of the storage system.
HYBRID SAN Sub-system: Used to Log into the HYBRID SAN sub-system.

1. Select User name.
2. Enter Password.
3. Mode is Advanced by default and is not selectable.
4. Click Login to log in the system.

Figure 2.8 Login

Chapter 3 Maintenance

Purpose:

Maintenance funcon enables you to view login and iSCSI informaon, monitor running status, restore default sengs, check and download logs, upgrade storage system, and so forth.

Table 3.1 Module Descripon

Module	Descripon
System	● A shortcut for reboot and shutdown.● Lists the login user informaon and iSCSI conncon informaon.
Performance	Shows you the real-me graph and data of system performance, including bandwidth usage, memory usage, CPU usage, IO status, and Vmstatus.
General	You can view system version, reset system, view logs, upgrade system, and add check and repair strategy.
Graphical Display	Provides a graph to show the front view status and a pie chart to show the storage informaon.
Environmental	Shows the fan informaon, module temperature, fan control panel version, and chassis power.

Key words:

System, Performance, General, Graphical Display, Environmental

Figure 3.2 Maintenance

3.1 System

Purpose:

Once you log into the storage system, system menu appears. System menu is a shortcut for reboot and shutdown and lists the login users and iSCSI conncon informaon.

Steps:

1. Click Maintenance in navigaon bar and choose System to enter System interface.

Figure 3.3 System Monitor

1. Reboot, power o, or view login informaon or iSCSI conncon info.

2. Click Reboot or Power o to restart or shut down the storage system.
   • The logged in users and IP addresses are listed in the Login info.

3. The LUN ID, iSCSI ID, and Iniator name are listed in iSCSI conncon info, which shows which devices are connecng iSCSI.

3.2 Performance

Purpose:

Performance menu shows you the real-me graph and data of system performance, including bandwidth usage, memory usage, CPU usage, IO status, and system performance.

Steps:

1. Click Maintenance in navigaon bar and choose Performance to enter Performance interface.

Figure 3.4 Performance

1. Click Enable Graphical to show the real-me graphs of bandwidth usage, memory usage, and CPU usage.
2. Oponally, click Disable Graphical to fold the graphs.

Figure 3.5 Graph Monitor

1. Click System Performance to pop up system performance window. System performance updates per second.
2. Click + of View IP Performance to unfold input/output status.
3. Oponally, click - of View IP Performance to fold input/output status.

3.3 General

Purpose:

You can view system version, reset system, view logs, and upgrade system.

Step:

Click Maintenance in navigaon bar and choose General.

Figure 3.6 General

3.3.1 Viewing Version Informaon

Purpose:

Version informaon interface lists informaon including SMI, HYBRID SAN, Support, and so on.

Steps:

1. Click Version informaon to pop up version informaon window.
2. Click Cancel to close the window.

Figure 3.7 Version Informaon

3.3.2 Default Sengs

Purpose:

You can reset system to factory defaults when system is abnormal. You are recommended to reset system under the direcon of professional technical support.

Reseng operaon won't restore administrator user name and password, RAID conguraon, hot spot conguraon, and network parameters.

Steps:

1. Click Reset system to pop up reset system dialog.

Figure 3.8 Reset System

1. Enter yes or YES in text eld and click OK to reset.

3.3.3 Managing Maintenance Log

Purpose:

When system is abnormal, you can download the maintenance log to analyze problems.

Steps:

For details, refer to 9.1 Operaon Log.

3.3.4 Modifying Password

Purpose:

You can modify password for basic management system and HYBRID SAN sub-system user.

Steps:

1. Click Modify password. And modify password window appears.
2. Select User Name as web_admin or nvr_admin.

web_admin: Basic management system user name.

nvr_admin: HYBRID SAN sub-system user name.

1. Enter Old Management Password and the same password in New Management Password and Conrm

Management Password.

● The security level of modified password should not be lower than low security.
- Password can only contain numbers, lowercase, uppercase, and underline for your password.

Figure 3.9 Modify Password

1. Click OK and click OK in popup message dialog to save the new password.

• Once password is modified, it jumps to login interface. You need to enter the new password to log in.
• Another controller password changes with the current controller password.

3.3.5 SNMP Conguraon

Purpose:

By conguring SNMP parameters, you can log in PRTG Trac Grapher tool to monitor the system status, including exception informaon, CPU usage, and so forth.

Steps:

1. Click SNMP Conguraon buon.

Figure 3.10 SNMP Conguraon

1. SNMP Version is V2(v2c) by default and is not editable.
2. Enter User Name, Contact, and Physical address.
3. Click OK to save the settings. Then you can view system status by logging in PRTG Trac Grapher Tool.

3.3.6 Modifying Host Name

Steps:

1. Click Modify and text eld appears.

2. Enter host name in the text eld.

3. Click Modify to acvate the new host name.

Figure 3.11 Modify Host Name

Only letters (a to z and A to Z), numbers (0 to 9), and underline (_) can be input.

3.3.7 Viewing Service Status

Purpose:

Whether the services are running or not. You can enable, disable, or restart the services.

Steps:

• Click Enable to start the service that is not running.
• Click Disable to shut down the running service.
• Click Restart to restart services.

Enabling and Disabling of Services (Total: 2)
Service Name	Current Status	Service Operation (Enable/Disable/Restart)
SNMP	Running	Enable Disable Restart
iSCSI	Running	Enable Disable Restart

Figure 3.12 Service Status

3.3.8 System Upgrade

Purpose:

You are recommended to upgrade system under the help of professional support.

Steps:

1. Click System upgrade in Common menu to enter Applicaon Service interface.

Figure 3. 13 Applicaon Service

1. Click Browser and choose the upgrade package.
2. Click Upload to upgrade. Aer upgrade succeeded, reboot the storage system to acvate the new version.
3. Oponally, you can click Restore to restore to previous version.

You can only restore to the last upgraded version.

3.4 Graphical Display

Purpose:

The storage system provides a graph to show the front view status and a pie chart to show the storage informaon.

Step:

Click Maintenance in navigaon bar and choose Graphical Display to enter Graphical Display interface.

Figure 3. 14 Graphical Display

3.4.1 Front View

Purpose:

Front view can show you the HDD status.

Steps:

1. Click Front View in Graphical Display menu to show front view.

Table 3.2 Indicator Status Descripon

Indicator	Color	Descripon
Top indicator	Unlit	HDD doesn’t exist.
	Green	HDD is connected and recognized.
Boom indicator	Green	HDD is normal.
	Blue	Reading and wring normally.
	Red	HDD is rebuilding.

1. Posioning the pointer in a green indicator slot. Then the message dialog appears.

Figure 3. 15 HDD Informaon

1. Click Overview to view informaon of all HDD.

Position	Supplier	Model	Capacity (MB)	Status	Group
0/0-1	Seagate	ST2000NM0001.Z1P105J3	1,907.729	Normal	Array
0/0-3	Seagate	ST2000NM0001.Z1P10PRH	1,907.729	Normal	Array
0/0-4	Seagate	ST8000NM0075.ZA103VH60000J607VTV9	7,630.885	Normal	Array
0/0-6	Seagate	ST2000NM0001.Z1P10KV9	1,907.729	Normal	Array
0/0-6	Seagate	ST8000NM0075.ZA102T6F0000J607TUCD	7,630.885	Normal	Array

Figure 3. 16 HDD Overview

1. Oponally, click Refresh in top-right corner to update the front view.

3.4.2 Pie Chart

Purpose:

Pie chart shows the free size of all storage modules, including system, LUN, snapshot, HYBRID SAN, iSCSI, and FC.

Steps:

1. Click Pie Chart in Graphical Display to enter Pie Chart interface.
2. Posioning the pointer in the part you want to view. Free size and free size Percentage appear in a dialog.
3. Oponally, click Refresh in top-right corner to update the informaon.

Figure 3.17 Pie Chart

3.5 Environmental

Purpose:

Environmental shows the fan informaon, module temperature, fan control panel version, and chassis power.

Steps:

1. Click Maintenance in navigaon bar and choose Control Message to enter Control Message interface. Fan RPM (Revoluons per Minute), temperature, and other informaon are shown.

You can install or uninstall fans. Up to 6 fans' formaon can be connected.

Figure 3.18 Host

1. Click Mute in top-right corner to turn off system audible warning.
2. To nd out which controller is working, click Posion in top-right corner and click OK in popup dialog. The FN indicator of working controller would light up and ash for 10 minutes.
3. Set fan speed.

1) Click Speed Regulaon in top-right corner to pop up dialog box.

Figure 3.19 Fan Speed

2) Choose speed as Low speed, Medium speed, or High speed in dropdown list.
3) Click OK to save the sengs.

Chapter 4 Storage Management

Purpose:

Storage management provides conguraon including HDD management, array, storage pool, LUN (logical Volume), and storage sengs.

Table 4.1 Module Descripon

Module	Descripon
HDD Management	You can:View HDD informaon and status.Rescan, posioning, inialize, and detect HDDs.
Array	You can:Create arrays.Add hot spare.View array and hot spare informaon.Delete array and hot spare.
Storage pool	You can:Add, delete, and posioning storage pools.Remove and posioning HDDs.View system total and free capacity.
LUN (Logical volume)	You canAdd and delete LUNs.Rename, expand, clone, and snapshot LUNs.
Conguraons	You can:Set array synchronizaon speed.Set array synchronizaon type.Set icking frequency for HDD posioning indicator.

Key words:

HDD Management, Array, Storage Pool, LUN (Logical Volume), Conguraon

Figure 4.2 Storage

4.1 Managing Local HDD

Purpose:

You can view the HDD informaon here, including HDD locaon, supplier, model, size, status, and belonging group.

Step:

Click Storage in navigaon bar and choose HDD Management.

Figure 4.3 HDD Management

4.1.1 Viewing HDD Status

Purpose:

You can view status of one HDD or all HDDs.

4.1.1.1 One HDD

Steps:

1. In the HDD informaon list, Click Details of an HDD. HDD state dialog appears.
2. Click SMART to view the HDD SMART detecon informaon.

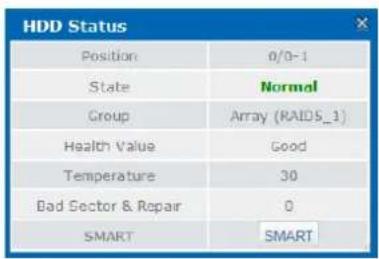

Figure 4.4 HDD Status

4.1.1.2 All HDDs

Steps:

1. Click HDD Status in the upper le corner.
2. Click SMART of an HDD to view its SMART detecon informaon.

Figure 4.5 HDD Status

There are totally 6 kinds of status for an HDD.

Table 4.2 HDD Status Descripon

Status	Descripon
Normal	HDD works normally.
Undetected	HDD failed the HDD detecon.
Lost	HDD is unrecognized.
Risky	Excepon occurs during HDD detecon. But it can sll work.
Bad	HDD is kicked out by an array.
Warning	HDD read and wring speed is higher than 10 MB/S during pressure test.

4.1.2 Rescanning HDD

Step:

• If detectcng a newly installed HDD failed, click Rescan to nd the HDD.
• If an HDD is uninstalled from the storage system, click Rescan to remove it from the HDD interface.

Rescanning HDDs may result in HDD status appearing as Unknown. Fresh the interface or click Rescan again to solve the problem.

4.1.3 Posioning HDD

Purpose:

HDD boom indicator ickers aer enabling the funcon. It enables you to nd a certain HDD more easily.

Before you start:

Set the ickering me rst. For details, refer to 4.5.2 Flickering Time.

Steps:

1. Check the checkbox of HDD you want to nd.
2. Click Posion and click OK in popup dialog box. Then HDD indicator keeps ickering in red for the set flickering me.

4.1.4 HDD Inializaon

Purpose:

To recover an HDD when its status is uninitialized or when it is kicked out by an array, you can initialize it.

Steps:

1. Check the checkbox of HDD you want to inialize.
2. Click Initialize and click OK in popup dialog box to start initializing.

4.1.5 HDD Detecon

Purpose:

To recognize an HDD which is added to a storage system for the rst me, detect it.

Steps:

1. Check the checkboxes of HDDs to detect.
2. Click Detect.

Figure 4.6 HDD Detecon

1. Select the Detecon Mode as Rapid or Comprehensive.

Rapid: Detect parts of all HDD blocks. It takes shorter me than Comprehensive.
Comprehensive: Detect all HDD blocks. It takes longer time than Rapid.

It is recommended to operate rapid detecon when system is under low pressure.
● You are recommended to operate comprehensive detecon for the rst use HDD.
● To keep data safe, detect an HDD every 3 months.

1. Click Start to start detectng. The selected detecon mode, detecon progress, and detecon me are listed in the top part of the interface.

2. Oponally, click Refresh to update the detecon status, detecon process and detecon me.

Or you can click Stop to end all detecons.

There are 3 kinds of detecon status: Unsubmied, Detecng, and Completed.

Table 4. 3 Detecon Status Descripon

Check Status	Descripon
Uncommied	HDD detecon has not been commied.
Detecng	HDD is being detected.
Waing	Another HDD is being detected. You need to wait II the detecon is nished.

4.2 Array

Purpose:

You can create and manage array.

Step:

Click Storage in navigaon bar and choose Array.

Figure 4.7 Array

4.2.1 Creang Array

Purpose:

You can use available HDDs to create array.

Steps:

1. Click Create Array.

Figure 4.8 Create Array

1. Input Array Name in text eld.
2. Select Array Type in drop-down list. RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, and RAID 50 are selectable.

Figure 4.9 Required HDD Quantity

Array Type	Required HDD Quantity
RAID 0	At least 2 HDDs.
RAID 1	At least 2 HDDs.
RAID 3	At least 3 HDDs.
RAID 5	Valid range: [3, 12].
RAID 6	At least 4 HDDs.
RAID 10	RAID is made of RAID 0 and RAID 1 which requires at least 4 even HDDs.
RAID 50	RAID is made of RAID 0 and RAID 5 which requires at least 6 even HDDs.

1. Select Array Block Size(KB) in drop-down list.
2. Select I/O Priority as Performance Priority, Protecon Priority, Balanced, or Smart.

➢ Performance Priority: To guarantee external IO task performance, internal IO task is totally stopped.
Protecon Priority: To guarantee internal IO task performance, external IO task would only take the rest channel.
Balanced: When both internal and external IO task exist, Balance ensures internal IO task occupy certain channel without influencing external IO task.
Smart: Without external IO task, array is initialized in the highest speed. Or array is initialized in the lowest speed.

If RAID level is RAID 0, I/O priority is unavailable.

6. Select the Available HDDs to create RAID.

Or select Available arrays to create RAID.

Or select the combinaon of Available HDDs and Available arrays.

● Only enterprised HDDs are listed in Available HDDs list.
- In order to increase the performance of created RAID, it is recommended to use HDDs of the same model and capacity when creang a RAID.

7. Click OK to create array. The successfully created array lists in Array informaon list. Once created, the array starts initializing.

4.2.2 Array Excepon

Purpose:

If HDD failure occurs, array degrades. When more HDDs fail, array fails. Degraded array can keep working. However, failed array cannot work. Nocaon area will nofy you once array degraded or failed. Refer to following table for array degraded and failed condion.

Table 4. 4 Array Degraded Condion

RAID Level	Degraded Condion	Failed Condion
RAID 0	RAID 0 will not degrade.	One HDD fails.
RAID 1	N-1 HDDs fail.	All HDDs fail.
RAID 3	One HDD fails.	Two HDDs fail.
RAID 5
RAID 6	N-1 HDDs fail.	More than three HDDs fail.
RAID 10	One HDD fails.	Two HDDs fail in either contained RAID.
RAID 50

• If array in storage pool degrades, physical volume degrades.
• If array in storage pool fails, physical volume fails.

4.2.3 Rebuilding Array

Purpose:

Rebuilding refers to the process of using a normal HDD or array to virtually replace a failed HDD in a degraded array. The normal HDD can be hot spare HDD, newly inserted HDD, and so forth.

● During rebuilding process, if the rebuilding HDD fails, the array stays degraded.
● During rebuilding process, if a normal HDD in array fails, the array becomes failed.
● During rebuilding process, if I/O error occurs to the rebuilding HDD, you need to change rebuilding HDD.

4.2.3.1 Rebuilding with Hot Spare

Before you start:

Add global, area, or local hot spare HDD or array for array.

Step:

Once the array degraded, hot spare HDD or hot spare array automacally rebuilds the array.

When the degraded array possesses both global and local hot spare, it rebuilds with local hot spare preferenally.

4.2.3.2 Rebuilding with Available HDD

Before you start:

Ensure there is at least one available HDD which isn't included in any array or storage pool.

Steps:

1. Click Maintenance of a degraded array in Array informaon list.
2. Click Rebuild to pop up Array rebuild interface.
3. Select an Available HDD or Available Array.
4. Click OK to start rebuilding.

4.2.4 Detecng Array

Purpose:

You can detect whether the data bit and parity data in an array match or not.

If array in storage pool starts detectng, the physical volume status is detectng.

Steps:

1. Click Maintenance of a degraded array in Array informaon list.
2. Click Detect to start detecng.

4.2.5 Repairing Array

Purpose:

You can repair the data bit and parity data mismatch issue.

If array in storage pool starts repairing, physical volume status is repairing.

Steps:

1. Click Maintenance of a degraded array in Array informaon list.
2. Click Repair to start repairing.

4.2.6 Renaming Array

Steps:

1. Click Maintenance of an array in Array informaon list.
2. Click Rename.

3. Enter a new name.

4. Click OK to save the new name.

4.2.6.1 Modify I/O Priority

Steps:

1. Click Maintenance of an array in Array informaon list.
2. Click Modify.
3. Select I/O Priority in dropdown list.
4. Click OK.

4.2.6.2 Pause Inializaon/Rebuilding/Detecon/Repair

Purpose:

When the array is inializing, rebuilding, detectng, or repairing, you can pause.

Steps:

1. Click Maintenance of an array in Array informaon list.
2. Click Pause to pause current process.
3. You can click Keep to resume.

4.2.7 Deleng Array

Steps:

1. Check the checkbox of array you want to delete.
2. Click buon to delete.

If the array has been added to a storage pool, you need to remove it from storage pool rst, or it can't be deleted.

4.2.8 Adding Hot Spare

Purpose:

The hot spare HDD can replace failed HDD in the degraded array. In order to protect data from damage in case of HDDs in array fail, it is recommended to add hot spare HDDs for a created array.

RAID 0 will not degrade. So you need not add local hot spare HDD for it.

Steps:

1. Click Add Hot Spare Disk to enter Add hot spare interface.
2. Select Group as Global, Area, or Local.

Global: Global hot spare HDDs can replace failed HDDs in any degraded arrays of storage devices in the same system.

Area: Area hot spare HDDs replace failed HDDs in any degraded arrays of one storage system.

Local: Local hot spare HDDs replace failed HDDs in designated array.

Priority of hot spare: Local hot spare > area hot spare > global hot spare

1. If Group is Area, select available array in Area dropdown list.

If Group is Local, select array in Array dropdown list.

1. Select at least one Available HDD.

Or select at least one Available array.

Or select the combinaon of Available HDD or Available array.

1. Click OK to create hot spare.

Figure 4. 10 Add Hot Spare

4.2.9 Deleng Hot Spare

Steps:

1. Select arrays you want to delete.

2. Click buon to delete.

4.3 Storage Pool

Purpose:

Storage pool, which is made of physical volumes and contains arrays and HDDs, is designed for central management of storage capacity.

Step:

Click Storage in navigaon bar and choose Storage Pool.

Figure 4. 11 Storage Pool

Table 4.5 Interface Descripon

Area	Name	Descripon
1	Informaon Area	Lists the storage pool total size, free size, LUN size, snapshot size, HYBRID SAN size, iSCSI size, and FC size.
2	Conguraon Area	You can add, delete, and posioning created physical volume here.

4.3.1 Adding Storage Pool

Purpose:

You need to create physical volumes to build storage pool.

Before you start:

Ensure available array or HDD exists in the storage system.

Steps:

1. Click Add.

Figure 4. 12 Add Storage Pool

1. Select at least one array or HDD as storage pool.

Or select the combinaon of array or HDD.

1. Input PV Name in text eld.

4. Click OK to add the storage pool.

Figure 4. 13 Storage Pool

4.3.2 Deleng Storage Pool

Purpose:

You can delete storage pool by deleng the added physical volumes.

Steps:

1. Check the checkboxes of physical volumes you want to delete.

2. Click or buon to delete them.

Idle physical volumes can be deleted except the rst created physical volume.

4.3.3 Posioning Storage Pool

Before you start:

Set the ickering me rst. For details, refer to 4.5.2 Flickering Time.

Steps:

1. Check the checkbox of physical volume you want to posioning.

2. Click Position buon. Then the HDD boom indicator keeps ickering in green for the set ickering me.

4.4 Logical Volume

Purpose:

Logical volume is the virtual HDD which is made of physical HDD.

Step:

Click Storage in navigaon bar and choose LUN.

Figure 4.14 Logical Volume

4.4.1 Creang Logical Volume

Purpose:

You can create logical volumes by using available physical volumes.

Steps:

1. Click Create.

Figure 4. 15 Create Logical Volume

1. Enter Name.
2. Enter Capacity (MB).
3. Select Block Size (Byte) from dropdown list.
4. Choose Available Physical Volume.
5. Click OK to create logical volume. Created logical volume is listed in logical volume informaon list.

4.4.2 Deleng Logical Volume

Steps:

1. Select the logical volume you want to delete.
2. Click buon to delete them.

The working logical volume can be deleted. Only free logical volume can be deleted.

4.4.3 Renaming Logical Volume

You can only rename the free logical volumes.

Steps:

1. Click buon of the logical volume you want to rename.
2. Enter a new name.
3. Click OK to save the new name.

4.4.4 Enlarging Logical Volume

Purpose:

You can enlarge the size of created logical volume.

You can only enlarge the idle logical volumes.

Steps:

1. Click buch of the logical volume you want to extend.

Figure 4. 16 Extend LUN

1. Enter New Capacity (MB).
2. Select Available Physical Volume used to extend.
3. Click OK to extend.

4.5 Conguraon

Purpose:

You can set the array synchronizaon speed type and ickering me of posioning indicator.

Step:

Click Storage in navigaon bar and choose Conguraon.

Figure 4. 17 Conguraons

4.5.1 Synchronizaon Speed and Type

Purpose:

Array synchronizaon speed and synchronizaon type is editable.

Steps:

1. Click Modify of Array Synchronizaon Speed.
2. Select Array Synchronizaon Speed as High, Medium, Low, or None.

The faster the speed is, the highest the internet IO percentage is.

1. Click OK.

2. Click Modify of Array Synchronizaon Type.

3. Select Array Synchronizaon Type as Serial or Parallel.

4. Click OK.

Figure 4. 18 Synchronizaon Speed and Type

4.5.2 Flickering Time

Purpose:

When posioning an HDD, the HDD boom indicator keeps ickering for the set me.

Steps:

1. Enter a number as ickering me in HDD Posioning Flickering Time (s).

Valid ickering me ranges from 5 to 300 and the unit is second.

1. Click Modify.

Chapter 5 SAN

Purpose:

You can add iSCSI disks and FC (Fiber Channel) disks in your computer.

Table 5.1 Module Descripon

Module	Descripon
iSCSI	You can add iSCSI disks in your computer.
FC	You can add FC disks in your computer.

Keywords:

iSCSI, FC

Figure 5.2 SAN

5.1 iSCSI

Purpose:

You can add iSCSI HDDs in your computer.

Step:

Click SAN in navigaon bar and choose iSCSI to enter iSCSI interface.

Figure 5.3 iSCSI

5.1.1 Adding CHAP User

Purpose:

When enabling iSCSI, you can select an added CHAP user as a way to verify your computer permission.

Steps:

1. Click buon to enter Add CHAP User interface.

Figure 5.4 Add CHAP User

1. Enter CHAP User Name, New Password, and Conrm password.

User Name: Only leers, numbers, and underline are allowed.
New Password: Only 12 to 16 characters, including leers, numbers, and underline, are allowed.
Conrm Password: It must be the same as New Password.

1. Click OK and click OK in conrmaon dialog box to add the CHAP user.

5.1.2 Modifying CHAP User

Purpose:

You can modify the password of added users.

Before you start:

If the CHAP going to be modified is linked to one or more iSCSIs and these iSCSIs are connecng with computers, you need to disconnect them from computer rst.

Steps:

1. Click buon to enter Modify CHAP User Interface.
2. Enter the CHAP username you want to modify in the text eld.
3. Enter a new Password and Conrm password.
4. Click OK and click OK in conrmaon dialog box to modify the CHAP user.

5.1.3 Enabling iSCSI

Purpose:

Enabling iSCSI in the storage system makes it possible for you to add iSCSI HDDs in computer.

Steps:

1. Click buon to pop up Enable iSCSI interface.

Figure 5.5 Enable iSCSI

1. Enter Client IP and iSCSI ID.

Client IP: To turn on iSCSI for a specied client (computer), enter the client IP address. To turn on iSCSI for multiple clients, enter 0.0.0.0 in the text eld.

1. Select the identity authencaon method in the dropdown list of CHAP User.

➢ Disable: There is no limit for client access.
Other CHAP user: Correct CHAP user name and password are needed for client to get access to LUN.

1. Select the logical volume Access Mode as Read/Write, Write-Through, Read Only, or Intelligent Read-Only.

Read/Write: Read and wring permission.
Intelligent Read-Only: Even though wring operaon succeeded, data wouldn't be written into LUN. It is mainly used to test the storage system performance.

Write-Through: It writes the data into HDDs directly without wring into HDD buer. A low wring speed makes the data complete.

1. Choose an available Logical Volume.
2. Click OK to enable the iSCSI.

When mulple iSCSIs share the same LUN, only one iSCSI server access mode can be R/W and other servers should be RO or IRO, or le system may be damaged or data may lose.

5.1.4 Disabling iSCSI

Purpose:

For the unnecessary iSCSIs, you can disable them, thus to keep the storage system safe and stable.

Before you start:

Disconnect the storage system from the clients for which you want to disable iSCSI.

Steps:

1. Check the checkbox of iSCSI you want to disable.
2. Click ✗ Delete and click OK in conrmaon dialog box.

5.1.5 Modifying iSCSI Port

Purpose:

iSCSI port is needed when accessing via computer. It can be edited.

Before you start:

Disconnect all iSCSIs rst, or iSCSI enabled under pervious iSCSI port couldn't be deleted.

Steps:

1. Click SAN in navigaon bar and choose Seng to enter Setng interface.

Figure 5.6 Seng

1. Enter a number between 3000 and 65534 except 7402 in Current target port text eld.
2. Click Modify, click OK in conrmaon dialog box, and click OK in second popup dialog box.

5.2 FC (Oponal)

Purpose:

You can add FC HDDs in your computer.

Before you start:

1. Install ber Ethernet adapter and ber Ethernet adapter drive in both the storage system and the client server.
2. Connect the storage system and client server to ber channel switch with ber.

Step:

Click SAN in navigaon bar and choose FC to enter FC interface.

Figure 5.7 iSCSI

5.2.1 Enabling FC

Purpose:

Enabling FC in the storage system makes it possible for you to add FC HDDs in computer. To visit FC HDD via computer, the storage system and the computer should locate in an opcal fiber network. You can enable FC service for:

A specied ber channel.
All available ber channels.
A specied FC port.
All available FC ports.

Before you start:

● Install opcal ber card rst.
● Create at least one LUN rst. For detailed steps, refer to 4.4 Logical Volume.

Steps:

1. Click Enable FC to enter Enable FC interface.

Figure 5.8 Enable FC

1. According to actual conncon, select Fiber Channel as Fiber Channel0, Fiber Channel1, Fiber Channel2, or Fiber Channel3. If you are not sure about selecng which one, select Available channels. The storage system can automatically connect the client with an available channel.

Fiber Channel 0 refers to ber port 1 in real panel. Fiber Channel 1 refers to ber port 2 in rear panel. And so on.

1. To specify a client, enter Client WWPN of 16 numbers.

Client WWPN: The client ber Ethernet adapter WWPN. You can use a ber client to obtain WWPN. If no client is available, enter 000000000000000. The storage system connects all available clients WWPN and share FC with all connected clients.

1. Select available LUN in the dropdown list of LUN name.

2. Choose Logical LUN ID as Auto or Manual.

Auto: The storage system automacally specifies a free LUN ID.
Manual: It is recommended to choose Manual. The logical LUN ID which is the rst manual one must be 0.

1. Select LUN access mode as R/W, SR/W, RO, or IRO.

R/W: Read and wring permission.

IRO (Intelligent Read Only): Even though wring operaon succeeded, data wouldn't be written into LUN. It is mainly used to test the storage system performance.
RO: Read only
SR/W (Synchronous Read/Write): It writes the data into HDDs directly without wring into HDD buer. A low wring speed makes the data complete.

1. Click OK and click OK in conrmaon dialog box to enable FC.

5.2.2 Disabling FC

Purpose:

You can disable FC service for:

A specied ber channel.
All available ber channels.
A specied FC port
All available FC ports.

Steps:

1. Check the checkbox of FC you want to disable.

2. Click ✗ Delete and click OK in conrmaon dialog box.

Chapter 6 HYBRID SAN

Purpose:

You can congregate HYBRID SAN and N+1 parameters.

Table 6.1 Module Descripon

Module	Descripon
HYBRID SAN	You can:Congure private volume, HYBRID SAN conguraon, create record volume, and extend record volume.HYBRID SAN one-key conguraon.Manage N+1.Log in HYBRID SAN sub-system to add encoders, add strategy, search video, and so forth.
N+1	A storage system whose HYBRID SAN service has started can serve as a backup HYBRID SAN for other HYBRID SAN s.

Keywords:

HYBRID SAN, N+1

Figure 6.2 HYBRID SAN

6.1 One-Key Conguraon

Purpose:

Quick-seng creang helps you to create HYBRID SAN quickly.

Before you start:

Ensure there is neither storage pool nor array in the storage system.

Steps:

1. Click the One-Key Conguraon buon in upper right corner to start quick sengs.
2. Click OK to conrm. Quick-seng takes 3 to 15 minutes. During the quick-sengs, following operaons are performed automatically.

1) Add HDDs to storage pool. Or create RAIDs and add them to storage pool.

The whole HDDs are added to storage pool with no more free capacity. You can view the storage pool usage in Storage > Storage Pool.

2) Create private volume, reserved volume, and record volume. If more than 3 LUNs are created, one archive volume is created.

Figure 6.3 HYBRID SAN Sengs Interface

Bad HDD, risky HDD, and warning HDD would not be added to storage pool.
➢ Non-enterprise HDD is added to storage pool by single-HDD mode.
- Quick-seng takes longer if any undetected HDD exists.
If HDDs in the storage system are less than 6, they are added to storage pool by single-HDD mode.
If HDDs in the storage system are not less than 6 and HDDs in storage enclosure is less than 6, the storage system HDDs are added by array mode and the storage enclosure HDDs won't be added.
If HDDs in the storage system and HDDs in storage enclosure are both not less than 6, they are both added to storage pool by array mode.
If only one HDD exists, no reserved volume is created. In single-HDD mode, no reserved volume is created in the last HDD of the storage system. In array mode, two reserved volumes are created in each RAID.
By default, a 50 GB size private volume and a 50 GB size reserved volume should be created.

6.2 HYBRID SAN Conguraon

Purpose:

You can start and reset HYBRID SAN and create record volume.

Step:

Click the Congure HYBRID SAN buon in upper right corner.

Figure 6.4 HYBRID SAN

6.2.1 Starng HYBRID SAN

Purpose:

You can start HYBRID SAN aer private volumes are created.

Before you start:

1. To create storage pool, do one of the following:

● Single-HDD mode: Add HDDs to storage pool.
- Array mode: Create arrays and add them to storage pool.

1. Create at least 5 LUNs. Ensure at least 4 of them are larger than 20 GB. The four LUNs are used to create private volume, reserved volume. Other LUNs are used to create record volume.

If record volume size is fewer than 120T, then private volume 1 and private volume 2 size should both larger 50G.
If record volume size ranges from 120T to 180T, then private volume 1 and private volume 2 size should both larger 60G.
If record volume enlarges by 60T, record volume 1 and record volume 2 should both enlarge by 10G.

Steps:

1. Click the Congure Private Volume tab.

Figure 6.5 HYBRID SAN Conguraon

1. Check the checkbox of Enable HYBRID SAN aer nishing.
2. Oponally, check the checkbox of Allocate private volume's reserved space and Enable private volume's reserved space.

Enable private volume's reserved space: Create a spare volume for private volume. The spare volume works as a backup volume. When error occurs to the two private volumes, the two spare LUNs would replace them.

It is not recommended to use a spare volume in the same physical volume with the private volume.

1. To add private volume 1, choose a Free LUN and click Private volume 1 >> button.
2. To add private volume 2, choose a Free LUN and click Private volume 2 >> button.

HYBRID SAN conguraon informaon is saved in private volume 1 and private volume 2.
It is not recommended to use the LUN created by the HDD rst added to storage pool to create private volume 1.
The chosen LUNs' capacity should meet the demand shown in red frames in Figure 6.5 HYBRID SAN Conguraon.
If Allocate private volume's reserved space and Enable private volume's reserved space are selected, the storage system automatically select two free LUN as the spare volumes.

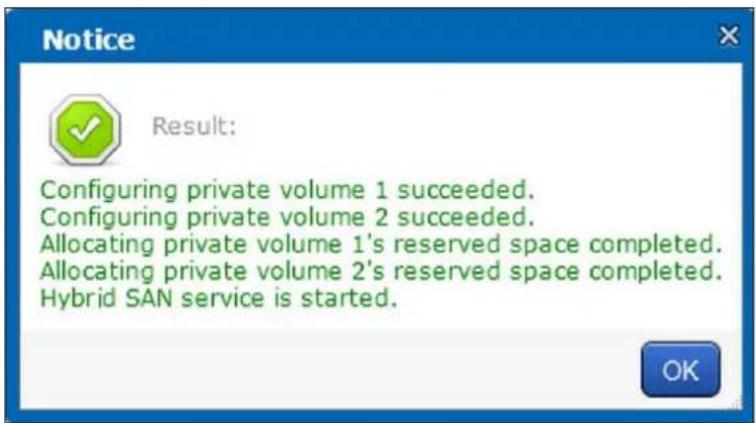

1. Click OK to start creang the two private volumes. Aer private volumes are created, HYBRID SAN starts running.

Figure 6.6 Created Prviate Volume

Table 6.2 HYBRID SAN Status Descripon

Status	Descripon
Not congured or incomplete	HYBRID SAN is not congured.
Running	HYBRID SAN is correctly started.
Stopped	Click Stop HYBRID SAN to stop HYBRID SAN service. Once HYBRID SAN is stopped, you are not able to view encoder informaon and videos. You can click Start HYBRID SAN to recover to Running status.
Running and Recovering	Indicators HYBRID SAN is working normally and in automac recovery process.
Stopped and Recovering	Indicators HYBRID SAN is stopped and in automac recovery process.

6.2.2 Reseng HYBRID SAN

Purpose:

You can delete HYBRID SAN videos, encoders, and other conguraons by reseng HYBRID SAN. Aer reset, HYBRID SAN status restores to not congured or incomplete.

Steps:

1. Enter HYBRID SAN conguraon menu.

Figure 6.7 Reset HYBRID SAN

1. Click HYBRID SAN Service Reset.
2. Enter yes or YES in text eld to start reset.

6.2.3 Record Volume

Purpose:

Record volume is the logical volume stores videos.

6.2.3.1 Creating Record Volume

Steps:

1. Click Create Record Volume menu.

Figure 6.8 Create Record Volume

1. Enter the Record Volume Name in text eld.
2. Select Overwrite Strategy as Overwrite or Do Not Overwrite.

● Overwrite: Once the record volume is full, videos can sll write into it by covering the earliest videos.
- Do Not Overwrite: Once the record volume is full, videos cannot be written in it

1. Select Record Volume Usage as Video Storage or Picture Storage.
2. If you want to create record volume based on local HDD or array, select Logical Volume Source as Local. If you want to create it based on IP SAN, select LUN source as IP SAN.
3. Select one or more Usable LUN.

If the capacity of private volume 1 and private volume 2 are both larger than 50 GB, maximum capacity of each LUN of record volume is 8 TB.

1. Click OK to create the record volume. The created record volumes are listed in Record Volume list.

6.2.3.2 Clearing, Modifying, and Deleng Record Volume

Purpose:

The created record volumes are listed in Record Volume list. You can clear videos saved in it, modify its conguraon, and delete it.

Table 6.3 Icon Descripon

Icon	Name	Descripon
	Clear data	You can clear videos saved in the record volume.
	Modify	You can modify record volume name, usage, and data overlay strategy.
	Delete	You can delete the record volume. Data saved in it is removed.
		Do not delete record volume when linked encoder is recording.

If a record volume consists of two or more LUNs, you can delete one of them according to following steps:

Steps

1. Click the record volume name.

Figure 6.9 LUNs

1. Click of the LUN you want to delete.

2. Enter yes or YES in text eld to delete it. Aer it is deleted, data saved in the LUN is deleted and the LUN status is Free.

6.2.3.3 Extending

Purpose:

When the record volume capacity is insucient, you can use the free LUNs to extend it.

Steps:

1. Click Extend Record Volume menu.

Figure 6. 10 Extend Record Volume

1. Select the record volume you want to extend in Record Volume Name dropdown list.
2. Select the Usable LUN used to extend.
3. Click OK to start extending.

6.3 Backup and Restoring

Purpose:

The chapter introduces the video backup and HYBRID SAN restoring steps.

Step:

Click Backup and Restore buon in upper right corner.

Figure 6. 11 Back and Restore

6.3.1 Viewing Private Volume Informaon

Step:

Click Private volume informaon menu to enter Private Volume informaon interface. LUNs making up private volume 1 and private volume 2 are listed.

6.3.2 Restoring

Purpose:

When error occurs to HYBRID SAN, restoring HYBRID SAN can recover it. Restoring may cause data loss, so you need to contact us for professional help. We are not responsible for error caused by unprofessional operaon.

Step:

Click Execute Restoraon Task menu to enter Restore interface.

Figure 6.12 Restore

6.3.3 Backup

Purpose:

The storage system backs up the index of all videos every hour. You can manually back up all videos' index according to following steps. The backed up index is saved in database.

The funcon backs up video index instead of videos.

Steps:

1. Click Execute Backup Task tab.
2. Click OK to start backing up.

Figure 6.13 Backup

6.3.4 Recovering Video Data

Purpose:

If you reset HYBRID SAN, deleted record volume, or cleared record volume by mistake, you can contact us for professional help, we would help you to recover these data. We are not responsible for error caused by unprofessional operaon.

Step:

Click Execute Record Data Restoraon tab.

Figure 6.14 Record Data Recovery

6.4 N+1 Management

Purpose:

A storage system whose HYBRID SAN service has started can serve as a backup HYBRID SAN for other HYBRID SAN s. When one or more master HYBRID SAN s fail, the backup HYBRID SAN would record the videos from encoders. Master HYBRID SAN error includes network error, private volumes damaged, database error, and HYBRID SAN service error. Aer the master HYBRID SAN s recovers to normal, backup HYBRID SAN would upload videos back to master HYBRID SAN s.

Before you start:

Start HYBRID SAN service in both master HYBRID SAN and backup HYBRID SAN.

Step:

Click N+1 in navigaon bar and choose N+1 to enter HYBRID SAN interface.

Figure 6. 15 N+1 Management

NOTE

• Log into master HYBRID SAN and add backup HYBRID SAN for master HYBRID SAN rst. And then Log into backup HYBRID SAN and add master HYBRID SAN for backup HYBRID SAN.
  ● A storage system can be either backup HYBRID SAN or master HYBRID SAN.
• Ensure the system me of backup HYBRID SAN and master HYBRID SAN are the same. For detailed steps of modifying system me, refer to Chapter 8.3 Time.
  ● Once master HYBRID SAN can only link to one backup HYBRID SAN
  It is not recommended that encoding devices added in backup HYBRID SAN have duplicate name.

6.4.1 Adding Backup HYBRID SAN

Purpose:

Add backup HYBRID SAN in master HYBRID SAN rst.

Before you start:

Log into master HYBRID SAN and enter N+1 Management interface.

Steps:

1. Click the Add Backup HYBRID SAN buon.

Figure 6. 16 Add Backup HYBRID SAN

1. Enter the backup HYBRID SAN IP address.
2. Click OK to add.
3. Oponally, you can check the checkboxes of Synchronizaon and Delete the videos saved in backup HYBRID SAN aer synchronizaon succeeded, and click Modify to enable them.

Synchronizaon: Once master HYBRID SAN recovers to normal, backup HYBRID SAN uploads the videos back to master HYBRID SAN.

Delete the videos saved in backup HYBRID SAN aer synchronizaon succeeded: Delete the videos in backup HYBRID SAN once they are uploaded to master HYBRID SAN.

Figure 6.17 Backup HYBRID SAN

6.4.2 Deleng Backup HYBRID SAN

Steps:

1. Check the checkbox of backup HYBRID SAN you want to delete.
2. Click the Delete buon and click OK in conrmaon dialog box.

6.4.3 Adding Master HYBRID SAN

Before you start:

1. Log into backup HYBRID SAN and enter N+1 Management interface.
2. Add the same encoding devices in backup HYBRID SAN, which have been added in master HYBRID SAN. For details, refer to chapter 7.3.2 Adding Encoding Device. Ensure the name of encoding devices from dierent backup HYBRID SAN's varies from each other.
3. Delete the added encoding devices in step 2.
4. Add schedules for encoding devices in backup HYBRID SAN the same as schedule in master HYBRID SAN.

Steps:

1. Click the Add Master HYBRID SAN buon.

Figure 6.18 Add Master HYBRID SAN

1. Enter master HYBRID SAN IP address.
2. Click OK to add. The added master HYBRID SAN is listed in HYBRID SAN master list
3. Enter Maximum Taking Over Number and click Modify. If maximum taken-over master HYBRID SAN is 4 and 7 master HYBRID SAN s are added, when 5 master HYBRID SAN s are abnormal, the backup HYBRID SAN would take over the rst added 4 master HYBRID SAN s. Aer one or more of the 4 HYBRID SAN s recovers, other master HYBRID SAN s would be taken over.

The max. taken-over number cannot be more than 10. If input 0 or input nothing, system regards it as 10.

Table 6.4 Backup HYBRID SAN Status

Backup HYBRID SAN Status	Descripon
Standby	When master HYBRID SAN is normal, backup HYBRID SAN is standby.
Working	When master HYBRID SAN is abnormal, backup HYBRID SAN takes over the tasks.Now backup HYBRID SAN status is working and master HYBRID SAN status is taken-over. When master HYBRID SAN recovers, backup HYBRID SAN recovers to standby.

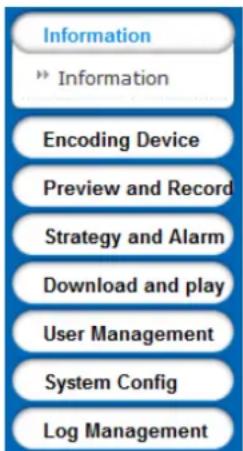

Chapter 7 HYBRID SAN Sub-System

Purpose:

You can congregate the parameters for HYBRID SAN sub-system.

Table 7.1 Module Descripon

Module	Descripon
Informaon	Encoding device, record schedule, and record volume informaon are listed.
Encoding Device	You can add and manage encoding devices, adjust HYBRID SAN sub-system me, count remaining recoding capacity, and analyze video loss.
Preview and Record	You can view encoding device status and live view image, and start and stop manual record of one or more encoding devices.
Strategy and Alarm	You can congure recording schedule, create uploading task and schedule, and congure alarm parameter.
Download and play	You can search, archive, backup, lock, play, and download recorded videos.
User Management	You can switch system language and edit display rows in each page.
System Cong	You can congure system alarms and view HYBRID SAN version.
Log Management	Log helps you gure out HYBRID SAN history acons. You can search, export, and clear logs.

Key Words:

Informaon, Encoding Device, Preview and Record, Strategy and Alarm, Download and play, User Management, System Cong, Log Management

Figure 7.2 HYBRID SAN Sub-System

7.1 Access by Web Browser

Steps:

1. Open web browser.
2. Input the storage system IP address (https://10.254.254.254:2004) in Web browser address bar.
3. Press Enter. Then login interface appears.
4. Enter Password of HYBRID SAN sub-system and click Login to log in.

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

Figure 7.3 HYBRID SAN Sub-System

7.2 Informaon

Purpose:

Encoding device, record schedule, and record volume informaon are listed.

Step:

Click Informaon in navigaon bar.

Figure 7.4 Informaon

Table 7.2 Status Descripon

Status	Descripon
Free	Connecon is normal and it is recording.
No video input	It appears when encoding device amount reaches the limit or HYBRID SAN is reboong.
Recording	Encoding device is recording.
Password or user name error	Incorrect user name or password for encoding device.
Not load	When HYBRID SAN starts, loading encoding device failed.
Unknown	HYBRID SAN is error.
Not connected	Failed to get stream for encoding device.
Recording... Archiving...	Encoding device is recording and archiving.
Recording... Uploading...	Encoding device is recording and receiving videos from front-end devices.
Archiving	Encoding device isn’t recording, but is archiving.
Uploading	Encoding device isn’t recording, but is receiving videos from cameras.

7.3 Encoding Device

Purpose:

You can add and manage encoding devices, adjust HYBRID SAN sub-system me, count remaining recoding capacity, and analyze video loss.

Step:

Click Encoding Device in navigaon bar.

Figure 7.5 Device Management

7.3.2 Adding Encoding Device

Steps:

1. Click Add Encoding Device.
2. Enter Encoding Device Name.
3. According to encoding device acutal parameters, select Encoding Device Type, enter IP/Host, Port, Channel, Login user, and Password.
4. Oponally, you can enable stream media server by checking the checkbox of Enable SMS (Stream Media System), inpung IP address:port (e.g., 192.168.0.2:554) in SMS, and select URL Mark and Transmission Method.
5. Oponally, you can enable other funcon according to your needs.

Enable streaming according to needs: The storage system releases occupied bandwidth, when no

stream requirement for the encoding device. If selected, the encoding device Aribute marks as P.

ANR (Automac Network Replenishment): When the storage system disconnects with the encoding device, the encoding device records video and stores in its own storage device, like SD card. Once conncon recovers, encoding device sends the video to the storage system. If selected, the encoding device Aribute marks as T.
Enable sub-stream to preview and record: If selected, when you preview and record via sub-stream, it takes lower bandwidth. But sub-stream video quality and bitrate is lower than main stream. And the encoding device Attribute would mark as S. If record strategy exists, HYBRID SAN gets stream according to strategy.
Enable Arming: If selected, when alarm occurs to encoding device, HYBRID SAN can trigger alarm record. And the encoding device Aribute would mark as A.

1. Select related record volume in Link to Record Volume.

2. Click OK and click OK in conrmaon dialog box to add the encoding device.

Figure 7.6 Add Encoding Device

Repeat above steps to add more encoding devices. Up to 1024 encoding devices can be added.
If the encoding device you add isn't in the List of Compatible of Encoding Device, the Aribute would mark as B. You can ask technical support for the List of Compatible of Encoding Device.

7.3.3 Modifying and Deleng

Steps:

● To delete encoding devices, do following steps:

1. Check the checkbox of encoding device you want to delete.
2. Click Delete encoding device.

● To modify encoding device parameters, do following steps:

1. Click of encoding device you want to modify.
2. Edit the parameters you want to modify.
3. Click OK and click OK in conrmaon dialog box to save the settings.
   ● To modify linked record volume, do following steps:
4. Check the checkbox encoding device you want to modify.
5. Select the target record volume in the dropdown list.

7.3.4 Exporng and Imporng Encoding Device

Purpose:

For the purpose of modifying a large number of encoding device in batch, you can export them, modify their parameters, and import them back to HYBRID SAN sub-system.

Steps:

● To export encoding devices, do following steps:

1. Click Export and click OK in conrmaon dialog box.

Figure 7.7 Export

1. Select le saving path and click OK to save it.

The exported le is a .csv le. You can view and edit it via Microso Excel. The content of exported le is shown in Figure 7. 8 Exported File.

Figure 7.8 Exported File

● To import encoding devices, do following steps:

1. Click

Import

1. Click Browse and select the target le.
2. Oponally, you can select the Operaon Opons.

Update Duplicate Device: When the contents of HOST and CHANNEL column of several encoding devices are the same, HYBRID SAN judges them as duplicate encoding device. If it is selected, HYBRID SAN would add all of the duplicate encoding devices and update the previous encoding devices' parameters. Or duplicated wouldn't be added.

Update encoding device with the same name: If selected, when encoding devices in HYBRID SAN sub-system and importing le share the same name, once imported, the encoding devices in imporg le would replace the one in HYBRID SAN sub-system.

Auto link record volume: If selected, when encoding devices in imporg le have no linked record volume, once imported they would link to the rst record volume in HYBRID SAN sub-system.
Auto Rename: If selected, when duplicated name exists during add and modifying, the name of added encoding devices would be renamed as "previous name_1".

1. Click OK and click OK in conrmaon dialog box to import. The encoding device list would be updated according to imported le.

Figure 7.9 Import

7.4 Previewing and Recording

Purpose:

Do following steps to start or stop recording manually.

Steps:

Click Preview and Record in navigaon bar.

Figure 7. 10 Preview and Record

● To start or stop manual recording for specied encoding devices, do following steps:
1. Check the checkboxes of encoding devices you want to start manual record.
2. Click Turn on videos to start recording. And you can click turn o videos to stop recording.
● To start or stop manual recording for all encoding devices, do following step:

Click Turn on All to start recording for all. And you can click Turn o All to stop recording for all.

If the encoding device is recording according to record schedule, click Stop recording or All stop wouldn't stop recording, for record schedule would start recording again. For schedule details, refer to 7.5 Strategy and Alarm.

7.5 Strategy and Alarm

Purpose:

You can congure recording schedule, create uploading task and schedule, and congure alarm parameter.

Step:

Click Strategy and Alarm in navigaon bar.

Figure 7.11 Strategy and Alarm

7.5.1 Record Plan

Purpose:

Set the record plan, and then the encoding devices automatically starts and stops recording according to the congured plan.

Step:

Click Record Strategy in navigaon bar.

Figure 7.12 Record Strategy

It is recommended to congregate either simple record plan or advanced record plan.

7.5.1.2 Simple Record Plan

Purpose:

Set the simple record plan, and then the specied encoding devices automatically start/stop recording according to the congured plan.

Steps:

1. Click Create record plan.

2. Enter in the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

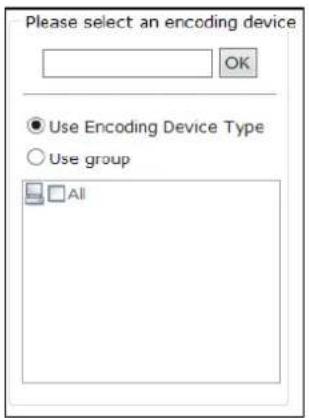

Figure 7.13 Select Encoding Devices

1. Select the Date on which you want to set schedule.

Figure 7.14 Date

1. In Record mode, to schedule an all-day recording, check the checkbox of Whole-day Video. Or you can select the one or more me segments to set start me and end me.

Up to 8 periods can be congured for each day. And the me periods can't be overlapped with each other.

Figure 7.15 Record

1. Oponally, you can select one or more Dispatch opons.

Disabled by Default: If selected, schedule status is Stopped. And encoding device would not start recording. Other Schedule opons wouldn't take eecve.

Not execute record dispatch: If selected, encoding device wouldn't start recording. Other Schedule opons

wouldn't take eecve.

Copy back: If selected and uploading schedule exists, the camera video would upload to HYBRID SAN. For details of conguring uploading schedule, refer to chapter 7.5.2.3 Adding Upload.
Disable alarm pre-record: Pre-record refers to the me you set to record before the scheduled me or event. If selected, pre-record is turned o.
Disable alarm arming: If selected, when encoding device is error, HYBRID SAN wouldn't alarm.
Lock: If selected, you need to set locking me as a specied duraon or keep locking. During locking me, videos wouldn't be overlapped. Locking me must be longer than duraon me.
Use sub stream to record: If selected, encoding device records via sub-stream instead of main stream.

7.5.1.3 Advanced Record Plan

Purpose:

By seng advanced record plan, you can specify the start recording me and recording duraon for designated.

Steps:

1. Click Advanced Strategy.

2. Enter in the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

Figure 7.16 Select Encoding Devices

1. Select Start me by Instant Recording or Preset Time.

➢ Instant Recording: Starts recording once schedule is added.

➢ Preset Time: Starts recording at the set me.

1. Select Duraon unit as Week, Day, Hour, Minute, or Second and enter number.

Duraon: Keeps recording during the me.

Figure 7. 17 Start Time and Duraon Time

1. Oponally, you can select one or more Dispatch opons. For details, refer to step 5 of 7.5.1.2 Simple Record Plan.

2. Select Use Strategy and set the end me.

If Schedule is set as hour, minute, or customized, locking in schedule opons is not selectable.

1. Click OK to save the schedule. Then before the end me, the selected encoding devices would repeatedly start recording at set start me and stop recording ll the duraon me.

7.5.1.4 Exporng and Imporng Advanced Record Plan

Purpose:

For the purpose of managing advanced schedules in batch, you can export them, modify their parameters, and import them back to HYBRID SAN sub-system.

Step:

For detailed steps, you can refer to chapter 7.3.4 Exporng and Imporng Encoding Device.

7.5.2 Upload Strategy

Purpose:

When videos in HYBRID SAN lost, and the lost videos exist in encoding devices. You can upload the videos back to HYBRID SAN.

Step:

Click Strategy and Alarm in navigaon bar and choose Upload Strategy.

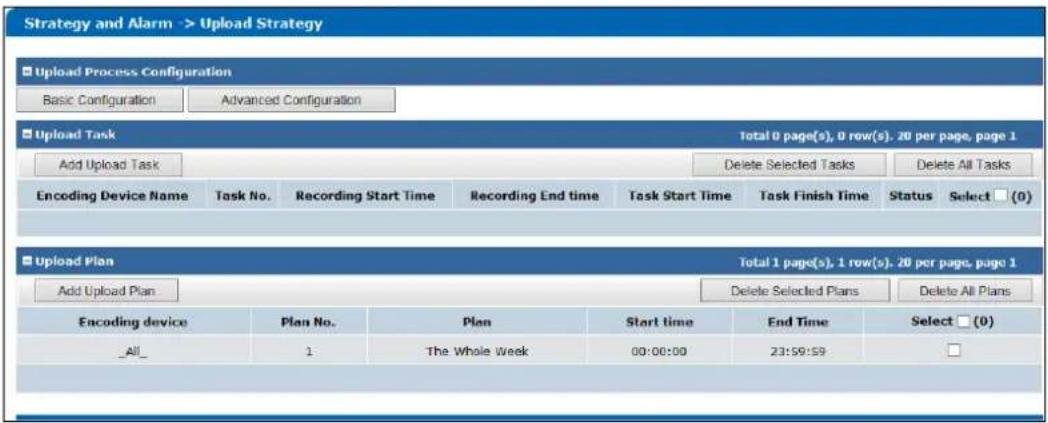

Figure 7.18 Upload Strategy

7.5.2.1 Basic Sengs

Steps:

1. Click Basic Conguraon.
2. Enter Detecon Start Time, Detecon End Time, Max. Camera Number, and Max. Uploading Camera for One DVR.

Detecon Window Start Time: Start me of detectcng uploading.
➢ Detecon Window End Time: End me of detectng uploading. Videos ranges from detecon start me to end me would be uploaded.
Upload Channel max limit: The maximum cameras that could upload simultaneously.
Single DVR Uploading Max Limit: The maximum cameras in a DVR that could upload simultaneously.

Figure 7. 19 Basic Conguraon

7.5.2.2 Adding Uploading Tasks

Purpose:

When videos in HYBRID SAN lost, and the lost videos exist in encoding devices. You can upload the videos back to HYBRID SAN by adding uploading tasks.

Steps:

1. Click Add Upload Task.
2. Enter the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

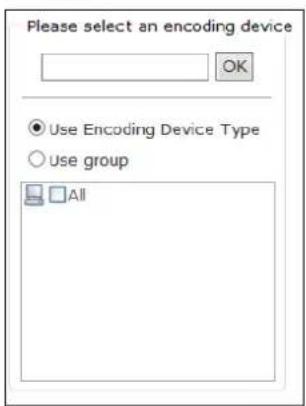

Figure 7. 20 Select Encoding Devices

1. Set the Video Start me and Video End me of video you want to upload.

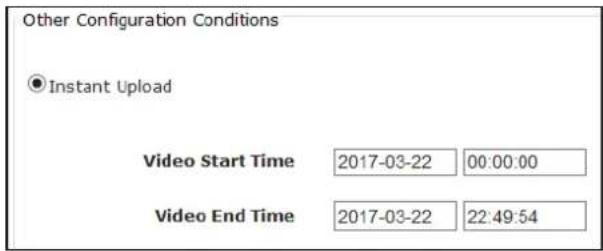

Figure 7. 21 Add Uploading Tasks

1. Click OK to add the task. Then if encoding device contains the video, it starts uploading the video to HYBRID SAN.

7.5.2.3 Adding Upload Plan

Purpose:

Uploading schedule can judge whether video loss happens during record schedule. Congure the uploading schedule to upload the videos saved in encoding devices back to HYBRID SAN.

Before you start:

Ensure pulling back data from encoding device in schedule opons is selected when conguring basic or advanced schedule. For detailed steps, refer to chapter 7.5.1.2 Simple Record Plan and chapter 7.5.1.3 Advanced.

Steps:

1. Click Add Upload Plan.
2. Enter the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

Figure 7.22 Select Encoding Devices

1. Select the date on which you want to set schedule.

2. In Upload mode, to schedule an all-day uploading, check the checkbox of All-day Upload.

Or you can select the one or more me segments to set start me and end me.

Up to 8 periods can be congured for each day. And the me periods can't be overlapped with each other.

1. Click OK to add the schedule. Then selected encoding devices only upload videos during the set data and me segments.

7.5.3 Alarm

Purpose:

You can set the recording me for alarm events.

Before you start:

Enable alarm events you want to pay attenon in encoding devices rst. For details, refer to user manual of encoding device.

Steps:

1. Click Strategy and Alarm in navigaon bar and choose Alarm.

Figure 7.23 Alarm

1. Click Set Alarm Conguraon.
2. Enter the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

Figure 7.24 Select Encoding Devices

1. Enter Trigger Recording (Archive) Duraon for alarm types you want to pay attenon. Valid Duraon ranges from 5 to 9999. Then when an alarm occurs, HYBRID SAN starts recording for the set Duraon. The supported alarm types include Signal Source, Moon Detecon, Video Tampering, Border Cross, Wrong Direcon, Unaended Baggage, and Object Loss.
2. Oponally, you can check the checkbox of Archive of alarm types. Then the alarm videos can be viewed in Archive Search interface.

Figure 7. 25 Other Conguraons

1. Click OK to save the sengs.

7.6 Playing and Downloading

Purpose:

You can search, archive, backup, lock, play, and download recorded videos.

Step:

Click Download and Play in navigaon bar.

Figure 7. 26 Download and Play

7.6.1 Searching Video

Steps:

1. Click Search Video.
2. Enter the encoding device name and click OK to select the encoding device. Repeat the step to add more. Or select encoding devices or groups in the list.

Figure 7.27 Select Encoding Devices

1. Specify the search conditions including Start Time, End Time, Record Type, Search Type, and Display lockme (whether it is a locked video).
2. Click OK to start search. And the videos meet the search conditions would be listed.

7.6.2 Locking Videos

Purpose:

The locked videos will not be overlapped by other videos.

Before you start:

Search videos rst.

Steps:

1. Check the checkboxes of videos you want to lock. Not more than 100 videos can be selected.

2. Click Lock Conguraon.

3. Select lock mode as Unlock, Lock last, or Lock me.

Unlock: If selected, the locked video would be unlocked.
Always Locked: If selected, the video is locked permanently.
Lock Duraon: If selected, you need to set the locking me. Then the video would be locked from the video start me for the set me.

Figure 7.28 Lock Mode

7.6.3 Playing Videos

Purpose:

Play back videos to view the history image.

Before you start:

• Search videos rst.

• Add IP address of HYBRID SAN to web browser trusted sites and enable all of AcveX controls and plug-ins.

• Enter Trusted Sites menu.

Tools > Internet Opons > Security > Trusted Sites

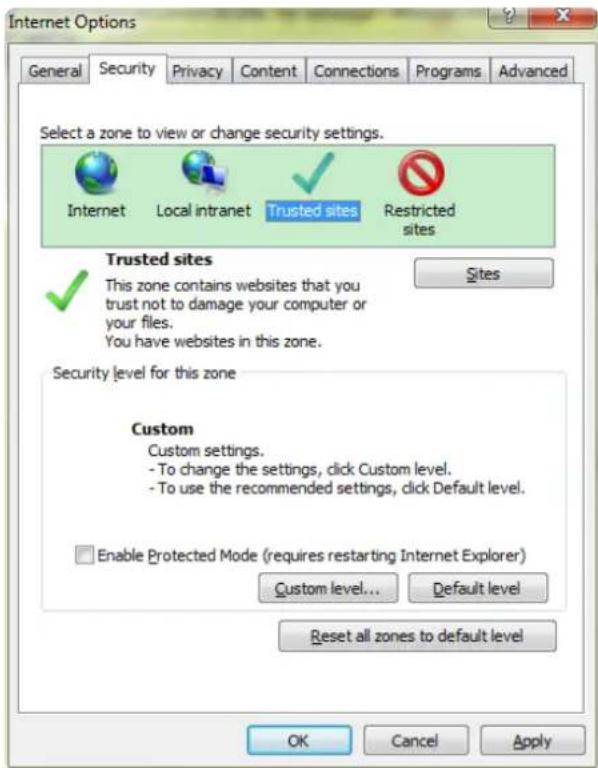

Figure 7. 29 Trusted Sites

1. Click Sites
   buon, enter hps://IP address of HYBRID SAN, click Add, and click Close to go
   back to upper menu.
2. Click Custom level... buon, enable all of AcveX controls and plug-ins, click OK to save and go back to upper menu.
3. Click OK to save the sengs.

7.6.3.2 Whole Video Playback

Purpose:

Play the original video.

Steps:

1. Check the checkboxes of videos you want to play. Not more than 16 videos can be selected.
2. Click Video Playback. And another window pops up. You can view the playback image.

Figure 7. 30 Playback Window

1. You can play all selected videos by clicking Play All in upper-right corner.

7.6.4 Downloading Videos

Purpose:

Save the videos to computer by downloading them.

Before you start:

Search videos rst.

7.6.4.1 One-Key Downloading

Step:

Click buon and select the saving path to save a single video.

7.6.4.2 Block Downloading

Steps:

Click button and click Complete Download to download.

Figure 7.31 Segment Downloading

7.6.4.3 Batch Dowloading

Steps:

1. Check the checkboxes of videos you want to download.
2. Click buon to pop up batch downloading interface.
3. Click buon to select saving path.
4. Select downloading mode as By signle-task or By mul-task.

By single-task: Download one video at a me.

By mul-task: Download several videos simultaneously. The maximum downloading video amount is Max. number of tasks whose valid range is from 1 to 5.

1. Click Start to start downloading. You can click Stop to stop downloading.

Figure 7. 32 Batch Downloading

7.7 User

Purpose:

You can switch system language and edit display rows in each page.

Steps:

1. Click User Management in navigaon bar.
2. To modify Interface language, select language in the dropdown list.
3. To modify the display rows in each page, select number in the dropdown list of Number of table rows shown in each page.
4. Click Upload Conguraon to save the changes.

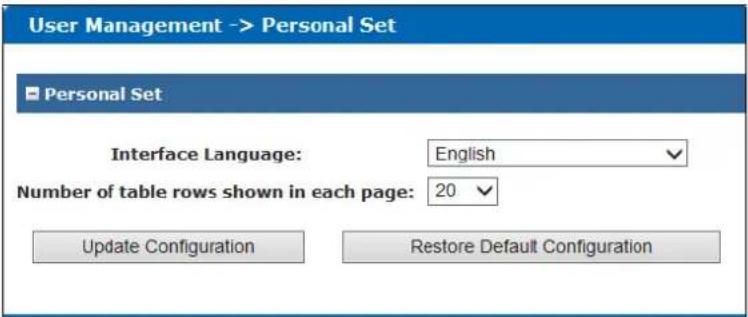

Figure 7.33 User

7.8 System Conguraon

Purpose:

You can congregate system alarms and view HYBRID SAN version.

Step:

Click System Cong in navigaon bar.

7.8.1 System Alarm

Purpose:

You can set linkage acons for alarm type, specify alarm type for alarm events, and turn on or turn o status alarm.

Steps:

1. Click System in navigaon bar and choose System Alarm to enter System Alarm interface.
2. Alarm type includes Info (Informaon), Warning, Error, and Fatal. Specify 3 linkage acons for the 4 alarm types.

Figure 7. 34 Alarm Seng

1. Specify alarm type for alarm events.

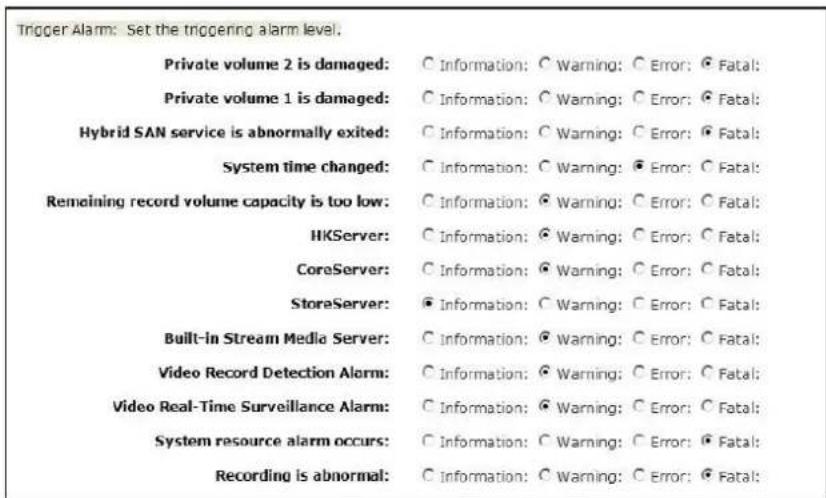

Figure 7. 35 Alarm Events

1. Turn on or turn o status alarm.

Figure 7. 36 Status Alarm

1. Click to save the sengs.

7.8.2 HYBRID SAN Version

Purpose:

You can view HYBRID SAN version, HYBRID SAN library version, and HYBRID SAN other version.

Step:

Click System Cong in navigaon bar and choose Version.

Figure 7.37 HYBRID SAN Version

7.9 Log Management

Purpose:

Log helps you gure out HYBRID SAN history acons. You can search, export, and clear logs.

Step:

Click Log Management in navigaon bar to enter Log Management interface.

Figure 7.38 Log Management

7.9.1 Searching Log

Steps:

1. Click Search log.
2. Specify the search condition including Log type, Start me, End me, and Including Characters.
3. Click OK to start search. The matched logs would be listed.

Figure 7. 39 Log Search

7.9.2 Exporng Log

Purpose:

You can export the listed logs to local HDD.

Before you start:

Search the logs you want to export.

Step:

Click Export All Logs and choose the saving path to save it.

The exported logs are integrated in a .csv le.

7.9.3 Clearing Log

Step:

Click Clear All System Logs and click OK in popup conrmaon dialog box to clear all logs saved in HYBRID SAN sub-system.

Chapter 8 System

Purpose:

You can congure network parameters, alarm triggered acon, system me, modify system password, and so forth.

Table 8.1 Module Descripon

Module	Descripon
Network	You can:Modify the conguraon of management network interface and data network interfaces.Bond data network interfaces.Remotely access the storage system via a specied gateway.Edit DNS server IP address, bond mode, and network work speed.
Alarm	You can:Send the storage system alarms to client via e-mail or SNMP manager.
Time	You can:Manually or automacally adjust system me.
Power Supply	You can:View UPS mode.Modify UPS power-o me.Modify supported UPS manufacturer.
Management Tool	You can:Modify user password.Congure SMTP parameters.Test network communicaon between the storage system and a specied IP address.Update the storage system.View service status.

Keywords:

Network, Alarm, Time, Power Supply, Tool

Figure 8.2 System

8.1 Network

Purpose:

The storage system provides one management network interface and two data network interfaces. The management network interface is designed for conguring the data network interface and device maintenance.

The data network interfaces are used to transmit data.

Step:

Click System in navigaon bar and choose Network.

Figure 8.3 Network

8.1.1 Modifying Data Network Interface

Steps:

1. Check the checkbox of data network interface.
2. Click in Basic Network Interface list.
3. Enter the new IP Address and Subnet Mask and select MTU in dropdown list.

MTU (Maximum Transmission Unit): Select MTU as larger than 1500 byte for the purpose of improving transmission performance.

1. Click OK to save the sengs.

8.1.2 Binding Network Interfaces

Purpose:

When transming data via a single data network interface, once the data network interface fails, data transmission stops. By bonding mulple data network interfaces into one, they can share one IP address, thus to balance network load and create redundant links. When transming data via a bound network interface, once a data network interface fails, other data network interfaces take over the transmission task.

● The management network interface does not support bond.
● The IP address of bound network interface is the same as the rst data network interface.

Before you start:

Connect all data network interfaces to network via network cables.

8.1.2.1 Creang Bond

Steps:

1. Check the checkboxes of data network interfaces in Basic Network Interface list.
2. Click Bind Network Interface and click OK in conrmaon dialog box.

Figure 8.4 Bound Network Interface Informaon

8.1.2.2 Deleng Bond

Steps:

1. Check the bound network interface checkbox.
2. Click Delete and click OK in conrmaon dialog box. Then the bound network interface is recovered to several data network interfaces.

Figure 8.5 Conrmaon Dialog Box

8.1.2.3 Modifying Bonding Mode

For detailed informaon and steps, refer to secon 8.1.5.2 Binding Mode.

8.1.3 Adding Route

Purpose:

By default, the route is empty, clients in dierent network segment access the storage system via the default gateway. If you want to access the storage system via a specied gateway, add route here.

Steps:

1. Click Add Route Info in Custom Route Informaon list.

Figure 8.6 Add Route

1. Input Route IP Address, Subnet Mask, and Default Gateway.
   The client server within Route IP address can access the storage system via the Default Gateway.
2. Select Bound data Network Interface in the dropdown list.
3. Click OK to add the route. Thus the client server within 10.128.50.1 to 10.128.50.55 can access the storage system via the bound network interface 1 whose the gateway is 192.168.0.2.

8.1.4 MAC and IP Bonding

Purpose:

Only client with the specied MAC address and IP address is allowed to get access to iSCSI HDD.

Steps:

1. Click MAC&IP Bonding.

Figure 8.7 MAC&IP Bonding

1. Input target Client IP Address and MAC Address.

Ensure the client IP is in the same network segment with the storage system.

1. Click OK and click OK in pop up conrmaon box to create bond.

8.1.5 Advanced Parameters

Purpose:

You can congregate DNS server, bond mode, and network work speed parameters.

8.1.5.1 DNS Server

Purpose:

You are required to add DNS server IP address if you need to access external network.

Steps:

1. Click Modify of Preferred DNS Server.
2. Enter IP address in text eld.
3. Click OK and click OK in conrmaon dialog box to save the setngs.

Figure 8. 8 DNS Server

8.1.5.2 Binding Mode

Purpose:

The selecon of bond mode is related to actual applicaon and network situaon. Up to seven types of bond modes are provided. For details, refer to Table 8. 2 Bonding Mode Descripon.

Steps:

1. Click Modify of NIC Binding Mode.
2. Select bond mode in dropdown list. Up to 7 bond modes are selectable.
3. Click OK and click OK in conrmaon dialog box to save the setngs.

Figure 8.9 NIC Binding Mode

Table 8.2 Bonding Mode Descripon

Bond Mode	Descripon
Round-robin	Denion:All data network interfaces sends and receives data in turn.When using the mode, it is recommended to apply protocols except TCP/IP.Advantage:Load balance.All data network interfaces are fully used.There is no requirement about hardware like network switch.Disadvantage:The order of received data is uncertain.Low network throughput.
Acve-Backup	Denion: The default bond mode. Transmits data via a specied data network interface, other data network interfaces are standby. Only when the specied data network interface fails, another standby data network interface takes overtransmission task.Advantage:There is no requirement about hardware like network switch.Redundant network links.Disadvantage:Load balance isn't supported.Uses only one data network interface at a me. Other data network interfaces aren't fully used.
XOR	Denion:The storage system can gure out the relationship between each data network interface and client MAC addresses. According to the relationship, the storage system transmits data to clients with corresponding data network interface. If the working data network interface fails, another data network interface takes over the task.It is recommended to use this mode in a local area network. However, if data is transmied via network gateway, don't use the mode.Advantage:There is no requirement to hardware like network switch.Balance the load in the local area network within a network switch.Disadvantage:Load balance isn't supported in dierent local area network.
Broadcast	Denion:All the data network interfaces transmit the same data.Advantage:There is no requirement about hardware like network switch.Redundant network links.Data network interfaces are fully used.Disadvantage:Load balance isn't supported.Low data network interface usage.
802.3ad	Denion:The storage system gures out the relationship between each data network interface and clients' MAC addresses according to Hash Algorithm. The storage system transmits data to client via corresponding data network interface.Advantage:Based on IEEE standard, devices in system can work eciently if they are all 802.3ad mode.Load balance.Data network interfaces are fully used.Disadvantage:The storage system, network switch, and client server are all required to support 802.3ad mode.
Tlb	Denion:The storage system allocates output trac to each data network interfaces, according to current load. And transmits data to clients via dierent data network interfaces. If the working data network interface fails, another data network interface takes over the task.● Advantage:➢ Data network interfaces are fully used.➢ Load balance when sending data.● Disadvantage:Load balance isn’t supported when receiving data.
Virtualizaon	● Denion:➢ The storage system allocates input and output trac to each data network interfaces, according to current load.➢ It is recommended to use the mode when sending and receiving data to mulple clients.● Advantage:➢ Data network interfaces are fully used.➢ Load balance in both sending and receiving data.

8.1.5.3 Network Work Speed

Purpose:

It is the speed of all data network interfaces. The default network work speed is 100 Mb/s. It is recommended to set network work speed according to actual network situation.

Steps:

1. Click Modify of Network Word Speed.
2. Select Network Work Speed as 1000 Mb/s or 100 Mb/s.
3. Click OK and click OK in conrmaon dialog box to save the sengs.

Set Network Working Speed:

1000 Mb/s

Modify

8.2 Alarm

Purpose:

The storage system supports nofying you about the occurring alarms via e-mail and SMTP manager.

Steps:

Click System in navigaon bar and choose Alarm to enter Network interface.

Figure 8.10 Alarm

8.2.1 Alarm Type

Purpose:

The Table 8.3 Alarm Type Descripon describes the supported alarm types and corresponding event level. E-mail

and SNMP manager support nofying you about the alarm types in Table 8.3.

Table 8.3 Alarm Type Descripon

Module	Alarm Type	Event Level
Power supply	Controller power supply error	Serious
	Storage enclosure power supply error	Serious
Temperature	Temperature is too high	Warning
	Temperature is high	Serious
	Temperature is too low	Serious
Fan	Fan speed is too low	Warning
	Fan speed error	Serious
	Fan damaged or poor conncon	Serious
Memory	Memory is used too much.	Warning
DOM card	Insucient capacity	Serious
HDD	HDD loss	Serious
	HDD warning	Warning
	Bad HDD	Serious
	Risky HDD	Serious
	Drive kicked an HDD	Serious
	Array kicked an HDD	Serious
Array	Not available	Serious
	Degraded	Warning
	Rebuilding	Warning
Storage system	Physical HDD loss	Serious
	Unknown physical HDD loss	Serious
	Storage pool unmounted	Serious
	All storage pool lost	Serious
NAS	SAMBA error	Serious
	NFS error	Serious
	FTP error	Serious
	AFP error	Serious
	HTTP error	Serious
	RSYNC error	Serious
iSCSI	iSCSI conguraons mismatch	Serious
	I/O error	Serious
Network	Data network interface %d unconnected	Serious
	Network speed of data network interface %d is 100M Ethernet.	Serious
	Single data network interface %d unconnected	Serious
Cluster	Cluster heartbeat communicaon error: network transmission failed	Serious
	Cluster resource network error: resource network	Serious
	interface % disconnected

8.2.2 Adding Email

Purpose:

Alarm messages are sent to receiving e-mails via sending e-mails.

Before you start:

Set DNS server rst. Refer to secon 8.1.5.1 DNS Server for detailed steps.

8.2.2.1 Sending Email

Steps:

1. Click buon.

Configure SMTP

1. Enter User Name, Password, SMTP, and SMTP Port.

➢ User Name: sending e-mail account.
➢ Password: sending e-mail password.
SMTP: sending e-mail server website.
SMTP Port No.: sending e-mail server port.

1. Click OK to add the sending e-mail.

Figure 8. 11 Congure Sending Email

8.2.2.2 Receiving Email

Steps:

1. Click Add Email User.
2. Enter Email and User Name.

3. Choose Event Level as Alarm Event or Serious Event.

4. Click OK and click OK in conrmaon dialog box to add the user. The added e-mail account is listed in List of email alarm users.

Figure 8. 12 Add Email Alarm User

8.2.3 Tesng Email

Purpose:

Aer sending and receiving e-mail are congured, you can test the communicaon between them.

Steps:

1. Check the checkbox of sending e-mail you want to test.

2. Click Test buon and click OK in conrmaon dialog box to start test. The test result is listed in a message dialog box.

8.2.4 Adding SNMP Manager

Purpose:

SNMP manager can nofy the SNMP-Trap soware installed in your computer about the storage system alarm. When alarm occurs, alarm message pops up in SNMP-Trap soware.

Before you start:

1. Install the SNMP-Trap soware in your computer.

2. To receive alarm message in client, turn on Administraon & Monitoring Tools in client.

Steps:

1. Click .

Add SNMP manager

Figure 8. 13 Add SNMP Manager

1. Enter SNMP Manager and SNMP Port No. in the text eld.
2. SNMP Version is V2(V2C) by default and is not editable.
3. Choose Event Level as System Log, Alarm Event, Error Event, or Serious Event.
4. Click OK and click OK in conformaon dialog box. The added SNMP manager is listed in SNMP manager list.

8.2.5 Tesng SMTP Manager

Purpose:

You can test the network communicaon of SMTP manager.

Steps:

1. Check the checkbox of SMTP manger to test.
2. Click Test buon and click OK to start test. Then test result pops up.

8.3 Time

Purpose:

System me is adjustable.

Steps:

Click System in navigaon bar and choose Time.

Figure 8.14 Time Management

8.3.1 Adjusng System Time

8.3.1.1 Manual Adjust

Steps:

Do one or more of the following:

- Adjust Time Zone

1. Click Modify of Current System Time Zone.
2. Select me zone in the dropdown list.
3. Click OK and click OK in conrmaon dialog box.

- Adjust Date and Time

1. Click Modify of Current System Time.
2. Select date and me in text eld.
3. Click OK and click OK in conrmaon dialog box.

8.3.1.2 Auto Adjust

Purpose:

The storage system automacally adjusts system me according to me server.

Before you start:

Turn o the NTP server in client soware.

Steps:

1. Enter a correct Time Server IP Address in text eld.
2. Click Enable of NTP Server Status to start auto me adjust.

Figure 8. 15 Adjust Time Automacally

8.3.2 Synchronizing Time

Purpose:

You can congure me synchronizaon strategy.

Before you start:

● Turn o the NTP server in client soware.
- Log in the storage system via resource IP address.

Steps:

1. Click Enable of Time Sync Strategy Status (Synchronizaon Strategy Status).
2. Enter Time Server IP Address in text eld
3. Enter Sync Cycle (Synchronizaon Cycle) in text eld.
4. Click Congure to start me synchronizaon.

Figure 8. 16 Synchronize Time

Chapter 9 Log

Purpose:

Table 9.1 Module Descripon

Module	Descripon
Log Download	You can download logs by downloading mode.
Operaon log	It records the content and me of each operaon. Search, download, and clear logs are supported.
Performance log	The storage system records the performance logs at every ten minutes. Performance log includes messages of CPU usage, memory footprint, network trac, and array read and wring speed.
Update log	It records the details informaon of every system update.

Keywords:

Log Download, Operaon log, Performance log, Update log

Figure 9.2 System

9.1 Operaon Log

Purpose:

Operaon log records the content and me of each operaon. Search, download, and clear logs are supported.

Steps:

Click Log in navigaon bar and choose Operaon Log to enter Operaon Log interface. Do one or more of the following:

Figure 9.3 Operaon Log

• View Logs

Figure 9.4 Paging

Click /buon to turn to previous/next page. Click /buon to turn to the rst/last page. Or enter page number and click to go to the designated page.

- Search Logs

Figure 9.5 Search Log

1) To search by me, enter date and me you want to search in Search text eld. To search by log type, select log type in dropdown list.

Input correct data format, like March 23 2016 16:47:07.

2) Choose log type as All, Informaon, Warning, Error, or Serious in dropdown list.
3) Click Search. Logs meet the search conditions would be listed in operaon window.

- Clear All Logs

Click Clear Operaon Log and click OK in popup dialog to conrm.

9.2 Performance Log

Purpose:

The storage system records the performance logs at every ten minutes. Performance log includes messages of CPU usage, memory footprint, network trac, and array read and wring speed.

Steps:

1. Click Log in navigaon bar and choose Operaon Log to enter Operaon Log interface.
2. For detailed steps of viewing and search performance logs, refer to secon 9.1 Operaon Log.

Figure 9.6 Performance Log

9.3 Upgrade Log

Purpose:

Update log records the details informaon of every system update.

Steps:

1. Click Log in navigaon bar and choose Upgrade Log.
2. To view logs and search logs, refer to secon 9.1 Operaon Log for detailed steps.

Figure 9.7 Update Log

0100001070327

First Choice for Security Professionals
