Product Type	Active PA Speaker
Brand	Behringer
Model	Eurolive B112D
Woofer Size	12 inches
Tweeter Size	1 inch
Amplifier Power (Peak)	1000 W
Amplifier Power (RMS)	200 W
Frequency Response	55 Hz - 20 kHz
Maximum SPL	126 dB
Input Connectors	XLR, 1/4" TRS, RCA
Output Connectors	XLR (Link)
Controls	Volume, EQ (High/Low), Clip Limiter
Enclosure Material	Polypropylene
Grille Material	Steel
Pole Mount	Yes, 35 mm
Dimensions (H x W x D)	27.5 x 15.0 x 15.0 inches (699 x 381 x 381 mm)
Weight	38.6 lbs (17.5 kg)
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	200 W (max)
Protection Features	Clip limiting, overheating protection, overload protection
Included Accessories	Power cable, user manual
Cleaning Instructions	Wipe with dry cloth, do not use solvents
Safety Certifications	CE, ROHS

Frequently Asked Questions - Eurolive B112D BEHRINGER

What is the power rating of the Behringer Eurolive B112D?

The speaker has a peak power of 1000 W and an RMS power of 200 W.

How do I connect a microphone to the B112D?

Use an XLR cable to connect your microphone to the XLR input. Adjust the volume control accordingly.

Can I use the B112D as a floor monitor?

Yes, the wedge-shaped cabinet allows it to be used as a floor monitor. Place it on its side with the grille angled upward.

What is the frequency response of this speaker?

The frequency response is 55 Hz to 20 kHz, suitable for full-range PA applications.

How do I reduce feedback?

Reduce the volume, move the microphone away from the speaker, or adjust the EQ controls to cut problematic frequencies.

Can I daisy-chain multiple B112D speakers?

Yes, use the XLR link output to connect to another speaker's input for daisy-chaining.

What is the maximum SPL of the B112D?

The maximum SPL is 126 dB, providing high output for live sound.

Is the speaker suitable for outdoor use?

It is designed for indoor use, but it can be used outdoor if protected from moisture and direct sunlight.

How do I clean the speaker?

Wipe the enclosure with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners.

What type of power cable does it use?

It uses a standard IEC power cable (included) compatible with AC 100-240 V.

USER MANUAL Eurolive B112D BEHRINGER

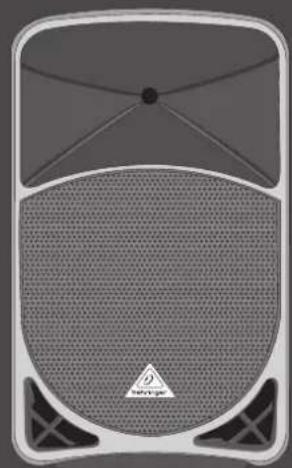

Illustration of a speaker grille with mesh pattern and warning symbol (no text or labels)

Top-down view of a speaker grille with no visible text or symbols

Quick Start Guide

(Check out behringer.com for more information)

EN

ES

FR

DE

PT

Black-and-white collage of six diverse scenes: laughing, playing music, smiling with band partners, playing guitar, smiling with headphones, and smiling with a child (no text or symbols visible)

EUROLIVE

B115 B112

Active 1000-Watt 2-Way 15"/12" PA Speaker System with Wireless Option and Integrated Mixer

2 EUROLIVE E'ED/B120 Quick Start Guide 3

EN

EN Important Safety Instructions

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high quality professional speaker cables with TS or twist lacking plugs pre installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure—voltage that may be sufficient to constitute a risk of shock.

The symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as wares, shall be placed on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.

2. Keep these instructions.

3. Head all warnings.

4. Followall instructives.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings install in

accordance with the manufacturer's instructions.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsores outlet.

3. Protect the power cord from being walked on or pinched particularly as plugs, convenience necessitates, and the point where they exit from the apparatus.
4. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart'apparatus combination to avoid

injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug in damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MANS socket outlet with a protective earthing connection.

4. Where the MAPS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

LEGAL DISCLAIMER

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANED. BEHRINGER IS PART OF THE MUSIC GROUP (MUSIC-CROUP.COM). ALL TRADEMARS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORED FULLIERS AND RESILERS ONLY FULLIERS AND RESILERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED

UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND. FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IF LTD.

ALL RIGHTS RESERVED. © 2012 MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands

LIMITED WARRANTY

§ 1 Warranty

(3) This limited warranty is valid only if you purchased the product from a MUSIC Group Authorized Reseller in the country of purchase. A list of authorized resellers can be found on BEHRINGER's website behringer.com under "Where to Buy", or you can contact the MUSIC Group office closest to you.

2 MUSIC Group® warrants the mechanical and electronic components of this product to be free of defects in material and workmanship if used under normal operating conditions for a period of one (1) year from the original date of purchase (see the Limited Warranty terms in § 4 below), unless a longer minimum warranty period is manufactured by applicable local laws. If the product shows any defects within the specified warranty period and that defect is not excluded under § 6, MUSIC Group shall, its dissection, either replace or repair the product using unalool new or reconditioned product or parts. In case MUSIC Group decides to replace the entire product, this limited warranty shall apply to the replacement product for the remaining initial warranty period, i.e., one (1) year or otherwise applicable minimum warranty period from the date of purchase of the original product. 3 Upon validation of the warranty claim, the repaired or replacement product will be returned to the user freight prepared by MUSIC Group.

Warranty claims other than those indicated above are expressly excluded. PLEASE RETAIN YOUR SALES RECEIPT. IT IS YOUR PROOF OF PURCHASE COVERING YOUR LIMITED WARRANTY. THIS LIMITED WARRANTY IS VOID WITHOUT SUCH PROOF OF PURCHASE.

§ 2 Online registration

Please do remember to register your new BEHNING equipment night after your purchase at behinger.com under "Support" and kindly read the terms and conditions of our limited warranty carefully. Registering your purchase and equipment with us helps us process your repair claims quicker and more efficiently. Thank you for your cooperation!

§ 3 Return materials authorization

① To obtain warranty service, please contact the retailer from whom the equipment was purchased. Should your MUSIC Group Authorized Reveler not be located in your vicinity, you may contact the MUSIC Group Authorized Further for your country listed under

"Support" at belringers.com. If your country is not listed, please check if your problem can be dealt with by our "Online Support" which may also be found under "Support" at belringers.com. Alternatively, please submit an online warranty claim at belringers.com BEFORE returning the product. All inquiries must be accompanied by a description of the problem and the serial number of the product. After verifying the product's warranty eligibility with the original sales receipt, MUSIC Group will then issue a Return Materials Authorization (BMA) number.

② Subsequently, the product must be returned in its original shipping carton, together with the return authorization number to the address indicated by MJSK Group.

① Shipments without freight prepaid will not be accepted.

§ 4 Warranty Exclusions

(1) This limited warranty does not cover consumable parts including, but not limited to, lumes and batteries. Where applicable, MUSIC Group warrants the valves or meters contained in the product to be free from defects in material and workmanship for a period of ninety 1901 days from date of purchase.

C7. This limited warranty does not cover the product if it has been electronically or mechanically modified in any way. If the product needs to be modified or adapted, in order to comply with applicable technical or safety standards on a national or local level, in any country which is not the country for which the product was originally developed and manufactured, this modification adaptation shall not be considered a defect in materials or workmanship. The limited warranty does not cover any such modification adaptation, regardless of whether it was carried out properly or not under the terms of this limited warranty, MUSIC Group shall not be held responsible for any cost resulting from such a modification adaptation.

(3). This limited warranty covers only the product hardware. It does not cover technical assistance for hardware or software usage and it does not cover any software products whether or not contained in the product. Any such software is provided "AS IS" unless expressly provided for in any enclosed software limited warranty.

④ This limited warranty is invalid if the factory-applied serial number has been altered or removed from the product.

☐ Tree Inspections and maintenance/repair work are expressly excluded from this limited warranty, in particular, if caused by improper handling of the product by the user. This also applies to defects caused by normal wear and tear, in particular, of foders, crossfaders, potentiometers, keys/buttons, qubar strings, illuminants and similar parts.

6 Damage/defects caused by the following conditions are not covered by this limited warranty:

- improper handling, neglect or failure to operate the unit in compliance with the instructions given in BEHRINGER user or service manuals;

- connection or operation of the unit in any way that does not comply with the technical or safety regulations applicable in the country where the product is used;

• damage defects caused by acts of God/Nature (accident, fire, flood, etc) or any other condition that is beyond the control of MUSK Group.

(7) Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the limited warranty.

If an inspection of the product by MUSIC Group shows that the defect in question is not covered by the limited warranty, the inspection costs are payable by the customer.

Products which do not meet the terms of this limited warranty will be repaired exclusively at the buyer's expense. MUSIC Group or its authorized service center will inform the buyer of any such circumstance. If the buyer fails to submit a written repair order within 6 weeks after modification, MUSIC Group will return the unit C.O.D. with a separate invoice for freight and packing. Such costs will also be invoked separately when the buyer has sent in a written repair order.

(3) MUSIC Group Authorized Resellers do not sell new products directly in online auctions. Purchases made through an online auction are on a "buyer beware" basis. Online auction confirmations or sales receipts are not accepted for warranty verification and MUSIC Group will not repair or replace any product purchased through an online auction.

§ 5 Warranty transferability

This limited warranty is extended exclusively to the original buyer (customer of authorized resell) and is not transferable to anyone who may subsequently purchase this product. No other person (reseller, etc.) shall be entitled to give any warranty promise on behalf of MUSIC Group.

§ 6 Claim for damage

Subject only to the operation of mandatory applicable local laws, MUSIC Group shall have no liability to the buyer under this warranty for any consequential or indirect loss or damage of any kind. In no event shall the liability of MUSIC Group under this limited warranty exceed the Involved value of the product.

§ 7 Limitation of liability

This limited warranty is the complete and exclusive warranty between you and MUSIC Group. It supersedes all other written or oral communications related to this product. MUSIC Group provides no other warranties for this product.

§ 8 Other warranty rights and

national law

This limited warranty does not exclude or limit the buyer's statutory rights as a consumer in any way.

② The limited warranty regulations mentioned herein are applicable unless they constitute an infringement of applicable mandatory local laws.

① This warranty does not detract from the seller's obligations in regard to any lack of conformity of the product and any hidden defect.

§9 Amendment

Warranty service conditions are subject to change without notice. For the latest warranty terms and conditions and additional information regarding MUSK Group's limited warranty, please see complete details online at behinger.com.

* MUSC Group Macau Commercial Offshore Limited Rocque Poplar No. 2024, Macau France Centre, 510 Macau, including all MUSC Group companies

EN

4 LOROLIVE END/BIO Quick Start Guide 5

RESERVADOS TODOS LOS DERECHOS. © 2012 MUSIC Group IP Ltd. Irident Chambers, Wickhams Cay, P.O. Box 146. Road Town, Tortola, British Virgin Islands

GARANTÍA

§ 1 Garantía

* M.PSC Group/Macau Commercial Of Share Units of Racce Pequin No. 102 A, Macau France Centre St. Macau, Indusive Institute Regener M.PSC Group

6 EUROLIVE E'ED/B120 Quick Start Guide 7

ALLE RECHTE VORSEHALTEN. © 2012 MUSIC Group IP Ltd. Trident Chambers, Wickhams Gay, P.O. Box 146, Road Town, Tortola, British Virgin Islands.

EINGESCHRÄNKTE GARANTIE

§ 1 Garantie

* M.SIC Group, Macau Commercial Office Limited of Bayer Program No. 210 A, Macau Bureau Center St., Macau, Industrial and Financial Services M.SIC Group

behringer.com

© 2012 MUSK Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, Ilias Virgens Brittáricas

GARANTIA LIMITADA

§ 1 Garantia

1 The POWER switch turns the speaker on. 2 Plug the included IEC power cable into this jack.
③ Replace a blown fuse here
4 MIX OUTPUT sends a copy of the source signal to another speaker using an XLR cable.
Connect a microphone, balanced mixer output, or the MIX OUTPUT from another speaker using a balanced cable with a female XLR plug. Connect a 14 " mixer output or other line level signal into the center of the XLR/TRS combination jack.
INPUT 1 and INPUT 2 knots adjust the input sensitivity (gain) for the XLR/TRS combination jacks.
[7] CLIP LED lights when the input signal begins to overload.
☐ LOW EQUALIZER cuts or boosts bass frequencies by 1/-15 dB.
3 HIGH EQUALIZER cuts or boosts treble frequencies by +/- 15 dB.

ES Paso 2: Controles

18 LUCOLNL BIEDM 120

EUROLIVE B115D/B112D Getting started

Step 3: Getting started

1 Place the speaker(s) in desired locations, either on stands or as wedge monitors on the floor.
2 Make all necessary connections. DO NOT turn on the power yet.
3 Turn on your audio source (mixer, microphone).
4 Turn on your speaker(s) by pressing the POWER SWITCH. The POWER LED will light up.

5 Play your audio source or speak into your microphone at a normal to loud level.
6 Adjust the LEVEL knob to the desired volume. If the CUP LED flashes, turn the LEVEL knob down. If using multiple speakers, the LEVEL knob must be adjusted on cash speaker.
7 If necessary, adjust the HIGH and LOW EQUALIZER knobs on each speaker to boost or cut treble and bass frequencies to taste.

Optional wireless microphone set-up
1 Only insert the optional BEHRINGER DIGITAL WIRELESS microphone requirements to the input
2 Turn the ON/OFF switches on the microphones to the "ON" position.
3 During the pairing process, the LED on the dongle will flash. Once the connection between the wireless microphone and the receiver is achieved, the LED will remain on (solid).
4 Speak into the wireless microphones and adjust the volume using the volume buttons on the individual microphones. Press the volume down button for two seconds to mute the microphone signal. Press the volume up button to unmute the microphone.

19 Quick Start Guide

EUROLIVE B115D/B112D Getting started

FR Etape 3 : Mise en oeuvre

EUROLIVE B115D/B112D Getting started

Amplifier
Low frequency range
Max output power 700 W*
High-frequency range
Max output power 300 W*
Audio Inputs
XLR (serve-balanced)
Sensitivity: -36 dBu to 0 dBu
Input impedance 14 kΩ
N° TRG pack (serve balanced)
Sensitivity: -36 dBu to 0 dBu
Input impedance 14 kΩ
Wireless system
Connector USB 5.0
Frequency lamp: 7.4 Gb
Frequency response (Wireless Link): 20 Hz - 20 kHz (-10/-2.5 dB)
Range Max: 80 m (line of sight)

Audio Outputs

Mix
Connector XLR, balanced
Lead Control
Input form	~ to 136 dB
Max. input level	18 dB
Leadspeaker System Data
Frequency response	45 Hz to 20 kHz	50 Hz to 20 kHz
Crossover frequency	2.2 kHz	2.8 kHz
Limiter	Optical
Equilizer
High	+/-15 dB x 12 kHz
Low	+/-15 dB @ 80 Hz
Power Supply
Voltage (Fuses)
DCM / Canada	170 V, 60 Hz (T 6.3 A H 250 V)
UK / Australia	240 V~, 50 Hz (T 3.35 A H 235 V)
Europe	250 V~, 50 Hz (T 3.35 A H 250 V)
Japan	100 V~, 50-60 Hz (T 6.3 A H 250 V)
Power consumption	max 110W
Maine connection	Standard EC receptacle
Dimensions/Weight
Dimensions (H x 19 x 14)	28.1 x 16.8 x 12.3"	22.4 x 13.4 x 10.6"
	213 x 427 x 303 mm	568 x 342 x 270 mm
Weight	38.6 Hz / 17.5 kg	27.1 Hz / 12.3 kg

• diagram of the word interpretation

B1150 B112D

^a In fact that the first time is a time in the next time.

To the end of the period, we have

B1150 B112D

that is also an internal level of the

Other important information

Important Information

Informations Importantes

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway, Suite 200 Bothell, WA 98011, USA

Phone/Fax No.: Phone: [phone] Fax: [phone]

EUROLIVE B115D/B112D

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the PCB rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference in radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio-TV technician for help.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by MUSIC Group can void the user's authority to use the equipment.
