| Type | Wall-mounted remote control interface |
| Brand | QSC |
| Model | MP-MFC |
| Compatibility | QSC MP-M series (requires MP-M for power and control) |
| Connection | RJ45 (daisy-chain with CAT5 cable) |
| Power | +15 VDC via RJ45 from MP-M |
| Maximum units per run | 4 |
| Maximum units per MP-M (2 ports) | 8 |
| Maximum cable length (total run) | 250 m |
| Display | Yes (integrated) |
| Controls | Navigate up/down, Reset, Function button |
| Mounting | Standard single-gang electrical box (not supplied) |
| Color options | Black (BK) and White (WH) |
| Included accessories | Termination plug, trim plate, mounting screws, push-nuts |
| Safety certifications | FCC Class B, RoHS compliant |
| Warranty | 3-year limited (6-year with registration in some regions) |
| Environmental protection | Indoor use only; clean with dry cloth |
| General notes | Requires termination plug on last unit of daisy-chain |
Frequently Asked Questions - MP-MFC QSC
User questions about MP-MFC QSC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual MP-MFC - QSC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MP-MFC by QSC.
USER MANUAL MP-MFC QSC
(NA = North American / EU = European / BK = Black / WH = White)
EXPLANATION OF SYMBOLS
The term "WARNING!" indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.
The term "CAUTION!" indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.
The term "IMPORTANT!" indicates instructions or information that are vital to the successful completion of the task.
The term "NOTE" is used to indicate additional useful information.
The intent of the lightning flash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous" voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating and maintenance instructions in this manual.
EN
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Do not block any ventilation opening. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Refer all servicing to qualified service personnel.
- Adhere to all applicable local codes.
12: Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RoHS Statement
The MP-MFC-EU-BK, MP-MFC-EU-WH, MP-MFC-NA-BK, and MP-MFC-NA-WH products are in compliance with European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS).
The MP-MFC-EU-BK, MP-MFC-EU-WH, MP-MFC-NA-BK, and MP-MFC-NA-WH products are in compliance with "China RoHS" directives per GB/T26572. The following table is provided for product use in China and its territories:
| 有毒有害物质或元素(Toxic or hazardous Substances and Elements) | 部件名称(Part Name) | |||||
| 多溴二苯醚(PBDE) | 多溴联苯(PBB) | 六价铬(Cr(vi)) | 镉(Cd) | 汞(Hg) | 铅(Pb) | |
| O | O | O | O | O | X | 电路板组件(PCB Assemblies) |
| O | O | O | O | O | X | 机壳装配件(Chassis Assemblies) |
| 本表格依据SJ/T 11364的规定编制。(This table is prepared following the requirement of SJ/T 11364.)O:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。O:Indicates that the concentration of the substance in all homogeneous materials of the part is below the relevant threshold specified in GB/T 26572.X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。X:Indicates that the concentration of the substance in at least one of all homogeneous materials of the part is above the relevant threshold specified in GB/T 26572.(目前由于技术或经济的原因暂时无法实现替代或减量化)(Replacement and reduction of content cannot be achieved currently because of the technical or economic reason.) | ||||||
Contents
| Part Name | Quantity Shipped |
| Electrical box (1-gang - closed box) NA or International | Not Supplied |
| Cables – RJ45, CAT-5 | Not Supplied |
| MP-MFC Unit / Termination plug / 2 machine screws with push-nuts (installed) for metal electrical box. 2 thread-forming screws for plastic electrical box / 2 push-nuts (North American) | 1 Kit (NA or Int.) |
| MP-MFC Unit / Termination plug (International) | |
| Trim-plate / 2 screws (North American) | 1 Kit (NA or Int.) |
| Trim-plate / 2 screws, 2 push nuts (International) | |
| Quick Start Guide TD-001531-01 | 1 |
| Warranty TD-000453 | 1 |
EN
Description
- Display
- Reset
- Function
- Navigate up / Increase
- Navigate down / Decrease
- Dual RJ45 Connector block (control & power +15VDC from MP-M))
- Termination Plug - required for last unit in a run
Requirements

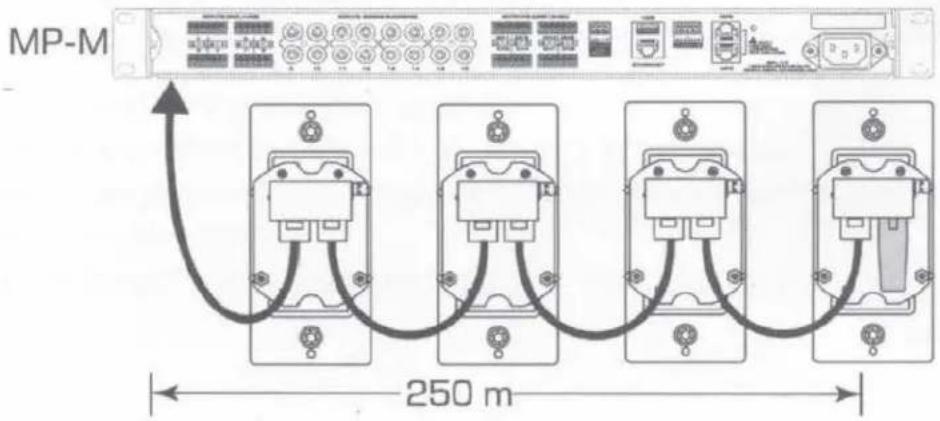

• Maximum Units per Run - 4
• Maximum Units per MP-M (2 ports) - 8
• Maximum Run Length - 250 m total (cable length)
TD-001531-01-C
Installation
NOTE: Use closed electrical box.

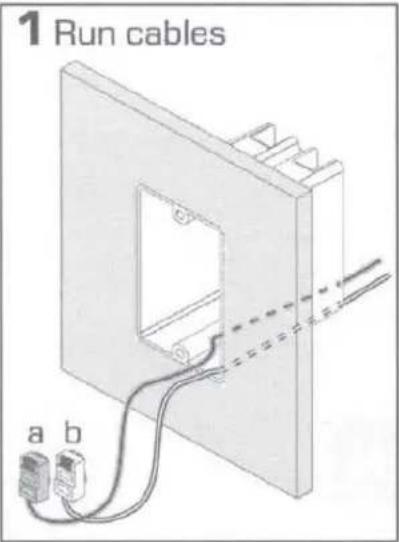

- Run Cables; provide for stress relief.
a. From MP-M or previous MFC unit
b. To next daisy-chained MFC unit, or Termination plug.
EN

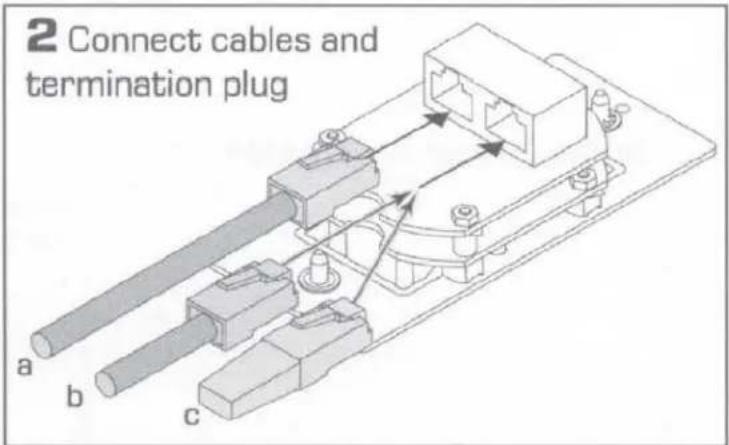

- Connect cables
a. From MP-M or previous MFC in a daisy-chain
b. To next daisy-chained MFC unit or
C. Termination Plug, required on last MFC in a daisy-chain.
North American Installation
CAUTION!: Do not force cables into electrical box.
-

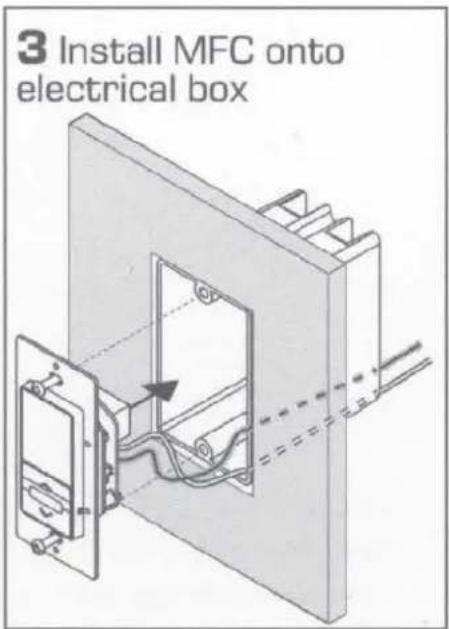

Attach the MFC to the electrical box.
-
For metal electrical box use two installed machine screws.
• For plastic electrical box:
a. Remove the two installed machine screws and push-nuts.
b. Insert the two thread-forming screws in the two vacated holes.
C. Install the push-nuts onto the two thread-forming screws.

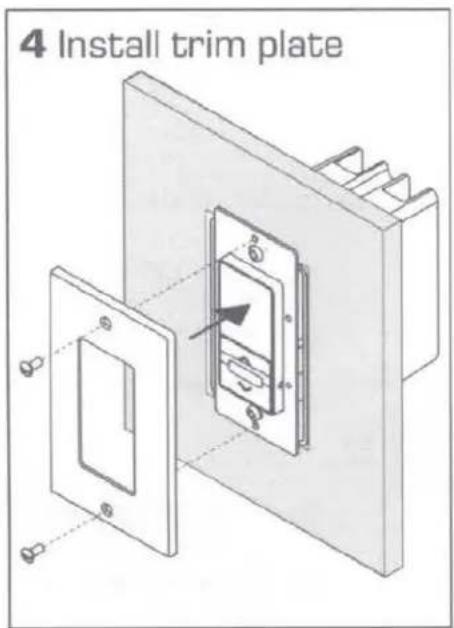

- Install trim plate (use two supplied screws).
EN

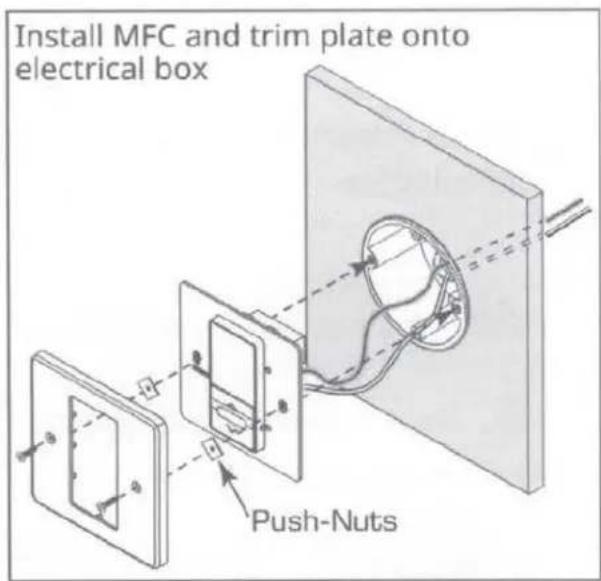

International Installation
QSC
EN
Contact QSC
QSC, LLC
1675 MacArthur Boulevard
Costa Mesa, CA
92626-1468 USA
Main Number:
+1.714.754.6175
Toll Free 800.854.4079
(US Only)
Website: www.qsc.com
Sales and Marketing:
+1.714.957.7100 or
toll free (USA only)
800.854.4079
FAX: +1.714.754.6174
E-mail: info@qsc.com
Customer Service
+1.714.957.7150 or
toll free (USA only)
800.772.2834
FAX: +1.714.754.6173
E-mail: service@qsc.com
© 2018 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners. http://patents.qsc.com.
TD-001531-01-C
By buying, using and/or installing the QSC Product, you are agreeing to be bound by the terms of the QSC Hardware Limited Warranty ("Warranty") as set out below. Do not use your product until you have read the Terms of the Warranty.
What is covered by this Standard Limited Warranty?
QSC warrants hardware products and accessories, manufactured by or for the QSC brand ("QSC Product") that are purchased from a QSC-authorized dealer against defects in materials and manufacture for the applicable period described below (the "Warranty Period").
3 Year Limited Warranty
| Countries | New & Factory Refurbished Stock Loudspeakers(*excluding the models mentioned below in the 1 Year Limited Warranty), Amplifiers, DSP Products, Video Products and New USL Series Products Launched on or after July 1, 2018 | *Additional 3 Year Warranty with QSC Product Registration(*Only applies to New Stock) | AccessoriesLimited 90 Days |
| USA and Canada | √ | RMXa, CMXa, PLX2, GX, GXD, K, KW, K.2, KS | √ |
| European Union Countries, Norway, Switzerland, Russia, Ukraine, Israel, Turkey, Republic of South Africa, UAE, Qatar, Saudi Arabia and Kuwait | √ | RMXa, CMXa, GX, GXD, K, KW, K.2, KS | √ |
| Australia, China, Hong Kong, Korea, Thailand | √ | CMXa, GX, GXD, K, KW, K.2, KS | √ |
| All other Countries (not listed above) | √ | K.2, KS | √ |
1 Year Limited Warranty
| Countries | New & Factory Refurbished Stock Mixer Products, CP Series Loudspeakers and USL Legacy Products Shipped Prior to July 1, 2018 | *Additional 2 Year Warranty with QSC Product Registration(*Only applies to New Stock) | AccessoriesLimited 90 Days |
| All Countries | √ | TouchMix-8, TouchMix-16, TouchMix-30 Pro, CP8, CP12 | √ |
*Extended warranty does not apply to Refurbished Stock Products.
Warranty Terms and Conditions:
• Products must be purchased from a QSC authorized dealer.
- Warranty period begins from the invoice date of purchase. Proof of Purchase is required for warranty validation.
- QSC provides the above stated manufacturer's warranty unless local regulations prohibit.
- Registration with QSC is required in ALL countries and must be completed within 30 days of purchase.
• This does not affect your statutory rights.
Visit www.qsc.com for changes or updates to this warranty table. The preceding warranty periods begin on the date of purchase from a QSC-authorized dealer, as documented by invoice, receipt, or other acceptable means. The unexpired portion of the warranty may be transferred to a subsequent purchaser upon re-registration with QSC.
QSC Warranty service is only available in the country or region of the products' original purchase. QSC, its distributors, dealers and authorized service centers are under no obligation to perform warranty service on products purchased in other regions. The QSC Product may be returned to the country of purchase at your expense. To the extent that national, state, provincial or territorial law applicable to your purchase of the QSC Product require a seller to provide additional warranty rights, QSC provides those warranties required under applicable law.
Register your Product. By registering this QSC Product at QSC's website within thirty (30) days of the date of purchase, YOU MAY BE ELIGIBLE TO RECEIVE AN EXTENSION OF THE STANDARD WARRANTY as described in the table above. Also, registration will facilitate processing any warranty claim that may be necessary.
How do I extend this Warranty on eligible products?
For purchasers who register their QSC Product at QSC's website within thirty (30) days of the date of purchase, QSC will extend the warranties for new QSC Products for the periods stated in the table above. This extended warranty does not apply to fans or digital displays. You can register your QSC Product at: www.QSC.com
What is not covered by this Warranty?
This warranty does not apply to any non-QSC branded hardware products or any software, even if packaged or sold with a QSC Product(s). Manufacturers, suppliers, or publishers other than QSC, may provide their own warranties to you, but QSC, in so far as permitted by law, provides the associated software included with their QSC Products on an "AS IS" basis. Software distributed by QSC, with or without the QSC trademark, is not covered by this limited warranty. The licensing agreement accompanying any included software contains the details of your rights with respect to its use.
This warranty also does not apply to the following:
a. Damage caused by improper use, care, or maintenance or failure to follow the instructions and/or maintenance and repair recommendations contained in the User Manual, or at www.qsc.com,
b. QSC Product that has been modified to alter its functionality or capability without the written permission of QSC,
c. Consumable parts, such as batteries, unless failure has occurred due to a defect in materials or manufacture.
d. Damage caused by accident, abuse, misuse, exposure to liquids, fire, earthquake, acts of God, or other external causes,
e. Damage caused by operating the QSC Product outside QSC's published guidelines,
f. Damage caused by service (including upgrades and expansions) performed by anyone who is not an authorized representative of QSC (including attempts to "hack" or modify firmware or software),
TD-000453-01-P
g. Cosmetic damage, including scratches, dents, and broken plastic,
h. Conditions caused by normal wear and tear or otherwise due to the normal aging of the QSC Product,
i. Damage caused by use with another product,
j. Product that was purchased from an unauthorized seller or online vendor, or
k. Product on which any serial number has been removed, altered or defaced.
Other questions regarding this Warranty can be answered by calling: Within US and Canada: +1(800) 854-4079 Outside the U.S: +1 (714) 754-6175
Legal Disclaimers, Exclusion of Other Warranties and Limitation of Liability
The preceding warranties are the exclusive warranties given by QSC for the QSC Product and supersede any prior, contrary or additional representations, whether oral or written, QSC and its distributors, jobbers, and dealers DISCLAIM AND EXCLUDE ALL OTHER WARRANTIES—WHETHER EXPRESS, IMPLIED, OR STATUTORY—INCLUDING ANY WARRANTY OF MERCHANTABILITY, ANY WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND ANY IMPLIED WARRANTIES OTHERWISE ARISING FROM COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE.
If the QSC Product fails to conform to the preceding warranties, you must notify QSC or its authorized dealer within a reasonable time and in no event more than fifteen (15) days after the discovery of the nonconformity and deliver the QSC Product, together with proof of date of purchase, to the original point of purchase, a QSC factory, one of QSC's authorized service stations, or an authorized QSC International Distributor via pre-paid transportation. QSC will investigate and, in the event of a breach of warranty, will provide, at its sole option and within a reasonable period of time:
• repair of any nonconforming QSC Product or components;
- replacement of any nonconforming QSC Product or components with conforming product or components; or
• refund of the lesser of either the current value of the product at the time the warranty claim is made or the purchase price.
When providing repair or replacement service, QSC will use reasonable efforts to reinstall the product's original software configuration and subsequent update releases, but will not provide any recovery or transfer of software or data contained on the serviced QSC Product unit not originally included in the QSC Product. Repaired or replacement products will conform to the warranty for the unexpired duration of the warranty period for the original, nonconforming QSC Product. QSC may use used or repaired material for all warranty claims. This remedy does not cover any labor charged or travel time incurred by you for diagnosis, removal, or reinstallation of the QSC Product; the cost of transportation of the QSC Product to or from Purchaser; or any other contingent expenses. THE REMEDY SELECTED BY QSC IN ACCORDANCE WITH THIS PARAGRAPH SHALL BE THE EXCLUSIVE AND SOLE REMEDY FOR ANY BREACH OF WARRANTY.
QSC SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY—WHETHER RESULTING FROM NON-DELIVERY OR FROM THE USE, MISUSE, OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. THIS EXCLUSION COVERS, WITHOUT LIMITATION, DAMAGES FOR LOSS OF USE, REVENUE OR PROFIT, COST OF SUBSTITUTE EQUIPMENT, LOSS OF OR DAMAGE TO ANY DATA, AND CLAIMS BY PURCHASER'S CUSTOMERS OR OTHER THIRD PARTIES.
This Warranty is governed by the laws of the State of Delaware, excluding the application of its conflicts of law rules. The U.N. Convention on Contracts for the International Sale of Goods will not apply to this Agreement.
If any part of this Warranty is found to be void or unenforceable, then the remainder shall have full force and effect, and the invalid provision shall be partially enforced to the maximum extent permitted by law to effectuate the purpose of the Warranty.
Export Control. You may not use or otherwise export or re-export the QSC Products and associated software except as authorized by United States law and the laws of the jurisdiction(s) in which the QSC Products and associated software were obtained. In particular, but without limitation, the QSC Products and associated software may not be exported or re-exported (a) into any U.S. embargoed countries or (b) to anyone on the U.S. Treasury Department's list of Specially Designated Nationals or the U.S. Department of Commerce Denied Person's List or Entity List. By using the QSC Products and associated software, you represent and warrant that you are not located in any such country or on any such list. You also agree that you will not use the QSC Products and associated software for any purposes prohibited by United States law, including, without limitation, the development, design, manufacture or production of missiles, nuclear, chemical or biological weapons.
Government End Users. The QSC Products and associated software and related documentation are "Commercial Items", as that term is defined at 48 C.F.R. §2.101, consisting of "Commercial Computer Software" and "Commercial Computer Software Documentation", as such terms are used in 48 C.F.R. §12.212 or 48 C.F.R. §227.7202, as applicable. Consistent with 48 C.F.R. §12.212 or 48 C.F.R. §227.7202-1 through 227.7202-4, as applicable, the Commercial Computer Software and Commercial Computer Software Documentation are being licensed to any U.S. Government end users (a) only as Commercial Items and (b) with only those rights as are granted to all other end users pursuant to the terms and conditions herein. Unpublished-rights are reserved under the copyright laws of the United States of America.
For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com
© 2015 - 2018 QSC, LLC. All rights reserved. QSC, the QSC logo, and TouchMix are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners.
http://patents.qsc.com
