DX20 - Régulateur SPEKTRUM - Free user manual and instructions

Product Type	Radio Control Transmitter (Regulator Category)
Brand	Spektrum
Model	DX20
Channels	20 channels
Frequency	2.4GHz DSMX
Dimensions	Approx. 200 mm x 200 mm x 100 mm
Weight	Approx. 1.2 kg (with battery)
Power Source	7.2V LiPo battery (included)
Display	High-resolution touch screen
Telemetry	Integrated telemetry system with voice alerts
Programming	Advanced programming via SD card and PC software
Model Memory	Up to 250 models
Gimbal Type	Ball bearing gimbals with adjustable tension
Antenna	Dual internal antennas
Range	Up to 1.5 miles (2.4 km) line of sight
Memory Card	SD card slot for firmware updates and model transfer
Compatible Receivers	All Spektrum DSMX and DSM2 receivers
Safety Features	Throttle cut, failsafe settings, and low battery alarm
Maintenance	Clean with dry cloth; avoid moisture and extreme temperatures
Spare Parts Availability	Replacement gimbals, switches, and batteries available from Spektrum
Repairability	Modular design; user-serviceable with Spektrum service centers
Warranty	2-year limited warranty

Frequently Asked Questions - DX20 SPEKTRUM

How do I bind the Spektrum DX20 to a receiver?

To bind the DX20, power on the transmitter, press and hold the bind button while powering on the receiver, then release. The bind process should complete within a few seconds.

How do I update the firmware on the DX20?

Download the latest firmware from Spektrum's website onto an SD card, insert the card into the transmitter, and follow the on-screen instructions under System Settings.

What is the battery life of the DX20?

The included 7.2V LiPo battery provides approximately 8-10 hours of typical use. Charge with the supplied charger until the LED turns green.

Can I use the DX20 with other brands of receivers?

The DX20 is only compatible with Spektrum DSMX and DSM2 receivers. Using other brands may result in loss of control.

How do I set up model memory for multiple aircraft?

Go to Model Menu > Model Utilities > Add Model. You can name each model and assign specific settings. Up to 250 models can be stored.

What telemetry features are available on the DX20?

The DX20 displays real-time data such as battery voltage, RPM, temperature, altitude, and signal strength. Voice alerts can be configured for critical values.

How do I adjust the gimbal tension?

Gimbal tension can be adjusted using a small screwdriver to turn the tension screws located under the gimbals. Turn clockwise to increase tension, counterclockwise to decrease.

What is the maximum range of the DX20?

Under optimal conditions, the DX20 has a range of up to 1.5 miles (2.4 km). Always perform a range test before flying.

How do I troubleshoot if the transmitter won't turn on?

Check that the battery is fully charged and properly connected. If the issue persists, remove the battery for 10 seconds and try again. Contact Spektrum support if needed.

Can I use the DX20 for quadcopters?

Yes, the DX20 is fully compatible with quadcopters using Spektrum receivers. Set up your model by selecting Multi-Rotor as the aircraft type.

USER MANUAL DX20 SPEKTRUM

Bind-N-Fly* Ready to fly redefined.

SPEKTRUM

0x20

三

RTRIM

CQ

Close-up of a metallic mechanical component with a red cylindrical part inserted, no visible text or symbols.

SPEKTRUM

S2 X S

CLEAR

50.24GHz SYSTEM

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage and serious injury OR create a high probability of superficial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

WARNING AGAINST COUNTERFEIT PRODUCTS

Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

NOTICE: This product is only intended for use with unmanned, hobby-grade, remote-controlled vehicles and aircraft. Horizon Hobby, LLC disclaims all liability outside of the intended purpose and will not provide warranty service related thereto.

Age Recommendation: Not for Children under 14 years. This is not a toy.

Warranty Registration

Visit spektrumrc.com today to register your product.

NOTICE: While DSMX technology allows you to use more than 40 transmitters simultaneously, do not use more than 40 transmitters simultaneously with DSM2 components.

General Notes

• Models are hazardous when operated and maintained incorrectly.
• Always install and operate a radio control system correctly.
- Always pilot a model so the model is kept under control in all conditions.
- Please seek help from an experienced pilot or your local hobby store.
- Contact local or regional modeling organizations for guidance and instructions about flying in your area.
- Always power on the transmitter first and power off the transmitter last when working with a model.
- After a model is bound to a transmitter and the model is set up in the transmitter, always bind the model to the transmitter again to establish failsafe settings.

Pilot Safety

• Always make sure all batteries are fully charged before flying.
- Time flights so you can fly safely within the time allotted by your battery.
- Always perform a range check of the transmitter and the model before flying the model.
- Always make sure all control surfaces correctly respond to transmitter controls before flying.
- Never fly a model near spectators, parking areas or any other area that could result in injury to people or damage to property.
- Never fly during adverse weather conditions. Poor visibility, wind, moisture and ice can cause pilot disorientation and/or loss of control of a model.
- When a flying model does not respond correctly to controls, land the model and correct the cause of the problem.

Dx20 FEATURES

• Assign five Airplane flight modes to any combination of up to two switches
• Multi-Engine support
• Multi-Rotor Airware
  • ProTrim feature to fine tune rates, expos, differential, and mixes in flight
• "Roll" to telemetry screens without entering the Settings menu
• Selectable sound menu lets you activate or inhibit specific DX20 sounds
• Switch between Function List and System Settings menus without powering off the transmitter
  • Virtually Unlimited Model Memory (250 models)
  • Voice alerts for telemetry, warnings, and other conditions
• Wireless trainer

BEFORE USING YOUR TRANSMITTER:

Before using your new transmitter, visit the Spektrum Community website at spektrumrc.com to register your transmitter and download the latest AirWare™ firmware updates. A registration reminder screen occasionally appears until you register your transmitter. The reminder screen will not appear after you register your transmitter.

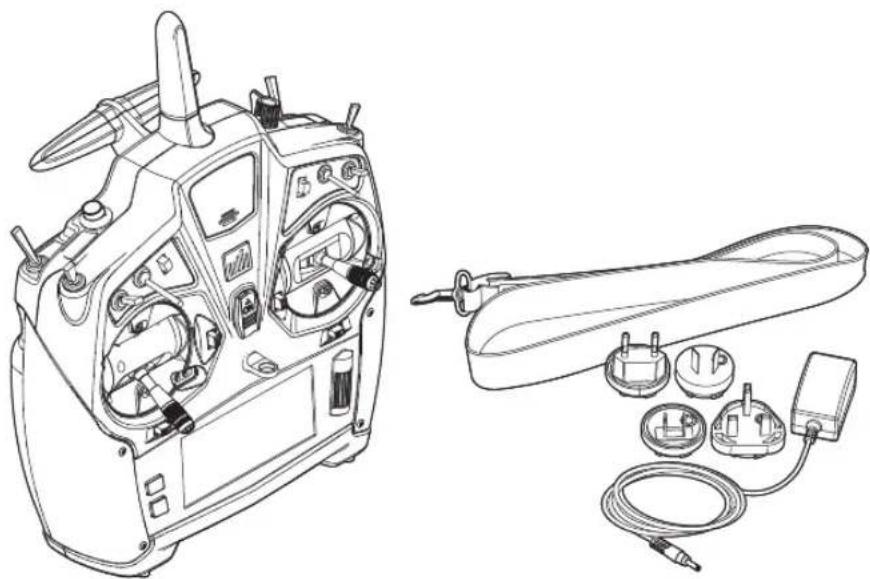

BOX CONTENTS

• DX20 Transmitter
  • 4000mAh LiPo Transmitter Pack (Installed in transmitter)
• Global Power Supply
• Manual
• DX20 Neck Strap
• DX20 Decal Sheet

Line drawing of a helicopter control panel and its electrical plug assembly (no text or symbols)

Support Videos:

For helpful videos on programing the Spektrum DX20 and other AirWare equipped Spektrum Transmitters go to https://www.spektrumrc.com/

TABLE OF CONTENTS

Battery and Charging Precautions and Warnings ....5

Charging Your Transmitter....5

Transmitter Functions....6

Main Screen 8

Navigation 8

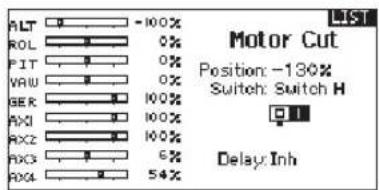

Auto Switch Select 8

SD Card....9

Installing the SD Card....9

Update AirWare™ Software....10

Binding 11

Programming Failsafe Positions....12

SmartSafe™ Failsafe 12

Hold Last Command....12

Preset Failsafe 12

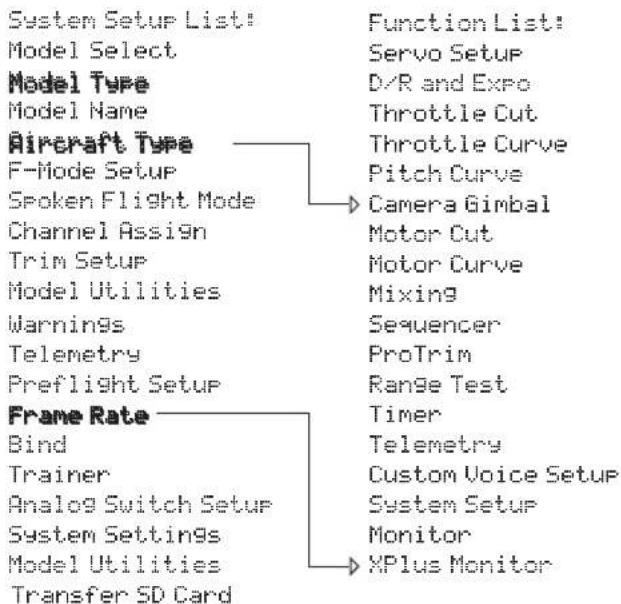

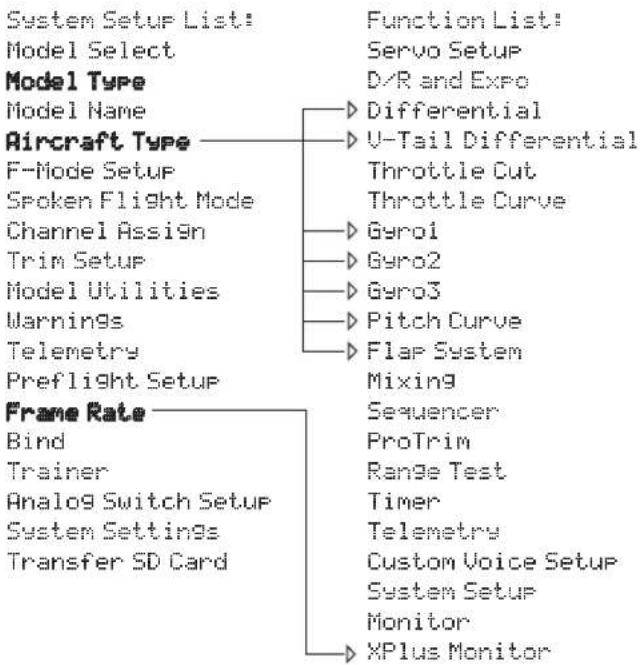

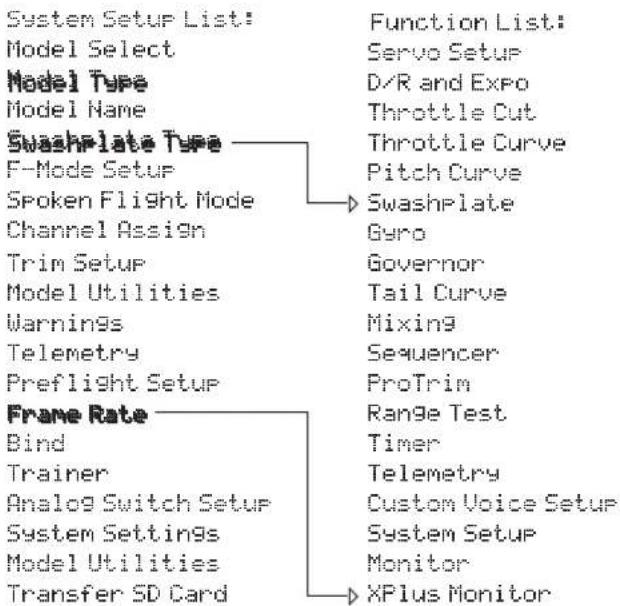

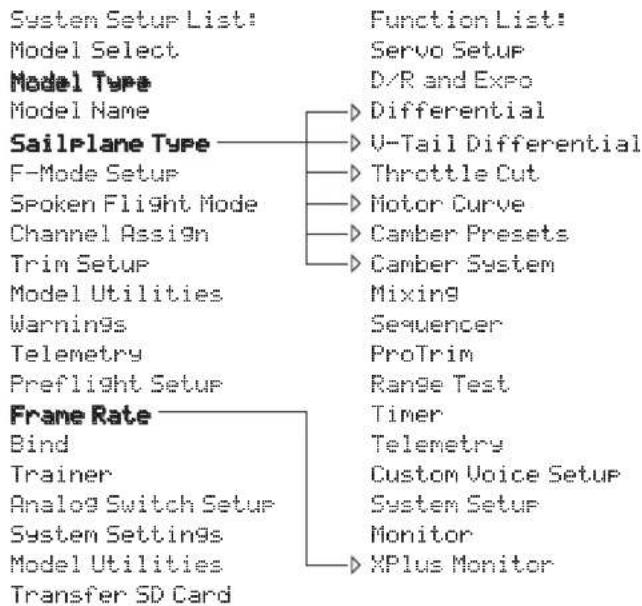

Model Type Programming Guide 15

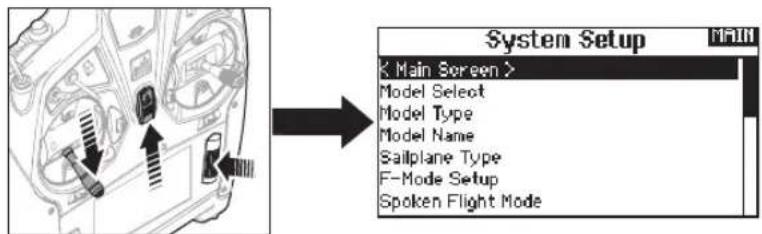

System Setup 16

Model Select 16

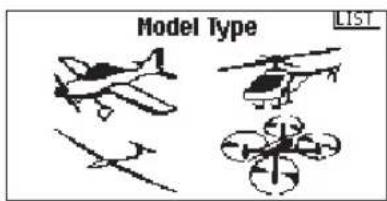

Model Type....16

Model Name....17

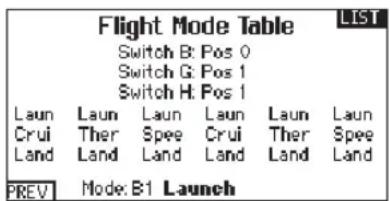

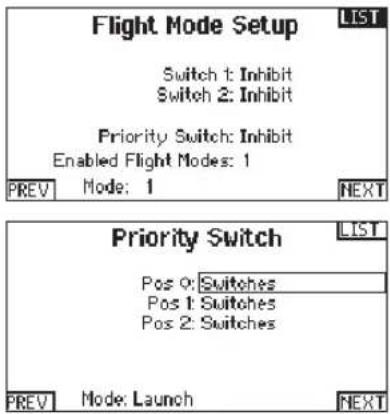

F-Mode Setup....17

Spoken Flight Mode Setup....19

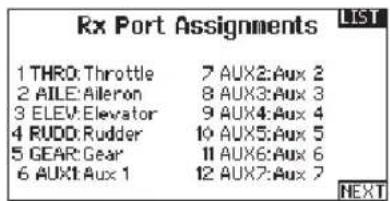

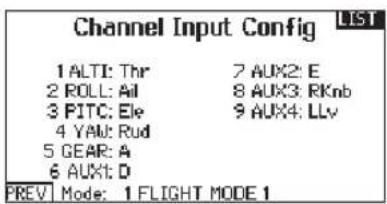

Channel Assignment 19

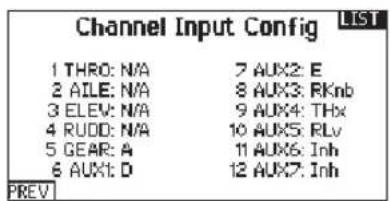

Channel Input Configuration....19

Model Utilities 21

Create New Model 21

Delete Model 21

Copy Model 21

Model Reset 22

Sort Model List 22

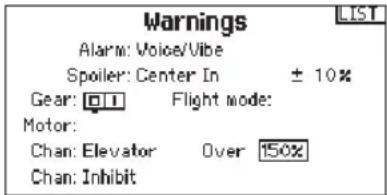

Warnings....22

Telemetry 23

Telemetry Settings 23

Telemetry Auto-Configuration....23

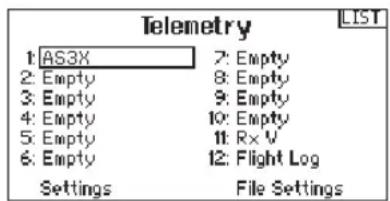

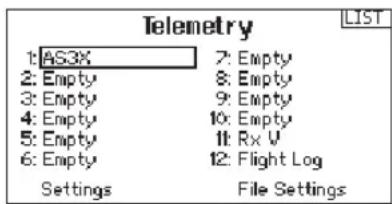

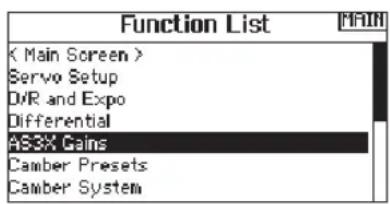

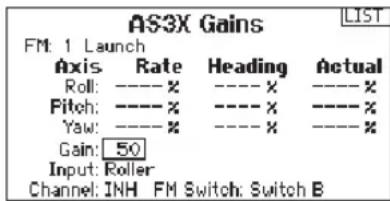

AS3X Gain Live View (ACRO and SAIL Types Only) 23

Telemetry Alarms 24

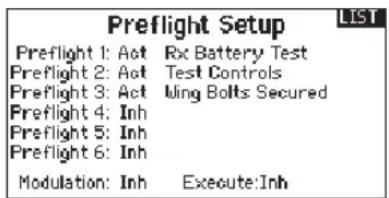

Preflight Setup 24

Frame Rate 24

Bind 25

TRAINER....25

Wired Trainer 25

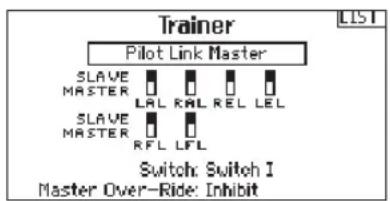

Wireless Trainer 26

Trainer FPV Mode 27

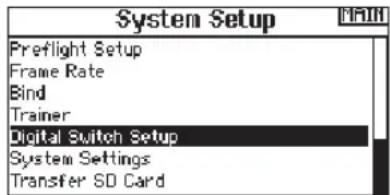

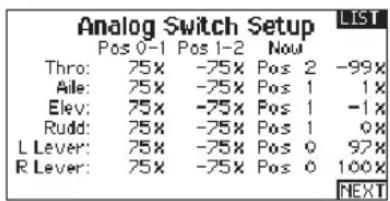

Analog Switch Setup 27

Digital Switch Setup 27

System Setup 28

Center Tone 28

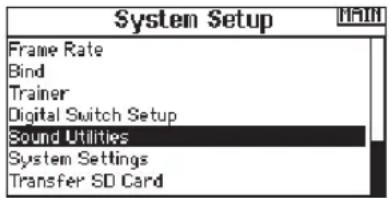

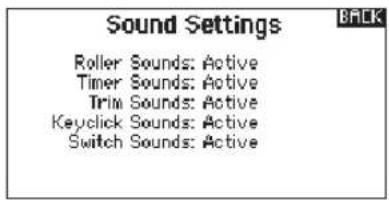

Sound Utilities....28

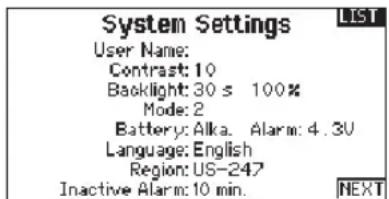

SYSTEM SETTINGS 28

User Name 28

Contrast 28

System Setup 29

Backlight 29

Mode 29

Battery Alarm....29

Selecting a Language....29

Inactive Alarm....29

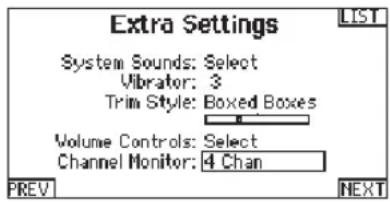

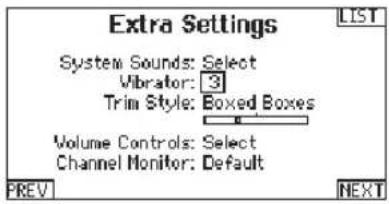

Extra Settings 30

System Setup 31

Serial Number 31

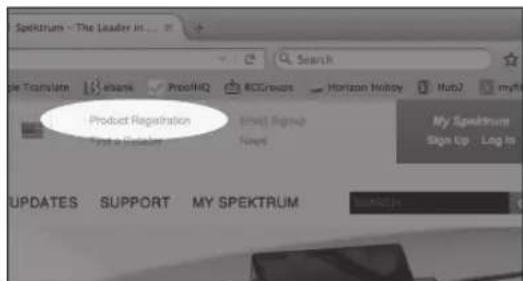

Exporting the Serial Number to the SD Card....31

Locating the Transmitter AirWare Software Version 31

Calibrate 31

Transfer SD card....32

Import Model 32

Export Model 32

Updating Spektrum DX20 Sound Files 33

Update AirWare Software....33

Screen Print 33

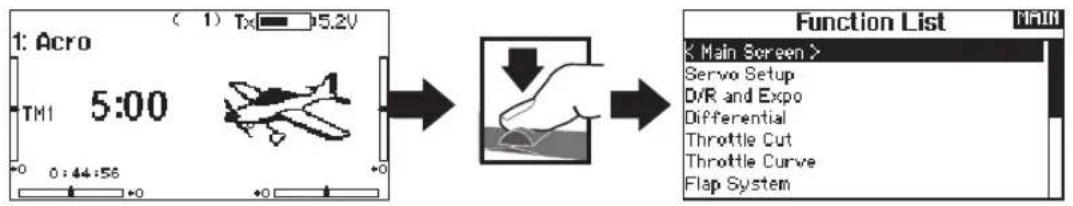

Function List....34

Servo Setup....34

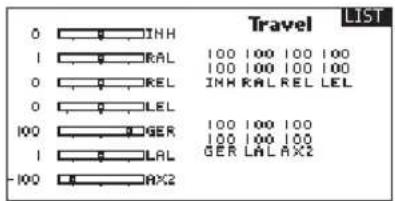

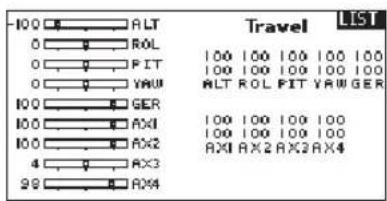

Travel Adjust....34

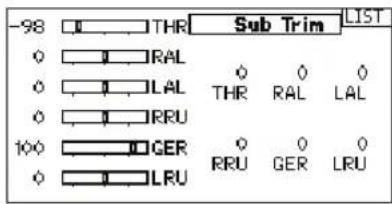

Sub-Trim 34

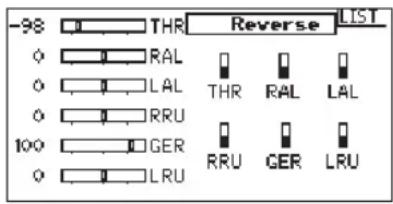

Reverse....35

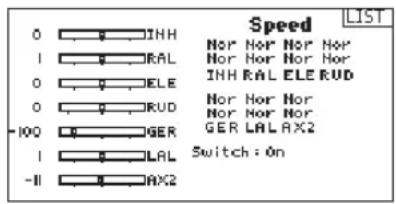

Speed 35

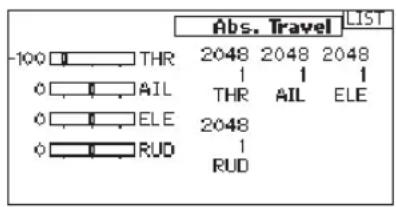

Absolute (Abs.) Travel 35

Balance 35

D/R & Exponential 36

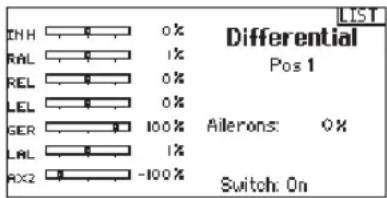

Differential (ACRO and SAIL Types only)....36

Throttle Cut 36

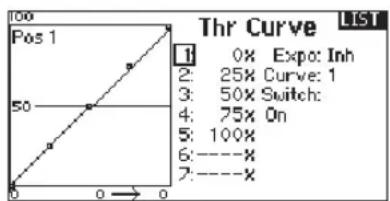

Throttle Curve....36

Mixing 38

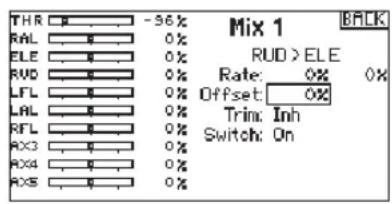

Offset 38

Trim 38

Assigning a Mix to a Switch....38

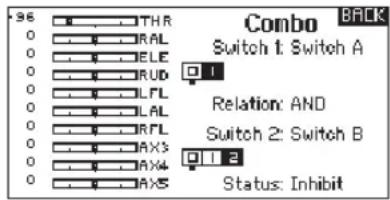

Combo Mixing 39

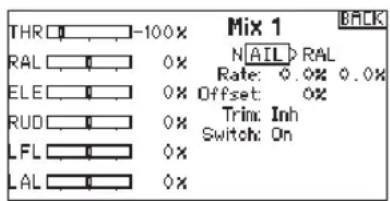

Back Mixing....39

1/2 Mixing Values 39

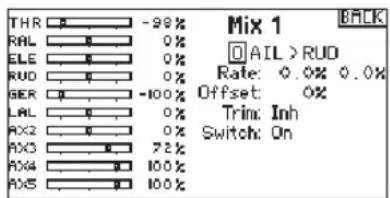

Origin Mixing 39

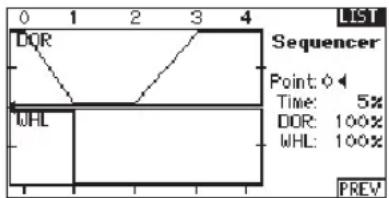

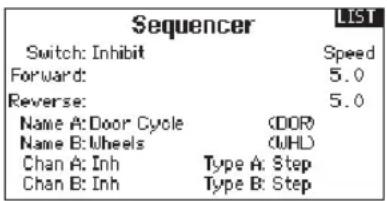

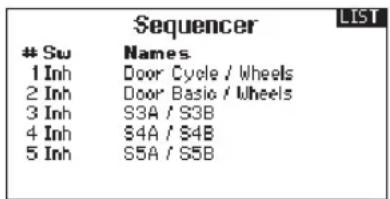

Sequencer....40

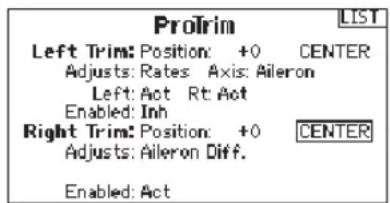

ProTrim 41

Range Test 41

Timer 41

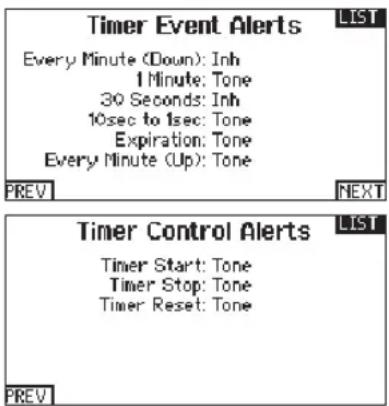

Timer Event and Timer Control Alerts....42

Telemetry 42

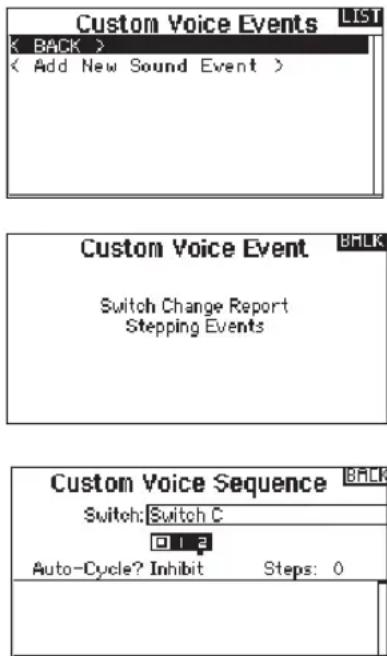

Custom Voice Setup 42

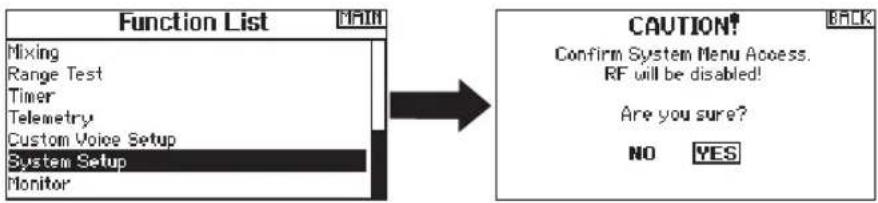

System Setup 43

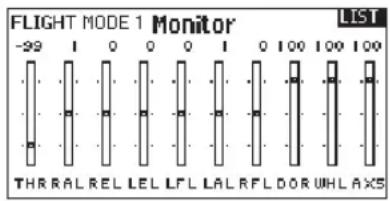

Monitor 43

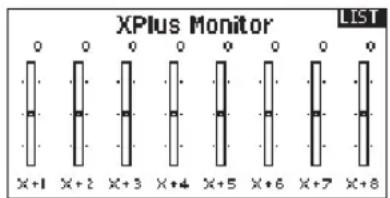

X-Plus Monitor 43

ACRO (Airplane)....45

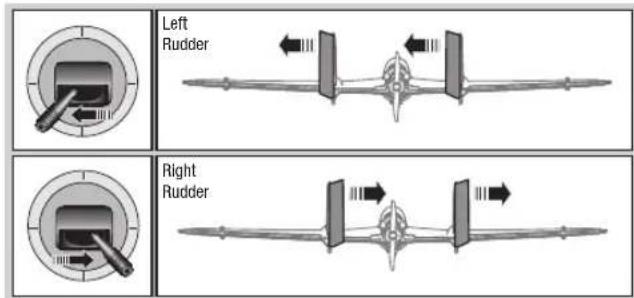

Elevon Servo Control 45

Aileron 45

Elevator 45

Flap System....45

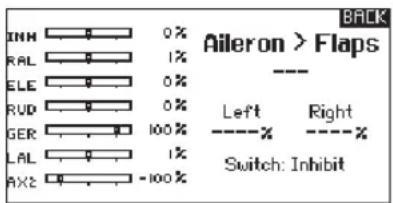

ACRO Mixing 45

Acro Gyro Function 46

Pitch Curve Function 46

Multi-Engine Control 47

Acro Image 47

HELI (Helicopter) 48

Swash Type 48

Collective Type....48

Pitch Curve....48

Swashplate....49

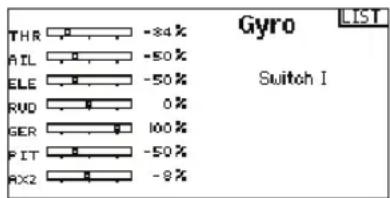

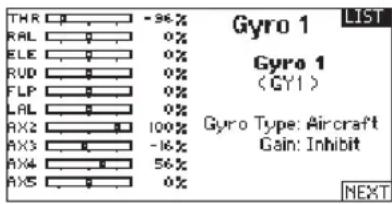

Gyro....49

Tail Curve 49

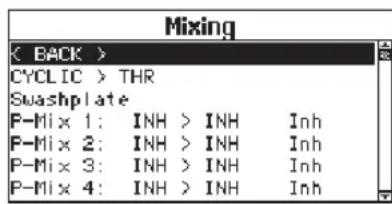

Mixing 49

SAIL (SAILPLANE)....50

Tail....50

Motor 50

Camber Preset 50

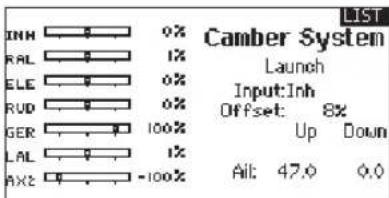

Camber System 50

SAIL Mixing 51

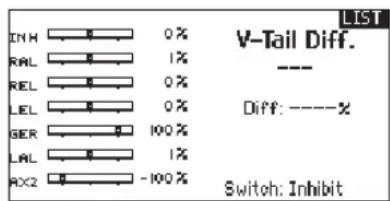

V-Tail Differential 51

MULTI (Multirotor) 52

F-Mode Setup....52

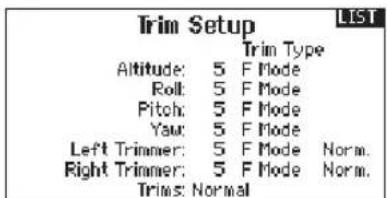

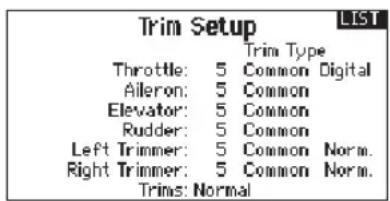

Trim Setup....52

D/R & Exponential....53

Motor Cut....53

Motor Curve 53

Physical Transmitter Adjustments ....54

Programming Conversion 54

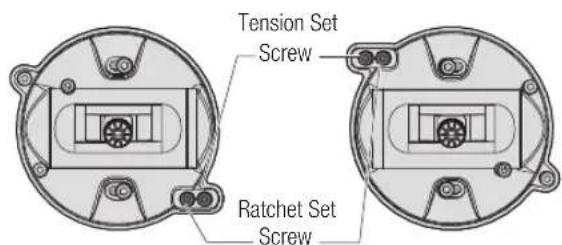

Changing the Throttle Ratchet....54

Adjusting the Gimbal Centering Screw....54

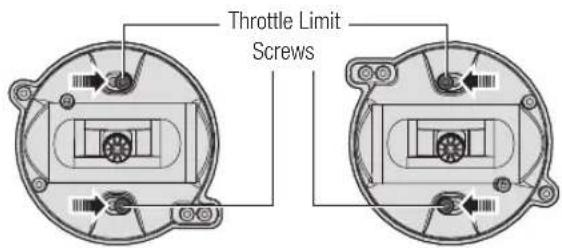

Throttle limiting screws 54

Calibration....54

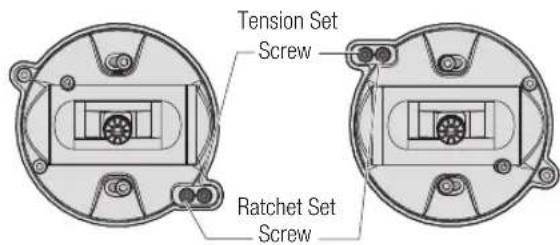

Ratcheted Throttle....55

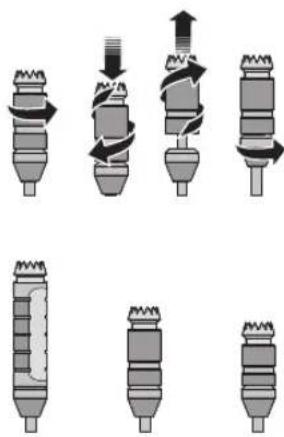

Control Stick Length Adjustment 55

Troubleshooting Guide 56

1-Year Limited Warranty....57

Warranty and Service Contact Information....58

IC Information ....58

Compliance Information for the European Union ....59

BATTERY AND CHARGING PRECAUTIONS AND WARNINGS

Failure to exercise caution while using this product and comply with the following warnings could result in product malfunction, electrical issues, excessive heat, FIRE, and ultimately injury and property damage.

• Read all safety precautions and literature prior to use of this product
  • Never allow minors to charge battery packs
  • Never drop charger or batteries
  • Never attempt to charge damaged batteries
• Never attempt to charge a battery pack containing different types of batteries
• Never charge a battery if the cable has been pinched or shorted
• Never allow batteries or battery packs to come into contact with moisture at any time
• Never charge batteries in extremely hot or cold places (recommended between 50–80° F or 10–27° C) or place in direct sunlight
  • Always disconnect the battery after charging, and let the charger cool between charges
  • Always inspect a new battery before charging
  • Always terminate all processes and contact Horizon Hobby if the product malfunctions
• Always keep batteries and charger away from any material that could be affected by heat (such as ceramic and tile), as they can get hot
• Always end the charging process if the charger or battery becomes hot to the touch or starts to change form (swell) during the charge process

CHARGING YOUR TRANSMITTER

The DX20 has an internal charger designed to charge the included 2-cell LiPo battery at a charge rate of 200mAh. The charge port on the back of the transmitter is not polarity-dependent.

NOTICE: Never connect an external battery charger to your DX20 transmitter. If you wish to charge the LiPo battery using a LiPo charger, you must remove the battery from the transmitter before charging.

The first time you charge the transmitter battery, the charge time may be 15-20 hours. Always charge the transmitter on a heat-resistant surface.

1. Power off your transmitter.

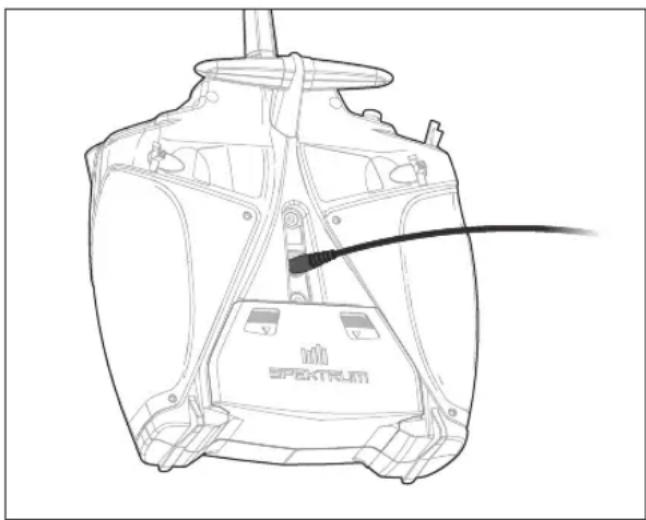

2. Connect the power supply connector to the transmitter charge port.
3. Connect the power supply to a power outlet using the appropriate adapter.
4. The blue LED on the front of the transmitter turns on during charging and turns off when the battery is fully charged.
5. Disconnect the transmitter from the power supply once charging is complete and disconnect the power supply from the power outlet.

CAUTION: Never leave a charging battery unattended.

LED indicators

The blue LED indicates the transmitter battery is charging. The orange LED indicates the transmitter is powered on and there is radio transmission.

Battery Alarm

The System Settings Screen allows you to change the battery type and low alarm settings. See “System Settings” for more information.

- An alarm will sound when the battery reaches the low voltage limit (4.3V for NiMH, 6.4V for LiPo).

CAUTION: Never change the low voltage limit for LiPo batteries from 6.4V. Doing so could over-discharge the power and damage both battery and transmitter.

Technical line drawing of a mechanical device with no visible text or symbols

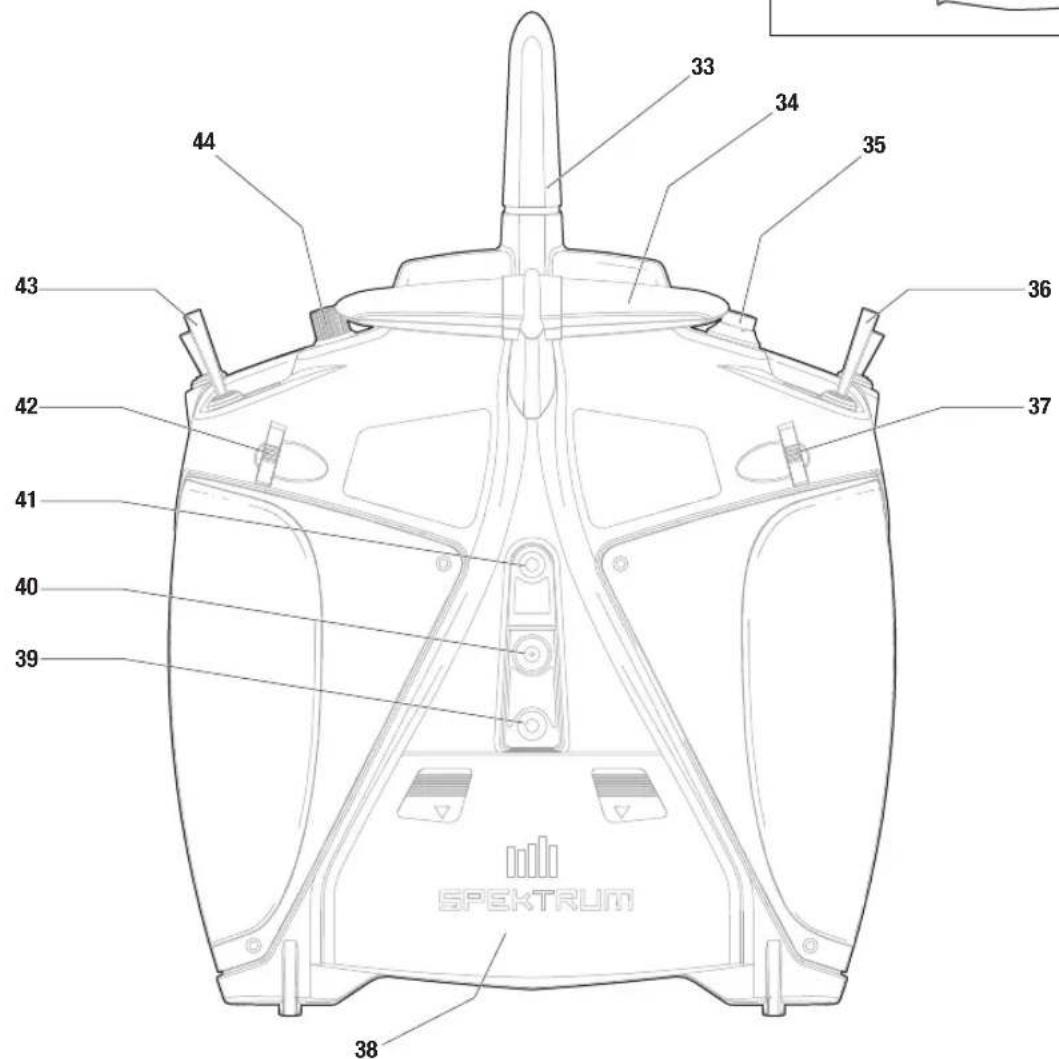

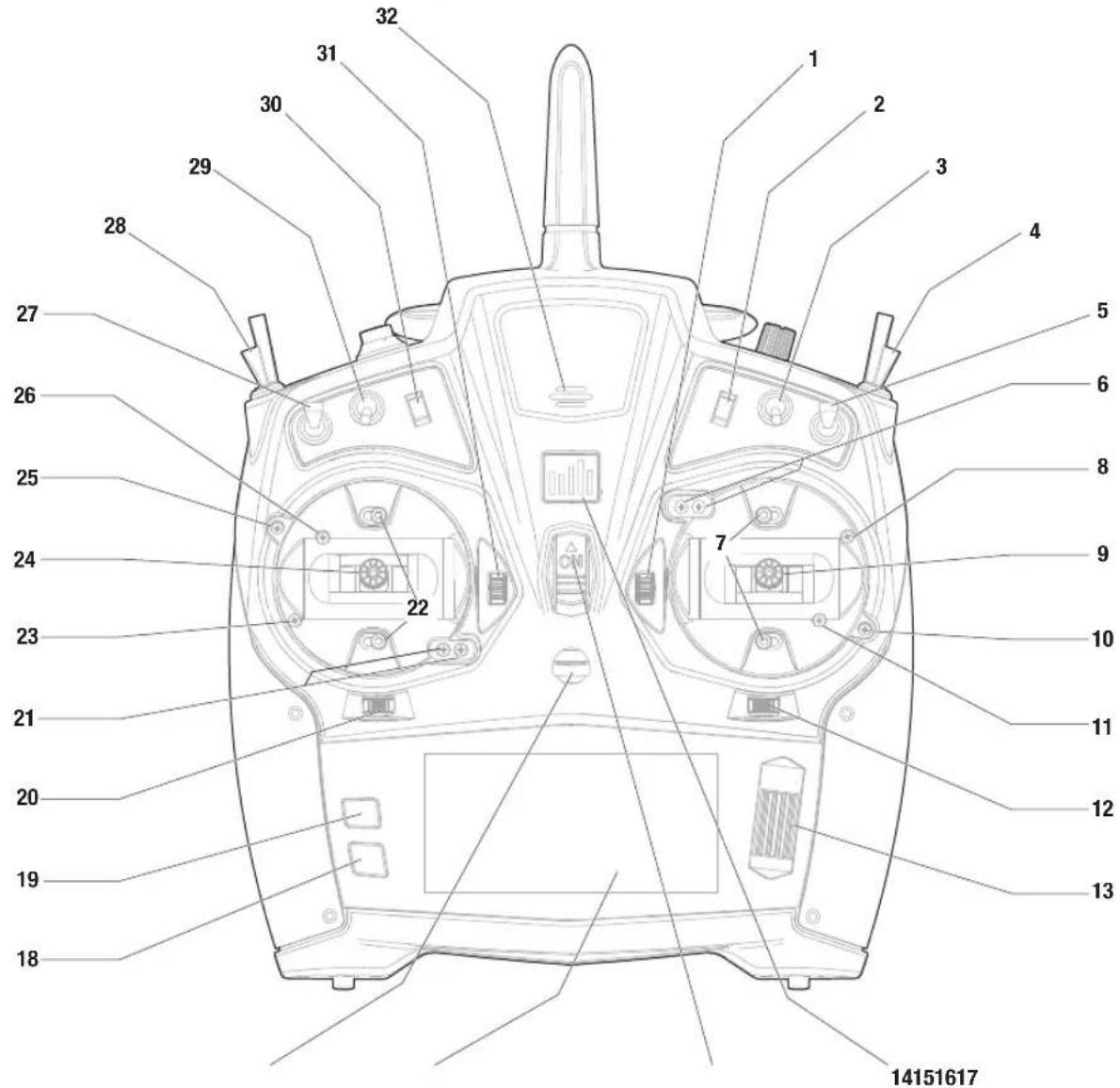

TRANSMITTER FUNCTIONS

Function

1	Elevator Trim (Mode 2, 4)Throttle Trim (Mode 1, 3)
2	Right Trim
3 Switch E
4 Switch G
5 Switch F
6	Throttle Spring TensionAdjustment (Mode 1,3)Throttle RatchetAdjustment (Mode 1,3)
7 Throttle limiter (Mode 1, 3)
8	Up/Down Gimbal Stick TensionAdjustment
9	Throttle/Aileron Stick (Mode 1)Elevator/Aileron Stick (Mode 2)Throttle/Rudder Stick (Mode 3)Elevator/Rudder Stick (Mode 4)
10 G	Gimbal Centering Screw

Function

11	Left/Right Gimbal Stick Tension Adjustment
12	Aileron Trim (Mode 1,2)Rudder Trim (Mode 3,4)
13	Scroll wheel
14	LED
15	On/Off Switch
16	LCD
17	Neck Strap Mount
18	Back Button
19	Clear Button
20	Rudder Trim (Mode 1,2)Aileron Trim (Mode 3,4)
21	Adjustment (Mode 2,4)Adjustment (Mode 2,4)

Function

22 Throttle limiter (Mode 2, 4)

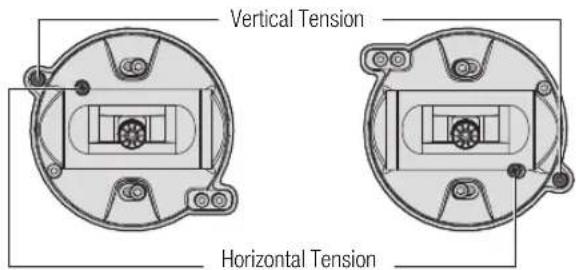

23	Up/down Gimbal Stick Tension Adjustment
24	Elevator/Rudder Stick (Mode 1)Throttle/Rudder Stick (Mode 2)Elevator/Aileron Stick (Mode 3)Throttle/Aileron Stick (Mode 4)
25 Gimbal Centering Screw
26	Left/Right Gimbal Stick Tension Adjustment
27 Switch C
28 Switch B
29 Switch D
30	Left Trim
31	Elevator Trim (Mode 1,3)Throttle Trim (Mode 2,4)
32 Speaker Grill

Labeled diagram of a device casing with numbered parts for identification

TRANSMITTER FUNCTIONS

Function
33	Antenna
34	Handle / Antenna
35	Bind/Switch I
36	Switch A
37	Left Lever

Function
38	Battery Cover
39	Trainer Port
40	Charge Port
41	Audio Jack
42	Right Lever

Function

43 Switch H

44 R Knob

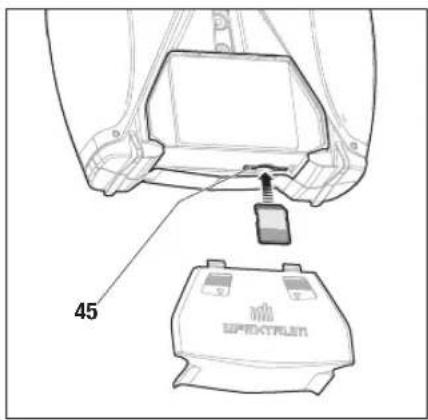

45 SD Card Opening

The transmitter comes with a thin, clear plastic film applied to some front panels for protection during shipping. Humidity and use may cause this film to come off. Carefully remove this film as desired.

45 SPROXTRELIN

33 34 35 44 43 36 42 37 41 40 39 SPEKTRUM 38

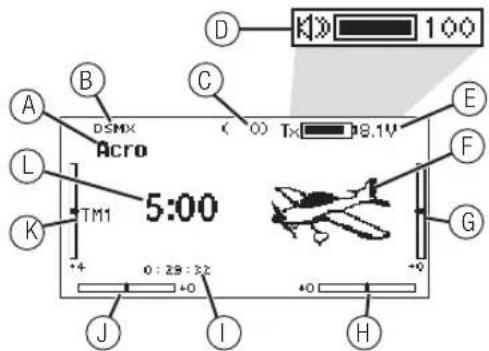

MAIN SCREEN

Function
A	Model Name
B	DSMX/DSM2 If not shown, this indicates not bound
C	Displays throttle position
D	Displays the Volume Level when the BACK button is pressed
E	Digital Battery Voltage (an alarm sounds and the screen flashes when battery charge gets down to 6.4V for a LiPo/Li lon battery.)
F	Model Type
G	Elevator Trim (Modes 2 and 4)Throttle Trim (Modes 1 and 3)
H	Aileron Trim (Modes 1 and 2)Rudder Trim (Modes 3 and 4)
I	Model Memory Timer

A	Model Name
B	DSMX/DSM2 If not shown, this indicates not bound
C	Displays throttle position
D	Displays the Volume Level when the BACK button is pressed
E	Digital Battery Voltage (an alarm sounds and the screen flashes when battery charge gets down to 6.4V for a LiPo/Li Ion battery.)
F	Model Type
G	Elevator Trim (Modes 2 and 4)Throttle Trim (Modes 1 and 3)
H	Aileron Trim (Modes 1 and 2)Rudder Trim (Modes 3 and 4)
I	Model Memory Timer

Function
J	Rudder Trim (Modes 1 and 2)Aileron Trim (Modes 3 and 4)
K	Throttle Trim (Mode 2 and 4)Elevator Trim (Mode 1 and 3)
L	Timer

A B C D 100 DSMX Acro ( 0) Tx 28.1V E L K TM1 5:00 F G +4 0 : 29 : 32 +0 +0 J I H

NAVIGATION

• Scroll the scroll wheel to move through the screen content or change programming values. Press the scroll wheel to make a selection.
• Use the Back button to go to the previous screen (for example, to go from the Mixing Screen to the Function List).
• Use the Clear button to return a selected value on a screen to the default setting.
• Direct Model Access enables you to access the Model Select screen without powering off the transmitter. Anytime the transmitter power is on, press the Clear and Back buttons to access the Model Select screen.

Throttle: Over 10% Gear: [0] Flight mode Flaps: Chan: Inhibit

Tip: The tick mark below shows the current switch position. Rolling and clicking the scroll wheel turns the selected box black, indicating that the value or condition will act on that position.

• Press and hold the scroll wheel while powering on the transmitter to show the System Setup list. No radio transmission occurs when a System Setup screen is displayed, preventing accidental damage to linkages and servos during changes to programming.
• At the main screen you can scroll to view the servo monitor.
• The Main Screen appears when you power on the transmitter. Press the scroll wheel once to display the Function List.
• When you want to change a value in a screen for a particular control position, move the control to the desired position to highlight the value you want to change, such as 0/1/2, up/down or left/right.

Enter, Choose or Exit

ScrollHoldPress
Move between options or change value in an option

Hold for 3 seconds and release to move to the Main Screen

Auto Switch Select

To easily select a switch in a function, such as a program mix, roll with the scroll wheel to highlight the switch selection box, and press the scroll wheel. The box around the switch should now flash. To select a switch, toggle the switch you wish to select. Verify the switch selection is now displayed as desired. When correct, press the scroll wheel to select this switch and complete the switch selection.

ALT -100% ROL 0% FIT 0% VAV 0% SER 100% ANI 100% RX2 100% RX3 6% RX4 54% Motor Cut Position: -130% Switch: Switch H Delay: Inh

SD CARD

Installing the SD Card

The SD Card (not included) enables you to:

• Import (copy) models from any compatible* Spektrum AirWare™ transmitter
• Export (transfer) models to any Spektrum AirWare transmitter*
• Update AirWare software in the transmitter
  • Install/Update sound files

To install the SD Card:

1. Power off the transmitter.
2. Remove the battery door.

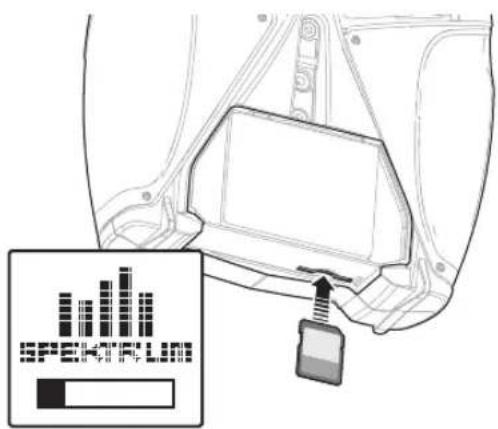

3. Press the SD Card into the card Opening with the card label facing up as shown.

SPEKATE LINE

*DX20, DX18SE, DX18-G2, DX18-G1, DX18QQ, DX9Black, DX9, DX18t, DX10t, DX8-G2, DX7-G2, DX6-G2, DX6-G3 and DX6e

Registering the Transmitter with Spektrum

Exporting the transmitter serial number to the SD Card allows you to upload the serial number directly into the registration screen at www.spektrumrc.com.

To export the serial number:

1. Press and hold the scroll wheel while powering the transmitter on until the System Setup list appears.
2. Scroll to the System Settings menu. Press the scroll wheel once to open the menu.
3. Select NEXT on the System Settings and Extra Settings screens.
4. When the Serial Number screen appears, select EXPORT.

Serial Number SS401B AA4A-AAAA-AAAN AAAA-AA4-A1 AA EXPORT PREV 0.06 NEXT

1. Power off the transmitter and remove the SD Card from the transmitter.

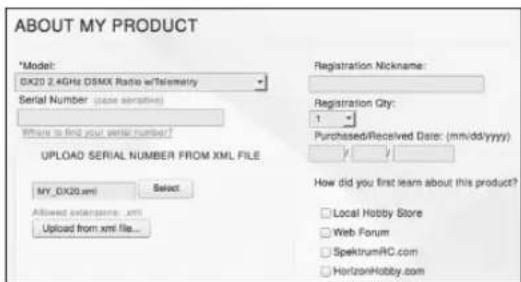

To Upload the serial number to www.spektrumrc.com:

1. Insert the SD Card in your computer and check the contents of the SD card on your computer for a "My_DX20.xml" file.
2. In your favorite browser navigate to www.spektrumrc.com and find the Product Registration link on the top of the page as shown.

Product Registration My SPEKTRUM Sign Up Log In UPDATES SUPPORT MY SPEKTRUM

1. If you do not already have an account, create one now. If you have an account login in with your secure login.
2. Once logged in go to the "My Spektrum" page. Fill out all relevant information. Once you select your transmitter model from the pull down menu you will be asked to upload the serial number.
3. Click on the Select button to navigate to the "My_DX20.xml" file on the SD card that is in your computers SD card reader and select the file.

ABOUT MY PRODUCT *Model: GX20 2.4GHz DSMX Ratio w/Telemetry Serial Number (base sensitive) Where is find your serial number? UPLOAD SERIAL NUMBER FROM XML FILE My_DX20.xml Select Allowed extension: .xml Upload from.xml file... Registration Nickname: Registration Qty: 1 Purchased/Received Date: (mm/dd/yyyy) ✓ ✓ How did you first learn about this product? Local Hobby Store Web Forum SpektrumRC.com HorizonHobby.com

1. Click on the Upload from xml file... button and the serial number will populate into the Serial Number fields.
2. Click REGISTER at the bottom of the screen to finish registering your new Spektrum Transmitter.

Alternately you can copy the serial number from the .xml file and paste directly into the Serial Number field.

cbl version="1.0" encoding="UP-8"> speltruerodio.xin= "http://www.hctuerneddy.com/speltruerodio" version="1.0.0.3"> 026 =[[DATA:504E1BAAABAAABAAABAAABAAABAA] 0.04

Screen shots from www.spektrumrc.com are correct at time of printing but may change at a future date.

SD CARD

Update AirWare™ Software

NOTICE: The orange LED Spektrum bars flash and a status bar appears on the screen when AirWare software updates are installing. Never power off the transmitter when updates are installing. Doing so may damage the system files.

NOTICE: Before installing any AirWare files, always Export All Models to an SD Card separate from the SD Card containing the update. The update may erase all model files.

For more information on AirWare software updates, visit www.spektrumrc.com

Automatically Installing AirWare Software Updates

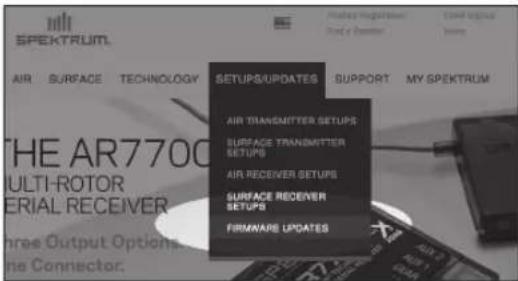

1. In your favorite browser navigate to www.spektrumrc.com and find the Firmware Updates link inside the Setups/Updates tab on the top of the page as shown.

SPEKTRUM AIR SURFACE TECHNOLOGY THE AR7700 MULTI-ROTOR ERIAL RECEIVER Res Output Options the Connector. SETUPS/UPDATES SUPPORT MY SPEKTRUM AIR TRANSMITTER SETUPS SURFACE TRANSMITTER SETUPS AIR RECEIVER SETUPS SURFACE RECEIVER SETUPS FIRMWARE UPDATES

1. Find your registered transmitter in the MY PRODUCTS list and click on Download Updates. Follow directions on the screen for downloading the update to your computer and SD card.

DX20 2.4GHz DSMX RADIO W/TELEMETRY • Deregister Product • Report an Issue • Update Nickname • Download Updates Nickname: Mites Model Number: SPM20000 Serial Number: HH1 Date Registered 06/18/2015 11:36:05

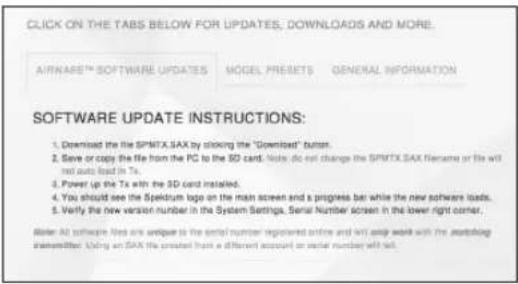

CLICK ON THE TABS BELOW FOR UPDATES, DOWNLOADS AND MORE. AIRWARE™ SOFTWARE UPDATES MOGEL PRESETS GENERAL INFORMATION SOFTWARE UPDATE INSTRUCTIONS: 1. Download the file SPMTX.SAX by clicking the "Downloaded" button. 2. Save or copy the file from the PC to the 3D card. Note do not change the SPMTX.SAX filename or file will not add load in Tx. 3. Power up the Tx with the 3D card installed. 4. You should see the Spectrum logo on the main screen and a progress bar while the new software loads. 5. Verify the new version number in the System Settings, Serial Number screen in the lower right corner. Refer: All software files are unique to the serial number registered online and will assign work with the matching information. Using an SAX file created from a different account or serial number will set.

1. Eject SD card from the computer.
2. Make sure the transmitter is powered off and install the SD card into the transmitter.
3. Power on the transmitter and the update automatically installs in the transmitter.

Manually Installing AirWare Software Updates

1. Save the desired AirWare version to the SD Card.
2. Install the SD card into the transmitter.
3. Select Update Firmware in the SD Card Menu options. The Select File screen appears.
4. Select the desired AirWare version from the File List. When updates are installing, the transmitter screen is dark. The orange LED Spektrum bars flash and the update status bar appears on the screen.

SD Card Menu Options: Update Firmware Status: Ready Folder: /

NOTICE: Do not power off the transmitter when updates are installing. Doing so will damage the transmitter.

Screen shots from www.spektrumrc.com are correct at time of printing but may change at a future date.

BINDING

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. You must bind the receiver to your transmitter before it will operate.

Binding Using the Receiver and Receiver Battery

Diagram of a car interior with labeled parts and directional arrows indicating movement or flow

Diagram of an Ethernet cable connector with a cable inserted into the socket (no text or symbols)

Diagram of a computer interface with cable and connector (no text or symbols)

Diagram of a vehicle dashboard with labeled parts and directional arrows indicating movement or control points.

Diagram of a USB drive with cable connector (no text or symbols)

Diagram of an Ethernet cable connector with a numbered circle indicating part 6 (no text or symbols on the diagram itself)

1. Lower throttle to the lowest position and make sure the transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3. Insert the receiver battery into ANY open port. The receiver's LED will flash when the receiver is ready to bind.

4. While pressing the Bind button, power on the transmitter.

5. Release the Bind button after the receiver has stopped flashing rapidly, once the receiver's LED stays illuminated; this indicates the receiver is bound to the transmitter. The transmitter screen also provides binding information.

6. Remove the bind plug from the receiver.

Binding Using the Receiver and ESC

Diagram of a vehicle interior showing dashboard, steering wheel, and control panel (no text or labels)

Diagram of a connector with cable and plug, no text or symbols present

Diagram of a computer interface with cable and connector (no text or symbols)

Diagram showing cable connections and connector components (no text or symbols)

Diagram of a vehicle air intake system with labeled components and directional arrows indicating flow or movement.

Diagram of a computer interface with a cable inserted, no text or symbols present

Diagram of an Ethernet cable connector with a numbered circle marker (no text or symbols on the diagram itself)

1. Lower the throttle to the lowest position and make sure the transmitter is powered off.
2. Insert the bind plug into the BIND/DATA port.
3. Insert the ESC plug into the THRO port.

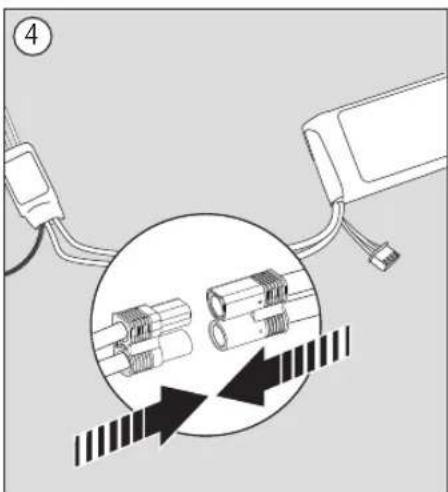

4. Connect the battery to ESC and turn on the ESC switch, if available. The receiver's LED will flash rapidly when the receiver is ready to bind.

5. While pressing the Bind button, power on the transmitter.

6. Release the Bind button after the receiver's LED stays illuminated. This indicates the receiver is bound to the transmitter. The transmitter screen also provides binding information.
7. Remove the bind plug from the receiver.

PROGRAMMING FAILSAFE POSITIONS

You establish failsafe positions when you bind your transmitter and receiver. If the radio signal connection is lost between the transmitter and receiver, the receiver immediately moves the aircraft control surfaces to the failsafe positions. If you assign the receiver THRO channel to a transmitter channel other than throttle, we recommend using Preset failsafe with the throttle in the low position. Some receivers do not support Failsafe on throttle set to channels other than the throttle channel. These receivers will hold last command.

NOTICE: Failsafe features vary according to receiver. Always consult the receiver instruction manual for failsafe features.

Before flight, ALWAYS confirm the failsafe functions as you would expect.

SmartSafe™ Failsafe

SmartSafe failsafe is a technology that only acts on the throttle channel and offers the following benefits:

• Prevents electric motors from operating when the receiver power is on and the transmitter power is off.
• Prevents the speed controller from arming until the throttle is moved to the low throttle position.
• Powers off an electric motor and reduces gas/glow engines to idle if signal is lost.

To Program SmartSafe:

Move the throttle to the low or off position before putting the transmitter into bind mode.

To Test the SmartSafe failsafe

1. Power the transmitter and receiver on.
2. Power off the transmitter. The throttle should immediately move to the failsafe position.

CAUTION: Make sure the aircraft is fully restrained on the ground. If the failsafe is not set correctly, your aircraft might be to mid or full throttle.

Hold Last Command

The Hold Last Command failsafe maintains the last command on all channels except throttle. If the radio signal is lost, the aircraft maintains the commanded control inputs until the receiver regains signal. To program Hold Last Command, follow the provided binding instructions in this instruction manual.

To Test Hold Last Command:

1. Power on the transmitter and receiver.
2. Move one of the control sticks to the desired Hold Last Command position and hold the input.
3. While holding the control input (for example, a small amount of rudder) power off the transmitter. The rudder should maintain the input command.

CAUTION: Make sure the aircraft is fully restrained on the ground. If the failsafe is not set correctly, the aircraft throttle advance to mid or full throttle.

Preset Failsafe

The Preset failsafe moves all channels to their programmed failsafe positions.

We recommend using Preset failsafe to deploy spoilers on sailplanes to prevent a flyaway if the radio signal is lost.

To program Preset failsafe:

1. Insert the bind plug in the bind port on the receiver and power on the receiver.

2. Remove the bind plug when the orange LED on the main receiver and all attached remote receivers flash rapidly. The orange receiver LEDs will continue flashing.

3. Move the transmitter control sticks and switches to the desired Preset failsafe position. Power the transmitter on.

4. Failsafe programming is complete when the orange LEDs on the transmitter and all receivers turn solid.

CAUTION: Make sure the aircraft is fully restrained on the ground. If the failsafe is not set correctly, the aircraft throttle advance to mid or full throttle.

IMPORTANT: Not all receivers support Preset Failsafe. Consult your receiver manual for more information.

x-PLUS™ MODULE

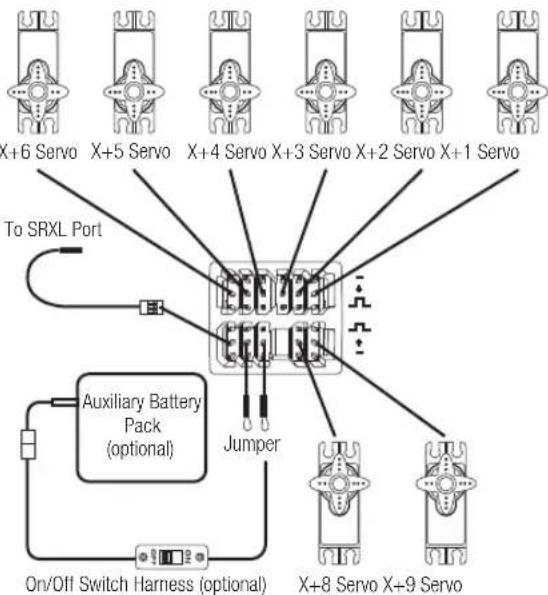

The X-Plus™ 8 module is designed to allow expansion of up to 8 servos for non-control surface functions such as bomb drops, lights, winches, retractable landing gear, and many more. The X-Plus 8 is compatible with Spektrum™ X-Plus transmitters and receivers. The X-Plus 8 module offers the option to power the connected servos via dual auxiliary battery ports with separate batteries and switch harnesses (sold separately) independent of the receiver. The X-Plus 8 module can also be powered inclusive of the receiver by using the included jumper through either of the dual BATT/JMPR ports.

Features:

• 8-channel expansion
• Dual battery ports
• Included Jumper offers option of using receiver power
• Allows fine tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, etc.)

Applications

Scale modelers with complex aircraft, ships, or surface applications will enjoy the easy programming and functions of the X-Plus 8 module using X-Plus compatible transmitter's AirWare™ software. Modelers will be able to select 2 position,

Installation

In gas and glow aircraft, install the X-Plus 8 module by wrapping it in protective foam and fastening it in place using rubber bands or a hook and loop strap. In electric airplanes or helicopters, you can use thick double-sided foam tape to fasten the module in place.

When using an X-Plus receiver and module, it is recommended that the X-Plus 8 module be mounted as near to the receiver as possible. When using the jumper lead to power the module, mounting the X-Plus 8 module near the receiver system will minimize the current loss from the receiver. Servo extensions can be used with each servo, but we recommend using heavy 22 gauge wire with gold-plated connectors.

A power jumper plug must be installed in one of the BATT/JMPR ports of the module if the module is powered from the receiver through the SRXL port.

Always remove the power jumper when an auxiliary battery or auxiliary batteries are used. When the auxiliary battery option is used, the X-Plus 8 module can be mounted as far away from the receiver as needed to be near connected servos.

Power System Requirements

Inadequate power systems that do not provide the necessary minimum voltage to the receiver during flight are the number one cause of in-flight failures. Some of the power system components that affect the ability to properly deliver adequate power include:

• Receiver battery pack (number of cells, capacity, cell type, state of charge)
• The ESC's capability to deliver current to the receiver in electric aircraft
• The switch harness, battery leads, servo leads, regulators, etc.

The X-Plus 8 module has a minimum operational voltage of 3.5 volts; it is highly recommended that the power system be tested per the guidelines.

CAUTION: Only use the included Jumpers with the X-Plus 8 module. Do not use Bind Plugs for the Jumpers.

3 position or potentiometer adjustment through their transmitter. After selecting the specific switch or port, AirWare software will allow the individual servo adjustment of each X-Plus channel's travel adjust, sub trim, reversing, and speed.

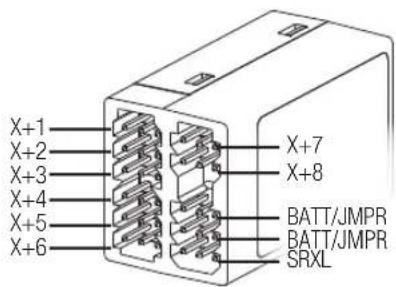

Specifications

Type: X-Plus Module

Channels: 8

Dimensions: 0.91x 1.61 x 0.79 in

(23 x 41 x 20mm)

Weight: .42 oz (11.9 g)

Voltage Range: 3.5 to 9.6V

Resolution: 512

Compatibility: All X-Plus transmitters and receivers

X+1 X+2 X+3 X+4 X+5 X+6 X+7 X+8 BATT/JMPR BATT/JMPR SRXL

Recommended Power System Test Guidelines

If a questionable power system is being used (e.g., a small or old battery, an ESC that may not have a BEC that will support high-current draw, etc.), perform the following test with a voltmeter.

The Hangar 9® Digital Servo & Rx Current Meter (HAN172) or the Spektrum Flight Log (SPM9540) work well for this test.

Plug the voltmeter into an open channel port in the receiver and, with the system on, load the control surfaces (apply pressure with your hand) while monitoring the voltage at the receiver. The voltage should remain above 4.8 volts even when all servos are heavily loaded.

CAUTION: When charging Ni-MH batteries, make sure the battery fully charges. Ni-MH batteries charged with peak on fast chargers have a tendency to false peak (i.e. not fully ), which could lead to a crash.

X+6 Servo X+5 Servo X+4 Servo X+3 Servo X+2 Servo X+1 Servo To SRXL Port Auxiliary Battery Pack (optional) Jumper On/Off Switch Harness (optional) X+8 Servo X+9 Servo

x-PLUS

x-Plus Channels and Failsafe

Failsafe is not supported for servos connected to the X-Plus Module. No failsafe should be expected or attempted for a servo connected through the X-Plus Module. However, servos connected to the X-Plus Module will hold last command in the event of a failsafe condition.

To Activate X-Plus

1. Open the Frame Rate Menu in System Setup.
2. Scroll to X-Plus and press the scroll wheel to activate. The X-Plus Inputs screen is now active in the Channel Assign menu.

If you select 11ms frame rate before you activate X-Plus, the transmitter reverts to 22ms frame rate when X-Plus is active.

CAUTION: Do NOT connect throttle or any primary control surface to the X-Plus Module. The X-Plus change intended to be used for auxiliary functions only. X-Plus signals have a resolution of 512 and variable latency from 0 to about 88ms. When X-Plus is active, the first 10 channel fault to 22ms.

Refer to community.spektrumrc.com for more information about X-Plus options.

Frame Rate 22 ms Mode: DSMX XPLUS: Inh LIST NEXT

X-Plus Input Config LIST X + 1: Inh X + 5: Inh X + 2: Inh X + 6: Inh X + 3: Inh X + 7: Inh X + 4: Inh X + 8: Inh PREV

from Channel Assign menu

MODEL TYPE PROGRAMMING GUIDE

Menu options show up on model type selection. These menu options vary between Model Types (Airplane, Helicopter, Sailplane and Multirotor), but are identical for all models in that type. Subsequent aircraft type (Aircraft, Swashplate, Sailplane or Multirotor) selections make other menu options appear.

System Setup List: Model Select Model Type Model Name Aircraft Type F-Mode Setup Broken Flight Mode Channel Assign Trim Setup Model Utilities Warnings Telemetry Preflight Setup Frame Rate Bind Trainer Analog Switch Setup System Settings Transfer SD Card Function List: Servo Setup D/R and Expo Differential U-Tail Differential Throttle Cut Throttle Curve Gyro1 Gyro2 Gyro3 Pitch Curve Flap System Mixing Sequencer ProTrim Range Test Timer Telemetry Custom Voice Setup System Setup Monitor XPlus Monitor

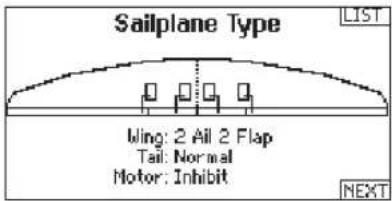

System Setup List: Model Select Model Type Model Name Sail Plane Type F-Mode Setup Spoken Flight Mode Channel Assign Trim Setup Model Utilities Warnings Telemetry Preflight Setup Frame Rate Bind Trainer Analog Switch Setup System Settings Model Utilities Transfer SD Card Function List: Servo Setup D/R and Expo Differential U-Tail Differential Throttle Cut Motor Curve Camber Presets Camber System Mixing Sequencer ProTrim Range Test Timer Telemetry Custom Voice Setup System Setup Monitor XPlus Monitor

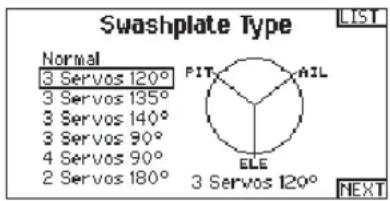

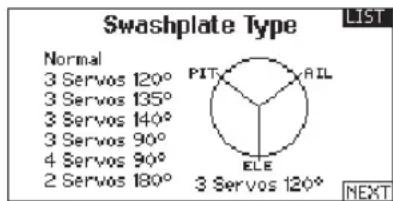

System Setup List: Model Select Model Type Model Name SwashPlate Type F-Mode Setup Spoken Flight Mode Channel Assign Trim Setup Model Utilities Warnings Telemetry Preflight Setup Frame Rate Bind Trainer Analog Switch Setup System Settings Model Utilities Transfer SD Card Function List: Servo Setup D/R and Expo Throttle Cut Throttle Curve Pitch Curve SwashPlate Gyro Governor Tail Curve Mixing Sequencer ProTrim Range Test Timer Telemetry Custom Voice Setup System Setup Monitor XPlus Monitor

System Setup List: Model Select Model Type Model Name Aircraft Type F-Mode Setup Spoken Flight Mode Channel Assign Trim Setup Model Utilities Warnings Telemetry Preflight Setup Frame Rate Bind Trainer Analog Switch Setup System Settings Model Utilities Transfer SD Card Function List: Servo Setup D/R and Expo Throttle Cut Throttle Curve Pitch Curve Camera Gimbal Motor Cut Motor Curve Mixing Sequencer ProTrim Range Test Timer Telemetry Custom Voice Setup System Setup Monitor XPlus Monitor

SYSTEM SETUP

Press and hold the scroll wheel while powering on the transmitter to show the System Setup list. No radio transmission occurs when a System Setup screen is displayed, preventing accidental damage to linkages and servos during changes to programming.

System Setup K Main Screen > Model Select Model Type Model Name Sailplane Type F-Mode Setup Spoken Flight Mode

You can also enter the System Setup from the Function list without turning the transmitter off. A Caution screen will appear that warns that RF will be disabled (the transmitter will no longer transmit). Press YES if you are sure and want to access the System List. If you are not sure, press NO to exit to the main screen and continue operation. If you do not press YES or NO, the system will exit to the main screen and continue operation within approximately 10 seconds.

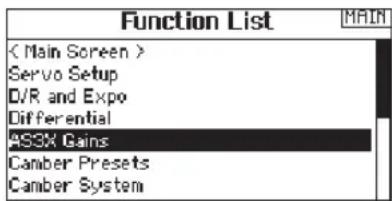

Function List Mixing Range Test Timer Telemetry Custom Voice Setup System Setup Monitor CAUTION! Confirm System Menu Access. RF will be disabled! Are you sure? NO YES

WARNING: Do not press YES unless the model is turned off or the model is secured.

Model Select

Model Select enables you to access any of the 250 internal model memory locations in the Model Select list.

1. Scroll to the desired model memory in the Model Select list.
2. When the desired model memory is highlighted, press the scroll wheel once to select the model. The transmitter returns to the System Setup List.
3. Add a new model by rolling to the bottom of the list. You will then be prompted with the Create New Model screen, with the option to create a new model or cancel. If you select Cancel, the system will return to the Model Select function. If you select Create, the new model will be created and now be available in the model select list.

Direct Model Access

Press the Clear and Back buttons from the Main Screen or a telemetry screen to access Model Select.

Diagram of a mechanical component with three directional arrows pointing to features (no text or symbols)

Model Select < BACK > Model 1: Acre < Add New Model >

Model Type

Select from Airplane, Helicopter, Sailplane or Multicopter model types.

IMPORTANT: When you select a new model type, you will delete any programming data in the current model memory. Always confirm the desired model memory before changing model types. It will be necessary to re-bind after resetting the model type.

To change the model type:

1. Scroll to the desired model type and press the scroll wheel. The Confirm Model Type screen appears.
2. Select Yes and press the scroll wheel to confirm the model type. All data will be reset. Selecting No will exit the Confirm Model Type screen and return to the Model Type screen.

Model Type LIST

SYSTEM SETUP

Model Name

Model Name enables you to assign a custom name to the current model memory. Model names can include up to 20 characters, including spaces.

To add letters to a Model Name:

1. Scroll to the desired letter position and press the scroll wheel once. A flashing box appears.
2. Scroll left or right until the desired character appears. Press the scroll wheel once to save the character.
3. Scroll to the next desired letter position. Repeat Steps 1 and 2 until the Model Name is complete. Insert a character by selecting <+> or delete a character by selecting <->.
4. Select BACK to return to the System Setup list.

To erase a character:

1. Press CLEAR while the character is selected.
2. Press CLEAR a second time to erase all characters to the right of the cursor.

Model Name Name: 1 : Acro BACK

Aircraft Type

Sailplane Type

Swash Type

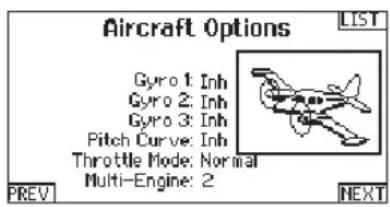

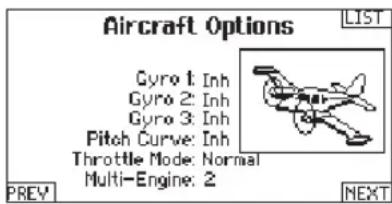

Aircraft Options

This menu only available in Airplane Mode. See ACRO (Airplane) section for set up.
This menu only available in Sailplane Mode. See SAIL (Sailplane) section for set up.
This menu only available in Helicopter Mode. See HELI (Helicopter) section for set up.
This menu only available in Multirotor Mode. See MULTI (Multirotor) section for set up.

F-Mode Setup

Use the Flight Mode Setup menu to assign switches to flight modes. You can assign up to ten flight modes using any combination of up to three switches depending on model type.

Mode Number of Switches Number of Flight Modes
ACRO 2 5
HELI	3 (including Throttle Hold)	5 (including Throttle Hold)
SAIL 3 10
MULTI 2 5

Flight Mode Wizard

The Flight Mode Wizard resets the Flight Mode Table to the default settings without affecting the flight mode switch assignments.

To reset the Flight Mode Table:

1. Select PREVIOUS until you reach the Flight Mode Wizard.
2. Select the desired option, based on the number of active flight modes. The Flight Mode Table is now reset.

Flight Mode Wizard LIST 2/3 Flight Modes 4/5 Flight Modes Custom (Edit) Reset Custom Table

Aircraft Flight Mode Setup

You can assign up to 5 flight modes using any combination of up to two switches. You can also assign a priority switch. When the priority switch position is active, only the current flight mode is active, regardless of other switch positions.

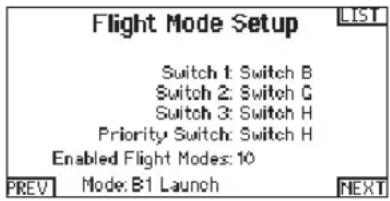

Flight Mode Setup LIST Switch 1: Inhibit Switch 2: Inhibit Priority Switch: Inhibit Enabled Flight Modes: 1 PREV Mode: 1 NEXT Priority Switch LIST Pos 0: Switches Pos 1: Switches Pos 2: Switches PREV Mode: Launch NEXT

SYSTEM SETUP

Helicopter Flight Mode Setup

You can assign up to five flight modes including throttle hold using any combination of up to three switches including a throttle hold switch.

Sailplane Flight Mode Setup

You can assign up to ten flight modes using any combination of up to three switches. You can also assign a priority switch. When the priority switch position is active, only the current flight mode is active, regardless of other switch positions.

Multirotor Flight Mode Setup

By default, switch B is assigned 3 Flight Modes. You can assign up to five flight modes using any combination of up to two switches.

Channel Assign

Scroll and Select Channel to assign channel inputs and outputs for each Flight Mode. Each channel can be assigned any switch on the transmitter including but not limited to trim switches, gimbals and the Clear/Back buttons.

Example: Assign Flight Mode 1 to be your primary flight mode where your gimbals control primary flight axis. Switching to Flight Mode 2, you can have the gimbals control the camera axis and the trim buttons control primary flight axis.

Tip: You can also access the Channel Assign from the Channel Assign Menu in System Setup.

Flight Mode Setup Switch 1: Switch B Switch 2: Switch C Hold Switch: Switch H H N I 2 3 Mode: HOLD

Flight Mode Setup Switch 1: Switch B Switch 2: Switch C Switch 3: Switch H Priority Switch: Switch H Enabled Flight Modes: 10 PREV Mode: B1 Launch NEXT

F Mode Setup LIST Switch 1: Switch B Switch 2: Inhibit Enabled Flight Modes: 3 Channel Inhibit Mode: 3 FLIGHT MODE 3 100%

Channel Input Config LIST 1 ALTI: Thr 7 AUX2: E 2 ROLL: All 8 AUX3: RKnb 3 PITC: Ele 9 AUX4: LLv 4 YAW: Rud 5 GEAR: A 6 AUX1: D PREV Mode: 1 FLIGHT MODE 1

Aircraft and Sailplane Flight Mode Table

You can assign the available flight modes (up to 5 for Air, up to 10 for Sail) to each of the switch positions (up to 3 switches can be used for sailplane and up to 2 switches can be used for aircraft). Press NEXT from the Flight Mode Name page to access the flight mode table assignment page when Custom flight mode has been selected in the Flight Mode Setup page. The combination of up to 2 or 3 switches can be used to access all of the flight modes available.

Flight Mode Table Switch B: Pos 0 Switch G: Pos 1 Switch H: Pos 1 Laun Laun Laun Laun Laun Crui Ther Spee Crui Ther Spee Land Land Land Land Land Land PREV Mode: B1 Launch LIST

Number of Flight Modes	2 3 3* 4 4 5
Switch 1 (number of positions)	2P 3P 2P	2P 3P 3P
Switch 2 (number of positions)			2P 3P 2P	3P
Flight Mode 1 Launch Launch	Launch Launch	Launch Launch
Flight Mode 2	Cruise	Cruise	Cruise	Cruise	Cruise	Cruise
Flight Mode 3		Land			Land	Land
Flight Mode 4			Thermal	Thermal	Thermal	Thermal
Flight Mode 5				Speed		Speed

*Must be set up in a 4/5 flight mode.

SYSTEM SETUP

Spoken Flight Mode Setup

Enables you to assign custom names to the Flight Mode positions. Flight Mode names can include up to 20 characters, including spaces.

To change the Flight Mode name:

1. Scroll to the Flight Mode name you wish to change and press the scroll wheel.
2. Scroll to the character position you wish to change and press the scroll wheel once. A flashing box appears.
3. Scroll left or right until the desired character appears. Press the scroll wheel once to save the character. Insert a character by selecting <+> or delete a character by selecting <->.
4. Repeat Steps 2 and 3 until the Model Name is complete.
5. Select BACK to return to the Flight Mode Names list.

Spoken Flight Mode:

The Spoken Flight Mode option enables you to activate audio flight mode alerts. As you change between flight modes, the transmitter will "speak", informing you of the active flight mode. You can select a word or phrase for each flight mode.

To activate Spoken Flight Mode:

1. Enter the Spoken Flight Mode menu option.
2. Scroll to (default), then press the scroll wheel.
3. Scroll left or right to view the options.
4. Press the scroll wheel again to save the selection.

Flight Mode Names LIST 1FLIGHT MODE 1 Mode: 1 FLIGHT MODE 1

Spoken Flight Mode F-Mode Name: FLIGHT MODE 1 Speak: TEST

Channel Assignment

The Channel Assignment function allows you to reassign almost any receiver channel to a different transmitter channel. For example, the receiver gear channel could be re-assigned to the transmitter throttle channel.

1. Scroll to the receiver channel you wish to change.
2. Press the scroll wheel once and scroll left or right to change the receiver input selection.
3. Press the scroll wheel a second time to save the selection.

IMPORTANT: You cannot assign a mix to a channel that has been moved. Create the mix first, then move the channel.

Rx Port Assignments LIST 1 THRO: Throttle 7 AUX2:Aux 2 2 AILE:Aileron 8 AUX3:Aux 3 3 ELEV:Elevator 9 AUX4:Aux 4 4 RUDD:Rudder 10 AUX5:Aux 5 5 GEAR:Gear 11 AUX6:Aux 6 6 AUX1:Aux 1 12 AUX7:Aux 7 NEXT

See the "Programming Failsafe Positions" section on page 12 for Throttle limitations.

▶ Channel Input Configuration

The Channel Input Configuration screen enables you to assign a transmitter channel to a different control stick or switch.

1. Select NEXT on the RX Port Assignments screen to access the Channel Input Configuration screen.
2. Scroll to the transmitter channel you wish to re-assign and press the scroll wheel. The box around the current input selection flashes.
3. Scroll left or right to select the desired control stick or switch.
4. Press the scroll wheel to save the selection.

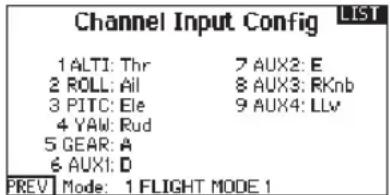

Channel Input Config LIST 1 THRO: N/A 7 AUX2: E 2 AILE: N/A 8 AUX3: RKnb 3 ELEV: N/A 9 AUX4: THx 4 RUDD: N/A 10 AUX5: RLv 5 GEAR: A 11 AUX6: Inh 6 AUX1: D 12 AUX7: Inh PREV

SYSTEM SETUP

x-Plus Input Configuration

The X-Plus Input Configuration screen enables you to assign any X-Plus channel to any transmitter input.

1. Select NEXT on the Channel Input Config screen to access the X-Plus Input Config screen.
2. Scroll to the X-Plus channel you wish to change.
3. Press the scroll wheel once and scroll left or right to change the X-Plus Input for that X-Plus channel.

CAUTION: Do NOT connect throttle or any primary control surface to the X-Plus Module. The X-Plus channels are intended to be used for auxiliary functions only. X-Plus channels have a resolution of 512 and variable latency from 22ms to about 88ms. When X-Plus is active, the first 10 channels default to 22ms.

X-Plus Input Config LIST X + 1: Inh X + 5: Inh X + 2: Inh X + 6: Inh X + 3: Inh X + 7: Inh X + 4: Inh X + 8: Inh PREV

Trim Setup

Trim Setup LIST Trim Type Throttle: 5 Common Digital Aileron: 5 Common Elevator: 5 Common Rudder: 5 Common Left Trimmer: 5 Common Norm. Right Trimmer: 5 Common Norm. Trims: Normal

Use the Trim Setup screen to change the size of the trim step and the trim type.

Trim Step

Adjusting the trim step value determines how many "clicks" of trim you input each time you press the trim button. Changing the trim step value to 0 disables the trim for the channel.

To change the trim step value:

1. Scroll to the trim step channel you wish to change.
2. Select the trim step value and scroll left or right to change the value.
3. Press the scroll wheel to save the selection.

Trim Type

The two Trim Type options are Common and F Mode.

Common trim type maintains the same trim values for all flight modes.

F Mode trim type enables you to save trim values for individual flight modes if you find, for example, the aircraft requires aileron trim in Flight Mode 1 but not in Flight Mode 2.

Trim Assignment

In a few instances, you can reassign a trim to a different location.

Aircraft Model Type

Throttle

- Throttle Digital trim button (default)

Throttle Trim Type

• Common
• Flight Mode

Trim Location

Normal and Cross trim types are available. Normal trims align with the control stick; for example, the throttle trim is next to the throttle stick.

Cross trims reverse the position of the trims; for example, the throttle trim is next to the elevator stick and vice versa.

To change the Trim Position from Normal to Crossed, select Normal at the bottom of the Trim Setup screen and press the scroll wheel.

IMPORTANT: Crossed trims will cross both sets of trims for both gimbals.

Left/Right Digital Trims

The Left and Right Digital Trims can be programmed as either Common or F-Mode for Normal, 2-Pos, or 3-Pos operation.

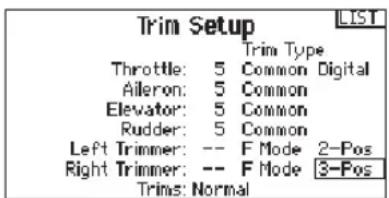

Trim Setup LIST Trim Type Throttle: 5 Common Digital Aileron: 5 Common Elevator: 5 Common Rudder: 5 Common Left Trimmer: -- F Mode 2-Pos Right Trimmer: -- F Mode 3-Pos Trims: Normal

Top-down schematic of a vehicle cockpit showing front, rear, and side panels with no text or symbols

SYSTEM SETUP

Model Utilities

In the Model Utilities function you can create a new model, delete a model, copy a model, reset a model to default settings and sort the model list.

Model Utilities Create New Model Delete Model Copy Model Reset Model Sort Model List

▶ Create New Model

Use this selection to create a new model in the model select list. When adding a new model from the Model Select screen or Model Utilities, the new model created is the same type of model (Acro, Heli, Sail or Multi) as the current model. The Model Type function can still be used to change the type of the current model.

1. Select Create New Model. Within this screen, you will have the option to create a new model or cancel.
2. If you select Cancel, the system will return to the Model Select function.
3. If you select Create, the new model will be created and now be available in the model select list.

Create New Model Do you want to create a new model? CANCEL CREATE

▶ Delete Model

Use this selection to permanently delete a model from the model select list. If you do not wish to delete a model, select Cancel to exit the page.

1. To delete a model, highlight the model listed. Press to select then roll to the model name. Press the scroll wheel to select.
2. Select DELETE to delete the model.

Delete Model Model: 2 Acro DELETE THIS MODEL? CANCEL DELETE

▶ Copy Model

The Model Copy menu enables you to duplicate model programming from one Model List location to another.

Model Copy LIST From 2 Acro To 1 Acro CANCEL COPY

Use Model Copy to:

• Save a default model copy before experimenting with programming values
• Expedite programming for a model using a similar programming setup

IMPORTANT: Copying a model program from one model memory to another will erase any programming in the "To" model memory. To copy model programming:

1. Make sure the model program you wish to copy is active. If the desired model program is not active, select Cancel and change the active model in the Model Select menu.
2. Select the model memory next to "To" and scroll to the desired model memory. Press the scroll wheel once to save the selection.
3. Select Copy and the Confirm Copy screen appears.
4. Select Copy to confirm. Selecting Cancel will return to the System Setup screen.
5. Select the "To" model as the current model, then bind the transmitter and receiver. Copying a model does not copy the bind from the original model.

You cannot use the Model Copy screen to copy model programming to an SD Card. To copy model programming to the SD Card, please see "Transfer SD Card" section on page 9.

System Setup

▶ Model Reset

Use the Model Reset menu to delete all model programming in the active model memory. Reset returns all model settings to the default settings and erases all programming in the selected model.

After a model reset, it is necessary to re-bind.

Confirm Reset Model-1 Acro DATA WILL BE RESET CANCEL RESET

▶ Sort Model List

With this function you can sort the model order in the model select function. This is helpful to group similar models together to make them easy to find. To move a model, highlight the model that you wish to move with the scroll wheel, then press the scroll wheel to select it. Scroll the scroll wheel to move the selected model to the position desired. Press the scroll wheel when you have the model in the position desired.

Sort Model List < BACK > Model 1: Sail Model 2: Heli Model 3: Acro Model 4: Acro

Warnings

The Warnings menu enables you to program a voice, tone or vibration alert during power on of the transmitter for any selected switch or channel position.

The alarm activates and an alert message appears on the screen if a specific switch or control stick is in an unsafe position when you power the transmitter on.

Return the switch or control stick to the safe position to silence the alarm.

For safety reasons, the default throttle alarm activates if the throttle position is above 10%.

• Center In ±10 and Center Out ±10 have been added to the warnings menu option. These can be adjusted to any value between 1 and 99. An alarm can be put on a servo position that is within a certain range of center, or outside a certain range around center.
• When adding channel position warnings, you can now enter positions of up to 150% rather than the previous limit of 100%.

Warnings Alarm: Voice/Vibe Spoiler: Center In ± 10% Gear: [O] Flight mode: Motor: Chan: Elevator Over 150% Chan: Inhibit

SYSTEM SETUP

TELEMETRY

Installing the optional telemetry module and sensors enables the display of aircraft performance data on the transmitter screen. You can also enable Data Logging to save a telemetry file on the SD Card and view the data in the Spektrum STi™ mobile application.

▶ Telemetry Settings

Display

Telemetry display options include:

Tele: When you press the scroll wheel, the Telemetry screens appear and the Main Screen is disabled.

Main: Telemetry alerts appear on the Main screen, but all Telemetry screens are disabled.

Roller (Default): Allows you to toggle between the Telemetry screens and the main screen by pressing the scroll wheel.

Auto: The Telemetry screen automatically appears as soon as the transmitter receives data from the telemetry module.

Units

Scroll to Units and press the scroll wheel to change between US and Metric.

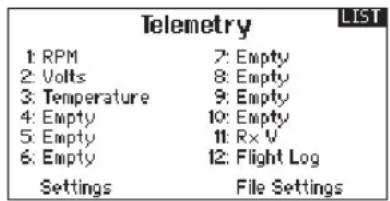

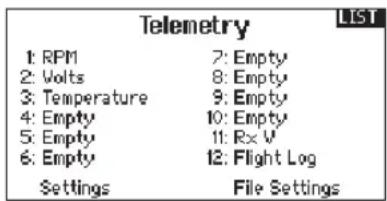

Telemetry LIST 1: RPM 7: Empty 2: Volts 8: Empty 3: Temperature 9: Empty 4: Empty 10: Empty 5: Empty 11: Rx V 6: Empty 12: Flight Log Settings File Settings

Settings Display: Roller Units: US Auto-Config Configuring ...

▶ Telemetry Auto-Configuration

IMPORTANT: The Auto-Config option is not available from the System Setup>Telemetry menu. RF signal must be transmitting when you use the Auto-Config option. When the System Setup menu is active, RF signal is off.

The DX20 transmitter features telemetry Auto-Configuration, allowing the transmitter to detect new telemetry sensors.

To use Telemetry Auto-Config:

1. Make sure all telemetry components are installed on the transmitter and receiver.
2. Power on the transmitter, then power on the receiver.
3. Select Telemetry from the Function List, then select Auto Config. "Configuring" flashes for 5 seconds and any new sensors appear in the list.
4. Adjust the sensor alert values as necessary.

RPM Display: Act Alarm RPM Min: 0 Inh Max: 10000 Inh Ratio: 1.00 : 1 Poles: Inh Status Reports: Inh Warning Reports: Inh

Status Reports:

Status Reports determines how often the transmitter refreshes the data on the screen. Each telemetry sensor can be adjusted independently.

For example, the RPM status report can refresh every 10 seconds while the altimeter sensor refreshes every 15 seconds.

Warning Reports:

Warning Reports determines how often a telemetry alert occurs, if an alert is active.

▶ AS3x Gain Live View (ACRO and SAIL Types Only)

When using an AS3X® receiver (AR636, AR6335, AR7350, AR9350, etc.), AS3X Live Gain View allows:

• Real time display of gain values for Roll, Pitch and Yaw
• Gains can be adjusted from the roller, knob or switches
- Selection of the channel that is used to adjust gains (must match application)
- Selection of the switch that is used to change flight modes

To activate AS3X Gain Live View:

1. Enter the Telemetry screen from either the Function List or the System Setup list.
2. Scroll to the desired "Empty" channel to use for gain adjustment.
3. Press and scroll to select AS3X. The AS3X Gain menu is now available in the Function List.

See the "AS3X Gain Live View" section on page 37 for more information.

Telemetry LIST 1: AS3X 7: Empty 2: Empty 8: Empty 3: Empty 9: Empty 4: Empty 10: Empty 5: Empty 11: Rx V 6: Empty 12: Flight Log Settings File Settings

Function List (< Main Screen>) Servo Setup DVR and Expo Differential AS3X.Cains Camber Presets Camber System

SYSTEM SETUP

▶ Telemetry Alarms

Select Inh under Alarm to select the type of alarm desired. Options include Inh, Tone, Voice.

Status Reports (Spoken Telemetry)

1. Select Inh next to Status Reports in each telemetry setting to add spoken telemetry feedback as desired.
2. Scroll to select how often you want to hear the status report.

Warning Reports (Spoken Telemetry)

1. Select Inh next to Warning Reports in each telemetry setting to add spoken telemetry feedback for telemetry warnings as desired.
2. Scroll to select how often you want to hear the telemetry warning.

File Settings

This is used to select the data logging settings.

File Name

1. Select File Name to assign a custom file name.
2. The File Name screen appears, allowing you to name the file as you would for a Model Name or Flight Mode Name. The file name can include a maximum of 8 characters.
3. Press BACK to save the name.

Start

1. Select Start to assign a specific switch position or stick position that activates Data Logging.
2. Press the scroll wheel once to save the selection.

Enabled

When Enabled is set to NO, Data Logging is turned off. Select YES to save Telemetry data to the SD Card. The SD Card must be installed in the transmitter to select YES.

CAUTION: If you access the Telemetry menu from the Function List, you may see a Frame Loss appear when you menu. The Frame Loss is not an error, but there will be a temporary loss of radio signal when exiting the Telemetry screen.

DO NOT access the Telemetry menu during flight.

Preflight Setup

The Preflight Setup menu option enables you to program a pre-flight checklist that appears each time you power on the transmitter or when you select a new model memory. Each item on the list must be confirmed before you can access the Main Screen.

Preflight Setup LIST Preflight 1: Act Rx Battery Test Preflight 2: Act Test Controls Preflight 3: Act Wing Bolts Secured Preflight 4: Inh Preflight 5: Inh Preflight 6: Inh Modulation: Inh Execute:Inh

Frame Rate

The Frame Rate menu enables you to change the frame rate and modulation mode. Select the option you wish to change and press the scroll wheel.

You must use digital servos if you select 11ms* frame rate. Analog and digital servos can be used with a 22ms frame rate.

Modulation Mode

We recommend using DSMX ^® (default) modulation mode. When DSMX is active, the transmitter operates in DSMX with DSMX receivers and DSM2* with DSM2 ^® receivers. The transmitter automatically detects DSM2 or DSMX during binding and changes the mode accordingly to match the receiver type you are using. If you select DSM2, the transmitter operates in DSM2 regardless of whether it is bound to a DSM2 or DSMX receiver.

*DSM2 is not available in the EU.

Dx20 compatibility Mode

Set DX20 compatibility to Act only if you are importing models created on or for a DX20. The DX20 compatibility mode changes channels 11 and 12 and X-Plus 1 and 2 to shared channels, and allows them to be adjusted in the X-Plus 1 and 2 settings (travel adjust, sub trim, etc.)

Leaving Compatibility Inhibited allows the DX20 to have full 20 channel control.

Frame Rate 11 ms When 11 ms is selected, digital servos must be used. Mode: DSMX XPLUS: Inh DX18 Compatibility: Act LIST NEXT

NOTICE: While DSMX allows you to use more than 40 transmitters simultaneously, do not use more than 40 transmitters simultaneously when using a DSM2 receiver or a transmitter in DSM2 mode.

NOTICE: For EU versions, DSM2 operation is not available.

Bind Progress

Select NEXT to move to the Bind Progress screen. Select to Inhibit or activate voice alerts for Binding, Bind Type, Telemetry and Bind Failed.

Bind Progress Binding: Voice Bind Type: Inh Telemetry: Voice Bind Failed: Voice

SYSTEM SETUP

Bind

The Bind menu enables you to bind a transmitter and receiver without powering off the transmitter. This menu is helpful if you are programming a model and need to bind the receiver for failsafe positions.

See "Programming Failsafe Positions" for more information.

BIND Model 1: Acro Put receiver into Bind Mode then select BIND. CANCEL BIND

TRAINER

The DX20 features a programmable trainer function with 4 wired trainer modes, 2 wireless trainer modes and a trainer FPV mode.

The transmitter assigns the trainer function to Switch I.

Trainer Menu Wired Trainer Wireless Trainer Trainer Alerts

▶ Wired Trainer

The 4 wired trainer modes include:

Inhibit

In Inhibit, the slave transmitter must have the same programming as the master transmitter (e.g., servo reversing, travel adjust, sub-trim, trims).

Programmable Master

Programmable mode enables you to program the master transmitter to transfer any or all individual channels when you activate the trainer switch. This mode is ideal for beginners learning to control individual channels while the master transmitter maintains control of all other channels.

The slave transmitter should be in Inhibit mode, if available. The Master and Slave transmitters MUST have the same programming.

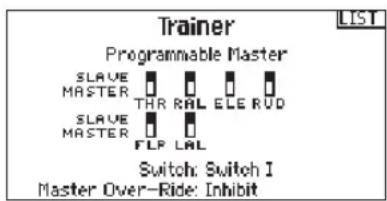

Trainer Programmable Master SLAVE MASTER THR RAL ELE RVD SLAVE MASTER FLP LAL Switch: Switch I Master Over-Ride: Inhibit

Pilot Link Master

Pilot Link Master enables you to program the master transmitter to transfer any or all individual channels when you activate the trainer switch. Pilot Link Master is ideal for complex models, as the master transmitter can maintain control of all secondary functions—for example, flight modes, retracts, flaps and brakes. Secondary functions can be individually assigned to the Slave transmitter as necessary. It is not necessary to have model programming in the slave transmitter. It may be necessary for the slave transmitter to be in Inhibit mode to allow trim changes to transfer over from the master transmitter.

Trainer Pilot Link Master SLAVE MASTER LAL RAL REL LEL SLAVE MASTER RFL LFL Switch: Switch I Master Over-Ride: Inhibit

Slave

Use Slave mode when using the DX20 as a slave transmitter and Pilot Link is active in the master transmitter.

Trainer Slave LIST

Dx20 Wired Trainer Operation

1. Bind the master transmitter to the model.
2. Connect the trainer cord (SPM6805) to the back of the master transmitter.
3. Make sure the master and slave transmitter battery packs are fully charged.
4. Make sure the slave transmitter is powered off. The slave transmitter will power on when you connect the trainer cord.
5. Connect the trainer cord to the slave transmitter.
6. The slave transmitter screen displays information but does not send a signal to the model.
7. Press the trainer button on the master transmitter to transfer model control from the master to the slave.
8. While moving the trainer switch between the off and on positions, watch for movement on the control surfaces. Adjust the trims as necessary before flying.
9. Release the trainer button and the master transmitter regains control of the model.

Master Override

The Master Override feature enables the instructor to immediately regain control of the model by moving the control sticks. After you activate Master Override, the slave transmitter cannot control the model until you reset the trainer switch. To reset the trainer switch:

1. Move the trainer switch to the OFF position.
2. Move the trainer switch to the ON position to activate the slave transmitter.

SYSTEM SETUP

▶ Wireless Trainer

Wireless Trainer works just like the Wired Trainer, without the wire. Select Wireless Trainer to bind a DSM2 or DSMX slave transmitter to the master transmitter. With this option, when the master presses the trainer button or switch, control is given to the currently bound slave transmitter. After binding, the slave transmitter will remain bound to the master transmitter until a different transmitter is bound to the master, or the slave transmitter is bound to another receiver or a wireless master transmitter. ModelMatch™ technology applies to the wireless trainer system; the master transmitter will be bound to the slave in the bound model used. Also, if the slave transmitter has ModelMatch technology, it will only be bound to the master transmitter in the selected model during binding.

Inhibit

In Inhibit, the wireless trainer function will be inhibited and will not function.

Trainer Inhibit LIST

CAUTION: Select Inhibit in the Trainer menu when you aren't using the wireless trainer function. Failure to select Inhibit may be a loss of control of the aircraft.

Programmable Master

Programmable mode enables you to program the master transmitter to transfer any or all individual channels when you activate the trainer switch. This mode is ideal for beginners learning to control individual channels while the master transmitter maintains control of all other channels. The slave transmitter should be in Inhibit mode, if available. The Master and Slave transmitters MUST have the same programming.

Pilot Link Master

Pilot Link Master enables you to program the master transmitter to transfer any or all individual channels when you activate the trainer switch. Pilot Link Master is ideal for complex models, as the master transmitter maintains control of all secondary functions, such as flight modes, retracts, flaps and brakes.

Secondary functions can be individually assigned to the Slave transmitter as necessary. It is not necessary to have model programming in the slave transmitter.

Dx20 Wireless Trainer Operation

1. Enter an unused model on the slave transmitter (computer transmitter only).
2. Bind the master transmitter to the model.
3. Make sure the master and slave transmitter battery packs are fully charged.
4. Make sure the slave transmitter is powered off.
5. Either in the Wireless Programmable Master setup page or the Wireless Pilot Link Master setup page, select BIND. This will put the master transmitter's wireless trainer receiver into bind mode. You should see the following screen:

Trainer Bind Binding BACK

1. Enter bind mode on the slave transmitter following the instructions provided with that transmitter.
2. After a successful bind, the following screen should appear:

Trainer Bind Operating DSMX 1ms

1. Press the trainer button on the master transmitter to transfer model control from the master to the slave.
2. Release the trainer button and the master transmitter regains control of the model.

Master Override

The Master Override feature enables the instructor to immediately regain control of the model by moving the control sticks. After you activate Master Override, the slave transmitter cannot control the model until you reset the trainer switch. To reset the trainer switch:

1. Move the trainer switch to the OFF position.
2. Move the trainer switch to the ON position to activate the slave transmitter.

SYSTEM SETUP

▶ Trainer FPV Mode

The Trainer FPV function enables you to control FPV head-tracking in either wired or wireless mode. You may assign incoming head-tracker channels to any available output channel in the transmitter. To use the FPV mode:

1. Select Wired Trainer or Wireless Trainer from the Trainer menu.
2. Change the trainer mode from Inhibit to FPV.
3. Select the switch you wish to use for the head tracker, then select NEXT.
4. Select the Output Channel where the head tracker servo is connected.
5. Change Mode: Master to Mode: Slave.
6. Select Input Channel.
7. Test the head tracker movement. Move the head tracker switch to the On position, then move your head. The camera should move accordingly.
8. Adjust the Scale value to change the amount of camera movement. If the camera moves in the wrong direction, change the Direction option from Normal to Reverse.

Trainer FPV SLAVE MASTER THR AIL ELE RUD Switch: Inhibit LIST BIND NEXT

Head Tracker Output Channel: GEAR Mode: SLAVE Input Channel: 5 Scale: 100% Direction: Normal

IMPORTANT: Consult local laws and ordinances before operating FPV (first person view) equipment. In some areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner.

Analog Switch Setup

Allows all sticks and pots to be used as a kick point to turn on functions like mixes. To add a kick point:

1. Move the control stick, lever or knob to the desired kick point position.
2. Scroll to the desired kick point and press the scroll wheel once to save the selection.

To delete a kick point, scroll to the desired kick point and press the Clear button.

Analog Switch Setup LIST Pos 0-1 Pos 1-2 Now Thro: 75X -75X Pos 2 -99X Aile: 75X -75X Pos 1 1X Elev: 75X -75X Pos 1 -1X Rudd: 75X -75X Pos 1 0X L Lever: 75X -75X Pos 0 97X R Lever: 75X -75X Pos 0 100X NEXT

Digital Switch Setup

Digital Switch Setup allows you to define the position values of each digital switch and flight mode switch. The switch can be assigned to a channel in the Channel Input Config function, and the output of the channel set in the Digital Input Setup screen. Additionally, the Flight Mode switch can have position values defined for each flight mode, and may be used as a mix input or channel input source, with the values defined in Digital Input Setup.

To use the Digital Switch Setup function:

1. Enter the Digital Input Setup screen, and press the roller with Inhibit selected.
2. Roll to select the switch or Flight Mode switch and press to select.
3. Roll to the desired position to adjust, and press the roller to select.
4. Roll to select the desired value, then press to select.
5. Repeat step 4 and 5 for all positions that you wish to adjust.

6. If you want to select a switch to control a channel, roll to select Channel: Inhibit on the bottom of the screen and press the roller. This will take you to the Channel Input Config screen to assign a channel to a switch.

7. Repeat 2 through 6 for all switches desired.

System Setup Preflight Setup Frame Rate Bind Trainer Digital Switch Setup System Settings Transfer SD Card

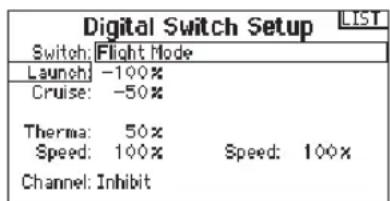

Digital Switch Setup LIST Switch: Flight Mode Launch: -100% Cruise: -50% Therma: 50% Speed: 100% Speed: 100% Channel: Inhibit

IMPORTANT: After you exit the Digital Input Setup screen, the return screen will show Inhibit at the top of the screen. If you wish to adjust a previously set value, select the switch and the previously set values can then be viewed and re-adjusted as desired.

SYSTEM SETUP

Center Tone

Allow any analog input (stick, knob, or lever/slider) to provide feedback when passing through center. In addition, this function allows you to disable the center tone that normally occurs on the knob and sliders. On voice-capable radios, a spoken alert can be made.

Tip: This will not provide telemetry-like data; only the specified sound will be played.

Center Tone Switch: Thr. Stick Alarm: Tone LIST

Sound Utilities

The transmitter includes a set of default sound categories, with the option to add your own (up to a total of 16 categories). You may also modify or remove the default sound categories. Sound Categories can be accessed from any screen that enables you to select a sound.

1. To select a sound, highlight the sound and then press the roller.
2. To select a sound from a different Sound Category, highlight Select Category and then press the roller. Select the desired sound from the list.
3. To add a sound to a different Sound Category, select Add Sound to Category. A sound can appear in as many categories as you wish.
4. The default Sound Category is All Sounds. To change the default Sound Category, select Sort Categories then move the desired category to the top of the list.
5. To remove a Sound Category, select Rename/Delete Category and then edit the name. Change the first character of the name to a blank space. When you exit the screen, the category will be removed.

System Setup Frame Rate Bind Trainer Digital Switch Setup Sound Utilities System Settings Transfer SD Card

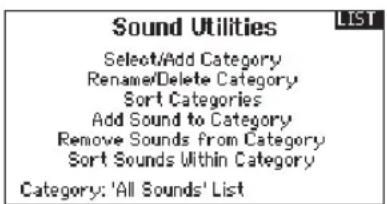

Sound Utilities Select/Add Category Rename/Delete Category Sort Categories Add Sound to Category Remove Sounds from Category Sort Sounds Within Category Category: 'All Sounds' List

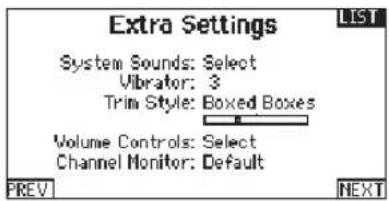

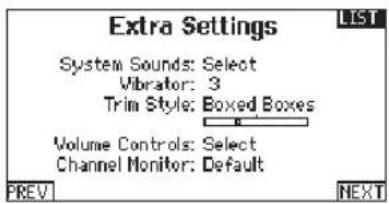

SYSTEM SETTINGS

The System Settings menu consists of four screens:

System Settings, Extra Settings, Serial Number and Calibrate.

Select NEXT or PREV to move between screens.

System Settings User Name: Contrast: 10 Backlight: 30 s 100% Mode: 2 Battery: Alka. Alarm: 4.3U Language: English Region: US-247 Inactive Alarm: 10 min. NEXT

▶ User Name

The User Name field displays your name in the lower right corner of the main screen.

To Program a User Name:

1. Scroll to User Name and press the scroll wheel. The User Name screen appears.

2. Scroll to the desired character position and press the scroll wheel. Scroll left or right to change the character and press the scroll wheel to save the selection. The User Name can contain a maximum of 20 characters, including spaces.

3. Press the Back button to save the User Name and return to the System Settings screen.

▶ Contrast

To adjust the screen contrast:

1. Scroll to Contrast and press the scroll wheel.
2. Scroll left or right to adjust the contrast value. Lower numbers lighten the contrast, higher numbers darken it.
3. Press the scroll wheel once to save the selection.

SYSTEM SETUP

▶ Backlight

The Backlight field adjusts the backlight appearance time and brightness. You have the option to turn the backlight off for models you fly during the day and turn the backlight on for night flying models.

The backlight time options are:

Off: Appears for a short time when you power on the transmitter.

On: The backlight is always on.

Set Time: The backlight is on for 3, 10, 20, 30, 45 or 60 seconds before automatically turning off. Press the scroll wheel once to turn the backlight on.

The backlight percentage adjusts the backlight intensity and it is adjustable in 10% increments from 10% (darker) to 100% (brighter).

▶ Mode

You can change transmitter modes among Modes 1, 2, 3 and 4. This conversion requires both a programming and a mechanical change. Please refer to Transmitter Mode Conversion for directions on making the necessary mechanical changes. If mechanical changes are required for the mode you need to change to, complete the mechanical changes first, then follow the instructions below for the software setting change.

To change the gimbal stick mode:

1. Scroll to Mode and press the scroll wheel.
2. Scroll left or right to change the gimbal stick mode. Press the scroll wheel to save the selection.
3. Select NEXT in the lower left corner until the Calibration screen appears.
4. Move all transmitter controls to the center position and complete the calibration process before exiting the System Settings menu. See "Calibrating Your Transmitter" for more information.

▶ Battery Alarm

Battery Alarm enables you to change the transmitter battery type and the alarm voltage limit. The alarm activates when the battery reaches the low voltage limit.

To change the battery alarm:

1. Scroll to the battery type and press the scroll wheel once to change the type to LiPo/Li-Ion or NiMH.
2. Scroll to the battery voltage and press the scroll wheel. Turn the scroll wheel left or right to change the voltage level. Press the scroll wheel again to save the selection.

CAUTION: Never select NiMH when a LiPo/Li-Ion battery is installed in the transmitter. Doing so may over-discharge the battery and damage the battery, transmitter or both.

CAUTION: Never adjust the low voltage limit for the LiPo/Li-Ion battery pack below 6.4V. Doing so could over-ge the battery pack and damage both battery pack and tter.

▶ Selecting a Language

In the Systems Settings screen, scroll to highlight Language, then press the scroll wheel to select the Language function. Scroll to select the desired Language. When the desired Language is selected, press the scroll wheel to accept that Language. Names you input will not be affected by language change. After changing the language for the text, you may also want to change the language for the spoken alerts. See the "Spoken" and "SD Card" sections for more information.

▶ Inactive Alarm

An alarm activates if the transmitter sees a period of inactivity for a certain amount of time. The alarm is helpful in reminding you to power off the transmitter and avoiding a situation where the transmitter battery completely discharges.

The Inactive Alarm options are:

• Inh (No alarm sounds)

- 5 min

- 30 min

- 10 min (Default)

- 60 min

To change the Inactive alarm time:

1. Scroll to the current alarm time and press the scroll wheel.
2. Scroll left or right to change the alarm time. Press the scroll wheel to save the selection.

SYSTEM SETUP

▶ Extra Settings

The Extra Settings screen enables you to:

• Turn sounds off or on
  • Change the appearance of the trim indicators
• Change system voice volume settings

System Sounds:

Scrolling to System Sounds and pressing the scroll wheel turns sounds on (Active) or off (Inhibit).

You may disable all sounds by changing the volume to 0.

Vibrator

The Vibrator value determines how many times the vibration alert pulses each second. A value of "1" = 1 pulse/second. The value can be adjusted from 1-10. Use the Warnings menu to turn the vibration alert off.

Trim Style:

Trim style changes the shape of the trim indicators on the Main Screen. Display options include:

• Boxed Boxes (Default)—The indicators appear as an outlined box when you adjust the trim.
• Boxed Arrows—The indicators appear as outlined arrows when you adjust the trim.
• Arrows on Lines—The indicators appear as arrows on lines when you adjust the trim.

Inhibit removes all trim bars and indicators from the Main Screen.

To change the Trim style:

1. Scroll to Trim style and press the scroll wheel once.
2. Scroll left or right to change the Trim style option. Press the scroll wheel to save the selection.

Volume Controls:

Volume control enables you to change the volume levels for individual sound events. System volume level can be changed from the Voice Volume Control screen, the Main Screen or by assigning and Analog input to control the master volume.

To assign Master Analog input:

1. Scroll to INH next to Analog.
2. Roll left or right to select input (Left lever, Right Lever or Right Knob).

System Warnings:

Select NEXT from the Voice Volume Control screen to enter the System Warning screen.

The System Warnings screen enables you to:

• Set Inactivity Alarm—Inh, Tone, Voice
• Set Low Voltage Alarm—Inh, Tone, Voice
  • TEST

Extra Settings System Sounds: Select Vibrator: 3 Trim Style: Boxed Boxes Volume Controls: Select Channel Monitor: Default PREV NEXT

Sound Settings Roller Sounds: Active Timer Sounds: Active Trim Sounds: Active Keyclick Sounds: Active Switch Sounds: Active

Extra Settings LIST System Sounds: Select Vibrator: 3 Trim Style: Boxed Boxes Volume Controls: Select Channel Monitor: Default PREV NEXT

Extra Settings LIST System Sounds: Select Vibrator: 3 Trim Style: Boxed Boxes Volume Controls: Select Channel Monitor: Default PREV NEXT

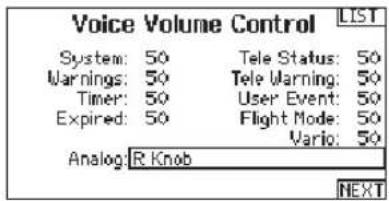

Voice Volume Control LIST System: 50 Tele Status: 50 Warnings: 50 Tele Warning: 50 Timer: 50 User Event: 50 Expired: 50 Flight Mode: 50 Vario: 50 Analog: R Knob NEXT

System Warnings Inactivity: Voice System Idle Low Voltage: Voice Low Battery TEST

SYSTEM SETUP

Channel Monitor

Allows you to select how many channels are displayed on the monitor screen (4-12 channels).

Default will set the monitor screen to display 12 channels.

Extra Settings LIST System Sounds: Select Vibrator: 3 Trim Style: Boxed Boxes Volume Controls: Select Channel Monitor: 4 Chan PREV NEXT

▶ Serial Number

The Serial Number screen displays the transmitter serial number and AirWare software version.

Reference the Serial Number screen any time you need to register your transmitter or update the AirWare software from the Spektrum Community website.

See the "Registering the Transmitter with Spektrum" section on page 9 for more information.

▶ Exporting the Serial Number to the SD Card

You may find it helpful to export the transmitter serial number to a text file for your personal records or when you are registering the transmitter on the Spektrum Community.

To export the transmitter serial number:

1. Insert an SD Card in the card slot on the transmitter.
2. Scroll to EXPORT and press the scroll wheel. The SD Status screen appears and should display MY_DX20.xml in the middle of the screen.
3. Press the scroll wheel again to return to the Serial Number screen.
4. Power off the transmitter and remove the SD Card from the transmitter.

5. Install the SD Card in a card reader connected to your computer.

6. Open the MY_DX20.xml file from the SD Card location. You can then copy and paste the serial number into your personal records or to the Spektrum Community website.

See the “Registering the Transmitter with Spektrum” section on page 9 for more information.

Serial Number SS401B AA4A-AAAA-AAAN AAAA-AAA4-β1 AA EXPORT PREV 0.06 NEXT

▶ Locating the Transmitter AirWare Software Version

The transmitter AirWare software version appears between PREV and NEXT at the bottom of the Serial Number screen. Register your DX20 to get AirWare software updates and other news at spektrumrc.com

IMPORTANT: AirWare files are specific to the transmitter serial number and you cannot transfer AirWare files between transmitters, ie., downloading an AirWare software update once and attempting to install it on multiple transmitters.

▶ Calibrate

The Calibration screen stores the potentiometer endpoints for all proportional controls. It is mandatory to complete the calibration after changing the stick mode selection.

Calibrating the Transmitter

1. Carefully move the gimbal sticks in a + shape moving from left to right, then up and down. Press gently on the gimbals at the stops to achieve an accurate calibration. Return both gimbal sticks to the center position.
2. Select SAVE to store the calibration.

Calibrate Left Right Cycle Sticks: ?? ??? Center Sticks: ?? ??? Sliders: ?? ??? Knob: ??? CANCEL SAVE

SYSTEM SETUP

Transfer SD card

The SD Card enables you to:

• Import (copy) models from another DX20 transmitter

• Export (transfer) models to another DX20 transmitter

• Update AirWare™ software in the transmitter
  • Install/Update sound files

• Screen Print

▶ Import Model

Back up your models currently in your transmitter on an SD card separate from the transmitter before performing these functions.

To import an individual model file from the SD Card:

1. Save the model file to the SD Card and insert into the transmitter.
2. In the Transfer SD Card menu, scroll to Options and press the scroll wheel once.

SD Card Menu Options: Import Model Status: Ready Folder: /

1. Scroll to Import Model and press the scroll button again to save the selection. The Select File screen appears.
2. Select the model file you wish to import. The Import Model screen appears.

Import Model Model will be appended to end of Model Select list. BLH_200QX.SPM CANCEL IMPORT

IMPORTANT: When you select Import, the transmitter leaves the System Setup List.

1. Select IMPORT to save the model to the transmitter. The new model will be appended to the end of the model list. See Sort Model List section on Page 22 for information on sorting the model list.

Import All Models

To import all models from the SD Card:

1. Select Import All Models.
2. Confirm by selecting IMPORT.

IMPORTANT: After importing a model, you must rebind the transmitter and receiver. The Main Screen must show DSM2 or DSMX in the upper left corner.

You can import a model to any location you want. If you prefer to use Import All, you can use your PC to rename the SPM file. The first two digits (01 to 50) are the destination model number. Your SD card can only contain 50 models. Save files to folders on the card then remove from the card all unused models. Files are selected by their position in the directory table.

▶ Export Model

You can use the Export Model option to export a single model file to the SD Card.

1. Make sure the active model file is the one you wish to Export.
2. In the Transfer SD Card menu, scroll to Options and press the scroll wheel once.
3. Scroll to Export Model and press the scroll wheel again to save the selection. The Export to SD screen appears. The first two characters of the file name correspond to the Model List number (01, for example).
4. (Optional) If you wish to rename the model file before exporting it to the SD Card:

a. Scroll to "Save to:" and press the scroll wheel. The File Name screen appears.
b. Assign a new file name. The file name can contain up to 25 characters including the .SPM file extension.
c. When you are done assigning the new file name, press the Back button to return to the Export to SD screen.

1. Select Export to save the file to the SD Card. When the export is complete, the transmitter returns to the SD Card Menu screen.

Export All Models

To export all models to the SD Card:

1. Select Export All Models in the Transfer SD Card Menu options. The Export All Models screen appears.

IMPORTANT: Export All Models will overwrite any model files that Have the same name. Always save model files to a different SD card if you are not sure.

1. Select Export to overwrite files on the SD Card or Cancel to return to the SD Card Menu.

Export to SD Name: Aero Save to: 01Acro.SPM CANCEL EXPORT

SYSTEM SETUP

▶ Updating Spektrum Dx20 Sound Files

NOTICE: NEVER disconnect the battery from the transmitter while the file transfer is in process. Doing so will damage the transmitter, and the transmitter will need to be returned for service.

You have the option of installing new sound files in the DX20 transmitter. Before updating the sound files, make sure the transmitter battery is fully charged.

To install new sound files:

1. Download the desired sound file from the Spektrum Community at www.SpektrumRC.com. Save the file to the SD card for your transmitter.
2. Insert the SD card in the DX20 transmitter.
3. Enter System Setup in the transmitter.

4. Select the SD Card menu, and then select Update Sound.

5. Select the new sound file you want to install. The transmitter will scan the file and check for any errors.

6. The Transfer SD Card screen reappears when the file transfer is complete.

IMPORTANT: The sound file will take approximately 30 minutes to update. Do not disconnect the battery or power off the transmitter during the update.

▶ Update AirWare Software

NOTICE: The orange LED Spektrum bars flash and a status bar appears on the screen when AirWare software updates are installing. Never power off the transmitter when updates are installing. Doing so may damage the system files.

Before installing any AirWare files, always Export All Models to an SD Card separate from the SD Card containing the update. The update may erase all model files.

For more information on AirWare software updates, visit spektrumrc.com

Automatically Installing AirWare Software Updates

To install the most recent update:

1. Download the update from spektrumrc.com and save it to the SD Card.
2. Power off the transmitter and install the SD Card in the transmitter.
3. Power on the transmitter and the update automatically installs in the transmitter.

Manually Installing AirWare Software Updates

1. Save the desired AirWare version to the SD Card.
2. Select Update Firmware in the SD Card Menu options. The Select File screen appears.
3. Select the desired AirWare version from the File List. When updates are installing, the transmitter screen is dark. The orange LED Spektrum bars flash and the update status bar appears on the screen.

NOTICE: Do not power off the transmitter when updates are installing. Doing so will damage the transmitter.

▶ Screen Print

1. Insert SD card into the card slot.
2. Navigate to the Transfer SD Card Menu.
3. Select Options and scroll to the right until Screen Print is selected.
4. Select desired switch (momentary switch recommended).
5. Images are saved on the SD card as .BMP files.

Screen Print

BACK

Switch: Switch I

FUNCTION LIST

The Main Screen appears when you power on the transmitter. Press the scroll wheel once to display the Function List.

1: Acro TM1 5:00 0:44:56 ( 1 ) Tx 5.2V → ↓ Function List K Main Screen > Servo Setup DVR and Expo Differential Throttle Cut Throttle Curve Flap System

Servo Setup

The Servo Setup menu contains the following functions:

- Travel Adjust

- Sub-Trim

- Reverse

- Speed

• ABS. Travel

• Balance

▶ Travel Adjust

Travel Adjust sets the overall travel or endpoints of the servo arm movement.

To adjust travel values:

1. Scroll to the channel you wish to adjust and press the scroll wheel. When adjusting travel values assigned to a control stick:

a. Center the control stick to adjust both directions at the same time.
b. To adjust travel in one direction only, move the control stick in the direction you wish to adjust. Continue holding the control stick in the desired direction while you are adjusting the travel value.

1. Scroll left or right to adjust the travel value. Press the scroll wheel to save the selection

IMPORTANT: ALT, ROL, PIT and YAW replaces THR, AIL, ELE and RUD channels in multirotor to more closely reflect the flight axis in the multirotor aircraft. This change is throughout the multirotor menu options.

Travel LIST 0 INH 1 100 100 100 100 RAL 1 100 100 100 100 0 REL INHRALREL LEL 0 LEL 100 GER 1 100 100 100 1 LAL GER LAL AX2 -100 AX2

-100 ALT 0 ROL 0 PIT 0 YAU 100 GER 100 AXI 100 AX2 4 AX3 99 AX4 Travel LIST 100 100 100 100 100 100 100 100 100 100 ALT ROL PIT YAU GER 100 100 100 100 100 100 100 100 AXI AX2 AX2 AX4

▶ Sub-Trim

Sub-Trim adjusts the servo travel center point.

CAUTION Use only small sub-trim values or you may cause damage to the servo.

-98 THR Sub Trim LIST 0 RAL 0 LAL 0 RRU 100 GER 0 RRU 0 GER 0 LRU

FUNCTION LIST

▶ Reverse

Use the Reverse menu to reverse the channel direction. For example, if the elevator servo moves up and it should move down.

To reverse a channel direction:

1. Scroll to Travel and press the scroll wheel. Scroll left until Reverse appears and press the scroll wheel again to save the selection.
2. Scroll to the channel you wish to reverse and press the scroll wheel.

If you reverse the Throttle channel, a confirmation screen appears. Select YES to reverse the channel. A second screen appears, reminding you to bind your transmitter and receiver.

CAUTION: Always rebind the transmitter and receiver after reversing the Throttle channel. Failure to do so will in the throttle moving to full throttle if failsafe activates.

Always perform a control test after making adjustments to confirm the model responds properly.

-98 THR Reverse LIST o RAL o LAL THR RAL LAL o RRU 100 GER RRU GER LRU o LRU

CAUTION: After adjusting servos, always rebind the transmitter and receiver to set the failsafe position.

▶ Speed

The Speed menu enables you to slow the response time on any individual channel (such as retracts).

The Speed is adjustable in the following ranges:

• Nor (No Delay) – 0.9s in 0.1 second increments
  • 1s – 2s in 0.2-second increments
  • 2s – 8s in 1-second increments

To adjust the Speed:

1. Scroll to the channel you wish to adjust and press the scroll wheel.
2. Scroll left or right to adjust the speed and press the scroll wheel to save the selection.

Speed LIST 0 IHH Nor Nor Nor 1 RAL Nor Nor Nor 0 ELE INH RAL ELE RUD 0 RUD Nor Nor Nor -100 GER NOR Nor 1 LAL GER LAL AX2 -Ⅱ AX2 Switch : On

▶ Absolute (Abs.) Travel

The Abs. Travel function limits the amount of travel on a channel. Adjust the Abs. Travel value to prevent a servo from binding when a mix is applied.

-100 THR 2048 2048 2048 OAIL 1 1 1 O ELE THR AIL ELE O RUD 2048 RUD Abs. Travel LIST

▶ Balance

Balance is available on all channels to fine-tune the servo position at up to 7 points. This is a precision curve mix that is normally used to prevent binding when multiple servos are used on a single control surface.

You can also use the Balance menu option to match throttle response on twin engine aircraft or level the swashplate on a helicopter.

Balance Inhibit LIST (1) CLEAR ALL

FUNCTION LIST

D/R & Exponential

Dual Rates and Exponential are available on the aileron, elevator and rudder channels.

To adjust the Dual Rate and Exponential:

1. Scroll to the channel and press the scroll wheel once. Scroll left or right to select the channel you wish to change and press the scroll wheel again to save the selection.
2. Scroll to Switch and select the switch to activate D/R and Expo for that channel.
3. Scroll to dual rate and press the scroll wheel. Scroll left or right to change the value and press the scroll wheel again to save the selection.

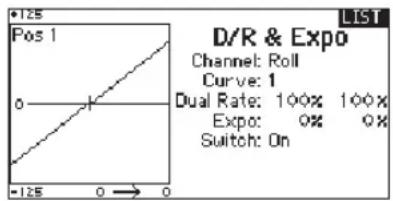

+125 Pos 1 0 -125 0 → 0 LIST DVR & Expo Channel: Roll Curve: 1 Dual Rate: 100% 100% Expo: 0% 0% Switch: On

Exponential affects control response sensitivity around center but has no affect on overall travel. Positive exponential decreases the sensitivity around the center of gimbal movement.

Differential (ACRO and SAIL Types only)

The Differential screen enables you to increase or decrease the amount of differential between aileron control surface throws. Positive Differential values decrease the amount of "down" travel without affecting the "up" travel on the opposite control surface. Negative Differential values decrease the amount of "up" travel without affecting the amount of "down" travel on the opposite control surface.

The Differential menu option only appears when a multi-servo aileron wing type is active in Aircraft Type.

To adjust the Differential:

1. Scroll to Switch and press the scroll wheel. Scroll right to select On (Differential is always on) or assign the differential to a switch position.

2. Press the scroll wheel a second time to save the selection.

3. Scroll to the percentage selection and press the scroll wheel once to change the value.
4. Press the scroll wheel again to save the selection.

INH 0% RAL 1% REL 0% LEL 0% SER 100% Ailerons: 0% LAL 1% RX2 -100% Switch: On LIST Differential Pos 1

Throttle Cut

The Throttle Cut menu option enables you to assign a switch position to stop an engine or motor. Throttle Cut activates regardless of Flight Mode.

When you activate Throttle Cut, the throttle channel moves to the pre-programmed position (normally Off).

You may need to use a negative value to move the Throttle channel to the off position.

CAUTION: Always test the model after making adjustments to make sure the model responds to s as desired.

THR -100% AIL 0% ELE 0% RUD 0% SER 100% RFL 0% LFL 0% LIST Throttle Cut Switch I

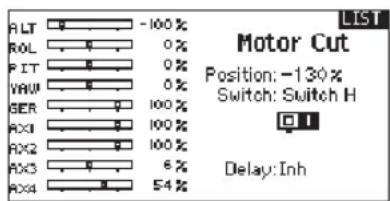

Tip: This menu item is called Motor Cut when Multicopter type is selected.

Throttle Curve

You can use the Throttle Curve menu to optimize the throttle response. A maximum of 7 points, at a minimum of 10% apart, are available on the throttle curve.

To add points to a Throttle Curve:

1. Move the throttle stick to the position where you wish to add the new point.
2. Scroll to Add Pt. and press the scroll wheel to add the point.

To remove points from a Throttle Curve:

1. Move the Throttle stick until the cursor is near the point you wish to remove.
2. Scroll to Remove Pt. and press the scroll wheel once to remove the point.

If you program multiple throttle curves and you wish to edit one of the curves, that curve must be active in the Throttle Curve screen before you can make any changes.

Thr Curve LIST Pos 1 1: 0X Expo: Inh 2: 25X Curve: 1 3: 50X Switch: 4: 75X On 5: 100X 6: ----x 7: ----x

Tip: This menu item is called Motor Curve when Multicopter type is selected.

FUNCTION LIST

AS3x Gain Live View (ACRO and SAIL Types only)

When using a compatible AS3X receiver (AR636, AR6335, AR7350, AR9350, etc.), Gain Live View allows

• Real time display of gain values for Roll Pitch and Yaw
- Allows gains to be adjusted from the roller
- Selection of the channel that is used to adjust gains (must match application)
- Selection of the switch that is used to change flight modes
To activate AS3X Gain Live View:

Telemetry 1:AS3X 2: Empty 2: Empty 8: Empty 3: Empty 9: Empty 4: Empty 10: Empty 5: Empty 11: Rx V 6: Empty 12: Flight Log Settings File Settings LIST

1. In the telemetry screen in one of the empty positions select AS3X and activate the Display. This will activate the AS3X Gain menu in the Function List.

Function List (< Main Screen>) Servo Setup D/R and Expo Differential ASSX Gains Camber Presets Camber System

1. In the Function List Access the AS3X Gain menu. If an AS3X receiver is bound to the transmitter and the receiver and transmitter are on, live gain values will be displayed on this screen.

AS3X Gains Display: Act BACK

Axis: Roll Pitch and Yaw gain are displayed to the right of each Axis Rate: Rate gain values are displayed here

Heading: Heading gain values are displayed here

Actual: The current gain value is displayed here. Note that this value takes into account the priority gain and the stick position of that channel

Gain: This value represents the position of the input (roller or knob)

Input: Allows the selection of the roller to be used to adjust the gain

Channel: Must correspond to the channel selected in the AS3X application in the FM Channel Assignment screen

FM Switch: Selects the switch on the transmitter that is used to select the flight modes in the AS3X system

Note that relative (REL) must be selected in the application's gain screen to allow adjustable gain from the transmitter.

AS3X Gains FM: 1 Launch Axis Rate Heading Actual Roll: ---- % ---- % ---- % Pitch: ---- % ---- % ---- % Yaw: ---- % ---- % ---- % Gain: 50 Input: Roller Channel: INH FM Switch: Switch B LIST

Please see the following web address for videos and information about setting up the AS3X application, Live View and adjusting the gain from the transmitter.

http://www.spektrumrc.com/Technology/AS3X.aspx

The following Function List options are only available when they are enabled from the Model Type screen.

V-Tail Differential	Only available in Sailplane Type when V-Tail A or V-Tail B is active. See SAIL (Sailplane) section for set up.

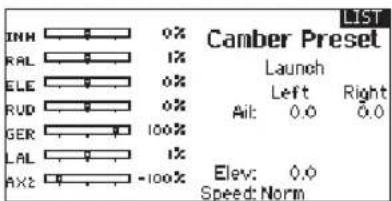

Camber Preset	Only available in Sailplane Type when a 2+ aileron wing type is selected. See SAIL (Sailplane) section for set up.
Camber System	Only available in Sailplane Type when a 2+ aileron wing type is selected. See SAIL (Sailplane) section for set up.

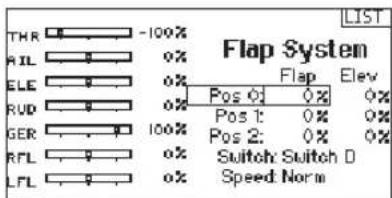

Flap System	Only available in Airplane Type when a flap-enabled wing type is selected. See ACRO (Airplane) section for set up.
Pitch Curve	Only available in Helicopter Type. See HELI (Helicopter) section for set up.
Swashplate	Only available in Helicopter Type. See HELI (Helicopter) section for set up.

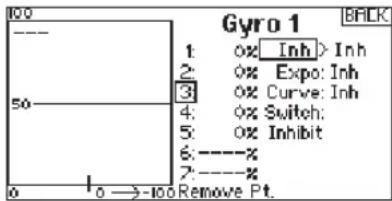

Gyro	Only available in Helicopter Type. See HELI (Helicopter) section for set up.
Tail Curve	Only available in Helicopter Type. See HELI (Helicopter) section for set up.

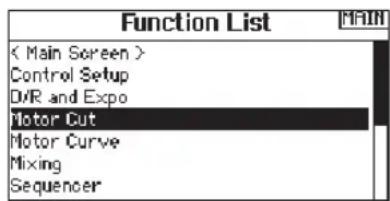

Motor Cut	Only available in Multicopter Type. See MULTI (Multicopter) section for set up.
Motor Curve	Only available in Multicopter Type. See MULTI (Multicopter) section for set up.

FUNCTION LIST

Mixing

Mixing allows control input for a channel to affect more than one channel at a time. Mixing functions support:

• Mixing a channel to another channel.
• Mixing a channel to itself.
• Assigning offset to a channel.
• Linking primary to secondary trim.

These mixes are available for each model memory:

• 16 programmable mixes
• Cyclic to Throttle (HELI)
- Swashplate (HELI)

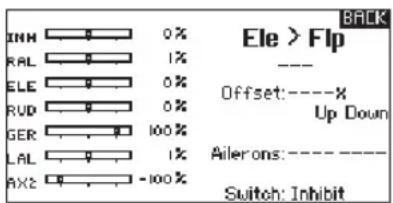

• Elevator to Flap (ACRO)

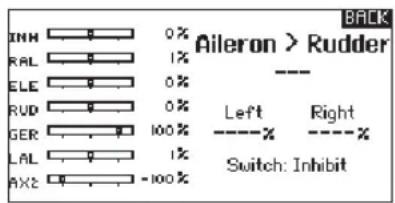

- Aileron to Rudder (ACRO)
- Rudder to Aileron/Elevator (ACRO).

• Aileron>Rudder (SAIL)
• Aileron>Flap (SAIL)
• Elevator>Flap (SAIL)

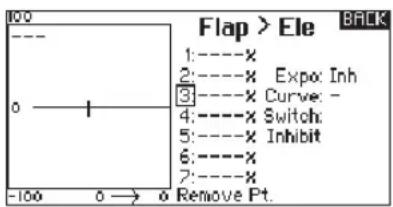

• Flap>Elevator (SAIL)

Select a channel for master and slave. Inputs for the master channel control both the master and slave channels. For example, Elevator to Flap makes elevator the master channel and flap the slave channel.

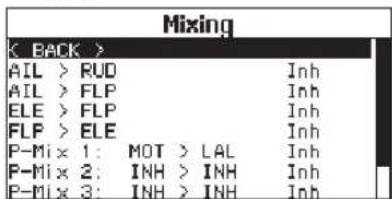

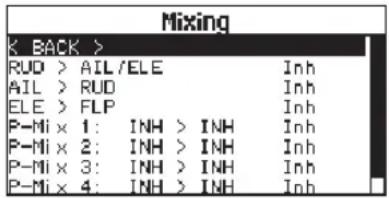

Mixing BACK > RUD > AIL/ELE AIL > RUD ELE > FLP P-Mi × 1: INH > INH P-Mi × 2: INH > INH P-Mi × 3: INH > INH P-Mi × 4: INH > INH

▶ Offset

Change the Offset value to move the effective center position of the slave channel. Positive or negative value determines the direction of the offset. Offset is not available for curve mixes.

THR -96% RAL 0% ELE 0% RVD 0% LFL 0% LAL 0% RFL 0% RX3 0% RX4 0% RX5 0% Mix 1 BACK RUD > ELE Rate: 0% Offset: 0% Trim: Inh Switch: On

▶ Trim

If the master channel trim should also adjust the slave channel, set Trim to Act. A channel monitor on the left side of the screen shows how channels respond to input. To view a switch-assigned mix on the monitor, the mix switch must be in the active position.

THR -36% RAL 0% ELE 0% RVD 0% LFL 0% LAL 0% RFL 0% RX3 0% RX4 0% RX5 0% Mix 1 RUD > ELE Rate: 0% 0% Offset: 0% Trim: Act Switch: On BACK

- Assigning a Mix to a Switch

If you wish to assign a mix to a switch position:

1. Make sure you are in the desired mix screen.
2. Move the switch you want to assign the mix to.
3. Scroll to the switch position where you want the mix to be active.
4. Press the scroll wheel to activate the mix. When the box is filled, the mix is active.

The mix is Active when the box is filled and Inactive when the box is open. You can assign a mix to be active in multiple switch positions (0, 1 or 2).

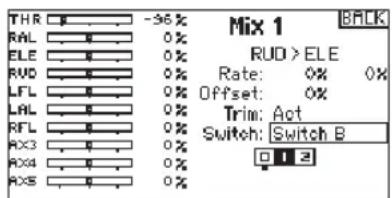

THR RAL ELE RVD LFL LAL RFL RX3 RX4 RX5 -36% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% MIX 1 BACK RUD > ELE Rate: 0% 0% Offset: 0% Trim: Act Switch: Switch B Q 1 2

CAUTION: Always do a Control Test of your model after changing mixes.

FUNCTION LIST

▶ Combo Mixing

Combination Mixing is available to create AND/OR mixing. OR mixing allows you to assign 2 conditions where the mix will activate if either condition occurs. You can also create AND mixing where 2 conditions must occur to activate the mix.

To program Combination Mixing:

1. Activate a mix.
2. Select Combo Sw. in the Switch Selection. The Combo screen appears.
3. Select the desired switch and active switch position for Switch 1. The mix is Active when the switch position box is filled.
4. Select the Relation (AND, OR)
5. Select the desired switch and active switch position for Switch
6. The mix is Active when the switch position box is filled.
7. Press the BACK button to save the Combination Mix.

The Master (left side) names are inputs. For example, “Aileron” refers to the Aileron Stick. The Slave (right side) name is the name of the channel receiving the mix command when the Master channel moves.

96 THR RAL ELE RUD LFL LAL RFL AX3 AX4 AX5 Combo BACK Switch 1: Switch A Relation: AND Switch 2: Switch B Status: Inhibit

▶ Back Mixing

Back Mixing applies to all related servos in a multi servo Aileron/Flapped wing or a multi servo split elevator. Creating a mix to RAL (Right Aileron) or LAL (Left Aileron) will create different results and enables you to use fewer mixes to achieve the desired response.

Example 1: Creating a mix AIL > RAL will move the ailerons in opposite directions, while creating a mix AIL > LAL will move the ailerons in the same direction.

Example 2: Create a mix ELE > REL will move the elevator halves together, while mixing ELE > LEL will move the elevator halves in the opposite direction (tailerons).

THR -100% RAL 0% ELE 0% RUD 0% LFL 0% LAL 0% Mix 1 NAIL RAL Rate: 0.0% 0.0% Offset: 0% Trim: Inh Switch: On BACK

IMPORTANT: Be sure the right aileron is connected into the AIL port on the receiver and the left Aileron is connected into the Aux1 port on the receiver.

▶ 1/2 Mixing Values

When adjusting the mix values near center (below 10), 1/2% mix values are available for fine adjustment capability.

IMPORTANT: This function is only available in program mixes and rudder to aileron/elevator in aircraft model type.

▶ Origin Mixing

Origin Mixing uses true stick position as the input for a mix. When origin mixing is selected, any other settings to the master channel will be ignored and the mix will be based strictly on stick position and trim position. When Aileron, Elevator, or Rudder are selected as the master, origin mixing is available. Once Aileron, Elevator, or Rudder are selected, an N will appear next to the master channel, where N means normal. Roll and select the N to change to O for origin mixing. Next, select the slave channel and set the switch and mix rates as desired.

THR -99% RAL 0% ELE 0% RUD 0% BER -100% LAL 0% RX2 0% RX3 72% RX4 100% AX5 100% Mix 1 BACK □AIL > RUD Rate: 0.0% 0.0% Offset: 0% Trim: Inh Switch: On

FUNCTION LIST

Sequencer

The Sequencer menu option provides this-then-that mixing with a time delay. Five different sequences (S1 through S5) are available to control 2 functions each (A and B), in 2 timing directions (forward or reverse). Sequences appear throughout function screens as assignable switches.

Sequencer LIST

Su Names

1 Inh Door Cycle / Wheels 2 Inh Door Basic / Wheels 3 Inh S3A / S3B 4 Inh 4A /4B 5 Inh S5A / S5B

CAUTION: Always review the action of a sequence on the Monitor or X-Plus Monitor screen BEFORE operating the model to ensure controls act as desired. Failure to do so cause a crash, resulting in property damage and or injury.

You can program multiple functions to sequentially activate in response to an assigned switch. For example, an assigned Gear switch can open gear doors, lower the gear, then close the doors. In reverse, gear doors open, the gear retracts and the gear doors close.

You can assign each Sequencer function to a switch in most Function screens such as Flight Mode, Dual Rate, Mixing, Throttle Curve, Pitch Curve, etc.

You can assign several functions to a sequence to decrease the number of controls you need to touch during complex flight transitions—for example, applying your assigned dual rates and exponential when the landing gear deploys and the flight mode changes.

If you select an S-Number-A sequence (e.g. S3A), the sequence operates as a timed 5-position switch. An S-Number-B sequence operates as a timed 3-position switch. The 5 positions correspond to the sequencer values shown on the time delay graph in the second Sequencer screen. In a function screen, highlight each point (0–4) and select the switch position desired for a function to be active.

When S1B (or another sequence-number-B) is selected as a switch in a function, the sequence will operate as a timed 3-position switch. The 3 positions act as 'kick points' of the movement at fixed percentages (equal thirds) of the sequencer output. In a function screen, highlight each point (0–2) and select the switch position desired for a function to be active.

Sequencer LIST Switch: Inhibit Speed Forward: 5.0 Reverse: 5.0 Name A: Door Cycle (DDR) Name B: Wheels (UHL) Chan A: Inh Type A: Step Chan B: Inh Type B: Step

Sequencer Set Up

1. In the first Sequencer screen, select 1 of the 5 available sequences.
2. In the second Sequencer screen, assign a switch to the sequence. We recommend using a 2-position switch.

Tip: If you need to use a 3-position switch, you must assign one direction to two adjacent switch positions—e.g., 0 and 1. Assign the opposite direction to the third switch position.

1. Assign the timing for the Forward and Reverse directions as desired. There is no delay when you use the Nor option. You may also select a delay time between 0 and 30 seconds.
2. Assign names for each sequencer function as desired.
3. Select either Step (S) or Proportional (P) for the Sequencer output.

Step: The sequence only changes at kick points. Otherwise, there is a delay in the sequence until it reaches the next kick point.

Proportional: The sequence movement is proportional between kick points. The sequence maintains rate and direction until it reaches the next kick point.

1. Adjust the Sequencer motion percentages in the third screen. For example, you may move points 1, 2 and 3 closer to the beginning of the sequence so the motion occurs earlier. This results in a delay between point 3 and point 4 at the end of the sequence.

Testing the Sequence

The Sequencer function determines the response for channels included in the sequence.

Refer to the Monitor screen to see how respective channels interact in the Sequencer.

FUNCTION LIST

ProTrim

ProTrim allows the Rates, Expo, Mixes, and Differential (Aileron, V-Tail, Rudder, Tip-Aileron, and Flap) to be adjusted by the left and/or right trims during initial trimming flights.

To setup Left or Right ProTrim:

1. Scroll to CENTER, then press the scroll wheel to zero the value of the trim in it's current position. Pressing CENTER will center the Trims and allow for further trimming even if the trims have been moved to there end points.
2. Scroll to Adjust, then press the scroll wheel to select Rates, Expo, Mixes or Differential.
3. If Rates or Expo are selected, scroll to Axis to select the axis that Pro Trim modifies. The Left /Right and Up/Down directions can be made active or Inhibited.

Because ProTrim is designed to fine tune final trims and not as a standard flight trim, it will revert back to INH after the next power cycle.

When ProTrim is Active, moving one of the trim buttons will enable a Pro Trim menu to appear on the main screen. When Pro Trim is displayed, press the scroll wheel to go directly to the Pro Trim Menu.

ProTrin LIST Left Trim: Position: +0 CENTER Adjusts: Rates Axis: Aileron Left: Act Rt: Act Enabled: Inh Right Trim: Position: +0 CENTER Adjusts: Aileron Diff. Enabled: Act

5: Acro LT TM1 5:00 RT +100 2:17:01 ( 8) ProTrim

IMPORTANT: ProTrim is to be used for small adjustments in flight, not large changes.

IMPORTANT: ProTrim will not move a value from + to - direction for safety. Large adjustments should be made on the ground and verified correct on the ground prior to flight to prevent un-expected control response in the air.

Range Test

The Range Test function reduces the power output. This allows for a range test to confirm the RF link is operating correctly. Perform a range check at the beginning of each flying session to confirm system operation.

To Access the Range Test screen:

1. With the transmitter on and the main or telemetry screen displayed, press the scroll wheel. The Function list displays.
2. Scroll to highlight Range Test, then press the scroll wheel to access the Range Test function.
3. With the Range Test screen displayed, push and hold the trainer button. The screen displays Reduced Power. In this mode the RF output is reduced allowing for an operational range test of your system.
4. If you let go of the trainer button, the transmitter will go back to Full Power.

IMPORTANT: Telemetry alarms are disabled during the Range Test.

Range Test FULL POWER LIST Test distance = 30m.

Range Testing the Dx20

1. With the model restrained on the ground, stand 30 paces (approx. 90 feet/28 meters) away from the model.
2. Face the model with the transmitter in your normal flying position and place the transmitter into Range Test mode (see above). Then push the trainer button; the power output will be reduced.
3. Operate the controls. You should have total control of your model with the transmitter in Range Test mode.
4. If control issues occur, contact the appropriate Horizon Product Support office for assistance.
5. If performing a range test while a telemetry module is active, the display will show flight log data.

Timer

The DX20 Timer function allows you to name and program a countdown timer or stop watch (count up timer) to display on the main screen. An alarm sounds when the programmed time is reached. You can program the timer to start using the assigned switch position or automatically when throttle is raised above a programmed position. Two internal timers are available that show run time for a specific model displays on the Main Screen. A total system timer is also available.

Timers Timer 1 Name: FLT~1 Mode: Count Down Time: 05:00 Start: Thr. Stick Over 25% One Time: Inhibit LIST NEXT

FUNCTION LIST

▶ Timer Event and Timer Control Alerts

Press NEXT to select the Timer Event Alerts settings. These include options for the alerts at every minute for down timers, 1 minute remaining alert, 30 seconds remaining alert, 10 second to 1 second remaining alerts, expiration alert, and every minute up alert. Press NEXT again to select the Timer Control Alerts settings. Available options include Timer Start alert, Timer Stop alert, and Timer Reset alert.

Timer Event Alerts Every Minute (Down): Inh 1 Minute: Tone 30 Seconds: Inh 10sec to 1sec: Tone Expiration: Tone Every Minute (Up): Tone PREV NEXT Timer Control Alerts Timer Start: Tone Timer Stop: Tone Timer Reset: Tone PREV LIST

Telemetry

Telemetry is in both the system setup and the function list so you can access the telemetry functions from either list.

You must power off the receiver and transmitter, then power them both on to reset the telemetry data. You can reset min/max values by pressing the CLEAR button.

NEVER change Telemetry settings when the aircraft is powered on. There is a brief interruption in RF output when exiting the Telemetry screen, and may cause a "Hold" condition.

Telemetry LIST 1: RPM 7: Empty 2: Volts 8: Empty 3: Temperature 9: Empty 4: Empty 10: Empty 5: Empty 11: Rx V 6: Empty 12: Flight Log Settings File Settings

Custom Voice Setup

Use the custom voice setup function to set up custom voice alerts or messages. For example, with the custom voice setup function you can be alerted to a switch change report or a sequence of alerts using the Stepping Events option. To add a new custom voice alert or command, enter the Custom Voice Setup function and select Add New Sound Event with the scroll wheel. Select either Switch Change Report or Stepping Events.

Switch Change Report

Use this feature to have telemetry read in a certain switch position, current switch position, or a variety of other alerts such as “Landing Flaps” or “Mix On”. Begin by selecting the switch you wish to use for the spoken alert, then select the desired setting next to each switch position.

Stepping Events

Stepping Events can be used to provide voice alerts when a switch is moved, stepping through a list of events. Begin by selecting the switch desired to trigger each step through the list (when the switch is triggered as selected, the system will move to the next item on the list going through the list of user-defined selections one by one.) Auto-Cycle can be selected to Inhibit or Active. If inhibited, the system will go through the list 1 time only. If the switch is triggered again when at the final item in the list, it will not begin at the top of the list. If Active, the system will restart at the beginning of the list after the last item on the list with the next switch trigger.

Steps are used to select the number of items on the list for the system to call. This can be set from 0 to 16 so there can be up to 16 items called to the pilot triggered by the switch selected. Next, select the alert to be spoken for each stepped event on the list as desired. A variety of alerts can be chosen from the list, including telemetry alerts and a variety of flight conditions and commands.

Custom Voice Events LIST BACK > < Add New Sound Event > Custom Voice Event BHLK Switch Change Report Stepping Events Custom Voice Sequence BACK Switch: Switch C 0 1 2 Auto-Cycle? Inhibit Steps: 0

FUNCTION LIST

System Setup

Use System Setup to enter the System List from the Function list without turning the transmitter off. A Caution screen will appear that warns that RF will be disabled (the transmitter will no longer transmit). Press YES if you are sure and want to access the System List. If you are not sure, press NO to exit to the main screen and continue operation.

If you do not press YES or NO, the system will exit to the main screen and continue operation within approximately 10 seconds.

CAUTION! Confirm System Menu Access. RF will be disabled! Are you sure? NO YES

WARNING: Do not press YES unless the model is turned off or the model is secured.

Monitor

The Monitor screen displays the servo positions for each channel graphically and numerically. This is useful to verify programming functions, trim settings, mix directions, etc. The numeric value is directly relative to the travel adjust and mix values (e.g., 100% travel adjust equals 100% value in the Monitor).

The number of channels displayed can be edited by going to Extra Settings in the System Settings menu.

See the "Channel Monitor" section on page 31 for more information.

FLIGHT MODE 1 Monitor LIST -99 I 0 0 0 I 0 100 100 100 THRALREL LEL FLLAL RFLDOR UHLAXS

FLIGHT MODE 2 Monitor -100 φ φ φ THR AIL ELE RUD

x-Plus Monitor

Use of the X-Plus Monitor requires X-Plus to be active. The X-Plus Monitor screen displays the output position for each X-Plus channel graphically and numerically. This is useful to verify programming functions, trim settings, mix directions, etc. The numeric value is directly relative to the travel adjust and mix values (e.g., 100% travel adjust equals 100% value in the X-Plus Monitor). The X-Plus Monitor shows the additional channels and requires servos which can be connected to the optional X-Plus module and an X-Plus-capable receiver.

CAUTION: Do NOT connect throttle or any primary control sur face to the X-Plus Module.

XPlus Monitor LIST 0 0 0 0 0 0 0 X+1 X+2 X+3 X+4 X+5 X+6 X+7 X+8

ACRO (AIRPLANE)

Acro Model Type

NOTICE: Refer to your airplane manual for recommended control throws.

CAUTION: Always do a Control Test of your model with the transmitter after programming to make sure your model responds as desired.

Aircraft Type

Use the Aircraft Type Screen to select wing and tail types to match your airplane model. Diagrams and setup names show on the transmitter screen to show the available setups.

Refer to spektrumrc.com for more information about new DX20 AirWare software updates to support these options.

Select wing and tail types before doing any other programming.

Aircraft Type LIST Wing: 2 All 2 Flaps Tail: Normal NEXT

Wing

• Normal
• Dual Aileron*
• Flaperon*
  • 1 Aileron 1 Flap*
  • 1 Aileron 2 Flaps*
  • 2 Ailerons 1 Flap*
  • 2 Ailerons 2 Flaps*
• Elevon**
• Elevon B**
  • 4 Aileron*
• 6 Aileron*

Tail

• Normal
  • V-Tail A**
  • V-Tail B**
• Dual Elevator
• Dual Rudder
• Dual Rudder/Elevator
• Canard + 1 Rud
• Canard + 2 Rud

NExT screen

• Gyro 1
• Gyro 2
• Gyro 3 ^2
- Pitch Curve ^+

* Selection of multiple ailerons activates the Differential menu option.
** Selection of either of these activates the V-Tail Differential menu option.
Both Canard Types are available in the Tail Type listing with Elevon A or Elevon B selected.
^8 Activates the Gyro menu option in the Function List.
^++ Activates Pitch in the Function List. If Pitch Curve is active, only one gyro will be available.

Recommended Servo Connections

Dual Aileron Wing Type Connection

A B

V-Tail Type Connection

Simple line drawing of a star-shaped object with labeled points C and D (no text or symbols beyond labels)

Elevon Wing Type Connection

A AUX1 servo port (left aileron)
B AILE servo port (right aileron)
C ELEV servo port (left V-tail)
D RUDD servo port (right V-tail)
E AILE servo port (left aileron)
F ELEV servo port (right aileron)

ACRO (AIRPLANE)

Elevon Servo Control

The possible servo reversing options for a delta wing model are:

Aileron Elevator
Normal Reverse
Normal Normal
Reverse Reverse
Reverse Normal

Tip: If you test all servo reversing options and the control surfaces do not move in the correct direction, change the Elevon wing type in the System Setup list from Elevon to Elevon-B.

Up Elevator

Down Elevator

Left Alleron

Right Aileron

Flap System

The Flap System menu option enables flap programming as well as elevator mixing. You must select a flap-enabled wing type in Aircraft Type or the Flap System menu does not appear.

To activate the Flap System:

1. Access the System Setup list and select Aircraft Type.
2. Select a flap-enabled wing type and exit the System Setup list.
3. Access the Function List from the Main Screen and select Flap System.

4. Select Inhibit and scroll to the switch or lever you wish to use to control the flap channel.

5. Assign the Flap travel values and any desired Elevator mixing.

6. Select a Flap speed, if desired. Norm (default) does not have a delay. Flap speed options range from 0.1s to 30 seconds.

THR -100% RIL 0% ELE 0% RUD 0% GER 100% RFL 0% LFL 0% LIST Flap System Flap 0% 0% Pos 1: 0% 0% Pos 2: 0% 0% Switch: Switch D Speed: Norm

ACRO Mixing

Rudder to Aileron/Elevator

Rudder to Aileron/Elevator mixing corrects coupling in knife edge flight.

• Add Elevator mixing if the aircraft pitches toward the landing gear or canopy
• Add Aileron mixing if the aircraft rolls in knife edge flight

Aileron to Rudder

Use Aileron to Rudder mixing to overcome adverse yaw characteristics with certain types of aircraft (such as high-wing aircraft).

Elevator to Flap

Elevator to Flap mixing enables Flap movement when the Elevator stick moves. Use Elevator to Flap mixing to add the spoiler function to 3D aerobatic aircraft. This mix is available when a flap or dual aileron wing type is selected.

Mixing < BACK > AIL > RUD AIL > FLP ELE > FLP FLP > ELE P-Mi x 1: MOT > LAL P-Mi x 2: INH > INH P-Mi x 3: INH > INH

ACRO (AIRPLANE)

Acro Gyro Function

The Gyro menu option enables you to create up to 7 gyro gain points on a maximum of 4 curves. Gyro gain curves also provide flexibility in reducing gyro gain as the control stick moves farther away from the center.

To access the Gyro screen

1. In the System Setup List, highlight Aircraft Type.
2. In the Aircraft Type Screen, select NEXT at the bottom right of the screen. This will access the Aircraft Options screen. Activate the desired Gyro function(s). When the gyro function is active, the Gyro function appears in the Function List.

To program a Gyro curve:

1. Access the Gyro 1, Gyro 2 or Gyro 3 menu option from the Function list.
2. Assign either Aircraft or Heli to the Gyro Type.
3. Select a trim or pot to use for a gyro gain trim if desired. Options available include: R. Knob, L Lever, R Lever, L TrimA, and R TrimA.
4. Scroll to Inh > Inh.

a. Select the first Inh and assign the input channel for the Gyro. For example, if the gyro is installed to assist on the ailerons, select Ail.
b. Select the second Inh and assign the output channel for the Gyro, for example, the Gear channel.

1. Select the Curve you wish to edit.

2. Add the desired gyro gain values to the points on the curve.

3. Assign the switch positions to activate the gyro curve. The curve is active when the box is solid.

Aircraft Type LIST Ming: 2 All 2 Flaps Tail: Normal NEXT

Aircraft Options LIST Gyro 1: Inh Gyro 2: Inh Gyro 3: Inh Pitch Curve: Inh Throttle Mode: Normal Multi-Engine: 2 PREY NEXT

THR -96% RAL 0% ELE 0% RUD 0% FLP 0% LAL 0% AX2 100% AX3 -16% AX4 56% AX5 0% Gyro 1 LIST Gyro 1 (GY1) Gyro Type: Aircraft Gain: Inhibit NEXT

Gyro 1 1: 0x Inh > Inh 2: 0x Expo: Inh 3: 0x Curve: Inh 4: 0x Switch: 5: 0x Inhibit 6: ----% 7: ----% 0 → -100 Remove Pt. BACK

Pitch Curve Function

In Acro mode a Pitch Curve screen is available that allows a variable pitch propeller to be used. Up to 4 programmable curves are available that can be selected via a switch, knob or stick position. Up to 7 points can be programmed at the desired position on each curve. Note that the Pitch curve is driven by the throttle stick position.

To access the Pitch Curve screen:

1. In the System Setup List, highlight Aircraft Type.
2. In the Aircraft Type Screen, select NEXT at the bottom right of the screen. This will access the Aircraft Options screen. Activate the Pitch Curve function. When the Pitch Curve function is activated, the Pitch Curve function appears in the Function List.
3. Assign the pitch channel in the Channel Assignment function after activating the Pitch Curve Function.

Aircraft Type LIST Ming: 2 Ail 2 Flaps Tail: Normal NEXT

ACRO (AIRPLANE)

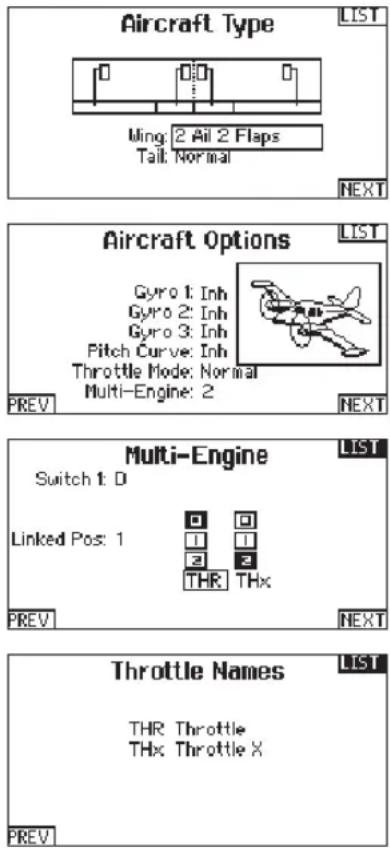

Multi-Engine Control

In Acro mode a Multi-Engine screen is available that allows programing for up to 4 engine aircraft.

To activate Multi-Engine Control:

1. In the System Setup List, highlight Aircraft Type.
2. In the Aircraft Type Screen, select NEXT at the bottom right of the screen. This will access the Aircraft Options screen.
3. Scroll to Multi-Engine, press the scroll wheel and roll right to select number of engines.
4. Activate the Multi-Engine Control by selecting 2, 3 or 4 engines.

To program a switch for independent Multi-Engine Control:

1. In the Aircraft Options Screen, select NEXT at the bottom right of the screen. This will access the Multi-Engine switch assign screen.
2. Scroll to Switch to select the 3 position switch that will allow you to independently control the engines.

Tip: Selecting LTrA/RTrA will turn the Left/Right Trims into a 3 position Analog switch. The trim will work as a 3 position switch, but will only change the position of the 'switch' when you reach each end point in either direction, or reach the center point.

Tip: Selecting LTrD/RTrD will turn the Left/Right Trims into a 3 position Digital Switch. It is recommended to select the 'Linked Position' to be Pos 1 so that both throttles will operate without holding the trim in either direction.

The Linked position determines in which switch position that all throttle channels will operate from the throttle stick/trim. Each throttle not currently active when not in the linked position will hold their previous positions before the switch was moved.

To re-name the throttles:

1. In the Multi-Engine Screen, select NEXT at the bottom right of the screen. This will access the Throttle Names screen.
2. Names are adjusted like Model Naming.

IMPORTANT Multi-Engine set up will not automatically select the aux channels to use for the additional throttle channels, they must be selected in the Channel Assign function.

After completing the set up, go to the Channel Assign menu in the Function list, and on the RX Port Assignments page, select the open channel you wish to use for the additional throttle channels.

Acro Image

In Acro mode the image can be changed by going to Aircraft Options.

To change the Aircraft Image:

1. In the System Setup List, highlight Aircraft Type.
2. In the Aircraft Type Screen, select NEXT at the bottom right of the screen. This will access the Aircraft Options screen.
3. Scroll to the image and click once. Roll the scroll wheel left or right for optional images.
4. Click on the image you wish to select.

Aircraft Type LIST Ming: 2 Ail 2 Flaps Tail: Normal NEXT

Aircraft Options LIST Gyro 1: Inh Gyro 2: Inh Gyro 3: Inh Pitch Curve: Inh Throttle Mode: Normal Multi-Engine: 2 PREV NEXT

HELI (HELICOPTER)

Heli Model Type

NOTICE: Refer to your helicopter, gyro and governor manuals for programming recommendations.

CAUTION: Always do a Control Test of your model with the transmitter after programming changes to make sure your model responds as desired.

Swash Type

The Swash Type menu option assigns the swash type for your particular helicopter model.

Select the Swash Type before completing any programming in the Function List. The Swash Type will affect menu options in the Function List.

Collective Type

The collective type is used to turn on "Pull" collective for reversed collective. Available settings are Normal and Reverse. Press NEXT from the Swashplate Type screen to access the Collective Type screen. The Collective Type allows the throttle/pitch stick to operate in reverse and ensures trims, curves and all other functions that are to work in reverse function properly.

Heli Image

From the Collective Type Screen, select NEXT at the bottom right of the screen. This will access the Heli image screen. Scroll to the icon and click once. Roll the scroll wheel left or right for optional icons.

Collective Type LIST Mode: Normal PREV

Helicopter Image LIST PREV

Pitch Curve

This function supports adjustment of collective pitch in 5 flight modes.

To adjust the Pitch Curve:

1. Select the Pitch Curve you wish to edit (N, 1 or 2).
2. Scroll right to select the points on the curve and edit the respective values.
3. Press the BACK button to save the Pitch Curves and return to the Function List.

HELI (HELICOPTER)

Swashplate

The Swashplate menu option enables you to adjust the following:

• Swashplate Mix
• Exponential
  E-Ring
• Elevator Compensation

Use positive or negative Swashplate mix values as needed for correct direction response of the helicopter.

Before making adjustments to the Swashplate mix, make sure the throttle/collective pitch input moves the entire swashplate up or down. If the servos are not moving in the same direction, reverse them as necessary in the Servo Setup menu option.

When the entire swashplate moves up or down:

1. Adjust the mix value for the Aileron and Elevator channels. If the servos do not move in the correct direction, change the direction of the mix—for example, a positive value instead of a negative value.
2. Adjust the mix value for the Pitch. If the swashplate does not move in the correct direction, change the direction of the value (negative instead of positive).

Always enable Expo when using a standard rotating-arm servo. The Expo delivers linear movement of the swashplate from a standard rotary servo. When Expo is inhibited, the arm on a rotary servo moves on a curved path with decreased swashplate movement at the extremes of the servo arm travel.

NOTICE: Do not enable Expo when using a linear servo.

Electronic E-Ring

This feature prevents over driving servos by limiting servo travel if the sum of your cyclic and pitch inputs exceeds servo limits.

Gyro

The Gyro menu option enables you to assign a gyro gain value to an independent switch or a Flight Mode. Assign the receiver channel connected to the gyro, then assign the switch for gyro options. You can also assign values to available switch positions (from 1 to 4 rates are available, depending on the switch assigned). Make sure the gyro operates correctly and compensates in the correct direction.

THR -34 % AIL -50 % ELE -50 % RUD 0 % GER 100 % FIT -50 % RX2 -9 %

Tail Curve

The Tail Curve function mixes tail rotor input with the throttle/collective function to counter torque from the main rotor blades when using a non-heading hold (tail lock) gyro or when using rate mode on a gyro. See Pitch Curve for more information on programming curves.

100 Tail LIST 0 On -100 -58 → 0

Mixing

Cyclic to Throttle

Cyclic to Throttle mix prevents rpm loss when aileron, elevator or rudder inputs are given. This mix advances the throttle position with cyclic or rudder control to maintain rpm. At full throttle, Cyclic to Throttle mixing prevents the throttle from over driving the servo.

IMPORTANT: Do not use Cyclic to Throttle mix when using a governor.

To verify that the Cyclic to Throttle mix is working properly and in the correct direction, move the flight mode switch to one of the active positions. Move the programmed cyclic or rudder channel, noting the throttle position. The throttle position should increase.

If the throttle decreases, then the opposite value (positive vs. negative) is needed.

Mixing < BACK > CYCLIC > THR Swashplate P-Mix 1: INH > INH Inh P-Mix 2: INH > INH Inh P-Mix 3: INH > INH Inh P-Mix 4: INH > INH Inh

Swashplate

The Swashplate Mix typically corrects swashplate timing issues by mixing Aileron to Elevator and Elevator to Aileron. When adjusted correctly, the Swashplate causes the helicopter to roll and pitch accurately with minimal interaction.

SAIL (SAILPLANE)

Sailplane Model Type

NOTICE: Refer to your sailplane manual for recommended control throws.

CAUTION: Always do a Control Test of your model with the transmitter after programming to make sure your model responds as desired.

Sailplane Type

Use the Sailplane Type Screen to select wing and tail types to match your sailplane model. Diagrams and setup names show on the transmitter screen to show the available setups.

Refer to spektrumrc.com for more information about new DX20 AirWare updates to support these options.

Wing

• 1 Servo
• 2 Aileron*
• 2 Aileron 1 Flap*
• 2 Aileron 2 Flap*
• 4 Aileron 2 Flap*

Tail

• Normal
  • V-Tail A**
  • V-Tail B**

Motor

• Inhibit
• Assign to a Switch (optional)

Sailplane Type LIST Wing: 2 All 2 Flap Tail: Normal Motor: Inhibit NEXT

* Selection of multiple ailerons activates the Differential menu option.
** "V-Tail A" and "V-Tail B" function as internal servo reversing. If V-Tail A does not work correctly with your aircraft, try V-Tail B.

Sailplane Image

In the Sailplane Type Screen, select NEXT at the bottom right of the screen. This will access the Sailplane Image screen. Click once on the image and roll the scroll wheel left or right to for optional images.

Sailplane Image LIST PREV

Camber Preset

Camber Preset is only available when 2 aileron wing type is selected in Sailplane Type. The Camber Preset function enables you to program the ailerons, flaps, wing tips and elevator for a specific position in each Flight Mode.

If flight modes are not active, only one preset position is available and it is always active.

The Camber Preset Speed enables the control surfaces to transition over a period of time, up to 30 seconds, when you change flight modes.

Move the flight mode switch to the desired position to change the Camber Preset values.

INH 0% RAL 1% ELE 0% RUD 0% GER 100% LAL 1% AX2 -100% LIST Camber Preset Launch Left Right Ail: 0.0 0.0 Elev: 0.0 Speed: Norm

Camber System

Camber System is only available when 2 aileron wing type is selected in Sailplane Type. The Camber System allows in-flight camber adjustment and is also used as the braking system, often referred to as Crow or Butterfly. The Camber System enables you to assign the Camber System to a different switch in each flight mode.

INH 0% Camber System RAL 1% Launch ELE 0% Input:Inh RUD 0% Offset: 8% GER 100% Up Down LAL 1% AX2 -100% Ailt: 47.0 0.0

SAIL (SAILPLANE)

SAIL Mixing

For each of these mixes, you can program each flight mode with different mix values or at 0% if no mix is desired for that specific flight mode. Programming values include independent control of the direction and amount a slave surface moves in relationship to the master surface.

Aileron to Rudder

The Aileron to Rudder mix is commonly used for coordinated turns. When active, as aileron is applied the rudder moves in the same direction as the turn (right aileron input results in right rudder output). If you assign the flight mode to a switch, a Sub Switch option allows you to assign an additional switch to activate up to 3 Aileron to Rudder mixes for that flight mode.

Aileron to Flap

The Aileron to Flap mix allows the entire trailing edge of the wing (aileron and flap) to operate as ailerons. When active, as aileron is applied the flaps also move. Always program the flaps to move in the same direction as the turn (so that right aileron is equivalent to flaps moving as right ailerons).

Elevator to Flap

Elevator to Flap mix creates additional lift, allowing a tighter turn. The entire trailing edge of the wing (aileron and flap) operates as flaps (camber increase) when you apply elevator. An offset is provided, which is typically used for Snap Flaps. With Snap Flap, no Elevator to Flap mix occurs until the offset value is reached. Typically, this offset is at 70% up elevator so that beyond 70% the down flap mix comes in, providing additional lift for more aggressive turning (for tight thermals or racing turns).

Flap to Elevator

Flap to Elevator mix prevents pitch up tendency that occurs when you apply Crow or Butterfly. This mix is typically used only with the Camber System. The Flap to Elevator mix operates as a curve so that the elevator moves down the most during the first 20% of flap deployment, decreases over the next 40%, then remains the same from 60 to 100% of flap travel.

For sailplanes with ailerons/tips/flaps, make sure an appropriate Sailplane Type is selected so that tips appear in the transmitter as RAIL and LAIL. Decrease or increase travel on the tip ailerons by creating an AIL > RAIL mix.

INH 0% RAL 1% ELE 0% RUD 0% GER 100% Left Right LAL 1% AXE -100% Switch: Inhibit

INH 0% RAL 1% ELE 0% RUD 0% GER 100% Left Right LAL 1% AXE -100% Switch: Inhibit

INH 0% RAL 1% ELE 0% RUD 0% GER 100% LAL 1% AX2 -100% Ele > Flip ---- Offset:----% Up Down Ailerons:---- Switch: Inhibit

Flap > Ele 1:------x 2:------x Expo: Inh 3:------x Curve: - 4:------x Switch: 5:------x Inhibit 6:------x 7:------x -100 0 → 0 Remove Pt.

V-Tail Differential

The V-Tail Differential screen enables you to increase or decrease the amount of differential between control surface throws. Positive Differential values decrease the amount of "down" travel without affecting the "up" travel on the opposite control surface. Negative Differential values decrease the amount of "up" travel without affecting the amount of "down" travel on the opposite control surface. The V-Tail Differential menu option only appears when V-Tail A or V-Tail B is active in Aircraft Type.

To adjust the V-Tail Differential:

1. Scroll to Switch and press the scroll wheel. Scroll right to select On (Differential is always on) or assign the differential to a switch position.
2. Press the scroll wheel a second time to save the selection.
3. Scroll to Diff: and press the scroll wheel once to change the value.
4. Press the scroll wheel again to save the selection.

INH 0% RAL 1% REL 0% LEL 0% SER 100% LAL 1% RX2 -100% LIST V-Tail Diff. --- Diff: ----% Switch: Inhibit

MULTI (MULTIROTOR)

Multirotor Model Type

NOTICE: Refer to your multirotor manual for programming recommendations.

CAUTION: Always do a Control Test of your model with the transmitter after programming to make sure your model responds as desired.

The Aircraft Options menu allows you to select a camera gimbal axis. Select None, 1-Axis, 2-Axis or 3-Axis from the Camera Options box.

The model icon can be changed by selecting the icon and scrolling left or right to select.

Multirotor Image

In the Aircraft Options Screen, roll to the image. Click once on the image and roll the scroll wheel left or right for optional images.

Aircraft Options Camera: None LIST

Aircraft Options Camera: 1-Axis LIST

F-Mode Setup

By default switch B is assigned 3 Flight Modes. You can assign up to five flight modes using any combination of up to two switches.

Channel Assign

Scroll and Select Channel to assign channel inputs and outputs for each Flight Mode. Each channel can be assigned any switch on the transmitter including but not limited to trim switches, gimbals and the Clear/Back buttons.

Example: Assign Flight Mode 1 to be your primary flight mode where your gimbals control primary flight axis. Switching to Flight Mode 2, you can have the gimbals control the camera axis and the trim buttons control primary flight axis.

Tip: You can also access the Channel Assign from the Channel Assign Menu in System Setup.

F Mode Setup Switch 1: Switch B Switch 2: Inhibit Enabled Flight Modes: 3 Channel: Inhibit Mode: 3 FLIGHT MODE 3 100%

Channel Input Config LIST 1 ALTI: Thr 7 AUX2: E 2 ROLL: All 8 AUX3: RKnb 3 PITC: Ele 9 AUX4: LLv 4 YAW: Rud 5 GEAR: A 6 AUXt: D PREV Mode: 1 FLIGHT MODE 1

Trim Setup

By default Trims are setup for F Mode.

F Mode trim type enables you to save trim values for individual flight modes if you find, for example, the aircraft requires Roll trim in Flight Mode 1 but not in Flight Mode 2.

Trim Setup Altitude: 5 F Mode Roll: 5 F Mode Pitch: 5 F Mode Yaw: 5 F Mode Left Trimmer: 5 F Mode Norm. Right Trimmer: 5 F Mode Norm. Trim: Normal

MULTI (MULTIROTOR)

D/R & Exponential

Dual Rates and Exponential are available on the PIT, ROL and YAW channels.

To adjust the Dual Rate and Exponential:

1. Scroll to the channel and press the scroll wheel once. Scroll left or right to select the channel you wish to change and press the scroll wheel again to save the selection.
2. Scroll to Switch and press the scroll wheel to select. Move the switch you want to assign to D/R.
3. Scroll to dual rate and press the scroll wheel. Scroll left or right to change the value and press the scroll wheel again to save the selection.

Exponential affects control response sensitivity around center but has no affect on overall travel. Positive exponential decreases the sensitivity around the center of gimbal movement.

+125 Pos 1 0 -125 0 → 0 LIST D/R & Expo Channel: Roll Curve: 1 Dual Rate: 100% 100% Expo: 0% 0% Switch: On

Motor Cut

The Motor Cut menu option enables you to assign a switch position to stop the motor. Motor Cut activates regardless of Flight Mode.

When you activate Motor Cut, the ALT channel moves to the pre-programmed position (normally Off).

You may need to use a negative value to move the ALT channel to the off position.

CAUTION: Always test the model after making adjustments to make sure the model responds to controls sired.

ALT ROL FIT VAU GER ROX1 ROX2 ROX3 ROX4 -100% 0% 0% 0% 100% 100% 100% 6% 54% LIST Motor Cut Position: -130% Switch: Switch H Delay: Inh

Motor Curve

You can use the Motor Curve menu option to optimize the throttle response. A maximum of 7 points are available on the throttle curve.

To add points to a Motor Curve:

1. Move the throttle stick to the position where you wish to add the new point.
2. Scroll to Add Pt. and press the scroll wheel to add the point.

To remove points from a Motor Curve:

1. Move the Motor stick until the cursor is near the point you wish to remove.
2. Scroll to Remove Pt. and press the scroll wheel once to remove the point.

If you program multiple throttle curves and you wish to edit one of the curves, that curve must be active in the Motor Curve screen before you can make any changes.

Function List (< Main Screen>) Control Setup DVR and Expo Motor Cut Motor Curve Mixing Sequencer

PHYSICAL TRANSMITTER ADJUSTMENTS

The DX20 has all the physical transmitter adjustments located around the gimbal face of each gimbal. This arrangement allows for quick and easy adjustments with out taking the back cover off or removing any plugs to access adjustment screws or wedges.

Available adjustments:

Mode Change

Change the Throttle Ratchet

Change the Throttle Tension

Adjust stick tension

Top-down schematic of a circular mechanical or architectural component with internal structural lines and mounting holes (no text or symbols)

Top-down schematic of a circular mechanical or electronic component with internal components and mounting holes (no text or symbols)

Transmitter Mode Conversion

You can change to transmitter modes 1, 2, 3 or 4. This conversion requires both a programming and a mechanical change.

The conversion consists of the following steps:

Programming Conversion

Change the Throttle Ratchet

Adjust the Elevator Centering Screw

Move the Throttle Limit Screws

Programming Conversion

1. Access the System Settings menu from the Setup List and select the desired Mode. If you are changing between Modes 2 and 4 or 1 and 3, you can STOP after Step 1.
2. Exit the System Settings menu to save the selection.

Changing the Throttle Ratchet

1. Locate the Throttle Strap adjustment screws on both gimbals. The ratchet set screw engages a serrated section on the gimbal for a ratcheted throttle, while the tension set screw engages a strap for smooth tension on the gimbal.
2. To engage the throttle ratchet turn the ratchet set screw clockwise until the ratchet engages.
3. To disengage the throttle ratchet turn the screw counter clockwise until the gimbal moves freely.

If you only need to adjust the throttle friction, see the Throttle Strap Adjustment section.

Tension Set Screw Ratchet Set Screw

Adjusting the Gimbal Centering Screw

When changing between Modes 1 and 2, or between Modes 3 and 4, you must adjust the gimbal centering screw.

1. Use a Hex wrench to tighten the gimbal centering screw. Tightening the screw will disengage the centering spring.
2. Using a Hex wrench, loosen the opposite gimbal centering screw until the lever engages.

Technical diagram of a circular mechanical component with internal components and mounting holes (no text or symbols)

Elevator Centering Screw

Pure diagram of a circular mechanical or electrical component with no text, numbers, or symbols

Throttle limiting screws

Throttle limiting is used on the throttle gimbal to limit the maximum travel. When changing between Modes 1 and 2, or between Modes 3 and 4, you can limit the throttle gimbal.

1. To disengage the throttle limiting, turn both of the limit screws one half turn and slide them both to the opposite side of the track.
2. To engage the throttle limiting, turn both of the limit screws one half turn and slide them both to the opposite side of the track.

Throttle Limit Screws

Calibration

Power on the transmitter. When a calibration screen shows, move the control sticks to extremes and to centers as directed to correctly calibrate controls.

Move the gimbals in + sign movements lightly touching the end points to properly calibrate the gimbals.

PHYSICAL TRANSMITTER ADJUSTMENTS

Adjust Stick Tension

Turn the screws clockwise a small amount using a small Hex wrench to tighten the stick tension and counter clockwise to loosen.

NOTICE: Always do a test of stick tension while turning these screws to ensure stick tension is not too loose or too tight. Tightening a screw too much can damage a spring. Loosening a screw too much can let a spring fall off and cause short-circuit in the transmitter.

Vertical Tension Horizontal Tension

Throttle Strap Adjustment

The Gimbals on the DX20 can be configured with smooth tension on the stick or for a ratcheted throttle.

Smooth Throttle Tension

1. Locate the Throttle Strap adjustment screws on the throttle gimbal.
2. Adjust the throttle tension by turning the tension set screw clockwise to tighten or counter clockwise to loosen.

Ratcheted Throttle

If desired, you can disengage the smooth throttle strap and engage the ratcheted throttle.

1. Back the set screw out on the smooth tension strap until the throttle moves freely.

2. Tighten the set screw on the ratchet until it engages the gimbal.

3. Adjust the ratchet tension by turning the set screw clockwise to tighten or counter clockwise to loosen.

NOTICE: Tightening a screw too much can damage the spring. Loosening a screw too much can let a spring fall off and cause short-circuit in the transmitter.

Tension Set Screw Ratchet Set Screw

Control Stick Length Adjustment

To adjust the Control Stick Length:

1. Grasp the base of the stick and turn the top counter clockwise to unlock the stick.
2. Make the stick shorter by turning it clockwise or longer by turning it counterclockwise.
3. After adjustment of stick length, grasp the top of the stick and turn the base counter clockwise to lock the stick.

To Change Control Stick Ends:

1. Grasp the base of the stick and turn the top counter clockwise to unlock the stick.
2. Unscrew the top of the stick and replace with optional stick ends.
3. Once the new stick end is at the correct height grasp the top of the stick and turn the base counter clockwise to lock the stick.

Optional rear lever extension

The optional rear lever extension brings the lever arm out to the edge of the case for easier access.

Installation:

1. Slide the optional rear lever extension over the existing lever arm as shown.
2. Install and tighten the phillips head screw.
3. Do not over tighten.

Line drawing of a car interior showing a belt buckle adjustment mechanism (no text or symbols)

TROUBLESHOOTING GUIDE

Problem Possible Cause Solution
Aircraft will not Bind (during binding) to transmitter	Transmitter too near aircraft during binding process	Move powered transmitter a few feet from aircraft, disconnect and reconnect flight battery to aircraft
	Aircraft or transmitter is too close to large metal object	Move the aircraft or transmitter away from the large metal object
	The bind plug is not installed correctly in the bind port	Install bind plug in bind port and bind the aircraft to the transmitter
	Flight battery/Transmitter battery charge is too low	Replace/recharge batteries
	Transmitter is a DX20 EU version and receiver is DSM2	The DX20 EU version is not compatible with DSM2 receivers
Aircraft will not link (after binding) to transmitter	Transmitter too near aircraft during linking process	Move powered transmitter a few feet from aircraft, disconnect and reconnect flight battery to aircraft
	Aircraft or transmitter is too close to large metal object	Move the aircraft or transmitter away from the large metal object
	Bind plug left installed in bind port	Rebind transmitter to the aircraft and remove the bind plug before cycling power
	Aircraft bound to different model memory (ModelMatchTM radios only)	Select correct model memory on transmitter
	Flight battery/Transmitter battery charge is too low	Replace/recharge batteries
	Transmitter may have been bound using different DSM protocol	Bind aircraft to transmitter
	Damaged remote receiver or receiver extension. Required remote receiver is not connected
The receiver goes into failsafe mode a short distance away from the transmitter	Check the receiver antenna to be sure it is not cut or damaged	Replace or contact Horizon Product Support
	Main and remote receivers too near each other	Install main and remote receivers at least 2 inches (51mm) apart
Receiver quits responding during operation	Low battery voltage Completely recharge flight battery
	Loose or damaged wires or connectors between battery and receiver	Do a check of the wires and connection between battery and receiver. Repair or replace wires and/or connectors
Receiver loses its bind	Bind button pressed before transmitter powered on	Rebind by performing binding instructions
Receiver slowly blinking at landing (DSM2 Only)	Loss of power to the receiver during flight Check battery voltage
	System powered on and connected, then receiver powered off without powering off transmitter	Power off transmitter when receiver is powered off
Flight log registers undesirable number of fades, losses or holds or aircraft responds irregularly to controls	Poor signal reception	Reposition remote receivers for improved RF signal path diversity
	Electronic feedback	Check for and stop feedback from servos or motor systems to the ESC or receiver
	Low power	Check aircraft power draw and increase battery power or decrease power demand by installed systems. Ensure all aircraft batteries are fully charged. Ensure the installed BEC for an electric aircraft is adequate for the power demand

1-YEAR LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 1 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

WARRANTY AND SERVICE CONTACT INFORMATION

Country of Purchase Horizon Hobby Contact Information Address

United States of America	Horizon Service Center (Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/		4105 Fieldstone RdChampaign, Illinois, 61822 USA
	Horizon Product Support (Product Technical Assistance)	[e-mail]
			877-504-0233
	Sales	[e-mail]
			800-338-4639
United Kingdom	Service/Parts/Sales: Horizon Hobby Limited	[e-mail]		Units 1–4 , Ployters Rd, Staple TyeHarlow, Essex, CM18 7NS, United Kingdom
		[phone]
Germany	Horizon Technischer Service [e-mail]			Christian-Junge-Straße 125337 Elmshorn, Germany
	Sales: Horizon Hobby GmbH [phone]
France	Service/Parts/Sales: Horizon Hobby SAS	[e-mail]		11 Rue Georges Charpak77127 Lieusaint, France
		[phone]

FCC INFORMATION - FCC ID: BRWDAMTx11/BRWDASRx20

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could be user's authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

Antenna Separation Distance

When operating your Spektrum transmitter, please be sure to maintain a separation distance of at least 5 cm between your body (excluding fingers, hands, wrists, ankles and feet) and the antenna to meet RF exposure safety requirements as determined by FCC regulations.

The following illustration shows the approximate 5 cm RF exposure area and typical hand placement when operating your Spektrum transmitter.

Illustration of hands holding a handheld device with two circular gauges (no text or symbols visible)

IC INFORMATION - IC ID: 6157 A-AMTx11/6157 A-AMRx10

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

FAA INFORMATION

Prior to flying, contact your local or regional modeling organizations for guidance and familiarize yourself with the current local rules and FAA regulations governing model aviation in your location.

More information about model aviation can be found at www.modelaircraft.org.

The Federal Aviation Administration can be found online at www.faa.gov.

AMA NATIONAL MODEL AIRCRAFT SAFETY CODE

http://www.modelaircraft.org/files/105.PDF

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE, EMC and LVD Directives.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.

SPEKTRUM®

© 2016 Horizon Hobby, LLC

DSM, DSM2, DSMX, the DSMX logo, the BNF logo, AirWare, ModelMatch, X-Plus, AS3X, SmartSafe,

Hangar 9 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

The SD Logo is a trademark of SD-3C, LLC

US 7,391,320. Other patents pending.

www.spektrumrc.com

Created 11/16 · 47640.1 · SPM20000
