SFS102 - Food slicer SWAN - Free user manual and instructions

Product Type	Food Slicer
Brand	Swan
Model	SFS102
Voltage	220-240V~50Hz
Power	150W
Maximum Food Size	110 x 110 x 90 mm
Blade Release	Turn clockwise to unlock, anti-clockwise to lock
Safety Features	Double insulated, non-slip feet, blade guard
Maximum Continuous Operation	5 minutes
Cooling Down Time	30 minutes
Cleaning Method	Hand wash removable parts with mild soap; do not immerse motor housing
Dishwasher Safe	No
Spare Parts Available	Blade (SFS102-001), Blade Release Nut (SFS102-002), Food Pusher (SFS102-003)
Warranty	1 year from original purchase (UK and Eire only)
Included Accessories	Food pusher, thickness adjusting knob, sliding food plateau

Frequently Asked Questions - SFS102 SWAN

How do I remove and replace the blade on the Swan SFS102?

Ensure the slicer is OFF and unplugged. Turn the blade release nut clockwise to unlock, then pull out the blade. To replace, line up the tabs on the blade assembly with the slots in the motor housing, then turn the nut anti-clockwise to lock.

What is the maximum continuous operating time?

Do not operate the slicer for more than 5 minutes continuously. After that, turn it off and let it rest for at least 30 minutes to cool down the motor.

Can I wash the slicer parts in the dishwasher?

No, do not wash any part of the slicer in the dishwasher. All removable parts should be washed with a soft cloth or sponge and mild soap, then rinsed and dried thoroughly. Never immerse the motor housing in water.

What foods can I slice with this slicer?

The slicer is suitable for meats, cheeses, cold cuts, vegetables, fruits, breads, cakes, and cookies. For best results, chill meats and cheeses thoroughly before slicing. Avoid foods with bones or large seeds.

How should I slice warm boneless roast?

Remove the roast from the oven at least 15 to 20 minutes before slicing to allow it to rest. Cut the roast to fit on the food plateau if necessary. If tied, turn off the motor and remove strings one at a time as they near the blade.

What spare parts are available for the SFS102?

The following spare parts are available: Blade (SFS102-001), Blade Release Nut (SFS102-002), and Food Pusher (SFS102-003). Contact the helpline for purchase.

What is the warranty coverage?

The product is guaranteed for one year from the date of original purchase against defects in materials or workmanship. It covers domestic use only and requires proof of purchase. This warranty is valid in the UK and Eire only.

How do I clean the blade safely?

Use extreme caution when handling the blade. Clean it in warm soapy water before first use and after every use. Rinse and dry thoroughly. Never use steel wool or scouring powders.

What is the maximum size of food that can be sliced?

The maximum food size is 110 x 110 x 90 mm (length x width x depth). Ensure the food fits on the sliding food plateau and is pressed against the thickness guide.

Can I use an extension cord with this slicer?

Use of an extension cord is not recommended but if necessary, ensure it is suited to the power consumption of the appliance to avoid overheating. Do not place the cord where it can be tripped over.

USER MANUAL SFS102 SWAN

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate remote control system
20. Do not touch the cutting blade and do not insert any kind of object (knives, forks, spoons etc.) while the product is operating. A spatula may be used only when the product is not in operation, avoiding the risk of serious injury.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

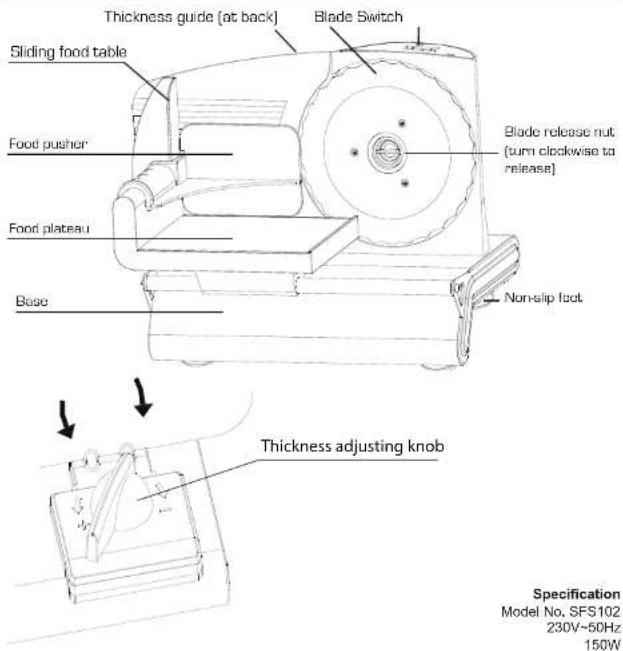

Parts & Assembly

Spares references

SFS102-001 = blade

SFS102-002 = blade release nut

SFS102-003 = food pusher

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Specification

Model No. SFS102

230V\~50Hz

150W

How to Use

REMOVING AND REPLACING THE BLADE CAUTION: USE EXTREME CAUTION WHEN HANDLING THE BLADE

Before first use, remove all packaging.

1) Make certain that the Food Slicer is OFF and UNPLUGGED. Turn the blade release nut clockwise to unlock it. Pull out the Blade

BEFORE FIRST USE AND AFTER EVERY USE, CLEAN THE BLADE IN WARM SOAPY WATER. RINSE AND DRY THOROUGHLY

2) To reinsert the blade, line up the tabs on the blade assembly with the slots in the motor housing. Once the Blade Assembly is seated with the motor housing, turn the blade release nut anti-clockwise to lock it in position.

CAUTION: ALWAYS USE FOOD PLATEAU AND FOOD PUSHER

1. Plug into 220-240V mains outlet
2. Place food to be sliced on the sliding food plateau and press the food pusher against thickness guide. Then move the sliding food plateau against the blade by hand.
3. The maximum size of food is:110x110x90(mm) (length x width x depth).
4. Switch on the appliance.
5. When the blade is rotating, push the sliding food plateau toward blade. Move back and forth steadily. Keep food gently pressed against guide for even slicing
6. Do not operate the machine more than 5 minutes as the motor may overheat. 5 minutes should be more than enough time to slice any type of food. If you need longer turn off switch & let it rest for at least 30 minutes to cool down the motor.
7. During slicing, if the rotational speed of blade reduces, ease pressure on the blade.
8. When slicing is complete, unplug unit. For safety and blade protection when storing, turn thickness adjusting knob to align thickness guide with the blade (zero position).

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Tips

• To slice meats wafer thin, chill thoroughly for 2 to 4 hours before slicing.
• Meats should be boneless. Fruit should be free of seeds.
• Foods with an uneven texture-like fish and thin steaks – are often difficult to slice. Chill for 2 to 4 hours before slicing.
• When slicing warm boneless roast, remove them from oven at least 15 to 20 minutes before slicing. They will return more natural juices and slice evenly without crumbing.
• Cut the roast, if necessary, to fit on food plateau. If roast is tied, turn off motor and remove strings one at a time as strings near the blade.

CHEESE

Chill thoroughly before slicing. Cover with foil to keep moist. Before serving, let cheese reach the room temperature—this enhances the natural flavor.

COLD CUTS

Cold cuts keep longer and retain flavor if sliced as needed. For best results, chill first. Remove any plastic or hard casing before slicing. Use a constant, gentle pressure for uniform slices.

VEGETABLE AND FRUIT

Your slicer is perfect for slicing many vegetables and fruits including potatoes, tomatoes, carrots, cabbage (for slaw), eggplant, squash and zucchini. Potato may be sliced thick for casseroles or thin for crisps. Fresh pineapple may be sliced neatly. Cut off top and slice to order.

BREADS, CAKES AND COOKES

Freshly baked bread should be cooled before slicing. Use day-old or slightly stale bread for extra-thin sliced for toasting. Your slicer is ideal for all types of party breads, pound cake and fruit cake. For wafer-like ice box cookies or chill dough in refrigerator, slice as desired.

Cleaning

UNPLUG SLICER FROM OUTLET

All slicing parts remove for thorough cleaning. Wash with a soft cloth or sponge and a mild soap or a spray cleaner. Rinse and dry.

Never use steel wool or scouring powder on any part of slicer. Do not wash any part of slicer in dishwasher. Motor is concealed in housing. Never submerge water. Motor never needs oiling.

Please be extremely careful when handling or working near the blade!

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Declaration of EC Conformity

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

One Year Warranty

This product is guaranteed for one year from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase.

The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.
