Product Type	HD Ready LCD TV with Freeview
Brand	Technika
Model	32-E251
Screen Size (Diagonal)	32 inches (81 cm)
Resolution	1366 x 768 pixels
Contrast Ratio	3000:1
Brightness	300 cd/m²
Dimensions (with stand)	738 x 504 x 165 mm
Net Weight	8.4 kg
Power Consumption (Eco/Standby)	30 W / < 0.5 W
Power Supply	110-240 V, 50/60 Hz
Inputs	3 x HDMI (up to 1080p), 1 x SCART, 1 x Composite Video, 1 x Component (YPbPr, 1080p), 1 x VGA/PC, 1 x RF (TV Aerial)
Audio Inputs	1 x 3.5mm PC audio jack, 1 x RCA (shared for Video/Component)
Audio Outputs	1 x Coaxial (digital), 1 x 3.5mm headphone jack
Sound Power (RMS)	2 x 9 W
USB Media Playback	Yes (FAT32, supports photo, music, movie, text)
Tuner	Freeview (digital), Analogue, Radio
Energy Saving	Ecohome mode (reduces power consumption by approx. 15%)
Wall Mount Compatibility	Yes (VESA, 4 screws)
Cleaning Instructions	Wipe with soft dry cloth; use eyeglass cleaner for screen; never use alcohol or benzene
Warranty	12 months from date of purchase (subject to conditions)

Frequently Asked Questions - 32-E251 Technika

How can I connect external speakers for louder sound?

You can connect via the COAX output to an amplifier (set Digital Output to Auto or PCM) or use the headphone socket with a 3.5mm to RCA cable (this mutes the TV speakers). On some models, a SCART adapter with RCA outputs may also work. Required cables are not included.

Why am I missing some digital channels or experiencing break-up?

Ensure you have a good digital aerial (preferably outdoor high-gain). Check Freeview coverage at www.freeview.co.uk. A signal booster may help. Try retuning via Menu > Channel > Auto Tuning.

How do I stop the TV from automatically turning off after 4 hours?

Go to Picture Menu and set Picture Mode to something other than 'Ecohome'. Then go to Time Menu and set 'Auto Standby' to 'Off'.

I forgot the System Lock password. How can I reset it?

Use the master password 4711 to access the menu, then you can reset the password to 0000.

Why doesn't my TV recognize the USB memory stick?

Ensure the USB drive is formatted as FAT32. Some larger drives may need special formatting tools. Also check that the drive is not too large (supported file systems: FAT32).

I connected my Xbox 360 via Component cables, but there is no sound.

Component cables only carry video. You must also connect the red and white audio cables from the Xbox to the corresponding RCA audio inputs on the TV. The input source should be set to Component.

How can I use my Sky remote to control the TV?

You need a Sky Revision 9 remote or later. Program a 4-digit code (available on our website). For universal remotes, we support 'One for All' brands; contact the manufacturer for others.

How do I reset the TV to factory settings?

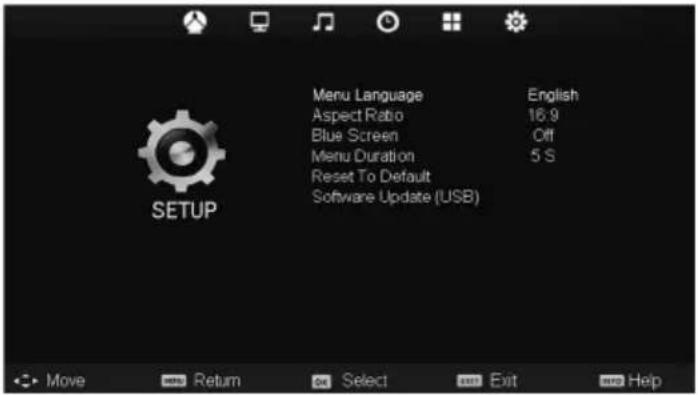

Go to Setup Menu > Reset To Default. You can choose 'Reset Menu System' to reset all settings or 'Reset TV Channels' to clear channels. Confirm with OK.

Can I mount this TV on a wall?

Yes. Remove the stand by unscrewing the 4 screws. Use a compatible VESA wall mount (not included). Only use the screws already in the mounting holes to avoid damage.

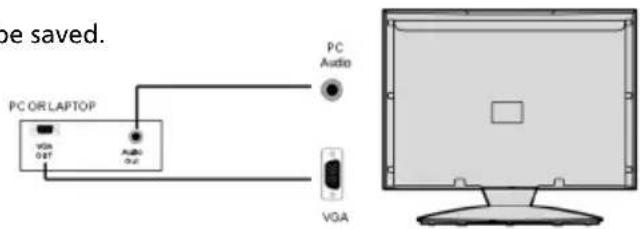

How do I use the TV as a computer monitor?

Connect a VGA cable from PC to TV's VGA input, and an audio cable from PC to the TV's 3.5mm PC audio input. On your PC, set the resolution as per specifications (1366x768) and refresh rate to 60 Hz. Then select VGA/PC source on the TV.

USER MANUAL 32-E251 Technika

HD Ready LCD TV with Freeview

User Guide

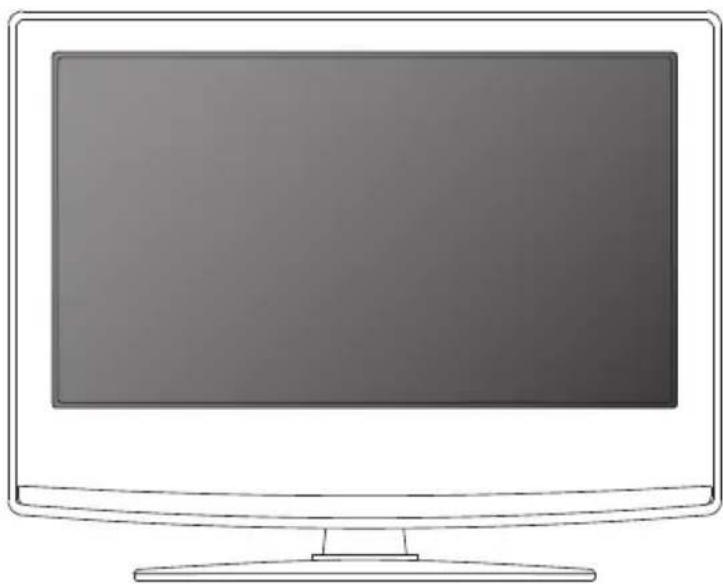

Line drawing of a flat-screen computer monitor with a blank screen (no text or symbols)

Model No

32-E251

40-E271

IMPORTANT GUARANTEE INFORMATION

Congratulations on purchasing this television. We hope you have many years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463, ROI 01443 3940

Web support: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

1) Model Number ____ (You can find this on the rear of the TV)
2) Date of purchase ____ (You can find this on your sales receipt)
3) Serial Number ____ (You can find this on the rear of the TV)

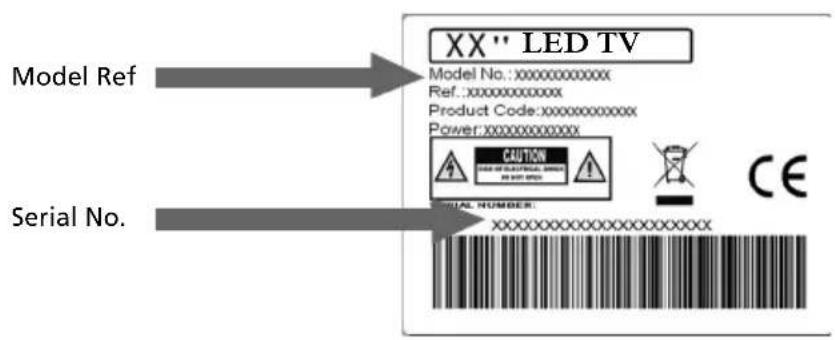

EXAMPLE OF LABEL ON REAR OF TV

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
• Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

To prevent spread of fire, keep candles or other open flames away from this product at all times

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
  • Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or rear of the TV. The switch shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
  • Install the product at least 5cm from the wall for ventilation.

Maintenance

- To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

- Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.

- Never use alcohol, paint thinner or benzene to clean this unit.

- Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

- To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution. - Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen. - Never use alcohol, paint thinner or benzene to clean this unit. - Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Packaging

- The safest way to transport your item is in the original box/packaging - please save your packaging for this.

- You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

- The safest way to transport your item is in the original box/packaging - please save your packaging for this. - You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD panel.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for long period of time
  • TV/DVD Menus: e.g. Listings of DVD disk content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
  Please consult your local authority.

Cd

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box 8

Attaching/Detaching the stand and wall mounting....9-12

Getting Started - Initial Set Up....13

TV Buttons and Input Source Menu....14

Remote Control....15

Connections....16-17

TV Menu Operation 18-23

Channel Menu 18

Picture Menu 19

Sound Menu 21

Time Menu 21

Feature Menu 22

Setup Menu 23

PC Operation....24-25

7 Day TV Guide 26

USB Mode / Media Player 27

General Information....28-31

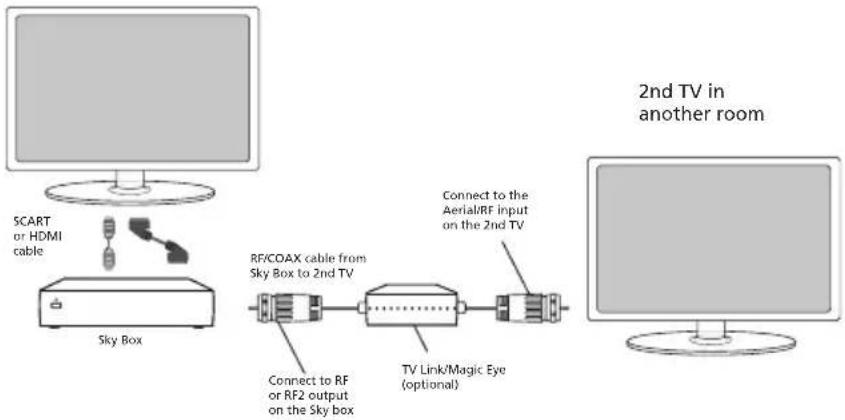

Using your TV with a Sky digital set top box 28

Frequently Asked Questions 29

Technical Specifications....30

Index....31

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1 x User Guide

1 x Quick Start Guide

1 x RF Cable

Coiled black cable with connectors, no visible text or symbols

1 x Remote Control

2 x AAA Batteries

1 x TV

Illustration of a flat-screen computer monitor with no visible text or symbols on the screen.

1 x Stand plus screws

Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING/DETACHING THE STAND

Attaching the Stand for 32-E251 Model Only

To complete stand installation you will need a Philips screwdriver.

Technical line drawing of a mechanical assembly with mounting brackets and a tool, no text or symbols present

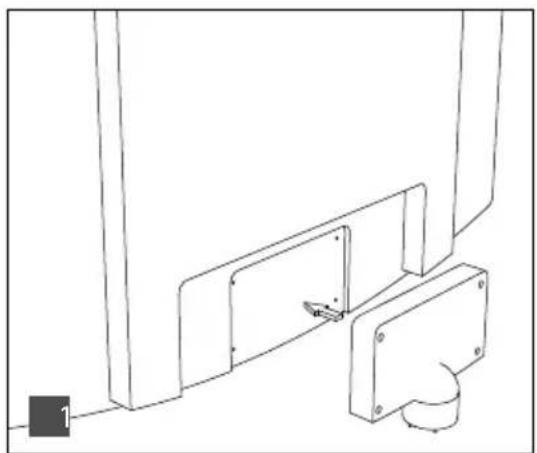

fi g 1) Attach the stand neck to the rear of the TV set.

fi g 2) Secure the neck to the TV using the (A) 3 x M(4x12) and (B) 4 x M(4x16) screws provided.

Technical line drawing of a mechanical assembly with no visible text or symbols

fi g 3) Please lay the TV set on a fl at and clean surface then attach the stand ring to the stand neck followed by the stand base.

fi g 4) Secure the neck to the TV using the (A) 3 x M(4x12) and (B) 4 x M(4x16) screws provided.

ATTACHING/DETACHING THE STAND

Attaching the Stand for 32-E251 Model Only

Remove the 4 screws highlighted then remove the stand neck and base from the rear of the TV set.

Wall mounting the TV

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

ATTACHING/DETACHING THE STAND

Attaching the Stand for 40-E271 Model Only

To complete stand installation you will need a Philips screwdriver.

Line drawing of a mechanical or architectural component with two mounting brackets and a central panel (no text or symbols)

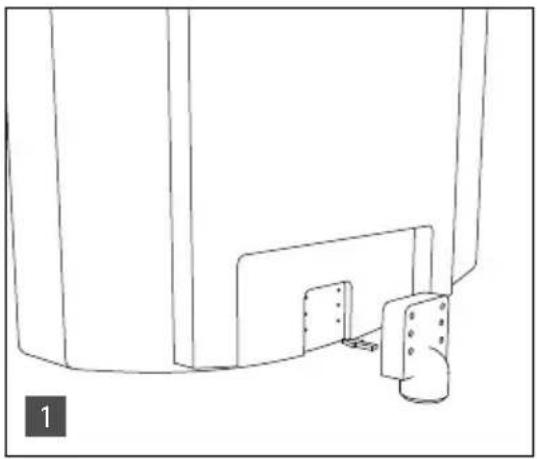

fi g 1) Attach the stand neck to the rear of the TV set.

fi g 2) Secure the neck to the TV using the 6 x M(3x12) screws provided.

Technical line drawing of a mechanical assembly with a 11/2 scale indicator (no text or symbols present)

fig 3) Attach the stand neck to the stand base.

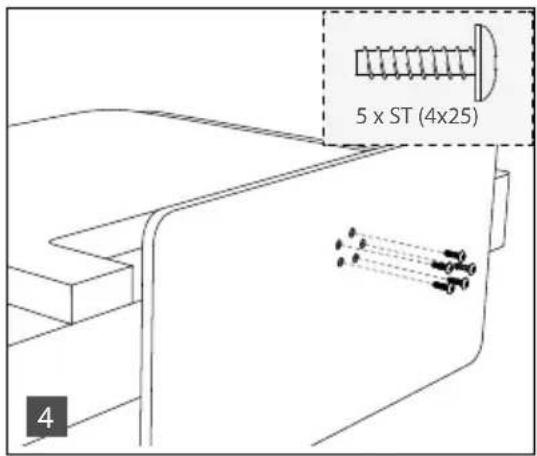

fig 4) Secure the neck to the TV using the 5 x ST(4x25) screws provided.

ATTACHING/DETACHING THE STAND

Attaching the Stand for 40-E271 Model Only

Remove the 6 screws highlighted then remove the stand neck and base from the rear of the TV set.

Wall mounting the TV

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

GETTING STARTED - INITIAL SET UP

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical outlet (Fig B)

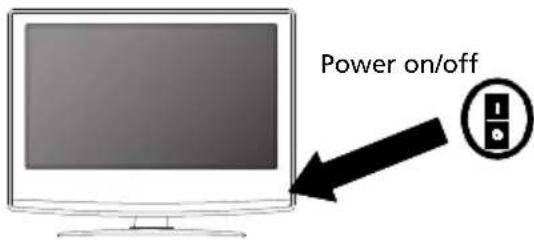

3) Switch on the television using the power on/off switch.

4) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV

5) You will now be welcomed with the initial set-up screen.

Ecohome mode: Select this mode for the most energy efficiient TV set up*

If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.

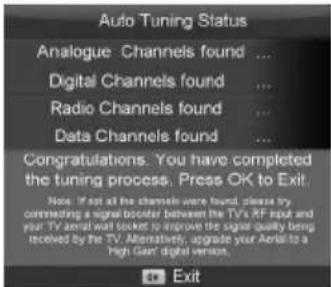

6) After tuning the following screen will appear.

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called 'Ecohome' (you will see this during the first time installation set up). Power consumption using the Ecohome function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please note, 'Professional' mode is for optimum default picture settings, however, power consumption is approximately 15% higher than 'Ecohome' mode)

Please refer to the user guide section 'Picture settings' in order to change the mode to one that maybe more suitable for your environment. There is also a shortcut button on the remote control called 'P-Mode' should you wish to change to another mode.

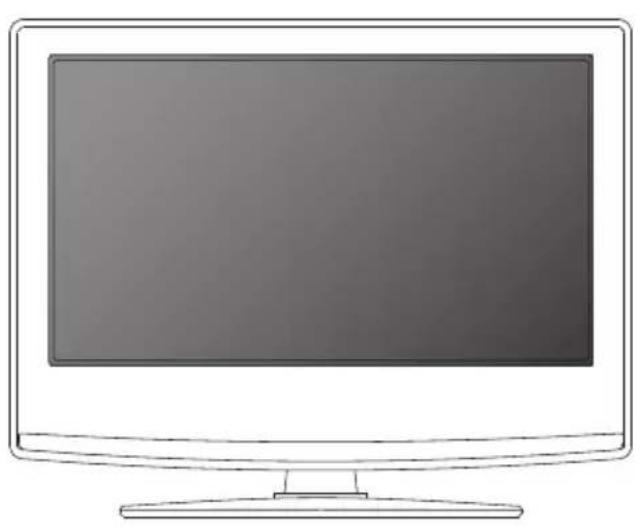

TV BUTTONS & SOURCE MENU

1 Volume up and menu right
2 Volume down and menu left
3 Programme/Channel up and menu up
4 Programme/Channel down and menu down
5 Displays Menu/OSD
6 Displays the input source menu
7 Standby Power On/Off

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Abstract grayscale gradient shape with no text or symbols

Vol- Vol- Off Off NEW SOURCE POWER

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]
B) Using the buttons on the Television:

1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.

Input Source

FREEVIEW

ANALOGUE

SCART

COMPONENT

VGA/PC

HDMI1

HDMI2

HDMI3

VIDEO

USB MEDIA

REMOTE CONTROL

1

STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa

DTV - Switch to Freeview mode

RADIO - Switch to radio whilst in Freeview source

USB - Switch to USB Source

DVD - Switch to DVD mode

2

NUMBER BUTTONS - 0 - 9 to select a TV channel directly.

TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)

- To return to the previous channel viewed

3

VOL ▲/To increase / decrease the sound level

P.MODE - Scrolls through picture mode options

S.MODE - Scrolls through sound mode options

FAV - To display favourites menu

CH ▲To increase or decrease the channel being watched

MENU - To display OSD menu

EXIT - To exit all menus

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus

and adjust the system settings to your preference

SOURCE/AV - To display the input/source menu

INFO - Press once for now/next channel information

Press twice for programme information about current

programme

4

ASPECT - To switch the screen between the different picture formats

SLEEP - Press repeatedly to cycle through the sleep options

AUDIO - To change the audio language (if available)

SUBTITLE - To switch the dialogue at the bottom of the screen (on/off)

TEXT/DVD ZOOM -

DVD Zoom - To zoom in

TEXT - Teletext mode - To enter Teletext

TEXT HOLD - Teletext mode - Hold current page which is displayed

DISPLAY - To switch off the screen when listening to radio

DVD MENU - Access the DVD menu

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

REC LIST - Opens the list of what you have previously recorded

GOTO - To go to a specific chapter

A-B - Press once to set point, press a second time to return to point

GLE - Select different angle of DVD

3D - Change to 3D mode

EAT - To repeat playback

For Models with Integrated DVD players

For Models with PVR Function

For Models with USB Playback

For Models with 3D Feature

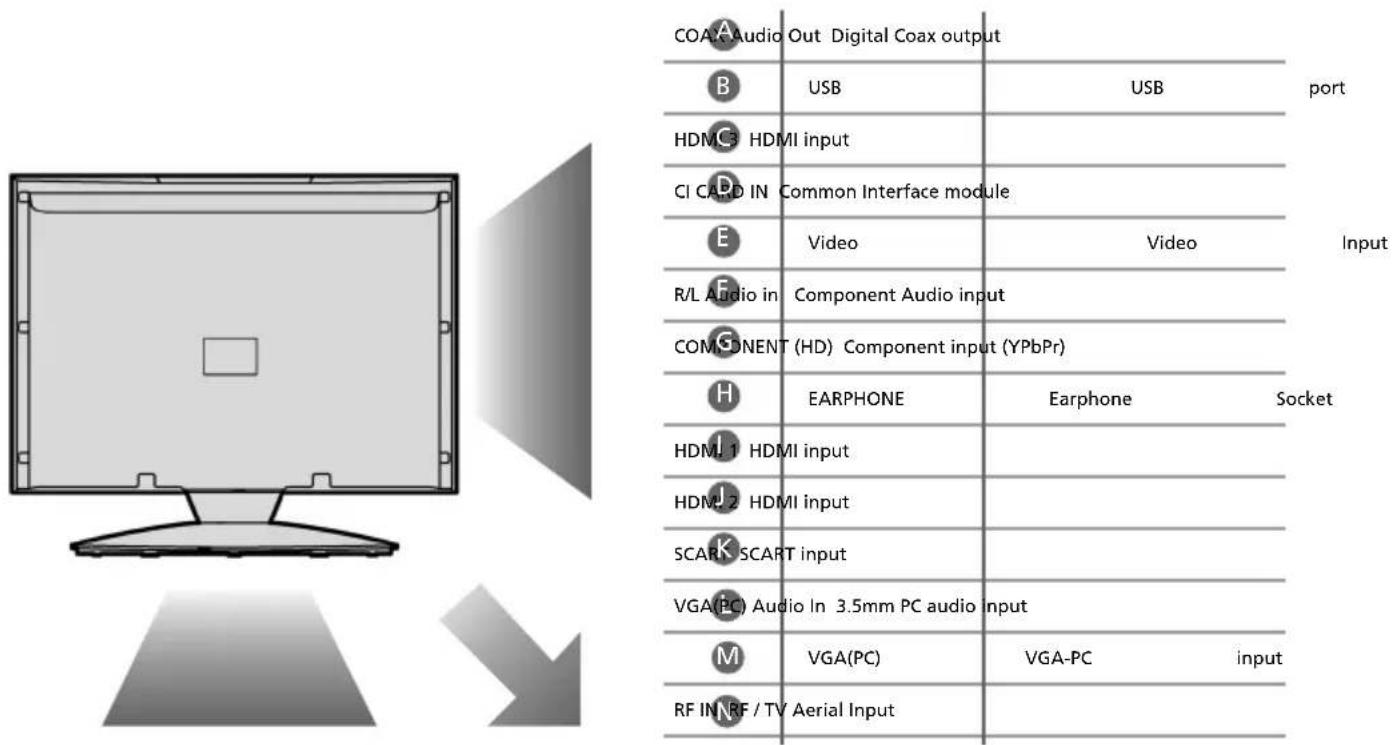

CONNECTIONS

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

TVs Input/Source should be set to SCART

CONNECTIONS

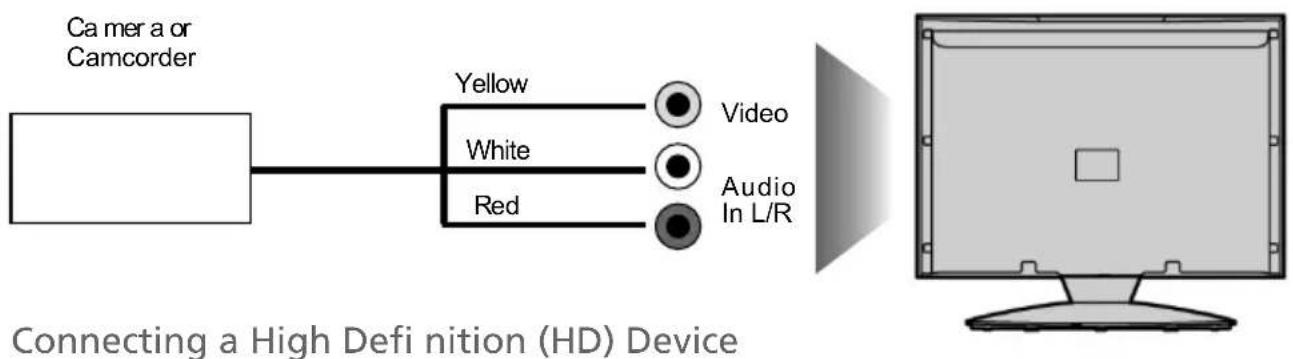

Connecting a Camcorder, Camera or Games Console

Source should be set to Video

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TVs Input/Source should be set to HDMI.

Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.

CHANNEL MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

buttons. To confi rm

To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Freeview Manual Tuning- Allows you to manually tune your digital signal

Analogue Manual Tuning - Allows you to manually tune your analogue signal

Programme Edit - Allows you to delete, skip and add favourite channels

Signal Information - Displays signal strength information

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' section.

PICTURE MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets

Standard	Default	settings
Dynamic	Recommended settings for fast moving pictures
Mild	Set to be lighter in colour and less bright
Personal	Lets you manually alter all the settings
Ecohome	Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel).
	In Ecohome mode, the TV will switch itself to Standby mode after 4-5 hours in the event that the TV buttons or remote control buttons are not pressed (see the time menu to de-activate this function).

Contrast - Switch the balance between black and white

Brightness - Increase or decrease the brightness of the picture

Colour - Increases the colour from black and white

Tint - Lets you increase or decrease the level of tint within the picture

Sharpness - Increase or decrease the sharpness of the picture

Colour Temperature - Choose from the following presets

Normal	Default	settings
Warm	Increases red within the picture
Cool	Increases blue within the picture

Noise Reduction - Choose from the following presets

Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High	Maximum system adjustments
Default	Default settings

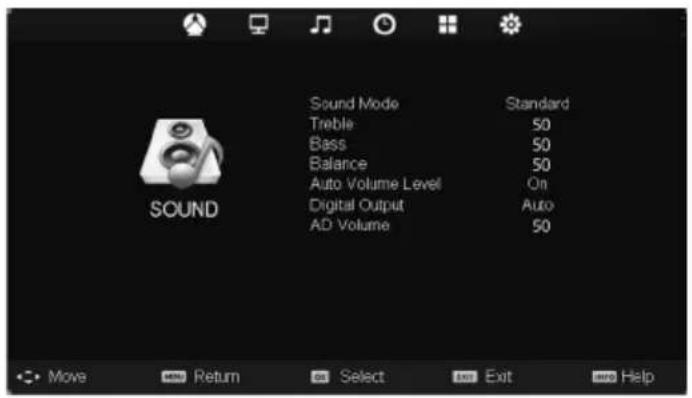

SOUND MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▼▶▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Personal	Selects your personal sound settings
Sports	Emphasises sound for sports

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Treble - To adjust the amount of high frequency within the sound

Bass - To adjust the amount of low frequency within the sound

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source

Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

AD Volume - This allows the user to increase and decrease the AD (Audio Description) volume level. (Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired)

TIME MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

buttons. To confi rm

To exit this menu at anytime, press [EXIT] button.

Clock - Shows the date and time

Off Time - Allows you to set a specific time for your TV to turn off

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto standby - Toggle the Function on and off

FEATURE MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

buttons. To confi rm

To exit this menu at anytime, press [EXIT] button.

Schedule List - Lists your programme reminders

CI Information - Pay per view services require a "smartcard" to be inserted into the TV.

If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀ button to quit the password input. Use the ▶ button to clear. Default password is 0000

Audio Language - Allows you to change the audio language

Subtitle Language - Allows you to change the subtitle language

SETUP MENU

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▲▲▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Menu language - Allows you to change the language of the menu

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auo

Automatically displays the best picture format. So the picture is in the correct position. May have black lines At the top/bottom and/or sides.

Original

Will display the picture from the broadcaster without any change

Zoom

Illustration of a computer monitor with a circular screen and six abstract geometric shapes on the sides (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

4:3

Computer monitor with a central screen and surrounding circular elements (no text or symbols visible)

Displays the 4:3
picture in its
original size.
Side bars are
shown to fill the
16:9 screen

16:9

Illustration of a computer monitor with five circular windows on the left (no text or symbols)

Fills the screen
with a regular
16:9 signal and
4:3 will stretch
to fill the screen

14:9

Illustration of a computer monitor with a blank screen and circular buttons on the sides (no text or symbols)

Displays the
14:9 picture
in the correct
proportion. As
a result side
bars are shown
on the screen

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

Reset to default

Reset Menu System - This resets the menus to factory settings.

Reset TV Channels - This clears all the TV channels from the television.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website.

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

1) Switch on your computer
2) When fi nished booting up right click your mouse anywhere on the screen

XP Screen

VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.

XP Screen

VISTA Screen

3) Left click your mouse on Properties/Personalise

XP Screen

VISTA Screen

5) Left click your mouse on Advance/Advanced Settings and left click on Monitor

XP Screen

VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or 'fl ickering', select 50 hertz or 70 hertz.
7) Click on Apply, then click Yes and the settings will be saved.
8) Now switch off your computer and connect the television (as shown)
9) Switch on the TV, select the input/source to VGA/PC and re-start your PC.

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as per below.

1) Connect the laptop to the television
2) On the Laptop push buttons The screen will now switch to the television.

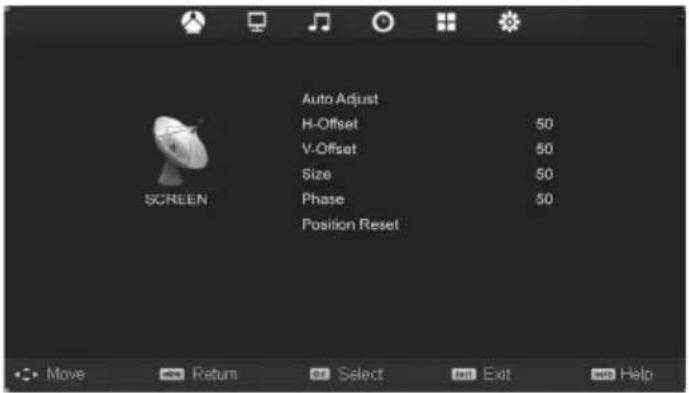

PC SETTINGS

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor

H Offset - Changes the horizontal position of the picture

V Offset - Changes the vertical position of the picture

Size - increase picture size

Phase - To adjust delay time of phase in order to reduce the noise of picture

Position Reset - Changes back to the original settings

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE
10 Years Younger: The ChallengeSeason 2Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanninghas taken its toll, while the stress of bringing up two daughters and heavy smoking hasaffected interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide
		04 Aug 2010 10:42
BBC1	05:00-06:00	10 Years Younger: The Challenge
BBC2	06:00-06:30	The Simpsons
ITV1	06:30-07:00	Hollyoaks
Channel 4	07:00-08:00	Channel 4 News
five	08:00-09:00	How to Look Good Naked
BBC3	09:00-10:00	Newlyweds: The One Year Itch
BBC4	10:00-11:15	Big Brother
ITV2	11:15-11:45	The Big Bang Theory
RemindPrev DayNext DayMove ViewDisplay

2) Navigate through the menu using ▲▼▶◀

You can now:

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

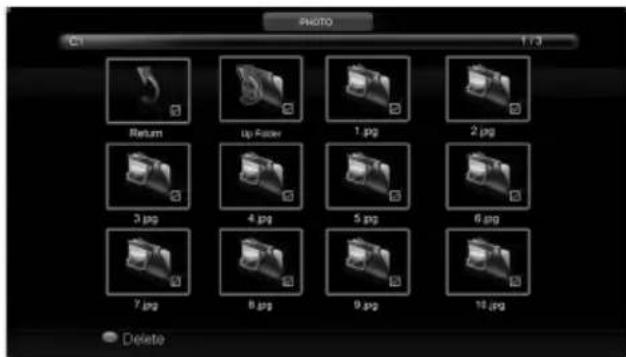

On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

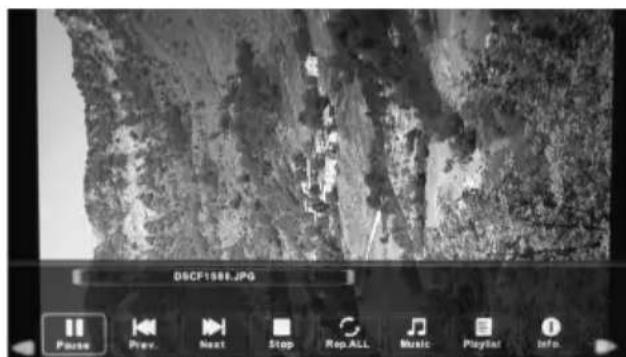

3) You can now access the item. Press OK to view. 4) While viewing you control the item using or by pressing (i) and using ▲ and (ON)

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately)

If connecting by SCART, select the 'Input source' on the TV as SCART.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV)

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See bottom of this page.

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See below.

Using a Sky Remote or a Universal Remote to operate your TV

Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/fi rmware necessary to operate this model of TV. All codes can be found on our website. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

FREQUENTLY ASKED QUESTIONS

General I would like to have louder sound by connecting additional speakers	Subject to the TV model and connections, it is possible to connect the TV to an external amplifi er or surround sound (subject to connections/inputs on the device) as follows:-1) Connect a COAX cable* from the TV's COAX output to your amplifi er/ surround systems COAX input2) Connect a 3.5mm jack to L/R phono cable* from the TV's headphone socket (where fi tted) to your amplifi er/surround sound L/R input. Please note sound to the TV's speakers will be disabled.3) On selected models, it maybe possible to connect a SCART input/ output* switch with an additional L/R Phono cable* to the TV's SCART socket and to the L/R Phono Input of your amplifi er/surround sound. Please note due to copyright laws it is not possible to output video/sound from the TV on certain sources, i.e. HDMI, DVD etc.*cables and switches mentioned are available to purchase separately from your retailer.
General Why are some options in the menu unavailable and greyed out	Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect.
General Can I stop my TV turning off after 4hrs?	Yes1) In the picture settings menu, de-select Eco-home2) In the time settings menu, scroll down to Auto standby and select OFF
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/ or the channels I receive are breaking up	1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk.2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
TV I have re-tuned my television but when I switch it off it is not storing the channels	Complete a fi rst time installation, please refer to the set-up menu section of the manual for how to do this
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television	1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual
Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Can I use a USB portable hard drive with my TV?	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
System Lock I have changed the password on the television and now forgotten it	There is a master password of 4711, to gain access to the TV menu and reset the normal password

Note: Supplier may change the Software and On Screen Graphics without warning.

TECHNICAL SPECIFICATION

Model 32 - E251 40 - E271
Screen size (diagonal) 32"/ 81cm 40"/ 102cm
Resolution 1366x768 1920x1080
Contrast Ratio 3000:1 5000:1
Brightness cd/m2 300 300
USB Media Yes
RF 75 ohm Antenna / PAL-SECAM
Video Inputs 1 x SCART,	1 x Video,1 x VGA/PC, 1 x Component (YPbPr - 1080p),3 x HDMI (up to 1080p)
Sound Inputs	1 x 3.5mm jack for PC audio input, 1 x pair RCA Audio input shared for Video and YPbPr (component)
Sound Outputs	1 x Coax Audio output , 1 x 3.5mm headphone jack
Sound power,watts (RMS)	2 x 9W	2 x 9W
Voltage and power consumption	110-240V 50/60Hz(ecomode/standard/max) 30/45/70Win standby less than 0.5W	110-240V 50/60Hz(ecomode/standard/max) 60/85/110Win standby less than 0.5W
Dimensions including stand (mm)	738W x 504H x 165D mm	927W x 607H x 210D mm
Net weight (Kgs)	8.4 kgs	12.7 kgs

Compatible files in USB Mode

Media	File Ext.	Codec
		Video	Audio
Movie	.mpg	Mpeg-1, Mpeg-2	MP3, WMA	Max Resolution: 1920x1080Max Data rate: 40Mbps
	.avi	Xvid, MJPEG,MPEG-4 SP/ASP
	.ts	Mpeg-2		Max Resolution: 1920x1080Max Data rate: 40Mbps
	.mov	Mpeg-4 SP/ASP
	.dat	Mpeg-1
	.mp4	Mpeg-1, Mpeg-2		Max Resolution: 1024x768Max Data rate: 40Mbps
	.vob	Mpeg-2
Music	.mp3	-	MP3	Sample Rate 16K-48KHzBit rate: 320Kbps
	.wma	-	WMA
Picture	.jpg	Progressive JPEG		Max Resolution: 1024x768
	.jpeg	Baseline JPEG		Max Resolution: 8192x8192
	.bmp	BMP		Max Resolution: 6500x6500

INDEX

Attaching the stand 9

Aspect Ratio 21

Auto Confi guration of screen (PC) 23

Auto Tuning 16

Auto Volume Level 18

Balance 18

Bass 18

Blue Screen 21

Brightness 17

Clock 19

Colour 17

Colour Temperature 17

Common Interface 20

Connections....14-15

Contrast 17

Detaching the stand 10

Digital Output 18

First Time Installation 11

Frequently Asked Questions 27

Getting Started 11

Horizontal Position (PC) 23

Language 21

Manual Search 16

Noise Reduction 17

Using your TV with a Sky digital set top box 26

Phase (PC) 23

Picture Mode 17

Remote control 13

Reset to default 21

Sharpness 17

Sleep Timer 19

Sound Mode 18

Source Menu 12

System Lock 20

Technical Specifications 28

Treble 18

TV buttons 12

TV Guide 24

USB Mode / Media Player 25

Using the television as a computer monitor ..... 22

Vertical Position (PC) 23

Wall mounting 10

What is included in the box 8
