USER MANUAL BTT-01 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

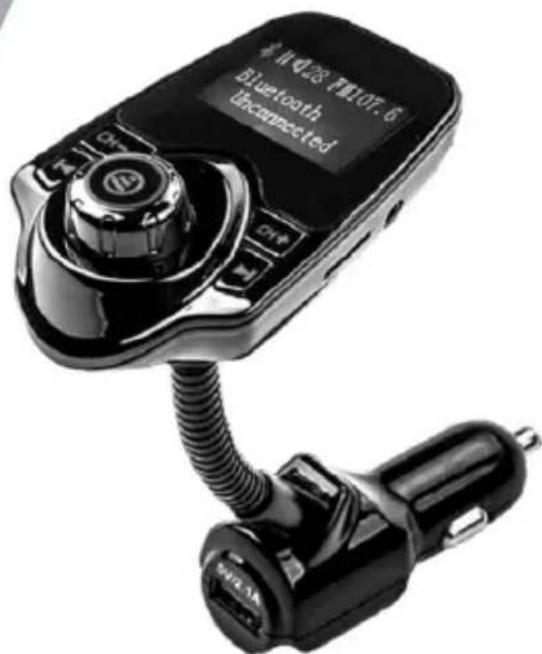

蓝牙 Kl23 FL107.6 Bluetooth Inconnected

BLUETOOTH CARKIT WITH FM-RADIO TRANSMITTER

BLUETOOTH KFZ-KIT MIT RADIOTRANSMITTER

BLUETOOTH CARKIT MET FM TRANSMITTER

KIT BLUETOOTH AVEC ÉMETTEUR RADIO FM

• Bluetooth carkit with audio FM-radio transmitter
  • Excellent full-duplex sound quality
  • One-touch button for answering, rejecting and redial calls
• Built-in cigarette lighter power adapter with USB port output for charging mobile devices
• Micro-SD music player and analogue 3.5 mm audio input and output
  • Signal reach up to 5 m

Specifications

• Interface: Bluetooth v.4.1, A2DP profile
- Bluetooth interface input: 2.402 - 2.480 GHz frequency range; sensitivity -42 dB, TX power 4 dBm up to 5 m
- FM-radio output: FM-band 87.5 - 108.0 MHz; transmission power 87 - 107 dBuv within 2 m
• DC input: 12 V / up to 45 mA
• Stand-by power consumption: up to 25 mA
• Sound frequency response: 20 Hz - 20 KHz
• USB charging output port: 5 V DC up to 2.1 A
• Car battery voltmeter
• MicroSD card MP3 audio player
• AUX audio 3.5 mm input
• AUX audio 3.5 mm output socket
- Net weight: 78 g

PRODUCT OVERVIEW

1. Plugging the device into car cigarette lighter, then it will be turn on automatically; when it is in work state, the screen will display the voltage of car battery and monitor the car battery in any time.

2. Noise and wind suppressed by CVC technology to create full duplex sound quality.

3. Support mobile's A2DP function. Music can be played directly while the mobile phone is connected.

4. Mobile phone can be connected automatically when the device turns on.

5. Support an external TF card, which can play music files in MP3/WMA format.

6. Integrated car charger and its output is 5V/2.1A, which is available for charging handheld device.

OPERATION INSTRUCTIONS

1. Power On

• Device turns on automatically when plugging it into cigarette lighter.
- Select a blank channel.
- Turn on car FM stereo and adjust the frequency same as that of the device.

2. Frequency and Volume Adjustment

- The frequency of this device is available from 87.5-108.0 MHz, which can be adjusted by CH+ and CH- button.

- Adjust the volume by rotating .

3. Playing Music from TF Card

• Insert the TF card into device, it will automatically detect and play the MP3/WMA/WAV format music in the TF card.
• Music selection: press and button to switch to next/previous song.

4. Connection to Wireless Devices

- This device is equipped with build-in Wireless chip, which can connect to other handheld Wireless devices.

- The pairing state will be activated automatically when the service is powered on with the blue light flashed. Then you can search wireless model "BTT01" with your phone and click to connect it.

- This device has memory function. It will automatically connect to the previous connected devices when power on again.

- If you want to remove the memorized devices, please press and hold the Frequency button to remove.

5. Playing Music from Mobile Phone

- Once it connects successfully, music can be transferred from phone to car stereo.

- You can control Volume +/-, Play/Pause, previous/Next song through both your phone and the device.

6. Switching Music File Sources

It can play the music from TF card and the device with Wireless function; you can switch the file source between TF card and device with Wireless by long press.

7. Making a call

• You can make and answer a call through this device after connecting by Wireless.
• Double click to redial the last number.
• Reject a call: Long press for about 5 seconds to reject a call.

8. AUX Input / Output

• AUX Input: This device support Line-in function, which can play music from MP4, CD, etc. via the 3.5mm AUX cable.
• AUX Output: It can output audio to speaker, car stereo and portable earphone through the 3.5mm AUX port by a AUX cable.

9. Part Description

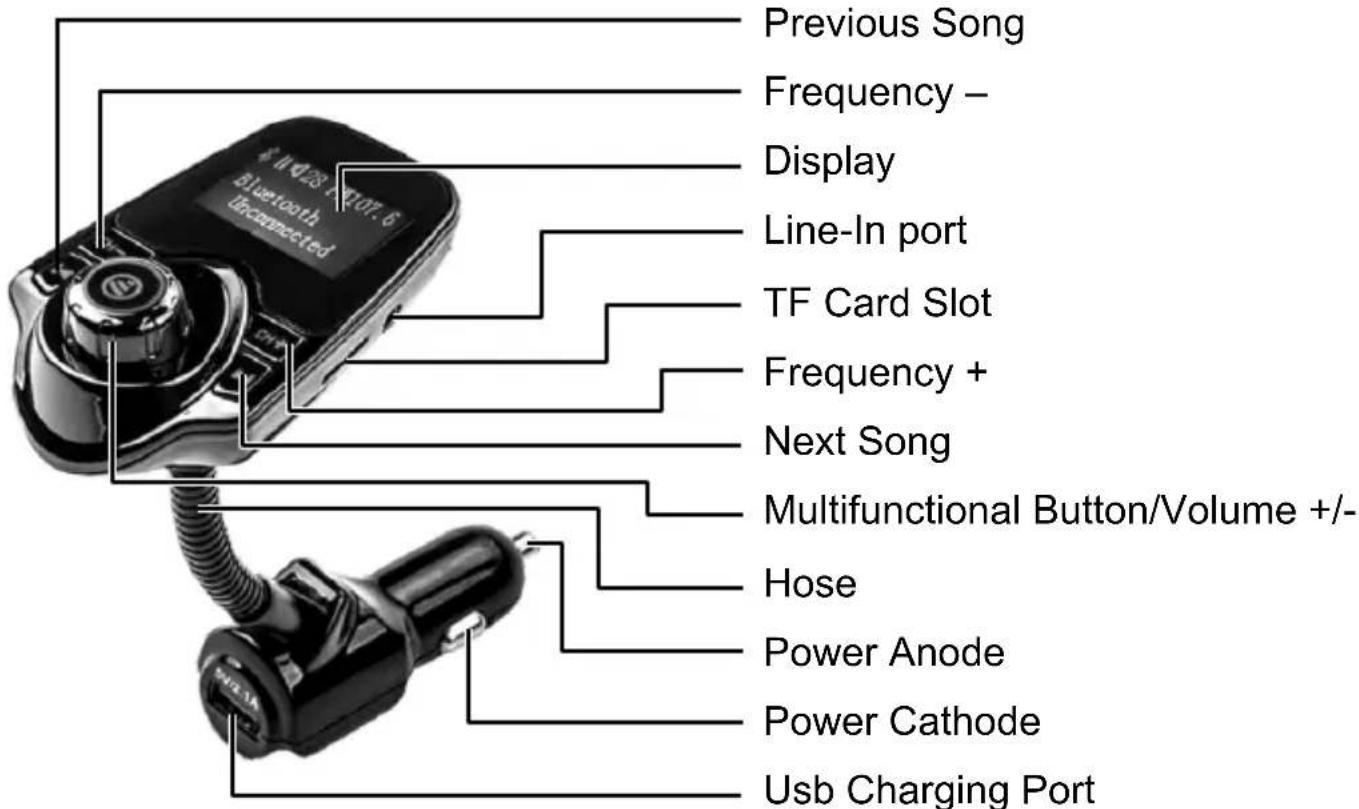

Previous Song Frequency – Display Line-In port TF Card Slot Frequency + Next Song Multifunctional Button/Volume +/-Hose Power Anode Power Cathode Usb Charging Port

Note: This device is compatible with most of the mobile phones, except of a few mobile phones that are not available to use parts of above functions. Product features will be upgraded without any notice.

Attentions!

1. First of all, a blank FM channel must be chosen for car radio, then the frequency of BTT01 should be adjusted as the same as the frequency of car radio.
2. After a long time use, your car speaker may have some troubles. Therefore, please don't turn up car speaker's volume to maximum to avoid static and distortion effectively.
3. When the device is out of use for a long time, please pull it out of cigarette lighter. When using again, in should be inserted into cigarette lighter after car starts to avoid high voltage damage.

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot RED (2014/53/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website: www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive RED (2014/53/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących RED (2014/53/EU). Deklaracja CE znajduje się pod adresem www.gembird.eu

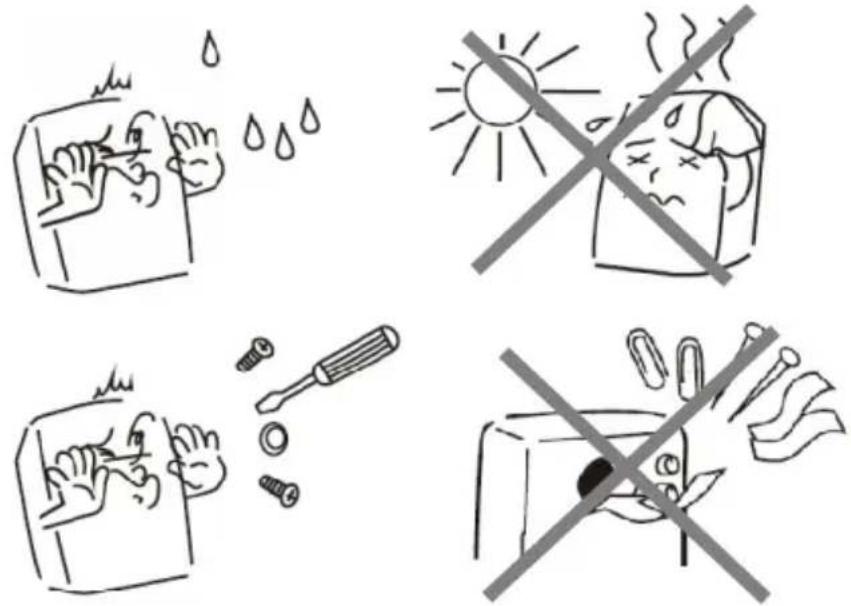

Four-panel cartoon showing different workplace behaviors: crying hands, drying sun, using a screwdriver, and avoiding a bottle with a crossed-out hand.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
