CTP7015P - Warming Drawer SMEG - Free user manual and instructions

Product Type	Warming Drawer
Brand	Smeg
Model	CTP7015P
Dimensions (H x W x D)	287 x 597 x 542 mm
Weight	Approx. 20 kg
Power Supply	230 V ~, 50/60 Hz
Power Consumption	Not specified (estimated 500-1000 W)
Temperature Range	30°C to 80°C (approx.)
Maximum Load	15 kg
Functions	Defrosting, Heating Crockery, Keeping Food Hot
Heating System	Hot-air ventilation with fan
Drawer Surface	Non-slip base included
Controls	ON/OFF switch and temperature knob
Safety Features	Protective grille, child safety lock (manual supervision required)
Material	Stainless steel (exterior), enamel interior
Cleaning	Non-abrasive detergent, damp cloth, remove non-slip base for cleaning
Installation Type	Built-in under counter
Accessories Included	Non-slip mat, power cord
Warranty	Standard manufacturer warranty (refer to user manual)
Spare Parts Availability	Contact authorized service centers

Frequently Asked Questions - CTP7015P SMEG

Can I use plastic containers in the warming drawer?

No, do not use plastic containers or any flammable materials. The high temperature could cause melting or fire. Use only oven-safe crockery and metal containers.

How do I clean the warming drawer?

First, unplug the appliance and let it cool. Remove the non-slip base and clean it with warm water and mild detergent. Wipe the interior with a damp cloth and non-abrasive cleaner, then dry thoroughly. Do not use steam jets or abrasive scourers.

What is the maximum weight the drawer can hold?

The maximum load is 15 kg. Do not exceed this limit to avoid damage to the drawer mechanism.

Can I use the warming drawer to heat the room?

No, the appliance is intended only for heating food and crockery. Using it to heat a room is improper and may cause fire or damage.

Why is my crockery not heating up?

Check that the appliance is plugged in and the main circuit breaker is on. Ensure ventilation openings are not blocked. If the fan noise is not heard, contact technical support. Also, allow more time for the crockery to heat.

How do I install the warming drawer?

Installation should be done by a qualified technician. The drawer must be placed on a stable shelf with a rear opening of 20 mm. The cabinet must not have a back panel. Secure the appliance with screws and attach the side covers.

Can I leave the drawer open while in use?

No, keep the drawer closed during operation to maintain temperature and avoid burns. Only open it to place or remove items.

What is the purpose of the non-slip base?

The non-slip base prevents dishes from sliding when the drawer is opened or closed. It can be removed for cleaning.

How do I defrost food in the warming drawer?

Set the temperature knob to the defrost setting (low temperature). Place the frozen food in an appropriate container and leave it in the drawer until thawed. Do not use sealed containers.

What should I do if the drawer does not open?

Grasp the lower part of the drawer and pull firmly until it releases. If it still does not open, check for obstructions or contact technical support.

USER MANUAL CTP7015P SMEG

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its accessible parts become very hot.

- Never touch the heating elements during use.

- Keep children under eight years of age at a safe distance if they are not constantly supervised.

• Children must never play with the appliance.

- This appliance may be used by children aged at least 8 and by people of reduced physical, sensory or mental capacity, or lacking in experience in the use of electrical appliances, as long they are supervised or instructed by adults who are responsible for their safety.

- Never rest metallic objects such as knives, forks, spoons and lids on the appliance during use.

- Switch off the appliance immediately after use.

- Never try to put out a fire or flames with water: Turn off the appliance and smother the flames with a fire blanket or other appropriate cover.

• The appliance must never be cleaned by unsupervised children.

- Have qualified personnel carry out installation and assistance interventions according to the standards in force.

• Do not modify this appliance.
• Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
• Do not try to repair the appliance yourself or without the intervention of a qualified technician.
• Do not place plastic containers or inflammable objects in the drawer.
• If the power supply cable is damaged, contact technical support immediately and they will replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers or metallic scourers).
• Do not seat on the appliance.
• Do not use steam jets to clean the appliance.
• Do not obstruct ventilation openings and heat dispersal slots.
• Do not use the appliance to heat rooms for any reason.

For this appliance

• Do not rest any weight or sit on the open drawer.
  • Take care that no objects are stuck in the drawer.

1.2 Manufacturer liability

The manufacturer declines all liability for damage to persons or property caused by:

• Use of the appliance other than as envisaged;
  • Non-observance of the user manual provisions;
• Tampering with any part of the appliance;
  • Use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for heating food and crockery in the home environment. Every other use is considered improper.
• This appliance may be used by children aged at least 8 and by people of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.
• The appliance is not designed to operate with external timers or with remote-control systems.

1.4 Disposal

This appliance must be disposed of separately from other waste (Directives 2002/95/EC, 2002/

96/EC, 2003/108/EC). The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives.

To dispose of the appliance:

- Cut the power supply cable and remove it along with the plug.

Power voltage Danger of electrocution

• Disconnect the main power supply.
• Unplug the appliance.
• Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Instructions

Our appliances are packed in non-polluting and recyclable materials.

- Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

• Do not leave the packaging or any part of it unattended.
• Do not let children play with the packaging plastic bags.

1.5 Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

1.6 This user manual

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.

For further information on the product: www.smeg.com

Read this user manual carefully before using the appliance.

1.7 How to read the user manual

This user manual uses the following reading conventions:

Instructions

General information on this user manual, on safety and final disposal.

Description

Description of the appliance and its accessories.

Use

Information on the use of the appliance and its accessories, cooking advice.

Cleaning and maintenance

Information for proper cleaning and maintenance of the appliance.

Installation

Information for the qualified technician: Installation, operation and inspection.

Safety instructions

Information

Advice

1. Use instruction sequence.

• Standalone use instruction.

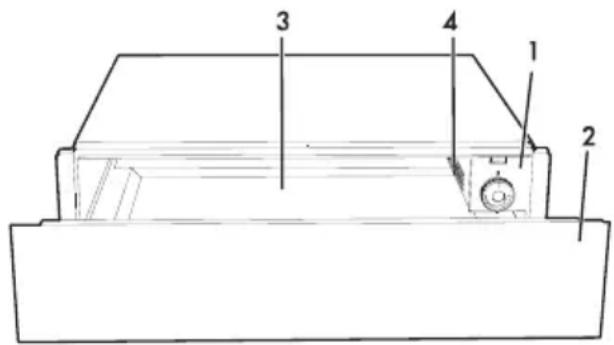

2 Description

2.1 General Description

1 Control panel
2 Drawer
3 Non-slip base
4 Heating fan

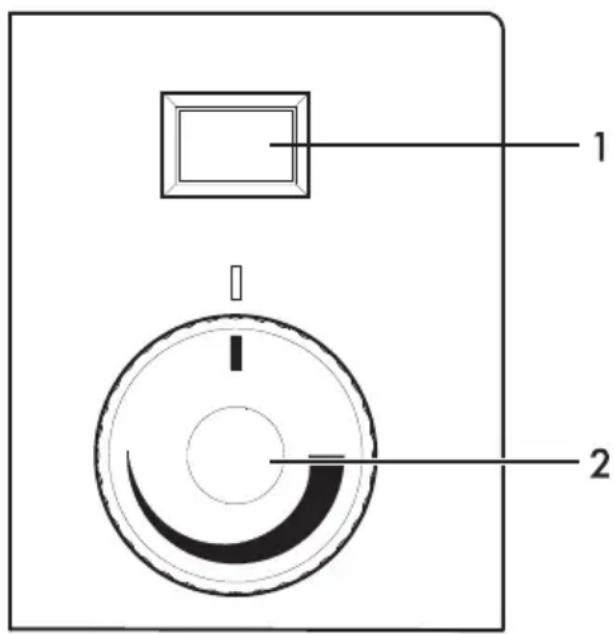

2.2 Control panel

1 ON/OFF switch

Turns the appliance on and off.

2 Temperature knob

Regulates the appliance's temperature.

2.3 Operating principles

The appliance is equipped with a hot-air ventilation system. A fan distributes the heat from the heating element inside the drawer in an optimal manner.

The temperature knob allows you to set and control the correct temperature for the crockery and food placed inside the appliance. The circulating hot air warms the crockery and food quickly and evenly.

A protective grille prevents accidental contact with the heating element and fan.

The base of the drawer is covered with non-slip material to stop dishes from moving when the drawer is opened or closed.

Capacity

Improper use Risk of damages to the appliance

- Load the drawer with a maximum of 15 kg.

The overall capacity depends on the dimensions of the crockery used.

As an example, appliances with a 127.5 cm drawer allow the following combinations for 6 place settings:

• 6 x 24 cm diameter dinner plates
• 6 x 10 cm diameter soup bowls
• 1 x 32 cm diameter bowl
• 1 x 19 cm diameter bowl
• 1 x 17 cm diameter bowl

3 Use

3.1 Instructions

High temperature inside the drawer during use Danger of burns

• Keep the drawer closed during operation.
• Protect your hands with oven gloves when handling crockery and food in the drawer.
• Do not touch the heating elements inside the drawer.
• Do not allow children to approach the drawer when it is in use.

High temperature inside the drawer during use Danger of fire or explosion

• Do not spray any spray products near the drawer.
• Do not use or leave flammable materials near the drawer.
• Do not use plastic kitchenware or containers for heating food.
• Do not put sealed tins or containers in the drawer.

3.2 First use

1. Remove any protective film from the outside or inside of the appliance.
2. Remove any labels (apart from the identification label).

3. Clean the appliance using a damp cloth.

4. Dry the appliance thoroughly.

5. Heat the appliance for at least 2 hours, unloaded and at maximum temperature, to remove any manufacturing residue.

3.3 Using the drawer

Turning the drawer on and off

1. Press the ON/OFF switch.
2. Turn the temperature knob to any setting between minimum and maximum.

List of functions

Improper use Risk of damage to the appliance

- Before placing hot food in the drawer, wait for its temperature to fall below 80°C.

The heating time will vary depending on many different factors, for example the type and quantity of crockery inserted.

Function	Position of the temperature knob
Defrosting food
Heating crockery
Keeping food hot*

* Preheat the drawer at maximum temperature for 5-10 minutes

4 Cleaning and maintenance

4.1 Instructions

Improper use Risk of damage to surfaces

• Do not use steam jets to clean the appliance.
• Do not use detergents which are abrasive, corrosive or which contain chlorine, ammonia or bleach (e.g. scouring powders, stain removers etc.).
• Do not use rough or abrasive materials or sharp metal scrapers.

4.2 Cleaning the appliance

Recommendations for cleaning the drawer

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Avoid letting food residue dry inside the drawer, as this could damage the enamel.

Cleaning the drawer

1. Remove the non-slip base.
2. Place some non-abrasive detergent on a damp cloth and wipe down the surfaces.
3. Rinse thoroughly.
4. Dry with a soft cloth or a microfibre cloth.

Cleaning the non-slip base

1. Remove the non-slip base.

2. Clean it with warm water and non-abrasive detergent.

3. Dry thoroughly with a soft cloth or a microfibre cloth.

4. Replace the non-slip base in the drawer when perfectly dry.

4.3 What to do if...

Below we provide a list of possible solutions to some operating problems.

If the problem has not been resolved or in the event of other types of problem, contact Technical Support.

Crockery does not heat up:

• Check that the appliance is connected to the mains electricity supply.
• Check that the house's main circuit breaker is on.
• Check that the ventilation openings are not blocked.
• Check that it is possible to hear the noise of the fan, and contact Technical Support.
• Leave the crockery in the drawer for longer.

The drawer does not open:

- Grasp the lower part of the drawer and pull until it releases.

The main switch or main circuit breaker in the house's consumer unit are repeatedly triggered (or corresponding fuses blow):

- Call Technical Support or an electrician.

5 Installation

5.1 Electrical connection

Power voltage Danger of electrocution

• Have the electrical connection performed by authorised technical personnel.
• The appliance must be connected to ground in compliance with electrical system safety standards.
• Disconnect the main power supply.

General information

Check the grid characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance.

Do not remove this plate for any reason.

The appliance works at 230 V\~.

Use the power-supply cable provided with the appliance.

Fixed connection

Fit the power line with an omnipolar circuit breaker in compliance with installation regulations.

The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of the same type.

Avoid using adapters and shunts as these could cause overheating and a risk of burns.

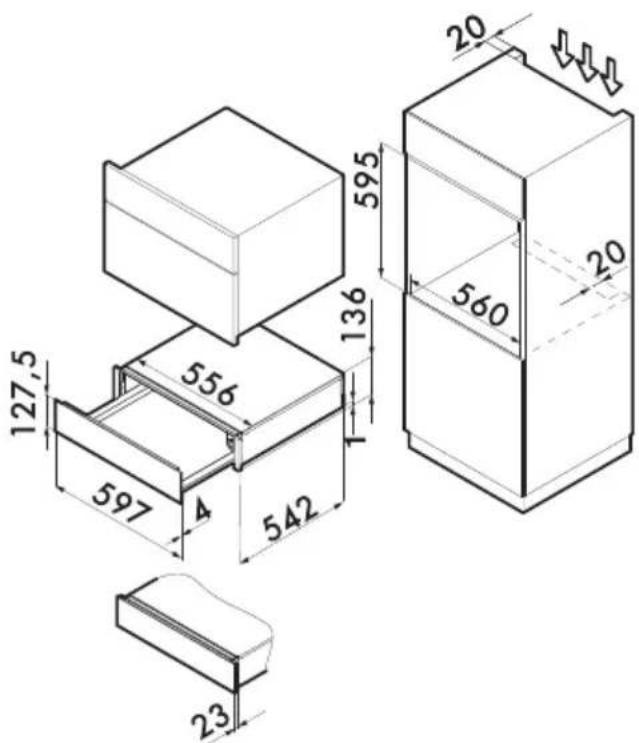

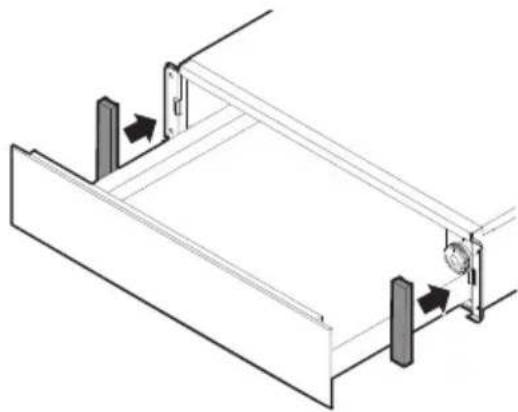

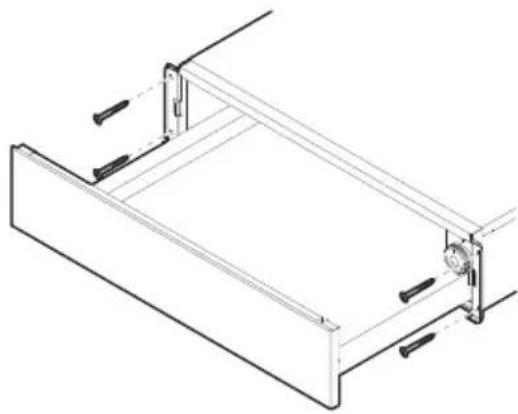

5.2 Positioning

Heavy appliance Danger of crushing injuries

- Position the appliance into the cabinet cutout with the help of a second person.

Pressure on the open drawer Risk of damage to the appliance

• Never use the open drawer to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the drawer when open.

Heat production during appliance operation Risk of fire

• Check that the piece of furniture material is heat resistant.
• Check that the piece of furniture has the required slots.

General instructions

• Position the drawer on a stable shelf.
• The supporting shelf must have a rear opening of 20 mm.
• The unit in which the drawer is installed must not have a back panel.

Installing the appliance

1. Centre and line up the drawer in the opening. Ensure that the frame is perfectly flush with the furniture unit.
2. Open the drawer.
3. Secure the appliance to the piece of furniture using screws.

Technical line drawing of a mechanical assembly with mounting brackets and a central frame (no text or symbols)

1. Position the side covers.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Appliance overall dimensions (mm)
