Product Type	LED TV with DVD Player
Brand	Technika
Model	22E21W-FHD/DVD
Screen Size	22 inches (diagonal)
Display Resolution	Full HD (1920 x 1080)
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1 (typical)
Response Time	8 ms
Viewing Angle	178° / 178°
Built-in DVD Player	Yes, supports DVD, CD, MP3, JPEG
USB Ports	1 x USB 2.0
HDMI Ports	2 x HDMI
VGA Port	1 x VGA (D-Sub)
Audio Output	3.5mm headphone jack, coaxial digital out
Speaker Power	2 x 3W
Power Consumption (Typical)	30W
Power Supply	AC 100-240V, 50/60Hz
Stand Dimensions (W x H x D)	510 x 350 x 180 mm
Weight (with stand)	3.5 kg
Weight (without stand)	3.2 kg
VESA Mount Compatible	Yes, 100 x 100 mm
Remote Control	Included (batteries not included)
Energy Class	A+

Frequently Asked Questions - 22E21W-FHD/DVD Technika

How do I connect external devices like a gaming console or streaming stick?

Use the HDMI ports located on the back of the TV. Simply plug the device into any available HDMI port, then select the corresponding input source using the Source button on the remote.

My DVD is not playing. What should I do?

Ensure the disc is inserted with the label facing up. Check that the disc is not scratched or damaged. The TV supports DVD, CD, and MP3/JPEG discs. Cleaning the lens with a lens cleaner disc may help.

How can I adjust the picture settings?

Press the Menu button on the remote, navigate to Picture settings. You can adjust brightness, contrast, color, sharpness, and select picture modes like Standard, Vivid, or Movie.

There is no sound from the speakers. What could be wrong?

First, check that the volume is not muted or set too low. Press the Mute button to unmute. Also, ensure that the audio output is set to TV speaker in the settings menu, not external audio.

Can I mount this TV on the wall?

Yes, the TV has VESA 100 x 100 mm mounting holes on the back. You can use a compatible wall mount bracket (not included). Ensure the wall can support the TV's weight (about 3.5 kg).

The remote control is not working. What should I do?

Replace the batteries with fresh ones (2 x AAA). Check that there are no obstructions between the remote and the TV sensor. If still not working, try resetting the TV by unplugging it for 30 seconds.

How do I update the firmware?

This TV does not support user firmware updates. The firmware is pre-installed and cannot be updated by the user. For any issues, contact Technika support.

What file formats are supported via USB?

The USB port supports playback of MP3 audio, JPEG photos, and DivX video files. Some codecs may not be compatible. Files should be in FAT32 format.

The TV turns off automatically after a while. Why?

Check if the Sleep Timer is activated. Press the Menu button, navigate to Timers and disable the sleep timer. Also, ensure that the Auto Power Off setting is not enabled.

Where can I download the user manual?

The user manual is available for free on notice-facile.com in PDF format. You can also visit the Technika support website for downloads.

USER MANUAL 22E21W-FHD/DVD Technika

LED TV with Freeview & USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols

Model No

22E21B-FHD

22E21B-FHD/DVD

22E21W-FHD/DVD

22E21P-FHD/DVD

22E21S-FHD/DVD

24E21B-FHD

24E21B-HDR

24E21B-FHD/DVD

24E21B-HDR/DVD

24E21W-FHD/DVD

24E21W-HDR/DVD

Important safety instruction

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

To prevent spread of fire, keep candles or other open flames away from this product at all times

Warnings

• Television sets which weigh 20kg or more must be lifted and carried by at least 2 people.
• This television does not contain any parts that are serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

- To reduce the risk of fi re, electric shock or damage to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects fi lled with liquids on or near the TV.

- Do not connect any external devices (DVD player, games console etc) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.

- Do not place the television in a confined space and do not obstruct the ventilation openings at the rear of the television.

- When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation.

- Always ensure that the TV's ventilation openings are not covered with items such as newspapers, tablecloths, curtains, etc.

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

- Ensure this TV is used in moderate climates only.

Safety

• For your safety, this appliance is fitted with a fused 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.

• Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
- The ideal distance to watch the television is approximately five times the length of the diagonal measurements of the TV screen.
- Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.

- Never place mobile phones, speakers or any other device which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.

- To disconnect the apparatus from the mains, please use the mains plug located on the underside/rear of the TV.

- Ensure that the mains plug is always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Mild

detergent

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need the original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important information regarding use of video games, computers, captions or other fixed image displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD/LED panel, also known as "screen burn".

This "shadow image" can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in use.

Examples of images that are more likely to cause "screen burn" are as follows (this is not an exhaustive list):

• TV channel logos: e.g. shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

• Time displays.
- Teletext: Do not view a stationary page for a long period of time
• TV/DVD menus: e.g. listings of DVD disc content.
- Pause mode: Do not leave the TV in pause mode for long periods of time, e.g. when watching DVDs or videos.

Important: Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Please dispose of the product at a designated collection point for recycling of WEEE. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

TV Models with built in DVD players

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
  Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries. Please consult your local authority.

Trademarks

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

HD READY

The "HD Ready" Logo is a trademark of DIGITALEUROPE.

HD READY 1080p

The "HD Ready 1080p" Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.

FREEVIEW

The FREEVIEW words and logos are trade marks of DTV Services LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box 8

Attaching/Detaching the Stand 9

Securing the TV to a Wall/ Wall mounting 10

Remote Control....11

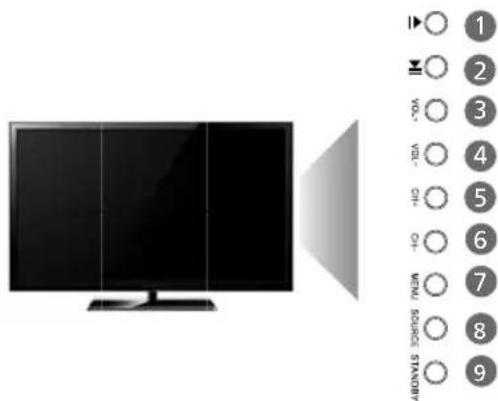

TV Buttons and Input Source Menu....12

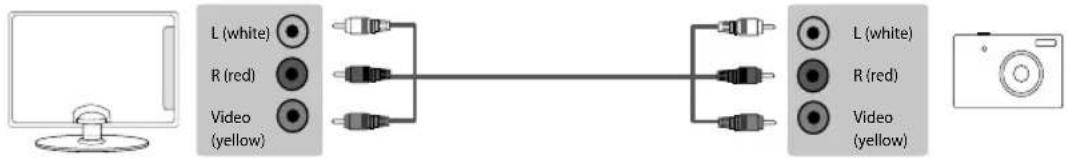

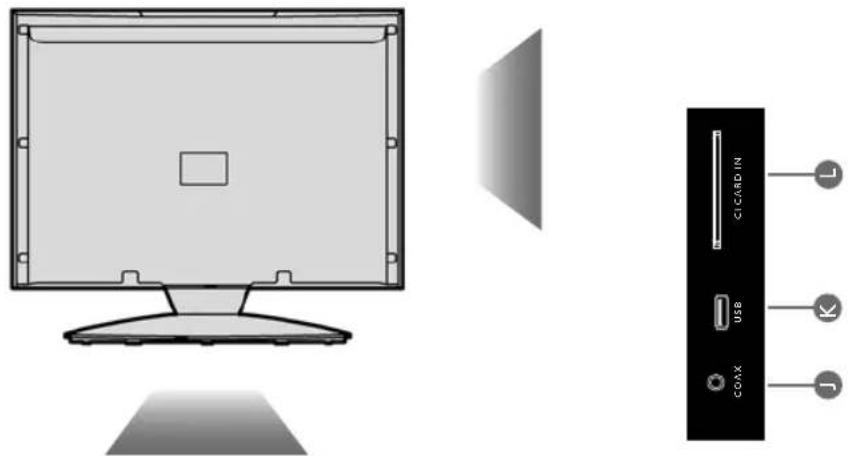

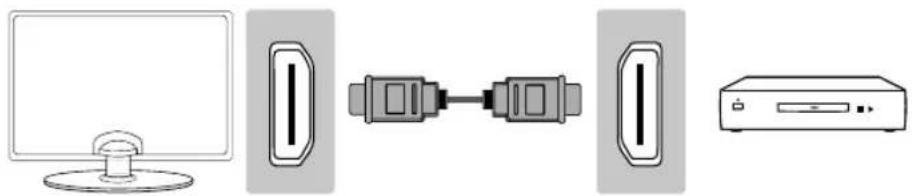

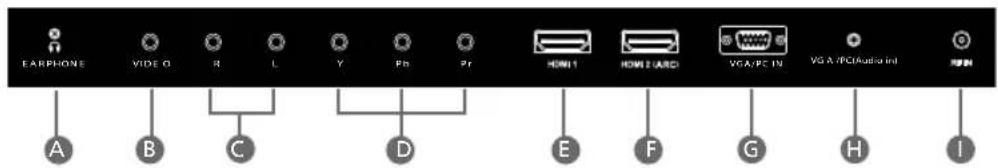

Connections....13-15

TV Menu Operation 17-24

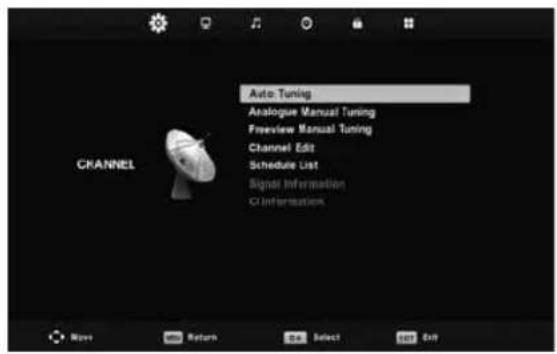

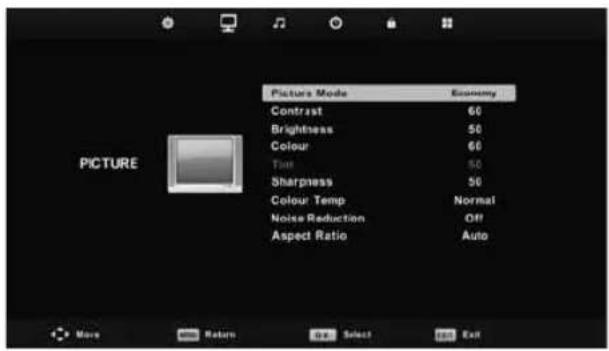

Channel Menu....17 Picture Menu....18-19

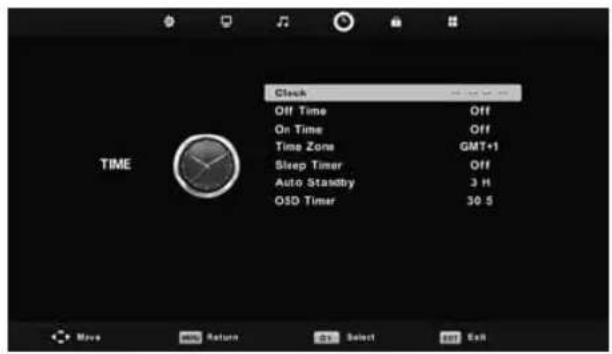

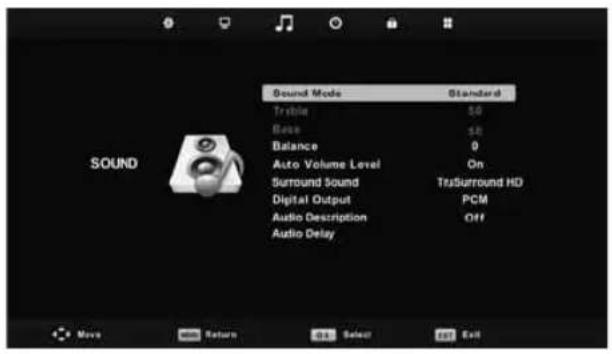

Sound Menu .... 20 Time Menu .... 21 System/Hotel Lock Menu .... 22

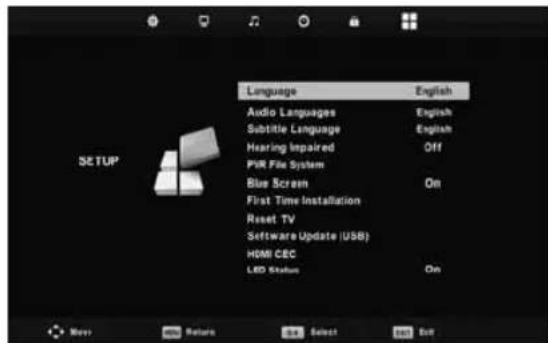

Setup Menu 23

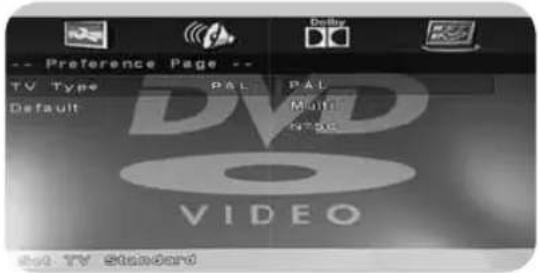

DVD Setup Menu....25

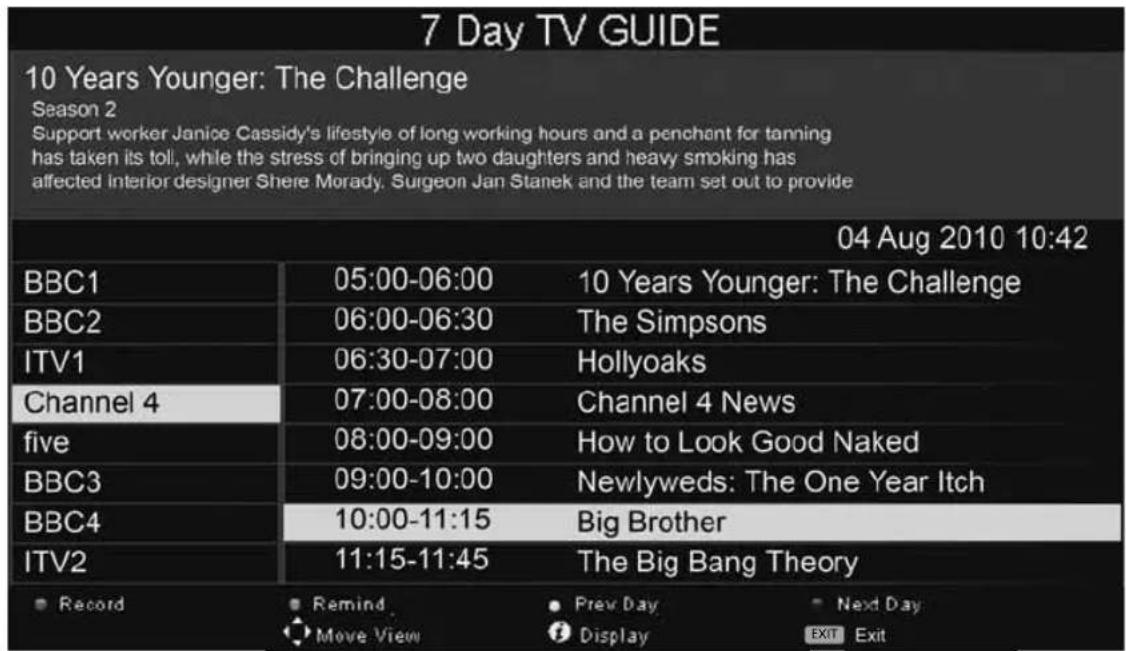

7 Day TV Guide ....26 USB Record - Digital / Freeview ....27 USB Mode / Media Player ....28

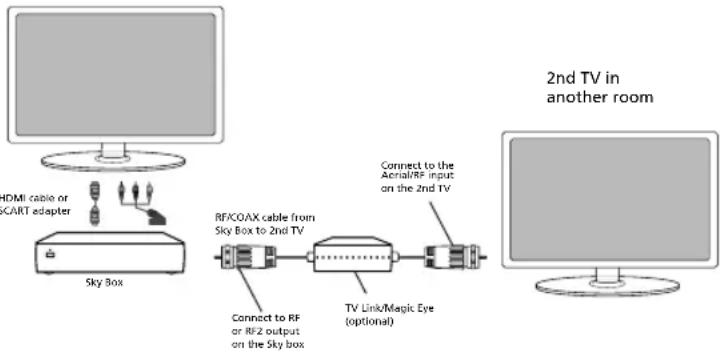

General Information....29-35 Using your TV with a Sky digital set top box....29

Frequently Asked Questions .... 30-31 Technical Specifications .... 32-35

dts®

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories

1 x User Guide

User Guide

1 x Remote Control

2 x AAA Batteries

1 x Quick Start Guide

Quick Start Guide

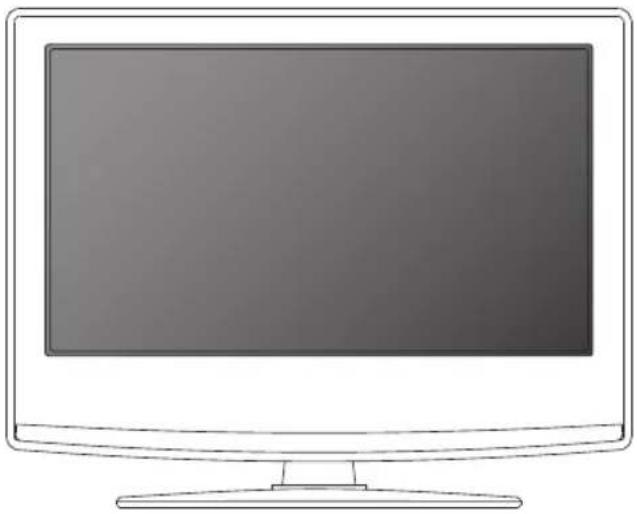

1 x TV

Front view of a blank computer monitor with a stand at the bottom (no text or symbols visible)

1 x Stand plus screws

1 x RF Cable

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING/DETACHING THE STAND

Attaching the stand

To complete the stand installation you will require a cross head screw driver

There are two types of screws provided as shown below.

3 x M (4x12)

Used for attaching the stand neck to the TV (fi g.1)

3 x ST (4x12)

Used for attaching the stand base to the stand neck (fi g.3)

3 x M (4x12) 1

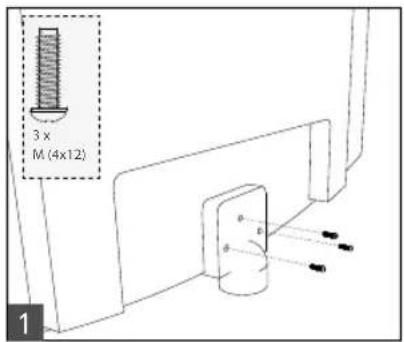

(fi g.1) Attach the stand neck to the rear of the TV set using the 3 x M(4x12) screws provided.

1 1/2 2

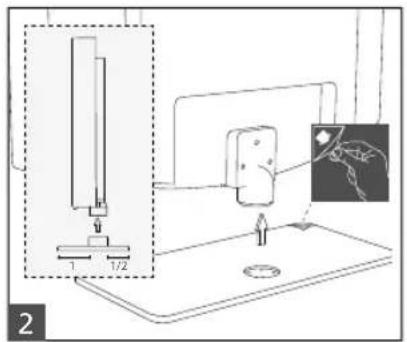

(fi g.2) Peel off the protective plastic cover then attach the stand base to the stand neck.

3 x ST (4x12) 3

HELPFUL ADVICE FOR FIRST TIME STAND INSTALLATION

When securing the self-tapping screw/s into the base of the TV (on first installation) the screw/s may be naturally tight as they create a thread in the plastic.

a) Ensure the cross head screw driver tip fi ts correctly into the head of the screw and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of the screws fully.
c) If the screws become very tight try loosening and re-tightening, this will continue the process of creating the thread.

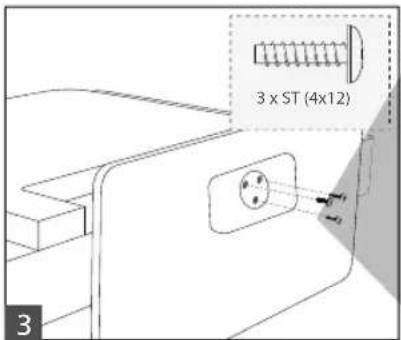

(fi g.3) Secure the base to the neck by using the 3 x ST(4x12) screws provided.

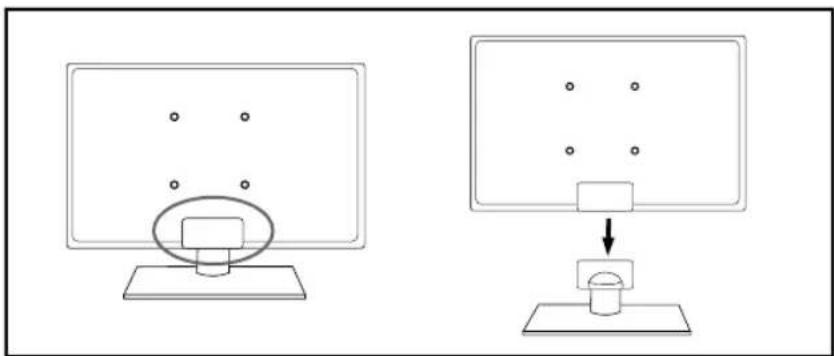

Detaching the stand

Remove the screws highlighted then remove the stand base and neck from the rear of the TV set.

Diagram showing two views of a computer monitor with an oval display and a mechanical component inserted into a base (no text or symbols)

SECURING THE TV TO A WALL

Securing the TV to a Wall

For maximum security in the home when using a TV with its stand anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

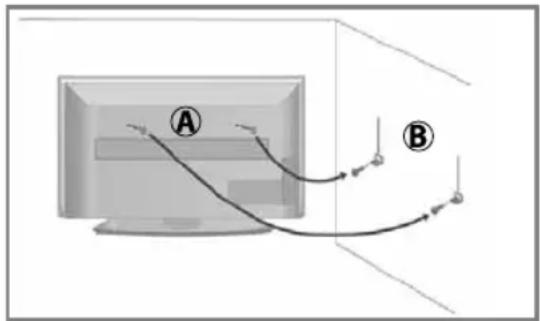

A) Using one or both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening cord/s to the TV.

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores).

A B

Simple line drawing of a vertical monitor with a stand and arrow, no text or symbols present

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions. RoSPA stated in 2010 that "Toddlers are particularly at risk of pulling fl at-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images."

The risk is increased as televisions become lighter.

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electrical wires, water or gas pipes.

Simple line drawing of a computer monitor with an oval on top and a base (no text or symbols)

1) Remove the four screws highlighted that are supplied in the wall mounting holes.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV.

For VESA wall mounting information please refer to the Technical Specification page.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2.

fig 1 fig 2 INCORRECT

Fig 2 INCORRECT TV Viewing angle

CORRECT Viewing angle TV

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

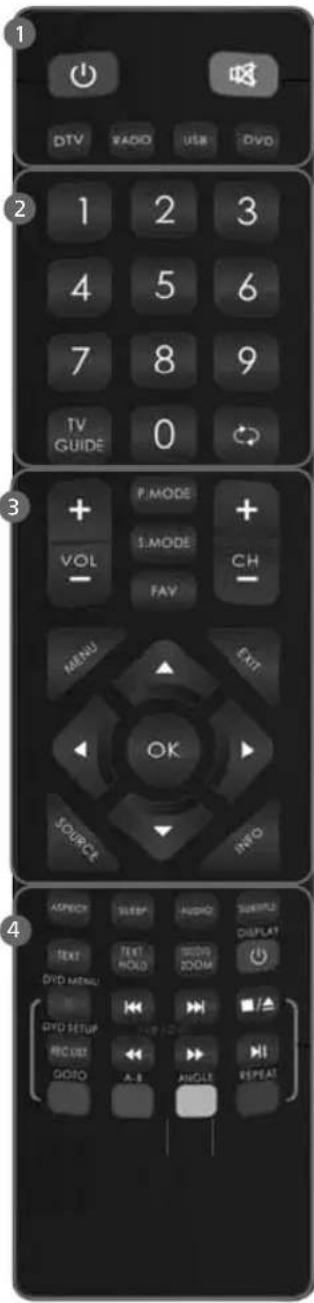

REMOTE CONTROL

STANDBY - Switch on TV when in standby or vice versa

MUTE - Mute the sound or vice versa

DTV - Switch to Freeview source

RADIO - Switch to radio whilst in Freeview source

USB - Switch to USB source

DVD - Switch to DVD source

NUMBER BUTTONS - 0 - 9 to select a TV channel directly.

TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)

- To return to the previous channel viewed

VOL (+/-) - To increase / decrease the sound level

P.MODE - Scrolls through picture mode options

S.MODE - Scrolls through sound mode options

FAV - To display favourites menu

CH (+/-) - To increase or decrease the channel being watched

MENU - To display OSD menu

EXIT - To exit all menus

(▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus

and adjust the system settings to your preference

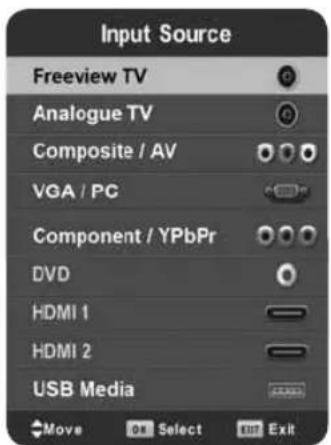

SOURCE - To display the input/source menu

INFO - Press once for now/next channel information

Press twice for programme information about current programme

ASPECT - To switch the screen between the different picture

formats

SLEEP - Press repeatedly to cycle through the sleep options

AUDIO - To change the audio language (if available)

SUBTITLE - To switch the dialogue at the bottom of the screen

(on/off)

TEXT - To enter/exit Text

TEXT HOLD - Teletext mode - Hold current page which is

displayed (Analogue TV)

DISPLAY - To switch off the screen when listening to radio

TEXT/DVD ZOOM - Zoom function for Teletext and DVD

DVD MENU/RECORD - Access the DVD root menu and USB

record function

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc

(To EJECT the disc press/hold the ■/▲ button for 4 seconds)

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list

of what has been previously recorded

GOTO - To go to a specific chapter

A-B - Press once to set point, press a second time to return

to point

ANGLE - Select different angle of DVD

REPEAT - To repeat playback

For Models with Integrated DVD players

For Models with PVR Function

For Models with USB Playback

1 DTV XADD USB DVD 2 1 2 3 4 5 6 7 8 9 TV GUIDE 0 3 + VOL P.MODE S.MODE FAY CH MENU EXIT OK SOURCE INFO 4 ASPECK SLEEP AUDIO SURPLUS TEXT TEXT BLOOD DISPLAY DVD MENU HOLD ZOOM DVD SETUP RCD SET A-B ANGLE REPEAT GOTO

TV BUTTONS AND INPUT SOURCE MENU

This information is for models without built in DVD players

Illustration of a flat-screen TV with a speaker icon and seven circular UI buttons arranged vertically (1-7), no text or symbols on the main image.

1 Volume up and menu right
② Volume down and menu left
3 Programme/Channel up and menu up
4 Programme/Channel down and menu down
5 Displays Menu/OSD
6 Displays the input source menu
7 Standby Power On/Off

This information is for models with built in DVD players

Image showing a flat-screen TV with speaker icon and a vertical list of camera mode options from 1 to 9.

1 Stop/Eject Disc
2 Play/Pause Disc
3 Volume up and menu right
4 Volume down and menu left
5 Programme/Channel up and menu up
6 Programme/Channel down and menu down
7 Displays Menu/OSD
8 Displays the input source menu
9 Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.
2) Press [V] or [A] to select the input you require.
3) Press [OK].
B) Using the buttons on the Television:

1) Press [SOURCE].

2) Scroll up / down using CH+/CH- buttons to the input/source you require.

3) Press Vol+ to change input/source to the one selected.

For further information on input/connections please view 'Connections' pages.

Input Source Freeview TV Analogue TV Composite / AV VGA / PC Component / YPbPr DVD HDMI 1 HDMI 2 USB Media Move OK Select Exit Exit

Example of Source menu depending on the TV model

Connections

CONNECTIONS

EARPHONE VIDEO Q R L Y Pb Pr HDMI1 HOMI2 (AMD) VGA/PC IN VGA / IPC/Audio int A B C D E F G H I

Earphones Earphone Input

B	Video	Video	Input
C	R/L	Input for Composite/Video and Audio for Composite / Video and Component / Y Pb Pr
D
YPbP/Component HD input (Ypbpr)
E
HDMI1 HDMI input
F
HDMI2 (ARC) HDMI input

VGA FG VGA-PC input

VGA Audio In 3.5mm PC audio input
RF IN RF / TV Aerial Input
COAX Audio Out Digital Coax output
K USB		USB	port
CI CA#IN	Common Interface Card Input

CONNECTIONS

Note: Connecting cables are shown for example only and may not be included. Please check 'What Is Included In The Box' page.

Connecting to a device with Composite AV/Video output

TV Source should be set to Composite/AV


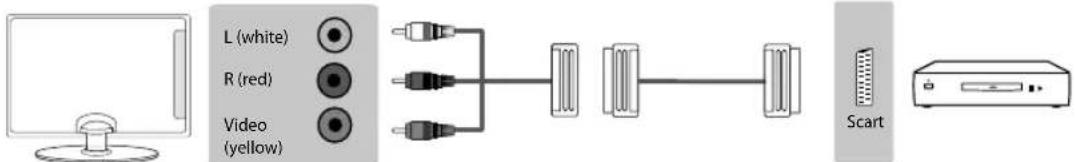

Connecting to a device with SCART output (using SCART to AV cable)

TV Source should be set to Composite/AV

L (white) R (red) Video (yellow) Scart

(SCART to AV/RCA cable not included)

Connecting to a device with HDMI output

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)

Diagram showing connection between a computer monitor, USB drive, and CD-ROM (no text or symbols present)

Note: To use this model TV as a PC/laptop monitor it will need to be connected via the VGA input, it can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is provided to view digital content with compatible external devices

Connections

CONNECTIONS

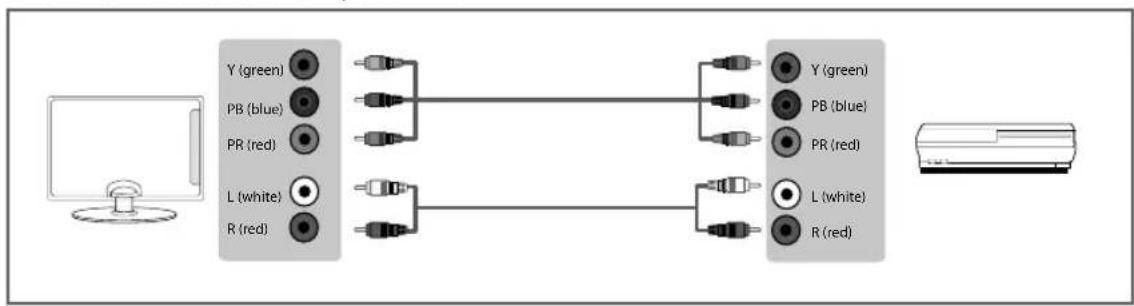

Connecting to a device with Component/YPbPr output

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component/YPbPr


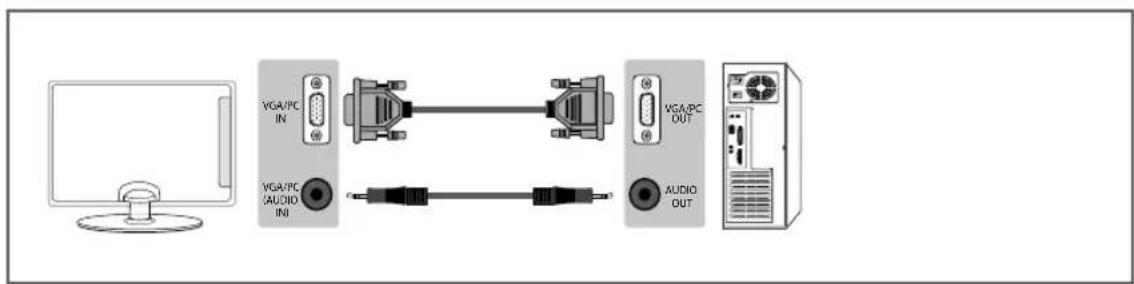

Connecting to a device with VGA/PC output (Laptop or Desktop Computer) TV Source should be set to VGA/PC

VGA/PC IN VGA/PC AUDIO IN VGA/PC OUT AUDIO OUT

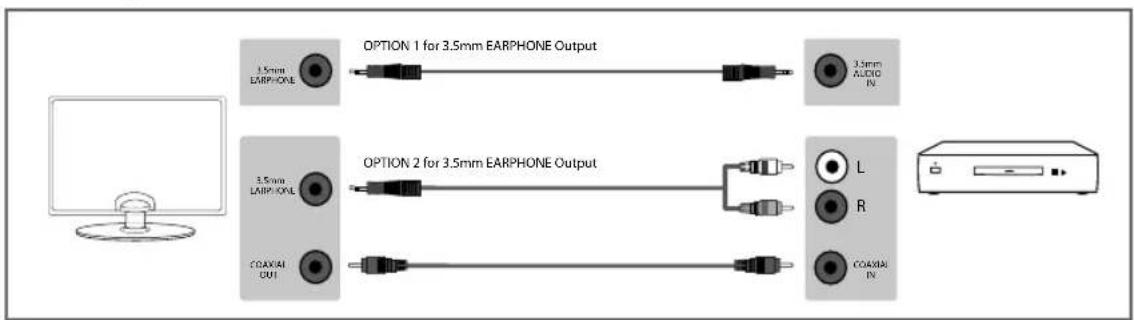

Connecting to an external audio device (Amplifi ers, Surround Sound, Sound Bars etc*)

When connecting via the TV's 3.5mm Earphone output, this will disable the TV speakers.

There are two options to connect a device via the 3.5mm Earphone Output. *Connecting cables not included.

TV Menu Operation

CHANNEL MENU

Auto Tuning Analogue Manual Tuning Freeview Manual Tuning Channel Edit Schedule List Signal Information CI Information

AENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels

Analogue Manual Tuning - Allows you to manually tune your analogue signal

Freeview Manual Tuning - Allows you to manually tune your digital signal*

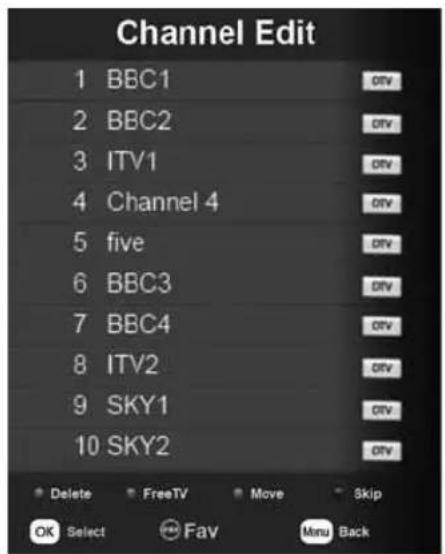

Channel Edit - Allows you to delete, move, skip and add favourite channels

Channel Edit 1 BBC1 2 BBC2 3 ITV1 4 Channel 4 5 five 6 BBC3 7 BBC4 8 ITV2 9 SKY1 10 SKY2 Delete FreeTV Move Skip OK Select Fav Menu Back

Schedule List - Lists your programme reminders

Signal Information - Allows you to view signal frequency, signal quality and signal strength

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In)

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu

PICTURE MENU

PICTURE Picture Mode Economy Contrast 60 Brightness 50 Colour 60 True 50 Sharpness 50 Colour Temp Normal Noise Reduction Off Aspect Ratio Auto

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets:

Dynamic Recommended settings for fast moving pictures

Standard Standard settings

Mild Set to be lighter in colour and less bright

Personal Lets you manually alter all the settings

Economy Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel).

In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

You can make the following adjustments in Personal mode:

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture (only available in VGA/PC source mode).

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature Choose from the following presets:

Normal	Default settings
Warm	Increases red within the picture
Cold Increases blue within the picture

Noise Reduction - Choose from the following presets:

Off Turns noise reduction off

Low Minor system adjustment

Middle Minor system adjustment

High Maximum system adjustments

Default Default system settings

TV Menu Operation

PICTURE MENU

Picture Mode Economy Contrast 60 Brightness 50 Colour 60 Tint 50 Sharpness 50 Colour Temp Normal Noise Reduction Off Aspect Ratio Auto More Return Select Exit

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll

To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auto

Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.

16:9

Illustration of a computer monitor with five circular windows on the left (no text or symbols)

Fills the screen

with a regular

16:9 signal and

4:3 picture

format will be

stretched to fi ll

the screen

Full screen

Will display the picture from the broadcaster without any change

Zoom1 and

Zoom2

Illustration of a computer monitor with a circular screen and six surrounding geometric shapes (no text or symbols)

The picture

is the correct

proportion

but zoomed

in to fill the

4:3

Illustration of a computer monitor with a central screen and surrounding circular elements (no text or symbols)

Displays the 4:3

picture in its

original size.

Side bars are

shown to fill the

16:9 screen

SOUND MENU

Sound Mode Trouble Base Balance Auto Volume Level Surround Sound Digital Output Audio Description Audio Delay Standard 5.0 5.0 0 On TruSurround HD PCM Off Move Return Select Exit

MENU EXIT OK SOURCE INFO

Sound Mode - Choose from the following presets

Standard	Default	settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Sports	Emphasises sound for sports
Personal	Selects your personal sound settings

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Treble - To adjust the amount of high frequency within the sound

Bass - To adjust the amount of low frequency within the sound

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will attempt to stay at a constant level regardless of TV programme and advertisements

Surround Sound - Choose from the following options:

Off Off
DTS TruSurround two speakers,	TruSurround ^TM creates an immersive, feature-rich surround sound experience from complete with rich bass, high frequency detail and clear dialog

Digital Output - This is the digital COAX audio output. Choose from the following options:

Off To turn off Digital Output

Auto Selects the best settings automatically

PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

Audio Description - This allows the user to increase and decrease the AD (Audio Description) volume level.

(Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired)

Audio Delay - Enables the user to adjust setting to sync picture and audio

dts

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

TV Menu Operation

TIME MENU

Clock Off Time Off On Time Off Time Zone GMT+1 Sleep Timer Off Auto Stadsby 3 H OSD Timer 30 S

MENS EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Clock - Shows the date and time

Off Time - Allows you to set a specific time for your TV to turn off

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day (the TV must be in standby mode for this to be effective)

Time Zone - Change your current time zone

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours (to turn off this function you must exit Home Mode in the Picture Menu)

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

SYSTEMHOTEL LOCK System/Hotel Lock Off TV Button Lock Off Parental Guidance Off Default Source Off Default Channel 1 Source Lock Channel Lock Max Volume 100 Change Password Mnys Return Get Select Exit

MENU ENT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password Use the ◀ button to quit the password input or use the ▶ button to clear. Default password is 0000.

TV Button Lock - Allows you to lock the buttons on the side of the TV set

Parental Guidance - Allows you to set the rating to block certain content based on age information

Default Source - Allows the user to set the default source. The default source is the source the TV starts on when first switched on

Default Channel - Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when fi rst switched on

Source Lock - Allows you to lock the source menu

Channel Lock - Allows you to lock certain channels manually

Max Volume - Allows you to adjust and set the maximum volume

Change Password - Allows you to change the password

TV Menu Operation

SETUP MENU

Language Audio Languages Subtitle Language Hearing Impaired PWR File System Blue Screen First Time Installation Reset TV Software Update (USB) HDMI CEC LED Status English English Off On On

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.

Language - Allows you to change the language of the menu

TT Language - Shows the current Teletext language

Audio Language - Shows the current audio language

Subtitle Language - Shows the current subtitle language

Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

PVR File System - Allows you to view the format and performance of a USB key

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

First Time Installation - Allows you to access the First Time Installation menu and retune the TV set

Reset TV - This resets the menus to factory settings and clears all the TV channels from the television.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website

HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices)

LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated. (When this option is set to OFF the LED Power indicator light will flash when the remote control is used)

DVD SETUP

(Applies to models with built in DVD player)

-- Preference Page -- TV Type PAL PAL Default MON VIDEO Hot TV Standard

MENI OUT OK SOURCE INFO

To enter this menu please ensure the TV is in DVD source & press [DVD SETUP]

If you wish to make changes to any of the default settings, use the scroll ▲▲▲▲ buttons. To confirm any settings press [OK] button. To exit this menu at anytime, press [DVD SETUP] button.

TV Display - Choose from the following options

4:3 Pan scan PS Traditional picture format, often used on old fi lm
4:3 Letter box LB Traditional picture which has been adapted for widescreen
Wide 16:9 Widescreen picture format

Speaker Setup - Choose from the following options

LT/RT Converts from multi-channel sound to mono Stereo Converts from multi-channel sound to stereo

Dual Mono - Choose from the following options

Stereo	Outputs 2 channels of sound both left and right
Mono L	Outputs left side sound
Mono R	Outputs right side sound
Mix Mono	Outputs a single channel of sound but mix between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full Set this to listen with the range recorded on the disc
3/4 Set this to listen with a range equivalent to a normal television
1/2 Set this to listen with a smaller difference between the maximum and minimum volume
1/4 Set this to listen with a smaller difference between the maximum and minimum volume
Off Set dynamic range to off

TV Type - Choose from the following options

PAL For discs from UK/Europe, Asia, Australia etc
Multi For both NTSC and PAL
NTSC For discs from North America, Japan etc

Default - Choose from the following options

Reset Resets all options in the 'DVD setup' menu back to the default settings

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk. Select 'Product Support', 'Changing Region'.

7 DAY TV GUIDE

TV Guide is available in FreeviewTV mode. It provides information about forthcoming programmes (where supported by the Freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear..

7 Day TV GUIDE 10 Years Younger: The Challenge Season 2 Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanning has taken its toll, while the stress of bringing up two daughters and heavy smoking has affected Interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide 04 Aug 2010 10:42 BBC1 05:00-06:00 10 Years Younger: The Challenge BBC2 06:00-06:30 The Simpsons ITV1 06:30-07:00 Hollyoaks Channel 4 07:00-08:00 Channel 4 News five 08:00-09:00 How to Look Good Naked BBC3 09:00-10:00 Newlyweds: The One Year Itch BBC4 10:00-11:15 Big Brother ITV2 11:15-11:45 The Big Bang Theory Record Remind Prev Day Next Day Move View Display EXIT Exit

2) Navigate through the menu using ▲▼▶◀

You can now:

Record a programme by pressing RED (USB device must be connected)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB RECORD - DIGITAL/FREEVIEW MODE

USB RECORD - DIGITAL/FREEVIEW MODE

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
  • One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause Live TV (Time Shift)

Pausing Live TV is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB MODE/MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi le type.

C1 PHOTO MUSIC MOVE TEXT

1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.

PHOTO 5 Return C

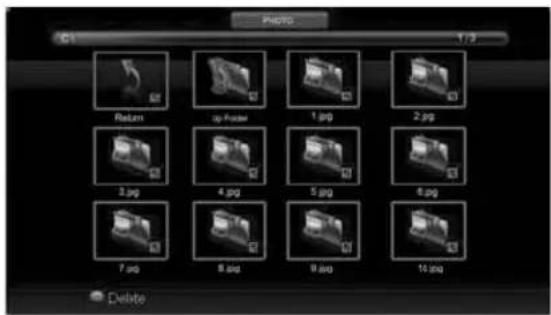

2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

Photo C1 1/3 Return up Poster 1.jpg 2.jpg 3.jpg 4.jpg 5.jpg 6.jpg 7.jpg 8.jpg 9.jpg 10.jpg Delete

3) You can now access the item. Press OK to view.

DSCF1568.JPG Pause Free Next Stop RealLL Music Playlist Info

4) Whilst viewing your media, you can control the item by using the remote control buttons (below) or by pressing (Info) to access the on-screen playback menu, you can now make your selection by using the ▲▼▶◀ and (OK) buttons on the remote control.

Fig.A

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound) See technical specification page for compatible file types

Note: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

USING YOUR TV WITH A SKY DIGITAL SET TOP BOX

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately).

If connecting by SCART, select the 'Input source' on the TV as SCART. If your TV does not have SCART, please refer to 'Connections' pages in this user guide for alternative ways to connect.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV).

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to program a 4 digit code into it. See bottom of this page.

SCART adapter or HDMI cable Sky Box

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set

up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

IDMI cable or CART adapter Sky Box RFCOAX cable from Sky Box to 2nd TV Connect to RF or RFZ output on the Sky box TV Link/Magic Eye (optional) Connect to the Aerial/RF input on the 2nd TV 2nd TV in another room

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See below.

Using a Sky remote or a universal remote to operate your TV

Sky remote control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to program a 4 digit code into it. Please note - you will need a Sky Revision 9 remote control (or later). The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our website.

Universal remote control - If you wish to use a Universal remote control to operate your TV, please refer to the website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

FREQUENTLY ASKED QUESTIONS

General I would like to	have louder sound by connecting additional speakers.	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifier/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a COAX cable from the TV's COAX output to your amplifi er/surround systems COAX input.
General Why are some	options in the menu unavailable and greyed out.	Some options are only available in certain sources, i.e. HDMI. They are unavailable in the other sources where they have no aff ect.
General Can I stop my TV	automatically turning off after 4hrs?	Yes, in the 'Time' menu settings, scroll down to Auto standby and select OFF.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.		1) Check you are in an area that can receive Freeview/Saorview, visit www.freeview.co.uk or www.saorview.ie2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent digital coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/ indoor type aerial.
TV I have re-tuned my	television but when I switch it off it is not storing the channels.	If the TV does not save the channels when you power it off, it's likely the channel database has become corrupt.1) Turn off the TV.2) Remove the RF/Aerial cable from the rear of the TV and then turn the TV back on again.3) Using the remote control, press Menu followed by 8-8-8-8 to enter the initial setup/first time installation menu.4) Press OK (let the TV run the full tuning process).5) Once completed, turn off the TV, reconnect the RF/Aerial cable then turn the TV back on again.6) Repeat steps 3 & 4.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
Game Consoles I have	connected my Playstation/Xbox to the TV via HDMI, but I am not receiving any pictures or sound on my Television.	1) Ensure the TVs' source is set to HDMI.2) Check your settings on your Playstation/Xbox are as per the Playstation/Xbox instruction manual.
Game Consoles I have	connected my Playstation/Xbox to the TV via Component cables (red, green & blue) but I am not receiving any sound.	Component cables only provide HD pictures. For the sound you will need to connect the red & white audio cables on the Playstation/Xbox to the red & white phono inputs (or mini AV input where fitted) on the rear of the TV. Please refer to the 'Connections' pages.
System Lock I have changed	the password on the television and now forgotten it.	There is a master password of 4711, to gain access to the TV menu and reset the normal password.

FREQUENTLY ASKED QUESTIONS

USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive / larger than 32GB.	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 file system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives.Please refer to the website, www.umc-uk.co.uk, for more information.
DVD (For TV models with DVD only)	I have inserted a disc but it is not playing.1) Ensure you have inserted the disc facing the correct way.2) Ensure the disc is clean and is not scratched.3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to www.umc-uk.co.uk, select ‘Changing DVD Region’ in the ‘Product Support’ section
DVD (For TV models with DVD only)	I have pressed the eject button but the disc is not coming out.To eject the disc hold the stop/eject button for 4 seconds.
USB Record I cannot change the channel, access the menu or use the red button.	During time shift you cannot change the channel, access the menu or use the red button.
USB Record When using the USB to record the picture ‘breaks up’ or experience loss of sound.	Check the USB memory stick meets the minimum read speed requirements. Standard definition channels require a read speed of 20 MB/s (Mega Byte per second) and a write Speed of 6 MB/s (Mega Byte per second) HD channels require the read speed of 80 MB/s (Mega Byte per second) and a write speed of 40 MB/s (Mega Byte per second). USB 3.0 sticks should be used where possible.

TECHNICAL SPECIFICATION

Product fiche (22" Full HD Models)

Trademark	Technika
Model ID	22E21B-FHD	(Models with inbuilt DVD player)22E21B-FHD/DVD22E21W-FHD/DVD22E21P-FHD/DVD22E21S-FHD/DVD
Energy efficiency class A
Visible screen size (diagonal) 55 cm / 21.5 inches
On mode power consumption 20.0 W
Annual energy consumption *1 30 kWh
Standby power consumption *2 <0.50 W
Off mode power consumption	0 W
Screen resolution	1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

RF 75 ohm Antenna / Analog / DVB
Inputs 2 x HDMI, 1 x USB, 1 x Composite/Video, 1 x shared L/R audio forComposite/Video & Component/YPbPr,1 x Component/YPbPr, 1 x VGA/PC,1 x 3.5mm jack for PC audio input
Sound Outputs 1 x Coax Audio output, 1 x 3.5mm Headphone
Speaker / Sound Watts (RMS) 2 x 5 / 2 x 3
Voltage and power consumption 110-240V 50 / 60Hz	20/40W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)	110-240V 50 / 60Hz20/50W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)
Dimensions including stand (mm)	510W x 355H x 140D
Net weight (Kgs) 4.1 4.4
Wall Mounting VESA 100 x 100 (mm)

TECHNICAL SPECIFICATION

Trademark	Technika
Model ID	24E21B-FHD	24E21B-FHD/DVD24E21W-FHD/DVD(Models with inbuilt DVD player)
Energy efficiency class A
Visible screen size (diagonal) 60 cm / 23.6 inches
On mode power consumption 25.0 W
Annual energy consumption *1	37 kWh
Standby power consumption *2	<0.50 W
Off mode power consumption	0 W
Screen resolution	1920 (H) x 1080 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

RF 75 ohm Antenna / Analog / DVB
Inputs 2 x HDMI, 1 x USB, 1 x Composite/Video, 1 x shared L/R audio forComposite/Video & Component/YPbPr,1 x Component/YPbPr, 1 x VGA/PC,1 x 3.5mm jack for PC audio input
Sound Outputs 1 x Coax Audio output, 1 x 3.5mm Headphone
Speaker / Sound Watts (RMS) 2 x 5 / 2 x 3
Voltage and power consumption 110-240V 50 / 60Hz	25/40W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)	110-240V 50 / 60Hz25/50W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)
Dimensions including stand (mm)	560W x 386H x 140D
Net weight (Kgs) 4.5 4.9
Wall Mounting VESA 100 x 100 (mm)

TECHNICAL SPECIFICATION

Product fi che (24" HD Ready Models)

Trademark	Technika
Model ID	24E21B-HDR	24E21B-HDR/DVD24E21W-HDR/DVD (Models with inbuilt DVD player)
Energy efficiency class A
Visible screen size (diagonal) 60 cm / 23.6 inches
On mode power consumption	25.0 W
Annual energy consumption *1	37 kWh
Standby power consumption *2	<0.50 W
Off mode power consumption	0 W
Screen resolution	1366 (H) x 768 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information

RF 75 ohm Antenna / Analog / DVB
Inputs 2 x HDMI, 1 x USB, 1 x Composite/Video, 1 x shared L/R audiofor Composite/Video & Component/YPbPr,1 x Component/YPbPr, 1 x VGA/PC,1 x 3.5mm jack for PC audio input
Sound Outputs 1 x Coax Audio output, 1 x 3.5mm Headphone
Speaker / Sound Watts (RMS) 2 x 5 / 2 x 3
Voltage and power consumption 110-240V 50 / 60Hz	25/40W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)	110-240V 50 / 60Hz25/50W (ecomode/max)(<0,5W in Standby)(0W in OFF mode)
Dimensions including stand (mm)	560W x 386H x 140D
Net weight (Kgs) 4.5 4.9
Wall Mounting VESA 100 x 100 (mm)

TECHNICAL SPECIFICATION

Compatible files in USB Mode

Media File Ext.		Codec		Remark
		Video Audio
Movie	.mpg MPEG-1, MPEG-2		MP3, WMA, AAC	Max Resolution: 1920x1080Max Data rate: 40 Mbps
	.avi	Xvid, MJPEG, MPEG-4 SP/ASP, H.264		Max Resolution: 1920x1080Max Data rate: 20 Mbps
	.ts MPEG-2, H.264
	.mov/.mkv	MPEG-4 SP/ASP, H.264
	.dat MPEG-1
	.mp4	MPEG-4 SP/ASP, H.264
		MPEG-1, MPEG-2		Max Resolution: 720x576Max Data rate: 40 Mbps
	.vob MPEG-2
Music	.mp3 - MP3			Sample Rate 8K-48KHzBit rate: 32K - 320KbpsChannel: Mono/Stereo
	.wma - WMA
	.m4a/.aac	- AAC		Sample Rate 16K-48KHzBit rate: 32K ~ 442KbpsChannel: Mono/Stereo
Photo	.jpg/.jpeg	Progressive JPEG Max Resolution		1024x768
		Baseline JPEG Max Resolution		8192x8192
	.bmp BMP			Max Resolution: 6500x6500Pixel Depth 1/4/8/16/24/32 bpp
	.png	Non-Interlaced Max Resolution		3000x3000
		Interlaced Max Resolution		1500x1500

TEC/MAN/0091
