SPD-1660R - Digital decoder Hanwha - Free user manual and instructions

Product Type	Digital Decoder
Brand	Hanwha
Model	SPD-1660R
Category	Digital Decoder
Input Video Formats	Analog (NTSC/PAL) and Digital (IP)
Output Resolution	Up to 1080p
Video Output	HDMI, VGA, BNC
Audio Support	Yes, bidirectional
Ethernet Port	RJ45 10/100Base-T
Serial Port	RS-485/422
Power Supply	DC 12V, 0.5A
Power Consumption	≤6W
Operating Temperature	-10°C to 50°C
Dimensions (W x D x H)	200 x 150 x 40 mm
Weight	0.5 kg
Mounting	Desktop or rack mount (optional)
Supported Protocols	ONVIF, RTSP, HTTP
User Interface	On-screen display (OSD)
Maintenance	Clean with dry cloth; avoid liquids
Safety	Use certified power adapter; keep ventilated
Spare Parts	Power adapter, remote control (if included)
Reparability	Refer to service center for repairs
General Information	Manufactured in Korea

Frequently Asked Questions - SPD-1660R Hanwha

What video formats does the SPD-1660R support?

How do I connect the decoder to my camera system?

Can I output to multiple monitors?

What is the maximum resolution?

Does it support audio?

How do I update firmware?

What power adapter is required?

Is it compatible with ONVIF cameras?

How to reset to factory settings?

What is the warranty period?

USER MANUAL SPD-1660R Hanwha

©2018 Henuhe Techwin Co., Ltd. All rights reserved.

Trademark

Each product name is registered. The name of this product and other trade marks are recorded in this manual are the top recorded trademark of

the company

Restriction

Copyright of this document is reserved. Under no circumstances, the document shall be reproduced, distributed or changed partially orally.

vi.uct cmll aithor cbls.

Disclaimer

Henaha Techummakes the best to verify the integrity and consequences of the contents in its document, but no formal guarantee shall be

provided Use of a boccurant and the subsequent list will be tested on the last's can reversibly. Handone Tuchwärteses the light

to change the content of this document with a color notice

- Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the

information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit.

Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Standards Approvals

• Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

BEFORE START

This manual provides operational information necessary for using the product and contains a description about each component part and its function as well as menu or network settings. You have to keep in mind the following notices :

Planwha Techwin retains the copyright on this manual.
This manual cannot be copied without Hanwha Techwin's prior written approval.
We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.
Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an exclosion.
The following are the specifications of the battery you are using now.

Normal voltage : 3V
Normal capacity : 210mAh
Continuous standard load : 0.4mA
Operating temperature: -20°C \~ +60°C (-4°F \~ +140°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. *Perchlorate Material - special handling may apply. See www.dcr.ca/ce/hazardousways/perchlorate.*

Caution

Connect the power cord into a grounded outlet.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

Operating Temperature

The guaranteed operating temperature range of this product is 0°C - 40°C (32°F - 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one.
Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period. Please ensure product is stored under appropriate temperature conditions.

overview

contentS

overview

3 Important Safety Instructions
3 Before Start
4 Contents
5 Features
6 Part Names and Functions

inStaLLation

7 Checking the installation environment
7 How to install the SPD-260B in the SPD-1660R

[Non-Text]

connecting with other device

8 Connecting to an external device
8 Connecting the Alarm Input/Output

[Non-Text]

network connection and Setup

9 Connecting the Network
10 Buttons used in IP Installer
10 Static IP Setup
12 Dynamic IP Setup
12 How to connect a network decoder on a shared local PC
12 How to connect to a network decoder
13 Login

video wall

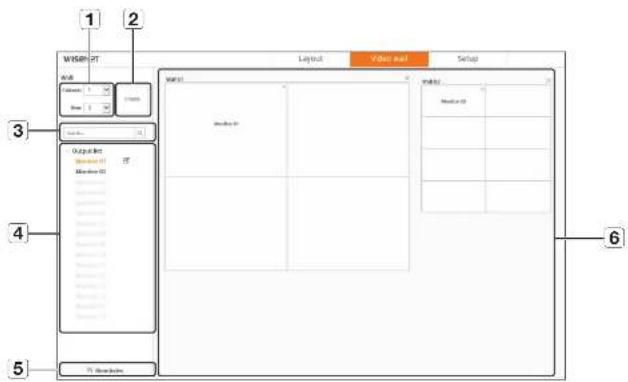

14 Video wall settings

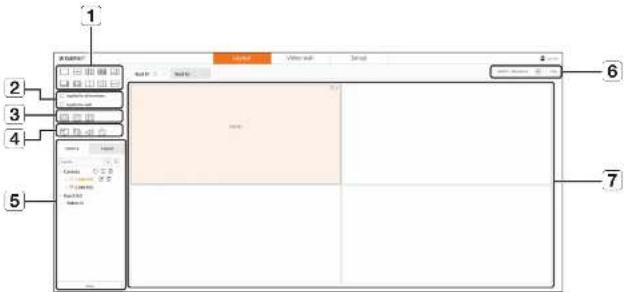

Layout

16 layout

menu Setup

21 System Setup
23 Setting the Event
24 Network Configuration

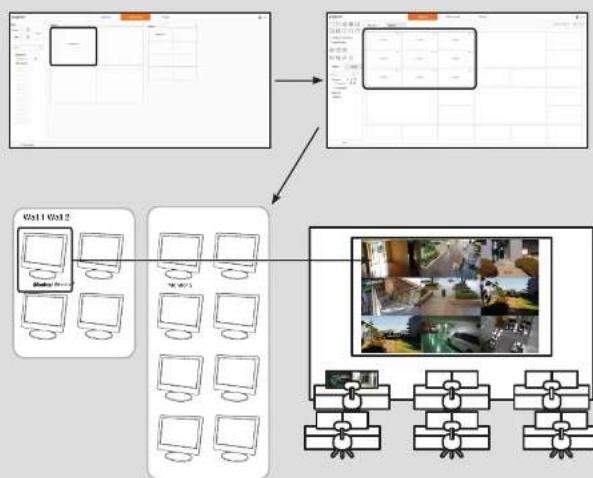

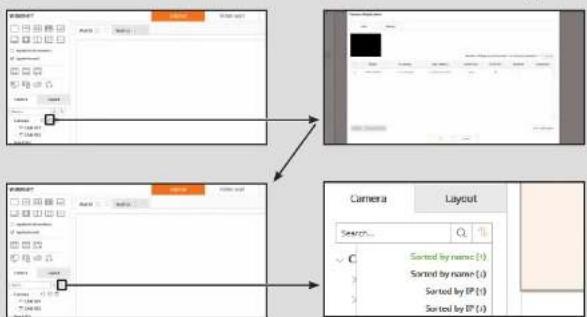

video wall configuration guide

26 Video wall configuration guide

appendix

28 Product Specification
29 Product Overview
29 Default Setting
30 Troubleshooting
31 Open Source License Report on the Product

FEATURES

This product can monitor the video and audio from network cameras.

Provides an environment in which you can set this product on your PC.

User-friendly UI

Supports various 4K camera resolutions 3840x2160@60HZ/30HZ (Only HDMI-HDMI 1)
Supports up to 16 monitors (2 outputs per decoder (4K, 1080P) and a separate VGA (Clonci))
HDMI input (PC input / 1 port only)
Supports ONMF Profile S standard and RTP / RTSP protocols
Can register up to 128 channels
Alarm Input / Output
Supports merging between mentors
Supports various user-defined layouts

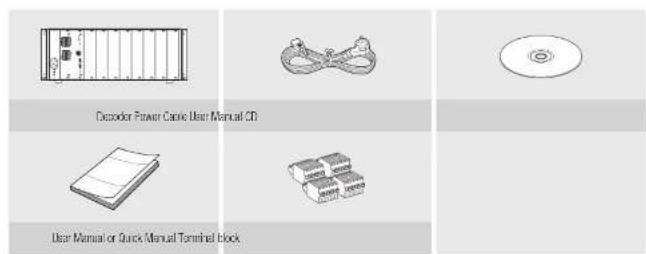

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit.

Decoupler Power Canic User Manual CD User Manual or Quick Manual Terminal block

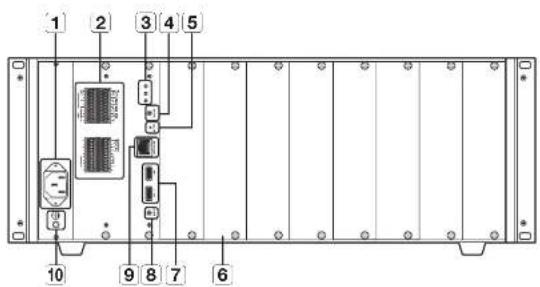

part nameS and functionS

Spd-1660r

1 2 3 4 5 10 9 8 7 6

Part Names Functions
1	Power	Terminal to connect power to.
2	ALARM	- ALARM IN : Alarm input ports. (1 - 16 CH) - ALARM RESET : Alarm Reset port - ALARM OUT : Alarm output ports. (1 - 8 CH)
3	LED Indicator	POWER : Shows the power ON/OFF status.
		RUN : Shows the operation status.
		NETWORK : Shows the network connection status.
4	CONSOLE	This is a device for after sales service. (Cannot be used by user)
5	RESET	Resets the password.
6	SPD-260B Mounting Slot	This is a slot for mounting the black (SPD-260B). Eight slots are assigned from 1 to 8 beginning from the lat/least slot, and when the blade (SPD-260B) is mounted, the slots are specified to wait from slot 1 in order.
7	USB	This is a device for after sales service. (Cannot be used by user)
8	AUDIO OUT	Audio Signal Output Port (RCA jack).
9	NETWORK	This port is used for camera connection and web viewer connection.
10	Ground connection	Terminal to connect a separate ground cable. - Add a ground cable to support the safe use of the device.

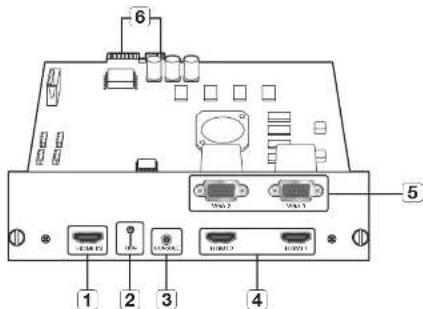

Spd-260B

6 5 1 2 3 4

Part Names Functions
1	HDMI IN	HDMI video Input terminal.
2	RUN	Shows the operation status.
3	CONSOLE	This is a choice for after sales service.
4	HDMI 1/2	HDMI connector port.▪ HDMI 1 (Maximum supported resolution : 2160P)▪ HDMI 2 (Maximum supported resolution : 1060P)
5	VGA 1/2	VGA Video Signal Output Port.▪ Maximum supported resolution 1080P
6	Jack connector	This terminal connects the blade to the rack when plugged into the blade (SPD-2608) block.

■ SPD-260B is sold separately.

installation

Please take note of the followings before using this product.

Do not use the product outdoor.

Do not spill water or liquid in the connection part of the product.

Do not impose the system to excessive shock or force.

Do not pull out the power plug forcefully.

Do not disassemble the product on your own.

Do not exceed the rated input/output range.

Use a certified power cord only.

For the product with an input ground, use a grounded power plug,

checking the inStaLLation environment

Note that an excessive internal temperature of the product may cause a system failure or a shortened product life (see the right figure). Keep in mind the following instructions before installing the product.

Life (Unit: HOURS)
[Figure 1]

When mounting the product on a rack, comply with the following instructions.

1. Please ensure that the rack inside is not sealed.
2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
3. If you pie up the crudols or other rack-mount devices as shown in figure 2, secure room for ventilation or install a vent.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between 0°C \~ 40°C (32°F \~ 104°F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tms) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

[Figure 2]

how to inStaLL the Spd-260B in the Spd-1660r

Turn off the SPD-1660R and install the blade (SPD-260B).

1. Unscrew both sides of the cover on the SPD-1660R blade (SPD-260B) mounting slot.

Technical line drawing of a modular industrial or storage unit with internal components and mounting holes (no text or symbols)

1. Insert the blade (SPD-260B) into the slide grooves on both sides as shown in the figure, and push it in the direction of the arrow.
2. Side the blade (SPD-260B) into the rack until the ends of the rack are aligned and tighten the screws.

Line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

• This is applied when all the blades (SPD 2603) are installed.
  ■ Mount the blade (SPD-260B) in order from left (Figure 1).

1 2 3 4 5 6 7 8

connecting with other device

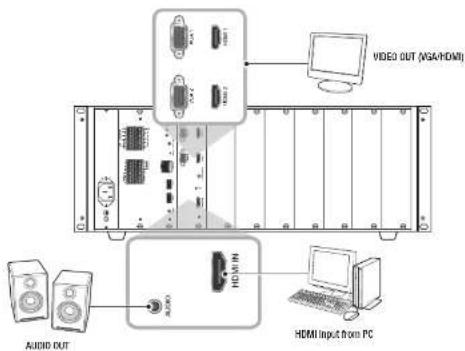

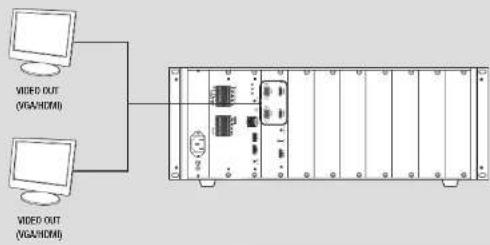

connecting to an external device

VIDEO OUT (VGA/HDMI) AUDIO OUT HDMI HDMI Input Port PC

- Unrated or improper power source may cause damage to the system. Ensure that you use only the rated power source before pressing the POWER button.

- HDMI does not support audio output.

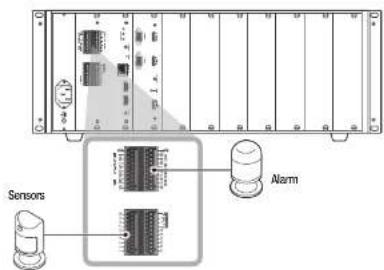

connecting the aLarm input/output

The Alarm In/Out port at the back is composed of the following.

Sensors Alarm

ALARM IN 1 - 16 : Alarm input Port
ALARM RESET: On receiving an Alarm Reset signal, the system cancels the current Alarm Input and resumes sensing.
ALARM OUT 1 - 8 : Alarm Output Port

network connection and setup

CONNECTING THE NETWORK

- For more information about network connection, refer to "Network Configuration" (Page 2-1)

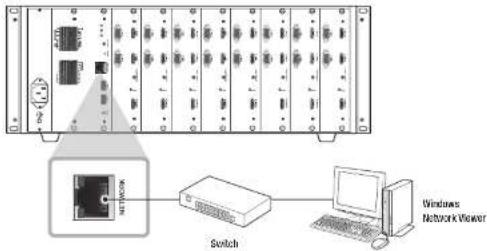

Network connection via Ethernet (10/100/1000BaseT)

NETWORK Switch Windows Network Viewer

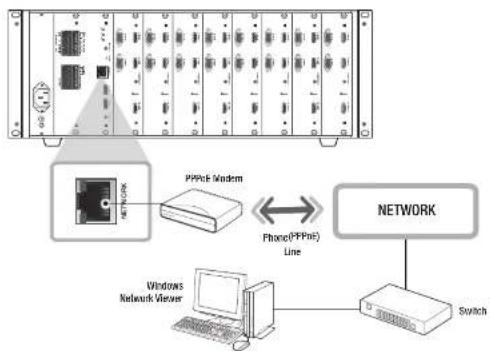

Connecting to Internet through PPPoE


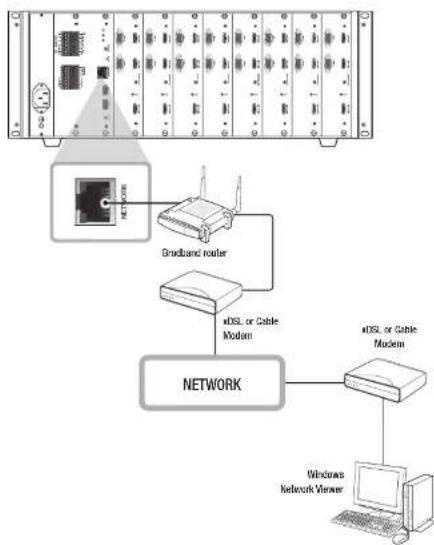

Network connection via router

network connection and setup

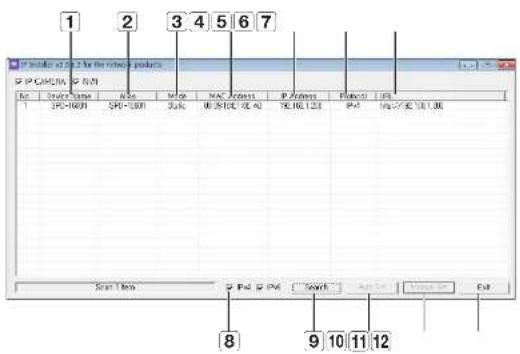

BUTTONS USED IN IP INSTALLER

1 2 3 4 5 6 7 IP CASHION IP CASHION File Name A No M No MAC Address P Address P Duct I US SP-10001 SP-1001 Sub W/010C-06.40 TE06.1.58 IP4 In:27E_161.08 Start Item Stop Apply Remove OK Exit

Part Names Functions
1	Device Name	This is the model name of the connected network decoder.Click the column to sort the list by model name.However, search will be stopped if clicked during the search.
2	Alias	Shows the device name of the connected product information.
3	Mode	Displays eitherorfor the current network connection status.
4	MAC(Ethernet)Address	This is the Ethernet address of the associated network decoder.Click the column to sort the list by Ethernet addresses.However, search will be stopped if clicked during the search.
5	IP Address	IP address.Click the column to sort the list by IP address.However, search will be stopped if clicked during the search.The factory default selling is "92.168.1.200".
6	Protocol	This is the network setting of the network decoder.The factory default is "IPv4".
7	URL	A URL address that can be accessed externally via the Internet.
8	IPv4	Searches network decoders set to IPv4.

Part Names Functions
9	Search	Searches network connectors currently connected to the network.However, the connector can be searched using Perf.
10	Auto Set	The IP Installer automatically configures the network settings.
11	Manual Set	You should configure the network settings manually.
12	Exit	Gets the IP Installer program.

• For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download the latest version from the Hanwha Techwn web site.
• If the supporting OS is Windows 8.1, it is recommended that you use the Wisenet Device Manager instead of the IP Wisenet. The Wisenet Device Manager Program can be downloaded by visiting the Hanwha Technik website (http://www.hanwha-society.com) under the menu .

STATIC IP SETUP

Manual Network Setup

Run to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

1. Select desired network decoders from the search list. Check the MAC (Ethernet Acidress) on the back of the network decoder. Both the [Auto Set] and [Manual Set] buttons will be activated.
2. Click [Manual Set].

The Manual Setting dialog appears. The , , , , and of the network decoder are displayed as the previously set values.

1. In the
   pane, provide the necessary information.

- MAC (Ethernet) Address: The MAC address imprinted on the camera label is automatically displayed and requires no user setting.

- IP related parameters can be set only when DHCP is not checked.

ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 ST-CAMK 8.750 12:30 AM 12:30 PM 12:30 noon 12:30 afternoon 12:30 evening 12:30 night 12:30 PM 12:30 PM 12:30 noon 12:30 PM 12:30 noon 12:30 PM 12:30 night 12:30 PM 12:30 noon 12:30 PM 12:30 noon 12:30 PM 12:30 night 12:30 PM 12:30 noon 12:30 PM 12:30 noon 12:30 PM 12:30 night 12:30 PM 12:30 noon

Serial Settings Address: C:\TIP\Host\STOCK MSC Address: 000100100.00 IP Address: 152 138 1 239 System Mask: 265 235 256 0 Outflow: 180 180 1 1 Password: OK Cancel

If not using a Broadband Router

For setting , , and , contact your network administrator.

1. In the pane, provide necessary information:

HTTP Port: This is the HTTP port used to connect to the network decoder using an internal browser. The default value is 80.

You can change the HTTP port value by entering it manually.

Port (TCP): This port controls video transmission. The default value is 554.

User Setting Address C:\DOC F:\STAGE MAC Address 网络文件名:00 IP Address 160 160 1 233 Subway Mask 250 250 250 1 Password: OK Cancel Post HTTP Port: 30 Post(TCP): 857

1. Enter your password.

The password is the login password of the "admin" user when connecting to the network decoder. The default password is "4321".

For the security purposes, you are recommended to use a combination of numbers, alphabets apporcase and lowercase and special characters for your password.

1. Click [OK].

Manual network setup will be completed.

If using a Broadband Router

- IP Address ; Enter an address failing in the IP range provided by the Broadband Router. ox) 192.168.1.2-254, 192.168.0.2-254, 192.168.XXX.2-254

- Subnet Mask: The of the Broadband Router will be the of the camera.

- Gateway: The of the Broadband Router will be the of the camera.

The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.

Setup Windows 5.0 Name: Windows Security Server System Setup Internet Setup Internet Connection Type Optimal Data Bus Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Provider Microsoft Internet Period1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234-1234- Software Setup Server #: 9767-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-888-88

Auto Network Setup

Run the program to display the network decoder search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

1. Select your desired network decoders from the search list. Check the MAC (Ethernet Address) on the back of the network decoder. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Auto Set].

The Auto Setting dialog appears. The , , and will be set automatically.

1. Enter the password.

The password is the login password of the "admin" user when connecting to the network decoder. The default password is '4321'.

For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and special characters for your password.

1. Click [OK].

Auto network setup will be completed.

network connection and setup

DYNAMIC IP SETUP

Dynamic IP Environment Setup

• Example of the Dynamic IP environment

- When a network decoder is installed on an IP router, and when it is allocated using DHCP.

- When the network decoder is installed directly on a modem that uses DHCP.

- If IPs are assigned by the internal DHCP server via the LAN

Checking the Dynamic IP

1. Run the IP Installer on the user's local computer. The network decoders assigned to are displayed in the list.

2. Select the network decoder found.

3. Click the [Manual Set] button to check the setting currently set in the network decoder. If you release the , you can change the IP address to .

Scanned screenshot of a Chinese software interface showing a form with input fields and buttons, likely for data entry or configuration.

Format Settings Address C:\Users\NTB\CP\STARS MAC Address: 0275131640 P Address: 100 100 1 100 Current Port: 25 25 25 1 Subway: 100 100 1 1 Parameters: Post RTF-Ext. 80 PortTCP1. 80 OK Cancel

HOW TO CONNECT A NETWORK DECODER ON A SHARED LOCAL PC

1. Run the IP installer.

The installer searches for connected network decoders and displays them in the list.

1. Double-click the connected network decoder. The Internet browser starts and connects to the network decoder.

The user can open the Internet browser and enter the IP address of the network decoder in the address bar.

Public COLD - Noted point

240000.0000

File Edit View Help 1.000000.0000 2.000000.0000 3.000000.0000 4.000000.0000 5.000000.0000 6.000000.0000 7.000000.0000 8.000000.0000 9.000000.0000 10.000000.0000 11.000000.0000 12.000000.0000 13.000000.0000 14.000000.0000 15.000000.0000 16.000000.0000 17.000000.0000 18.000000.0000 19.000000.0000 20.000000.0000 21.000000.0000 22.000000.0000 23.000000.000 24. 1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 Test Set: If PC @ PC, Back: < Back > Back

HOW TO CONNECT TO A NETWORK DECODER

Normally, you would

1. Launch the Internet browser.

2. Enter the IP address of the network decoder in the address bar.

ox) • IP address (IPv4): 192.168.1.200 → http://192.168.1.200

- the Login dialog should appear.

• IP address (IPv6): 2001:230:abcd

fff:0000:0000:fff:1111 → http://[2001:230:abcd:fff:0000:0000:fff:1111]

- The login dialog should appear.

If the HTTP port is other than 80

1. Launch the Internet browser.

2. Enter the IP address and HTTP port number of the network decoder in the address bar. ex) IP address : 192.168.1.200:HTTP Port number(8080) → http://192.168.1.200:8080

- The login dialog should appear.

Windows Security The server: 192.106.3.254 at Internet Decoder requires a username and password. User name: Password: Remember my credentials OK Cancel

LOGIN

The first time you connect after purchasing, the ID is "admin" and the password is "4321".

1. Enter 'admin' in the nput box.
2. Enter '4321' in the field. The password setting window appears for the first time. If you have changed your password, enter your new password.
3. Click the [OK] button. When login is complete, the video wall setup screen appears.

- For security, be sure to change the password in in the setting screen.

• If you enter a user name and password, and then check the 'Save password in the password list' checkbox, the user name and password will be automatically set for the next time you connect.
• Internet Explorer will display the image best when the aspect ratio is 100%. If you reduce the aspect ratio, the screen may appear to be 'cut off'.
• You cannot double-login with the "admin" account.
• It takes about five minutes after you disconnect from the 'admin' account to access the user account.

Windows Security The server ISP4.234 at Microsoft Decoder requires a username and password. User name: Password: Remember my credentials OK Cancel

Change administrator password Language: English Name: PWR Password: PWR If the following is a default, the name of the server will be required to be displayed in the Windows application: 1. To ensure that the name of the server will not be required to be displayed in the Windows application: 2. To ensure that the name of the server will not be required to be displayed in the Windows application: 3. To ensure that the name of the server will not be required to be displayed in the Windows application: 4. To ensure that the name of the server will not be required to be displayed in the Windows application: 5. To ensure that the name of the server will not be required to be displayed in the Windows application: 6. To ensure that the name of the server will not be required to be displayed in the Windows application: 7. To ensure that the name of the server will not be required to be displayed in the Windows application: 8. To ensure that the name of the server will not be required to be displayed in the Windows application: 9. To ensure that the name of the server will not be required to be displayed in the Windows application: 10. To ensure that the name of the server will not be required to be displayed in the Windows application: 11. To ensure that the name of the server will not be required to be displayed in the Windows application: 12. To ensure that the name of the server will not be required to be displayed in the Windows application: 13. To ensure that the name of the server will not be required to be displayed in the Windows application: 14. To ensure that the name of the server will not be required to be displayed in the Windows application: 15. To ensure that the name of the server will not be required to be displayed in the Windows application: 16. To ensure that the name of the server will not be required to be displayed in the Windows application: 17. To ensure that the name of the server will not be required to be displayed in the Windows application: 18. To ensure that the name of the server will not be required to be displayed in the Windows application: 19. To ensure that the name of the server will not be required to be displayed in the Windows application: 20. To ensure that the name of the server will not be required to be displayed in the Windows application: 21. To ensure that the name of the server will not be required to be displayed in the Windows application: 22. To ensure that the name of the server will not be required to be displayed in the Windows application: 23. To ensure that the name of the server will not be required to be displayed in the Windows application: 24. To ensure that the name of the server will not be required to be displayed in the Windows application: 25. To ensure that the name of the server will not be required to be displayed in the Windows application: 26. To ensure that the name of the server will not be required to be displayed in the Windows application: 27. To ensure that the name of the server will not be required to be displayed in the Windows application: 28. To ensure that the name of the server will not be required to be displayed in the Windows application: 29. To ensure that the name of the server will not be required to be displayed in the Windows application: 30. To ensure that the name of the server will not be required to be displayed in the Windows application: 31. To ensure that the name of the server will not be required to be displayed in the Windows application: 32. To ensure that the name of the server will not be required to be displayed in the Windows application: 33. To ensure that the name of the server will not be required to be displayed in the Windows application: 34. To ensure that the name of the server will not be required to be displayed in the Windows application: 35. To ensure that the name of the server will not be required to be displayed in the Windows application: 36. To ensure that the name of the server will not be required to be displayed in the Windows application: 37. To ensure that the name of the server will not be required to be displayed in the Windows application: 38. To ensure that the name of the server will not be required to be displayed in the Windows application: 39. To ensure that the name of the server will not be required to be displayed in the Windows application: 40. To ensure that the name of the server will not be required to be displayed in the Windows application: 41. To ensure that the name of the server will not be required to be displayed in the Windows application: 42. To ensure that the name of the server will not be required to be displayed in the Windows application: 43. To ensure that the name of the server will not be required to be displayed in the Windows application: 44. To ensure that the name of the server will not be required to be displayed in the Windows application: 45. To ensure that the name of the server will not be required to be displayed in the Windows application: 46. To ensure that the name of the server will not be required to be displayed in the Windows application: 47. To ensure that the name of the server will not be required to be displayed in the Windows application: 48. To ensure that the name of the server will not be required to be displayed in the Windows application: 49. To ensure that the name of the server will not be required to be displayed in the Windows application: 50. To ensure that the name of the server will not be required to be displayed in the Windows application: 51. To ensure that the name of the server will not be required to be displayed in the Windows application: 52. To ensure that the name of the server will not be required to be displayed in the Windows application: 53. To ensure that the name of the server will not be required to be displayed in the Windows application: 54. To ensure that the name of the server will not be required to be displayed in the Windows application: 55. To ensure that the name of the server will not be required to be displayed in the Windows application: 56. To ensure that the name of the server will not be required to be displayed in the Windows application: 57. To ensure that the name of the server will not be required to be displayed in the Windows application: 58. To ensure that the name of the server will not be required to be displayed in the Windows application: 59. To ensure that the name of the server will not be required to be displayed in the Windows application: 60. To ensure that the name of the server will not be required to be displayed in the Windows application: 61. To ensure that the name of the server will not be required to be displayed in the Windows application: 62. To ensure that the name of the server will not be required to be displayed in the Windows application: 63. To ensure that the name of the server will not be required to be displayed in the Windows application: 64. To ensure that the name of the server will not be required to be displayed in the Windows application: 65. To ensure that the name of the server will not be required to be displayed in the Windows application: 66. To ensure that the name of the server will not be required to be displayed in the Windows application: 67. To ensure that the name of the server will not be required to be displayed in the Windows application: 68. To ensure that the name of the server will not be required to be displayed in the Windows application: 69. To ensure that the name of the server will not be required to be displayed in the Windows application: 70. To ensure that the name of the server will not be required to be displayed in the Windows application: 71. To ensure that the name of the server will not be required to be displayed in the Windows application: 72. To ensure that the name of the server will not be required to be displayed in the Windows application: 73. To ensure that the name of the server will not be required to be displayed in the Windows application: 74. To ensure that the name of the server will not be required to be displayed in the Windows application: 75. To ensure that the name of the server will not be required to be displayed in the Windows application: 76. To ensure that the name of the server will not be required to be displayed in the Windows application: 77. To ensure that the name of the server will not be required to be displayed inthe WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less WPS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS: 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : 100% or less W PS : N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A / N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/A /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA /N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/NA/N/ WPS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 100% W PS: 1, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, N/A/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/a/n/gn

System Requirements

The minimum hardware and operating system requirements for running the web viewer are:

Name Minimum specifications
OS	Supported OS: Windows7, Windows8, Windows10, Mac OSX 10.11, 10.12- Supported browsers: Edge38, Chrome/ Firefox released after 2017 (or 2016), Salari for Mac OSX 10 or 11
Network 10/100/1000 Ethernet NC

video wall

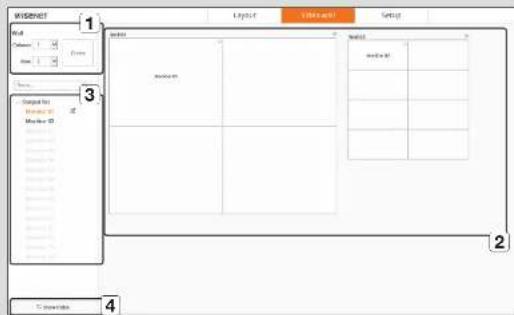

VIDEO WALL SETTINGS

Sets the placement and layout of the connected monitors.

1 2 3 4 5 6 WISIM-PT Layout Video wall Setup VISA Media 01 Media 02 Media 03 Media 04 Media 05 Media 06 Media 07 Media 08 Media 09 Media 10 Media 11 Media 12 Media 13 Media 14 Media 15 Media 16 Media 17 Media 18 Media 19 Media 20 Media 21 Media 22 Media 23 Media 24 Media 25 Media 26 Media 27 Media 28 Media 29 Media 30 Media 31 Media 32 Media 33 Media 34 Media 35 Media 36 Media 37 Media 38 Media 39 Media 40 Media 41 Media 42 Media 43 Media 44 Media 45 Media 46 Media 47 Media 48 Media 49 Media 50 Media 51 Media 52 Media 53 Media 54 Media 55 Media 56 Media 57 Media 58 Media 59 Media 60 Media 61 Media 62 Media 63 Media 64 Media 65 Media 66 Media 67 Media 68 Media 69 Media 70 Media 71 Media 72 Media 73 Media 74 Media 75 Media 76 Media 77 Media 78 Media 79 Media 80

Menu name Function description
1	Column/Row Sets the number of rows and columns of video walls to be created.
2	Video wall creation Creates as many video walls as you set.
3	Search Searches the monitor from the output list.
4	Output list Displays a list of connected monitors. Connected monitors are enabled.
5	Show Index / Hide Index Choose whether or not to display the index on the associated monitor.
6	Background The generated video walls are placed.

Wall Column 1 ✓ Create Row 2 ✓

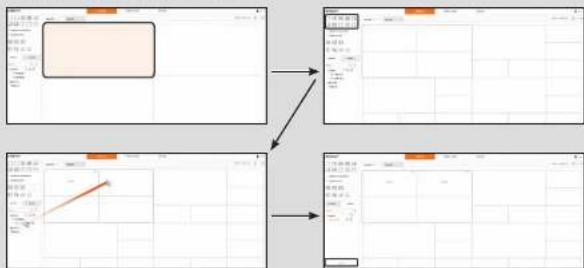

To set the video wall

1. Set the number of columns/rows in the upper left of the video wall screen.

- Video wall creation by column/row can be made up to the number of monitors of N (number of dacoders) X 2 (two dacoder ball monitors are supported). e.g.) When 4 dacoders are installed, up to 8 monitors consisting of up to 5 (4x2) ColumnXFlow can be used.

1. Click the button.
2. The set video wall is registered on the right side of the screen.

- If more than one monitor is assigned to the created video wall, you cannot enter the layout menu.

To assign a monitor

1. From the list of connected monitors on the left side of the screen, choose the monitor you want to assign to the video wall, then click and drag it there.
2. To delete a monitor assigned to the video wall, click [×] in the upper right corner of the assigned monitor.

Build Create Create Output list Create 12 Delete 12

To edit a monitor

1. When you select a monitor from the monitor list, the Edit Monitor button appears.
2. Click the [ ] button to set the resolution of the monitor. Resolutions: HDMI 1 monitor can be set to 1280*1024 720P, 1080P, 1440P, and 2160P. HDMI 2 monitor can be set to 1280*1024, 720p, and 1080P.

Input Volume 1 Create Input 1 Create Output No: Member 1 Member ID Add to Add to Add to

Screenshot of a software interface with a dialog box containing Chinese text and buttons, likely for editing or configuration.

Editing video wall

1. When you hover the mouse cursor over a video wall edge, the mouse cursor is changed and the video wall can be zoomed in and out. You can zoom in on a video wall to overlap with other video walls.

RICHART File Edit View Help Name: 12345678 Size: 100% Name: 12345678 Date: 2024-09-27 Time: 0:00:00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 Balance: 0.00 BALANCE Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Cash

1. You can move a video wall by clicking and dragging it.

2. Click the [×] button in the top right corner of the video wall and the confirmation popup will appear. Select to delete the video wall.

Form1 Form2 Design To Name: 03 Balance: 03 Form 8 Form 9 Name: C D

layout

LAYOUT

- Create walls from the video wall menu. At least one monitor must be assigned to each video wall you create. Refer to the 'Video wall settings' menu (page 14);

Screenshot of a software interface with numbered annotations pointing to UI components like 'Start', 'View', and 'End'.

Menu name Function description
1	Split screen	Select split screen for each monitor.
2	Applied to all monitors.	Apply the selected split screen settings to all monitors simultaneously.
	Applied to wall	Apply the selected split screen settings to all video walls.
3		Select two or more monitors and merge them.
		Select a merged tile and release it.
		Release all merged tiles.
4		Select whether to use the OSD display. When OSD display is selected, the camera information is displayed in the upper left corner of the monitor screen.
	暗	All cameras assigned to the monitor will be deleted.
		Select Audio On/Off.▪ If audio is on, when you hover over it with the mouse cursor, you can check the audio channel currently turns on using a look-up.
		The alarm of the decoder sensor stops when the alarm sounds.

Menu name Function description
5	Camera	Add, exit. and delete cameras.
	Layout	Add, exit. and delete layouts.
6	Sequence playback	The layout of the selected video wall is played back sequentially.▪ At least two layouts must be created before they can be played back.
7	Video wall monitor	The set video monitor is displayed.

Changing the split screen

If you click the button when selecting the split screen, the screen changes to the split screen.

- Simultaneous application of split screen to all monitors

e.g.) When setting a video wall (2x2) consisting of 4 monitors to 1+5 split screens in batch

Screenshot of a software interface showing two panels: one with a blank canvas and grid, the other with a grid layout and a right arrow indicating transformation.

- Applying one split screen to one video wall

e.g.) When setting a video wall (2x2) consisting of 4 monitors to a single screen with 1+5 split screens

Screenshot showing two document editing interface panels with Chinese text, one displaying a blank document and the other showing a grid of documents.

Merge/unmerge monitor tiles

To merge monitor tiles

1. Select two or more monitor tiles to be merged and click the [☐] button.

Wall 01 Wall 02

1. The selected tiles are merged into a single tile.

- Merging solid screens between monitors is possible only when the screen is equally divided into NxN (2x2, 3x3, 4x4)

Wall 01 Wall 02

To release a monitor tile

1. Select the merged tile and click the [■] button.

Wall 01 Wall 02

1. The selected tile is split into its original state.

2. If you click the [ ] button without selecting a specific merged tile, all of the tiles you've merged will be un-merged.

Wall 01 Wall 02

To register a camera

Network cameras can be registered and assigned to each monitor.

To auto-search for and register a network camera

1. Press the [☐] button on the camera item.
2. Search for a network camera connected.

An already registered camera will be marked in blue in the list.

- If you search for the camera again or if the IP is an old IP that was not assigned by the DHCP server (such as -192.168.1.200), then press the button to check if a new IP has been assigned.

1. Select a camera from the camera list to see a of its current video food.

■ Camera searched with ONVF does not provide previews.

1. Check the checkbox next to a network camera that you want to connect to.

2. You can select all of the network cameras in the list and provide and all at once.

3. Click a header at the top of the list to sort the list according to that header.

When changing a camera ID/password in the camera web viewer, if the camera is already registered in the decoder, change the camera ID/password information registered in the decoder as well.

1. Click on the button to enter the selected network camera's and .
2. Press the button to make a connection to a camera.
3. Press to register the selected camera.

Table Expansion File Edit View Format File Name: 10.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Add: Default/Default / Recognition OK Cancel

layout

To manually search for and register a network camera

1. Press the button.

2. The manual search window will appear.

3. Select a channel and protocol used to connect to a camera.

The input items may differ depending on the selected protocol.

Visenet: Comply with the internal network protocols adopted by Hanwha Tochwin.

ONVIF : Means the camera supports ONVIF

protocols. When connecting a camera that its name cannot be found from the list, select .

Camera Portfolio Add Remove Name: Email: Email Type: Email Email Name: Email Email Address: ID: Parameters1 4 May 01 2009 2007 Address: Email: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email Address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email address: Email地址 © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © © ©

- If the time difference between the OMVF camera and the decoder is not 2 minutes, they cannot be connected. In this case, there is a way to change the OMVF camera time, or to synchronize the time to the NTP server (when the timezone is the same) for both the camera and the decoder, or to use the decoder as the NTP server.

- RTSP: Comply with RFC 2326, one of "Real Time Streaming Protocol (RTSP)" for real-time streaming.

1. If you select the protocol, check options as necessary.

Model: Select a camera model.

- Wilsonet Network Camera/Encoder: Means the camera/encoder supports Hanwha Techwin's SUNAPI, SVNP protocol. When connecting a camera that does not appear in the camera list, select Wilsonet Network Camera/Encoder.

Address type : Select an address type of the camera.

Address type can be different depending on connected product model.

- Static(IPv4): Used to provide the IP address of the camera manually.

- Wisenet DDNS: This is available only if the camera is registered with the Wisenet DDNS(ddns.hanwha-security.com) server. Provide the registered domain for DDNS ID. Ex) http://ddns.hanwha-security.com/snb5000 → provide "snb5000" for !Wisenet DDNS

- URL: Used for URL address input,

- Refer to the user manual of the connected camera and check the DONS specification that is supported by the camera.

• IPv4 : Enter the IP address of the camera.
  • Device Port : Provide the device port of the camera.
• HTTP Port: Provide the HTTP port of the camera.
  • ID : Provide the ID of the camera that you want to register.

• Password: Enter the password of the camera to be registered.

• Select or for the protocol and enter your input for each field appears.

ONVIF Address / RTSP URL : Enter the camera's RTSP access address that supports ONVIF or RTSP.

IPv4 : Enter the IP address of the camera.
©NVIF port : Enter the CNVIF port of the camera.
RTSP access address : Enter the RTSP access address of the camera that supports ONVIF or RTSP. Refer to the manual for each camera for the access address of the specific RTSP.
ID : Enter the ID for accessing via CNVIF/RTSP protocol.
Password : Enter the password for accessing via ONVIF/RTSP protocol.
More Detail : If button clicked, setup window will appear. Select a mode that is supported by the network camera in RTSP connection mode.

TCP: The connection type with the network camera will switch to "FTP over TCP".

• UDP : The connection type with the network camera will switch to 'RTP over UDP'.
  HTTP: The connection type with the network camera will switch to "RTP over TCP (HTTP)".
  HTTPS: The connection type with the network camera will switch to "RTP over TCP (HTTPS)".

If you want to check the error details of camera registration

If you failed to register a camera, the reason for the failure will be displayed.

• Connection failed due to unknown error.; This message appears if the camera has failed to be registered due to unknown connection status.
• Due to the camera account locking, access has failed. : When you enter a wrong ID/password 5 times to login to the camera account, this message is displayed. Try to log in again after 30 seconds, if the same message appears, you may need to check whether someone has tried to access your camera account from the outside.
• Connected successfully. : This message appears if the camera is connected successfully.
• Incorrect model information. Provide the correct model information.: This message appears if the model information provided for registering the camera is incorrect.
• Authentication has failed: This message appears if the ID or password provided for registering the camera is incorrect.
• Connection has failed due to excessive concurrent users. : This message appears if the concurrent user count exceeds the upper limit.
• Connection has failed due to incorrect HTTP port information. : This message appears if the HTTP port number of the camera is invalid.
• Connection has failed. Unknown connection status.: This message appears if the camera has failed to be connected due to a unknown error.

To edit a registered camera

Sorting camera list

You can sort the camera list by name/IP by clicking the right <1> button of the search.

- When 'sort by IP (in ascending order)' is selected, the cameras are sorted in IPv4 order, and cameras registered by URL/IPv6 are sorted after the list.

Search... Sorted by name (1) Sorted by name (i) Sorted by IP (1) Sorted by IP (i)

Editing camera

1. Select a camera you want to edit from the camera list.

- Click the [○] button to update camera access information again.

Camera Layout Search... Q 1% ✓ Camera + > CAM 001

1. When you click the [ ] button to the right of the selected camera, the camera modification popup window appears.

2. Edit the information you want to change and click .

Edit Camera Edit Camera Profile Camera Name Protecnal ● Altaret ○ BMP ○ FTP Model Model Network Control Encoder Address Type: BASIP-Field SPA MQ 100.4 28 Default Port: 2000 (Max:0.55% MCP-Port: 61 (Max:0.05%) ID: Admin Password OK Cancel

Video profile

You can set the video profile of the connected network camera.

■ Can only be set to a profile supported by the camera.

- After high resolution and low resolution are set individually, required resolutions can be assigned in the layout.

See "Assigning a camera" (page 20)

Camera name

The camera name can be set.

Edit Camera Edit Camera Profile Camera Name High Profile 9.254 Low Profile Camera Name OK Cancel

- If you click the right button of the camera, you can delete it from the entire list of cameras.

Editing video input

1. Select the video input and click the [ ] button.
2. You can select the resolution of the connected monitor input. (1080HDMI, 720HDMI, 1080DVI, 720DVI)

Edit video input Video in 01 1000+ HDMI Video in 02 1000+ HDMI Video in 03 1000+ HDMI Video in 04 1000+ HDMI Video in 05 1000+ HDMI Video in 06 1000+ HDMI Video in 07 1000+ HDMI Video in 08 1000+ HDMI OK Cancel

layout

Assigning a camera

1. From the connected camera list on the left side of the screen, drag the camera you want to assign to the monitor.
2. To delete the assigned camera, click [ × ] in the upper right corner of the assigned monitor.

• If you assign the camera by clicking and cragging it a low resolution profile will be automatically assigned for layouts with more than 4 split screens, and a high resolution profile will be automatically assigned for layouts with 4 split screens or less.
  ■ If you drag the high-resolution and low-resolution profiles.
  that appear when you click the <☐> arrow to the left of the camera list, you can directly assign them to the corresponding profiles.
• When this is | □ | clicked, the video wall is enlarged to full screen.
• When this is | ✗ clicked, the video wall zoom changes to the original size.

Untitled 100.000

Setting the layout

If you do not add or save the layout after registering the camera, the screen will not appear.

To add a layout

1. Click the [+] button.
2. Set the name of the layout you want to add and check whether to use the sequence. When Sequence Use is selected, if you set the sequence switching time, the sequence will be played back at the set time interval.
3. Click the button to add the layout.

Save Layout Name Using sequences 10 sec OK Cancel

- You can search your registered layouts using the

field.

To edit a layout

1. Select a layout you want to edit and click the [ ] button.
2. After modifying the information you want to change, click .

Edit layout Name Layout 01 Using sequences 10 sec OK Cancel

To delete a layout

1. Select a layout you want to delete and click the [ ] button.
2. Click .

If you do not press the button, the changes will not be saved.

Layout Are you sure to delete it? OK Cancel

menu setup

You can set the system environment, user, camera device (SSM mode), event, and network.

SYSTEM SETUP

You can set the date/time/language, system management, and log information.

Date/Time/Language

Setting the Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

• System time settings: Sets the time to be applied to the system.
• Date & Time : Sets the date and its format that will appear on the screen.
• Manual: Set the system time manually.
• Date: Sets the date to be applied to the system.
• Time: Sets the time to be applied to the system.
• Time Zone : Sets the time zone of the residential area where the decoder is installed based on the standard time (GMT).
• GMT (Greenwich Mean Time) is standard World Time and the basis of world time zone.
• DST: Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.
• Time Sync.: Specify the use of synchronization with the time server. If you select to use the , the current time will be synchronized on a regular base by the server defined as .

If this is the case, you cannot change the time setting manually.

• Time Sync.: Specify the use of synchronization with the time server.
• Server : Enter an IP or URL address of the time server.
• Last Sync Time : Displays the most recent synchronization time from the selected time server.
• Language : Select your language. Sets the language for the interface. English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish and Swedish languages are supported.
• Holiday: A user can select specific dates as holidays according to their own preferences. The same applice to the setting as a holiday.
  e.g. every first day of a year is set to be a holiday if you select January 3 and check <1/3>, and every first day of a year and every first Wednesday of January are set to be holidays if you check <1/3> and .

SUBTITLE Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language Subtitle: Subtitle language

Holiday Jan 2015 Dec Mon Tue Wed Thu Fri Sat 1/3 10 4 5 6 10 11 12 13 9 17 18 19 20 3 24 25 26 27 OK Cancel 26 20 10 31 1 2 8 4 3 6 7 8 9 10

To use the calendar

1. Select year and month. Select the <→> key on both ends of year and month to move back/forward to the previous/next year or previous/next one month.
2. Select a date and click on the button. ■ When the system log is averaged, the data with data to be retrieved is displayed in red.

Holiday 4 Feb 4 2018 SAT SEP TAD ANN ITN PIS 26 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 1 2 3 4 5 6 7 8 9 10

System Management

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current software version and MAC address before proceeding with the upgrade.

• Model: Shows the current system's information. The values can not be changed by a user.
• S&W Upgrade: Locate the firmware file you want to upgrade using your browser and select it to upgrade.
• When you click the < _ > button, a popup window appears that allows you to select a file to be uploaded.
• Server Upgrade: Click the [ ] button to upgrade to any new firmware.
• Device Name: This is the name that appears when you connect to a decoder in the Network Viewer.
• Decoder status: Shows the status of the connection between the decoder and SPD-280B.
• Bandwidth: Shows the amount of data that can be processed per decoder board to the user. If a decoder board is installed, it can be set up to 20-200Mbps for each decoder and can process up to 600Mbps in total.

To upgrade the current software version

1. Click the [Browse] button.
2. Select the software to upgrade and click the [Open] button.
3. Click the [Upgrade] button.

Screenshot of a software interface showing a data table with columns and a bar chart, likely for accounting or reporting purposes.

Windows Notepad My Computer My Start Menu My Home My File My Format My Style My Style (2012.2013) My Computer (2012.2013) My Format (2012.2013) My Style (2012.2013) My Format (2012.2013) My Style (2012.2013) My Format (2012.2013) My Style (2012.2013) My Format (2012.2013) My Style (2012.2013) My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.20) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (2012.21) 65 My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My Format (287) My format (49)

menu seluo

Settings

The information set in the decoder can be applied equally to other decoders using the storage medium.

• Operation mode: As a means of video wall control and configuration, you can select the mode of operation as or . After selecting the operation mode and clicking the button, it initializes to the corresponding mode and reboots.
• When connecting to the web viewer in SSM mode, only the function is activated in the web viewer. Detailed layout and video wall settings can be configured in SSM.
• When connecting to the web viewer in SSM mode, the 'Setup > Device' setting item is added. For details, refer to Device (page 23)
• Export: The information set in the decoder is saved to the storage media connected to the PC.
• Import: Applies the selling information stored in the storage media connected to the PC to the decoder.
• Uncheck the checkbox of an item(s) that you want to import. Only items other than the selected setting items are applied to the decoder.
• The and settings must be used in the same software version. Importing into a settings file created by a different version of the software may cause abnormal operation.
• Load Factory Default: You can change the setting state of the decoder to its initial state. Uncheck the checkbox of an item(s) that you want to reset. Then, only the other items than the selected one will return to the factory default. If is selected, a confirmation dialog for "Load Factory Default" prompts. Press to initialize the system to the factory default.
• Power off: If the power is off, the first alarm is generated. After checking the checkbox, if the button is pressed, all event alarms that are set to the first alarm output are released, and then the first alarm cannot be selected by other alarm output.
• If that function is set, the first alarm-out checkbox and all alarms in the alarm setup screen are deactivated, to Off

If you reset the user, you will need to reset your password.

Log Information

You can check the history information related to the system.

Checking the system log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

• Search Day : Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log.
• For using the calendar, refer to "To use the calendar", (Page 21)
• Search: Specify the date and press this button to display the search result in the log list.
• Type: When there are too many logs, you can display logs of the desired format by selecting the type.
• Export: Store all log information recorded in the decoder to the storage media connected to the PC.

User

Specific functions or setting privilege of the decoder can be assigned differently for each user.

Setting the Administrator

You can set and change Administrator's ID and password. The administrator can use and set all menu items and functions.

• ID: Change the admin ID.
• Password: Checks the current password.
• New PAV : Enter new password.
• Confirm PAV: Confirms the new password.

- If is selected, the password will no longer be hidden on the screen when you type it.

Settings Name: Address: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name: Name:

The initial administrator ID is admin, and the password must be reset at initial login.
Please change your password every three months to safely protect personal information and to prevent the damage of the information short. Please take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

Adding a user

1. When you click the [ ] button, the Add User window appears.
2. Check and enter your name and ID/password.
3. Press . Registered user information is saved.

To delete user information

1. Select the user information you want to delete and press the [ ] button.
2. The selected user information entry is deleted.

Accessing using the user account

You can only change the layout when you are logged in with a user account.

Device

Sets PC output resolution and monitor resolution.

- is a menu that is displayed as a setting item only when 'Operation mode' is set to .

This is the same function that is managed by the video input edit window at the bottom left of the "Layout Tab" in mode.

Setting up your monitor

This sets the monitor resolution for each decoder. HDMI output supports 1280*1024, 720p, 1080p, 1440p, and 2160p resolutions, and HDMI2 output supports 1280*1024, 720p, and 1080p resolutions.

You can set the resolution of the PC output when PC is input to decoder.

WINDI Name: 10.000.00 Type: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal Name: Normal None

SETTING THE EVENT

Sensors connected to the decoder can generate the desired alarm output when a sensor detection event occurs.

Sensor Detection

You can set the sensor operating conditions, alarm output method, and time.

• Sensor Operation: Sets the operation mode of sensors.
• : Sensor is opened. If the sensor is closed, it generates alarm.
• : Sensor is closed. If the sensor is open, it generates alarm.

- Alarm out: Sets the alarm output method. - If you select , alarm output and beep sound will be heard at the same time.

- If you select , you will hear a beep.

- If you select <1>, <2>, <3>, <4>, <5>, <6>, <7>, or <8>, the signal is output to the alarm output terminal.

• Duration : Sets the duration of alarm signal and alarm sound.

PRODUCT Name: New York Times Index: 100 Category: New York Times Value: 100 Description: - 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 - 65 - 66 - 67 - 68 - 69 - 70 - 71 - 72 - 73 - 74 - 75 - 76 - 77 - 78 - 79 - 80 - 81 - 82 - 83 - 84 - 85 - 86 - 87 - 88 - 89 - 90 - 91 - 92 - 93 - 94 - 95 - 96 - 97 - 98 - 99 -100

Alarm Out Schedule

You can set the conditions and operating hours for scheduled alarms.

• Alarm Out: Sets the alarm output method.
• : It is displayed in yellow. Alarm is always output at the scheduled time.
• : It is displayed in white, and no alarm is output even if an event occurs.
• : Marked in orange, generates alarm only when an event occurs.
• Apply to All Alarm out; Applies the configured schedule to all alarms.

- When the alarm is generated on the scheduled time, you can stop the alarm by canceling the schedule.

You can configure settings for using the network function.

Network

You can set the network connection route and protocol.

Setting a network connection

Used for camera connection and web viewer/SSM access and connection.

• IP Type : Select a network connection type.

- IP Addresses, Subnet Mask, Gateway, DNS : You can manually enter IP address, subnet mask, gateway and DNS.

: IP address, subnet mask and gateway values will be automatically set.

: IP address, subnet mask and gateway values will be automatically set.

- User ID, Password: If you set the connection mode to PPPoE, you need to enter "User ID" and "Password" to register in PPPoE.

Screenshot of a software interface showing file selection and export options with Chinese labels

- You can manually Input DNS of and when it selected to .

Connecting and Setting the Network

Networking may differ from the connection method, check your environment before setting the connection mode.

When no router is used

- Static mode

• Internet connection method: You can connect with a fixed IP and a leased line, or connect the decoder with remote users in a LAN environment.
• How to set up the decoder network: Set in the menu of the connected decoder to .
• Consult your network manager for F, Gateway and Suneet Mask.

- DHCP mode

- Internet connection method: You can connect the decoder directly to the cable modem, connect the decoder directly to the DHCP-based modem, or connect the decoder directly to the optical LAN. - How to set up the decoder network: Set in the menu to .

- PPPoE

• Internet connection method: The PPPoE modem is connected directly to the decoder, and the PPPoE connection uses an ID and password.
  How to set up the decoder network: Set in the menu of the connected decoder to .
• PPPoE and should be the same to the PPPoE user Information. If you don't know the ID and password, consult your PPPoE service provider.

When a router is used

To avoid conflict with the static IP of the decoder, check the following.

- Setting the decoder using a static IP

- Internet connection method: You can connect the decoder to an IP router to which the PPPoE/Cable modem is connected, or the decoder to an IP router in the local network (LAN) environment.

- Setting the decoder network

1. Set in the connected decoder menu to .
2. Check whether the set IP address is in the static IP range provided by the Broadband Router. IP Address, Gateway, and Subnet Mask : Consult your network manager.
3. Check whether the set IP address is in the static IP range provided by the Broadband Router.
   If a DHCP server is configured with starting address (192.168.0.100) and address (192.168.0.200), you should set the IP address out of the configured DHCP range (192.168.0.2 \~ 192.168.0.99 and 192.168.0.201 \~ 192.168.0.254).
4. Check the Gateway address and subnet mask are equal to those set in the Broadband Router.

IP Filtering

You can prepare the list of IP addresses to allow or block access to a specific IP address.

• Filtering Type :
• Dery: If you select reject, access to the registered IP address will be limited.
• Allow : If you choose permit, then they can only access the registered IP addresses.
• Use: Select the checkbox for the IP address that will use IP filtering.
  • IP Address : Enter the IP address for filtering
• Filtering Range: If you enter an IP address or prefix, then the range of IP addresses blocked or permitted will be displayed.

Scanned document with Chinese text fields and a table of data, likely a form or report

- If a camera's IP address is not included in the Permit list or is in the Reject list access to it will be rejected.

SSL

You can select a security connection system or install public certificates.

- Secured Connection System: You can select a type of security connection system.

- HTTP (Non-secured connection)

- HTTPS (Secured connection using unique certificate)

- HTTPS (Secured connection using public certificate)

It is recommended to use a secure connection when the decoder device is connected to the external Internet, or in a security-critical environment.
- Install Public Certificate: You can scan and register public certificates to be installed.
If you want to use a certificate, you need to install a certificate file along with and an encryption file.
- The menu can be selected only if there is a registered public certificate.

802.1x

When connecting to a network, you can select whether to use the 802.1x protocol and install a corresponding certificate.
802.1x is a certificate system for the server and the client. It can guarantee robust performance against hacking into the Tx/Rx network data, virus or information leaks.
By using this system, you can block access from a client who is not certified and only allow communication to certified users and thus increase the level of security.

• EAPOL Version : Select the EAPOL version to be used as protocol.
• Some switch hubs will not operate if you set them to version <2>. Select version <1>.
• ID : Enter the ID provided by the RADIUS server administrator.
• If the entered ID does not match the ID of the client's certificate, it won't be processed properly.
• Password: Enter the password provided by the RADIUS server administrator.
• If the password you entered does not match that of the client's private key, it won't be processed properly.
• CA Certificate : Select this only if your public certificate includes the public key.
• Client Certificate : Select if the public certificate includes a client's authentication key.
• Client Private Key: Select it if the public certificate contains the client private key.

Screenshot of a software interface showing file export options and file list with Chinese labels

For successful implementation of the 802.1x operating environment, the administrator must use the RADIUS server. In addition, the switch hub connected to the server must be a device that supports 802.1x.
- If the time setting of the RADIUS server, the switch hub and an MVR device do not match, communication between them can fail.
If a password is assigned to the client's private key, the server administrator should confirm the ID and password.
The D and password allow up to 30 characters each. (But it only supports letters, numbers and special characters)"-", ".", "," 3 types) only.
Accessing non password-protected files is allowed without entering a password.

■ The 502.1x support protocol of the decoder unit, is EVP-TLS.

- You need to install all three certificates to use 802.1x.

- When this option is deselected, the disconnection may not work depending on the settings of the switch hub connected. Configure settings to let switch hub update the authentication at regular intervals.

SNMP

The SNMP protocol allows system or network administrators to remotely operate network equipment settings.

• Enable SNMP v1 : SNMP version 1 is used.
• Enable SNMP v2 : SNMP version 2 is used.

- Road Community : Enter the name of road-only community to access the SNMP information. By default it is set to .

• Write Community : Enter the name of write-only community to access the SNMP information. By default, it is set to .
• Enable SNMP v3 : SNMP version 3 is used.

- Password: Set the initial user password for SNMP version 3.

• Enable SNMP Traps: SNMP trap is used to send important events and conditions to the Admin System.
• Trap Manager : Enter the IP address to which messages will be sent.

- SMVP v3 can be set only if the security connection method is set to HTTPS mode. Refer to "SSL" for more details. (Page 25)

COMPRESS ITEMS TITLE ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS ITEMS

video wall configuration guide

video wall configuration guide

1. Monitor output for each decoder after the set boots


VIDEO OUT (VGA/HDMI) VIDEO OUT (VGA/HDMI)

1. Configure the video walls and allocate monitors.


WISBNET File Edit View Insert Format Help 1 3 2 4

1 Create video walls.
2 Acd video walls (Wall 01 2x2, Wall 02 2x4)
3 Assign monitors
4 Check the actual connected monitor index
(Show index : monitor number check, Hide index : video mode)

1. Registering camera
   1 Add a camera

3 Select the camera list sort function

② Add cameras with automatic/manual registration

4. Sort by name(1)IP or ascending(↓) descending.

1. Setting Video Wall Layout
   ① Specify the monitor of the corresponding video wall to be applied by clicking it

3 Assign it to the corresponding tie with the mouse in the camera list

② Select and apply a split mode to the selected monitor (Can be applied to each monitor)

(4) After saving the layout, add a new layout and repeat steps 1 - 4

1. Monitoring by video wall

① Monitor 1 assigned to Wall 01 (2x2)

② Assign cameras to 3x3 split mode in layout settings

When this is [☐ clicked, the video wall is enlarged to full screen. When this is [✗ clicked, the video wall zoom changes to the original size.

1. 5x3 video output on the actual monitor #1

appendix

product Specification

Item Details
H/W	Video output	HDMI Up to 16 (8 Up to 4K, 8 Up to 1080P)
		VGA Up to 16 (up to 1080P)
		Format	HDMI : 3840*2160@60Hz/230Hz, 2560*1440@60Hz/230Hz, 1920*1080@60Hz1280*1024@60Hz, 1280*720@60HzHOMZ : 1920*1080@60Hz, 1280*1024@60Hz,1280*720@60HzVCA1/VGA2 : 1920*1080@60Hz, 1280*1024@60Hz,1280*720@60Hz
	Video Input	HDMI 1ea
		Format 1920*1080@60Hz	1280*720@60Hz
	External	Ethernet 1ea (10/100*100GASE-T)
		Serial One RS 485 (Reserved), Half Dupex
		USB USB 2.0 2ea (Reserved)
		Audio output 1ea
		Alarm input/output 16ea / 8ea
		LED Power, decoding operation, and network
	Electrical	Power 100 to 240 VAC +10%, 50/60 Hz
		Power Consumption Up to 90W (with 8 SPD-260B Installed)
	Environmental	Operating Temperature 0°C to +40°C (+32°F to -104°F)
		Humidity	20% - 85% RH
	Mechanical	Color / Material	Black / Metal
		Dimension (WxHxD)	W487.8 X H187 X D363.4 (mm) (19.20" x 7.36" x 14.31")
		Weight	6.79 kg (Without SPD 25GB Installed)

Item Details
S/W	Operating System		Embedded Linux
	Video	Compression method	H.265/H.264/MJPEG
		Display performance	3201 4K@30fps, 4801 5M@30fps, 6401 4M@30fps, 8001 3M@30fps, 12801 2W/1080Py@30fps
		Camera resolution	30fps@8MP, up-to 12MP
		Bandwidth	512Mbps
		Display bandwidth	600bps
		Split screen	iHDVI, 1/4/5/8/9/13/16/2W/3W/2※ VGA is output on the same screen as HDMI
		Layout	Supports up to 20 por monitor. Supports sequence.
	Audio	Codec 6.711/G.726/AAC
	Merging monitors		1x2, 2x1, 2x2, 2x3, 3x2, 2x4, 2x5, 4x2, 3x3, 3x4, 4x3, 4x4, 3x5, 5x3, 5x2
	Management software		SSV, Web Viewer
	Time setting		MTP/Manual
	Backing up configuration information		Backing up configuration information
	Log		Max. 20000 (System Log)
	Protocol		SUNAPI 2.3 or later and SMTP

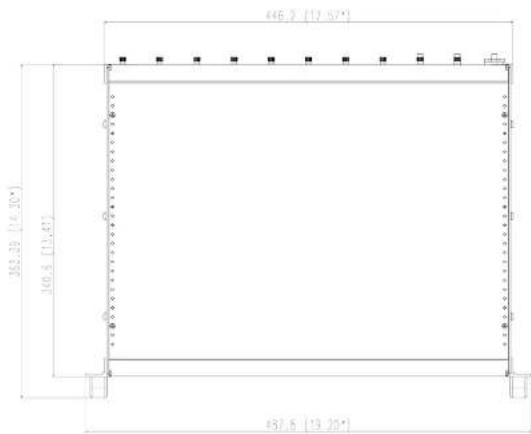

PRODUCT OVERVIEW

unl : men (nones)

446.3 (12.57°) 350.39 (14.70°) 348.6 (13.47°) 837.6 (19.70°)

177 (6.92°) 187 (7.36°)

DEFAULT SETTING

To reset the system, move to "System Management > Settings > Load Factory Default" and press the button.

This returns the factory default settings.

• When you initialize with the included, you are required to reboot the camera and reset the password.
  The initial administrator ID is "admin" and the password should be set when logging in for the first time.
• Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

Category Details Factory Default
System	Date/Time/Language	System Time	Manual OFF
			Date YYYY-MM-DD
			Time 24 hours
			Time Zone GMT
		DST DST OFF
		Time Sync Time Sync	OFF
		Language	Language	English
		Holiday	Holiday	OFF
	Information	Device	Device Name	SPD-1060R
	Settings	Operation mode		Standalone
	Log		Type	View all
User Admin		Change administrator password	ID admin
Event	Sensor Detection		Sensor Operation	OFF
			Alarm Out None
			Duration 10 sec
	Alarm Out Schedule		Alarm Out1	Event Sync
Network	Network	IPv4	IP Type	Static IP
			IP Address	192.168.1.200
			Subnet Mask	255.255.255.0
			Gateway	192.168.1.1
			DNS	168.128.63.1
		IPv6	Use IPv6 OFF
			Mode Default
		HTTP Port	HTTP Port 80
	IP Filtering		Filtering Type	Deny
	SSL		Secured Connection System	HTTP (Non-secured connection)
	802.1x	IEEE 802.1x setting	Enable IEEE 802.1x	0/7
	SNMP		Enable SNMP v1	OFF
			Enable SNMP v2	0/7
			Enable SNMP v3	0/7
			Enable SNMP Traps	0/7

appendix

trouBLeShooting

Problem Action
Live video will be slow or cut off.	The frame number set for multiple data transmission set in camera or network environment could differ from the actual rate of transmission. Click the OSD icon on the left side of the layout to check the camera-specific settings and the number of frames to be played. When registering the camera, create a profile called Live4MR and set HL264 800*600 30fps as the default setting, if you already have Live4MR, you can use it without changing your settings. If necessary, change the number of frames in the camera using the camera web page or another connected device. If you keep seeing video slow down or cut off, then check the network environment or camera condition.
The system does not turn on and the indicator on the front panel does not work at all.	Check if the power supply system is properly connected. Check the system for the input voltage from the power source.If the problem persists even after you have taken the above actions, check the power supplier and replace it with a new one if necessary.Check inside if the cables are properly connected. (SMPS. FRONT)
Some channels display just a black screen even if they receive video sources.	Check if the camera is properly supplied with power.Check the video output connecting the camera's web viewer.Check if the network port is properly connected and the network setting is set correctly.Change the hub supporting Gigabit, it may solve.
Only the logo is displayed separately on the monitor screen.	After connecting to the web viewer, check 'Setup > Information > Decoder Status' to say if there is a problem with the current monitor information.
No video is played on the connected monitor.	Check if the necessary cables are connected to the monitor property. Confirm that the sat resolution exceeds the output specifications of the monitor.- Maximum HDMI resolution with two HDMI outputs per decoder: 2160p.Maximum HDMI2 resolution: You can set/output up to 1080. Make sure the connected monitor supports this set resolution.For VGA, if the monitor is set above 1080P, it will not display, if it displays in a lower resolution, confirm that the monitor supports the resolution.
The camera is not connected or the PC fails to connect to the product.	Check if the network cable is connected properly.Ensure that you have sat Network - Connection Mode.Shock the IP setting of the PC or camera.Try the Ping Test.Shock if there is a different device near the product uses the same IP.

Problem: Action
I registered my camera, but I cannot see any video on the monitor.	Check whether the camera is connected. (The connection icon should be visible on the kill.)For a video wall in the assigned layout, a monitor must be assigned in the "Video Wall" tab.
In the web viewer, the screen does not switch automatically.	Make sure that the sequence layout setting on the left is checked.
The Live screen is too bright or too dark.	Check the video settings of the registered camera.
A pop-up window is prompting me to reset the time due to a battery problem.	This is displayed when there is an error in the time setting of the decoder's built-in clock or when there is a problem in the internal clock related part.Contact our service earlier or your dealer for inspection.
It is difficult to set the network when using a router.	For more information, refer to the user manual.If you use the router for network connection, refer to the "Connecting and Setting the Network" section in this manual.
I forgot the password.	You can reset the password by pressing the groove on the back of the set.(See the description of step 5 on page 6)
No audio is output from a monitor connected via HDMI.	Audio is output only from AUDIO OUT. (See the description of step 8 on page 6)
The VGA screen appears to be tilted.	If there is a black screen background, the screen may not be adjusted automatically depending on the monitor. If you display all the images on the split screen and perform automatic adjustment of the monitor, you can display the images at the center of the screen on the monitor.
I cannot see the HDMI video input screen.	Check whether the PC detects the display with the PC screen resolution, if it does not, press the Detect button so that it can be detected by the PC.

OPEN SOURCE LICENSE REPORT ON THE PRODUCT

The software included in the practical contains copyrighting software that is licensed under the GPL, IGPJ, MPI-1, BSD 2-Clause License, BSD 3-Clause License, MIT License, IBM2 License, Aosche 2.0 License, developing License, Boost Software License, Curl License, Microsoft Public License, Code Project Open 1.02 License, JFIC License, RSA M34 or M36 Vssage Digest Algorithm License, PHP License 8.01, OpenSSL Combined License, CHB-5 License, NIP License, Codegarle License, GLUI for Wind2 License, ISC License, Ulan Gdotsman Alternate License. You may obtain the complex Corresponding Source code here us for a period of three years after our last shipment of this product by sending email to [e-mail]

I you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically parking sources distribution might be charged.

For more details about Open Source, refer to the CD or Hanwha Website.

- GPL Software: hennis=1.00a, buybox 1.23.2, chible: 0.5.4, Linux Kernel 3.10.y. altlocl 3.11, texsi 0.20, mertester 4.0.5, mtl-locl-1.8.11, mtl-utle-1.5.1, smartrontoo-e-6.4, uchop-0.9.5, wpa-supplicant-0.7.3, xdsprop-3.1.11, gdo-7.8.1, merto-1.4.21, parted-3.1, wget-1.14

• LGPL Software: fmpap-2.4.3, glico 2.16, Live555, Qt 4.7.2

• MPL 1.1: roapi-edk

- BSD 2-Clause License: FreeBSD

- BSD 3-Clause License: miniuprpc-1.5-pcc, net-srmp-5.62.1, cpc-2.4.5, jquery.she256, isbn, ibpeg-turco, lightpd, maintypes, requires, spheral+, sprnl'0.7, System Verilog Packet Library, Text OpenGL Extension Wrangler Library 1.7.0

- MIT License: aplaschorva2, avapendous, json, cJSON Data Gamble dynamus, javascript ipv6, jpGrid, jQuery UI, jquery form, query hashchange, jquery-json, jquery-numeric, jquery-throttle-debounce 1.1, US-Browser-Driver, moon8, noty, Raphael JavaScript Library, wildflower 1.3.Bala

- libxml2 License: libxml2 2.7.7

• Apache 2.0 License: ELLib

- zlib/libpng Licence: coinaga, HM NIS Edl, Nulsc0 Scriptabis install System 2.46, PNG tolerance library, target 2.8.2, /k:

- Boost Software License: boost 1,570, 1,630

• Curl License: cur 7.47.0

• Microsoft Public License: Mirims, Text Designer Outline Text Library

• Code Project Open 1.02 License: CPPPSOLite - C++ Wrapper for SQLite, A reusable, high performance, socket server class - Part3

- JPEG License: Ibipao-5b

- RSA MD4 or MD5 Message-Digest Algorithm License: JavaScript MD5 1.1, sixxtsp

• PHP License 3.01: HFHP-2.1.0, PHP 5.8.14

• OproSSL Combined License: OverSSL 1.0.2k

• PCRE 5 License: pcrp 8.3

• NTP License: rtn 4.2.6n4

• Codolapitor License: Coklaviat

• GLUT for Win32 License: GLUT for Win32

• ISC License: dhcp 4.3-2r2

• Brian Gladman Alternate License: AES with the VIA ACE

- Acknowledgement: This product includes modified version of fimpeg. Live555, Qt 4.7.2, and npepi-edk.

GNU General Public License (GPL)

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Plaza, Suite 830, Boston, MA 02-11-1937 USA Everyone is permitted to copy and distribute verbalim copies of this license document, but changing it is not allowed.

Preamble

The license for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software—to make sure the software is free for all users. The General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License installed.) You can apply to its programs, loss. When we speak of free software, we are referring to freedom, not price. Our General Public License are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you want, that you receive sources code or can get it if you want it, that you can change the software or use ideas of it in new free programmes; and that you know you can do these things).

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

I for example, if you distribute codes of such a program, whether gratis or for a fee, you must give the equivalents all the rights that you have. You must make sure that they too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you the licenses which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for the free software. If the software is modified by someone also and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reculations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law; that is to say, a work containing the Program or a portion of it, either valuation or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification"). Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this license; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent or having been made by running the Program). Whether that is true dependence on what the Program does.

1. You may copy and distribute verbal copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep exact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all or these conditions:

a) You must cause the modified files to carry prominent notice stating that you changed the files and the date of any charges.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from this Progrant or any per thereor, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands inactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or copy as an announcement including an appropriate copyright notice and a notice that there is no warranty (or use, saying that you provide a warranty) and that uses may receive a copy the program under these conditions, and telling the user how to view a copy of this License. (Exception: If the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. It identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works, but when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, more aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object codes or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the example a corresponding machine readouts source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Acompany 1 with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange or.

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Submission is allows.)

The source code for a work means the preferred form of the work for making modifications to it. For an execute work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed in either source or binary form with the major components (complier, kernel, and so on) of the operating system or which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any a brief otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept the Licensee. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this Licensee to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program for any work based on the Program, the recipient automatically works a license from the original license. If you receive the Program subject these terms and conditions, you may not improve any restrictions on the recipients' exercise of the fights granted herein. You are not responsible for enforcing compliance by third parties to this Licensee.

4. If, as a consequence of a court judgment or obligation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (or neither by court order, agreement or otherwise, that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute as to satisfy simultaneously your obligations under this License and any other partent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then has only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstances, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce your to infringe any patents or other property right claims or to control validity of any such claims. This section has the same purpose of producing the integrity of the less software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of this system it is up to the author/doctor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

B. If the distribution and/or use of the Program is restricted in certain countries either by patients or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of the License.

1. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free

Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, while to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and or promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM TO THE EXTENT PERMITTED BY APPLICABLE LAW, EXCEPT WHEN OTHER UNWIDE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM AS IS WITHOUT WARRANTY OF ANY KNC, EITHER EXPRESSED OR IMPIED, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF PUBLIC ANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSY SIMONIC, SERVICE OR CORPOTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT IT UCLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, REFURATE TO YOUR PARTS: INCLUDING ANY GENERAL, SPECIAL INDIVIDUAL OR OTHER PARTIES CONTAINED OUT. IF THE USE OF INABUITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BENG REENDED INCORATE OR LOSSES SUSTAINED BY YOU ON IT FIN AND PARTS OF A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH LUXOR OR OTHER PARTY HAS BEEN ANAIMED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and charge under these terms. To do so, attach the following notices to the program: it is earliest to attach them to the start of such source to a critical effectively convey the exclusion of warranty, and each file should have at least the "copyright" line and a pointer to where the full notices is found.

one line to give the program's name and an idea of what it does. Copyright (C) very name of author

This program is free software, you can redistribute it and/or modify it under the terms of the GNU General Public License as publicised by the Free Software Foundation; either version 2 of this license, or (at your option) any later versions.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

GNU General Public License for more details. You should have received a copy of the GNU General Public License along with the program if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 021 10-13C1, USA

Also acid information on how to contact you by electronics and paper mail.

If the program is interactive, make it output a search notice like this when it starts in an interactive mode.

Gromovision version 09. Copyright (C) year name of author Gromovision comes with ABSOLU' ELY NO WARRANTY; for details type show w'. This is free softwares, and you are welcome

to redistribute it under certain conditions, type 'show of' for details.

The hypothetical commands 'show v' and 'show c' should show the appropriate parts of the General Public License. Of course, the

commands you use may be called something other than show w and 'show o: they could even be mouse-clicks or menu items—whatever rules your program

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, it necessary. Here is a sample after the same

Yoyosys, Inc., hereby disclaims all copyright

Interest in the program 'Chomovision'

(which makes passes at complies) written

by James Hacker.

signature of Ty Coon, 1 April 1983

Ty Coen, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit living proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU General Public License

Version 3, 29 June 2007

Copyright (C) 2007 Free Software Foundation, Inc. http://sfz.org Everyone is permitted to copy and distribute verbal copies of this license document, but changing it is not allowed

Preamble

The GNU General Public License is a free, copy-left license for software and other kinds of wares.

The license for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program—to make sure it remains free software for all its users. We, the Press Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your program, less.

What we speak of free software, we are referring to freedom not prices. Our General Public Licensees are designed to make sure that you have the freedom to distribute copies of free software and charges for them if you want, that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and then you know you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it responsibilities to respect the freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedom that you received. You must make sure that they, loc., receive or can get the source code. And you must show them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.

For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sale, the GPL requires that modified versions be marked as charged, so that their problems will not be attributed exclusively to authors of previous versions.

Some services are designed to demand users access to install or run modified versions of the software inside them, although the manufacturer can use. This is fundamentally incompatible with the aim of packaging users' freedom to change the software. The systematic pattern of such issues occurs in the area of products for introduce to use, which is precisely where it is most unacceptable. The errors, we have designed this version of the GFL, a prohibit the practice for these products. If such problems are substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GFL as needed to protect the freedom of users.

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general purpose computers, but in press that do, we wish to avoid the special danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL ensures that patents cannot be used to restore the program non-free.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS

1. Definitions.

"This License" refers to version 3 of the GNU General Public License. "Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconcuc or masks

"The Program" refers to any copyrightable work licensed under the license. Each license is addressed as "you" "I increases" and "recipients" may be individual or organizations.

To 'modify' a work means to copy from or adapt at or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a "modified version" of the earlier work or a work "standard on" the similar work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "propagates" a work means to do anything win in the, without permission, would make you directly or seconostly liable for an arrangement. Under applicable copyright law, exact executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some counties other activities as well.

To "convey," a work means any kind of propagation that enables other parties to make or receive copies. Were interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interaction user interface displays "Appropriate Legal Notices" to the extent that it includes a convenient and prominently visible texture that (1) clips an sporoorate copyright notice, and (2) take the user that there is no warranty for the work (except to the extent that warranties are provided, that losses may convey the work under the License, and how to view a copy of this license). If the interface presents a list of user commands or options such as a menu, a prominent item in the list makes no alteration.

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to it. "Object code" means any non-source form of a work.

A "Standard interface" means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming engage, one that is widely used among developers working in that language.

The "System Libraries" of an executable work include anything, other than the work as a whole, that "ja is included in the normal form of packaging a Major Component, but which is not part of first Major Components, and ja serves only to enable use of the work with the Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A 'Major Component' in the context, means a major essential component (kernel window system, and so only of the specific operating system if any on which the executable work runs, or a simpler used to produce the work, or an object code interpreter used to run it).

The 'Corresponding Source' for a work in object code torn means all the source code needed to generate, install and/or an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work's System Libraries, or general-purpose tools or generally available tree programs which are used uncancelled in performing these activities but which are not part of the works. For example, Corresponding Source includes

interface definition files associated with source file for the work, and the source code for shared library as and dynamically invested subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between these subprograms and other parts of the work

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source. The Corresponding Source for a work in source code form is that same work.

1. Basic Permissions.

All rights granted under this License and granted for the term of copyright on the Program, and are inevitable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered

by the License only if the output, given its content constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.

You may make, run and precreate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to ensure for the sole purpose of having them more modifications exclusively for you or provide you with features for running those works, provided that you comply with the terms of this License in conveying all materials for which you do not control copyright. Those thus making or running the covered works for your must do exclusively on your behalf under your circulation and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Subleasing is not allowed; section 10 makes it unnecessary.

1. Protecting Users' Legal Rights From Anti-Circumvention Law. No covered work shall be deemed part of an effective technological measure under any top-knowledge law fulfilling obligations under article 11 of the WI '00 copyright treaty adopted on 25 December 1996, or similar laws permitting or restricting circumvention of such measures. When you convey a covered work, you write any legal corner to forced circumvention of technological measures to the extent such circumvention is effected by exercising rights under this license with respect to the covered work, and you display any invention to limit operation or modification of the work as a means of enforcing, against the works using, your or third parties' legal rights to forced circumvention or technological measures.

2. Conveying Verbatim Copies.

You may convey verbal copies of the Program's source tool as you receive it, in any medium, provided that you consciously and appropriately publish on each copy on appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep in act all notices of the absence of any warranty and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

1. Conveying Modified Source Versions.

You may convey a work-based or the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent, notices stating real you modified it, and giving a release date.

b) This work must carry prominent notices stating that it is released under the License and any conditions added under section 7. The requirement modifies the requirement in section 4 to "keep intact all not use".

(3) You must license the entire work, as a whole, under this License to anyone who comes into possession of a copy. The License will therefore apply, along with any applicable section 7 additional terms, to the whole of the work, and all its parts, regardless of now they are packaged. This license gives no permission to license the work in any other way, but it does not involve such permission if you have accurately received it.

d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has Interactive interfaces that do not display Appropriate Legal Notices, your work need not make them so.

A complaint of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an "aggregate" if the completion and its resulting copyright are not used to limit the access or equal rights of the completion's uses beyond what the individual works permit, inclusion or a covered work in an aggregate does not cause this license to apply to the other parts of the aggregate.

1. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License in one of these ways:

a) Convey the object code n. or embedded in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source feed on a curable physical medium customally used for softeners interchange.

by Convey the object code in, or embedded, a physical product (including a physical distribution medium, accompanied by a written offer, valid for at least three years and valid for as long as your offer spare parts or customer support for that product mode, to give anyone who possesses the object code offer ("a copy of the Corresponding Source for all the software in the product that is covered by this License, on a double physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing this converting of source or (2) access to copy the Corresponding Source from a network server at no charge.

c) Convey individual copies of the object code with a copy of the written offer to provide the Corresponding Source. This alternative is allowed only occasionally and non-commercially, and only if you received the object code with such an offer, in accord with subsection 60.

d) Convex the object coke by offering access from a designated place (grabs or for a charge), and offer equivalent access to the

Corresponding Source in the same way through the same price at no further charge. You need not require recipients to copy the

Corresponding Source along with the object line. In this case to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source. Regardless of what server helps the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subject on field.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.

A "Clear Product" is defined (1) for a "consumer product", which means any tangible personal property which is a normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, product cases shall be resolved in favor of coverage. For a particular product received by a particular user, "normally used" refers to a typical or common use of that class of product, regardless of the status of the particular user or of this way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such use represent the only significant mode of use of the product.

"Installation information" for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Sources. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in perpetuity of for a fixed term (regardless of how the transaction is character), the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But the requirement does not apply if neither you nor any third party retains the ability to install modified object codes on the User Product for example, the work has been installed in ROWL.

The requirement to provide installation information does not include a requirement. To continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification insert materially and adversely affects the operation of the network or violates the rules and prelocks for communication across the network.

Corresponding Sources conveyed and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.

1. Additional Terms.

"Additional permissions" are terms that supplement the terms of this License by making exceptions from one or more of its conditions.

Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are void under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the online Program remains governed by the License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may place additional permissions on material added by you to a covered work, for which you have or can give prospective copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:

a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or

by Recquiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or

c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or

of Limiting the use for publicly purposes of names of licensors or authors of the material; or

s) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

(ii) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on these licensors and authors.

All other non-permissive additional terms are considered "further restrictions" within the meaning of section 10. If the "Program as you received it, or any part of it, contains a notice stating that it is governed by the License along with a term that is a further restriction, you may remove that term. I'm a license document contains a further restriction but permits licensing or conveying under this License, you only side to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place in the relevant sources files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

Additional terms: permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

1. Termination.

You may not propagate or modify a covered work exact as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under the License (including any patent licenses granted under the third paragraph of section 11).

However, if you cause all violation of this license, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminate your license, and (b) permanently. If the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder nocties you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under the License. If your rights have been terminated and not permanently restated, you do not qualify to receive new licenses for the same material under section 10.

1. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than the License grants you permission to propagate or modify any covered

work. These actions initiate copyright: if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.

1. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.

An "entity transaction" is a transaction on transferring control of an organization, or substantially all assets of one, or succviding an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in interest and could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise or rights granted under this License, and you may not initiate litigation (including a access claim or counterclaim in a necessity) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any person of it.

1. Patents.

A "contributor" is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor's "contributor version".

A contributor's "essential patent claims" are all patent claims owned or contracted by the contributor, whether already acquired or collateral acquired, that would be infringed by some manner, omitted by the Licensee, of making, using, or selling its contributor version, but do no. Includes claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of the definition, "control" includes the right to grant patent subsidiaries in a manner consistent with the requirements of the Licensee.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make use, set, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a "patent license" is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant, not to such for patent infringement). To "grant" such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either I) it cause the Corresponding Source to be so available, or (2) angry to caprive yourself of the behalf of the patent license for the particular work or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to create itself. If you know something being? I mean you have such a knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would initiate one or more scientific patents in that country; that you have reason to backure are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is "discriminatory" if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this licence. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent licence: (a) in connection with copies of the covered work conveyed by you (or copies made from those copies, or if) primarily for and in connection with specific products or

complications that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 25 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you, under applicable patent law.

1. No Surrender of Others' Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise that can regard the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it all. For example, if you agree to terms that obligas you to call a royalty for further conveying from these to whom you convey the Program, the only way you could satisfy both those terms and this License would be to return entirely from conveying the Program.

1. Use with the GNU Affero General Public License.

Notwithstanding any other precision of this License, you have permission to link or combine any covered work with a work license and unclear version 3 of the GNU Aftero General Public License into a single combined work, and to convey the resulting work. The terms of the License will continue to apply to the part which is the covered work, but the special requirements of the GNU Aftero General Public License, each item 10, concerning interaction through a network will apply to the combination as such.

1. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a disagreeing version number. If the Program specifies that a certain numbered version of the GNU General Public License or any later version' applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the CNU General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

1. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, "TO THE EXTENT PERMITTED BY APPLICABLE LAW, EXCEPT WEIN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROMIDE THE PROGRAM 'AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PRICE DEFECTIVE. YOU ASSUVE THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

1. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO PROVIDES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OT CONSLICULTURAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPORATE WITH ANY OTHER PROGRAMS. EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

1. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courses shall apply local law that must closely approximate an absolute waiver of all cell liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, at each the following policies to the program, it is asked to attach them to the start of each source file to most effectively state the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

cone line to give the program's name and a brief idea of what it

Copyright (C)

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or ITINLESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

Also acid information on how to contact you by electronic and paper mail.

If the program does terminal interaction, make it output a short notice like this when it starts in an interactive mode:

Copyright (C)

This program comes with ABSOLUTELY NO WARRANTY; for details type 'show w'.

This is free software, and you are welcome to redistribute it under certain conciliaries; type 'show a' for details.

The hypothetical commands 'show w' and 'show o' should show the appropriate parts of the General Public License. Of course, your program's commands might be different; for a GU Interface, you would use on "about box".

You should also get your employer if you work as a programmer or school, if any, to sign a "copyright disclaimer" for the program, if necessary. For more information on this, and how to apply and follow the GNU GPL, see http://www.gnu.org/licenses/.

The GNU General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License. But first, please read https://www.gnu.org/philosophy/why-not-lgp.htmls.

GNU Lesser General Public License

Version 2.1, February 1999

Copyright (G) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 830, Boston, MA 02 11-1907 USA Everyone is permitted to copy and distribute verbalim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL]. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users.

This license, the Laser General Public License applies to some specialty designated software packages—typically libraries—of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you that think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licensees are designed to make sure that you have the freedom to distribute copies of free software and change for this service if you wish that you receive source code or can get it if you want it; that you can change the software and use pieces of it in raw free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether grants or for a lot, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complex object files to the recipients, so that they can link them with the library after making changes to the library and recompiling it. And you must show them these terms as they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's population will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insert that any patent license obtained for a version of the library must be consistent with the full freedom or use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Licenseor General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public Licensee. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statistically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its orders of freedom. The Lesser General Public License permits more tax policies for linking other codes with the library.

We call this license the "Lesser" General Public License because it does less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers less of an

advantage over compelling non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lessar license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a do-fadic standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as wisely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free softwares. For example, permission to use the GNU C Library in non-free programs enables many more people to use its whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the universal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a 'work based on the library' and a "work that uses the library". The former contains ends derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorised party saying it may be distributed under the terms of this Lesser General Public License (also called "the License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A work based on the Library means either the Library or any derivative work under copyright law; that is to say, a work containing the Library or a portion of it, either voting or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification");

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interfaces (e.g. cibm ties, pus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library independent of the use of the Library in a tool for writing it. Whether that is true dependence on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbalim codes of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to the License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section I above, provided that you also must all of these conditions:

a) The modified weak must itself be a software library.

b) You must cause the files modified to carry prominent notices

stating that you changed the files and the date of any change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

of if a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is Invoced, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

For example, a function in a library to compute square roots has a purpose that is entire well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License and its terms, do not apply to those articles when you distribute them as separate works. But when you distribute the same articles as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of the License, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or control your rights to work written entirely by your; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, more aggregation of another work not based on the Library with the Library for with a work based on the Library on a volume of a storage or distribution medium does not bring the other work under the scope of the License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library for a portion or derivative of it, under Section 2 in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software exchanges.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative or any portion of the Library, but is designed to work with the Library by being compiled or Inked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, Inking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library because it contains portions of the Library, rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses that Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be incorrect without the Library, or if the work is itself a library. The threshold for this to be true is not practically defined by law.

If such an object file uses any numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length, then the use of the object file is unrestricted), regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sectiona above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under its terms of your choice, provided that the terms permit modification or the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

ap Accompany the work with the complete corresponding machine-readable sources code for the Library including whatever changes were used in the work which must be distributed under Sections 1 and 2 above, and, if the works is an executable linked with the Library, with the complete machine unavailable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then rains to produce a modified executable containing the modified Library. It is understood that the user who changes the concepts of scientific files in the Library will not necessarily be able to recomplete the application to use the modified definitions."

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one.

as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the material specified in Subscription 8a, above, for a charge no more than the cost of performing this distribution.

of all distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable found. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in other source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contracts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distincts.

1. You may pace library facilities that are a work based on the Library side by side in a single library together with other library facilities not covered by this License and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

by Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under the License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under the License. However, series who have received copies, or rights, pure you under this License will not have their licenses terminated so long as such series remain in full compliance.

2. You are not required to accept this license, since you have not signed it. However, nothing also gives you permission to modify or obvious the Library or its derivative works. These actions are prohibited by law if you do no accept this license. Therefore, by modifying or dislikuting the Library for any work basis on the Library, you indicate your acceptance of the License to do so, and all to terms and conditions for copying, distributing or modifying the Library or works based on it.

3. Each line: you redistribute the library for any work based on the Library, the recipient automatically receives a license from the original leaseor to copy, distribute, Inc. with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' excess of the rights granted herein. You are not responsible for enforcing compliance by third parties with the License.

4. If a consequence of or a court judgment or allegation or patent infringement or for any other reason (not in place to patent issues), conditions are imposed on you behalf by court order, agreement or otherwise shall the contract the conditions of this license, they do not excuse you from the conditions of this license. (You cannot distribute so as to satisfy simultaneously your obligations under this license and any other permanent obligations than as a consequence you may not distribute the Library at). For example, if a patent license would not permit royalty free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy with it and this License would be to retain entirely from distribution of the Library.

If any portion of this section is held forward or uncomfortable and/or any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contrast validity of any such claims; this section has the sole purpose of projecting the integrity of the free software distribution system which is implemented by public licenses practices. Many people have made generous contributions to the wide range of software distributions through that system in reliance on

consistent application of that system; it is up to the author/confer to decide. The or she is willing to distribute software through any other system and a license cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only or among countries not thus excluded. In such case, the License incorporates the limitation as it willion in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. The Library specifies a version number of this license which applies to it and "any later version", you have the option of following the terms and conditions either of that version or at any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version our published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, who is to the Free Software Foundation, we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the arising and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY LICENSED FREE OF CHARGE THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE, EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY BASIS WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND INSURANCE FOR A PARTICULAR PURPOSE, THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAR OR CORRENTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR ABIDUO TO INWHOLE CALL ANY COPYRIGHT IT HOLDOUT OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REFIDISTRATE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU, FOR DAMAGES INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL AND CONSENSIONAL INFRAVINGS ARISING OUT OF THE USE OR INABILITY TO USE. THE LIBRARY WITHOUT ANY COMBUST WITHOUT LIMITED TO SPECIFY DATED FROM THE INFORMATION OF LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPEATE WITH ANY OTHER SOFTWARE, EVEN IF SUCH I CLOUD OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public. We recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms for, alternatively, under the terms of the ordinary General Public License?

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty, and each file should have at least the "copyright" line and a pointer to where the full notice is found.

one line to give the library's name and an idea of what it does. Copyright (C) year name of author:

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public

License as published by the Free Software Foundation, either

version 2.1 of the License, or (at your exp on any later version.

This library is dedicated in the hope that I will be useful.

but WITHOUT ANY WARRANTY; without reason the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU

Lesser General Public License la menore delata

You should have received a copy of the GNU Laser General Public License and will this directory (not, write to the Free Software

Foundation, Inc., 50 Temple Place, Suite 330, Boston, MA 02111-13C7 USA

Also add information on now to contact you by electronic and paper mail.

You should also get your employer if you work as a programmer or your school if any, to sign a "copyright disclaimer" for the inquiry, if necessary. Here is a sample; after the names:

Yoyabne, Inc., hardy declares at copyright interest in

The library "Frob" (a library for working kitchen) written

by James Banken-Hanks

Signature of Ty Capn. 1 April 1950

Ty Corp. President of Vice

That's all there is to it!

MOZILLA PUBLIC LICENSE

Copyright © 2004, Apple Computer, Inc. and The Mozilla Foundation.

Copyright (c) 2004-2005 HighPoint Technologies, Inc.

Copyright (c) 2004-2005 HighPoint Technologies, Inc.

Version 1.1

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor" raises each entity that creates or contributes to the creation of Modifications.

1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor and the Modifications made by that particular Contributor.

1.3. "Covered Code" means the Original Code or Modifications on the combination of the Original Code and Modifications, in each case including portions thereof.

1.4. "Electronic Distribution Mechanism" means a mechanistic generally accepted in the software development community for the electronic transfer of data.

1.5. "Executable" more Coonal Code in any form other than Source Code.

1.6. "Initial Developer" means the individual or only identified as the Initial Developer in the Source Code notice required by Exhibit A.

1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the terms of this License. 1.8. "License" means this document.

1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.8. "Modifications" means any addition to or deletion from the substances or structures of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, s. Modification is:

A Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.

B. Any case is that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as Original Code, and which, at the time of its release under this License is not already Covered Code governed by this License.

1.10.1. "Patent Claims" means any patent claims(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims in any patent. Licensable by grantor.

1.11. "Source Code" means the preferred form of the Coveres Code for making modifications to it, including all modules it contains, plus any associated interface definition. The script uses to control completion and installation or an Executable, or source code

Shenzhen's companies are against other the original Code of a similar work known, available Covered Code of the Contributor's choice. The

Source: Boston can be in-compression for the firm, provided that appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future version of this License issued under Section 6.1. For legal

entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (60%) of the outstanding shares or potential ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant. The initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party in intellectual property claims:

(a) Order marketable properly rights (private non-pattern or trademark) Receivable by railik Developer to use, reproduce, modify, display perform, sublicense and distribute the Original Code (or persons thereof) with or without Modifications, and/or as part of a Large Works and

(b) under Patent Claims mentioned by the making, using or selling of Original Code, to make, has made use, practice sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof.

(c) the licenses granted in this Section 2.16 and (c) are effective on the data initial Developer test distributes Original Code under the terms of this License.

(d) Notwithstanding Section 2.1(b) above, no patent license is granted: If for codes that you delete from the Original Code; 2i separate from the Original Code; or 3i for ringements caused by if the modification of the Original Code or if the combination of the Original Code with other lawns or ideas.

2.2. Contributor Grant. Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) coreside by Contributor to use reproduces, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or corporations thereof) either on an unmodified basis with other Modifications, as Covered Code end/or as part of a Large Works and

(b) under Patent Curr's mingled by the making, using, or seeing of Modifications made by that Contributor either alone and/or in combination with to Contributor Version for portions of such combinations, to make use, sell offer for sale, news made, and/or otherwise disclose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or portions of such combinations).

(c) the licenses granted in Section 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.

(4) Notwithstanding Section 2.2(b) above no patent license is granted: 1) for any code that Contributor has deleted from the Contributor Version; 2) separate from the Contributor Version; 3) for in- regements caused by it third party modifications of Contributor Version or it the combination of modifications made by that Contributor with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims distinguished by Covered Codes in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

8.1. Application of License, The Modifications which You create or to which You contribute are governed by the terms of this License, including without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this License or a future version of the License released under Section 6.1, and You must include a copy of this License with every copy of the Source

Code You distribute. You may not offer or impose any terms on any Source Code version that alters or restricts the applicable version of this License or its recipients' rights hereunder. However, You may include an additional document offering the additional rights described in Sazikan 3.5.

3.2. Availability of Source Code. Any Modifica on which you treat or to which you contribute must be made available in Source Code form under the terms of the License either on the same media as an Executable version or via an accepted Electronic Distribution Mechanism to anyone to whom you made an Executable version available; and if much available by Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular Moderna has been made available to such recipients. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is maintained by a micro party.

3.3. Description of Modifications. You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived, directly or indirectly, from Original Code provided by the initial Developer and including the name of the Initial Developer in list the Source Code, and [a] in any notice in an Executable version or related documentation in which you describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims. If Contributor rights knowledge that a source under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code distribution titled "LIGAL" which describes the claim and the party making them claim in sufficient capital and account will know whom to contact. If Contributor obtains such knowledge at the Middle Court, there are no evidence that the majority of the contributor shall comply modify the LEGAL file in all copies. Contributor makes available thereafter and shall have other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has been obtained.

(b) Contributor APIs. If Contributor's Modifications include an application programming interfaces and Contributor has knowledge of patent licenses which are reasonably necessary to implement that APL Contributor must also include this information in the LEGAL file.

(c) Representations.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above. Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by this License.

3.5. Required Notices. You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a particular Source Code due to its structure, nor You must include such notice in a location (such as a relevant direction), where a user would take into box for such a notice. If you created one or more modifications? You may add your name as a Contributor to the notice. You should not be reproduced by any copy of any documentation or the Source Code version. You describe recipients' rights or ownership rights relating to Covered Code. You may choose to offer, and to change a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code. However, You may do so only on your own behalf and not on benefit of the Initial Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is affixed by You alone, and You hereby agree to indemnity the Initial Developer and/or any liability for any liability issued by the Initial Developer or such Contributor as a result of warranty, support, indemnity or liability terms you offer.

3.6. Distribution of Executable Versions. You may distribute Covered Code in Executable Version only if the requirements of Section 3.1-3.5 have been met for that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The notice must be cooperatively included in any notice in an Exercalable version, resisted documentation or collateral in any way. You describe recipients' right relating to the Covered Code, You may distribute the Exceivable version of Covered Code or ownership rights under a license of Your choice, which may contain some different from this License, provided that You are in compliance with the terms of this License and that the license for the Exceivable version does not attempt to limit or alter the recipient's rights in the Source Code version from the rights set forth in this License. If you distribute the Exceivable version under a different license You must make it absolutely clear that any terms which differ from this License are offered by You, alone, but by the Initial Developer or any Contributor, You foresee agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works. You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distributes the Larger Work as a single product. In such a case, you must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

It is impossible for You to comply with any of the terms of the License with respect to some or all of the Covered Code due to status, judicial order, or regulation than You must. (a) comply with the terms of this License to the maximum extent possible; and (b) describe the limitations and its code by article. Such description must be included in the LEGAL he described in Section 3.4 and must be included with all denominations of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

This License applies to oeda to which the Initial Developer has attached the notice in Exhibit A and is related Covered Code.

6. Versions of the License.

6.1. New Versions, Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from time to time. Each version will be given a distinguishing version number.

8.2. Effect of New Versions. Once Covered Code has been published under a particular version of the License, You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version or the License published by Netscape. No one other than Netscape has the right to modify the terms applicable to Covered Code created under this License.

1. 1. Derivative Works. If you create or use a modified version of the License (which you may only do in order to apply if it is code which is not already Covered Code governed by this License), you must (a) revise Your license as that the phrases "Modula", "MOUL" API, "MOZA", "Netscope", "MPL", "NPL" or any conjuncty similar phrase can not appear in your license (except to note that your license offers from the License) and (it otherwise means I consider that Your version of the license contains terms which differ from the Mojla Public License and Naseepas Public License (Filing in the name of the India Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be deemed to be modifications of the License.)

2. DISCLAIMER OF WARRANTY. COVERED CODE IS PREMIDED UNDER THIS LICENSE ON AN 'AS IS' BASIS, WITHOUT WARRANTY OR ANY KIND, EITHER CAPITLESSO OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS PRIE OF DECEPTS, MERCHANTABILITY, FIT FOR A PARTICULAR ORDER OF THIS PROCEDURE. ANY OTHER INFORMATION IS NOT TO BE USED IN THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU SHOULD ANY COVERED COIL PROVE DEFECTIVE IN ANY RESPECT, YOU IT NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTION ASSUME THE COST OF ANY NECESSARY SERVICIES, REPAIR OR CORRECTION, THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL FAIR OF THIS LICENSE, WITHOUT ANY INFORMATION AS PROVIDED ANY AUTHORED HEJUNDER EXCEPT UNDER THIS DISC. AMER.

8. TERMINATION.

8.1. This License and the rights granted horsunder will terminate a automatically if You fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All licenses to the Covered Coce which are properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect beyond the termination of the License shall survive.

8.2. If You initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as "Participated") alleging that:

(a) such Participant's Contributor Version directly or indirectly Insgrees any patent, then any and all rights granted by such Participant to You under Section 2.1 unclear 2.2 of the License shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice You either; it agree in writing to pay Participant a mutually agreeable responsible royalty for Your cast and future use of Modifications made by such Participant, or it who knows Your litigation claim will respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable royalty and payment will be paid, the payments shall be paid on the parties or the litigation claim in not swirrden, the rights granted by Participant to You under Section 2.7 and/or 2.2 automatically terminate all the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the date You first made, used, sold distributed, or had made, Modifications made by that Participant.

8.3. I You asset a patent infringement claim against Participant alleging that such Participant's Controller Version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and retailers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.

1. LIMITATION OF LIABILITY, UNDER NO CIRCUMSTANCERS AND UNDER NO LEGAL THEORY, WHETHER TORT INCLUDING NEG. FENCE, CONTRACT, OP OTHERWISE SHALL YOU THE INITIAL DEVELOPMENT ANY OTHER CONTRIBUTION OR ANY DISTRIBUTOR OF COVERED CODE OR ANY SUPPLIER OF ANY SUCH PARTS, BE LIABLE TO ANY PERSON FOR ANY INDIRECT. THIS LIMITATION OF THE INFORMATION AND ANY INFORMATION CHARACTER INCLUDING, WITHOUT LIMITATION, DAMAGES OF LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR VALID FUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAWAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DIATATION OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBES SUCH LIMITATION. ANY UNLIMITED BY URBAN SECURITIES SHALL NOT AUTHORIZE IMITATION OF INCIDENTAL OF CONSEQUENTIAL DAWAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The Covered Code is a "commercial item," as that item is defined in 46 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation." As such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 46 C.F.R. 12.212 and 46 C.F.R. 227.720.1 through 227.720.4 June 1995, all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

1. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter for her. If any provision of this License is held to be unfeasible, such provision shall be referred only to the extent necessary to make it enforceable. The License shall be governed by California law provisions (except to the extent applicable law. If any, provides otherwise, excluding its conflict-of-law provisions. With respect to disputes in which all least one party is a citizen, or an entity chartered or registered to do business in the United States of America, any litigation relating to the License shall be subject to the jurisdiction of the Federal Courts of the Northern District of California, with various lying in Santa Clara County, California, with its being partly responsible for costs, including without inflation, court costs and restrictions on the basis of the provisions and expenses. The application of the United Nations Convention Rules Contracts for the international Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the dealer shall not apply to the Licenses.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for aims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors to distribute such responsibility on an equilibrium basis. No long herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as Multiple-Licensed. Multiple-Licensed means that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPL or the alternative licenses. If any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Vanilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/ Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is

The Initial Developer of the Original Code is ____, Fortions created by ____ are Copyright (C) ____, All Rights Reserved.

Contributor(s):

Alternatively, the contents of this file may be used under the terms of the license (the I) Licensed, in which case the provisions of the License are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the License and not to allow others to use your reader of this file under the MPL indicate your decision by deleting the provisions above and replaces them with their order and other provisions required by the License. If you have made a general procedure above a recipient may use the license of this file under either the MPL or the "I" or "II" unless otherwise." [NOTE: The act of the Exhibit A may offer slightly from the load of the notices in the Source Code files of the Original Code. You should use (the text of this Exhibit A name) than the text found in the Original Code. Source Code for Your Vocutions.)

BSD Two Clause License

Copyright: (c) 2004-2005 HighPoint Technologies, Inc. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE AUTHOR "AS IS" AND ANY EXPRESS OR IMPIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR IS LIABLE FOR ANY EFFECT. INDIRECTLY, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL ANY DISCREPANCY OF THIS INFORMATION IS NOT ALLOWED. THIS DOCUMENT OF A SUBJECT INFORMATION OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA, OR PROSETS, OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORTING, LOADING NEGLIGENCE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

BSD 3-clause License

Copyright: (a) 2003-2013, Marvell International Ltd. Copyright: (a) 2005-2009, Alex Weber. Copyright: (a) 2005, Tom Wu.

Copyright (c): 2000-2009, Paul Johneton.

Copyright (c) 1994-1997, Thomas G. Lane.

Copyright (c) 2009, 2011, D. R. Commander.

Copyright (c) 2009 Texas Instruments Incorporated - http://www.li.com/

Copyright (c) 2006 Alexander Chamoris.

Copyright (c) 2008 Sun Microsystems, Inc.

Copyright (c) 2010-2015, The Dolo Foundation.

Copyright (c) 2005-2007 Paul Heieh.

Copyright (c) Alexandru Marasteanu.

Copyright © 2003, 2010. Dr. Brian Gaudrani, Worcester, UK.

Copyright (c) 2002-2508, Milan kits

Copyright © 2002.2008, Muraka E. Magakan «arrapaludabian pros

Copyright (c) 2002, Live Powitashov.

Copyright (c) 2007 The Khroncs Group Inc.

All rights reserved.

Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are

不

- Fed distributions of source code must retain the above copyright notice.

this list of conditions and the following disclaimer.

- Red distributions in binary form must reproduce the above copyright notice, this list of conditions and the following electronic file

documentation and/or other materials provided with the distribution.

- Neither the name of the nor the names of its

contributions may be used to address or promote products derived

from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMP WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY

DIRECT, INDIRECT, INCIDENTAL. SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO:

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF LIFE, MOTA, REPRODUED; GENTERTED IN THE EQUITY/REWARD

USE, DATA, OFF HOURS, OR BUSINESS INTENDED ON/OVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN

CONTRACT, STRICT LIABILITY, OR TO EIT INCLUDING NEGLIGENCE

OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

The MIT License

Copyright (c) 2008 2010 Adrian Tesca

Copyright © 2010-2011 Illinois LLC

Copyright (c) 2009 Dave Gambie

Copyright (c) 2008-2011 Martin Wendt

Copyright (c) 2008-2005 Tom Viu

Copyright (c) © 2017 Topo Torrey

Copyright (c) 2010 "Cowboy" Ben Allen

Copyright (c): 2009-2011 Brantley Harris

Copyright (c) 2011-2012 Timo Tijns

Copyright (c) 2006 2011 Sam Cohall (https://www.laxola.co.uk)

Copyright (c) 2009 Wwclsw

Copyright © 2006-2012 Copyright Barancaski

Copyright (c) 2008-2012 Sanche Lains

Copyright © 2007 2014 Query Foundation and other contributors

Propriorsive in investors upregulated. Loss of investor, let you become conservative to

The following table provides the original document of this software and sequenced documentation files in the

"Software", to deal in the Software without restriction, including without

limitation the rights to use, copy, modify, merge, publish, distribute,

sulicence, and/or sell copies of the Software, and to permit persons to where the Software is published to do so, subject to the following:

conditions:

The above copyright notice and this permission notice shall be included

n all copies of substantial portions of the Software.

THE SOFTWARE IS PROVIDED AS IS, WITHOUT WARRANTY OF ANY KIND. EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM. DAMAGES OR OTHER LIABILITY, WHICH IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF CHIN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

libxml2 License

Except where otherwise noted in the source code (e.g. the files hash.c, list.c and the trip files, which are covered by a similar licence but with different Copyright notices) at the file are:

Copyright © 1950-2009 Daniel Vallard. All Rights Reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of the software and associated documentation free (the

Irrigation the righle leuwa, cervi, medfe, moro cubich, dactulo.

sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all capres or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO BUTHWATER WITH THE WRITTEN BY

THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NOG BermudaMENT, IN NO EVENT

SHALL THE DANIEL VELLARD BE LIABLE FOR ANY CLAIM.

DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF

CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Expect as contained in this notice, the name of Daniel Vellard shall not

be used in advertising or otherwise to promote the sake, use or other

dearings in this Software without prior written authorization from him.

Apache License

Version 2.0, January 2004

Copyright (c) 2015 Samnda Abeyruwan [[e-mail]]

http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND

DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 (through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership or such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source" form shall near the preferred form for making modifications, including but not limited to software source code, documentation source and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation and conversions to other mode types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work isn example is provided in the Appendix below.

"Derivative Works" shall mean any work, whether in Source or Object

form, that is based on (or derived from) the Work and for which the

external reactors, applications, applications, or other modifications represent, as a whole, an existing work of operation. For the purposes

of this Linangia. Derivative Works shall put include seaks that remain

separable from, or merely link for bind by name to the interfaces of, the Work and Derivative Works thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions so that Work or Derivative Works thereof, that a intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or legal Entity authorized to submit on behalf of the copyright owner. For the purposes of the definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its

representatives, including but not limited to communication on electronic mailing aids, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conclusively marked or otherwise designated in writing by the copyright owner as "Not a Contribution."

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contributor has been received by Licensor and subsequently incorporated within the Work.

1. Grant of Copyright License, Subject to the terms and conditions of the License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, socializing, and distribute the Work and such Derivative Works in Source or Object form.

2. Grant of Patent License. Subject to the terms and conditions of this License, such Contributor hereby grants to You a perpetual, workwide, non-exclusive, no charge, royalty-free, irrevocable (except as stated in this section patent license to make, have made, use, offer to sell, sell, Import, and otherwise transfer the work, where such license applies only to those patent claims licenses by such Contributor that are necessarily infringed by their Contribution(s) rights or by combination of their

Submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Construction incorporated within his Work personnel as directed or

contributory patent infringement, then any patent license granted to You under this License for that Work shall terminate as of the date such litigation is filed.

1. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that: You must the following conditions:

a. You must give any other recipients of the Work or Derivative Works a copy of this License; and

b. You must cause any modified files to carry prominent notices stating that You changed the files; and

c. You must retain, in the Source form of any Derivative Works that you distribute, all copyright, patent, trademark, and attribution notice from the Source form of the Work, excluding these notices that do not pertain to any part of the Derivative Works; and

d. If the Work includes a "NOTICE" list file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE list. The distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works. If and wherever each

Three-party notices normally spread. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that you distribute, alongside or as an appendix to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.

You may add Your own copyright statement to Your modifications and may provide additional or other license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in the License.

1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution Intentionally submitted for inclusion in the Work of You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.

2. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.

3. Disclaimer of Warranty. Unless recurred by applicable law or agreed to writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS BY" BASIS. WITH OUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INTREGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with your exercise of permissions under this License.

4. Limitation of Liability. In no event and under no legal theory, whether in fact (including negligence), contract, or otherwise, unless required by applicants law (such as deliberate and greedy negligence, acts) or agreed to writing, shall any Contributor be links to You for damages, including any direct, indirect, special, notional, or consequential damages of any character asking as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss or goodwill, work stoppage, computer failure or malfunction, or any end all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.

5. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, you may choose to offer and charge a fee for, acceptance of support, warranty, indemnity, or other facility obligations and/or rights committed with this License. However, in accepting such obligations, you may not only on your own benefit and on your sole responsibility, not on behalf of any other Contributor, and only if you agree to indemnity, defend, and hold each Contributor harnesses for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

APPENDIX: How to apply the Apache License to your work

To apply the Apache License to your work, attach the following to boleplate notice, with the file is enclosed by brackets "ll" replaced with your own identifying information. (Don't include the bracketed) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same "printed page" as the copyright notice for senior identification within third party accounts.

Copyright (www) [name of copyright owner] Licensed under the Apache Licensee, Version 2.0 (the "Licensee"), you may not use this file except in compliance with the Licensee. You may obtain a copy of the Licensee at http://www.apache.org/licenses/LICENSE-2.0 Unless required by

Spousive Ext. or agreed to Flaming, otherwise distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

The zlib/libpng License

Copyright (c) 2011 Lee Thomson

Copyright (c) 1995-2012 Jesn-Icup Gailly and Mark Adler

Copyright (c) 1999-2012 Glenn Randers-Pehrson

Copyright (c) 2008-2005 Hector Mauricio Rodriguez Segura

Copyright (c) 1995-2008 Nullsoft and Contributors

Copyright (c) 2302-2008 Davie Pizzolano

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damage arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

Boost Software License - Version 1.0

August 17th, 2003

Permission is hereby granted, free of charge. to any person or organization obtaining a copy of the software and accompanying documentation covered by this license (the "Software") to use. recrocue, display, distribute, execute, and transmit the Software, and to prepare defective works of the Software, and to permit third parties to whom the Software is turned to do so, all subject to the following: The copy print notices in the Software and the entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Software, in whole or in part, and all derivative works of the Software, unless such copies or derivative works are easily in the form of machine executable object body generated by a source language processor. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF PRIOR ANJABILITY, ITNESS FOR ANY OTHER VALUE. THIS TITLE AND INFORMATION IN THIS DOCUMENT IN NO EVENT SHALL BE USED. THE COPYS SHALL NOT BE ANY ONION DISTRIBUTING THE SOFTWARE IS LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHER EPASE, ARISING FROM, OUT OR IN CONNECTION WITH THE SOFTWARE OF THE USE OR OTHER SEALINGS IN THE SOFTWARE.

Curl License

Copyright (c) 1998 - 2003, Daniel Stenberg, [e-mail] All rights reserved.

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided the, the above copyright notice and the permission notice specified in copies.

THE SOFTWARE IS PROVIDED AS IS, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHOR'S OR COPYRIGHT HOLDIT IS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER ANY NOTICE, ANY NOTICE IN AN Action OF CONTRACT, TORT OR OTHERWISE, ARISING FROM OUT OF OP IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER SEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.

Microsoft Public License (Ms-PL)

Copyright (c) 2009 Wong Sheo Voon

Copyright (c) 1908-2012 Glenn Randers-Fahresen

This license governs use of the accompanying software. If you use the software, you accept this license. If you do not accept the license, do not use the software.

1.

The term "reproduce," "reproduction," "derivative works," and "distribution" have the same meaning here as under U.S. copyright law.

A "continuation" is the original software, or any additions or changes to the software.

A. "contributor" is any person that distributes its contribution under this license.

"Licoread patents" are a contributor's patent claims that read directly on its contribution.

1. Grant of Fights

A. Copyright Grant Subject to the terms of this license, including the license conditions and limitations in section 3, each contributor grants you a non-exclusive, worldwide, royalty-free copyright license to reproduce its contribution, prepare derivative works of its contribution, and distribute its contribution or any derivative works that you make.

B. Patent Grant- Subject to the terms of this license, including the license conditions and irritations in section 3, each contributor grants you a non-excluses, whichever, royalty free license under its licensed patents to make have made, use, sell, offer for sale, import, and/or otherwise dispensed of its contribution in the software or derivative works of the contribution in the software.

1. Conditions and Limitations

A. No Trademark License This license does not grant you rights to use any contributors' name, logo, or trademarks.

B. If you bring a patent claim against any contributor over patents that you claim are infringed by the software, your patent license from each contributor to the software ends automatically.

C. If you distribute any portion of the software, you must retain all copyright, patent, trademark, and attribution notices that are present in the software.

D. If you distribute any portion of the software in source code form, you may do so only under the license by including a complete copy of this license with your distribution. If you distribute any portion of the software in compiled or object code form, you may only do so under a license that complies with this license.

E. The software is licensed "as-is." You bear the risk of using it. The contributors give no express warranties, guarantees or conditions. You may have additional consumer rights under your local laws which this license cannot change. To the extent permitted under your local laws, the contributors exclude the implied warranties of merchantability, fitness for a particular purpose and non-intrsegment.

The Code Project Open License (CPOL) 1.02

Copyright © 2004.2007 Rob Groves

Preamble

This License governs Your use of the Work. This License is intended to allow developers to use the Source Code and Executable Files provided as part of the Work in any application in any form.

he main points subject to the terms of the License are:

- Source Codes and Executable Files can be used in commercial applications:

- Source Code and Executable Files can be redistributed; and

- Source Code can be modified to create derivative works.

- No claim of suitability, guarantee, or any warranty whatsoever is provided. The software is provided "for it".

provised. The software is divided 54%

- The PRIS accrediting this work may not be distributed or published without the Author's consent.

This License is entered between You, the individual or other entity reading or otherwise making use of the Work licensed pursuant to this License and the individual or other entity which offers the Work under the terms of this License ("Author").

License

THE WORK (AS DEFINED BELOW) IS PROVIDED UNDER THE TERMS OF THIS CODE PROJECT OPEN LICENSE ("LICENSE"). THE WORK IS PROTECTED BY COPYRIGHT AND/OR OTHER APPLICABLE LAW. ANY USE OF THE WORK OTHER THAN AS AUTHORIZED UNDER THIS LICENSE OR COPYRIGHT LAW IS PROHIBITED.

BY EXERCISING ANY RIGHTS TO THE WORK PROVIDED HEREIN, YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE. THE AUTHOR GRANTS YOU THE RIGHTS CONTAINED HEREIN IN CONSIDERATION OF YOUR ACCEPTANCE OF SUCH TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO ACCEPT AND BE BOUND BY THE TERMS OF THIS LICENSE, YOU CANNOT MAKE ANY USE OF THE WORK.

1. Definitions.

a. "Articles" means, collectively all articles written by Author which describes how the Source Code and Executable Files for the Work may be used by a user.

b. "Author" means the individual or only that offers the Work under the terms of this License.

c. "Derivative Work" means a work based upon the Work or upon the Work and other pre-existing works.

d. "Executable Files" rake to the executables, binary files, configuration and any required data files included in the Work.

e. "Publisher" means the provider of the websites, magazine, CD-ROM, DVD or other medium from or by which the Work is obtained by You.

1. "Source Code" refers to the collection of source code and configuration files used to create the Executable Files.

g. "Standard Version" refers to such a Work if it has not been modified, or has been modified in accordance with the consent of the Author, such consent being in the full discretion of the Author.

h. "Work" refers to the collection of files distributed by the Publisher, including the Source Code, Executable Files, binaries, data files, documentation, whitepapers and the Articles.

i. "You" is you, an individual or entity wishing to use the Work and exercise your rights under this License.

1. Fair Use/Fair Use Rights. Nothing in this License is intended to reduce, limit, or restrict any rights arising from fair use, fair dealing, first sale or other limitations on the exclusive rights of the copyright owner under copyright law or other applicable laws.

2. License Grant. Subject to the terms and conditions of this License, the Author hereby grants You a worldwide, royalty-free, non-exclusive, perpetual (for the duration of the applicable copyright) licenses to exercise this rights in the Work as stated below:

a. You may use the standard version of the Source Code or Executable Files in Your own applications.

b. You may apply bug fees, portability fees and other modifications obtained from the Public Domain or from the Author. A Work modified in such a way shall be considered the standard version and will be subject to this License.

c. You may otherwise modify Your copy of this Work (excluding the Articles) in any way to create a Derivative Work, provided that You insert a prominent notice in each changed file stating how, when and where You changed that file.

d. You may distribute the standard version of the Executable Fines and Source Code or Derivative Work in aggregate with other (possibly commercial) programs as part of a larger (possibly commercial) software distribution.

e. The Articles discussing the Work published in any form by the author may not be distributed or republished without the Author's consent. The author retains copyright to any such Articles. You may use the Executable Files and Source Code pursuant to this License but you may not report or republish or otherwise distribute or make available the Articles, without the prior written consent of the Author. Any subroutines or modules supplied by You and Linked into the Source Code or Executable Files this Work shall not be considered part of the Work and will not be subject to the terms of this License.

1. Patent License. Subject to the terms and conditions of this License, each Author hereby grants to You a perpetual worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, import, and otherwise transfer the Work.

2. Restrictions. The license granted in Section 3 above is expressly made subject to and limited by the following restrictions:

a. You agree not to remove any of the original copyright, patent, trademark, and attribution notices and associated disclaimers that may appear in the Source Code or Executable File.

b. You agree not to advertise or in any way imply that this Work is a product of Your own.

c. The name of the Author may not be used to endorse or promote products derived from the Work without the price will act present of the Author.

d. You agree not to sell, lease, or rent any part of the Work. This does not restrict you from including the Work or any part of the Work inside a larger software distribution that itself is being sold. The Work by itself, though, cannot be sold, leased or rented.

e. You may distribute the Exectable Files and Source Code only under the terms of this License, and You must include a copy of, or the Uniform Resource identifier for, this License with every copy of the Exectable Files or Source Code. You distribute and ensure that anyone receiving such Exectable Files and Source Code agrees that the terms of this License apply to such Exectable Files and/or Source Codes. You may not offer or impose any terms on the Work that alter or restrict the terms of this License or the recipients' exercise of the right is granted herein. You may not subscribe the Work. You must keep intact in notices that refer to the License

and to the disclaimer of warranties. You may not distribute the Executable Files or Sources Code with any technological measures that can not access or use of the Work in a manner inconsistent with the terms of this License.

t. You agree not to use the Work for illegal, immoral or improper purposes, or on pages containing illegal, immoral or improper material. The Work is subject to applicable expert laws. You agree to comply with all such laws and regulations that may apply to the Work after Your receipt of the Work.

1. Representations, Warranties and Disclaimer. THIS WORK IS PROVIDED "AS IS" "WHIP IS" AND "AS AVAILABLE" WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS OR WARRANTIES, YOU, THE USER, ASSUME ALL RISK INITS USE INCLUDING COPYRIGHT INRIGEMENT, PATENT INRIGEMENT, OTHER AS SPECIFICATIONS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS

2. Indemnity. You agree to defend, indemnify and hold harmless the Author and the Publisher from and against any claims, suits, leases, damages, facilities, costs, and expenses (including reasonable legal or attorneys' fees) resulting from or relating to any use of the Work by You.

3. Limitation on Liability, EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL THE AUTHOR OR THE PUBLISHER BE LIABLE TO YOU ON ANY LEGAL THEORY FOR ANY SPECIAL INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES ARISING OUT OF THIS LICENSE OR THE USE OF THE WORK ON OTHERWISE, EVEN IF THE AUTHOR OR THE FBLISHER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

4. Termination.

a. The License and the rights granted hereunder will terminate automatically upon any breach by You of any term of this License. Individuals or entities who have received Derivative Works from You under the License, however, will not have their licenses terminated provided such individuals or entities remain in full compliance with those licenses. Sections 1, 2, 5, 7, 8, 9, 10 and 11 will survive any termination of this License.

b. If You bring a copyright, trademark, patent or any other infringement claim against any contributor over infringements You claim are made by the Work, your License from such contributor to the Work ends automatically.

c. Subed to the above terms and conditions, the license is perceptual for the duration of the apolcsable copyright in the Work. Notwithstanding the above, the Author reserves the right to release the Work under different license terms or to stop debt-billing the Work at any time provided, however that any such electron will not serve to withdraw the license for any other license that has been, or is recurred to be, granted under the terms of this License, and this License will continue in full force and affect unless terminated as stated above.

1. Publisher. The parties hereby confirm that the Publisher shall not, under any circumstances, be responsible for and shall not have any liability in respect of the subject matter of the Licensee. The Publisher makes no warranty whatsoever in connection with the Work and shall not be liable to You or any party on any legal theory for any damages whatsoever, including without limitation any general special, incidental or consequential damages arising in connection to the Licensee. The Publisher reserves the right to cease making the Work available to You at any time without notice

2. Miscellaneous

a. The License shall be governed by the laws of the location of the head office of the Author or if the Author is an individual, the laws of location of the principal place of residence of the Author.

b. If any provision of this License is invalid or unenforceable under applicable law, it shall not affect the validity or enforceability of the remainder of the terms of the Licensee, and without further action by the parties to this License, such provision shall be reformed to the minimum extent necessary to make such provision valid and enforceable.

c. No term or provision of this License shall be deemed waived and no breach consented to unless such waiver or consent shall be in writing and signed by the party to be charged with such waiver or consent.

d. The License constitutes the entire agreement between the parties with respect to the Work Increased herein. There are no understandings, agreements or representations with respect to the Work not specified herein. The Author shall not be bound by any additional provisions that may appear in any communication from You. This License may not be modified without the mutual written agreement of the Author and You.

The Independent JPEG Group's JPEG software

Copyright (C) 1991-1997, Thomas G. Lane.

README for release 6b of 27-Mar-1999

[EMPTY]

This distribution contains the sixth public release of the Independent JPEG Group's free JPEG software. You are welcome to redistribute this software and to use it for any purpose, subject to the conditions under LEGAL ISSUES, below.

Serious users of this software (particularly those incorporating it into organic programs) should contact aUG of jpeg information and to be added to our electronic missing list. Mailing list members are notified of updates and have a chance to participate in technical discussions, etc. This software is the work of Tom Lane, Philip Gladstone, Jim Boucher, Lee Crocker, Julian Ming-Julion, Lula Crib, George Philips, Davde Rice, Guido Volceding, Sir Wetlers, and other members of the Independent JPEG Group.

UG is not affiliated with the official ISO JPEG standards committees.

LEGAL ISSUES

In plain English:

1. We don't promise that this software works. (But if you find any bugs, please let us know!)

2. You can use this software for whatever you want. You don't have to pay us.

3. You may not pretend that you wrote the software. If you use it in a program, you must acknowledge somewhere in your documentation that, you've used the HG code.

In legaless:

The authors make NO WARRANTY or representation, either express or implied, with respect to this software, its quality, accuracy.

merchandacity, or fitness for a particular purpose. This software is provided "AS IS", and you, its user, assume the entire risk as to its quality and accuracy.

This software is copyright (C) 1991-1998, Thomas C. Lane. All Rights Reserved except as specified below.

Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose, without fee, subject to these conditions:

(In if any part of the source code for this software is distributed, then this README files must be included, with this copyright and no warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly indicated in accompanying documentation.

(2) If only executable code is distributed, then the accompanying documentation must state that "this software is based in part on the work of the Independent JPEG Group".

(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NO LIABILITY for damages of any kind.

These conditions apply to any software derived from or based on the UG code, not just to the unmodified library. If you use our work, you ought to acknowledge us.

Permission is NOT granted for the use of any UG author's name or company name in advertising or publicity relating to this software or products derived from it. This software may be referred to only as "the Independent: JPEG Group's software".

We specifically permit and encourage the use of this software as the deals of commercial products, provided that all warranty or liability claims are assumed by the product vendor.

aireZinc or a included in this distribution by permission of L. Peter Deutsch, sole proprietor of his copyright holder, Aladdin Enterprises of Merkin Park, CA. areZinc or a NOT covered by the above copyright and conditions, our instead by the usual distribution terms of the Free Software Foundation principally, that you must include source texts if you restructure it. See the file aireZinc for full details, however, since aireZinc or a need to be part of any program generated from the UG code, this does not limit you more than 5 foregoing paragraphs do. The Link configuration script "configure" was produced with GNU Account. It is copyright by the Free Software Foundation out a freely distributive version of the software. This document also contains an optional script (configures, config units, I contig, I tman ah). Another support script, metal-sh, is copyright by WLT. but also freely distributive.

It appears that the arithmetic coding option of the JPEG spec is covered by patients owned by IBM AT&T, and Mitsubishi. Hence arithmetic coding cannot legally be used without obtaining one or more licenses. For this reason, support for arithmetic coding has been removed from the free JPEG software. (Since arithmetic coding provides only a marginal gain over the unpatented Huffman mode, it is unlikely that very many implementations will support it.) So far as we are aware, there are no patent restrictions on the remaining code.

The US distribution formerly included code to read and write GIF files. To avoid entanglement with the Ureys1.ZW patent, GIF reading support has been removed altogether, and the GIF writer has been simplified to produce 'uncompressed GIF'. This technique does not use the LZW algorithm; the resulting GIF files are larger than legal, but are readable by all standard GIF decoders.

We are required to state that

"The Graphics Interchange Format(s) is the Copyright property of ComcuServe Incorporated. GHam's is a Service Mark property of ComcuServe Incorporated."

RSA MD4 or MD5 Message-Digest Algorithm License

License to copy and use this software is granted provided that it is identified as the RSA Data Security, Inc. MD1 or MCS Message-Digest Algorithm* in all material mentioning or referencing this software or this function.

License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD4 or MD5 Message Digest Algorithm" in all material mentioning or referencing the derived work.

RSA Dats. Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind.

These notices must be retained in any copies of any part of this documentation and/or software.

The PHP License, version 3.01

Copyright (c) 1999 - 2006 The PHP Group. All rights reserved. Redistribution and use in source and binary forms, with or without modification, is permitted provided that the following conditions are not:

1. Red distributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Fodistributions in binary kam must reproduce this above copyright notice, this list of conditions and the following disclaimer in the documentation and/or which materials received with the distribution

3. The name "PHP" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].

4. Products derived from this software may not be called "PHP", nor may "PHP" appear in their name, without prior written permission from [e-mail]. You may indicate that your software works in conjunction with PHP by saying "Foo for PHP" instead of calling it "PHP Foo" or "phpas."

5. The PHP Group may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by the PHP Group. No one other than the PHP Group has

the right to modify the terms applicable to covered code created under this License.

1. Red distributions of any form whatsoever must retain the following acknowledgment:

"This product includes PHP software, freely available from (http://www.pho.net/software)".

THIS SOFTWARE IS PROVIDED BY THE PHP DEVELOPMENT TEAM "AS IS" AND ANY EXPRESSSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE MPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE PHP DEVELOPMENT TEAM OF THIS CONTRIBUTION IS AVAILABLE FOR ANY RIGHTS.

COWAY OF THIS CONTRIBUTOR'S DEBTAGE FROM ANY DIRECT. INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAWAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS, OR BUSINESS INTERRUPTION; HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WITHOUT IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ABSORNING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADIMISED OF THE POSSIBILITY OF SUCH DAMAGE.

The software consists of voluntary contributions made by many individuals on behalf of the PHP Group.

The PHP Group can be contacted via Email at [e-mail]. For more information on the PHP Group and the PHP project, please see [https://www.php.net].

PHP includes the Zoned Engine, (ready available at {https://www.zond.com}).

LICENSE ISSUES

[EMPTY]

The OpenSSL toolkit says under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLless license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSO style Open Source licenses. In case of any license issues related to OpenSSL please contact [e-mail].

OpenSSL License

Copyright (c) 1998. 2006 The OpenSS: Project. All rights reserved. Redistribution and use in sources and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Red attributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Red attributions in binary term must reproduce the above copyright notices, this list of conditions and the following disclaimer in the due regulations written above materials was fixed with the distribution

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:

*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)

1. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to create or promote products derived from this software

without prior written permission. For written permission, please contact [e-mail].

1. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

2. Redistribution of any form whatsoever must retain the following acknowledgment:

*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.opensal.org/)

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT WAS IS AND ANY EXPRESSED OR IMPLED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF

LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tni Hudson ([e-mail]).

PCRE 5 LICENCE

PORE is a library of functions to support regular expressions whose syntax and semantics are as close as possible to those of the Perl 5 language.

Release 5 of PCRE is distributed under the terms of the "BSD" licence, as specified below. The documentation for PCRE supplied in the "doc" directory, is distributed under the same terms as the software itself.

Written by: Philip Hazel ([e-mail])

University of Cambridge: Computing Service,

Cambridge, England. Phone: [phone].

Copyright (c) 1997-2004 University of Cambridge

All rights reserved.

Redistribution and use in source and binary icons, with or without modification. are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, the list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution:

- Nullhar the name of the University of Cambridge nor the names of its contributors may be used to endorse or promote products

derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERO-ANTABILITIES AND FITNESS FOR A PARTICULAR PURPOSE AND DISCLAIMLY IN NO EVENT SHALL THE INFORMATION SHOULD BE USED. ANY INFORMATION IS NOT AVAILABLE WITHOUT ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSOLUTIONAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PROFITS OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT INCLUDING NEGLIGENCE OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

NTP License

This 1e is automatically generated from html/copyright.html. Copyright Notice

[sheepb.jpg] "Clone me," says Dolly sheepishly

The following copyright notice applies to all files collectively called the Newark Time Protocol Version 4 Distribution. Unless specifically dedicated otherwise in an individual file, this notice applies as if the text was explicitly included in the file.

Copyright (c) David L. Mills 1992-2001

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both the copyright notice and this permission notices appear in

supporting documentation, and that the name University of Delaware not be used in advertising or publicly pertaining to distribution of the software without specific, written prior permission. The University of Delaware makes no representations about the suitability this software for any purpose. It is provided "as is" without express or implied warranty.

The following individuals contributed in part to the Network Time Protocol Distribution Version 4 and are acknowledged as authors of this work.

1. [1]Mark Andrews Leitch atomic clock controller
2. [2]Bemo Altmeier [e-mail] hopf Elektronik serial line and PCI-bus devices
3. [3]Vraj Basis and [4]Clayton Kirkwood [e-mail] port to Windows NT 3.5
4. [5]Michael Barone [e-mail] GPSVVE free
5. Eika1 Berry [e-mail] available to the option
6. [7]Greg Brackley [e-mail] Major rework of WINNT port. Clean up revout and lognal code into separate modules.
7. [2]Varc Brett [e-mail] Magnerox GPS clock driver
8. [3]Plate Brooks [e-mail] MSF clock driver, Trimble PARSE support
9. [10]Reg Clemens [e-mail] Encore driver (Current maintains)
10. [11] Steve Gill CMEGA clock driver
11. [12]Casey Crelin [e-mail] wWorks (Tornado) port and help with target configuration
12. [13]Swan District event [e-mail]> Palsarka reference clock driver, NT adj. residusls, integrated Greg's Winnt port.
13. [14].John A. Dundas III dundas@salt|cl.nasa.gov Apple A/UX port
14. [15]Torsten Duwe [e-mail] Linux port
15. [16] Dennis Freguerri «clennisArrbilaCamal cas> foundation tools for NTP Version 2 as specified in RFC-11-19
16. [17]Gkrem Heliroga [e-mail] GOES clock driver
17. [18]Mke Ipsias ipiasis@uci-szup DEC Airna port
18. [19].im Jagalski [e-mail]:nasa.guo> MUX port
19. [20].oil Johnson [e-mail]&sign.com> iterative prototyping oversul
20. [21]Hana Lambertont or [22]-H.Lambermont@chelionl> npsweep
21. [23]Pou-Henning Ksmp Oncore driver (Original author)
22. [74] Frank Kardal [25]. <[e-mail]
    PARSE driver (14 reference clock). STREAMS module for PARSE, support scripts, selang-diasup
23. [26]Allam L. Jones [e-mail] RS/5003 AIX modifications. HPUX modifications
24. (27) Dave Katz RS/6000 A/X port
25. (28) Craig Leres [e-mail] 4.ABSD port, postcode, Magnewox GPS clock driver
26. [29]George Lindholm [e-mail] SunOS 5.1 port.
27. [30]Louis A. Mamakos [e-mail] MD5-based authentication
28. [31] Lars H. Mathesar [e-mail] adaptation of foundation code for Version 5 as specified in RFC 1305
29. [32]David L. Mills [e-mail] Version 4 foundation: clock dispersion, authentication, precision kems; clock drivers: Spectracom, Austron, Arbitral, Health, ATOM, ACTS, KSI/Odeics; audio clock drivers: CHJ, WAWH, IRIG
30. [33]Wolfgang Moeller [e-mail] VMS port
31. [34]JEevey Moell [e-mail] protrace utility
32. [35]Tom Moore [e-mail] 8356 sv4 port
33. [36]Karral A Mosala [e-mail] 900 OpenServe port
34. [57]Denk Mukahy [e-mail] and [58]Damon Hart-Davis ARCRON MSF clock driver
35. [39]Rainer Pruy Rainer:[e-mail] monitoring/trap scripts, statistical handling
36. [40]Droa Richards [e-mail] Digital UNIX V4.0 port
37. [41]Milfredo Sánchez [e-mail] added support for NetInfo

38. [42]Nick Sayer [e-mail] SunOS streams mcdues

39. 43 Jack Sasportes [e-mail] Saved a Lot of space on the stuff in the htmlpic/ subdirectory

40. 14|Ray Schnitzler [e-mail] Unixware 1 port

41. 15|Michael Stephens [e-mail] USNO clock drive

42. /6|Jeff Steinman [e-mail] Datum PTS clock

43. 27|Helen Stern [e-mail] GNU automake/ autocnfigure makover, various other bits (see the Changel.sgi)

44. 23|Kenneth Stone [e-mail] HP-UX port

45. 29|Ajit Thyesarsjan IP multicast/snycast support

46. SCJ Tomoaki TSUFLUCKA [e-mail] cock driver

47. 51|Paul A Vble [e-mail] TrueTime GPS driver, generic TrueTime clock driver

48. 62]Ulrich Windl [e-mail] corrected and validated HTML documents according to the HTML DTD

|53|gif

[54] David L. Mills [e-mail]

References

1. malto:[e-mail]

2. [e-mail]

3. [e-mail]

4. mailto:[e-mail]

5. [e-mail]

E. [e-mail]

1. [e-mail]

2. [e-mail]

3. realix:Plate.Brookes@cl::am.ac.uk

4. [e-mail]

5. [e-mail]

6. [e-mail]

7. melto:[e-mail]

8. maltocundas#salt.jpl.nass.gov

9. [e-mail]

10. [e-mail]

11. [e-mail]

12. mail@[e-mail]

13. rinalo:agui:co.gs/c.rasa.gov

14. maito@[e-mail]

15. melito: Hans [e-mail]

16. mello:[e-mail]

17. mellochko FreeBSD.010

18. http://www.infermatik.uni-erangen.de/kardel

19. mailo:Frank.Karuki@inlarmalikari erlangay.da

20. [e-mail]:ulaxes.edu

21. mail@[e-mail]

22. mito/[e-mail]

23. tsito@irchoin@csu.h

24. reito/puiəni urri.edu

25. [e-mail]

26. We have left the right

27. amilovrosikos@szvklw1-ekwl orwin-din

28. multitransportions of the

29. [e-mail]

30. www.cnew.com

31. [e-mail]

32. maitevistriam

33. Transfers.org

34. murtto: Hsiner.Fruysinformation.uni-erlangen.de

35. muto@[e-mail]

36. [e-mail]

37. mail@[e-mail]

38. [e-mail]

39. mail@[e-mail]

40. mail@[e-mail]

41. reitozeboksjpl.nasa.gov

42. [e-mail]

43. [e-mail]

44. melto:[e-mail]

45. [e-mail]

46. [e-mail]

47. mail:UlrichWind@r/uni-regarsburg.ca

48. file://localhost/backroom/http-stable/html/index.html

49. [e-mail]

Codelgniter License Agreement

Copyright (c) 2008 - 2009, EllisLsb, Inc.

All rights reserved.

This license is a legal agreement between you and EllisLab Inc. for the use of Codegriter Software (the "Software"). By obtaining the Software you agree to comply with the terms and conditions of this license.

Permitted Use

You are committed to use, copy, modify, and distribute the Solvens and its documentation, with or without modification, for any purpose, provided that the following conditions are met:

1. A copy of this license agreement must be included with the

distribution

1. Redistribution of source code must retain the above copyright notice in all source code files.

2. Redistribution in binary form must reproduce the above copyright notice in the documentation and/or other materials provided with the distribution.

3. Any ties that have been modified must carry notice listing the nature of the changes and the names of these who changed them.

4. Products derived from the Software must include an

acknowledgment that they are derived from Czakörntor in their

documentation and/or other materials provided with the distribution.

1. Products derived from the Software may not be called "CodeIgnite", nor may "CodeIgnite" appear in their name, without prior written permission from ElleLab, Inc..

Indemnity

You agree to indemnity and hold harmless the authors of the Software and any contributors for any direct, indirect, incidental, or consequential third party claims, actions or suits, as well as any related expenses, liabilities, damages, settlements or fees arising from your use or misuse of the Software, or a violation of any terms of this license.

Disclaimer of Warranty

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESSED OR INVOCED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF QUALITY, PERFORMANCE, NON-INITRINCLEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.

Limitations of Liability

YOU ASSUME ALL RISK ASSOCIATED WITH THE INSTALLATION AND USE OF THE SOFTWARE. IN NO EVENT SHALL THE AUTORS OR COPYRIGHT HOLDERS OF THE SOFTWARE BE LIABLE FOR CLAIMS, DAMAGES OR OTHER LIABILITY ARISING FROM OUT OF, OR IN CONNECTION WITH THE SOFTWARE LICENSE HOLDERS ARE SOUPLY RESPONSIBLE FOR DETERMINING THE APPROPRIATENESS OF USE AND ASSUME ALL RISKS ASSOCIATED WITH ITS USE, INCLUDING BUT NOT LIMITED TO THE RISKS OF PROGRAM EMPHITS, DAMAGE TO EQUIPMENT, LOSS OF DATA OR SOFTWARE PROGRAMS, OR UNAVAILABILITY OR INTERRUPTION OF OPERATIONS.

GLUT for Win32 License

The Option2 Utility Tracker distribution for Win32 (Windows NT & Windows 95) contains source code modified from the original source code for GUIT version 3.3 which was developed by Mark J. Kigand. The original source code for GUIT is Copyright 1897 by Mark J. Kigand. GUIT for Win32 is Copyright 1897 by Mark Rokins and is not in the public domain, but it's freely distributable without licensing fees. It is provided without guarantee or warrantee expressed or impede. It was forged with the permission of Mark J. Kigand by Mark Rokins.

THIS SOURCE CODE IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OpenGL (R) is a registered trademark of Silicon Graphics, Inc.

ISC License

Copyright (c) 2004-2013 by Internal Systems Consortium, Inc. ("ISC")

Copyright (c) 1995-2003 by Internal Software Consortium

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS" AND ISO DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE FOR ANY SPECIAL DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES

WHAT SCHEM RESOLuting FROM LOSS OF USE, DATA OR PROITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Internet Systems Consortium, Inc.

950 Charter Street

Redwood City, CA 94063

[e-mail]

https://www.isc.org/

Brian Gladman Alternate License

Copyright. (c) 2003, 2010 Bism Gladman, Worcester, UK. All rights reserved.

LICENSE TERMS

The free distribution and use of this software in both source and binary form is allowed (with or without changes) provided that:

1. distributions of this source code include the above copyright notice, this list of conditions and the following disclaimer:

2. distributions in binary form include the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other associated materials;

3. the copyright holder's name is not used to endorse products built using this software without specific writer permission.

ALTERNATIVELY, provided that this notice is retained in full, this product may be distributed under the terms of the GNU General Public License (GPL), in which case the provisions of the GPL apply INSTEAD OF those given above.

DISCLAIMER

This software is provided 'basis' with no explicit or implied warranties in respect of its properties, including, but not limited to correctness and/or fitness for purpose.

Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.

The Eco mark represents Harwha Tochwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU PoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

Applicative in the European Union and other European countries with separate collection systems

This working on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, heater, USB cable) should not be disposed of with other household waste at the one of their working life, to prevent possible harm to the environment, or human health from uncontrolled waste disposal presses separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial acquisitions or disposal.

Correct disposal of batteries in this product

Applicable in the European Union and other European countries with separate battery return systems.

This morning on the bakery, manual or packaging indicates that the batteries in this product should be disposed of with other household waste in the end of their working life. Where market, the chemical symbols Hg. Color Prin indicate that the bakery contains mercury, potassium or lead above the reference levels in PC Directive 2036-66. It batteries are not properly disposed of, these substances can cause harm to human health or the environment.

to protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Head Office

6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,

Gyeonggi-do, 463-400 Rep. of KOREA

Tel: [phone] Fax: [phone]

www.hanwha-security.com

Hanwha Techwin America

500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666

Toll Free +1.877.213.1222 Direct +1.201.325.6920

Fax [phone]

www.hanwha-security.com

Hanwha Techwin Europe

Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom

Tel [phone] Fax [phone]

www.hanwha-security.eu

Hanwha

Techwin
