BOSCH Indego 10 C - Lawn mower

Indego 10 C - Lawn mower BOSCH - Free user manual and instructions

Find the device manual for free Indego 10 C BOSCH in PDF.

📄 30 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice BOSCH Indego 10 C - page 9
9 / 30
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Robotic Lawn Mower
Model Indego 10 C
Brand Bosch
Working Area Capacity Up to 1000 m²
Cutting Width 18 cm
Cutting Height Range 20 - 60 mm
Cutting Height Adjustment Central, 3-Step
Power Source 18 V Lithium-Ion Battery
Battery Capacity 4.0 Ah
Charging Time Approx. 60 min
Mowing Duration Up to 60 min per charge
Navigation System Logicut (GPS-based)
Slope Capability Up to 25%
Dimensions (L x W x H) 53 x 39 x 26 cm
Weight 8.0 kg
Sound Pressure Level 59 dB(A)
Safety Features Lift sensor, tilt sensor, blade stop < 1 sec
Maintenance Clean underbody monthly, replace blades annually
Spare Parts Replacement blade set (F016800357), battery
Included Accessories Charging station, power supply, boundary wire, pegs, manual

Frequently Asked Questions - Indego 10 C BOSCH

How do I set up the boundary wire for my Bosch Indego 10 C?
Lay the boundary wire around the perimeter of your lawn, securing it with pegs. Connect the wire to the charging station and follow the installation wizard in the mower's menu.
Can the Indego 10 C handle slopes?
Yes, it can handle slopes up to 25% (approx. 14 degrees). For steeper slopes, additional boundary wire may be required.
How often should I clean the mower?
Clean the underbody and blades monthly to prevent grass buildup. Use a soft brush and avoid water jets.
What is the Logicut navigation system?
Logicut uses GPS to map your garden and mow in systematic rows, ensuring efficient coverage without missing spots.

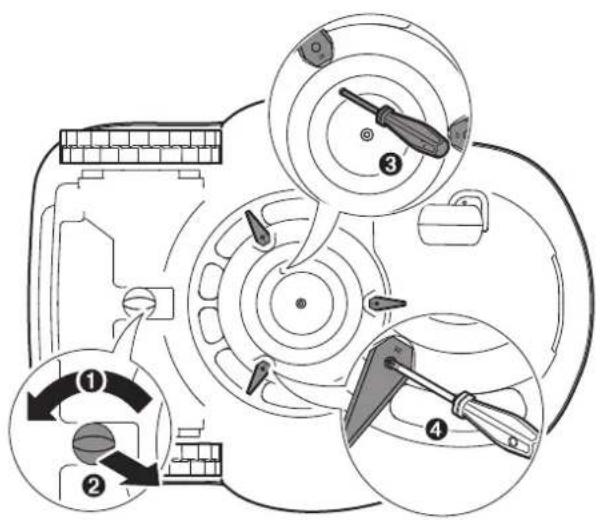

How do I replace the blades?
Turn off the mower, remove the blade disc, and replace the three blades with a new set (Bosch part F016800357). Use a screwdriver for the screws.
What should I do if the mower gets stuck?
The mower will automatically stop and display an error. Clear the obstruction and press the Start button to resume.
How long does the battery last?
The battery provides up to 60 minutes of mowing and takes about 60 minutes to fully charge.
Can I schedule mowing times?
Yes, use the control panel or the Bosch Indego App to set weekly schedules and customize mowing times.
What is the cutting height range?
The cutting height can be adjusted between 20 mm and 60 mm in three steps using the central knob.
Is the mower safe for children and pets?
The mower has safety sensors that stop the blades immediately if lifted or tilted. Always supervise and store the mower out of reach.

User questions about Indego 10 C BOSCH

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Lawn mower in PDF format for free! Find your manual Indego 10 C - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Indego 10 C by BOSCH.

USER MANUAL Indego 10 C BOSCH

OBJ DOKU-13171-002. Im Page 1 Thursday, October 29, 2015 10:41 AM

natural_image Technical illustration of a robotic car and its internal housing (no text or symbols)

Robert Bosch GmbH

Power Tools Division

70764 Leinfelden-Echterdingen

GERMANY

www.bosch-garden.com

F 016 L81 518 (2015.10) O / 449 EURO

BOSCH Indego 10 C - 1

Indego 10 C | Indego 13 C

BOSCH Indego 10 C - Indego 10 C | Indego 13 C - 1

BOSCH

da Original drugs and visiting

SV Bruksanvishing: original

no Original driftsinstrukt

fi Akuperalset objekt

natural_image Line drawings of three different tools: a hammer, a pliers, and a pair of pliers (no text or symbols present)

4|

1
BOSCH Indego 10 C - BOSCH - 1

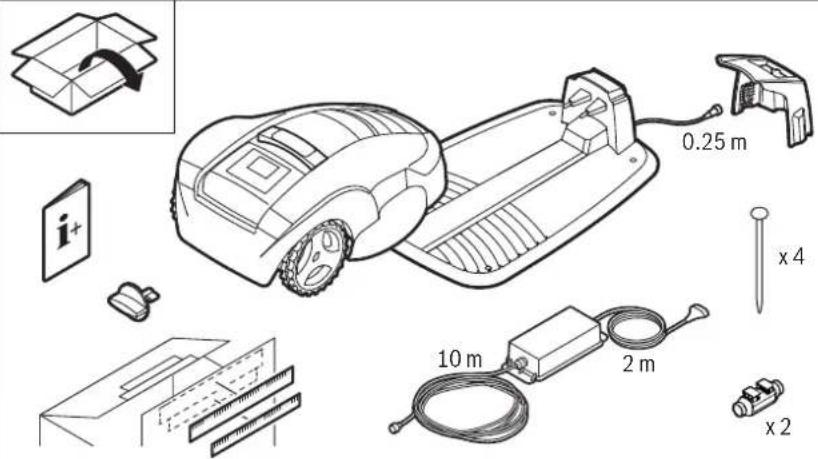

0.25 m x 4 10 m 2 m x 2

Indego 10 C

BOSCH Indego 10 C - BOSCH - 3

Indego 13 C
BOSCH Indego 10 C - BOSCH - 4

2

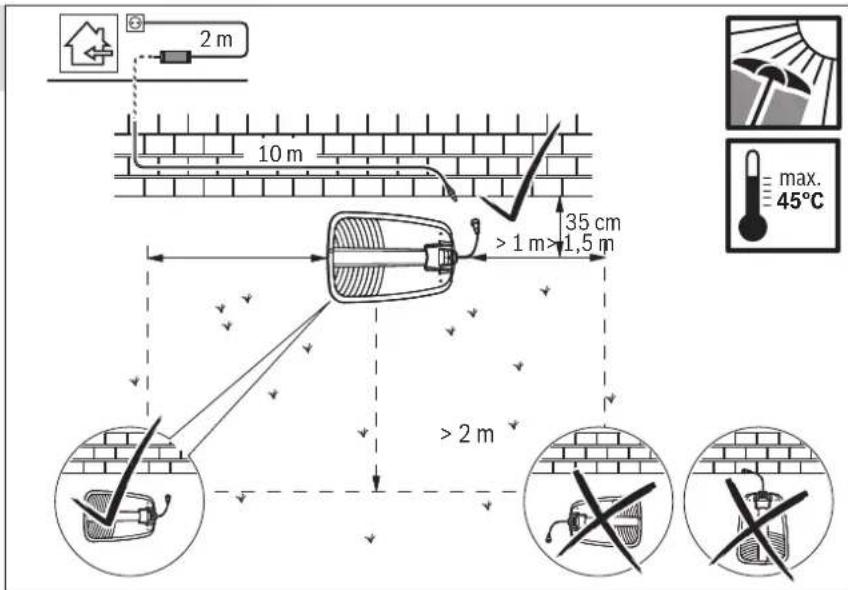

2 m 10 m 35 cm > 1 m > 1,5 m > 2 m max. 45°C

F016 L81 518 | (29.10.15) Bosch Power Tools

3

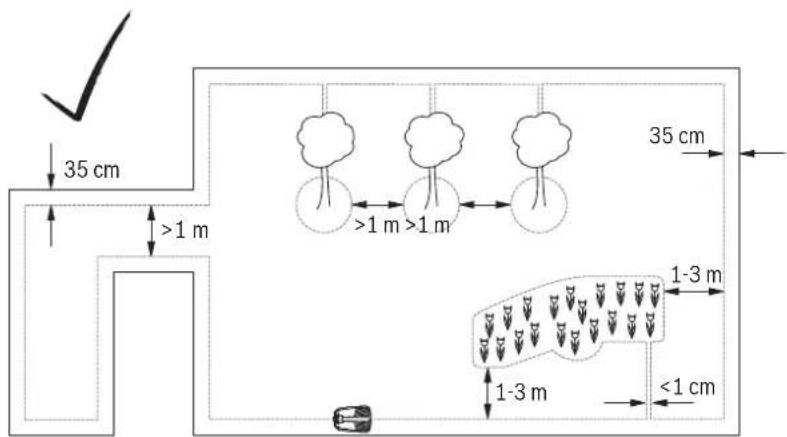

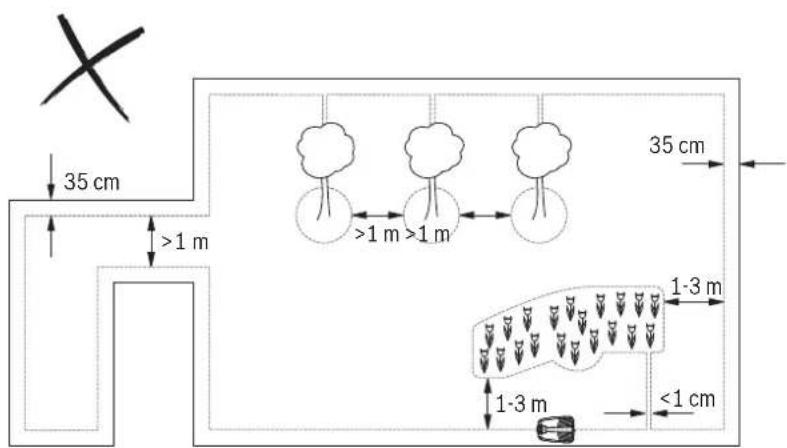

35 cm >1 m >1 m >1 m 35 cm 1-3 m 1-3 m <1 cm

35 cm >1 m >1 m >1 m 35 cm 1-3 m 1-3 m <1 cm

6|

4

BOSCH Indego 10 C - BOSCH - 8

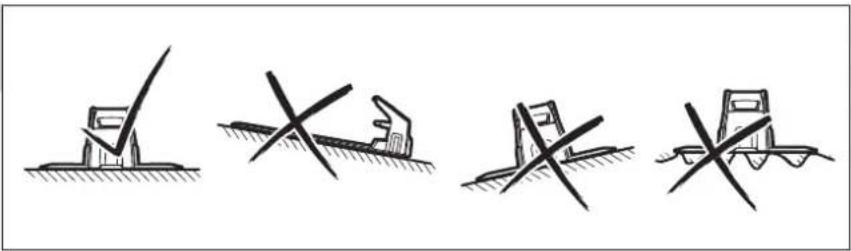

natural_image Four hand-drawn diagrams showing different types of machinery or tools, including a checkmark, cross, and X symbols (no text or labels present)

5

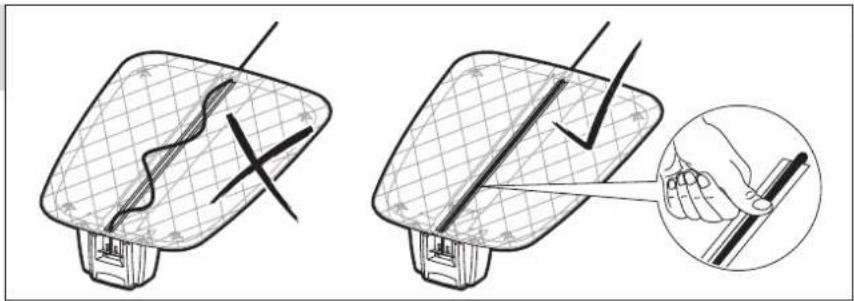

Diagram illustrating two steps of a hairpin or cable bending technique, with magnified detail showing the process.

6

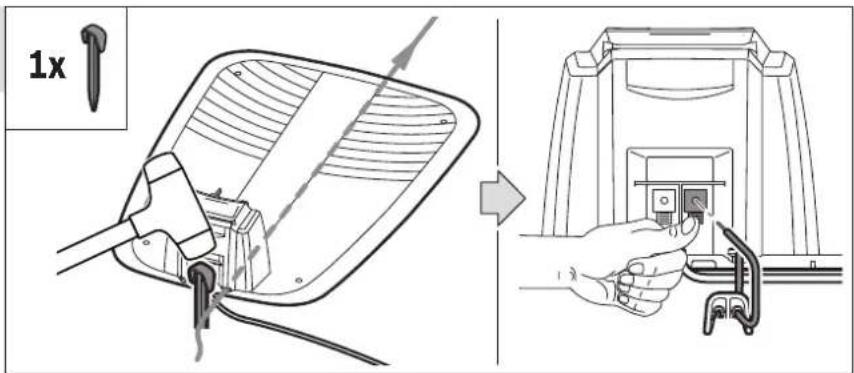

1x

7

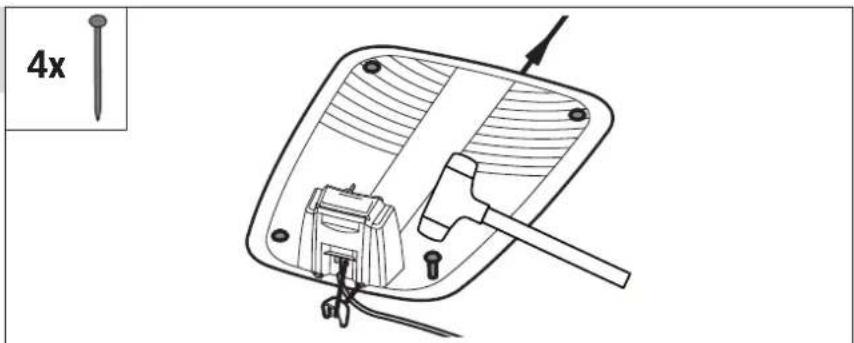

4x

F016 L81 518 | (29.10.15) Bosch Power Tools

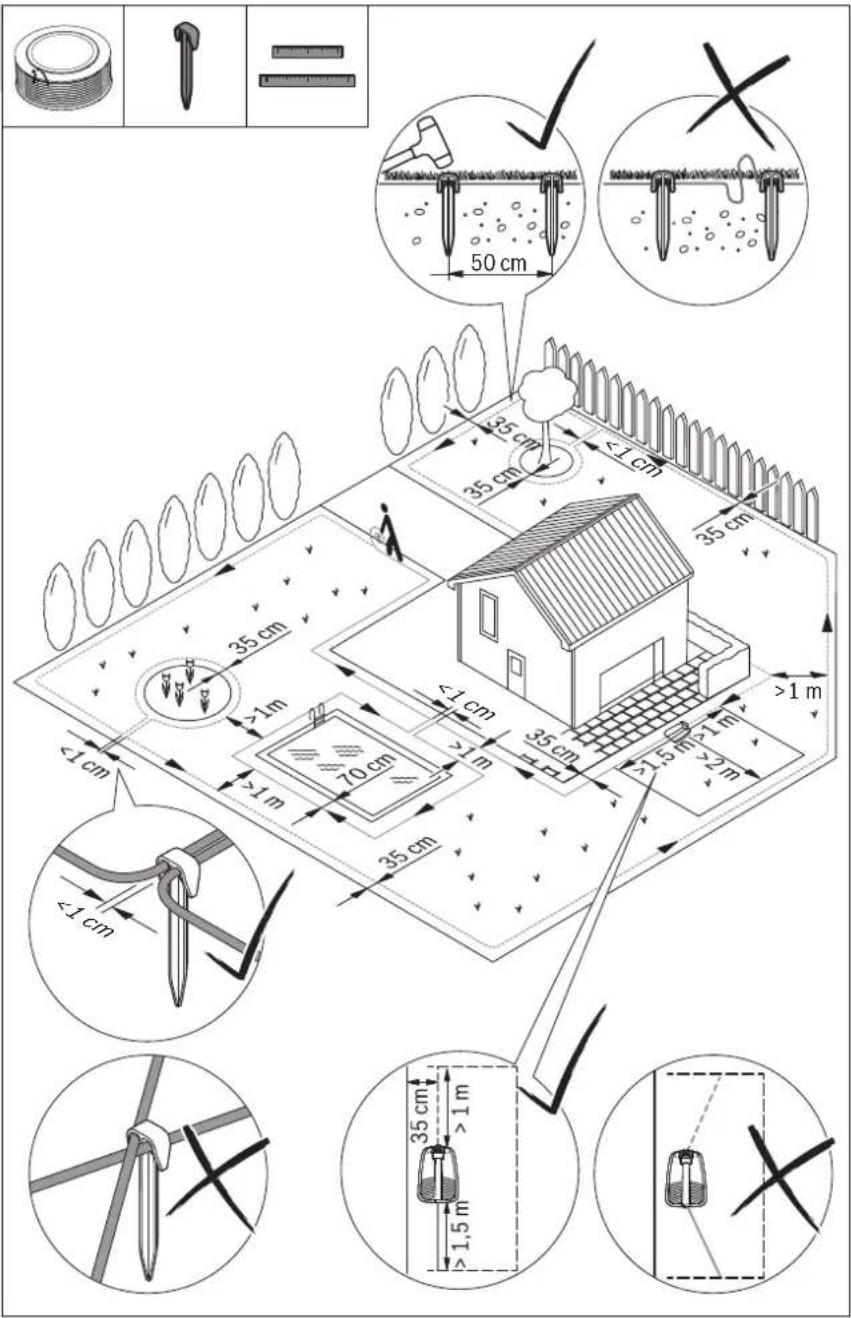

8
50 cm 35 cm 35 cm 35 cm 35 cm 35 cm >1 m >1 m 70 cm 35 cm >1.5 m >1 m >1 m <1 cm <1 cm <1 cm 35 cm >1 m >1.5 m 35 cm >1 m

Bosch Power Tools F 016 L81 518 | (29.10.15)

8|

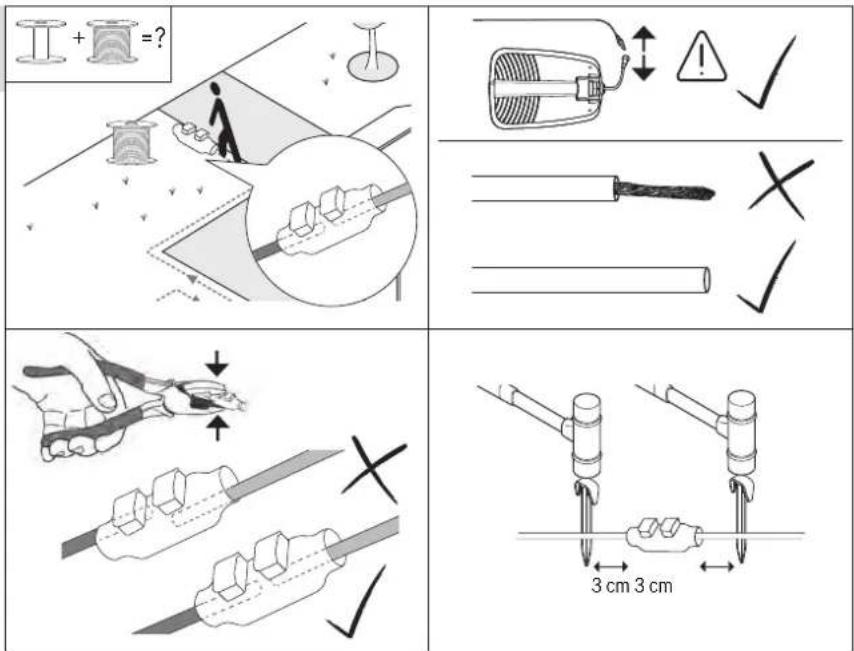

9

+ = ? 3 cm 3 cm

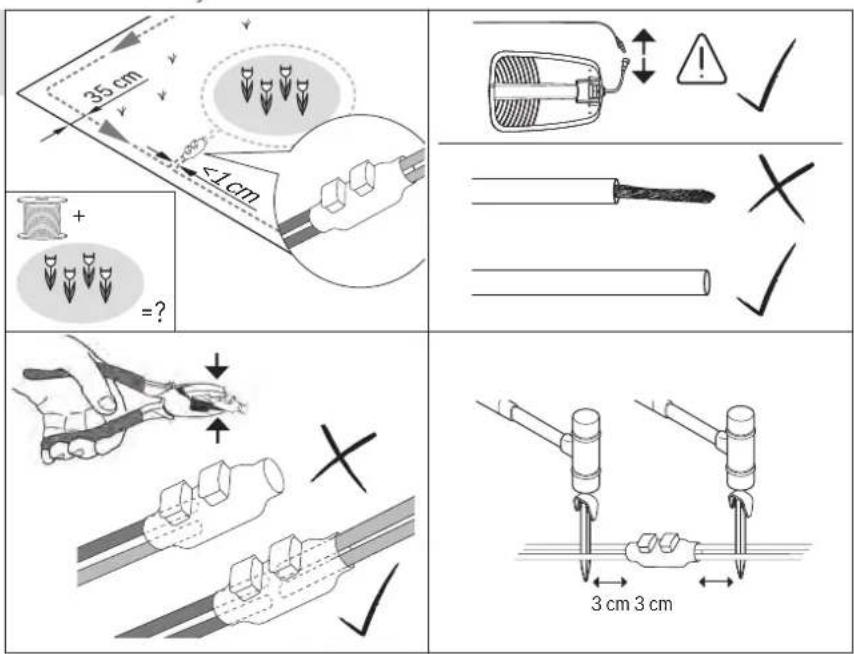

10

35 cm <1 cm + =? ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

11

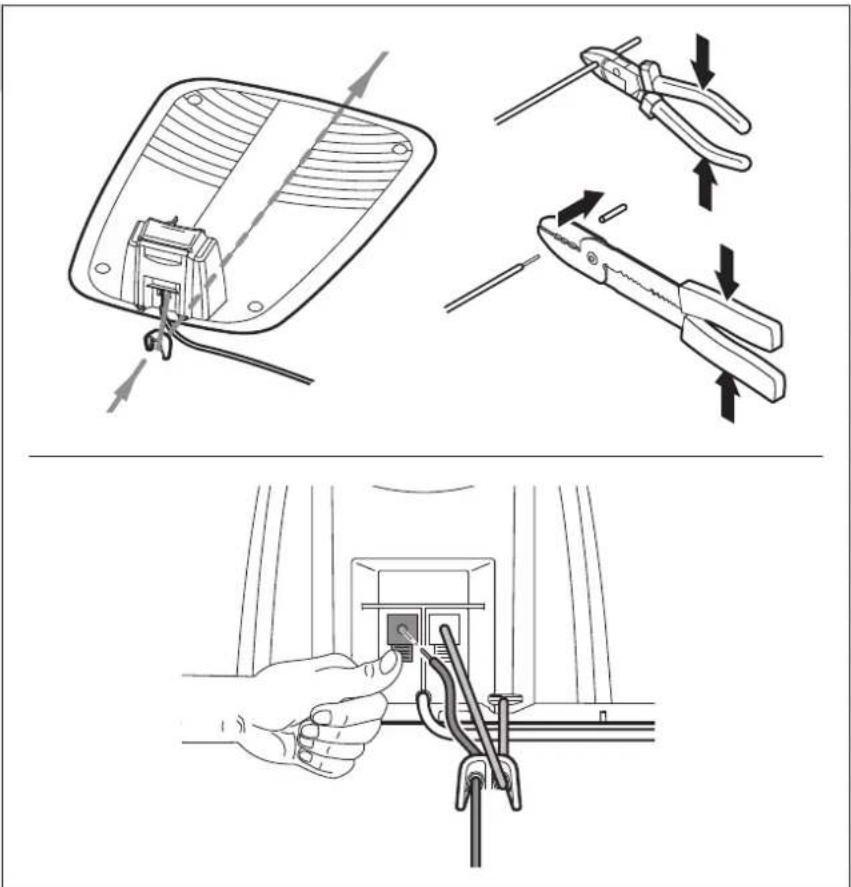

Technical diagram showing three steps of installing a component: mounting, pliers, and inserting into a socket.

12

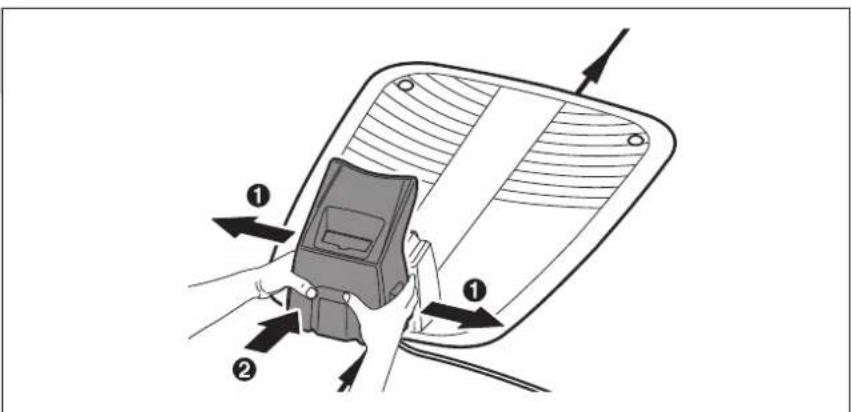

Diagram showing two hands inserting a device into a device panel, labeled with arrows and numbered parts.

Bosch Power Tools F 016 L81 518 | (29.10.15)

10

13

BOSCH Indego 10 C - BOSCH - 17

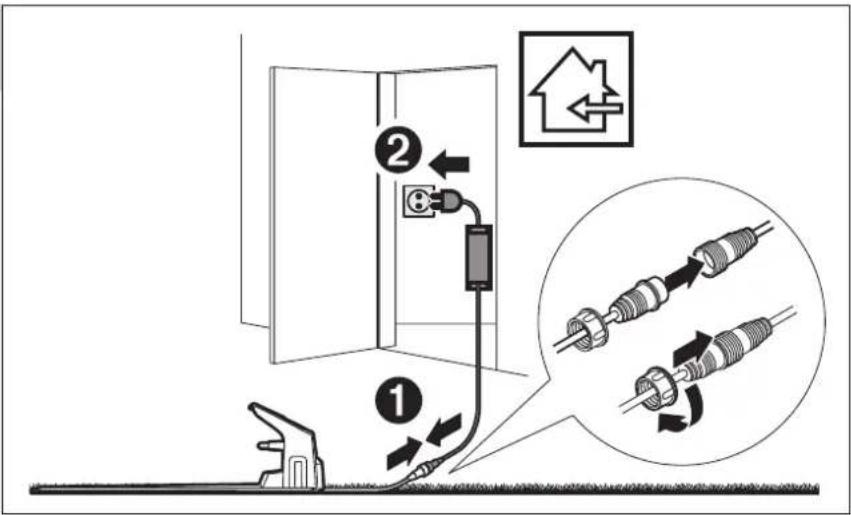

Diagram illustrating electrical connection with labeled components and wiring diagrams showing motor switching behavior

14

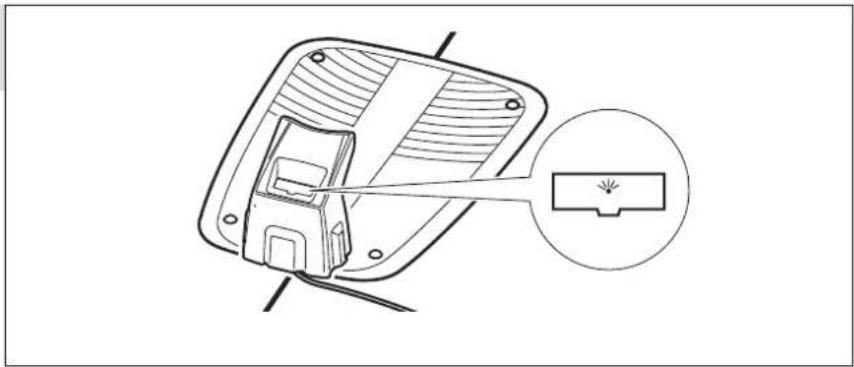

BOSCH Indego 10 C - BOSCH - 19

natural_image Diagram of a device interior with a highlighted rectangular component and a light bulb symbol (no text or labels)

15

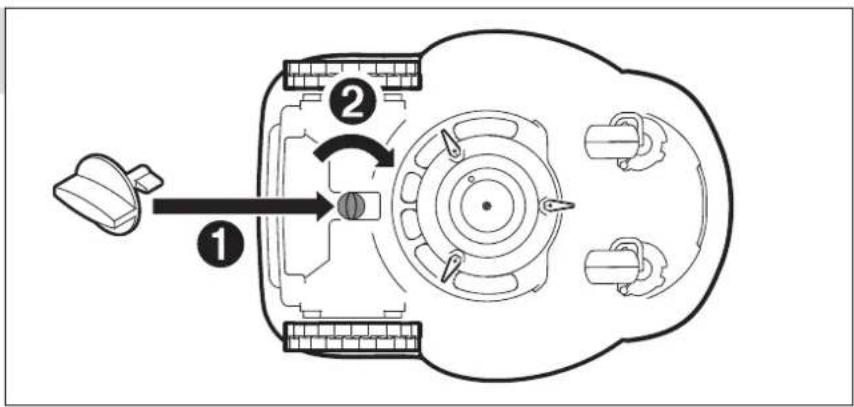

Diagram of a vehicle interior with labeled parts and directional arrows indicating movement or positioning.

F016 L81 518 | (29.10.15) Bosch Power Tools

16
BOSCH Indego 10 C - BOSCH - 21

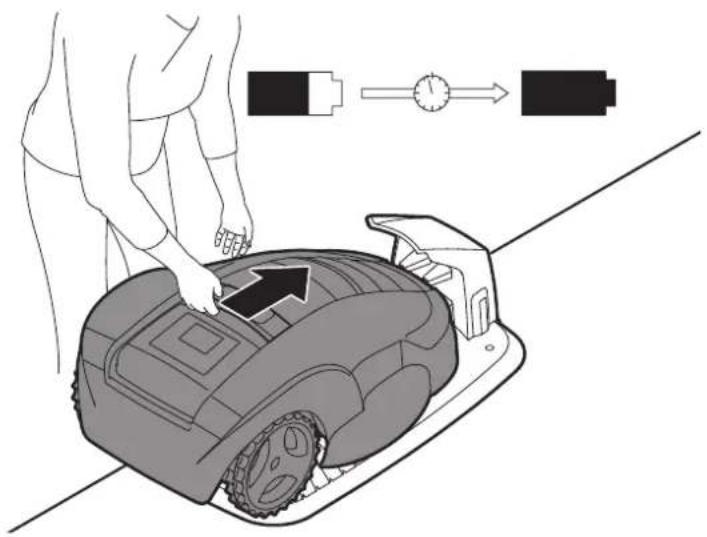

BOSCH Indego 10 C - BOSCH - 22

natural_image Illustration of a person using a lawn mower on a robotic device, with no text or symbols present.

17
BOSCH Indego 10 C - BOSCH - 23

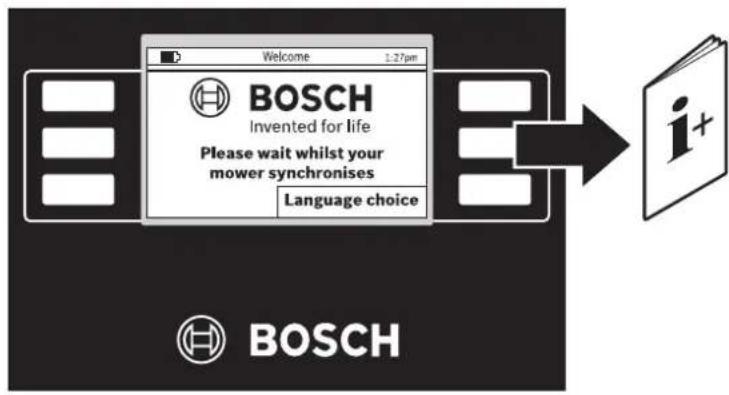

Welcome 1:27pm BOSCH Invented for life Please wait whilst your mower synchronises Language choice i+ BOSCH

12

18
BOSCH Indego 10 C - BOSCH - 25

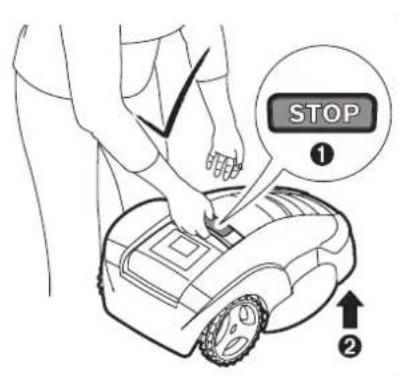

STOP ① ②

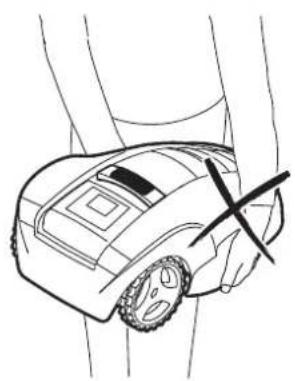

BOSCH Indego 10 C - BOSCH - 27

natural_image Line drawing of a robotic arm with a cross mark on the wheel (no text or symbols)

19
BOSCH Indego 10 C - BOSCH - 28

BOSCH Indego 10 C - BOSCH - 29

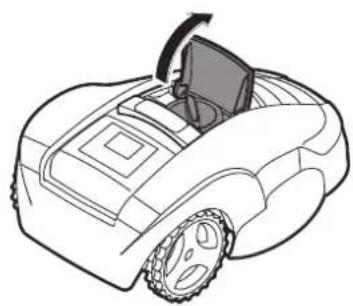

natural_image Line drawing of a car with open lid and exposed wheels (no text or symbols)

BOSCH Indego 10 C - BOSCH - 30

MAX 60 mm 4 MIN 20 mm

20

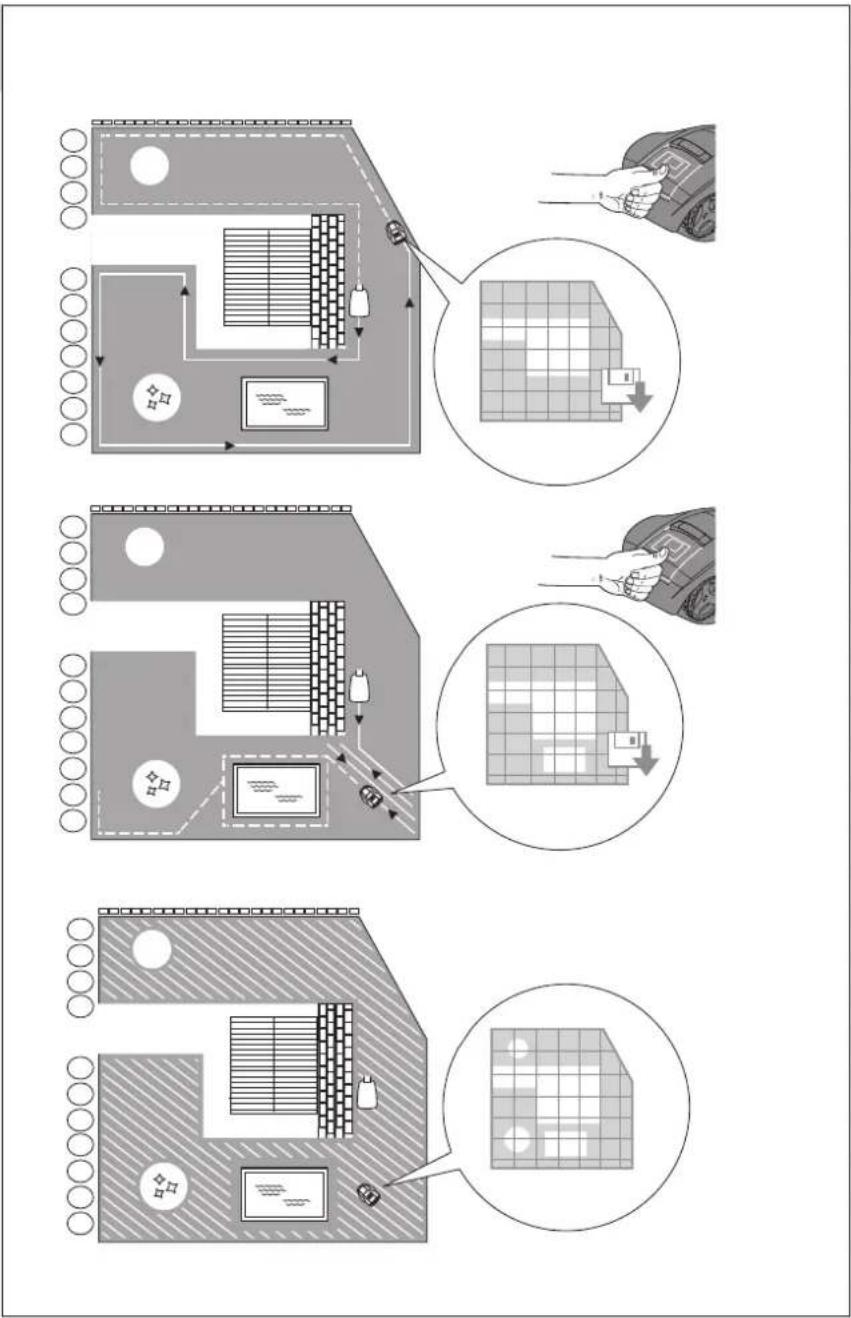

Diagram illustrating three steps of building floor plan with annotations and grid layouts, showing hand placement and structural changes.

Bosch Power Tools F 016 L81 518 | (29.10.15)

14

A
BOSCH Indego 10 C - BOSCH - 33

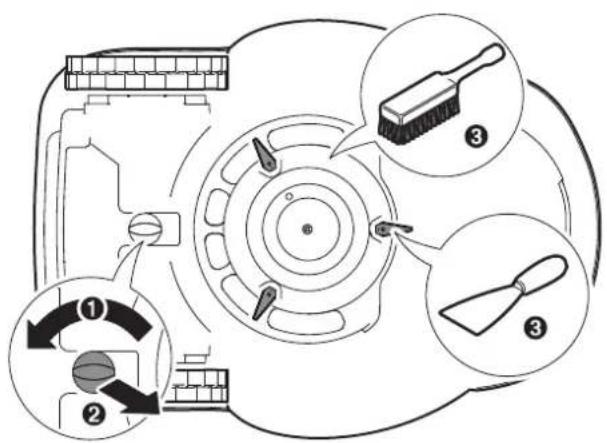

Diagram illustrating a mechanical or electrical component with numbered parts and directional arrows indicating motion or assembly.

B
BOSCH Indego 10 C - BOSCH - 35

Diagram illustrating a mechanical assembly with numbered steps and component illustrations

Deutsch | 15

Deutsch

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

BOSCH Indego 10 C - Deutsch - 1

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 27.10.2015

Symbol Bedeutung

www.bosch-garden.com
