Product Type	Speaker Mount
Brand	Vogel's
Model	Sound 3205
Compatible Speakers	Sonos PLAY:5, Denon HEOS 5, Denon HEOS 7
Maximum Weight Capacity	6.5 kg (14.3 lbs)
Speaker Width Range (Bottom)	156 mm - 430 mm
Speaker Depth Range (Bottom)	127 mm - 149 mm
Material	Steel
Color	Black
Mounting Type	Wall mount
Included Accessories	Mounting bracket, screws, wall plugs, specific mounting materials for Sonos/HEOS
Installation Method	Follow printed manual; QR code for installation video on YouTube
Mount Weight	Approx. 0.5 kg
Warranty	2 years
Country of Origin	Netherlands
Maintenance	Clean with a soft, damp cloth; avoid solvents
Safety Notes	Do not exceed maximum weight; ensure secure mounting to wall structure
Spare Parts Availability	Contact Vogel's customer service for replacement screws or brackets
General Information	Designed to securely hold compatible speakers; all mounting hardware included

Frequently Asked Questions - Sound 3205 Vogel's

How do I mount my Sonos PLAY:5 to the Vogel's Sound 3205?

Use the specific mounting materials supplied in the box. Follow the step-by-step instructions in the manual. You can also scan the QR code on the product to watch an installation video on YouTube.

What tools are required for installation?

You will need a drill, screwdriver, level, and possibly a stud finder. All necessary screws and wall plugs are included.

What is the maximum weight capacity of the mount?

The maximum weight capacity is 6.5 kg (14.3 lbs). Do not exceed this limit to ensure safety.

Can I mount other speakers besides Sonos PLAY:5 and Denon HEOS?

Yes, you can mount other speakers as long as they fit within the following dimensions (bottom): width 156-430 mm and depth 127-149 mm. Use any of the supplied parts that suit your speaker.

Does the mount come with all necessary screws?

Yes, the package includes a variety of screws and wall plugs for different wall types and speaker models.

Can I adjust the angle or tilt of the speaker?

The Vogel's Sound 3205 is a fixed mount; it does not offer tilt or swivel adjustment. The speaker sits securely in place.

How do I clean the mount?

Clean the mount with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.

Is the mount suitable for drywall?

Yes, but you must use appropriate wall anchors (included). Ensure the drywall can support the weight. For best stability, mount into wall studs.

Where can I find the installation video?

Scan the QR code printed on the product or in the manual. This will direct you to the official Vogel's YouTube channel with the installation movie.

What if I lose a screw or need spare parts?

Contact Vogel's customer service via their website (www.vogels.com) for replacement parts. Have your model number (Sound 3205) ready.

USER MANUAL Sound 3205 Vogel's

3D black rectangular device with a cutout and base plate, no visible text or symbols

SOUND 3205

Fits SONOS PLAY:5, HEOS 5 and HEOS 7

(Max. weight load = 6.5 kg)

Scan the QR-code to find the installation movie on YouTube:

More information on: www.vogels.com

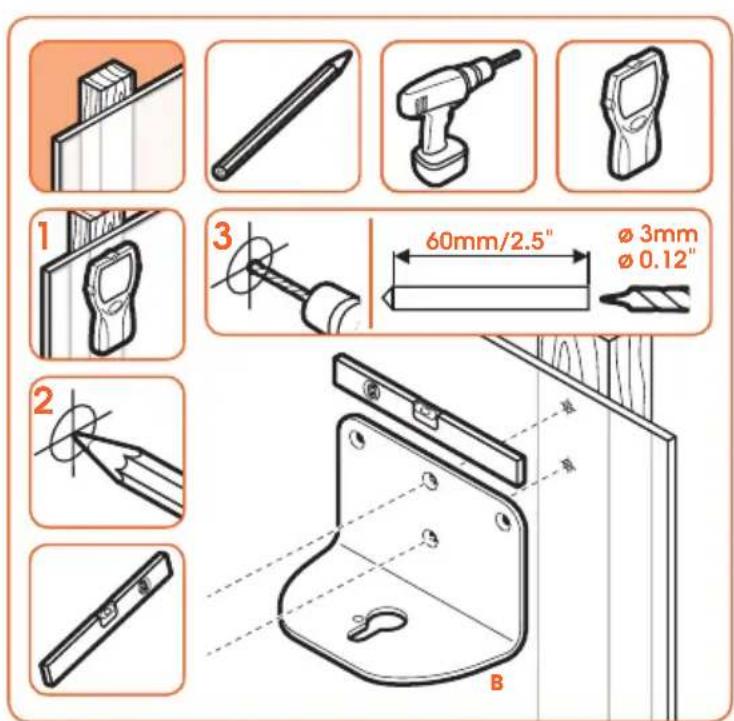

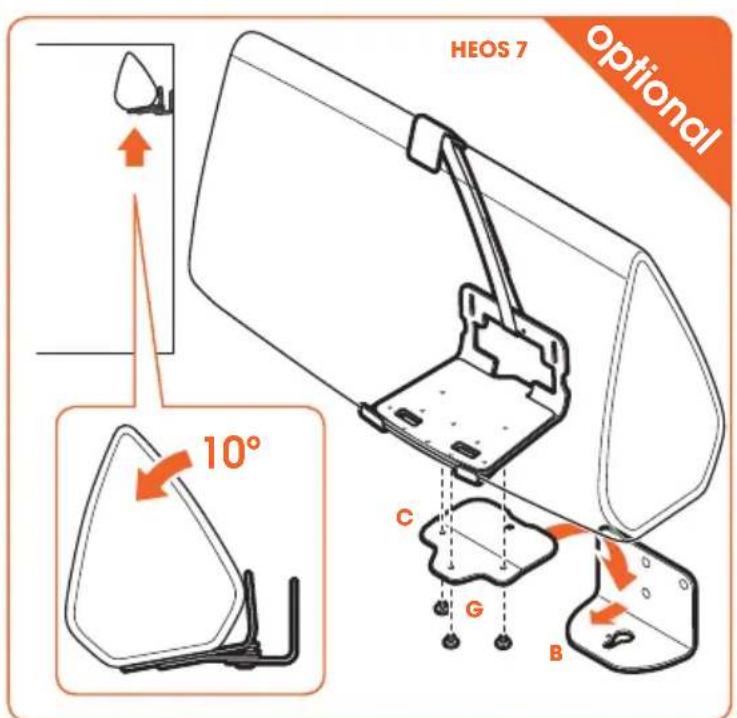

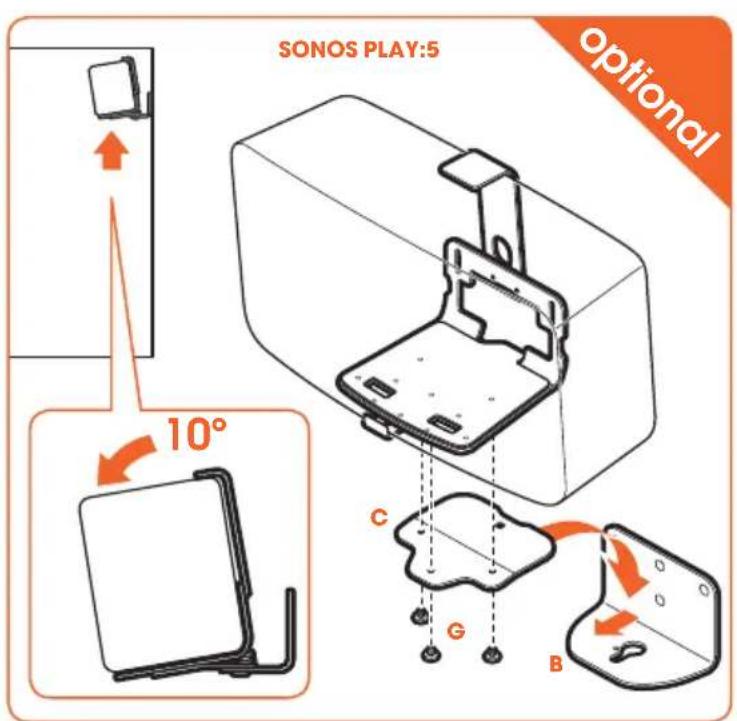

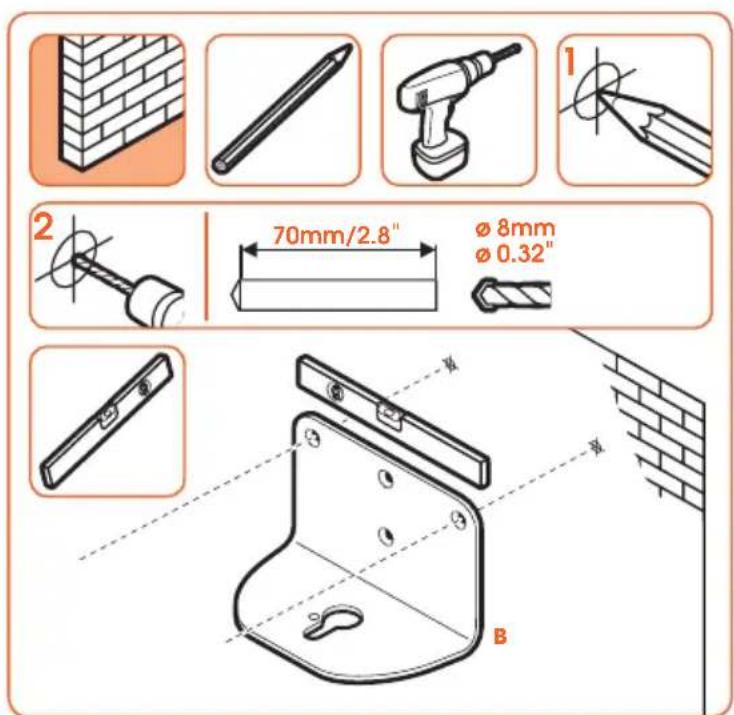

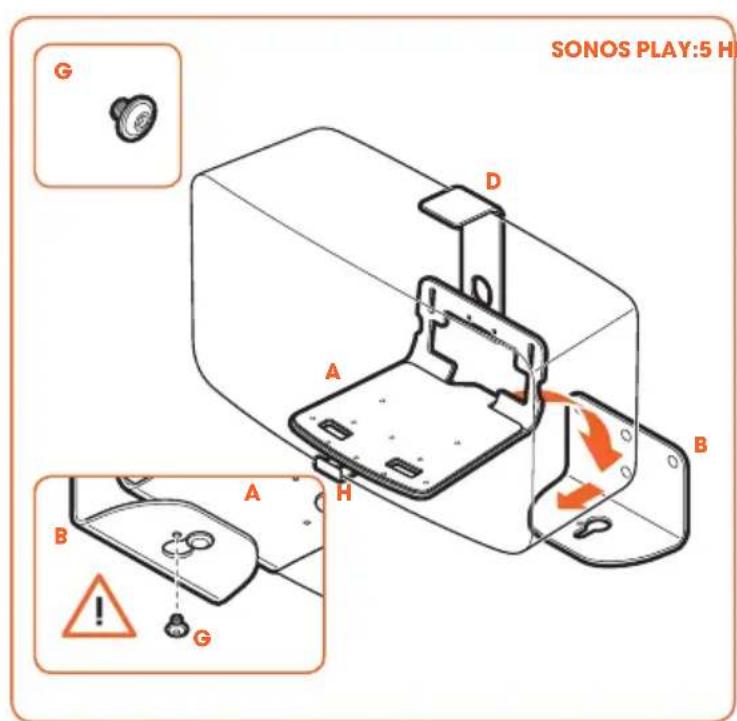

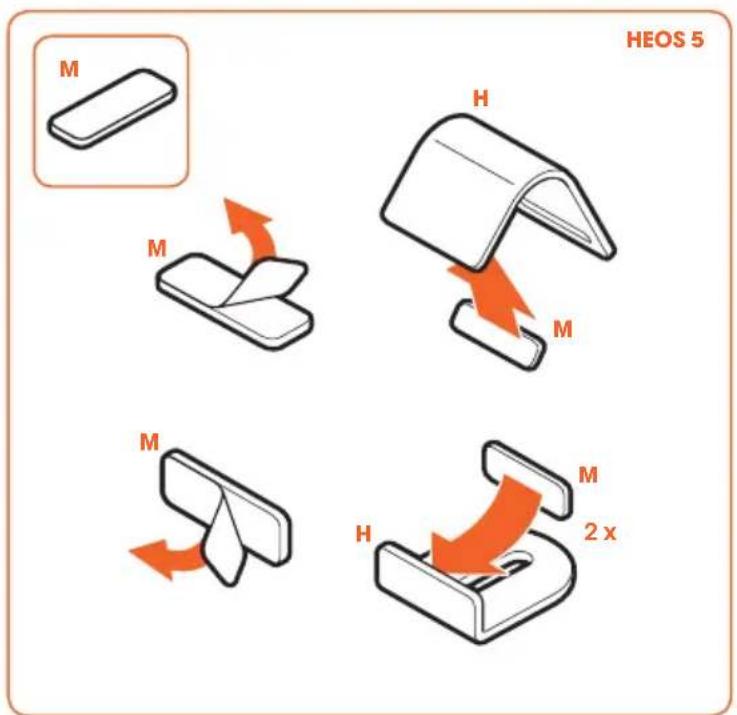

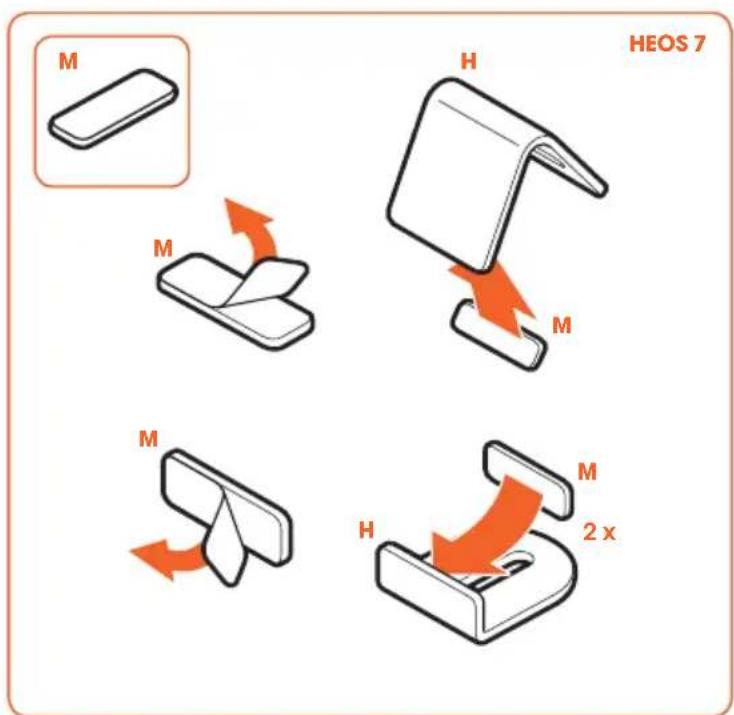

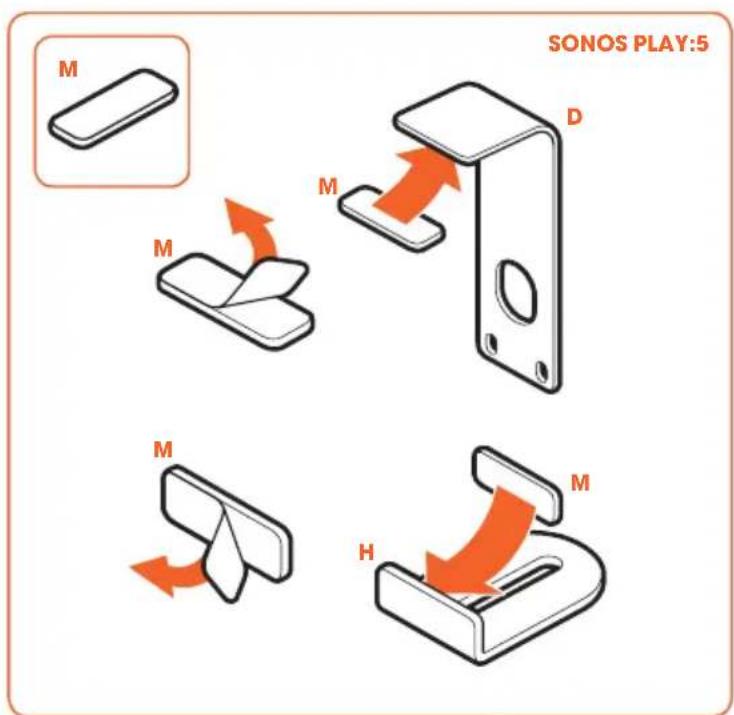

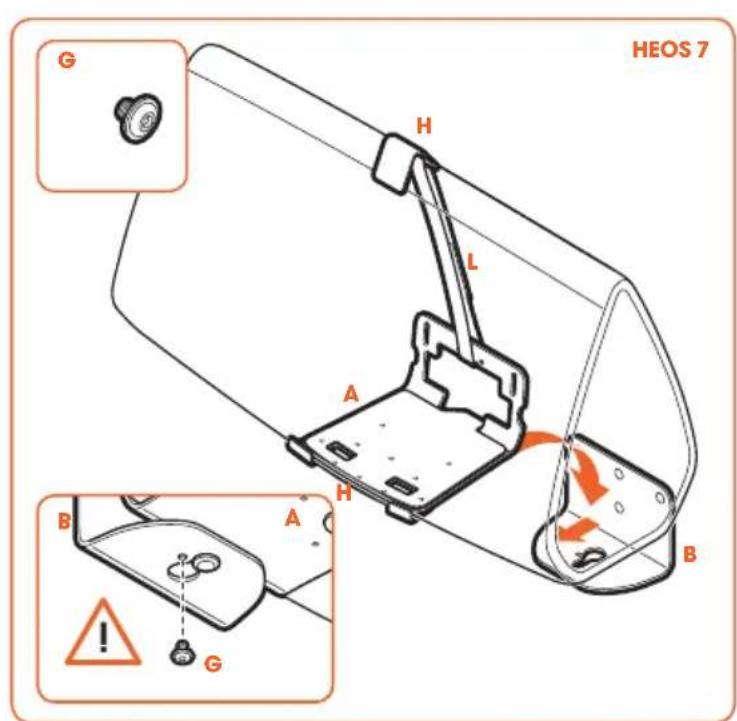

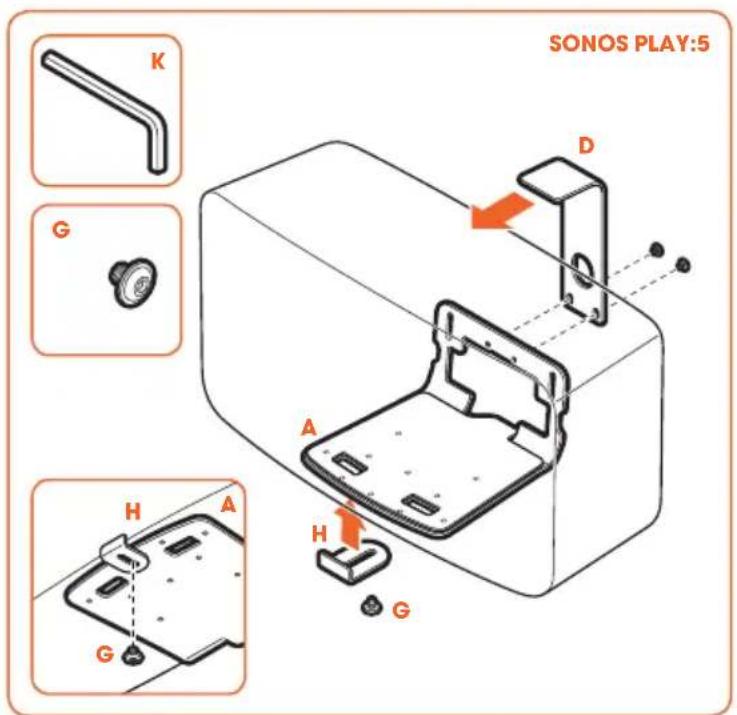

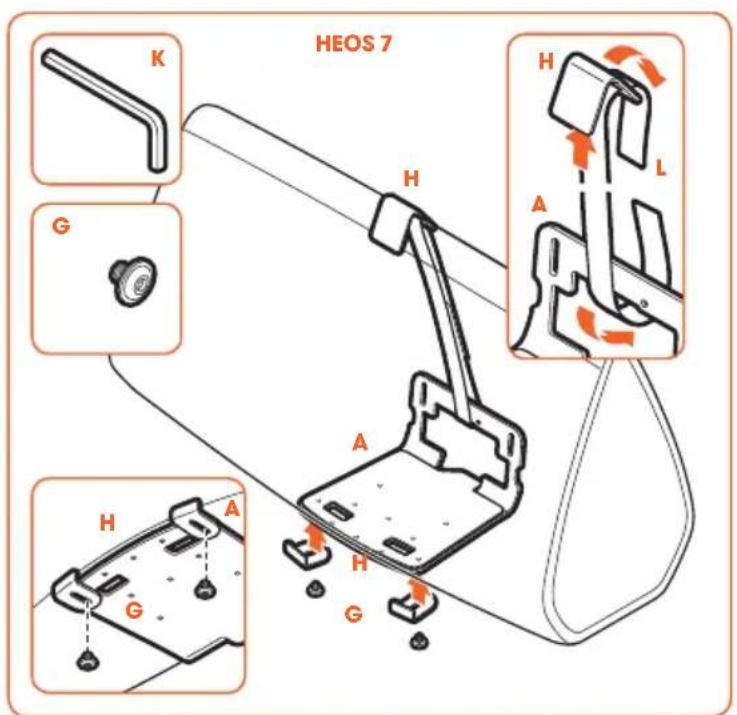

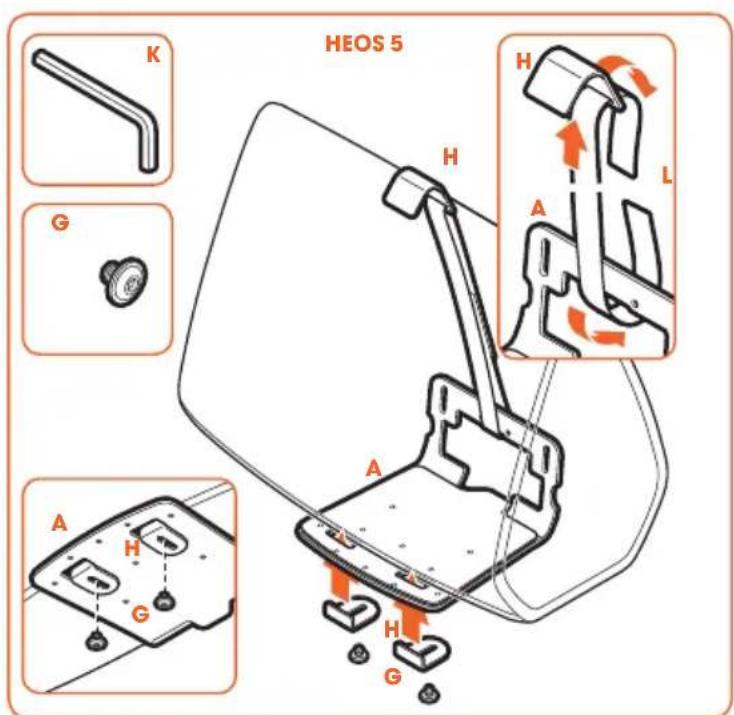

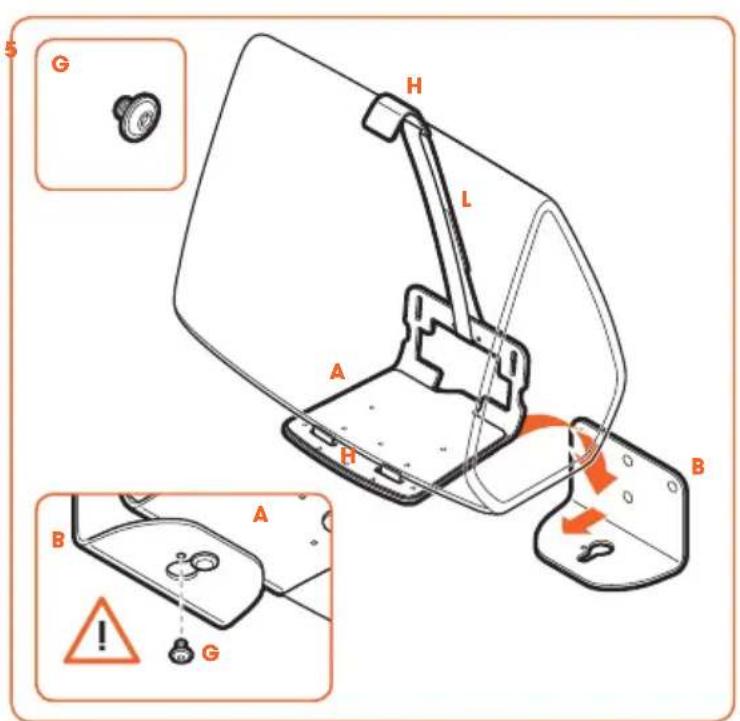

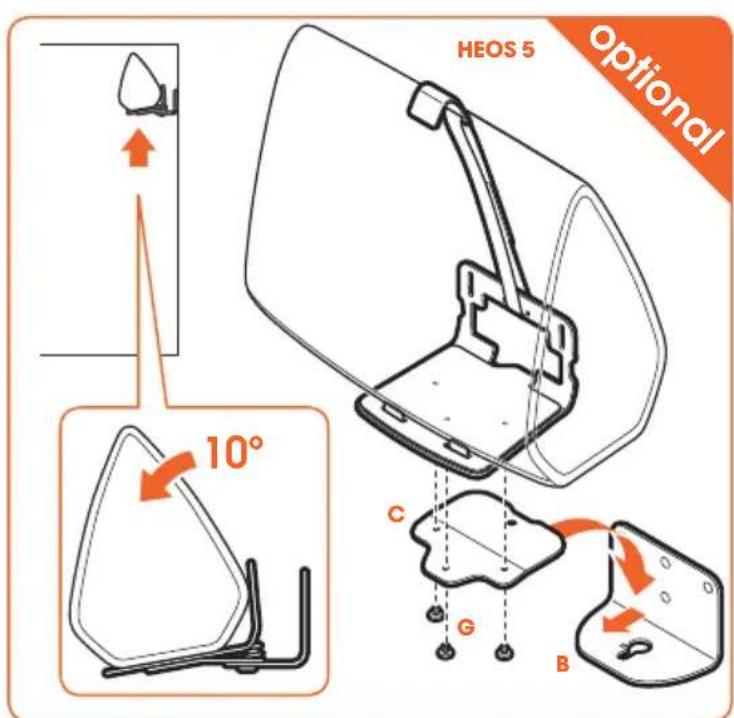

Mounting SONOS PLAY:5, DENON HEOS 5 AND DENON HEOS 7

• Use the specific mounting materials supplied.
Follow the mounting instructions on the following pages.

Mounting any other speaker

- You can use any of the supplied parts that suit your speaker.

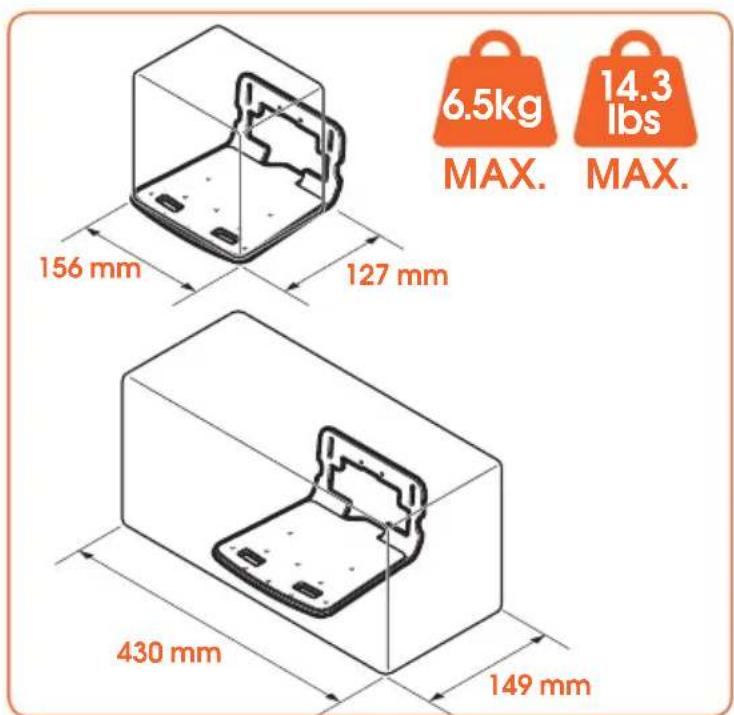

Speaker size (bottom):

Width: min. 156 mm - max. 430 mm

Depth: min. 127 mm. - max. 149 mm

Max. weight: 6.5 kg / 14.3 lbs

8

9

10

11

12

13

18

19
