USER MANUAL QRN-810 Hanwha

©2017 Henwhe TechwinCo, Ltd. All rights reserved.

Trademark

Each trademarks has been registered. The name of this product and other trademarks mentioned in this statement are the registered trademark of

their respective company

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly.

vi. out of the authorization

Disclaimer

Henarcha Tachuimnakes the best, to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be

provided Use of this document and the subsequent results shall be entirely on the use's own responsibility. Hanuhe Techuim reserves the right

to change the contents of this document without prior notice.

- Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the

information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warrings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Standards Approvals

• Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

BEFORE START

This manual provides operational information necessary for using the product and contains a description about each component part and its function as well as menu or network settings. You have to keep in mind the following notices :

• Hanwha Techwin retains the copyright on this manual.
- This manual cannot be copied without Hanwha Techwin's prior written approval.

• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.
• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.
• Before adding a hard disk drive or external storage (USB memory, USB HDD, etc), check if it is compliant with this product. For the compatibility list, contact the retailer.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an exclosion.
The following are the specifications of the battery you are using now.

• Normal voltage : 3V
  • Normal capacity : 210mAh
  • Continuous standard load : 0.4mA
• Operating temperature: -20^ +60^ (-4^ +140^)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. *Perchlorate Material - special handling may apply, See www.dltc.ca.gov/azardous/gro/a-porchlorate.*

Caution

• Connect the power cord into a grounded outlet.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product.
Press on the system shutdown popup window and then remove the power cable to ensure a safe power off.
You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

If powered off abnormally, restarting may take more time for restoring data from hard disk drive for proper operation.

overview

Operating Temperature

The guaranteed operating temperature range of this product is 0°C \~ 40°C (32°F \~ 104°F).

This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one.

Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period.

Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C \~ 55°C (41°F \~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

Ethernet Port

This equipment is in door use and all the communication wirings are limited to inside of the building.

Security Precautions

The initial administrator ID is "admin" and the password should be set when logging in for the first time. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

CONTENTS

OVERVIEW

3 Important Safety Instructions
3 Before Start
5 Contents
6 Features
7 Part Names and Functions (Front)
7 Part Names and Functions (Rear)
8 Remote Control

INSTALLATION

9 Checking the installation environment
9 H DD Addition

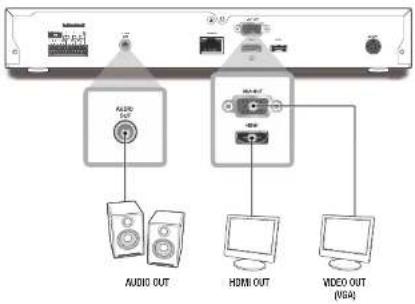

11 Connecting to an external device

11 Connecting the USB
11 Connecting the Alarm Input/Output

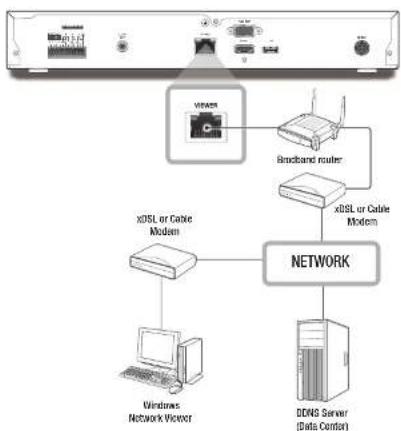

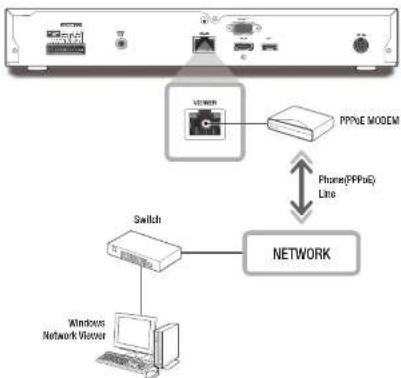

12 Connecting the Network

LIVE

13 Getting Started

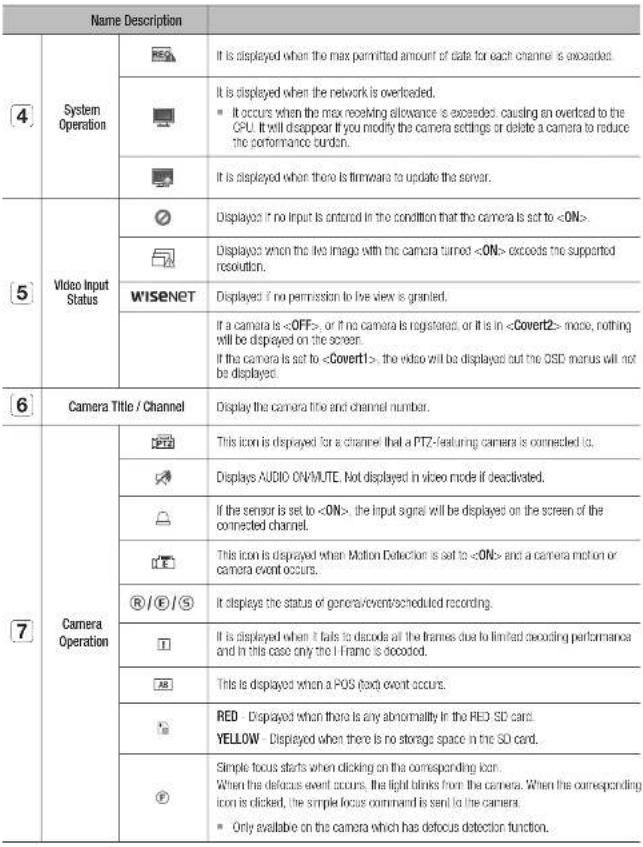

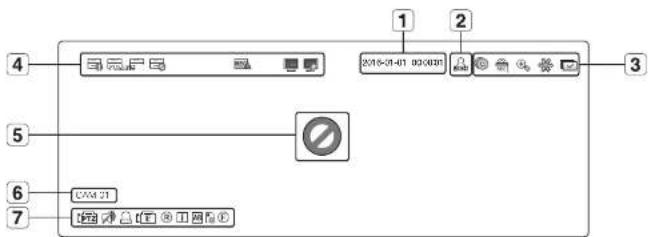

14 Live Screen Configuration
17 Live Screen Mode

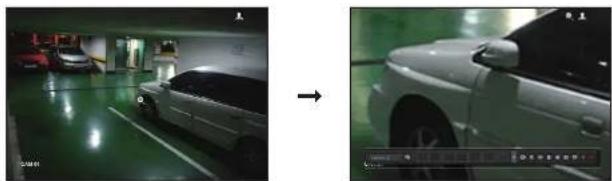

19 Zoom

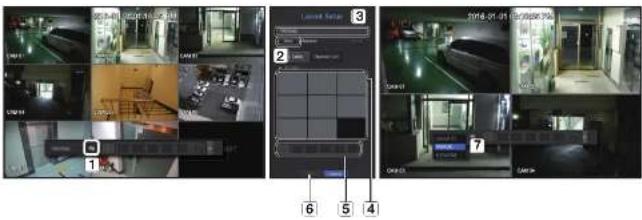

20 Layout
20 Audio ON/OFF
20 Freeze
20 Event Monitoring
21 Captu
21 Maintain the Screen Ratio

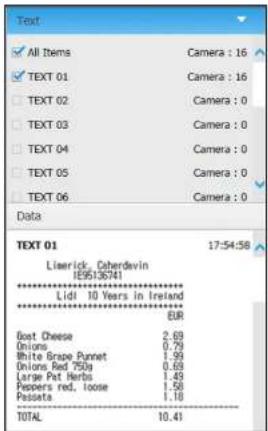

22 Display Text

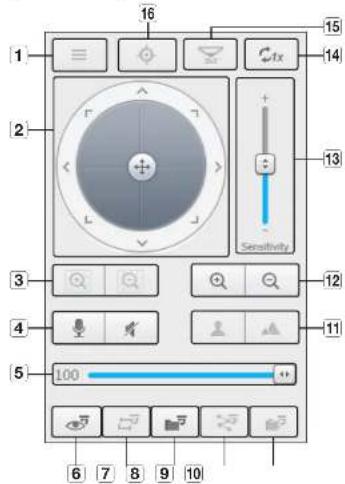

22 PTZ control
23 Backup

MENU SETUP

24 System Setup
29 Setting the Device
38 Setting the Recording
40 Setting the Event
42 Network Configuration

SEARCH & PLAY

49 Search
52 Playback

STARTING WEB VIEWER

53 What is Web Viewer?
53 Connecting Web Viewer

LIVE VIEWER

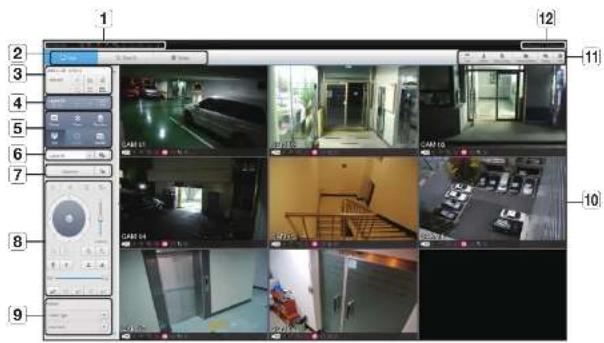

55 Live Viewer

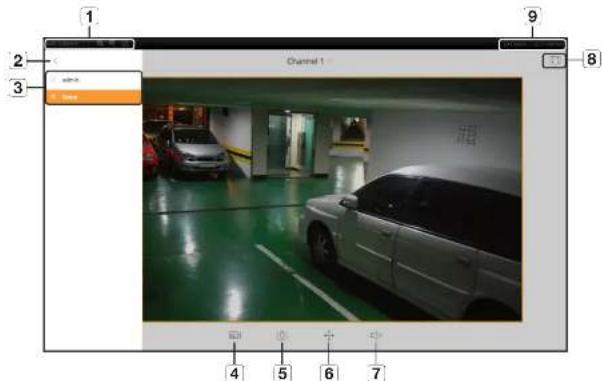

56 Live Screen Configuration
59 Controlling a Connected Network Camera

SEARCH VIEWER

61 Search Viewer
[Non-Text]

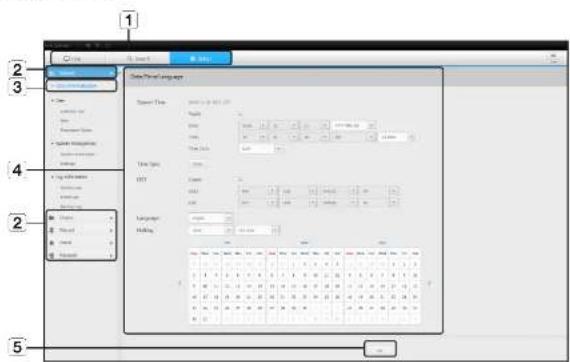

SETUP VIEWER

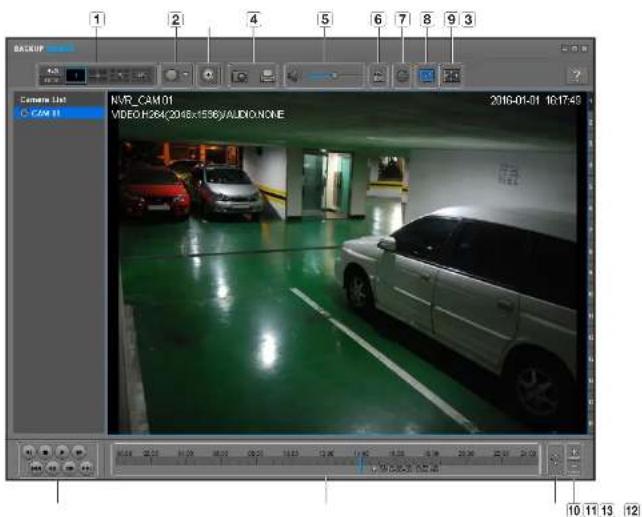

73 SEC Backup Viewer

73 SEC Backup Viewer

APPENDIX

75 Product Specification
77 Product Overview
78 Default Setting
79 Troubleshooting
82 Open Source License Report on the Product

overview

FEATURES

The product records video and audio from network cameras to a hard disk, and enables playback from the hard disk. It also provides remote monitoring environment for video and audio over the network using a remote computer.

• User-friendly UI
  • Supports a range of 4K camera resolutions(4096X2160)
  • Outputs a 4K high definition image using HDMI
• Record and play video
• Record and play audio
  • Supports OWIF Profile S standard and RTP / RTSP protocols
  • Display the HDD operation status by HDD SMART
• HDD overwrite enabled
• Backup using USB 2.0, 3.0 protocols and external HDD
  • Simultaneous play of, 8 channels
• Various Search Modes (Time, EventSmart, Text, Backup, ARB)
  • ARB support (configuration feature for saving period by channel)
• Various Recording Modes (Normal, Event, Scheduled Recording)
• Alarm Input / Output
• Remote Monitoring function by Windows Network Viewer
  • Live monitoring of the network camera
  • Installation Wizard Function (Easy Setup, Quick Setup)
  • Supports the smartphone remote monitoring feature by P2P support
• Provides smartphone event alarm (sending real-time event messages)

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit.

■ Accessory category and quantity may differ depending on sales region.

QRN-410

MWH Mouse Power Cable Power Adapter
User Manual CC User Manual or Quick Manual Terminal block			HDD Fixing Screw (For modes having no installed HDD)
SATA CableFor modes having no installed HDD

QRN-810

MHI Mouse Power Cable Power Adapter
Network Viewer Software /User Manual CD	User Manual or Quick Manual Terminal box		Remote Control /Remote Control Battery (AAA)

PART NAMES AND FUNCTIONS (FRONT)

4K UHD 1 2 3

Part Names Functions
1	USB	Connects the USB devices. (USB 2.0 supported)
2	Remote Reception System	Receive the signal from the remote control.
3	LED Indicator	REC : Lights or when recording is in progress.
		LAN : Displays both network connection and data transfer status.
		POWER : Shows the power CAN/OFF status.

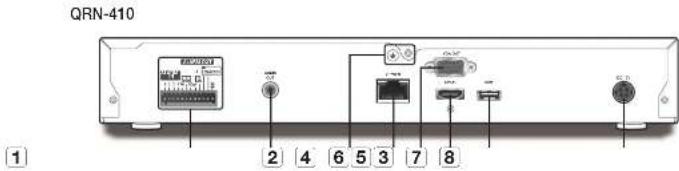

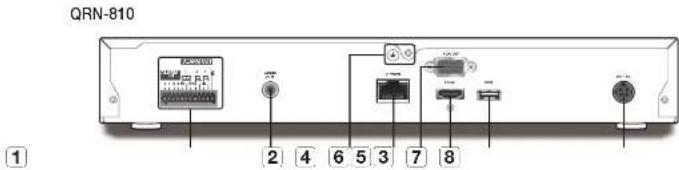

PART NAMES AND FUNCTIONS (REAR)

QRN-410 1 2 4 6 5 3 7 8

QRN-810 ① 2 4 6 5 3 7 8

Part Names Functions
1	ALARM	- ALARM IN : Alarm input ports(1~4 CH) - A&RM OUT : Alarm output ports. QRN-410: 1~2 CH QRN-810: 1~3 CH
2	AUDIO OUT	Audio Signal Output Port (RCA joc).
3	Ground connection	Terminal to connect a separate ground cable. ■ Add a ground cable to support the safe use of the device.
4	VIEWER	Port recommended for connection with a network, web viewer.
5	VGA OUT	VGA Video Signal Output Part.
6	HDMI	I DMI connector port.
7	USB	Connects the USB devices (USB 3.0 supported)
8	Power	Terminal to connect power to.

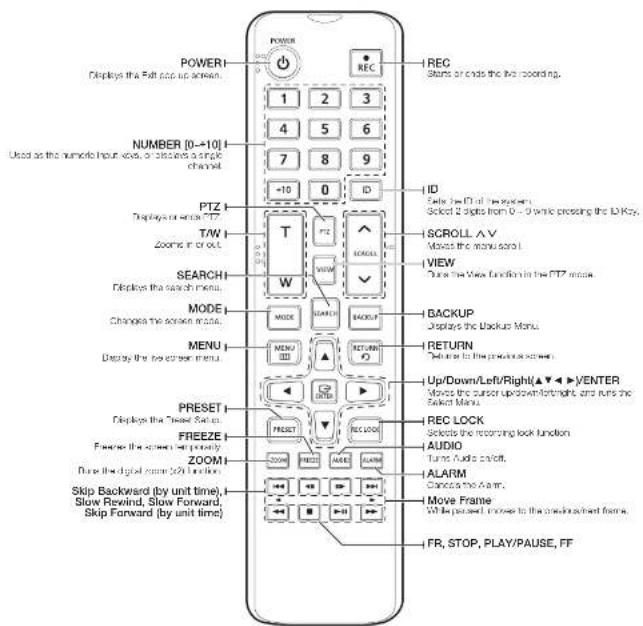

REMOTE CONTROL

POWER Displays the Full power screen. NUMBER (0-+10) Used as the numeric input video, or displays a simple channel. PTZ Displays on screen T7 TAW Zooms in or out. SEARCH Displays the search menu. MODE Changes the action mode. MENU Displays the next search menu. PRESET Displays the Next Panel. FREEZE Frames the screen properly. ZOOM Done the digital audio (by unit time). Skip Backward (by unit time), Slow Rewind, Slow Forward, Skip Forward (by unit time) REC Starts on ends the next recording. ID Take 3rd ID of the system. Sickoff 2 slots from 0 - 8 while preceding the ID key. SCROLL ▲ V Moves the menu board. VIEW Done the View function in the PTZ window. BACKUP Displays the Backup Menu. RETURN Define to the previous screen. Up/Down/Left/Right ▲ ▼ ▼ ▼ ENTER Moves the cursor up/down/bottom right and runs the Backtop Menu. REC LOCK Selects the recording look function AUDIO Turn Audio scroll. ALARM Conceives the Alarm. Move Frame While passed it increases to the next sound frame. FR, STOP, PLAY/PAUSE, FF

Using the Numeric buttons

1. Select a number between 1 and 8.
2. Move to the selected channel number.

Changing the Remote Control ID

Remote control's ID and NVR's ID should be matched for proper operation.

1. Press the ID button of the remote control and check the ID displayed on the NVR screen. The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the [ID] button of the remote control.
3. When ID input is done, press the [ID] button of the remote control again to check the setting.

- If you want to change the remote control ID to 08: Press 0 and 8 in order while the [ID] button of the remote control is pressed. For changing the ID of remote device, refer to "Remote Devices". (Page 37)

installation

Please take note of the followings before using this product.

• Do not use the product outdoor.
• Do not spill water or liquid in the connection part of the product.
• Do not impose the system to excessive shock or force.
• Do not pull out the power plug forcefully.
• Do not disassemble the product on your own.
• Do not exceed the rated input/output range.
• Use a certified power cord only.
• For the product with an input ground, use a grounded power plug.

CHECKING THE INSTALLATION ENVIRONMENT

This product is a top-notch security device that is equipped with a high-capacity HDD and other key circuit boards.

Note that an excessive internal temperature of the product may cause a system failure or a shortened product life (see the right figure). Keep in mind the following instructions before installing the product.

Temperature Unit: ℃

[Figure 1]

When mounting the product on a rack, comply with the following instructions.

1. Please ensure that the rack inside is not sealed.

2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

3. If you pile up the prudots or other rack-mount devices as shown in figure 2, secure room for ventilation or install a vent.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between 0°C \~ 40°C (32°F \~ 104°F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

[Figure 2]

HDD ADDITION

Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage. Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.

■ Number of HDDs supported : Max. 1

■ Make sure to unplug the power cord from the wall outlet before proceeding with the installation.

■ Cautions for data loss (HDD care)

Please pay attention so that the data inside the HCO is not damaged.

Before adding a HDD, please check the compatibility with this product

HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating. Please ensure that the HDD is free from such shock.

We are not liable for any damage to the HDD incurred by user's carelessness or miss use.

■ Cases might cause damage to HDD or recorded data

To minimize the risk of data loss from a damaged HDD, please backup data as often as possible. If exposed to shock when disassambling or installing, data stored in the hard disk may be damaged. A suddon power failure or turning off the product while in HDD operation may damage the hard disk drive. HDD or fills inside may be damaged if the main body is moved or impacted during the HDD operation.

Cautions when installing a HDD

1. Do not apply excessive force to the HDD.
2. Pay attention so as not to lose the disassembly screws or accessories.
   If the screws or accessories are not put together correctly, the product may breakdown or not operate properly.
3. Please check the HDD compatibility before adding a HDD.
4. Please contact your nearest dealer to obtain the list of compatible devices.

installation

Installing the HDD

- If you are adding a new or previously used HDD to this product in addition to the HDD(s) originally installed, format the new HDD manually in the set before use.

For information on how to format an HDD, refer to "Device/Format". (page 35)

1. After unscrewing, push back and remove the cover.

Line drawing of a network device with an arrow pointing to it (no text or symbols present)

1. Connect the SATA/power cables of the HDD to the connectors on the mainboard.

Isometric technical diagram of a device with labeled components and an arrow indicating direction (no text or symbols present)

1. Using the screws, fix the HDD to the bottom of the set.

Isometric technical drawing of a metal bracket with mounting holes and mounting points (no text or symbols)

1. Check for any problems in the connection terminal and the wiring in the product, close the cover and fix it with screws.

Line drawing of a computer internal unit with ports and connectors (no text or symbols)

1. Close the cover, and tighten a setscrew in the back.

Line drawing of a device with an arrow pointing to the top panel (no text or symbols present)

connecting with other device

CONNECTING TO AN EXTERNAL DEVICE

- The following figures are based on Model QRN-810.

AUDIO OUT AUDIO OUT HDMI OUT VIDEO OUT (VBA)

- Unrated or improper power source may cause damage to the system. Ensure that you use only the rated power source before pressing the POWER button.

CONNECTING THE USB

1. On the front of the product, there is a USB port.
2. You can connect a USB HDD, USB memory or mouse to the USB port.
3. If a USB HDD is connected to the system, recognition and settings are available in 'Menu > Device > Storage Device'. (Page 35)
4. The product supports hot plugging function that enables connecting/disconnecting USB devices while in operating the system.

- If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the KVR.

• Some USB devices may fail to function properly due to compatibility issue, please check the device before using.
• Only USB storage devices that comply with the standards (having a metal cover) are guaranteed for data transfer.
• In case if the USB device's electric contacts have been worn out, data transfer between the devices may not properly function.

CONNECTING THE ALARM INPUT/OUTPUT

The Alarm In/Out port at the back is composed of the following.

Alkmao Sensors ALAKA OUTF 1.2.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.

• ALARM IN 1 4 : Alarm Input Port
• ALARM OUT 1 - 3 : Alarm Output Port

ALARM IN (5mA sink)

ALARM OUT (30VDC 2A, 125VAC 0.5A MAX)

connecting with other device

CONNECTING THE NETWORK

- For more information about network connection, refer to "Network Configuration". (Page 42)

Network connection via Ethernet (10/100/1000BaseT)

Diagram showing network device connection with switch, laptop, and Windows Network Viewer labeled in English

Network connection via router

Connecting to Internet through PPPoE

Connecting the network camera

VENER Switch Network Camera Network Camera

GETTING STARTED

Starting the system

1. Connect the power cable of the NVR to the wall outlet.
2. You will see the initialization screen. The initialization process will last about 2 minutes. If a new HDD is installed, the initialization process may take longer.
3. The live screen appears with a beep.

SAMSUNG WISENET

Install Wizard

As shown below, proceed through each step of the .

1. In the screen, select the language and press the button.
2. In the screen, set the password and press .

- Setting Camera Password

You can change the password of the camera on bloc if the camera password is in a factory reset state.

If the camera password is not in a factory reset state, please enter the password of the current camera to register the camera.

- New Password : Input a new password according to the password setting rules.

- Confirm Password: Input the new password again.

Install Wizard Layout1 C:\OSV S:\Network1 C:\Data\Trac Select a program for use • Install • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network • Data • Network

A camera password registered with ONVF and RTSP cannot be changed.

- Password setting guide

When you click < @ >, a basic guide for setting a password is displayed. Check the password setting rules,

1. In the screen, set the network access method and the access environment. To use a simple intranel, click .
2. DHCP server : If the DHCP server is set to enable, an IP is automatically assigned to the camera. For more information, please refer to "DHCP Server" in the menu settings. (Page 47)

• Network 1 (Camera): Connects to the camera and receives the video lead from the camera

• Network 2 (AI): This is a port for transmitting an image to the webviewer.
• Network 1 / Network 2 Setup

- IP Type : Choose the network connection method.

- IP Address, Subnet Mask, Gateway, DNS

• If the LAN cable is not connected to the port, the setting button will not be activated for use. Check the LAN cable connection.
• The built-in DHCP Server in NVR will turn on automatically at stage 3. At this stage, using the existing DHCP server in the same network may cause a problem, as two DHCP servers would be simultaneously operating.

• For more details on network settings, refer to the user manual.

• After setting the date/time settings in the screen, click on the button to launch the setting completion window.

• In the setting completion window, click on the button to finish camera setting and launch the camera registration screen.

Paste Paste to Image Paste to Color Paste to Image Paste to Color

1. If there are 8 or less cameras searched, it will be automatically registered and the camera information(fps, days of recording) will be displayed.
2. If there are 8 or less cameras searched

1. The searched camera will be automatically registered and the initial recording value will be displayed.
   • If there are more than 8 cameras searched

1. In the camera registration window, click the button to modify the recording settings automatically set.

Census Budget The Company's Annual Summary Results 2% Yearly Adjusted Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Annual Adjusted 2016 Q1 2016 Q2 2016 Q3 2016 Q4 2017 Q1 2017 Q2 2017 Q3 2017 Q4 2018 Q1 2018 Q2 2018 Q3 2018 Q4 2019 Q1 2019 Q2 2019 Q3 2019 Q4 2020 Q1 2020 Q2 2020 Q3 2020 Q4 2021 Q1 2021 Q2 2021 Q3 2021 Q4 2022 Q1 2022 Q2 2022 Q3 2022 Q4 2023 Q1 2023 Q2 2023 Q3 2023 Q4 2024 Q1 2024 Q2 2024 Q3 2024 Q4 2025 Q1 2025 Q2 2025 Q3 2025 Q4 2026 Q1 2026 Q2 2026 Q3 2026 Q4 2027 Q1 2027 Q2 2027 Q3 2027 Q4 2028 Q1 2028 Q2 2028 Q3 2028 Q4 2029 Q1 2029 Q2 2029 Q3 2029 Q4 2030 Q1 2030 Q2 2030 Q3 2030 Q4 2031 Q1 2031 Q2 2031 Q3 2031 Q4 2032 Q1 2032 Q2 2032 Q3 2032 Q4 2033 Q1 2033 Q2 2033 Q3 2033 Q4 2034 Q1 2034 Q2 2034 Q3 2034 Q4 2035 Q1 2035 Q2 2035 Q3 2035 Q4 2036 Q1 2036 Q2 2036 Q3 2036 Q4 2037 Q1 2037 Q2 2037 Q3 2037 Q4 2038 Q1 2038 Q2 2038 Q3 2038 Q4 2039 Q1 2039 Q2 2039 Q3 2039 Q4 2040 Q1 2040 Q2 2040 Q3 2040 Q4 2041 Q1 2041 Q2 2041 Q3 2041 Q4 2042 Q1 2042 Q2 2042 Q3 2042 Q4 2043 Q1 2043 Q2 2043 Q3 2043 Q4 In our financial reports, in our financial reports.

Select a camera to register and click the button. Once camera registration is finished, proceed in the same steps as after auto registration.

Shutting Down the System

1. Press the [POWER] button for your remote controller or select in the live screen menu.
2. The "Shutdown" confirmation pop-up window will appear.
3. Using the directional button on your remote control, select and press the [ENTER] button or click on . The system will shut down.

• Only the user with the 'shutdown' permission can shut down the system.
• For the permission management, refer to "User > Setting Permissions". (Page 26)

Collage of surveillance cameras and display screens showing various camera settings and vehicle images

Login

To use the NVR menu, you are required to login as a user that is authorized to access the applicable menu.

1. In the live mode screen, right click the mouse button or press the [MENU] button on your remote control. You will see the context menu on the screen as shown.
2. Select . The login dialog appears.

Even if you press the menu button that requires a login with the remote control, the login screen will appear.

• The initial administrator ID is set to "admin" and you will need to configure the password in the installation wizard.
• Please change your password every three months to satisfy protect personal information and to prevent the damage of the information theft. Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

For the restricted permission, refer to "User > Setting Permissions", (Page 26)

Security camera module screenshot showing multiple camera feeds including a lock, security camera, and display screens with Chinese labels

Icons on the Live Screen

You can check the status or operation of the NVR with the icons on the live screen.

4 5 6 7 1 2 3 CAM 21

Name Description
1	Current Date, Time		Displays the current time and data.
2	Login Information		When you are logged in, the "LOG ON" icon will be displayed.
3	Screen Mode		It is displayed when there is ongoing backup in the live condition.
			If access to the recording canceling menu is restricted, then it is only displayed when there is ongoing manual recording.Only a user with the right to cancel recording can do so.
			It is displayed when the magnifying function is in operation.
			This icon is displayed when you press the Freeze button.
			It is displayed when all the channels are switched at the set time interval.
4	System Operation		It is displayed when the recording data cannot be received properly due to a device problem.
			Displayed if the HDD is full and the NVR has an insufficient space to record.
			Displayed if no HDD is installed or the existing HDD should be replaced.
			Displayed if the HDD needs a technical examination.

Error Information

- If the built-in HDD is not connected, the "NO HDD" icon (☐) will be displayed in the top left corner. In this case, make sure you contact the service center for assistance as this may cause a failure of recording, playback or backup.

If you see the NO HDD ( ),HDD FAIL ( ) icons on the screen, contact the service center for more details.

Live Screen Menu

Beside the functional buttons for your remote control, in the live screen mode, you can right click with the mouse button or press the [MENU] button on your remote control to launch the live screen menu from where you can access each menu from.

The context menu differs depending on the state of Log input, split mode, and NVR operation status.

- Depending on the user permissions, you may have limited access to menu items of Live View. Backup, Stop Recording, Search, PTZ. Remote Alarm Output, and Exit.

Single Mode Menu

The single mode menu is available only in Single Mode.

If the menu is displayed as in the single screen, it is displayed as a in the menu where only one channel is selected in the split screen.

2016-01-01 01:00 PM Travel Life Live in the Car Take the car to Car Auto Take the car to Car Play Down Take down Car Play Up Car Take Up Car Take Up

Screenshot of a software interface showing a dropdown menu with options like 'Add', 'Delete', and 'Add to the Home' in Chinese, alongside a photo of a room interior.

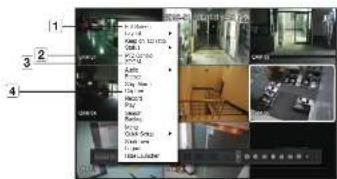

< Single Mode Menu > < One channel selection menu in the split screen >

Menu Description
1	Full Screen	Select and click a desired channel in Split mode to switch to the full screen of the selected channel.
2	PTZ Control	Accesses the PTZ Control menu. The PTZ menu will be active on the Live screen after you select a single channel. (Page 22)
3	ZOOM	You can enlarge the selected screen. (Page 19)
4	Capture	Captures the screen of the selected channels. (Page 21)

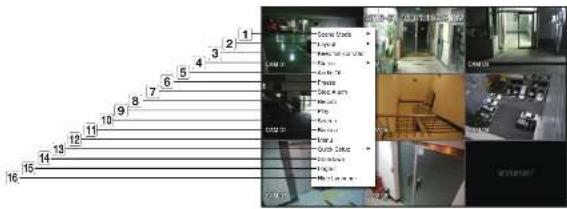

Split Mode Menu

In Live split mode, right click to display this context menu as shown.

The context sensitive menu in split mode differs, depending on the login/logout status.

Street photo with numbered lanes and a surveillance camera interface showing room views and surveillance tools

Menu Description
1	Screen Mode	Select a screen mode for the Live screen, Refer to "Live screen mode". (Page 17)
2	Layout	Set the layout of each channel. Rotor to "Layout". (Page 20)
3	Keep full scr ratio/ Keep ch. scr ratio	Channel screen ratio is changed. Rotor to "Maintain the Screen Ratio". (Page 21)
4	Status	Shows the connection information of camera connected to each channel as well as live and recording status. Refer to "Status". (Page 18)
5	Audio On/Off	Turns ON/MUTE the sound of the selected channel. Refer to "Audio ON/OFF". (Page 20)
6	Freeze	Stop playing the video temporarily. Refer to "Freeze". (Page 20)
7	Stop Alarm	Stop the alarm output, deactivate the event icon and release the auto sequencing. Rotor to "Event Monitoring". (Page 20)
8	Record/Stop Starts/scope the standard recording.
9	Play	Refer to "Search & Play > Play" (Page 52)
10	Search	Refer to "Search & Play > Search". (Page 49)
11	Backup	Searches for a backup device and runs backup for each channel or schedule backup later at a more preferable time. (Page 23)

Menu Description
12	Menu	Enter the main menu. Refer to the menu settings. (Page 24)
13	Quick Setup	The 'Camera Register' & 'Recording Setup' screen will immediately appear.
14	Shutdown	The system shutdown dialog will appear.
15	Login/Logout You can log in or out.
16	Show/Hide Launcher	Shows or hides the launcher. Refer to "View the Launcher Menu". (page 17)

View the Launcher Menu

The Launcher menu appears on the bottom of the live screen.

1. Select In the context menu of the Live screen.
2. Move the cursor to the bottom and click a desired item in the Launcher menu.

■ if no input is entered for 10 seconds, the menu will disappear.
■The Launcher menu can be accessed only by using the mouse.
- QRN-410 only supports full screen, 2/3/4-split screen, and automatic switchover screen.

Layout 01 1 2 3 4 5 6 7 8 9 10 11 12 13

Menu Description
1	Layout Select the layout to be displayed on the screen.
2	Layout Setup You can set, change or revise the new layout of each channel.
3	Screen Mode	Displays a list of spill modes available in a bar type.The current screen mode will be displayed grey.
4	Menu Expansion Button	Click to display the hidden menu to the right.
5	Backup	Searches for a backup device and runs backup of each channel or schedule it for later at a more desirable time.
6	Zoom Enlarges the selected area. This is available only in Single Live mode.
7	PTZ	If the network camera connected to the selected channel supports the PTZ operations, this will run the PTZ control launcher. This is active only in Live single mode.
8	Alarm Stops the alarm if it's activated.
9	Freeze Freezos the Live screen temporarily.
10	Capture Captures the screen of the selected channel.
11	TextTect output is CN or OFF.
12	Play Entars Play mode if a file to clay oldst and if not, enters Search mode.
13	Record	Start/End recording the Live screen.

LIVE SCREEN MODE

You can play up to 8 live video channels in single, 6 type-split, or auto sequence mode.

- When you register a camera, the Live4VR profile is created to set H.264 800*500 30fps as default. If necessary, you can change it in Menu > Device > Camera > Camera Settings. If the performance is exceeded, it may play I frame only. If you cannot create an additional profile for the camera specifications, then sometimes you cannot create Live4VR. In this case, you need to modify the camera profile. Refer to "Camera Setting" (Page 32)

Method for displaying screen mode

If you want to change the split mode, select a screen mode suggested in the launcher menu or right click with the mouse button and select a split mode in the screen mode menu.

Press the [MODE] button on your remote controller to change it in the order suggested in the launcher menu.

■ ORN-410 only supports full screen, 2/3/4-spit screen, and automatic switchover screen.

9-split mode 4-split mode 3-split mode 2-split mode

6-split mode 8-split mode

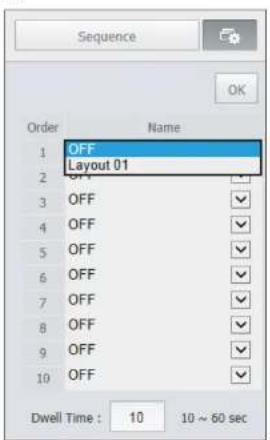

Switching the split mode

You can also play 8 Live channels in the sequence of: Single, 4-split mode.

Press the button in the launcher or use the right menu to

automatically switch the screen.

Mouse right button menu - Screen mode - Auto switching mode

If you reach the end of the steps as outlined in the previous page, you will be moved to the first page and no automatic switching will be performed.

Screenshot of a surveillance camera interface with multiple monitors and a context menu open, showing Chinese text options.

Auto Sequence

Single mode

4-split mode

In a split mode, if you have set In "Setting the Device > Monitor", Auto Sequence will be conducted at the set interval. (Page 37)
- When you switch the channel, the video may be delayed depending on the network condition.

Manual Switching

Press the left/right button on the front panel or the remote control, or click the arrow <◀▶> key to move to the next split mode.

• If pressing the right [▶] button in 4-split mode :
  4-split (CH 1-4) mode → 4-split (CH 5-8) mode → Auto Sequence

Status

You can check the connection information of the camera to be connected to each channel on the live screen.

Channel information

Select the in the live screen menu to check the status of camera connection to each channel.

Connection 5 6 7 8 Not used Connected Recording Connection Error Close

Live Status

If you select in the menu on the live screen, you can check the transmission information and state of the camera connected to each channel.

• Model : Displays the camera model name connected to each channel.

• Status: Displays the status of camera connection set to each channel.

• IP Address : Displays the IP address of a camera set to each channel.

• Codec : Displays the live profile coded information for a camera set to each channel.
• Resolution: Displays the live profile resolution of a camera set to each channel.
• Frame Rate: Displays the live profile transmission rate for a camera set to each channel.

Add Options 1. Add Options 2. Add Options 3. Add Options 4. Add Options 5. Add Options 6. Add Options 7. Add Options 8. Add Options 9. Add Options 10. Add Options 11. Add Options 12. Add Options 13. Add Options 14. Add Options 15. Add Options 16. Add Options 17. Add Options 18. Add Options 19. Add Options 20. Add Options 21. Add Options 22. Add Options 23. Add Options 24. Add Options 25. Add Options 26. Add Options 27. Add Options 28. Add Options 29. Add Options 30. Add Options 31. Add Options 32. Add Options 33. Add Options 34. Add Options 35. Add Options 36. Add Options 37. Add Options 38. Add Options 39. Add Options 40. Add Options 41. Add Options 42. Add Options 43. Add Options 44. Add Options 45. Add Options 46. Add Options 47. Add Options 48. Add Options 49. Add Options 50. Add Options

Record Status

If you select under the menu on the live screen, you can check a channel's video type, recording type, number of input/roccording frames, allowed/input/roccording data volume.

• Total Bitrate (Record/Max): Record bitrate shows the amount of actual data recording while Total bitrate shows the maximum data transfer allowed by the NWR.
  • Profile : Shows the video profile configured to each channel.
• Frame (fos): Show the input/record frames per second for each channel.
• Bitrate (ops)

- Limit / Input / Record : Shows the amount of limit/input/ recording data for each channel.

• Input / Limit : Shows the data ratio of actual data transferred from the camera and allowed maximum defined by user.
• Current: Shows the recording status information of currently transferred data.

- MAX: Shows recording information of the most biggest recording data out of configured standard and event recordings.

: Reloads the recording information.
- Record Setup: The menu screen will switch to the record setting screen.

• The warning message on the list's bottom means the NVR replaced the selected recording profile with other available profile, since the selected one does not produce video data which prohibits screen saving. If the screen displays video, it automatically resels to the selected profile and its name turns to yellow in the list.
• If Key Frame recording exceeds the allowed data amount specified by limit citrate, a popup alert and icon appear on the screen.

The limited recording alert popup does not repeat after displaying once unless camera or recording settings are changed. It may appear again if settings were changed to notify such status.

If you want to set the alert popup not to appear, change your setting of not to display a message popup. For further information on climate limit of recording data, refer to "Record Setting". (Page 39)

Channel Setting

You can display the channel in a desired area of a split screen.

1. Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen.
2. Click a camera name to display a channel list where you can select a different channel.
3. Select a desired channel and click it.

The current channel will be switched to the selected one.

Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also change the channel position.

Ex: If switching Q1 1 to Q1 7

01.00.00
02.00.00
03.00		VISNET

Report & Print File Edit View Insert Help Name: 12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-123 File Edit View Insert Help Name: 12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340-12340 Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed format: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal Printed mode: Normal -printed mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode: print-mode:

Switching to Single Mode

When in split mode, select and double click a desired channel to switch to its Single mode. Press the channel number button on the remote control to switch to single screen. Refer to 'Remote Controller > Using the Number Button'. (Page 8)
Ex: With your mouse, double click on channel 3 or press the number 3 on the remote control.

ZOOM

This is activated only in Live Single mode.

After selecting a single screen, if you use the Magnify function, the selected area will be magnified by 3.

1. In the live screen menu, select
   Press the [ZOOM] button on your remote control or click < ☐ on the launcher menu. The Magnify icon in the middle of the screen will be displayed.
2. You can use the remote control's directional key(▲▼◄►) or drag with the mouse to set the area of magnification.
3. Press the [ENTER] button or double click with the mouse to magnify the selected area by 3 times.

- In the magnified screen, you can drag with the mouse or use the remote control's navigational key (▲▼◀▶) to move the magnified area.

1. In the live screen menu, select
   Press the [ZOOM] button on your remote control or click < ☐ > on the launcher menu to cancel the magnification function.

Side-by-side comparison of a white car parked in a parking garage with green lighting (no visible text or symbols)

LAYOUT

In the live screen, you can set the layout for each channel.

Setting Up the Live Layout

This section outlines how to select a series of channels based on their purpose/accessibility and monitor them in a single layout.

Examplej Layout "Lobby" - Lobby camera 1, Lobby camera 2, Front entrance camera 2 Layout "VIP" - Directors' meeting room 1, Directors' meeting room 2, Directors' lounge 1, Corridor camera on the 7th floor

Security camera interface screenshot showing three panels: surveillance, display, and control panel with numbered annotations.

To create a new layout, follow these steps:
① Open the channel layout setup menu.
2 Click .
3 Enter a name for the selected channels (e.g., PARKING).
4 Select the channels that you want to add to the layout (e.g., 1, 2, 3, 4).
5 Choose a split mode to apply (e.g., 4-way split).
6 Click .
(7) Choose a layout to view it on the screen (e.g., change to PARKING).
1. Select the < 10 >

The layout setting screen will appear.

• New: You can set the new layout.
• Rename: You can make changes to the selected layout. When the layout is changed, the channel order is initialized.

• Delete: You can delete the selected layout.

• Channel Table: You can select channels in the table to be registered in, or removed from the layout.

• Channel List: You can select channels in the list to be registered in, or removed from the layout.
• Press the button and enter the name of layout to add.
• In the or , click and select the channel to be displayed on the layout screen.
• Click on to save the selected layout.

■ The layout for each user is saved separately.

AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO ON/OFF in Single mode

In the screen, click on the audio icon (☐) or in the remote control, press the [AUDIO] button to turn it on/off.

• If you have configured the audio output settings properly but the audio or voice is not output, check if the connected network camera supports the sound signal and if you have configured the sound settings as appropriate. The sound icon can be displayed if the sound signal fails to output from noise.
• Only the channel where

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

1. Press the [FREEZE] button on your remote control or click < > in launcher mode. Video playing is paused.
2. Pross the [FREEZE] button on your remote control or click < 📄> in launcher mode. Pause is canceled. Playing is resumed.

EVENT MONITORING

This will display the channel in sync with a specific event (Sensor/Motor/Video Loss) if it occurs.

In "Monitor > Event Display", set the event monitoring to ON/OFF and specify the event display time. (Page 37)

• If multiple events occur simultaneously, the screen will switch to a split mode.
• 2-4 events : 4-split mode

• 5-9 events : 9-split mode

• If the second event occurs within the set time of , the first event will last until the second one is terminated.
  Ex: If you set. to 5 seconds, and only one event occurs in CH 1.

Event occurrence 5 seconds

Stop alarm CHI

- Ex: If you set to 5 seconds, and the second event occurs in CH 2 within the set time after the first event occurred in CH 1.

Event occurrence 4 seconds 9 seconds

• Press the [ALARM] button or select to initialize the alarm output status and cancel the event function.
• If an alarm is output with the pre-event and post-event times specified together with the event recording settings, the event recording will perform according to the specified recording type (pre event or post event).

- In case of continuous events such as motion detection, switching to another split mode display may not immediate it concatenating events follow, even when you stopped alarm of the event.

• The video may be delayed depending on the network condition.
  The event output can be delayed as the transfer of the alarm event from the network camera takes time.

CAPTURE

You can capture a screen selected on the live screen.

Function to perform in single channel mode on the live screen or when selecting a channel.

1. Select from the live screen menu.
   You can click on < in the launcher menu.
2. Select the output information to be displayed on the captured screen.
3. When you select the check box, a window to enter a description is opened and you can enter up to 50 Korean letters.
4. Select a device to save a captured file, file path and file name.
5. Complete the settings and click , then the image captured from the screen is saved to the selected device.

The screen ratio for a live video can be charged.

Maintain a screen ratio for all channels

Video screen ratio for all channels can be changed in live split screen mode.

1. Select from the live screen menu. The screen ratio for all channels will be changed.
2. If you want to go back to the previous screen ratio, check the menu option for

Open Cancel Preview

→

Six-panel collage showing interior scenes including a room, ceiling, and security camera (no visible text or symbols)

Maintain a channel screen ratio

If you select a channel from a live single screen or split screen, you can change its video screen ratio.

1. Select from the live screen menu.
   The screen ratio of a specified channel will be changed.
2. If you want to go back to a previous screen ratio, select again

Start Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Menu Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus Add Bus

→

Two cars parked in a parking lot with green flooring, no visible text or symbols

DISPLAY TEXT

Change text output

The NVR can display text on a live screen when a text device is set.

Select text output

This is executable when a text device is connected.

• How to turn the text output off: Select "OFF" from the text list.
• How to display on other devices differently from the preset device: Select a device to display from the text list.

Collage of surveillance cameras and display screens showing various camera settings and system status

Scanned screenshot of a video editing interface showing a screen with Chinese text and playback controls

PTZ CONTROL

With the NVR, you can configure the settings of a PTZ camera as well as commercial cameras in the market to your preference.

PTZ device

This is active only if a channel that a PTZ camera is connected to is selected.

Getting started with PTZ operations

The PTZ camera will be activated only if the channel of the PTZ camera is selected, which can be performed in the following way:

• Using the launcher menu: Click - > from the launcher menu of the Live screen.
• Using the Live screen menu: Select in the context menu of the Live screen.
• Using the icons on the Live screen: Simply click the icon on the Live screen.

This is available only if a PTZ camera is connected and the icon is displayed on the screen.

• Even if the connected network camera does not support the PTZ operations, you can configure the PTZ control settings (if possible) by installing the PTZ driver (physical device).
• It only supports a network camera with Hanwha Techwin's PTZ function and a camera registered in the ONMF.

Using the PTZ camera

You can use a single PTZ camera to perform the Pan, Tilt and Zoom operations to monitor multiple places, and configure the custom settings of the presets in a desired mode.

2018-01-04 01:10:25 PM 60min

1. Open the menu.

The <[PTZ]> icon in the left bottom of the screen will turn yellow, indicating that the system accesses 'PTZ Control' mode. You will see the "PTZ Control" launcher menu.

The PTZ working factor mark can be active even if the PTZ operation is not available in normal mode. So ensure that you have completed the PTZ settings before proceeding.
2. Adjust the camera recording location by using the PTZ ball in the launcher menu or press the left/right (▲▼◄►) button on your remote control to move the camera recording location.

- Sensitivity: Adjust sensitivity for Pan, Tilt controls.

• PTZ Wheel: Click a near area from the center to move the camera lens slowly; clicking a far area will move it fast.
• If clicking and holding the mouse in the left will turn the camera counterclockwise; if clicking and holding the mouse in the right will move the camera lens clockwise.

- Zoom: Activate the Zoom operation of the FTZ camera.

- Iris: Adjust the amount of light incoming to the camera.

• Focus: You can adjust the focus manually.

• Swing: Swing is a monitoring function that moves between two preset points and enables you to trace the motion.
• Group: The group function enables you to group various presets before calling them in sequence.
• Trace: Tracking remembers the trace of movements that you instructed and reproduces it for your reference.

• Tour : Monitor all the groups created by a user in turn.

- Some cameras may differ in the menu title and operation with regard to Swing, Group, Tour and Trace.

Even if the network camera supports the PTZ operations by default, the PTZ control can be enabled only if the applicable menu is active in the launcher menu.

Using Digital PTZ (D-PTZ) function

1. Register a camera that supports the D-PTZ profile.
   In cameras that support the D-PTZ profile, you can use the D-PTZ function.
2. Both cameras that support general PTZ and cameras that support D-PTZ can control the live image using some of the function manus.
3. For more information about the supported functions, please refer to the camera manual.

Preset

Preset is a specific position remembered by the PTZ camera. You can use the Preset function to define up to 255 presets for a single PTZ camera.

2014-01-01 01:10:25 PM

To add a preset

1. Check the preset checkbox.
2. Select < ☑ The virtual keyboard will appear on the screen. Use it to provide the preset name. ■ Rotor to "Using Virtual Keyboard". (Page 25)
   • You can change the preset settings to your preference.
   • : Delete a selected presel.
   • : Delete all the existing preset settings.
3. You can add up to 255 presets, which is the max count supported by the MVR.
4. If you replace a camera that saves your preset settings with a different one, you must configure the preset settings again.
5. Select The preset setting will be saved in the provided name.

To change or delete a registered preset

2016-01-01 09:10:25 PM Control Panel

1. Check the preset checkbox and select a preset to change or delete.
2. Press <■> or <■> as needed.
   • : Delete all the existing presel settings.

If you delete the entire presets, the default presets specified in the network camera can be deleted accordingly.

1. Provide a new name and press .

BACKUP

You can check the backup device and set the backup schedule by channel or by time.

Screenshot of a software interface showing color adjustment panels with sliders and numeric input fields

1. Press the [BACKUP] button on the remote control, or select from the live screen menu. You can click on in the launcher menu.
2. The backup settings screen will be opened.
3. Channel: Sets the channel to backup.

* You can select multiple channels. If you select . all channels will be selected.

• Backup Range: Sets the and time for the backup.
  • Overlapped Data : Shows a list of overlapping data on a same time according to the number of data. It appears when one channel has multiple data on a certain time point due to changing of time or time zone settings, etc.
• Refer to time and time zone of 'Setting the Date/Time/Language'. (Page 24)
  • Device : Select a backup device from the recognized devices.
• Type : Sets the backup data format.

- NVR : Saved data can be played back only by the NVR.

- SEC : Saves data in the proprietary format with built-in viewer, which supports immediate playback on a PC.

- When you select the SEC format, you can select or deselect "Password" and "Text data included"

• Path : displays the location of the folder in which the backup file is to be saved.
• Check capacity: Shows the size of the selected backup data, used and available capacity of the selected backup device.
• When the backup setup is done, press

- If no available device is recognized for backup button is not activated.

The application may slow down during the backup.

• You can switch to the menu screen during the backup in operation, but playback of data is not available.
• The data can be played back on a Web viewer while the backup is in progress but audio does not function.
• If backup has failed, select "Device > Storage Device" and check the free space of the HDD and check also if the HDD is properly connected.

- Pressing the during the backup will return to the previous menu, while the backup progresses.

menu setup

You can setup the system, devices, and options for recording, event and network.

SYSTEM SETUP

You can setup Date/Time/Language, User, System Properties and Log.

Date/Time/Language

Setting the Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → → ▶ → → [ENTER] → ▲▼◀▶ → [ENTER]

Setup Local Local Language Local Language Log Library Local Language

Color/Time/Language Data Time Time from Time type: Data PC Language: 100%

- Date: Sets the date and its format that will appear on the screen.

• Time : Sets the time and its format that will appear on the screen.

• Time Zone: Sets the time zone of your area based on the Greenwich Mean Time (GMT).

■ GMT (Greenwich Mean Time) is standard World Time and the basis of world time zone.

- Time Sync.: Specify the use of synchronization with the time server.

Click the button to display time synchronization setup screen.

If you select to use the , the current time will be synchronized on a regular basis by the server

defined as

If this is the case, you cannot change the time setting manually.

- Synchronization : Specify the use of synchronization with the time server.

- Time Server : Enter an IP or URL address of the time server.

- Last Sync Time : Displays the most recent synchronization time from the selected time server.

- Activate as Server : Set to to allow the NVR to act as a Time Server for other NVRs.

- DST: Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.

- Language : Select your language. Sets the language for the interface.

English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese,

Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, and

Norwegian are supported.

- Holiday: A user can select specific dates as holidays according to their own preferences. Holidays are applied in the or setting too.

Holiday Setup DATE: 12/03/2024 Time: 00:00-05:00 Date: 12/03/2024 Time: 00:00-05:00 Date: 12/03/2024 Time: 00:00-05:00 Date: 12/03/2024 Time: 00:00-05:00 Date: 12/03/2024

Setting History File Edit View Help

e.g. every first day of a year is set to be a holiday if you select January 1 and check <1/1>, and every first day of a year and every first Wednesday of January are set to be holidays if you check <1/1> and .

To use the calendar

1. Select year and month.

Select the <◀> key on both ends of year and month to move back/forward to the previous/next year or previous/next three month.

1. Select a date and click on the button.

- A data is marked in gray if there exist data for search for system log, event log, time search and event search.

User

You can set permissions of each user over the NVR's specific function and settings.

Setting the Administrator

You can set and change Administrator's ID and password.

The administrator can use and set all menu items and functions.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ⇒ ▶ ⇒ [ENTER]

Add account Form: password to add account to add account to add account of a password and password. If you have a password, then your password is required. Password: New PDF Confirm PDF 1. New password

• ID : Change the admin ID.
- Password: Checks the current password.
- New P/W : Enter new password.
- Confirm P/W: Confirms the new password.
- if is selected, the password will no longer be hidden on the screen when you type it.

The Initial administrator ID is set to "admin" and you will need to configure the password in the installation wizard.

• Please change your password every three months to safely protect personal information and to prevent the damage of the information theft
  Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.
  If you click < ① >, a basic guide for password setup is displayed.

Using Virtual Keyboard

1. For alphanumeric inputs, the virtual keyboard window appears.
2. Using the directional key(▲▼◄►), move to the desired text tab and press the [ENTER] button.
3. In the upper text input box of the virtual keyboard, there displays a list of candidate words containing the selected character.
4. Select a word from the list, or use the keyboard to enter the whole word.

If there are many of candidate words, use < <> buttons to move between them forward and backward.

1. Select

Entered word is applied.

■ For upper case letters, use button.
■ For special characters, use button.
- Using the virtual keyboard is the same to a normal keyboard use in your region.
- D allows alphanumeric characters only.
The password should at a minimum be an 8-digit combination of alphabetical letters and numbers.

User setting

You can create a group or set permissions for each group. You can add a user and edit the registered user information.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▶▼ → → → [ENTER] → ▼▶ → → ▲▼ ◀▶ → [ENTER]

Group information Group Name Group Description User Information - User Name: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Description: - User Identification

If you want to add a group

1. Click on the [ ] button to launch the Group Addition popup window. If you want to add a group, click on .
2. Press the group name item to launch the virtual keyboard used to enter group names. Enter the group name to register.

- You can add a maximum of 10 groups.

If you want to set group permission

Set permission to access each group.

Each group's users can only access items with a check mark beside them.

1. Select the menu to set group permissions.

The menu with access permissions will appear when a user of the group logs in.
• Live View: You can set permissions to access the live screen for each channel.
- Search: You can set permissions to access the search menu for each channel.
- Backup: You can set permissions to access the backup menu for each channel.
- Menu: You can select and set the setting menu that can be accessed. A group user can only access the menu selected. If you select the menu, the menu permission setting screen will be displayed.
- Record Stop, PTZ. Remote Alarm Out, Shutdown: You can select these functions to add to a group's permissions.

1. Click

Check a group user to give them the permission to access the selected item.

menu setup

If you want to register a user

Name Group Name OK Cancel Cancel/OK OK (OK) Cancel

1. Click on the [button] to launch the user addition popup window. To add a user, click on .
2. Select a group. When registering a user, the selected group will be automatically registered.
3. A group can be changed after inputting all required information.
4. Enter name, ID, password and select whether to use the viewer. If you activate use of , you will have the right to use the web viewer and the network viewer.
5. Click . Registered user information will be saved.
   When you want to delete the group and user information
6. To delete, click on the [ ] button.
7. The deletion confirmation window will appear and you can select an item to delete and click on .

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use

[MENU] → [ENTER] → ▼ →

→ [ENTER] → → ▶▼ → → [ENTER] → ▼▶ → → [ENTER] → ▲▼◀▶ → [ENTER]

File Wizard New Document Wizard File Wizard: New Document Wizard Auto Log 16 New Book 25

- Restricted Access: All menu items allowed for a user can be set with restricted access. - Checked: ☑Restricted

- Not checked (■ Accessible

If it is not checked ( ■ ) In , any user can access the item no matter what the setting.

- If it is checked (☐) in , a user can access the item only if the user has permission In setting.

• Restriction on Network Access: Restricts remote access from a network
• All Network : Restricts all access instances via Network Viewer and Web Viewer
• Web Viewer : Restricts access via the Web Viewer.
• Auto Log out: A user will be automatically logged out if there is no operation on NVR for over set period of time.
• Manual Input of ID: In the login window, select whether to enter ID.

If the user has restricted access

If a new group is restricted to access the entire menus, the users belonging to the group can access only the basic menus and can change only their respective password.

If all permissions are restricted, you will see only some menu items accessible in the Live screen menu.

Collage of surveillance cameras and camera feeds with visible text overlays and UI controls

To change the user password

If you log in with the user account of a group with restricted access, you just can change your own password.

Setup System + - + - Load 100%

1. Provide the login information.
2. Select . The Permission Management screen appears.
3. Select . The Password dialog shall appear.
4. Provide a new password.
5. Select . The old password will be changed to a new one.

System Management

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current software version and MAC address before proceeding with the upgrade.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ⇒ ▶▼ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲▼◀▶ ⇒ [ENTER]

SUPPORT NAME: 100 File Name: 100 Format: Normal Size: 5 px Description: Normal OK

• System Information: Shows the current system's information. The values can not be changed by a user.
• S/W Upgrade: Updates the NVR's software up to date.
• Press the < button to search for and display the equipment to upgrade.
• Device Name : Displayed if the network viewer is connected to NVR.

To upgrade the current software version

System Setup This will be checked Can't set or set to any Set Us or set to any OK Cancel

1. Connect a device storing the software to be updated.

2. It may take about 10 seconds to recognize the device.

3. Upgradeable devices include USB memory, and network device.

4. To update the network, the current NVR should have been connected to the network. Upgrade via the proxy server may not be enabled due to the restricted access.

5. Select from window;

6. Select .

menu setup

1. When the recognized device appears, select .

- If you connect a device in the upgrade menu window, you can press the < > button to search for available software.

- If there is an upgrade image on the network, the popup window will appear.

- The button will be activated only if the current of the is same to or older than that of .

1. Press in the "S/W Upgrade" window.

■ While updating, it shows the progress.

1. When the updating is done, it automatically restarts.

Do not turn the power off until it finishes restarting.

■ If "Upgrade Failed" appears, retry from the step 4.

When you experience continued failure, consult the service center for assistance.

Settings

You can copy and import the NVR settings by using a storage media.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ <System> ⇒ ▶ ⇒ <System Management> ⇒ [ENTER] ⇒ ▼ ⇒ <Settings> ⇒ [ENTER] ⇒ ▲ ⇒ [ENTER]

System Management File Information: 01345 File Size: 800000 Size: 22.0000 Size: 22.0000 Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Normal Format: Neutral

• Storage Device: Shows the connected storage device.
• Press the < button to view the list of storage devices.
• Export: Exports NVR settings to the connected storage device.
• Import: Imports NVR settings from the storage device and applies to the NVR.
• Uncheck the checkbox of an item(s) that you want to import.
  Only the other items than the selected one will be applied to the NVR.

• and settings should be used in the same software version.

• Load Factory Default : Restore the factory default settings of NVR.
  Uncheck the checkbox of an item(s) that you want to reset. Then, only the other items than the selected one will return to the factory default.
  If is selected, a confirmation dialog for "Load Factory Default" prompts. Press to initialize the system to the factory default.

• Power off: If the power is off, the first alarm is generated. After checking the checkbox, if the button is pressed, all event alarms that are set to the first alarm output are released, and then the first alarm cannot be selected by other alarm output.
• If that function is set, the first alarm-cut checkbox and all alarms in the alarm setup screen are deactivated. to Off.

- If you want to Initialize the you need to reset the password.

In case you robot, reset it the installation Wizard and if not, use the guide screen to reset it.

Log Information

You can browse logs on the system and events.

Checking the system log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → <System> → ▶ ▼ → <Log Information> → [ENTER]
→ ▼ → <System Log> → ▲ ▼ ▶ ▶ → [ENTER]

文件名(N): 类型: 所有文件 文件类型: 所有文件 名称 类型 备注 1.00 高级 保存(S) 2.00 高级 保存(S) 3.00 高级 保存(S) 4.00 高级 保存(S) 5.00 高级 保存(S) 6.00 高级 保存(S) 7.00 高级 保存(S) 8.00 高级 保存(S) 9.00 高级 保存(S) 10.00 高级 保存(S) 11.00 高级 保存(S) 12.00 高级 保存(S) 13.00 高级 保存(S) 14.00 高级 保存(S) 15.00 高级 保存(S) 16.00 高级 保存(S) 17.00 高级 保存(S) 18.00 高级 保存(S) 19.00 高级 保存(S) 20.00 高级 保存(S) 21.00 高级 保存(S) 22.00 高级 保存(S) 23.00 高级 保存(S) 24.00 高级 保存(S) 25.00 高级 保存(S) 26.00 高级 保存(S) 27.00 高级 保存(S) 28.00 高级 保存(S) 29.00 高级 保存(S) 30.00 高级 保存(S) 31.00 高级 保存(S) 32.00 高级 保存(S) 33.00 高级 保存(S) 34.00 高级 保存(S) 35.00 高级 保存(S) 36.00 高级 保存(S) 37.00 高级 保存(S) 38.00 高级 保存(S) 39.00 高级 保存(S) 40.00 高级 保存(S) 41.00 高级 保存(S) 42.00 高级 保存(S) 43.00 高级 保存(S) 44.00 高级 保存(S) 45.00 高级 保存(S) 46.00 高级 保存(S) 47.00 高级 保存(S) 48.00 高级 保存(S) 49.00 高级 保存(S) 50.00 高级 保存(S) 51.00 高级 保存(S) 52.00 高级 保存(S) 53.00 高级 保存(S) 54.00 高级 保存(S) 55.00 高级 保存(S) 56.00 高级 保存(S) 57.00 高级 保存(S) 58.00 高级 保存(S) 59.00 高级 保存(S) 60.00 高级 保存(S) 61.00 高级 保存(S) 62.00 高级 保存(S) 63.00 高级 保存(S) 64.00 高级 保存(S) 65.00 高级 保存(S) 66.00 高级 保存(S) 67.00 高级 保存(S) 68.00 高级 保存(S) 69.00 高级 保存(S) 70.00 高级 保存(S) 71.00 高级 保存(S) 72.00 高级 保存(S) 73.00 高级 保存(S) 74.00 高级 保存(S) 75.00 高级 保存(S) 76.00 高级 保存(S) 77.00 高级 保存(S) 78.00 高级 保存(S) 79.00 高级 保存(S) 80.00 81.00 82.00 83.00 84.00 85.00 86.00 87.00 88.00 89.00 90.00 91.00 92.00 93.00 94.00 95.00 96.00 97.00 98.00 99.00 100.0 确定

• Search Day: Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log.
• For using the calendar, refer to "To use the calendar". (Page 24)
• Search : Specify the date and press this button to display the search result in the log list.
• Type: When there are too many logs, you can display logs of the desired format by selecting the type.
• Export: Save all the logged information recorded in the NVR into the storage media.

Checking the event log

You can search recorded events including alarms, camera events and video loss. It also shows the log and its timestamp.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → <System> → ▶ ▼ → <Log Information> → [ENTER]
→ ▶ ▶ → <Event Log> → [ENTER] → ▲ ▼ ▶ ▶ → [ENTER]

Log 100% format Subtitle: New Text Format: Normal Search Mode: All Search Type: Normal Name: (A) Date: March 2017 Time: 9:30-15:00 Size: 16.0 x 16.0 x 16.0 Date: March 2017 Time: 9:30-15:00 Time: 15:00-20:00 Time: 20:00-25:00 Time: 25:00-30:00 Time: 30:00-35:00 Time: 35:00-40:00 Time: 40:00-45:00 Time: 45:00-50:00 Time: 50:00-55:00 Time: 55:00-60:00 Time: 60:00-65:00 Time: 65:00-70:00 Time: 70:00-75:00 Time: 75:00-80:00 Time: 80:00-85:00 Time: 85:00-90:00 Time: 90:00-95:00 Time: 95:00-100:00 Log Log Log Log Log Log

• Search Day: Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log.
• For using the calendar, refer to "To use the calendar". (Page 24)
• Search : Specify the date and press this button to display the search result in the log list.
• Type: When there are too many logs, you can display logs of the desired format by selecting the type.
• Export: Save all the logged information recorded in the NVR into the storage media.

Checking the backup log

You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒ <Menu> ⇒ [ENTER] ⇒ <System> ⇒ ▶ ⇒ <Log Information> ⇒ [ENTER]
⇒ ▼ ⇒ <Backup Log> ⇒ [ENTER] ⇒ ▲ ⇒ [ENTER]

Log 100% Mode Source: Log 100% Name: Size: 100% Date: 2023-06-27 14:59 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Log 100% Mode Source: Log 100% Name: Size: 100% Date: 2023-06-27 14:59 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Log 100% Mode Source: Log 100% Name: Size: 100% Date: 2023-06-27 14:59 Time: Time: 0:00:00:00:00 Time: 0:00:00:00:00 Time: 0:00:00:00:00 Log 100% Mode Source: Log 100% Name: Size: 100% Date: 2023-06-27 14:59 Time: Date: 2023-06-27 14:59 Time: 2023-06-27 14:59 Log 100% Mode Source: Log 100% Name: Size: Date: Log 100% Mode

• Search Day : Click the Calendar icon to display the calendar window, or use the direction buttons to specify the search period of the system log.
• For using the calendar, refer to "To use the calendar". (Page 24)
• Search : Specify the date and press this button to display the search result in the log list.

SETTING THE DEVICE

You can configure settings related to camera, storage media, monitor and text.

Camera

To register a camera

You can register a network camera for each channel and make connection between.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Device> → ▶ → <Camera> → [ENTER] → ▼
→ <Cam Registration> → ▲▼◀▶ → [ENTER]

Setup Tobacco Device Basis Board Microsoft C:\Users\Storage\Documents\Program Files\2014-03 Basis Basis Basis Layers... Browse

C:\Users\Control Panel Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings

• Preview: View the video of the channel as a current image.
• Camera searched with ONVF does not provide previews.

- Protocol: Show the protocol information of a registered network camera.

• Model : Show the camera model name.

- IP Address : Display the IP address of a network camera.

- Connection : Display the connection status.

- Data Rate: Displays the total amount of data received by the channel.

- If the NVR has been initialized, it may not connect to cameras. Configure the network settings first and add cameras. For more information on network settings, refer to "Network Configuration". (Page 42)

menu seluo

To auto-search for and register a network camera

Cancer Register Scales of Parginal Disease - A Change of Parginal Disease - C Name Access Date Time Duration 01:24:36 07:30:59 08:30:59 10:30:59 Cancer Register Cancer Register

1. In the field, click on the button.

2. Search for a network camera connected.

- An already registered camera will be marked in blue in the list.

- If you search for the camera again or if the IP is an old IP that was not assigned by the DHCP server (such as 192.168.1.103), then press the < - > button to check if a new IP has been assigned. If the IP is still the same, then select Assign IP to assign the IP manually.

1. Select a camera from the camera list to see a preview of its current video feed.

- Camera searched with OWF does not provide preceves.

1. Check the checkbox next to a network camera that you want to connect to.

- You can select all of the network cameras in the list and provide and all at once.

- Click a header at the top of the list to sort the list according to that header.

- Registering camera with user account other than admin may restrict camera function.

- When you change the camera ID/password in the camera web viewer, if the camera is already registered in MVR, you also have to change the camera ID/password information registered in MVR.

1. Click on the button to enter the selected network camera's and .

2. Press the button to make a connection to a camera.

3. Press to register the selected camera.

To manually search for and register a network camera

1. In the menu, click on the button.

2. The manual search window will appear.

3. Select a channel and protocol used to connect to a camera.

The input items may differ depending on the selected protocol.

• SAMSUNG : Comply with the Internal network protocols adopted by Hanwha Technwin.

- ONVIF: Means the camera supports ONVIF protocols. When connecting a camera that its name cannot be found from the list, select .

Time difference between the ONVF camera and NVR exceeds more than 2 minutes. the camera cannot be connected. In this case, synchronize the ONVF camera's time to the NVR or set times of both camera and NVR to a same MTP server (if in the same time zone), or make the NVR an MTP server.

- RTSP : Comply with RFC 2326, one of "Real Time Streaming Protocol (RTSP)" for real-time streaming.

1. If you select the protocol, check options as necessary.

- Model: Select a camera model.

Samsung Network Camera/Encoder: Means the camera/encoder supports Hanwha Tochwin's SUNAPI, SVNP protocol. When connecting a camera that does not appear in the camera list, select Samsung Network Camera/Encoder.

However, you must select the correct model name of the camera, if it's in the list. Some of obsolete camera models may not be supported.

- The below models are discontinued. If you register them with CMVF, some camera functions will be restricted or cause errors. It is recommended you register the Samsung protocol.

- SNB-2000, SND-3000, SNC-B2315, SNC-B2331, SNC-B2335, SNC-B5368, SNC-B5395, SNC-B5399, SNC-570, SNC-1300, SND-460V, SND-560, SND-3080, SND-3080C, SND-3080CT, SND-3080T, SND-3081, SNP-3301, SNP-3301II, SNP-3350, SNP-3370, SNP-3370TII, SNP-3750, SNV-3080, SNP-3430

- Address type : Select an address type of the camera.

- Address type can be different depending on connected product model.

- Static(IPv4)/Static(IPv6) : Used to provide the IP address of the camera manually.

- Wisenet DDNS : This is available only if the camera is registered with the Wisenet DDNS(ddns.

hanwhasecurity.com) server. Provide the registered domain for DDNS ID.

Ex) http://odns.hanwha-security.com/snb6000 → provide "snb5000" for Wisenet DDNS

- URL : Used for URL address input.

Refer to the user manual of the connected camera and check the DDNS specification that is supported by the camera.

- IP Address : Provide the IP address of the camera.

• Device Port : Provide the device port of the camera.

- HTTP Port : Provide the HTTP port of the camera.

- ID : Provide the ID of the camera that you want to register.

- Password : Enter the password of the camera to be registered.

1. Select or for the protocol and enter your input for each field appears.

- ONVIF Address / RTSP URL : Enter the camera's RTSP access address that supports ONVIF or RTSP. For more information about the RTSP address, refer to the manual of each applicable network camera.

• ID : Enter the ID for accessing via ONVIF/RTSP protocol.

- Password : Enter the password for accessing via ONIF/RTSP protocol.

- Mode: If button clicked, setup window will appear. Select a mode that is supported by the network camera in RTSP connection mode.

- TCP: The connection type with the network camera will switch to "RTP over TCP".

UDP: The connection type with the network camera will switch to "RTP over UDP".

- HTTP : The connection type with the network camera will switch to "RTP over TCP (HTTP)".

- HTTPS: The connection type with the network camera will switch to "RTP over TCP (HTTPS)".

If you want to check the error details of camera registration

If you failed to register a camera, the reason for the failure will be displayed.

- Connection failed due to unknown error. : This message appears if the camera has failed to be registered due to unknown connection status.

- Due to the camera account locking, access has failed. : When you enter a wrong ID/password 5 times to login to the camera account, this message is displayed.

Try to log in again after 30 seconds. If the same message appears, you may need to check whether someone has tried to access your camera account from the outside.

- Connected successfully.: This message appears if the camera is connected successfully.

- Incorrect model information. Provide the correct model information. : This message appears if the model information provided for registering the camera is incorrect.

• Authentication has failed: This message appears if the ID or password provided for registering the camera is incorrect.
• Connection has failed due to excessive concurrent users. : This message appears if the concurrent user count exceeds the upper limit.
• Connection has failed due to incorrect HTTP port information. : This message appears if the HTTP port number of the camera is invalid.
• Connection has failed. Unknown connection status.: This message appears if the camera has failed to be connected due to a unknown error.
• User Model Modification : When registering a new camera, it is named according to the device's default if user set the model to . In case if automatic registration fails, user can change the model name of camera to be registered.

To edit camera profile

When a camera is added for the first time, it is added as the default profile of H.264, H.265 and MJPEG in order temporarily.

To change its profile, refer to "Setting the network camera's recording profile" (Page 39) or "Live Setting" (Page 34).

In case of MrR, if you set 3 different profiles for live, recording and network profile, one camera will produce video streams accordingly, having different stream formats. Especially, note that the live profile may vary depending on the used screen split mode.

- For cameras, if applied with one profile only, the produced frame rate is fixed as the profile specifies; if applied with multiple profiles, produced video stream's frame rate is not guaranteed. For example, if applied with 2 profiles of 30fps, the camera may transmit streams at 20fps.

menu seluo

ONVIF Setup

In the bottom of the camera addition screen, click on the button to set additional settings for cameras with the ONVIF protocol.

- You can change the information only if the user account (camera account used for camera registration) is used to read the user information and a connection is made with the admin privilege.

CNCF Setup Profile Information File Name: File Type: File Address: File Color: File Size: 100% Size: 50% Max Mode: 1.44 Audio Mode: Audio Color: Audio Color: Auto: Auto: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Color: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Auto Colors: Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Automotive Oscillator

Profile

• CH: It shows the list of registered camera with the ONVF setting.
• Add Profile: You can add camera profile.
  After adding a profile, click on the button to add it to the list.
• Delete: After selecting the profile to delete, click on the button to delete the selected profile.
  • Profile information : You can set the details of the selected profile.

After finishing setting each item, click on the button to save changes.

User

• Add User: You can add a camera user.
  After adding a user, click on the button to add them to the list.
• Delete: After selecting the user to delete, click on the button to delete the selected user.
• User Information: You can set the details of the selected user.

Network

You can set the details of the network.

• IP Type : Select from either the IPv/IPv6 IP types.
  • DHCP : Select whether to use the DHCP.
• DNS / NTP Server : Only if the DHCP setting is , the DHCP checkbox will be activated.

- If the DHCP is checked, you can manually enter the IP address.

Relay

You can set details of the relay.

• Digital Output: You can select a digital output channel.
- Relay Mode: Select either bi or mono stable modes.
- Relay Idle State: Select either open or closed relay standby modes.
- Delay Time: Select the relay operation waiting time.

Event

You can set details of the event.

• Available events (camera): It shows the list of all the events supported by a camera by using the ONVIF protocol.
- NVR supported events: You can map the list of events supported by a camera to events that the NVR can detect. There is no default value. It only shows the value sent by a camera.

Camera Setting

You can change the video settings of a registered network camera for each channel.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▼ → → ▶ → → [ENTER] → ▼▶ → → [ENTER] → ▲▼◀▶ → [ENTER]

Current Current Status: Current Status: Current Status: Current Status Name: Date: 2013-04-25 Time: 0:00:00 Type: Normal Size: 1.74 Size: 1.69 Size: 1.68 Size: 1.67 Size: 1.66 Size: 1.65 Size: 1.64 Size: 1.63 Size: 1.62 Size: 1.61 Size: 1.60 Size: 1.59 Size: 1.58 Size: 1.57 Size: 1.56 Size: 1.55 Size: 1.54 Size: 1.53 Size: 1.52 Size: 1.51 Size: 1.50 Size: 1.49 Size: 1.48 Size: 1.47 Size: 1.46 Size: 1.45 Size: 1.44 Size: 1.43 Size: 1.42 Size: 1.41 Size: 1.40 Size: 1.39 Size: 1.38 Size: 1.37 Size: 1.36 Size: 1.35 Size: 1.34 Size: 1.33 Size: 1.32 Size: 1.31 Size: 1.30 Size: 1.29 Size: 1.28 Size: 1.27 Size: 1.26 Size: 1.25 Size: 1.24 Size: 1.23 Size: 1.22 Size: 1.21 Size: 1.20 Size: 1.19 Size: 1.18 Size: 1.17 Size: 1.16 Size: 1.15 Size: 1.14 Size: 1.13 Size: 1.12 Size: 1.11 Size: 1.10 Size: 1.09 Size: 1.08 Size: 1.07 Size: 1.06 Size: 1.05 Size: 1.04 Size: 1.03 Size: 1.02 Size: 1.01 Size: 1.00

• Add: You can add camera profile. Click on the Add button to launch the addition window. Enter the information and click on the button to add it to the list.
• Delete: You can delete the selected profile from the list.
• Select Camera: Select the camera channel to change the video transmission settings.
  • Profile : Show a video profile for the connected camera.
• Codec: Show the codec information for the selected profile.
  • Resolution: You can change the resolution of the selected profile.
  • Frame Rate: You can change the baud rate of the selected profile.
• Bitrate Control: You can change the bit rate for video transmission of the selected profile.

If you change the sellings of a specific profile for each model, the effective range of the band rate may be changed accordingly. Ex) if you set the band rate of the first profile to 30fps, the send rate of the second profile will be changed to 15fps.

• Menu options other than codec, resolution and transmission rate can be configured in the settings menu of the network camera.
• If you change the current profile settings, you may encounter an interrupted playback on the recording or live screen for a certain time.
• Changes made in Camera Setup page are applied immediately, while changes made through the camera's web page may require up to 3 minutes.

Setup

In the bottom of the camera setting screen, press the button to set your camera while watching the live video of the selected camera.

2016-01-01 09:10:25 PM Lift Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control CNC

• SUNAPI (Samsung United Network API): Camera that supports the communication protocols provided by Hanwha Techwin 1. Camera supporting SUNAPI.
• A camera connected with admin privileges.
• A camera connected to Samsung protocols.
  In the above cases, you can use the function.
  ■ For more details on camera settings, refer to the camera user manual.
  Settings and operational spec vary depending on each camera.
  ■ This function is not supported in some models.

SSDR

If there is a significant difference between the dark and the bright areas, increase the brightness of the dark areas to maintain the level of brightness of the entire area. Mode, level, D-Range can be set.

Backlight

You can view both bright and dark areas.

Mode, WDR level, WDR black/white levels can be set.

Exposure

You can adjust the exposure of your camera.

Brightness control, shutter, SSNR, Sens-up, shutter/lens, and gains can be set.

Day/Night

You can change the mode to adjust the color and contrast.

Mode, switching time, brightness change, alarm time, alarm input/output, negative color, daytime/nighttime switching and simple focus, and activation time can be set.

Special

DIS (shaking compensation), use of Defog levels can be set.

Focus

You can adjust the focus of you camera's video.

Items of Simple Focus and Focus-Initialize Setting can be set.

Flip

Mirror and flip modes can be set.

After finishing with setting camera, click on the button to move back to the previous screen.

Dewarping Setup

Press at the bottom of the camera settings screen and a distortion correction settings window for each channel is prompted.

Camera File Edit View Insert Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools help File Edit View Insert Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tots 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 127856 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43999 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43888 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43777 43666 43666 43666 43666 43666 43666 43666 43666 43666 43666 43666 43666 43666

Recording Parts File Path View Path Audio Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode Audio Mode

• Profile/View type: You can select the view type of profiles, except for fixed profiles (SourceMJPEG, SourceH264, DewarpMJPEG, DewarpH264) whose settings can't be changed, in the profile list on the distortion correction settings pop-up window.
• Mounting mode: You can change the fisheye installation type. You can select a view mode from among CEILING/GROUND/WALL depending on the installation location.
• View: You can change the fisheye view mode of the current screen according to each split section.

- If there is no camera registered in the MVR that supports fsheye view, will not be available.

menu setup

Setting Camera Password

You can change the passwords of all registered cameras at once.

|MENU| ⇒ |ENTER| ⇒ ▼ ⇒ <Menu> ⇒ |ENTER| ⇒ ▼ ⇒ <Device> ⇒ ▶ ⇒ <Camera> ⇒ |ENTER| ⇒ ▼ ⇒ <Camera Password> ⇒ |ENTER| ⇒ ▲▼▲▶ ⇒ |ENTER|

Camera Use Properties Save As Save As Save As Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data Show Data

• Now P/W: Input a new password according to the password setting rules.
• Confirm PAN: Input the new password again.

If you click < ① >, a basic guide for password setup is dispensed.

If is selected, the password is no longer hidden on the screen when you type it.
- A camera password registered with OMVF and RTSP cannot be changed.

Password setting guide

The length and limitations of a password are as follows.

• Uppercase letters/lowercase letters/numbers/special characters, containing at least 3 out of the 4 character types mentioned: 8 or 9 digit combination
• Uppercase letters/lowercase letters/numbers/special characters, containing at least 2 out of the 4 character types mentioned: 10 to 15 digit combination
• The password shall not be identical to the user ID.
• To enhance security, it is not recommended to use repeated digits or letters, or keyboard patterns as a password.
• Special characters accepted for a password: \~1@15%^0_1=|0|.?

Live Setting

You can change the live transfer settings of the network camera.

[MENU] ⇔ [ENTER] ⇔ ▼ ⇔ <Menu> ⇔ [ENTER] ⇔ ▼ ⇔ <Device> ⇔ ▶ ⇔ <Camera> ⇔ [ENTER] ⇔ ▼▶
→ <Live Setup> ⇔ [ENTER] ⇔ ▲▼◀▶ → [ENTER]

Camera Can Properties Camera Setup Camera Resource Camera Help 01 - Can Properties 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

• Live Replacement: You can select the live profile setup mode.
If you select , the profile setup items are enabled, and you can change settings manually.
- Auto: In case of split mode, the profile for live monitoring shows the Live4NVR profile(basic: H.264 B00'600 30fps) created at the time of registration and it automatically selects the second profile in case of single mode.
- Manual: Live monitoring is performed with the profile selected by the user from the registered camera profiles.
- Record: Live monitoring is performed with the profile set for recording.
• Profile : You can select the video profile of the connected camera setting.
- Codec: Show the codec of the selected recording profile.
- Resolution: Show the resolution of the selected profile.
• Frame Rate : Show the frame rate of the selected profile.

Channel Setting

You can configure the video settings for each channel.

[MENU] ⇔ [ENTER] ⇔ ▼ ⇔

⇔ [ENTER] ⇔ ▼ ⇔ ⇔ ▶ ⇔ ⇔ [ENTER] ⇔ ▼▶ → ⇔ [ENTER] → ▲▼◀▶ ⇔ [ENTER]

Menu C:\Users\Network\Network\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\B:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Network\C:\Users\Weekend

• Apply to CH: if you select , the 'Apply to CH' confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
• Video

- : You can turn ON/OFF the selected channel's camera.

• : Shows information other than the video of the selected channel.
  For privacy protection, it does not display the video while the recording continues.
• : Shows nothing but an empty screen while the recording continues.

If the channel is set to or mode, the channel's sound is not hearable. However, the channel's sound is recorded if its audio setting is set to . even the sound is not heard in Live mode.
- Audio

• If set to , you can turn the audio of the channel ON/OFF on the Live screen.
• If set to , the channel's audio is off on the Live screen and not recorded.
• Camera Name : Provide a camera Name.
  ■ You can enter up to 15 characters including space.

Storage Device

You can check information on storage devices.

Device/Format

You can check storage devices and their capacity, usage as well as status. HDD, USB (memory or HDD) can be connected as a storage device.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲ ▼ ▶ ⇒ [ENTER]

Message Style Status: Status OK Cancel

• Storage Status: Displays the working status of a storage device.
• Red: Displays the situation of video loss.
• Green : Displays the normal situation without video recording losses.
• Status

■ Full BPS : Displays the current rate of recording.

• Current Loss Rate: Displays the current recording loss rate.
• Max Less Amount : Displays the maximum amount of losses up until now.
• If the recording loss persists, please refer to the "Troubleshooting" in order to perform checks. (Page 79)

- No.: You can check the designated number for the built-in HD.

• Capacity: Displays the amount of storage device use and the full capacity.

• Usage: Designate the purpose of use for a storage device. (However, only the display function is available for ARB)

• If the state of use is in "Not Defined", format the HDD before use.

• Status: Displays the current working condition of a storage device. For inspection or replacement of HDD alarms, please refer to "HDD Alarm Setting." (Page 36)

• Normal: It is displayed during normal operation.

• Inspection: Operating with partial problems.
• Replacement: It is displayed when you can no longer use it.

menu setup

• Temperature: You can check the temperature of the HDD mounted in the NWR.
• Time : Displays the use time of an HDD.
- Format : Select a device and click on format alter which a format confirmation window appears. Click on the button to format the selected storage device.

- Formatting will delete all the recording data that has been saved. Be careful.

■ While formatting is ongoing, you cannot record video.

- Do not remove a formatting device until it is finished.

- After installing an HDD, if the state of use of the HDD is "Not Defined", format the HDD before use, if the warning message persists after formatting, replace the HDD with a new one

- ARB: Video that was not recorded due to a camera disconnection can be backed up after the connection with the camera is re-established. Press the button and an window is opened. - For ARB storage: Select a storage device to be set to ARB.

- Select ARB channel : Select a channel to run the ARB.

- You can select multiple channels.

If you select . all channels will be selected.

- ARB bandwidth : Select a bandwidth for the ARB function.

- Only our camera products (SUNAPI version 2.3.2 or higher) support the ARB function. To use this function, the camera will need to record video on the SD card.

- The maximum bill rate value for the profile used in camera SD card recording should be set to under 61.4kbps. The detailed information on how to set the profile for SD card recording can be found in the camera manual.

To use the ARB function correctly, both the camera and M/R should be time synchronized with the time server. (Page 24)

- ARB function is activated when MVR starts/when the channel camera set is reconnected/when an MVR recording missing section recurs at regular intervals after MVR starts.

- NVR recording missing section that can be restored with the APB function is for 24 hours backwards from the point when the ARB function is activated.

- You can check which channels have ARB function activated through the message on each channel screen that is displayed when selecting a channel. (Page 16)

- Do not add or remove an HDD while NVH is running.

HDD Alarm Setting

For HDD malfunctions, you can set the inspection alarm output terminal, the replacement alarm output terminal and the alarm time.

$$ \begin{array}{l}\text { [MENU] } \rightarrow \text { [ENTER] } \rightarrow \nabla \rightarrow < \text { Menu } > \rightarrow \text { [ENTER] } \rightarrow \nabla \rightarrow < \text { Device } > \rightarrow \blacktriangleright \nabla \rightarrow < \text { Storage Device } >\\text { [ENTER] } \rightarrow \nabla \blacktriangleright \rightarrow < \text { HDD Alarm } > \rightarrow \text { [ENTER] } \rightarrow \blacktriangle \blacktriangleright \blacktriangle \blacktriangleright \rightarrow \text { [ENTER] }\end{array} $$

Manage Currency Currency: 40.000 Currency: 100.000 Currency: 100.000 Currency: 100.000 Currency: 100.000

• Alarm

- If was selected, both beep sound and alarm signal through rear side pons will output.

- If was selected, a beep will sound.

- Alarm signal will output through the alarm out port on the rear side when selected <1>, <2>, <3>.

• Check Alarm Output Port: If HDD generates check alarm, the alarm signal will output to the specified alarm output port.
• Replace Alarm Output Port: If HDD generates replace alarm, the alarm signal will output to the specified alarm output port.
  • Duration : Sets the alarm duration for the alarm signal and beep sound.

status means that the HDD is operating but it has problems that require technical examination. (appears on the Live screen.

status means that the HDD has defect and requires immediate replacement.

( appears on the Live screen.

Remote Devices

You can adjust the ID for a remote control to be used in connection with NVR.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Device> → ▶ ▼ → <Remote Device> → [ENTER] → ▲ ▼ ▶ ▶ → [ENTER]

Service Device Status: 100% 50% 25% 10% 5% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0%

• Remote control: Select whether to use a remote control.
  • ID: Select an ID number linked to a camera.

If the remote control ID does not match, it will not operate properly.

- To change the remote control ID, refer to 'Changing the Remote Control ID'. (Page 5)

Monitor

You can set the information displayed on the monitor as well as the output system.

Monitor settings

You can configure the monitor output-related settings including the displayed information, dwell time and output system.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Device> → ▶ ▼ → <Monitor> → ▲ ▼ ▶ ▶ → [ENTER]

Event Status Preview Preview: Event Status Preview: Background Preview: Background

• Event Display: Sets the dwell time of the event channel display on the monitor when an event occurs. If you set , it will keep displaying until you cancel it.
• Display: Displays only checked items on the monitor screen.
• Sequence switching time: Set the automatic switching time for the segmented screen in live mode.
• Video Output: Set the resolution for the video output. If you press the [STOP (■)] → [ZOOM] → [STOP (■)] → [ZOOM] → [MENU] button on your remote control, the basic resolution pop up will appear. You can adjust the desired resolution in it.
• If the changed resolution is not supported by the monitor, the video may not be displayed properly. If this is the case, the screen will restore the default resolution after a certain time. Then, you can change it to a different resolution.

To adjust the display position

Some monitors many not display information (camera name, icon, time information, etc.) about the NVR, depending on the condition. Then, you can change the display position of the data.

Collage of surveillance cameras and camera feeds showing room views, camera, and display screens with Chinese text labels

1. From the monitor setup menu, select
2. Using the number button to adjust the screen that is cut off.
3. Press .

- If you operate at 60Hz with 4K resolution, the screen may not be able to display. Please check whether your TV supports 30Hz.

menu seluo

Text

Device and events can be set up.

Device Settings

Relevant values of a device connected to NVR can be set.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Device> → ▶▼ → <Text> → [ENTER] → ▼ → <Device> → ▲▼ ◀▶ → [ENTER]

Task Name: Category: Size: 100 Width: 500 Distance: 500 Height: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: 500 Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Balance: Finish

• Device : Enter the user's desired name
• Use: Select whether or not to use
- CH: Select a channel to add a device from a channel table.
- Port: Display a port number that is set
- Encoding type: Select an encoding type to use from a list.

- You can select starting and ending character strings.

• General characters, special characters, and I ex codes (e.g. 0x12, 0x34) can be used for character strings.
• Equipment connected to NVR uses TCP/IP communication protocol.

Event Settings

You can set up event keywords.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Device> → ▶ ▼ → <Text> → [ENTER] → ▼ ▶ → <Event> → [ENTER] → ▲ ▼ ▶ ▶ → [ENTER]

Text Total amount Payment OK Cancel

• Total amount: Set a total amount condition to receive alarms.
• Keyword : If the button is clicked, a screen to add keywords pops up. If you select one of the added keywords to delete and click the button, the selected keyword will be deleted.

SETTING THE RECORDING

You can setup scheduled recording, event recording and other recording related settings.

Recording Schedule

Make your reservation on a date and time to schedule the recording on specified time.

[MENU] → [ENTER] → ▼ → <Menu> → [ENTER] → ▼ → <Record> → ▶ → <Recording Schedule> → [ENTER] → ▲▼◀▶ → [ENTER]

Setup Event Record Status Event Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status Record Status

Drawing Subfield File Edit View Insert Help Name: 10.000 Date: 2023-04-26 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00 Time: 0:00:00

• AI: The entire time range (Monday through Sunday including holidays, AM 0\~ PM 23) will be reserved with the same recording schedule
• Apply to CH: If you select , the "Apply to CH" confirmation pop-up window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.

Event recording and scheduled recording starts about 3 seconds prior to the event/schedule for guaranteed recording.

Record setting by the color

Color Function Description
No Color No Recording No schedule / event recording
Green Continuous Scheduled recording only
Orange Event Event recording only
White Bolt(Com&Ent) Both scheduled / event recordings

Each press of a selected cell will cycle through ------

Record Setting

You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, and set the transfer limit for recordings.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▼ → → ▶ ▼ → → [ENTER] → ▼ → → ▲ ▼ ◀ ▶ → [ENTER]

Annual Summary S&P 500 Index Yearly Total Return on Equity Fund AUM (EUR Million) 1 Month 2 Month 3 Month 4 Month 5 Month 6 Month 7 Month 8 Month 9 Month 10 Month 11 Month 12 Month 13 Month 14 Month 15 Month 16 Month 17 Month 18 Month 19 Month 20 Month 21 Month 22 Month 23 Month 24 Month 25 Month 26 Month 27 Month 28 Month 29 Month 30 Month 31 Month 32 Month 33 Month 34 Month 35 Month 36 Month 37 Month 38 Month 39 Month 40 Month 41 Month 42 Month 43 Month 44 Month 45 Month 46 Month 47 Month 48 Month 49 Month 50 Month 51 Month 52 Month 53 Month 54 Month 55 Month 56 Month 57 Month 58 Month 59 Month 60 Month 61 Month 62 Month 63 Month 64 Month 65 Month 66 Month 67 Month 68 Month 69 Month 70 Month 71 Month 72 Month 73 Month 74 Month 75 Month 76 Month 77 Month 78 Month 79 Month 80 Month 81 Month 82 Month 83 Month 84 Month 85 Month 86 Month 87 Month 88 Month 89 Month 90 Month 91 Month 92 Month 93 Month 94 Month 95 Month 96 Month 97 Month 98 Month 99 Month 100% Annual Summary

• Apply to CH: If you select , the "Apply to CH" confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
• Standard, Event : Configures Standard recording and Event recording.

- FULL: Records all frames fed by the camera.

- KEY: Records only key frames fod by the camera.

Actual recording rate may differ from camera settings. In general, 1 to 2 frames per second are recorded.

- OFF: No recording is made.

• Frame
• FULL: Shows the amount of data for all the scene recordings.
• KEY : Shows the amount of data for the man scene recordings.
• Limit: Set the amount of data allowed for input for each channel.

- Event: When an event occurs, you can set which point you will start or stop recording.

• Pre: When an event occurs, recording will be started regardless of the time set.
  If you set it to five seconds, recording will start at five seconds before an event occurs.
• Post: When an event occurs, recording will continue after the time set.
  If you set it to five seconds, recording will continue for a further five seconds after an event is finished.
• Audio: Specify whether to record the sound received from the camera or net.

If a channel's data transfer exceeds defined allowed limit, then it may affect to other channels, and may force switching to recording even when the channel is configured to recording mode. For Key Frame recording channels, the icon for limited recording appears on the live screen's top side.
But if the sum of the limits is below the max limit, you can still receive the entire frames despite exceeding the permitted bitrates for each channel.

% channel displayed in yellow indicates that the recorded data is not being transferred from the camera and that the recording is being performed temporarily using another profile on the camera.

Check the channel information to see the applied profile to the channel listed in yellow.
A channel sprayed in orange indicates that the amount of inputted data is greater than the permitted data amount.
In this case, it is impossible to record all of the incoming frames.
Instead, only part of the frames (1 or 2 frames per second) can be recorded. To resolve this issue, you must set the permitted
data amount to be greater than the amount of inputled data.
Refer to notes on "Record status". (Page 19)

Setting the network camera's recording profile

You can configure the video profile settings for instructing the network camera (connected to each channel) to make recording.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ▼ ⇒ ⇒ [ENTER] ⇒ ▼▶ ⇒ ⇒ [ENTER] ⇒ ▲ ▼◀▶ ⇒ [ENTER]

Analysis Tools File Edit View Help Name: Date: 2015-04-23 Time: 9:30-17:30 Address: 1032100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Name: Date: 2015-04-23 Time: 2:36:38:39 Address: 1111111111111111111111111111111111111111111111111111111111111111111111

- You can configure the settings only for the profiles that are supported by the camera.

- If the profiles used for recording and network are different, camera's video feed may not comply with the frame rate as specified in the camera.

• Profile: Select a record profile for the connected camera.
• Codes: Show the codes information for the selected record profile.
• Resolution: Display the resolution for the selected record profile.
• Frame Rate: Display the baud rate for the selected record profile.

menu seluo

Record Option

When the HDD capacity is full, you can set whether to stop recording or start overwriting.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▼ → → ▶ ▼ → → [ENTER] → ▲ ▼ ▶ → [ENTER]

Model Options Size End Size • Dimensions • Max • Output Model Width: 1.0 - 40.0 Model D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: 100% D: C A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

• Disk End Mode: Select a HDD repetitive recording type.
• Overwrite: If the HDD is full, this will overwrite the existing data and keep recording.
• Stop: If the HDD is ful, this will stop recording automatically.
• Disk End Beep: If you select for the disk end mode, this button will be active. Specify the use of beep when the HDD recording ends. If you check it, the beep will sound on the disk full and the recording stops.
• Auto Delete: If you check this option, the period list box is active. Specify the deletion period to delete any earlier data than the specified date. However, you can search for data from the current time to the selected date.
• You can select a channel and set a different recording duration for each channel.
• Apply to CH: if you select . a confirmation dialog window is opened. Select a channel to apply the applicable settings then press . The settings will be applied to the selected channel.

- If you press when you have completed your settings, all the existing data earlier than the specified period will be deleted automatically. So it is recommend to backup the previous data if necessary for later use.

SETTING THE EVENT

You can make the setup for record in case of sensor detection, camera event or video loss detection.

Sensor Detection

You can set the sensor's operating condition and connected camera, as well as alarm output and its duration.

[MENU] ⇒ [ENTER] ⇒ ▼ ⇒

⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▶ ⇒ ⇒ [ENTER] ⇒ ▼ ⇒ ⇒ ▲▼◀▶ ⇒ [ENTER]

Setup Sensor Sensor Event View List Connection View List Connection Event Networks Export Search

General Summary General Summary Current Summary Total 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

• Apply to other sensors: if you select , the 'Apply to other sensors' confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
• Sensor Operation: Sets the operation mode of sensors.

- In the tab, you can set whether or not to use a sensor.

• : Sensor is ocened. If the sensor is closed, it generates alarm.
• : Sensor is closed. If the sensor is open, it generates alarm.

- Cam: Select a channel to be connected to the sensor.

If selected camera, "Cam Preset setup" window appears. Select a channel and setup the preset.

- Preset setup can be done in PTZ mode.

• Alarm out: Sets the alarm output method.
• For further information on alarm output, refer to "HDD Alarm > Alarm". (Page 36)
  • Duration : Sels the duration of alarm signal and alarm sound.

If you select tab, you can configure the sensor operation settings of the network camera connected to each channel. If the connected network camera that has configured the alarm input settings triggers an alarm, NVR will perform the alarm out

Camera Event

You can set the activation of events (motion detection, video analysis, audio event) sent from the camera, alarm output method and alarm time.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▼ → → ▶ ▼ → → [ENTER] → ▲ ▼ ▶ → [ENTER]

Camera Edit Name: 123 File Edit View Insert Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools help 1. 100 2. 100 3. 100 4. 100 5. 100 6. 100 7. 100 8. 100 9. 100 10. 100 11. 100 12. 100 13. 100 14. 100 15. 100 16. 100 17. 100 18. 100 19. 100 20. 100 21. 100 22. 100 23. 100 24. 100 25. 100 26. 100 27. 100 28. 100 29. 100 30. 100 31. 100 32. 100 33. 100 34. 100 35. 100 36. 100 37. 100 38. 100 39. 100 40. 100 41. 100 42. 100 43. 100 44. 100 45. 100 46. 100 47. 100 48. 100 49. 100 50. 100 51. 100 52. 100 53. 100 54. 100 55. 100 56. 100 57. 100 58. 100 59. 100 60. 100 61. 100 62. 100 63. 100 64. 100 65. 100 66. 100 67. 100 68. 100 69. 100 70. 100 71. 100 72. 100 73. 100 74. 100 75. 100 76. 100 77. 100 78. 100 79. 100 80. 100 81. 100 82. 100 83. 100 84. 100 85. 100 86. 100 87. 100 88. 100 89. 100 90. 100 91. 100 92. 100 93. 100 94. 100 95. 100 96. 100 97. 100 98. 100 99. 100

• Apply to CH; If you select , the 'Apply to CH' confirmation window will appear. After selecting channels that the settings will be applied to, click on to apply them to the selected channels.
• Camera Event: Select whether to use an event detection.
• MD: Select whether or not to use motion detection from camera.
• Smart Search: Enables or disables the Smart Search option.
  To use the smart search function, the smart search option must be set to . Refer to "Smart Search" (page 50).
• Cam: Select an event detection channel. If you select a camera item, the 'Camera preset' screen will appear. Select a channel to connect and set the preset.

■ You can set the preset in PTZ mode.

• Alarm : Select the method for alarm output.
- For more details, refer to "HDD alarm > Alarm". (Page 36)
- Alarm Duration: Set the duration of alarm.
- Camera MD: You can set the detailed setting of motion detection for a network camera connected.

2018-01-01 03:10:25 PM Cable No. 1 Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel

- Mode: Set the motion detection mode.

• Area : Click on and when the detailed setup menu appears, set the motion detection area.
• Sensitivity: Set the sensitivity for motion detection. (very low/low//medium/high/very high).
• Size : Click on . When the detailed setup menu appears, set the max/min size of the object to be detected.
• Activation Time : Select the operation time of motion detection.

After finishing with setup, click on the button to move back to the previous screen after saving the setup.

Video Loss Detection

You can set the camera so that the camera can trigger the alarm if it is disconnected or the video is lost due to unstable network connection.

[MENU] → [ENTER] → ▼ →

→ [ENTER] → ▼ → → ▶ ▼ →
