IQBP-2 - CPU cooler Middle Atlantic - Free user manual and instructions

Product Type	CPU Cooler (Rack Mount Blower Panel)
Brand	Middle Atlantic
Model	IQBP-2
Airflow Rating	100 CFM (free air)
Noise Level	Quiet, proportional speed ensures quietest operation
Power Consumption	Low, runs only as needed
Static Pressure	High, suitable for crowded racks
Turn-On Temperature	87°F (30.5°C)
Full Speed Temperature	95°F (35°C) and above
Turn-Off Temperature	85°F (29.4°C)
Temperature Probe Length	9 feet (2.74 m)
Power Supply	External, included (interchangeable wall plugs for international models)
LED Indicator	Blue LED for power-on status
Warranty	3 years
Mounting	Rack mount, install above heat-producing equipment
Ventilation Requirement	Vent panel at bottom of rack for airflow
Control Circuit Vent	Do not block
Product Revision Label	Yes, on unit
Manufacturing Date Code Label	Yes, on unit
Applications	Thermal management for single components or populated racks

Frequently Asked Questions - IQBP-2 Middle Atlantic

How do I install the IQBP-2?

Install the unit directly above heat-producing equipment. Run the temperature probe to the heat source. Plug the power supply into the power source and into the unit. For populated racks, ensure a vent panel is installed at the bottom of the rack and mount the temperature probe at the highest available location.

At what temperature does the blower start?

The blowers turn on at 87°F (30.5°C) and run proportionally up to 95°F (35°C) where they reach full speed. They stop at 85°F (29.4°C).

How long is the temperature probe?

The temperature probe is nine feet (2.74 meters) long.

Does the IQBP-2 come with a power supply?

Yes, a power supply is included. International models have interchangeable wall plugs for different regions.

What is the airflow rating?

The free air rating is 100 CFM (cubic feet per minute).

Is the IQBP-2 quiet?

Yes, it operates quietly even at full speed due to proportional speed control, ensuring the quietest operation possible.

What does the blue LED indicate?

The blue LED illuminates when the unit is receiving power.

How do I clean or maintain the IQBP-2?

Ensure the control circuit vent is not blocked. There are no specific cleaning instructions in the manual, but keeping the unit free of dust and obstructions will maintain performance.

Does the IQBP-2 work in crowded racks?

Yes, the proprietary blowers provide high static pressure to maintain airflow even in crowded racks, superior to axial fans.

What is the warranty period?

The QBP series, including the IQBP-2, has a 3-year warranty from the date of shipment against defects in material or workmanship.

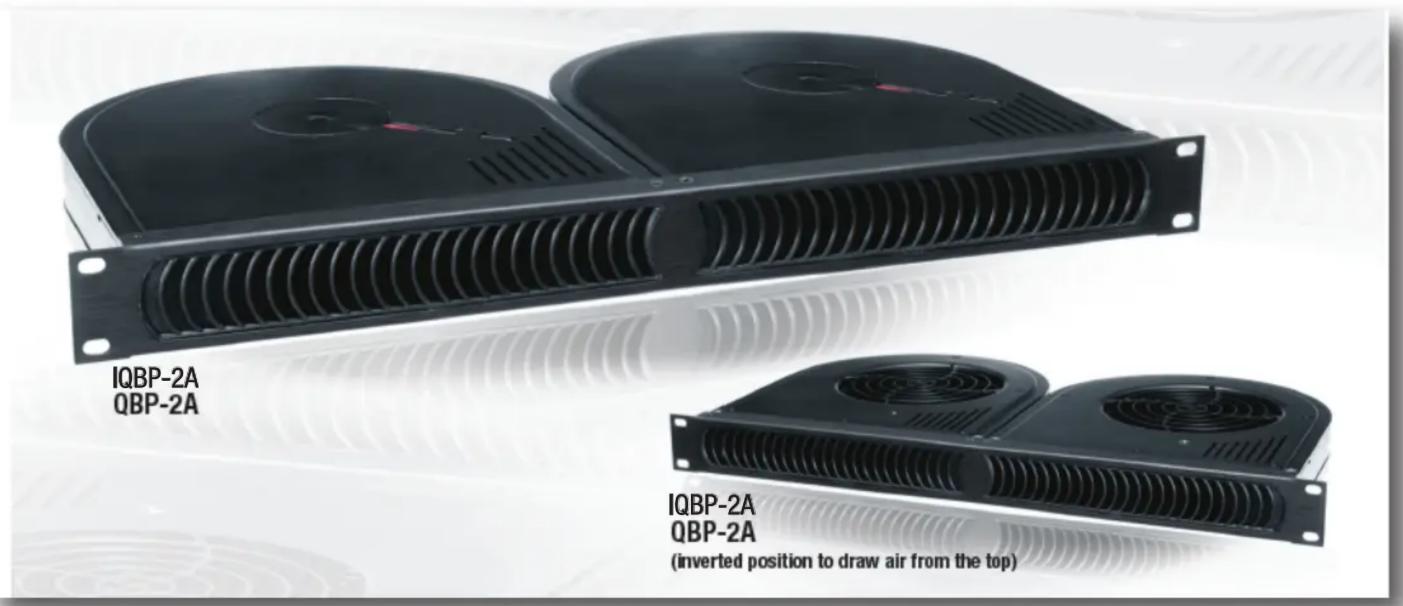

USER MANUAL IQBP-2 Middle Atlantic

Stacked black server rack with ventilation ducts and a central device labeled ABC-301, showing blue airflow arrows (no readable text or symbols)

Thank you for purchasing the QBP Series Quiet Blower Panel. Please read these instructions thoroughly before installing/operating this product

PRODUCT FEATURES

• Quiet even at full speed: proportional speed assures the quietest operation possible
• Low power consumption: blower only runs as needed and spins as fast as required by the heat load presented
• Proprietary blowers provide high static pressure to maintain airflow even in crowded racks. Superior to axial fans for maintaining airflow in restricted conditions
• Attractive appearance complements finished rack appearance
• 100 CFM free air rating

PRODUCT CALLOUTS

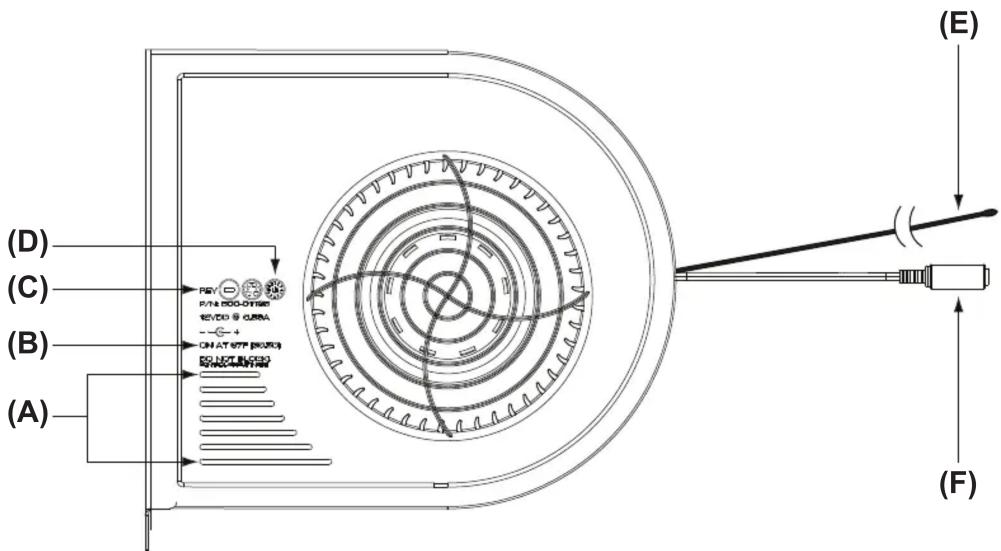

BOTTOM VIEW
(ONLY ONE FAN HAS THE TEMPERATURE PROBE AND POWER CONNECTOR AS SHOWN)

Technical line drawing of a coiled spring component with mounting holes (no text or symbols)

FRONT VIEW

A) CONTROL CIRCUIT VENT: Allows for air flow to the control circuit. DO NOT BLOCK!
B) TURN ON TEMPERATURE: The blowers will turn on at 87^ F ( 30.5^ C) and run proportionately from 87^ F ( 30.5^ C) to 95^ ( 35^ C). At 95^ F and above, the blowers will run at full speed. The blowers will stop running at 85^ F ( 29.4^ C).
C) PRODUCT REVISION: Current revision of your QBP series model.
D) MANUFACTURING DATE CODE: Denotes the date the QBP series models was manufactured.
E) TEMPERATURE PROBE: Temperature detection probe, nine feet long.
F) POWER CONNECTOR: Connects to the provided power supply.

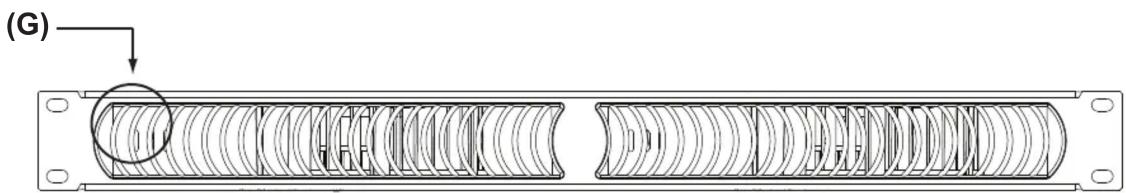

G) POWER LED: Blue LED that illuminates when the unit is receiving power.

APPLICATIONS

For thermal management guidelines visit our web site to view our thermal management white paper http://www.middleatlantic.com/pdf/ThermalManagement.pdf

INTERNATIONAL MODELS ONLY: Select appropriate wall plug for your region.

REMOVING HEAT FROM A SINGLE COMPONENT

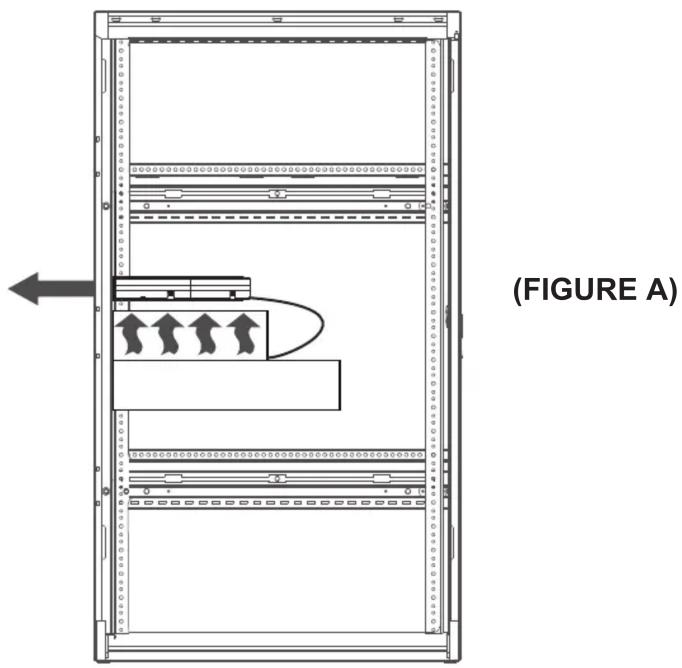

1) Install the QBP series model directly above heat producing equipment. Run the temperature probe to the heat source. Plug the power supply into the power source and into the unit. (FIGURE A)

REMOVING HEAT FROM A POPULATED RACK

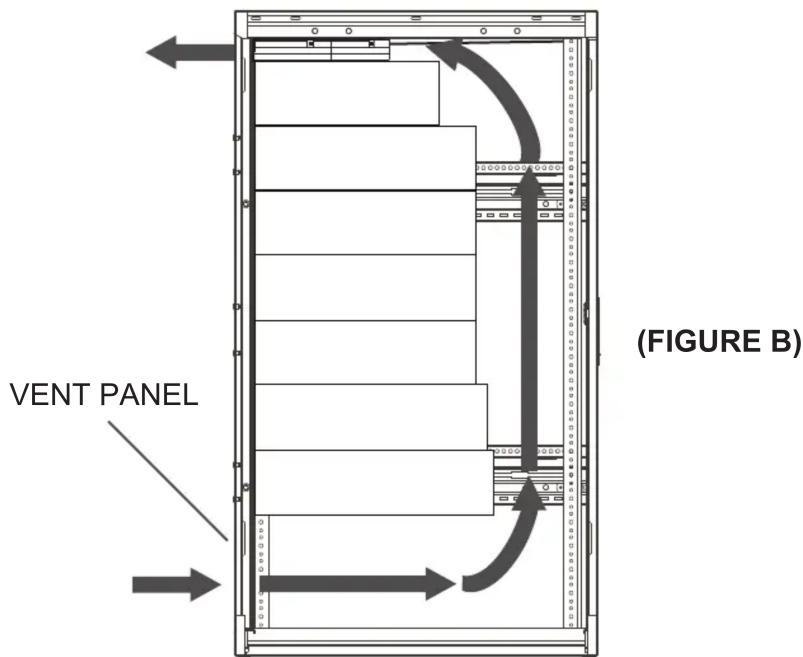

1) Install the QBP series model with the blower intakes facing the top of the rack. Ensure there is a vent panel installed at the bottom of the rack to allow for air flow (or equivalent venting). Mount the temperature probe at the highest available location in the rack. Plug the power supply into the power source and into the unit. (FIGURE B)
