Product Type	Closet Cooler (Air Conditioner)
Model	ICLS-COOL1
Brand	Middle Atlantic
Power Requirements	12VDC @ 200mA
Fan Quantity	2
Airflow (CFM)	50
Noise Level (dBA@1m)	25
Front Vent Panel Dimensions (W x H)	15-3/4" x 5-3/4" (399mm x 146mm)
Active Exhaust Panel Dimensions (W x H)	15-3/4" x 5-3/4" (399mm x 146mm)
Passive Intake Panel Dimensions (W x H)	15-3/4" x 4-1/16" (399mm x 103mm)
Cooling Type	Fan-based forced air cooling
Control	Thermostatically controlled (adjustable via jumper)
Temperature Settings	Fan on at 87°F (30.6°C), off at 85°F (29.4°C); always on or off jumper options
Material	Solid oak vent panels (paintable/stainable)
Warranty	3 years
Cable Length (Active Exhaust)	6 ft
Included Accessories	Inline fan control, power supply, wire ties, mounting screws, template
Installation	Rack door or cabinet door mount with cutout
Recommended Mounting	Active exhaust at highest point, intake at lowest point

Frequently Asked Questions - ICLS-COOL-1 Middle Atlantic

What is the ICLS-COOL1 used for?

The ICLS-COOL1 is a closet cooler designed to quietly remove heat produced by electronic equipment, extending equipment life. It is typically mounted in a rack door or cabinet door.

How many fans does the ICLS-COOL1 have?

It has 2 fans providing 50 CFM of airflow at 25 dBA noise level.

What are the power requirements?

The unit requires 12VDC at 200mA supplied by the included power supply.

How do I control the fan operation?

An inline fan control is included. It has a factory-set jumper on the two center pins for thermostatic control (fan on at 87°F, off at 85°F). Moving the jumper to the left pins keeps the fan off, and to the right pins keeps the fan on continuously.

Can I paint or stain the vent panels?

Yes, the panels are made of solid oak and can be stained or painted to match your décor.

What is the recommended installation position?

Install the Active Exhaust panel at the highest point available in the door, and the Passive Intake panel at the lowest point. This promotes natural convection airflow.

How do I install the unit in a door?

Use the provided template to mark the cutout area. Drill 3/8" clearance holes at the corners, then cut out the marked section with a jigsaw. Attach the front vent panel to the outside and the rear panel to the inside using the included screws.

What tools are required for installation?

You will need a drill, 3/8" drill bit, jigsaw, and a Phillips head screwdriver.

What is the warranty period?

Middle Atlantic offers a 3-year warranty against defects in material or workmanship.

What does the ICLS-COOL1 package include?

The package includes: 1 front vent panel, 1 active exhaust panel (6 ft cord), 1 passive intake panel, 1 inline fan control, 1 power supply, 2 wood screws, 4 10-32x2" screws, 2 10-32x1-1/2" screws, 5 wire ties, 5 wire tie mounts, and 1 template.

USER MANUAL ICLS-COOL-1 Middle Atlantic

Technical line drawing of a multi-chamber electronic component with slots and ventilation slots, labeled (FRONT) at bottom (no text or symbols on diagram itself)

Technical line drawing of a dual-panel rack-mounted device with two fans and a barcode cover, labeled (REAR) at the bottom (no text or symbols on the diagram itself)

ICLS-COOL2

Technical line drawing of a multi-layered panel structure with slots and ventilation grilles, labeled (FRONT) at the bottom (no text or symbols on the diagram itself)

Technical line drawing of a dual-panel rack-mounted fan assembly with mounting holes and mounting holes (no text or symbols)

THANK YOU

Thank you for purchasing the Quiet Cool Series™ ICLS-COOL Closet Cooler. Please read these instructions thoroughly before installing / assembling this product.

PRODUCT FEATURES

• Extends equipment life.
• Quietly removes heat produced by electronic equipment.
• Thermostatically controlled fans run only when necessary.
• Attractive, solid oak vents can be stained or painted to match any décor.

Middle Atlantic Products

I-00244

Rev B

SPECIFICATIONS

MODEL	POWER REQUIREMENTS	FAN QUANTITY	CFM	dBA@11WETER
ICLS-COOL1	12VDC @ 200mA	2	50	25
ICLS-COOL2	12VDC @ 400mA	4	50	28

PANELS

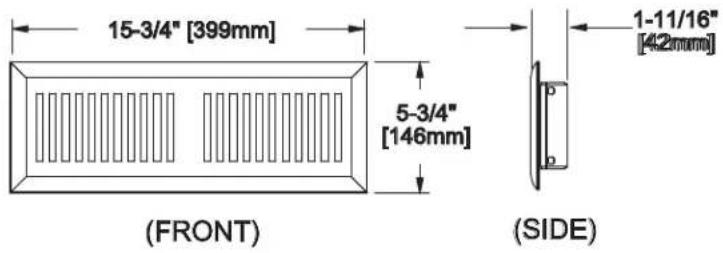

FRONT VENT PANEL

ICLS-COOL1 - TOP PANEL ICLS-COOL2 - TOP / BOTTOM PANEL

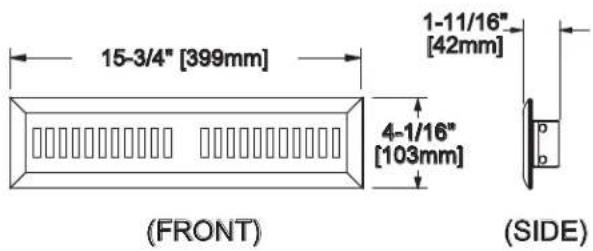

FRONT VENT PANEL
ICLS-COOL1 - BOTTOM PANEL

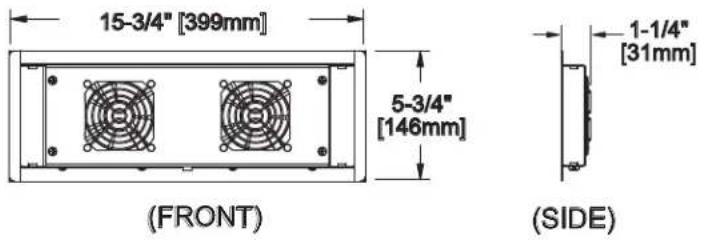

ACTIVE REAR PANEL
ICLS-COOL1 - ACTIVE EXHAUST PANEL ICLS-COOL2 - ACTIVE EXHAUST / INTAKE PANEL

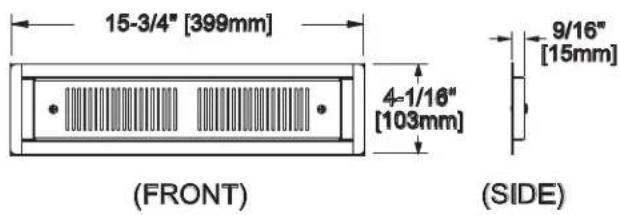

PASSIVE REAR PANEL
ICLS-COOL1 - PASSIVE INTAKE PANEL

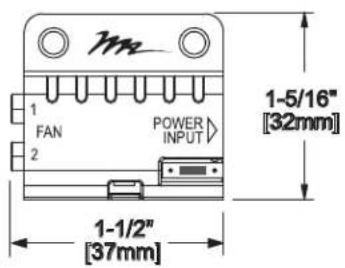

INLINE FAN CONTROL

TOOLS REQUIRED

• DRILL
• 3/8" [9.5mm] DRILL BIT
• JIGSAW

• 2 PHILLIPS HEAD DRIVER

PARTS

FRONT VENT PANEL	QTY
ICLS-COOL1	1
ICLS-COOL2	2

Simple line drawing of a rectangular frame with vertical slats inside (no text or symbols)

FRONT VENT PANEL	QTY
ICLS-COOL1	1
ICLS-COOL2	0

ACTIVE EXHAUST PANEL (6 ft cord)	QTY
ICLS-COOL1	1
ICLS-COOL2	1

Front view of a rectangular electronic device with two side fans (no text or symbols visible)

ACTIVE INTAKE PANEL (12 ft cord)	QTY
ICLS-COOL1	0
ICLS-COOL2	1

Front view of a rectangular electronic device with two identical fan-shaped panels mounted on both sides (no text or symbols visible)

PASSIVE INTAKE PANEL	QTY
ICLS-COOL1	1
ICLS-COOL2	0

TEMPLATE	QTY
ICLS-COOL1	1
ICLS-COOL2	1

WIRE TIE MOUNT	QTY
ICLS-COOL1	5
ICLS-COOL2	10

WIRE TIE	QTY
ICLS-COOL1	5
ICLS-COOL2	10

INLINE FAN CONTROL	QTY
ICLS-COOL1	1
ICLS-COOL2	1

POWER SUPPLY	QTY
ICLS-COOL1	1
ICLS-COOL2	1

WOOD SCREW (6x3/8")	QTY
ICLS-COOL1	2
ICLS-COOL2	2

SCREW (10-32x2")	QTY
ICLS-COOL1	4
ICLS-COOL2	8

SCREW (10-32x1-1/2")	QTY
ICLS-COOL1	2
ICLS-COOL2	0

INSTALLATION

1) Determine location for mounting your ICLS-COOL.

NOTE: Rear Intake and Exhaust Panels are labeled accordingly on the inside of the panel.

RECOMMENDED INSTALLATION: Install Active Exhaust first at the highest point available in the door. Install Passive / Active Intake second at lowest point available in the door. (Template must be cut to trace for ICLS-COOL1 Passive Intake installation)

2) Using center lines as a guide, trace template on upper section of the door. Mark four outer corner holes on the template ( ).

Simple diagram of a door with a rectangular component and a circular base (no text or symbols)

Simple line drawing of a door with a rectangular top and circular button (no text or symbols)

3) Using a 3/8"[9.5mm] drill bit, drill 4 clearance holes at pre-marked corner holes to allow access for jigsaw.

4) Carefully cut out traced section of door.

5) Repeat steps 2 - 4 for the Passive or Active Intake.

NOTE: For ICLS-COOL1 Passive Intake, cut the template as it shows. (DO NOT cut template for ICLS-COOL2 Active Intake)

6) Place wood panels on outside of door. (A second person may be required to hold wood vent panels in place)

Page 4

7) Attach rear panels using provided screws.

NOTE: For ICLS-COOL2, position Active Exhaust Panel with wire up. Position Active Intake Panel with wire down

- For ICLS-COOL1, use four 10-32x2 screws to attach Active Exhaust Panel. Use two 10-32x1.5 screws to attach Passive Intake Panel.

- For ICLS-COOL2, use eight 10-32x2 screws to attach Active Intake Panel and Active Exhaust Panel.

SNUG SCREWS EVENLY

ICLS-COOL1 (REAR VIEW)

ICLS-COOL2 (REAR VIEW)

TIP: If using a raised or recessed panel door, cosmetic fillers or trimming may be required.

Technical line drawing of a mechanical assembly with no visible text or symbols

COSMETIC FILLER

Technical line drawing of a mechanical assembly with no visible text or symbols

MOLDING / TRIM

8) With the door in the full open position, run cabling as shown. Use provided Wire Ties and Wire Tie Mounts as required. Create a service loop at the top of the door to provide cable strain relief.

NOTE: When running cables make sure they do not get pinched or interfere with door closure.

ICLS-COOL1

ICLS-COOL2

• Jumper on two center pins (factory setting) fan will turn on at 87°F [30.6°C] and turn off at 85°F [29.4°C].
• Jumper on two left pins, fan will remain off.
• Jumper on two right pins, fan will remain on.

8) Select appropriate wall plug for your region and install in provided Power Supply.
9) Plug Power Supply into power source.
10) Plug Active Fan Panels into input one and / or two on Inline Fan Control. Plug Power Supply into power input.

11) With cabling installed, determine mounting location for Inline Fan Control.
NOTE: Inline Fan Control MUST be mounted at the highest available location.
12) Remove all cables from Inline Fan Control.
13) Install Inline Fan Control at predetermined location using provided Wood Screws.
14) Plug Active Fan Panels and Power Supply to Inline Fan Control.

Middle Atlantic Products, Inc. (the "Company") warrants the ICLS-COOL Closet Cooler to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
