SE315 - Earphones SHURE - Free user manual and instructions

Product Type	In-Ear Monitors (IEMs)
Brand	Shure
Model	SE315
Driver Type	Single MicroDriver (Balanced Armature)
Frequency Response	22 Hz - 17.5 kHz
Impedance	27 Ω
Sensitivity	114 dB SPL/mW
Cable Length	1.5 m (detachable)
Connector Type	3.5 mm gold-plated stereo plug
Weight (without cable)	Approx. 28 g
Color Options	White, Black
Noise Isolation	Up to 30 dB (passive)
Fit	Over-the-ear with flexible wire form fit
Accessories Included	Foam and silicone sleeves, carrying case, cable clip
Cleaning Instructions	Wipe with dry cloth; replace ear tips regularly
Safety Warnings	Avoid high volume to prevent hearing damage
Spare Parts Available	Replacement cables and ear tips
Reparability	Detachable cable allows easy replacement

Frequently Asked Questions - SE315 SHURE

How do I clean my Shure SE315 earphones?

Use a dry, soft cloth to wipe the earphone housing. For ear tips, remove and wash with mild soap and water. Ensure they are completely dry before reattaching.

Can I replace the cable on the SE315?

Yes, the cable is detachable. You can purchase a replacement cable from Shure or authorized dealers. Simply pull out the old cable and insert the new one until it clicks.

What is the warranty for Shure SE315 earphones?

Shure offers a 2-year limited warranty for the SE315. Warranty does not cover damage from misuse or normal wear of ear tips.

How do I choose the right ear tip size?

Try the different sizes included. A proper seal is essential for sound quality and noise isolation. The tip should fit snugly without causing discomfort.

Are the Shure SE315 compatible with my smartphone?

Yes, they have a standard 3.5mm plug and work with most smartphones. However, they do not have an in-line microphone or remote.

How do I wear the SE315 earphones correctly?

Loop the cable over your ear, then insert the earphone into your ear canal. Adjust the cable and ear tip for a secure fit. The flexible wire should conform to your ear shape.

Can I use the SE315 for studio monitoring?

Yes, with accurate sound and good isolation, they are suitable for both live and studio monitoring.

What is the difference between the SE315 and SE215?

The SE315 uses a single balanced armature driver for more detailed mids, while the SE215 uses a dynamic driver with stronger bass.

How do I replace the ear tips on my SE315?

Gently pull the old ear tip off the nozzle. Align the new tip with the nozzle and push it firmly until it is seated securely.

What should I do if I lose the cable clip?

You can purchase a replacement cable clip from Shure. In the meantime, you can use a small binder clip as a temporary solution.

USER MANUAL SE315 SHURE

Black-and-white profile of a person in profile, looking upward (no text or symbols visible)

Sound Isolating™ Earphones

Shure Sound Isolating™ Earphones, built with balanced armature speakers, deliver a detailed soundstage free from outside noise. The powerful and stylish Shure SE earphones come with a detachable cable, adapters, a durable carrying case, and interchangeable Sound Isolating™ sleeves for a comfortable and personalized fit.

SAFETY PRECAUTIONS: Before using this product, please read and save the enclosed warnings and safety instructions.

WARNING FOR ALL EARPHONES!

For safe and correct use of earphones, read this manual before use. Keep the manual and safety information in a convenient place for future reference.

Safety Precautions

The possible results of incorrect use are marked by one of two symbols - WARNING and CAUTION - depending upon the imminence of the danger and the severity of the damage.

Ignoring these warnings may cause severe injury or death as a result of incorrect operation.

Ignoring these cautions may cause moderate injury or property damage as a result of incorrect operation.

LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS

LOW A VOLUME AS POSSIBLE.

Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.

90 dB SPL at 8 hours

95 dB SPL at 4 hours

100 dB SPL at 2 hours

105 dB SPL at 1 hour

110 dB SPL at 12 hour

115 dB SPL at 15 minutes

120 dB SPL Avoid or damage may occur

	Do not use when a failure to hear your surroundings could be dangerous, such as while driving, or when biking, walking, or jogging where traffic is present and accidents could occur.
	Keep this product and its accessories out of reach of children. Handling or use by children may pose a risk of death or serious injury. Contains small parts and cords that may pose risk of choking or strangulation.
	Set the volume level of the audio device to a minimum, and then after connecting the earphones, adjust the volume gradually. Sudden exposure to loud noises could cause hearing damage.
	Turn up the volume control only far enough to hear properly.
	Ringing in the ears may indicate that the volume level is too high. Try lowering the volume.
	If you connect these earphones to an airplane's sound system, listen at low levels so that loud messages from the pilot do not cause discomfort.
	Have your hearing checked by an audiologist on a regular basis. If you experience wax buildup, discontinue use until a medical professional has examined your ears.
	Failure to use, clean, or maintain earphone sleeves and nozzles according to manufacturer's instructions may increase the risk of sleeves detaching from the nozzle and becoming lodged in your ear.
	Prior to inserting the earphone, always recheck the sleeve to make sure it is firmly attached to the nozzle.
	If a sleeve becomes lodged in your ear, seek skilled medical assistance to remove the sleeve. Damage to the ear may be caused by non-professionals attempting to remove the sleeve.
	Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

CAUTION

	Do not immerse in water, such as while taking a bath or washing your face, otherwise sound deterioration or failures may result.
	Do not use while sleeping as accidents may result.
	Use a slow twisting motion to remove the earphones. Never pull on the earphone cord.
	Stop using the earphones immediately if they are causing great discomfort, irritation, rash, discharge, or any other uncomfortable reaction.
	If you are currently receiving ear treatment, consult your physician before using this device.

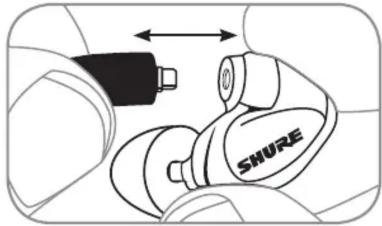

Detachable Cable

You may need to detach the cable from the earphones to attach optional components or to replace the cable if it becomes damaged. To prevent accidental separation, the connector has a snug fit. Take special care to prevent damage to the earphone and connector.

• Do not use pliers or other tools.
- Grasp the connector and the earphone as close as possible to where they join.
- Pull straight apart—do not twist. Cable is a snap fit, not threaded.
- Do not pull on the cable or put any pressure on the earphone nozzle.

- Listen for a click when connecting.

- When reattaching the cable, match the "L" and "R" markings. For clear cables and earphones, match the color dots (Red = Right, Blue = Left).

Note: If you pull at an angle, the connector will not detach.

Diagram showing a device with a black connector and a white valve labeled 'SHURE' (no text or symbols beyond the label)

Audible click when properly seated

Wearing the Earphones

The following are some suggested ways of wearing the earphones.

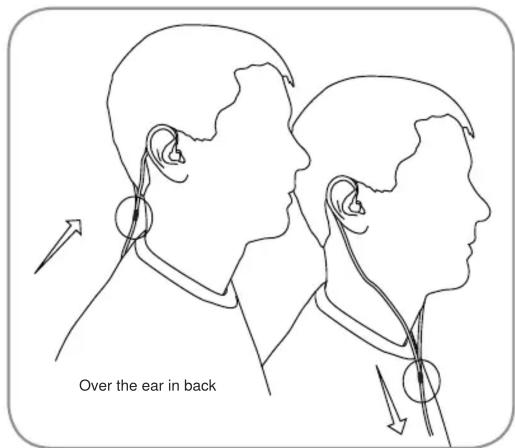

Wearing the cable over the ear and securing it behind the head can help keep the earphones in place during physical activity
Tighten the cable and take up slack by raising the cable cinch.

Inserting the Earphones

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Insert the earphones so they form a tight seal. The fit of the earphone can greatly affect sound quality.

Important: If there seems to be a lack of low frequency response (bass), this means that the earphone sleeve is not forming a tight seal. Gently push the earphone deeper into the ear canal or try a different sleeve.

Cross-sectional diagram of a human eye with visible internal structures (no text or labels)

Warning: Do not push the earphone sleeve beyond the ear canal opening.

Changing Sleeves

Twist and pull to remove the sleeve from the nozzle.

Slide on a new sleeve so that it completely covers the barb and the nozzle.

Caution: If the barb or any of the nozzle is exposed, the sleeve is not properly installed. Replace sleeves if they do not tightly grip the nozzle.

To ensure proper fit and performance, use only sleeves supplied by Shure (unless using custom molded sleeves).

Removing the Earphones

Grasp the body of earphone and gently twist to remove. Note: Do not pull on cable to remove earphone.

Choosing a Sleeve

Select an earphone sleeve that provides the best fit and sound isolation. It should be easy to insert, fit comfortably, and easy to remove.

Soft Flex Sleeves: In small, medium, and large sizes. Made from pliable rubber.

Soft Foam Sleeves: Compress the foam sleeve between your fingers and insert into the ear canal. Hold in place for about ten seconds while the foam expands.

Triple-Flange Sleeves: If desired, use scissors to trim the stem on the sleeve.

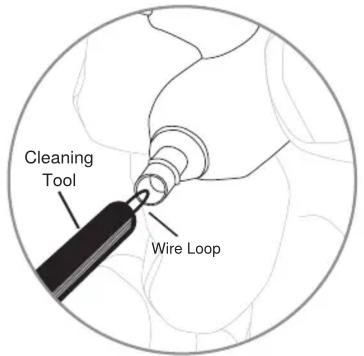

Cleaning the Earphone Nozzle

If you notice a change in sound quality, remove the sleeve and check the nozzle of your earphone. If nozzle is blocked, clear obstruction by using wire loop end of cleaning tool.

Caution: When cleaning, do not force any object through the earphone nozzle! This will damage the earphone sound filter.

Warning: The cleaning tool is only to be used to clean the earphones. Any other use, such as using the tool to clean ears, could result in injury.

Accessories

• Earphone Sleeves
• Replacement Cables
• Carrying Cases

• Music Phone Accessory Cables
• Volume Control
- Adapters

For more information visit www.shure.com

Maintenance

• Careful maintenance ensures a tight seal between the sleeve and nozzle, improving sound quality and product safety.
• Keep the earphones and sleeves as clean and dry as possible.
• To clean sleeves, remove them from earphones, gently rinse in warm water and air dry. Foam sleeves require a longer drying time. Inspect for damage and replace if necessary. Ear sleeves must be completely dry before reusing.
• Wipe the earphones and sleeves with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.
• Do not expose earphones to extreme temperatures.
• Replace the sleeves if they do not fit properly.
• Do not attempt to modify this product. Doing so will void the warranty and could result in personal injury and/or product failure.
• Note: The cable connectors to the earphones may collect debris or other deposits that can affect audio quality. If this happens, disconnect the cables and clean them using a dry cotton swab.

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

United States, Canada, Latin America, Caribbean:

Shure Incorporated

5800 West Touhy Avenue

Niles, IL 60714-4608 USA

Phone: [phone]

Fax: [phone] (USA)

Fax: [phone]

Email: [e-mail]

www.shure.com

©2010 Shure Incorporated

Technical Specifications

SE315

Transducer type Single High-Definition MicroDriver

Sensitivity (at 1khz) 116 dB SPL/mW

Impedance (at 1kHz) 27 Ω

Frequency Range 22 Hz - 18.5 kHz

Input connector 3.5mm (1/8 in.) gold-plated stereo plug

Net weight 30 g (1 oz.)

Operational temperature -18^ C to 57^ C ( 0^ F to 135^ F)

Storage temperature -29°C to 74°C (-20°F to 165°F)
