Product Type	Wireless Charging Car Holster for cordless screwdrivers
Brand	Bosch Professional
Model	Wireless Charging Car Holster Professional
Part Number	1 600 A00 9CN
Dimensions (L × W × H)	230 × 150 × 370 mm
Weight	1.2 kg
Power Input	12 V DC (cigarette lighter plug)
Charging Voltage	18 V
Charging Current	3.0 A
Charging Time (2.0 Ah battery, 80%/100%)	35/45 min
Charging Time (4.0 Ah battery, 80%/100%)	65/85 min
Battery Compatibility	GBA 18 V 2.0 Ah MW-B and 4.0 Ah MW-C Wireless Charging batteries
Cable Length	2 m
Mounting Options	Vertical and horizontal surfaces in vehicle
Key Functions	Inductive charging while driving; Care Charging for battery longevity; robust closed design
Maintenance & Cleaning	No open contacts; wipe with damp cloth; avoid abrasive cleaners
Safety Features	Contactless charging; protection against water, dust, and dirt; short-circuit protection
Spare Parts & Repairability	Batteries and inlays available separately; charger and holster not user-serviceable
General Information	Part of Bosch Wireless Charging System; compatible with many 18 V cordless tools

Frequently Asked Questions - Wireless Charging Holster Professional BOSCH

How does the wireless charging work?

The system uses inductive charging: a magnetic field between the charger coil and the battery coil transfers energy without physical contacts.

What batteries are compatible with the Car Holster?

It works with GBA 18 V 2.0 Ah MW-B and 4.0 Ah MW-C Wireless Charging batteries, as well as standard Bosch 18 V Li-Ion batteries (except GKS 18 V-LI and GML 20/50).

Can I charge the battery while driving?

Yes, the Car Holster connects to the 12 V cigarette lighter and charges the battery while you drive, so your tool is ready upon arrival.

Is the Car Holster waterproof?

It is robust against water, dust, and dirt thanks to the closed design without open electrical contacts, but not fully submersible.

What tools can be stored in the Car Holster?

It accommodates 18 V cordless screwdrivers like GSR, GSB, GDR, GDS, and GDX series with 2.0 Ah or 4.0 Ah Wireless Charging batteries.

How long does it take to fully charge a battery?

For a 2.0 Ah battery: approx. 35 min to 80% and 45 min to 100%. For a 4.0 Ah battery: approx. 65 min to 80% and 85 min to 100%.

Does frequent short charging damage the battery?

No, Care Charging technology selects the optimal charging mode and protects the battery by using low current for partial charges.

Can I use the Car Holster with a standard L-BOXX?

The Car Holster is for screwdrivers, not for L-BOXX. For L-BOXX charging, use the Wireless Charging L-BOXX Bay (sold separately).

What is the warranty on the Car Holster?

Bosch Professional tools typically come with a 2-year warranty. Check local terms or register your product for extended coverage.

Where can I find spare parts or inlays?

Visit www.bosch-wireless-charging.com for compatible inlays (e.g., part no. 1 600 A00 D6M) and contact Bosch service for repairs.

USER MANUAL Wireless Charging Holster Professional BOSCH

"Always power ready"

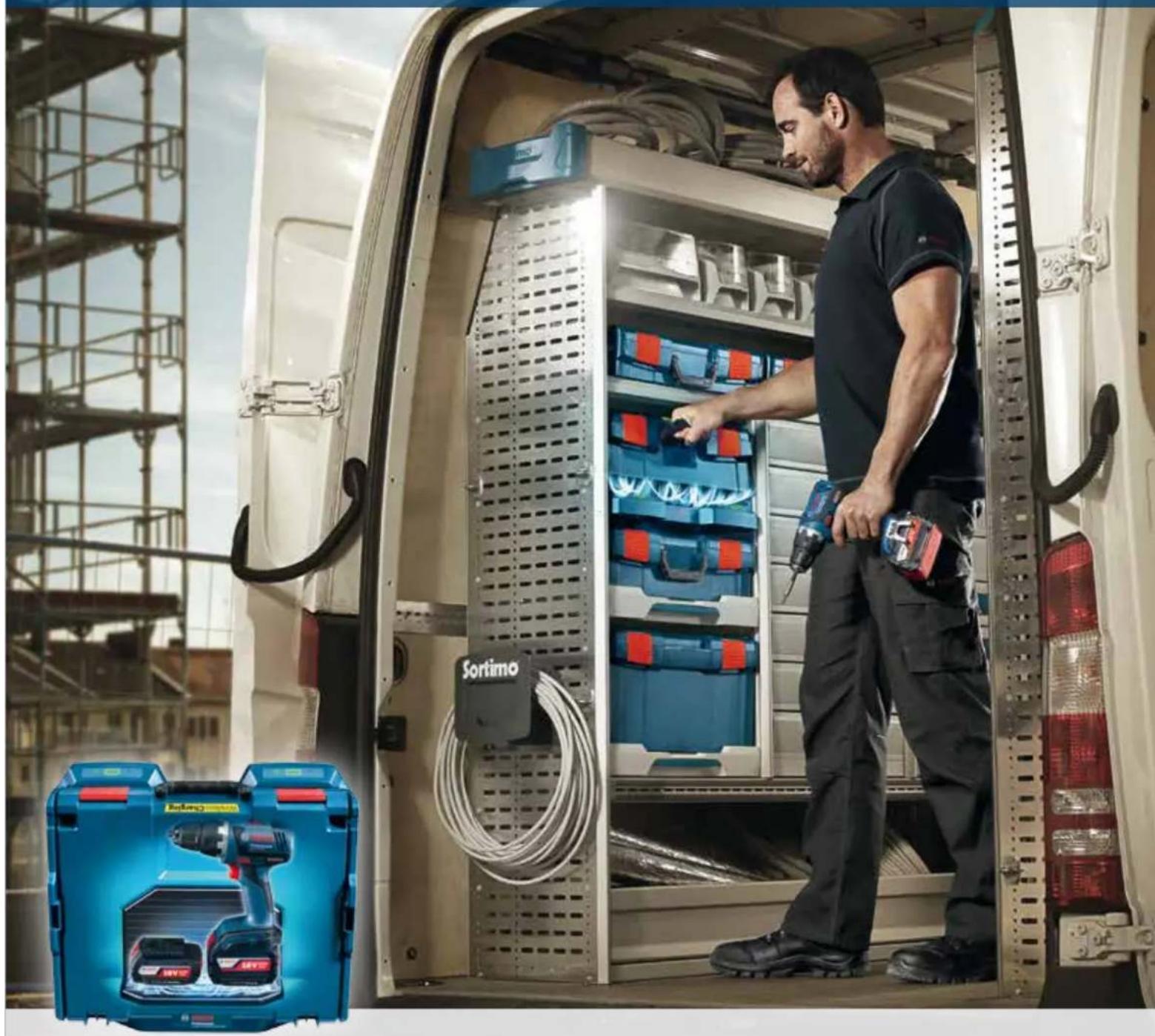

Man operating a sorting machine into a van with blue equipment, next to a blue industrial sorting machine (no visible text or symbols)

Wireless Charging System 2015/2016

Blue power tools: For trade and industry.

BOSCH

Invented for life

WORLD'S FIRST!

Always power ready thanks to induction!

The Wireless Charging System from Bosch

▶ Simply place the cordless tool on the charger and the battery will charge:
Your tool is always ready to use with only one battery
▶ You save time and the extra cost of a second battery
▶ Long life: Short charging sessions do not strain
the battery (Care Charging)

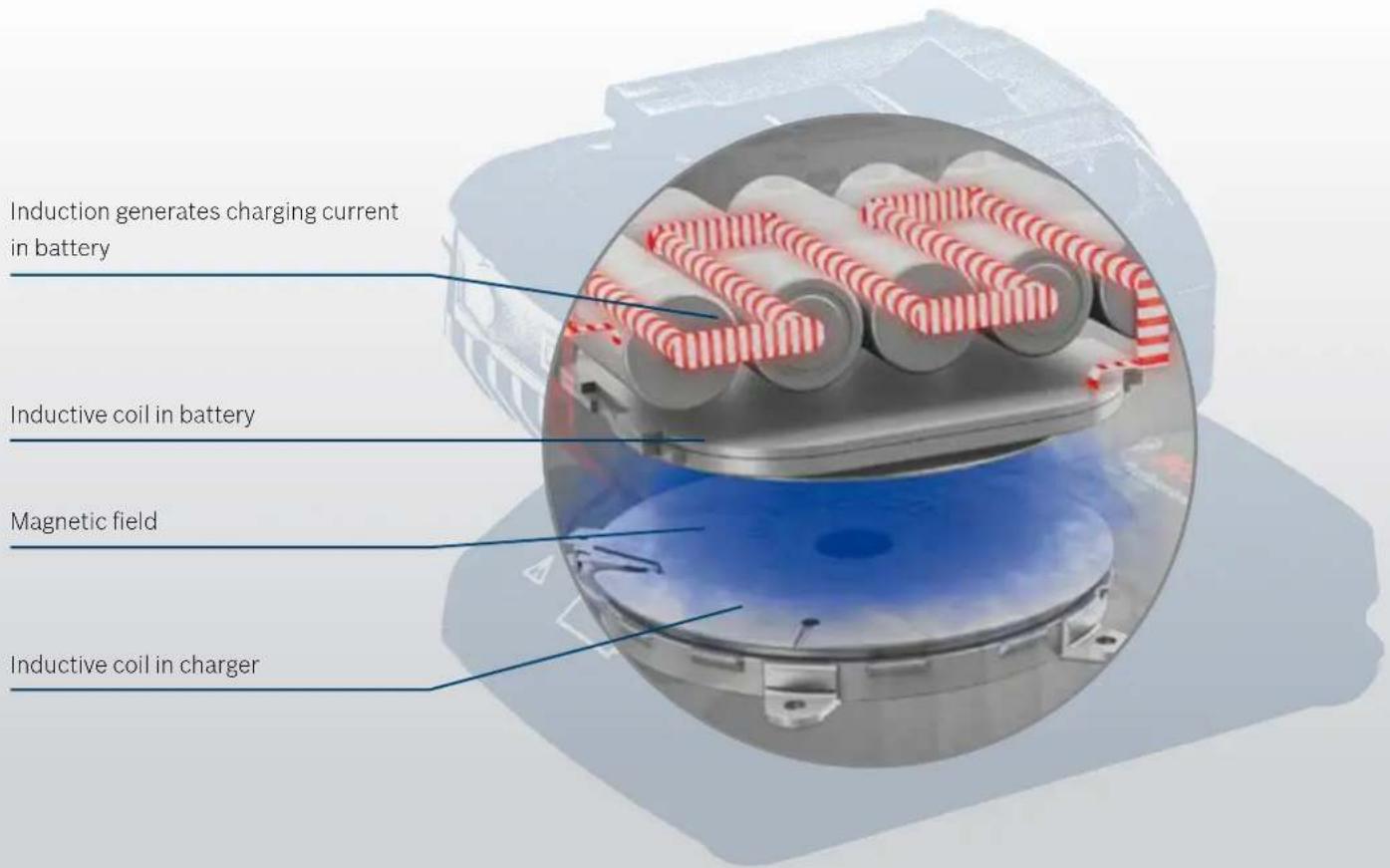

How it works

The technology is based on contactless energy transfer by means of induction. A magnetic alternating field is generated and emitted using a coil in the charger. The battery contains another coil which is penetrated by the magnetic alternating field. This induces a voltage and generates a current flow which is transformed into charging current.

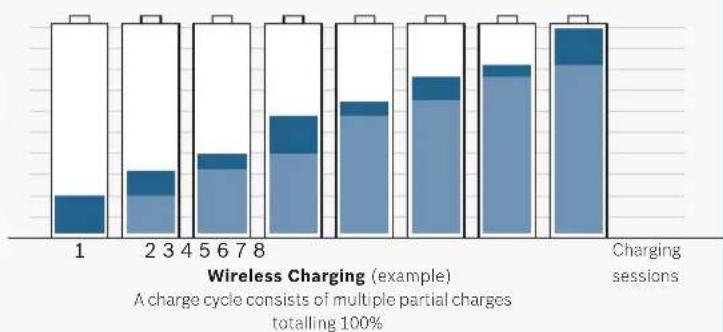

Care Charging protects the battery

The lifetime of the battery is measured in charge cycles. Completely charging from 0% to 100% represents one charge cycle. The shorter charging sessions typically performed in Wireless Charging are only partial charges which correspond to one charge cycle when totalling 100% . Batteries with Wireless Charging technology therefore have the same lifetime as conventional batteries.

Care Charging ensures that short charging sessions do not damage the battery because the charger checks the charging state of the battery first and then selects the optimum charging mode. If the battery requires minor charging, it will be gently charged only with low current. If the battery has more than 85% capacity remaining, the charger will remain in standby mode to protect the battery.

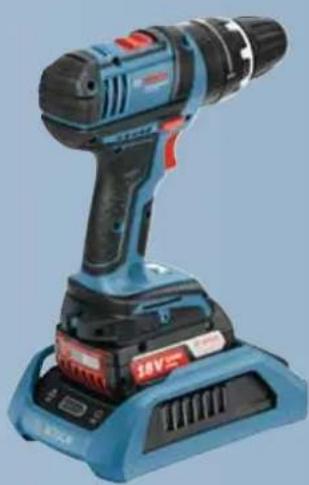

The Wireless Charging System at a glance

In the workshop

Blue and black electric drill press tool with attached power strip (no visible text or symbols)

The charger and mounting frame ensure that all 18 V cordless tools are always ready to use for our stationary users.

▶ More about this on page 6

On the move

Now you can also charge when you're on the move with the Wireless Charging L-BOXX Bay: Simply insert, drive and charge. ▶ More about this on page 8

Blue Bosch portable charging station with red buttons and a logo, no visible text or symbols on the device itself.

Blue industrial robotic device with visible internal components and branding (no readable text or symbols)

Especially for your cordless screwdrivers: The Wireless Charging Car Holster. Grab the tool and start working straight from your car.

▶ More about this on page 10

You benefit in two ways at once with the Wireless Charging System from Bosch: Your cordless tool is always ready to use, both in the workshop and when you're on the move. We make charging effortless.

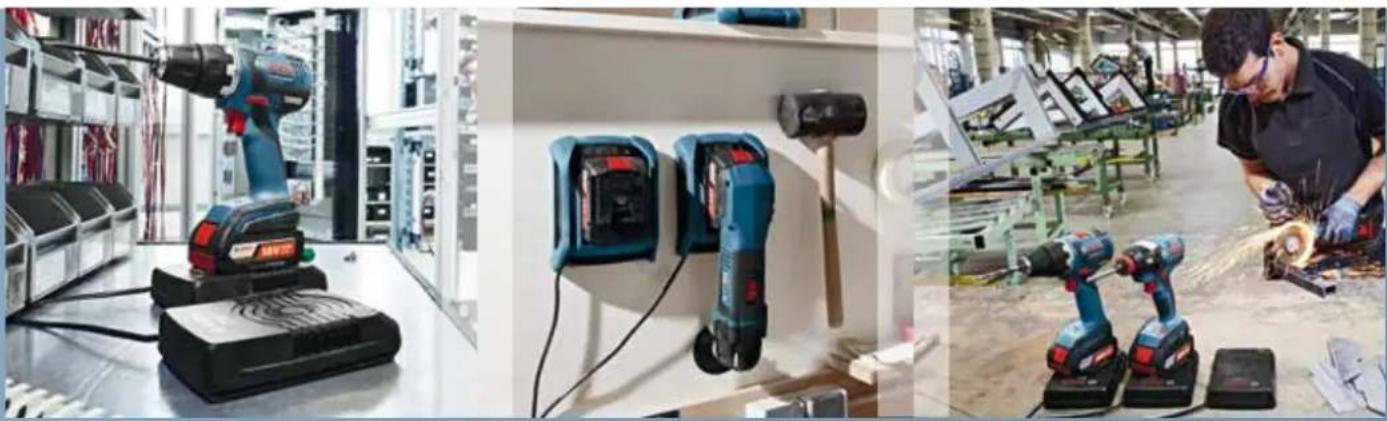

Three-panel image showing a robotic arm in a factory, two electric drillers on racks, and a worker welding metal components (no visible text or symbols)

Wireless Charging integrates charging into the work process.

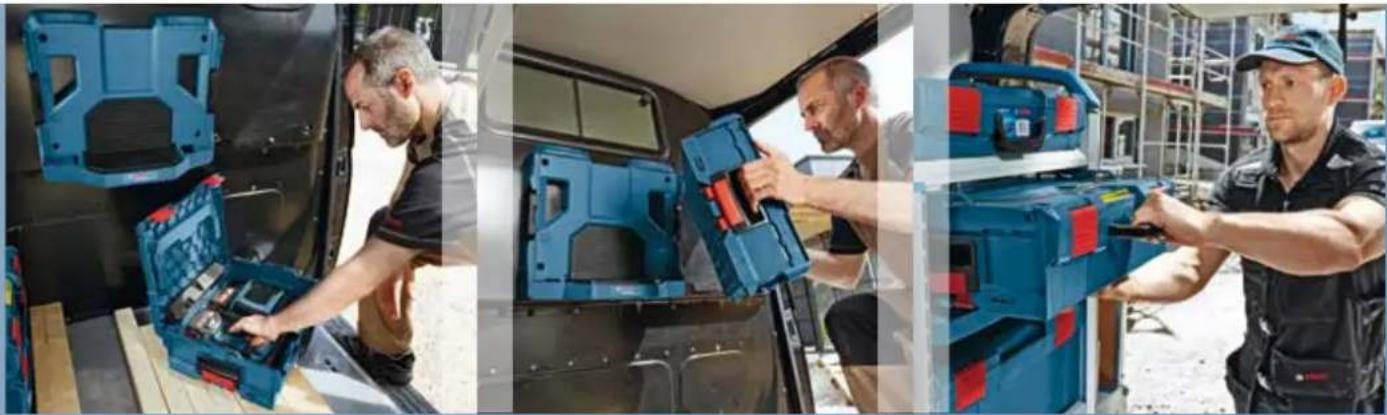

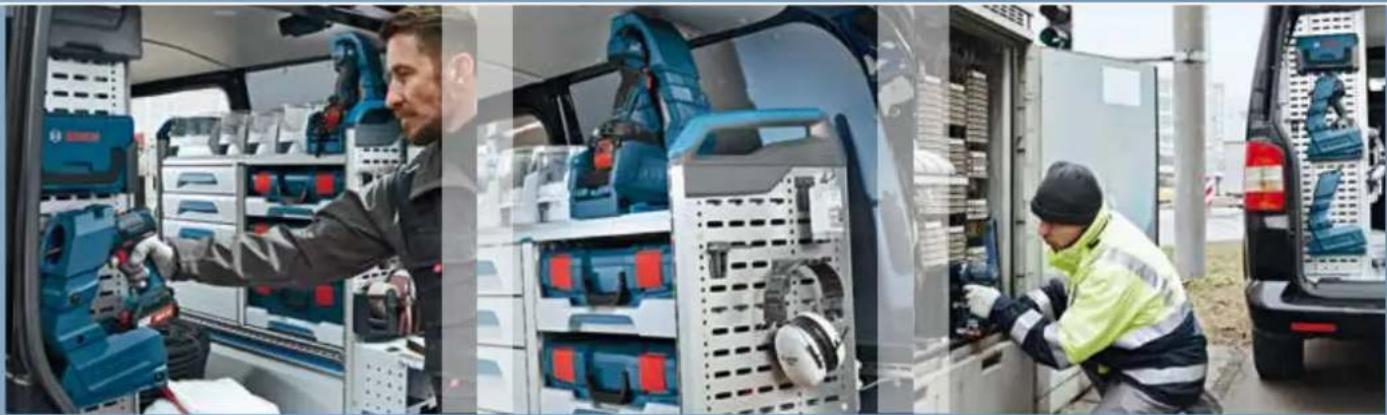

Three-panel photo showing a technician assembling blue workboxes in a vehicle, with no visible text or symbols.

Robust and safe during transport – the Wireless Charging L-BOXX Bay withstands any challenge.

Three-panel photo collage showing a technician working on battery packs in a van, inspecting equipment, and assisting a worker in safety gear (no visible text or symbols)

The Wireless Charging Car Holster enables cordless screwdrivers to be safely stored and simultaneously charged in a car.

Wireless Charging System for the workshop

Charger and mounting frame for stationary use

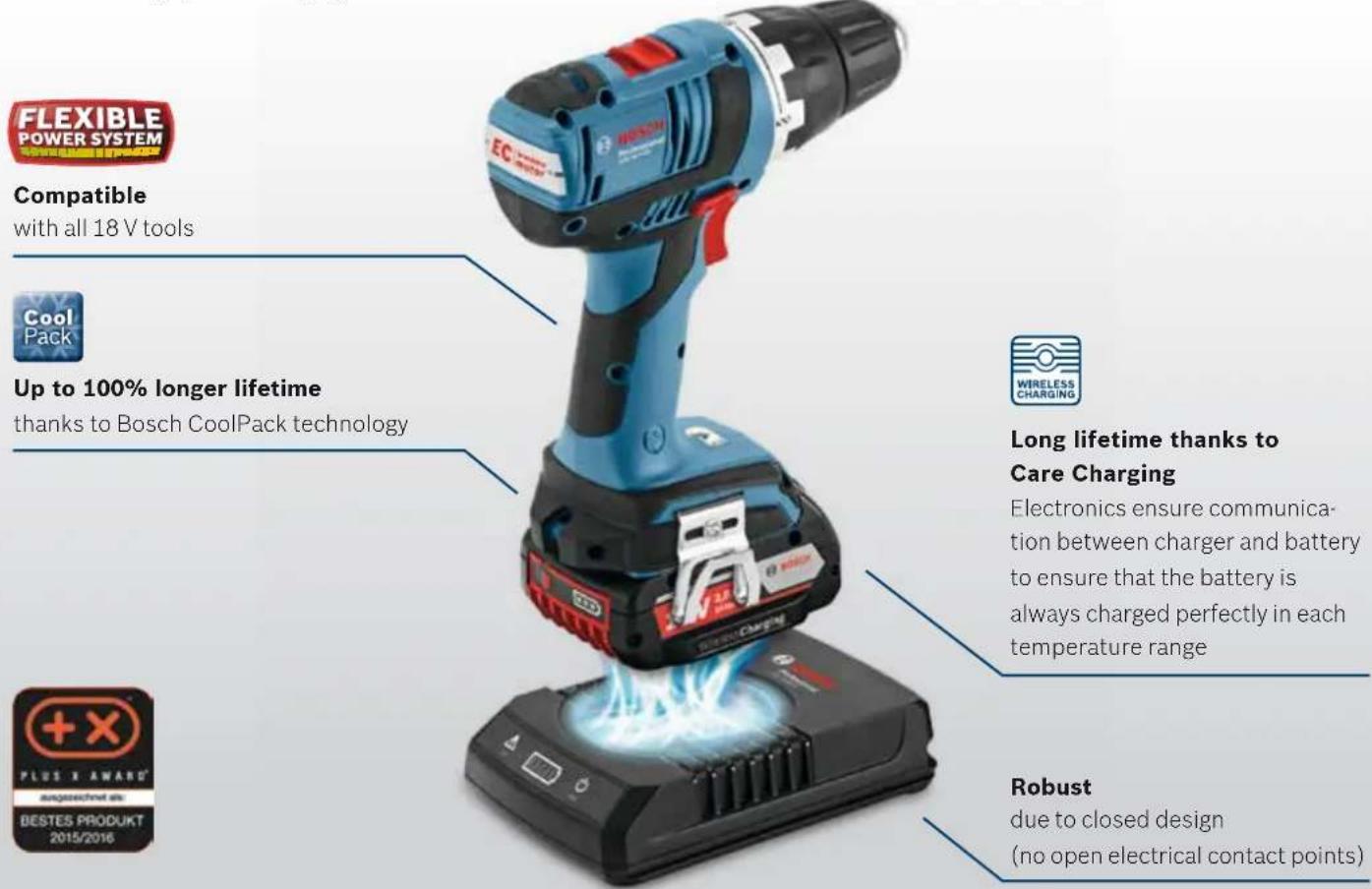

Wireless Charging

Always power ready

▶ Maximum productivity: Power tool is always ready to use
▶ Convenient: Charging is integrated into the work process
- Robust: No contacts – durable against water, dust and dirt

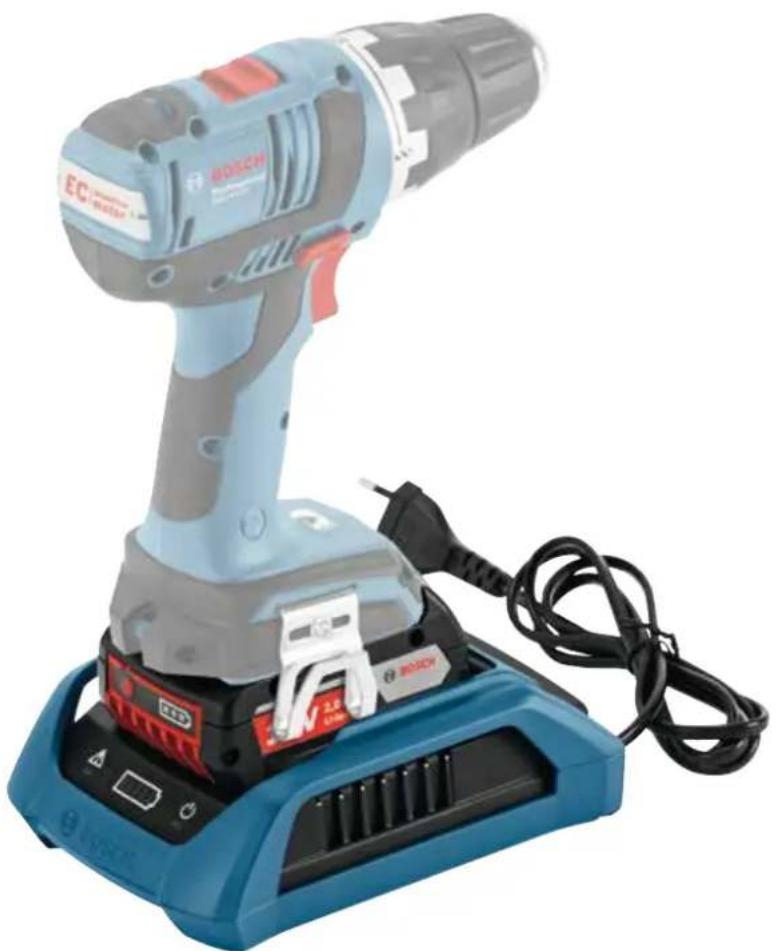

Blue Bosch electric drill putter with charging base and power cord (no visible text or symbols)

System components

Wireless Charging not only saves time and money, it also adapts to your needs. The two different battery capacities and the flexible mounting frame ensure that you are perfectly equipped and always ready to work.

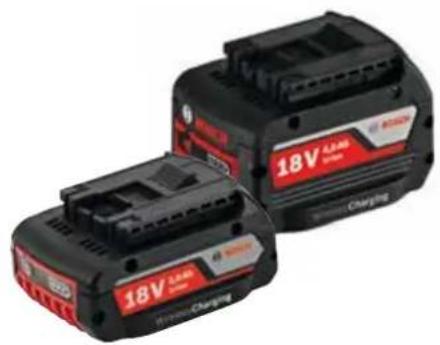

Two 18V battery models with red and black labels, one charging (no visible text or symbols on the devices themselves)

GBA 18 V 2,0 Ah MW-B GBA 18 V 4,0 Ah MW-C

▶ Lightweight and compact – low user fatigue with the 2.0 Ah Wireless Charging battery
▶ Double the runtime thanks to 4.0 Ah
▶ 100% compatible with conventional chargers and all Bosch 18 V lithium-ion cordless tools (except for GKS 18 V-LI, GML 20/50)

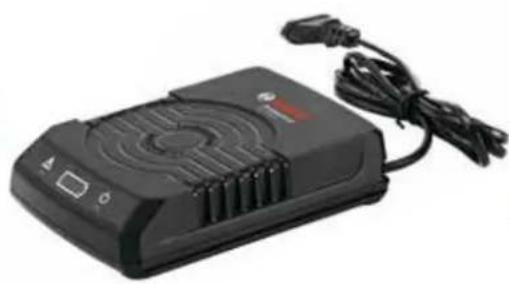

Black electronic device with ventilation slots and a cord, no visible text or symbols

Charger GAL 1830 W Professional

▶ The smallest 18 V charger on the market
▶ Durable against water, dust and dirt thanks to contactless charging

Blue plastic mechanical component with handle and cutouts (no visible text or symbols)

Mounting frame

▶ For practical and safe storage of cordless tools
▶ Compatible with many 18 V tools
▶ Flexible mounting at the workplace provides an ergonomic way to put the tool down and charge it between jobs

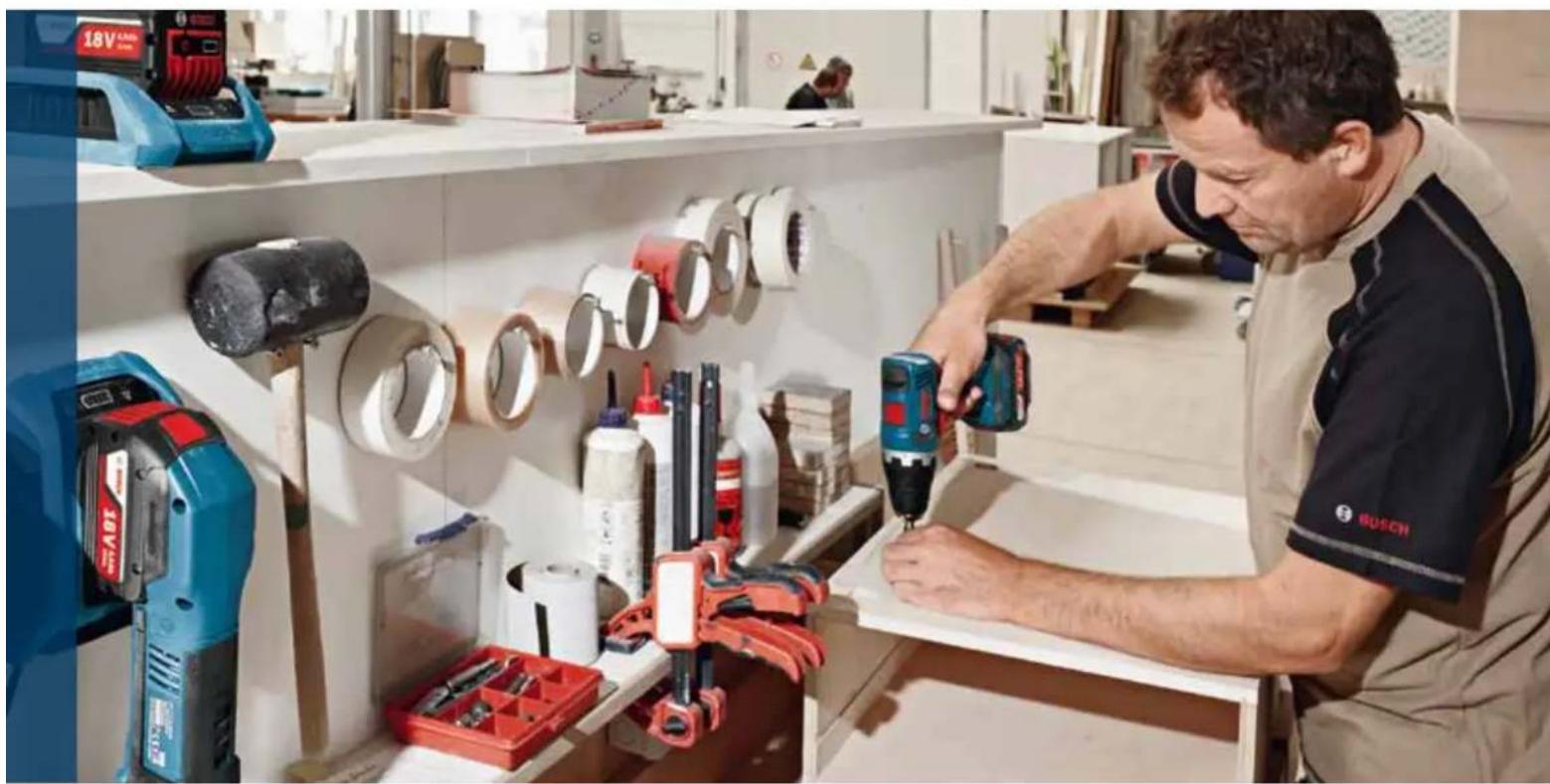

Worker in workshop using a power tool, surrounded by tools and paint cans (no visible text or symbols)

Wireless Charging System for when you're on the move

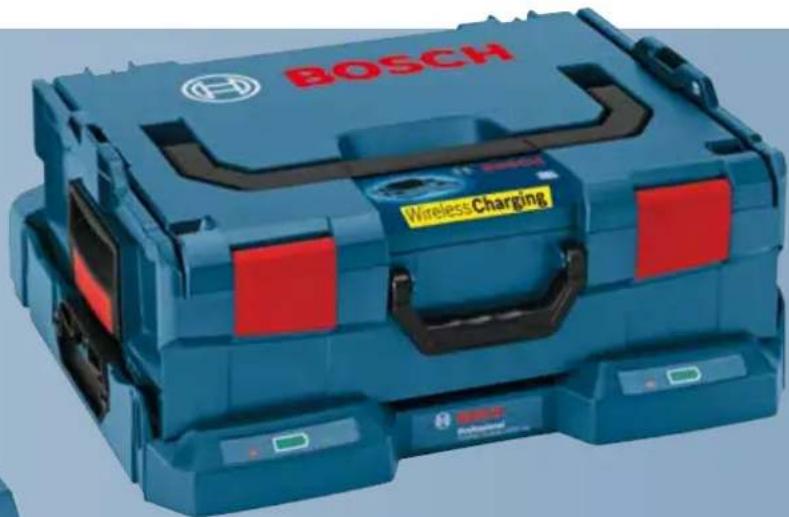

L-BOXX Bay for mobile use

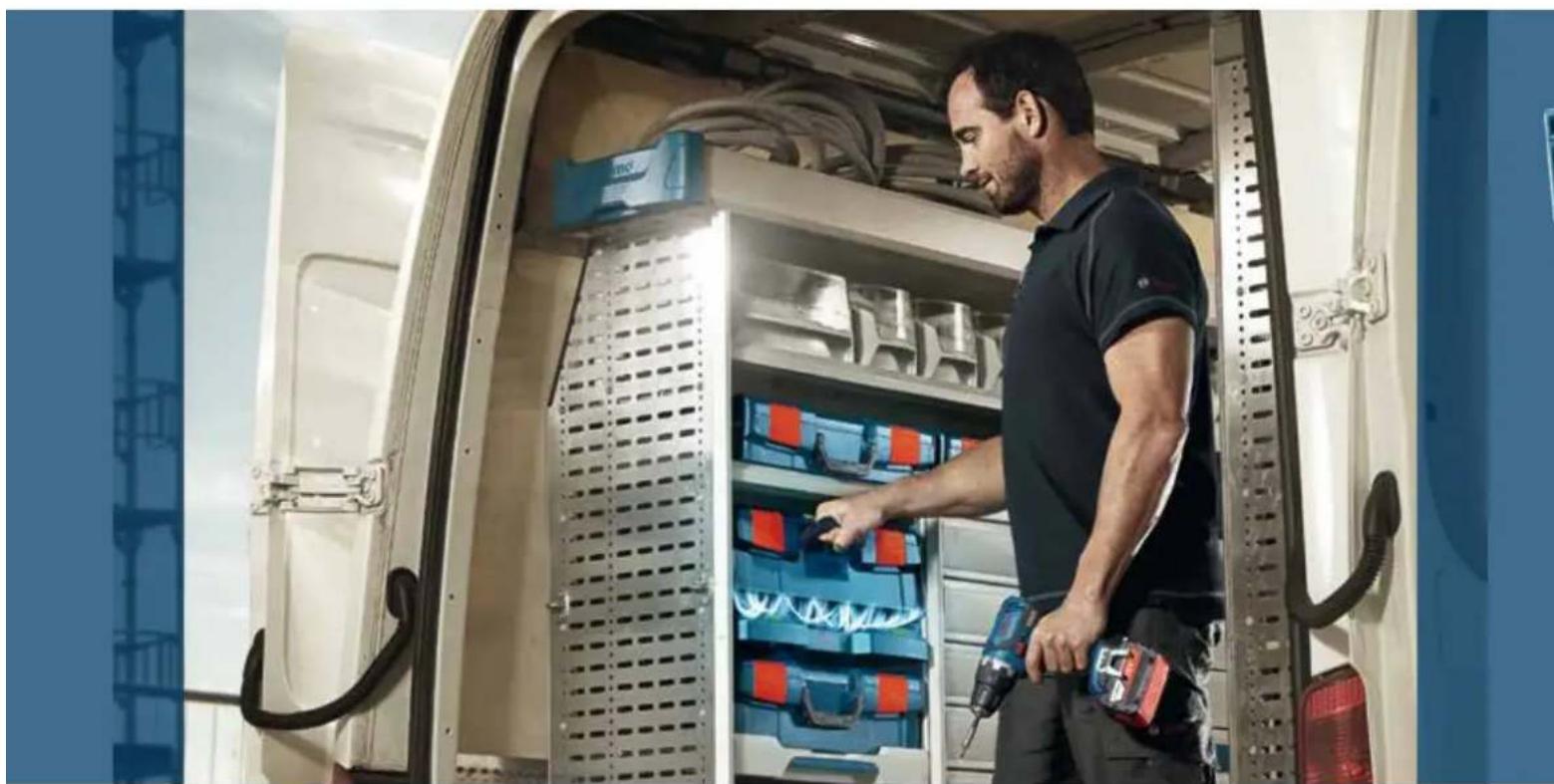

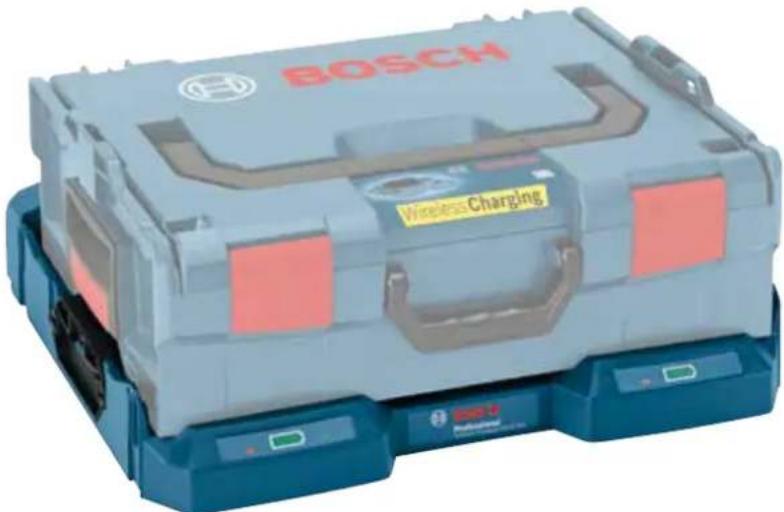

Wireless Charging L-BOXX Bay Professional

Always power ready - Charge while driving

▶ Power tool and second battery are ready to use when you arrive at the jobsite
▶ Maximum productivity: Carefree charging while you drive
▶ Robust design without contact points because the charge goes through the L-BOX

Exterior view of a Bosch Wireless Charging device (no text or symbols on body)

Man in black polo shirt standing inside a vehicle's storage unit with blue battery packs and a drill bit (no visible text or symbols)

How it works

The new Wireless Charging L-BOXX Bay with integrated charger makes it possible to charge the battery through the L-BOXX. Flexibility is a priority for us, which is why the Bay is compatible with every conventional L-BOXX 136. All you need is a special inlay to use contactless charging. Simply insert, drive and charge.

Two blue plastic mechanical components with black bases and mounting holes, shown from different angles (no text or symbols visible)

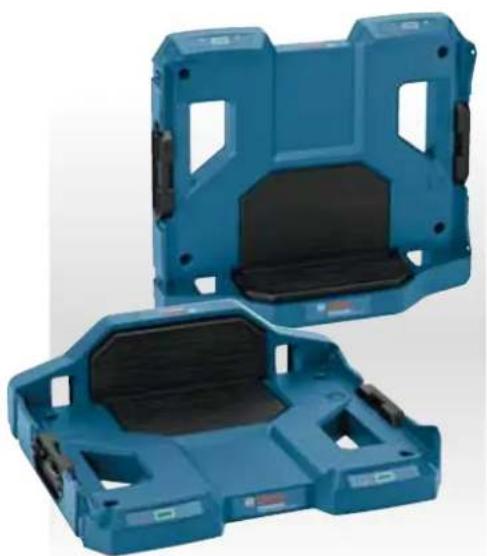

1 Mount

The Wireless Charging L-BOXX Bay can be mounted vertically on the vehicle wall and integrated horizontally into the Sortimo shelf

Blue industrial machine housing with black base and circular head, no visible text or symbols

2 Connect

Conveniently connect it to the socket or with the help of the inverter to the cigarette lighter in the vehicle

Blue Bosch 3D printer case with attached sensor and cable (no visible text or symbols on body)

3 Charge

"Click and Lock" – Just click the L-BOXX into the Bay and the battery will charge while you drive

Wireless Charging System for when you're on the move

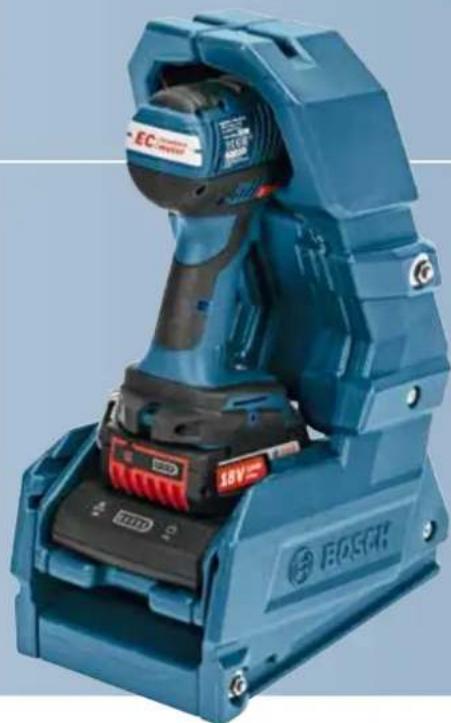

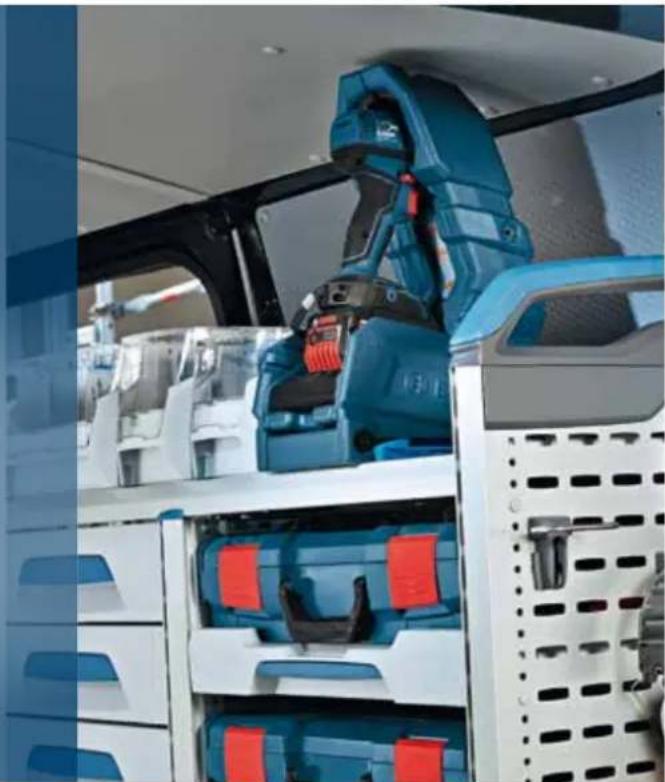

Car Holster – Always ready to hand

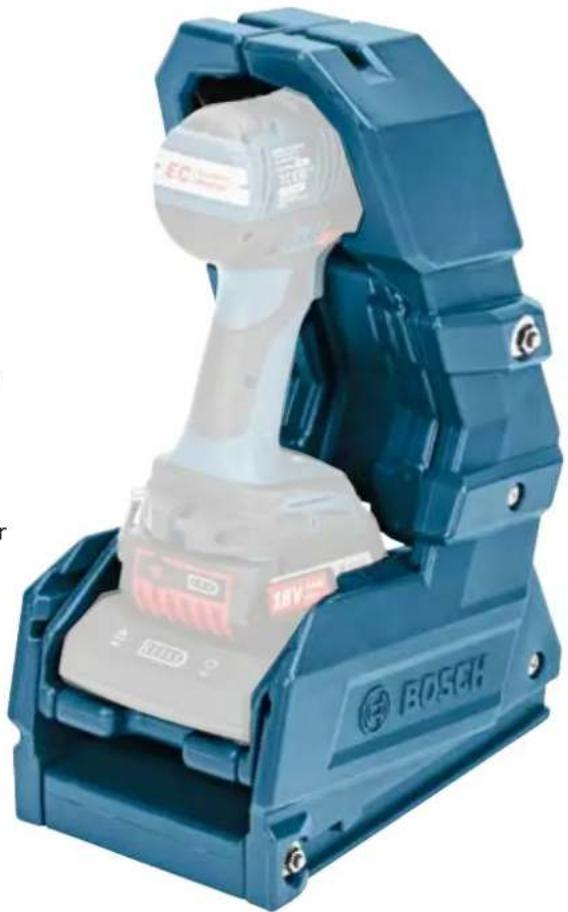

Wireless Charging Car Holster Professional

Always power ready - Charge while driving

▶ The power tools are already charged when you arrive at the jobsite
▶ 18 V cordless screwdrivers can be stored easily and safely in a vehicle
▶ Grab the tool and start working straight from your car

Blue Bosch industrial robotic device with visible control buttons and mounting bracket (no text or symbols on main body)

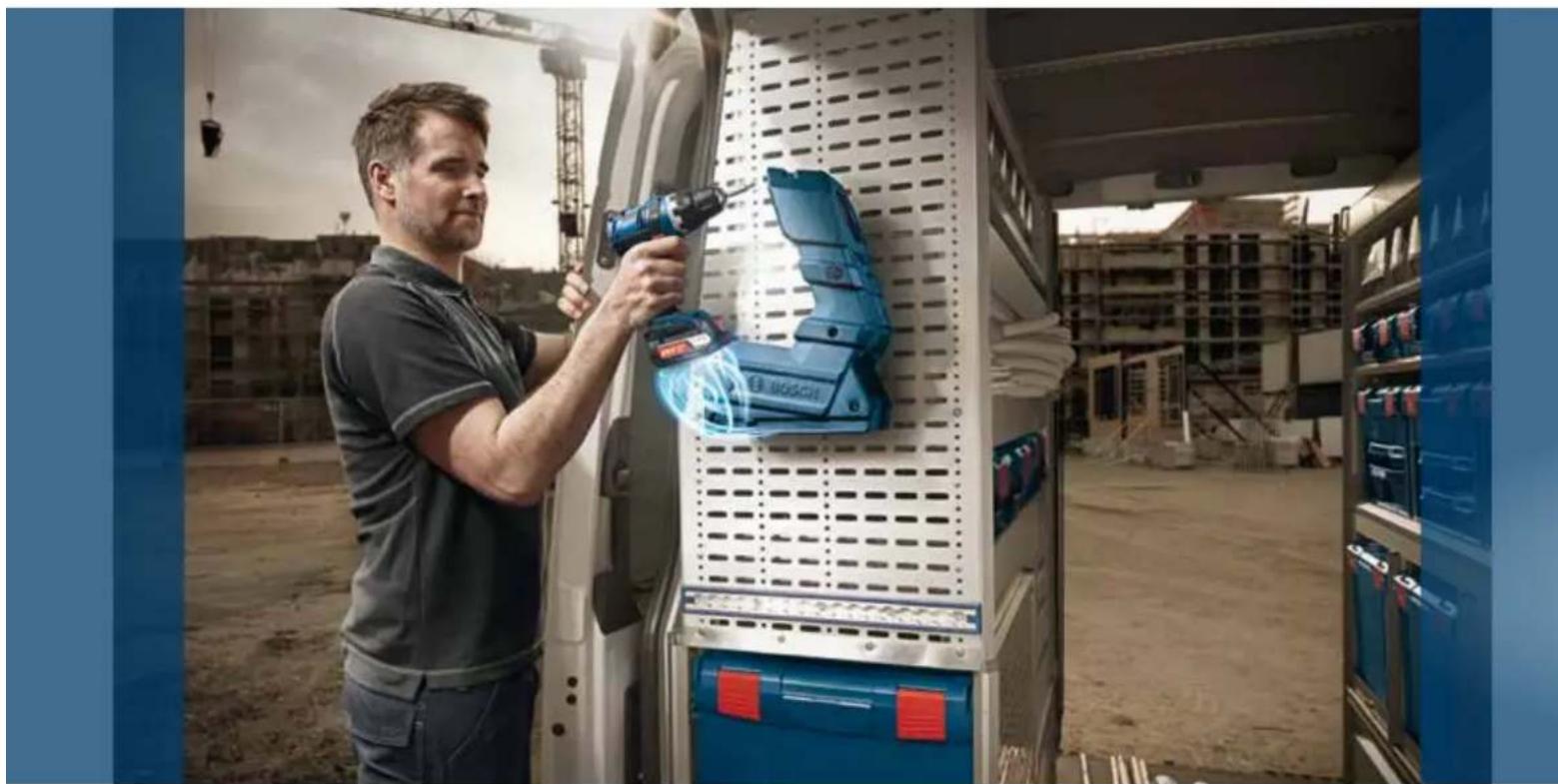

Man using a power tool to clean or install a blue Bosch-branded battery inside a construction vehicle (no visible text or symbols)

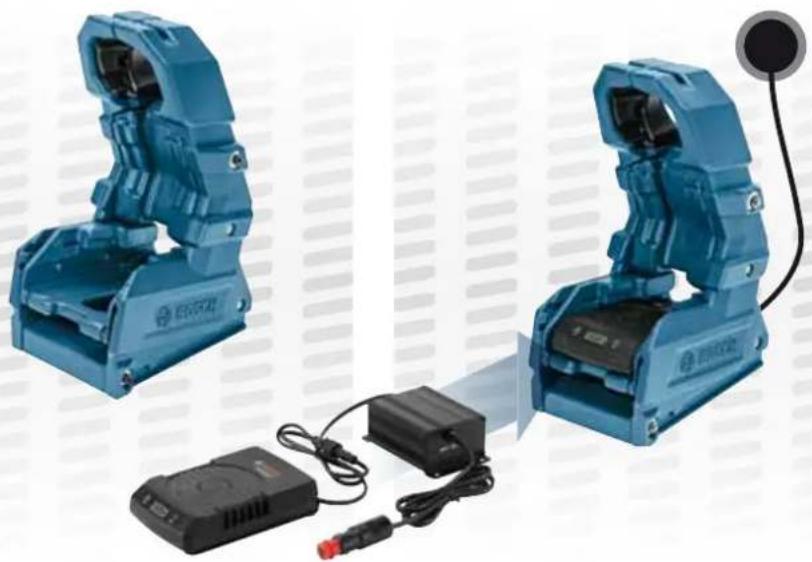

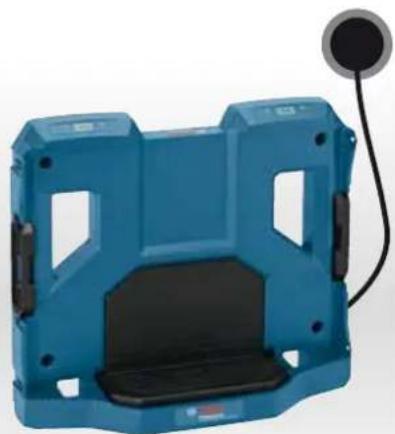

Mount

The Wireless Charging Car Holster enables you to not only store your cordless screwdrivers safely, but also save time by charging them while you drive.

Two blue industrial robotic devices connected to a battery and cable, with one device emitting a signal (no visible text or symbols)

Blue industrial robotic device with attached cable and sensor array (no visible text or symbols)

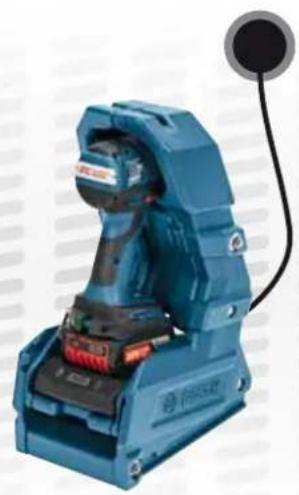

1Mount

Thanks to its flexible mounting system, the Holster can be mounted to all vertical and horizontal surfaces in the vehicle

2 Connect

Slide the GAL 1830 W-DC car charger into the Holster and adjust the height according to the battery size (2.0 Ah or 4.0 Ah). The 2 m long cable enables it to be conveniently connected to the cigarette lighter

3 Charge

Charge cordless screwdrivers conveniently while you drive and during breaks

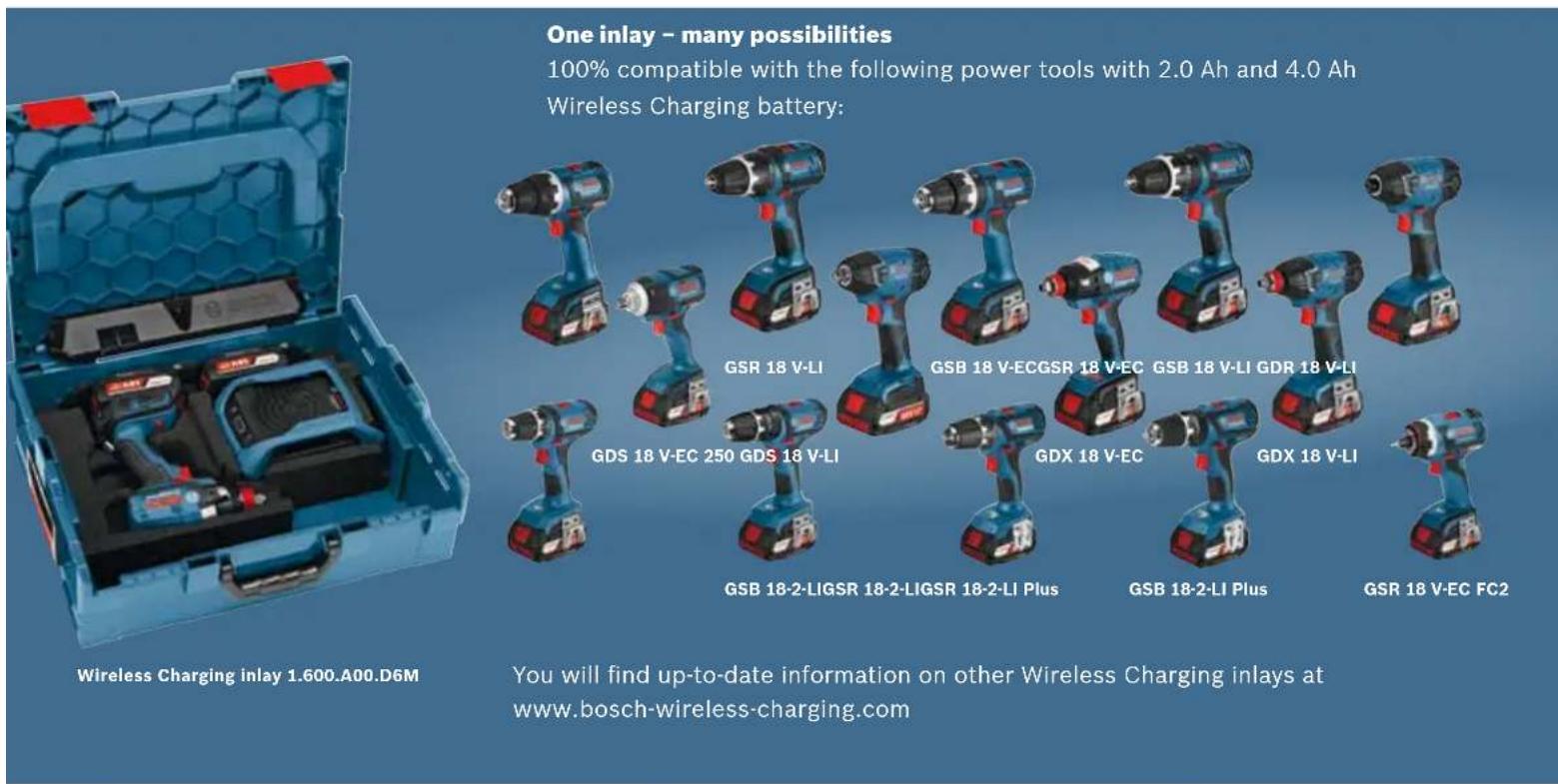

One holster - many possibilities

These screwdrivers are always ready to hand with the Car Holster (with 2.0 Ah and 4.0 Ah Wireless Charging battery).

GDX 18 V-ECGDS 18 V-LI GDX 18 V-LI

Industrial robotic arm in a factory setting, showing blue and red components stacked on white shelves (no visible text or symbols)

Your opinion matters to us

Share your experience of the Bosch Wireless Charging System on our Facebook page:

www.facebook.com/bosch.profi.elektrowerkzeuge

BoschWLC

Or chat with other experts in our bob forum:

https://www.bosch-professional.com/de/de/community/

The German National Plastering Team using the Bosch Wireless Charging System at BAU 2015: "Precise tools, always ready to use, simply brilliant!"

Bosch Wireless Charging System tested in practice by Ducati in 2015 world championship race: "We're under extreme time pressure during the race. The Wireless Charging System from Bosch masters these challenges perfectly."

Two scenes: one showing a technician working on a tire with a power drill, the other showing a mechanic repairing a car wheel (no visible text or symbols)

Overview

Bosch Wireless Charging System

In the workshop

GBA 18 V 2,0 Ah MW-B 4,0 Ah MW-C

Part no. 1 600 A00 3NC 1 600 A00 C42
Battery capacity 2.0 Ah	4.0 Ah
Battery voltage	18 V	18 V
Cell type	Li-Ion	Li-Ion
Weight	500 g	800 g
Size (L × W × H) 115 × 82 × 51 mm	115 × 82 × 71 mm

Product photo of four different automotive battery units (no visible text or labels)

GBA 18 V 2,0 Ah starter set

Part no. 1x battery 1 600 A00 3NA

Part no. 2x batteries 1 600 A00 86G

Two electronic devices: a blue rectangular device and a black rectangular device with earphones and cables (no visible text or symbols)

GAL 1830 W charger + mounting frame

Part no. 1 600 A00 4ZV
Battery charging voltage 18 V
Charging current 3.0 A
Charging time with battery capacity of 2.0 Ah (80%/100%) max. 35/45 mins
Charging time with battery capacity of 4.0 Ah (80%/100%) max. 65/85 mins
Weight 600 g
Size (L × W × H) 165 × 115 × 35 mm

Three cylindrical battery units with red LED indicators, shown against a plain background (no text or symbols visible)

GBA 18 V 4,0 Ah starter set

Part no. 1x battery 1 600 A00 C43

Part no. 2x batteries 1 600 A00 C46

On the move

Two blue plastic electronic enclosures with black modules and a black power cord connected by a cable (no text or symbols visible)

Wireless Charging L-BOXX Bay	230 V-AC	with inverter
Part no. 1 600 A00 DN0 1 600 A00 DN2
Battery charging voltage	18 V	18 V
Charging current	2x 3.0 A	2x 3.0 A
Battery compartments	2	2
Charging technology	wireless	wireless
Weight	3 kg	3 kg
Size (L × W × H) 450 × 400 × 150 mm	450 × 400 × 150 mm

Wireless Charging L-BOXX inlay

Part no.

1 600 A00 D6M

Two electronic devices: a blue battery pack and a black charging unit connected to a black power strip (no visible text or symbols)

Wireless Charging Car Holster

Part no.	1 600 A00 9CN
Battery charging voltage	18 V	GAL 1830 W-DC starter set + holster
Weight	1.2 kg	Part no. 2.0 Ah	1 600 A00 C4B
Size (L × W × H)	230 × 150 × 370 mm	Part no. 4.0 Ah	1 600 A00 C4C

Product photo of a blue robotic device with attached battery and charging unit (no visible text or symbols)

GAL 1830 W-DC car charger + mounting frame

Part no.	1 600 A00 C47
Battery charging voltage	18 V
Plug	12 V
Cable length 2 m

Product photo of electronic devices including a battery pack, charging case, and power bank (no visible text or labels)

GAL 1830 W-DC starter set + mounting frame

Part no. 2.0 Ah	1 600 A00 C48
Part no. 4.0 Ah	1 600 A00 C49

A top system – with a large selection

All tools at a glance
