Product Type	LCD Video Projector
Model	PLC-XE30
Brand	Sanyo
Resolution	XGA (1024 x 768)
Brightness	2500 ANSI Lumens
Contrast Ratio	500:1
Lamp Life	2000 hours (Standard Mode)
Lamp Type	200W UHP
Projection Technology	3LCD
Dimensions (W x D x H)	330 x 240 x 100 mm
Weight	3.5 kg
Power Consumption	280W (Max)
Inputs	VGA, S-Video, Composite, Component, RGB
Outputs	Monitor Out (VGA), Audio Out (3.5mm)
Keystone Correction	Vertical ±30°
Zoom Lens	1.2x Manual
Noise Level	35 dB (Eco Mode)
Security	Kensington Lock
Cleaning	Use soft cloth; clean air filter monthly
Repairability	Replaceable lamp and filter; serviceable by technician

Frequently Asked Questions - PLC-XE30 SANYO

How do I replace the lamp in my Sanyo PLC-XE30?

What is the maximum projection size for this projector?

Can I connect my laptop to this projector?

Why does the projector show a 'Fan Error' message?

How often should I clean the air filter?

What is the native resolution of the PLC-XE30?

Does this projector support HDMI?

How do I adjust the keystone correction?

What is the lamp part number for the PLC-XE30?

Why is the image dim or no light output?

USER MANUAL PLC-XE30 SANYO

Multimedia Projector

MODEL PLC-XE30

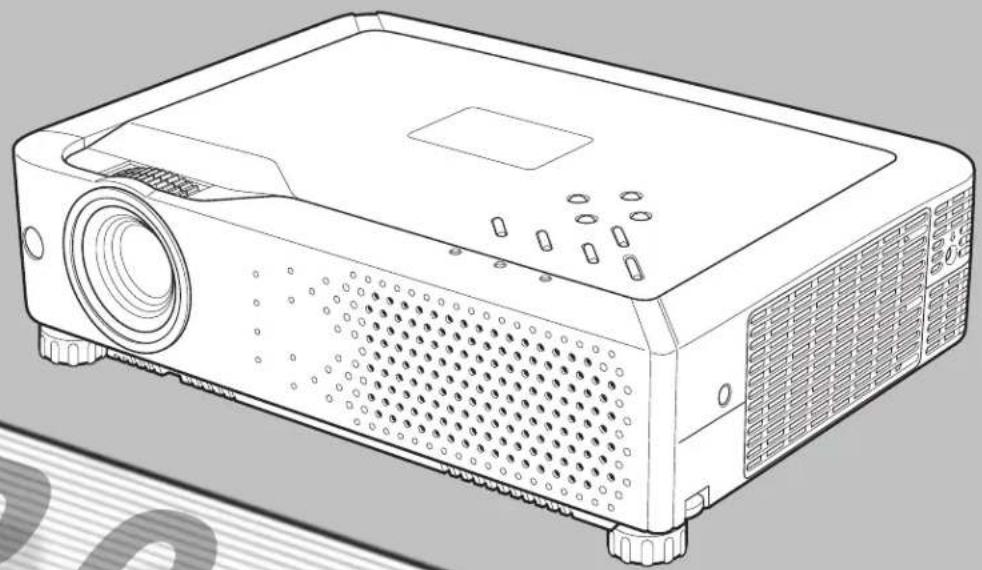

Line drawing of a projector with ventilation grilles and control panel (no text or symbols)

Owner's Manual

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆Compact Design

This projector is designed compact in size and weight. It is easy to carry and work anywhere you wish to use.

◆Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N), Component video, S-Video and RGB scart.

◆Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (p27)

◆Quick Termination

The AC cord can be plugged out right after turning off the projector. (p20)

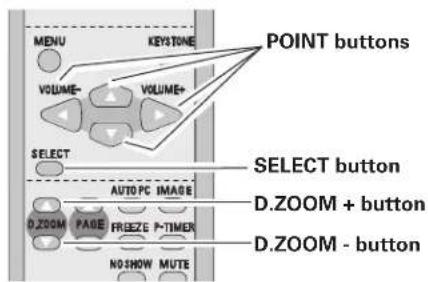

◆Digital Zoom (for Computer)

The digital zoom function expands (to approx. 16 times of screen size) or compresses (to approx. half of the screen size) the image size, allowing you to focus on crucial information during a presentation. (p34)

◆ Noise reduction function

The Noise reduction function helps you to reduce the contained noise on the screen to get smoother images. (p40)

◆Blackboard Function

Blackboard*can be used as a projection screen.
*The board color is limited to Green. (p31, 38)

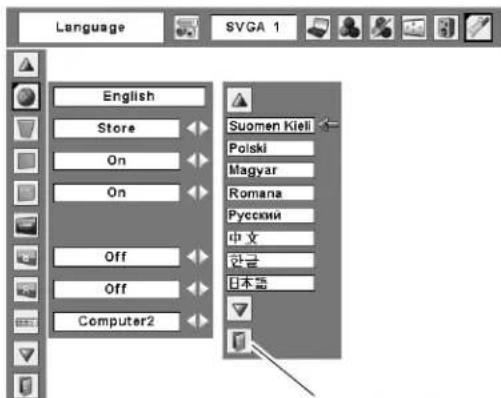

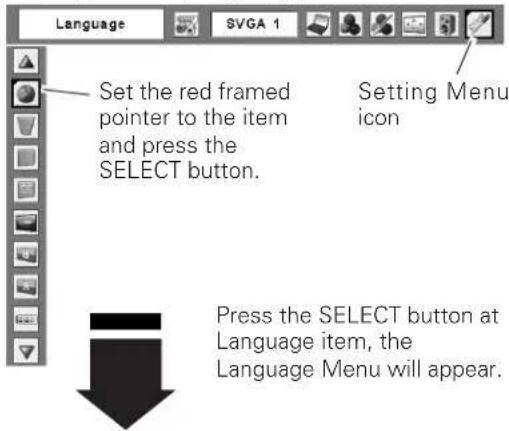

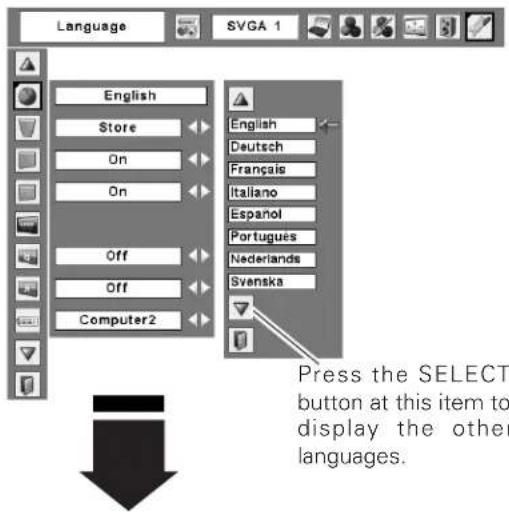

◆Multilanguage Menu Display

Operation menu is available in 16 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, or Japanese. (p42)

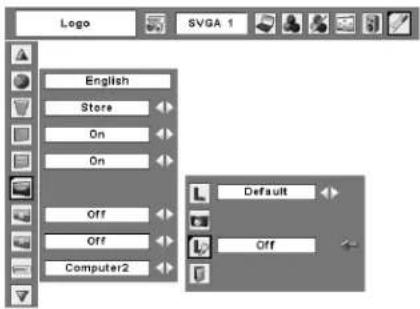

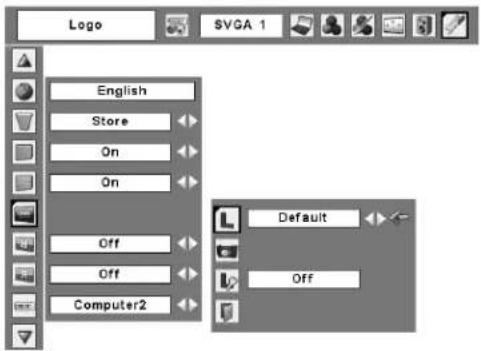

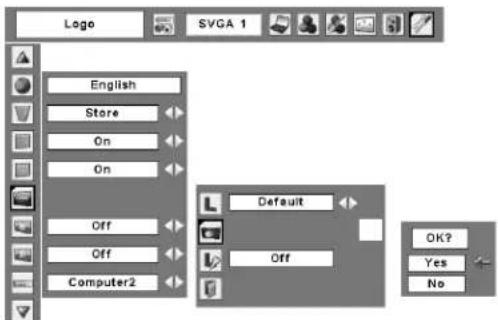

◆Logo Function

The Logo function allows you to customize the screen logo with the Logo functions. (p43, 44) You can capture an image for the screen logo, choose a logo between provided and captured.

◆ Switchable Interface Terminal

The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p45)

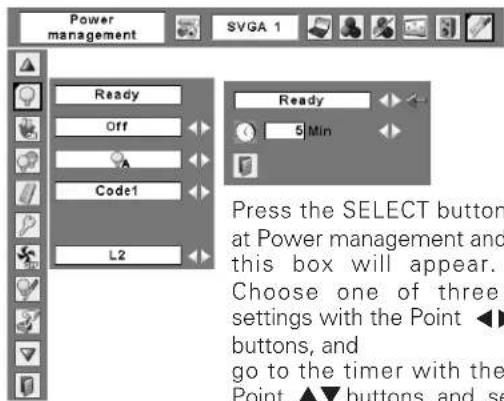

Power Management

The Power management function reduces power consumption and maintains the lamp life. (p45)

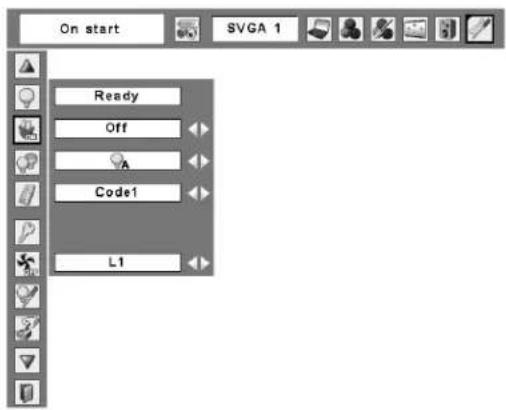

◆Lamp Control

Brightness of the projection lamp can be selected. (p46)

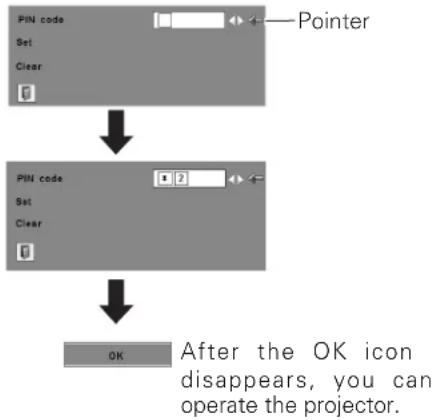

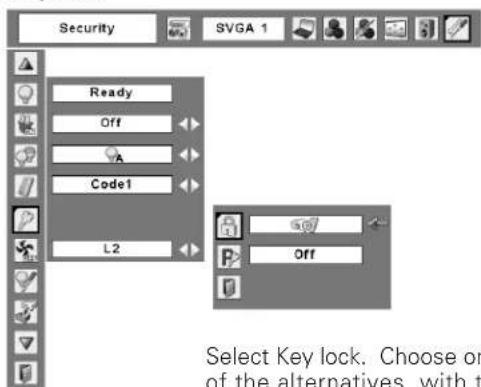

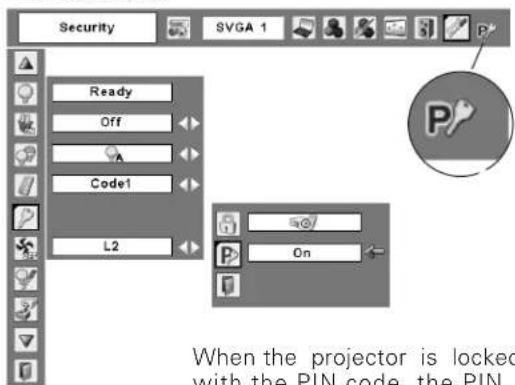

◆Security Function

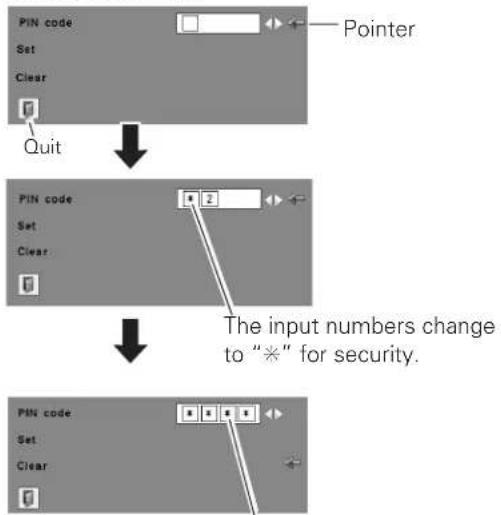

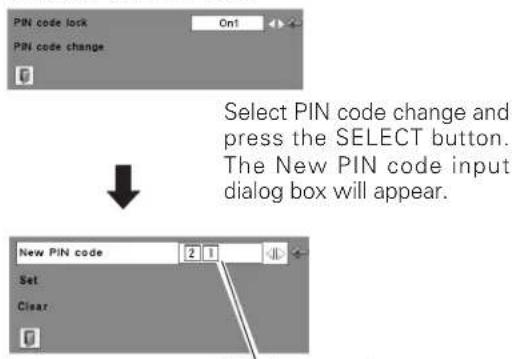

The Security function helps you to ensure the security with the Key lock (p47) and the PIN code lock (p19, 47, 48) functions. You can lock the operation on the projector and the remote control. Also you can prevent unauthorized persons from using the projector.

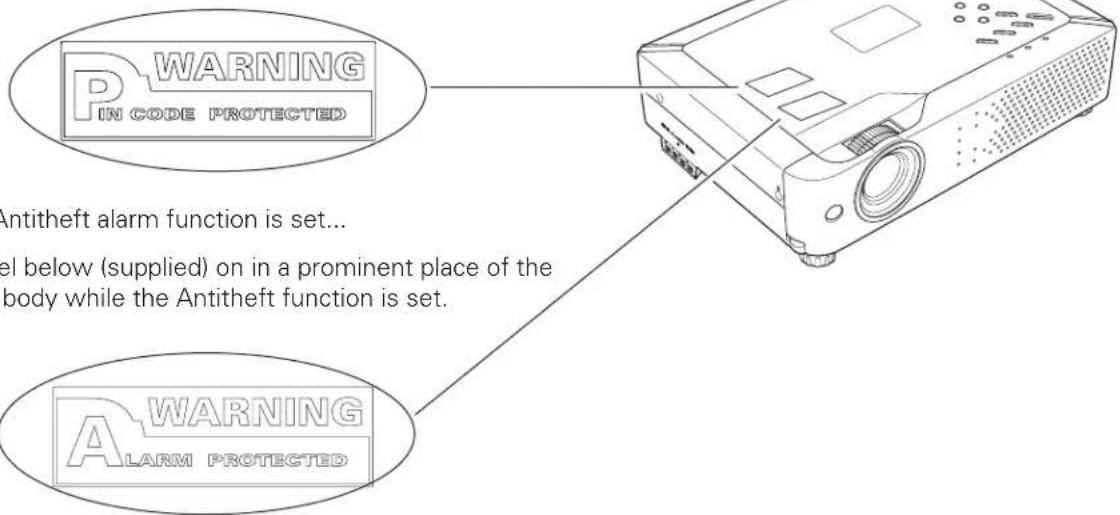

◆Antitheft Alarm Function

This projector is equipped with an Antitheft alarm function which works when detecting a vibration to protect the projector from a suspicious person. (p 50-52)

√Note:

• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.

Features and Design 2

Table of Contents .... 3

To the Owner ....4

Safety Instructions ....5

Air Circulation 6

Installing the Projector in Proper Position 6

Moving the Projector 6

Compliance 7

Part Names and Functions .....8

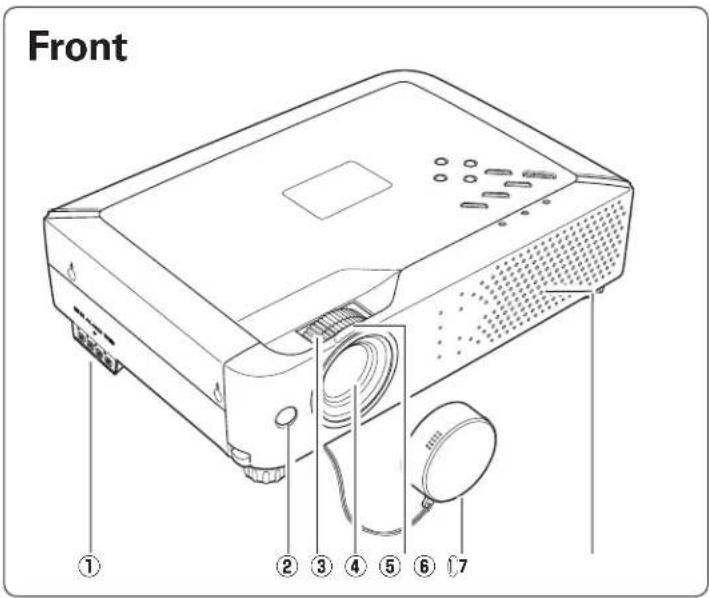

Front 8

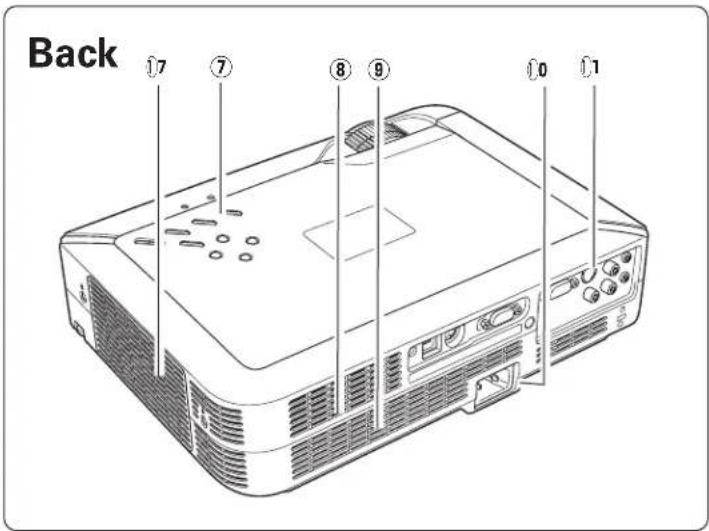

Back 8

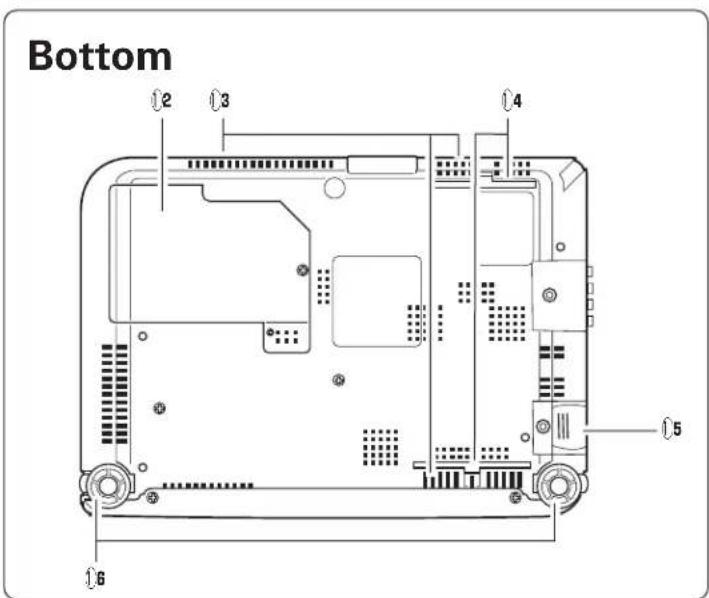

Bottom 8

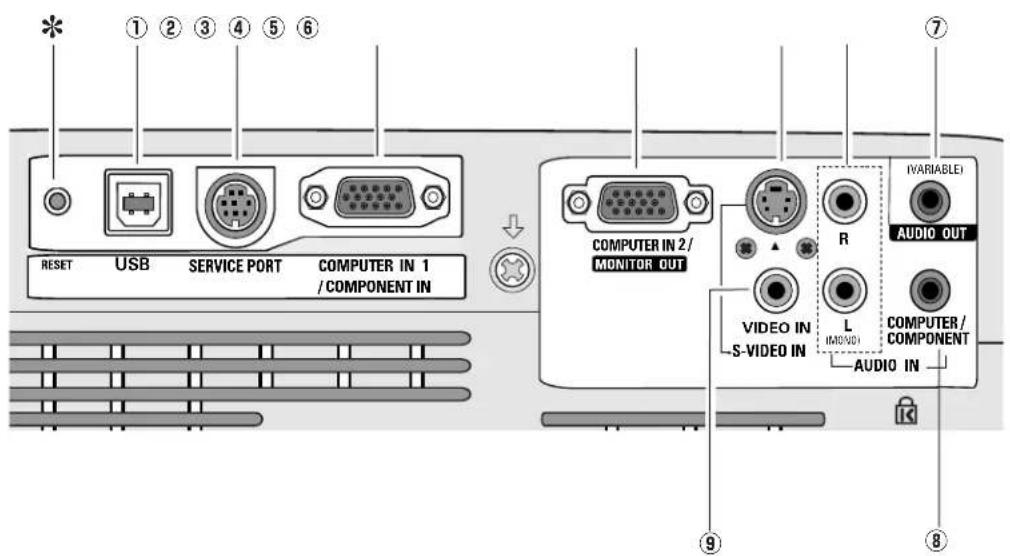

Rear Terminal 9

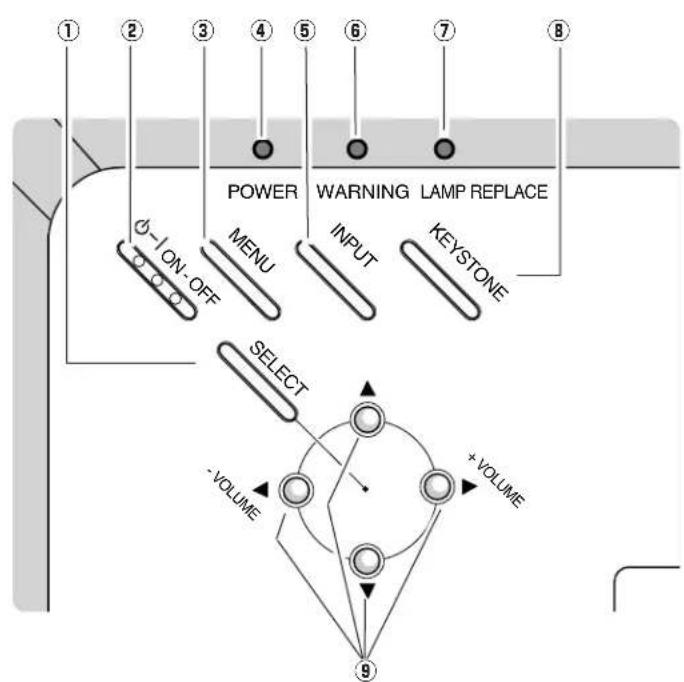

Top Control 10

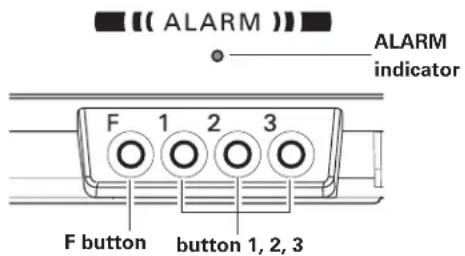

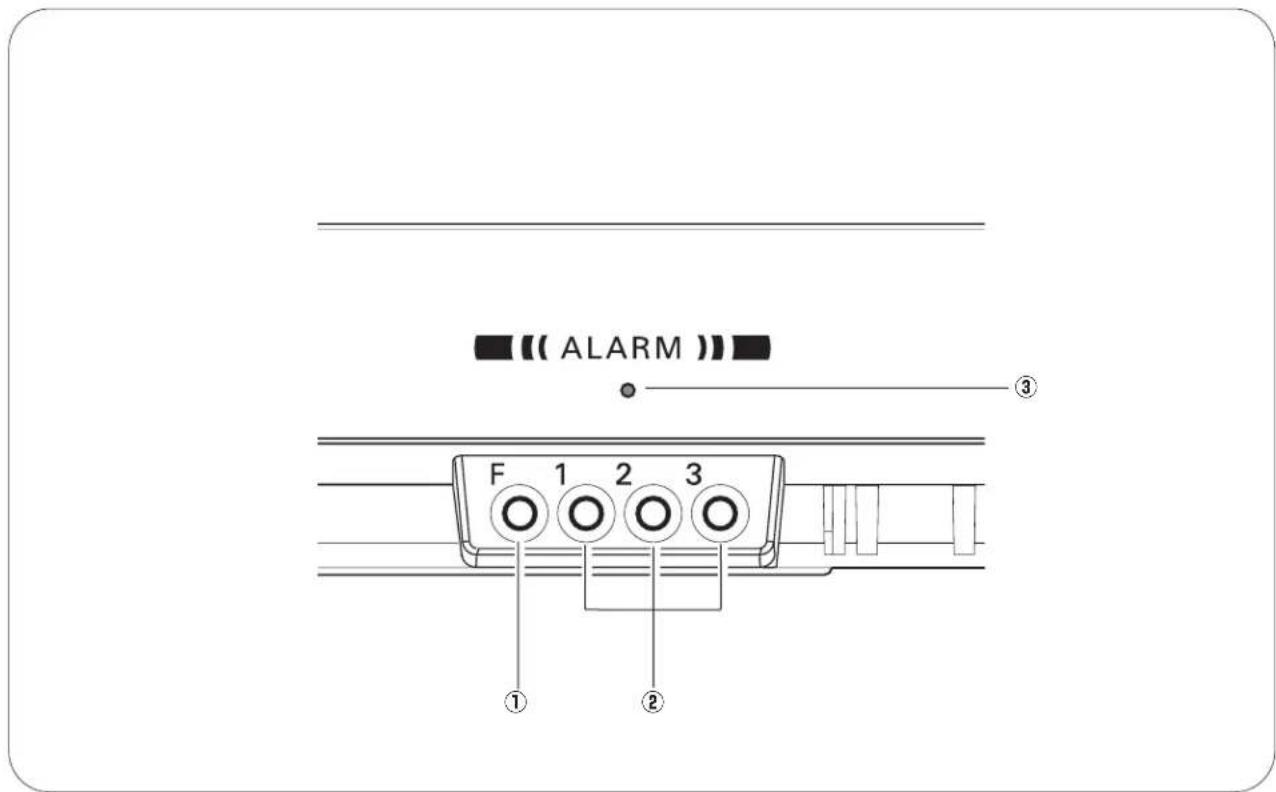

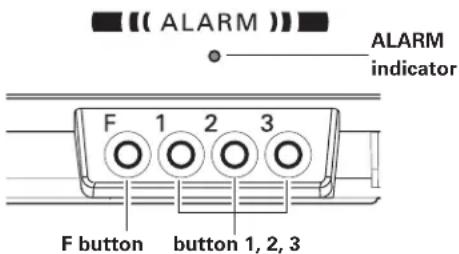

Antitheft alarm setting buttons 11

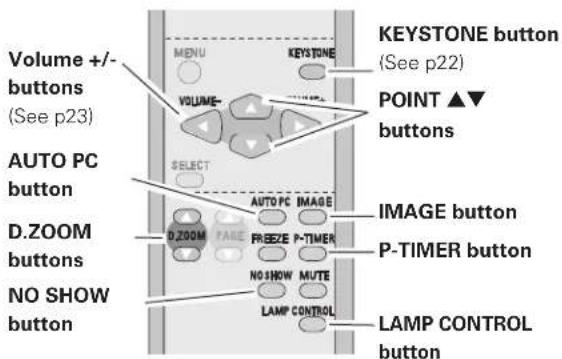

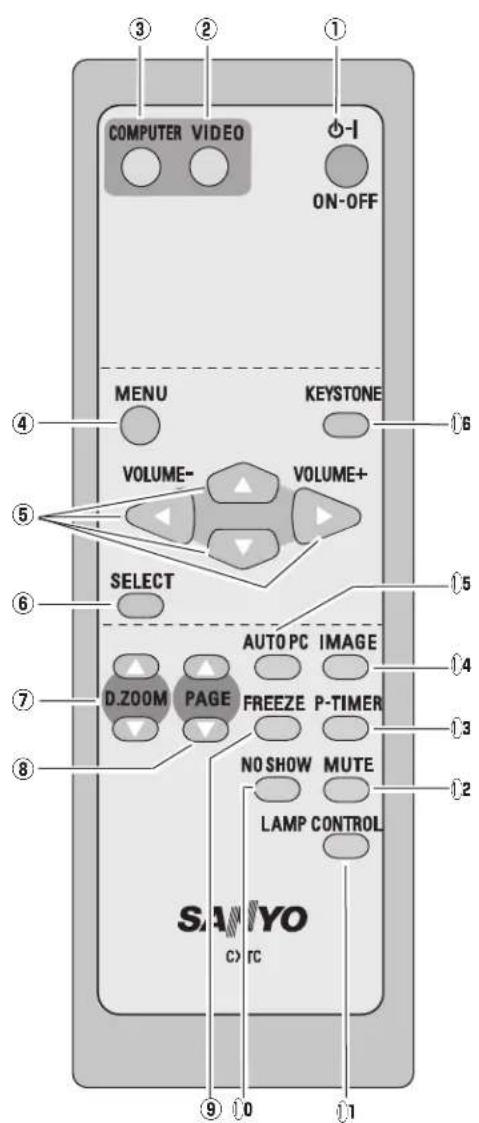

Remote Control 12

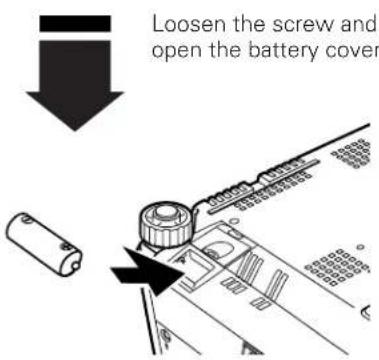

Remote Control Battery Installation 13

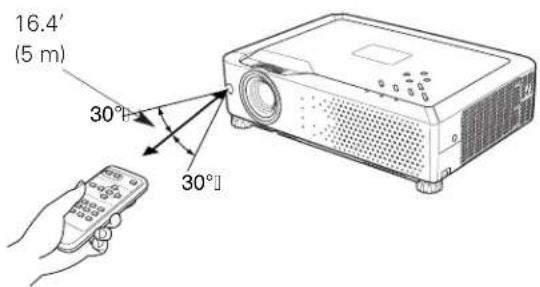

Operating Range 13

Installation 14

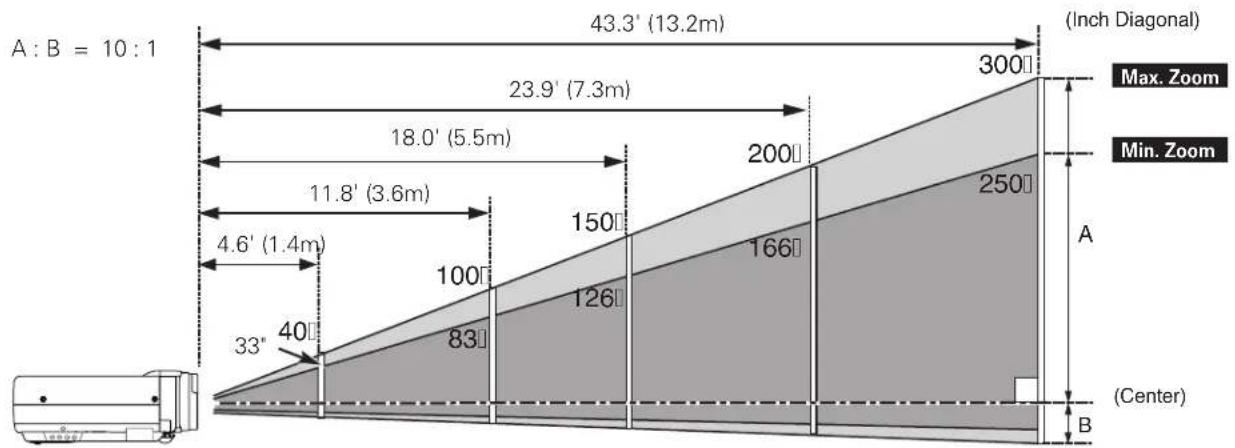

Positioning the Projector 14

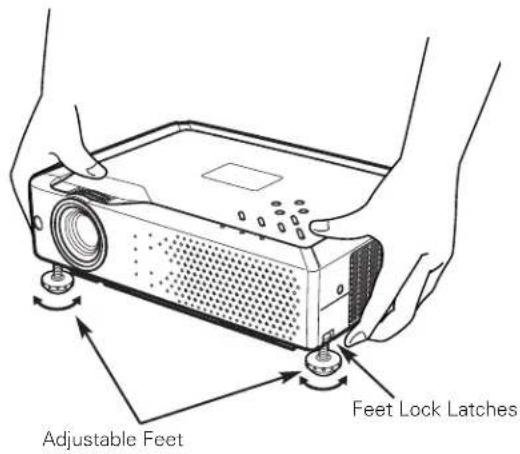

Adjustable Feet 14

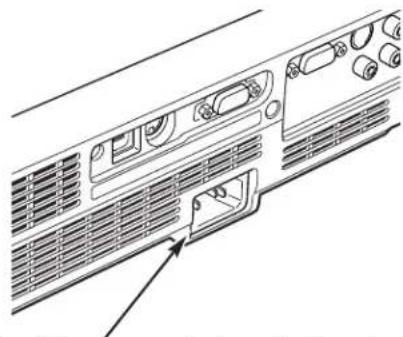

Connecting the AC Power Cord 15

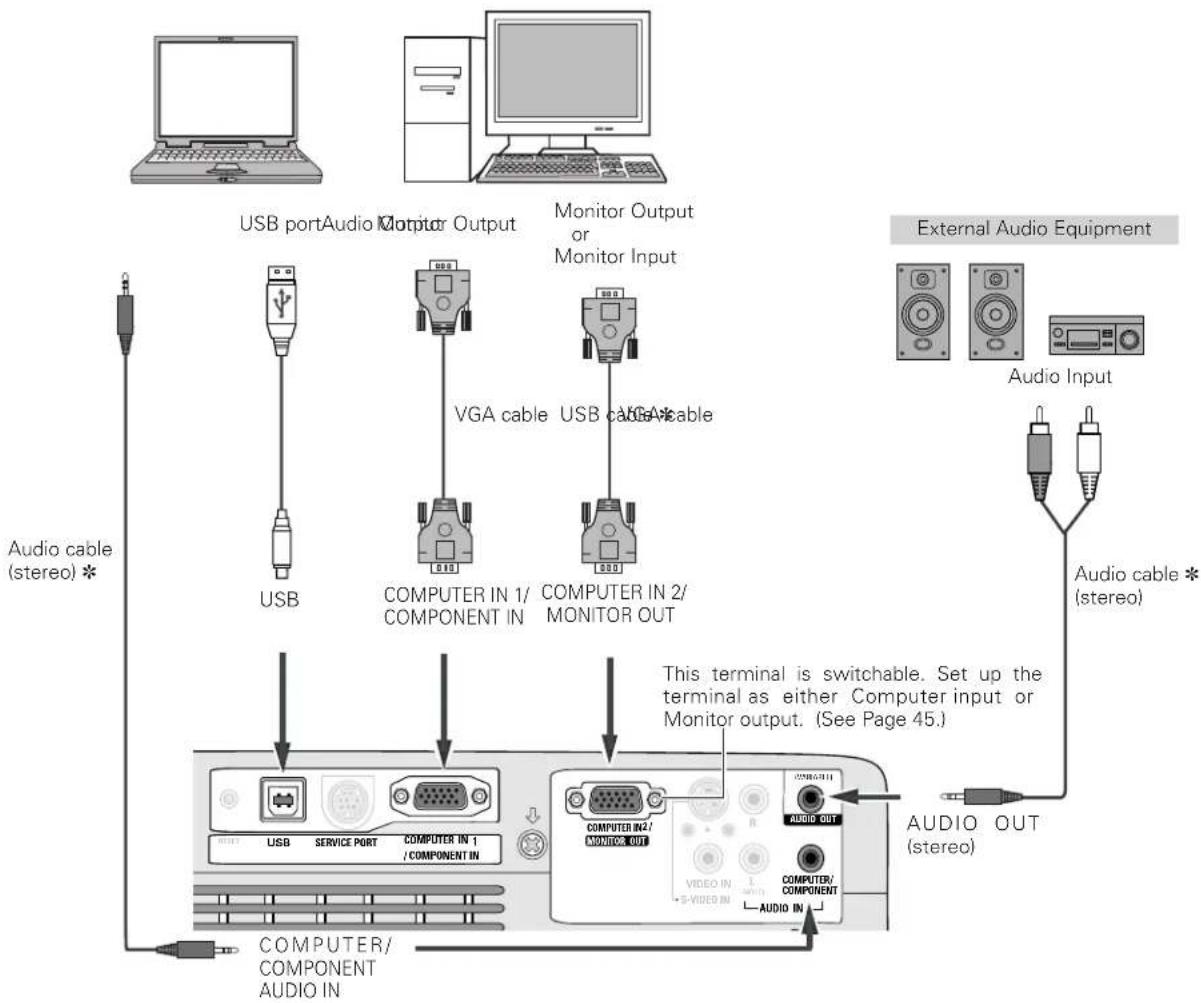

Connecting to a Computer 16

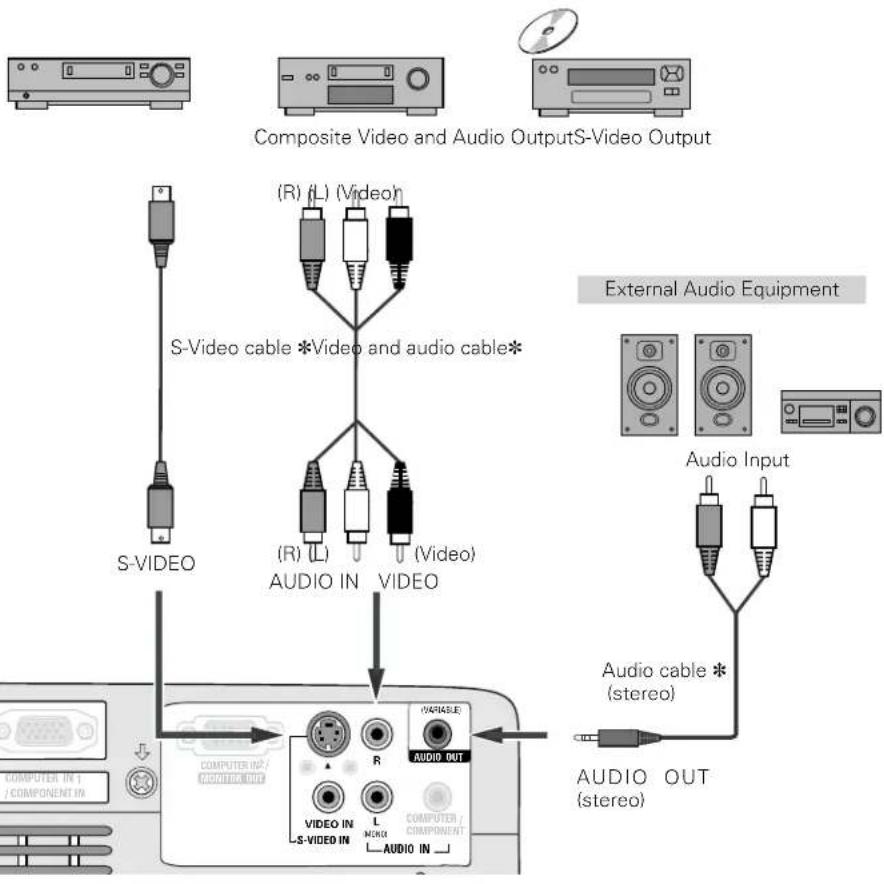

Connecting to Video Equipment 17

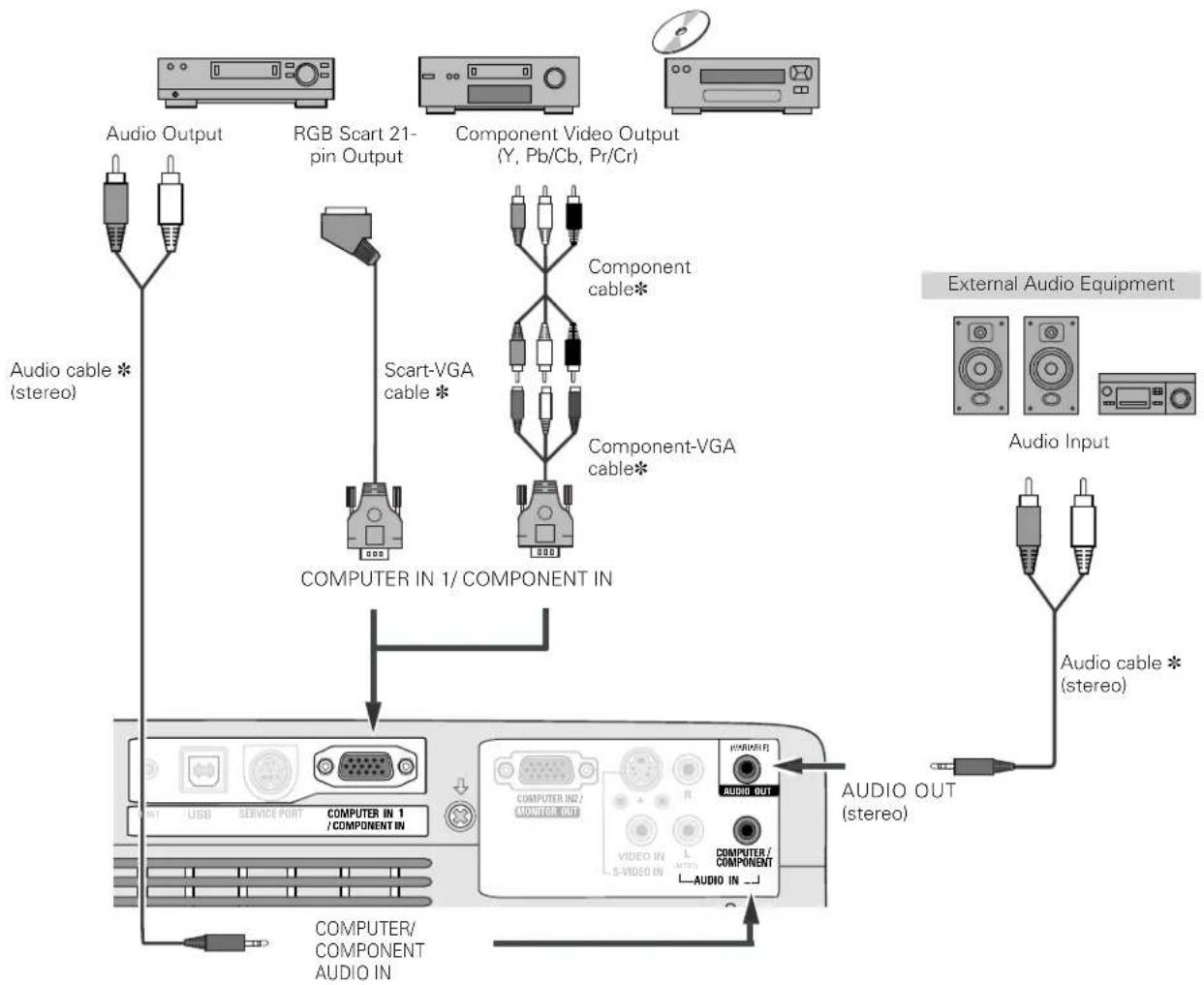

Connecting to Component Video Equipment 18

Basic Operation ....19

Turning On the Projector 19

Turning Off the Projector 20

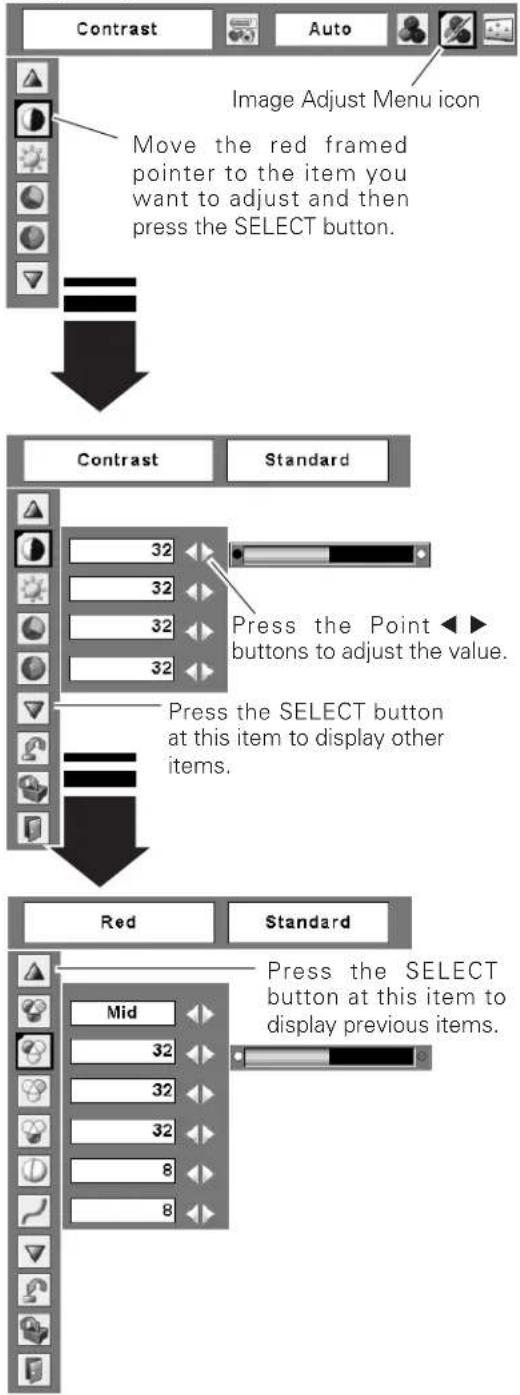

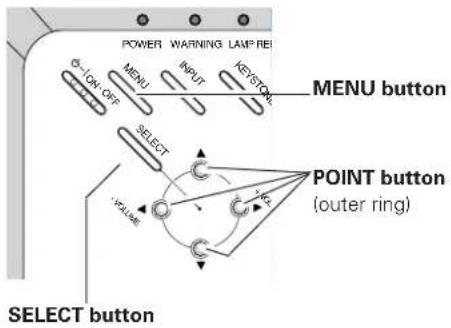

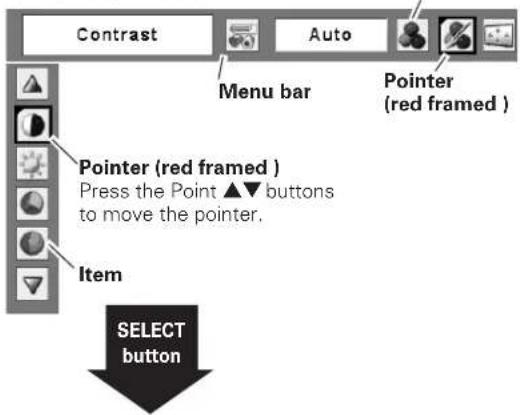

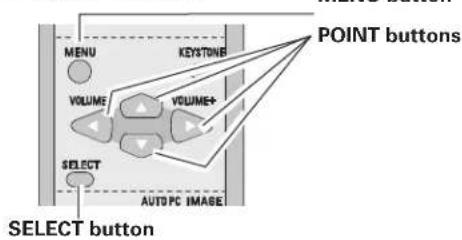

How to Operate the On-Screen Menu 21

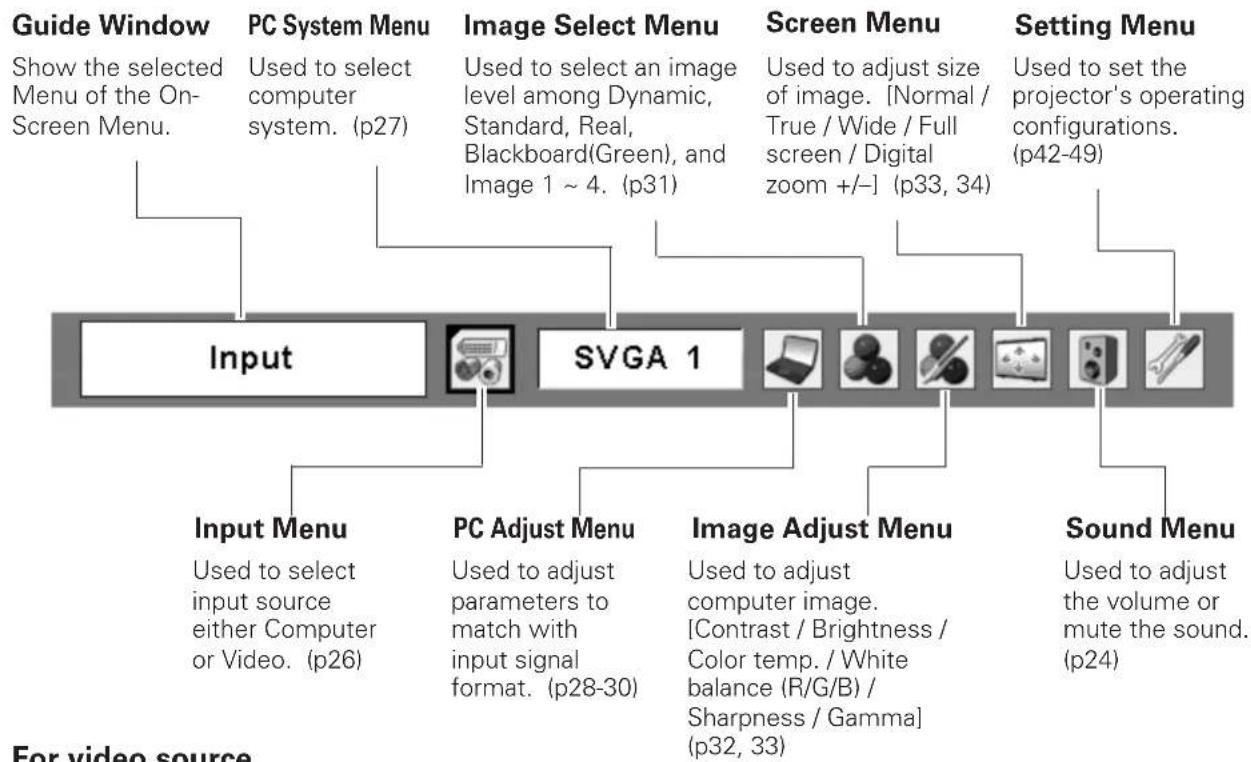

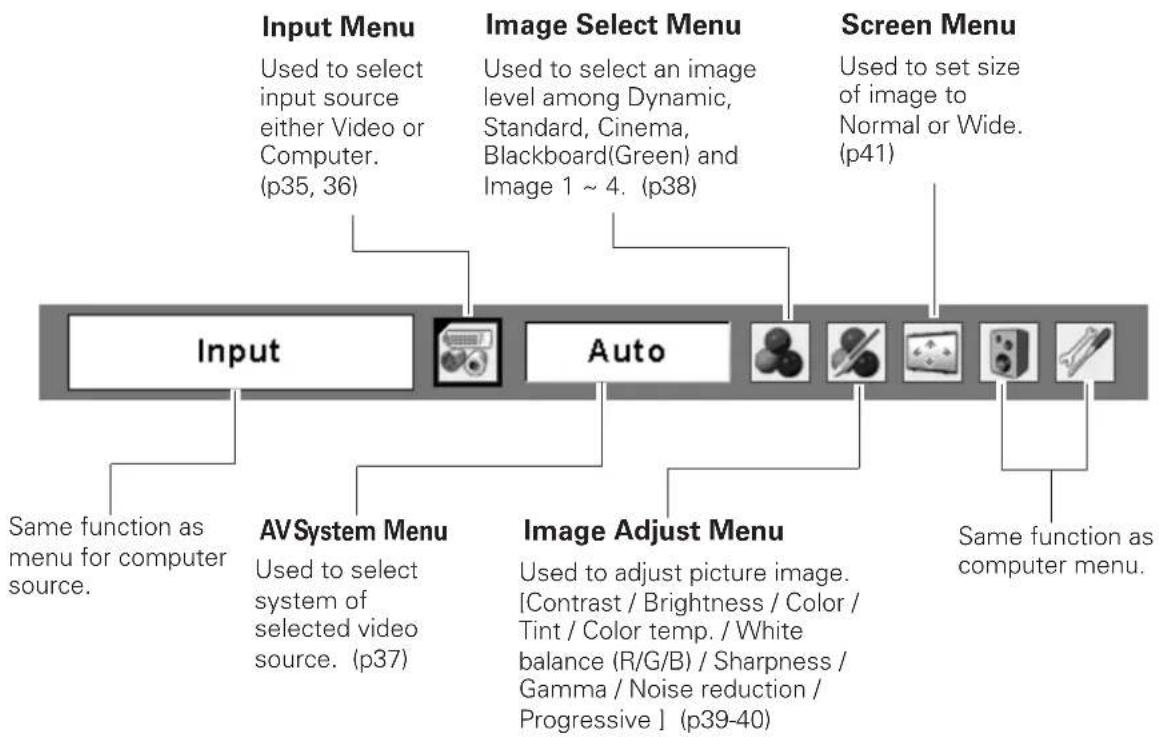

Menu Bar 22

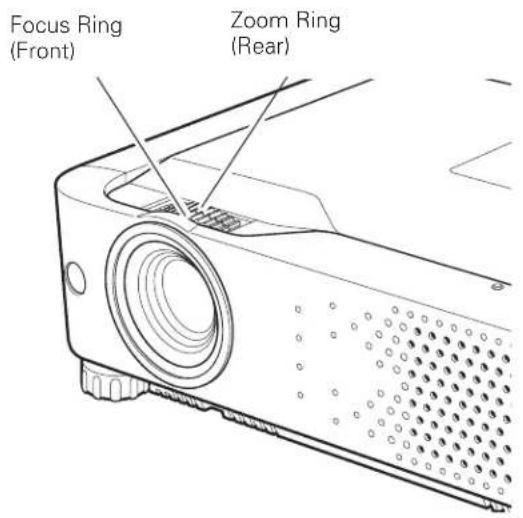

Zoom and Focus Adjustment 23

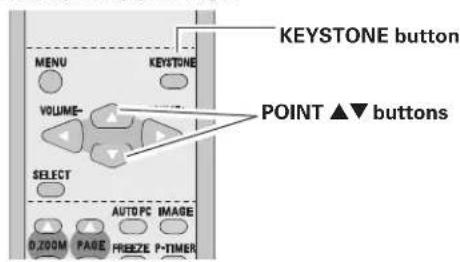

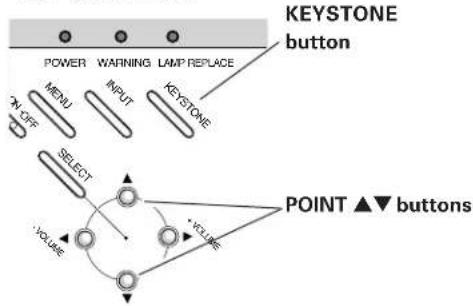

Keystone Correction 23

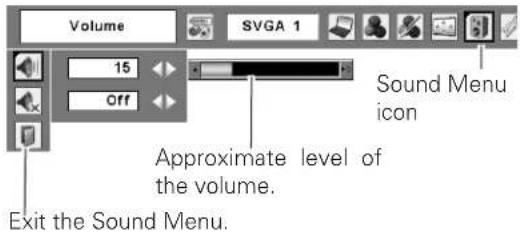

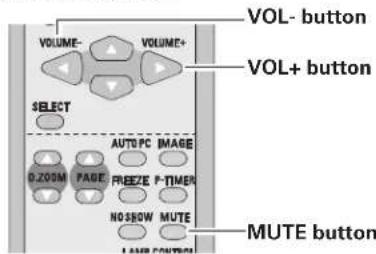

Sound Adjustment 24

Remote Control Operation 24

Computer Input 26

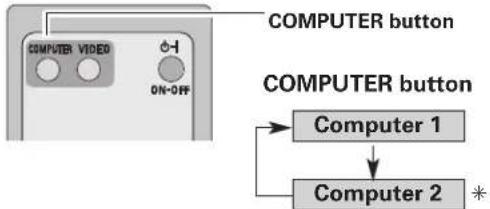

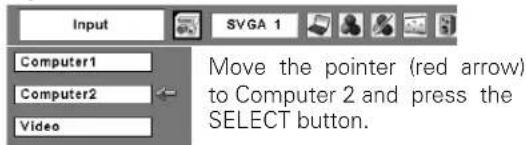

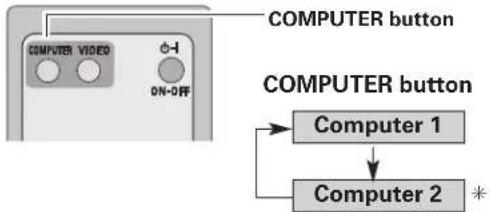

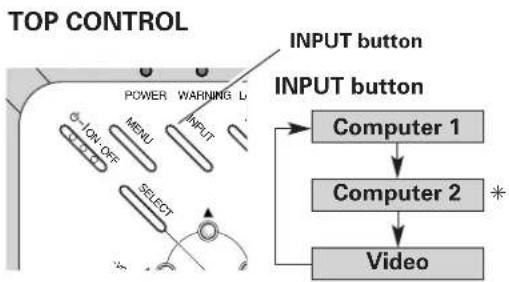

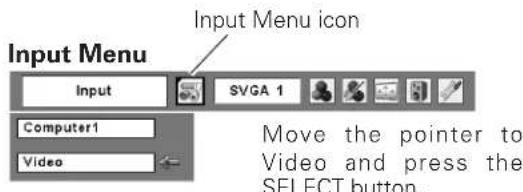

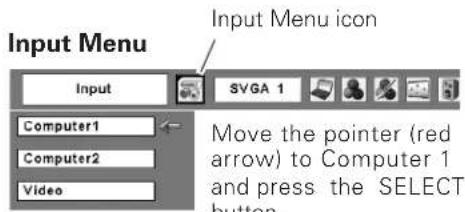

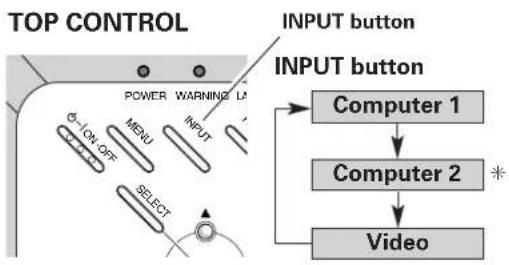

Input Source Selection 26

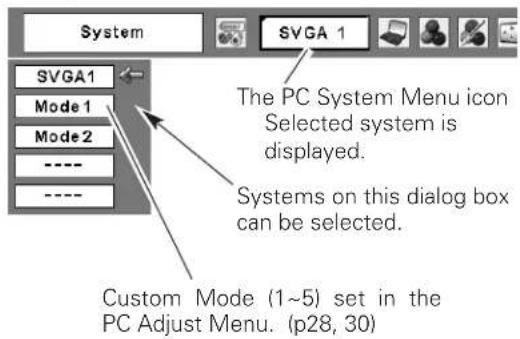

Computer System Selection 27

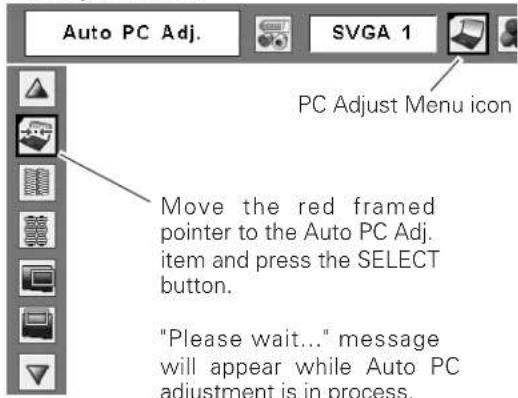

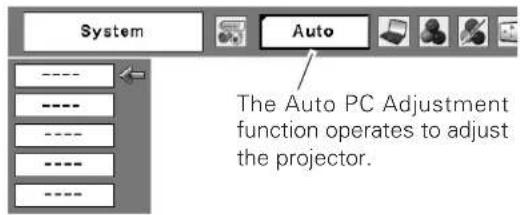

Auto PC Adjustment 28

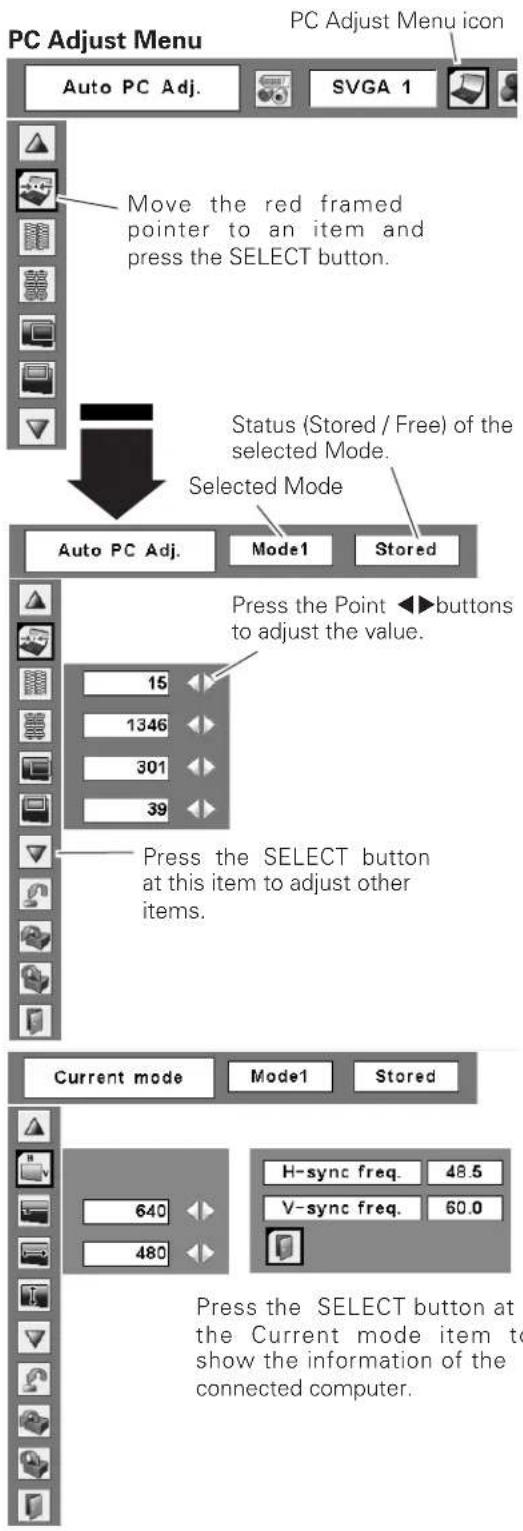

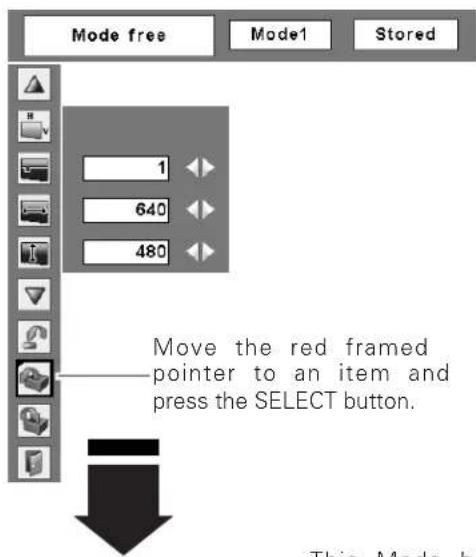

Manual PC Adjustment 29

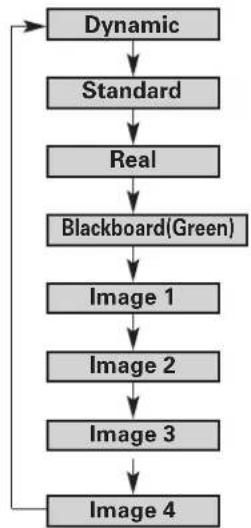

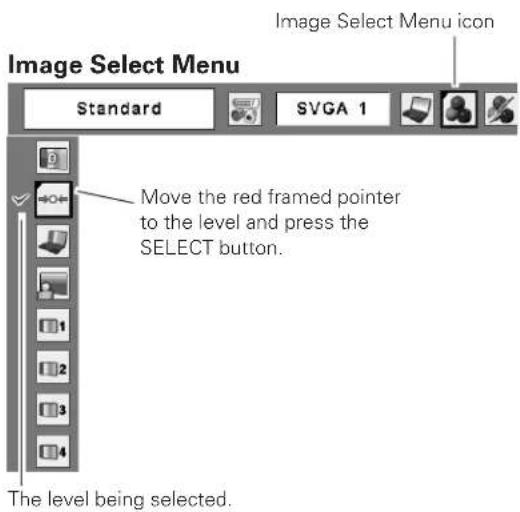

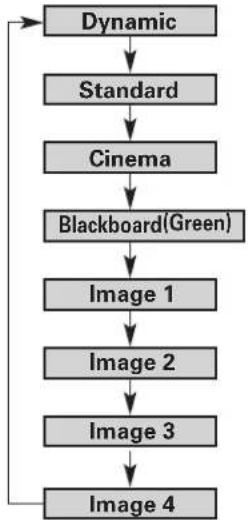

Image Level Selection 31

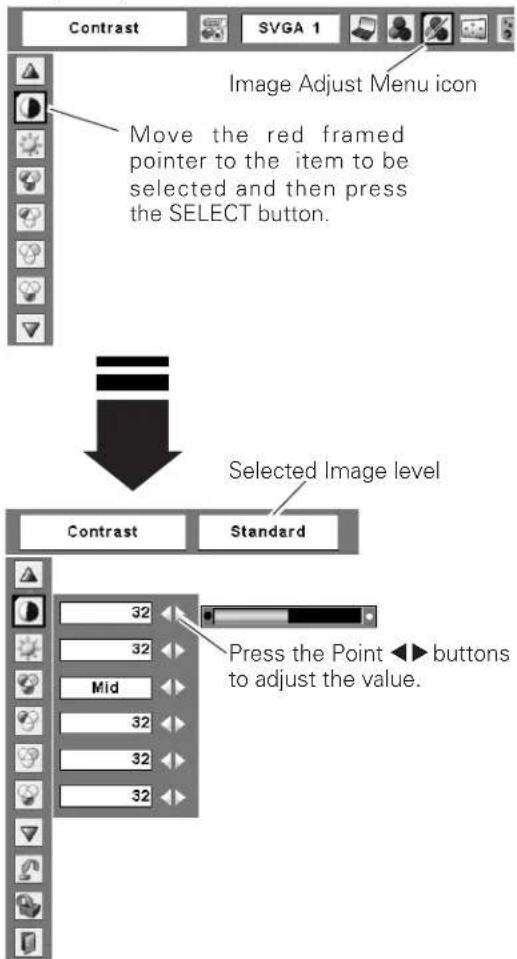

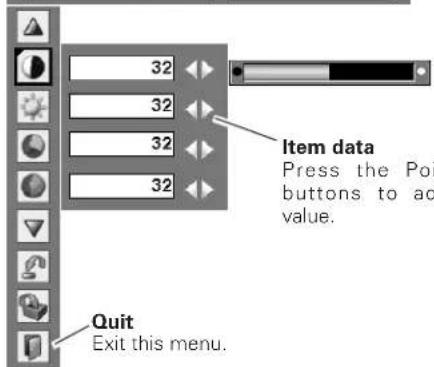

Image Level Adjustment 32

Screen Size Adjustment 33

Video Input 35

Input Source Selection (Video, S-Video) 35

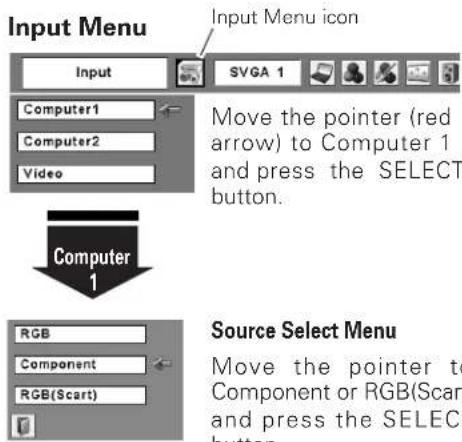

Input Source Selection

(Component, RGB Scart 21-pin) 36

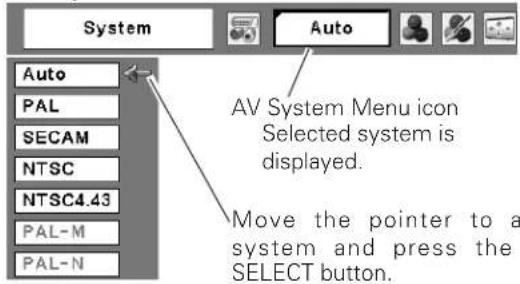

Video System Selection 37

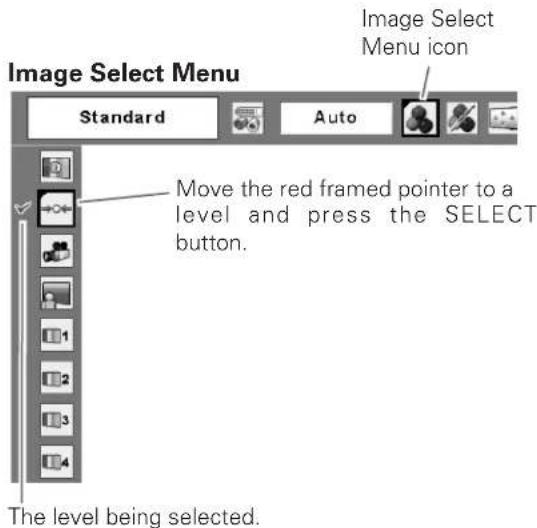

Image Level Selection 38

Image Level Adjustment 39

Screen Size Adjustment 41

Setting 42

Setting 42

Antitheft Alarm Function .....50

How to Use the Antitheft Alarm Function 50

Maintenance and Cleaning .....53

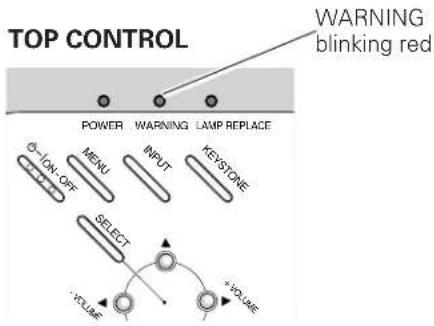

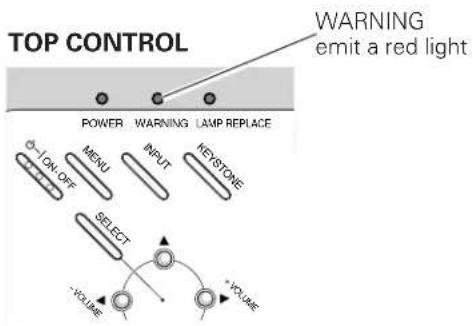

Warning Indicator 53

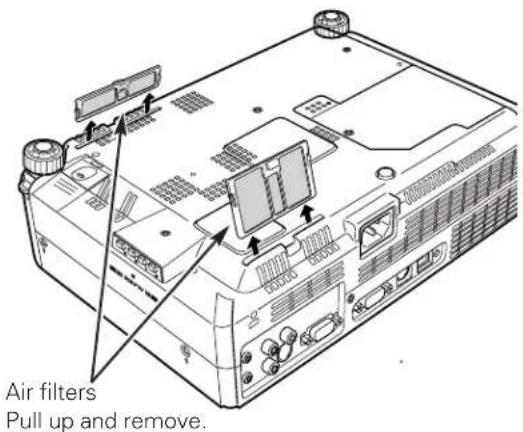

Cleaning the Air Filters 54

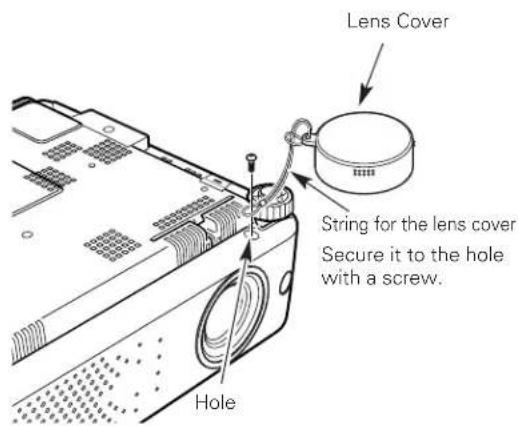

Attaching the Lens Cover 54

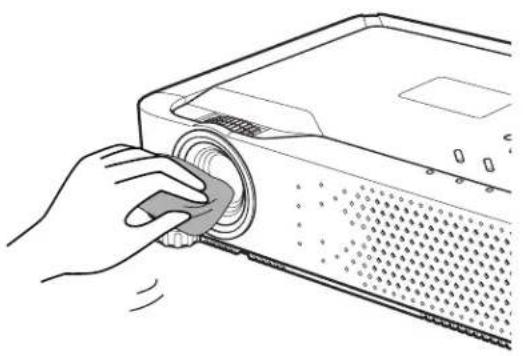

Cleaning the Projection Lens 55

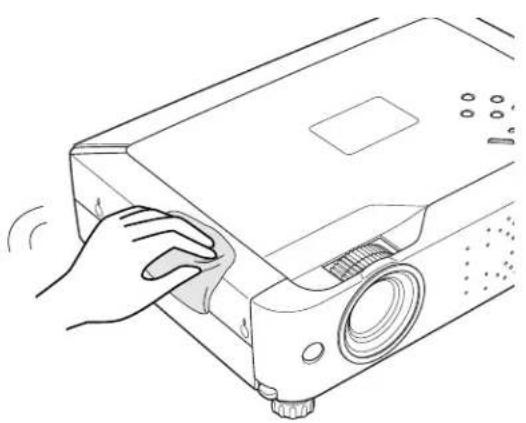

Cleaning the Projector Cabinet 55

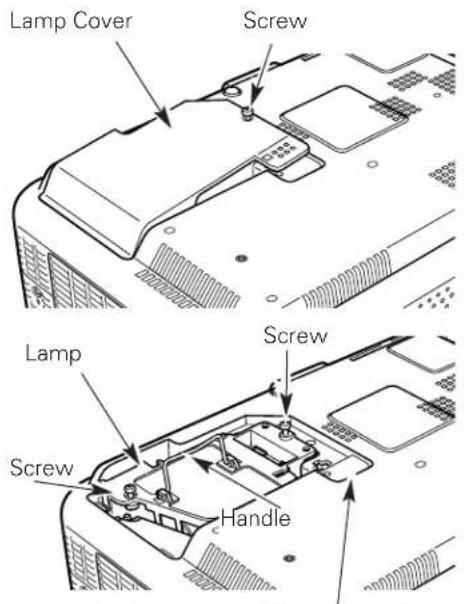

Lamp Replacement 56

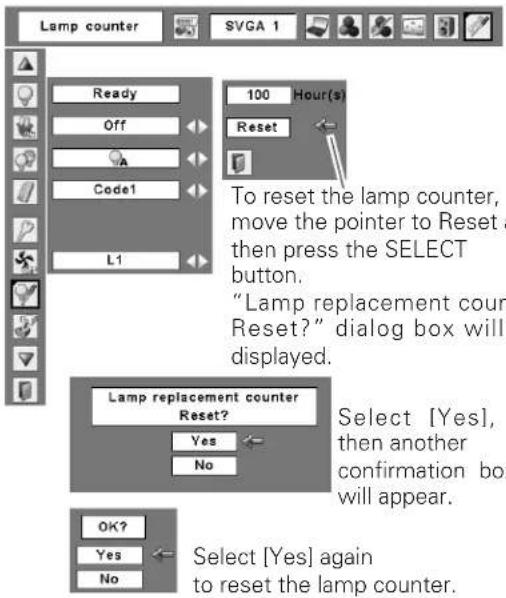

Lamp Replacement Counter 57

Appendix 58

Troubleshooting 58

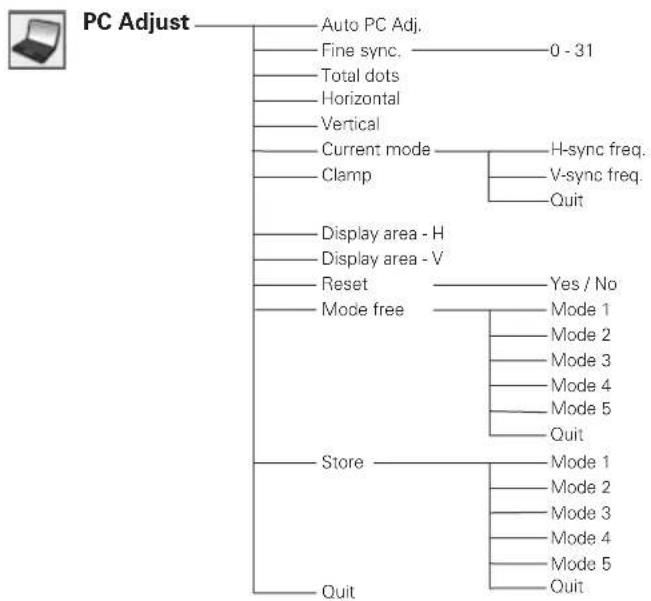

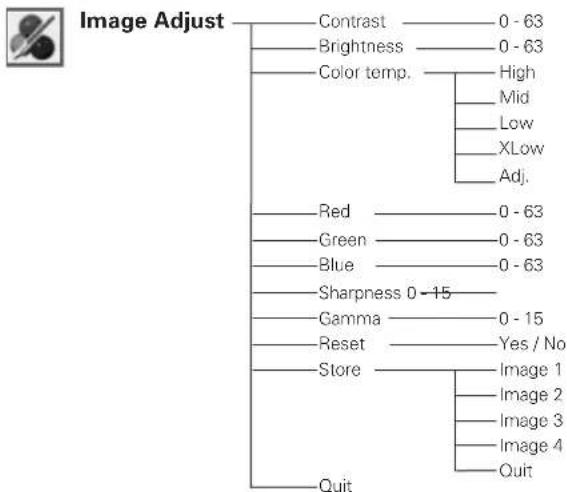

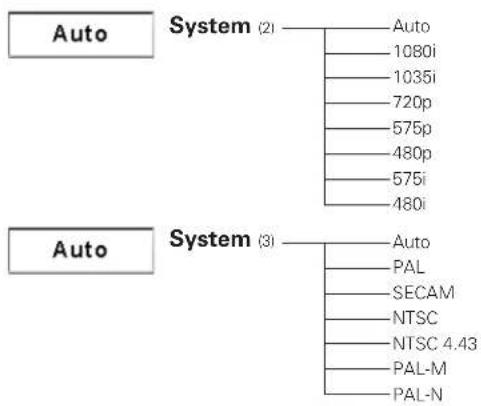

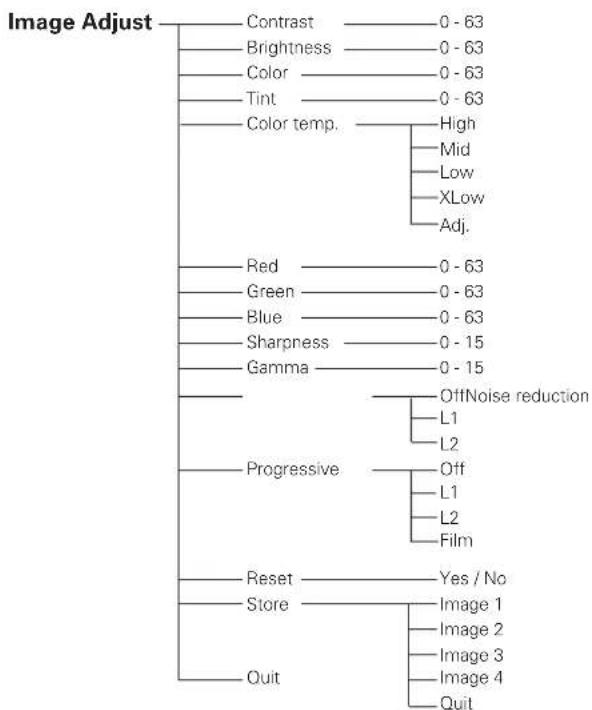

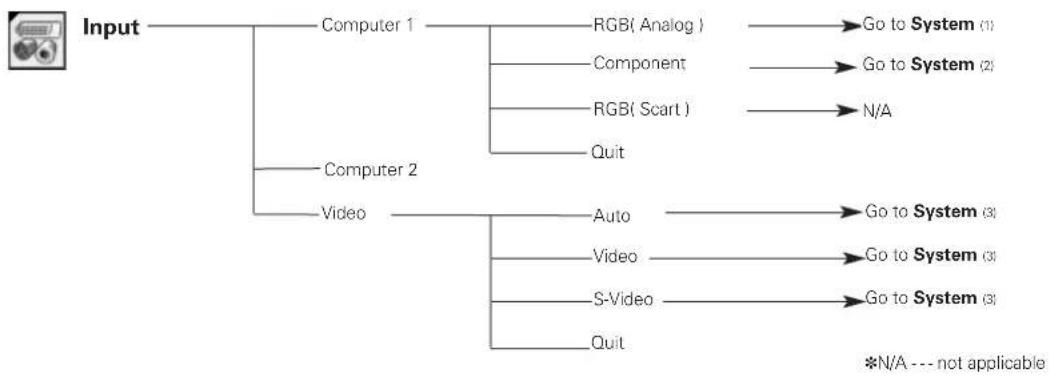

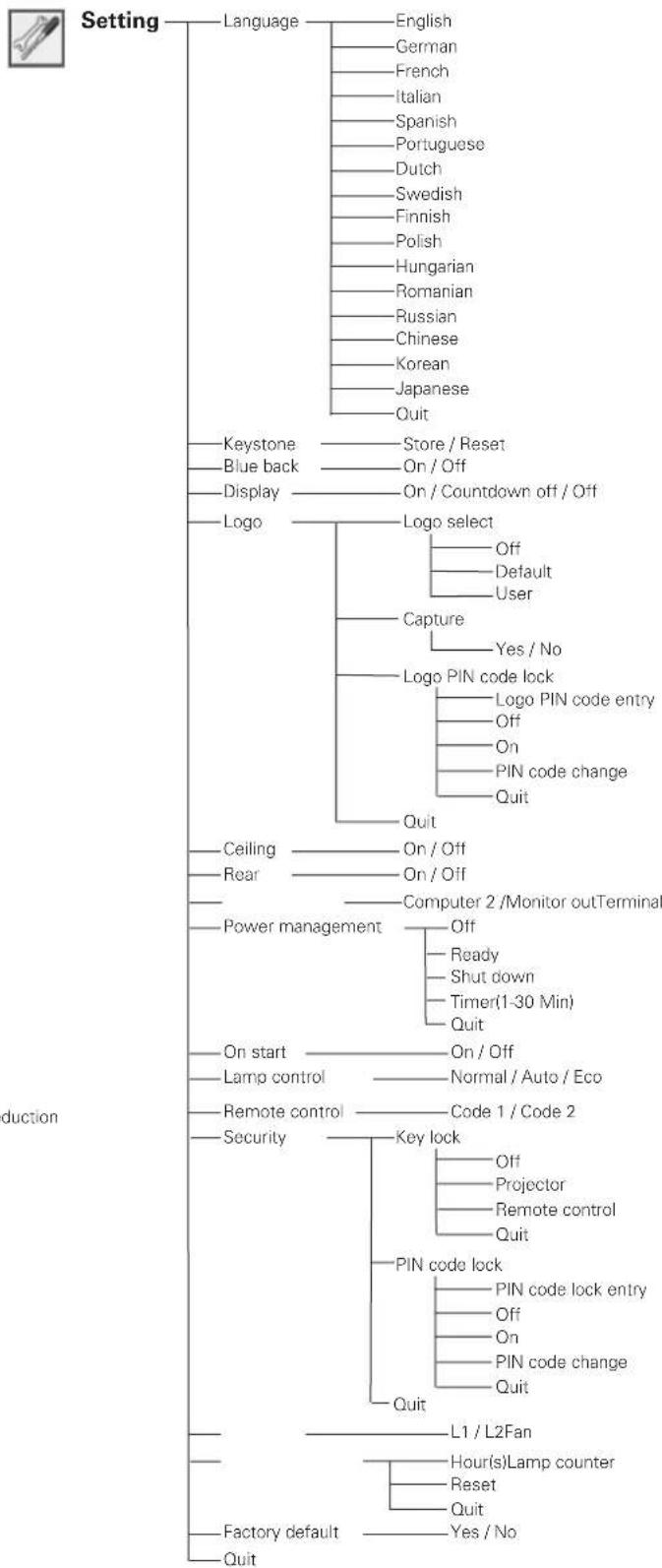

Menu Tree 60

Indicators and Projector Condition 62

Compatible Computer Specifications 63

Technical Specifications 64

Optional Parts 65

Configurations of Terminals 66

PIN Code Number Memo 67

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the "Troubleshooting" section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

NOTE: This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• This projector produces intense light from the projection lens. Do not stare directly into the lens as much as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.
• I install the projector in a proper position. If not, it may result in a fire hazard.

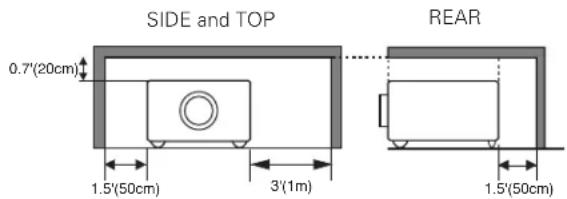

• Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

SIDE and TOP 0.7'(20cm) 1.5'(50cm) 3'(1m) REAR 1.5'(50cm)

- If the projector is not to be used for an extended time, unplug the projector from the power outlet.

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean air intake vents, air filters, or top of the projector periodically with a vacuum cleaner. If you leave the projector without cleaning for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air-conditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance—this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

CAUTION

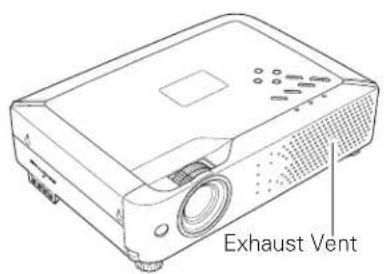

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

- Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

- Keep the exhaust vent at least 3'(1m) away from any objects.

- Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used.

- Do not put anything on the cabinet. The materials put on the cabinet will not only get damaged but also cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans' running speed is changed according to the temperature inside the projector.

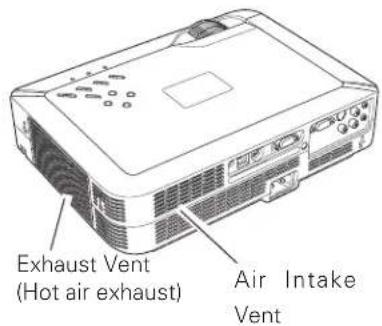

Exhaust Vent

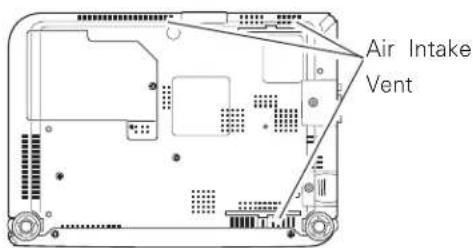

Exhaust Vent (Hot air exhaust) Air Intake Vent

Air Intake Vent

Installing the Projector in Proper Position

Install the projector properly. Improper Installation may reduce the lamp life and cause a fire hazard.

Do not tilt the projector more than 20 degrees from side to side.

20^

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

Moving the Projector

When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a suitable case to protect the projector.

When handling the projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

USE CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

-Do not drop or bump the projector, otherwise damages or malfunctions may result.

-When carrying the projector, use a suitable carrying case.

-Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer for their information.

- Do not put the projector in a case before the projector is cooled enough.

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

- Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers : PLC-XE30

Trade Name : Sanyo

Responsible party : SANYO FISHER COMPANY

Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : [phone]

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ☑. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.

The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow .... Earth

Blue ...... Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

Front ① ② ③ ④ ⑤ ⑥ ⑦

Back 17 ⑦ ⑧ ⑨ 10 11

Bottom 12 13 4 15 16

① Antitheft alarm setting buttons
② Infrared Remote Receiver
③ Zoom Ring
④ Projection Lens
⑤ Focus Ring
⑥ Lens Cover

(See page 54 for attaching.

⑦ Top Controls and Indicators
⑧ Speaker
⑨ Air Intake Vent
10 Power Cord Connector
1 Terminal and Connectors

⑫ Lamp Cover
①3 Air Intake Vents (back and bottom)
⑭ Air Filters
⑮ Battery Compartment (For Antitheft alarm function)
16 Adjustable Feet
⑰ Exhaust Vents

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

Rear Terminal

① ② ③ ④ ⑤ ⑥ RESET USB SERVICE PORT COMPUTER IN 1 /COMPONENT IN COMPUTER IN 2/ MONITOR OUT R L AUDIO OUT VIDEO IN S-VIDEO IN AUDIO IN #7 #8

① USB (Series B)

In order to operate the computer with the remote control during a presentation, connect the USB port of the computer to the projector with a USB cable.(p16)

② SERVICE PORT

This jack is used to service the projector.

③ COMPUTER IN 1 / COMPONENT IN

Connect output signal from a computer, RGB scart 21-pin video output, or component video output to this terminal. (p16, 18)

When the cable is of the longer variety, it is advisable to use this terminal and not COMPUTER IN 2 / MONITOR OUT.

④ COMPUTER IN 2 / MONITOR OUT

This terminal is switchable and can be used for input from a computer and video equipment (component or RGB scart 21-pin) or output to the other monitor.

Set the terminal up as either Computer input or Monitor output properly. (Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1 / COMPONENT IN terminal.) (p16, 18, 45)

⑤ S-VIDEO IN

Connect the S-VIDEO output from video equipment to this jack. (p17)

⑥ AUDIO IN

Connect the audio output from video equipment connected to ⑤ or ⑨ to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p17)

Connect an external audio amplifier to this jack. (p16-18)

This terminal outputs sound from AUDIO IN terminal (⑥ or ⑧).

⑧ COMPUTER/ COMPONENT AUDIO IN

Connect the audio output (stereo) from a computer or video equipment connected to ③ or ④ to this jack. (p 16, 18)

⑨ VIDEO IN

Connect the composite video output from video equipment to VIDEO jack. (p17)

\* RESET button

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

Top Control

① SELECT button

• Execute the selected item. (p21)
• Expand or compress the image in Digital zoom mode. (p34)

② POWER ON-OFF button

Turn the projector on or off. (p19, 20)

③ MENU button

Open or close the On-Screen Menu. (p21)

④ POWER indicator

Emit a red light until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (p19, 20, 62)

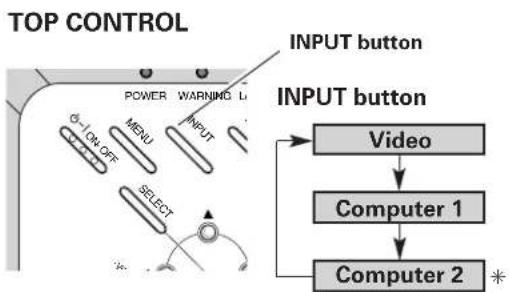

⑤ INPUT button

Select input source. (p26, 35, 36)

⑥ WARNING indicator

Emit a red light when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (p53, 62)

⑦ LAMP REPLACE indicator

Turn yellow when the life of the projection lamp draws to an end. (p56, 62)

⑧ KEYSTONE button

Correct the keystone distortion. (p23, 42)

⑨ POINT (▲▼◀▶) buttons

• Select an item or adjust the value in the On-Screen Menu. (p21)
• Pan the image in Digital zoom + mode. (p34)
• Adjust the volume level. (Point ◀▶ buttons) (p24)

Antitheft alarm setting buttons

These buttons are used for Antitheft Alarm function. (p50-52)

① F button

Used for Antitheft alarm setting.

② Button 1-3

Used for Antitheft alarm setting.

③ ALARM indicator

Blinks red to indicate the battery condition or key operation.

Remote Control

COMPUTER VIDEO ON-OFF MENU VOLUME- VOLUME+ SELECT AUTO PC IMAGE D.ZOOM PAGE FREEZE P-TIMER NO SHOW MUTE LAMP CONTROL SAIYO C) TC ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑸ ⑨ ⑩ ⑪

① POWER ON-OFF button

Turn the projector on or off. (p19, 20)

② VIDEO button

Select VIDEO input source. (p24, 35)

③ COMPUTER button

Select COMPUTER input source. (p24, 26, 36)

④ MENU button

Open or close the On-Screen Menu. (p21)

⑤ Point ▲▼◀▶ (VOLUME+/-) buttons

- Select an item or adjust the value in the On-Screen Menu. (p21)

- Pan the image in Digital zoom + mode. (p34)

- Adjust the volume level. (Point ◀▶ buttons) (p24)

⑥ SELECT button

- Execute the selected item. (p21)

- Expand or compress the image in Digital zoom mode. (p34)

⑦ D.ZOOM ▲▼ buttons

Zoom in and out the images. (p25, 34)

⑧ PAGE ▲▼ buttons

Scroll back and forth pages on the screen when giving a presentation. Connect the projector and your computer with a USB cable to use these buttons. (p9, 16)

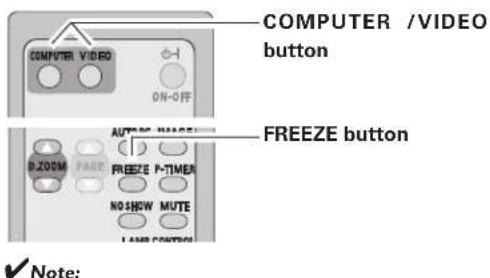

⑨ FREEZE button

Freeze the picture. (p24)

NO SHOW button

Temporarily turn off the image on the screen. (p25)

⑪ LAMP CONTROL button

Select the lamp mode. (p25, 46)

12 MUTE button

Mute the sound. (p 24)

③ P-TIMER button

Operate the P-timer function. (p25)

④ IMAGE button

Select the image level. (p25, 31, 38)

15 AUTO PC button

Automatically adjust the computer image to its optimum setting. (p25, 28)

⑯ KEYSTONE button

Correct the keystone distortion. (p23, 42)

To ensure safe operation, please observe the following precautions:

- Do not bend, drop the remote control or expose the remote control to moisture or heat.

- For cleaning, use soft dry cloth. Do not apply benzene, thinner, splay or any chemical material.

Remote Control Battery Installation

1 Open the battery compartment lid.

Line drawing of a rectangular electronic device with a handle and internal components (no text or symbols)

2 Install new batteries into the compartment.

Technical line drawing of a mechanical device with no visible text or symbols

Two AA size batteries For correct polarity (+ and -), be sure battery terminals are in contact with pins in the compartment.

3 Replace the compartment lid.

Line drawing of a rectangular device with a curved arrow indicating rotation or movement (no text or symbols)

To insure safe operation, please observe the following precautions:

●Use (2) AA or LR6 type alkaline batteries.
●Always replace batteries in sets.
●Do not use a new battery with a used battery.
●Avoid contact with water or liquid.
●Do not expose the remote control to moisture or heat.
●Do not drop the remote control.
- If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
● Risk of explosion if a battery is replaced by an incorrect type.
●Dispose of used batteries according to the instructions.

Operating Range

Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 16.4' (5m) and 60° in front of the projector.

16.4' (5 m) 30° 30°

Positioning the Projector

For projector positioning, see the figures below. The projector should be set horizontally to the flat screen.

√ Note:

• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown below are approximate and may vary from the actual sizes.

Screen Size(W x H) mm4 : 3 aspect ratio	40"	100"	150"	200"	300"
	813 x 610	2032 x 1524	3048 x 2286	4064 x 3048	6096 x 4572
Zoom (min)	5.6' (1.7m)	14.4' (4.4m)	21.7' (6.6m)	28.9' (8.8m)	43.3' (13.2m)
Zoom (max)	4.6' (1.4m)	11.8' (3.6m)	18.0' (5.5m)	23.9' (7.3m)	36.1' (11.0m)

Adjustable Feet

Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.

1 Lift the front of the projector and pull upward the feet lock latches on both sides of the projector.
2 Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to adjust the position and tilt.
3 To retract the adjustable feet, lift the front of the projector and pull and undo the feet lock latches. Keystone distortion of the projected image can be corrected by menu operation. (p23, 42)

Adjustable Feet Feet Lock Latches

Connecting the AC Power Cord

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor.

To reduce the risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power being supplied.

Connect the projector with all peripheral equipment before turning the projector on. (See page 16-18 for connection.)

CAUTION

For safety, unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.

Technical line drawing of a server rack with ventilation slots and ports (no text or symbols)

Connect the AC power cord (supplied) to the projector.

The AC outlet must be near this equipment and must be easily accessible.

NOTE ON THE POWER CORDAC power cord must meet requirement of the country where you use the projector.Confirm the AC plug type with the chart below and proper AC power cord must be used.If supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side AC	outlet side
To power cordconnector on yourprojector.	For the U.S.A. and CanadaTo the AC outlet.(120 V AC)	For Continental EuropeTo the AC outlet.(200 - 240 V AC)	For the U.K.AC outlet.(240 V AC)

Connecting to a Computer

Cables used for connection

• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)
- USB Cable *
• Audio Cables (Mini Plug: stereo) *
( = Not supplied with this projector.)

√ Note:

• Input sound to the COMPUTER / COMPONENT AUDIO IN terminal when using the COMPUTER IN 1 / COMPONENT IN and the COMPUTER IN 2/MONITOR OUT terminal as input.
• When connecting the AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.
• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN 2 / MONITOR OUT.
  • See p65 for ordering optional parts.

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Connecting to Video Equipment

Cables used for connection

• Video and Audio Cable (RCA x 3) *
- S-VIDEO Cable *
• Audio Cable (Mini Plug: stereo) *
(* = Not supplied with this projector.)

√ Note:

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.
  • See p65 for ordering optional parts.

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Connecting to Component Video Equipment

Cables used for connection

• Audio Cables (Mini Plug : stereo) *
- Scart-VGA Cable *
- Component Cable *
- Component-VGA Cable *
( = Not supplied with this projector.)

√ Note:

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.
  • See p65 for ordering optional parts.

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Turning On the Projector

1 Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.
2 Connect the projector's AC power cord into an AC outlet. The POWER indicator will be red.
3 Press the POWER ON-OFF button on the top control or on the remote control. The POWER indicator will become green and the cooling fans will start to operate. The preparation display will appear on the screen and the count down will start.
4 After the countdown, the input source that was selected last and the Lamp mode status icon (see page 45) will appear on the screen.

If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

Enter a PIN code

Select a number by pressing the Point ◀▶ buttons and fix the number with the SELECT button. The number will change to "*". If you fixed an incorrect number, move the pointer to "Set" or "Clear" once by pressing the Point ▼ button, then return to "PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number. "1234" is set as the initial PIN code at the factory.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can start to operate the projector.

If you entered an incorrect PIN code, "PIN code" and the number (***** ) will turn red and disappear. Enter the correct PIN code all over again.

What is PIN code?

PIN code is a security code using Personal Identification Number that allows the person who knows it to operate the projector. Setting PIN code prevents others except the specific users from operating the projector.

A PIN code consists of a four-digit number. Refer to PIN code lock function in Setting on page 47, 48 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Set a new PIN code with special care, write it down in column on page 67 of this manual, and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

16 SANYO

The preparation display will disappear after 30 seconds.

Selected Input Source and Lamp Mode

(See page 46 for Lamp mode.)

PIN Code Input Dialog Box

√Note:

• When the Logo select function is off, the logo will not be shown on the screen. (p43)
• When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen. (p42)
• During the countdown period, all operations are invalid.
• If the correct PIN code number is not input for 3 minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

Turning Off the Projector

1 Press the POWER ON-OFF button on the top control or on the remote control, and a message "Power off?" will appear on the screen.
2 Press the POWER ON-OFF button again to turn off the projector. The POWER indicator will start to blink red, and the cooling fans will keep operating. (You can select the level of fun quietness and rotation speed. See page 49.) At this time you can disconnect the AC power cord even if the fans are still running.
3 When the projector has cooled down enough to be turned on again, the POWER indicator will be red.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

Power off?

The message will disappear after 4 seconds.

√Note:

• When the On start function is on, this projector will be turned on automatically by connecting the AC power cord to an AC outlet. (p46)
• Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and give it a rest about an hour in every 24 hours.
• The running speed of cooling fans is changed according to the temperature inside the projector.
• Do not put the projector in a case before the projector is cooled enough.
• If the WARNING indicator blinks or emits a red light, see "Warning Indicator" on page 53.
• While the POWER indicator is blinking, lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator becomes red to be turned on again.
• For assisting the cooling fans' operation, the projector is equipped with a large capacitor. While the projector is operating, the capacitor charges electricity. When disconnecting the AC plug from AC outlet, cooling fans start to run about 1 minute until the capacitor is discharged.

How to Operate the On-Screen Menu

The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedures.

1 Press the MENU button to display the On-Screen Menu.
2 Press the Point ▶▶buttons to select a Menu icon to adjust and press the Point ▲▼buttons to select an item to adjust.
3 Press the SELECT button to show the item data. To adjust the data, press the Point ◀▶buttons. Refer to the following pages for each adjustment.

To close the On-Screen Menu, press the MENU button again.

√ Note:

The selected item is not active until the SELECT button is pressed.

Top Control

POWER WARNING LAMP REI MENU INPUT KEYSTONE -1 ON OFF MENU button SELECT POINT button (outer ring) -50000 SELECT button

Remote Control

MENU VOLUME SELECT KEYSTONE VOLUME+ POINT buttons AUTO PC IMAGE SELECT button

On-Screen Menu

Contrast Auto Menu bar Pointer (red framed) Pointer (red framed) Press the Point ▲▼ buttons to move the pointer. Item SELECT button

32 32 32 32 32 Item data Press the Point buttons to add value. Quit Exit this menu.

Menu Bar

For detailed functions, see Menu Tree on p60, 61.

For computer source

    A --> F["Input"]
    B --> G["Input Menu"]
    C --> H["SVGA 1"]
    D --> I["Sound Menu"]

    A --> J["PC System Menu"]
    B --> K["Image Select Menu"]
    C --> L["Screen Menu"]
    D --> M["Setting Menu"]

    A --> N["Input to select computer or video. (p26)"]
    B --> O["PC Adjust Menu"]
    C --> P["Image Adjust Menu"]
    D --> Q["Sound Menu"]

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#ffc,stroke:#333
    style F fill:#fff,stroke:#333
    style G fill:#fff,stroke:#333
    style H fill:#fff,stroke:#333
    style I fill:#fff,stroke:#333
    style J fill:#fff,stroke:#333
    style K fill:#fff,stroke:#333
    style L fill:#fff,stroke:#333
    style M fill:#fff,stroke:#333
    style N fill:#fff,stroke:#333
    style O fill:#fff,stroke:#333
    style P fill:#fff,stroke:#333
    style Q fill:#fff,stroke:#333

For video source

    B --> G["Used to select an image level among Dynamic, Standard, Cinema, Blackboard(Green) and Image 1 ~ 4. (p38)"]
    C --> H["Used to set size of image to Normal or Wide. (p41)"]
    D --> I["Used to select system of selected video source. (p37)"]
    E --> J["Used to adjust picture image. [Contrast / Brightness / Color / Tint / Color temp. / White balance (R/G/B) / Sharpness / Gamma / Noise reduction / Progressive"] (p39-40)]
    F --> K["Same function as computer menu."]

Zoom and Focus Adjustment

Rotate the Zoom Ring to zoom in and out.

Rotate the Focus Ring to adjust the projected picture focus.

Focus Ring (Front) Zoom Ring (Rear)

Keystone Correction

If a projected picture has keystone distortion, correct the image with Keystone adjustment.

Press the KEYSTONE button on the top control or on the remote control. The keystone dialog box will appear.

Correct keystone distortion by pressing the Point ▲▼ buttons. Keystone adjustment can be memorized. (p42)

Keystone

• The arrows are white when there is no correction.
• The direction of the arrow being corrected turns red.
- The arrows disappear at the maximum correction.
- If you press the KEYSTONE button on the top control or on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

Reduce the upper width with Point ▲ button.

Reduce the lower width with Point ▼ button.

TOP CONTROL

POWER WARNING LAMP REPLACE MENU INPUT KEYSTONE CHF SELECT VOLUME *VALUE KEYSTONE button POINT ▲▼ buttons

REMOTE CONTROL

KEYSTONE button MENU KEYSTONE VOLUME- POINT ▲▼ buttons SELECT AUTO PC IMAGE D:ZOOM PAGE FREEZE P-TIMER

Sound Adjustment

Direct Operation

Volume

Press the VOLUME+/- buttons on the top control or on the remote control to adjust the volume. The volume dialog box will appear on the screen for a few seconds.

Mute

Press the MUTE button on the remote control to cut off the sound. To restore the sound to its previous level, press the MUTE button again or press the VOLUME+/- buttons. Mute function is also effective for AUDIO OUT jack.

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Sound Menu icon.

2 Press the Point ▲▼ buttons to move the red framed pointer to the item that you want to select, and then press the SELECT button.

Volume

Press the Point ▶ button to turn up the volume, and press the Point ◀ button to turn down the volume.

Mute

Press the Point ◀▶ buttons to cut off the sound. Dialog box display will be changed to "On" and the sound will be cut off. To restore the sound to its previous level, press the Point ◀▶ buttons again.

TOP CONTROL

SELECT VOLUME+ /-buttons -VOUT/0mm -VOLUME

Remote Control

VOLUME- VOLUME+ VOL- button VOL+ button SELECT AUTO PC IMAGE 0 ZOOM PAGE FREEZ P-TIMER NO SHOW MUTE MUTE button

Approximate level of the volume. Volume 15 Mute Off

Press the MUTE button to set the Mute function On or Off. The display will disappear after 4 seconds.

Sound Menu

Volume 15 Off Approximate level of the volume. Sound Menu icon Exit the Sound Menu.

Remote Control Operation

For some frequently used operations, using the remote control is advisable. Just pressing one of the buttons enables you to make the operation, and no need for calling up the On-Screen Menu.

COMPUTER / VIDEO button

Press the COMPUTER or VIDEO button on the remote control to select the input source. For more detail, see p26, 35, 36.

FREEZE button

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button.

Remote Control

COMPUTER /VIDEO button ON-OFF FREEZE button 0.200M PAGE FREEZE P-TIMER NO SHOW MUTE LAMP CONTROL ✓ Note:

• See the next page for the other buttons.

AUTO PC button

Press the AUTO PC button on the remote control to operate the Auto PC function. For more detail, see 28.

D.ZOOM buttons

Press the D.ZOOM buttons on the remote control to zoom in and zoom out the images. For more detail, see 34.

NO SHOW button

Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as "User" in the Logo selection (p43), the screen changes each time you press the NO SHOW button as follows.

black out → the captured image → normal → ....

KEYSTONE button

For detail, see p23.

IMAGE button

Press the IMAGE button on the remote control to select a desired image level of the screen. For more detail, see p31, 38.

P-TIMER button

Press the P-TIMER button on the remote control. The timer display "00 : 00" will appear on the screen and the timer will start to count time (00 : 00 \~ 59 : 59). To stop the P-Timer, press the P-TIMER button. Press the P-TIMER button again, then the P-timer display will disappear.

LAMP CONTROL button

Press the LAMP CONTROL button on the remote control to select the lamp mode for changing the brightness of the screen.

Normal ....normal brightness
Auto ......brightness according with the input signal
Eco ....lower brightness reduces the lamp power consumption and extends the lamp life.

Remote Control

Volume +/- buttons (See p23) AUTO PC button D.ZOOM buttons NO SHOW button MENU VOLUME- SELECT AUTO PC IMAGE PAGE FREEZE P-TIMER NO SHOW MUTE LAMP CONTROL KEYSTONE button (See p22) POINT ▲▼ buttons IMAGE button P-TIMER button LAMP CONTROL button

√ Note:
• See the previous page for the other buttons.

No show

The message will disappear after 4 seconds.

P-Timer display

Input Source Selection

Direct Operation

Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control.

Before using these buttons, correct input source should be selected through Menu operation as described below.

REMOTE CONTROL
    E["*"]

*See Note at the bottom of this page.

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Input Menu icon.
2 Press the Point ▲▼ buttons to move the red arrow pointer to either Computer 1 or Computer 2, and then press the SELECT button.
3 After the Source Select Menu appeared for Computer 1, move the pointer to RGB and then press the SELECT button.

Input Menu Input Input Menu icon Computer1 Computer2 Video Move the pointer (red arrow) to Computer 1 and press the SELECT button

Computer 1 RGB Component RGB(Scart)

Source Select Menu

Move the pointer to RGB and press the SELECT button.

Input Menu

Input Computer1 Computer2 Video Move the pointer (red arrow) to Computer 2 and press the SELECT button.

√ Note:

• Computer 2 is not displayed when the COMPUTER IN 2/MONITOR OUT terminal is set as Monitor out. (p45)
• Computer 2 (COMPUTER IN 2 / MONITOR OUT) can accept only RGB signal.

Computer System Selection

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA or UXGA with its Multi-scan system and Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional setting. (Signal formats provided in this projector is shown on page 63)

One of the following messages may appear when:

Auto

The projector cannot recognize the connected signal conforming to the provided PC Systems. The message "Auto" will be displayed on the PC System Menu icon and the Auto PC Adjustment function will work to display proper images. If the image is not projected properly, a manual adjustment is required. (p29, 30)

----

There is no signal input from computer. Check the connection between your computer and the projector. (See "Troubleshooting" p58)

Mode 1

The preset system is manually adjusted in the PC Adjust Menu. The adjusted data can be stored in Mode 1\~5. (p29, 30)

SVGA 1

PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.

*Mode 1 and SVGA 1 are examples.

PC System Menu

System Auto The Auto PC Adjustment function operates to adjust the projector.

Selecting Computer System Manually

PC system can also be selected manually.

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the PC System Menu icon.

2 Press the Point ▲▼ buttons to move the red arrow pointer to the system that you want to set, and then press the SELECT button.

PC System Menu

System SVGA 1 The PC System Menu icon Selected system is displayed. Systems on this dialog box can be selected. Custom Mode (1~5) set in the PC Adjust Menu. (p28, 30)

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows.

Direct Operation

The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control unit.

Remote Control Unit

SELECT AUTO PC IMAGE D ZOOM PAGE FREEZE P-TIMER NO SHOW MUTE AUTO PC button

Menu Operation

Auto PC Adj.

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to PC Adjust Menu item.
2 Press the Point ▲▼buttons to move the red framed pointer to Auto PC Adj. item and then press the SELECT button twice.

To store adjustment parameters

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in the PC System Menu (p27). See "Store" on page 30.

PC Adjust Menu

Auto PC Adj. SVGA 1 PC Adjust Menu icon Move the red framed pointer to the Auto PC Adj. item and press the SELECT button. "Please wait..." message will appear while Auto PC adjustment is in process.

√ Note:

• Fine sync, Total dots, Horizontal, and Vertical of some computers cannot be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (p29, 30)
• The Auto PC Adjustment cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i, or 1080i is selected in the PC System Menu(p27)

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. It allows you to recall the setting for a specific computer.

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the PC Adjust Menu icon.

2 Press the Point ▲▼ buttons to move the red framed pointer to the item that you want to adjust and then press the SELECT button to display the adjustment dialog box. Press the Point ◀▶ buttons to adjust the value.

Fine sync

Eliminate flicker from the image displayed. Press the Point ◀▶ buttons to adjust the value. (From 0 to 31)

Total dots

Adjust the number of total dots in one horizontal period. Press the Point ◀▶ buttons to adjust number to match your PC image.

Horizontal

Press the Point ◀▶ buttons to adjust the horizontal picture position.

Vertical

Press the Point ◀▶ buttons to adjust the vertical picture position.

Current mode

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Adjust clamp level. When the image has dark bars, try this adjustment.

PC Adjust Menu Auto PC Adj. PC Adjust Menu icon SVGA 1 Move the red framed pointer to an item and press the SELECT button. Status (Stored / Free) of the selected Mode. Selected Mode Auto PC Adj. Mode1 Stored Press the Point ▶buttons to adjust the value. 15 1346 301 39 Press the SELECT button at this item to adjust other items. Current mode Mode1 Stored 640 480 H-sync freq. 48.5 V-sync freq. 60.0 Press the SELECT button at the Current mode item to show the information of the connected computer.

Display area H

Adjust the horizontal area displayed by this projector. Press the Point ◀▶ buttons to decrease/increase the value.

Display area V

Adjust the vertical area displayed by this projector. Press the Point ◀▶ buttons to decrease/increase the value.

Reset

To reset the adjusted data, select Reset and press the SELECT button. The confirmation box will appear and then select [Yes]. All adjustments will return to their previous figures.

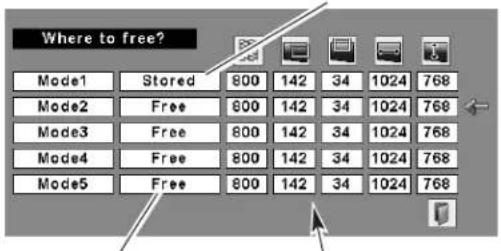

Mode free

To clear the stored data, move the red framed pointer to the Mode free item and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

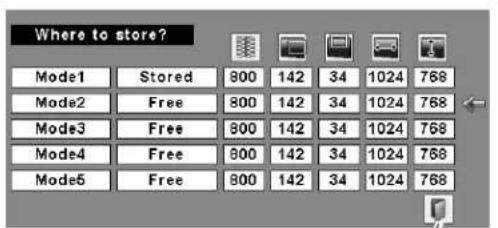

Store

To store adjusted data, move the red framed pointer to the Store item and then press the SELECT button. Move the red arrow pointer to any of Mode 1 to 5 in which you want to store and then press the SELECT button.

Quit

Exit the PC Adjust Menu.

√ Note:

Display area (H/V) cannot be selected when 480i, 575i, 480p, 575p, 720p, 1035i, or 1080i is selected in the PC System Menu (p27).

Mode free Mode1 Stored 1 640 480 Move the red framed pointer to an item and press the SELECT button. This Mode b

To clear adjusted data

This Mode has stored parameters.

Where to free? Mode1 Stored 800 142 34 1024 768 Mode2 Free 800 142 34 1024 768 Mode3 Free 800 142 34 1024 768 Mode4 Free 800 142 34 1024 768 Mode5 Free 800 142 34 1024 768

Vacant Mode

Values of "Total dots," "Horizontal," "Vertical," "Display area H," and "Display area V."

To store adjusted data

Where to store? Mode1 Stored 800 142 34 1024 768 Mode2 Free 800 142 34 1024 768 Mode3 Free 800 142 34 1024 768 Mode4 Free 800 142 34 1024 768 Mode5 Free 800 142 34 1024 768

Close this dialog box.

Image Level Selection

Direct Operation

Select an image level among Dynamic, Standard, Real, Blackboard(Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

Dynamic

Picture level suitable for viewing picture in a bright room.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard.

This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Image 1\~4

User preset image in the Image Adjust Menu (p33).

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Image Select Menu icon.

2 Press the Point ▲▼ buttons to move the red framed pointer to the level that you want to set and then press the SELECT button.

Dynamic

Picture level suitable for viewing picture in a bright room.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard. See above for further description.

Image 1\~4

User preset image in the Image Adjust Menu (p33).

Remote Control

SELECT AUTO PC IMAGE B.200M PAGE FREEZE P-T AER NO SHOW M TE IMAGE button

IMAGE button

Image Select Menu Standard SVGA 1 Move the red framed pointer to the level and press the SELECT button. The level being selected.

Image Level Adjustment

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Image Adjust Menu icon.

2 Press the Point ▲▼ buttons to move the red framed pointer to the item that you want to adjust, and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point ◀▶ buttons.

Contrast

Press the Point ◀ button to decrease the contrast and the Point ▶ button to increase contrast. (From 0 to 63.)

Brightness

Press the Point ◀ button to adjust the image darker and the Point ▶ button to adjust the image brighter. (From 0 to 63.)

Color temp.

Press the Point ◀ button or the Point ▶ button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

White balance (Red)

Press the Point ◀ button to lighten the red tone and the Point ▶ button to deepen the red tone. (From 0 to 63.)

White balance (Green)

Press the Point ◀ button to lighten the green tone and the Point ▶ button to deepen the green tone. (From 0 to 63.)

White balance (Blue)

Press the Point ◀ button to lighten the blue tone and the Point ▶ button to deepen the blue tone. (From 0 to 63.)

Sharpness

Press the Point ◀ button to soften the image and the Point ▶ button to sharpen the image. (From 0 to 15.)

Gamma

Press the Point ◀▶ buttons to obtain better balance of contrast. (From 0 to 15.)

Reset

To reset the adjusted data, select Reset and press the SELECT button. The confirmation box will appear and then select [Yes]. All adjustments will return to their previous figures.

Image Adjust Menu

Contrast SVGA 1 Image Adjust Menu icon Move the red framed pointer to the item to be selected and then press the SELECT button. Selected Image level Contrast Standard 32 32 Mid 32 32 32 Press the Point ▶ buttons to adjust the value.

√Note:

After adjusting any of the White balance Red, Green or Blue, the Color temp will change to "Adj.".

Store

To store the adjusted data, select Store and press the SELECT button. Select a level from Image 1 to 4 with the Point ▲▼ buttons and press the SELECT button. A confirmation box will appear and then select [Yes]. Stored data can be called up by selecting "Image" in the Image Level Selection on page 31.

Quit

Exit the Image Adjust Menu.

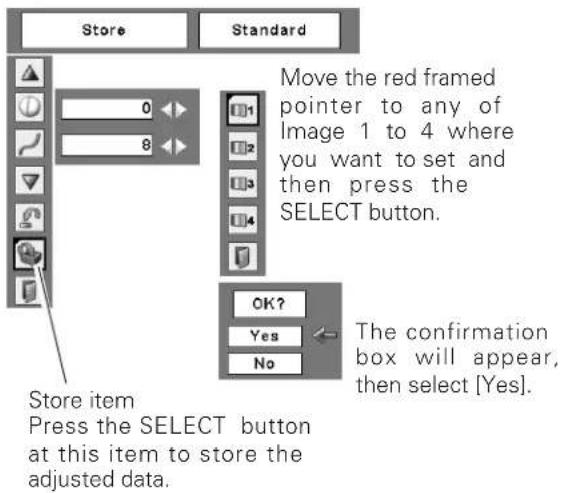

Store Standard Move the red framed pointer to any of Image 1 to 4 where you want to set and then press the SELECT button. OK? Yes No The confirmation box will appear, then select [Yes]. Store item Press the SELECT button at this item to store the adjusted data.

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Screen Menu icon.

2 Press the Point ▲▼ buttons and move the red framed pointer to the function that you want to select and then press the SELECT button.

Normal

Provide the image to fit the screen size.

True

Provide the image in its original size. When the original image size is larger than the screen size (1024 x 768), this projector enters panning mode automatically. Pan the image with Point ▲▼◀▶ buttons. When adjusted, the arrows will turn red. When reached to the correction limit, the arrows will disappear.

Wide

Provide the image to fit wide video aspect ratio (16:9) by expanding the image width uniformly. This function can be used for providing a squeezed video signal at 16:9.

Full screen

Provide the full screen image.

Screen Menu

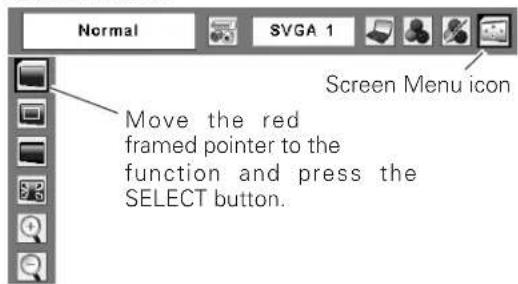

Normal SVGA 1 Screen Menu icon Move the red framed pointer to the function and press the SELECT button.

√ Note:

• This Screen Menu cannot be operated when 720p(HDTV), 1035i (HDTV), or 1080i (HDTV) is selected in the PC System Menu (p27).
• PLC-XE30 cannot display any resolution higher than 1600 × 1200 . If your computer's screen resolution is higher than it, reset the resolution to the lower before connecting to the projector.
  • The image data in other than 1024 x 768 is modified to fit the screen size in initial mode.
• True, Full screen, and Digital zoom +/- cannot be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p27).

For zooming in and out the images

Digital zoom +

When the Digital zoom + is selected, the On-Screen Menu will disappear and the message "D. zoom +" will be displayed. Press the SELECT button to expand the image size. And press the Point ▲▼◀▶ buttons to pan the image. The Panning function can work only when the image is larger than the screen size.

A projected image can be also expanded by pressing the D.ZOOM ▲button on the remote control.

Digital zoom -

When Digital zoom – is selected, the On-Screen Menu will disappear and the message "D. zoom –" will be displayed. Press the SELECT button to compress image size.

A projected image can be also compressed by pressing the D.ZOOM ▼button on the remote control.

To exit the Digital zoom +/- mode, press any button except the D.ZOOM ▲▼buttons, SELECT, and Point button.

To return to the previous screen size, select a screen size from the Screen Size Adjustment or select an input source from the Input Source Selection (p26) again, or adjust the screen size with the D.ZOOM ▲▼ buttons.

Remote Control

MENU KEYSTONE VOLUME- VOLUME+ SELECT AUTO PC IMAGE D.ZOOM PAGE FREEZG P-TIMER NO SHOW MUTE POINT buttons SELECT button D.ZOOM + button D.ZOOM - button

√ Note:

• The panning function may not operate properly if the stored Mode in the PC Adjust Menu is used. (p30)
• The minimum compression ratio can be limited depending on the input signal or when the Keystone function is working.
- True, Full screen, and Digital zoom +/- cannot be selected when 480i, 575i, 480p, or 575p is selected in the PC System Menu (p27)
- Digital zoom +/- cannot be selected when Full screen or True is selected.

Input Source Selection (Video, S-Video)

Direct Operation

Choose Video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

*See Note at the bottom of this page.

REMOTE CONTROL

COMPUTER VIDEO ON-OFF VIDEO button

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Input Menu icon.
2 Press the Point ▲▼ buttons to move the red arrow pointer to Video and then press the SELECT button to display the Source Select Menu.
3 Move the pointer to the source that you want to select and then press the SELECT button.

Auto

When selecting Auto, the projector automatically detects incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order:

1. S-Video
2. Video

Input Menu icon Input SVGA 1 Move the pointer to Video and press the SELECT button.

VIDEO Auto Video S-video

Source Select Menu (VIDEO)

Move the pointer to the source that you want to select and press the SELECT button.

Video

When video input signal is connected to the VIDEO jack, select Video.

S-Video

When video input signal is connected to the S-VIDEO jack, select S-Video.

√ Note:

When Monitor out is selected in the Terminal function (p45), Computer 2 is not displayed.

Input Source Selection (Component, RGB Scart 21-pin)

Direct Operation

Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control.

Before using these buttons, correct input source should be selected through Menu operation as described below.

REMOTE CONTROL
    E["*"]

*See Note at the bottom of this page.

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Input Menu icon.
2 Press the Point ▲▼ buttons to move the red arrow pointer to Computer 1 and then press the SELECT button.
3 After the Source Select Menu appeared for Computer 1, move the pointer to Component or RGB(Scart) and then press the SELECT button.

Component

When the input source is coming from video equipment connected to the COMPUTER IN 1 / COMPONENT IN terminal with a Component-VGA Cable, select Component.

Input Menu Input Computer1 Computer2 Video Computer 1 Input Menu icon Move the pointer (red arrow) to Computer 1 and press the SELECT button. Source Select Menu Move the pointer to Component or RGB(Scart) and press the SELECT button.

RGB (Scart)

When the input source is coming from video equipment connected to the COMPUTER IN 1 / COMPONENT IN terminal with a Scart-VGA Cable, select RGB (Scart).

Source Select Menu

Move the pointer to Component or RGB(Scart) and press the SELECT button.

Video System Selection

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the AV System Menu icon.
2 Press the Point ▲▼ buttons to move the red arrow pointer to the system that you want to select and then press the SELECT button.

Video or S-Video

Auto

The projector automatically detects incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

AV System Menu (Video or S-Video)

System Auto AV System Menu icon Selected system is displayed. Move the pointer to a system and press the SELECT button.

Component

Auto

The projector automatically detects incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

AV System Menu (Component)

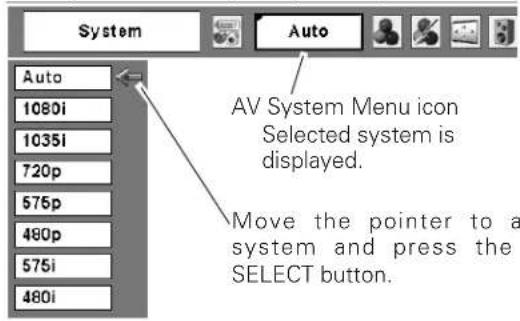

System Auto 1080i 1035i 720p 576p 480p 575i 480i AV System Menu icon Selected system is displayed. Move the pointer to a system and press the SELECT button.

√ Note:

The AV System Menu cannot be selected when selecting RGB(Scart).

Image Level Selection

Direct Operation

Select a desired image level among Dynamic, Standard, Cinema, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

Dynamic

Picture level suitable for viewing picture in a bright room.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard(Green)

Picture level suitable for the image projected on a blackboard.

This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Image 1\~4

User preset image in the Image Adjust Menu (p39, 40).

Menu Operation

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Image Select Menu icon.

2 Press the Point ▲▼ buttons to move the red framed pointer to the level that you want to set and then press the SELECT button.

Dynamic

Picture level suitable for viewing picture in a bright room.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard(Green)

Picture level suitable for the image projected on a Blackboard. See above for further description.

Image1\~4

User preset image in the Image Adjust Menu (p39, 40).

Remote Control

SELECT AUTO PC IMAGE D:200M PAGE FREEZE P-T AER NO SHOW M TE IMAGE button

IMAGE button

Image Select Menu Standard Auto Image Select Menu icon Move the red framed pointer to a level and press the SELECT button. The level being selected.

Image Level Adjustment

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Image Adjust Menu icon.
2 Press the Point ▲▼ buttons to move the red framed pointer to the item that you want to adjust and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point ◀▶buttons.

Contrast

Press the Point ◀ button to decrease the contrast and the Point ▶ button to increase contrast. (From 0 to 63.)

Brightness

Press the Point ◀ button to adjust the image darker and the Point ▶ button to adjust the image brighter. (From 0 to 63.)

Color

Press the Point ◀ button to lighten the color and the Point ▶ button to deepen the color. (From 0 to 63.)

Tint

Press the Point ◀▶ buttons to obtain a proper color. (From 0 to 63.)

Color temp.

Press the Point ◀▶ buttons for Color temp. level that you want to select. (XLow, Low, Mid, or High)

White balance (Red)

Press the Point ◀ button to lighten the red tone and the Point ▶ button to deepen the red tone. (From 0 to 63.)

White balance (Green)

Press the Point ◀ button to lighten the green tone and the Point ▶ button to deepen the green tone. (From 0 to 63.)

White balance (Blue)

Press the Point ◀ button to lighten the blue tone and the Point ▶ button to deepen the blue tone. (From 0 to 63.)

√ Note:

• The Tint cannot be selected when the video system is PAL, SECAM, PAL-M, or PAL-N.
  • After adjusting any of the White balance Red, Green or Blue, the Color temp. will change to "Adj."

Image Adjust Menu

Contrast Auto Image Adjust Menu icon Move the red framed pointer to the item you want to adjust and then press the SELECT button. Contrast Standard 32 Press the Point ◀► buttons to adjust the value. Press the SELECT button at this item to display other items. Red Standard Mid 32 Press the SELECT button at this item to display previous items.

Sharpness

Press the Point ◀ button to soften the image and the Point ▶ button to sharpen the image. (From 0 to 15.)

Gamma

Press the Point ◀▶ buttons to obtain better balance of contrast. (From 0 to 15.)

Noise reduction

Noise interference on the screen can be reduced. Select one of the following to get smoother images.

Off.....disabled.

L1.....lower reduction

L2.....higher reduction

Progressive

Interlaced video signal can be displayed in a progressive picture. Select one of the following.

Off......disabled.

L1.....Select "L1" for an active picture.

L2......Select "L2" for a still picture.

Film ......Select "Film" for watching a film. With this function, the projector reproduces pictures faithful to the original film quality.

Reset

To reset the adjusted data, select Reset and press the SELECT button. The confirmation box will appear and then select [Yes]. All adjustments will return to their previous figures.

Store

To store the adjusted data, select Store and press the SELECT button. Select a level from Image 1 to 4 with the Point ▲▼ buttons and press the SELECT button. A confirmation box will appear and then select [Yes]. Stored data can be called up by selecting "Image" in the Image Level Selection on page 38.

Quit

Exit the Image Adjust Menu.

Note:

Noise reduction and Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is selected. (p37)

Store Standard L1 Off Store item Image Level Menu

Image Level Menu
Move the red framed pointer to an image item to be set and then press the SELECT button.

The confirmation box will appear and then select [Yes].

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Screen Menu icon.

Screen Menu

Screen Menu icon

2 Press the Point ▲▼ buttons and move the red framed pointer to the function that you want to select and then press the SELECT button.

Move the red framed pointer to a function and press the SELECT button.

Normal

Provide the image at a normal video aspect ratio of 4:3.

Wide

Provide the image at a wide screen ratio of 16:9.

√ Note:

Screen Menu cannot be operated when 720p, 1035i, or 1080i is selected in the AV System Menu (p37).

Setting

This projector has Setting menu that allows you to set up the other various functions described as follows;

1 Press the MENU button to display the On-Screen Menu. Press the Point ◀▶buttons to move the red framed pointer to the Setting Menu icon.

2 Press the Point ▲▼buttons to move the red framed pointer to the item that you want to set and then press the SELECT button. The Setting dialog box appears.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, or Japanese.

Keystone

This function corrects distortion of a projected image. Select either Store or Reset with the Point ◀▶ buttons, and then press the SELECT button. The keystone dialog box will appear. Correct keystone with the Point ▲▼ buttons. (p23)

Store ......store the keystone correction even when the AC power cord is unplugged.

Reset ......reset the keystone correction when the AC power cord is unplugged.

Blue back

Press the Point ◀▶ buttons to switch On/Off. When this function is "On," a blue image is displayed while the input signal is not detected.

Display

Press the Point ◀▶ buttons to switch On/Off. This function decides to display On-Screen Displays.

On ....Show all the On-Screen Displays. Use this function when you want to project images after the lamp becomes bright enough. Factory default setting is this mode.

Countdown off .....Show the input image instead of the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Off....Do not show On-Screen Displays. except;

• On-Screen Menu
  ●"Power off?" message
  ● P-Timer
  ● "No signal" message for Power management item (p45)
  ● "Please wait..." message
  ● White arrows for True item in the Screen Menu (p33)

Setting Menu (Language)

Set the red framed pointer to the item and press the SELECT button. Setting Menu icon Press the SELECT button at Language item, the Language Menu will appear.

Language SVGA 1 English Store On On Off Off Computer2 English Deutsch Français Italiano Español Portugues Nederlands Svenska Press the SELECT button at this item to display the other languages.

Language SVGA 1 English Store On On Off Off Computer2 Suomen Kiell Polski Magyar Romana Русский 中文 韩语 日本語

Press the SELECT button at this item to close the dialog box.

Logo (Logo and Logo PIN code lock settings)

This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions.

Note:

When On is selected in Logo PIN code lock function, Logo select and Capture functions cannot be selected.

Logo select

This function decides the start-up display as follows:

User ......the image you captured

Default .....the factory-set logo

Off.....countdown only

Capture

This function enables you to capture the image being projected and use it for a start-up display or interval of presentations.

After capturing the projected image, go to the Logo select function and set it to "User". Then the captured image will be displayed when turning on the projector next time or pressing the NO SHOW button. (p25)

To capture the image, select [Yes]. To cancel the Capture function, select [No].

Note:

• Before capturing an image, select Standard in the Image Select Menu to capture a proper image. (p31, 38.)
• A signal from a computer can be captured up to XGA(1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.
• When capturing the image that has been adjusted by the Keystone function, the adjustment data is automatically reset and the projector captures an image without keystone adjustment.
• When the Logo PIN code lock function is On, Capture menu cannot be selected.
• When starting to capture a new image, the previously stored image is cleared even if you cancel the capturing.

Logo select

Logo SVGA 1 English Store On On Off Off Computer2 Default Off

Capture

Logo SVGA 1 English Store On On Off Off Computer2 Default Off OK? Yes No

Select [Yes] to capture the projected image.

Quit? Yes No Select [Yes] to stop capturing

Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.

Off.....the screen logo can be changed freely from the Logo select menu. (p43)

On ....the screen logo cannot be changed without the Logo PIN code.

If you want to change the Logo PIN code lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set "4321" at the factory.

Enter a Logo PIN code

Select a number by pressing the Point ◀▶ buttons and fix the number with the SELECT button. The number will change to "*". If you fixed an incorrect number, move the pointer to "Set" or "Clear" once by pressing the Point ▼ button, then return to "Logo PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the Logo PIN code lock setting.

If you entered an incorrect Logo PIN code, "Logo PIN code" and the number (****) will turn red and disappear. Enter a correct Logo PIN code all over again.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit number. Select "Logo PIN code change" with the Point ▼ button and press the SELECT button. Set a new Logo PIN code.

Be sure to note the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN code lock function on page 47, 48.

CAUTION:

WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 67, AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE PROJECTOR CAN NO LONGER BE OPERATED.

Logo PIN code lock

Logo SVGA 1 English Store On On Off Off Computer2 Default Off

Logo PIN code lock Dialog Box

Logo PIN code Set Clear Quit Pointer

After a correct Logo PIN code is entered, the following dialog box will appear.

Select On/Off by pressing the Point buttons or change the Logo PIN code.

Ceiling

When this function is "On," the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is "On," the picture will be left/right reversed. This function is used to project the image to a rear projection screen.

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point ◀ buttons.

Computer 2 ....computer input

Monitor Out ...monitor out

Terminal function is not available when selecting Computer 2 to the input source. Change the input source to the others (Computer1 or Video) so that the Terminal function will be available. (p26, 35, 36)

Power management

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the input signal is interrupted and no button is pressed for a certain period.

When the input signal is interrupted and no button is pressed for 30 seconds or more, the timer display with "No signal" message will appear. The countdown will start to turn off the lamp.

Select one of the operations.

Ready ....When the lamp has been fully cooled down, the POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control unit is pressed.

Shut down .....When the lamp has been fully cooled down, the power will be turned off.

Off .....Power management function is off.

Then set the countdown timer with the Point ◀▶ buttons.

Ceiling

Rear

Diagram illustrating the transformation of a mountain range into a circular region, with directional arrow indicating progression.

Power management

Time left before Lamp is off.

Power management Ready Off Code1 L2 Ready 5 Min Press the SELECT button at Power management and this box will appear. Choose one of three settings with the Point ▶▶ buttons, and go to the timer with the Point ▲▼ buttons and se

Press the SELECT button at Power management and this box will appear. Choose one of three settings with the Point ◀▶ buttons, and go to the timer with the Point ▲▼ buttons and set time with the Point ◀▶ buttons.

On start

When this function is "On", the projector will be automatically turned on just by connecting the AC power cord to a wall outlet.

Note:

Be sure to turn the projector off properly (see "Turning Off the Projector" on page 20). If the projector is turned off in the incorrect sequence, the On start function does not operate properly.

Lamp control

This function allows you to change brightness of the screen.

Normal ....normal brightness
Auto ......brightness according with the input signal
Eco ....lower brightness reduces the lamp power consumption and extends the lamp life.

On start SVGA 1 Ready Off Code1 L1

Remote control

This projector provides two different remote control codes; the factory-set, initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. When operating the projector in "Code 2", both the projector and the remote control must be switched to "Code 2".

To change the code for the projector;

Select either "Code 1" or "Code 2" in this Setting Menu.

To change the code for the remote control;

Press and hold both the MENU and IMAGE buttons together for 10 seconds or more. After changing the code, make sure the remote control operates properly.

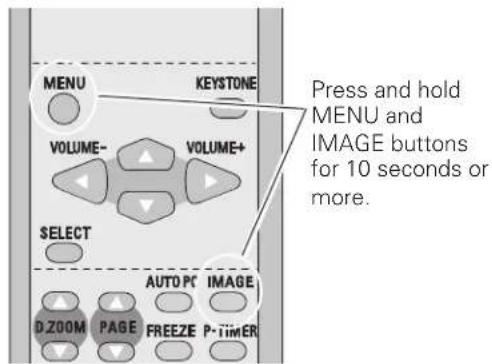

Remote control

MENU KEYSTONE VOLUME- VOLUME+ SELECT AUTO PC IMAGE D.ZOOM PAGE FREEZE P-TIMER Press and hold MENU and IMAGE buttons for 10 seconds or more.

Security (Key lock and PIN code lock settings)

This function allows you to use Key lock and PIN code lock function to set the security for the projector operation.

Key lock

This function locks operation of the top control or the remote control.

It is useful to prevent operation by an unauthorized person.

... not locked.

.... lock the operation of the top control.

To unlock, use the remote control.

.... lock the operation of the remote control.

To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby, disconnect the AC power cord from the AC outlet, and then with pressing the SELECT button, reinsert the AC power cord. This will cancel the top control lock.

PIN code lock

This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options.

Off.....the projector is not locked with the PIN code.

On1 .....require to enter the PIN code every time turning on the projector.

On2 .....require to enter the PIN code to operate the projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without the PIN code.

Whenever to change the PIN code lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. "1234" is set as the initial PIN code at the factory.

Key lock

Security SVGA 1 Ready Off A Code1 L2 Off Select Key lock. Choose or of the alternatives, with t

Select Key lock. Choose one of the alternatives with the Point ▲▼ buttons and select [Yes] to activate it.

PIN code lock

Security SVGA 1 Ready Off A Code1 L2 On When the projector is locked with the PIN code, the PIN

When the projector is locked with the PIN code, the PIN code lock mark appears on the menu bar.

Enter a PIN code

Select a number by pressing the Point ▶▶ buttons and fix the number with the SELECT button. The number will change to "*". If you fixed an incorrect number, move the pointer to "Set" or "Clear" once by pressing the Point ▼ button, then return to "PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the following PIN code lock settings.

If you entered an incorrect PIN code, "PIN code" and the number (****) will turn red and disappear. Enter a correct PIN code all over again.

To Change the PIN code lock setting

Select Off, On1, or On2 with the Point ◀▶ buttons and then move the red framed pointer to "Quit" with the Point ▼ button. Press the SELECT button to close the dialog box.

To Change the PIN code

The PIN code can be changed to your desired four-digit number.

Select "PIN code change" with the Point ▼ button, and press the SELECT button to display the New PIN code input dialog box.

Select a number with the Point ◀▶buttons and fix the number with the SELECT button. Repeat it to complete entering a four-digit number. When the four-digit number is fixed, the pointer will automatically move to "Set". Then press the SELECT button.

CAUTION:

WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 67, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.

Enter a PIN code

When the pointer automatically moves to "Set", press the SELECT button.

Change the PIN code lock setting

PIN code lock On1 PIN code change 0 Select a desired setting with the Point ◀▶ buttons.

Change the PIN code

PIN code lock On1 PIN code change Select PIN code change and press the SELECT button. The New PIN code input dialog box will appear. New PIN code 2 1 Set Clear

The input numbers are being displayed for confirmation.

Fan

This function provides the following alternatives in the cooling fans' operation after turning off the projector. (p20) L1 .....normal operation L2 .....slower and lower-sound than the normal operation (L1), but it takes longer to cool the projector down.

Lamp counter

This function is used to reset the lamp replacement counter. When replacing the projection lamp, reset the lamp replacement counter by using this function. See page 57 for operation.

Factory default

This function returns all setting values except for the user logo, PIN code lock, Logo PIN code lock and the lamp counter to the factory default settings.

Quit

Exit the Setting Menu.

Factory default

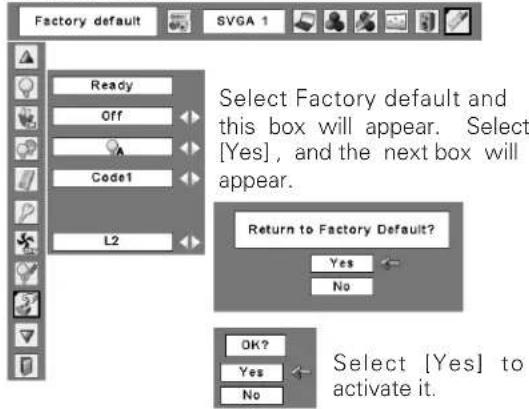

Factory default Ready Off Code1 L2 Select Factory default and this box will appear. Select [Yes], and the next box will appear. Return to Factory Default? Yes No OK? Yes No Select [Yes] to activate it.

How to Use the Antitheft Alarm Function

This function is used for the projector security. With this function on, the alarm will ring when unauthorized person tries to move the projector.

The Antitheft alarm function is to prevent the projector from stealing and is not a guarantee against stealing.

√ Note:

• The Antitheft alarm function does not work while the AC power cord is connected.
• Pressing the button is always accompanied by some sound. If any sound is not produced after pressing the button, you need to press it again.

Install a battery

Before operating the Antitheft alarm function, install a battery in the projector. (see p52 for installation)

Set and Release the Antitheft alarm function

Set the alarm

1 Make sure that the AC power cord is disconnected and a battery is installed.
2 Press the F button twice to turn the alarm function on. The ALARM indicator will blink for a few seconds and the projector will enter the warning mode.

While the Antitheft function is on, the projector emits a low-pitched sound when detecting a vibration.

When the projector does not detect a vibration for a few seconds after the low-pitched sound, it will go back to the warning mode.

When the projector detects more vibrations after the low-pitched sound, the alarm will start ringing.

Side Control

【( ALARM )】 ALARM indicator F 1 2 3 F button button 1, 2, 3

√ Note:

• You can test the alarming sound without setting the alarm. Press and hold the F button then the alarm will start ringing. The length of the ringing time is what you set in the setting menu. (p51)
• If you want to stop the alarm while it is ringing, insert the AC cord or press the F button and input four-digit PIN code.

Settings

Set the sensitivity

Press the button 1 and then press the F button.

Then press one of the buttons below to select the sensitivity. After completing the setting, you will hear the high-pitched confirmation sound.

Button 1 ......highly sensitive (default setting)

Button 2 ......normal sensitivity

Button 3 ......less sensitive

√ Note:

- This setting can be made only when the Antitheft alarm function is off.

Set the length of alarm ringing time

Press the button 2 and then press the F button.

Then press one of the buttons below to select the length of alarm ringing time. After completing the setting, you will hear the high-pitched confirmation sound.

Button 1 ......about 10 seconds (default setting)

Button 2 ......about 60 seconds

Button 3 ....until the end of the battery life

√ Note:

• This setting can be made only when the Antitheft alarm function is off.
• When selecting Button 3, the length of alarm ringing time differs depending on the battery life.

Change the PIN code

1 Press the F button and input the four-digit PIN code within about 10 seconds. The ALARM indicator will blink red for a few seconds and high-pitched confirmation sound will be made.
2 While the indicator is blinking, input new PIN code then you will hear the high-pitched confirmation sound and the ALARM indicator will be off.

When inputting an incorrect PIN code, you will hear low-pitched sound. If you input incorrect PIN codes 3 times, the alarm will start ringing.

A PIN code for Antitheft alarm function is the combination of 1, 2, or 3. Input the PIN code with the button 1, 2, and 3. The default PIN code is set as "1111".

Side Control

【(ALARM)】 ALARM indicator F 1 2 3 F button button 1, 2, 3

CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN THE COLUMN OF THE PIN CODE NO. MEMO ON PAGE 67, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, SOME SETTINGS OF THE ALARM FUNCTION CAN NO LONGER BE CHANGED.

How to install the battery

To use the Antitheft alarm function, a battery needs to be installed. (Use a CR2 3V lithium battery.)

To install the battery, remove the screw and open the battery cover on the bottom of the projector.

When the battery is installed properly, the ALARM indicator will blink for a few seconds.

After placing the battery, put the cover back and secure it with the screw.

When the life of the battery draws to an end, the ALARM indicator will flash and warning sound will be made at some intervals.

Replace the battery with following the procedures above.

√ Note:

• Even after changing the battery, the PIN code you have changed and settings you have made is effective.
- When changing the battery, set the Antitheft function off. Otherwise the alarm will start ringing when you try to open the battery cover.

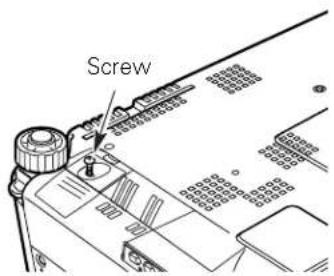

Screw

Loosen the screw and open the battery cover

Install the battery then replace the battery cover and secure it with the screw.

To insure safe operation, please observe the following precautions:

●Do not keep the battery with mixing with wire or metal products to avoid causing a short.
- Keep the battery away from babies and children to prevent them from swallowing it.
●Do not charge the battery.
●Do not disassemble, or apply pressure to transform the battery.
●Avoid contact with water or liquid.
●Do not expose to moisture or heat.
- If the battery has leaked, carefully wipe the battery compartment clean and install new battery.
- Do not replace the battery with an incorrect type or in a incorrect direction.
- Dispose of used battery after insulating the battery with putting insulating tape on either or both sides on the top/bottom of the battery.
●Dispose of used battery with following local regulations.

Warning Indicator

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

The projector is shut down and the WARNING indicator is blinking red.

When the temperature inside the projector reaches a certain level, the projector will be automatically shut down to protect the inside of the projector. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down sufficiently (to its normal operating temperature), it can be turned on again by pressing the POWER ON-OFF button.

TOP CONTROL WARNING blinking red POWER WARNING LAMP REPLACE Φ-ION: OFF MENU INPUT KEYSTONE SELECT +VOLUME +VOLUME

√ Note:

After the temperature inside the projector returns to normal, the WARNING indicator still continues to blink. When the projector is turned on again, the WARNING indicator stops blinking.

Then check the matters below:

• Did you provide appropriate space for the projector to be ventilated? Check the installing condition to see if ventilation slots are not blocked.
• Is the projector not installed near the ventilation duct of air-conditioning equipment which may be hot? Install the projector away from the ventilation duct of air-conditioning equipment.
• Are the air filters clean? Clean the air filters periodically. (p54)

The projector is shut down and the WARNING indicator emits a red light.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside and the WARNING indicator will be red. In this case, disconnect the AC power cord and reconnect it, and then turn the projector on once again for check. If the projector cannot be turned on and the WARNING indicator emits a red light, disconnect the AC power cord and contact the service station for check and repair.

TOP CONTROL WARNING emit a red light POWER WARNING LAMP REPLACE ON/OFF MENU INPUT KEYSTONE SELECT VOLUME VOLUME

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER THE ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Cleaning the Air Filters

Air filters prevent dust from accumulating on the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans' effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the air filters following the steps below.

1 Turn off the projector, and disconnect the AC power cord from the AC outlet.
2 Turn over the projector and remove the air filters by pulling the latches upward.
3 Clean the air filters with a brush or rinse them softly.
4 When cleaning the air filters by rinsing, dry them well. Replace the air filters properly. Make sure that the air filters are fully inserted.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the optical elements degrading picture quality.

Do not put small parts into the air intake vents. It may result in malfunction of the projector.

Air filters Pull up and remove.

√ Note:

When reinserting this air filter, be sure that the slit part is facing the outer side.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector. This condition may degrade the quality of a projected image.

When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

Attaching the Lens Cover

When moving this projector or while not using it over an extended period of time, replace the lens cover.

Attach the lens cover according to the following procedures.

1 Pass the string through a hole of the lens cover.
2 Turn over the projector and remove the screw with a screwdriver.
3 Attach the string with lens cover to a hole at the bottom of the projector and secure it with a screw.

Lens Cover String for the lens cover Secure it to the hole with a screw. Hole

Cleaning the Projection Lens

Follow these steps to clean the projection lens.

1 Disconnect the AC power cord before cleaning.
2 Softly wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use lens cleaning paper or a commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.
3 When the projector is not in use, replace the lens cover.

Line drawing of a hand inserting a button into a projector (no text or symbols)

Cleaning the Projector Cabinet

Follow these steps to clean the projector cabinet.

1 Disconnect the AC power cord before cleaning.
2 Softly wipe the projector body with a soft, dry cleaning cloth. When it is heavily soiled, use a small amount of mild detergent and finish with a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.
3 When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.

Line drawing of a hand cleaning a projector case with a scroll wheel (no text or symbols)

Lamp Replacement

When the life of the projection lamp of this projector draws to an end, the LAMP REPLACE indicator emits a yellow light. If this indicator lights yellow, replace the lamp with a new one promptly.

WARNING:

TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER

This indicator is yellow when the life of the projection lamp draws to an end.

Top Control

CAUTION

Allow a projector to cool, for at least 45 minutes before you open the Lamp cover. The inside of the projector can become very hot.

CAUTION

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

Follow these steps to replace the lamp.

1 Turn off the projector and disconnect the AC power cord. Allow the projector to cool for at least 45 minutes.

2 Remove the screw with a screwdriver, and remove the lamp cover.

3 Remove 2 screws of the lamp with a screwdriver and pull out the lamp by grasping the handle.

4 Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is set properly. Replace the lamp cover and tighten the screw.

5 Connect the AC power cord to the projector and turn on the projector.

6 Reset the lamp replacement counter. See "Lamp Replacement Counter" on the next page.

Lamp Cover Screw Lamp Screw Handle

Do not open the little compartment. This is used to service the projector.

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

● Model No. of your projector : PLC-XE30

●Replacement Lamp Type No.: POA-LMP93

(Service Parts No. 610 323 0719)

Lamp Replacement Counter

Be sure to reset the Lamp replacement counter after the lamp is replaced. When the Lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting.

1 Turn the projector on, press the MENU button to display the On-Screen Menu. Press the Point ◀▶ buttons to move the red framed pointer to the Setting Menu icon.
2 Press the Point ▲▼ buttons to move the red framed pointer to the Lamp counter function and then press the SELECT button. The first dialog box appears and shows the total accumulated time of the lamp usage and the reset option. If you select "Reset", a "Lamp replacement counter Reset?" message will appear. Select [Yes] to continue.
3 Another confirmation dialog box will appear, select [Yes] to reset the Lamp replacement counter.

√Note:

Do not reset the Lamp replacement counter without implementation of lamp replacement. Be sure to reset the Lamp replacement counter only after replacing the lamp.

Lamp counter SVGA 1 Ready Off Code1 L1 100 Hour(s) Reset To reset the lamp counter, move the pointer to Reset a then press the SELECT button. "Lamp replacement count Reset?" dialog box will displayed. Lamp replacement counter Reset? Yes No Select [Yes], then another confirmation box will appear. OK? Yes No Select [Yes] again to reset the lamp counter.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

• Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.
• If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
  ● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector's AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

• Make sure you have properly connected the projector to peripheral equipment as described on page16-18.
• Make sure all equipment is connected to AC outlet and the power is turned on.
• When you operate the projector with a computer and it does not project an image, restart the computer.

Problem: - Solutions

No power	- Plug the power cord of the projector into the AC outlet.- See if the POWER indicator lights red.- Wait 90-120 seconds after the projector is turned off when turning the projector back on. The projector can be turned on after the POWER indicator turns red. (See on page 20.)- Check the WARNING indicator. If the WARNING indicator lights red, the projector cannot be turned on. (See on page 53.)- Check the projection lamp. (See page 56.)- Unlock Key lock for the projector Key lock function. (See page 47.)
Image is out of focus.	- Adjust focus of the projector. (See page 23.)- Provide proper distance between the projector and the projection screen. (See page 14.)- Check the projection lens to see if it needs cleaning. (See page 55.)- Moving the projector from a cool to a warm place may result in moisture condensation on the projection lens. In such cases, leave the projector off and wait until condensation evaporates.
No image	- Check the connection between your computer or video equipment and the projector. (See page 16–18)- See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector. See your computer's instruction manual for the setting.- It takes about 30 seconds to display an image after turning on the projector.See if the selected system is corresponding with your computer or video equipment. (See page 27 and 37)- Select correct input source once again through menu operation. (See page 26 ,35 and 36)- Make sure the temperature is not out of the specified Operating Temperature (41 °F ~ 95 °F (5 °C ~ 35 °C)).
Image is Left/Right reversed.Image is Top/Bottom reversed.	- Check the Ceiling / Rear function. (See page 45.)- Check the Ceiling function. (See page 45.)
No sound - Check audio cable connection from audio input source.- Adjust the audio source.- Press the Volume+ button. (See page 24.)- Press the Mute button. (See page 24.)
Some displays are not seen –Check the Display function. (See page 42.) during the operation.
PIN code dialog box appears at start-up.	-PIN code lock is being set. Input a PIN code (1234 or numbers you have set). (See page 19, 47, 48.)
Computer 2 cannot be selected. –Select Computer 2 at the Terminal function. (See page 45.)
The Terminal function cannot be selected.	-The Terminal function cannot be selected after Computer 2 is selected. Select other input source such as Computer 1 or Video with the INPUT button on the top control, the COMPUTER button or the VIDEO button on the remote control so that the Terminal function can be selected.
The Remote Control does not work. –Check the batteries.-Make sure no obstruction is between the projector and remote control.-Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4' (5m).-Make sure the code of the remote control is conformed to the projector. (See page 46.)-Unlock Key lock for the remote control in the Key lock function. (See page 47.)

Cooling fans are still running after –This is normal condition. Fans are running about 1 the AC plug is disconnected. minute even after disconnecting the AC plug.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Give the model number and explain about the problem. We will advise you how to obtain service.

The CE Mark is a Directive conformity mark of the European Community (EC).

US LISTED

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Pixelworks ICs used.

Menu Tree

Computer Input / Video Input

Sound

Sound Volume 0 - 63 Mute On / Off Quit

Computer Input

Video Input

Setting

    A --> T["Keystone"]
    A --> U["Blue back"]
    A --> V["Display"]
    A --> W["Logo"]
    W --> X["Logo select"]
    X --> Y["Off"]
    X --> Z["Default"]
    X --> AA["User"]
    W --> AB["Capture"]
    AB --> AC["Yes / No"]
    W --> AD["Logo PIN code lock"]
    AD --> AE["Logo PIN code entry"]
    AD --> AF["Off"]
    AD --> AG["On"]
    AD --> AH["PIN code change"]
    AD --> AI["Quit"]

    A --> AJ["Ceiling"]
    AJ --> AK["On / Off"]
    AJ --> AL["Rear"]
    AJ --> AM["Computer 2 /Monitor outTerminal"]
    AJ --> AN["Power management"]
    AN --> AO["Off"]
    AN --> AP["Ready"]
    AN --> AQ["Shut down"]
    AN --> AR["Timer(1-30 Min)"]
    AN --> AS["Quit"]

    A --> AT["On start"]
    AT --> AU["On / Off"]
    AT --> AV["Lamp control"]
    AV --> AW["Normal / Auto / Eco"]

    A --> AX["Remote control"]
    AX --> AY["Code 1 / Code 2"]

    A --> AZ["Security"]
    AZ --> BA["Key lock"]
    BA --> BB["Off"]
    BA --> BC["Projector"]
    BA --> BD["Remote control"]
    BA --> BE["Quit"]

    A --> BF["PIN code lock"]
    BF --> BG["PIN code lock entry"]
    BF --> BH["Off"]
    BF --> BI["On"]
    BF --> BJ["PIN code change"]
    BF --> BK["Quit"]

    A --> BL["L1 / L2Fan"]

    A --> BM["Factory default"]
    BM --> BN["L Hour(s)Lamp counter"]
    BM --> BO["Reset"]
    BM --> BP["Quit"]

    A --> BQ["Quit"]

Indicators and Projector Condition

Check the indicators for projector condition.

Indicators			Projector Condition
POWER red/green	WARNING red	LAMP REPLACE yellow
			The projector is off. (The AC power cord is unplugged.)
			The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.
			The projector is ready to be turned on with the POWER ON-OFF button.
			The projector is operating normally.
			The projector is in the Power management mode.
			The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator emits a red light and the projector can be turned on. (The WARNING indicator keeps blinking.) Check and clean the air filters.
			The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops blinking. Check and clean the air filters.
			The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

* When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp replacement counter after replacement of the lamp. See page 56 and 57.

Compatible Computer Specifications

PLC-XE30 (XGA) can basically accept the signal from all computers with the V, H-Frequency mentioned below and less than 140 MHz of Dot Clock.

When selecting these modes, PC adjustment can be limited.

ON-SCREEN DISPLAY	RESOLUTION	H-Freq. (kHz)	V-Freq. (Hz)	ON-SCREEN DISPLAY	RESOLUTION	H-Freq. (kHz)	V-Freq. (Hz)
VGA 1 640	x 480 31.47 59.88			SXGA 1	1152 x 864	64.20 70.40
VGA 2 720	x 400 31.47 70.09			SXGA 2	1280 x 1024 62.50	58.60
VGA 3 640	x 400 31.47 70.09			SXGA 3 1280 x 1024 63.90	60.00
VGA 4 640	x 480 37.86 74.38			SXGA 4 1280 x 1024		63.34 59.98
VGA 5 640	x 480 37.86 72.81			SXGA 5 1280 x 1024		63.74 60.01
VGA 6 640	x 480 37.50 75.00			SXGA 6 1280 x 1024		71.69 67.19
VGA 7 640	x 480 43.269 85.00			SXGA 7 1280 x 1024		81.13 76.107
MAC LC13	640 x 480 34.97	66.60		SXGA 8 1280 x 1024		63.98 60.02
MAC 13 640	x 480 35.00 66.67			SXGA 9 1280 x 1024		79.976 75.025
480i	——	15.734	60.00 (Interface)	SXGA 10 1280 x 960		60.00 60.00
575i	——	15.625	50.00 (Interface)	SXGA 11 1152 x 900 61.20	65.20
SVGA 1 800	x 600 35.156 56.25			SXGA 12 1152 x 900 71.40	75.60
SVGA 2 800	x 600 37.88 60.32			SXGA 13 1280 x 1024	50.00		86.00 (Interface)
SVGA 3 800	x 600 46.875 75.00			SXGA 14 1280 x 1024		50.00	84.00 (Interface)
SVGA 4 800	x 600 53.674 85.06			SXGA 15 1280 x 1024		63.37 60.01
SVGA 5 800	x 600 48.08 72.19			SXGA 16 1280 x 1024		76.97 72.00
SVGA 6 800	x 600 37.90 61.03			SXGA 17 1152 x 900		61.85 66.00
SVGA 7 800	x 600 34.50 55.38			SXGA 18 1280 x 1024	46.43		86.70 (Interface)
SVGA 8 800	x 600 38.00 60.51			SXGA 19	1280 x 1024	63.79 60.18
SVGA 9 800	x 600 38.60 60.31			SXGA 20	1280 x 1024	91.146	85.024
SVGA 10 800	x 600 32.70 51.09			SXGA 21	1400 x 1050	63.979	60.190
SVGA 11 800	x 600 38.00 60.51			SXGA 22	1400 x 1050	65.346	60.116
MAC 16 832	x 624 49.72 74.55			SXGA 23	1400 x 1050	65.121	59.902
XGA 1 102	4 x 768	48.36	60.00	MAC21 1152 x 870	68.68	75.06
XGA 2 102	4 x 768 68.677	84.997		MAC 1280 x 960	75.00	75.08
XGA 3 102	4 x 768 60.023	75.03		MAC 1280 x 1024		80.00	75.08
XGA 4 102	4 x 768	56.476	70.07	480p	——	31.47	59.88
XGA 5 102	4 x 768 60.31	74.92		575p	——	31.25	50.00
XGA 6 102	4 x 768	48.50	60.02	720p	——	45.00	60.00
XGA 7 102	4 x 768	44.00	54.58	1035i	——	33.75
XGA 8 102	4 x 768	63.48	79.35	1080i	——	33.75
XGA 9	1024 x 768	36.00	87.17 (Interface)	1080i	——	28.125
XGA 10 102	24 x 768	62.04	77.07	WXGA 1	1366 x 768	48.36
XGA 11 102	24 x 768	61.00	75.70	WXGA 2 1360 x 768		47.70	60.00
XGA 12 102	24 x 768	35.522	88.96 (Interface)	WXGA 3	1376 x 768	48.36	60.00
XGA 13 102	24 x 768	46.90	58.20	WXGA 4 1360 x 768		56.16	72.00
XGA 14 102	24 x 768	47.00	58.30	UXGA 1 1600 x 1200		75.00	60.00
XGA 15 102	24 x 768	58.03	72.00	UXGA 2 1600 x 1200		81.25	65.00
MAC 19 102	24 x 768 60.24	75.08		UXGA 3 1600 x 1200		87.5	70.00
				UXGA 4 1600 x 1200	93.75	75.00

Technical Specifications

Mechanical Information

Projector Type Multi-media Projector

Dimensions (W x H x D) 9.66" x 2.3" x 6.82" (294.5mm x 69.5mm x 208mm) (Not including adjustable feet)

Net Weight 5.3 lbs (2.4kgs)

Feet Adjustment 0° to 10.0°

Panel Resolution

LCD Panel System 0.6" TFT Active Matrix type, 3 panels

Panel Resolution 1,024 x 768 dots

Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)

Signal Compatibility

Color System PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N

High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Scanning Frequency H-sync. 15 \~ 100 KHz, V-sync. 50 \~ 100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 40" to 300"

Projection Lens F 1.65 \~ 1.81 lens with f 22.5 mm \~ 27 mm with manual zoom and focus

Throw Distance 4.6' - 43.3' (1.4m - 13.2m)

Projection Lamp 180W

Interface

Video Input Jack RCA Type x 1

S-Video Input Jack Mini DIN 4 pin x 1

Audio Input Jacks RCA Type x 2

Computer Input 1 / Component Input Terminal Analog RGB (Mini D-sub 15 pin) Terminal X 1

Computer Input 2 / Monitor Output Terminal Analog RGB (Mini D-sub 15 pin) Terminal X 1 (In / Out switchable)

Computer/ Component Audio Input Jack Mini Jack (stereo) x 1

Service Port Connector Mini DIN 8 pin x 1

USB Connector USB Series B receptacle x 1

Audio Output Jack Mini Jack (stereo) x 1 (Variable)

Audio

Internal Audio Amp 1.0W RMS

Built-in Speaker 1 speaker, ø1.1" (28mm)

Power

Voltage and Power Consumption AC 100 \~ 120 V (2.9A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)

AC 200 \~ 240 V (1.4 A Max. Ampere), 50 / 60 Hz (Continental Europe and The U.K.)

Operating Environment

Operating Temperature 41 °F \~ 95 °F (5 °C \~ 35 °C)

Storage Temperature 14 °F \~ 140 °F (-10°C \~ 60 °C)

Remote Control

Battery AA or LR6 1.5V ALKALINE TYPE x 2

Operating Range 16.4' (5m) / ±30°

Dimensions 1.9"(W) × 0.87"(H) × 5.7"(D) (49mm × 22mm × 145.3mm)

Net Weight 3.53 oz (100 g) (including batteries)

Antitheft Alarm

Battery CR2 3V LITHIUM BATTERY x 1

Accessories

Owner's Manual

AC Power Cord

Remote Control and Batteries

Battery for Antitheft alarm function

VGA Cable

Lens Cover with String

PIN Code Label

Alarm Label

● The specifications are subject to change without notice.
- LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, give the item name and Model No. to the sales dealer.

Model No.

COMPONENT-VGA Cable : POA-CA-COMPVGA

SCART-VGA Cable : POA-CA-SCART

Laser Pointer Remote Control Unit : POA-RCKIT03

Presentation Kit : POA-RCKIT02

Configurations of Terminals

COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : Analog RGB (Mini D-sub 15 pin)

1	Red (R/Cr) Input / Output	9	—
2	Green (G/Y) Input / Output	10	Ground (Vert.sync.)
3	Blue (B/Cb) Input / Output	11	Ground / —
4	—	12	—
5	Ground (Horiz.sync.)	13	Horiz. sync. Input/Output (Composite HV sync.)
6	Ground (Red)	14	Vert. sync.
7	Ground (Green)	15	—
8	Ground (Blue)

SERVICE PORT CONNECTOR

Terminal : Mini DIN 8-PIN

	Serial
1	R X D
2	—
3	—
4	GND
5	RTS / CTS
6	T X D
7	GND
8	GND

USB CONNECTOR (Series B)

1	Vcc
2	- Data
3	+ Data
4	Ground

PIN Code Number Memo

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.

PIN Code Lock No.

Factory default set No: 1 2 3 4*

Logo PIN Code Lock No.

Factory default set No: 4 3 2 1*

Antitheft alarm PIN Code No.

Factory default set No: 1 1 1 1 *

*Should the four-digit number be changed, the factory set number will be invalid.

While the projector is locked with the PIN code...

Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

WARNING IN CODE PROTECTED Antitheft alarm function is set... el below (supplied) on in a prominent place of the body while the Antitheft function is set. WARNING ALARM PROTECTED
