Product Type	HDMI Scaling Receiver
Brand	Extron
Model	XTP SR HDMI
Input Signal	XTP over shielded twisted pair cable
Output Signal	HDMI
Maximum Resolution	1920x1200, 1080p/60 Deep Color
HDCP Compliance	Yes
EDID Management	EDID Minder automatically manages EDID communication
Audio Support	Embedded HD lossless audio; de-embedding to analog stereo and S/PDIF outputs
Control Methods	Front panel, OSD menu, SIS commands, XTP System Configuration Software
Power Supply	External 12 V DC, 1.0 A
Remote Power	Yes, via XTP Power Injector or XTP matrix switcher
Ethernet Pass-through	10/100Base-T
Bidirectional RS-232 and IR	Yes
Test Patterns	5 internal patterns: Crop, Alternating Pixels, Crosshatch, Color Bars, Grayscale
Aspect Ratio Control	Fill or Follow
Image Freeze	Yes, via RS-232 or USB
Front Panel Lockout	Yes, Executive Mode
Mounting	Tabletop, furniture, or rack mount (kit required)
Plenum Rating	UL 2043 (power supply excluded)
Cable Recommendation	Shielded twisted pair (STP), 24 AWG or better, 330 ft (100 m) max
Relay Control	2 normally open relays for contact closure
Firmware Update	Via XTP System Configuration Software
Warranty	3 years

Frequently Asked Questions - XTP SR HDMI Extron

How do I connect the XTP SR HDMI to a source and display?

Connect the XTP input to an XTP transmitter or matrix switcher using shielded twisted pair cable. Connect the HDMI output to the display. Ensure both devices are powered.

How can I power the XTP SR HDMI?

The device can be powered locally via the 12 V DC input or remotely through an XTP Power Injector or XTP matrix switcher over the XTP cable.

What control methods are available?

You can control the device using the front panel buttons and OSD menu, SIS commands via RS-232 or USB, or the XTP System Configuration Software.

What is the maximum supported resolution?

The XTP SR HDMI supports computer-video resolutions up to 1920x1200 and HDTV up to 1080p/60 Deep Color.

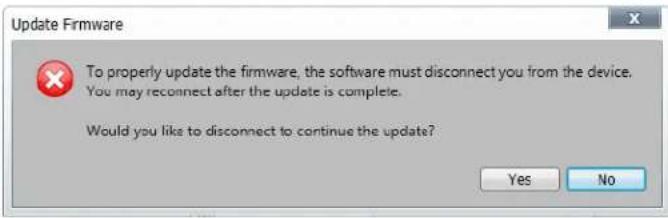

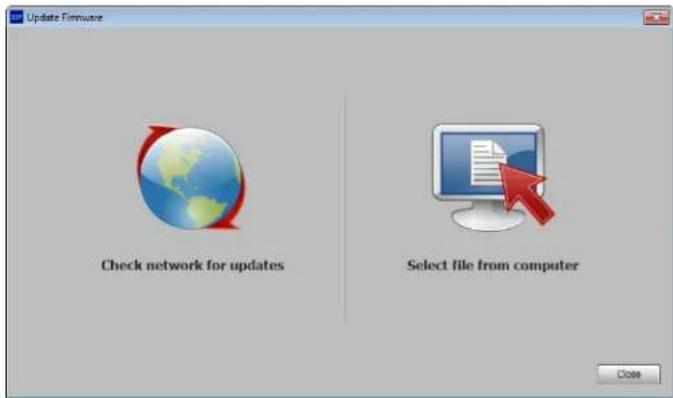

How do I update the firmware?

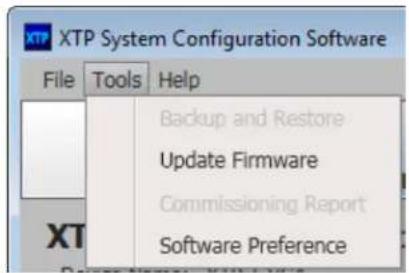

Use the XTP System Configuration Software. Connect via USB, navigate to Tools > Update Firmware, and select either a file from your computer or check the network for updates.

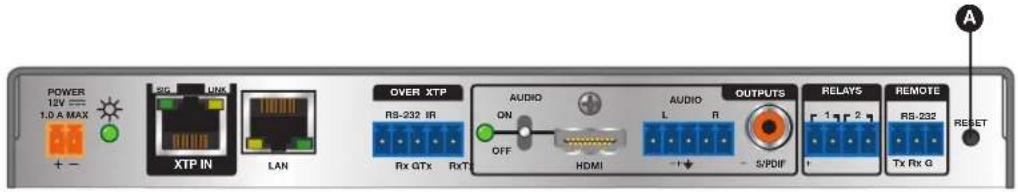

How to reset the device to factory defaults?

Press and hold the recessed Reset button on the rear panel while applying power, or use the Factory Reset option in the OSD Advanced Configuration menu or the software General tab.

What is the maximum cable length for XTP?

The maximum transmission distance is 330 feet (100 meters) when using shielded twisted pair cable with 24 AWG solid conductors.

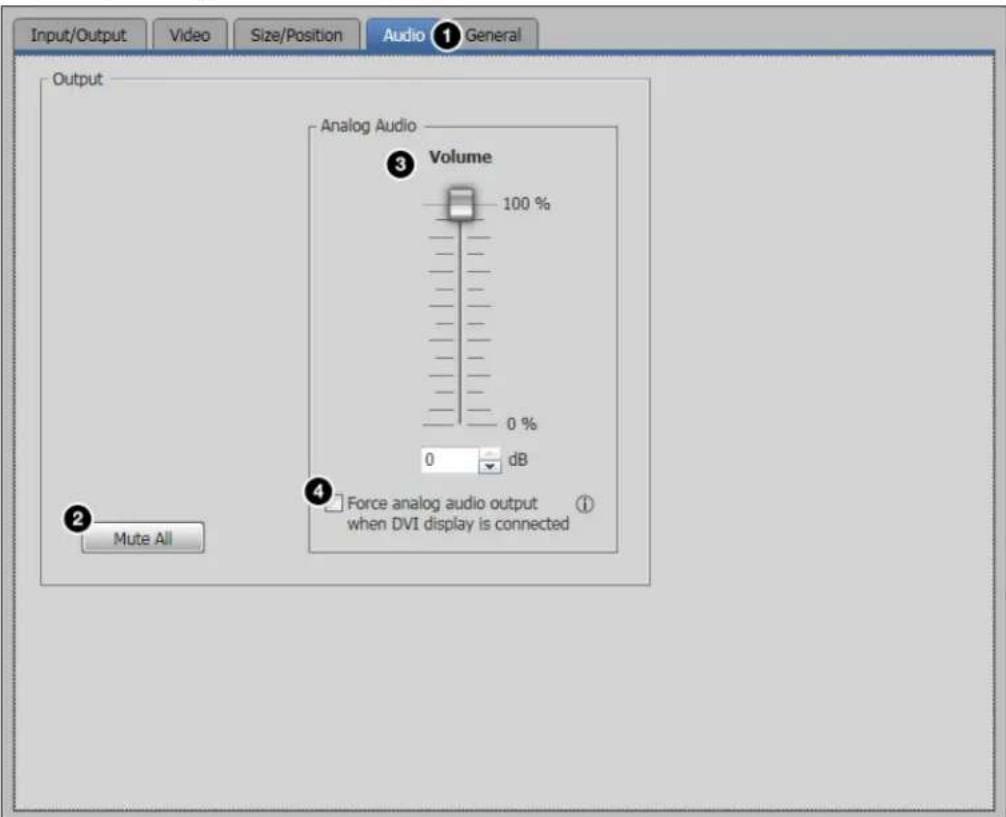

How do I mute the audio output?

You can mute audio via SIS command (e.g., '7Z' mutes all), the front panel, or the XTP System Configuration Software. The Audio Mute button in the software toggles mute.

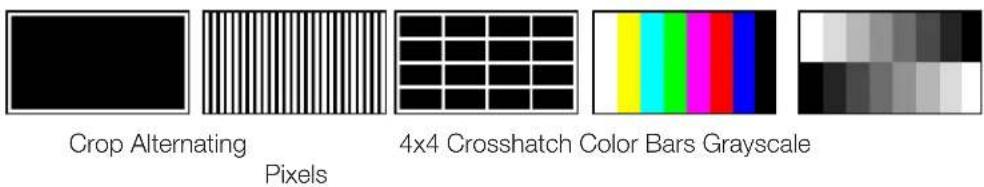

How to use test patterns?

Enable test patterns from the Advanced Configuration OSD submenu or the software Input/Output tab. Choose from Crop, Alternating Pixels, Crosshatch, Color Bars, or Grayscale.

What is EDID Minder?

EDID Minder automatically manages EDID communication between source and display, ensuring reliable power-up and content output. It prevents EDID conflicts and simplifies system integration.

USER MANUAL XTP SR HDMI Extron

XTP HDMI Scaling Receiver

Extron XTP SIGNAL HBR NOTCH/ALM LPCM AUDIO ANALOG MENU ENTER ADJUST XTP SR HDMI POWER 2V 50Hz 5A MAX XTP IN LAB OVER XTP PS-232 IN AUDIO ON OFF HDMI AUDIO L R OUTPUTS RELAYS RS-202 REMOTE RS-202 RESET

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

ATTENTION: This symbol, △when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

© 2016 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks ( ^(3) ), registered service marks ( ^(5) ), and trademarks ( ^(TM) ) are the property of RGB Systems, Inc. or Extron Electronics (see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks ^(10)

Extron, AVTrac, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Global Configurator, Global Scripter, GlobalViewer, Hideaway, Inline, IP Intercom, IP Link, Key Minder, LinkLicense, Locklt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, and XTP Systems

Registered Service Mark ^(SM) : S3 Service Support Solutions

Trademarks ^(TM)

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS (Class D Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), eLink, Entwine, EQIP, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, Vector ^TM 4K, WebShare, XTRA, ZipCaddy, ZipClip

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION: The Twisted Pair Extension technology works with unshielded twisted pair (UTP) or shielded twisted pair (STP) cables; but to ensure FCC Class A and CE compliance, STP cables and STP Connectors are required. For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the “Extron Safety and Regulatory Compliance Guide” on the Extron website.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C
[∅1] R∅∅4∅03∅0∅04∅0∅08∅0∅6∅0 [∅2] 35 [17] [∅3]

Esc X1 * X17 * X20 * X23 * X21 CE ←

NOTE: For commands and examples of computer or device responses mentioned in this guide, the character "0" is used for the number zero and "0" represents the capital letter "o."

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx -t
SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Contents

Introduction....1

Guide Overview....1

XTP SR HDMI Scaling Receiver Description......1

System Compatibility....2

Features 2

Installation....4

Rear Panel Connectors....4

Connection Details 7

HDMI Connection....7

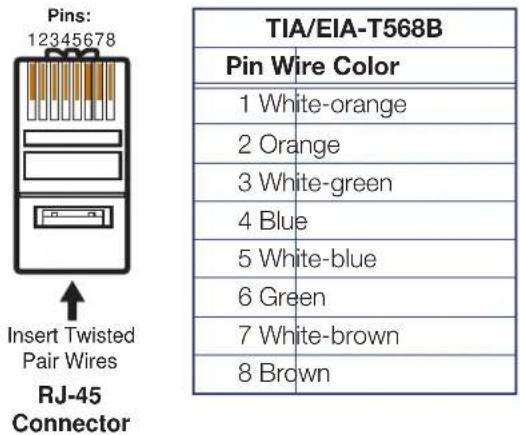

TP Cable Termination and Recommendations 8

RS-232 and IR Over XTP Communication ..... 10

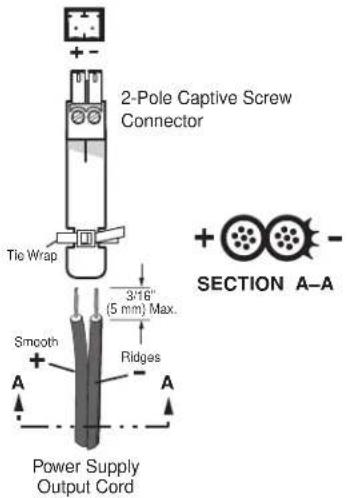

Power Connection....11

Operation....14

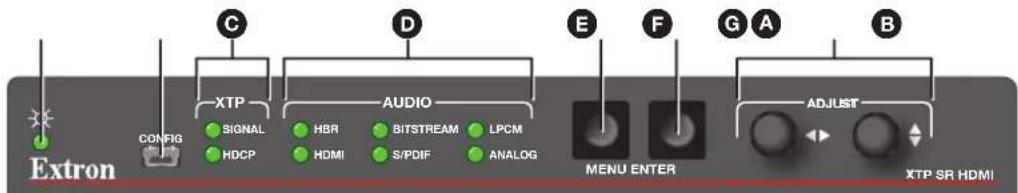

Front Panel Features and Indicators....14

Rear Panel HDMI Audio Switch 15

Audio Output Overview....15

On-Screen Display Menu System 15

Menu Navigation Using Front Panel Controls....16

Menu Overview....16

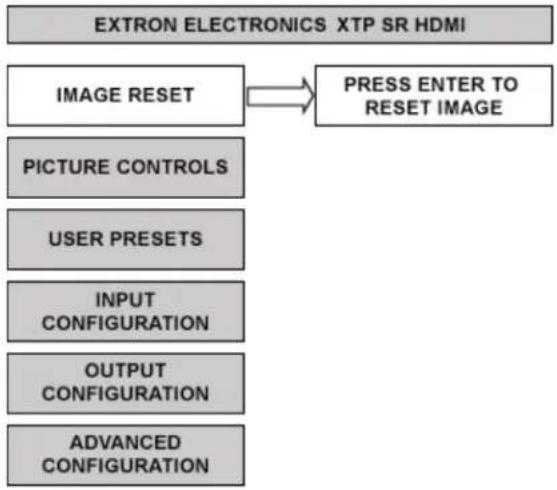

Image Reset Submenu 17

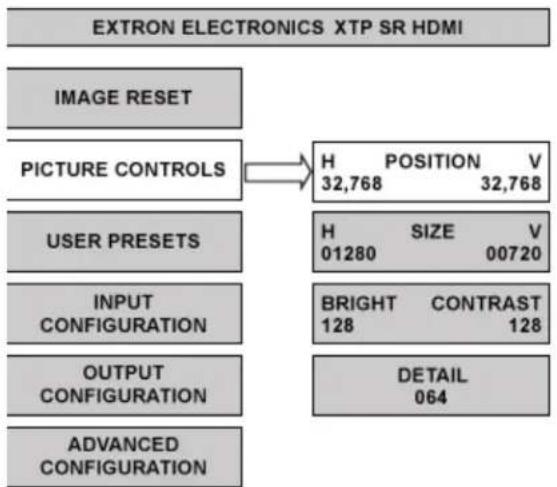

Picture Controls Submenu....17

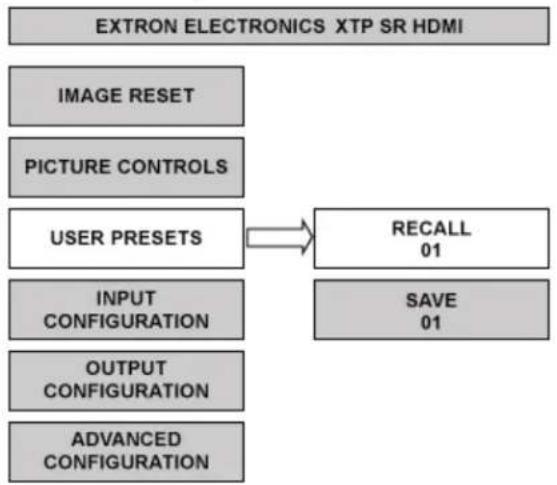

User Presets Submenu....18

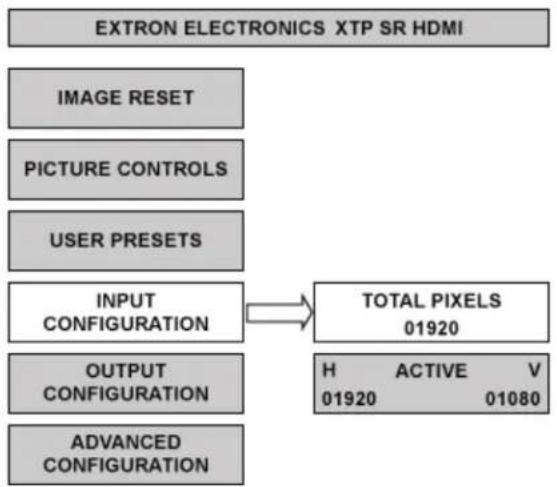

Input Configuration Submenu 19

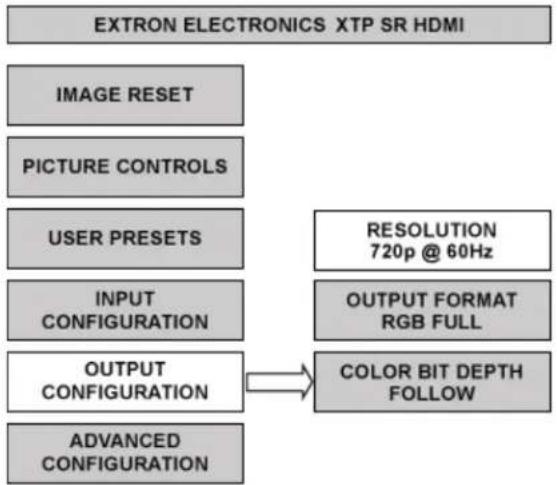

Output Configuration Submenu 19

Advanced Configuration Submenu 21

Front Panel Lockout Mode (Executive Mode).....22

Reset Mode....22

SIS Configuration and Control 23

Host Device Connection....23

SIS Overview....23

Host-to-Device and Device-to-Host Communication 23

Device-Initiated Message....23

Error Responses....24

Using Command and Response Tables for SIS Commands....24

Symbol Definitions 25

Command and Response Tables for SIS Commands 26

Picture Adjustment Commands 26

Output Configuration Commands 28

Audio Configuration Commands....29

Preset Commands....29

Advanced Configuration Commands 30

XTP System Configuration Software......32

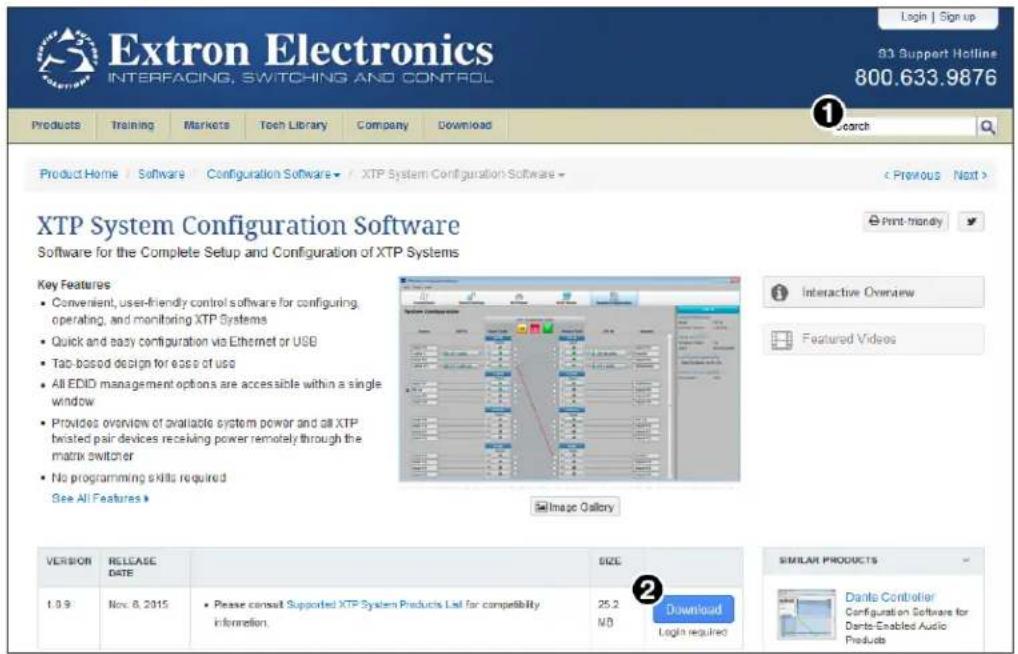

Software Installation.... 32

Software Download Center Page....32

Software Product Page....33

Software Operation.... 34

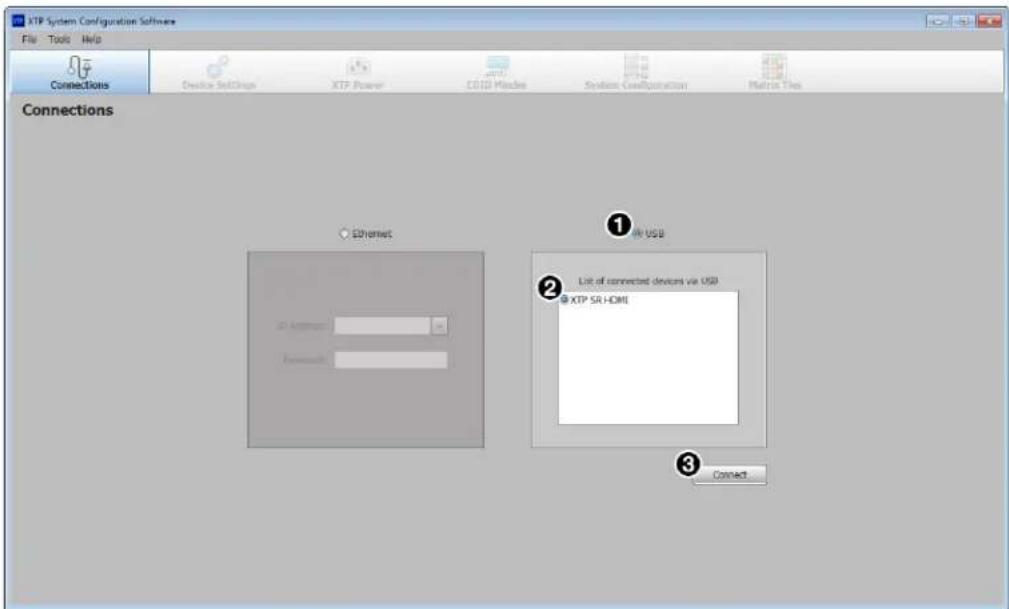

Connections 34

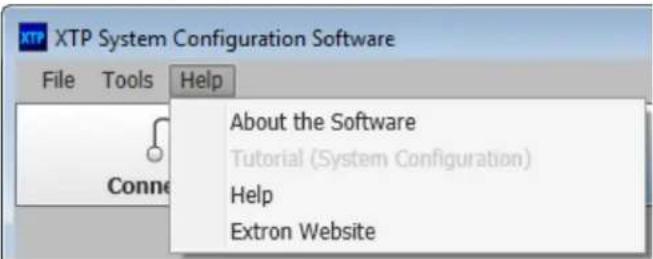

Menu Bar 35

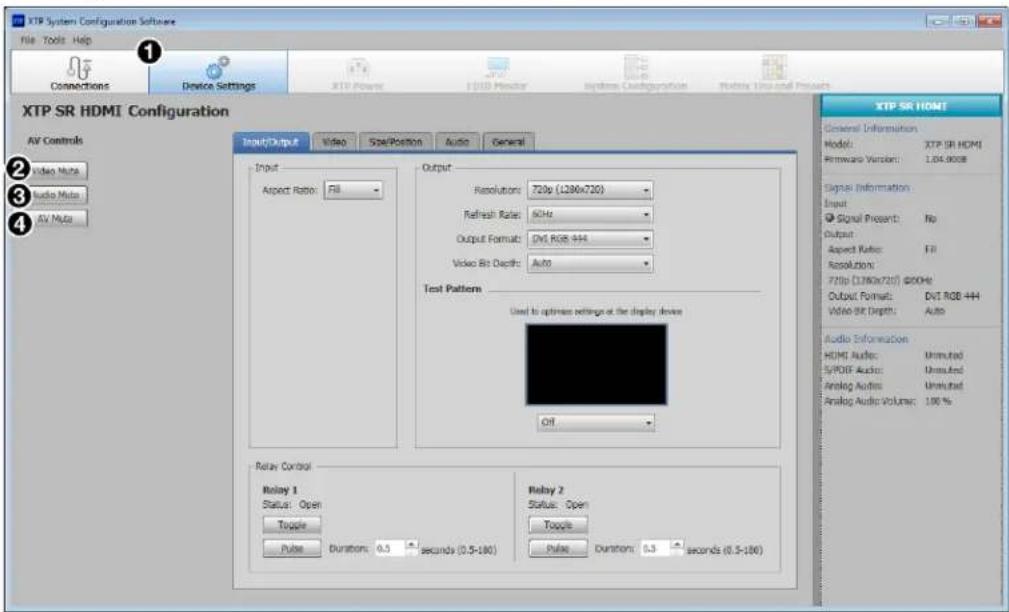

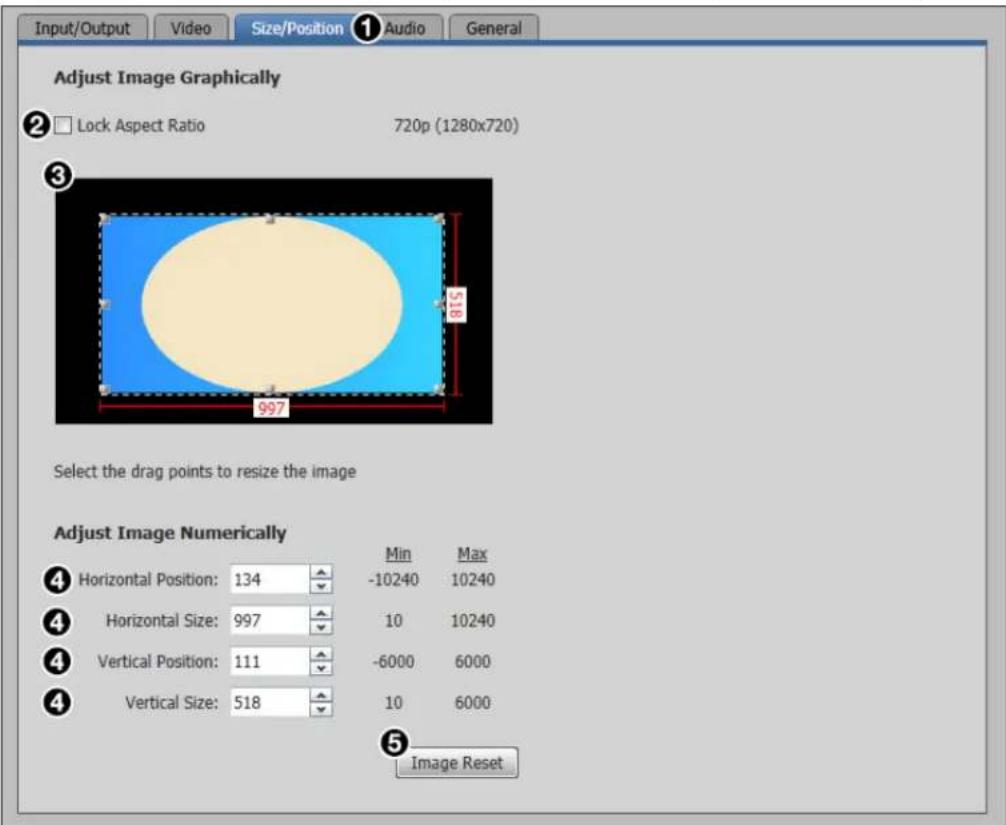

Device Settings....38

Reference Information......47

Mounting 47

Tabletop Mounting 47

Furniture Mounting.... 47

Rack Mounting 47

Introduction

This section contains general information about this guide and the Extron XTP SR HDMI Scaling Receiver. Topics in this section include:

• Guide Overview
• XTP SR HDMI Scaling Receiver Description
• System Compatibility
- Features

Guide Overview

This guide provides installation, operation, control, and reference information for the XTP SR HDMI scaling receiver. In this guide, the terms “scaling receiver” and “XTP SR HDMI” are used interchangeably to refer to the XTP SR HDMI scaling receiver.

XTP SR HDMI Scaling Receiver Description

The Extron XTP SR HDMI receives video, audio, bidirectional RS-232 and IR, and Ethernet signals over a single twisted pair cable. It is HDCP-compliant and supports 1080p/60 Deep Color, 1920x1200 signals, and embedded HD lossless audio formats. It works with Extron XTP devices in matrix, or point-to-point applications for signal distribution and long-distance transmission (up to 330 feet) between remote endpoints, using shielded twisted pair cable.

It can be powered locally or remotely through an Extron XTP Power Injector or XTP matrix switcher (see Power Connection on page 11).

This device can be controlled through the on-screen display (OSD) menu (see On-Screen Display Menu System on page 15), Extron Simple Instruction Set (SIS) commands (see SIS Configuration and Control on page 23), or the XTP System Configuration Software (see XTP System Configuration Software on page 32).

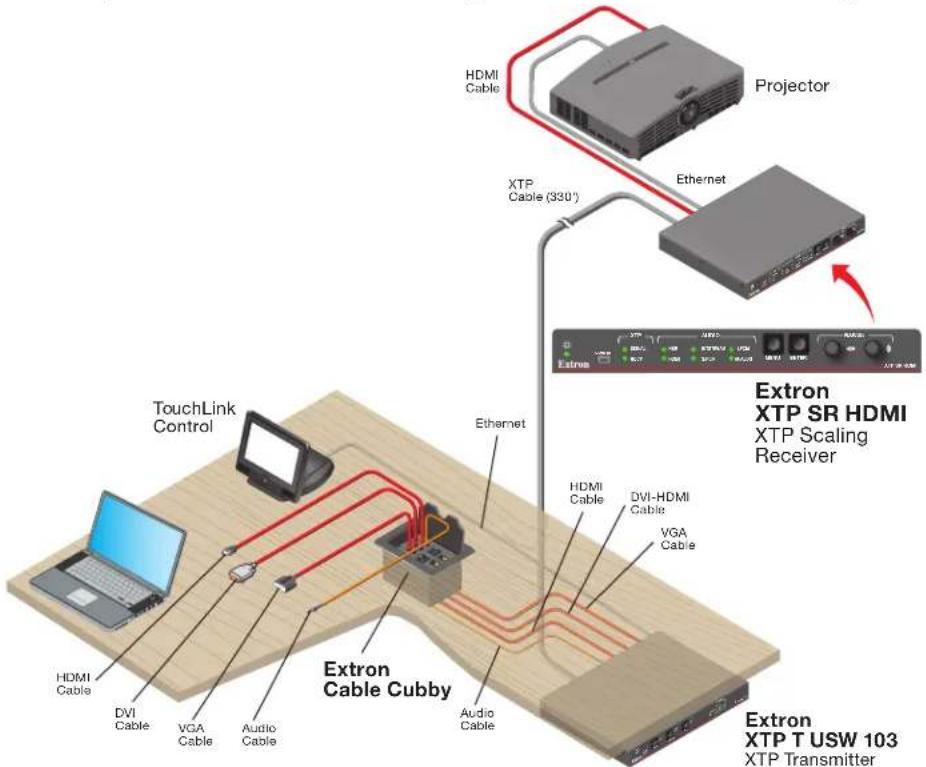

The following diagram shows one way the XTP SR HDMI can be integrated in an XTP point-to-point application. The scaling receiver can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications).

Figure 1. Typical XTP SR HDMI Point-to-Point Application

System Compatibility

The XTP SR HDMI is compatible with XTP systems, but the maximum video resolution may be limited with different XTP devices. See the table below for maximum video resolutions and refresh rates for various XTP systems.

		Output
		Non-4K 4K Fiber	4K PLUS
Input	Analog 1920x12	00 @ 60 Hz 1920x1200	@ 60 Hz 1920x1200 @	60 Hz
	Non-4K Digital	2048x1080 @ 60 Hz 20	48x1080 @ 60 Hz 2048	x1080 @ 60 Hz
	4K Fiber 2048x1	080 @ 60 Hz 4096x2160	@ 24 Hz 4096x2160	@ 24 Hz
	4K PLUS 2048x1	080 @ 60 Hz 4096x2160	@ 24 Hz 4096x2160	@ 60 Hz

Features

- Reliable cable infrastructure — Provides high reliability and maximum performance on an economical and easily installed cable infrastructure.

• Support for computer-video to 1920x1200, including HDTV 1080p/60 Deep Color and 2K signals — Maintains superior image quality at the highest resolutions.

• Shielded twisted pair cable compatibility — Optimized for use with common shielded twisted pair cable types. XTP systems fully support a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
• Bidirectional RS-232 and IR insertion — Allows a remote display to be controlled without the need for additional cabling through bidirectional RS-232 control and IR signals inserted into the XTP output.
• HDMI specification features — Support data rates up to 6.75 Gbps, Deep Color up to 12-bit, and HD lossless audio formats.
• HDCP compliance — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• EDID Minder — Automatically manages EDID communication between connected devices. It ensures that all sources power up properly and reliably outputs content for display.
• Key Minder — Authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
• Ethernet extension — Centralized 10/100Base-T Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
• Remote power capability — Allows the XTP SR HDMI to be powered by an XTP CrossPoint Matrix Switcher or XTP Power Injectors to simplify integration.
• Multiple embedded audio formats — Provides reliable operation with HDMI sources, compatible with a broad range of multi-channel audio signals.
• HDMI audio de-embedding with analog stereo and digital S/PDIF audio outputs — Digital HDMI audio is made available as a balanced or unbalanced analog stereo signal on captive screw connectors or an S/PDIF connector.
• EDID and HDCP transmission — Supports DDC channels that are actively buffered, allowing continuous communication between source and display.
• Contact closure device control — Enables control of room functions such as projector lifts, screen operations, and other environmental controls.
• Aspect ratio control — Controls the aspect ratio of the video output to provide a full screen output or to preserve the original aspect ratio of the input signal.
  • Image freeze control — Freezes a live image through RS-232 or USB control.
• Internal test patterns — Include five test patterns for calibration and setup.
• XTP compatibility — Provides a completely integrated solution for multiple digital and analog formats through XTP integrated system products. XTP is a flexible, reliable signal switching and distribution system.
• Front panel security lockout — Allows security lockout of front panel buttons.
• UL 2043 plenum rated — Meets UL 2043 for smoke and heat release for installation within a plenum airspace above a drop ceiling (power supply excluded). Above-the-ceiling placement conceals the scaling receiver to prevent theft, and is convenient for installing equipment when space inside the room is limited.

Installation

This section contains installation procedures for the XTP SR HDMI and wiring details. Topics in this section include:

• Rear Panel Connectors
- Connection Details

The XTP SR HDMI can be placed on a tabletop or mounted in a rack or under a desk (see Mounting on page 47).

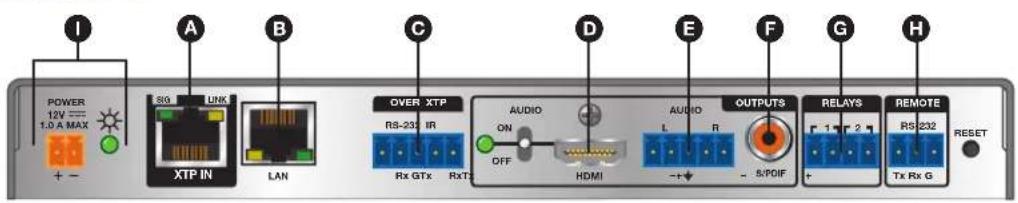

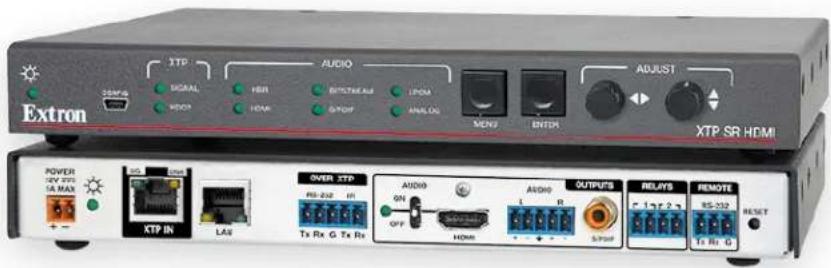

Rear Panel Connectors

I POWER 12V = 1.0 A MAX + - A B C D E F G H OVER XTP RS-232 IR AUDIO ON OFF HDMI AUDIO L R OUTPUTS S/PDIF RELAYS 1 2 + - Tx Rx G REMOTE RS-232 RESET

A XTP input connector (see page 4)
B LAN connector (see page 5)
RS-232 and IR Over XTP connector (see page 5)
D HDMI output connector (see page 5)
E Analog audio output connector (see page 6)

F S/PDIF audio output connector (see page 6)
G Relay connectors (see page 6)
H Remote RS-232 connector (see page 6)
① Power connector and LED (see page 6)

Figure 2. XTP SR HDMI Rear Panel Connectors

A XTP input connector — Connect a twisted pair cable to the RJ-45 connector labeled XTP IN on the XTP SR HDMI and the XTP output port on another XTP device to pass all signals (see TP Cable Termination and Recommendations on page 8). This cable carries the following signals:

Digital video
Digital audio
• Bidirectional RS-232 and IR commands
- Remote power
- Ethernet communication
• System communication

Signal LED indicator — Lights green when the XTP SR HDMI receives an active XTP input signal from a compatible transmitter or matrix switcher.

Link LED indicator — Lights yellow when a valid XTP link is established.

ATTENTION:

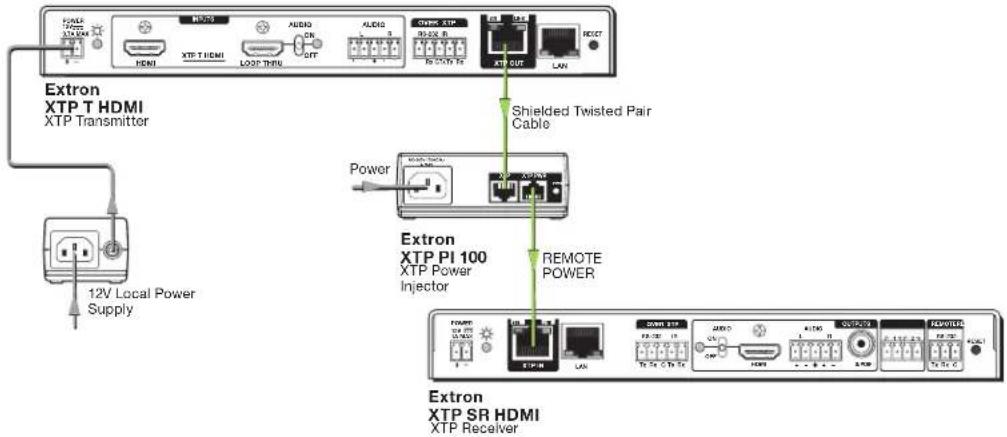

- XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors (see Remote power on page 13).

B LAN connector — Connect a control device or device to be controlled to the RJ-45 connector labeled LAN (see figure 2, B on the previous page) for 10/100Base-T Ethernet communication through this pass-through port. LEDs on the connector indicate link and activity status.

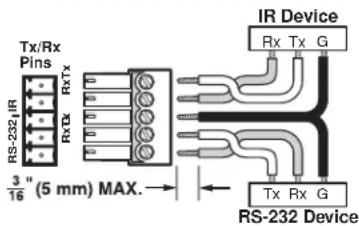

RS-232 Over XTP port — To pass bidirectional serial signals between XTP-compatible devices, connect a control device to the 5-pole captive screw connector (see figure 2, on the previous page). The port includes only the 3 poles labeled "RS-232."

IR Over XTP port — To transmit and receive IR signals (up to 56 kHz), connect a control device to the 5-pole captive screw connector. This port includes the 2 poles labeled "IR" and shares the ground pole with the RS-232 port.

NOTE: RS-232 and IR data can be transmitted simultaneously (see RS-232 and IR Over XTP Communication on page 10 for wiring details).

HDMI output connector — Connect a digital video display to the female HDMI connector (see figure 2, on the previous page). See Rear Panel HDMI Audio Switch on page 15 to mute or unmute embedded audio output. It supports HDMI or DVI (with an appropriate adapter) signals.

NOTES:

• The maximum cable length is 15 feet (4.6 meters).

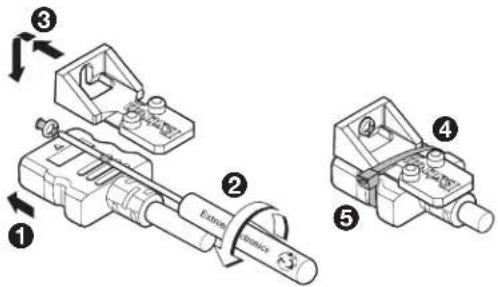

- Use an Extron LockIt Cable Lacing Bracket to secure the HDMI connector to the device (see HDMI Connection on page 7).

E Analog audio output connector — Connect a balanced or unbalanced, stereo or mono audio output device to the 3.5 mm, 5-pole captive screw connector (see figure 2, E on page 4) for analog audio output (see figure 3 for wiring details).

NOTE: If the device is receiving 2-channel LPCM embedded audio on the HDMI input signal, it is extracted and converted to a stereo analog signal.

Balanced Audio Output

Unbalanced Audio Output

Figure 3. Audio Output Wiring

ATTENTION:

F S/PDIF audio output connector — Connect an audio device to the female orange RCA connector (see figure 2, F on page 4) for digital S/PDIF audio output (see Audio Output Overview on page 15 for supported audio formats on the S/PDIF output). The type of audio present on this output is dictated by the following:

• The audio format selected on the source material or device.
• The source device automatically outputting an audio format through EDID.

G Relay connectors — Connect equipment that can be controlled via momentary or latching contact, such as projector screens or lifts, to the normally open relays (see figure 2, G on page 4).

ATTENTION:

Remote RS-232 connector — Connect a host device to the 3.5 mm, 3-pole captive screw connector (see figure 2, H on page 4) for serial control of the scaling receiver.
Power connector and LED — Connect the external 12 V, 1.0 A power supply to the 2-pole captive screw connector (see figure 2, on page 4). The Power LED lights to indicate the device is receiving power.

NOTE: The XTP SR HDMI can also be powered remotely (see Power Connection on page 11).

Connection Details

HDMI Connection

To secure the HDMI cable to the HDMI input connector, use an Extron LockIt Cable Lacing Bracket and a tie wrap.

Technical diagram showing exploded view of a mechanical assembly with numbered components and labeled parts

Figure 4. Installing the LockIt Cable Lacing Bracket

1. Plug the HDMI cable into the panel connection (see figure 4, ①).
2. Loosen the HDMI connection mounting screw from the panel (②) enough to allow the LockIt to be placed over it. The screw does not have to be removed.
3. Place the LockIt on the screw and against the HDMI connector (③), and then tighten the screw to secure the bracket.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt (④).
5. While holding the connector securely against the cable lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length (⑤).

ATTENTION:

TP Cable Termination and Recommendations

Use the following pin configurations for twisted pair cables.

Pins: 12345678 Insert Twisted Pair Wires RJ-45 Connector TIA/EIA-T568B Pin Wire Color 1 White-orange 2 Orange 3 White-green 4 Blue 5 White-blue 6 Green 7 White-brown 8 Brown

Figure 5. Twisted Pair Cable Termination

Supported cables

The XTP SR HDMI is compatible with shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cables.

ATTENTION:

Cable recommendations

Extron recommends using the following practices for XTP communication to achieve full transmission distances up to 330 feet (100 meters) and reduce transmission errors.

- Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best performance:

• XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool 22-236-03
• XTP DTP 24P/1000 Plenum 1000' (305 m) spool 22-235-03
• XTP DTP 24 Plug Package of 10 101-005-02

- If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth of 400 MHz.

• Terminate cables with shielded connectors to the TIA/EIA-T568B standard (see figure 5 on the previous page).
• Limit the use of more than two pass-through points, which may include patch points, punch down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch down connectors.

NOTE: When using STP cable in bundles or conduits, consider the following:

• Do not exceed 40% fill capacity in conduits.
• Do not comb the cable for the first 20 m, where cables are straightened, aligned, and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
• Separate twisted pair cables from AC power cables.

RS-232 and IR Over XTP Communication

The RS-232 and IR Over XTP connector is for pass-through transmission of serial signals, such as projector control signals, and infrared data. To pass bidirectional serial command signals between XTP-compatible devices, connect a control device to the three poles (Tx, Rx, and G) under "RS-232" of the 5-pole captive screw connector. To transmit and receive IR signals, connect a control device to the three poles (G, Tx, and Rx) under "IR." The ground (G) pole is shared.

NOTE: RS-232 and IR data can be transmitted or received simultaneously (see figure 6 below for wiring considerations).

Tx/Rx Pins RS-232/IR RXB RXTx 3 1/16" (5 mm) MAX. IR Device Rx Tx G Tx Rx G RS-232 Device

Figure 6. Wiring the RS-232 and IR Over XTP Connector

ATTENTION: The length of the exposed wires in the stripping process is important.

Apply power to the scaling receiver locally with the provided power supply (if necessary, see figure 7 for wiring considerations) or remotely (through the XTP connector) with a power injector or a matrix switcher.

Local power

2-Pole Captive Screw Connector Tie Wrap 3/16" (5 mm) Max. Smooth Ridges Power Supply Output Cord SECTION A-A

Figure 7. Power Wiring

The receiver can be powered by a local power supply. See the notifications on the next page for local power considerations.

WARNING: Electric shock hazard. The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.

TIP: Do not tin the stripped power supply leads. Tinned wires are not as secure in the captive screw connectors and could be pulled out.

Remote power

The XTP SR HDMI can be powered remotely through an XTP Power Injector or through an XTP matrix switcher.

ATTENTION:

To power the XTP SR HDMI remotely with an XTP Power Injector, power a connected transmitter locally (see Local power on page 11) and connect an XTP Power Injector to the XTP cable run along the XTP ports (see the XTP Power Injector User Guide at www.extron.com for more installation information).

Extron XTP T HDMI XTP Transmitter 12V Local Power Supply Extron XTP PI 100 XTP Power Injector Shielded Twisted Pair Cable Power REMOTE POWER Extron XTP SR HDMI XTP Receiver

Figure 8. Typical Point-to-Point Application with Remote Power

NOTE: The power injector provides remote power up to 330 feet (100 m) with a shielded twisted pair cable with 24 AWG wire.

XTP matrix switcher

XTP matrix switchers have a fixed amount of power available to provide remote power to connected XTP devices (see the appropriate XTP matrix switcher user guide at www.extron.com for more details). To manage available power from the XTP matrix switcher, use the XTP System Configuration Software with the matrix switcher.

Operation

This section contains information for front panel operation and configuration of the XTP SR HDMI and configuration through the On-Screen Display (OSD) menu. Topics in this section include:

• Front Panel Features and Indicators
• Rear Panel HDMI Audio Switch
• Audio Output Overview
• On-Screen Display Menu System
• Front Panel Lockout Mode (Executive Mode)
- Reset Mode

Front Panel Features and Indicators

Extron CONFIG XTP HDBP SIGNAL HDMI BITSTREAM S/PDIF LPCM ANALOG AUDIO MENU ENTER ADJUST G A B XTP SR HDMI

Figure 9. XTP SR HDMI Front Panel

Power LED indicators — Lights when power is applied to the unit. There are two Power LED indicators, one on the front panel and one on the left side of the rear panel.
B Configuration port — If desired, connect a host device to the front panel USB mini-B port for configuring the scaling receiver.
© XTP indicators:

• Signal LED indicator — Lights when an active XTP input signal is received.
- HDCP LED indicator — Lights when the received input signal is encrypted.

D Audio indicators:

• HBR LED indicator — Lights when the audio input is high bit rate audio.
- Bitstream LED indicator — Lights when the embedded audio signal format is a Dolby® Digital, DTS, or 2-Ch Dolby.
- LPCM LED indicator — Lights when the embedded audio signal is LPCM-2Ch.
• HDMI LED indicator — Lights when the HDMI audio output is enabled.
• S/PDIF LED indicator — Lights when the S/PDIF audio output is enabled.
• Analog LED indicator — Lights when the analog audio output is enabled.

Menu button — Press this button to navigate the OSD menu or enable or disable front panel lockout mode (see Front Panel Lockout Mode (Executive Mode) on page 22).

F Enter button — Press this button (see figure 9, F on the previous page) to navigate the OSD menu or enable or disable front panel lockout mode (see Front Panel Lockout Mode (Executive Mode) on page 22).
G Adjustment knobs — Rotate the horizontal (◀) or vertical (◀) adjustment knob (see figure 9, G on the previous page) to navigate the on-screen display menu or adjust submenu items.

Rear Panel HDMI Audio Switch

The XTP SR HDMI has an HDMI audio switch on the rear panel that mutes or unmutes the embedded audio on the HDMI output connector (see figure 2, ☑ on page 4). The LED next to the switch lights when HDMI audio is enabled.

Move and hold the rear panel HDMI audio switch up until the Audio LED lights (about 1 second) to enable embedded audio on the associated HDMI connector, or move and hold the HDMI audio switch down until the AUdio LED turns off (about 1 second) to disable embedded audio on the associated HDMI connector. The switch returns to the middle position after it has been released so the device can continue to be controlled through SIS commands or from an XTP matrix switcher.

Audio Output Overview

By default, an XTP transmitter or matrix switcher prioritizes embedded digital audio over analog audio. Use SIS commands (see SIS Configuration and Control on page 23) or the XTP System Configuration Software (see XTP System Configuration Software on page 32) to manually select the audio input.

Audio Format Availability on Receiver Audio Outputs
	Audio Output
Audio Input Format HDMI S/PDIF Analog
2-channel LPCM up to 48 kHz Yes Yes Yes
Multi-channel PCM up to 7.1, 192 kHz Yes
Dolby Digital up to 5.1 Yes Yes
Dolby Digital EX Yes Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Digital Surround up to 5.1 Yes Yes
DTS-ES Matrix 6.1 Yes Yes
DTS-ES Discrete 6.1	Yes Yes
DTS-HD	Yes
DTS-HD Master Audio	Yes

On-Screen Display Menu System

XTP SR HDMI configuration and adjustments can be performed by using SIS commands (see SIS Configuration and Control on page 23), the XTP System Configuration Software (see XTP System Configuration Software on page 32), or by using the front panel controls and the OSD menu. The OSD menu is used primarily when the receiver is first set up.

NOTE: The OSD menu has a fixed time-out of 10 seconds.

Menu Navigation Using Front Panel Controls

Menu button — Press the Menu button to activate the OSD menu or close submenus items.

Enter button — Press the Enter button to select submenu items or accept changes to settings.

Adjustment knobs — Rotate the Horizontal Adjustment (◀) knob or Vertical Adjustment (◀) knob to navigate submenus and submenu items and adjust settings.

Menu Overview

The OSD menu contains six submenus with various submenu items for adjusting settings or viewing device information. Use the Menu, Enter, and adjustment knobs to navigate the OSD menu.

To open the OSD menu:

1. Connect a display device to the HDMI output connector.
2. Press the Menu button to open the OSD menu.

To navigate the OSD menu:

1. After opening the OSD menu, rotate the adjustment knobs to navigate the six submenus. The following table shows the six submenus and their respective submenu items.

Submenus Submenu Items
Image Reset Image reset
Picture Controls	Horizontal/ vertical position	Horizontal/vertical size	Brightness/ contrast	Detail
User Presets Recall Save
Input Configuration	Total pixels Horizontal/vertical active pixels
Output Configuration	Resolution Output format Color bit depth
Advanced Configuration	Test pattern Blank Freeze Aspect			ratio	System reset

1. Press the Enter button to open the selected submenu.
2. Rotate the adjustment knobs to navigate the submenu items.
3. Press the Enter button to adjust or view a submenu item or press the Menu button to return to the list of submenus.

To adjust a submenu item:

1. Navigate to an adjustable submenu item and press the Enter button to select the submenu item.
2. As required, rotate the adjustment knobs or press the Enter button to adjust the submenu item.
3. Press the Enter button to accept the new value. Press the Menu button to cancel any pending changes.

To exit the OSD menu:

While in the list of submenus, press the Menu button to exit the OSD menu.

Image Reset Submenu

The Image Reset submenu allows the execution of a one-time reset of the image.

Figure 10. Image Reset Submenu

Image reset — Press the Enter button to reset shift and size settings to the default values.

Picture Controls Submenu

The Picture Controls submenu allows the adjustment of picture settings.

Figure 11. Picture Controls Submenu

Image position — Rotate the Horizontal Adjustment knob to adjust the horizontal (H) position of the image. Rotate the Vertical Adjustment knob to adjust the vertical (V) position of the image. The default value is 32,768.

Image size — Rotate the Horizontal Adjustment knob to adjust the horizontal (H) size of the image. Rotate the Vertical Adjustment knob to adjust the vertical (V) size of the image. The default value is based on the selected output resolution.

Brightness and contrast — Rotate the Horizontal Adjustment knob to adjust the brightness (Bright) of the image. Rotate the Vertical Adjustment knob to adjust the contrast (Cont) of the image. The default value is 128.

Detail — Rotate the adjustment knobs to adjust the detail of the image. The default value is 128.

User Presets Submenu

The User Presets submenu allows the current picture control settings for the selected input to be saved in user presets. User presets can be saved and recalled later on another input, allowing them to also be used as aspect ratio or discrete size and center shortcuts. There are 8 user preset slots available.

Figure 12. User Presets Submenu

User presets save the following settings:

• Brightness and contrast
  • Detail
  • Image size and position

Recall — Rotate the adjustment knobs to select a preset to recall.

Save — Rotate the adjustment knobs to select a preset to store the current picture control settings.

Input Configuration Submenu

The Input Configuration submenu displays the total pixels and horizontal and vertical active pixels of the input signal.

Figure 13. Input Configuration Submenu

Total pixels — Displays the total pixels of the input signal. This is not configurable.

Active — Displays the active horizontal (H) pixels and vertical (V) lines of the input signal. These are not configurable.

Output Configuration Submenu

The Output Configuration submenu is used to configure of the output resolution and refresh rate. Output format and color bit depth settings are not configurable from the OSD. To configure either setting, use SIS commands (see Output Configuration Commands on page 28) or use the XTP System Configuration Software (see Input/Output tab on page 39).

Figure 14. Output Configuration Submenu

Resolution — Rotate the adjustment knobs to select a new resolution and refresh rate. The following table shows the available resolutions and refresh rates. The resolution and refresh rate can also be changed with SIS commands (see the Output scaler rate SIS commands on page 28).

Output format — Shows the HDMI output format setting. This is not configurable from the OSD menu. To configure this setting, use SIS commands (see HDMI output format SIS commands on page 28) or use the XTP System Configuration Software (see Input/Output tab on page 39). The following formats are available:

• Auto (based on display EDID)

DVI RGB 444

- HDMI RGB 444 Full

• HDMI RGB 444 Limited

• HDMI YUV 444 Full

• HDMI YUV 444 Limited

• HDMI YUV 422 Full

• HDMI YUV 422 Limited

Color bit depth — Shows the color bit depth setting. This is not configurable from the OSD menu. To configure this setting, use SIS commands (see Video bit depth SIS commands on page 28) or use the XTP System Configuration Software (see Input/Output tab on page 39).

Advanced Configuration Submenu

The Advanced Configuration submenu is used to set test patterns, screen blanking and freezing, aspect ratio, and system reset.

EXTRON ELECTRONICS XTP SR HDMI

IMAGE RESET

PICTURE CONTROLS

USER PRESETS

TEST PATTERN CROP

BLANK OFF

INPUT CONFIGURATION

Test pattern — Rotate the adjustment knobs to select a test pattern. The available test patterns are Crop, Alternating Pixels, 4x4 Crosshatch, Color Bars, and Grayscale. The default setting is Off.

Figure 16. Test Pattern Examples

NOTE: All test patterns include a single pixel border.

Blank — Rotate the adjustment knobs to turn the blank screen feature on or off. When on, the screen turns black, but the OSD menu is still available.

Freeze — Rotate the adjustment knobs to freeze or unfreeze the output.

Aspect ratio — Rotate the adjustment knobs to set the output aspect ratio to Fill or Follow. When the aspect ratio is set to Fill, the output is sized and centered to fill the entire output screen. When the aspect ratio is set to Follow, the native aspect ratio of the input is maintained.

Factory reset — Press and hold the Enter button to reset the device to factory defaults. The scaling receiver retains the current firmware version.

Front Panel Lockout Mode (Executive Mode)

Front Panel Lockout (Executive) mode locks all front panel controls (RS-232 and USB control are still available). To enable or disable executive mode through the front panel, press and hold the Menu and Enter buttons simultaneously for about 2 seconds or until the Power LED blinks (see Front Panel Lockout (executive) mode SIS commands on page 30 or XTP System Configuration Software on page 32 for remote enabling or disabling of executive mode).

Reset Mode

Use the recessed Reset button on the rear panel of the transmitter or receiver (see figure 17, A) to restore factory-shipped firmware.

POWER 12V = 1.0 A MAX + - XTP IN LAN OVER XTP RS-232 IR Rx GTx RxT AUDIO ON OFF HDMI AUDIO L R S/PDM OUTPUTS RELAYS RS-232 Tx Rx G REMOTE RESET A

Figure 17. Rear Panel Reset Button

Reset Mode Summary
Mode Mode Activation Result Purpose and Notes
Factory Reset	1	Hold down the recessed Reset button while applying power to the device.	The device reverts to the factory default firmware.	Use mode 1 to return to factory firmware for a single power cycle if an incompatibility issue arises.
		NOTE: After a mode 1 reset, update the device with the latest firmware version. DO NOT operate the firmware version that results from this mode reset.	NOTE: If you do not want to update the firmware or perform a mode 1 reset by mistake, cycle power to the device to return to the firmware version running prior to the reset.

SIS Configuration and Control

The XTP SR HDMI can be configured and controlled using the OSD menu (see On-Screen Display Menu System on page 15), Extron Simple Instruction Set (SIS) commands, or the XTP System Configuration Software (see XTP System Configuration Software on page 32). This section contains SIS communication details and SIS commands and responses when connected directly to an XTP SR HDMI. Topics in this section include:

• Host Device Connection
  • SIS Overview
  • Command and Response Tables for SIS Commands

Host Device Connection

Use a connected computer running the Extron DataViewer utility to send and receive SIS commands and responses. To connect directly to an XTP SR HDMI, connect the computer to the XTP SR HDMI through the front panel USB configuration port (see figure 9, B on page 14) or the rear panel Remote RS-232 connector (see figure 2, H on page 4).

The protocol for the serial port is as follows: 9600 baud, no parity, 8 data bits, 1 stop bit, no flow control.

SIS Overview

Host-to-Device and Device-to-Host Communication

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command sequence. When the XTP SR HDMI determines that a command is valid, it executes the command and sends a response to the host device. All responses from the receiver to the host end with a carriage return and a line feed (CR/LF = ←), which signals the end of the response character string. A string is one or more characters.

Device-Initiated Message

When the switcher is connected through the serial port only and a local event occurs, the device responds by sending a message to the host.

The following copyright message is displayed after a power cycle via RS-232.

(C) Copyright YYYY, Extron Electronics, XTP SR HDMI Vx.xx, 60-1199-01

YYYY is the year. Vx.xx is the firmware version number.

Error Responses

When the XTP SR HDMI receives an SIS command and determines that it is valid, it performs the command and sends the corresponding response to the host device. If the command is determined invalid or contains invalid parameters, the receiver returns an error response to the host. The error response codes are:

E10 = Invalid command

E11 = Invalid preset number

E13 = Invalid parameter

E14 = Not valid for this configuration

E17 = Invalid command for signal type

E22 = Busy

Using Command and Response Tables for SIS Commands

The command and response tables beginning on page 26 list the commands that the transmitter recognizes as valid, the responses that are returned to the host, a description of the command function or the results of executing the command. Commands can be entered back-to-back in a string with no spaces. Figure 18 shows the hexadecimal equivalent of ASCII characters used in the command and response tables.

NOTE: Upper and lowercase text can be used interchangeably unless otherwise stated.

Space →	ASCII to			Hex		Conversion Table					Esc	1B	CR	ØD	LF	ØA
		20	!	21	"	22	#	23	$	24	%	25	&	26	'	27
		( 28 )		29	*	2A	+	2B	,	2C	-	2D	.	2E	/	2F
	Ø	30	1	31	2	32	3	33	4	34	5	35	6	36	7	37
	8	38	9	39	:	3A	;	3B	<	3C	=	3D	>	3E	?	3F
	@	40	A	41	B	42	C	43	D	44	E	45	F	46	G	47
	H	48	I	49	J	4A	K	4B	L	4C	M	4D	N	4E	O	4F
	P	50	Q	51	R	52	S	53	T	54	U	55	V	56	W	57
	X	58	Y	59	Z	5A	[ 5B \\ 5C ]
		60 a		61 b

Figure 18. ASCII to Hexadecimal Conversion

Symbol Definitions

← = Carriage return and line feed
← = Carriage return with no line feed
| = Pipe (can be used interchangeably with the ← character).
- = Space
Esc = Escape key
W = Can be used interchangeably with the Esc character.
X34 = Output scaler rate and refresh rate See the table below.

SIS Variables for Output Resolution and Refresh Rate Combinations (where 34 = 10 - 90 )
Resolution 2	3.98 Hz 24	Hz 25	Hz 29.97	Hz 30 Hz	50 Hz 5	9.94 Hz	60 Hz 75 Hz
640x480						10 11	12
800x600						13 14	15
852x480						16 17	18
1024x768						19 20	21
1024x852						22 23	24
1024x1024						25 26	27
1280x768						28 29	30
1280x800						31 32	33
1280x1024						34 35	36
1360x765						37 38	39
1360x768						40 41	42
1365x768						43 44	45
1366x768						46 47	48
1365x1024						49 50	51
1440x900						52 53	54
1400x1050						55 56
1680x1050						57 58
1600x1200						59 60
1920x1200						61 62
480p							63 64
576p						65
720p			66 67	68 69 70	71*
1080i						72 73	74
1080p	75 76	77 78 79	80 81	82
2048x1080	83 84	85 86 87	88 89	90

* = default

Command and Response Tables for SIS Commands

Command ASCII Command(host to XTP)		Response(XTP to host)	Additional Description
Picture Adjustment Commands
Video Mute
Mute video and sync	2B	Vmt2←	Mutes video and sync.
Mute video	1B	Vmt1←	Mute the selected input.
Unmute video	∅B	Vmt∅←	Display the selected input.
View mute status	B	VmtX6←	View mute status.
Contrast
Set contrast	EscX7CONT←	ContX7←	Set the contrast toX7.
Increase contrast	Esc+CONT← ContX7←		Increase the contrast level by one.
Decrease contrast	Esc-CONT← ContX7←		Decrease the contrast level by one.
View contrast level	EscCONT← ContX7←		View the contrast level.
Brightness
Set brightness	EscX7BRIT←	BritX7←	Set brightness level toX7.
Increase brightness	Esc+BRIT← BritX7←		Increase brightness level by one.
Decrease brightness	Esc-BRIT← BritX7←		Decrease brightness level by one.
View brightness	EscBRIT← BritX7←		View the brightness level.

NOTES:

X6 = Video mute	∅ = unmute (default)
	1 = mute video
	2 = mute video and sync
X7 = Picture adjustment	∅ to 255 (128 = default)

Command ASCII Command(host to XTP)		Response(XTP to host)	Additional Description
Detail filter
Set detail level	EscX7HDET←	HdetX7←	Set the detail level to X7.
Increase detail level	Esc+HDET← HdetX7←		Increase the detail level by one.
Decrease detail level	Esc-HDET← HdetX7←		Decrease the detail level by one.
View detail level	EscHDET← HdetX7←		View the detail level.
Horizontal shift
Set horizontal shift	EscX8HCTR←	HctrX8←	Set horizontal position to X8. The default value is 32768.
Increase horizontal shift	Esc+HCTR← HctrX8←		Shift the image right by one.
Decrease horizontal shift	Esc-HCTR← HctrX8←		Shift the image left by one.
View horizontal shift	EscHCTR← HctrX8←		View the horizontal position.
Vertical shift
Set vertical shift	EscX9VCTR←	VctrX9←	Set vertical position to X9. The default value is 32768.
Increase vertical shift	Esc+VCTR← VctrX9←		Shift the image down by one.
Decrease vertical shift	Esc-VCTR← VctrX9←		Shift the image up by one.
View vertical shift	EscVCTR← VctrX9←		View the vertical position.
Horizontal size
Set horizontal size	EscX8HSIZ←	HsizX8←	Set image width to X8. The default value is based on the selected output resolution.
Increase horizontal size	Esc+HSIZ← HsizX8←		Increase the image width by one.
Decrease horizontal size	Esc-HSIZ← HsizX8←		Decrease the image width by one.
View horizontal size	EscHSIZ← HsizX8←		View the image width.
Vertical size
Set vertical size	EscX9VSIZ←	VsizX9←	Set image height to X9. The default value is based on the selected output resolution.
Increase vertical size	Esc+VSIZ← VsizX9←		Increase the image height by one.
Decrease vertical size	Esc-VSIZ← VsizX9←		Decrease the image height by one.
View vertical size	EscVSIZ← VsizX9←		View the image height.
Image reset
Execute an image reset	A	Img←	Reset shift and size settings to the default values.

NOTES:

X7 = Picture adjustment	∅ to 255 (128 = default)
X8 = Horizontal position or size	∅ to 65535
X9 = Vertical position or size	∅ to 65535

Command ASCII Command(host to XTP)		Response(XTP to host)	Additional Description
Output Configuration Commands
Output scaler rate
Set output rate	EscX34RATE← RateX34←		Select output resolution and refresh rate.
View output rate	EscRATE← RateX34←		Show selected output rate.
HDMI output format
Set HDMI output format	EscX10VTP0← VtpoX10←		Set the output color space and format.
View HDMI output format	EscVTP0← VtpoX10←		View the output color space and format.
Test pattern
NOTE: See figure 16 on page 21 for examples of the available test patterns.
Set pattern	X11J	TstX11←	Set the test pattern to X11.
View test pattern	J	TstX11←	View the current test pattern.
Video bit depth
Set video bit depth	EscVX12BITD← BitdVX12←		Set the video bit depth.
View video bit depth	EscVBITD← BitdVX12←		View the video bit depth.
Freeze
Enable	1F	Frz1←	Freeze the selected input.
Disable	∅F	Frz∅←	Unfreeze the selected input.
View freeze status	F	FrzX1←	View the freeze status.
NOTES:
X1= Enable or disable		∅ = disabled or off (default for freeze command)1 = enabled or on
X10= HDMI output format		∅ = auto (default)1 = DVI RGB 4442 = HDMI RGB 444 “Full”3 = HDMI RGB 444 “Limited”4 = HDMI YUV 444 “Full”5 = HDMI YUV 444 “Limited”6 = HDMI YUV 422 “Full”7 = HDMI YUV 422 “Limited”
X11= Test pattern		∅ = off (default)1 = crop2 = alternating pixels3 = crosshatch4 = colorbars5 = greyscale
X12= Video bit depth		∅ = auto (default)1 = 8 bit
X34= Output scaler rate and refresh rate		See the table on page 25.
Screen saver
Set timeout duration	EscX13SSAV← SsavX13*X15←		Set the required duration of inactivity before the screen saver activates.
View timeout duration	EscSSAV← SsavX13*X15←		View the required duration of inactivity before the screen saver activates and how much time is left before it activates.
Audio Configuration Commands
Audio mute
Mute all	7Z	Amt7←	Mutes all audio outputs.
Mute S/PDIF and analog	6Z	Amt6←	Mutes S/PDIF and analog audio outputs.
Mute S/PDIF and HDMI	5Z	Amt5←	Mutes S/PDIF and HDMI audio outputs.
Mute S/PDIF	4Z	Amt4←	Mutes S/PDIF audio output.
Mute analog and HDMI	3Z	Amt3←	Mute analog and HDMI audio outputs.
Mute analog audio	2Z	Amt2←	Mute the analog audio output.
Mute HDMI audio	1Z	Amt1←	Mute the HDMI audio output.
Unmute all	∅Z	Amt∅←	Unmute all audio outputs.
View mute status	Z	AmtX16←	View the audio mute status.
Volume
Set volume	X17V	VolX17←	Set output volume to X17.
Increase volume level	+V	VolX17←	Increase the audio volume by 1 dB.
Decrease volume level	-V	VolX17←	Decrease audio volume by 1 dB.
View volume level	V	VolX17←	View current volume setting.
Preset Commands
User presets
Recall preset	X18.	RprX18←	Recall user preset X18.
Save preset	X18, SprX18←		Save the current settings to user preset X18.

NOTES:

X13 = Screen saver timeout duration	∅ = never time out (default)
	1 - 255 in 1 minute steps
X15 = Time in minutes until timeout	∅ = screen saver never times out or the screen saver is currently enabled
	1 - 255 in 1 minute steps
X16 = Audio mute	∅ = unmute (default)
	1 = mute HDMI audio output
	2 = mute analog audio output
	3 = mute HDMI and analog audio outputs
	4 = mute S/PDIF audio output
	5 = mute S/PDIF and HDMI audio outputs
	6 = mute S/PDIF and analog audio outputs
	7 = mute all audio outputs
X17 = Volume	∅ to 64 in 1 dB steps (64 = default)
X18 = User preset	1 to 8

Command ASCII Command(host to XTP)		Response(XTP to host)	Additional Description
Advanced Configuration Commands
Front Panel Lockout (Executive) mode
Enable executive mode	1X	Exe1←	Lock the entire front panel.
Disable executive mode	∅X	Exe∅←	Unlock the front panel.
View executive mode status	X	ExeX1←	View the executive mode status.
Relay control
Pulse relay	X20*3*X210	RlyX20*X1←	Pulse relay X20 for a duration of X21.
Toggle relay	X20*20	RlyX20*X1←	Toggle relay X20.
Turn relay on	X20*10	RlyX20*1←	Turn relay X20 on.
Turn relay off	X20*∅0	RlyX20*∅←	Turn relay X20 off.
View relay status	X200 RlyX20*X1←		View relay status.
Aspect ratio
Set aspect ratio to Fill	Esc1ASPR← Aspr1←		Fill the entire output raster.
Set aspect ratio to Follow	Esc2ASPR← Aspr2←		Use the native aspect ratio of the input.
View aspect ratio setting	EscASPR← AsprX23←		View the current aspect ratio setting.
Switch mute
NOTE: The basic mute specifies the mute duration when switching. The advanced mute adds an additional mute to help compensate for switching between different input resolutions.
Set switch mute	EscX32*X33AUTB←	AutbX32*X33←	Set the mute duration between switching inputs.
View switch mute setting	EscAUTB← AutbX32*X33←		View the basic and advanced mute durations between switching inputs.

NOTES:
1 = Enable or disable	= disabled or off (default)
	1 = enabled or on
20 = Relay	1 = relay 1
	2 = relay 2
21 = Pulse time	1 to 65535 (in 16 ms steps)
23 = Input aspect ratio	1 = fill (default)
	2 = follow
32 = Basic mute	-255 where 1 step = 100 ms or 10 steps = 1 s( = default)
33 = Advanced mute	-255 where 1 step = 100 ms or 10 steps = 1 s( = default)

Command ASCII Command(XTP to host)		Response(host to XTP)	Additional Description
HDCP mode
Set HDCP mode	EscS 31 HDCP←	HdcpS 31 ←	Set the HDCP mode to 31 .
View HDCP mode setting	EscSHDCP← HdcpS 31 ←		View the HDCP mode setting.
HDCP status
View HDMI output status	EscOHDCP← HdcpO 25 ←		Query the HDCP status of the output.
Reset mode
System reset	EscZXXX← Zpx←		Resets unit to factory default.
Information Requests
View input signal status	OLS	Frq 30 ←	View the input signal status.
View firmware version	Q	x.xx←	View the firmware version.
View firmware build	*Q	x.xx,xxxx←	View the firmware build version.
View part number	N	60-1199-01←	View the device part number.

NOTES:

25 = HDCP status	, 2, 4, 6 = no sink device detected1, 3, 5 = sink detected with no HDCP encryption7 = sink detected with HDCP encryption
30 = Input signal status	= no input1 = input detected
31 = HDCP mode	= auto or encrypt the output only when required by the input (default)1 = always encrypt the output

XTP System Configuration Software

This section contains installation and configuration procedures for the XTP System Configuration Software. The XTP SR HDMI can also be controlled with the OSD menu (see On-Screen Display Menu System on page 15) or SIS commands (see SIS Configuration and Control on page 23). Topics in this section include:

• Software Installation
• Software Operation

Software Installation

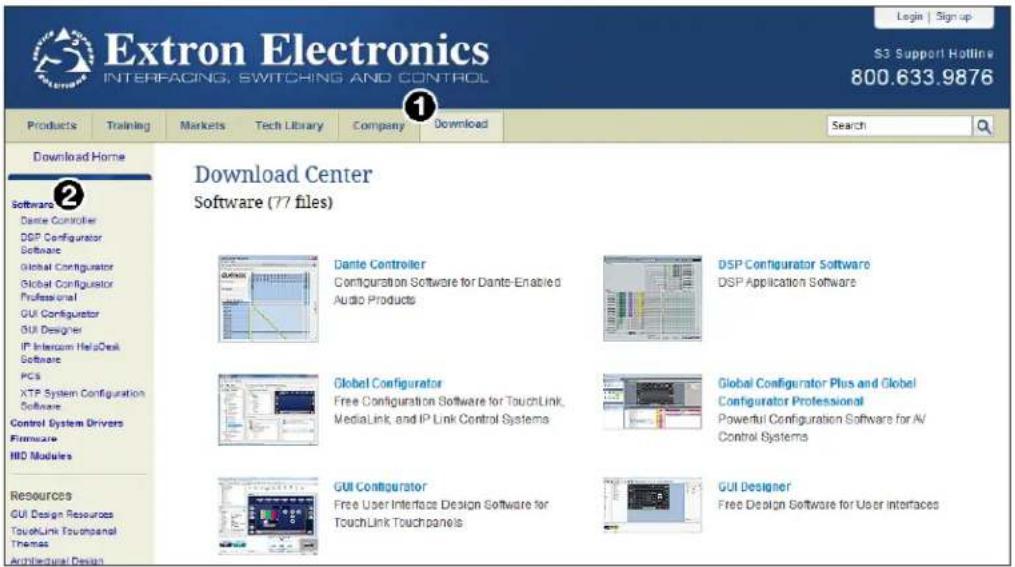

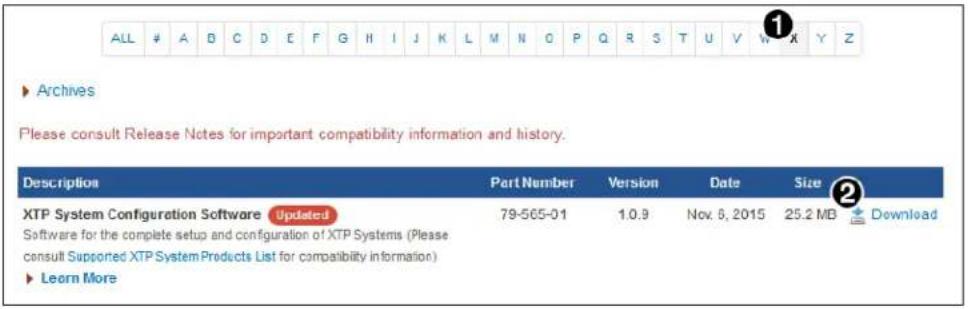

The XTP System Configuration Software is available for download on the Extron website, www.extron.com. To download the software from the Extron website, locate it on the Download Center page or go to the XTP System Configuration Software product page.

Software Download Center Page

Extron Electronics INTERFACING, SWITCHING AND CONTROL Login | Sign up S3 Support Hotline [phone] Products Training Markets Tech Library Company Download Search Download Home Software Dante Controller DSP Configurator Software Global Configurator Global Configurator Professional GUI Configurator GUI Designer IP Intercom HelpDesk Software PCS XTP System Configuration Software Control System Drivers Firmware HID Modules Resources GUI Design Resources TouchLink Touchpanel Themes Architectural Design Download Center Software (77 files) Dante Controller Configuration Software for Dante-Enabled Audio Products DSP Configurator Software DSP Application Software Global Configurator Free Configuration Software for TouchLink, MediaLink, and IP Link Control Systems Global Configurator Plus and Global Configurator Professional Powerful Configuration Software for AI/ Control Systems GUI Configurator Free User Interface Design Software for TouchLink Touch panels. GUI Designer Free Design Software for User interfaces

Figure 19. Extron Website Download Page

1. On the Extron website, select the Download tab (see figure 19, ①).
2. On the left sidebar, click the Software link (②).

TIP: If the XTP System Configuration Software is featured in the left sidebar, click the XTP System Configuration Software link to go directly to the product page (see Software Product Page on the next page).

ALL # A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Archives Please consult Release Notes for important compatibility information and history. Description Part Number Version Date Size XTP System Configuration Software Updated 79-565-01 1.0.9 Nov. 8, 2015 25.2 MB Downlead Software for the complete setup and configuration of XTP Systems (Please consult Supported XTP System Products List for compatibility information) Learn More

Figure 20. XTP System Configuration Software Download Link

1. Click the X link (see figure 20, 1).
2. Locate the XTP System Configuration Software and click the Download link (see figure 20, ②) to the right of the product name.
3. Submit any required information to start the download. Note where the file is saved.
4. Open the executable (.exe) file from the save location.
5. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder.

Software Product Page

Extron Electronics INTERFACING, SWITCHING AND CONTROL Login | Sign up 93 Support Hotline [phone] Products Training Markets Tech Library Company Download Product Home Software Configuration Software XTP System Configuration Software XTP System Configuration Software Software for the Complete Setup and Configuration of XTP Systems Key Features • Convenient, user-friendly control software for configuring, operating, and monitoring XTP Systems • Quick and easy configuration via Ethernet or USB • Tac-based design for ease of use • All EDID management options are accessible within a single window • Provides overview of available system power and all XTP twisted pair devices receiving power remotely through the matrix switcher • No programming skills required See All Features > Image Gallery Interactive Overview Featured Videos VERSION RELEASE DATE SIZE SIMILAR PRODUCTS 1.0.9 Nov. 8, 2015 • Please consult Supported XTP System Products List for compatibility Information. 25.2 Download MB Login required Dante Controller Configuration Software for Dante-Enabled Audio Products

Figure 21. XTP System Configuration Software Product Page

1. In the Search field (see figure 21, ①) type "XTP System Configuration Software."
2. Press on the keyboard or select XTP System Configuration Software from the drop-down menu.
3. Click the Download button (see figure 21, ②).
4. Submit any required information to start the download. Note where the file is saved.
5. Open the executable (.exe) file from the save location.
6. Follow the instructions that appear on the screen. By default, the installation creates a directory in the Program Files or Program Files (x86) folder.

XTP SR HDMI Scaling Receiver • XTP System Configuration Software 33

Software Operation

The XTP SR HDMI can be controlled directly from the front panel configuration port (see figure 9, B on page 14) or remotely from a connected XTP matrix switcher.

Connections

The XTP System Configuration Software opens to the Connections screen. This screen is used to establish communication with an XTP device through a USB connection. Ensure the receiver is connected and powered on before attempting to connect to it.

XTP System Configuration Software File Tools Help Connections Device Settings XTP Power CDT20 Macies System Configuration Matrix Flex Connections Ethernet USB 3D Antenna Password 1 2 List of connected devices via USB @ XTP SR HDMI 3 Connect

Figure 22. Connections Screen

To connect to a device:

1. Open the XTP System Configuration Software.
2. On the Connections screen in the XTP Configuration Software, select the connection method radio button (see figure 22, 1).
3. From the displayed list, select the connected device to be controlled (2).
4. Click the Connect button (3). The Device Settings screen opens (see Device Settings on page 38).

Menu Bar

The menu bar contains three menus for configuring software settings.

File menu

The File menu contains options for disconnecting from the switcher and exiting the program. To access the menu, click the File menu.

XTP System Configuration S File Tools Help Disconnect Exit

Figure 23. File Menu

Disconnect

This option disconnects the connected device from the XTP System Configuration Software. From the File menu, select Disconnect. The Connections screen opens.

NOTE: If the device is already disconnected, the Disconnect option is disabled until a device is connected.

Exit

This option disconnects the switcher from the software and closes the application. From the File menu, select Exit. The application closes.

Tools menu

The Tools menu contains an option for updating firmware. To access this menu, click the Tools menu.

XTP System Configuration Software File Tools Help Backup and Restore Update Firmware Commissioning Report Software Preference

Figure 24. Tools Menu

NOTE: The Backup and Restore and Commissioning Report options are not available when the computer is directly connected to the XTP SR HDMI. See an XTP matrix switcher user guide (www.extron.com) for more information on these features.

Update Firmware

This option uploads firmware from the host device to the connected device.

1. From the Tools menu, select Update Firmware. A dialog box opens to ask permission to disconnect from the device.

Update Firmware To properly update the firmware, the software must disconnect you from the device. You may reconnect after the update is complete. Would you like to disconnect to continue the update? Yes No

Figure 25. Confirm Disconnect Dialog Box

1. Click the Yes button to disconnect from the device and continue with the firmware update process. The Update Firmware dialog box opens.

Update Firmware Check network for updates Select file from computer Close

Figure 26. Update Firmware Dialog Box

1. Click one of the following options:

2. Select file from computer — Uploads a manually selected firmware file saved on the connected computer.

3. Check network for updates — Checks the connected network for firmware updates. If any are found, click the Update X Devices button to update the firmware for the applicable connected devices or click Save File to Computer to save the firmware file to the connected computer.

4. Click the Close button after the firmware finishes updating.

Software Preference

This option resets all disabled confirmation dialogs to the default settings.

1. From the Tools menu, select Software Preference. The Software Preference dialog box opens.

Software Preference Confirmation message setting Reset this setting to re-enable all confirmation dialogs Reset

Figure 27. Software Preference Dialog Box

1. Click the Reset button. The dialog box closes.

XTP SR HDMI Scaling Receiver • XTP System Configuration Software 36

Help menu

The Help menu contains a way to access XTP System Configuration Software information, a link to the help file, and a link to the Extron website.

XTP System Configuration Software File Tools Help About the Software Tutorial (System Configuration) Help Extron Website

Figure 28. Help Menu

NOTE: The Tutorial (System Configuration) option is not available when directly connected to the XTP SR HDMI.

About the Software

This option provides basic information about the XTP System Configuration Software, including version number and copyright information.

About - XTP System Configuration Software XTP System Configuration Software Version 1.1.0 Copyright © 2016 View the End User License Agreement This computer program is protected by copyright laws and international treaties. Unauthorized duplication or distribution is strictly prohibited, and will be prosecuted to the maximum extent possible by law. Part # 79-565-01 Details Licenses OK

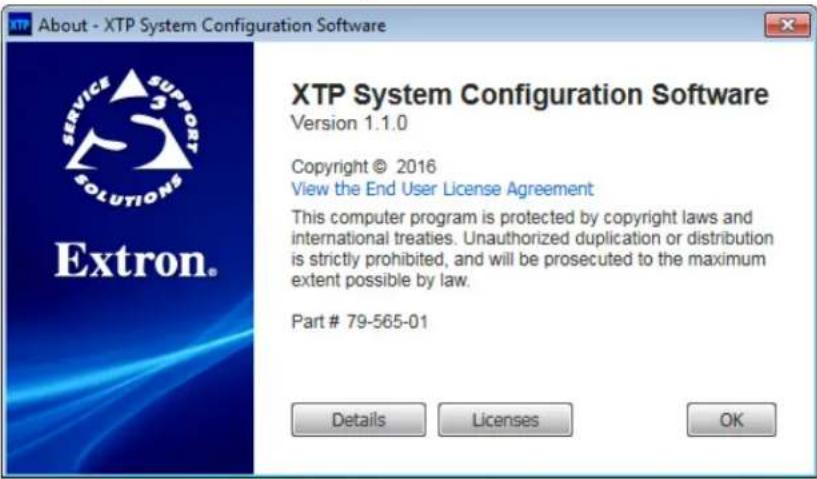

Figure 29. About Dialog Box

1. From the Help menu, select About the Software. The About dialog box opens.
2. Click the Details button for more information.
3. Click the 0k button to close the dialog box.

Help

This option opens the XTP System Configuration Software help file in a Web browser. From the Help menu, select Help.

Extron Website

This option opens the Extron website in a Web browser. From the Help menu, select Extron Website.

Device Settings

The Device Settings screen allows a user to view and edit various device settings for the receiver directly connected to the PC running the XTP software. Click the Device Settings icon (see figure 30, ①) on the Global Navigation Bar to open the Device Settings screen.

XTP SR HDMI Configuration File Tools Help Connections Device Settings XTP Power F100 Provider System Configuration Matrix Line and Process XTP SR HDMI AV Controls Input/Output Video Size/Position Audio General Input Aspect Ratio Fill Output Resolutions: 720p (1280x720) Refresh Rate: 60Hz Output Format: DVI RGB 444 Video Bit Depth: Auto Test Pattern Used to optimize settings at the display device Off Relay Control Relay 1 Status: Open Topsies Pulse Durations: 0.5 seconds (0.5-100) Relay 2 Status: Open Topsies Pulse Durations: 0.3 seconds (0.5-100) XTP SR HOME General Information Model: XTP SR HDMI Printward Version: 1.04.9008 Signal Information: Input Signal Present: No Output Aspect Ratio Fill Resolutions: 720p (1280x720) d00Hz Output Format: DVI RGB 444 Video Bit Depth: Auto Audio Information: HDMI Audio: Untreated S/POIF Audio: Untreated Analog Audio: Untreated Analog Audio Volume: 100 % Accessories: Number of Audio Content Number of Audio Content Number of Audio Content

Figure 30. Device Settings Screen

AV Controls panel

The AV Controls panel, located on the left, is used to perform audio or video mutes.

NOTE: The mute buttons turn red when they are enabled.

② Video mute — Click the Video Mute button to mute or unmute the video output.
③ Audio mute — Click the Audio Mute button to mute or unmute the audio output.
4 Audio and video mute — Click the AV Mute button to mute or unmute audio and video output.

Input/Output tab

Click the Input/Output tab (see figure 31, ①) to open the Input/Output screen. This screen contains input and output configurations as well as relay controls.

Input/Output 1 Video Size/Position Audio General Input Aspect Ratio: Fill Output Resolution: 720p (1280x720) Refresh Rate: 60Hz Output Format: Auto Video Bit Depth: Auto Test Pattern Used to optimize settings at the display device Off Relay Control Relay 1 Status Open Toggle Pulse Duration: 0.5 seconds (0.5-180) Relay 2 Status Open Toggle Pulse Duration: 0.5 seconds (0.5-180)

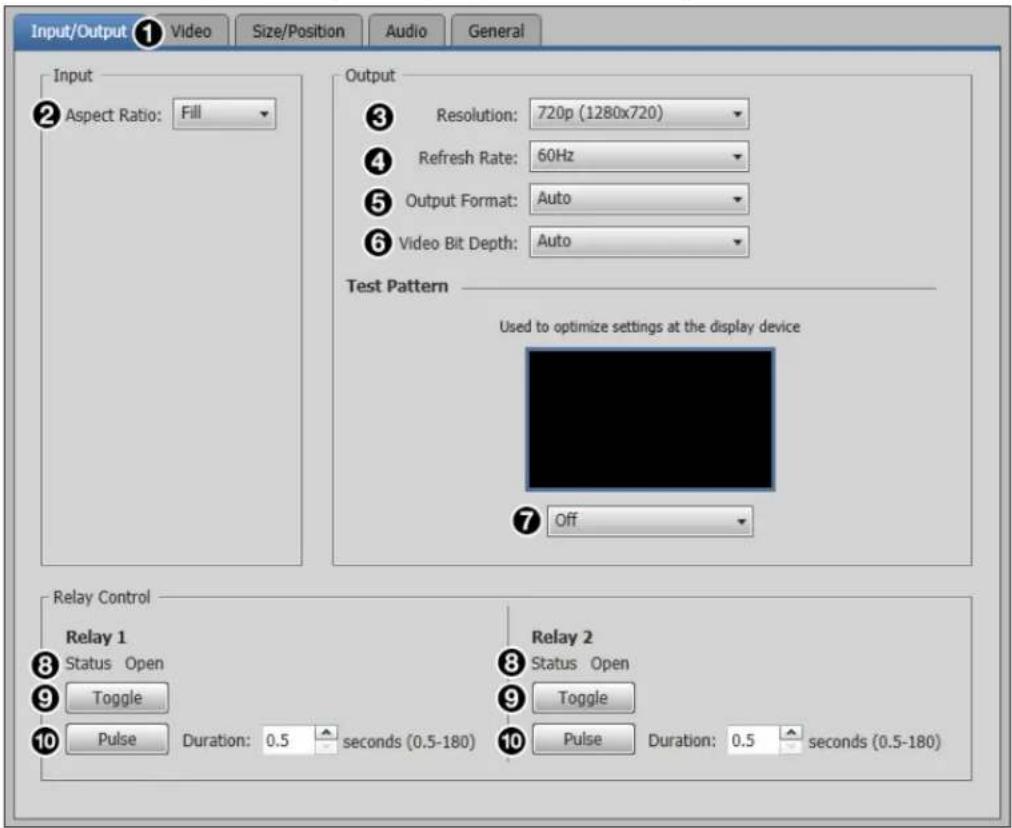

Figure 31. Input/Output Tab

Input panel

The Input panel on the Input/Output screen is used to set the aspect ratio.

② Aspect Ratio — From the Aspect Ratio drop-down list, select Fill or Follow.

• Fill — Scales the input signal to fill the entire video output.
- Follow — Maintains the signal aspect ratio, with respect to the current output resolution.

Output panel

The Output panel on the Input/Output screen is used to set the resolution, refresh rate, and test pattern.

③ Resolution — From the Resolution drop-down list (see figure 31, ③ on the previous page), select the desired resolution.
4 Refresh Rate — From the Refresh Rate drop-down list (see figure 31, 4 on the previous page), select the desired refresh rate.
⑤ Output Format — From the Output Format drop-down list (see figure 31, ⑤ on the previous page), select the desired output format. This sets the output format to a specific setting or to automatically select a format based on the display EDID.
⑥ Video Bit Depth — From the Video Bit Depth drop-down list (see figure 31, ⑥ on the previous page), set the color bit depth of the output signal.
⑦ Test Pattern — From the drop-down list below the test pattern preview (see figure 31, ⑦ on the previous page), select the desired test pattern (see figure 16 on page 21 for examples of the available test patterns).

Relay Control panel

The Relay Control panel on the Input/Output screen is used to toggle or pulse relay 1 or 2.

⑧ Status — Displays whether the relay is open or closed (see figure 31, ⑧ on the previous page).

⑨ Toggle — Click the Toggle button (see figure 31, ⑨ on the previous page) in the desired relay panel to toggle either relay open or closed.

10 Pulse — In the desired relay panel, select a length of time from the Duration field. Click the Pulse button (see figure 31, 10 on the previous page) to pulse the relay for the time specified in the Duration field.

Video tab

Click the Video tab to open the Video screen. This screen contains picture control settings and user preset management options.

Input/Output Video Size/Position Audio General Picture Control 0 127 1 Brightness: 63 2 Contrast: 32 3 Detail: 63 User Presets Saves: - Picture control P1 - Preset 1 P2 - Preset 2 P3 - Preset 3 P4 - Preset 4 P5 - Preset 5 P6 - Preset 6 P7 - Preset 7 4 Save Preset 5 Recall Preset

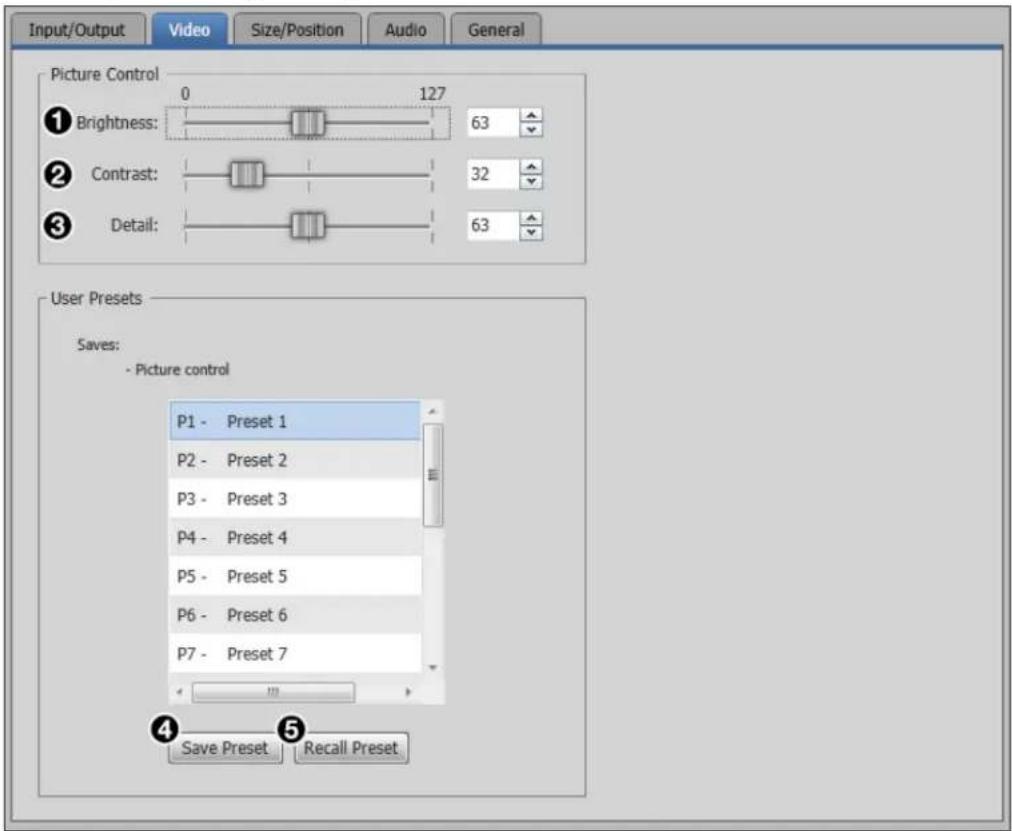

Figure 32. Video Tab

Picture Control panel

The Picture Control panel on the Video screen is used to adjust brightness, contrast, and detail settings. Adjust picture control settings in one of the following ways:

• Click and drag the handle of the slider for the desired setting.
• Click in the desired field to the right of the slider and enter a new value.
• Click the Up and Down arrows to the right of the desired setting.

① Brightness — Adjust the brightness level of the output.

② Contrast — Adjust the contrast level of the output.

③ Detail — Adjust the detail level of the output.

User Presets panel

User presets save picture control settings that can be recalled later.

4 Save Preset — Select a preset from the list of presets and click the Save Preset button. The current settings are saved.
⑤ Recall Preset — Select the desired preset from the list of presets and click the Recall Preset button.

Size and Position tab

Click the Size/Position tab (see figure 33, ①) to open the Size and Position screen. This screen contains several different ways to adjust the size and position of the output.

Input/Output Video Size/Position Audio General Adjust Image Graphically Lock Aspect Ratio 720p (1280x720) Select the drag points to resize the image Adjust Image Numerically 4 Horizontal Position: 134 -10240 Max 10240 4 Horizontal Size: 997 10 10240 4 Vertical Position: 111 -6000 6000 4 Vertical Size: 518 10 6000 5 Image Reset

Figure 33. Size/Position Tab

To adjust the size and position graphically:

If desired, click the Lock Aspect Ratio check box (②) to constrain proportions.

1. Click and drag the drag points of the sample image in the Preview box (3) to resize the image within the designated space (defined by the black area in figure 33 above).
2. Click anywhere inside the sample image and drag it anywhere within the Preview box.

To adjust the size and position numerically:

1. Enter a value or click the Up and Down arrows in the Horizontal Size and Vertical Size fields (4).
2. Enter a value or click the Up and Down arrows in the Horizontal Position and Vertical Position fields (4).

To reset all position and size settings to default values:

Click the Image Reset button (⑤).

Audio tab

Click the Audio tab (see figure 34, ①) to open the Audio screen. This screen contains audio output settings.

Input/Output Video Size/Position Audio 1 General Output Analog Audio Volume 100 % 0 % 0 dB Force analog audio output ① when DVI display is connected Mute All

Figure 34. Audio Tab

Output panel

The Output panel on the Audio screen is used to mute or unmute all audio output and control volume on the analog audio output.

② Mute All — Click the Mute A11 button to mute or unmute all audio output. When muted, the button turns red.
③ Volume slider — Click and drag the handle of the Volume slider, enter a value in the Volume field, or click the Up and Down arrows to adjust analog audio output volume.
④ Analog audio for DVI displays — Select the check box below the Volume slider to send analog audio to a display receiving DVI signals.

NOTE: When this check box is selected, Extron EDID Minder does not show the EDID information of the connected display. It shows a 720p Extron EDID.

General tab

Click the General tab (see figure 35, ①) to open the General screen. This screen contains executive mode and video and sync settings.

Input/Output Video Size/Position Audio General Executive Mode 2 Unlock Front Panel 3 Lock Front Panel Mute Video and Sync This may allow a connected sink to go into a power saving mode. 4 Mute Video and Sync Screen Saver Disable Sync: 5 Never 6 After: 0 minutes (1-10) HDCP Mode 7 Follow 8 Always Encrypt Output Switch Mute Basic Mute 9 Enable Duration: 0 seconds (0.5-5.0) Advanced Mute 10 Enable Duration: 0 seconds (0.5-5.0) Factory Reset

Figure 35. General Tab

Executive Mode panel

The Executive Mode panel on the General screen is used to enable or disable front panel lockout mode (executive mode).

② Unlock front panel — Click the Unlock Front Panel radio button (default) to disable executive mode and allow full use of the receiver front panel.
③ Lock front panel — Click the Lock Front Panel radio button to enable executive mode and lock the front panel.

NOTE: In executive mode, access to the OSD menu is disabled.

Mute Video and Sync panel

The Mute Video and Sync panel on the General screen is used to mute or unmute output video and sync.

④ Mute video and sync — Click the Mute Video and Sync button to mute the active video and disable sync on the output.

Screen Saver panel

The Screen Saver panel on the General screen is used to enable or disable a screen saver. When enabled, the output sync is disabled after a specified amount of time.

⑤ Never — Click the Never radio button (see figure 35, ⑤ on the previous page) to disable the screen saver setting.
⑥ Duration — Enter a value in the After: field (see figure 35, ⑥ on the previous page), or click the Up and Down arrows to specify a duration of inactivity before a screen saver is activated. The duration is set in minutes.

HDCP Mode panel

The HDCP Mode panel on the General screen is used to set HDCP encryption of the output signal.

⑦ Follow — Click the Follow radio button (see figure 35, ⑦ on the previous page) to set the HDCP encryption of the output signal to follow the input signal setting.

⑧ Always Encrypt Output — Click the Always Encrypt Output radio button (see figure 35, ⑧ on the previous page) to always encrypt the output regardless of the encryption status of the input signal.

Switch Mute panel

The Switch Mute panel on the General screen is used to enable or disable mutes during switching.

⑨ Basic mute — Select the Enable check box (see figure 35, ⑨ on the previous page) in the Basic Mute panel to mute the output during switching.

If enabled, enter a value in the associated Duration: field, or click the Up and Down arrows to specify a mute duration between switching. The duration is set in 0.5 second increments.

10 Advanced mute — Select the Enable check box (see figure 35, 10 on the previous page) in the Advanced Mute panel to add an additional mute to help compensate for switching between different input resolutions.

If enabled, enter a value in the associated Duration: field, or click the Up and Down arrows to specify a duration of the additional mute. The duration is set in 0.5 second increments.

Factory Reset

⑪ Factory Reset — Click the Factory Reset button (see figure 35, ⑪ on the previous page) to reset the receiver to factory settings (except for firmware).

NOTE: This is the same as the Esc ZXXX SIS command (see the Reset mode SIS command on page 31).

Device Information panel

The Device Information panel displays device information and signal status information.

General Information section

① Model — Displays the device model.
② Firmware Version — Displays the firmware version and build.

Signal Information section

③ Input Signal Present — Displays the signal presence. The indicator to the left turns green when there is an input signal present.
④ Aspect Ratio — Displays the aspect ratio.
⑤ Resolution — Displays the output resolution and refresh rate.
⑥ Output Format — Displays the HDMI output format setting.
⑦ Video Bit Depth — Displays the video bit depth setting.

Audio Information section

⑧ HDMI Audio — Displays the mute status of the HDMI audio output.
⑨ S/PDIF Audio — Displays the mute status of the audio on the S/PDIF output.
10 Analog Audio — Displays the mute status of the analog audio output.
⑪ Analog Audio Volume — Displays the analog audio output volume level.

XTP SR HDMI
General Information
Model:	XTP SR HDMI	1
Firmware Version:	1.04.0008	2
Signal Information
Input
○ Signal Present:	No	3
Output
Aspect Ratio:	Fill	4
Resolution:
720p (1280x720) @60Hz		5
Output Format:	Auto	6
Video Bit Depth:	Auto	7
Audio Information
HDMI Audio:	Unmuted	8
S/PDIF Audio:	Unmuted	9
Analog Audio:	Unmuted	10
Analog Audio Volume:	100%	11

Reference Information

This section contains mounting information.

Mounting

The XTP SR HDMI can be placed on a tabletop or mounted in a rack or underneath a desk.

Tabletop Mounting

Attach the provided rubber feet to the bottom four corners of the enclosure.

Furniture Mounting

Go to www.extron.com for a list of compatible furniture mounting kits. To install either device to furniture, follow the mounting kit instructions.

Rack Mounting

Go to www.extron.com for a list of compatible furniture mounting kits. To install the device to a rack, follow the mounting kit instructions and see the UL guidelines for rack-mounted devices below.

UL guidelines for rack-mounted devices

The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the XTP SR HDMI in a rack.

1. Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the XTP SR HDMI in an environment compatible with the maximum ambient temperature (Tma = +122 °F, +50 °C) specified by Extron.

2. Reduced air flow — Install the equipment in a rack so that the amount of air flow required for safe operation of the equipment is not compromised.

3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition is not achieved due to uneven mechanical loading.

4. Circuit overloading — Connect the equipment to the supply circuit and consider the effect that circuit overloading might have an overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (for example, the use of power strips).

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics

1230 South Lewis Street

Anaheim, CA 92805

U.S.A.

Japan:

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

Europe and Africa:

Extron Europe

Hanzeboulevard 10

3825 PH Amersfoort

The Netherlands

China:

Extron China

686 Ronghua Road

Songjiang District

Shanghai 201611

China

Asia:

Extron Asia Pte Ltd

135 Joo Seng Road, #04-01

PM Industrial Bldg.

Singapore 368363

Singapore

Middle East:

Extron Middle East

Dubai Airport Free Zone

F13, PO Box 293666

United Arab Emirates, Dubai

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876

Europe: 31.33.453.4040

Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters+1.800.633.9876 (Inside USA/Canada Only)Extron USA - West Extron USA - East+1.714.491.1500 +1.919.850.1000+1.714.491.1517 FAX [phone] FAX

Extron Europe+800.3987.6673(Inside Europe Only)+31.33.453.4040+31.33.453.4050 FAX

Extron Asia+65.6383.4400+65.6383.4664 FAX

Extron Japan+81.3.3511.7656+81.3.3511.7656 FAX

Extron China+86.21.3760.1568+86.21.3760.1566 FAX

Extron Middle East+971.4.299.1800+971.4.299.1880 FAX

Extron Australia+61.8.8351.2188+61.8.8351.2511 FAX

Extron India1800.3070.3777Inside India Only+91.80.3055.3777+91.80.3055.3737 FAX
