Product Type	Graphics Card
Brand	Zotac
Model	GeForce GTX TITAN
GPU	NVIDIA GeForce GTX TITAN
Memory	6GB GDDR5
Memory Interface	384-bit
Core Clock	837 MHz (base), 876 MHz (boost)
CUDA Cores	2688
Output Ports	Dual DVI, HDMI, DisplayPort
Maximum Resolution	4096x2160
Interface	PCI Express 3.0 x16
Power Connectors	One 6-pin and one 8-pin PCIe
Recommended PSU	600W
Dimensions (approx.)	10.5 x 4.4 x 1.5 inches (267 x 112 x 38 mm)
Weight (approx.)	1.5 kg (3.3 lbs)
SLI Support	Yes (2-way SLI)
DirectX Support	DirectX 11
OpenGL Support	OpenGL 4.3
Operating Systems Supported	Windows 7, Vista, XP
Cooling	Dual-slot blower fan
Warranty	2 years (typical)

Frequently Asked Questions - GeForce GTX TITAN Zotac

What are the minimum system requirements for the Zotac GeForce GTX TITAN?

You need an 800MHz or faster processor, at least 128MB system memory, an AGP or PCI-Express slot, a CD/DVD-ROM drive, 200MB free hard disk space, and Microsoft Windows 7/Vista/XP.

How do I install the graphics card in a system without a previous card?

Shut down and unplug power. Open the chassis, remove the metal bracket cover, insert the card into the PCIe slot, secure it with a screw, connect auxiliary power if needed, close the chassis, and reconnect power.

How do I install the driver from the included CD?

Boot to Windows, cancel the Found New Hardware wizard, insert the CD, click 'Driver Installation' from the menu, select your GPU and OS, then follow on-screen instructions and restart.

Can I use two Zotac GeForce GTX TITAN cards in SLI?

Yes, if your motherboard supports SLI. Install both cards in PCIe slots, connect the SLI bridge (sold separately) between the gold fingers on top of the cards, and enable SLI in the NVIDIA Control Panel.

How do I connect multiple monitors?

Use the available ports: DVI, HDMI, and DisplayPort. Connect each monitor to the corresponding port. You can then configure display settings in Windows or NVIDIA Control Panel.

What should I do if there is no display after installation?

Check that the card is fully seated in the slot, the monitor cable is connected properly, auxiliary power is connected, and your PSU is sufficient. Also ensure the card is compatible with your motherboard.

How do I remove the graphics card driver?

Go to Control Panel > Add or Remove Programs, find 'NVIDIA Drivers', click Change/Remove, follow the prompts, and restart. Then power off and replace the card if needed.

What is the purpose of the S/PDIF audio input on the card?

It allows audio output over HDMI or DVI. Connect the provided S/PDIF cable from the card to your motherboard's SPDIF_OUT and GND pins to enable audio pass-through.

Can I use a DVI-to-HDMI adapter?

Yes, if your card lacks an HDMI port, you can use a DVI-HDMI dongle (included with some models) to connect to HDMI displays. Note that audio may require the S/PDIF connection.

What safety precautions should I take before installing?

Turn off power and unplug the system. Use anti-static measures like a grounded wrist strap or touch bare metal. Handle the card by the bracket, avoid touching the gold connectors.

USER MANUAL GeForce GTX TITAN Zotac

Electronic Emission Notices

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions contained in this manual, may cause harmful interference to radio and television communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• REORIENT OR RELOCATE THE RECEIVING ANTENNA
• INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
• CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT OF THE RECEIVER
• CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN

NOTE:

Connecting this device to peripheral devices that do not comply with Class B requirements, or using an unshielded peripheral data cable, could also result in harmful interference to radio or television reception.

The user is cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

To ensure that the use of this product does not contribute to interference, it is necessary to use shielded I/O cables.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE, the essential protection requirements of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Copyright© 2007 ZOTAC International (MCO) Limited. All Rights Reserved

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means, without the express written permission of ZOTAC International (MCO) Limited.

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification or alteration is authorized in writing by ZOTAC International (MCO) Limited, or (2) the serial number of the product is damaged or missing.

ZOTAC INTERNATIONAL (MCO) LIMITED PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ZOTAC INTERNATIONAL (MCO) LIMITED BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF PC PARTNER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUCTED AS A COMMITMENT BY ZOTAC INTERNATIONAL (MCO) LIMITED. ZOTAC INTERNATIONAL (MCO) LIMITED ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owner's benefit, without intent to infringe.

NVIDIA is a trademark of NVIDIA Corporation Windows is a trademark of Microsoft Corp.

Macrovision

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Precautions - Read this first!

1) Before playing video games

Do not play when you are tired or short of sleep. Make sure that the room is well illuminated and lighting is adjusted to the brightness of the monitor. Keep a suitable distance from the display monitor. Take a break of 10 to 15 minutes every hour while playing.

Extremely pronounced lighting effects such as fast image changes, repetitions of simple geometric shapes, flashes of light may induce epileptic fits or blackouts in some persons. Even persons with no previous known tendency to epilepsy may be in danger. If you or member of your family has been diagnosed as prone to epilepsy, please consult your physician before playing the video game. Parents should monitor their children carefully when they play video games. Stop playing immediately if the following symptoms are detected: nausea, vision disturbance, muscle tension or cramps, orientation problems, involuntary movements or brief loss of consciousness.

2) Static electricity precautions

Do not take the graphics card out from the original static electricity protection package until you are ready to install it. Before installing, wear a grounded wrist strap if possible, or discharge static electricity by touching the bare metal surface of the system chassis. Carefully hold the graphics card by its rear bracket, and avoid touching the "gold finger" PCB edge connector unless it is necessary.

3) Turn off system power before installing the graphics card

Turn off the AC main power to the system, by the AC main power switch or by detaching the AC power cord. Damage to the graphics card or the system components, or injury to you may result if power is turned on during the installation. Please consult a qualified technician if necessary. The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation by unauthorized service personnel.

Table of Contents

1. System Requirements 5
2. Installing the Graphics Card----6

For systems without an existing graphics card---- 6

For systems with an existing graphics card----7

Installing multiple graphics cards in SLI----8

1. Connecting Display Devices----9

VGA Port----9

Composite / S-Video / HDTV Port 9

DVI Port 10

HDMI Port---- 10

1. Enabling S/PDIF audio input----12
2. Graphics Card Driver Installation---- 13

Installing driver from CD----13

Installing and updating driver from downloaded file---- 16

Removing graphics card driver---- 17

Appendix - Basic Troubleshooting---- 19

Glossary----20

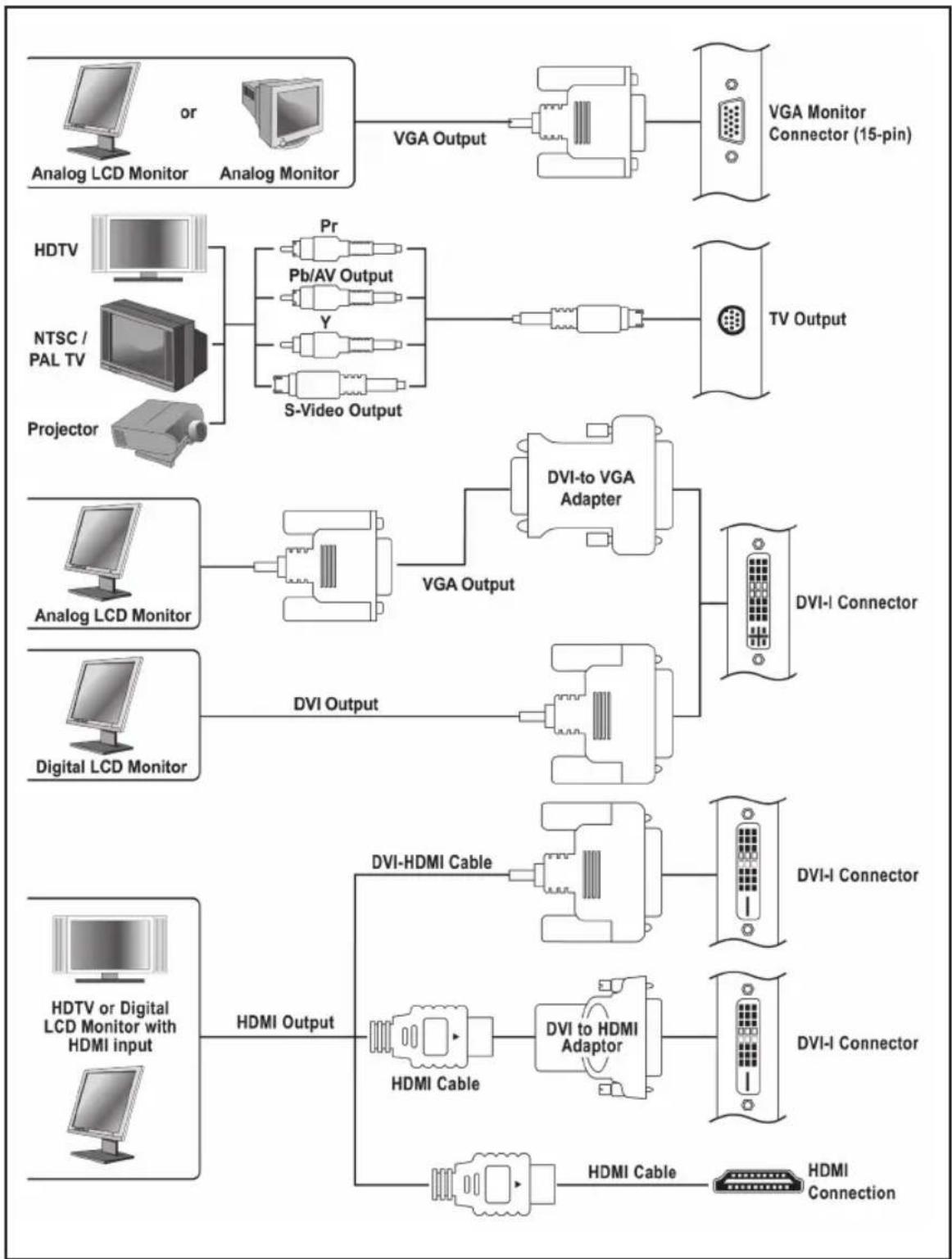

Connecting Your Monitor---- 21

1. System Requirements

• 800MHz or higher speed processor
• At least 128MB system memory
• AGP or PCI-Express slot (depending on graphics card type)
• CD-ROM or DVD-ROM drive
• 200MB free hard disk space
• Microsoft® Windows 7 / Vista / XP

2. Installing the Graphics Card

Important!

Read the precautions before starting the installation

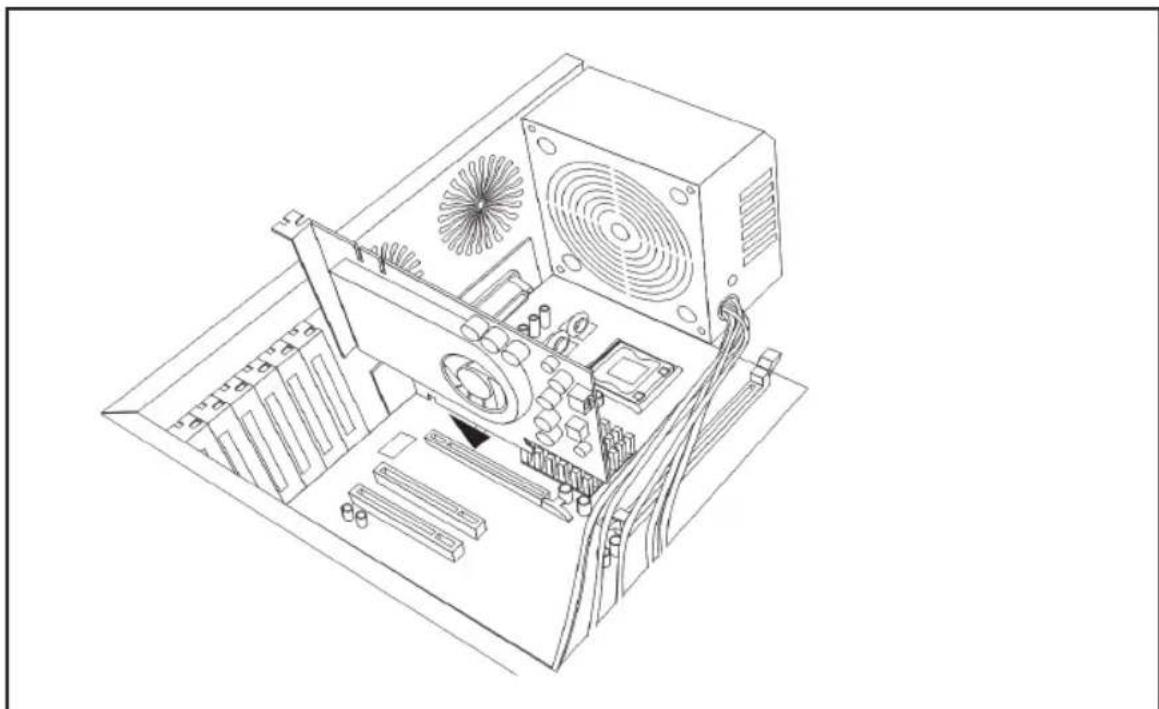

For system without an existing graphics card

1. Shut down the system and unplug the power cable from the AC power source.
2. Open the system chassis to access the AGP or PCI Express slot. Refer to your system manual for instructions.
3. Remove the metal bracket cover near the AGP or PCI Express slot. Save the screw for later use.
4. Remove the graphics card from its anti-static packaging.
5. Hold the card firmly and insert its golden connectors into the AGP or PCI-Express slot.
6. Make sure that the card is properly seated in the slot, and then secure the card metal bracket with a screw.
7. Connect the DC power plug from the system power supply unit if your card has an auxiliary power connector (for specific cards only). Some models may come with a DC power cable, which connects between the card and the system power supply unit.
8. Replace the system cover and re-connect all power cables.

Technical line drawing of a computer motherboard with CPU socket, fan, and drive unit (no text or labels)

Fig 2-1 Insert the graphic card to the slot

For system with an existing graphics card

1. Uninstall the current VGA driver by accessing the Windows® Control Panel / Add or Remove Programs
2. Shut down the system and unplug the power cable from the AC power source.
3. Open the system chassis to locate the existing graphics card at the AGP or PCI Express slot. Refer to your system manual for instructions.
4. Remove the graphics card from the AGP or PCI Express slot. Save the screw for later use.
5. Remove the graphics card from its anti-static packaging.
6. Hold the card firmly and insert its golden connectors into the AGP or PCI Express slot.
7. Make sure that the card is properly seated in the slot, and then secure the card the card metal bracket with a screw.
8. Connect the DC power plug from the system power supply unit if your card has an auxiliary power connector (for specific cards only). Some models may come with a DC power cable, which connects between the card and the system power supply unit.
9. Replace the system cover, and re-connect all power cables.

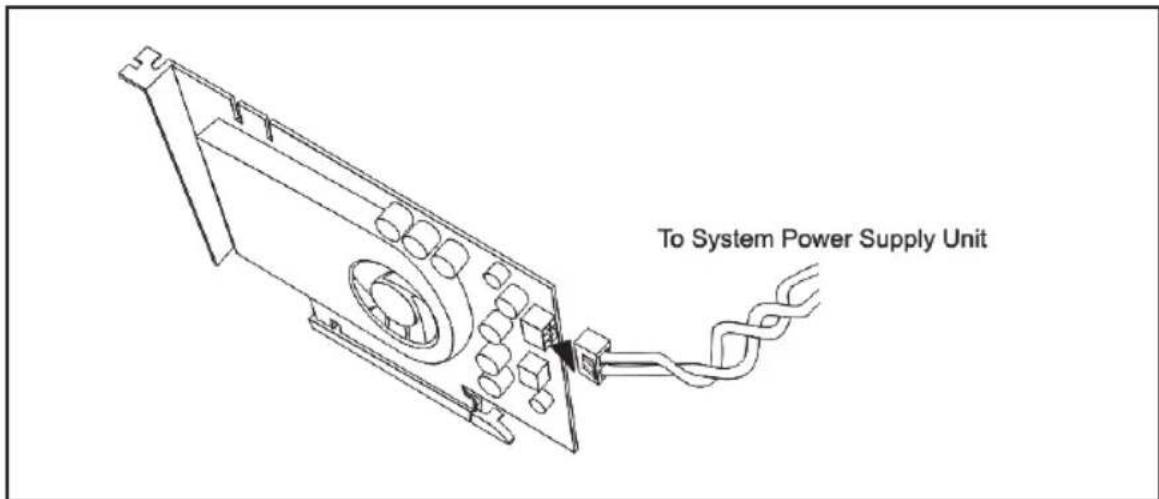

Fig 2-2 Connect the DC power plug to the card

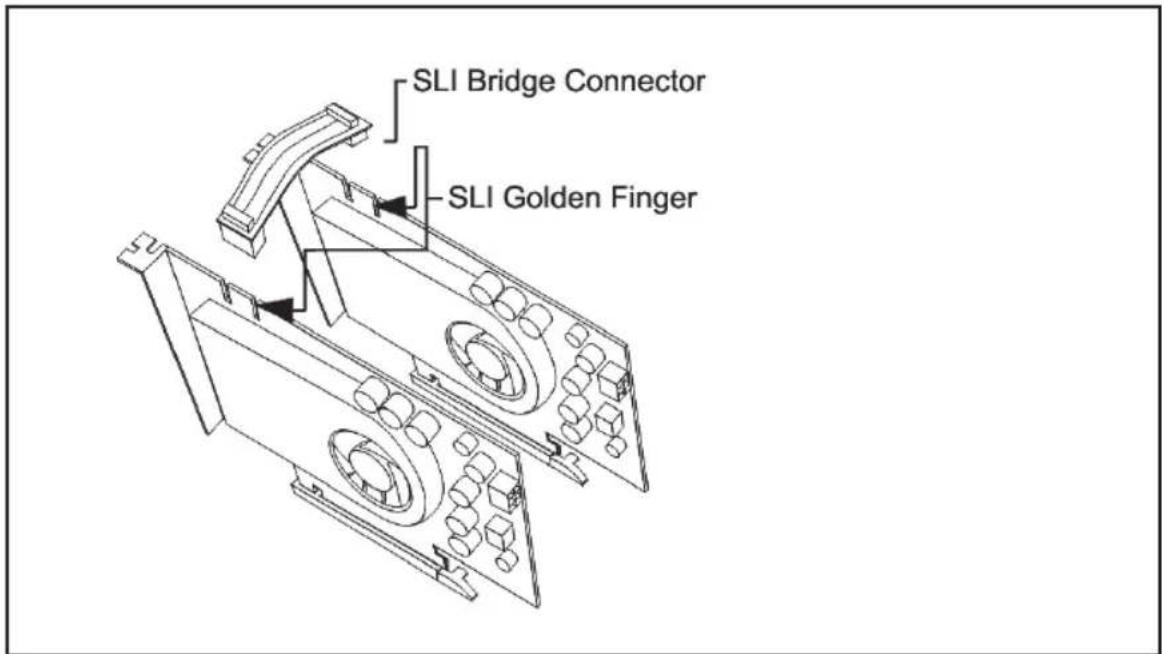

Installing multiple graphics cards in SLI

PCI Express graphics card models with SLI (Scalable Link Interface) feature are equipped with a gold finger connector at the top edge of the PCB for multiple GPU operations. This feature allows two graphics cards (with identical GPU types) to run simultaneously on an SLI enabled motherboard for significant performance improvements.

1. Follow the installation steps above to install two identical (SLI compatible) graphics cards in the system.
2. Locate the SLI bridge (cable adaptor). This item is sold separately and typically included with SLI compatible motherboards.
3. Hold the SLI bridge firmly and insert the connector on both ends of the graphics cards SLI gold finger connectors, located at the top edge of the PCB.
4. Replace the system cover and re-connect all power cables.

Fig 2-3 Connect the SLI bridge between two graphic cards

3. Connecting Display Devices

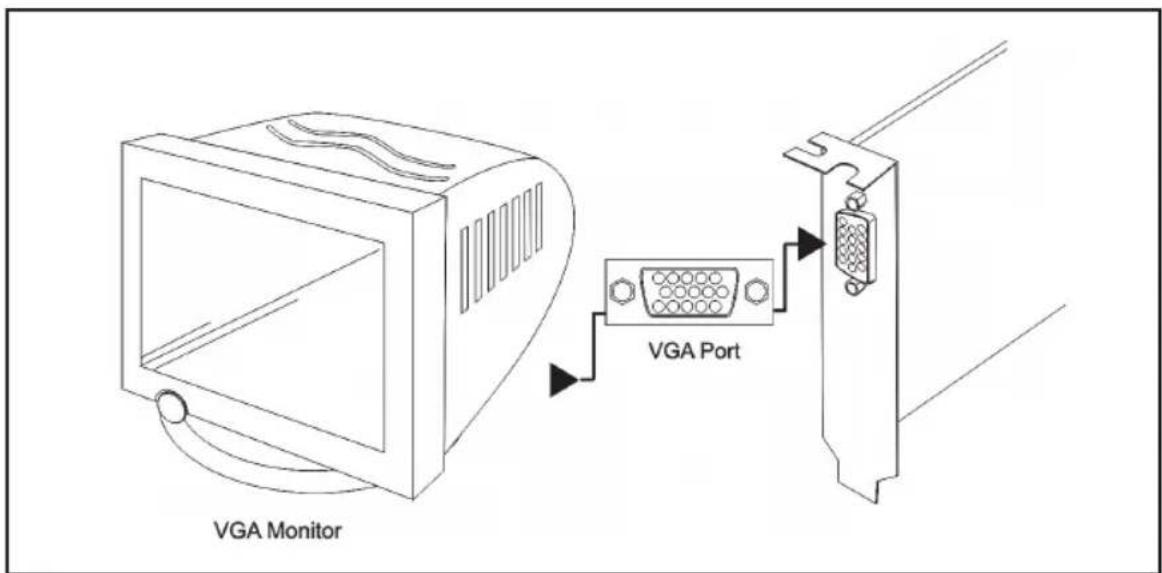

VGA Port

Connect the VGA Monitor Signal Cable to the VGA port on the graphics card.

Fig 3-1 Connect the VGA Monitor

Composite / S-Video / HDTV Port

Connect the Composite / S-Video Signal Cable to S-Video port on the graphic card. Specific model of graphics cards may come with HDTV cable, which connects to HDTV.

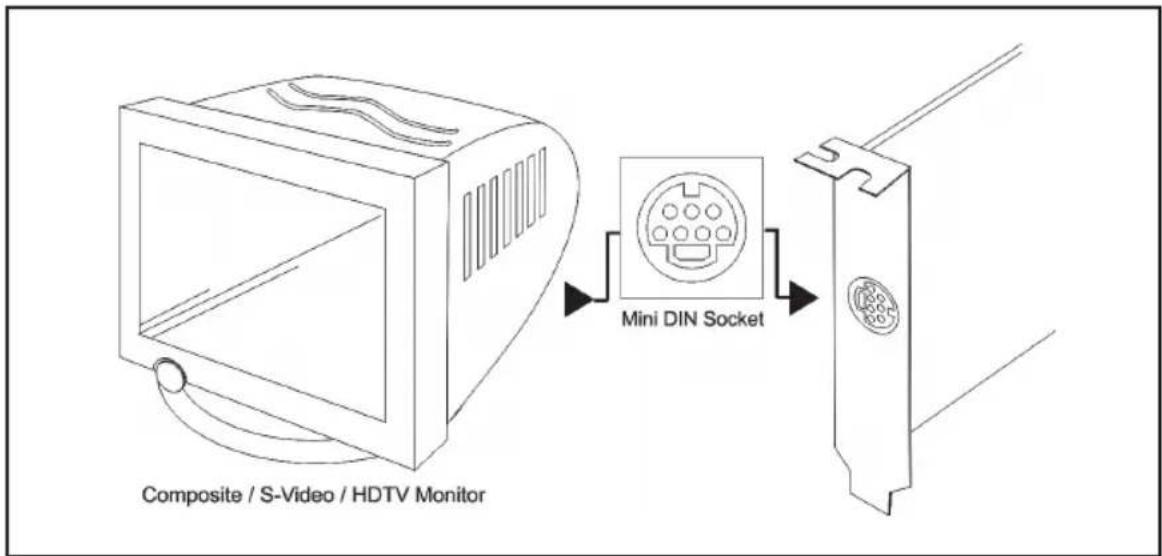

Fig 3-2 Connect the Composite / S-Video / HDTV Monitor

DVI Port

Connect the DVI Signal Cable from Flat Panel Display to DVI port on the graphics card.

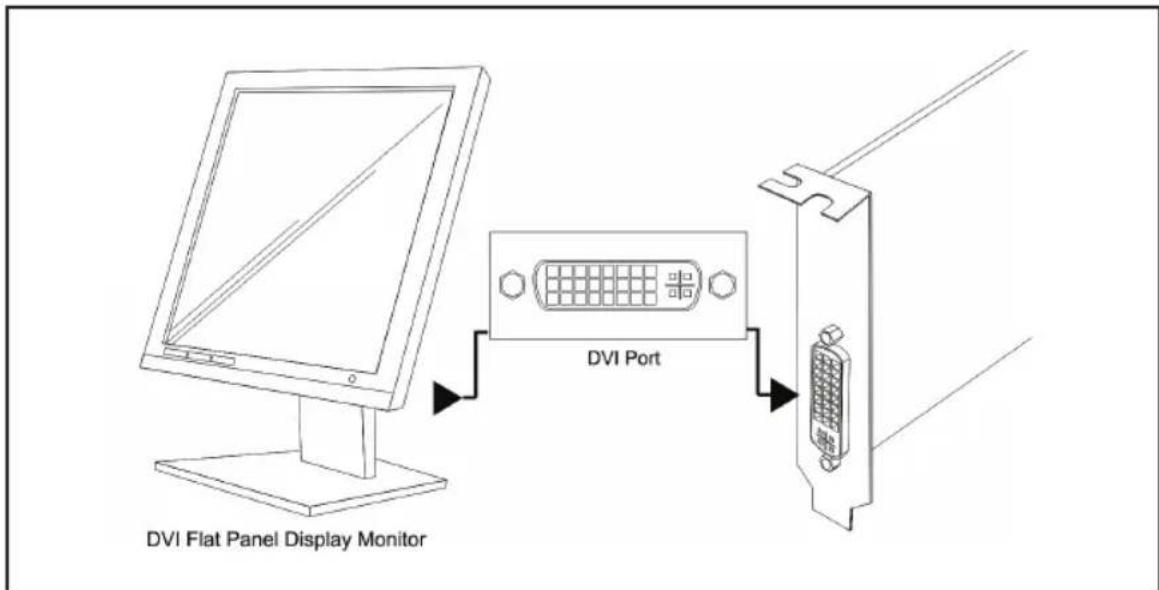

Fig 3-3 Connect the DVI Flat Panel Display Monitor

HDMI Port

Specific models are equipped with HDMI port on the graphics card. Connect the HDMI signal cable from Flat Panel Display or HDTV (with HDMI) to the HDMI port. Some models without HDMI port may be connected via the DVI-HDMI Dongle Adaptor.


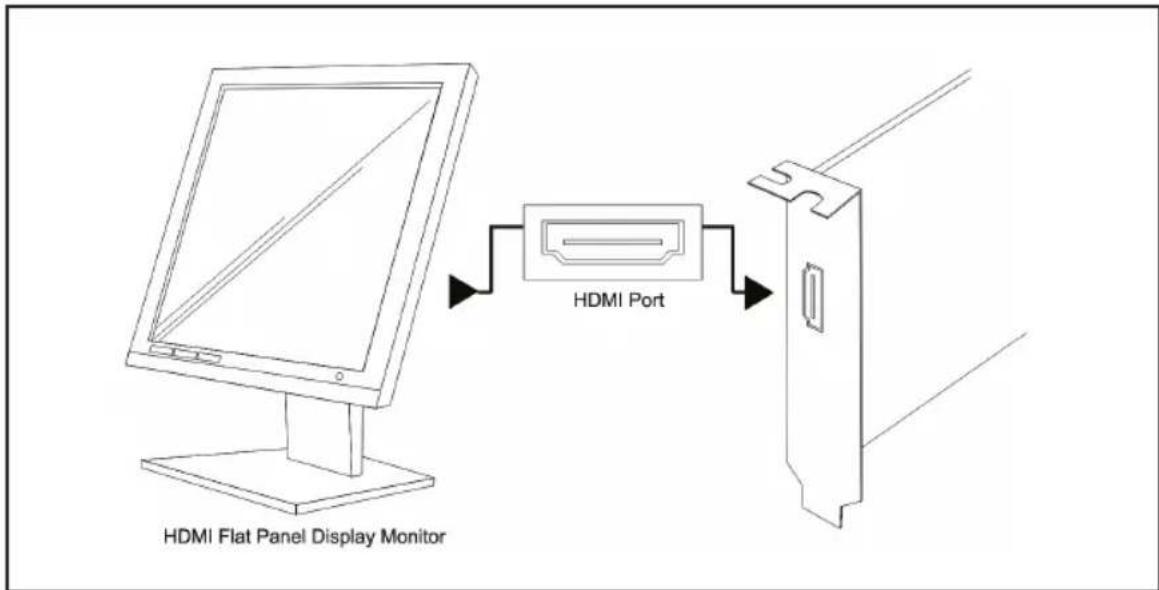

Fig 3-4 Connect the HDMI Flat Panel Display Monitor via HDMI port

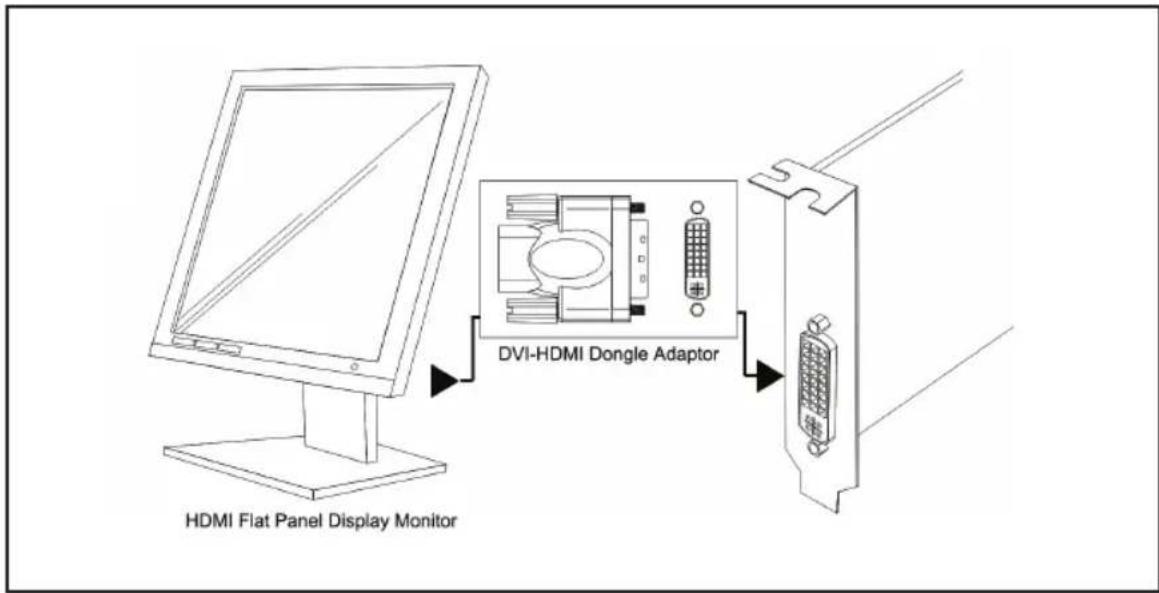

Fig 3-5 Connect the HDMI Flat Panel Display Monitor via DVI-HDMI Dongle Adaptor

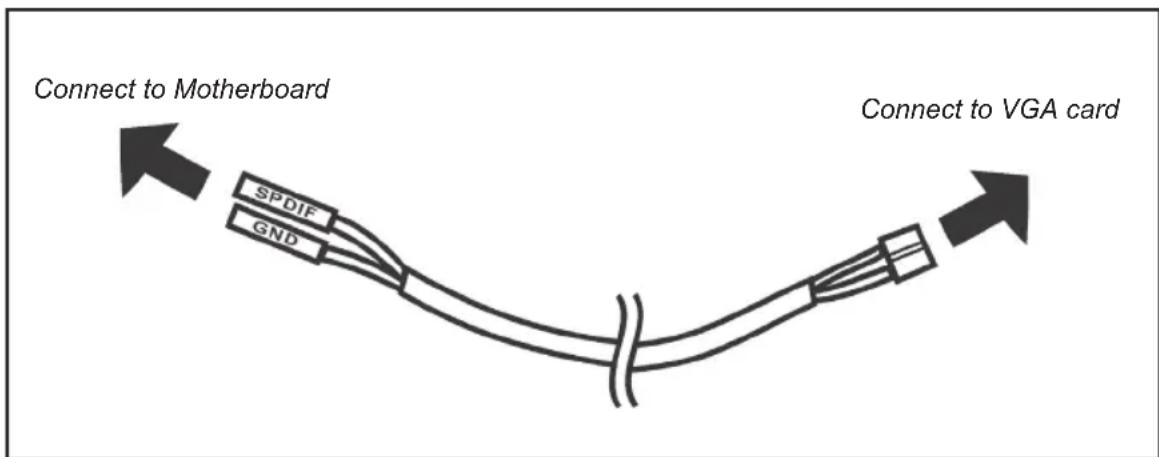

4. Enabling S/PDIF audio input

To enable audio output over HDMI or DVI with a GeForce 8 series or newer graphics card, follow the steps below:

1. Find the S/PDIF audio cable bundled with the GeForce series graphics card (GeForce 8 series and newer).
2. Locate end with white connector on S/PDIF audio input cable.
3. Connect white connector to S/PDIF input connector on the GeForce series graphics card (GeForce 8 and newer). Ensure the connector matches up with the notch on the connector.

a. If there's no visible connector on the GeForce series graphics card, the connector may be hidden by a rubber cover (GeForce GTX 200 series). Remove the cover and proceed to connect the cable.

1. Locate the S/PDIF audio header on your motherboard or sound card (consult user manual for details).
2. Locate pins for SPDIF_OUT and GND (or GROUND) on motherboard or sound card (consult user manual for details).
3. Connect connector labeled "SPDIF" (white) on cable to corresponding SPDIF_OUT pin on motherboard or sound card.
4. Connect connector labeled "GND" (black) on cable to corresponding GND or GROUND pin on motherboard or sound card.

Note: Connecting the S/PDIF audio input cable incorrectly can cause damage to your GeForce series graphics card.

Fig 4-1 Connect the S/PDIF audio cable

5. Graphics Card Driver Installation

Graphics card driver is the software program that makes the device work with your computer's Operating System. Each type of Operating System requires its own set of driver software for each graphics card. The following types of Operating Systems are supported by the graphics card driver:

• Windows ® 7
• Windows ® Vista
• Windows ® XP

Please see the recommended methods in this section to install, update, or remove the graphics card driver, after the graphics card is installed in the system.

Installing driver from CD

The procedure listed below are suitable for newly installed computer system, with no previous graphics driver installed, or the graphics driver is already removed. The driver software is on the CD bundled with the graphics card package.

1. Start the computer system and boot to Windows® 7/Vista/XP Operating System.
2. When the system shows the "Found New Hardware Wizard" dialog box, click "Cancel".

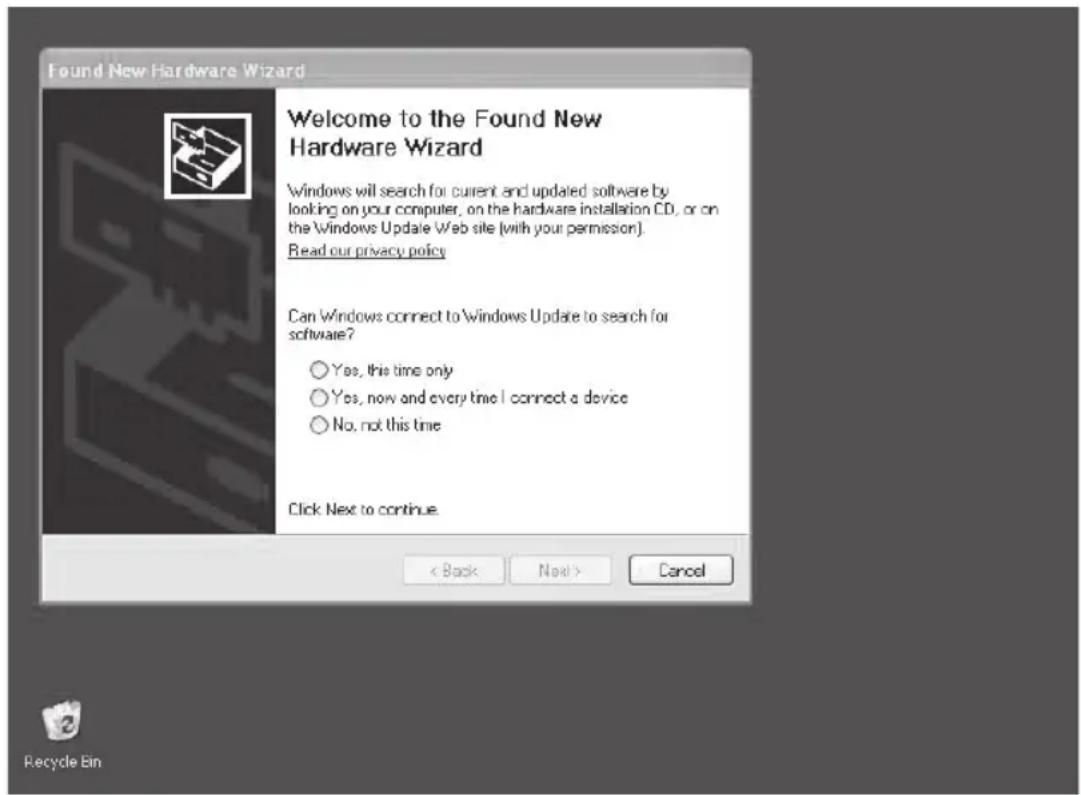

Fig 5-1 Found New Hardware Wizard

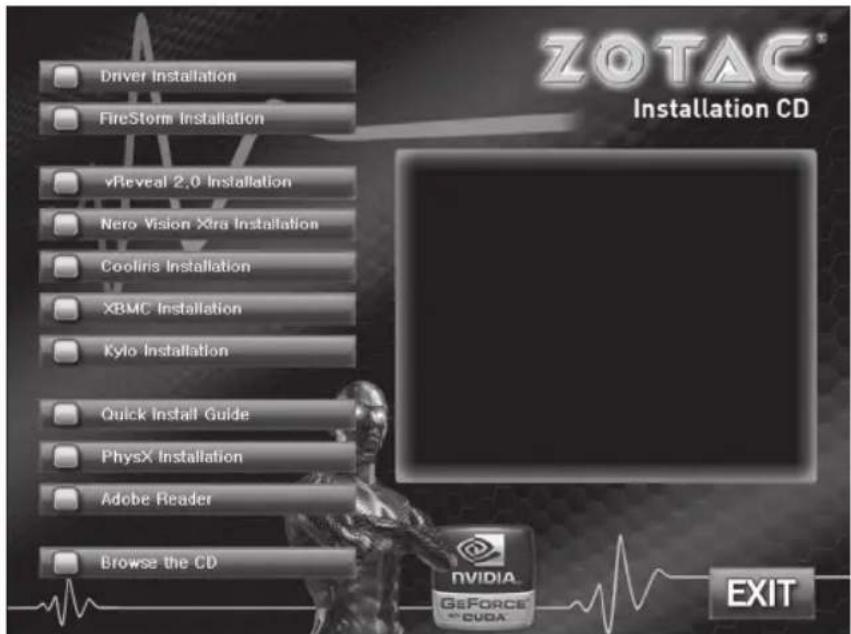

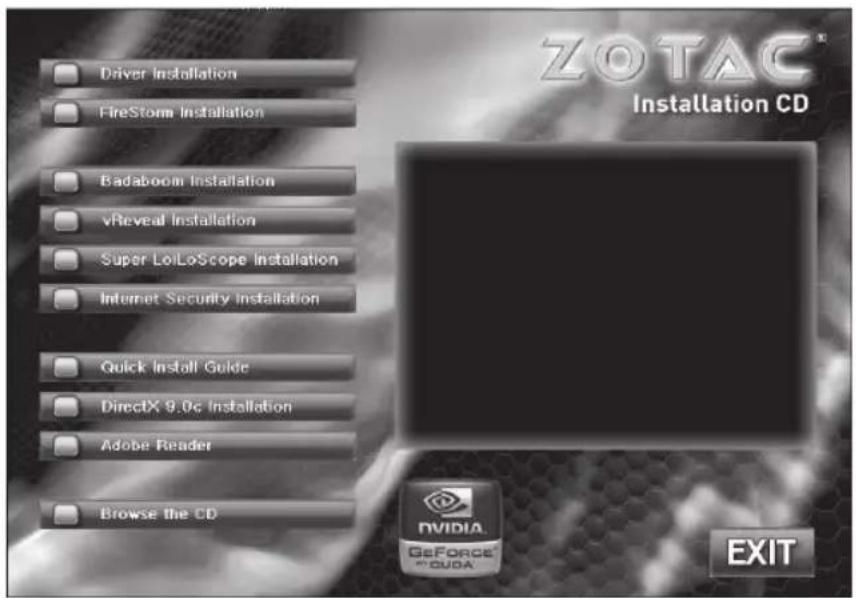

1. Insert the graphics card's bundled CD in the CD-ROM / DVD-ROM drive. If autorun is enabled, the Driver Installation Main Menu will show up automatically. If autorun is disabled, you may click the file Launch.EXE to bring up the Driver Installation Main Menu. Windows Vista may ask for further confirmation, please click "Allow" or "OK" to proceed.

Fig 5-2 Driver Installation Main Menu

1. Click the box "Driver Installation", then the GPU (Graphics Processing Unit) selection box will show up.
2. Click the Scroll Bar to locate the GPU type which is used on the graphic card and then click to select the GPU.
3. The Operating System selection box will show up. Select the target Operating System and then click OK to start the driver installation.
4. Follow the instructions on the screen to complete the installation of graphics card driver and restart the system to let the driver take effect.
5. After the system restarts, bring up the Control Panel / Display Properties to select the display resolutions and color depth that meets your application and monitor requirements.

Installing and updating driver from downloaded file

The procedure listed below is suitable for existing running computer systems, in which an older graphic driver was installed, or when the driver CD is unavailable, or an updated version graphic driver is necessary to fix certain known issues.

1. Identify the exact GPU on the graphic card, the target system Operating System type and download the graphic driver from the relevant web sites:

ZOTAC Web Site: http://www.zotac.com

NVIDIA Web Site: http://www.nvidia.com

The downloaded driver file may be in ZIP or EXE file type. If it is a ZIP file type, please expand the file using suitable software tools. Copy the EXE file or the expanded files to the hard disk drive on the target system.

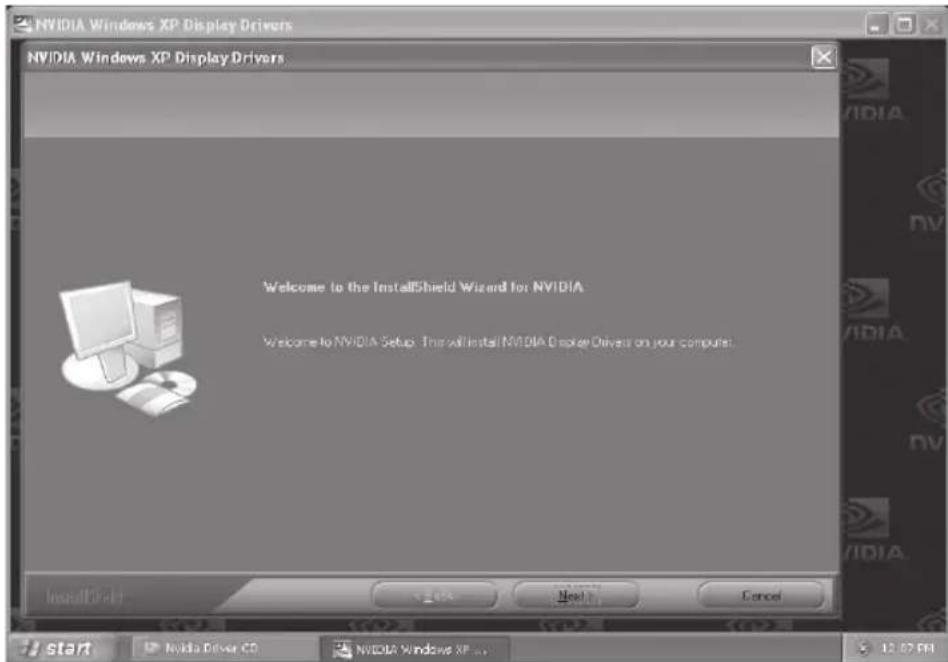

1. On the target system, click the EXE file, or the Setup.EXE to start the graphic driver installation.

Fig 5-3 NVIDIA Graphic Driver installation wizard screen

1. Follow the instructions on the screen to complete the installation of graphic card driver and restart the system to let the new driver take effect.

2. After the system restarts, bring up the Control Panel / Display Properties to select the display resolutions and color depth which meets your application and monitor requirements.

Removing graphics card driver

It may be necessary to remove an existing graphics card driver from the system, as for example, when changing the graphics card to a brand new GPU type. Follow the procedures below to remove the graphics card driver.

1. Start the computer system and boot to Windows® 7/Vista/XP Operating System.
2. Click "Start", then "Control Panel" to bring up the functions for Control Panel.
3. Double click the "Add or Remove Programs" icon.

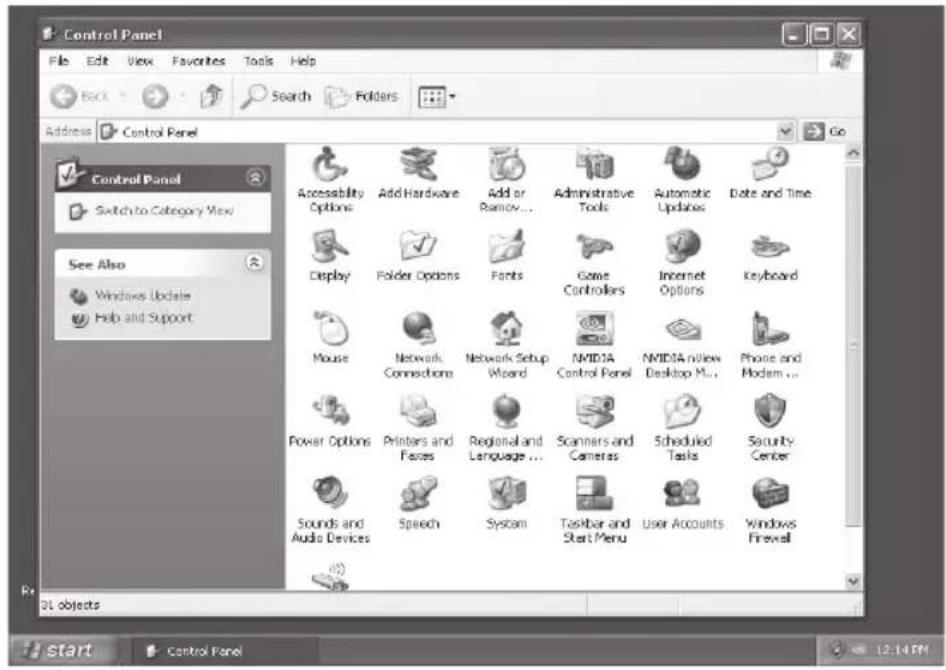

Fig 5-4 Control Panel - Add or Remove Programs

1. From the list of "Currently installed programs", locate the target item, eg. "NVIDIA Drivers", then click the "Change/Remove" box.

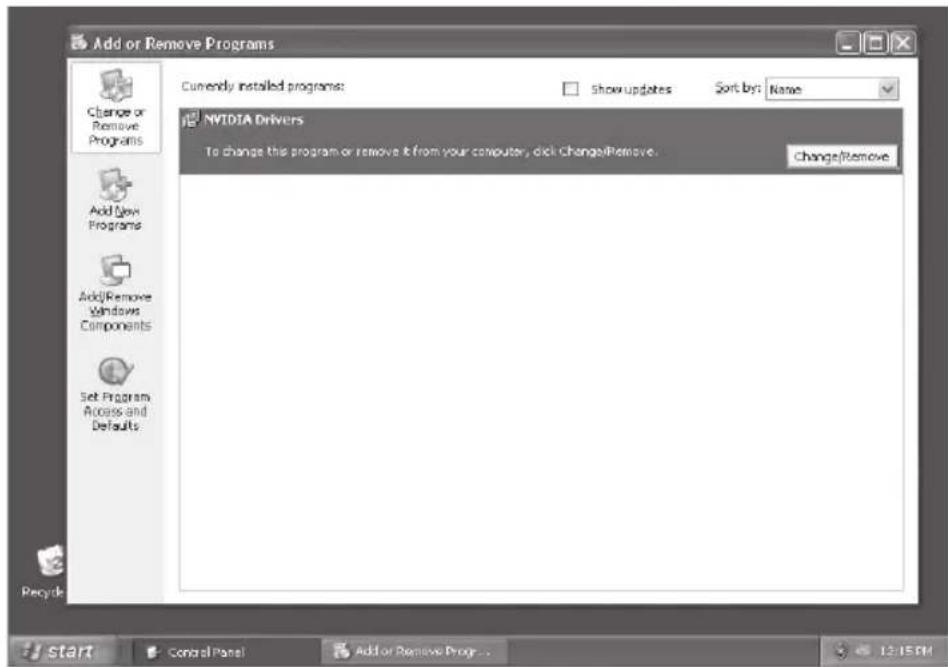

Fig 5-5 Add or Remove Programs - Currently installed programs

1. Follow the instructions on the screen to remove the graphics card driver. Restart to complete the process.
2. Shut down the system, turn off the main power and proceed to install the new graphics card.

Appendix - Basic Troubleshooting

Symptom Possible Cause Solution
1, No display after the graphics card is installed	The graphics card is not properly installedThe display monitor is not properly connectedThe auxiliary DC power connector is not connected on the graphic cardInsufficient power from the system power supply unitThe graphics card is not supported by the motherboard in the system	Check the card to make sure it is properly secured into the slot.Check the signal cable to ensure the connectors are properly plugged into the graphics card and display monitorCheck the auxiliary DC power socket on the graphics card to make sure it is properly pluggedCheck the technical documentation of the system to make sure the power supply unit is capableCheck the technical documentation of the system, eg. AGP voltage requirement, to confirm that the card is supported on the motherboard
2, Wrong display screen, wrong color, or distorted graphic on the screen	The graphics card is not properly installedThe display monitor is not properly connectedThe display monitor is unable to support the current resolution or refresh rateConnectors for component colors (HDTV) were not correctly pluggedAnother set of graphics card driver was installed in the system, which causes conflictThe graphics card driver is corrupted	Check the card to make sure it is properly plugged into the slotCheck the signal cable to ensure the connectors are secured and properly plugged into the graphic card and display monitorCheck the technical documentation of the display monitor to make sure the current setting is supportedCheck the connectors for component colors (HDTV) to ensure proper connectionRemove the driver, for which the graphics card is not present in the systemRemove and re-install the graphics card driver
3, Cannot switch to higher resolution, or higher color modes	The graphic card driver is not installed or corruptedThe attached display device does not support the high resolution mode	Remove and re-install the graphics driverCheck the technical documentation of the display monitor and set to lower resolution if necessary
4, Some LCD display monitors go blank during Windows® booting	The LCD display monitor needs special driver softwareCurrent setting of display resolution is beyond the capability of the LCD display	Install the driver software for the LCD display monitorEnter Windows® Safe Mode and set a lower resolution

Glossary

AGP (Accelerated Graphics Port)

An interface specification for graphics cards on older PCs. AGP was designed to offer the necessary bandwidth and latency to perform texture mapping directly from system memory.

BIOS (Basic Input/Output System)

BIOS is a set of routines that control how the computer transfers data between computer components, such as memory, disks and the display adapter. The BIOS instructions are built into the computer's read-only memory. You can update the BIOS using a suitable software tool.

CPU (Central Processing Unit)

The CPU, also called “Processor,” actually functions as the “brain” of the computer. It interprets and executes program commands and processes data stored in the system memory.

Device Driver (software)

A software routine that links a peripheral device to the operating system. It acts as a translator between the device and the applications that use it. Each device has its own set of specialized commands known only to its driver while the applications access devices using high-level generic commands. The driver translates these commands into the commands required by the devices.

DRAM (Dynamic Random Access Memory)

A type of RAM that requires refresh cycles to prevent the loss of the data stored in it.

OS (Operating System)

The software that controls the overall operation of a computer system. The OS tasks include memory allocation, input and output distribution, interrupt processing, job scheduling, and various other duties.

PCIe (PCI Express)

The latest technology and interface specification for graphics cards, which enables high-performance 3D graphics on current PCs. PCIe offers larger bandwidth for data transfer, as compared with AGP bus.

POST (Power On Self Test)

When you turn ON the computer, it will first run through the POST, a series of software-controlled diagnostic tests. The POST checks system memory, the motherboard circuitry, the display, the keyboard, the diskette drive, and other I/O devices.

RAM (Random Access Memory)

The computer's primary storage area used to write, store, and retrieve information and program instructions which are passed to the CPU for processing. The information in RAM can be repeatedly re-written with new data. Compared to other storage media like magnetic tape, floppy disk, and hard disk, RAM has an extraordinarily fast access rate. RAM, however, is volatile, which means that the data stored in it are lost when the system power is turned off, or if power glitches occur.

ROM (Read Only Memory)

An integrated circuit chip containing program and data that can be accessed and read but not modified.

SDRAM (Synchronous DRAM)

A type of DRAM with access signals that are synchronized with the CPU clock, eliminating the delay associated with data transfers between the CPU and memory. SDRAM takes memory access away from the CPU control; internal registers in the memory accept the request, and lets the CPU do something else while the data requested is assembled for the next time the CPU talks to the memory.

Connecting Your Monitor

ZOTAC®

It's Time to Play

WWW.ZOTAC.COM
