USER MANUAL DDR4-2400 Crucial

Technical line drawing of a multi-layered electronic component with multiple rectangular slots (no text or symbols)

Install Guide

General Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Discharge residual power by pressing the power button.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

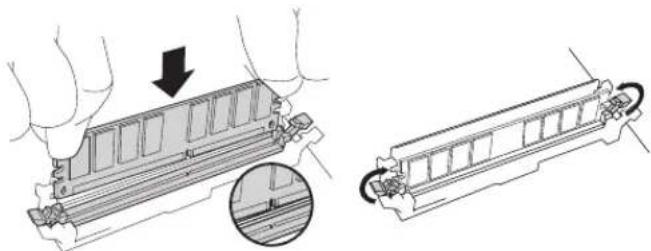

Desktop, server, and printer memory installation (DIMM modules)

Technical illustration of a mechanical component being inserted into a housing, showing internal structure and assembly (no text or symbols)

Using firm, even pressure, push DIMM into socket until clips snap into place. Do not assist clips.

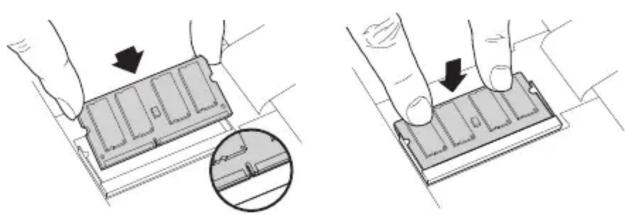

Laptop memory installation (SODIMM modules)

Two-step diagram showing hands holding a device with a magnified inset highlighting a component (no text or symbols present)

Firmly push SODIMM in at 45° angle, and then push down until clips snap into place.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the sockets.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you encounter any of the following problems, please contact Crucial Technical Support:

1. Your module doesn't seem to fit; do not force it into the socket.
2. Your system is recognizing only half of the new module's memory.

Customer Service and Technical Support

For technical support, customer service or returns, contact us using your preferred method below.

North and South America

Email: [e-mail]

Phone: [phone]

Toll free phone: [phone] (US and Canada only)

Europe

Email: [e-mail]

Phone: [phone]

Freephone: 0800 013 0330 (UK only)

Phone: [phone] (France only)

Freephone: 0805 10 29 63 (France only)

Asia, Australia, and New Zealand

Email: [e-mail]

Phone: [phone]

Freephone: 1 (800) 142982 (Australia and New Zealand only)

www.crucial.com/support/memory
