USER MANUAL AM 575 U BOSCH

High-speed train crossing a curved road with water splashing, under a blue sky (no text or symbols visible)

Installation Advice Aerotwin

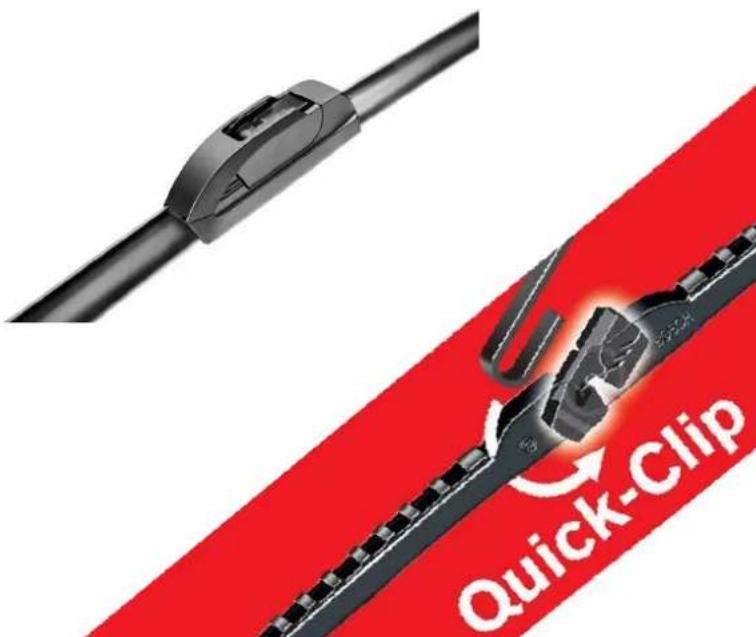

Quick and easy installation with our Quick-Clip connector system

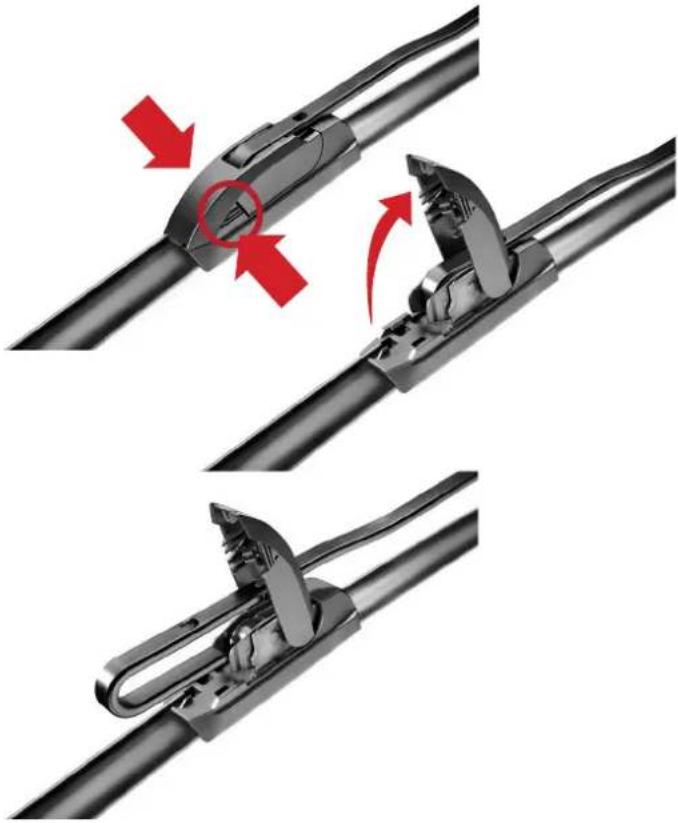

1 Open top bracket lock by pressing the sides of the clip and pulling up
2 Insert the wiper arm through the bracket in the direction shown
3 Lock the hook on wiper arm into the Quick-Clip connector by sliding it back until it clicks into place
4 Close the top bracket

Three-step diagram showing cable clamp installation with red arrows indicating motion (no text or symbols)

Close-up of a mechanical clamp or bracket assembly with a red arrow indicating rotation (no text or symbols visible)

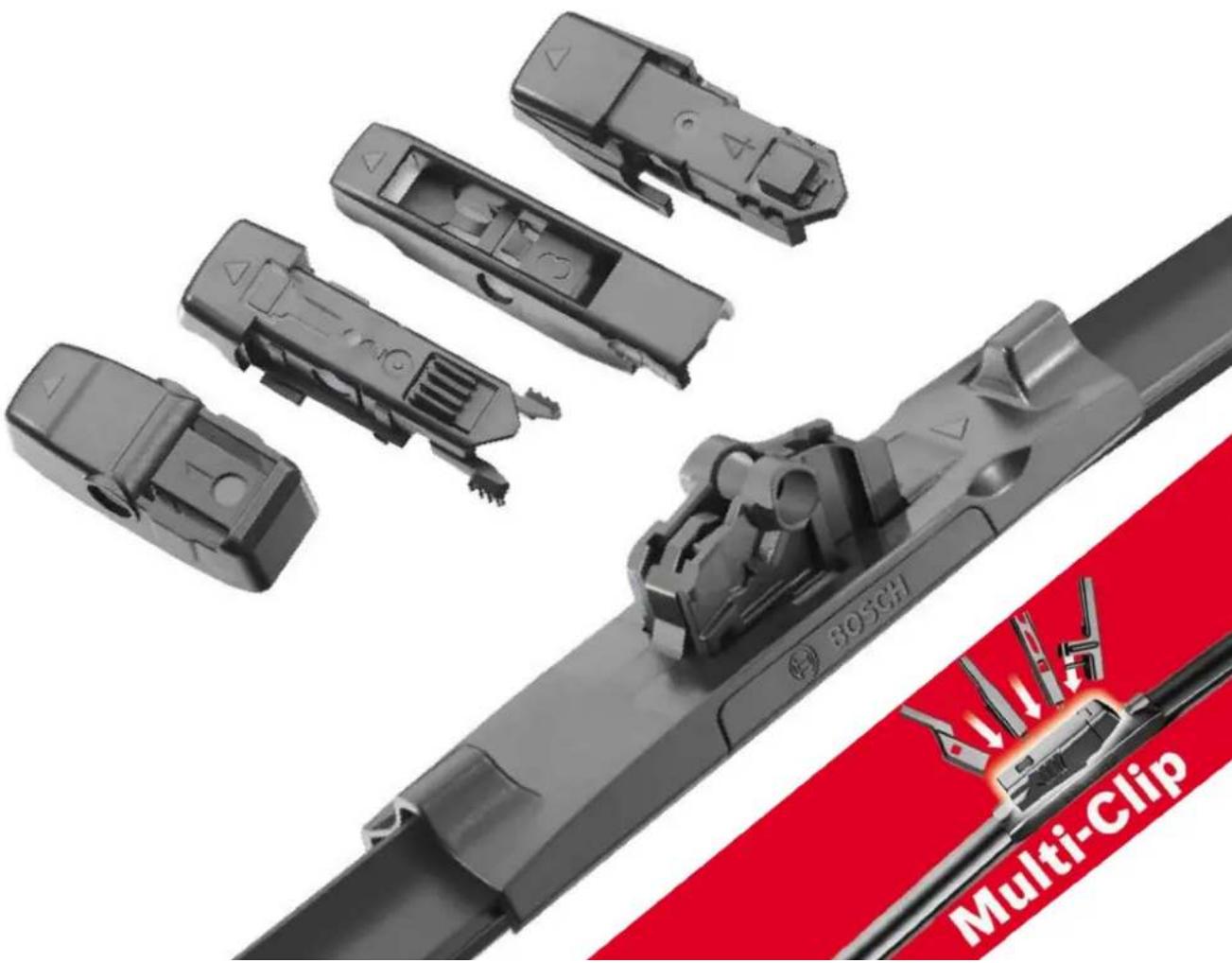

Installation Advice Aerotwin Multi-Clip

Quick and easy installation with our Multi-Clip connector system

Adapter Suitable for wiper arm

1
2		19 mrr
3
4		16 mrr

Close-up of a Bosch anti-lock component with visible internal parts and a red diagonal stripe labeled 'Multi-Clip' (no text or symbols on the main components)

Installation Advice Eco & MicroEdge

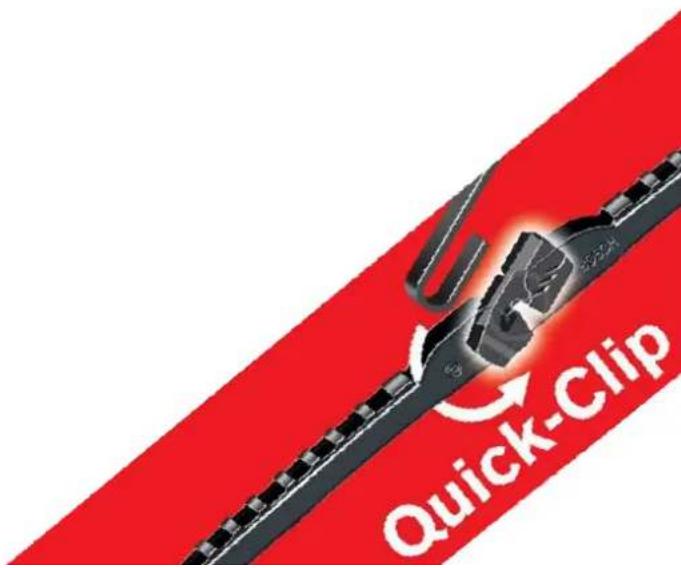

Quick and easy installation with our Quick-Clip connector system

Close-up of hands using a black tool to clean or store water droplets on a dark surface (no text or symbols visible)

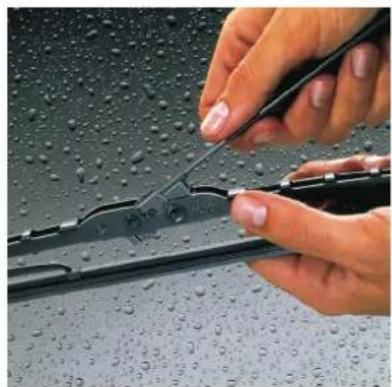

1 Simply hook the wiper blade into the wiper arm

Close-up of hands using a wiredriver to clean or repair a metal component with droplets on a wet surface (no text or symbols visible)

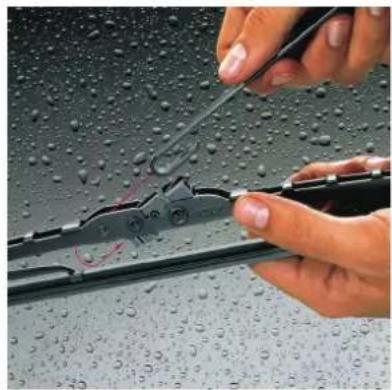

2 Pull the wiper blade into the wiper arm recess

Close-up of hands using a pair of metal pliers to clean water, no text or symbols visible

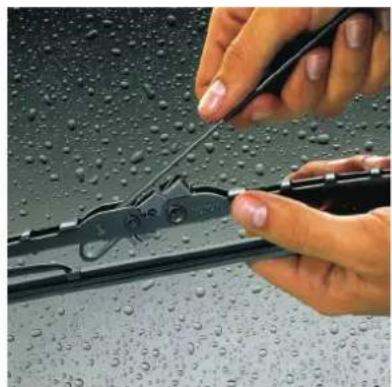

3 Continue to apply pressure until the clip snaps into place

Technical Advice Signs of a worn wiper blade

Close-up of a car windshield showing red fire or smoke plumes against a cloudy sky (no text or symbols visible)

To obtain superior performance from wiper blades, Bosch's recommended replacement intervals of approximately 12 months. This can shorten dramatically if your car is consistently used in adverse conditions.

Exterior view of a silver car with red LED headlights on, person standing beside it holding a blue umbrella (no visible text or symbols)

You can significantly increase the life of the wiper blades by cleaning the blade surface as part of there normal vehicle washing routine.

Abstract blue gradient background with curved, layered patterns (no text or symbols)

Stripes & Streaks

Cause: pollution, dirt and insects tearing the wiper rubber.

Close-up of a black metal tool with curved blade and textured surface (no visible text or symbols)

Abstract blue gradient background with curved shapes (no text or symbols)

Unwiped Section

Cause: bent tension strip or deformed wiper blade due to long term resting in the parked position in high temperatures.

Close-up of a black metal tool with curved blade and handle (no visible text or symbols)

Abstract blue gradient background with concentric curved bands (no text or symbols)

Rattle & Flutter

Cause: harsh environmental conditions, such as extended exposure to UV rays, damage the wiper rubber's chemical structure causing it to harden and catch on

Abstract blue fan-shaped graphic with radial light streaks, no text or symbols present

Cross Beam

Cause: corrosion and excessive free-play in wiper frame assembly due to general mechanical wear or extended use in adverse conditions.
