USER MANUAL FMG-1000-SK OMEGA

Close-up of a solar panel with grid pattern and metal bracket (no text or symbols visible)

llser's Guide

Shop online at

omega.com®

OEOMEGA®

omega.com

email: [e-mail]

For latest product manuals:

omegamanual.Info

ISO 9001

CERTIFIED

CORPORATE QUALITY

STAMFORD, CT

ISO 9002

CERTIFIED

CORPORATE QUALITY

MANCHESTER, UK

FMG-1000-SK

Solar Panel

omega.com® \_\_\_\_\_\_

OMEGAnet® Online Service omega.com

Internet e-mail [e-mail]

Servicing North America:

U.S.A.: One Omega Drive, P.O. Box 4047

ISO 9001 Certified

Stamford, CT 06907-0047

TEL: [phone] FAX: [phone]

e-mail: [e-mail]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada

TEL: [phone] FAX: [phone]

e-mail: [e-mail]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA®

Customer Service: 1-800-622-2378 / 1-800-622-BEST ^®

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN®

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico: En Espanol: [phone]-7803 e-mail: [e-mail]

FAX: [phone] [e-mail]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

TEL: [phone] FAX: [phone]

Toll Free in Benelux: 0800 0993344

e-mail: [e-mail]

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: [phone]

FAX: [phone]

Toll Free: 0800-1-66342

e-mail: [e-mail]

France:

11, rue Jacques Cartier, 78280 Guyancourt, France

TEL: [phone]

FAX: [phone]

Toll Free in France: 0800 466 342

One Omega Drive, River Bend Technology Centre

ISO 9002 Certified

Northbank, Irlam, Manchester

M44 5BD United Kingdom

TEL: [phone]

FAX: [phone]

Toll Free in United Kingdom: 0800-488-488

e-mail: [e-mail]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI

regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, human applications.

FEATURES

• Includes 5 watt solar panel, mounting hardware, and 12V solar charge controller
• Reliable, maintenance-free operation
• Powers many flow meter products with the addition of a low cost 22-33 Amp-hour Sealed Lead Acid battery

APPLICATIONS

• Remote metering applications where electricity is unavailable
• Back-up power supply for uninterrupted operation

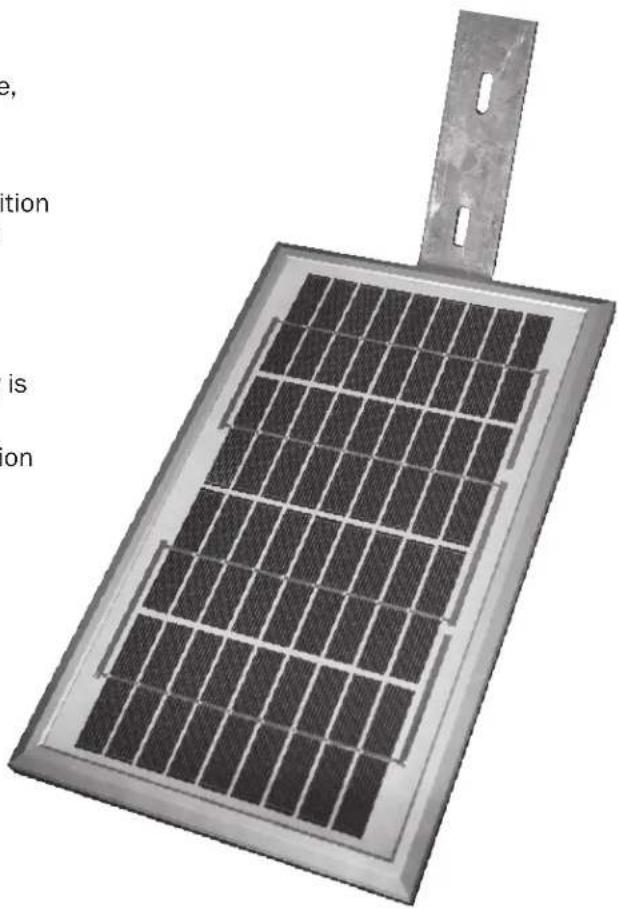

Close-up of a solar panel with grid pattern and metal bracket (no text or symbols visible)

GENERAL INFORMATION

The FMG-1000-SK solar panel makes it possible to use Omega charge controller and corrosion-resistant mounting hardware. flowmeters in remote applications where a reliable source of electricity is not available or practical. The FMG-1000-SK is intended for use with a standard 12V, 22-33 Amp-hour Sealed Lead Acid battery (not included). It comes standard with a

SPECIFICATIONS*

Electrical Voltage	Current	290 mA (typical at design operating point)
		17 V (typical at design operating point)
Dimensions Height		14.2"
Width		8.5"
Weight		4 pounds (solar panel and mounting bracket)
Mounting		Bracket, band clamps and mounting hardware for 1-1/2 or 2 inch vertical pipe
Operating Temperature Range		-40°F to +158°F (-40°C to +70°C)
Change Controller		High efficiency series PWM regulator with temperature compensation and built-in lightning protection

*Specifications subject to change

BATTERY SELECTION

For powering mechanical meters along with display electronics, use a 12V Sealed Lead Acid (SLA) deep-cycle battery with a minimum capacity of 22 Amp-hours. This should provide a conservative 40 day backup with maximum battery service life. Marine/RV grade deep-cycle batteries or automotive batteries may be used but must be upsized in Amp-hour capacity by two times and four times respectively to achieve the same battery service life in most applications.

For powering low power (<50mA) magnetic flow meters, use only deep-cycle SLA batteries (not marine/RV orautomotive grade batteries) with a minimum capacity of 33 Amp-hours. In climates where meters are operating in full pipe mode much of the time with extended periods of cloudy days, oper-

ating continuously through the year, or in latitudes above 50 degrees, the required battery Amp-hour capacity should be reviewed before selection.

In summary, the minimum recommended battery capacity, as described above, will be adequate in most climates and applications. However, under marginal conditions, a larger capacity battery may provide superior reliability, better battery service life and lower life-cycle costs.

LOCATION

The solar panel should oriented as much as possible toward the midday sun. Locate where there is no significant shading of the solar panel. The Solar Charge Controller and Sealed Lead Acid (SLA) battery should be located in close physical and thermal proximity. Both must be shaded from direct sunlight to minimize temperature differences between them which will greatly diminish the battery service life. Also insulate the bottom of the battery if heat could be absorbed from the surface (concrete, metal etc.) on which the battery is resting. Also take measures to prevent accumulation of moisture (rain, snow, ice, flooding) between the battery terminals which could discharge the battery. If the battery and Solar Charge Controller are housed in an enclosure, the outside must be white or shiny metallic to minimize solar heat build up inside that is seriously detrimental to the service life of the battery. Even light colors (such as the standard ANSI 61 Gray) can elevate the interior of the enclosure by 40F (22C.) If other colors are used, the enclosure must be shaded from direct sunlight or painted glossy white. In addition, because even sealed batteries could vent if the Solar Charge Controller fails, for safety reasons the enclosure should be vented, particularly if it contains other electrical equipment.

INSTALLATION

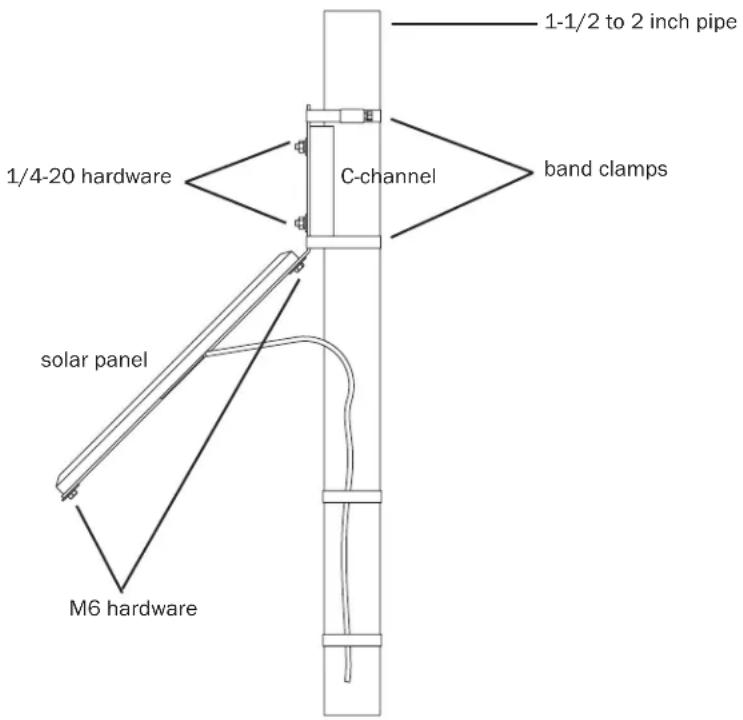

The solar panel is designed to mount to a either a 1-1/2 to 2 inch diameter vertical pipe. First attach the 45 degree angle bracket to the panel with the two M6 bolts, flat washers and nuts provided as shown. Before tightening the bolts. Be sure to position the bracket to the side of the black cable cover rather than over it to avoid stressing the panel. (At latitudes above 50 degrees performance may be improved by bending the bracket so that the angle of the panel to the horizontal is increased to approximately the local latitude plus 15 degrees. To avoid damage to the panel, do this before bolting the bracket to the panel). Next use the two sets of 14 -20 bolts, nuts, flat and lock washers to attach the angle bracket to the pipe mount C-channel. Then attach the entire assembly to the pipe using the two band clamps as shown. Turn the panel to face true (not magnetic) south in the northern hemisphere or north in the southern hemisphere before tightening the clamps securely.

Connect the solar charge controller, flow meter and battery as shown in the wiring diagram. Clean battery terminals and secure connections to the battery using grease or other means of preventing corrosion. For safety, an in-line fuse holder should be installed at the positive battery connection with a 1 Amp time lag (slow-blow) fuse. In unprotected locations a weather-proof fuse holder (such as Bussmann HFB-R) and outdoor-rated wirenuts should be used.

1-1/2 to 2 inch pipe 1/4-20 hardware C-channel band clamps solar panel M6 hardware

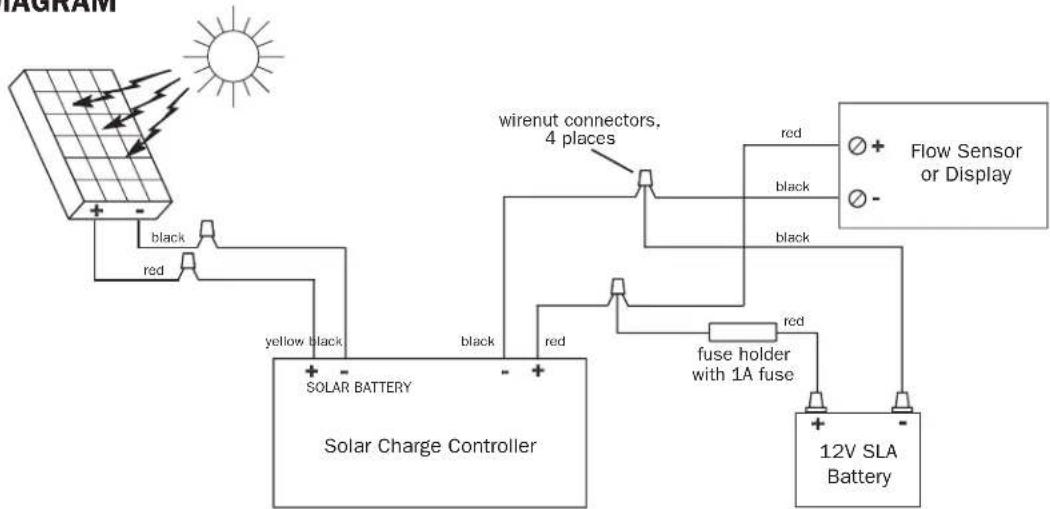

WIRING DIAGRAM

IAGRAM black red yellow black wirednut connectors, 4 places red black blue black red sulfue holder with 1A fuse Flow Sensor or Display + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

MAINTENANCE

Periodic cleaning of the solar panel glass is recommended to remove dust accumulation. Snow and ice may need removal if it remains more than 2 weeks. Installing the panel at a steeper than 45 degree angle may make this unnecessary in most areas. Battery service life for good quality SLA batteries should be 4-6 years. Actual maintenance replacement interval will depend on local conditions and criticality of data.

Ω® OMEGA ,BNG

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA's WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA's customers receive maximum coverage on each product.

If the unit malfunctions, it must be re t u rned to the factory for evaluation. O M E G A's Customer Serv i c e D e p a rtment will issue an Authorized Return (AR) number immediately upon phone or written r e q u e s t Upon examination by OMEGA, if the unit is found to be defective, it will be r e p a i red or replaced at no c h a rge. O M E G A's WARRANTY does not apply to defects resulting from any action of the purc h a s e r, including but not limited to mishandling, improper interfacing, operation outside of design limits, im proper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corro s i o or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA's control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a "Basic Component" under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA'S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,
2. Model and serial number of the product under warranty, and
3. Repair instructions and/or specific problems relative to the product.

FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems relative to the product.

OMEGA's policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2005 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
