| Product Type | Colour LED Television with Remote Control |
| Screen Size | 22 inches (16:9 aspect ratio) |
| Display Resolution | HD Ready (1366 x 768 pixels) - supports 720p and 1080p signals |
| Dimensions (with stand) | 530 x 376 x 135 mm (W x H x D) |
| Dimensions (without stand) | 530 x 340 x 55 mm (W x H x D) |
| Weight (with stand) | 5.15 kg |
| Weight (without stand) | 4.95 kg |
| Power Supply | AC 110-240 V, 50/60 Hz via adaptor; DC 12 V input |
| Power Consumption | 47 W (max) |
| Tuner | DVB-T/C (MPEG2/MPEG4), PAL/SECAM |
| Audio Output Power | 2 x 2.5 W RMS (10% THD) |
| Audio System | German + Nicam Stereo |
| Video Inputs | HDMI (1), SCART, VGA (PC), Side AV (composite), Component via VGA (optional cable) |
| Other Connections | USB 2.0, SPDIF out, Headphone jack, CI slot, RF antenna input |
| Recording Features | USB recording (FAT32), timeshift, instant recording, up to 10 hours |
| Remote Control | Included, operates up to 7 m, uses 2 x AAA batteries (supplied) |
| Accessories Included | Remote control, 2 x AAA batteries, 12 V car adaptor, AV connection cable, instruction book |
| Safety & Ventilation | Leave at least 10 cm clearance around the TV; do not block ventilation openings |
| Cleaning Instructions | Unplug TV, use a soft dry cloth; do not use liquid or aerosol cleaners |
| Repair Information | Refer all servicing to qualified personnel; do not attempt repairs yourself |
Frequently Asked Questions - LED22EL Luxor
User questions about LED22EL Luxor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual LED22EL - Luxor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LED22EL by Luxor.
USER MANUAL LED22EL Luxor
Contents
Features 46
Introduction......46
Preparation 46
Safety Precautions 46
Information for users in the EU 47
Package Contents 48
Environmental Information 49
Repair Information 49
Remote Control Buttons 50
TV and Operating Control Switch 51

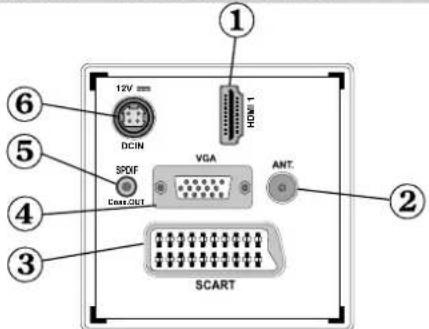

Viewing the Connections - Back Connectors ..... 51
Viewing the Connections - Side Connectors ..... 52
Power Connection 52
Aerial Connection 52
Using USB Input 53

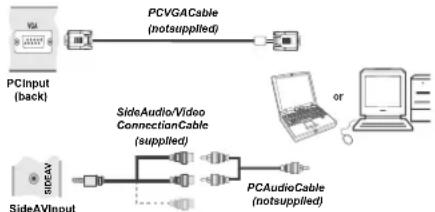

Connecting the TV to a PC 54

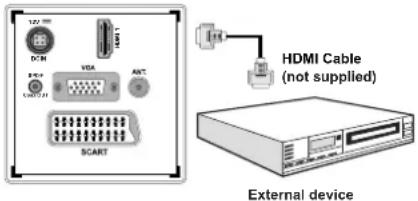

Connecting to a DVD Player via HDMI 54
Using Side AV Connectors 54
Connecting to a DVD Player....54
Remote Control Handset 55
Inserting Batteries 55
Switching On/Off 55
To Switch the TV On 55
To Switch the TV Off 55

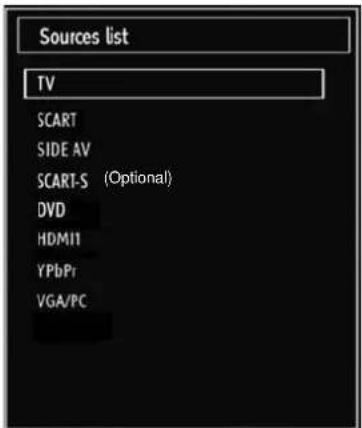

Input Selection 55
Basic Operations 56
Operation with the Buttons on the TV 56
Volume Setting 56
Programme Selection 56
Viewing Main Menu 56
AV Mode 56
Operation with the Remote Control 56
Volume Setting 56
Programme Selection (Previous or Next
Programme)....56
Programme Selection (Direct Access) ..... 56

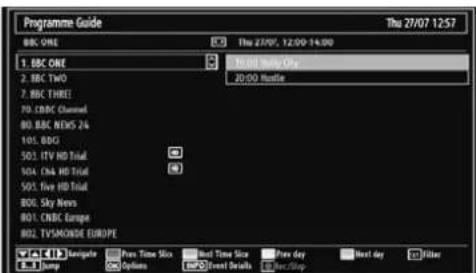

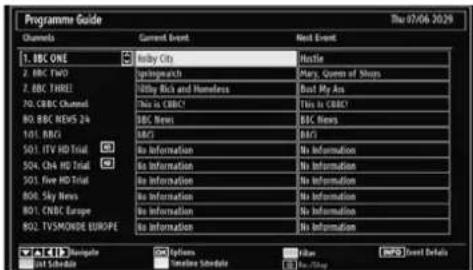

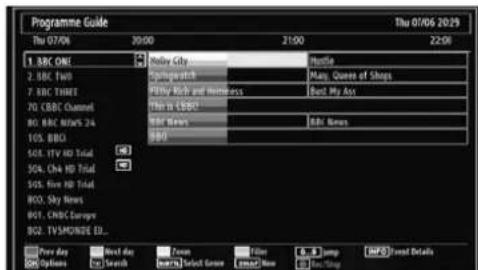

Viewing Electronic Programme Guide (EPG) ..... 56
Recording via EPG Screen 57
Programme Options....57
Digital Teletext ( ^** for UK only) 58
Analogue Teletext 58

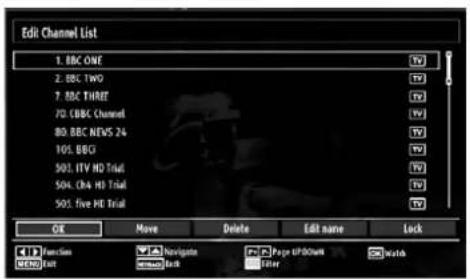

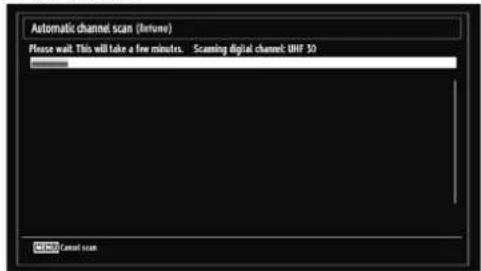

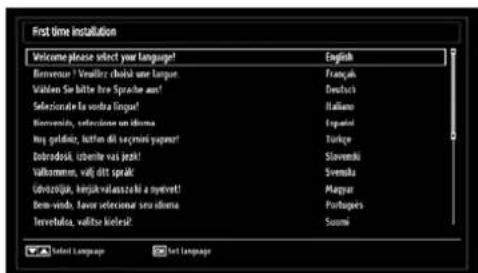

First Time Installation.... 58
Installation 59
Auto Channel Scan (Retune) Menu Operation . 59

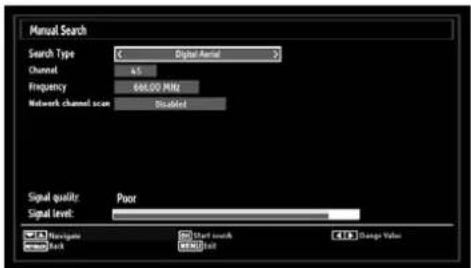

Manual Tuning 60
Digital Aerial Manual Search....60

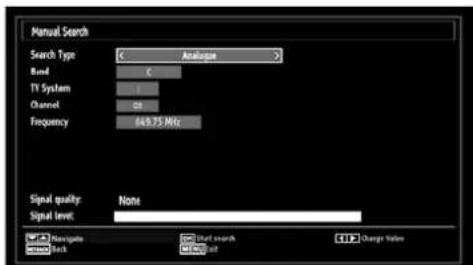

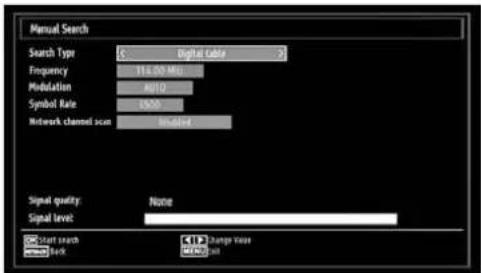

Digital Cable Manual Search 60
Analogue Manual Search 60
Analogue Fine Tune....60
Network Channel Scan 60
Clear Service List (*) 61

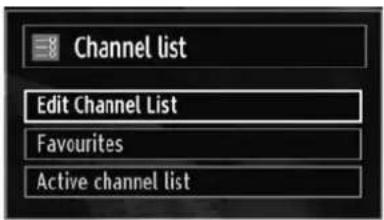

Managing Stations: Channel List 61

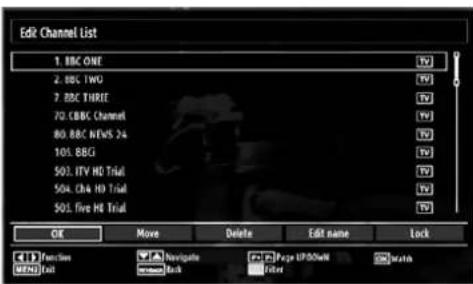

Operating the Channel List 61
Moving a Channel 61
Deleting a Channel 61
Renaming a Channel 62
Locking a Channel 62

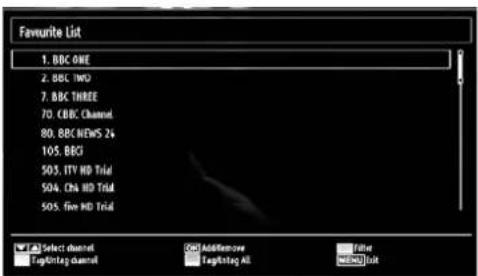

Managing Stations: Favourites 62
Button Functions 62
Managing Stations: Sorting Channel List 62
On-Screen Information 62

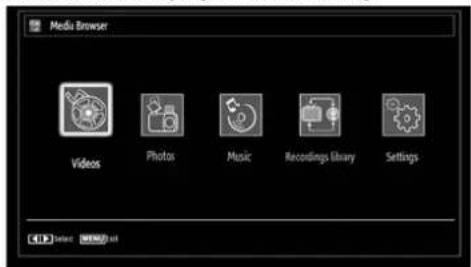

Media Playback Using Media Browser 63

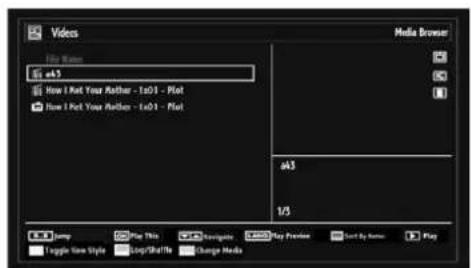

Viewing Videos via USB 63

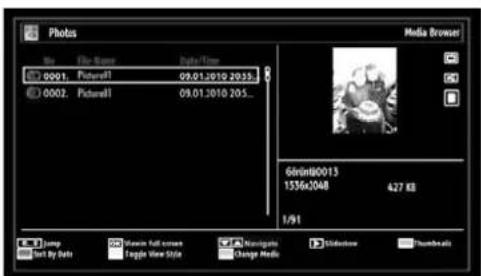

Viewing Photos via USB 64
Slideshow Options 64
Playing Music via USB 64
Recordings Library.... 65

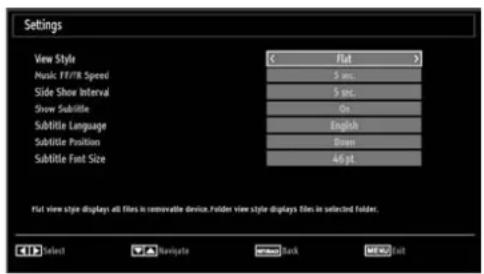

Media Browser Settings 65
Timeshift Recording 65
Instant Recording 66
Watching Recorded Programmes 66
Changing Image Size: Picture Formats 67

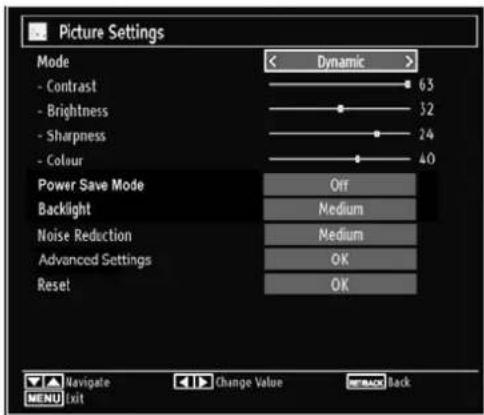

Configuring Picture Settings 68

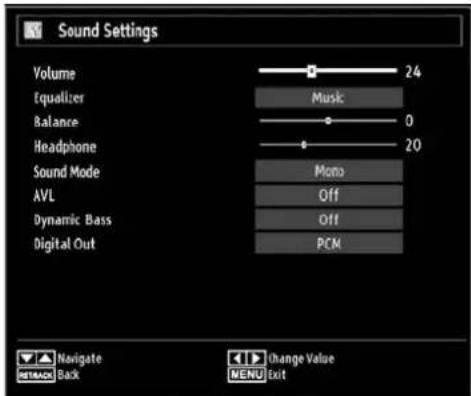

Conti guring Sound Settings 69

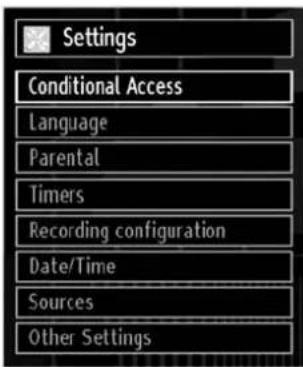

Configuring Your TV's Settings 69
Using a Conditional Access Module (not included)....70

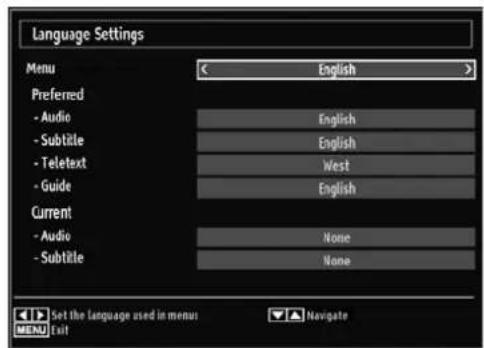

Configuring Language Preferences 70

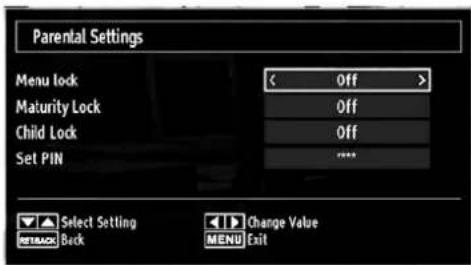

Parental Control....71
Parental Settings Menu Operation 71
Timers....71
Setting Sleep Timer 71
Setting Programme Timers 71

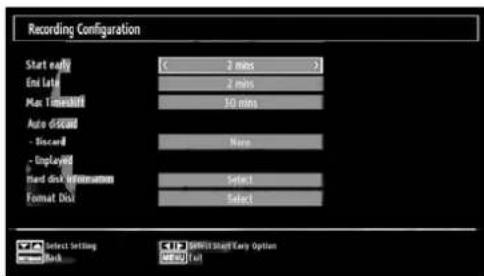

Recording Configuration 72

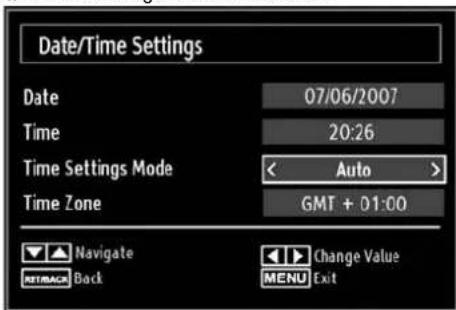

Configuring Date/Time Settings 72

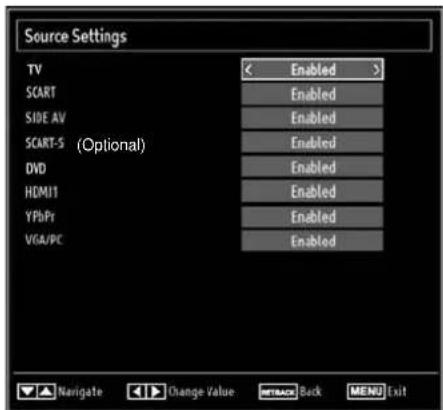

Conti guring Source Settings 73

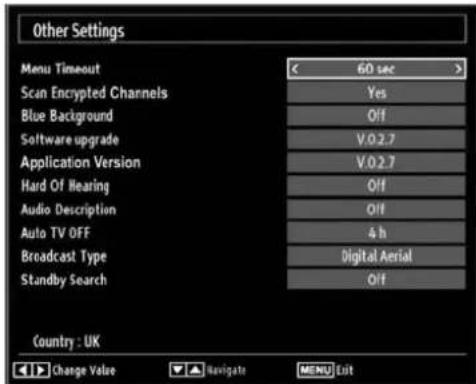

Configuring Other Settings 73
Operation....73
Other Features 74
Teletext 74
Tips....75
Appendix A: PC Input Typical Display Modes ..... 76
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) 76
Appendix C: Supported DVI Resolutions....77
Appendix D: Software Upgrade 77
Appendix E : Supported File Formats for USB
Mode....78
Specifications 79
Digital Reception (DVB-C) 79
MOBIL TV INSTRUCTION MANUAL 80
English - 45 -
Features
Remote controlled colour LED TV.
Fully integrated Terrestrial digital-cable TV (DVB-T C-MPEG2) (DVB-T-C MPEG4).
HDMI connectors for digital video and audio.
USB input.
Programme recording.
Programme timeshifting.
1000 programmes (analogue+digital).•
On Screen Display (OSD) menu system.
Integrated tuner DVB-T-C HD, MPEG 2 / MPEG 4 compatible.
Scart socket for external devices (such as video, video games, audio set, etc.).
Stereo sound system. (German+Nicam)•
Teletext, fastext, TOP text.
Headphone connection.
Automatic programming system.
Forward or backward manual tuning.
- Sleep timer / Child lock.
• Automatic sound mute when no transmission. - NTSC playback.
• AVL (Automatic Volume Limiting). - Auto power down.
- PLL (Frequency Search).
- PC input.
Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
- Game Mode.
Introduction
Thank you for choosing this product. This manual will guide you through the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please keep this manual in a safe place for future reference.
This device is intended to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.).
This device is only suitable for dry indoor use. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.
Read the following recommended safety precautions carefully.
Power
• Always use the provided AC adaptor.
- Operate only from the power source specified on the AC adaptor.
- The power adaptor may become hot during normal operation. This is not a malfunction.
Please make sure that the adaptor is not covered • while in operation. Leave a space of 15 cm (minimum) around the AC adaptor.
- The rating information and safety caution of the AC adaptor are provided on the adaptor.
WARNING: When the set is not in use for a long time, disconnect from the power.
Power Cord
Do not place the set, a piece of furniture, etc. on the power cord or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cord should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.
Moisture and Water
Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen etc). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top.
If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.
Cleaning
Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use a soft, dry cloth.
Ventilation
The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to open flames or sources of intense heat such as an electric heater. Ensure that no open flame sources, such as candles,
are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
Lightning
In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.
Servicing
Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.
Waste Disposal
Instructions for waste disposal:
- Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as a foil bag, must be kept away from children.
- Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally friendly manner. Find out about the legal regulations which apply in your area.
Do not try to recharge batteries, there is a danger of explosion. Replace batteries only with the same or equivalent type.
Information for users in the EU
This symbol on the product or on its packaging means
that your electrical device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or the dealer where you purchased the product.
Disconnecting the Device
The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.
Headphone Volume
Excessive sound pressure from earphones and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
LCD Screen
The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
Warning! Do not leave your TV in standby or operating mode when you leave your house.
Connection to a Television Distribution System (Cable TV etc.) from Tuner
Devices connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using a coaxial cable, may in some circumstances create a fire hazard.
Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).
TRADEMARK ACKNOWLEDGMENT
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
DOLBY.
DIGITAL PLUS
Licence Notification (Optional)
Manufactured under license from Dolby Laboratories.
Electrical devices not in the hands of children
Never let children use electrical devices unsupervised. Children cannot always recognize properly any possible danger. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of small children. In case of swallowing a battery, medical aid has to be sought immediately. Also keep the packaging away from children as there is danger of suffocation.
The Standby button does not fully switch off this product. Moreover, the device continues to consume power in standby mode. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to the mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. During periods of prolonged non-use, the TV should be disconnected from the mains power supply.

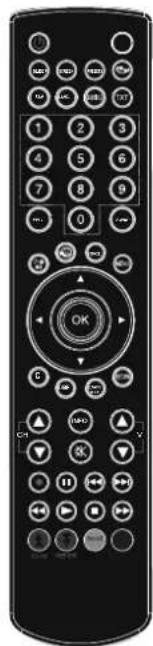

Package Contents
LED TV
Instruction Book
Batteries: 2 X AAA
12V Car Adaptor
Included
1 X Video & Audio Connection Cable
Note: You should check the contents after opening your purchase and make sure that every item is included.
Be sure to ground the connection properly.
Connect the ground terminal of the AC adaptor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
Surely connect the ground wire
English - 48 -
Environmental Information
This television is designed to consume less energy to save the environment.
You not only help to save the environment but you can also save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:
- You can use the Power Save Mode setting, located in the Picture Settings menu. If you set the Power Save Mode as On, the TV will switch to energy-saving mode and the luminance level of the TV set will be decreased to optimum level. Note that some picture settings will be unavailable when the TV is in Power Save Mode.
- When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.
- Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting the TV from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.
- Please helps us to save environment by following these steps.
Repair Information
Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you purchased this TV for further information.

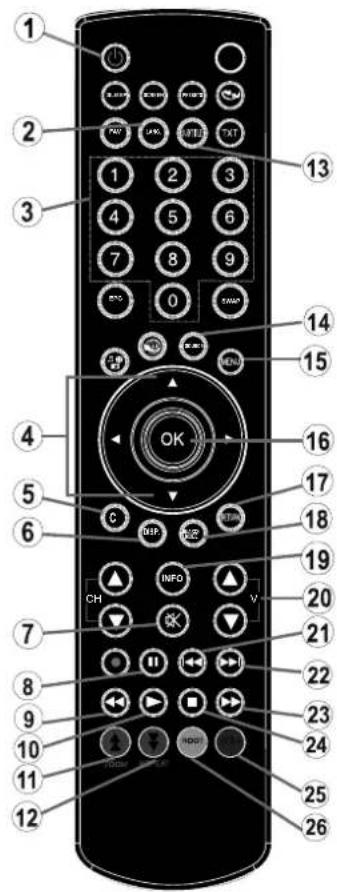

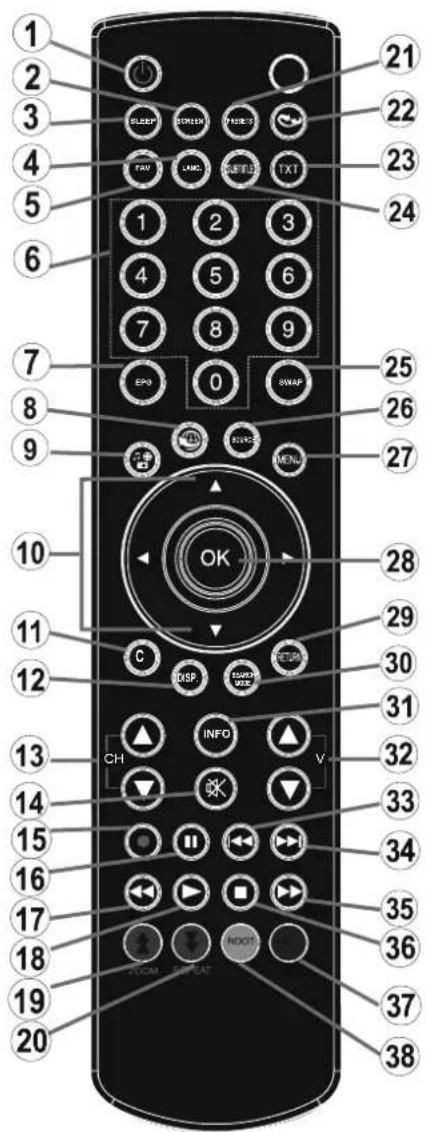

Remote Control Buttons
Standby1.
Image size / Zooms videos (in Media Browser 2. video mode)
Sleep Timer3.
Mono / Stereo - Dual I-II / Current Language (*) 4. (in DVB channels)
Favourite Mode Selection (in DVB channels)5.
Numeric buttons6.
Electronic programme guide (in DVB channels)7.
No function8.
Media Browser9.
Navigation buttons (Up/Down/Left/Right)10.
No function11.
Recordings Library12.
Programme Down / Page up - Programme Up / 13. Page down
Mute14.
Programme recording15.
-
Pause (in Media Browser mode) / Timeshift recording
-
Rapid reverse (in Media Browser mode)
-
Play (in Media Browser mode)
-
Red button
-
Green button / List Schedule (in EPG) / Tag / Untag All (in favourite list) / Play-Slideshow (in Media Browser) / Loop-Shuffle (in Media Browser)
-
Picture mode selection / Changes picture mode (in Media Browser video mode) No function22.
-
Teletext / Mix (in TXT mode)
-
Subtitle on-off (in DVB channels)
-
Previous programme
-
AV / Source selection Menu on-off27.
-
Okay (Confirm) / Hold (in TXT mode) / Edit Channel List Exit / Return / Index page (in TXT mode) 29. No function 30.
-
Info / Reveal (in TXT mode)
-
Volume Up / Down No function33. No function34.
-
Rapid advance (in Media Browser mode)
-
Stop (in Media Browser mode)
Blue button / Edit Channel List / Filter (In Favourite List&EPG)
-
Yellow button / Timeline Schedule (in EPG)
English - 50 -

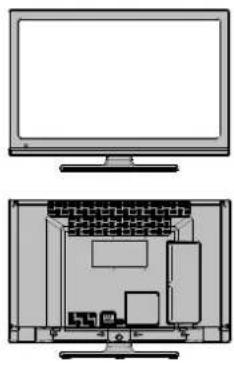

TV and Operating Control Switch
FRONT and REAR VIEW Control switch VIEW Control Switch
Down direction2.
Programme/Volume / AV 3.
/ Standby-On selection switch
Note: You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via control buttons.
To select desired source, move the switch upward or downward and release.
Viewing the Connections - Back Connectors
HDMI Inputs are for connecting a device that has a HDMI socket. Your TV is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080p signals. No sound connection is needed for a HDMI to HDMI connection.
RF Input2. connects to an aerial antenna system or a cable.
Note: If you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
- SCART input or output for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Note: S-VHS signal is supported via the scart socket (optional).
Note: When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket.
English - 51 -
VGA Input4. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input.
WARNING: You cannot use VGA and YPbPr at the same time.
SPDIF Out5. outputs audio signals of the currently watched source.
Use an SPDIF cable to transfer audio signals to a device that has SPDIF input.
DC 12 V Input 6. is used for connecting the supplied power adaptor.
Viewing the Connections - Side Connectors
The CI Slot is used for inserting a CI card. A CI card allows you to view all the channels 1. that you subscribe to. For more information, see "Conditional Access" section.
Side USB input.2.
Note that programme recording feature is available via this USB input. You can connect external hard disk drives to this input.
Side audio-video connection3. input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device's audio cable's connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.
Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.
Volume/ Programme/ Source and Standby-On switch.5.
Power Connection
IMPORTANT: The TV set is designed to operate on 12 V DC. For this, an adaptor is used which gives 12 V voltage. Connect this adaptor to a system that supplies 110-240V AC,50/60Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
Aerial Connection
- Connect the aerial plug to the AERIAL INPUT (ANT) socket located at the rear of the TV.
Using USB Input
USB Connection
You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive or record programmes.
2.5" and 3.5" inch (hdd with external power supply) • external hard disk drives are supported.
- To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
IMPORTANT!
- You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or dataloss.
It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.
IMPORTANT: The TV supports only FAT32 and NTFS disk formatting. However, NTFS format is not supported for recording features. For recording, if you connect a USB disk with NTFS format, the TV will ask you to format the content. See the section, "Format Disk" in the following pages for more information on disk formatting.
Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.
USB Disk Connection
- Plug your USB device to the USB input of the TV. Note: Plug or unplug your USB disk while the TV is switched off.
Note: If you are going to connect a USB hard disk drive to the TV set, USB connection cable used between the disk drive and the TV should have a USB logo and should be as short as possible.
Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more til le capacity, you can experience problems with the formatting process. In such a case, you should format the disk with your personal computer and the formatted disk type should be FAT32.
Quickly plugging and unplugging USB devices, • is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.
Do not pull out USB module while playing or recording a file.
Programme Recording
To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.
IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.
For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.
Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.
For more information on recording programmes, see sections "Instant Recording", "Timeshifting", "Electronic Programme Guide", "Recordings Library" or "Recording Timers" in the following parts.
- Recorded programmes are split into 4GB partitions.
Recorded programmes are stored in the following directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number. A text (txt) file is created for each recording. This text file includes information such as broadcaster, programme, and recording time.
Timeshifting may be stopped according to USB device write speed. If the USB device speed is not enough for video stream bitrate, timeshifting may be stopped and recording may fail. If HD service bitrate is greater than 13 Mbp/sec, some freeze can be seen during timeshifting on both USB disk and on external HDD.
Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.
Do not plug out the USB/HDD during the recording. • This may harm the connected USB/HDD.
English - 53 -
Multipartiton support is available. Maximum two different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.
Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.
Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.
• Radio record is not supported.
- The TV can record programmes up to ten hours.
Connecting the TV to a PC
For displaying your computer's screen image on your LED TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LED TV. When the connection is made, switch to PC source. See Input selection section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.
Note: If you connect a PC to the TV using HDMI connection, radio interference may occur. Therefore this type of connection is not recommended. You should use VGA connection instead.
Connecting to a DVD Player via HDMI
Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Not all cables shown in the illustration are supplied.
- If your DVD player has an HDMI socket, you can connect via HDMI for better video and audio quality.
Using Side AV Connectors
You can connect a range of optional equipment to your LED TV using side connectors of the TV.
For connecting a camcorder or camera, you should use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/audio connection cable. Colours of the connected jacks should match. See illustration below.
To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above.
Connecting to a DVD Player
If you want to connect a DVD player to your TV, you can use the connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
English - 54 -
- If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to a DVD player as illustrated below, switch to the HDMI source. See "Input Selection" section.
Some DVD players are connected through COMPONENT SOCKETS (YPbPr). YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied).
- You may also connect through the SCART sockets. Use a SCART cable as shown below. VideoConnection
Remote Control Handset
Inserting Batteries
- Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.
Switching On/Off
To Switch the TV On
Connect the power cord to the 110-240V AC, 50 · /60Hz.
Press STANDBY touch button. Then the standby • LED lights up.
To switch on the TV from standby mode either:
Press the "☐" button, CH▲CH ▼ or a numeric button on the remote control.
Press the control switch right side of the TV. The TV will then switch on.
Note: If you switch on your TV via P+ or P- buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.
By either method the TV will switch on.
To Switch the TV Off
Press the "💡" button on the remote control or hold the control switch on the Tv until shut down, so the TV will switch to standby mode.
To power down the TV completely, unplug the power cord from the mains socket.
Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.
Input Selection
Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.
English - 55 -
Basic Operations
You can operate your TV using both the remote control and onset buttons.
Operation with the Buttons on the TV
Volume Setting
You can move the control switch upward or downward for changing the volume. To increase volume, please move the switch upward. Move the switch downward to decrease the volume. A volume level scale (slider) will be displayed on the screen.
Programme Selection
First press the control switch once to change channel. You can move the switch upward to select the next programme or move it downward to select the previous programme.
Viewing Main Menu
Menu screen cannot be displayed by using the control switch.
AV Mode
Press the control switch consecutively until the source OSD is displayed on the screen.
Operation with the Remote Control
The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.
Volume Setting
- Press "V▲" button to increase the volume. Press "V▼" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.
Programme Selection (Previous or Next Programme)
- Press "CH▼" button to select the previous programme.
Press “• CH” button to select the next programme.
Programme Selection (Direct Access)
Press the numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme.
Viewing Electronic Programme Guide (EPG)
You can view the electronic programme guide (EPG) to view information about available programmes. To view the EPG menu please press EPG button on the remote control.
Press "▼"/"▲" buttons to navigate through channels.
- Press “◀”/“▶” buttons to navigate through the programme list.
- EPG menu displays available information on all channels. - Please note that event information is updated automatically. If there are no event information data available for channels, EPG will be displayed with blanks.
OK (Options): Views/records or sets timer for future programmes.
Blue button (Filter): Views filtering options.
INFO (Event Details): Displays the programmes in detail.
Green button: Programme schedule will be listed
Yellow button: Display EPG data in accordane with timeline schedule
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Red button (Prev Time Slice): Displays the programmes of previous time slice.
Green button (Next Time Slice): Displays the programmes of the next time slice.
Yellow button (Prev Day): Displays the programmes of previous day.
Blue button (Next day): Displays the programmes of the next day.
TXT button (Filter): Views filtering options.
Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.
OK (Options): Views/records or sets timer for future programmes.
INFO (Details): Displays the programmes in detail.
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Green button (Next day): Displays the programmes of the next day.
Yellow button (Zoom): Expands programme information.
Blue button (Filter): Views filtering options.
Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.
INFO (Details): Displays the programmes in detail.
OK (Options): Views/records or sets timer for future programmes.
TXT (Search): Displays "Guide Search" menu.
SUBTITLE: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.
SWAP(Now) : Shows the current programme.
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Recording via EPG Screen
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.
Note: Switching to a different broadcast or source is not available during the recording.
◀ /▶▶age left / Page right.
Programme Options
In EPG menu, press the OK button to enter the "Event Options" menu.
In EPG menu, using this option, you can switch to the selected channel.
Record / Delete Record Timer
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.
To cancel an already set recording, highlight that • programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.
Note: You cannot switch to any other channel or source while there is an active recording on the current channel.
Set Timer / Delete Timer
After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes.
To cancel an already set reminder, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.
Note: It is not possible to record or set timer for two or more individual events at the same time interval.
English - 57 -
Digital Teletext ( ^** for UK only)
- Press the "TXT" button.
The digital teletext information appears.
Operate it with the coloured buttons, cursor buttons and OK button.
The operation method may differ depending on the contents of the digital teletext.
Follow the instructions displayed on digital teletext screen.
- When the "TXT" button is pressed, the TV returns to television broadcasting.
With digital broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.
The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.
- When you press the "TXT" button again, the digital teletext screen will be displayed.
Analogue Teletext
Use of teletext and its functions are identical to the analogue text system. Please do refer to the "TELETEXT" explanations
First Time Installation
IMPORTANT: Ensure that the aerial or cable is connected before switching on the TV for the first time installation.
- When the TV is operated for the first time, installation wizard will guide you through the process. First, language selection screen will be displayed:
- After selecting the language, "Welcome!" screen will be displayed, requiring you to set Country, Teletext Language and Scan Encrypted options.
- Press "▼" button after setting Teletext Language option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations. Afterwards select the desired Teletext Language.
- Press OK button on the remote control to continue and the following message will be displayed on the screen:
Afterwards, the following OSD will be displayed on the screen:
If you select CABLE option, the following screen will be displayed:
You can select frequency ranges from this screen. For highlighting lines you see, use "▼" or "▲button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search.
If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.
Installation
Press MENU button on the remote control and select Installation by using "◀or "◀" button. Press OK button and the following menu screen will be displayed.
Auto Channel Scan (Retune) Menu Operation
Digital Aerial: Searches and stores aerial DVB stations.
Digital Cable: Searches and stores cable DVB stations.
Analogue: Searches and stores analogue stations.
Digital Aerial & Analogue: Searches and stores both analogue and aerial DVB stations.
Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations.
Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using .◀ or ▶ and OK button.
After auto channel scan type is set and selected • and confirmed, installation process will start and progress bar will move along. Press "MENU" button to cancel process. In such a case, located channels are not stored.
English - 59 -
Manual Tuning
HINT: This feature can be used for direct broadcast entry.
Select • Manual Channel Scan from the Installation menu by using “▼”/“▲and OK buttons. Manual Scan options screen will be displayed.
- Select the desired Search Type using “◀” or “▶” button. Manual search options will change accordingly. Use “▼”/“▲” button to highlight an item and then press “◀” or “▶” button to set an option. You can press “MENU” button to cancel.
Digital Aerial Manual Search
Digital Cable Manual Search
In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.
Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.
Analogue Fine Tune
Select • Analogue Fine Tune from the Installation menu by using "Vor" and OK buttons. Analogue fi ne tune screen will be displayed. Analogue Fine Tune feature will not be available if there are no analog channels, digital channels and external sources stored.
Press • OK button to proceed. Use◀ or ▶button to set Fine Tune. When finished, press OK button again.
Network Channel Scan
Select Network Channel Scan from the installation menu by using "◀or " ▶and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will be asked. Select Yes to continue or select No to cancel.
If you start Digital Cable scan process, the following screen will be displayed.
English - 60 -
Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time.
Clear Service List (\*)
(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Use this setting to clear channels stored. Press "▼" or "▲button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen:
Press OK to cancel. Select Yes by pressing "◀or▼" button and press OK to delete all of the channels.
Managing Stations: Channel List
The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.
- Press MENU button to view main menu. Select Channel List item by using “◀” or “▶” button. Press OK to view menu contents.
Operating the Channel List
Use • CN or CH▼buttons to move page up or down.
- Press BLUE button to view filtering options. Press • MENU button to exit.
Moving a Channel
First select the desired channel. Select Move option • in the channel list and press OK button.
- Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.
- Press OK button to process. Selected channel is now moved.
Deleting a Channel
You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.
Select the channel that you want to delete and select • Delete option. Press OK button to continue.
- A warning screen will appear. Select YES to delete, select No to cancel. Press OK button to continue.
Renaming a Channel
Select the channel that you want to rename and select Edit Name option. Press OK button to continue.
Pressing "◀" or "▶" button moves to the previous/next character. Pressing "▼" or " " ▲" button toggles the current character, i.e., 'b' character becomes 'a' by "▼ and 'c' by " " ▲" pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the button one by one as the button is pressed.
- When finished, press OK button to save. Press MENU to cancel.
Locking a Channel
You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.
Select the channel that you want to lock and select Lock option. Press OK button to continue. You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.
Note: If the Country option is set to France, you can use 4725 as the default code.
- Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel..
Managing Stations: Favourites
You can create a list of favourite programmes.
- Press MENU button to view main menu. Select Channel List item by using “◀” or “▶” button. Press OK to view menu contents.
- Select Favourites to manage favourite list. Use “▼”/“▲and OK buttons to select Favourites.
You can set various channels as favourites so that only the favourite channels are navigated.
Button Functions
- OK: Add/remove a station.
• YELLOW: Tag/untag a channel.
• GREEN: Tag/untag all channels. - BLUE: Displays filtering options.
Managing Stations: Sorting Channel List
You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting.
Select Active channel list from the Channel list menu by using "◀" or "▶" button. Press OK button to continue.
On-Screen Information
You can press INFO button to display on-screen information. Details of the station and current programme will be displayed on the information banner.
Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.
If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). "Enter PIN" will be displayed on the screen.
Note: If the Country option is set to France, you can use 4725 as the default code.
English - 62 -
Media Playback Using Media Browser
If the USB stick is not recognized after power off/on or First Time Installation, first, plug the USB device out and power off/on the TV set. Plug the USB device in again.
To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing "◀" or "▶" button. Press OK button to continue. Media Browser menu options will be displayed.
Also, when you plug USB devices, media browser screen will be displayed automatically:
Viewing Videos via USB
Jump (Numeric buttons): The TV will jump to the fi le starting with the letter you input via the numeric buttons on your remote control.
Play This (OK button) : Plays the selected file.
▼/ ▲ Navigate menu
Lang (Play Preview): Displays selected file in a small preview screen.
RED: Sorts files by name.
Play (▶ button) : Plays all media files starting with the selected one.
Yellow Button: Change viewing style
Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.
BLUE: Changes media options.
Stop (■ button): Stops the video playback.
Pause (11 button): Pause the video playback.
Rewind (◀ button): Goes backward.
Forward (▶ button): Goes forward.
Subtitle/Audio (LANG. button): Sets subtitle/Audio.
Jump (GREEN button): Jumps to time. Use numeric buttons to type the desired time and press GREEN button again to proceed.
Ret/Back: Back to previous menu.
Press BLUE button for clear
Press SWAP (Exit) button to switch back to previous menu.
Viewing Photos via USB
When you select Photos from the main options, available image files will be filtered and listed on this screen.
OK: Views the selected picture in full screen.
▼/ ▲Navigate menu
Slideshow (▶ button): Starts the slideshow using all images.
GREEN button: Views images in thumbnails.
RED button: Sorts fi les by date.
Yellow Button: Change viewing style
BLUE: Changes media options.
Slideshow Options
Continue (▶ button) : Continues the slideshow.
Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.
Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.
Rotate (Up/Down buttons): Rotates the image using up/down buttons.
RETURN (Exit): Back to fi le list.
INFO: Displays help screen.
Playing Music via USB
When you select Music from the main options, available audio files will be filtered and listed on this screen.
Play ▶ button): Starts the playback.
Stop (■ button) : Stops playback.
Pause (Ⅱ button) : Pauses the selected playback.
RED button: Sorts files by Title, Artist or Album.
Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffle e. Press once more to enable only Shuffle e. Press again to enable all. You can follow the disabled functions with the change of the icons.
Note:
If you start the playback with the ▶ button and activate the 📄 symbol, the TV will play the next music/video fi le. The playback will proceed accordingly and when the end of the list is reached, it will be played again from the beginning (loop function).
If you start the playback with the OK button and activate the 📄 symbol, the same music or video file will be played in a loop (repeat function).
If you start the playback with ▶ or OK button and activate the ⚫ symbol, music or video fi le will be played in a shuffle.
If you start the playback with ▶ or OK button and activate 📄, ✗ symbols, music or video file playback will continue randomly and the random playback will continue.
0..9 (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.
Play This (OK button) : Plays the selected file.
Previous/Next (Left/Right buttons) : Jumps to previous or next file to play.
Yellow Button: Change viewing style
BLUE: Changes media options.
Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort files again by pressing FAV button.
INFO: Changes fi Iter options.
English - 64 -
Recordings Library
IMPORTANT: To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings.
RED button (Delete): Erases the selected recording.
GREEN button (Edit): Makes changes on the selected recording.
BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.
OK button: Activates play options menu:
- Play from start: Plays the recording from the beginning.
- Resume: Recommences the recordings.
- Play from offset: Specifices a playing point.
Note: Viewing main menu and menu items will not ve available during the playback.
▶ (Resume): Recommences the recordings.
INFO (Details): Displays the short extended programmes in detail.
Media Browser Settings
View Style: Sets default browsing mode.
Music FF/FR Speed: Sets forwarding/advancing speed.
Slide Show Interval: Sets slide show interval time.
Show Subtitle: Sets subtitle enabling preference.
Subtitle Language: Sets supported subtitle language.
Subtitle Position: Sets subtitle position as up or down.
Subtitle Font Size: Sets subtitle font size (max. 54pt).
Timeshift Recording
IMPORTANT: To record a programme, you should resist connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
Press ■ (PAUSE) button while watching a broadcast for switching to timeshifting mode.
In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk (*). Press ▶ (PLAY) button again to watch the paused programme from the stopped moment.
This playback is performed in x1 playback speed. • You will see the timeshift gap between the real and the timeshifted programme in the info bar.
Use ◀◀ /▶ (PREVIOUS/NEXT) buttons to move forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be quitted and you will switch back to watching normal broadcast.
Press ■ (STOP) button to quit timeshifting mode.
(*) Similtaneous timeshifting recording's duration depends on your connected USB disk's file size and defined Max. Timeshift in the Recordings Confi guration menu. See the section, "Recordings" for more information on setting Max. Timeshift.
Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting.
Lip Sync delay may occur during the timeshifting.
English - 65 -
Instant Recording
IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
Press (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen:
You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.
Note: Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.
Watching Recorded Programmes
In the main menu, use "◀ or "▶buttons to select Media Browser. Highlight Recordings Library item by using "◀ or "▶button and press OK button to enter.
Recordings Library will then be displayed.
IMPORTANT: To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
Play from start: Plays the recording from the • beginning.
Resume: Recommences the recordings.
Play from offset: Specific es a playing point.
Note: Viewing main menu and menu items will not be available during the playback.
Press ■ (STOP) button to stop a playback and return to return to Recordings Library.
Slow Forward
If you press ■ (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use ▶ button to slow forward. Pressing ▶ button consecutively will change slow forwarding speed.
English - 66 -
Changing Image Size: Picture Formats
You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.
- Press the SCREEN button repeatedly to change the image size. Available zoom modes are listed below.
Auto
When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source (if available).
Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.
16:9
This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.
For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.
Subtitle
This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.
Note: You can shift to screen up or down by pressing "▼/ " " buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle.
14:9
This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.
14:9 Zoom
This option zooms to the 14:9 picture.
4:3
Use to view a normal picture (4:3 aspect ratio) as this is its original size.
Panoramic
This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.
The top and bottom of the picture are slightly cut off.
Cinema
This zooms up the wide picture (16:9 aspect ratio) to the full screen.
English - 67 -
Configuring Picture Settings
You can use different picture settings in detail.
Press MENU button and select the Picture icon by using "◀" or "▶" button. Press OK button to view Picture Settings menu.
Press "▼" or "▲button to highlight a menu item.
Use "◀" or "▶" button to set an item.
Press • MENU button to exit.
Picture Settings Menu Items
Mode: For your viewing requirements, you can set various screen modes. The Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast: Sets the lightness and darkness values of the screen.
Brightness: Sets the brightness value for the screen.
Sharpness: Sets the sharpness value for the objects displayed on the screen.
Colour: Sets the colour value, adjusting the colors.
Power Save Mode : Use "▼" or "▲button to select Power Save Mode.
Press "◀" or "▶" button to set Power Save Mode as On or Off.
See the section, "Environmental Information" in this manual for further information on Power Save Mode.
Note : The backlight function will be inactive if Power Save Mode is set to on.
Backlight : This setting controls the backlight level and it can be set to Auto, Maximum, Minimum, Medium and Eco Mode (optional).
Note: Backlight can not be activate in VGA or Media Browser mode or while picture mode is set as Game.
Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Colour Temp• : Sets the desired colour tone.
Setting Cool option gives white colours a slight blue stress.
For normal colours, select Normal option.
Setting Warm option gives white colours a slight red stress.
• Picture Zoom: Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.
- HDMI True Black (Optional): While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. You can set this feature as "On" for activating HDMI True Black mode.
- Film Mode(Optional): Films are recorded at a different number of frames per second to normal television programmes. Press "▼" or "▲buttons to select Film mode. Press "◀or "▶buttons to set this feature Auto or Off. Turn this feature to Auto when you are watching films to see the fast motion scenes clearly.
• Colour Shift: Adjust the desired colour tone.
Reset: Resets the picture settings to factory default settings.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
PC Picture Settings
For adjusting PC picture items, do the following:
Press "◀" or "▶" button to select Picture icon. Picture menu appears on the screen.
Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical to settings defined in TV picture menu under "Main Menu System".
Sound, Settings and Source settings are identical to the settings explained in main menu system.
PC Position: Select this to display PC position menu items.
English - 68 -
H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position: This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error.
Configuring Sound Settings
Sound settings can be configured according to your personal preferences.
Press MENU button and select the Sound icon by using "◀" or "▶" button. Press OK button to view Sound Settings menu.
Press "▼" or "▲button to highlight a menu item.
Use "◀" or "▶" button to set an item.
Press • MENU button to exit.
Sound Settings Menu Items
Volume: Adjusts volume level.
Equalizer: Press OK button to view equalizer submenu.
Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance: This setting is used for emphasizing left or right speaker balance.
Headphone: Sets headphone volume.
Sound Mode: You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.
Digital Out: Sets digital out audio type.
Configuring Your TV's Settings
Detailed settings can be configured to suit your personal preferences.
Press MENU button and select Settings icon by using "◀" or "▶" button. Press OK button to view Settings menu.
Operating Settings Menu Items
Press "▼" or "▲button to highlight a menu item.
Press • OK button to select an item.
Press • MENU button to exit.
Settings Menu Items
Conditional Access: Controls conditional access modules when available.
Language: Configures language settings.
Parental: Configures parental settings.
Timers: Sets timers for selected programmes.
Date/Time: Sets date and time.
Sources: Enables or disables selected source options.
Other Settings: Displays other setting options of the TV set.
Using a Conditional Access Module (not included)
IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.
In order to watch certain digital channels, a conditional access module (CAM) may be necessary. This module must be inserted in the CI slot of your TV.
Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.
Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.
The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
When no module is inserted, “• No Common Interface module detected” message appears on the screen.
Refer to the module instruction manual for details of the settings.
Viewing Conditional Access Menu (\*)
(*) These menu settings may change depending on the service provider.
Press MENU button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼or " " Button to highlight Conditional
Access and press OK to view menu items.
Configuring Language Preferences
You can operate the TV's language settings using this menu.
Press MENU button and select the Settings icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight
Language and press OK to continue:
Menu: displays the system language.
Preferred
These settings will be used if available. Otherwise the current settings will be used.
Audio• : Sets the preferred audio language.
- Subtitle: Sets the subtitle language. Selected language will be seen in subtitles.
- Teletext: Sets teletext language.
Guide• : Sets the preferred Guide language.
Current (\*)
(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.
Audio·: Changes the audio language for the current channel.
- Subtitle: Sets the subtitle language for the current channel.
English - 70 -
Parental Control
To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.
This function enables or disables the menu protection system and allows the PIN code to be changed.
Press MENU button and select the Settings icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight
Parental and press OK to continue:
To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000.
After coding the correct PIN number, parental settings menu will be displayed:
Select an item by using "▼" or "▲button.
Use "◀" or "▶" button to set an item.
Press• OK button to view more options.
Menu Lock (Optional): Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.
Maturity Lock (Optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.
Child Lock (Optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.
Set PIN: Defines a new PIN number. Use numeric buttons to enter a new pin number. You will need to enter your new pin a second time for verification purposes.
IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.
Timers
To view Timers menu, press MENU button and select Settings icon by using "◀ or " ▶button. Press OK button to view Settings menu. Use "▼or " " ▶button to highlight Timers and press OK to continue:
Setting Sleep Timer
This setting is used for setting the TV to turn off after a certain time.
Highlight Sleep Timer by using "▼" or "▲button.
Use “◀” or “▶” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.
Setting Programme Timers
You can set programme timers for a particular programme using this feature.
Press "▼" button to set timers on an event. Programme timer function buttons will be displayed on the screen.
Adding a Timer
- Press YELLOW button on the remote control to add a timer. The following menu appears on the screen:
Channel: Changes network type by using “◀” or “▶”.
Timer Type: You can select timer type as Record or Timer.
Date: Enter a date using the numeric buttons.
Start: Enter a starting time using the numeric buttons.
End: Enter an ending time using the numeric buttons.
Duration: Displays duration between the starting and ending time.
Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use "◀" or "▶" buttons to select an option.
Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use "◀" or "▶" buttons to select an option.
Change/Delete: Sets the change/delete permission.
Playback: Sets the playback permission and parental settings.
- Press GREEN button to save the timer. Press RED button to cancel.
Editing a Timer
- Select the timer you want to edit by pressing "▼" or "▲button.
Press • GREEN button. Edit Timer menu screen will be displayed.
- When finished with editing, press GREEN button to save. You can press MENU button to cancel.
Deleting a Timer
Select the timer you want to delete by pressing "▼" or "▲button.
Press • RED button.
Select • YES by using◀ or “▶” buttons to delete the timer. Select NO to cancel.
Recording Configuration
Select Recording Configuration item in the Settings menu to configure recording settings. The following menu is displayed for recording configuration.
Start Early (\*)
You set recording timer's starting time to start earlier by using this setting.
(*) Available only for EU country options.
End Late (\*)
You set recording timer's end time to end later by using this settings.
(*) Available only for EU country options.
Max Timeshift
This setting allows you to set the maximum time allowed for timeshifting. Duration options are approximate and can change accordingly, depending on the broadcast received.
Format Disk
IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature.
- If you want to delete all files on the connected USB hard disk drive or memory stick, you can use Format Disk option.
- Also, if your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however,
ALL the data stored on the USB disk will be lost in such a case.
- Press OK button while the Format Disk option is highlighted. A menu will appear on the screen, requiring you to enter a pin number. If you have not changed the pin number, the factory default is 0000. After you enter the pin, a pop-up menu appears on the screen to ensure that the hard disk should be formatted, select "YES" and press OK to format the hard disk. Select "NO" and press OK to cancel. Ensure you back up important recordings before you format the USB disk unit.
Hard Disk Info
To view the details about the USB disk, highlight Hard Disk Info by using "▼" or "▲key and press OK. USB disk information will be displayed.
Configuring Date/Time Settings
Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.
Date, Time, Time Settings Mode and Time Zone Setting will be available.
Use "▼" or "▲buttons to highlight the Time Settings Mode. Time Settings Mode is set using "◀ or "▶ buttons. It can be set to AUTO or MANUAL.
When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:
- By pressing “▼” or “▲buttons select Time Zone.
Use "◀" or "▶" buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.
- Changes are automatically stored. Press MENU to exit.
Configuring Source Settings
You can enable or disable selected source options. The TV will not switch to the disabled source options when SOURCE button is pressed.
Press▼▼ or "▲buttons to select a source.
Use "◀" or "▶" button to enable or disable the selected source. Changes are automatically stored.
Note: YPbPr mode can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (not supplied).
Configuring Other Settings
To view general configuration preferences, select Other Settings in the Settings menu and press OK button.
Press "▼" or "▲buttons to select an item.
Use "◀" or "▶" button to set an option.
Press• OK button to view a sub-menu.
Menu Timeout: Changes timeout duration for menu screens.
Scan Encrypted Channels: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background (Optional): Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
You can manually search for new software by selecting Scan for upgrade.
Application version: Displays the current application version.
Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off.
Broadcast Type (optional):
When you set the desired broadcast type by using “◀” or “▶” button, the TV will display the related channel list. If the related source has does not include any stored channels, “No channels for this type have been found.” message will be displayed on the screen
Standby Search (optional): Use "▼" or "▲" button to select Standby Search and then press "◀" or "▶" button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.
Other Features
Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.
Mute Function: Press "×" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the first one is pressing the ×" button and the second one is increasing the volume level.
Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.
Displaying Subtitles: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function.
If "Subtitle" is On, pressing the "☐" button causes the following warning message display on the screen (** for UK only)
Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.
Teletext function buttons are listed below:
"TXT" Teletext / Mix : Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.
"RETURN" Index: Selects the teletext index page.
"INFO"Reveal: Shows hidden information (e.g. solutions of games).
"OK" Hold: Holds a text page when convenient. Press again to resume.
“◀”/“▶ Subcode Pages : Selects subcode pages if available when the teletext is activated.
CH▲ or CH▼ and numbers (0-9): Press to select a page.
Note: Most TV stations use code 100 for their index pages.
Coloured Buttons (RED/GREEN/YELLOW/BLUE)
Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼” or “▲” commands will request the next or previous page respectively.
Tips
Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.
Image Persistence: Please note that ghosting may occur while displaying a persistent image.LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while.
To avoid this, do not leave the screen in still picture for extended periods.
No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.
Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please return the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.
No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
Sound: You can not hear any sound. Did you perhaps interrupt the sound, pressing the ✗ button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.
Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.
Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.
Recording Unavailable: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.
USB Is too Slow: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.
Appendix A: PC Input Typical Display Modes
The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
| Index Resolution Frequency | ||
| 1 | 640x350 85 Hz | |
| 2 | 640x400 70 Hz | |
| 3 | 640x480 | 60Hz-66Hz-72Hz-75Hz-85Hz |
| 4 | 800x600 | 56Hz-60Hz-70Hz-72Hz-75Hz-85Hz |
| 5 | 832x624 75 Hz | |
| 6 | 1024x768 | 60Hz-66Hz-70Hz-72Hz-75Hz |
| 7 | 1152x864 | 60Hz-70Hz-75Hz-85 Hz |
| 8 | 1280x768 60 HzA | |
| 9 | 1280x768 60 HzB | |
| 10 | 1280x768 75 Hz-85Hz | |
| 11 | 1280x960 | 60Hz-75Hz-85Hz |
| 12 | 1280x1024 | 60Hz-75Hz-85Hz |
| 13 | 1360x768 60 Hz | |
| 14 | 1400x1050 60 HzA | |
| 15 | 1400x1050 60 HzB | |
| 16 | 1400x1050 | 75Hz-85Hz |
| 17 | 1400x900 | 65Hz-75Hz |
| 18 | 1600x1200 60 Hz | |
| 19 | 1680x1050 60 Hz | |
| 20 | 1920x1080 60 HzA | |
| 21 | 1920x1080 60 HzB | |
| 22 | 1920x1200 60 HzA | |
| 23 | 1920x1200 60 Hz | |
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)
| Source Supported Signals Available | ||
| EXT(SCART) | PAL 50/60 O | |
| NTSC 60 O | ||
| RGB 50 | O | |
| RGB 60 | O | |
| Side AV | PAL 50/60 O | |
| NTSC 60 O | ||
| YPbPr | 480I | 60Hz O |
| 480P | 60Hz O | |
| 576I | 50Hz O | |
| 576P | 50Hz O | |
| 720P | 50Hz O | |
| 720P | 60Hz O | |
| 1080I | 50Hz O | |
| 1080I | 60Hz O | |
| 1080P 50 Hz | O | |
| 1080P 60 Hz | O | |
| HDMI1 | 480I | 60Hz O |
| 480P | 60Hz O | |
| 576I | 50Hz O | |
| 576P | 50Hz O | |
| 720P | 50Hz O | |
| 720P | 60Hz O | |
| 1080I | 50Hz O | |
| 1080I | 60HzO | |
| 1080P 24 Hz | O | |
| 1080P 25 Hz | O | |
| 1080P 30 Hz | O | |
| 1080P 50 Hz | O | |
| 1080P 60 Hz | O | |
(X: Not Available, O: Available)
In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.
English - 76 -
Appendix C: Supported DVI Resolutions
When connecting devices to your TV's connectors by using DVI to HDMI cables (not supplied), you can refer to the following resolution information.
| Index Resolution Frequency | ||
| 1 | 640x400 | 70Hz |
| 2 | 640x480 | 60Hz-66Hz-72Hz-75Hz |
| 3 | 800x600 | 56Hz-60Hz-70Hz-72Hz -75Hz |
| 4 | 832x624 | 75 Hz |
| 5 | 1024x768 | 60Hz-66Hz-70Hz-72Hz -75Hz |
| 6 | 1152x864 | 60Hz-70Hz-75Hz |
| 7 | 1152x870 | 75Hz |
| 8 | 1280x768 | 60 Hz |
| 9 | 1280x768 | 75Hz |
| 10 | 1280x960 | 60Hz-75Hz |
| 11 | 1280x1024 | 60Hz-75Hz |
| 12 | 1360x768 | 60 Hz |
| 13 | 1400x1050 | 60 Hz |
| 14 | 1400x1050 | 75Hz |
| 15 | 1400x900 | 65Hz-75Hz |
| 16 | 1600x1200 | 60 Hz |
| 17 | 1680x1050 | 60 Hz |
| 18 | 1920x1080 | 60 Hz |
| 19 | 1920x1200 | 60Hz |
| 20 | 480i-480p | 60Hz |
| 21 | 576i-576p | 50Hz |
Appendix D: Software Upgrade
- Your TV is capable of fi nding and updating new software upgrades over broadcast channels.
- For broadcast channels search, the TV looks at the available channels stored in your settings. So before the software upgrade search, it is advised to auto search and update all available channels.
1) Software upgrade search via user interface
- It is possible to manually to check if there is a new software upgrade for your TV set.
- Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
- In Upgrade Options menu select Scan for upgrade and press OK button.
- If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When the download completes successfully a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.
2) 3.AM search and upgrade mode
- If Automatic scanning in Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches the broadcast channels for new software upgrade. If new software is found and downloaded successfully, with the next power up the TV opens with new software version.
Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is ÷ nished successfully. During reboot TV makes ÷ nal initializations. In the reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.
- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.
Caution: While the LED is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-start again and can only be fixed by service personnel.
English - 77 -
Appendix E : Supported File Formats for USB Mode
| Media | File Extension | Format Remarks | ||
| Video Audio (Maximum resolution/Bit rate etc.) | ||||
| Movie | .mpg, .mpeg | MPEG1, 2 MPEG Layer 1/2/3 | MAX 1920x1080 @ 30P 20Mbit/sec | |
| .dat MPEG1, 2 | MPEG2 | |||
| .vob MPEG2 | ||||
| .mkv H.264, MPEG1,2,4 EAC3 / AC3 | ||||
| .mp4 | MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 | PCM/MP3 | ||
| .avi | MPEG2, MPEG4 PCM/MP3 | MAX 1920x1080 @ 30P 20Mbit/sec | ||
| Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264 | PCM | |||
| Music .mp3 - | MPEG 1 Layer 1 / 2 (MP3) | 32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate) | ||
| Photo | .jpg .jpeg | Baseline JPEG max WxH = 15360x8640 4147200bytes | ||
| Progressive JPEG max WxH = 1024x768 6291456bytes | ||||
| .bmp - max WxH = 9600x6400 3840000bytes | ||||
| Subtitle | .sub | - | - | |
| .srt | ||||
Battery
Information for Users on Disposal of old Equipment and Batteries
[European Union only]
These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.
Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.
English - 78 -
Specifications
TV BROADCASTING
PAL/SECAM B/G D/K K' I/I' L/L'
RECEIVING CHANNELS
VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
NUMBER OF PRESET CHANNELS
1000
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
110-240V AC, 50/60 Hz.
AUDIO
German + Nicam Stereo
AUDIO OUTPUT POWER (W _RMS. ) (10% THD)
2×2.5
POWER CONSUMPTION (W)
47 W (max)
PANEL
16:9 display, 22" Screen Size
DIMENSIONS (mm)
DxLxH (With foot): 135 x 530 x 376
Weight (Kg): 5,15
DxLxH (Without foot): 55 x 530 x 340
Weight (Kg): 4,95
Digital Reception (DVB-C)
Transmission Standards:
DVB-C, MPEG2, DVB-C, MPEG4
I. DEMODULATION
Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s
Modulation: 16-QAM, 32-QAM, 64-QAM, 128-QAM and 256-QAM
II. VIDEO
All MPEG2 MP@ML formats with up-conversion and • fi Itering to CCIR601 format.
CVBS analogue output•
III. AUDIO
All MPEG1 Layer 1 and 2 modes•
Sampling frequencies supported are 32, 44.1 & 48 kHz
| Digital Reception DVB-T | MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1 | for UK |
| Object carousel support compliant with ISO/IEC 135818-6 and UK DTT profile | ||
| Frequency range: 474-850 MHz for UK models | ||
| 170-862 MHz for EU models | ||
| Transmission standard: DVB-T. MPEG-2, MPEG-4 | ||
| Demodulation: COFDM with 2K/8K FFT mode | ||
| FEC: all DVB modes | ||
| Video: MP@ML, PAL, 4:3/16:9 | ||
| Audio: MPEG Layer I&II 32/44.148kHz. | ||
English - 79 -
MOBIL TV INSTRUCTION MANUAL
Switching the TV On Using 12 Volt
- Connect the cigarette lighter plug cable to the cigarette lighter socket of your car or a cable with clips to the battery of car, making sure to observe the correct polarity.
- Plug the other side of 12 volt cable to DC 12 socket at the back of the TV. Then the standby LED lights up.
Press the "8" button, CH▲/CH▼ or a numeric button on the remote control or press the "○" button, - or + button on the TV. The TV will then switch on.
Adjust for best picture through antenna position or set TV channels again if necessary.4.
Switching the TV Off
- Press the "○" button on the remote control or press the "○" switch on the TV, so the TV will switch to standby mode.
Unplug cable connectors and power plugs.2.
ATTENTION: 12 V Input :
English - 80 -
Contents
Features 81
General Properties 81
Safety Information 82
Notes on Discs 82
On handling discs 82
On cleaning 82
Licence Notification 82
How to Watch a DVD 82
DVD Control Panel Buttons 83
Overview of the Remote Control 83
General Operation 84
General Playback 85
Basic Play 85
For your reference: 85
Notes on Playback: 85
Setup Menu Items 85
Video Setup Page 85
TV Type 85
Language Setup 85
OSD LANG 85
AUDIO 85
DISC MENU 85
SUBTITLE......85
Preferences 86
DEFAULT 86
DOWNMIX 86
PASSWORD (Change Password): 86
SPDIF OUTPUT 86
Troubleshooting 86
The picture quality is poor (DVD)...... 86
Disc does not play 86
Wrong OSD language 86
No picture 87
No sound 87
Distorted sound....87
No response from remote control 87
If nothing works....87
Definition of Terms 87
Disc Types Compatible with This Unit 88
Specifications 88
Features
General Properties
- DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG playback.
• NTSC/PAL playback (according to disc content)
- LPCM audio via coaxial digital audio output. (optional).
- Multi-Audio (up to 8) support (According to disc content)
- Multi-Subtitle (up to 32) support (According to disc content)
• 8 level parental control
- Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)
- Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)
• Frame by frame forward playback.
- Search Mode
- Repeat
• Coaxial audio output (optional)
• Copied disks may be incompatible.
Note
- This DVD player may not support some MP3 recordings due to differences in recording formats or disc type.
- Please read the owner's manual about MP3 playback.
- CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design.
- DVD-R/RW discs recorded by DVD-Video method can be played. Some DVD-R/RW discs may be incompatible due to laser pick-up and disc design.
- Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs.
English - 81 -
Safety Information
CAUTION
DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed.
CLASS 1 LASER PRODUCT
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Notes on Discs
On handling discs
- To keep the disc clean, handle the disc by its edge. Do not touch the surface.
- Do not stick paper or tape on the disc.
- If the disc is contaminated with any substance like glue remove before using it.
- Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.
• After playing, store the disc in its case.
On cleaning
- Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.
Licence Notification
- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.
How to Watch a DVD
When placing a disc into the loader, labeled side of the disc should be on the front:
English - 82 -
DVD Control Panel Buttons
A. Disc loader
B. Play / Pause
Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as "button select" (selects the highlighted item in menu) if this is not prohibited by the disc.
C. Stop / Eject
Stop playing disc / Eject or Load the disc Note:
- You cannot eject the disc via the remote control.
- While playing a file, you should press STOP button three times to eject.
Standby1.
Language selection (Set language)2.
Numeric buttons3.
Navigation buttons (Up/Down/Left/Right)4.
Clear 5.
Display time / DVD menu6.
Mute7.
Pause8.
Rapid reverse9.
Play10.
Zoom11.
Repeat12.
Subtitle13.
- AV / Source selection
- Menu
- OK
- Return
- Search Mode
- Info
- Volume Up / Down
- Skip Previous
- Skip Next
- Rapid advance
- Stop
- Title
- Root
Note: Buttons not indicated with a number are not functional in DVD mode.
General Operation
You can operate DVD, movie CD, music or picture CD's content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons.
| Buttons on the Remote Control | DVD Playback | Movie Playback | Picture Playback | Music Playback |
| ▶ | Play | Play | Play | Play |
| II | Pause | Pause | Pause | Pause |
| ■ | Stop | Stop | Stop | Stop |
| ◀/Skip | backward/forward | Skip backward/forward | Previous / Next | Previous / Next |
| ◀/▶ | Shifts the zoomed picture left or right (if available). | |||
| ▼/▲ | Highlights a menu item. / Shifts the zoomed picture down or up (if available). | |||
| ◀/Fast reverse / Fast forward | ||||
| C Clears digit (if available). | ||||
| DISPLAY | Displays time / Views main setup menu | |||
| INFO Time counter mode selection (during playback). Press repeatedly to switch between modes. | ||||
| LANG. Audio language. X X | ||||
| MENU | Displays TV menu. | |||
| OK / SELECT Enter / View / Play | ||||
| REPEAT | Displays repeat options. | |||
| RETURN | Returns back to the previous menu (if available). | |||
| ROOT | Goes back to the root folder (if available). | |||
| SEARCH MODE (*) | Direct selection of scenes or time. | Selects the desired file. | Selects the desired file. | |
| SUBTITLE Subtitle on-off. Press repeatedly to switch between subtitle options. | X | X | ||
| TITLE | Displays disc menu (if available). | Displays disc menu (if available). | X | X |
| ZOOM Zooms picture. Press repeatedly to switch between zoom options. | ||||
| Other Functions – Button Combinations(During playback) | |
| II + ▶ | Slow forward. |
| [ H ] + ▶ ◀ ◀ | Sets slow forward speed. |
| ▶+ ▶ | Sets fast forward speed. |
| ◀+ ◀ | Sets fast reverse speed. |
| ■+ ■ | Confirms stop command. |
| II + ▶ | Press ▶ repeatedly to advance manually. |
(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).
English - 84 -
General Playback
Basic Play
Press on the power button1.
Please insert a disc to the loader.2.
The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it.
A menu may appear on the TV screen after a few moments or the film may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change.
Note: Step 3 and 4 is available only when a menu is recorded on the disc.
Press "▼." / "▲/ ◀ o▶ the number button
(s) to select the preferred title.
Press OK.4.
Play of the selected items now starts. The played item may be a motion picture, a still picture or another submenu depending on the disc.
For your reference:
If an action corresponding to a button is prohibited the
"∅" symbol appears.
Notes on Playback:
No sound will be heard during Rapid advance 1. or Rapid reverse.
No sound will be heard during Slow motion play.2.
Reverse slow motion play is not available.3.
In some cases, the subtitle language is not 4. changed immediately to the selected one.
When the preferred language is not selected even 5 after pressing the button several times, it means that the language is not available on the disc.
When the player is restarted or the disc is 6. changed, the subtitle selection is automatically changed back to the initial settings.
If a language is selected, not supported by the 7. disc, the subtitle language will automatically be set to the disc's priority language.
Usually a circulation will happen while switching 8 to another language, that is you can cancel the subtitle by pressing this button a number of times until "Subtitle Off" appears on the screen.
When the power is turned on or the disc is 9. removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.
-
Some DVDs may not contain root and/or title menus.
-
Reverse stepping is not available.
-
For your convenience:
If you attempt to enter a number greater than the total time of the current title, the time search box disappears and "Input Invalid" message appears on up-left corner of screen.
- Slide Show is disabled when the ZOOM mode is on.
Setup Menu Items
Video Setup Page
TV Type is only available as 'PAL'. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen.
Language Setup
You can select the default OSD language of the player menus
AUDIO
You can select the default audio language if supported by the DVD disc.
DISC MENU
You can select the DVD's disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc.
SUBTITLE
You can select the default subtitle language if supported by the DVD disc.
English - 85 -
Preferences
If you choose RESET and press OK, the factory-presets are loaded. Parental level and parental password does not change.
DOWNMIX
This mode can be selected when the digital audio output of the TV is used.
SURROUND: Surround sound output.
STEREO: Two channels stereo.
PARENTAL (Parental Level)
Parental Level can be adjusted to one of the eight levels. Level "8 ADULT" adjustment let you watch all of the DVD titles ignoring the DVD disc's parental level. You can watch the DVD discs, which has the same or lower parental level than the player's level only.
PASSWORD (Change Password):
Using this item you can change the current password.
To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password.
Note: Factory preset of the password is "0000". You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service.
SPDIF OUTPUT
Troubleshooting
The picture quality is poor (DVD)
- Make sure the DVD disc surface is not damaged. (Scratch, fi ngerprint etc.)
- Clean the DVD disc and try again.
See instructions described in "Notes on Discs" to clean your disc properly.
- Ensure that the DVD disc is in the drawer with the label uppermost.
- A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand-by to dry the equipment.
Disc does not play
- No disc in the machine.
Place a disc into the loader.
• Disc incorrectly loaded.
Ensure that the DVD disc is in the drawer with the label uppermost.
- Wrong type of disc. The machine cannot play CD-ROMS etc.
- The region code of the DVD must match the player.
Wrong OSD language
- Select the language in the set-up menu.
- The language for the sound or subtitles on a DVD cannot be changed.
- Multilingual sound and/or subtitles not recorded on the DVD.
- Try to change the sound or subtitles using DVD's title menu. Some DVD's do not allow the user to change these settings without using the disc's menu
• These functions are not available on the DVD.
English - 86 -
No picture
- Have you pressed the correct buttons on the remote control? Try once more.
No sound
- Check the volume is set to an audible level.
• Make sure you have not switched the sound off accidentally.
Distorted sound
- Check that the appropriate listening mode setting is correct.
No response from remote control
- Make sure the remote control is in the correct mode.
- Check batteries are fitted correctly.
- Change the batteries.
If nothing works
If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself.
Definition of Terms
Chapter Number
These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and specific parts of video presentations can be searched quickly using these numbers.
DVD
This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG II) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded).
DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play.
Subtitles
These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs.
Time Number
This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to find a specific scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc's manufacturer.)
Title Number
These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc.
Track Number
These numbers are assigned to the tracks, which are recorded on AudioCDs. They enable specific tracks to be located quickly.
LPCM
LPCM stands for Pulse Code Modulation and is digital audio.
MPEG
Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format.
Disc Types Compatible with This Unit
| Disc Types (Logos) | Recording Types | Disc Size | Max. Playing Time | Characteristics |
| DVD[IMAGE] | Audio + Video | 12 cm | Single-sided; 240 min. Double-sided; 480 min. | DVD contains excellent sound and video due to Dolby Digital and MPEG-2 System.Various screen and audio functions can be easily selected through the on-screen menu. |
| AUDIO-CDCOMPACT DISCDIGITAL AUDIO | Audio | 12 cm | 74 min. | An LPI is recorded as an analog signal with more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. |
| MP3-CDMP3READABLE | Audio (xxxx.mp3) | 12 cm | It depends on MP3 quality. | MP3 is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time. |
| PICTURE-CDJPEGREADABLE | Video (still picture) | 12 cm | It depends on JPEG quality. | JPEG is recorded as a Digital Signal with better picture quality over time. |
For proper operation, only 12 cm discs must be used.
Specifications
| Types of Discs Supported | DVD: SS/SL 4.7" (DVD-5)SS/DL 4.7" (DVD-9)DS/SL 4.7" (DVD-10)DS/DL 4.7" (DVD-18) | CD-DACD-RCD-RWMP-3/JPEG |
| Video Type | MPEG-2 Video Standard Decoding (MPEG-1 supported)Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels50 and 60 Hz frame refresh rates (PAL & NTSC)Digital bit-stream processing rate up to 108Mbits/secLine resolution more than 500 lines | |
| Audio Type | MPEG Multichannel DecodingLPCM | |
| Audio Output | Analog Outputs:24 bit /48, 44.1kHz down-sampling DAC | |
English - 88 -
