Product Type	Twin-tub Washing Machine
Brand	Singer
Model	WT5113
Rated Voltage	220V-240V / 50Hz
Rated Input Power (Wash)	400 W
Rated Input Power (Spin)	180 W
Standard Washing Capacity	12.0 kg
Max Washing Capacity	13.0 kg
Standard Spinning Capacity	7.0 kg
Water Level Settings	Max (99 L), Medium (79 L), Min (59 L)
Water Injection Pressure	0.02 ~ 0.2 MPa
Wash Timer Range	0-15 min (set above 6 min for <2 min)
Spin Timer Range	0-5 min (set above 2 min for <1 min)
Wash Selector	Standard / Soft
Drain Switch	Drain / Off
Safety Features	Earth connection required; do not use water above 65°C; do not wash waterproof items; child safety warnings
Maintenance	Clean lint filter after each use; clean overflow filter every 2 months
Included Accessories	User manual, water inlet hose, warranty card, gland
Spare Parts Available	Water inlet hose, lint filter, overflow filter, drain hose, gland

Frequently Asked Questions - WT5113 SINGER

How do I install the lint filter?

Insert the underside of the lint filter into the overflow filter, then push the top into place. Ensure it is securely fitted to avoid falling off during washing.

What should I do if the washing machine does not start?

Check if there is power failure, if the power plug is loose, or if the pulsator is blocked by foreign objects. Also ensure the water tap is open.

How do I clean the overflow filter?

Remove the overflow filter by pressing the elastic fixing claw. Take off the corrugation pipe, clean lint with a brush and flush with tap water. Reinstall by inserting the mounting plate, hanging the hook, and pushing the top in.

Can I wash waterproof clothes like raincoats?

No. Do not wash waterproof items such as raincoats or bike covers, as they can cause abnormal vibrations during spinning.

What is the maximum water temperature allowed?

Do not use water hotter than 65°C to avoid damaging the machine.

How do I adjust the water level?

Use the water level adjusting lever on the control panel. Set it to Max, Medium, or Min according to the laundry load.

Why is there abnormal noise during spinning?

Possible causes: the machine is not level, the laundries are unevenly distributed in the spin tub, or foreign objects (coins, hairpins) are trapped. Stop and reorder the load, or check for obstructions.

How do I use the drain hose?

Ensure the drain hose is laid down and not blocked. The height of the hose must be less than 10 cm for smooth drainage. Avoid trampling or pressing the hose. If too long, cut it at the midpoint.

What is the maximum washing capacity?

The standard washing capacity is 12.0 kg, and the maximum is 13.0 kg for a single load. Do not overload.

How do I spin dry clothes?

Place laundries evenly in the spin tub, press the gland securely, close the inner and outer covers, and set the spin timer to 1-2 minutes. For best results, first run a foam-removing spin with water.

USER MANUAL WT5113 SINGER

Line drawing of a washing machine with control panel and door (no text or symbols)

CONTENTS

• Names of the parts
  ●Safety precautions
  ●Installation and adjustment
  ● Preparation before washing
• Do's and dont's
• Usage of the detergent
• Washing sequence
• Maintenance
  ● Trouble-Shooting *Answers to question
  ●Packing list *Specification

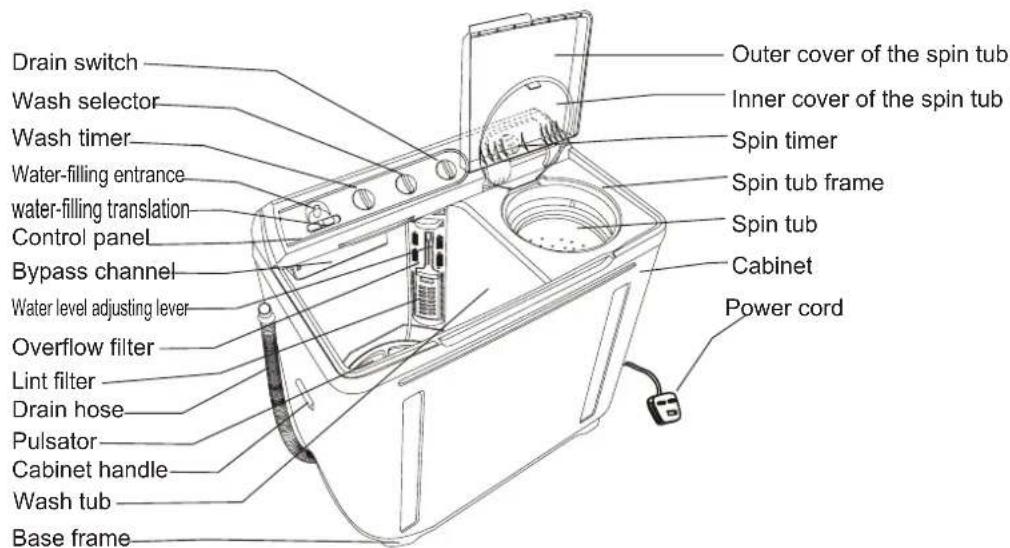

SINGER\* Names of the parts

Notes: All illustrations in this Manual are given for reference only. Your products and accessories may show differences from these illustrations due to our continuous improvement.

Meaning and description of the symbols

Warning sign	Contents marked with that symbol are related to the safety of the product and the personal safety of the users. Please operate in strict conformity to the contents, otherwise it may cause damage of the machine or injure the personal safety of the user.
Forbidding sign	Contents marked with that symbol are actions forbidden to perform. Performing of those actions may result in damage of the machine or injure the personal safety of he user.

• Please check if the power receptacle has good earthing condition before using to guarantee your safety.

SINGER® Safety precautions

Please insert the power cord into special receptacle with rated voltage. Be sure to use single-phase three pins receptacle. The earthing terminal of the receptacle must be earthed reliably. If possible, please adopt electric leakage protector.

When the machine is normally using, please put the power plug at the location easily to be inserted and extracted by hand. Be sure to pull the plug off when there's power failure, or the machine is being moved, cleaned or when it is idle.

If the power cord is bad, to avoid risk it is required to replace it by the technicians of our special shop or the after-sale service department. Keep the pin of the power plug clean.

Do not put the machine at damp place like the bathroom. Never wash it with water. Do not place wet laundries on the control panel.

Do not use water hotter than 65°C.

Illustration of a child cleaning a kitchen appliance with a bag and stove (no text or symbols)

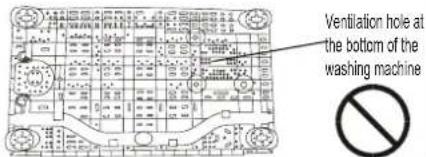

In case the washing machine is installed on ground with carpet, do not block the ventilation hole with carpet.

Do not wash water-proof laundries like the raincoat, bike covers etc. to avoid abnormal vibrations in spinning.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the plugging into the receptacle is loose, do not use the plug any more.

SINGER® Safety precautions

Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children.	Do not decompose, repair or alter the machine by yourself.
Do not put any hot or heavy items (such as the kettle with hot water) on the washing machine.	Do not wash laundries with volatile materials (such as thinner, petrol etc).
Handicapped or children without care shall not use the machine.	Keep the machine away from direct sunlight and heat source like the heater.

- To protect your laundries and washing machine, please take out all of the coins, buttons, sand, hairpin and other foreign materials before washing.

• Please check if the water faucet is open and if the connection of the water inlet pipe is proper.
• It is suggested to use foamless washing powder.

SINGER®

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is very important to your security and correct operating the machine.

Install the lint filter

Put the underside of the lint filter into overflow filter then push the upside into overflow filter

overflow filter

- After installation, please refer that the lint filter installed to the right station, otherwise the lint filter may be failed off when washing, influencing your use.

lint filter

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1. The height of the drain hose shall be less than 10cm, or the drainage will not be smooth enough and cause incomplete drainage.

1. Do not tramp or press the drain hose.

1. If the drain hose is too long, cut it at mid point. To make smooth drainage, cut the front end of the hose slantingly.

1. If extra drain hose is needed, please make separate purchase. The inner diameter of the extra hose shall not less than 40mm, and the length shall not exceed 1.5m.

If the extra hose is too long, cut it either at point A or B.

SINGER®

How to change the direction of the drain hoses

• Figure 1 indicates the ex factory installation position of the drain hose.

Figure 1

Extend the drain hose from the side of spin tub

- Put soft items on the ground. Lean the machine down gently with the front surface facing the ground. Take off the drain hose from the cabinet. Take the hose out of the fixing groove. (See to Figure 2).

- Embed the drain hose into the groove along the side of the spin tub in the order of (1)\~(3), heading for the side of the spin tub. (See to Figure 3).

- Embed the drain hose into the groove with hands. Take care not to damage the drain hose in fastening the fixing clamp.

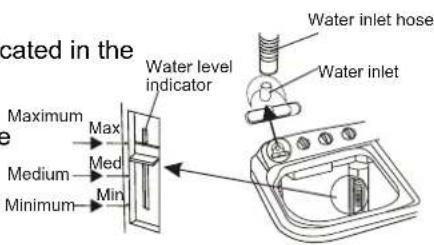

Install the water inlet hose; Select the water level

- Insert the water inlet hose into the water-filling entrance on the control panel (To dismantle the water inlet pipe, just push the control handle as indicated in the figure and pull it out)

- Select water level according to the quantity of the laundries. Set the water level adjusting lever to needed line.

Attention: The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused.

SINGER® Preparation before washing

Illustration of a woman holding a basket and clothes, wearing an apron (no text or symbols)

Preparation before washing

1. Connect the water inlet hose.
2. Confirm that the washing machine is earthed reliably. Then insert the power plug into the receptacle. Do not connect the earth terminal to the gas pipe and tap water pipe.
3. Put down the drain hose

Two cartoon-style illustrations of a computer connected to a battery, showing different states of connection (no text or symbols present)

1. Slanting or uneven ground may result in unstable working or abnormal noise. Please make the machine stand horizontally.

Pay attention to followings before washing the laundries

Check if the laundries has special requirement on washing	Clear the pocket. Take out the coins, sand, hairpins etc.	Tie the long strips; fasten the buttons; close zippers.	The quantity of the laundries shall not be too large. Stretch and loosen the laundries before putting them in the tub.	When the pulsator is running , the buttons of the laundries may cause noise. For the sake of discretion, please put the laundries with buttons into other laundries.
a. Check if the laundries are applicable for washing with machine.b. Divide the laundries that are not colorfast from other laundries.c. Put those laundries difficult to absorb water into water with hand.d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil, please apply detergent on them in advance, which can make it easier to remove the soil.e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.f. Do not put those laundries polluted by chemicals into the washing machine directly.

SINGER Do's and Don'ts

Illustration of a woman washing clothes at a kitchen appliance (no text or symbols)

• The capacity of washing and spinning of the machine refer to the largest weight of the standard laundries under dry condition that can be washed or spinned in one time. Laundries quantity in one washing cycle shall be lower than the rated capacity.
• The thickness, size, type of the cloth will influence the actual washing capacity. It is suitable to put in reasonable amount of laundries and the laundries can be turned round in washing for one time washing.
• Do not select "Maximum" water level for few laundries, so as to avoid splashing of water.
• It is suggested not to use high sudsing detergent.

Usage of the detergent

How to use the whitener

• Fill water to decided level. Dilute the whitener with container. Pour it slowly into the washing tub
• Avoid using whitener on laundries with color or pattern as they are prone to lose color.
  • The whitener shall not touch the laundries directly.
• Refer to the user's manual for the usage and quantity of the whitener.
• For powder whitener, please dissolve it before using.

How to use the washing powder

• Direct dissolved in the machine: 1. Fill small quantity of water.
  2.Add the powder. Run for 30 seconds to dissolve it completely.
• Put it in the laundries. Select suitable water level.

- The instant dissolving of the washing powder:

1. Prepare warm water of 30^ C and a container.

2.Add the powder while stirring to fully dissolve it.

- The powder is more prone to pollute the laundries than the detergent. Therefore please use it with proper quantity.

- Dosage of different washing powder is different. Please refer to the instruction of the washing powder for the detail dosage.

SINGER® Washing sequence

Wash

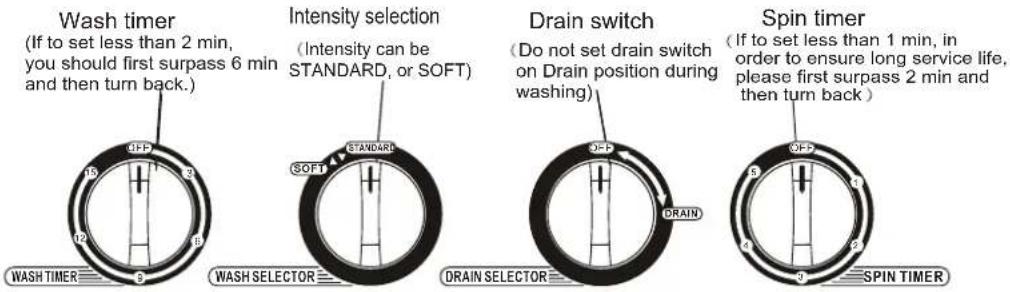

1 Inlet selector

(1) Set inlet selector to "Wash" side. (Figure 1)
(2) Adjust water level rod to a position as needed.

2、Fill water and add solved powder detergent until water reaches a suitable level. It begins to wash to dispense detergent uniformly.

1. Put in the wash load, and supplement water as necessary.
2. Select intensity Select soft or standard water flow intensity according to wash load. (Figure 3)
   5 Select wash time Select wash time according to wash load. (Figure 4)
   6 After completion of wash, please set drain switch at Drain position. (Figure 5)

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

SINGER®

Midway spinning

1. Put the laundries into the spin tub evenly and smoothly.

2.Spin:

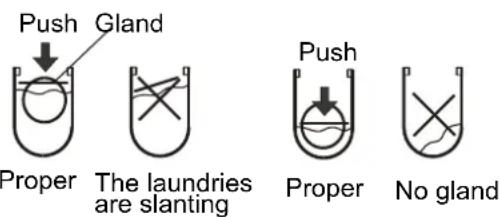

(1) Put the gland in properly.

- Please put in the gland properly even if the laundries quantity is small.

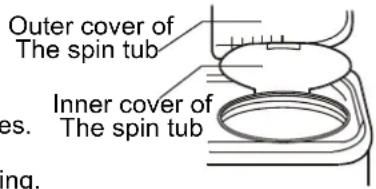

(2) Close the inner and outer cover of the spin tub.

(3) Spin for 1-2 minutes.

1. Run the foam-removing spinning.

1 Set the inlet selector handle on spin side and fill water for about 1 min. Inlet s

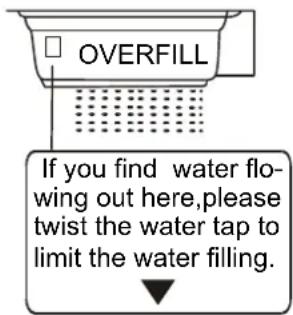

- In case water flows out from wash tub side due to too much inflow, please turn down the water tap a bit.

2 Close the spin tub outer cover and spin for about 1 - 2 min.

SINGER®

Rinsing

Rinse with water-filing

1. Put the laundries into the wash tub. Select suitable current according to the laundries.

2. Adjust the water level Set the water level with water level adjusting lever according to the laundries quantity. Then fill suitable water continuously.

3. Rinse Adjust the wash timer to 5-7 minutes to do rinsing.

(Repeat the midway spinning and rinsing with stored water for 2-3 times)

Rinse with stored water

1. Put the laundries into the wash tub. Select suitable current according to the laundries.
2. Fill water to preset water level.
3. Rinse Adjust the wash timer to 2-3 minutes to do rinsing.

When the laundries quantity is few, please use "Soft" current. If you use "Standard" current, it may splash.

SINGER®

Spinning

1. Put the laundries into the spin tub evenly and smoothly.

2. Press the gland in the tub properly. Close the inner and outer cover of the spin tub.

3. Spin Select suitable spin time according to the laundries, and do spinning.

- During spinning, if there's abnormal sound, it is generally owing to slanting placement of the laundries. Please stop the machine and re-order the laundries.

- In spinning, it will pause the work if you open the outer cover of the spin tub. Close it to resume the spinning.

Simple line drawing of a person pointing upward (no text or symbols)

To do spinning and draining or rinsing with water-filling together, please first do spinning for around 1 minute, then do draining or rinsing with water-filling. Otherwise the spinning will stop owing to too much water stored in the spin tub.

SINGER® Maintenance

• After using, please clean the lint and foreign materials of the lint filter and overflow filter in time. Otherwise it may influence your using the machine.
- Please first pull off the power plug from the receptacle before cleaning.

Cleaning the lint filter

• The lint filter must be used during washing.
• It must be cleaned in time after each using.
1. Press the elastic piece at upper end of lint filter to release the tab from the filter cover, and pull the lint filter outward to remove it. (See Figure 1).

Figure 1

2. Remove lint

Pull the lower end of lint filter rear cover outward to disassemble it from the lint filter front cover. Remove lint completely with clear water. (See Figure 2). Disasse

Disassen

Lint filter rear cover

3. Install lint filter

Figure 2

Cleaning the overflow filter

- Too much lint on the overflow filter will influence the normal usage of the machine. Please clean it every two months. Ela

1、Take off the overflow filter.

As indicated in the figure, nip the elastic fixing claw and pull it to the direction of the arrow to take it off.

Elastic fixing claw

SINGER®

Cleaning the overflow filter

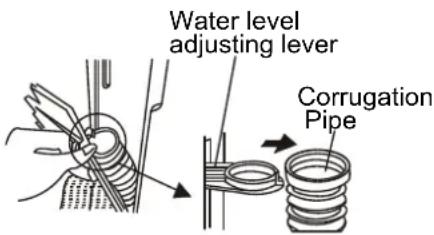

1. Take off the corrugation pipe. Dismantle the upper part of the corrugation pipe inside the overflow filter (as indicated in Figure 1).
2. Cleaning the overflow filter Clean the lint around the filter and flush with tap water.
3. Install the overflow filter.

(1). Install the corrugation pipe.
(2). Insert the mounting plate at the bottom of the filter into the valve cover.
(3). Hang up the hook at the left upper side.
(4).Push the upper part in as indicated in Figure 2.

Figure 1

Figure 2

Disposal of the complete unit

• Wipe the complete unit with soft cloth twisted dry.
• Wipe with neutral detergent if too dirty
• Do not wash it directly by water

● After washing, dismount the water inlet hose.
- Do not store water in the tub for long period. Discharge the water immediately after each using.
- Pull off the power plug and hang up the power cord.
- Hang up the drain hose. Wipe off the water drops on the surface and inside the tub with clean soft cloth.
- Open the cover of the wash tub and the inner/outer cover of the spin tub for some time (about one hour), then close them.

SINGER®

Trouble-shooting Answer to question

(If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special maintenance department or after-sale service department of our company. Do not repair it by yourself.

Phenomena	The reason
The machine does not function.	Is there power failure?Is the power plug loose?Is the pulsator twisted by foreign materials?
The draining does not function	Has the drain hose being laid down?Is the drain hose blocked by foreign material?Are there any laundries trapped at the outer side of the spin tub?
There's abnormal sound during washing	Are there hair pin, coins or metal items brought inside the tub?
There's abnormal sound and violent vibration during spinning	Is the machine slanting?Is the gland pressed evenly?Are there any laundries trapped at the outer side of the spin tub?Are the laundries in spin tub over loaded?

SINGER® Packing list

Name	Quantity
User's manual	One piece
Water inlet hos	One piece
Warranty card	One piece
Gland	One piece
Twin-tub washing machine	One set

Specification

Water level Water quantity estimated (L)	Maximum/99 Medium/79 Minimum/59
Rated voltage/Rated Frequency	220V-240V/50Hz
Rated input power for washing	400
Rated input power for spinning	180
Standard rated washing capacity(kg)	12.0
Largest rated washing capacity(kg)	13.0
Standard rated spinning capacity(kg)	7.0
Injection pressure(MPa)	0.02~0.2

* Specifications may be subject to change without prior notice

SINGER(MALAYSIA) SDN. BHD . (Company No 97871-K)

Bangunan SINGER, Lot 6, Jalan 51/217, Section 51,

46050 Petaling Jaya,

Selangor Darul Ehsan,

Malaysia.

Want to make your house a home? Call Hello SINGER : 1 300 888 288 www.singer.com.my

3rd floor,34&36,Jalan Tago 9,

Taman Perindustrian Tago BT,11

Sri.Damansara,52200

Kuala Lumpur

Malaysia

SINGER®

AT HOME WORLDWIDE™

Illustration of a person cleaning a kitchen appliance with a bag and stove (no text or symbols)

Cartoon illustration of a man standing next to a distressed refrigerator with a sad face (no text or symbols)

Cartoon illustration of a smiling sun and umbrella character holding an umbrella, next to a thermometer (no text or symbols)

Illustration of a woman holding a basket and hat, no text or symbols present

Two cartoon-style illustrations of a computer with smiling faces, connected by a power cord and cable (no text or symbols)

Illustration of a woman washing clothes at a washing machine (no text or symbols)

Simple line drawing of a person pointing upward (no text or symbols)

Want to make your house a home? Call Hello SINGER : 1 300 888 288 www.singer.com.my

3rd floor,34&36,Jalan Tago 9,

Taman Perindustrian Tago BT,11

Sri.Damansara,52200

Kuala Lumpur

Malaysia

SINGER®

AT HOME WORLDWIDE™
