Product Type	Range hood (extraction or recirculation)
Brand	V-ZUG
Model	DF-N6 (DF-N580855, DF-N681160)
Extraction Mode	Yes (extraction to outside or recirculation with charcoal filter)
Fan Power Levels	4 (levels 1-3 continuous, level 4 intensive for short bursts)
Grease Filters	2 metal filters, dishwasher safe
Grease Filter Cleaning Interval	At least once a month with normal use
Illumination Type	Halogen light bulb
Illumination Power	230 V / 28 W
Illumination Control	Slide switch
Deflector Plate	Flat pull-out plate
Control Type	Slide switches for fan and light
Activated Charcoal Filter	Optional (standard or long-life) for recirculation models
Recirculation Capability	Yes with activated charcoal filter or LRC1 air recycling cassette
Electrical Connection	230 V AC (see identification plate for exact rating)
Safety Features	Auto shut-off when deflector plate pushed in; safety precautions for children and use
Maintenance	Clean grease filters monthly; replace charcoal filter every 3-6 months; replace halogen bulb as needed

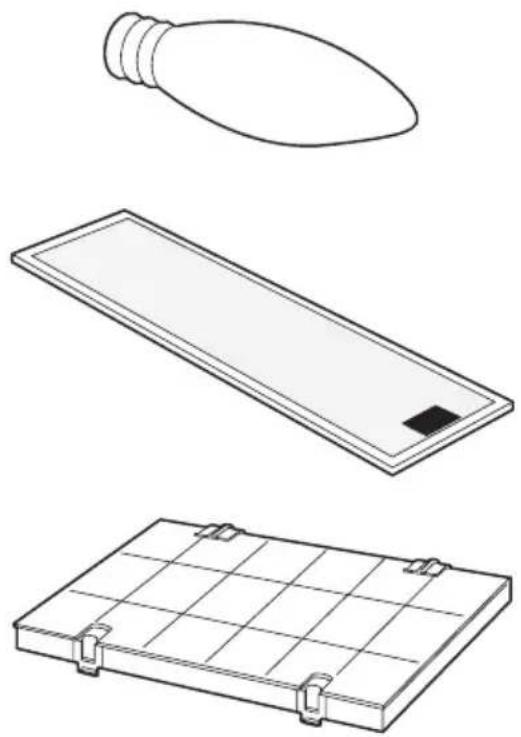

Spare Parts	Halogen light bulb (230 V / 28 W), metal grease filter, standard/long-life activated charcoal filter
Repairability	User replaceable filters and light bulb; professional service for other repairs
Disposal	Do not dispose with household waste; follow local regulations for electrical appliances
Intended Use	Home kitchen for extracting cooking fumes and smells
Certifications	Complies with IEC 60335-1 safety requirements

Frequently Asked Questions - DF-N6 V-ZUG

How do I switch on the range hood?

To switch on, pull out the flat pull-out deflector plate. This activates the fan and illumination. Use the slide switch to select fan power level 1-4 (levels 1-3 for continuous use, level 4 for intensive extraction). The illumination is controlled by a separate slide switch.

How often should I clean the grease filters?

Clean the metal grease filters at least once a month with normal use. They can be washed in a dishwasher using an intensive programme or manually with hot water and detergent. Proper care ensures unlimited service life.

How do I replace the halogen light bulb?

First, disconnect the appliance from the power supply by removing the screw fuse or switching off the circuit breaker. Allow the bulb to cool. Remove the grease filters to access the light cover from behind. Press the plastic snaps on the side to remove the cover, then unscrew the halogen light bulb (230 V / 28 W) and replace with the same type. Reinstall the cover and grease filters.

What should I do if the illumination is not working?

Check the fuse or circuit breaker for the home electrical installation. If that is fine, check the mains supply. If still not working, the halogen light bulb may be defective and needs replacement. Follow the replacement instructions.

How do I replace the activated charcoal filter?

For standard filters: disconnect power, remove grease filters, press the red retaining slides upward and pull the filter down. Install a new filter by sliding up under the clip and snapping the slides into place. For long-life filters: they can be cleaned and reactivated by washing in dishwasher at 65°C and drying in oven at 100°C for 60 minutes. Replace after about 3 years.

Can I use the range hood in recirculation mode?

Yes, the hood supports recirculation mode by using an activated charcoal filter (standard or long-life) or an LRC1 air recycling cassette. The charcoal filter removes smells before the cleaned air is released back into the room through the top grille.

How do I switch off the appliance completely?

Push the pull-out deflector plate completely in. This automatically switches off both the extractor fan and the illumination, even if the slide switches are not set to off. Alternatively, set the slide switches to the off position and then push in the plate.

What maintenance is required for the range hood?

Regular maintenance includes cleaning the grease filters monthly, replacing the activated charcoal filter every 3-6 months (if used), and replacing the halogen light bulb when defective. Clean the housing with a damp cloth. Do not use abrasive cleaners or steam cleaners.

Where can I find technical data like electrical specs?

The identification plate containing electrical connection details is located on the inside of the appliance after removing the grease filter. The manual also lists model numbers (DF-N580855, DF-N681160) and general specifications like 230 V / 28 W for the light bulb.

How should I dispose of the old range hood?

Do not dispose of the appliance with normal household waste. It must be disposed of according to local regulations for electrical and electronic equipment. Disconnect from mains, cut the cable, and contact local authorities or recycling facilities for proper disposal.

USER MANUAL DF-N6 V-ZUG

Architectural line drawing of a structural frame with supports and a central support (no text or symbols)

Operating instructions

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarize yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Symbols used

Denotes important safety precautions. Failure to observe said precautions can result in injury or damage to the appliance or fittings!

▶Indicates step-by-step instructions.
- Describes how the appliance reacts to the steps taken.
- Indicates a list.

Denotes useful tips for the user.

Validity

The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the models:

Type Model no. Size system

DF-N580855
DF-N681160

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 4

1.1 Before using for the first time 4
1.2 Correct use 5
1.3 Children in the home 5
1.4 Note on use 6

2 Appliance description 8

2.1 Extraction model 8
2.2 Recirculation model 8
2.3 Features 9
2.4 Construction 10
2.5 Operating element 10

3 Operation 11

3.1 Switching the appliance on 11
3.2 Switching the extractor fan on/off 11
3.3 Switching the illumination on and off 12
3.4 Switching the appliance off 12

4 Care and maintenance 13

4.1 Cleaning the housing 13
4.2 Cleaning the grease filters 14
4.3 Replacing the standard activated charcoal filter 17
4.4 Cleaning and replacing long-life activated charcoal filters ..... 18
4.5 Replacing the halogen light bulb 19

5 Trouble-shooting 20

5.1 What to do if ... 20

6 Accessories and spare parts 21

7 Technical data 22

8 Disposal

9 Notes

10 Index 25
11 Repair service 27
12 Quick instructions 28

1 Safety precautions

The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.

In accordance with the requirements of IEC 60335-1:

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction concerning the use of the appliance by a person responsible for their safety.

1.1 Before using for the first time

• The appliance must be installed and connected up to the electricity supply according to the separate installation instructions. The necessary work should be carried out by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.

1.2 Correct use

• The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface.
• Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the REPAIR SERVICE section. Please contact our Customer Services if necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell or pass the appliance on to a third party, please ensure these operating instructions, together with the installation instructions, accompany the appliance. In this way, the new owner can inform themselves about how to use the appliance correctly and read the pertinent safety precautions.

1.3 Children in the home

• Packaging material e.g. plastic and polystyrene can be dangerous for children. Danger of suffocation! Please keep packaging material away from children.
• The appliance is designed for use by adults who are familiar with these operating instructions. Children are often unable to recognise the danger of electrical appliances. Ensure proper supervision and do not allow children to play with the appliance – there is a danger that children could hurt themselves.

1.4 Note on use

• If the appliance is visibly damaged, do not use it. Contact our Customer Services.
• If the appliance is not operating properly, disconnect it from the electricity supply immediately.
• If the mains cable of the appliance is damaged, it must be replaced by Customer Services in order to avoid hazard.
• Caution: Accessible parts may become hot when used with cooking appliances.
• Do not flambé food underneath the hood as the grease filters if laden with grease could catch fire.
• If frying on the cooking surface, do not leave the frying appliance unattended. The cooking oil in the frying appliance could overheat and catch fire. Constantly monitor the temperature of the cooking oil, keeping it below the temperature at which it can catch fire. Change the cooking oil regularly – dirty oil catches fire more easily than clean oil.
• Clean the filters regularly. Failure to do so can increase the fire hazard due to the build-up of grease in the grease filter.
• Do not operate the individual cooking zones of the cooking surface without a pan on them or with an empty pan on them so as to avoid damaging the appliance or the kitchen fittings through a build-up of heat. Avoid open fires with oil, gas, wood and coal fired cookers.
• Ensure there is adequate ventilation when the extraction fan is on so as to avoid creating a disturbing underpressure in the kitchen and to achieve optimal air extraction.
• Avoid a cross-current of air, which could blow the cooking vapours over the cooking area.

- If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances.

- If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be guaranteed e.g. via non-closable openings in doors or windows and in combination with an air-intake/exhaust-air wall box or by other technical means.

- When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance (remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply).

- When cleaning the appliance make sure no water gets inside the appliance. Use a moderately damp cloth. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.

2 Appliance description

The appliance is used to extract cooking fumes and smells from a cooking area and is normally installed in an overhead unit. This particular model can be used in the extraction mode or the recirculation mode.

2.1 Extraction model

The integrated fan extracts cooking fumes and smells from above the cooking surface. The air is cleaned through the grease filters and then fed through the exhaust air conduit to the outside.

When the appliance is in use, ensure there is a sufficient supply of fresh air to replace the air that is being extracted.

2.2 Recirculation model

Using an activated charcoal filter in the appliance

After being filtered through the grease filters, the cooking fumes and smells above the cooking surface are passed through an activated charcoal filter. The cleaned air is then circulated through the grille – at the top of the appliance – and back into the room.

Using an LRC1 air recycling cassette

The appliance extracts the cooking fumes and smells from above the cooking surface through the grease filters, which remove the grease particles. The air is then blown via a duct through the air recycling cassette. An activated charcoal filter in the air recycling cassette removes the cooking fumes and smells. The cleaned air is then circulated through the outlet grille back into the room.

The activated charcoal filter is more effective at the lower power levels.

2.3 Features

• Flat pull-out deflector plate
  • 1 extractor fan with 4 power levels
• 2 metal grease filters
• Illumination
• 1 activated charcoal filter (not included in scope of delivery)

The extractor fan has 4 power levels:

• 1 = low, 2 = medium, 3 = high, 4 = intensive extraction rates .
• Power levels 1 to 3 are suitable for continuous operation.
• Power level 4 (intensive) is used for short bursts of intensive extraction of cooking smells and fumes, e.g. when searing meat. Afterwards, switch back to power level 1, 2 or 3.

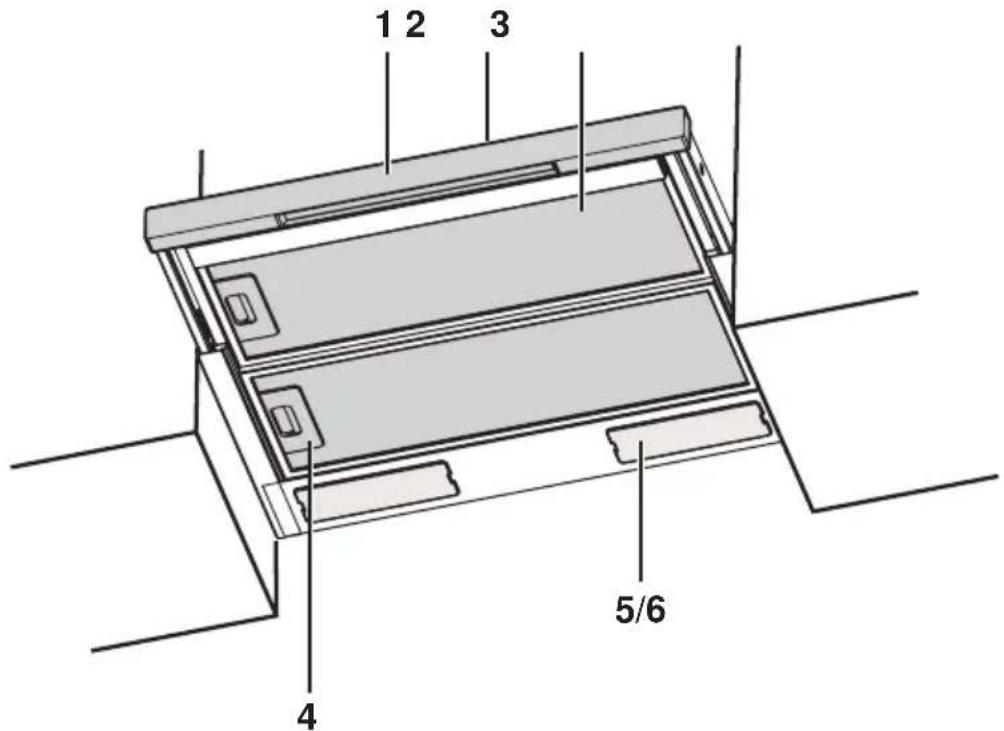

2.4 Construction

1 Flat pull-out deflector plate 4 Grip

2 Operating element

3 Metal grease filter

5 Illumination

6 Illumination cover

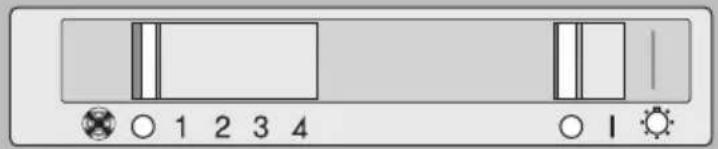

2.5 Operating element

Slide switch

Extraction fan ON / OFF (4 power levels)

Illumination ON / OFF

Depending on the model and features, the specification of your appliance may differ from the standard specification described.

3 Operation

3.1 Switching the appliance on

To switch the illumination and the extractor fan on, the deflector plate must be pulled out.

Simple line drawing of a rectangular block with a downward arrow indicating force or motion (no text or symbols)

▶Pull the deflector plate out.

The appliance is most effective when the deflector plate is fully pulled out.

3.2 Switching the extractor fan on/off

▶ Slide the Ⓧ switch to 1, 2, 3 or 4. Run only briefly (a few minutes) at power level 4, then switch to a lower power level.

▶To switch off, set the switch to .O

We recommend switching the appliance on at power level 1 some 5 minutes before starting to cook. After finishing cooking, allow the appliance to run for another 15 minutes so that the cooking fumes and smells can be extracted.

3.3 Switching the illumination on and off

▶Slide the switch to the position.
▶To switch off, set the switch to .○

3.4 Switching the appliance off

▶Push the deflector plate completely in.

- This switches off the extractor fan and the illumination even if the switch is not set to

Diagram of a front panel with buttons and indicator lights (no text or symbols)

Simple line drawing of a rectangular block with an arrow indicating direction (no text or symbols)

If the deflector plate is pulled slightly out again, the extractor fan comes on at the level set and the illumination comes on.

4 Care and maintenance

4.1 Cleaning the housing

Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage.

Do not use abrasive cleaners, scouring pads, steel wool, etc. as they can damage the surface.

Remove the screw fuse or switch off the circuit breaker.

Cleaning the outside/inside

- Clean the outside using a slightly damp cloth – and detergent if necessary – and wipe dry.

Grease and condensate water can build up on the inside next to the grease filters.

▶Clean using a slightly damp cloth – and detergent if necessary – and wipe dry.

4.2 Cleaning the grease filters

The grease filters should be cleaned at least once a month with normal use. If properly cared for, the grease filters should provide unlimited years of service.

The grease filters can be cleaned in a dishwasher.
▶Select an «intensive» – or «heavy soil» – wash programme with a warm pre-wash.

Cleaning may cause the grease filters to become discoloured.

However, this will not affect the functioning of the filters in any way.

If you do not have a dishwasher:

▶ Clean the grease filters in the sink with hot water and detergent.
- Then soak the filters in hot water in the sink for about 2 hours and finally clean with a washing-up brush.

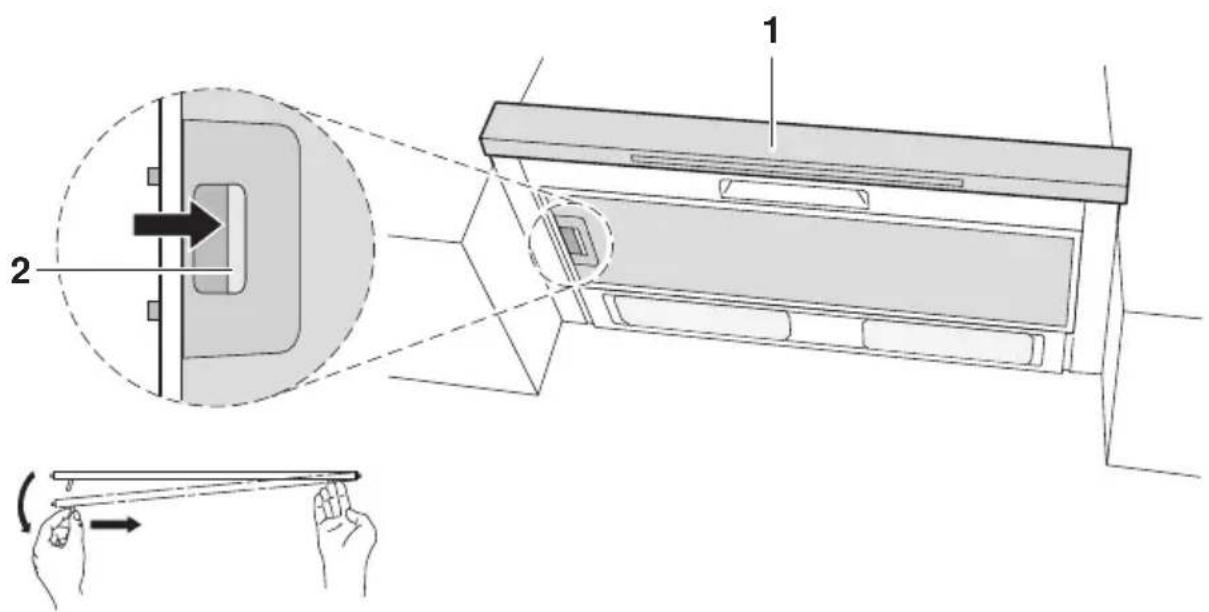

Removing the grease filters

▶ Pull the deflector plate 1 completely out.
▶ Push the grip 2 on the grease filter in.

- This releases the grease filter.

▶Carefully pull the grease filter down and out of its fixture.

Do not damage the grease filters.

▶Remove the upper grease filter in the same way.
▶Clean the grease filters.

Installing the grease filters

▶Pull the deflector plate completely out.
▶ Push the grip 2 on the grease filter in.
▶Push the upper grease filter into the fixture and engage in place.

Ensure all centering pins are sitting properly in the receiving slots.

▶Install the lower grease filter in the same way.

4.3 Replacing the standard activated charcoal filter

Remove the screw-in fuse for the appliance or switch off the circuit breaker.

Standard activated charcoal filters are only used in the recirculation model.

The standard activated charcoal filter is to be replaced after an operating time of 3 to 6 months. Activated charcoal filters cannot be washed or regenerated.

The spent standard activated charcoal filter can be disposed of in the household waste.

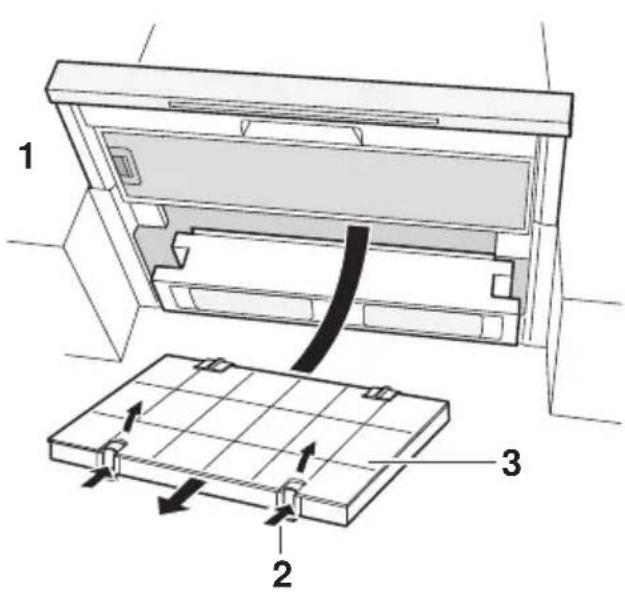

▶ Remove both metal grease filters 1.

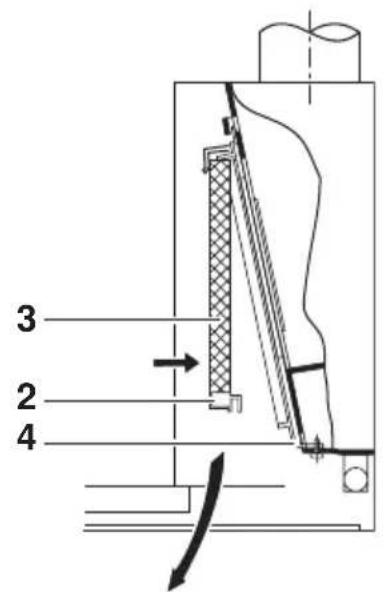

▶ Press the two red retaining slides 2 on the standard activated charcoal filter 3 upwards. At the same time pull down the filter and remove from the holder 4.
▶ Slide the new filter up under the clip and secure in the fixture 4. To do this, snap the red retaining slides 2 into place.
▶ Put both metal grease filters 1 back in.
▶Put the screw fuse back in or switch the circuit breaker on again.

4.4 Cleaning and replacing long-life activated charcoal filters

Remove screw fuse or switch off circuit breaker.

Long-life activated charcoal filters are only used in the recirculation model.

Unlike the standard activated charcoal filter, the long-life activated filter can be cleaned and reactivated. With normal use of the appliance, the long-life activated charcoal filter should be cleaned every month. The long-life activated charcoal filter can be washed in the dishwasher at 65 °C (intensive programme). The long-life activated charcoal filter should be washed separately, so that no food remains can become stuck to the filter. If you don't have a dishwasher, the long-life activated charcoal filter can also be soaked in the sink for an hour at 60 °C using normal washing-up liquid. Then rinse well.

To reactivate the activated charcoal, the long-life activated charcoal filter must be dried in the oven without its frame.

▶ Select top and bottom heat or hot air at 100 °C and leave the long-life activated charcoal filter to dry for 60 minutes on the wire shelf.

After about three years the long-life activated charcoal filter must be replaced because its ability to absorb smells will be reduced. The dirty long-life activated charcoal filter can be disposed of along with the domestic waste.

▶Remove and clean the metal grease filters.
▶Remove and reactivate the long-life activated charcoal filter or replace with the new filter.
▶Replace the metal grease filters.
▶Put screw fuse back in or switch circuit breaker on again.

4.5 Replacing the halogen light bulb

Remove the appliance's screw fuse or switch off the circuit breaker.

Halogen light bulbs get hot during operation! Allow to cool down first.

Under no circumstances try to remove the light cover using a sharp object!

▶ Remove the grease filters (see CLEANING THE GREASE FILTERS).
- You gain access to the light cover from the back through the opening.
- Remove the light cover (from below) by pressing the plastic snaps on the side together.
▶Unscrew the halogen light bulb from the fixture and replace it with a new halogen light bulb of the same type (see designation on light housing or on identification plate).
▶Put the light cover back over the opening and gently apply pressure.
- The cover snaps into place in the range hood.
▶Install the grease filters.
▶Put back the screw fuse or switch on the circuit breaker again.

5 Trouble-shooting

5.1 What to do if ...

... the illumination is not working

Possible cause Solution
The fuse or the circuit breaker for electrical installations in the home is faulty.	➢Replace the fuse.➢Reset the circuit breaker.
Interruption in the power supply.	➢Check the mains supply.
The halogen light bulb is defective.	➢Replace the halogen light bulb.

... the appliance is not extracting enough air

Possible cause Solution
The grease filters are dirty.	▸Clean the grease filters.
The activated charcoal filter (in recirculation models) is spent.	▸Replace the standard activated charcoal filter.▸Clean or replace the long-life activated charcoal filter.

6 Accessories and spare parts

Please give model number of the appliance and exact description of the accessory or spare part when ordering parts.

Halogen light bulb 230 V / 28 W

Metal grease filter

Standard activated charcoal filter

Long-life activated charcoal filter

Three technical line drawings of electronic components: a bulb, a rectangular panel, and a grid-patterned case (no text or symbols)

The halogen light bulb is also available from specialist retailers.

7 Technical data

Electrical connection

▶See identification plate.

▶Remove the grease filter.

- The identification plate is located on the inside of the appliance.

8 Disposal

Packaging

- All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

- Disconnect the appliance from the mains power supply. With a fixed appliance, this is to be carried out by a qualified electrician!

Safety

• Disable the appliance to prevent accidents caused by improper use, especially through children playing.
• Pull the plug out of the mains socket or have the appliance disconnected from the mains by an electrician. Then cut the mains cable off flush with the appliance.

Disposal

- The old appliance should not be discarded as worthless rubbish. If disposed of correctly, the raw materials can be recovered for recycling.

• The symbol on the identification plate warns that the appliance may not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations on waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.

9 N o t e s

10 Index

A

Accessories 21

Ordering 27

Activated charcoal filter 8

Air recycling cassette 8

Appliance

Switching off 12

Switching on 11

Appliance description 8

C

Care.... 13

Children in the home 5

Cleaning 13

Grease filter 14

Construction 10

D

Deflector plate 10

Disconnection 23

Disposal. 23

E

Electrical connection ..... 22

Extraction model 8

Extractor fan

Switching off 11

Switching on 11

F

Features. 9

Flat pull-out deflector plate ..... 10

G

Grease filter 10

Cleaning 14

Removing 15

Grease filters

Replacing 16

Grip 10

H

Halogen light bulb Replacing .... 19

|

Identification plate 22

Illumination 10

Switching off 12

Switching on 12

Illumination cover 10

L

Locking slide 10

Long-life activated charcoal filter Cleaning 18

Replacing 18

M

Maintenance 13

Malfunction 27

Metal grease filter 10

Model number 2

0

Operating element.... 10

Operation 11

Orders 27

P

Packaging 23

Q

Queries 27

Quick instructions 28

R

Recirculation model....8

Repair service 27

s

Safety 23

Safety precautions

Before using for the first time ..... 4

Children in the home ..... 5

Correct use 5

Note on use 6

Service agreement 27

Service Centre. 27

Spare parts 21

Ordering 27

Standard activated charcoal filter

Replacing 17

Symbols 2

T

Technical data 22

Trouble-shooting 20

Type 2

U

Using for the first time. 4

V

Validity 2

11 Repair service

The TROUBLE-SHOOTING section will help you to correct minor malfunctions yourself, saving you the time and trouble of calling out a service technician and the cost that goes along with it.

Whether you contact us about a malfunction or an order, please always state the serial number (FN) and the model type of your appliance. Enter these details below and also on the service sticker which comes with the appliance. Stick it in a conspicuous place or in your telephone or address book.

FN

Appliance

You will also find the same details on the certificate of guarantee, the original sales invoice and the identification plate of the appliance.

▶Remove metal grease filter.

- The identification plate is located on the inside of the appliance.

If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

Queries, orders, service agreement

For administrative and technical queries or problems, as well as for ordering spare parts and accessories, please contact our head office in Zug on telephone number [phone].

As regards the maintenance of all our products, when the warranty expires you have the option of taking out a service agreement. We will be happy to send you the necessary forms.

12 Quick instructions

Please first read the safety precautions in the operating instructions!

To switch on

▶Pull out the deflector plate.

Extractor fan

▶ Slide the Ⓧ switch to position 1, 2, 3 or 4.

Illumination

▶Slide the switch to position . I

To switch off

▶Slide the and switches to position
▶or push in the deflector plate.
