Product Type	Range hood
Brand	V-ZUG
Model	DF-S6
Installation Type	Built-in overhead unit
Operating Modes	Extraction or recirculation
Number of Fans	2
Fan Speed Levels	3 (1 = low, 2 = medium, 3 = high)
Grease Filters	2 metal filters, dishwasher safe
Activated Charcoal Filter	Optional for recirculation (standard or long-life)
Illumination	Yes, with replaceable light bulb (230 V / 40 W)
Deflector Plate	Flat pull-out; appliance switches on/off when pulled/pushed
Controls	Slide switches for fan speed and illumination
Grease Filter Cleaning Interval	At least once a month
Standard Charcoal Filter Replacement	Every 3 to 6 months
Long-life Charcoal Filter Care	Clean monthly in dishwasher (65 °C), reactivate in oven at 100 °C for 60 min; replace after 3 years
Light Bulb Replacement	Disconnect power, open illumination cover, replace bulb
Safety Features	Automatic shut-off when deflector plate pushed in; requires adequate ventilation
Power Supply	Mains (see identification plate for details)
Repair Service	Contact V-ZUG Customer Services; quote FN and model

Frequently Asked Questions - DF-S6 V-ZUG

What are the three fan speed levels for?

Levels 1 and 2 are for normal use, while level 3 is for short, intensive extraction (e.g., frying). After a few minutes, switch back to a lower level.

How often should the grease filters be cleaned?

Grease filters should be cleaned at least once a month. They can be washed in the dishwasher on an intensive programme or by hand in hot water with detergent.

How do I replace the light bulb?

First, disconnect the appliance from the power supply (remove fuse or switch off circuit breaker). Allow the bulb to cool, then open the illumination cover by pushing back the two locking slides. Unscrew the old bulb and replace with a new 230 V / 40 W bulb. Close the cover and restore power.

What is the difference between extraction and recirculation mode?

In extraction mode, air is expelled outside via a duct. In recirculation mode, air passes through an activated charcoal filter and is returned to the room. The charcoal filter is not supplied with the appliance.

How do I switch the appliance on and off?

Pull out the flat pull-out deflector plate to switch on. The fan and illumination then operate according to the slide switch settings. Push the deflector plate in completely to switch off everything.

How do I clean the long-life activated charcoal filter?

Wash it in the dishwasher at 65 °C (intensive programme) separately from dishes. Then dry it in the oven at 100 °C for 60 minutes using top/bottom heat or hot air. Replace after about 3 years.

What should I do if the appliance is not extracting enough air?

Check the grease filters – clean if dirty. For recirculation models, check the activated charcoal filter – replace or clean if spent.

Can I use the hood without the deflector plate pulled out?

No, the illumination and fans only operate when the flat pull-out deflector plate is pulled out. It is most effective when fully extended.

How do I remove and install the metal grease filters?

Push the deflector plate in completely. Pull the handle down and towards the outside to release the filter. Insert new filters by aligning centring pins into slots, then press the handle flush.

What safety precautions should I follow when using the hood?

Do not flambé food under the hood. Keep frying unattended. Clean filters regularly to avoid fire hazard. Ensure adequate ventilation. Disconnect power before maintenance. Keep packaging away from children.

USER MANUAL DF-S6 V-ZUG

3D architectural rendering of a structural frame with vertical supports and horizontal beams (no text or symbols)

Operating instructions

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarize yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Symbols used

Denotes important safety precautions. Failure to observe said precautions can result in injury or damage to the appliance or fittings!

▶Indicates step-by-step instructions.

- Describes how the appliance reacts to the steps taken.

■Indicates a list.

Denotes useful tips for the user.

Validity

The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the models:

Type Model no. Size system

Variations depending on the model are noted in the text.

Contents

Safety precautions 5

Before using for the first time 5

Correct use 6

Children in the home 6

Note on use 7

Appliance description 9

Extraction model 9

Recirculation model 9

Features 10

Construction 10

Operating elements 11

Use 12

Switching appliance on 12

Switching extractor fan on and off 12

Switching the illumination on and off 13

Switching off the appliance 13

Care and maintenance 14

Cleaning the housing 14

Cleaning the illumination cover 14

Cleaning the grease filters 15

Replacing the standard activated charcoal filter ..... 18

Cleaning and replacing long-life activated charcoal filters . 19

Replacing the light bulb 20

Trouble-shooting 21

What to do if ... 21

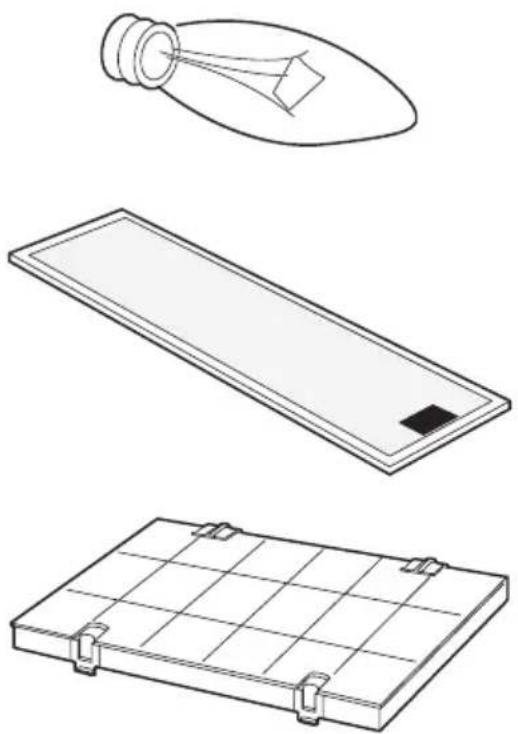

Accessories and spare parts 22

Technical data 23

Disposal 24

Index 25

Repair service 27

Quick instructions 28

Safety precautions

The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.

In accordance with the requirements of IEC 60335-1:

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction concerning the use of the appliance by a person responsible for their safety.

Before using for the first time

■ The appliance must be installed and connected up to the electricity supply according to the separate installation instructions. The necessary work should be carried out by a qualified fitter or electrician.

■Dispose of the packaging material in accordance with local regulations.

Correct use

■The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface.
■Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the 'Repair service' section. Please contact our Customer Services if necessary.
■Use original spare parts only.
■ Retain these operating instructions for future reference. If you sell or pass the appliance on to a third party, please ensure these operating instructions, together with the installation instructions, accompany the appliance. In this way, the new owner can inform themselves about how to use the appliance correctly and read the pertinent safety precautions.

Children in the home

■Packaging material e.g. plastic and polystyrene can be dangerous for children. Danger of suffocation! Please keep packaging material away from children.
- The appliance is designed for use by adults who are familiar with these operating instructions. Children are often unable to recognise the danger of electrical appliances. Ensure proper supervision and do not allow children to play with the appliance – there is a danger that children could hurt themselves.

Note on use

■If the appliance is visibly damaged, do not use it. Contact our Customer Services.

■If the appliance is not operating properly, disconnect it from the electricity supply immediately.

■Do not flambé food underneath the hood as the grease filters if laden with grease could catch fire.

■If frying on the cooking surface, do not leave the frying appliance unattended. The cooking oil in the frying appliance could overheat and catch fire. Constantly monitor the temperature of the cooking oil, keeping it below the temperature at which it can catch fire. Change the cooking oil regularly – dirty oil catches fire more easily than clean oil.

■Clean the filters regularly. Failure to do so can increase the fire hazard due to the build-up of grease in the grease filter.

■ Do not operate the individual cooking zones of the cooking surface without a pan on them or with an empty pan on them so as to avoid damaging the appliance or the kitchen fittings through a build-up of heat. Avoid open fires with oil, gas, wood and coal fired cookers.

■Ensure there is adequate ventilation when the extraction fan is on so as to avoid creating a disturbing underpressure in the kitchen and to achieve optimal air extraction.

■ Avoid a cross-current of air, which could blow the cooking vapours over the cooking area.

If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances.
■If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance. Risk of toxic fumes! An adequate flow of fresh must be guaranteed e.g. via non-closable openings in doors or windows and in combination with an air-intake/exhaust-air wall box or by other technical means.
■When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance (remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply).
■When cleaning the appliance make sure no water gets inside the appliance. Use a moderately damp cloth. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.

Appliance description

The appliance is used to extract cooking fumes and smells from a cooking area and is normally installed in an overhead unit. This particular model can be used in the extraction mode or the recirculation mode.

Extraction model

The integrated fan extracts cooking fumes and smells from above the cooking surface. The air is cleaned through the grease filters and then fed through the exhaust air conduit to the outside.

When the appliance is in use, ensure there is a sufficient supply of fresh air to replace the air that is being extracted.

Recirculation model

Using an activated charcoal filter in the appliance

After being filtered through the grease filters, the cooking fumes and smells above the cooking surface are passed through an activated charcoal filter. The cleaned air is then circulated through the grille – at the top of the appliance – and back into the room.

Using an LRC1 air recycling cassette

The appliance extracts the cooking fumes and smells from above the cooking surface through the grease filters, which remove the grease particles. The air is then blown via a duct through the air recycling cassette. An activated charcoal filter in the air recycling cassette removes the cooking fumes and smells. The cleaned air is then circulated through the outlet grille back into the room.

The activated charcoal filter is more effective at the lower power levels.

Features

■Flat pull-out deflector plate
■2 extractor fans
■2 metal grease filters
■Cooking surface illumination
■ 1 activated charcoal filter (only with air recirculation, not supplied)

The extractor fan has 3 power levels:

■1 = low, 2 = medium, 3 = high capacity
■ Levels 1 and 2 are suitable for longer periods of use.
■ Level 3 (high) is used for short, intensive extraction of fumes, e.g. when frying. It should then be switched back to level 1 or 2.

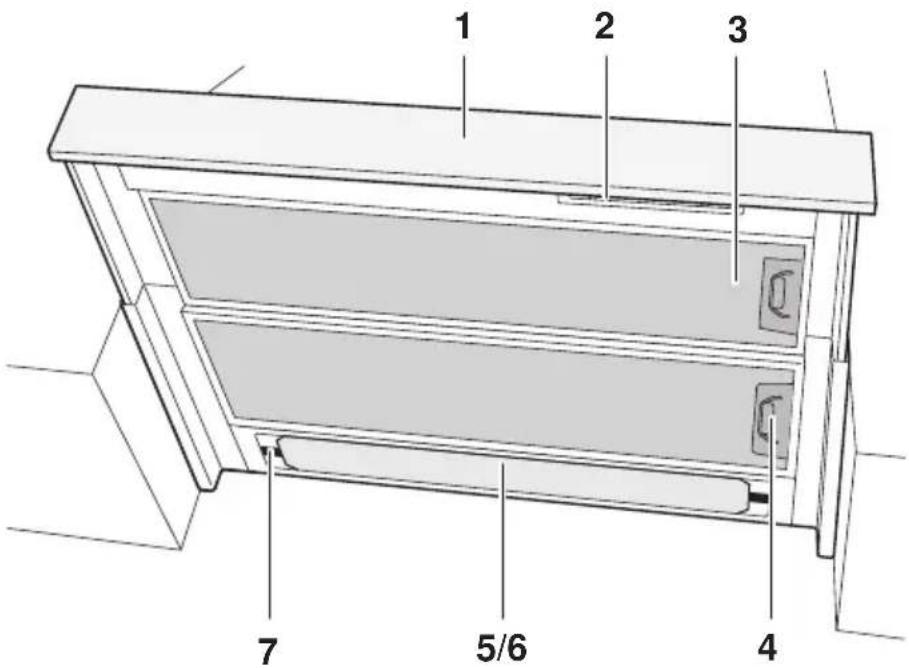

Construction

1 Flat pull-out deflector plate 5 Illumination

2 Operating elements

6 Illumination cover

3 Metal grease filter

7 Locking bar

4 Handle

Operating elements

Slide switch

Extractor fan ON / OFF (3 levels)

Illumination ON / OFF

Depending on the model and design, the specification of your appliance may differ from the standard specification herein.

Use

Switching appliance on

The illumination and the extractor fans can only be switched on when the flat pull-out deflector plate has been pulled out.

▶Pull out the flat pull-out deflector plate.

Simple line drawing of a rectangular block with a diagonal arrow pointing downward (no text or symbols)

The appliance is most effective when the flat pull-out deflector plate is completely pulled out.

Switching extractor fan on and off

▶Slide the sliding switch to , or 2 3. Only operate level 3 for a short time (a few minutes), then switch to a lower level.

▶To switch off, set the sliding switch to ○.

Close-up of a device control panel with labeled buttons (O, 1, 2, 3) and a small icon at the bottom (no readable text or symbols beyond basic labels)

We recommend switching on the appliance on level 15 minutes before you start cooking. Leave the appliance running for about 15 minutes after cooking so that the smells are extracted.

Switching the illumination on and off

▶Slide the switch to the position.
▶To switch off, set the switch to .O

Switching off the appliance

▶Push in the flat pull-out deflector plate completely.

- This switches off the extractor fans and the illumination, even when the sliding switch is not set to .

Illustration of a kitchen air conditioner unit with control buttons (no text or symbols)

Simple line drawing of a rectangular block with an arrow pointing downward (no text or symbols)

If the flat pull-out deflector plate is then pulled out a little, the extractor fans switch on at the level set and the illumination comes on.

Care and maintenance

Cleaning the housing

Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage.

Do not use abrasive cleaners, scouring pads, steel wool, etc. as they can damage the surface.

Cleaning the outside / inside

▶Clean the outside using a slightly damp cloth – and detergent if necessary – and wipe dry.

Grease and condensate water can build up on the inside next to the grease filters.

- Clean using a slightly damp cloth – and detergent if necessary – and wipe dry.

Cleaning the illumination cover

The sides are only placed on the glass!

If need be, the illumination cover 1 can be removed for cleaning.

Open the illumination cover 1:

▶ Push back both locking bars 2 and swing the illumination cover down.

▶Clean the illumination cover in soapy water.

Diagram of a mechanical component with an arrow indicating direction, enclosed in a dashed circular border (no text or symbols)

Cleaning the grease filters

The grease filters should be cleaned at least once a month with normal use. If properly cared for, the grease filters should provide unlimited years of service.

▶The grease filters can be cleaned in a dishwasher.
▶Select an «intensive» – or «heavy soil» – wash programme with a warm pre-wash.

Cleaning may cause the grease filters to become discoloured. However, this will not affect the functioning of the filters in any way.

If you do not have a dishwasher:

▶ Clean the grease filters in the sink with hot water and detergent.
▶Then soak the filters in hot water in the sink for about 2 hours and finally clean with a washing-up brush.

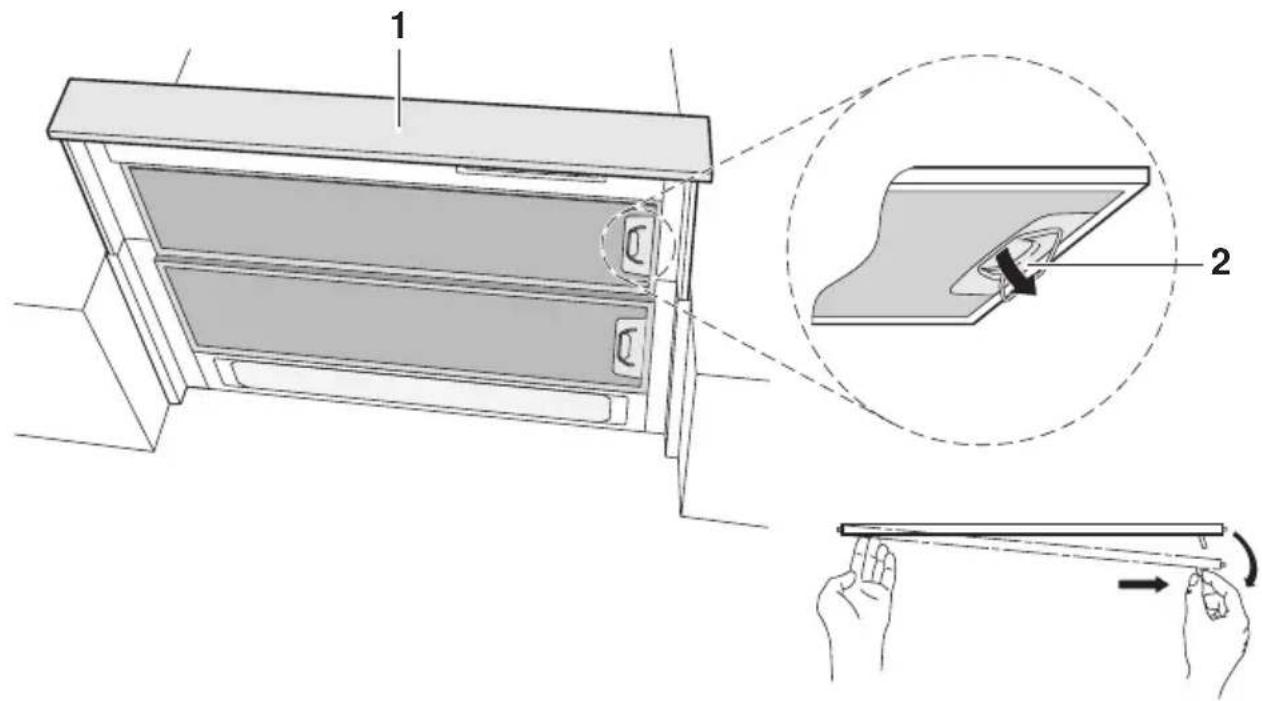

Removing the grease filters

▶ Push in the flat pull-out deflector plate 1 completely.
▶ Pull down the handle 2 and pull towards the outside of the appliance. - This releases the grease filter, allowing it to be pulled downwards.
▶Remove the upper grease filter in the same way.
▶Clean grease filters.

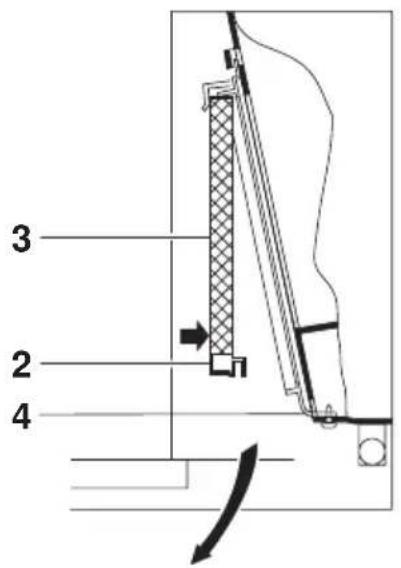

Installing the grease filters

▶ Push in the flat pull-out deflector plate 1 completely.
▶Take hold of the grease filter and insert fixed centring pins on one side (either left or right) into the slots for the upper grease filter.
▶ Pull back the centring pins on the other side using the handle 2 and slot in.

All centring pins must sit correctly in the slots. Only then can the handle 2 be folded in. Press it lightly to do this. It must be flush with the grease filter.

▶Insert the lower grease filter in the same way.

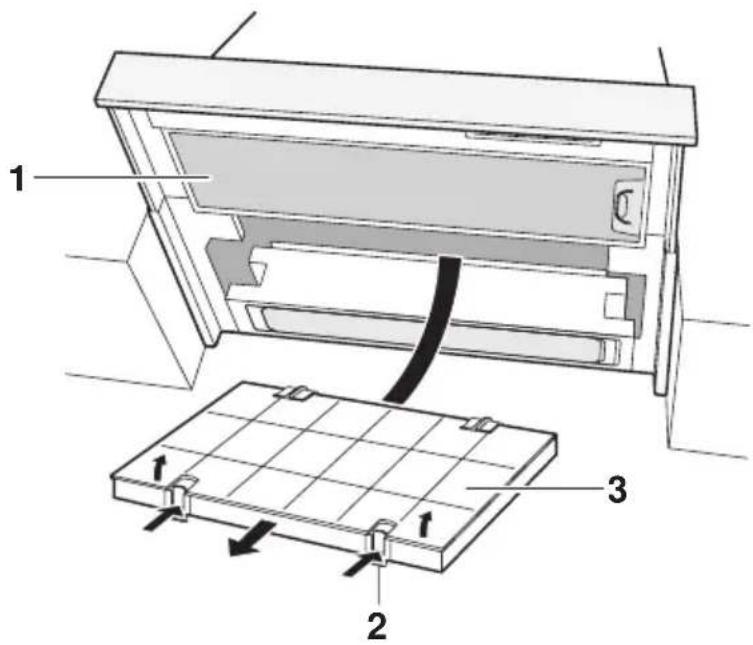

Replacing the standard activated charcoal filter

Remove screw fuse or switch off circuit breaker.

Standard activated charcoal filters are only used in the recirculation model.

The standard activated charcoal filter is to be replaced after an operating time of 3 to 6 months. Standard activated filters cannot be washed or regenerated.

The dirty standard activated charcoal filter can be disposed of in the domestic waste.

▶ Remove metal grease filters 1.
▶ Press the two red retaining slides 2 on the standard activated charcoal filter 3 upwards. At the same time pull down the filter and remove from the holder 4.
▶ Slide the new filter up under the clip and fix in the holder 4. To do this snap the red retaining slides 2 into place.
▶Replace metal grease filters.
▶Put screw fuse back in or switch circuit breaker on again.

Cleaning and replacing long-life activated charcoal filters

Remove screw fuse or switch off circuit breaker.

Long-life activated charcoal filters are only used in the recirculation model.

Unlike the standard activated charcoal filter, the long-life activated filter can be cleaned and reactivated. With normal use of the appliance, the long-life activated charcoal filter should be cleaned every month. The long-life activated charcoal filter can be washed in the dishwasher at 65 °C (intensive programme). The long-life activated charcoal filter should be washed separately, so that no food remains can become stuck to the filter. If you don't have a dishwasher, the long-life activated charcoal filter can also be soaked in the sink for an hour at 60 °C using normal washing-up liquid. Then rinse well.

To reactivate the activated charcoal, the long-life activated charcoal filter must be dried in the oven without its frame.

▶ Select top and bottom heat or hot air at 100 °C and leave the long-life activated charcoal filter to dry for 60 minutes on the wire shelf.

After about three years the long-life activated charcoal filter must be replaced because its ability to absorb smells will be reduced. The dirty long-life activated charcoal filter can be disposed of along with the domestic waste.

▶Remove and clean the metal grease filters.
▶Remove and reactivate the long-life activated charcoal filter or replace with the new filter.
▶Replace the metal grease filters.
▶ Put screw fuse back in or switch circuit breaker on again.

Replacing the light bulb

Remove the appliance's screw fuse or switch off the circuit breaker.

Light bulbs get hot during operation! Allow to cool down first.

Open the illumination cover 1:

▶ Push back both locking slides 2 and swing down the illumination cover.
▶Unscrew the light bulb from its socket and screw in the new light bulb.
▶ Close the illumination cover 1.
▶Put back the screw fuse or switch on the circuit breaker again.

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Trouble-shooting

What to do if ...

... the illumination is not working

Possible cause Solution
■The fuse or the circuit breaker for electrical installations in the home is faulty.	►Replace the fuse.►Reset the circuit breaker.
■Interruption in the power supply.	►Check the mains supply.
■ The light bulb is defective.	► Replace the light bulb.

... the appliance is not extracting enough air

Possible cause Solution
■The grease filters are dirty.	►Clean the grease filters.
■The activated charcoal filter (in recirculation models) is spent.	►Replace the standard activated charcoal filter.►Clean or replace the long-life activated charcoal filter.

Accessories and spare parts

Please give model number and exact description when ordering parts.

Light bulb 230 V / 40 W

Metal grease filter

Standard activated charcoal filter

Long-life activated charcoal filter

Three technical line drawings of electronic components: a bulb, a rectangular panel, and a grid box (no text or symbols)

The light bulb is also available from specialist retailers.

Technical data

Electrical connection

▶See identification plate

▶Remove metal grease filter.

- The identification plate is located on the inside of the appliance.

Disposal

Packaging

■ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

■Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician!

Safety

■Disable the appliance to prevent accidents caused by improper use, especially through children playing.
■Pull the plug out of the mains socket or have the appliance disconnected from the mains by a qualified electrician. Then cut off the mains cable.

Disposal

■The old appliance should not be discarded as worthless rubbish. If disposed of correctly, the raw materials can be recovered for recycling.

■The symbol on the identification plate warns that the appliance may not be disposed of in normal household waste.

■The appliance must be disposed of in accordance with local regulations on waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.

Index

A

Accessories.... 22 Ordering .... 27

Activated charcoal filter 9

Air recycling cassette.... 9

Appliance Switching off .... 13 Switching on .... 12

Appliance description 9

C

Care 14

Children in the home...... 6

Cleaning.... 14 Grease filter .... 15

Construction.... 10

D

Disconnection 24

Disposal 24

E

Electrical connection 23

Extraction model 9

Extractor fan Switching off .... 12 Switching on .... 12

F

Features 10

Flat pull-out deflector plate...... 10

G

Grease filter Cleaning 15

Grease filters Installing .... 17 Removing .... 16

H

Handle 10

|

Identification plate 23

Illumination.... 10 Switching off.... 13 Switching on.... 13

Illumination cover.... 10

L

Light bulb Replacing.... 20

Locking bar.... 10

Long-life activated charcoal filter Cleaning.... 19 Replacing.... 19

M

Maintenance 14

Malfunction 27

Metal grease filter.... 10

Model no. 2

O

Operating elements.... 10, 11 Orders.... 27

P

Packaging 24

Q

Queries 27

Quick instructions.... 28

R

Recirculation model 9

Repair service 27

S

Safety 24

Safety precautions

Before using for the first time . 5

Children in the home...... 6

Correct use.... 6

Note on use.... 7

Service agreement 27

Service centre 27

Spare parts 22

Ordering.... 27

Standard activated charcoal filter

Replacing.... 18

Symbols...... 2

T

Technical data 23

Trouble-shooting.... 21

Type 2

U

Use.... 12

Using for the first time...... 5

Repair service

The 'Trouble-shooting' section will help you to carry out small repairs yourself, saving you the time and trouble of calling out a service engineer and the cost that goes along with it.

Whether you contact us about a malfunction or an order, please always state the serial number (FN) and the model type of your appliance. Enter these details below and also on the service sticker which comes with the appliance. Stick it in a conspicuous place or in your telephone or address book.

FN

Appliance

You will also find the same details on the certificate of guarantee, the original sales invoice and the identification plate of the appliance.

▶Remove metal grease filter.

- The identification plate is located on the inside of the appliance.

If the appliance is not working properly, contact your nearest V-ZUG Ltd service centre using freephone 0800 850 850 and stand in close proximity to the appliance.

Queries, orders, service agreement

For administrative and technical queries or problems, as well as for ordering spare parts and accessories, please contact our head office in Zug on telephone number [phone].

As regards the maintenance of all our products, when the warranty expires you have the option of taking out a service agreement. We will be happy to send you the necessary forms.

Quick instructions

Please first read the safety precautions in these operating instructions!

Switching on

▶Pull out the flat pull-out deflector plate.

Extractor fan

▶Slide the sliding switch 🔗 position , 1or2. 3

Illumination

▶Slide the sliding switch to position . I

Switching off

▶Slide the sliding switches and to position

▶or push in the flat pull-out deflector plate.
