Product Type	LED TV
Screen Size	24 inches (61 cm)
Resolution	HD Ready (1366x768)
Display Technology	LED
Aspect Ratio	16:9
Refresh Rate	60 Hz
Dimensions (W x H x D) - without stand	550 x 330 x 80 mm
Dimensions (W x H x D) - with stand	550 x 370 x 180 mm
Weight - without stand	3.2 kg
Weight - with stand	3.5 kg
Power Consumption (typical)	30 W
Standby Power Consumption	< 0.5 W
Energy Efficiency Class	A+
Tuner	DVB-T2/C
HDMI Inputs	2
USB Port	1 (USB 2.0)
AV Input (Composite)	1 (shared with component Y)
VGA Input	1 (via adapter)
Headphone Output	1 (3.5 mm)
Remote Control	Included (RC-4003)

Frequently Asked Questions - 24HZ4003NW STRONG

How do I connect my TV to a Wi-Fi network?

This model does not have built-in Wi-Fi. Use an Ethernet cable to connect to your router, or use an external streaming device.

What is the maximum USB storage size supported?

The USB port supports FAT32 drives up to 32 GB for media playback.

Can I mount this TV on a wall?

Yes, it supports VESA mount 100x100 mm. Ensure the wall mount can support at least 4 times the TV's weight.

How do I perform a factory reset?

Go to Menu > Settings > System > Reset to Factory Defaults. Confirm with the remote.

Why is there no sound from the internal speakers?

Check if the volume is muted or too low. Also ensure that no headphones are plugged in, as that disables the speakers.

What video formats are supported via USB?

Supports AVI, MKV, MP4, MOV up to 1080p. Some codec limitations may apply.

How do I update the TV firmware?

Download the latest firmware from the STRONG website to a USB stick, then insert it into the TV and go to Menu > Settings > Software Update.

Is the TV compatible with a universal remote?

Yes, use code 1234 or 5678 for most universal remotes. Refer to your remote's manual.

Can I record TV programs using the USB port?

No, this TV does not support PVR (Personal Video Recording) functionality.

What should I do if the remote control stops working?

Replace the batteries (2 x AAA). If issue persists, try resetting the remote by removing batteries and pressing any button for 10 seconds.

USER MANUAL 24HZ4003NW STRONG

LED TV with DVB-T2/C/S2

SRT 24HZ4003N

SRT 24HZ4003NW

SRT 32HZ4003N

SRT 32HZ4003NW

SRT 39HZ4003N

SRT 39HZ4003NW

SRT 40FZ4003N

SRT 40FZ4003NW

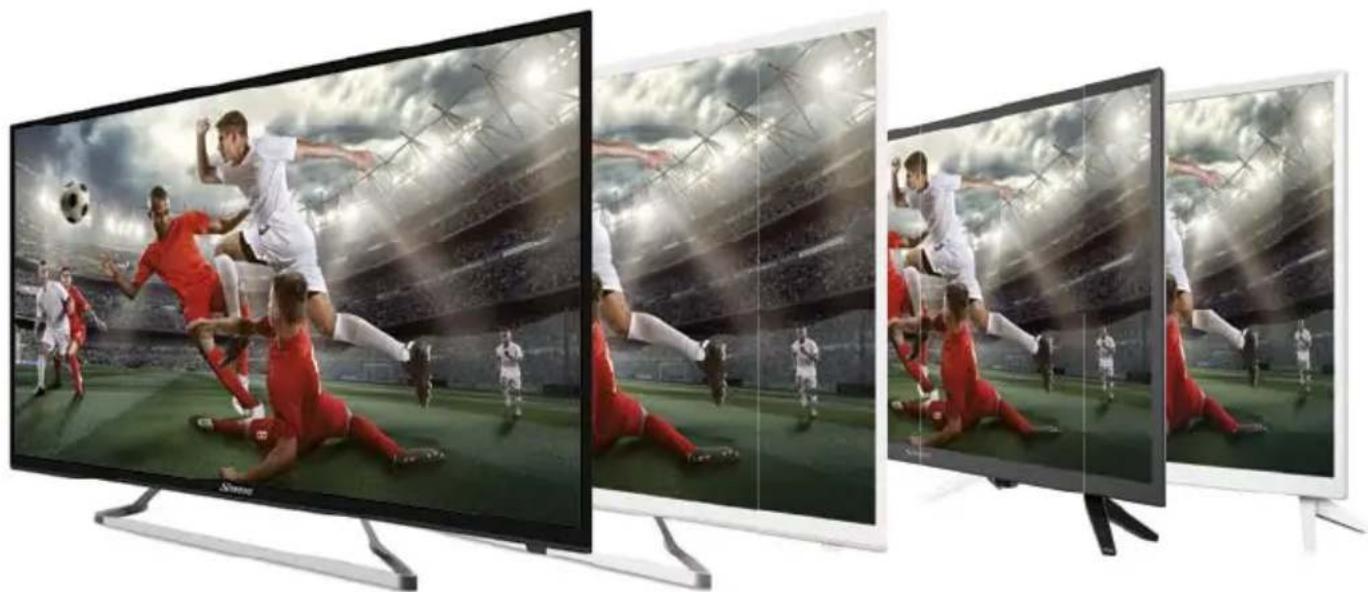

Modern flat-screen TV displaying a soccer match in action, with multiple frames showing a player in red and white (no text or symbols visible)

User Manual Bedienungsanleitung Manuel uti lisateur Manuale utente Manual do Uti lizador Инструкции за употреба Руководство пользователя Посібник користувача Användar Manual Uživatelská příručka Navodila za uporabo

Korisnički priručnik Uputsvo za rukovanje Používatelšká príručka Használati útmutató Brukermanual Manual del Usuario Gebruiksaanwijzing Brugervejledning Manual de Uti lizare Instrukcja obsługi

Fig.1

Fig.2

Fig.3a

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

Fig.3b

Technical line drawing of a front-mounted electronic device with internal components and mounting brackets (no text or symbols)

32", 40"24", 39"

Fig.4 Fig.5

Fig. 6

Fig. 7

Fig. 8

SERVICE CENTER

www.strong.tv

Licenses

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.

STRONG declares that the equipment complies with the European Directive 2014/30/EU (EMC) and the Low Voltage Directive 2014/35/EU (LVD) and the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU in accordance with the following technical standards: ELECTROMAGNETIC COMPATIBILITY

EN55013:2013; EN55020:2007 + A11; EN55022:2010; EN55024:2010; EN61000-3-2:2014; EN61000-3-3:2013

LOW VOLTAGE

EN60065:2014

ENERGY RELATED PRODUCTS

Commission regulation (EC) No 642/2009; EN50564:2011; IEC62087:2012

RoHS

EN50581:2012

Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. Manufactured under license from Dolby Laboratories. Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. All product names are trademarks or registered trademarks of their respective owners.

© STRONG 2017. All rights reserved.

TABLE OF CONTENTS

1.0 INSTRUCTION 3

1.1 Safety Instructions 3
1.2 Storage 4
1.3 Accessories 4
1.4 Equipment set-up 4

2.0 INSTALLATION 4

2.1 Default PIN code: 0000 4
2.2 Front panel/underside 4
2.3 Rear panel 5
2.4 Side panel 6
2.5 Remote control 7
2.6 Installing the batteries 8
2.7 Using the remote control 8

3.0 FIRST TIME INSTALLATION 8

3.1 DVB-S/S2 installation 9
3.2 DVB-T/T2 installation 9
3.3 DVB-C installation 9

4.0 ELECTRONIC PROGRAMME GUIDE (EPG) 10

5.0 MENU SETTINGS 10

5.1 Menu control (DTV mode) 10
5.2 Picture menu 10
5.3 Sound menu 11
5.4 Channel 12
5.5 Time menu 13
5.6 Lock 13
5.7 Setup Menu 13

6.0 USB 14

6.1 Reminder when using the USB player 14
6.2 USB menu 15

7.0 TROUBLESHOOTING 17

8.0 SPECIFICATIONS 19

9.0 APPENDIX 20

1.0 INSTRUCTION

1.1 Safety Instructions

Read all of the instructions before operating the set. Keep these instructions well for later use.

■ Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.).
■ Please refer to the information on the exterior back enclosure for electrical and safety information before installing or operating the apparatus.
■ To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
■ The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

■ The mark indicates a risk of electric shock. The external wires must be installed by an instructed person or ready-made leads or cords must be used.

■ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

■ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent types.

■ The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

■ Excessive sound pressure from earphones and headphones can cause hearing loss.

■ Listening to music at high volume levels and for extended durations can damage one's hearing.

In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.

The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with cable tie or something like that. It shall be free from sharp edges or similar which can cause abrasion of the power cord set. When put into use again, please make sure the power cord is not damaged. In case of damages, please get the power cord replaced by a similar one with the same specifications. The absence of a light indication on the apparatus does not mean that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains plug must be pulled out.

■ Attention should be drawn to environmental aspects of battery disposal.
■ No naked flame sources, such as lighted candles, should be placed on the apparatus.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

■ A USB terminal can provide a maximum of 500 mA.

■ Equipment with this symbol is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

Operating Environment

■ Do not install this equipment in a confined space such as a bookcase or similar unit.
■ Do not use the set near damp, and cold areas, protect the set from overheating.
- Keep away from direct sunlight.
■ Do not use the set near dust place.
- Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the TV.

WEEE Directive

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1.2 Storage

Your device has been carefully checked and packed before shipping. When unpacking it, make sure that all the parts are included and keep the packaging away from children. We recommend that you keep the carton during the warranty period, to keep your device perfectly protected in the event of repair or warranty.

1.3 Accessories

■ 1x installation instructions
■ 1x stand assembly instruction
■ 1x safety instructions/warranty cards
■ 1x remote control
■ 2x AAA batteries

1.4 Equipment set-up

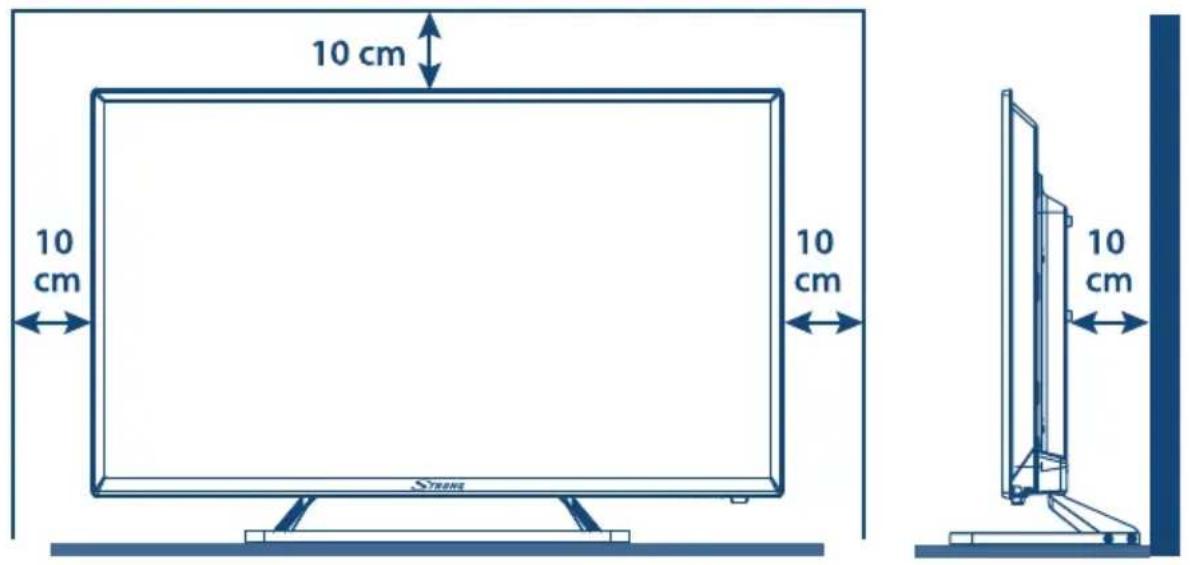

Fig. 1

Install the display on a solid horizontal surface such as a table or desk. For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. This apparatus can be used in tropical and/or moderate climates.

This user manual provides complete instructions for installing and using this TV. The symbols serve as follows.

WARNING Indicates warning information.

NOTE Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the TV. (Bold characters)

Move to Represents a menu item within a window. (Italic characters)

2.0 INSTALLATION

2.1 Default PIN code: 0000

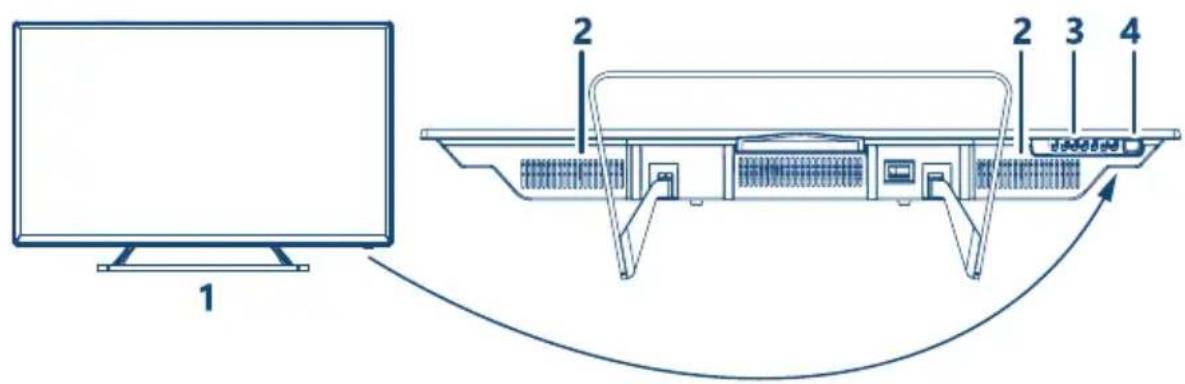

2.2 Front panel/underside

Fig. 2

NOTE: The graphics are for representation only.

1. Power indicator /remote sensor
2. Speakers
3. Buttons: Input source, Menu, V-/V+, CH-/CH+, Standby/ON.
4. Power switch ON/OFF*

* Except 24"

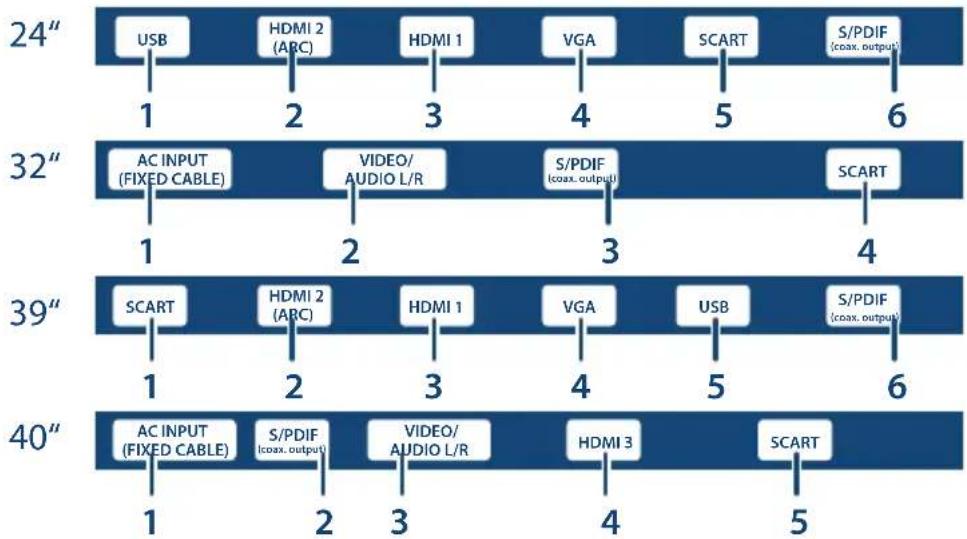

2.3 Rear panel

NOTE: The graphics are for representation only.

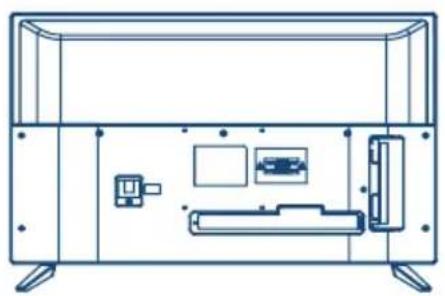

2.3.1 24 inch

Fig. 3a

1. USB Connect a USB device for playback of multimedia fi les
2. HDMI 2 (ARC) Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console or directly to a Digital Amplifier that supports the ARC function. This input is equipped with the ARC (Audio Return Channel) feature to implement audio connections and for a full Dolby audio support.
3. HDMI 1 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.
4. VGA Connect a VGA source computers may have
5. SCART Connect devices like DVD or VCR using SCART cable
6. S/PDIF (coax. output)
   Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set.

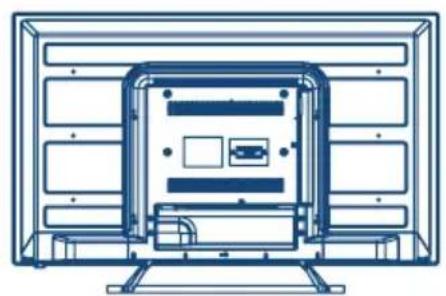

2.3.2 32 inch

Fig. 3b

1. AC INPUT (FIXED CABLE)
   Main power cable (100 - 240 V \~ 50/60 Hz)
2. VIDEO/AUDIO L/R
   Connect AUDIO and VIDEO input signals from a signal source such as DVD.
3. S/PDIF(coax. output)
   Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set.
4. SCART Connect devices like DVD or VCR using SCART cable

2.3.3 39 inch

1. SCART Connect devices like DVD or VCR using SCART cable
2. HDMI 2 (ARC) Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console or directly to a Digital Amplifier that supports the ARC function. This input is equipped with the ARC (Audio Return Channel) feature to implement audio connections and for a full Dolby audio support.
3. HDMI 1 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.
4. VGA Connect a VGA source computers may have
5. USB Connect a USB device for playback of multimedia files

6. S/PDIF (coax. output)

Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set.

2.3.4 40 inch

1. AC INPUT (FIXED CABLE)

Main power cable (100 - 240 V \~ 50/60 Hz)

2. S/PDIF (coax. output)

Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set.

3. VIDEO/AUDIO L/R

Connect AUDIO and VIDEO input signals from a signal source such as DVD.

1. HDMI 3 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.

2. SCART Connect devices like DVD or VCR using SCART cable

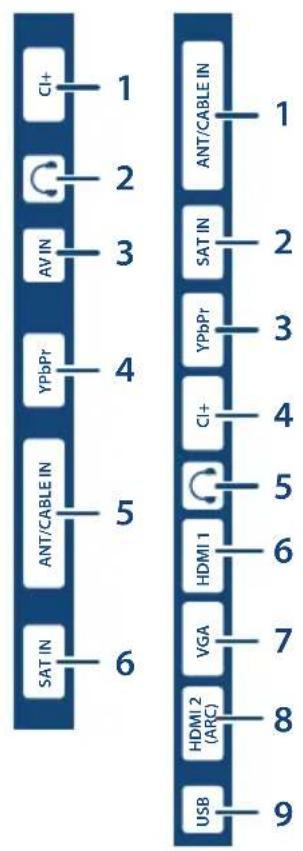

2.4 Side panel

NOTE: The graphics are for representation only.

2.4.1 24 inch, 39 inch

Fig. 3a

1. Cl+ Connect a Conditional Access Module (CAM).

2. HEADPHONE Speakers will be muted when earphone is plugged in and headphone selected.

3. AV IN 3.5 mm female jack entry for composite video and left/right audio connection.

4. YPbPr Connect YPbPr sources.

5. ANT/CABLE IN Connect a terrestrial antenna or cable connection from your provider to the TV for searching programmes.

6. SAT IN Connect a satellite dish to the TV for searching programmes.

2.4.2 32 inch, 40 inch

Fig. 3b

1. ANT/CABLE IN Connect a terrestrial antenna or cable connection from your provider to the TV for searching programmes.

2. SAT IN Connect a satellite dish to the TV for searching programmes.

3. YPbPr Connect YPbPr sources.

4. Cl+ Connect a Conditional Access Module (CAM).

5. HEADPHONE Speakers will be muted when earphone is plugged in and headphone selected.

6. HDMI 1 Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console.

7. VGA Connect a VGA source computers may have

8. HDMI 2 (ARC) Connect HDMI input signal from a signal source such as DVD, Blu-ray player or game console or directly to a Digital Amplifier that supports the ARC

function. This input is equipped with the ARC (Audio Return Channel) feature to implement audio connections and for a full Dolby audio support.

1. USB Connect a USB device for playback of multimedia fi les

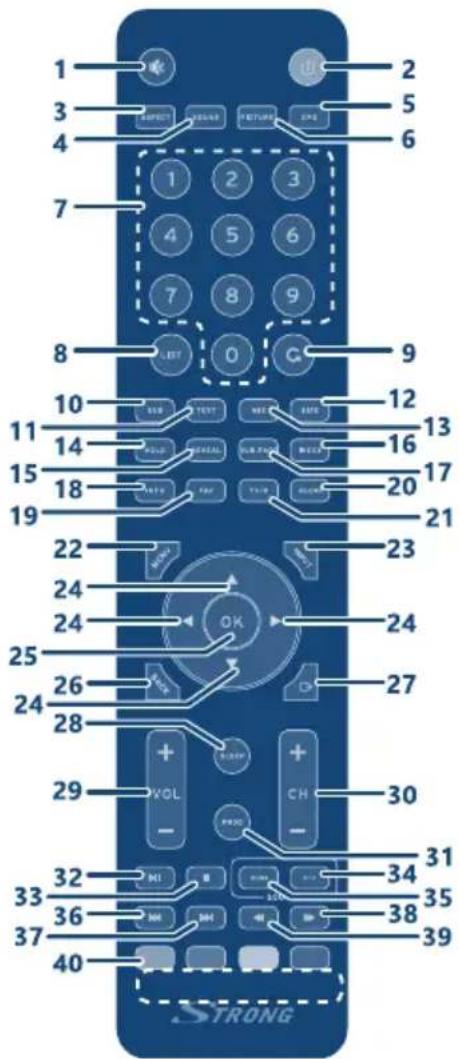

2.5 Remote control

Fig. 4

1. ⚙ Press to mute or restore the volume.
2. ⏻ Press to turn the TV on or standby.
3. ASPECT Change aspect ratio.
4. SOUND Change sound mode.
5. EPG	Press to display the current EPG information in DTV mode.
6. PICTURE Change picture mode.
7. 0~9 Choose channel directly.
8. LIST Call channel list
9. ⬆ Press to go back to previous viewed channel.
10. SUB Enable/disable subtitles in DTV/USB mode.
11. TEXT Press to enter or exit the teletext menu.
12. SIZE	Enlarge the teletext display. Press this button once to enlarge upper half of the screen. Press this button again to enlarge lower half of the screen. Press this button again to resume to normal screen size.
13. MIX	Press this button to superimpose the teletext over the TV programme. Press again to return to normal teletext mode.
14. HOLD	Press to hold the teletext page on screen without update and changes. Press again to release the hold state.
15. REVEAL	Press this button to display concealed information, such as solutions to riddles or puzzles. Press again to remove the information from the display.
16. INDEX	Press this button to display index page.
17. SUB.PAGE	Press this button to enter or exit subpage mode (if subpage is available). Press the ◀▶ buttons to select a subpage.
18. INFO	Display information about the current source.
19. FAV	Press to view your assigned favourite list or main list channels. Press ▲▼ to cycle through your assigned favourite channels, press OK to confirm. To open the selected list directly, you can press the LIST button.
20. AUDIO	Press to select available audio languages. Selecting audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. Press again to turn it off (depending on broadcast).
21. TV/R	Switch between TV and radio.
22. MENU	Open the menu options. Step back in some menu options.
23. INPUT	Select the input source mode.
24. ▲▼◀▶	Navigate the menu.
25. OK	Confir rm the selection.
26. BACK	Step back in some menu options
27. ➔	Exit the current menu.
28. SLEEP	Select the sleep time, such as 10 min, 20 min etc.
29. VOL +/-	Adjust the volume up or down.
30. CH +/-	Change programmes up or down. Big steps in Channel list.
31. PROG	Press to enter the Programme Edit menu.
32. ▶II	Start/Pause playback, press again to continue playback.
33. ■ Press to stop playback.
34. DTV Press to go back to Digital TV.
35. HDMI	Press several times to select your HDMI input.

1. Press to play the previous file.

2. ▶▶ Press to play the next file.

3. ▶▶ Press to fast forward.

4. ◀️ Press to fast reverse.

5. COLOUR BUTTONS

Press to execute the prompt function in TV or DTV menu mode.

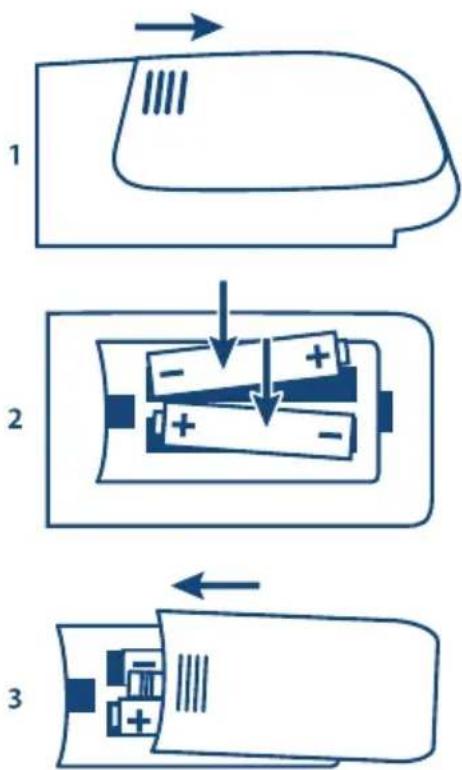

2.6 Installing the batteries

Fig. 5

Place 2x AAA batteries in the battery compartment of the remote control. Make sure to match the polarity markings inside the compartment.

NOTE: Pictures are only for reference. Actual items may differ.

1. Slide the cover horizontally.
2. Put 2x AAA batteries in the compartment and make sure the polarity is correct.
3. Slide horizontally to close the cover.

Precautions for using the battery

Improper using of the battery will cause leakage. Carefully follow these instructions.

1. Please note the batteries' polarity to avoid short circuit.
2. When the battery's voltage is insufficient which affect the use range, you should replace it with a new battery. Remove the batteries from the remote control unit if you do not intend to use it for a long time.
3. Do not use different types of batteries (for example Manganese and Alkaline batteries) together.
4. Do not put the battery into fire, and charge or decompose the battery.
5. Please dispose batteries abide by relevant environmental protection regulation.

2.7 Using the remote control

■ Use the remote control by pointing it towards the remote sensor. Items between the remote control and the remote sensor could block normal operation.
- Do not cause the remote control to vibrate violently. Also, do not splash liquid on the remote control, also do not put the remote control in a high humidity place.
■ Do not place the remote control under direct sunlight which will cause deformation of the unit by heat.
- When the remote sensor is under direct sunlight or strong lighting, the remote control will not work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor.

3.0 FIRST TIME INSTALLATION

After all connections have been properly made, switch on your TV. The language selection will appear on screen. Use ▲▼◀▶ to select the OSD Language of your preference. Confirm with OK on your remote control.

The next screen appears with the Mode Selection to select Home Mode or Shop Mode. Press OK and to confirm.

Then the next screen appears with the tuner selection. Choose the one you like to use.

Scan type

Select which input source you want to use: DVB-S to receive satellite broadcasts (and if you are equipped with a satellite dish), DVB-T to receive terrestrial broadcasts or DVB-C to receive cable broadcasts.

3.1 DVB-S/S2 installation

Satellite Setting

Select firstly the region where you are using the TV. This important to set time zone correct. Use the ◀▶▲▼ and confirm with OK.

Press ▲▼ to highlight the satellite your dish is aimed at. Confirm with OK to mark the satellite. Use the ◀▶▲▼ buttons to change settings for your satellite installation for each specific satellite. The signal quality bar on the bottom of the screen allows you to fi ne tune the alignment of your antenna for optimum reception. Adjust your antenna for maximum possible signal quality. When the signal cannot be improved anymore, fix the dish on this position and press the BLUE Scan button to continue.

Channel Search

Press ▲▼ ◀▶ to highlight the options of choice and press OK to start the channel search.

Scan Mode Choose between Default (recommended), Blind Scan and Network

Crypted Select FTA Channels to search Free-To-Air channels only or All Channels to search FTA and Encrypted channels

Service Type Select DTV to search DTV channels only, RADIO to search radio channels only or All for a complete search.

It is recommended to use the default settings.

3.2 DVB-T/T2 installation

Terrestrial Setting

First select the Tune Type by pressing ◀▶ to select DTV, ATV or DTV+ATV (DTV to search digital broadcasts and ATV to search analogue broadcasts). Press ▼ to continue. Press ◀▶ to select All Channels or FTA Channels. Press ▲▼ ◀▶ to highlight the country that you want to install, then press OK to start searching.

3.3 DVB-C installation

Cable Setting

Press ▲▼ ◀▶ to highlight your settings.

Scan type You can select Network Scan or Full. (Default Network Scan for quick search advised)

NOTE:

Full scan will have a duration of approximately 20 minutes, depending on your cable network.

Frequency Please enter (with 0 \~ 9) the main frequency used by your provider in KHz. Network ID Please enter (with 0 \~ 9) the used Network ID from your provider. Symbol Please enter (with 0 \~ 9) the used Symbol from your provider. (Ks/s)

NOTE: Please check the settings for your cable system used by your provider!

Press OK to continue.

Crypted

Select FTA Channels to search Free-To-Air channels only or All Channels to search FTA and encrypted channels

Press ▲▼ ◀▶ to highlight the country that you want to install, then press OK to start searching.

4.0 ELECTRONIC PROGRAMME GUIDE (EPG)

EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information on broadcasted programmes. You can access it in digital mode by pressing EPG on the remote control. Press EPG to bring up the EPG interface. Use ▲▼ to select a programme. Press INDEX and press ▶ to switch to channel mode to overview from one channel EPG. Use ▼ and then ◀▶ to select channel you like to see EPG overview. Use ▲▼ to select a programme. Press EXIT to stop and return to viewing modes.

Then press the COLOUR BUTTONS for entering the required settings.

GREEN Access extra info of programme

YELLOW Open the reminder setting over view

BLUE Set reminder of selected programme.

5.0 MENU SETTINGS

Below items depend if they are available of select input source. Use INPUT to select other source.

5.1 Menu control (DTV mode)

Press MENU to enter the main menu. Press ◀▶ to select an item. Press ▲▼ and OK to select the submenus. Press MENU to exit the item.

5.2 Picture menu

Picture Mode

Select the automatic picture control mode. Available choices are Dynamic, Standard, Mild and User.

Colour Temperature

Select the overall colour tone of the picture. Available choices are Cool, Medium, Warm and User.

Aspect Ratio Select the aspect ratio (display proportions) according to your video signal type or preference. Available choices are Auto, 4:3, 16:9, Zoom1 and Zoom2.

NOTE: Some options may not be available under some sources.

Noise Reduction

Eliminates noise in the picture. Available choices are Off, Low, Middle and High.

In the User mode, settings can be changed for Brightness, Contrast, Colour and Sharpness.

5.2.1 Contrast/Brightness/Colour Tint/Sharpness

If Picture Mode is set to Personal you are able to change the following settings

Press ▲▼ to select an option, then press ◀▶ to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Colour Adjust the saturation of the colour based on your own preference.

TintNofunction

Sharpness Adjust the peaking in the detail of the picture.

5.2.2 Colour Temperature

In this menu you can change the overall colour cast of the picture.

Press ▲▼ to select Colour Temperature, then press OK to enter a sub-menu. Press ▲▼ to select the relevant picture effect (DEFAULT: Cold Normal Warm).

Cold Increase the blue tone for the white.

Normal Increase the neutral colours for the white.

Warm Increase the red colour for the white.

5.2.3 Noise Reduction

In this menu you can filter out and reduce the image noise and improve picture quality. Press ▲▼ to select Noise Reduction, then press OK to enter a sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

5.3 Sound menu

Sound Mode Select your favourite sound mode for each input. Choices are Standard, Music, Movie, Sports and User.

Bass Adjusts the lower frequency of the sound.

Treble Adjusts the higher frequency of the sound.

Balance Control the sound balance between the right and left loudspeaker (earphone).

Auto Volume Adjust the volume corresponding to the input audio level. Options are On and Off.

Surround Sound Turns on the Sound Retrieval System.

AD Switch Turn on the Audio description, you can activate the setting of AD volume. When turn on the audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers. (Only if available in DTV mode.)

S/PDIF Mode If you have connected S/PDIF output to digital home audio system. You can select "Auto" to output Dolby audio automatically. If channel have this audio channel.

5.4 Channel

Press MENU to display the main menu. Press ◀▶ to select Channel in the main menu. Press ▲▼ to select the option you wish to adjust in the Channel menu.

Press OK to adjust. After finish your adjustment, press OK to save and return to the previous menu. Below items depend if they are available of select input source. Use INPUT to select other source.

5.4.1 Auto Tuning

Press ▲▼ to select Auto Tuning, select the Scan Type and proceed with OK.

5.4.2 Dish Setup

If you use DVB-S/S2 as input source, the Dish Setup menu allow you to set you satellite and belonging settings as DiSEqC port and LNB type. Afterwards you may start the Auto Tuning or Manual Tuning by selecting with EPG button the wanted transponder.

5.4.3 DTV Manual Tuning (in DVB-T mode only)

Search and store programmes manually. Press ▲▼ to select DTV Manual Tuning. Then press OK to enter the sub-menu.

Press ◀▶ to select a Channel No., and then press OK to start the search. The search stops when a programme is found and this programme will be stored in the current channel position. If you want to stop the search, press MENU.

5.4.4 ATV Manual Tuning (in DVB-C mode only)

First select the source type of ATV. Then in the Channel menu, select ATV Manual Tuning and press OK to access. Highlight and press ▲▼ to select Storage To 1 (maybe other number), Sound System and Channel No.. Then select search and press OK to start the search. Press ▶ for the unit to search towards higher frequency. Press ◀ for the unit to search towards lower frequency. The search stops when a programme is found and this programme will be stored in the current channel position. If you want to stop the search, press MENU.

Current CH Set the channel number

Colour System Select the colour system (Available: AUTO, PAL, SECAM)

Sound System Select the Sound system

Fine-Tune Adjust the frequency of the channel

Search Start the channel search

5.4.5 Channel extra settings

Programme Edit Edit the programmes. You can press the COLOUR BUTTONS on the remote control to skip programmes, rename and delete programmes or move programmes, and add programmes to the favourite list by pressing FAV.

Signal Information Showing the information of current DTV channel. Only available with DTV signal.

CI information Enables the user to watch and change settings of CAM modules and check values from inserted smart card.

Channel list Select which channel list you like to see if you press on LIST button. Select between Main List or Favorite List

Schedule List

Press ▲▼ in the Channel. Select Schedule List, then press OK to enter the submenu. Use the COLOUR BUTTONS to modify your settings.

Software Update (USB)

Press OK and use ◀▶ to select Yes if you want to update the software or No to go back to the main menu. For more information see also chapter 6.2.5.

5.5 Time menu

Press MENU to display the main menu. Press ◀▶ to select TIME in the main menu. Press ▲▼ to do further adjustments. Press OK to return to the previous menu.

Clock The time is automatically obtained from the channel transmission and

doesn't have to be set manually. Should this function not be provided by the broadcaster, it is possible to set it by pressing OK and set date and time by pressing ▲▼◀▶.

Time Zone

Press ▲▼◀▶ to select Time Zone.

Sleep Timer

Press ▲▼ to select Sleep Timer. Available Options: Off, 10 min., 20 min., 30 min., 60 min., 90min., 120 min., 180 min. and 240 min..

Auto Standby This function allows you to set the automatic shutdown of your TV. Choose between 2H, 3H, 4H or Off to disable this function.

OSD Timer This function allows you to choose how long the info banner is displayed. Choose between 5s, 15s or 30s.

5.6 Lock

Press MENU to display the main menu. Press ◀▶ to enter the Lock menu settings. Press ▲▼ to select the options. The following options are available:

System Lock

This option allows you to enable or disable the password protection. Press OK to set this function On or Off.

Set Password

The default password is 0000, to customize the password press OK and follow the instruction within the menu.

Channel Lock

This option allows you to prevent viewing of one or more channels. Press OK to display the channel list and select with ▲▼ the channel you want to be locked. Press GREEN to lock it. Consider the same procedure to lock other channels if needed.

Parental Guidance

Press OK to enter and set the age for suitable programmes for children, then press ▲▼.

5.7 Setup Menu

Language

Select the Menu language of your choice. The default setting is English. Press ▲▼ to select the menu language.

Audio Languages

Press LEF/U TO SELECT PRIMARY FOR MAIN AUDIO TRACK OR SECONDARY NEXT AUDIO CHANNEL IF FIRST IS NOT AVAILEBLE. PRESS PQTU to select your chosen Audio Language, then press OK.

Subtitle Language

Press ▲▼ ◀▶ to select your chosen Subtitle Language, then press OK

Country

This item show the region you been selected by first time you install the TV.

Press ▲▼ to select this function, by pressing OK and enter the PIN code. You will reset all the settings contained in the main menu and deleted all installed channels. TV will go back to First Time Installation See chapter 3.

Version Information Your current software version is displayed.

HDMI CECSeechapter5.7.1.

Home/Shop

Switch between Home modes and Shop modes with default more brightness and Auto standby to off.

USB Clone This option allows you to copy you channel list to USB device as back up. Insert

USB device and select Back up. To load this later back into TV, select "Restore".

5.7.1 HDMI CEC

CEC Control

Press ◀▶ to turn the HDMI CEC On or Off.

Audio Receiver

Press ◀▶ to turn the Audio Receiver On or Off.

Device Auto Power Off

Press ◀▶ to turn on this feature. When finished turn off your TV. The connected device will turn off automatically.

TV Auto Power On

Press ◀▶ to select this option. When finished, turn on the connected device. The TV will switch on automatically.

Device List

Press OK to open the main menu of device.

Device Menu

Access the device menu.

6.0 USB

6.1 Reminder when using the USB player

1. Some USB storage devices may not be compatible to operate smoothly with this TV.
2. Back up all of the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.
3. For large file sizes, the loading speed may be slightly longer.
4. The recognition speed of a USB storage device may depend on each device.
5. When connecting or disconnecting the USB storage device, make sure the TV is not in USB mode otherwise the USB storage device or the files stored in it may be damaged.
6. Please use only a USB storage device which is formatted in FAT16, FAT32, NTFS (playback only) file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.
7. When using a USB Hard Disk Drive which is not powered independently, ensure its power does not exceed 500 mA. Otherwise the TV system will change into standby mode, and you must pull out the USB Hard Disk and restart the TV system.
8. An "Unsupported File" message will be displayed if the file format is unsupported or the file is corrupted.
9. FHD big picture needs longer time to process, which is not caused by the TV. Please be patient.
10. This TV may not support some multimedia files changed and upgraded as the change of the encoding format or other technical aspects advances.
11. Please refer to chapter 9. Appendix for a list of supported file formats for USB playback.

6.2 USB menu

Press SOURCE and select USB. You can view movie, music and photo files from your USB storage devices. Connect a USB storage device to the USB input terminal and select the types of media on the home page: Movie, Music, Photo and text. Press OK, the screen will show the connected USB device, press OK again to view the file folders and files. Press ▲▼ or ◀▶ to select a folder, press OK to open the folder and select the files. Highlight the one you want to play or watch or press directly ▶II to start playing directly. Press ■ to stop playing and return to upper lever folder. Continuously press RETURN to go back to upper level folder. Repeat again to select and play another media type.

NOTE:

By choosing one of the three media types, for example Movie, the folders inside will display only video files and no other formats.

6.2.1 Play movies

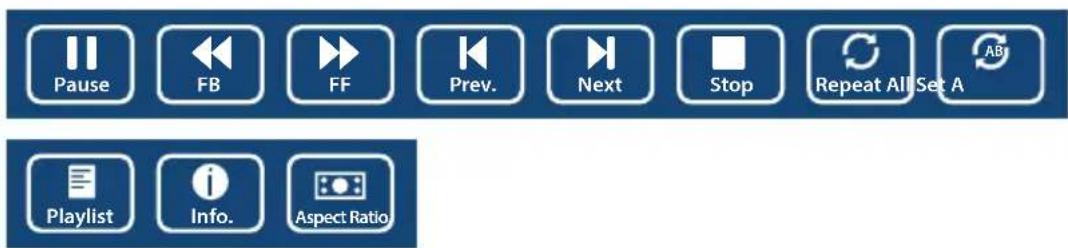

Fig. 6

During playback, press INFO or OK to display/exit the menu bar (Fig. 6). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Prev./Next

Press ▶ II to play or pause the playback. Press ■ to stop playing. Press ◀◀ ▶▶ to play the previous or the next video file. Press INFO and use ◀◀ to highlight the corresponding icon on the control bar, then press OK. The TV will response accordingly.

Fast Reverse/

Fast Forward

Press and hold ◀◀▶ for seconds to draw the playing progress as your desire, then press ▶II to start the playing from the new position.

Play Mode

Highlight the corresponding icon and press OK to switch to another play mode.

Information

Highlight the corresponding icon and press OK to view the information of the playing video.

Aspect Ratio

Highlight the button and press OK to select the display mode.

6.2.2 Play music

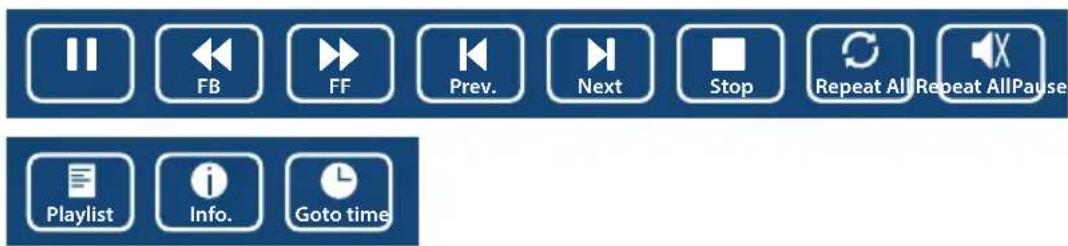

Fig. 7

Press INFO or OK to display/exit from the menu bar (Fig. 7). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

Press ▶ II to play or pause the playback. Press ■ to stop playing. Press ◀◀▶▶ to play the previous or the next music file. Press ◀◀▶ to highlight the corresponding icon on the control bar, and then press OK. The TV will response accordingly.

Fast Forward/

Fast Reverse

Press and hold ◀◀▶ for seconds to draw the playing progress as you wish, then press ▶II on the remote control to start playing from the new position.

Repeat

Highlight the icon and press OK. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.

Information

Highlight the icon and press OK to check the information of the playing music.

NOTE:

1. If one (or more) file(s) of the play list is selected, the buttons ◀◀ ▶▶ will play only selected fi les.
2. This menu only shows supported files.
3. Files with other file extensions are not displayed, even if they are saved on the same USB storage device.
4. An over-modulated mp3 file may cause some sound distortion during playback.
5. This TV supports lyrics display (in English). The maximum number of characters per line is 48.
6. The fi le name of music and lyrics must be the same in order to display lyrics while the music is playing.
7. If you want to show the associated lyrics on the screen with the music, you must store these in the same folder using the same file name with ".lrc" file extensions.

6.2.3 Browse photos

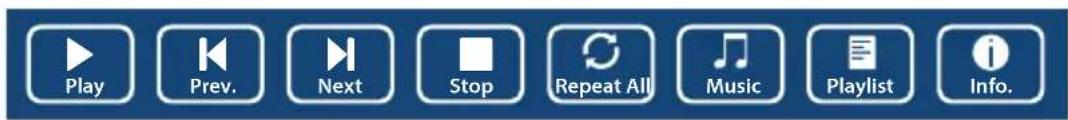

Fig. 8

Press during viewing INFO or OK to display/exit from the menu bar (Fig.8). Press the USB control buttons on the remote control to do relevant operations.

Play & Pause/Stop/Previous/Next

Press ▶ II to play or pause the playback. Press ■ to stop playing. Press ◀◀ ▶◀ I to show the previous or the next picture. Press ◀◀ to highlight the icon on the control bar, and then press OK. The TV will response accordingly.

Repeat

Highlight the icon and press OK. You can select 3 different modes: None to disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished.

Info

Highlight the button and press OK to check the information of the shown photo.

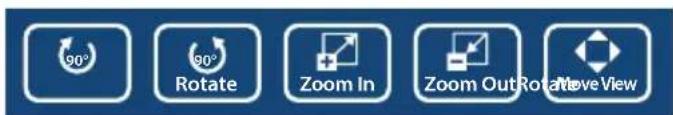

Rotate

Highlight the icon in the menu bar and press OK to rotate the picture 90 degrees clockwise or counter clockwise.

Zoom In/Zoom Out

Highlight the icon on the menu bar and press OK to zoom in or zoom out of the image.

Move View When the image is magnified, use this function for convenient check.

Highlight this icon, press OK, then press ◀▶▲▼ to move the image.

NOTE: The move function

is only available when the image is enlarged.

6.2.4 Browse text documents

Press ◀▶ to select Text in the main menu. Then press ◀▶ to select the drive disk you choose to watch and OK to enter. Select the file you want to display by using ▲▼ ◀▶ and confirm with OK. Quit step by pressing OK. Press ◀▶ to select return and go back to previous menu.

6.2.5 Software update via USB

From time to time you can check if there is an improved software version available. This can be viewed and downloaded from our website www.strong.tv. Search the model number on our website's service support section. If there is an improved software version you can download the file and copy it to the root of a USB device. Then press ▲▼ button to select Software Update (USB) from the SETUP menu on your TV. Afterwards plug your USB device into the USB slot and press OK to update the respective software. Confirm with Yes using ◀▶. When the update is completed, remove the USB stick, disconnect your device from the main power supply and plug in again.

7.0 TROUBLESHOOTING

Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing. If the TV does not work properly after checking it, please contact your local service line or STRONG dealer. Alternatively you can send a support mail via our website www.strong.tv.

Problem Possible cause and solution
No picture,no sound 1. Check if the fuse or circuit breaker is working.2. Plug another electrical device into the outlet to make sure it is working or turned on.3. The power plug is in bad contact with the outlet4. Check the signal source.
No colour 1. Change the colour system.2. Adjust the saturation.3. Try another channel. Black-white programme may be received.
The remote control does not work	1. Change the batteries.2. The batteries are not installed correctly.3. Main power is not connected.
No picture, normal sound 1. Adjust the brightness and contrast.2. Broadcasting failure may happen.
Normal picture, no sound 1. Press the volume up button to increase the volume.2. The volume is set to mute, press Ⓞ to restore the sound.3. Change the sound system.4. Broadcasting failure may happen.
Unorderly ripples on the picture	It is usually caused by local interference, such as cars, daylight lamps and hair driers. Adjust the antenna to minimize the interference.
Snowy dots, blocking and interference	If the antenna is located in the fringe area of a television signal where the signal is weak, the picture may be marred by dots, show blocking or break-ups. When the signal is extremely weak, it may be necessary to installa special antenna to improve the reception.1. Adjust the position and orientation of the indoor/outdoor antenna.2. Check the connection of the antenna.3. Fine tune the channel.4. Try another channel. Broadcasting failure may happen.
Ghost Ghosts are caused by the	television signal following two paths. One is the direct path, the other is reflected from tall buildings, hills, or other objects. Changing the direction or position of the antenna may improve the reception.
Radio frequency interference	This interference produces moving ripples or diagonal streaks, and in some case, loss of contrast in the picture. Find out and remove the radio interference source.
Playback of video is causing picture freeze/macro blocks or similar distortion, especially on HD content.	Read/write speed of your USB device could be too low. Make sure to use a USB storage device with sufficient speed and space. Pen drives (USB sticks) may not support sufficient speed.
No signal or weak signal, intermittent reception.	a. Cables might have loosened; moisture might have entered into cables or connectors, heavy rain at present or heavy storm at present.Check the cable connections, LNB and other equipment connected between the LNB and the receiver, or peak the dish. Wait for rain/storm to subside. Ask a local satellite specialist for advice.b. The satellite dish is not pointing at the (correct) satellite(s).Adjust the dish. Ask a local satellite specialist for advice.7c. Satellite dish is too small, trees or buildings in path.Change to a larger dish or change position of dish.d. Signal is too strong, dish is oversized.Connect a signal attenuator to the LNB input. Ask a local satellite specialist for advice.
Bad picture/blocking error during heavy rain.	Heavy rain will attenuate satellite signals, below a certain level blocking will occur.Make sure your dish installation is up to standards to minimize rain effects. When in doubt, ask a local satellite specialist for advice.

NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv.

8.0 SPECIFICATIONS

Audio

Audio Output: 6 W + 6 W

Video

Channel coverage: DVB-T2: 174 MHz-230 MHz; 470 MHz-860 MHz

DVB-C: 50-858 MHz

DVB-S2: 950 MHz-2150 MHz

System: DTV: DVB-T2, DVB-S2, DVB-C

ATV: PAL/SECAM (BG/DK/1)

AV: PAL, NTSC

Connectors 24 inch, 39 inch

1 x ANT/CABLE IN

1 x SAT IN

1 × Cl+

2 x HDMI

1 x SCART

1 x USB

1 x S/PDIF (coax.)

1x VGA

1x AV IN

1x YPbPr

1 x headphones

Connectors 32 inch

1 x ANT/CABLE IN

1 x SAT IN

1 x Cl+

2×HDMI

1 x SCART

1 x USB

1 x S/PDIF (coax.)

1x VIDEO/AUDIO L/R

1x VGA

1x YPbPr

1 x headphones

1x AC IN

Connectors 40 inch

1 x ANT/CABLE IN

1 x SAT IN

1×Cl+

3 x HDMI

1 x SCART

1 x USB

1 x S/PDIF (coax.)

1x VIDEO/AUDIO L/R

1x VGA

1x YPbPr

1 x headphones

1x AC IN

General Data

Operating voltage: 100 \~ 240 V AC 50/60 Hz

Power consumption: 24": max. 33 W, typ. 19 W

32" max. 53 W, typ. 33 W

39": max. 68 W, typ. 53 W

40": max. 76 W, typ. 50 W

24", 32", 39", 40": <0.5 W

Power consumption in standby: 24", 32", 39", 40": <0.5 W

Operating temperature: +5 °C \~ +35 °C

Storage temperature: -15 °C \~ +45 °C

Operating humidity: 20% \~ 80% RH, non-condensing

Storage humidity: 10% \~ 90% RH, non-condensing

Dimensions (WxHxD) in mm: 24": 550 x 150 x 359

32": 732 × 200 × 478

39": 885 x 200 x 558

40": 914 x 200 x 584

Net-weight: 24": 3.8 kg

32": 4.6 kg

39": 6.4 kg

40": 7,6 kg

9.0 APPENDIX

USB fi le playback support.

Video

File Type/(Ext Name)	Video Type	Audio Type	Remark
MP4, MOV/(.mp4, .rnov, .m4v)	Motion JPEGMPEG-4 SP/ASP (XviD)	MPEG-AUDIO
AVI/(.avi)	MotionJPEGMPEG-4 SPIASP (XviD)	LPCM MPEG-AUDIO
ASF/(.wmv3, .xvid)	MPEG-4 SPIASP (XviD)	MS-ADPCM, Intel-ADPCM
MKV/(.mkv,.xvid)	MPEG-4 SPIASP (XviD)	MPEG-AUDIO
TS/TP	.tsltrp	LPCM MPEG-AUDIO
DAT, MPG,MPEG/(.dat,. mpg,mpeg)	LPCM	MPEG-AUDIO
VOB/(.vob)
Flash Video	FLV
H.263, H.264, H.265

Music

File Type/(Ext Name)	File Extension	Version support	Remark
Mpeg-1 Layer 3 mp3	LPCM
WAVE	wav
Audio Coding 2 AC3
File Type/(Ext Name) File Extension Version support Remark
Ogg Media .ogg, .ogm, .oga, .ogv, .ogx


File Type File Extension Version support Remark
JPEG/ BASELINE JPEG/ HD JPEG	jpg/jpeg
BMP bmp support all modes
PNG png support interlace			does not support animation mode
