Brand	Orion
Model	OR-QH25
Product Type	Quartz Heater
Rated Voltage	220 V ~ 50 Hz
Power Output	2500 W (Model OR-QH20: 2000 W)
Mounting Options	Floor standing with tripod, wall mountable
Adjustable Height	Yes, via lift staff with locking ring
Heating Element	Quartz tube
Controls	On/Off switch
Power Cord	Detachable? No, fixed cord
Safety Features	Warning: do not cover, keep away from combustibles (50 cm), no use in damp areas
Cleaning	Wipe with dry soft cloth, no liquids or solvents
Storage	Store upright, coil cord around base
User Serviceable Parts	None, do not open case
Warranty	Contact manufacturer or dealer

Frequently Asked Questions - OR-QH25 ORION

How do I assemble the OR-QH25 heater?

First, spread the tripod legs. Unscrew the locking ring on the lift staff, adjust to desired height, and retighten. Attach the heating body by aligning the screw holes on the brackets (attached to the staff top) with the 4 screw caps on the back of the heater. Use a screwdriver to secure the screws through the brackets into the caps. Ensure the power cord hangs downwards from the bottom left of the heater.

Can I use this heater in a bathroom?

No, this heater is not intended for use in bathrooms, laundry areas, or similar moist indoor locations. Do not place it where it could fall into water.

How do I clean the OR-QH25?

Before cleaning, turn off and unplug the heater, and let it cool completely. Wipe the exterior with a dry, soft cloth. Do not use detergents, solvents, or spray liquids. Do not attempt to clean the interior.

What are the safety precautions I should follow?

Keep the heater at least 50 cm away from combustible materials like furniture, curtains, and bedding. Do not cover or place laundry on it. Do not use near flammable liquids. Always unplug when not in use. Do not operate with a damaged cord or after a malfunction.

What is the power consumption of this model?

The OR-QH25 operates at 220 V ~ 50 Hz and has a power output of 2500 W. A similar model OR-QH20 has 2000 W.

Can I mount the heater on a wall?

Yes, the heater can be wall mounted. The manual provides diagrams for wall mount setup. Ensure the lift staff is at the midpoint of the heating body length when mounting.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the heater until repaired.

How should I store the heater when not in use?

Store the heater in a cool, dry place, always in the upright position. Neatly wind the power cord around the base to prevent damage.

Does the heater have a thermostat or tip-over switch?

The manual does not mention a thermostat or tip-over switch. The heater is controlled by a simple on/off switch. Additional safety features are not specified.

What is the warranty for this product?

Warranty details are not provided in the manual. For warranty service, contact the seller or Orion at [e-mail] for additional information.

USER MANUAL OR-QH25 ORION

Exterior view of a portable stand with tripod base (no text or symbols visible)

220V 50Hz 2000W/2500W

DEAR CUSTOMERS!

MANY THANKS FOR BUYING ORION QUARTZ HEATER!

We really believe you will get the greatest pleasure from using this device for the years!

Please, read the user's guide in detail before first using of this quartz heater.

CAUTION

1. Do not position this heater immediately below or in front of a socket outlet.
2. This heater is hot when in use. To avoid bums, do not let bare skin touch hot surfaces. Let the heater cool before moving. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 50cm from sides of the heater. Do not drape laundry or any other items over the heater.
3. This appliance is not intended for use by persons (Including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Young children should be supervised to ensure that they do not play with the appliance.
5. Always unplug the heater when not in use.
6. Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, has been dropped or is damaged in any manner. Return the heater to an authorized service facility for examination.
7. Do not use the heater outdoors.
8. This heater is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never locate the heater where it may fall into a bathtub or other water container.
9. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
10. Do not run the power cord under carpeting or cover the cord with throw rugs, runners or the like. Arrange the cord away from traffic areas and where it will not be tripped over.
11. Do not place the cord over any part of the heater.
12. Do not plug this heater into an extension lead, double adapter or power board.
13. To disconnect the heater, set controls to OFF then remove the plug from the outlet.
14. To prevent a possible fire, do not block air intakes or exhausts in any manner.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire or could damage the heater.
16. This heater has hot electrical parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
17. Use the heater only as described in this booklet. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
18. Always uncoil the power cord before applying power.
19. This product must always be used AND STORED in the upright position.
20. If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons In order to avoid a hazard.

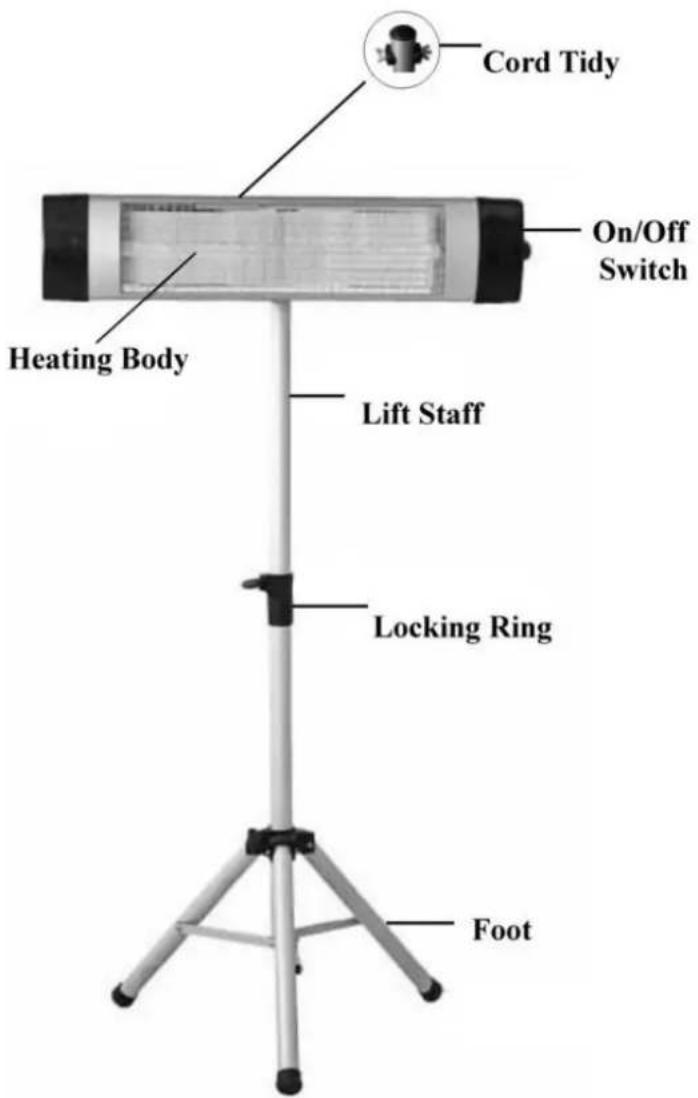

PARTS

LIFT STAFF

The lift staff is inserted into the base pole. When starting to lift the staff, firstly unscrew the locking ring, then draw out the staff to the wanted height and screw the locking ring back tightly, If you want shorten the height, just reverse the above the procedure.

Two black-and-white photos showing a mechanical component before and after assembly (no text or symbols visible)

HOW TO ASSEMBLE THE HEATER

1. Firstly, spread the tripod.

Two views of a mechanical tripod device showing a left and right assembly (no text or symbols visible)

1. When starting to fix the heating body, make sure all the screw poles fitted in the 2 brackets on the top of lift staff are tight enough, You can use a tool to tighten the screw cap, refer to the image below:

Close-up of a metallic mechanical joint or bracket (no visible text or symbols)

Close-up of a mechanical clamp or bracket component (no visible text or symbols)

1. After fixing the 2 brackets, you are ready to install the heating body. There are 4 screw caps at the back of heating body, (refer below image), taking out the 4 screws, let the 4 holes on the 2 brackets align to the 4 screw caps respectively, then use screwdriver to infix the screws to drill through the bracket hole and screw cap.

1. To ensure the heating body is in the right position, please make sure the power cord set is hanging downwards from the bottom left of the unit

1. Note: when installing the heating body on the brackets, make sure the lift staff is at the midpoint of length of heating body.

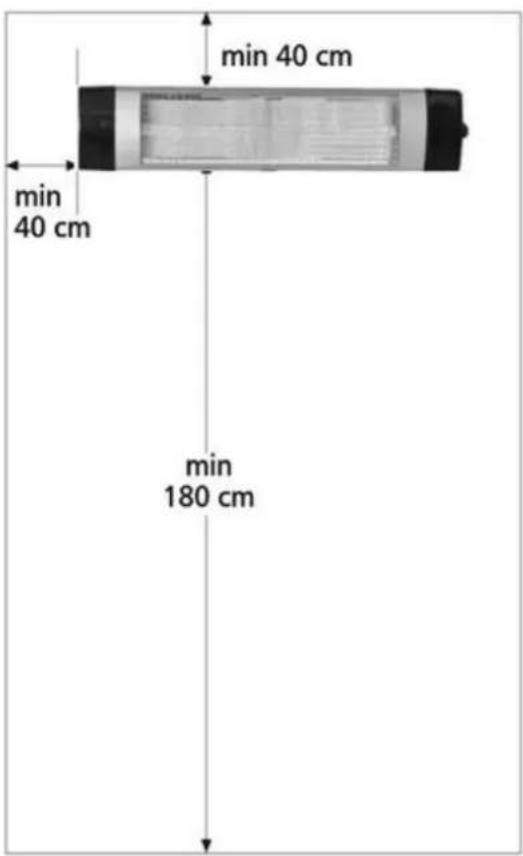

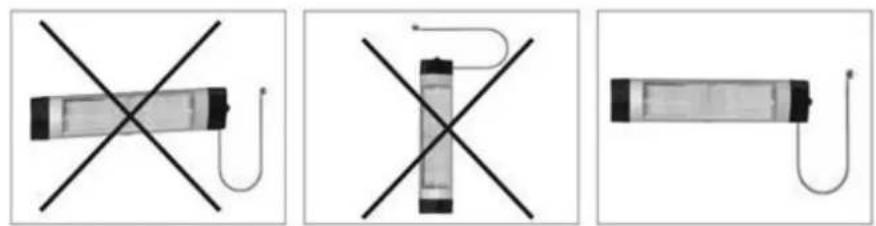

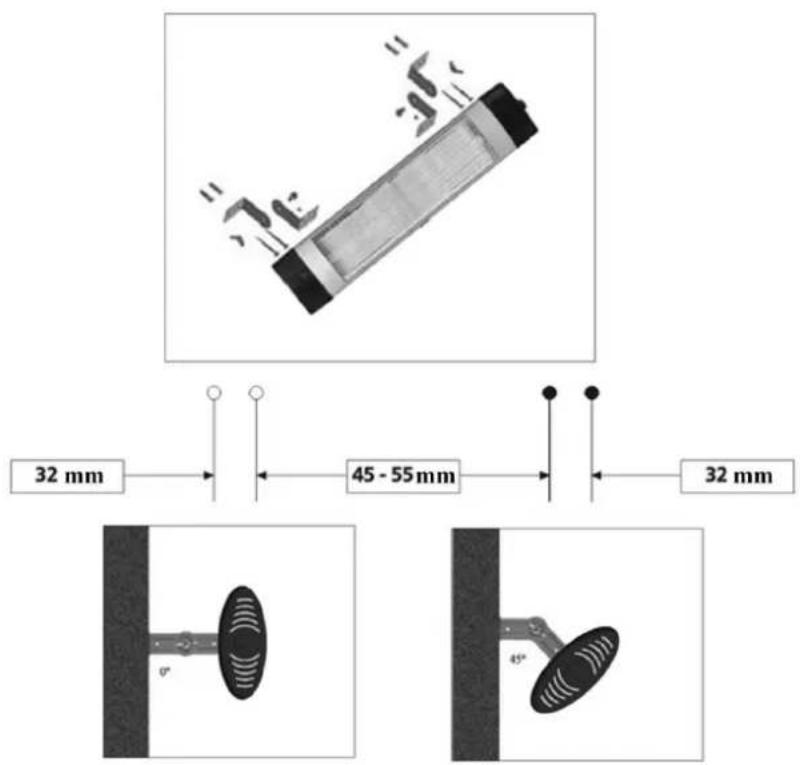

FOR WALL MOUNTED USE

Three-panel diagram showing a rectangular device with a U-shaped wire and crossed-out black X marks, alongside its three variants (no text or symbols)

OPERATION

1. Place the heater on a level surface in a stable upright position, Make certain the power switch is in the "OFF (0)"position.
2. Unwind the power cord and plug your heater into a standard domestic socket outlet.
3. To switch on the heater. Turn the switch to "on" position.
4. To switch off the heater. Turn the switch to "off position."
5. After use, turn off the switch and pull out power cord.

CARE AND CLEANING

1. Before cleaning, ensure that the heater is switched in the off position and is unplugged from the socket, allowing it to COOL thoroughly.
2. Clean the exterior surfaces of the heater with a dry. Soft cloth.
3. Never use any form of detergents or solvents to clean the heater.
4. Never spray with liquids or submerge in liquids or water.

5. DO NOT attempt to clean the interior of the heater.

6. DO NOT ATTEMPT TO OPEN THE CASE OF THIS HEATER at any time. There are no consumer serviceable parts inside this unit.

7. When the heater is stored during the off season, neatly wind the cord around the base of the heater to prevent any damage to the cord.

SPECIFICATIONS

Model: OR-QH20 OR-QH25
Rated Voltage: 220V~50 Hz 220V~50 Hz
Operating Output: 2000 W 2500 W

Extra information on ORION company web-site www.orion.ua

We take your opinion and offers by E-mail [e-mail]
