CF-250K - Cooler ORION - Free user manual and instructions

Product Type	Thermoelectric Cooler
Brand	Orion
Model	CF-250K
Capacity	24-25 L
Weight	3.6 kg
Power Supply	12V DC (cigarette lighter) or 220-240V AC (optional adapter)
Rated Current	6 A
Power Input	46 W (cooling)
Cooling Capacity	Max 12-16 °C below ambient temperature
Cooling Element	Thermoelectric (Peltier)
Insulation Material	Solid polyurethane foam
Includes	Cooler, 12V auto adapter, optional 220V/12V adapter, user manual, warranty card
Ventilation	Ventilation grates; ensure adequate airflow, do not block
Carrying	Handles for carrying; seat belt strap for mounting
Additional Features	Lid, 3 large reticulated pockets, special fixings for storage
Usage	Keeps pre-cooled food and drinks cool; not for freezing
Cleaning	Damp cloth with mild detergent; do not immerse or use abrasives
Safety Precautions	Do not use in sealed spaces; avoid rain/moisture; do not cover vents; unplug before starting vehicle

Frequently Asked Questions - CF-250K ORION

Can the Orion CF-250K cooler freeze food?

No, this cooler is designed to keep food and drinks cool, not freeze them. It can cool up to 12-16°C below ambient temperature.

What power sources can I use?

The cooler operates on 12V DC (car cigarette lighter) and optionally on 220-240V AC with an included adapter.

How do I connect the cooler to the car?

Simply plug the 12V cable into the cigarette lighter socket. Ensure the car engine is running to avoid power surges.

How should I clean the cooler?

Disconnect power first. Clean with a damp cloth and mild detergent. Do not immerse in water or use abrasive cleaners.

What is the capacity of the cooler?

The cooler has a capacity of 24-25 liters.

Can I use the cooler in a closed car or trunk?

No, the cooler requires good ventilation. Do not use in a sealed car, trunk, or closed room to avoid overheating.

What should I do if the cooler stops working?

Check the 12V socket contacts, ensure proper connection, verify fan obstruction, and ensure the unit is in a well-ventilated area.

Is the cooler safe for children?

Supervise children to prevent play. The device is not intended for use by persons with reduced capabilities without supervision.

How does ventilation affect performance?

Good ventilation is essential. Blocking air flow reduces cooling efficiency and may damage the unit. Keep vents uncovered.

What maintenance is required?

Regular cleaning with a damp cloth. Periodically inspect the cable for wear. Store the cord inside the unit to prevent loss.

USER MANUAL CF-250K ORION

Camouflaged medical bag with black straps and white interior, featuring a perforated vent and mesh design (no text or symbols visible)

Please, read this manual carefully, before use.

Store this instruction manual in a safe place.

ORION®

Dear Customers! Thank you for buying cooler ORION!

We surely believe you will get a lot of pleasure using this device for many years!

Please read these manual before use. It easily describes and explains how to use all functions in understanding way.

CONTENTS

SAFETY PRECAUTIONS ....3

FEATURE 4

SET UP 4

INTRODUSION....4

OPERATION 4

USING THE COOLER....5

MAINTENANCE 5

TECHNICAL DATA 5

TROUBLESHOOTING....5

COMPLETION....5

SAFETY PRECAUTIONS

1. Do not carry the cooler by the cable or pull the cable to remove the plug from the socket.
2. Inspect the cooler cable and any extension leads used periodically for excessive wear or damage.
3. Operate the unit only with the cord provided. Store the cord inside of the unit to prevent loss of cord.
4. Do not hold the plug with wet or moist hands.
5. Be sure that the unit is unplugged prior to starting the vehicle.

Appliance may only be plugged in after the vehicle is running.

Please note that voltage surge may damage the unit.

1. Be sure that the unit is operated in a well ventilated area. Good ventilation is essential to avoid over-heating. The inside element may be damaged and lose its power if the unit is operated in badly ventilated area.
2. Do not cover the vents on the unit.
3. Do not place the unit in a sealed car or in a trunk. Do not obstruct the air flow. Do not use the unit in a closed room without supply of air.
4. Only operate the unit from a 12V DC and 220V AC power source. Do not attempt to operate the unit from any other power source.
5. Do not put any sticks into the fan during operation. Avoid use on grassland since grass can easily get into the fan.
6. Do not touch the terminals of the cigarette plug immediately after use. Touching the plug immediately after use may cause personal injury.
7. Appliance is suitable for camping use. However, unit should not be exposed to rain or moisture.
8. Do not use abrasive cleaners or scrubs as this may damage the unit.
9. Do not immerse the appliance or the 12V plug in water.
10. Do not use household chemicals to clean the unit (e.g. Bleach, etc....).
11. Do not open your cooler. There are no serviceable parts in this unit. Doing so will void the warranty.
12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. If the cord is damaged it must be replaced by the manufacturer or its Technical Assistance Service or by a person with similar professional training in order to avoid any possible risk.

This cooler is designed to keep your food and drinks cool during your travels, please note it is not designed to freeze food. Depending on the operating conditions the unit will cool up to 18 degrees below ambient temperature. The 12V power cable can be plugged into the cigarette lighter socket in your car, boat or caravan. The cooler is also suitable for camping use however it should not be exposed to any rain, moisture, dirt, dust or sand.

SET UP

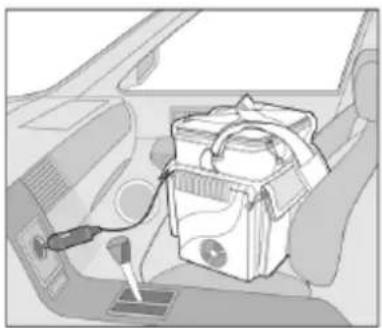

Mounting the unit: Assemble the seat belt strap to the unit.

Connecting of the power cable: Simply plug the 12V cable into the lighter socket in your car, boat or caravan, the unit will start working. To turn off the unit, disconnect the plug.

Interior view of a car showing a hand holding a battery pack and switch inside the dashboard (no text or symbols visible)

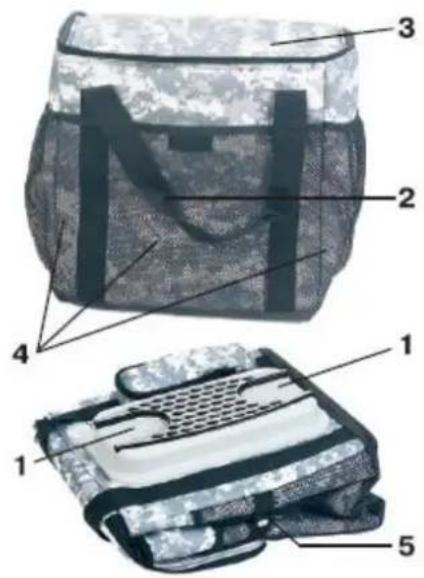

INTRODUSION

1. Ventilation grates
2. Handles for carrying
3. Lid
4. 3 large reticulated pockets
5. Special fixings for in the built kind storage

OPERATION

Before starting your new cooler for the time, first you should clean it inside and outside with a damp cloth for hygienic reasons. Never use an abrasive product to clean the cooler.

It is recommended for best cooling results to pre-cool the contents before use.

Caution: Ensure the car engine is switched on before you connect the 12V power cable to avoid power surges which will potentially damage the cooler. It is strongly recommended that the appliance is used in conjunction with a surge protection device to protect the electronic components inside.

COOLING

The best affect is achieved when you fill your cooler with food and beverages which are already refrigerated. They will then stay cool and even become cooler still providing the appliance remains switched on.

If you wish to cool perishable medicines please check if the cooling capacity of the

device is suitable for the medicine in question.

The cooling temperature will be influenced by:

• The ambient temperature.
• Amount of food to be conserved.
• The frequency in which the lid is opened.

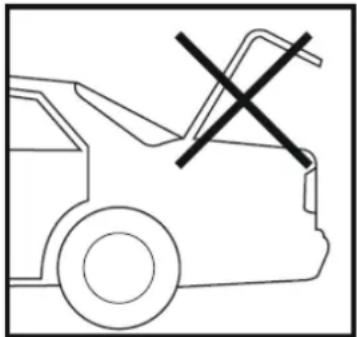

Ventilation

Ensure the cooler is in a well ventilated area and avoid blocking or interfering with the flow of air to the fan. Never use the cooler in a closed room or car boot.

Simple line drawing of a car with a cross symbol on the roof (no text or labels)

MAINTENANCE

Before cleaning the cooler disconnect the 12V power cable. Clean the cooler on a regular bases with warm water containing a detergent if necessary. Dry the clean surface with a soft damp cloth.

Do not clean the cooler under running water, or immerse in water. Do not use abrasive cleaning agents or hard objects during cleaning as this will damage the cooler.

Using device in the conditions of high temperature or humidity, a runback appears inside. It does not mean the unit is broken, simply wipe moisture with dry fabric.

TECHNICAL DATA

Capacity: 24-25L

Weight: 3.6kg

Application: 12V DC, 220-240V AC, \~50Hz

Rated current: 6A

Power input: 46W (cool)

Cooling capacity: Max 12-16 degrees below ambient temperature

Insulation: Solid polyurethane foam

Cooling unit: Thermo electric element

TROUBLESHOOTING

If the unit does not operate correctly:

1. Make sure that the contacts in the 12V socket are clean.
2. Make sure the 12V plug is properly connected in the 12V power source.
3. Make sure are no obstructions in or near the fan that may affect its operation.
4. Make sure the unit is well ventilated and not stored in a closed area such as a car boot.

COMPLETION

Cooler, Auto adapter 12V, Adapter 220V/12V (optional), User Manual, Warranty Card

Note: DOES NOT CONTAIN HAZARDOUS SUBSTANCES

Subject to change without notice
