USER MANUAL DVSMC9C V-ZUG

Line drawing of a stainless steel kitchen chimney (no text or symbols)

Operating instructions

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarize yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Symbols used

Denotes important safety precautions. Failure to observe said precautions can result in injury or damage to the appliance or fittings!

▶Indicates step-by-step instructions.
- Describes how the appliance reacts to the steps taken.
- Indicates a list.

Denotes useful tips for the user.

Validity

The model number corresponds to the first three digits on the identification plate. These operating instructions apply to the models:

Type Model no.

DV-SMC9014
DW-SMC9332

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 4

1.1 Before using for the first time 4
1.2 Correct use 5
1.3 Children in the home 5
1.4 Note on use 6

2 Appliance description 8

2.1 Fitted with 8
2.2 Construction 9

3 U s e 1 0

3.1 Operation 10
3.2 Illumination 10

4 Care and maintenance 11

4.1 Cleaning the housing 11
4.2 Cleaning the grease filters 12
4.3 Cleaning the temperature sensor 13
4.4 Replacing the LEDs 14

5 Trouble-shooting 15

5.1 What to do if ... 15

6 Accessories and spare parts 16

7 Technical data 17

8 Disposal

9 Notes

10 Index 22

11 Repair service 23

1 Safety precautions

The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.

In accordance with the requirements of IEC 60335-1:

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction concerning the use of the appliance by a person responsible for their safety.

1.1 Before using for the first time

• The appliance must be installed and connected up to the electricity supply according to the separate installation instructions. The necessary work should be carried out by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.

1.2 Correct use

- The appliance should only be used together with a suitable comfort ventilation system from Zehnder Comfosystems. Other comfort ventilation appliances or external blowers are not equipped with the necessary safety features. Please follow the operating instructions and safety precautions recommended by Zehnder Comfosystems.

- The appliance is designed for use in the home for extracting cooking vapours from above the cooking area

- Any repairs, modifications or manipulations to the appliance, especially any electrical parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the 'Repair service' section. Please contact Customer Services if necessary.

- Use original spare parts only.

- Retain these operating instructions for future reference. If you sell or pass the appliance on to a third party, please ensure these operating instructions accompany the appliance, together with the instructions on installation. In this way, the new owner can inform themselves about how to use the appliance correctly and read the pertinent safety precautions.

1.3 Children in the home

- Packaging material e.g. plastic and polystyrene can be dangerous for children. Danger of suffocation! Please keep packaging material away from children.

- The appliance is designed for use by adults who are familiar with these operating instructions. Children are often unable to recognise the danger of electrical appliances. Ensure proper supervision and do not allow children to play with the appliance – there is a danger that children could hurt themselves.

1.4 Note on use

• If the appliance is visibly damaged, do not use it. Contact our Customer Services.
• If the appliance is not operating properly, disconnect it from the electricity supply immediately.
• Caution: Accessible parts may become hot when used with cooking appliances.
• Do not flambé food underneath the hood as the grease filters, if laden with grease, could catch fire.
• If frying on the cooking surface, do not leave the frying appliance unattended. The cooking oil in the frying appliance could overheat and catch fire. Constantly monitor the temperature of the cooking oil, keeping it below the temperature at which it can catch fire. Change the cooking oil regularly – dirty oil catches fire easier than clean oil.
• Clean the filters regularly. Failure to do so, can increase the fire hazard due to the build-up of grease in the grease filter.
• To avoid damage to the appliance or the kitchen fittings through the build-up of heat, the individual cooking zones of the cooking surface should only be operated with a full pan etc., on the top. Avoid open fires with oil, gas, wood and coal fired cookers.
• Ensure there is adequate ventilation when the extraction fan is on so as to avoid creating a disturbing underpressure in the kitchen and to achieve optimal air extraction. Pay attention also to the information in the operating instructions for your Comfort ventilation system.

• Avoid cross-currents of air which could blow the cooking fumes and vapour over the cooking area.

• With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired heating systems), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be guaranteed. Pay attention also to the information in the operating instructions for your Comfort ventilation system.

• When carrying out maintenance work on the appliance, including replacing light bulbs, cut off the electricity supply to the appliance (remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply).
• When cleaning the appliance make sure no water gets inside the appliance. Use a moderately damp cloth. Do not spray the inside or outside of the appliance with water. Do not use a steam cleaner. If water gets inside the appliance, it can cause damage.

2 Appliance description

The appliance is designed for use in the home for extracting cooking vapours from above the cooking area. The combi filters and metal grease filters clean the extracted air. The grease particles in the cooking vapour are trapped very efficiently in the combi filters and metal grease filters. The heater exchanger in the comfort ventilation system transfers energy from the warm kitchen air to the replacement air before being vented to the outside.

The appliance is solely for extracting air in combination with a comfort ventilation system.

2.1 Fitted with

• Illumination
  • 2 metal grease filters
• 3 combi filters

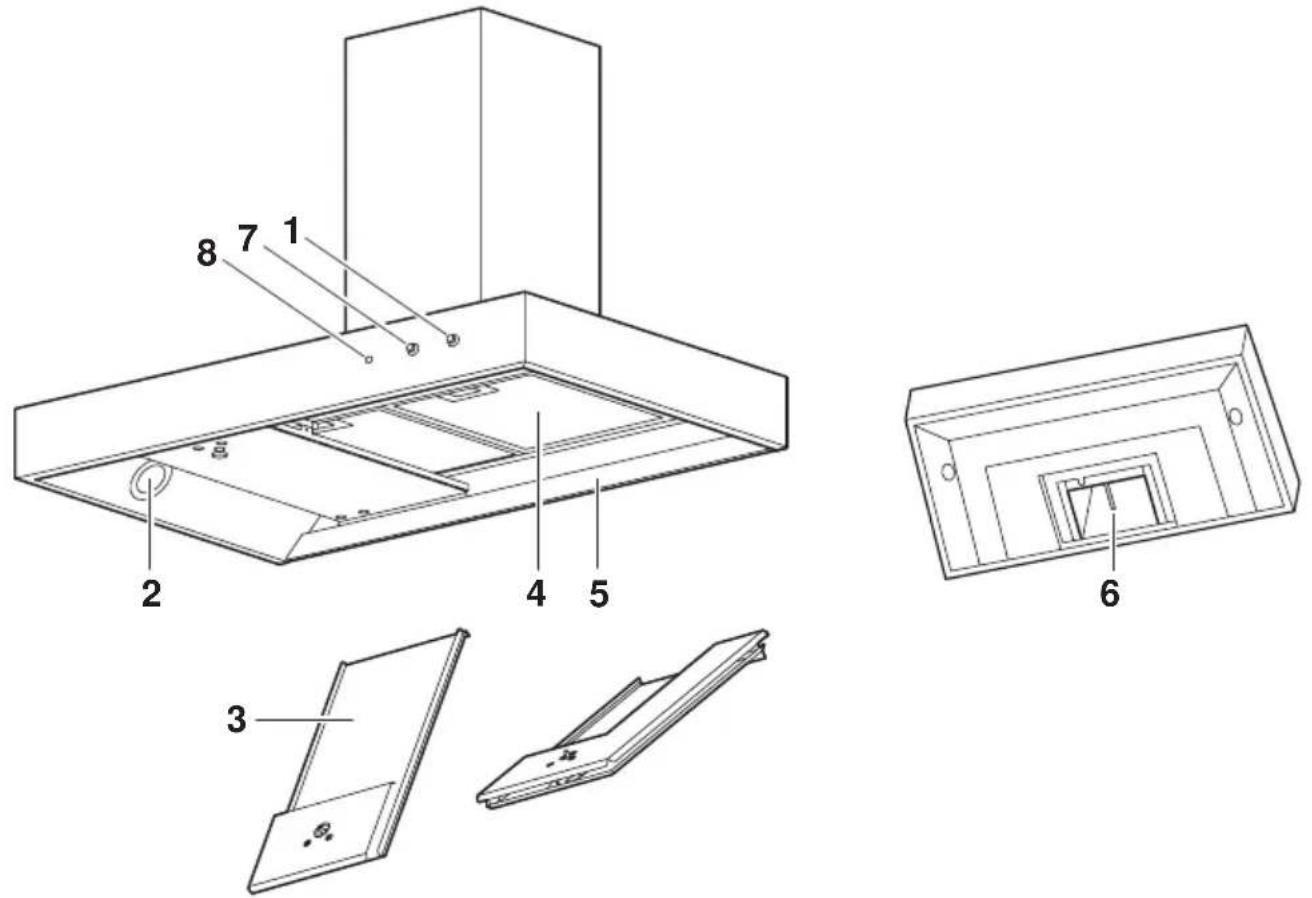

2.2 Construction

1 Illumination on/off
2 LED
3 Combi filter
4 Metal grease filter
5 Profile slot
6 Temperature sensor
7 On/off operation switch
8 Operation indicator

The temperature sensor 6 is only visible when the filter has been removed.

3 Use

3.1 Operation

▶Use the operation switch to switch operation on/off.

- The operation indicator indicates whether the appliance is running.

3.2 Illumination

▶ Press the 🔍 button to switch the illumination for on/off.

Depending on the model and features, the specification can differ from the standard specification described.

4 Care and maintenance

4.1 Cleaning the housing

Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage.

Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface.

Cleaning the outside/inside

▶Clean the outside using a slightly damp cloth – and detergent if necessary – and wipe dry.

Grease and condensate water can build up around the combi filters on the inside.

▶Clean using a slightly damp cloth – and detergent if necessary – and wipe dry.

4.2 Cleaning the grease filters

The grease filters should be cleaned at least once a month with normal use. If properly cared for, the grease filters should provide unlimited years of service.

The grease filters can be cleaned in a dishwasher.
▶Select an «intensive» – or «heavy soil» – wash programme with a warm pre-wash.

Cleaning may cause the grease filters to become discoloured.

However, this will not affect the functioning of the filters in any way.

If you do not have a dishwasher:

▶ Clean the grease filters in the sink with hot water and detergent.
- Then soak the filters in hot water in the sink for about 2 hours and finally clean with a washing-up brush.

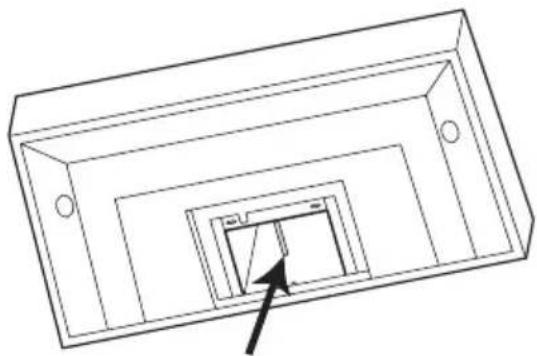

4.3 Cleaning the temperature sensor

The temperature sensor is only visible when the filter has been removed.

▶Clean the temperature sensor carefully with a soft cloth and a little detergent.

Isometric line drawing of a rectangular frame with nested square cutouts and a black arrow pointing to the bottom-right corner (no text or symbols)

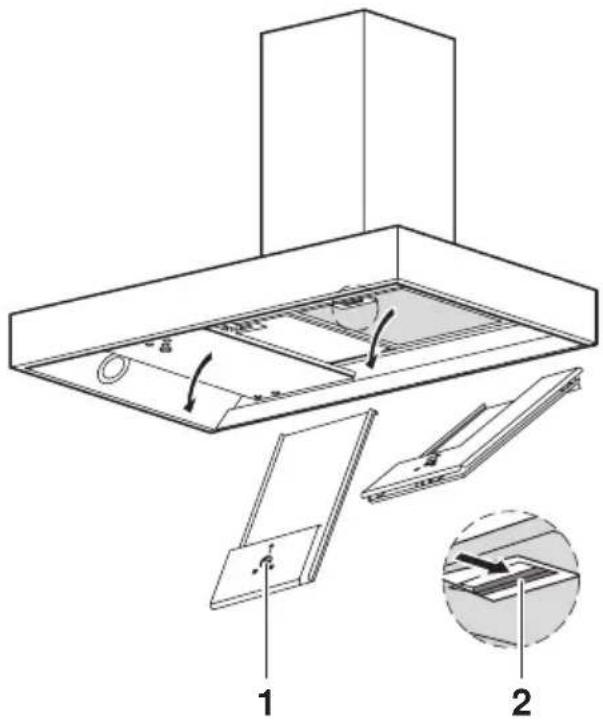

Removing the metal grease filters and the combi filters

▶ Loosen the fastening screw 1 in the combi filter in the middle.

▶With the other hand, fold the combi filter downwards.

▶Remove the combi filter from its fitting.

▶Remove the left and right combi filters in the same way.

On the metal grease filter push the grip 2 back.

▶Carefully pull the metal grease filter down and remove from the slot.

Take care not to damage the grease filters.

Installing the metal grease filters and the combi filters

▶Replace the metal grease filters.
▶Place the right combi filter in the profile slot at the back and fold upwards. Tighten the fastening screw 1 slightly.
▶Install the left and middle combi filters in the same way.

4.4 Replacing the LEDs

For safety reasons, the LEDs must be replaced by our Customer Services.

5 Trouble-shooting

5.1 What to do if ...

... the illumination is not working

Possible cause Solution
Fuse or circuit breaker for electrical installations in the home is faulty.	Replace the fuse.Reset the circuit breaker.
Interruption in the power supply.	Check the power supply.
LED is defective.	Inform Customer Services.

... the appliance is not extracting the cooking fumes and smells satisfactorily

Possible cause Solution
• The grease filters are dirty.	▸Clean the grease filters.

... the appliance is not working

Possible cause Solution
• The comfort ventilation system is switched off.	▸Switch the comfort ventilation system on.

6 Accessories and spare parts

Please give model number of the appliance and exact description of the accessory or spare part when ordering parts.

Metal grease filter

Simple line drawing of a diamond-shaped frame with a small rectangular cutout on the bottom right corner (no text or symbols)

Middle

Combi filter

Left

Right

Simple line drawing of a folded paper or document with a small hole at the bottom (no text or symbols)

7 Technical data

Electrical connection

▶See identification plate.

▶Remove the grease filter.

- The identification plate is located on the inside of the appliance.

8 D i s p o s a l

Packaging

- All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

- Disconnect the appliance from the mains power supply. With a fixed appliance, this is to be carried out by a qualified electrician!

Safety

• Disable the appliance to prevent accidents caused by improper use, especially through children playing.
• Pull the plug out of the mains socket or have the appliance disconnected from the mains by an electrician. Then cut the mains cable off flush with the appliance.

Disposal

- The old appliance should not be discarded as worthless rubbish. If disposed of correctly, the raw materials can be recovered for recycling.

- The symbol on the identification plate warns that the appliance may not be disposed of in normal household waste.

- The appliance must be disposed of in accordance with local regulations on waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.

9 N o t e s

10 Index

A

Accessories 16

Ordering 23

Appliance description 8

C

Care 11

Children in the home. 5

Cleaning 11

Grease filter 12

Combi filter 9

Construction 9

D

Disconnection 18

Disposal 18

E

Electrical connection ..... 17

F

Filter 9

Combi filter 9

Metal grease filter 9

Fittings 8

G

Grease filter Cleaning 12

|

Identification plate ..... 17

Illumination 9,10

L

LED 9,14

M

Maintenance 11

Malfunction 15,23

Metal grease filter 9

Model no. 2

0

On/off operation switch.....9

Operation 10

Operation indicator 9

Orders. 23

P

Packaging....18

Profile slot 9

Q

Queries 23

R

Repair service....23

S

Safety 18

Safety precautions Before using for the first time ..... 4

Children in the home ..... 5

Correct use. 5

Note on use 6

Service agreement 23

Service Centre 23

Spare parts 16

Ordering 23

Symbols 2

T

Technical data 17

Temperature sensor ..... 9, 13

Type 2

U

Use 10

Using for the first time. 4

11 Repair service

The TROUBLE-SHOOTING section will help you to correct minor malfunctions yourself, saving you the time and trouble of calling out a service technician and the cost that goes along with it.

Whether you contact us about a malfunction or an order, please always state the serial number (FN) and the model type of your appliance. Enter these details below and also on the service sticker which comes with the appliance. Stick it in a conspicuous place or in your telephone or address book.

FN

Appliance

You will also find the same details on the certificate of guarantee, the original sales invoice and the identification plate of the appliance.

▶Remove metal grease filter.

- The identification plate is located on the inside of the appliance.

If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

Queries, orders, service agreement

For administrative and technical queries or problems, as well as for ordering spare parts and accessories, please contact our head office in Zug on telephone number [phone].

As regards the maintenance of all our products, when the warranty expires you have the option of taking out a service agreement. We will be happy to send you the necessary forms.

V-ZUG Ltd

Industriestrasse 66, 6301 Zug

Tel. [phone], Fax [phone]
