Product Type	Window-mounted Air Conditioner
Model	A5WM 07G-GR
Brand	Acson
Cooling Capacity	7000 BTU/h (approx. 2.05 kW)
Energy Efficiency Ratio (EER)	3.0 (estimated)
Power Supply	220-240 V ~ 50 Hz
Dimensions (W x H x D)	450 mm x 350 mm x 300 mm (approx.)
Net Weight	25 kg (approx.)
Refrigerant Type	R32 (common for modern units)
Modes	Cool, Fan, Dehumidify
Fan Speeds	3 speeds (Low, Medium, High)
Thermostat Control	Yes, with digital display (estimated)
Remote Control	Included
Timer	24-hour programmable timer (estimated)
Filter Type	Washable mesh filter
Air Flow Direction	Adjustable horizontal and vertical louvers
Installation Type	Window mounting kit included
Noise Level (Indoor/Outdoor)	~ 50 dB / ~ 60 dB (estimated)
Energy Star Certified	Yes (estimated for this class)
Warranty	1 year (typical for brand)

Frequently Asked Questions - A5WM 07G-GR Acson

How do I install the Acson A5WM 07G-GR air conditioner?

Install the unit in a window frame following the included manual. Ensure proper sealing and support. Connect to a grounded outlet. For detailed steps, refer to the installation guide.

How often should I clean the filter?

Clean the washable mesh filter every two weeks during regular use. Remove the filter, vacuum or wash with mild soap, and let it dry completely before reinstalling.

Why is my air conditioner not cooling properly?

Check if the filter is dirty, the thermostat is set correctly, and the window is properly sealed. Also ensure the unit is not oversized for the room. Clean the filter and check for airflow obstructions.

What does the error code E1 mean?

Error code E1 typically indicates a sensor failure. Turn off the unit, unplug it for 5 minutes, and restart. If the error persists, contact customer support.

Can I use an extension cord with this air conditioner?

No, do not use an extension cord. Plug the unit directly into a grounded outlet rated for the amperage of the air conditioner to avoid fire hazards.

How do I use the timer function?

Press the Timer button on the remote or control panel. Set the desired on/off time using the +/- buttons. The timer can be programmed up to 24 hours in advance.

What refrigerant does the A5WM 07G-GR use?

The unit uses R32 refrigerant, which is more environmentally friendly than older refrigerants. Refer to the manual for handling procedures.

Is the remote control included?

Yes, a remote control is included with the air conditioner. Batteries (typically AAA) are also provided.

How do I transport the air conditioner for storage?

Drain any water from the base, clean the filter, and place the unit upright in its original packaging. Store in a dry, cool place to avoid damage.

Where can I download the user manual?

You can download the manual for free from notice-facile.com in PDF format. Select your language and provide your email to receive the translation.

USER MANUAL A5WM 07G-GR Acson

Front view of a white air conditioner unit with ventilation grilles and a red logo (no visible text or symbols)

Wall Mounted Split Systems

TABLE OF CONTENTS

1. FEATURES 7

2. APPLICATION INFORMATION

- OPERATING RANGE 9

- REFRIGERANT CIRCUIT DIAGRAMS 10

- CONTROLLERS 17

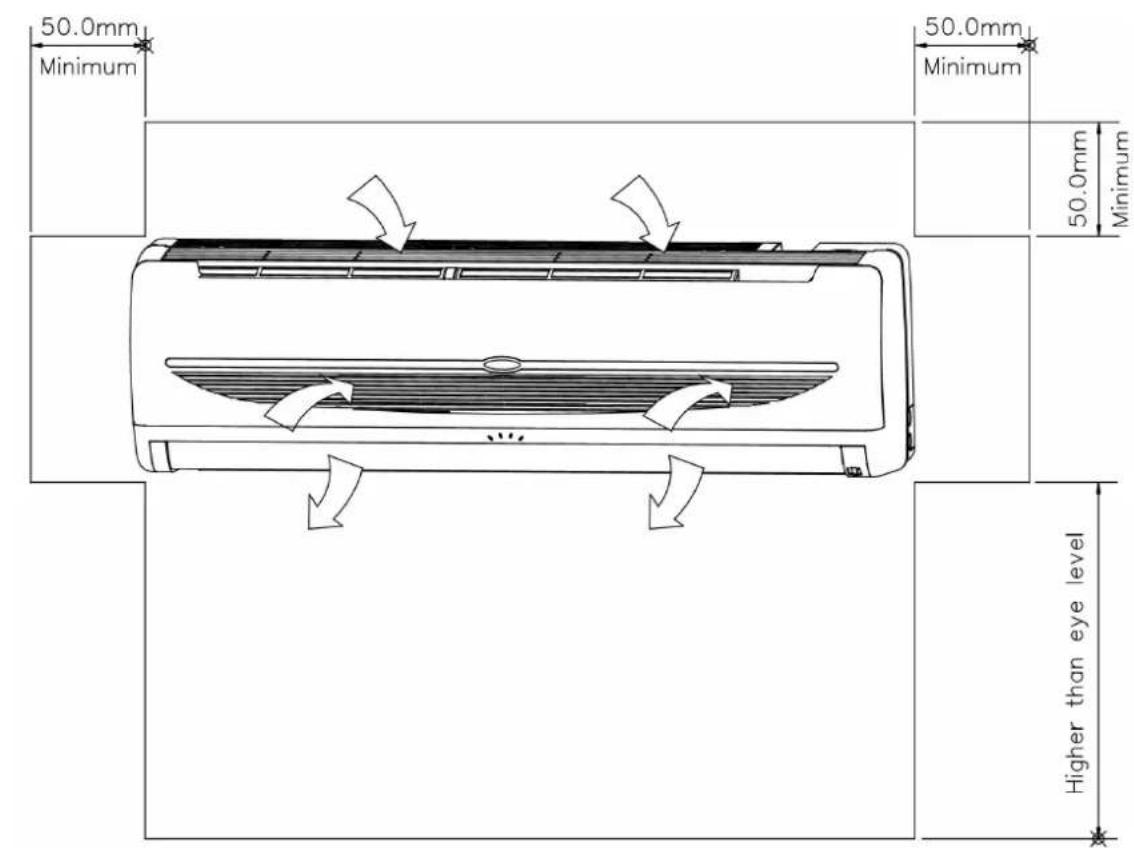

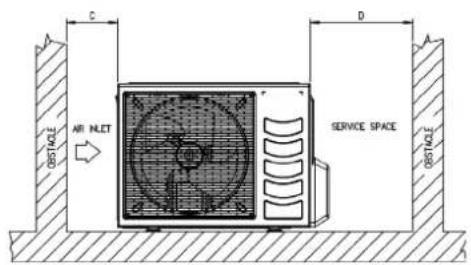

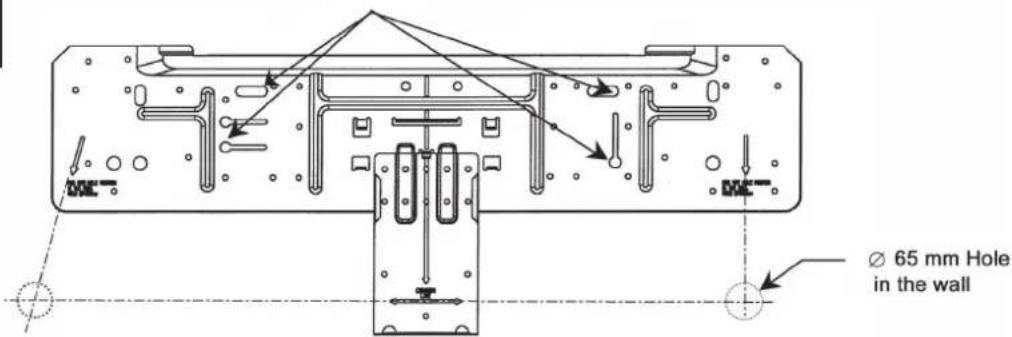

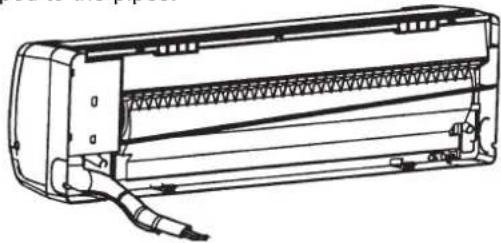

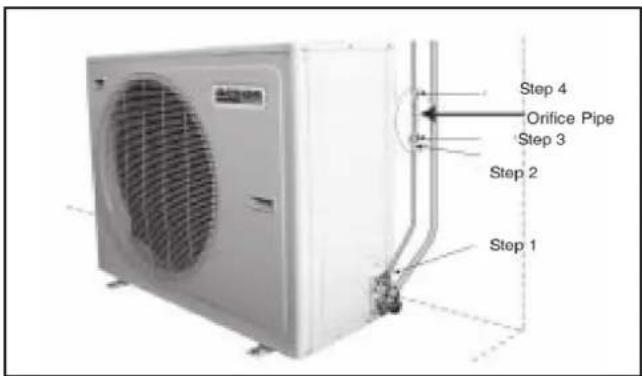

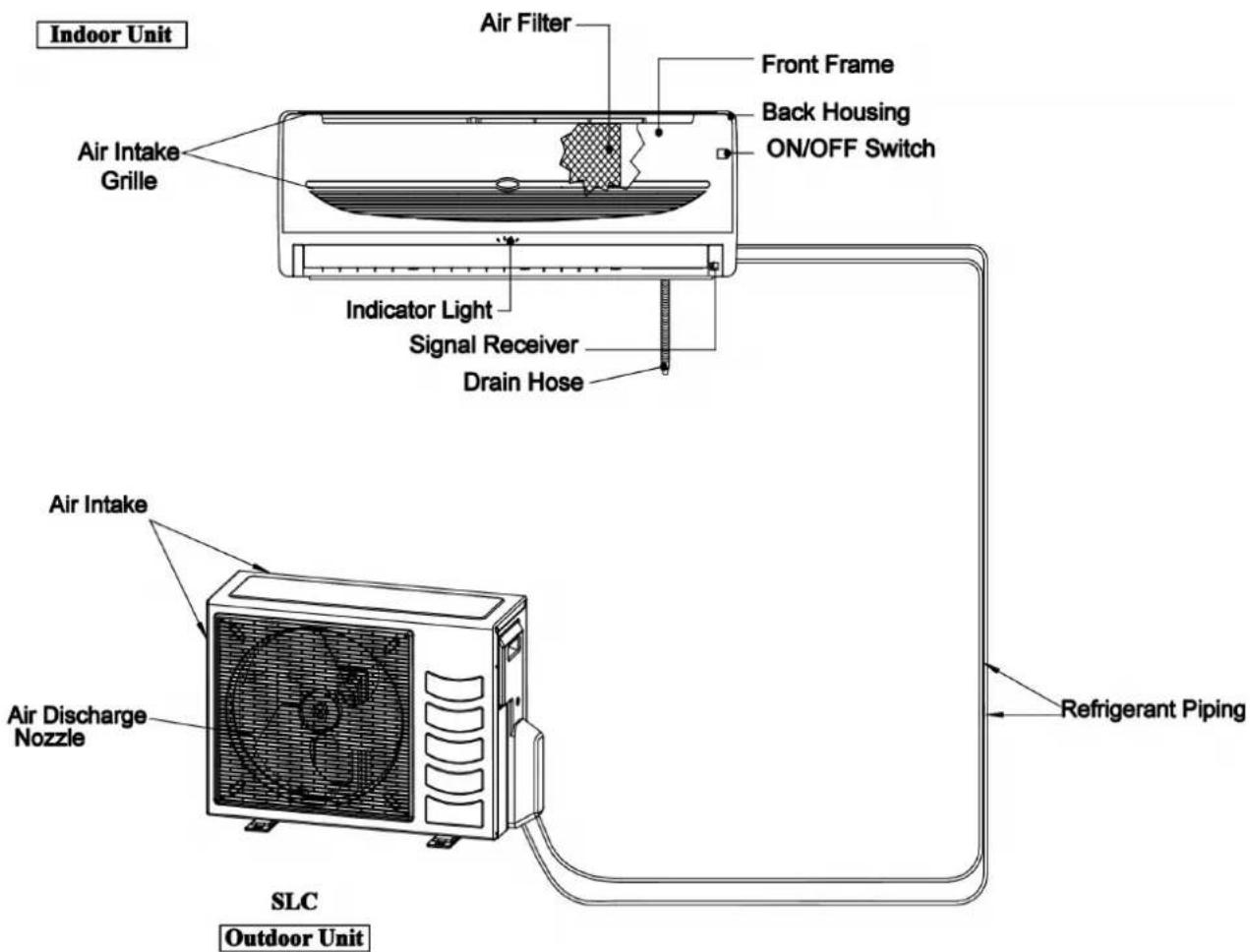

- INSTALLATION 25

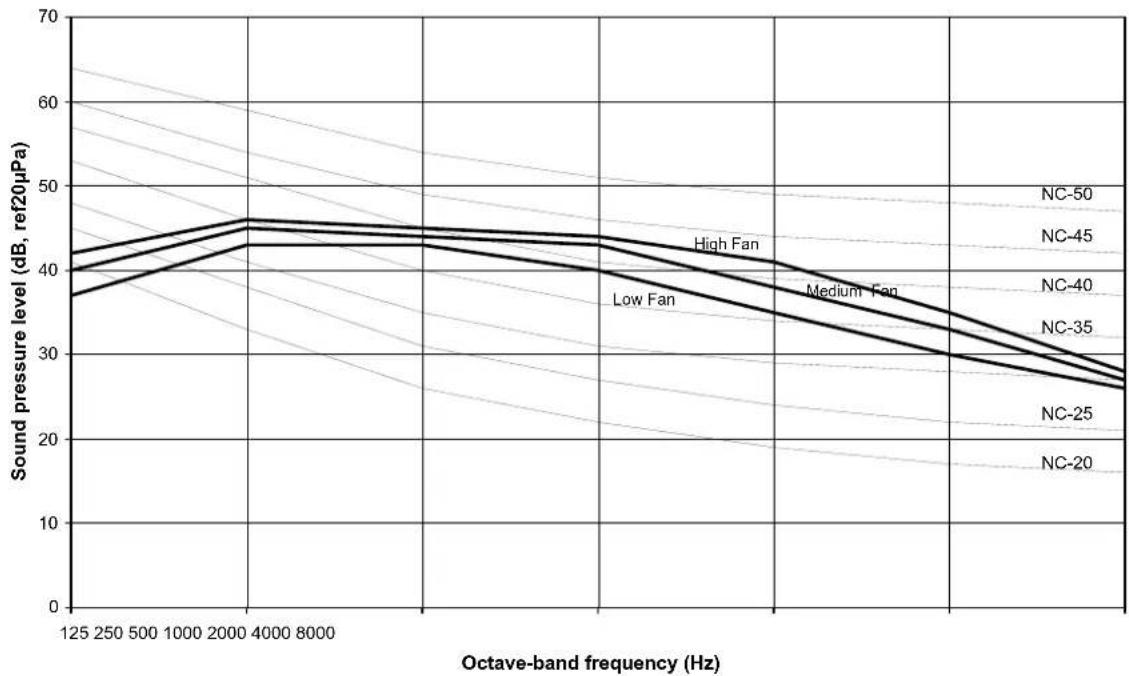

1. SOUND DATA 39

2. ENGINEERING AND PHYSICAL DATA

- GENERAL DATA 43

- COMPONENTS DATA 59

1. PERFORMANCE DATA 75

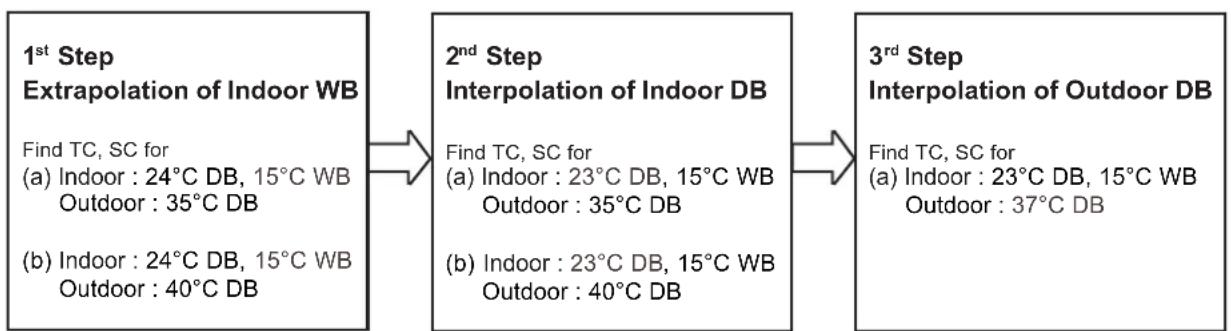

- PERFORMANCE TABLES ...... 79

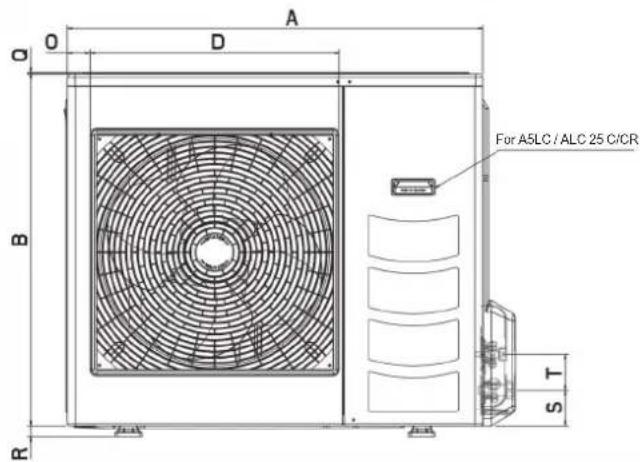

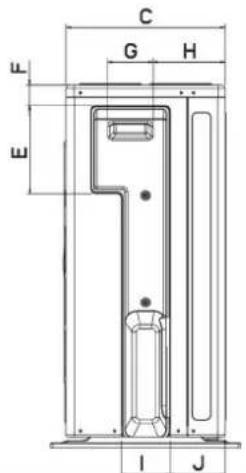

1. DIMENSIONAL DATA 106

2. ELECTRICAL DATA 110

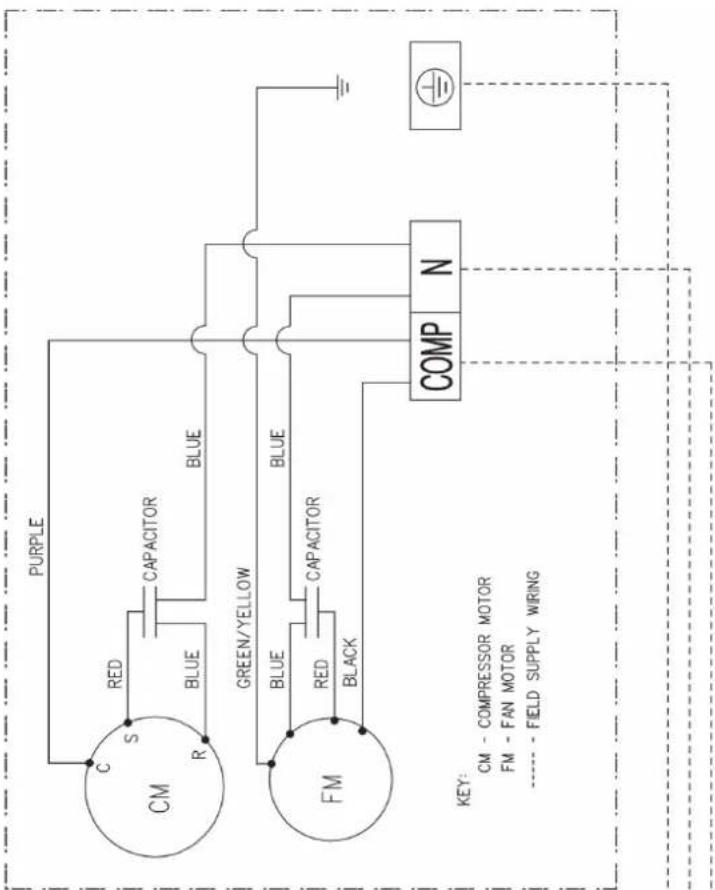

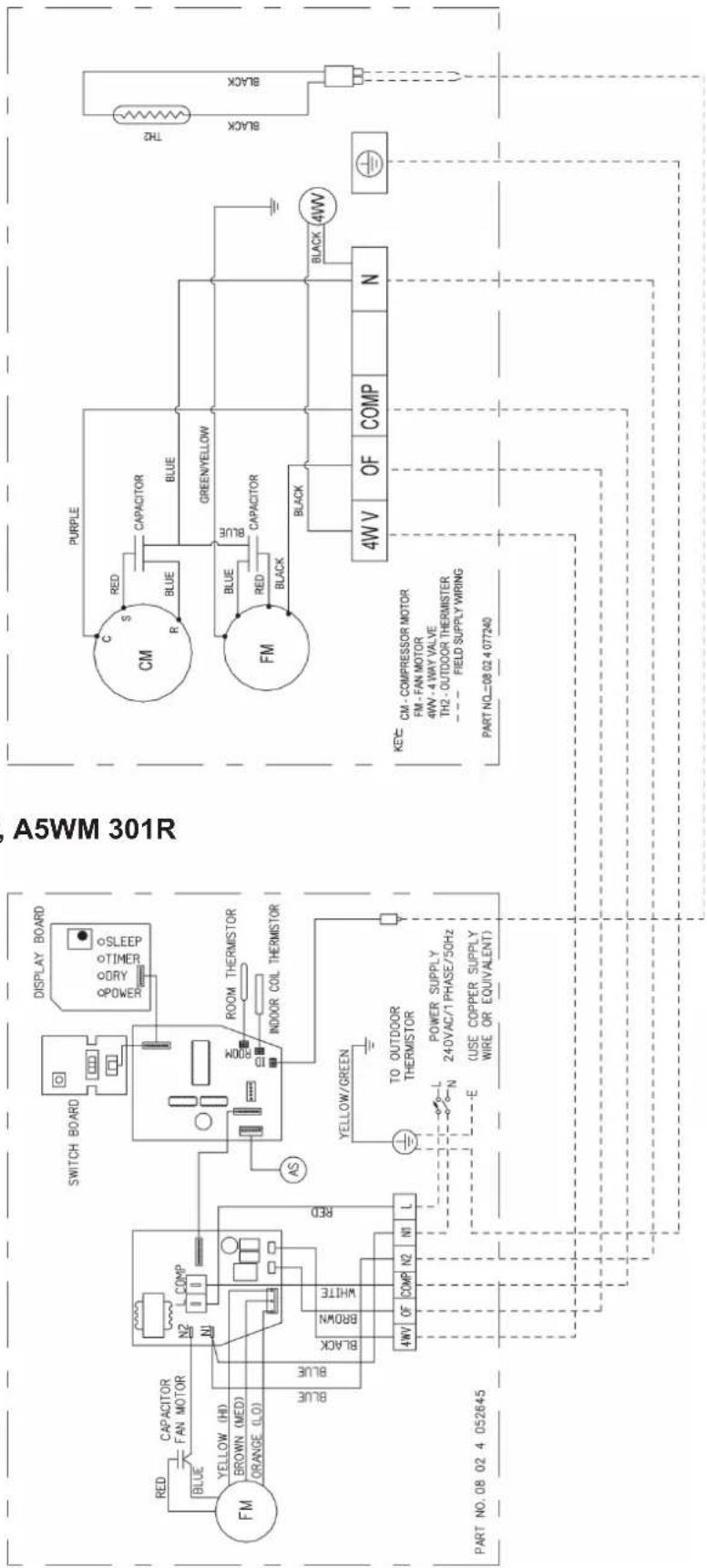

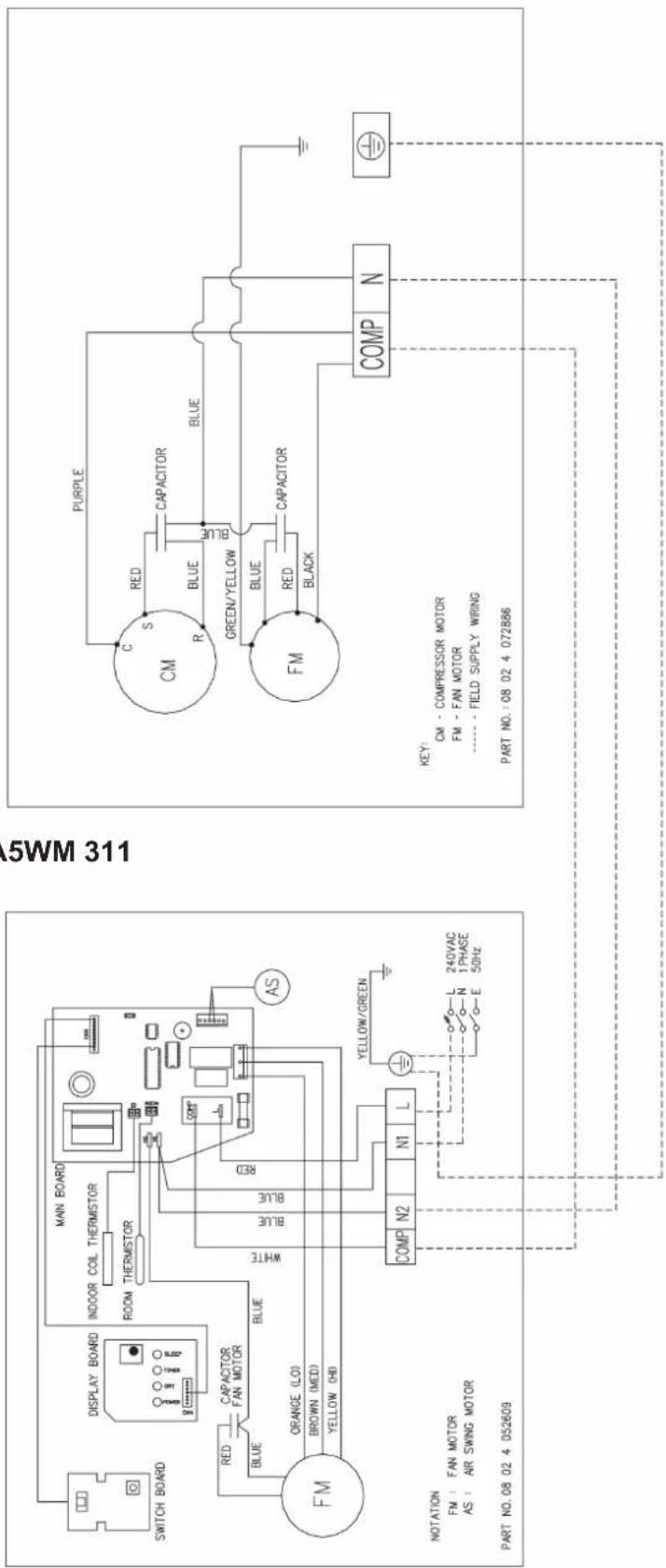

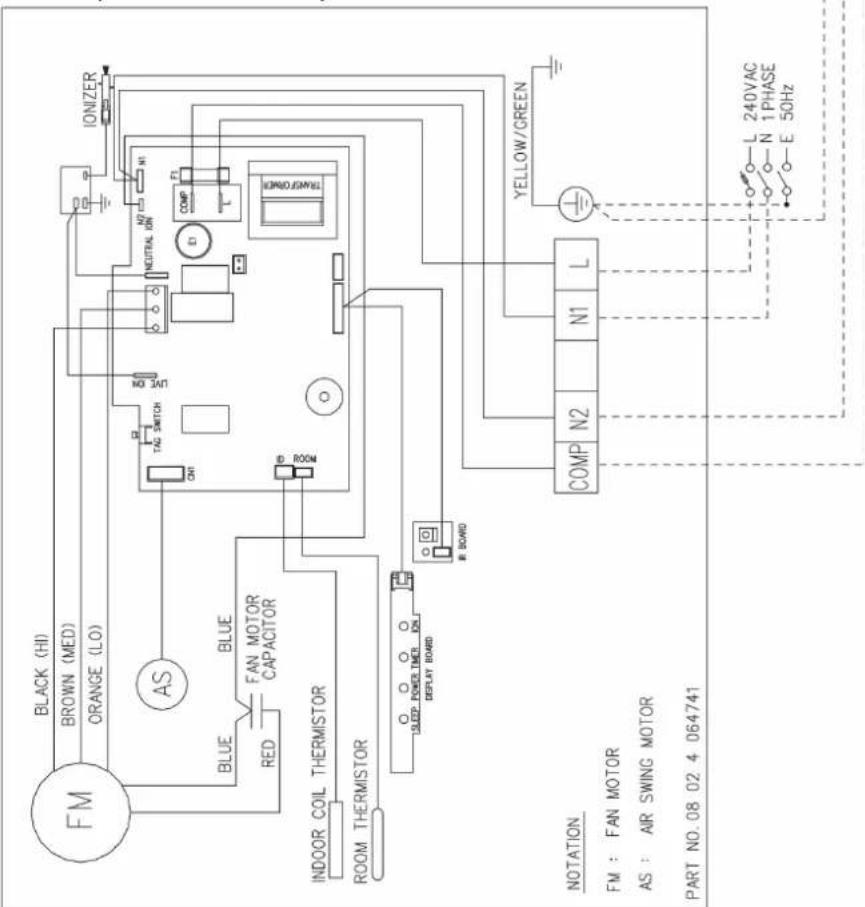

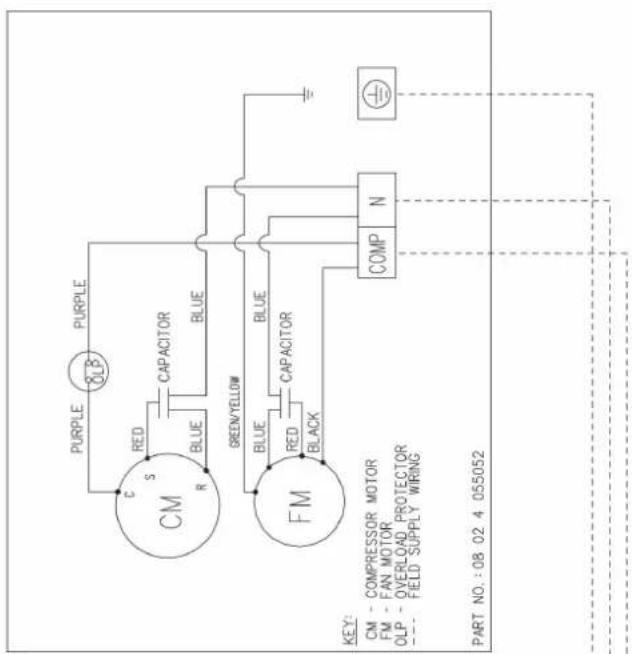

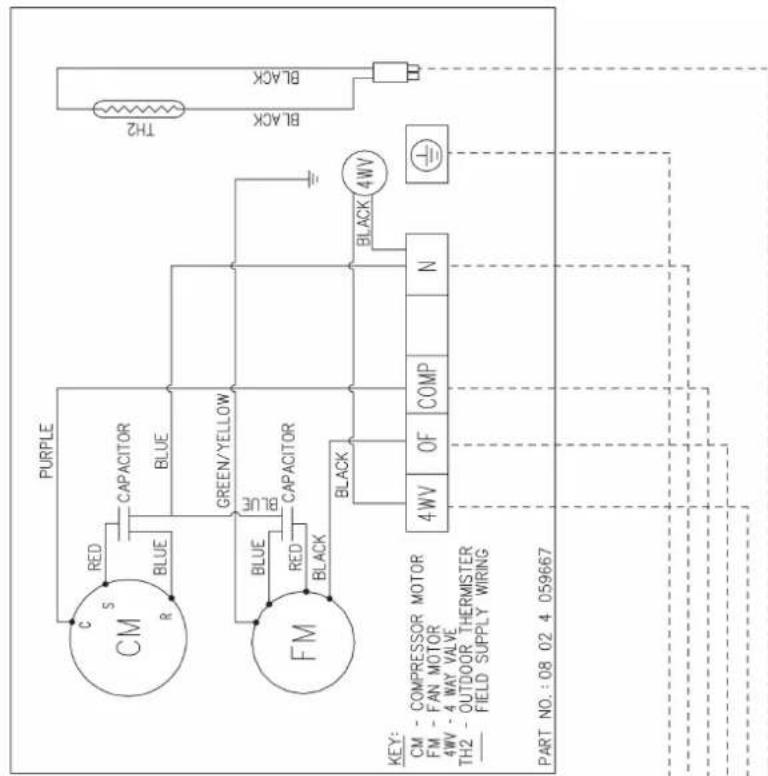

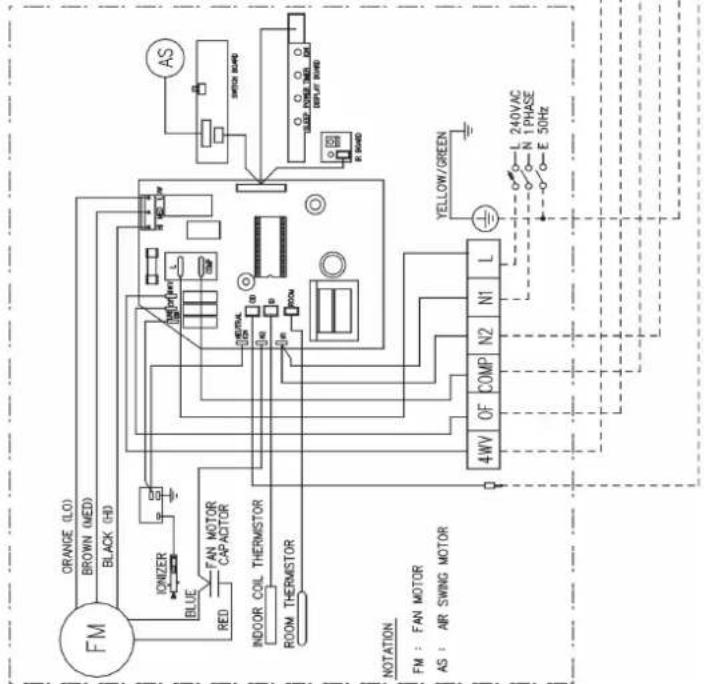

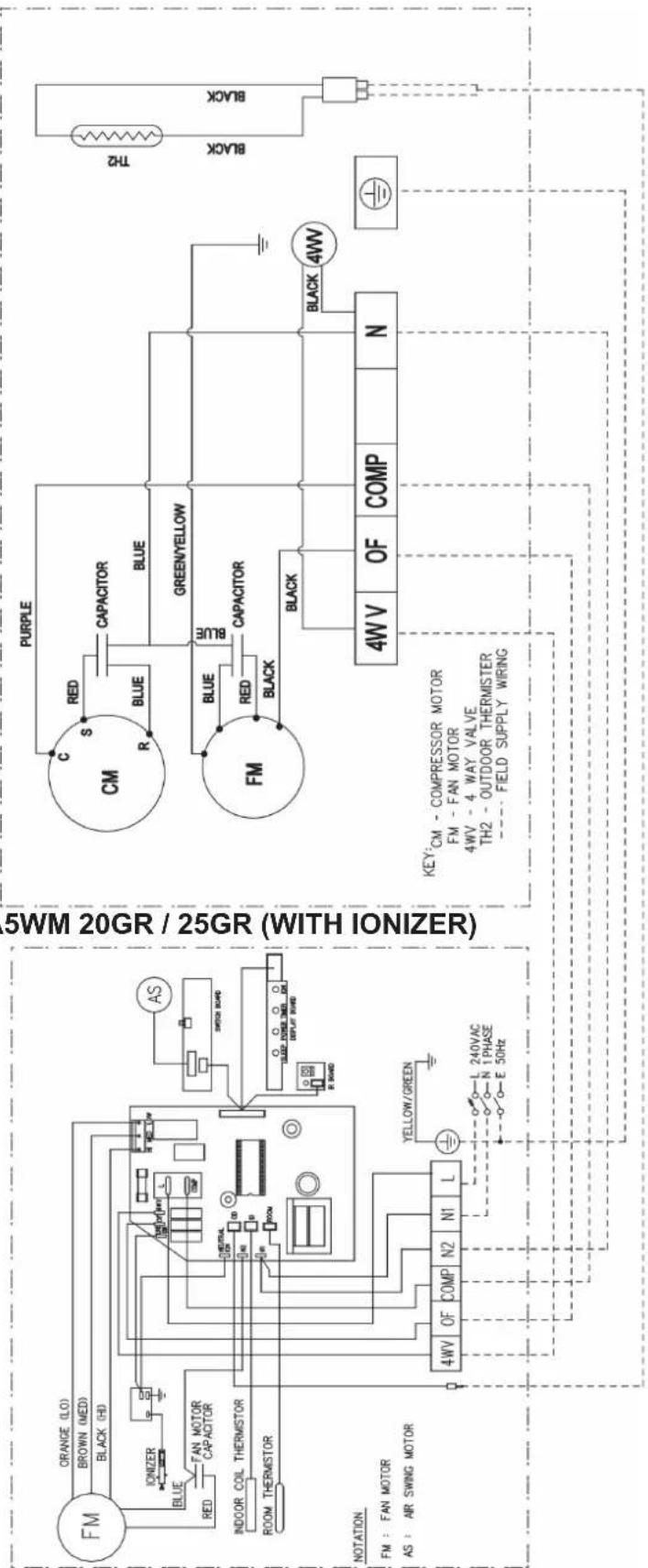

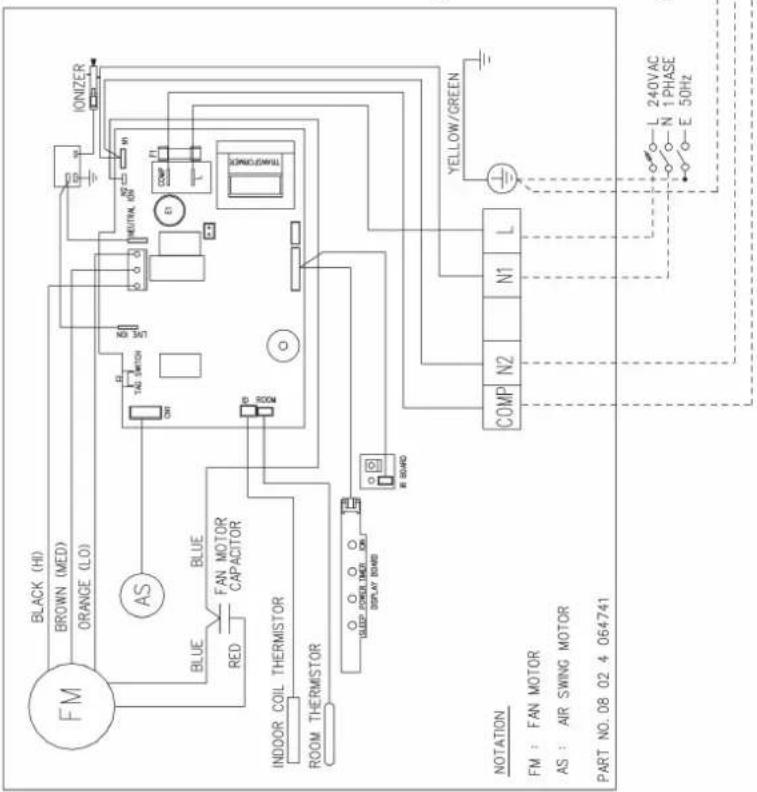

3. WIRING DIAGRAMS 118

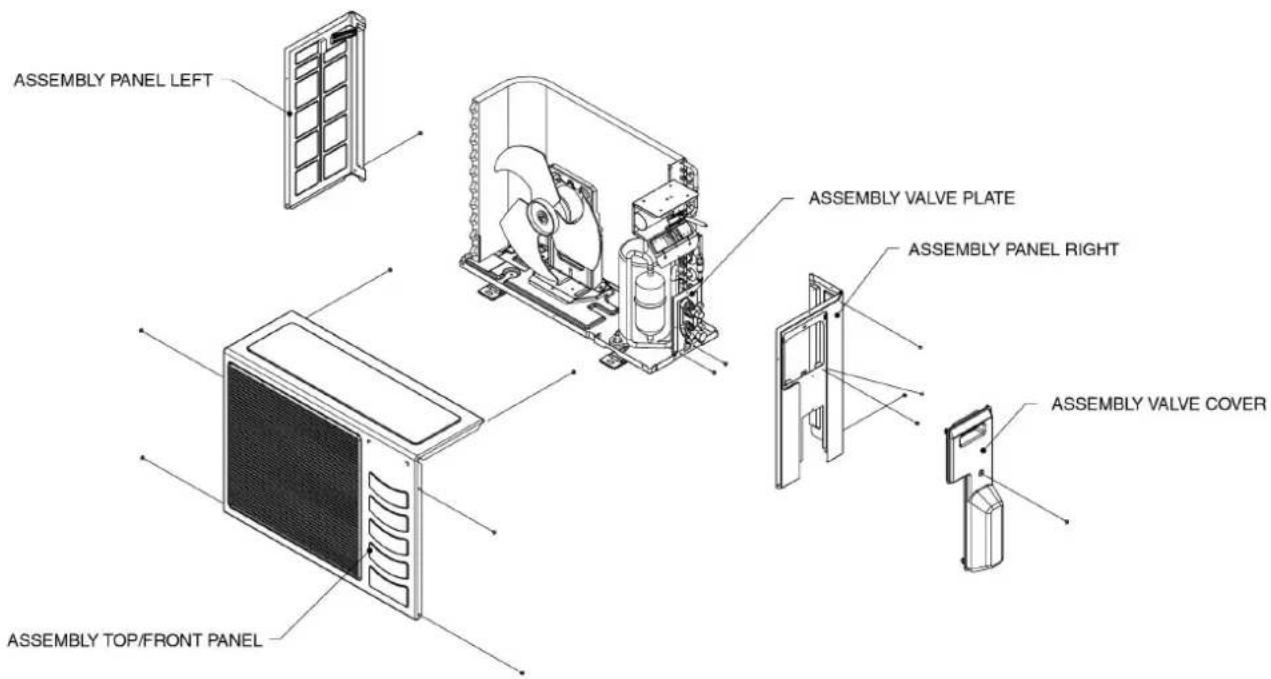

4. SERVICING AND MAINTENANCE 127

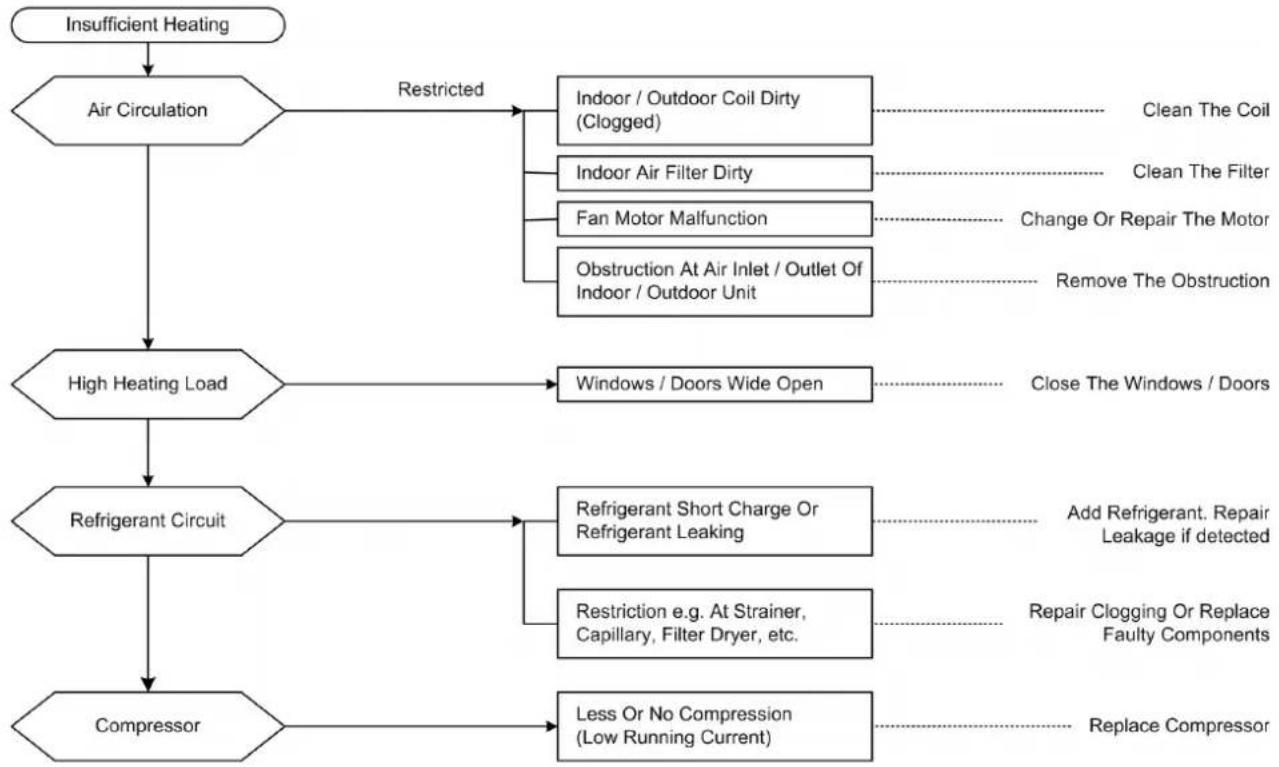

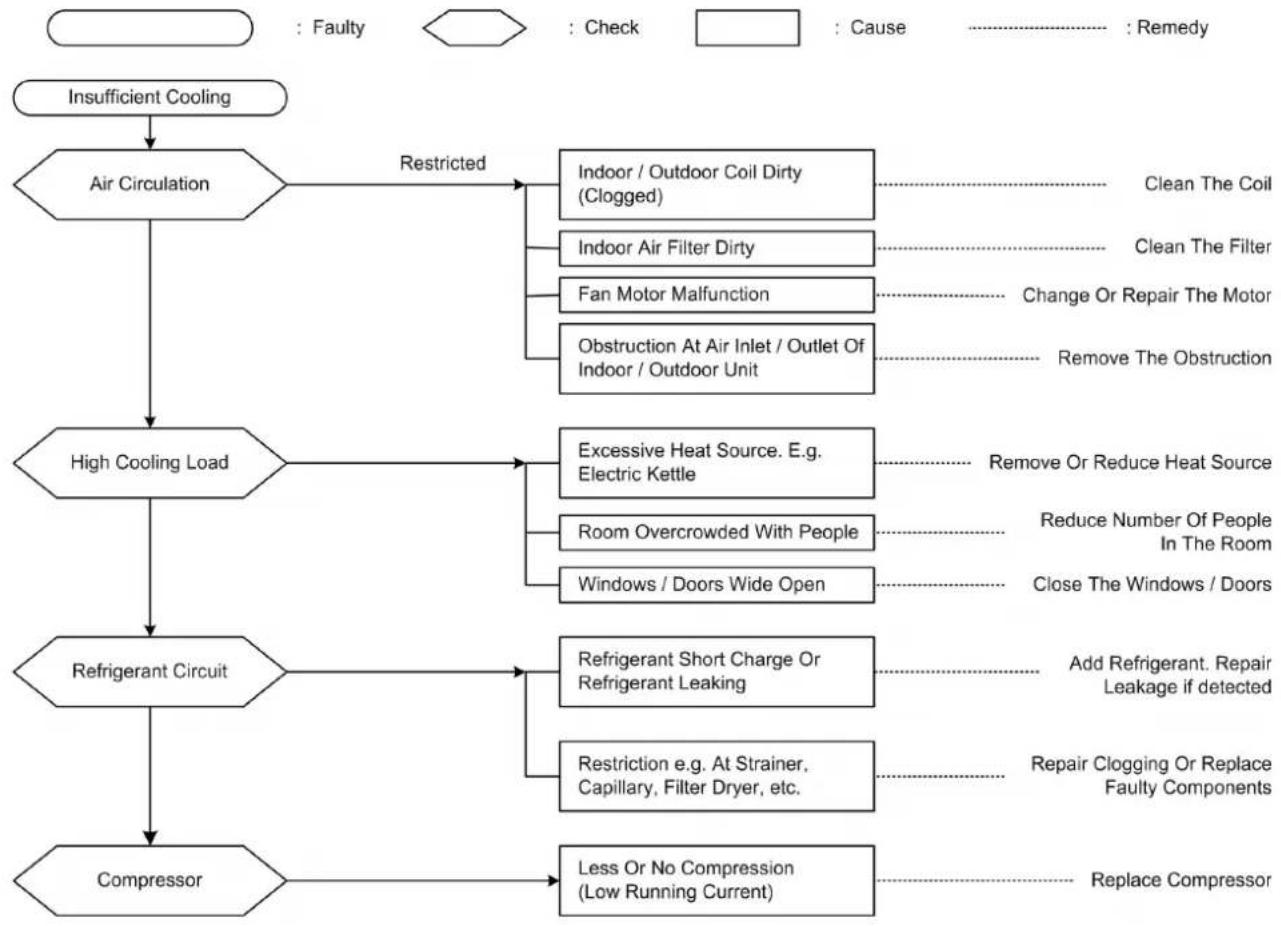

5. TROUBLESHOOTING 129

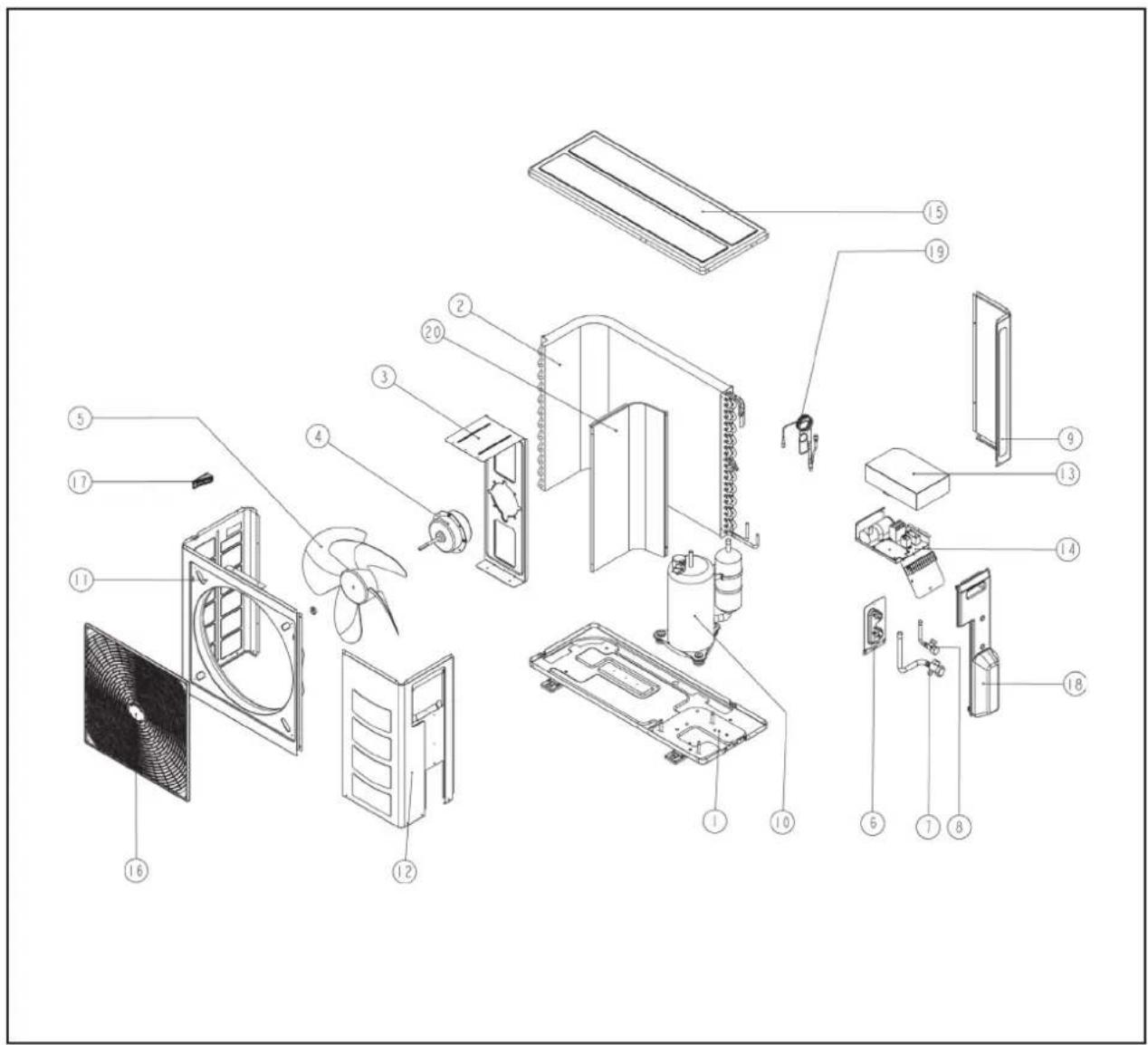

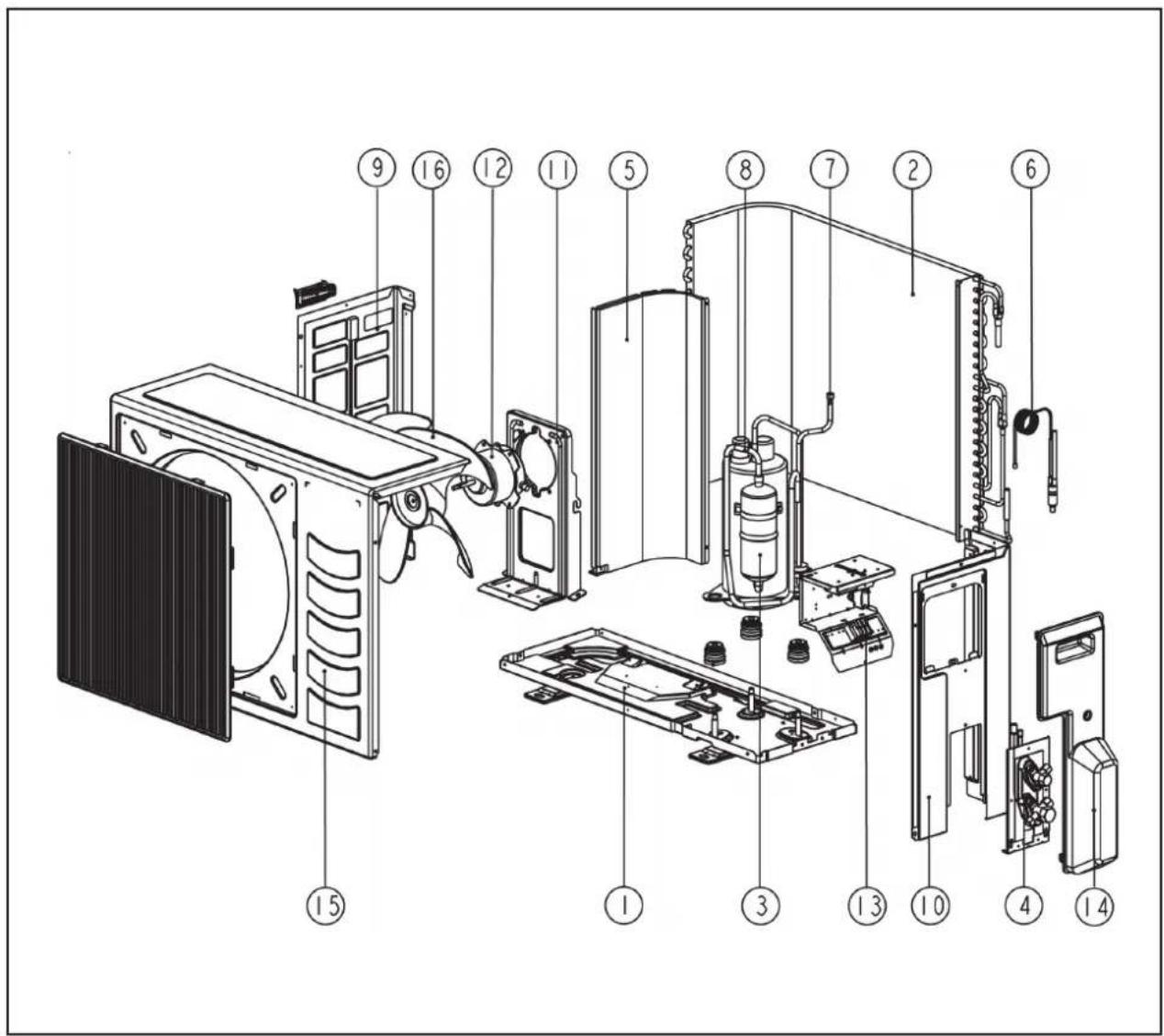

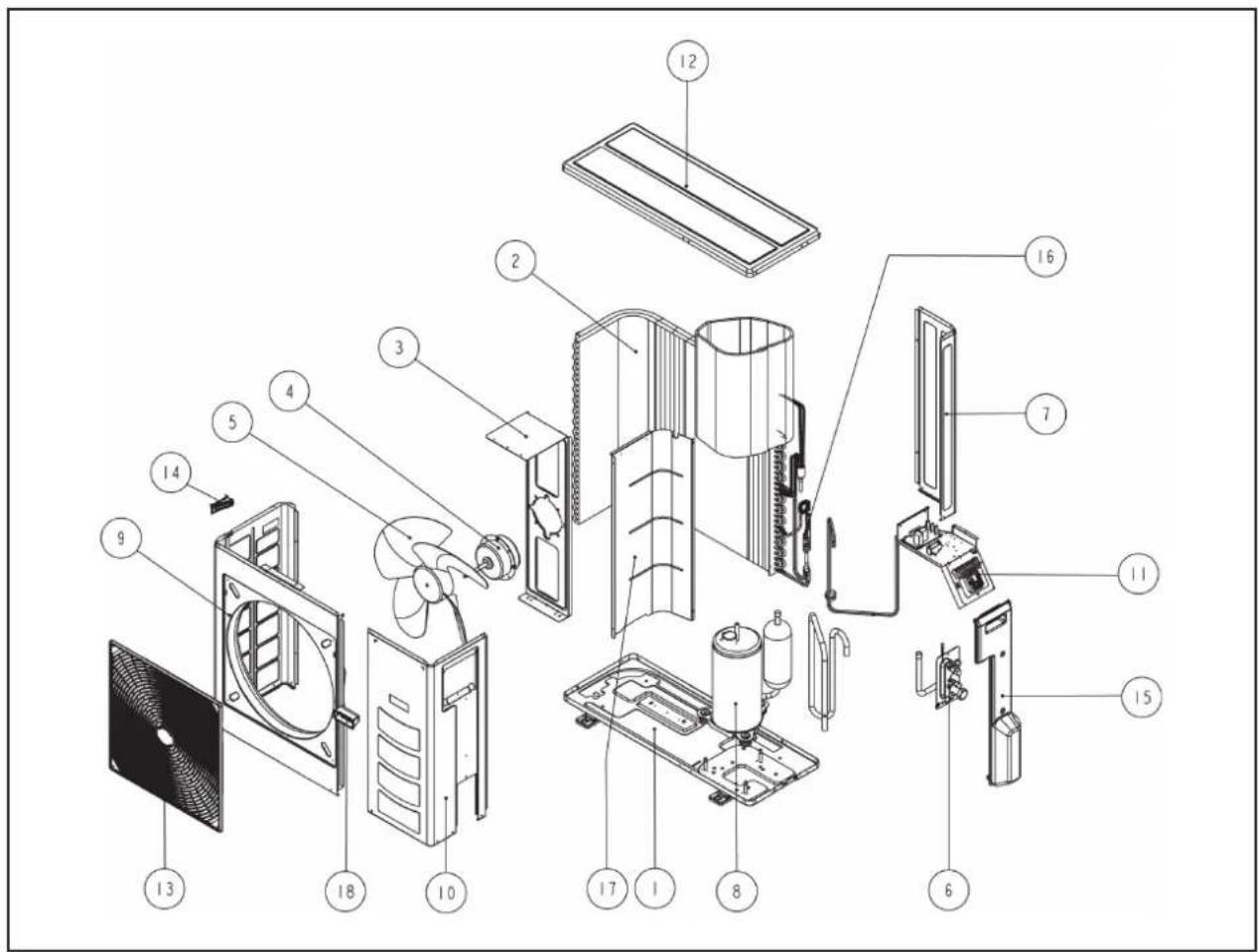

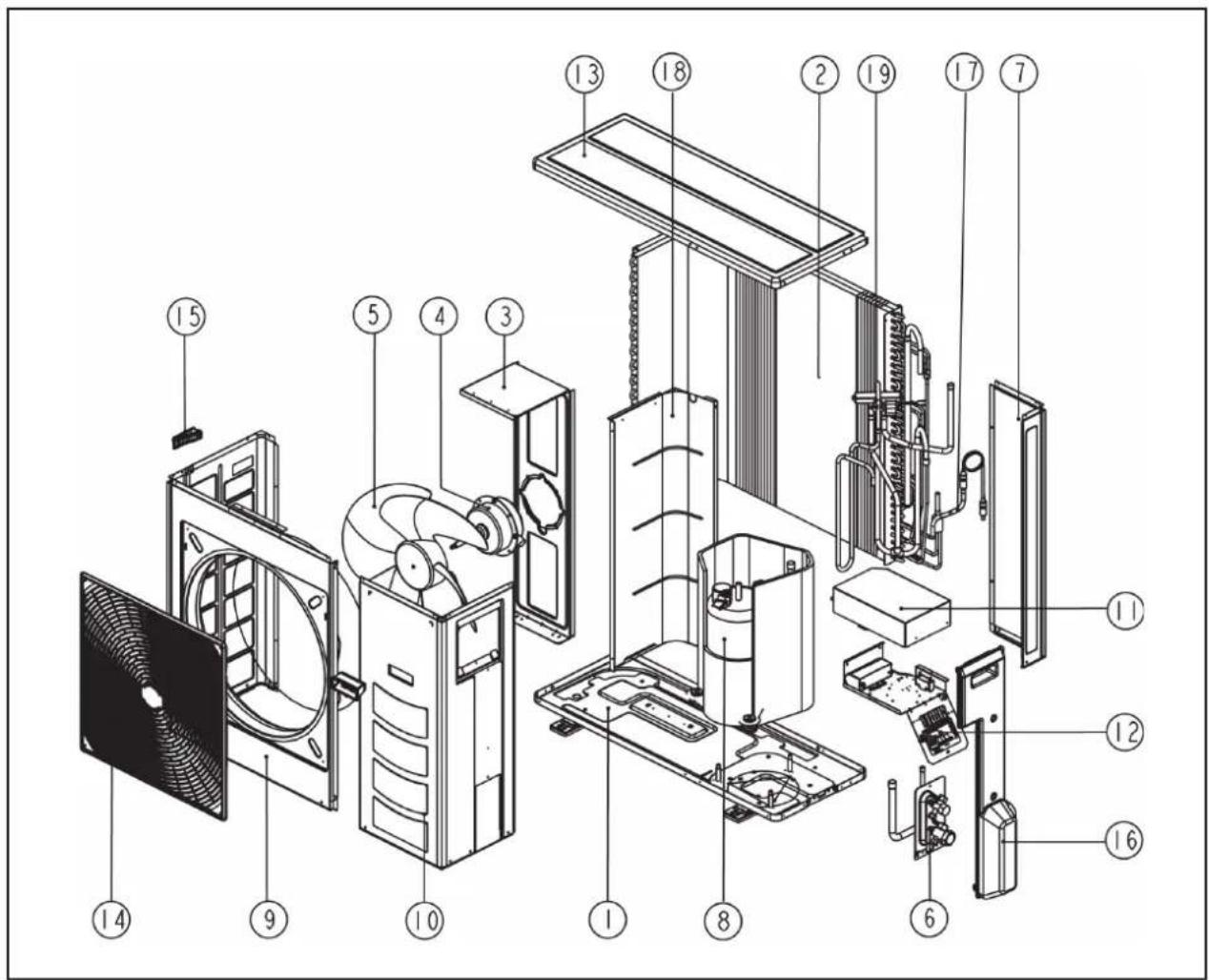

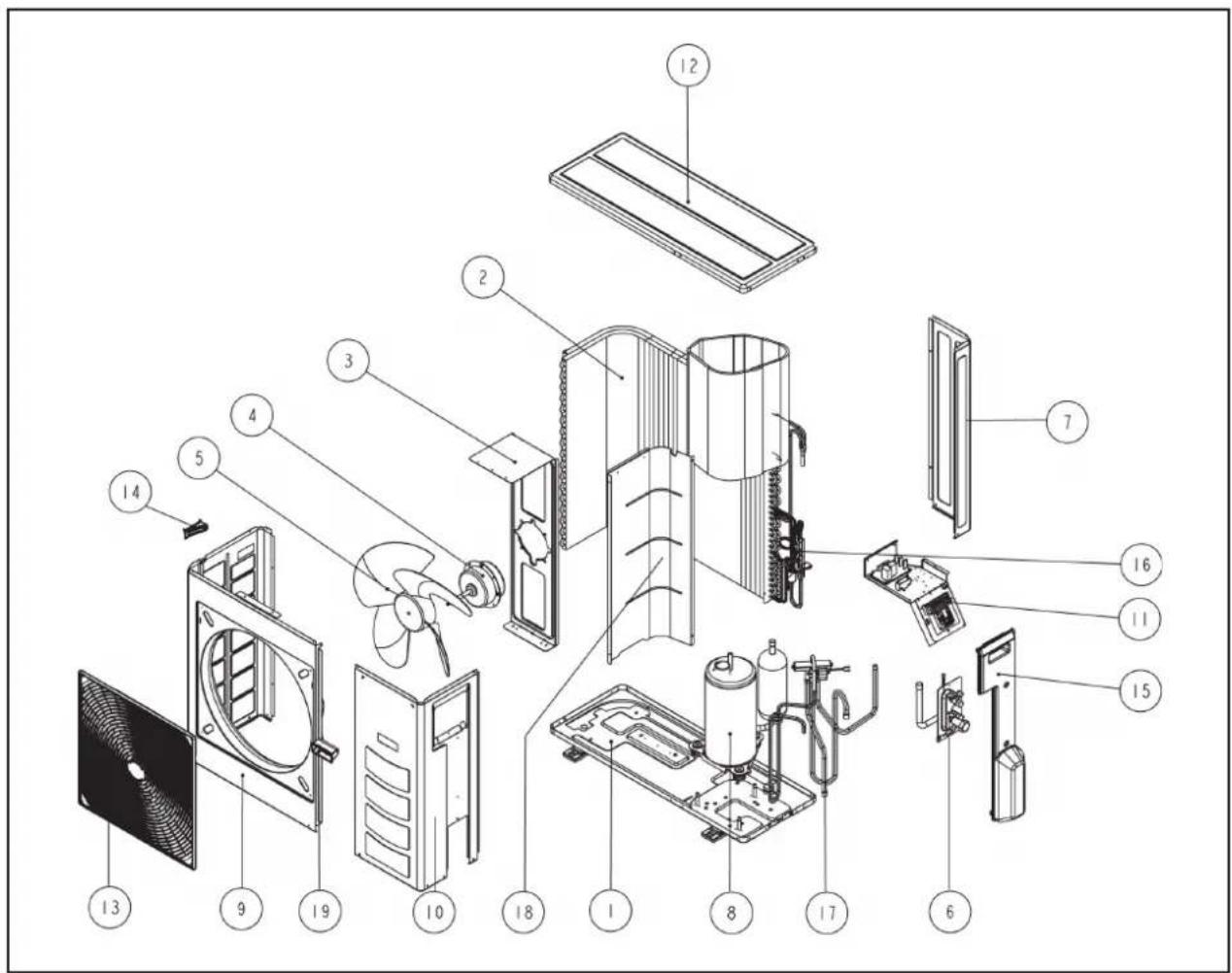

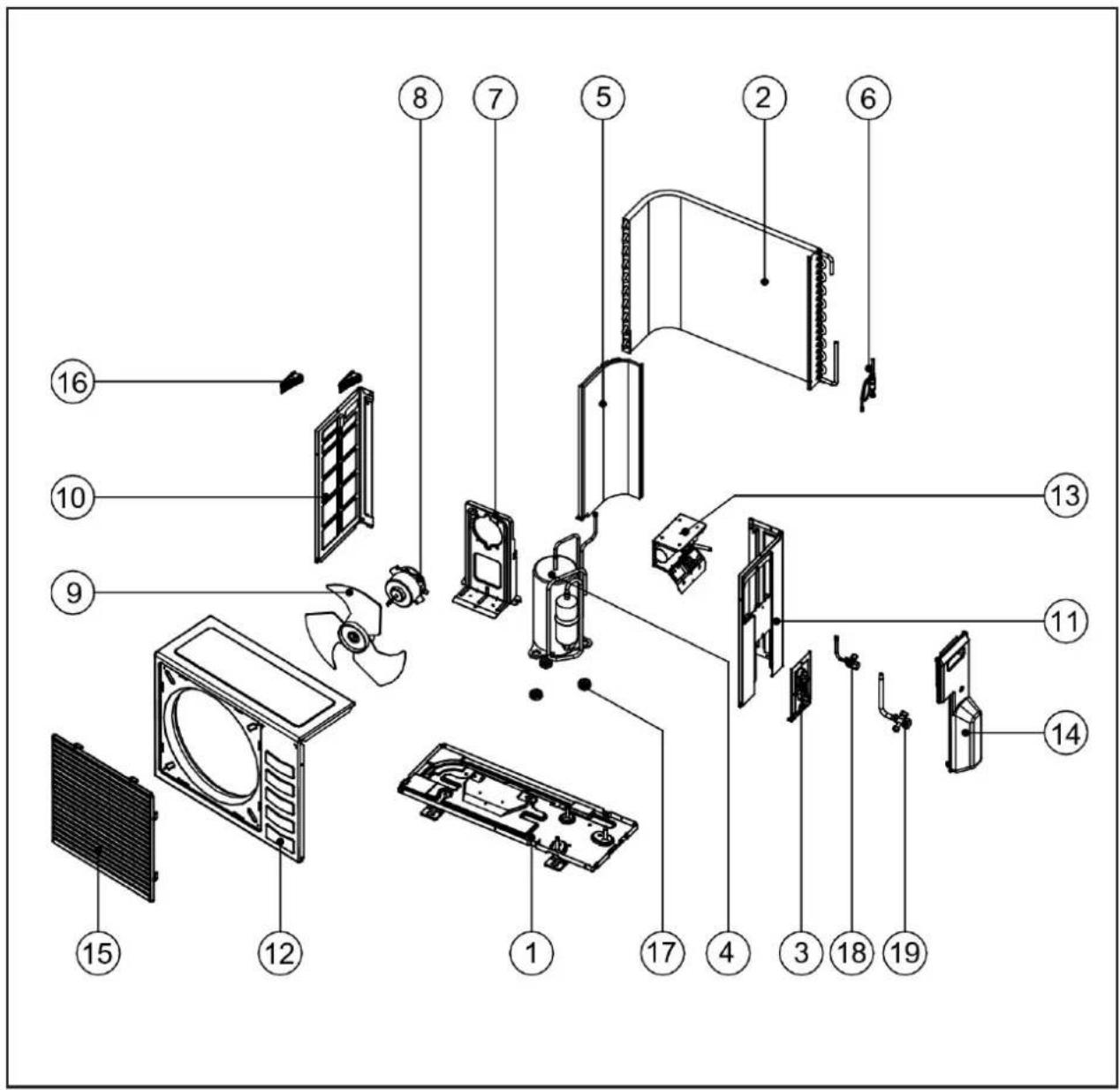

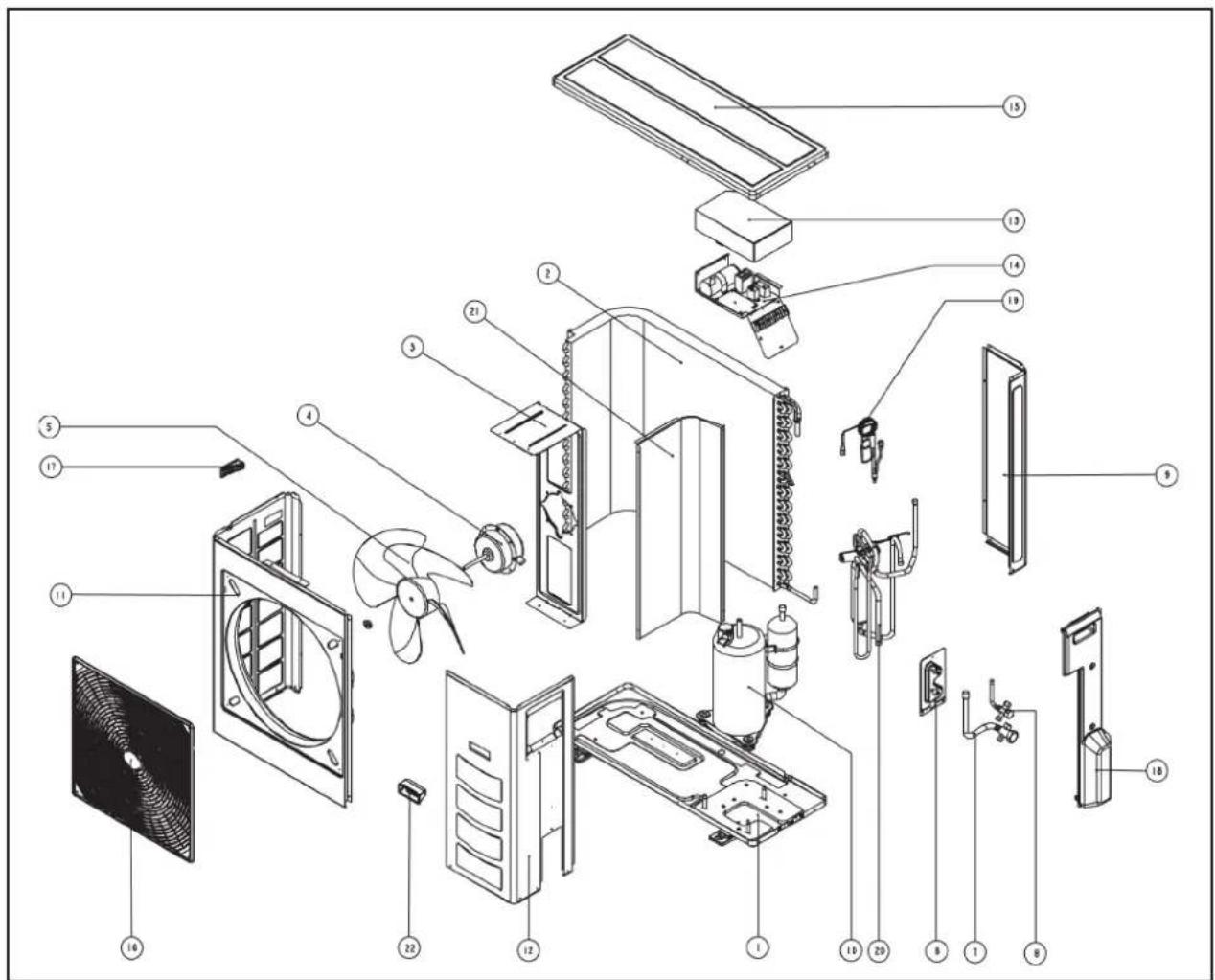

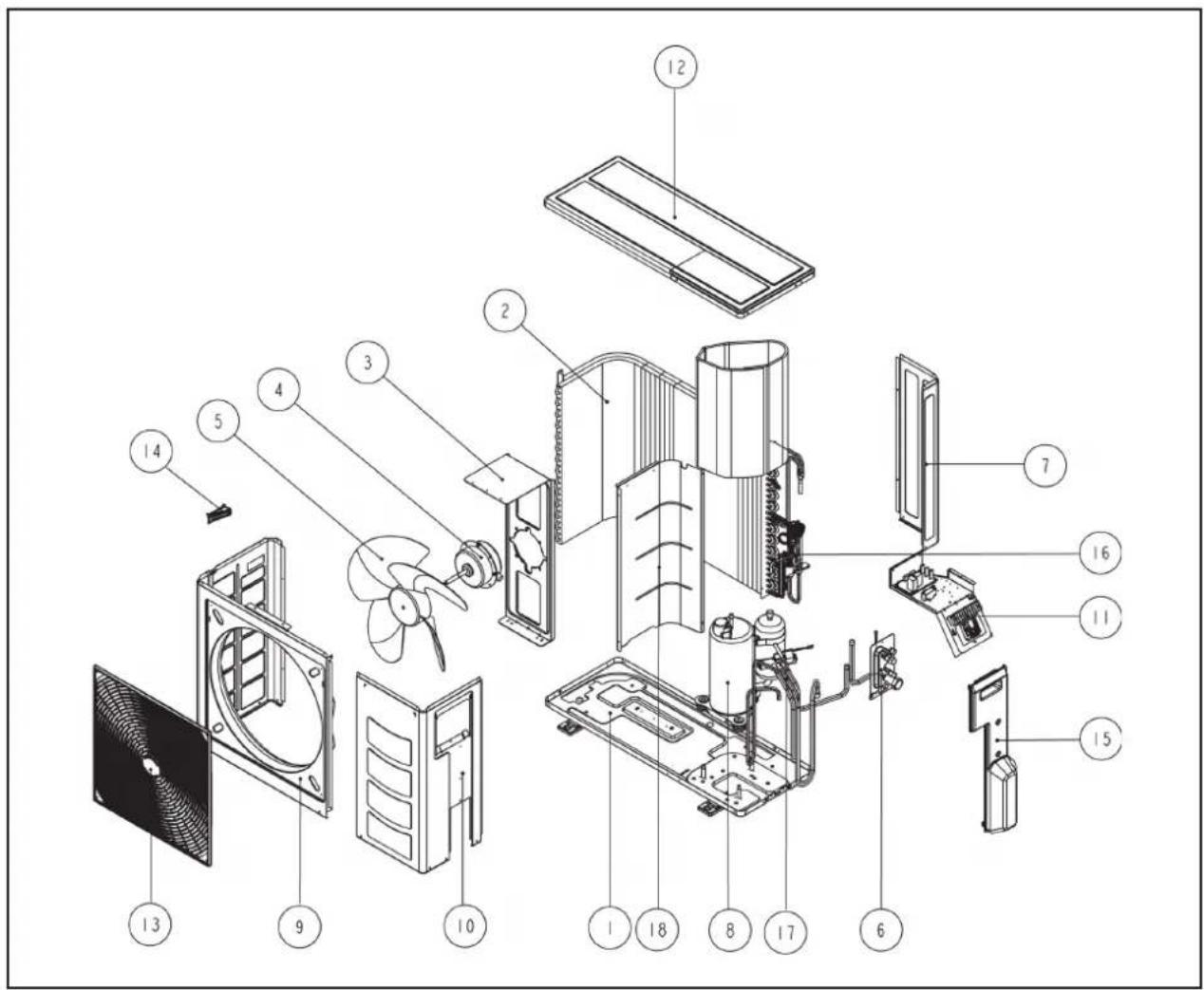

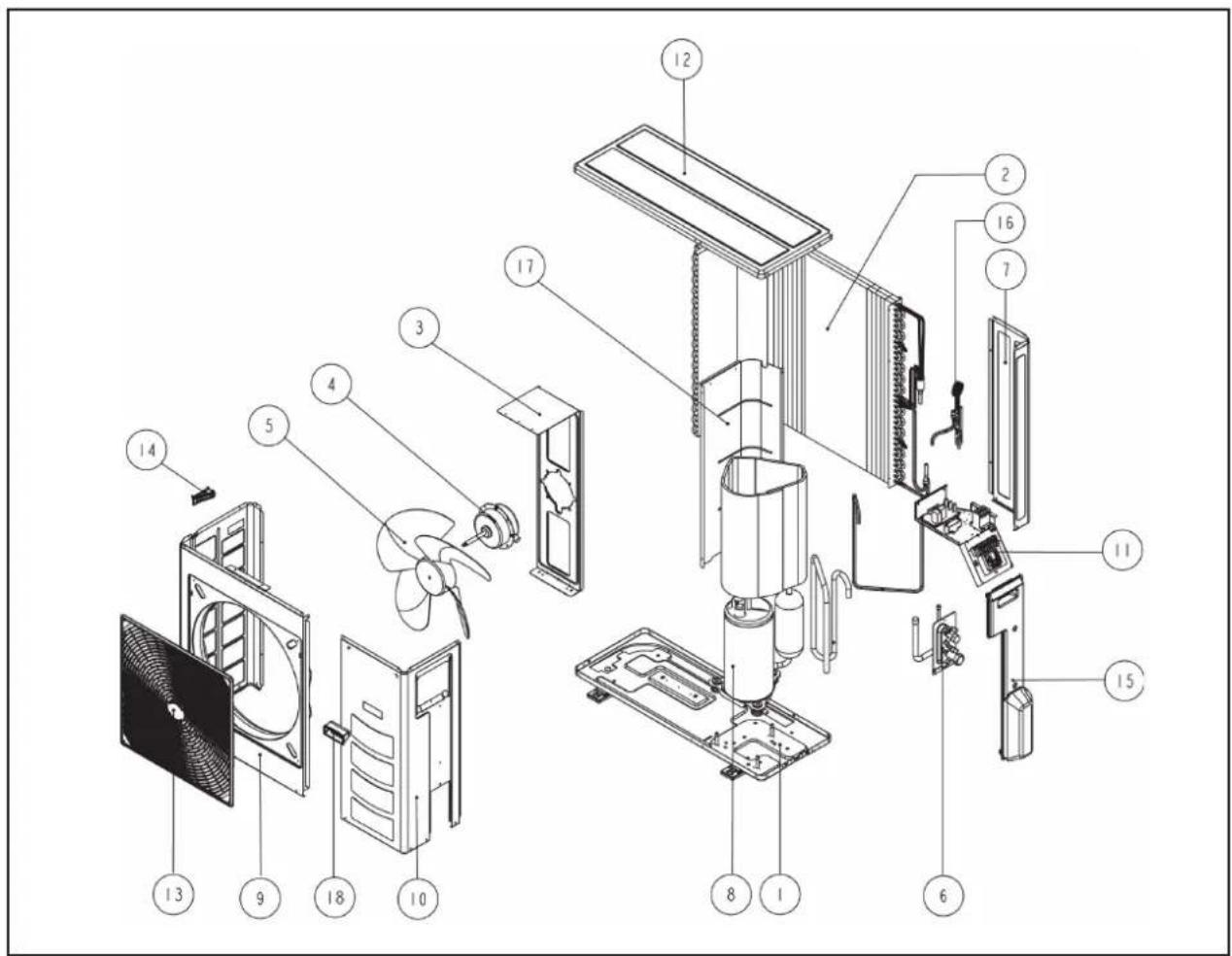

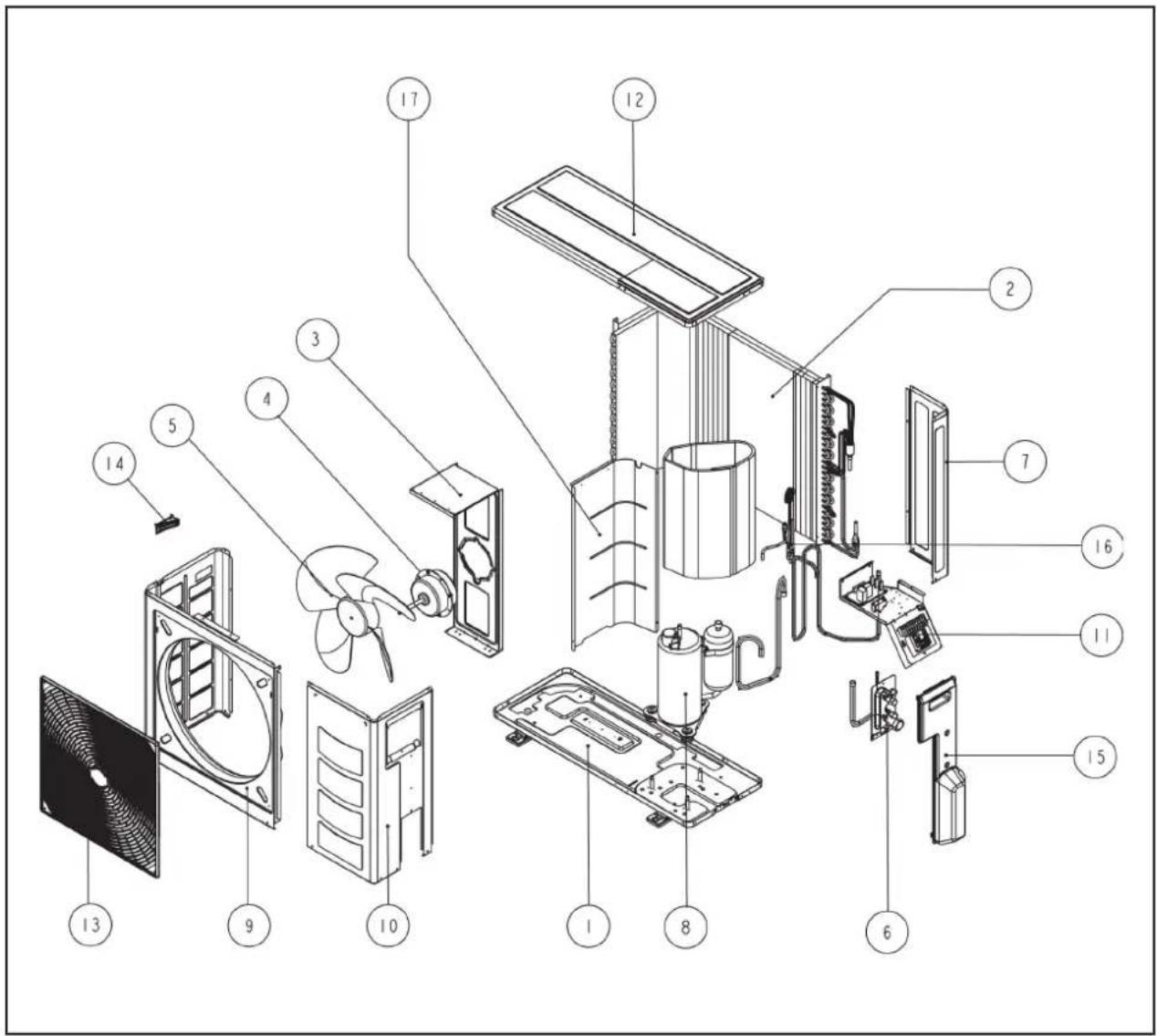

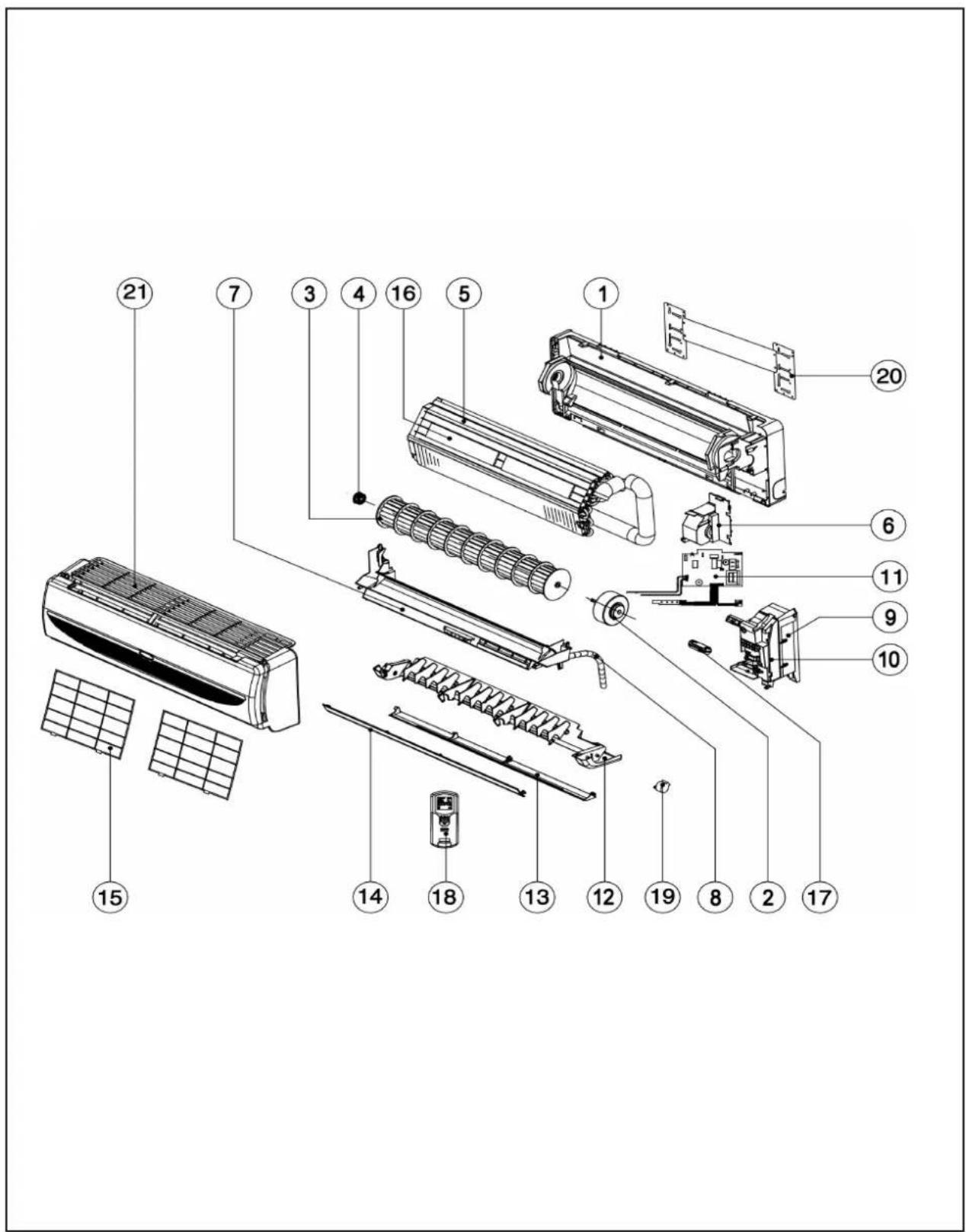

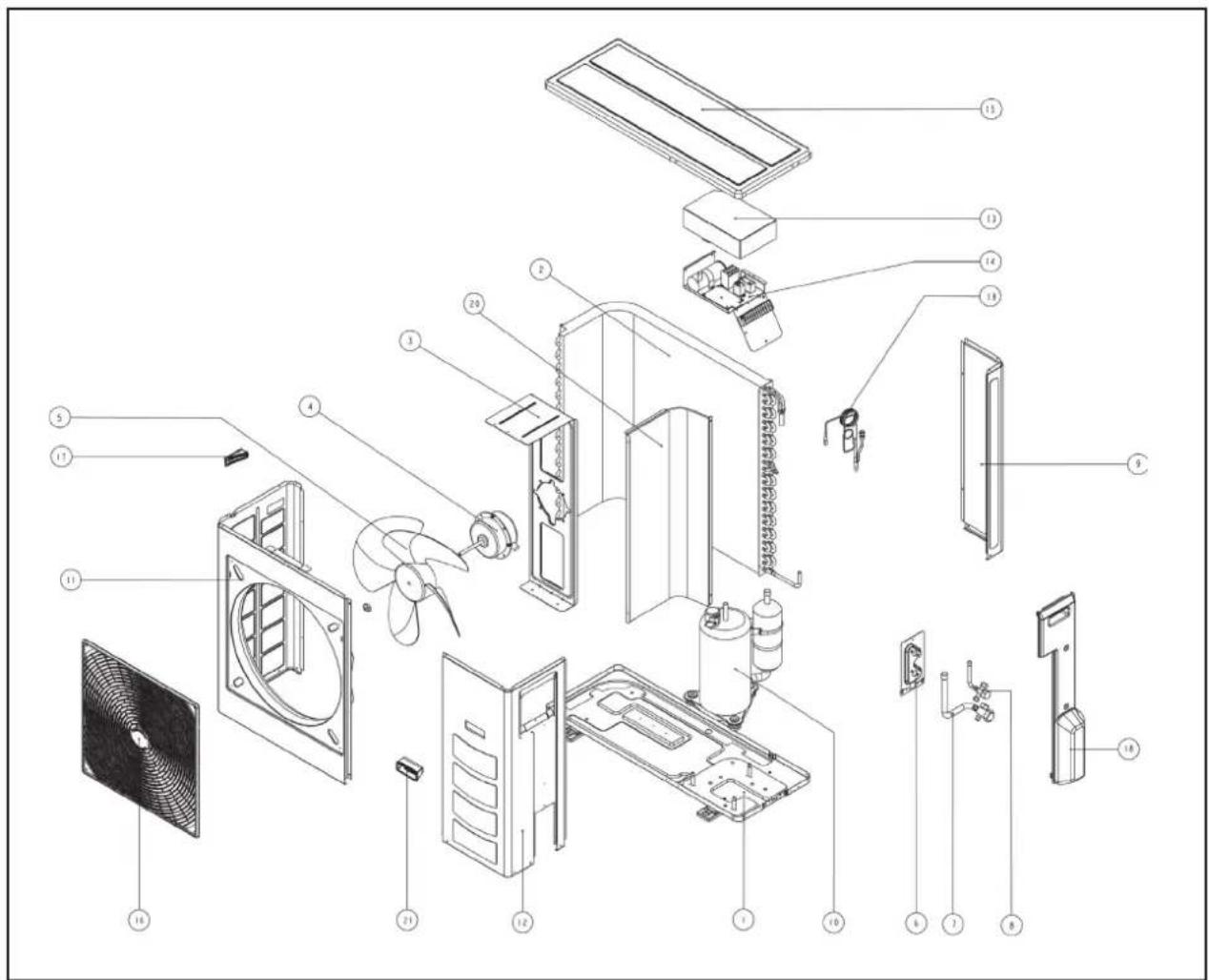

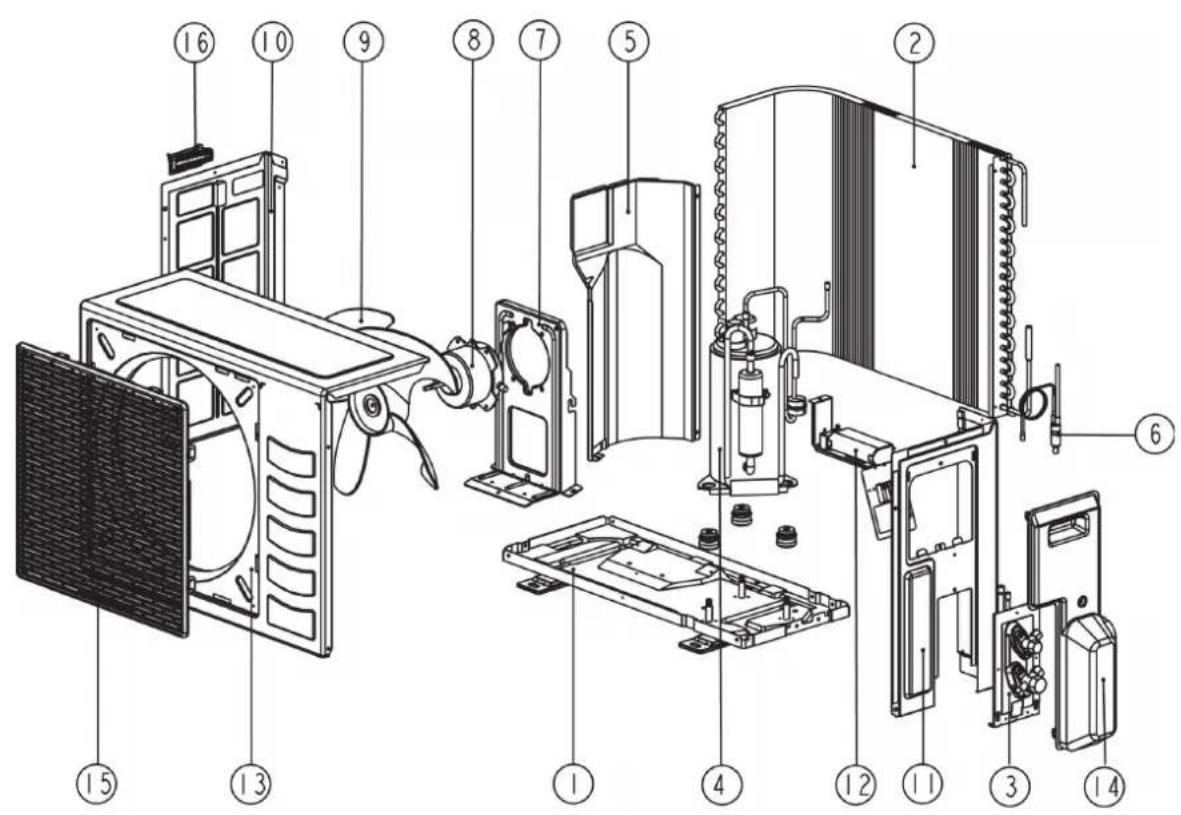

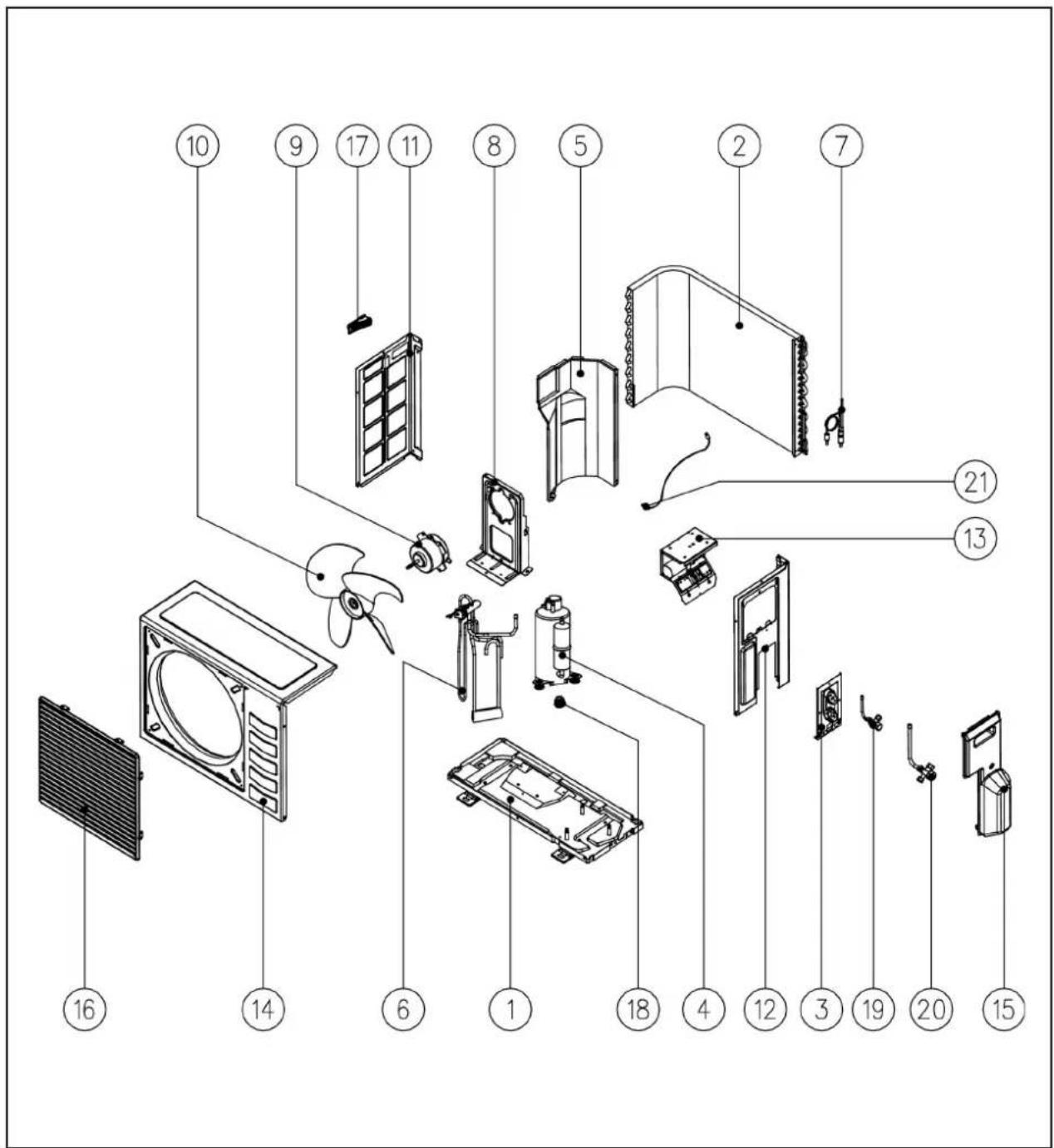

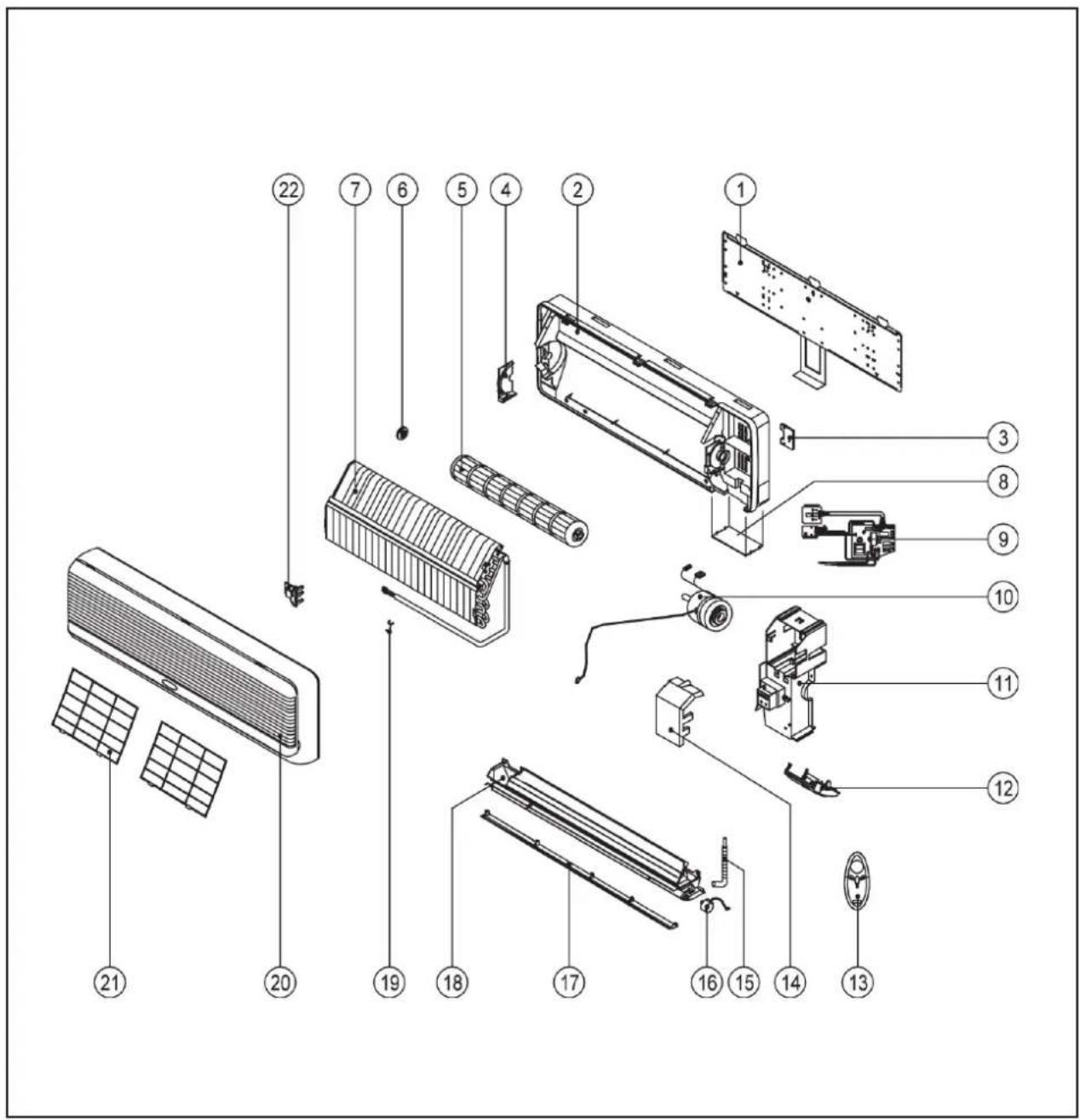

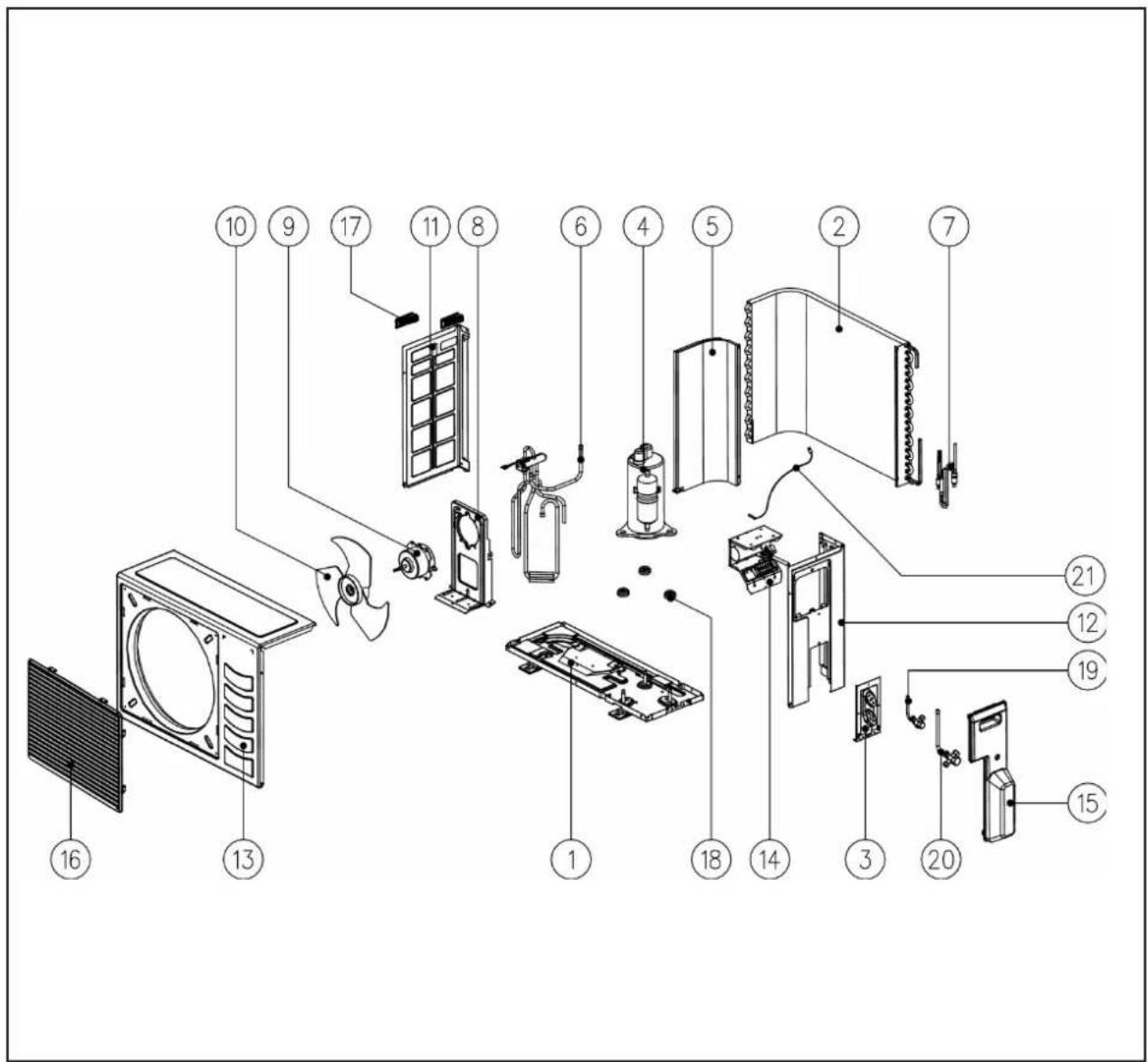

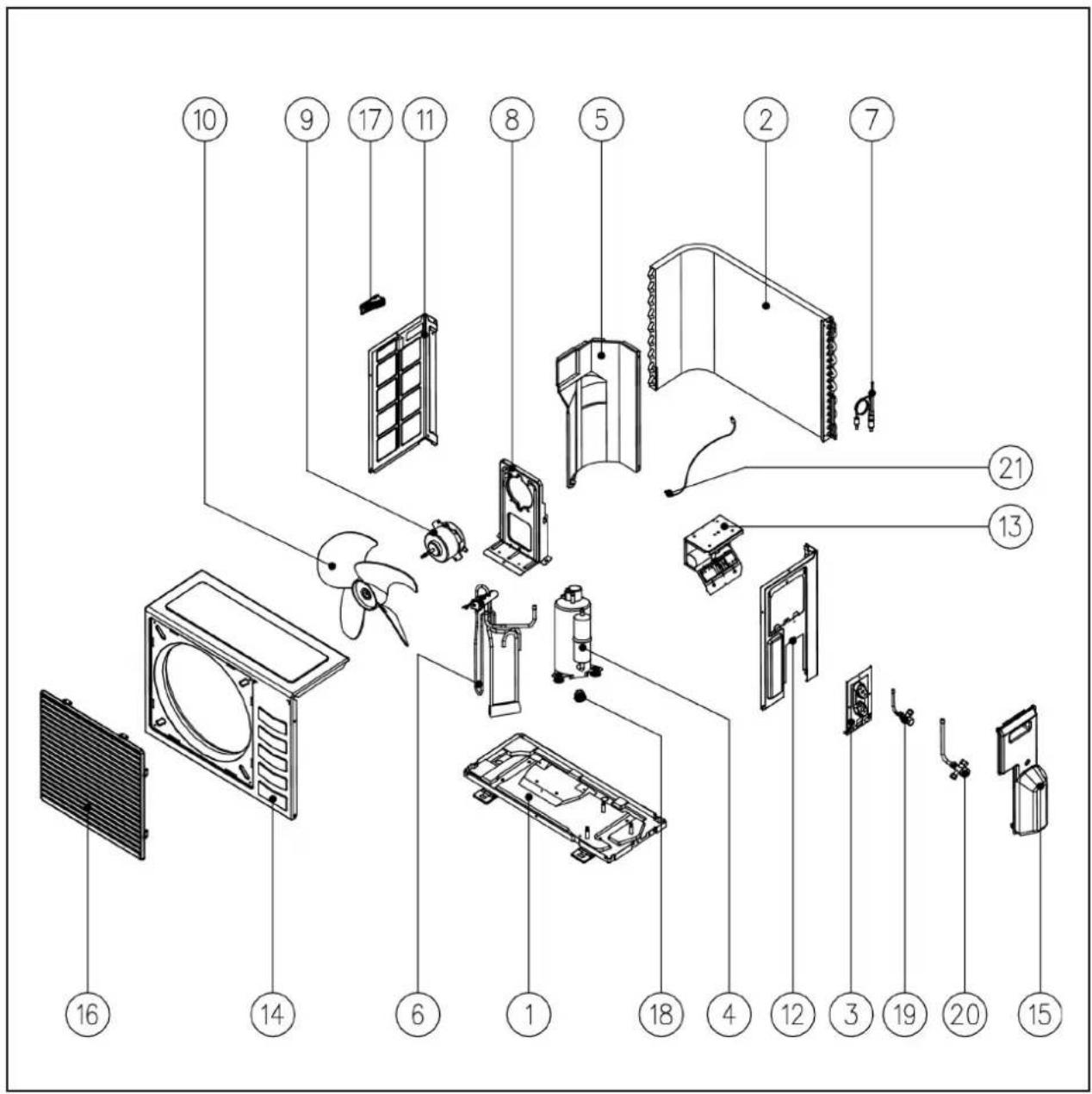

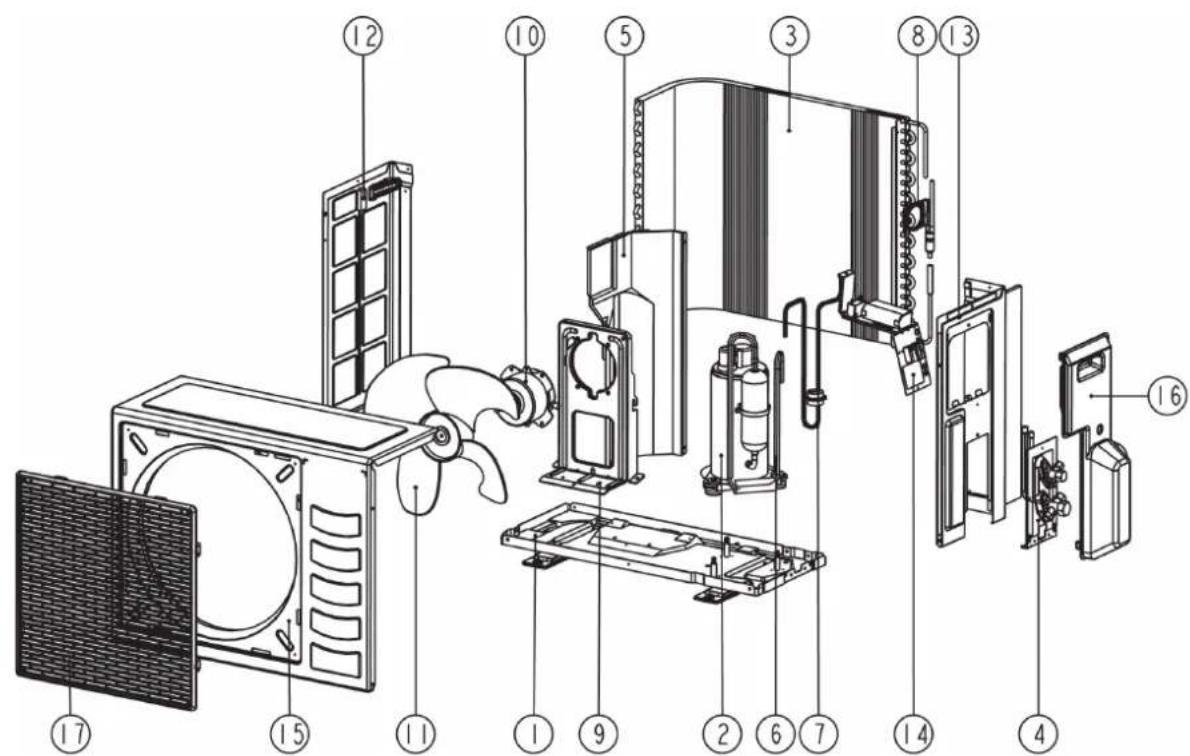

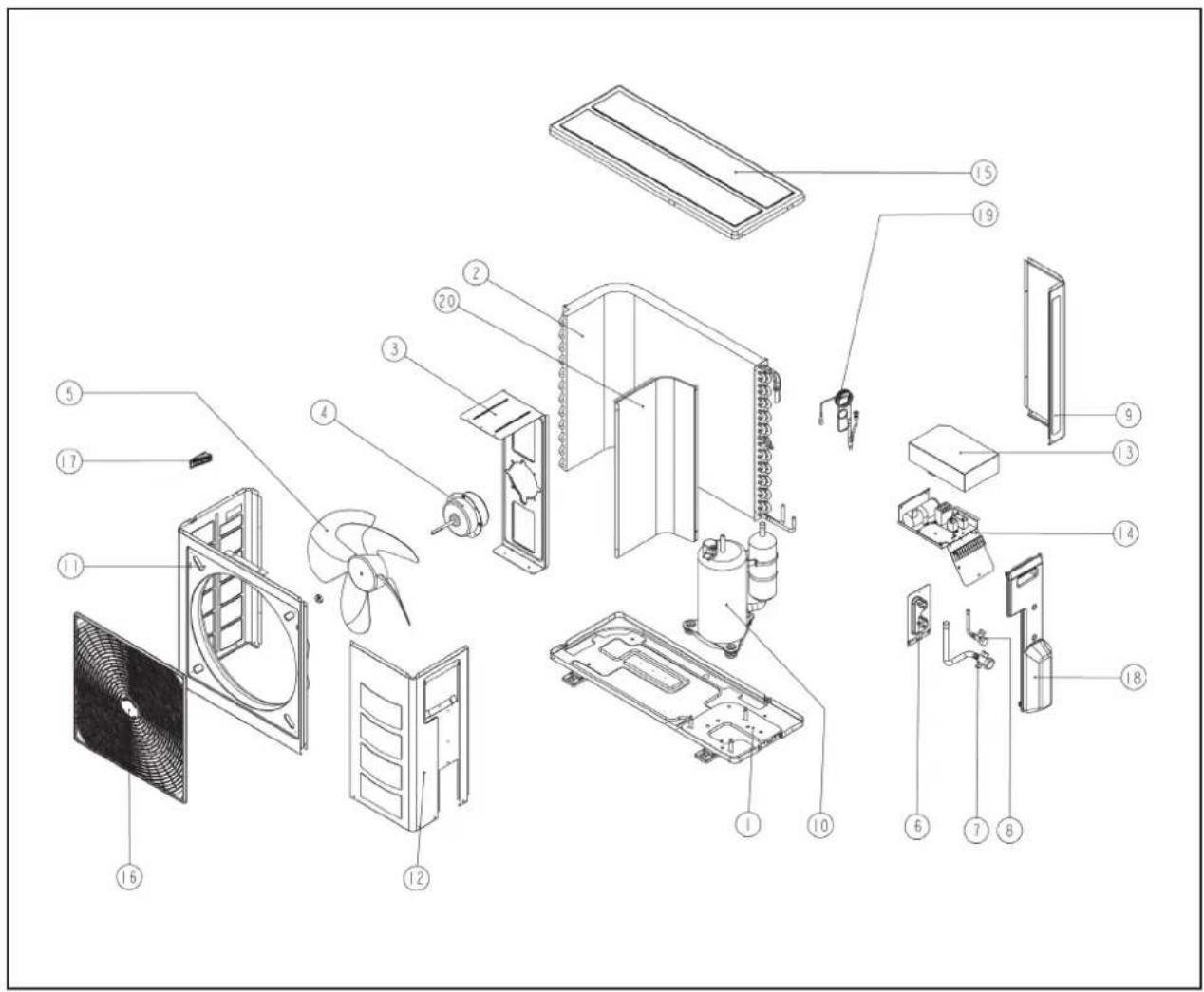

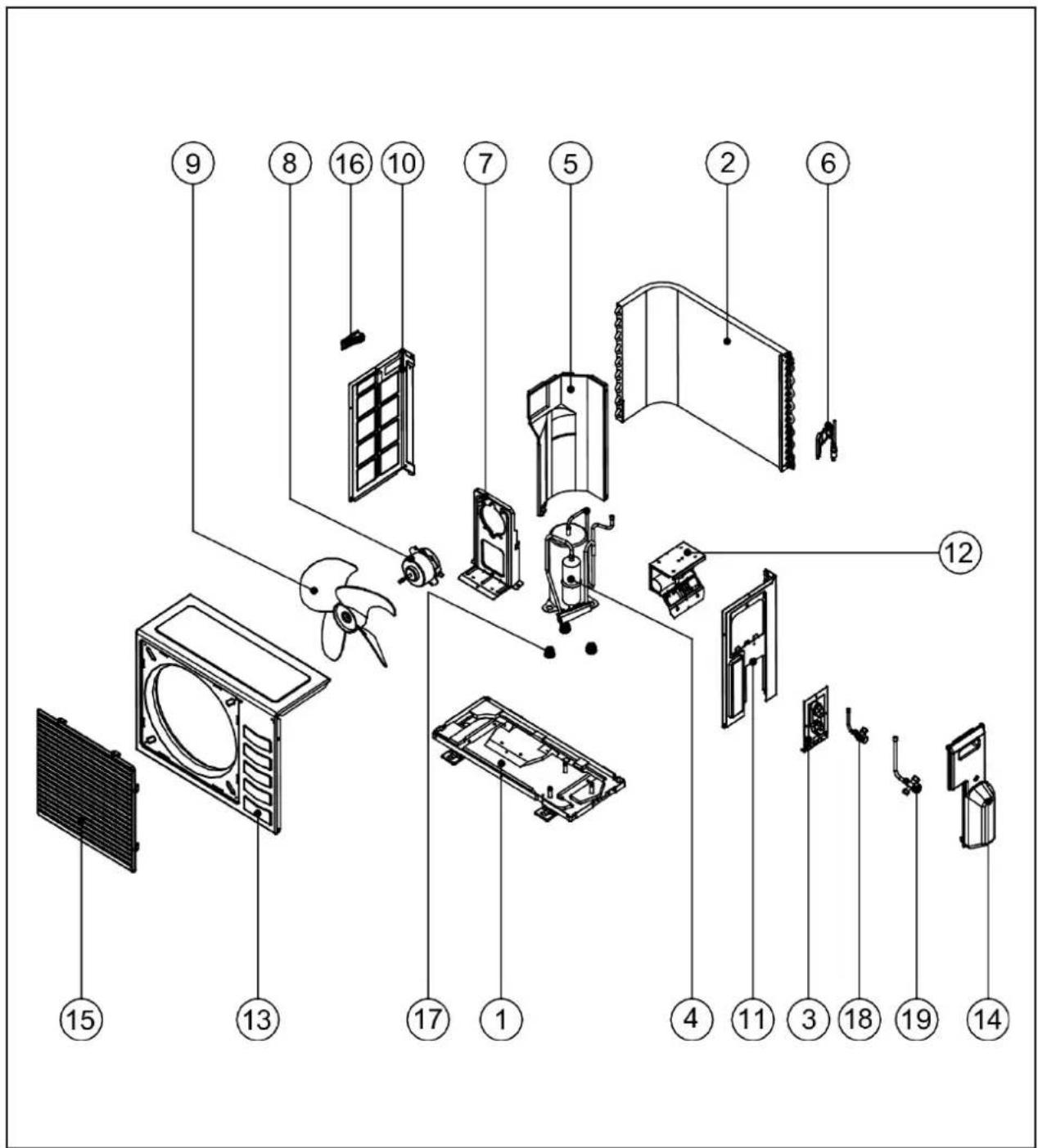

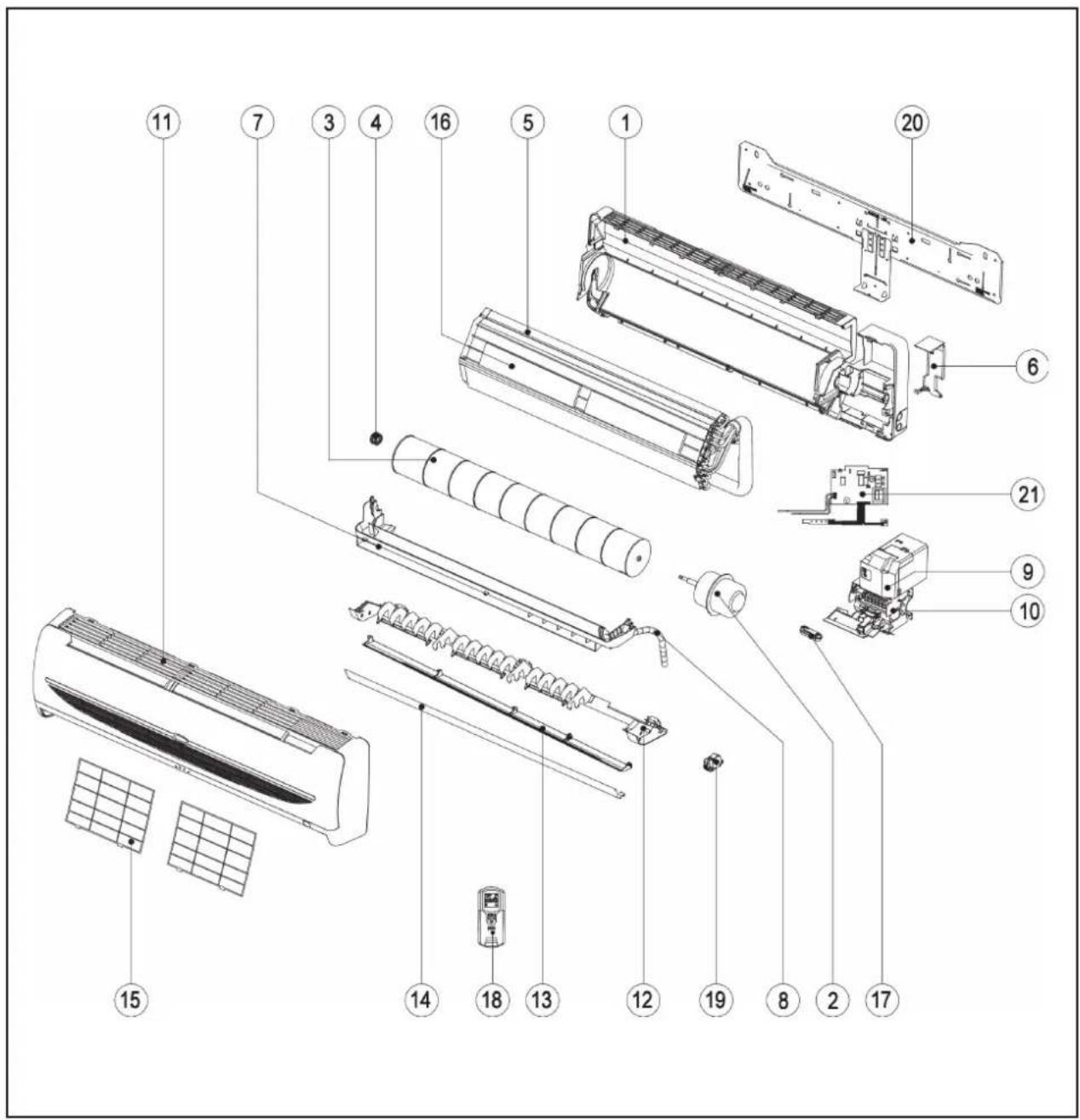

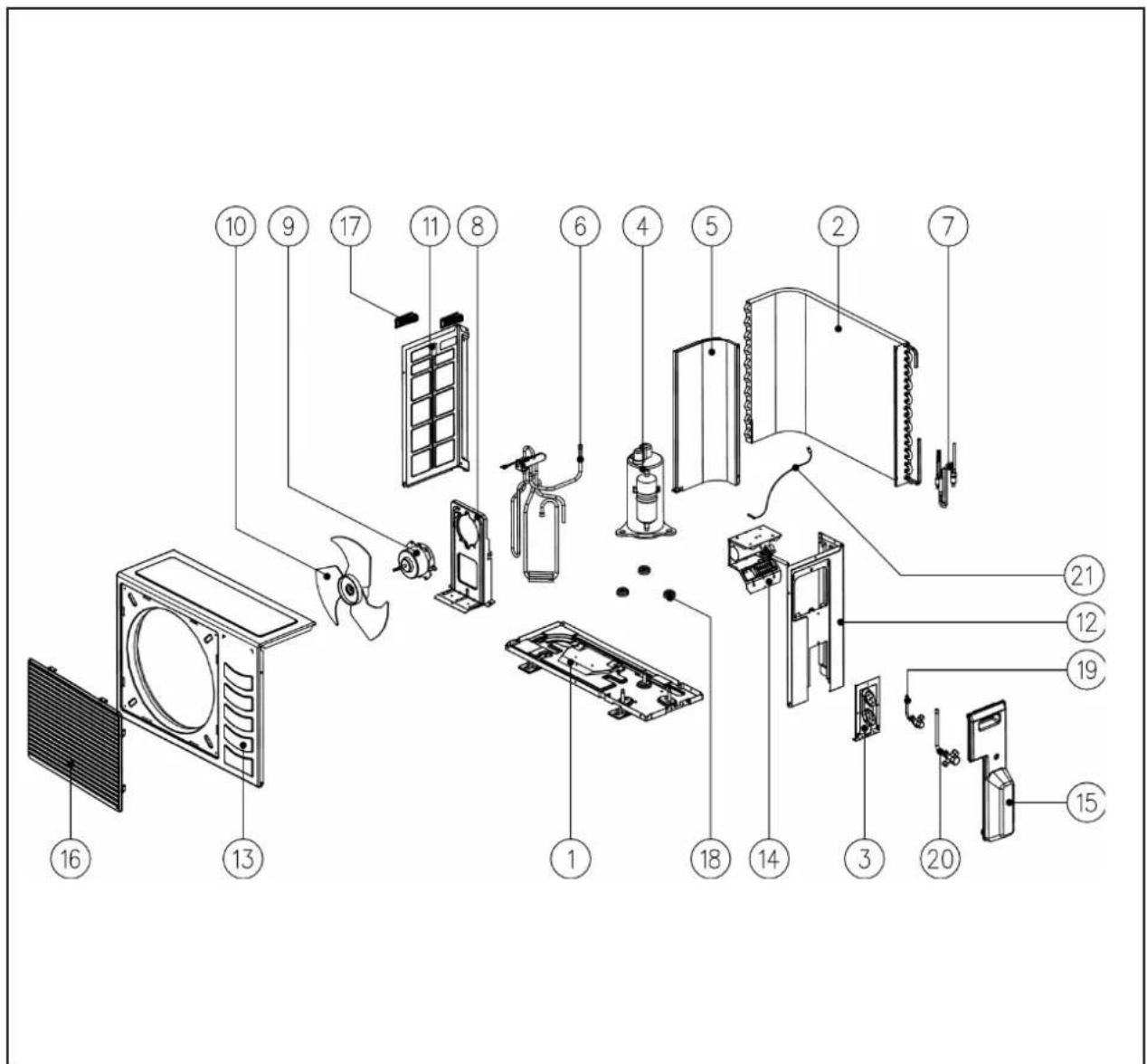

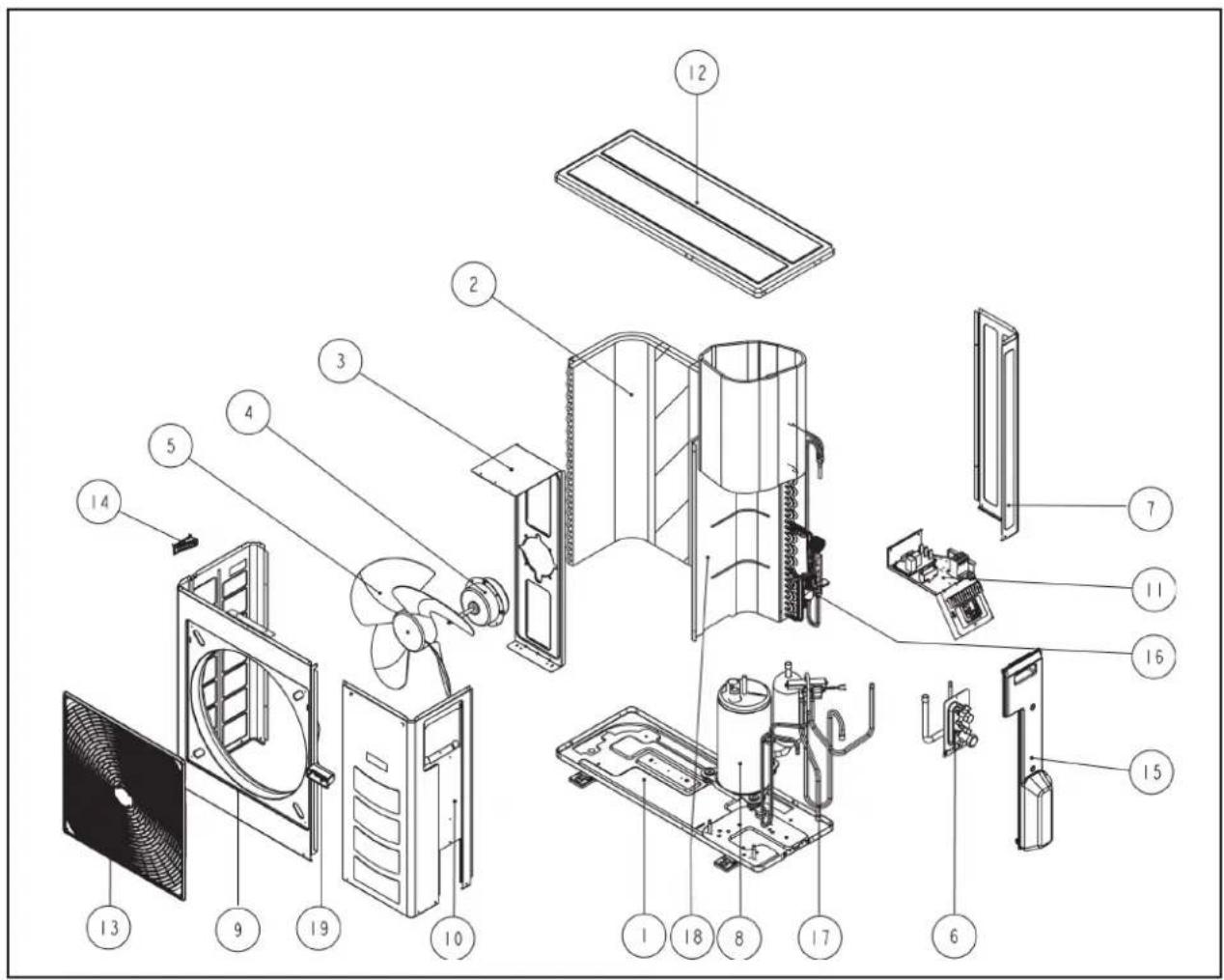

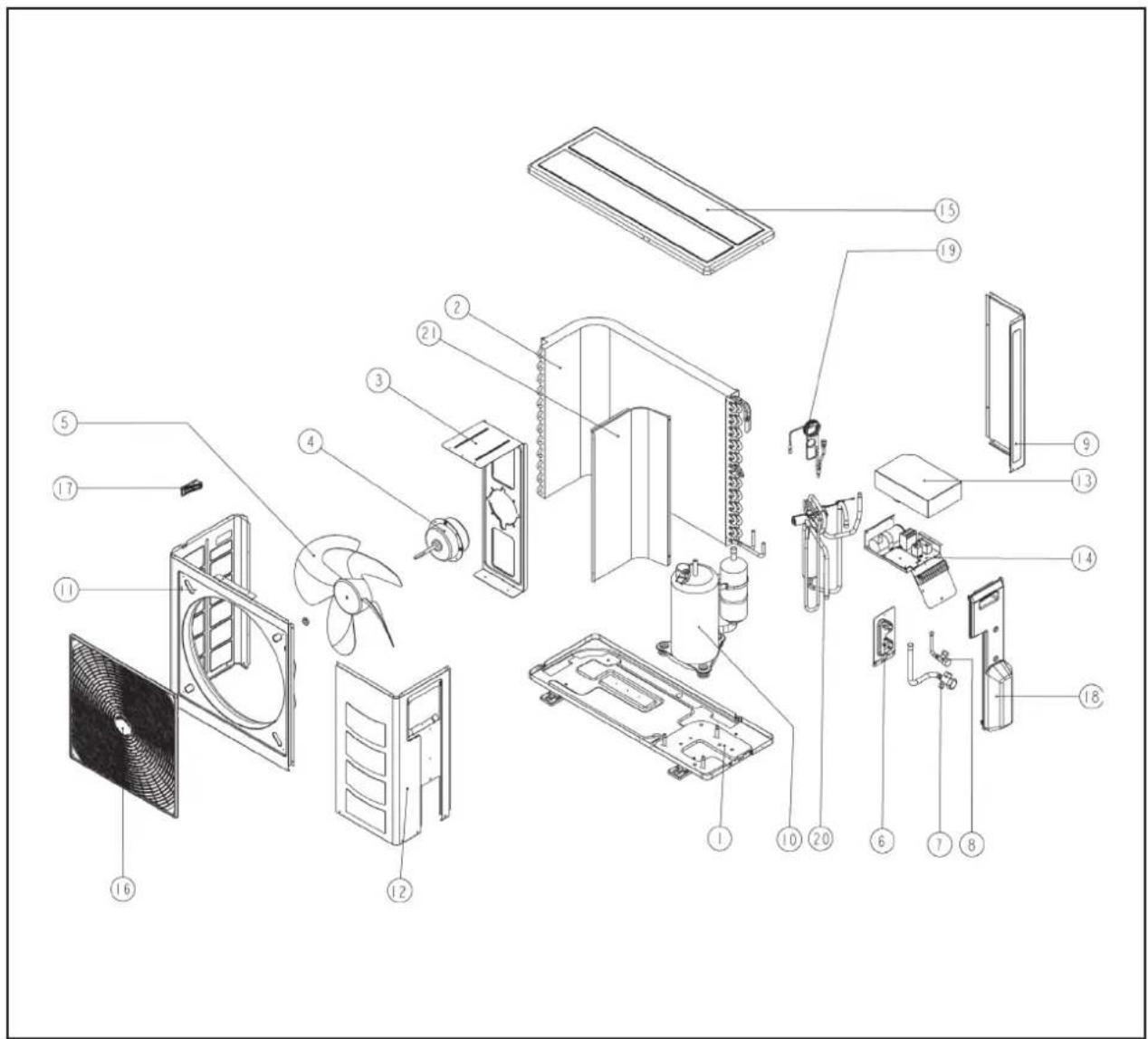

6. EXPLODED VIEW & PARTS LIST 134

1. NOMENCLATURE

Indoor

Others
A: First issue
Grille Type
A: Grille A
Air Treatment Devices & Control
I: Negative Ion with wireless controllerN: NTP with wireless controllerX: Oxygen unit
Market Region
C: Export with CE markU: UTL Spec.
Electrical
A: 220 - 240V/1Ph/50Hz
A	WM 10 G R - A C I A A
	Model TypeR: HeatpumpOmitted if Cooling Only
	SeriesG: G series
	Capacity10: 9,500 Btu/h
	Model NameWM: Wall Mounted
	Refrigerant5: R410AOmitted if R22
	BrandA: ACSON

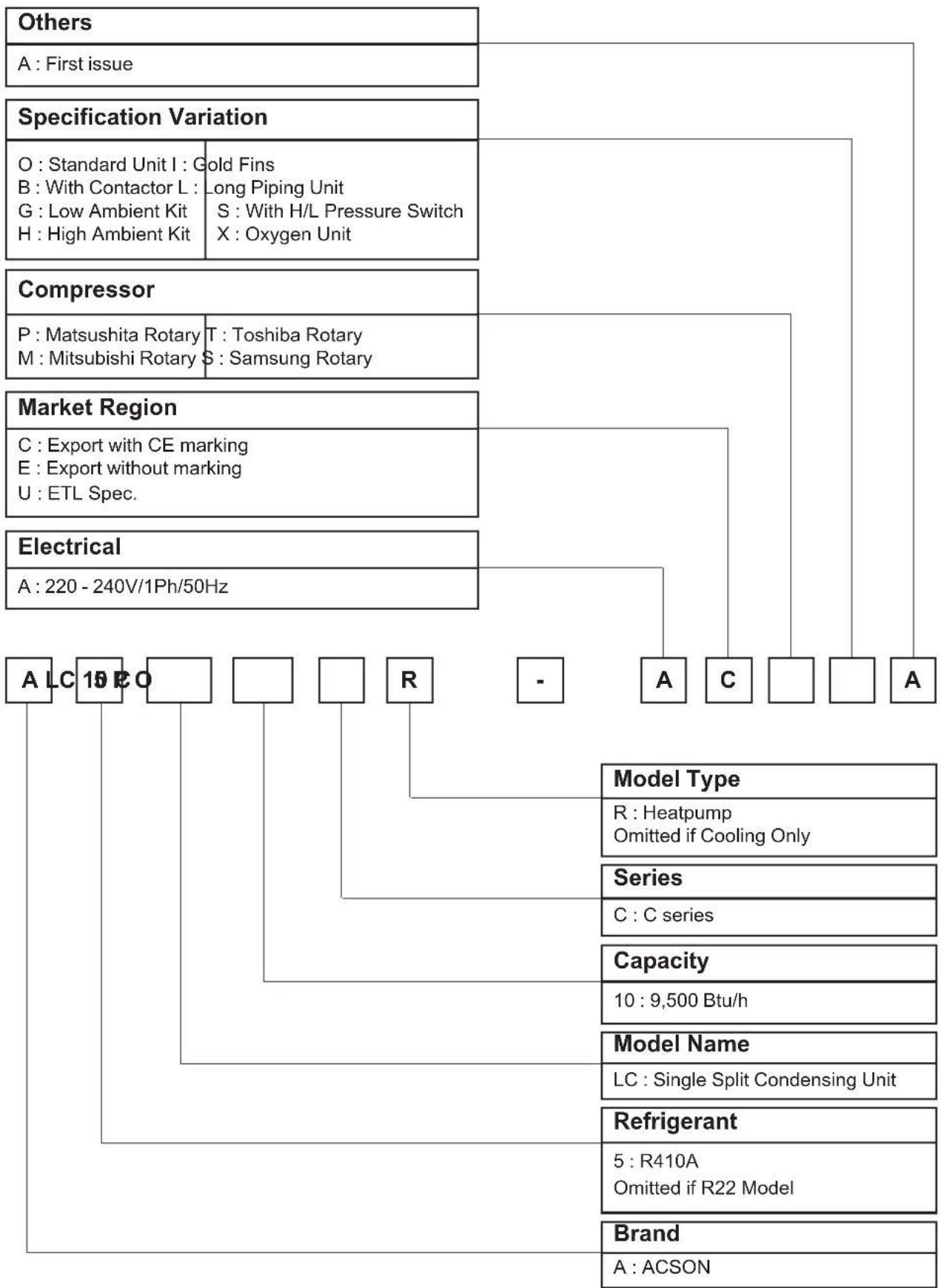

Outdoor

INDOOR UNIT

AWM-G SERIES PRODUCT LINE UP

Heatpump Model

Cooling Model

Nomenclature

G12

G12 (W/O Turbo mode)

L2.0

D2.0

U1.5

Ionizer Filter

Saranet Filter

Negative Ion

Nano Technology Air Filteration

O2 Therapy

Non-Thermal Plasma (NTP)

CE

Marking

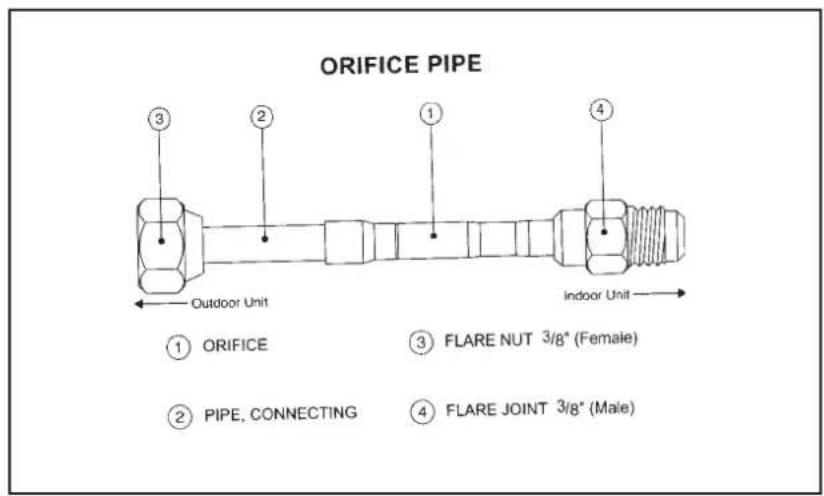

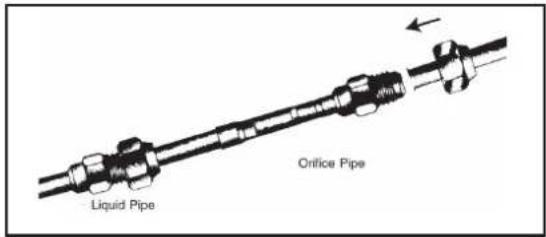

Orifice Kit

A

Grille

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

x

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

B

x

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

x

AFCA

CLASSIFICATIONS

A5WM pump Model

Nomenclature

Handset

PCB Air Purification

Marking

Grille

G12

G12 (W/O Turbo mode)

L2.0

D2.0

Ionizer Filter

Saranet Filter

Negative Ion

Nano Technology Air Filtration

Non-Thermal Plasma (NTP)

CE

B

Cooling ModelHeatpump Model

07G A

CIAC X X X

X X X

09G A

CIAC X X X

X X X

10G A

CIAC X X X

X X X

15G A

CIAC X X X

X X X

20G A

CIAC X X X

X X X

25G A

CIAC X X X

X X X

311 AFCA

X X X

X X X

07GR A

CIAC X X

X X X X

09GR A

CIAC X X

X X X X

10GR A

CIAC X X

X X X X

15GR A

CIAC X X

X X X X

20GR A

CIAC X X

X X X X

25GR A

CIAC X X

X X X X

301R A

FCA X X X

X X X

CLASSIFICATIONS

ALC

Nomenclature

Refrigerant Ctrl + Fin

Safety Devices

Compressor

Marking

Market

Cap. Tube

7mm Coil

3/8" Coil

Gold Fin

W/O Contactor

Contactor

Rotary Comp.

W/O Marking

CE Marking

ETL

Thai

HK

Singapore

Cooling Model

07C

ACPOEXXXX

A

C

P

E

X

X

X

09C

ACPODXXXX

A

C

P

D

X

X

X

10C

ACPOBXXXX

A

C

P

B

X

X

X

15C

ACPODXXXX

A

C

P

D

X

X

X

ATPODXXXXXX

18C

ACPODXXXX

A

C

P

D

X

X

X

ACPBDXXXXXX

20C

ACPODXXXX

A

C

P

D

X

X

X

ACPBDXXXXXX

ATPODXXXXX

25C

ACPBDXXXX

ACPODXXXX

A

C

P

D

X

X

X

Heatpump Model

18CR

ACPODXXXX

A

C

P

D

X

X

X

ACPBDXXXXXX

20CR

ACPODXXXX

A

C

P

D

X

X

X

ACPBDXXXXXX

25CR

ACPBDXXXX

ACPODXXXX

A

C

P

D

X

X

X

			CLASSIFICATIONS
A5LC		Nomenclature	Refrigerant Ctrl + Fin		Safety Devices			Compressor	Marking Others
			Cap. Tube	Gold Fin	Contactor	HP	LP	Mat. Rotary	CE Marking	Drain Elbow
Cooling Model	07C AC	POE X X X
	10C AC	POB X X X
	15C AC	POC X X X
	20C AC	POC X X X
	25C AC	POC X X X
	28C AC	POA X X X
Heatpump Model	07CR AC	POE X X X X
	10CR AC	POB X X X X
	15CR AC	POC X X X X
	20CR AC	POC X X X X
	25CR AC	POC X X X X
	28CR AC	POA X X X X

2. FEATURES

• EASY INSTALLATION

• The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight.

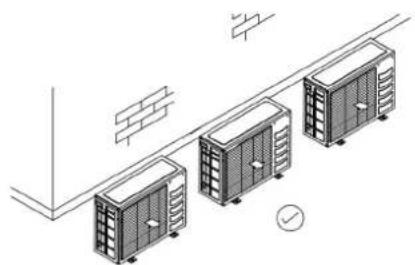

• Slim and short outdoor unit can be easily installed even in a narrow balcony and passageway and yet have a stable profile.

- SPACE SAVING

- No space is required on either floor or ceiling. This newly developed super slim design for wall mounting maximizes floor space usage and enhances ceiling appearance where ceilings are low.

• QUIET OPERATION

- Cooling comfort is improved by whisper-quiet operation which is achieved by a tangential fan.

• EXCELLENT AIR DISTRIBUTION

• Air discharge direction can be adjusted in four directions, manually or automatically by using LCD remote control.
• The new double louver design with automatic air swing function fully optimizes the room comfort by distributing the air evenly to the room.
• The unique skew fan design with larger diameter creates better air flow to the operating environment.

• FACILITATED MAINTENANCE ENSURED

• The new design of air discharge housing whereby the fan blower can be easily accessed by just loosing two screws on the unit to provide a flexible, faster and easier way to clean up the fan blower and ionizer.
• Maintenance is easy for electrical components, piping and wiring as these are all easily accessible by merely removing front plastic panel.

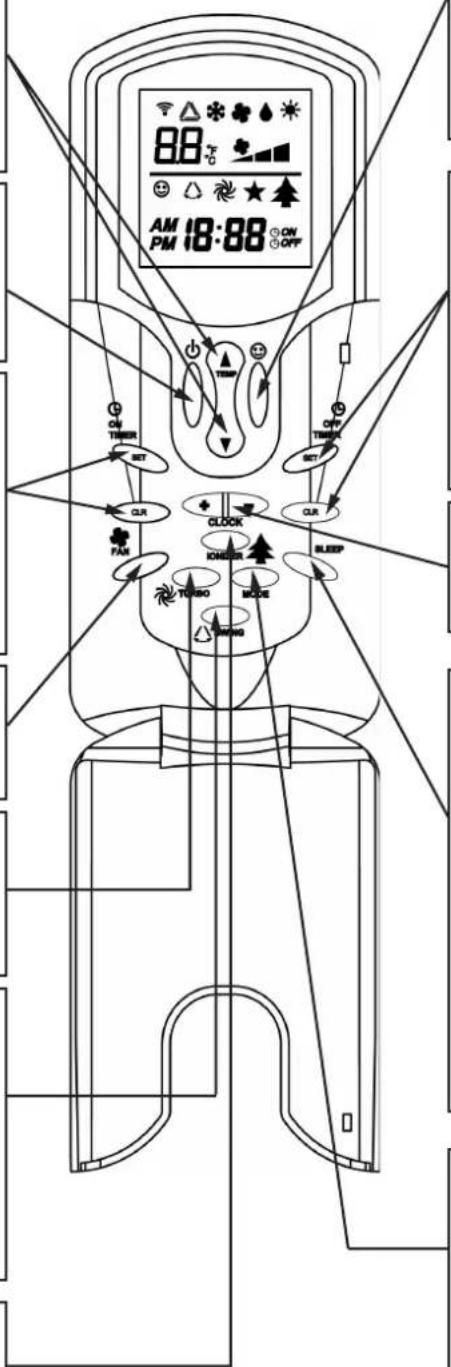

• WIRELESS REMOTE CONTROL

• The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters.
• Fan motor speed can be set at low/medium/high or automatic.
• Sleep mode auto control will gradually increase or decrease the setting temperature to provide a comfortable surrounding for sleeping.
• Air flow direction can be controlled automatically.
• Room temperature is controlled by electronic thermostat.
• The real time timer allows the air conditioner to be switched On and Off automatically based on user settings.

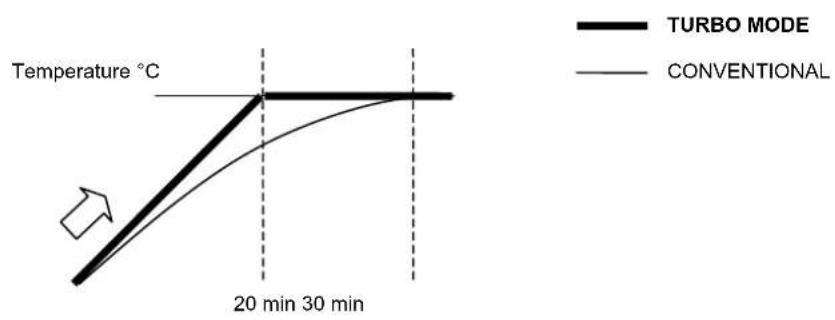

• Turbo mode function is available to enables the required set temperature to be achieved in a short time.
• Ionizer or non-thermal plasma is available to create better air quality.
• Personalized Setting allows user to preset and store 2 groups of personal settings (including timer setting) in the handset.
• Auto random restart is a function whereby when there is power failure occurred during operation, the unit will automatically restart as the last setting condition once the power is resumed.

• MOISTURE REMOVAL

• Dry mode with super low indoor fan speed can achieve more affective moisture removal.
• If the room temperature is lower than the set temperature (Cooling mode only), the compressor will cut out and force on after 9 minutes to remove moisture effectively.

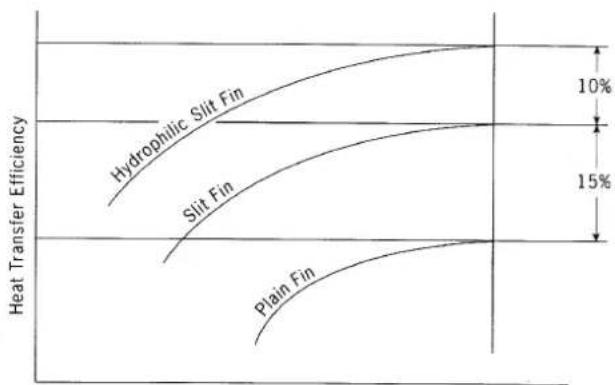

• HIGH EFFICIENCY HEAT EXCHANGER

• The compact design of the 3-fold structure heat exchanger provides a large surface are for better and efficient heat exchange.
• The unique Hydrophilic slit fin has greatly improved the air flow and the contact surfaces with the air thus to boost the cooling capacity.

• ROTARY COMPRESSOR

- The ever popular rotary compressor is more energy efficient and has a higher output to weight ratio.

- SELF DIAGNOSIS

• This function is able to detect and to diagnose any faults occurring in the system by blinking of the LED lights.
• Simplify and ease for troubleshooting.

3. APPLICATION INFORMATION

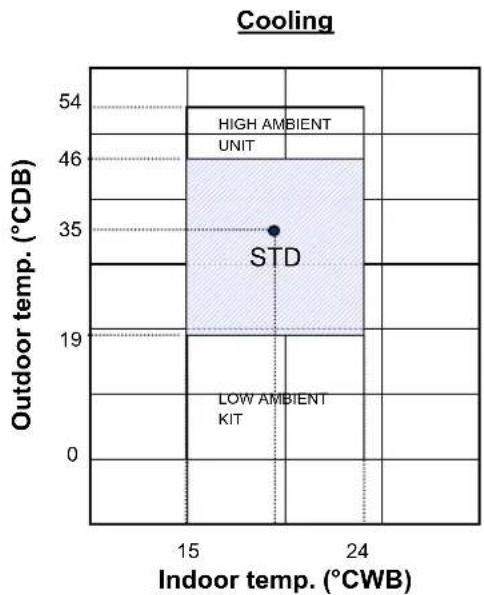

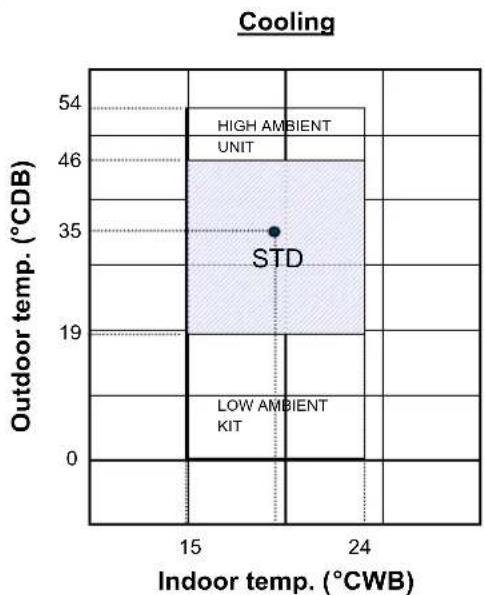

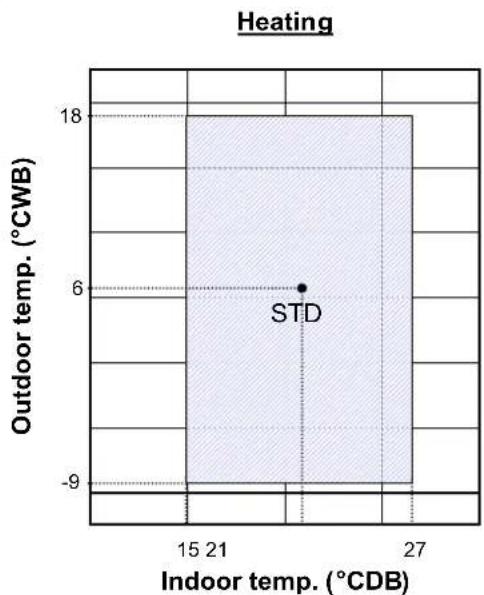

Operating Range

Ensure the operating temperature is in allowable range.

Cooling only

Caution :

The use of your air conditioner outside the range of working temperature and humidity can result in serious failure.

Heatpump

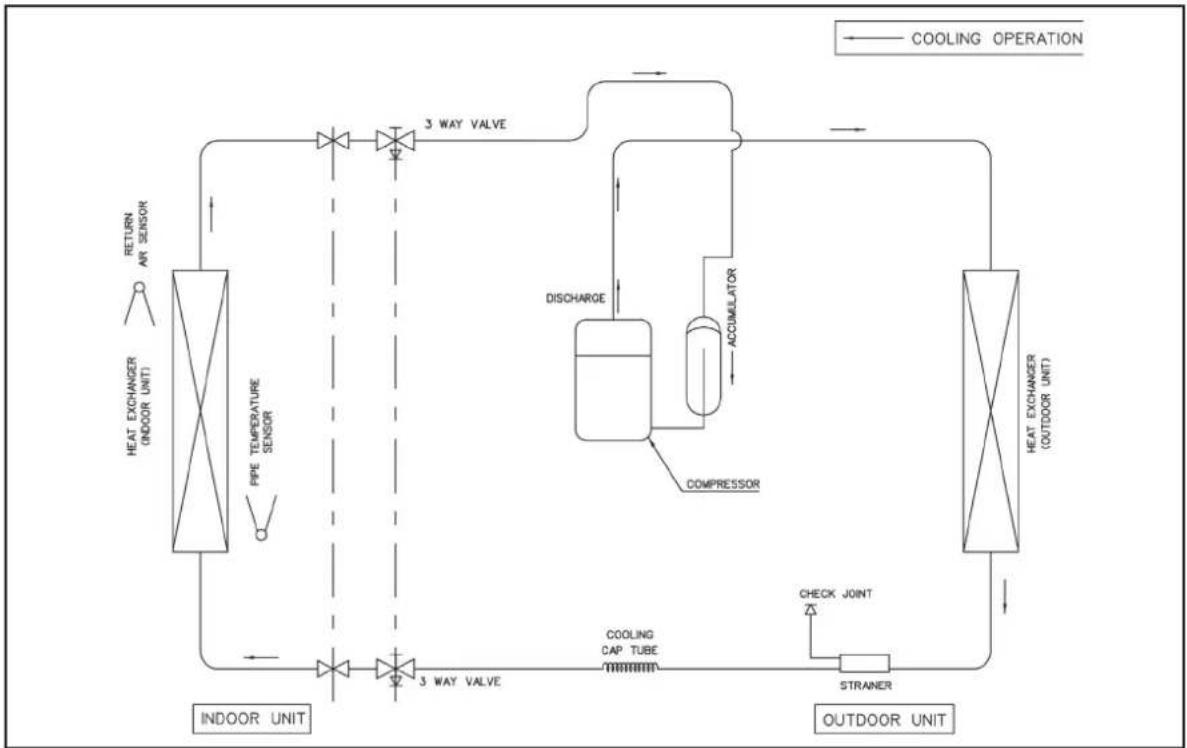

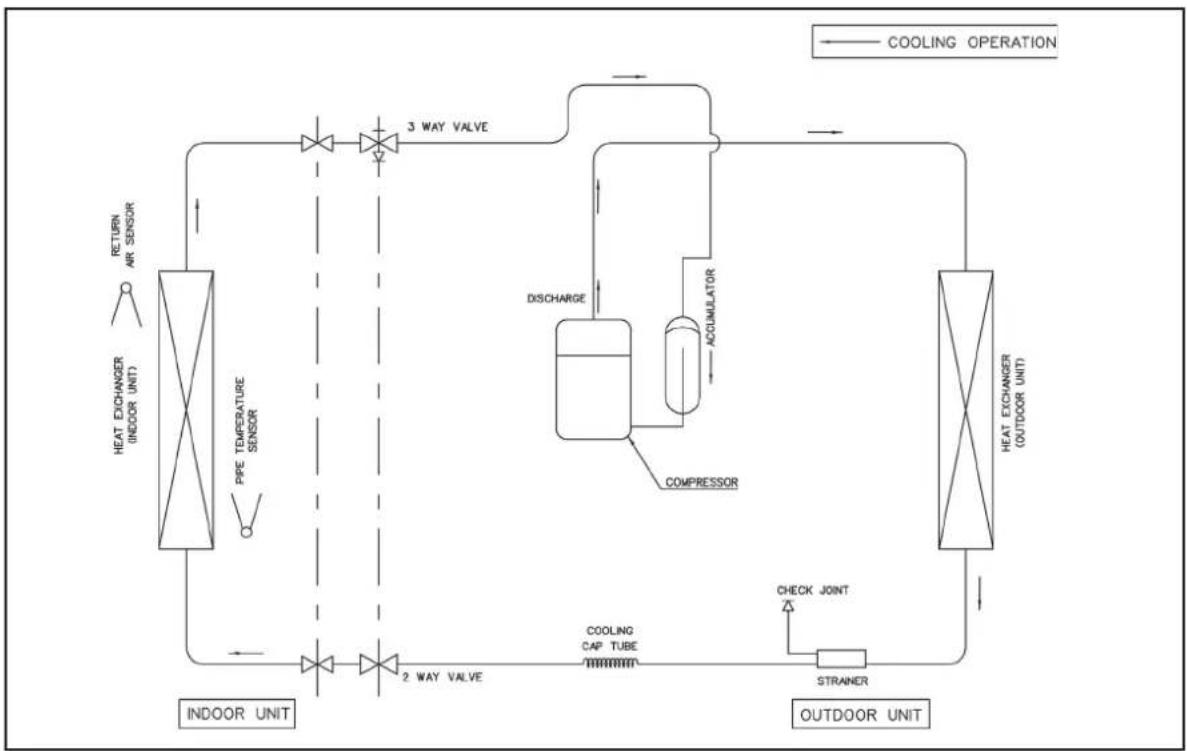

Refrigerant Circuit Diagram

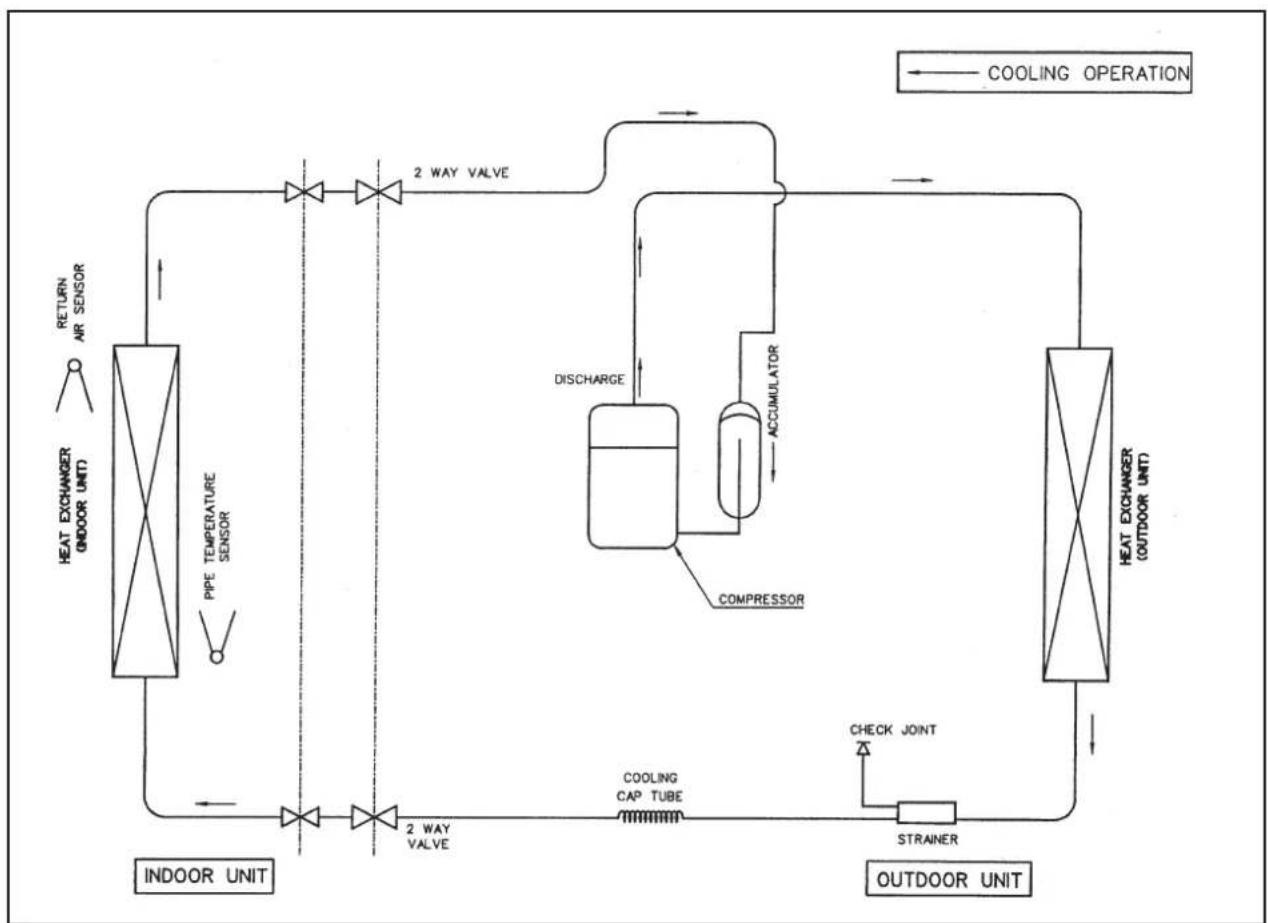

Cooling Only Models

MODEL : AWM 07G - ALC 07C A5WM 07G - A5LC 07C

AWM 09G - ALC 09C A5WM 09G - A5LC 10C

AWM 10G - ALC 10C A5WM 10G - A5LC 10C

AWM 15G - ALC 15C A5WM 15G - A5LC 15C

Cooling Only Models

MODEL : AWM 20G - ALC 18C A5WM 20G - A5LC 20C

AWM 20G - ALC 20C A5WM 25G - A5LC 25C


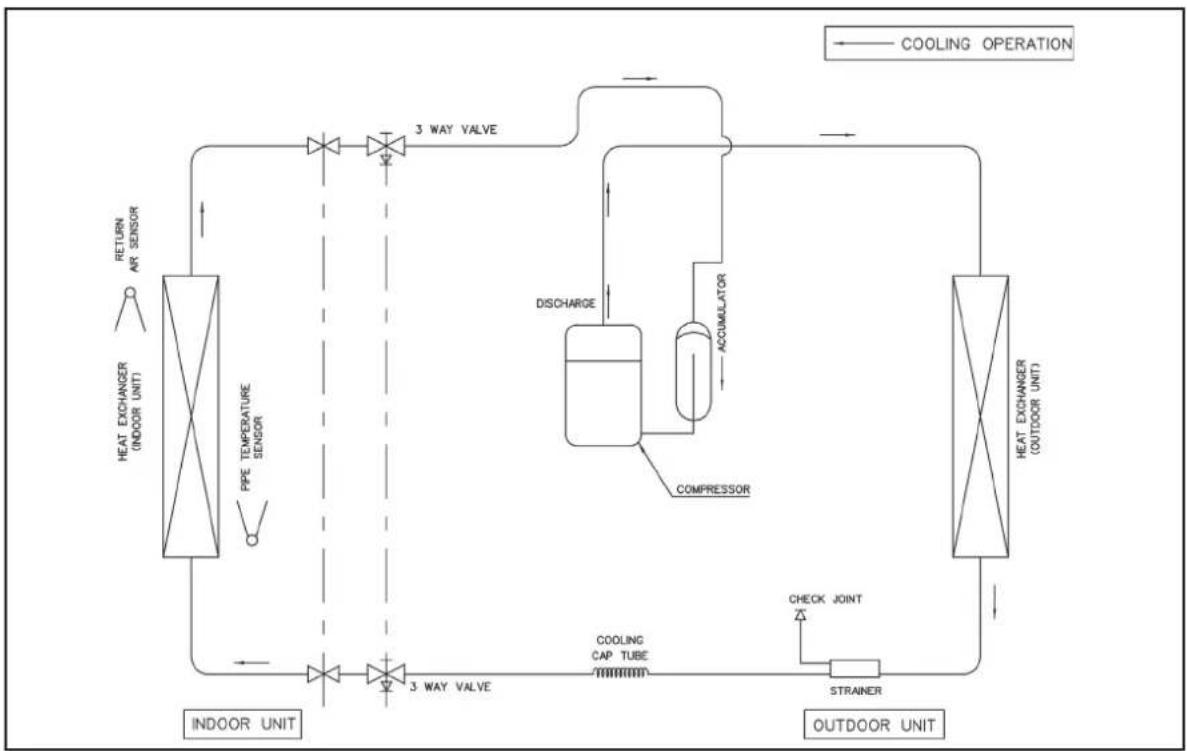

MODEL : AWM 25G - ALC 25C A5WM 31F - A5LC 28C

Cooling Only Models

MODEL : AWM 30F - ALC 28C

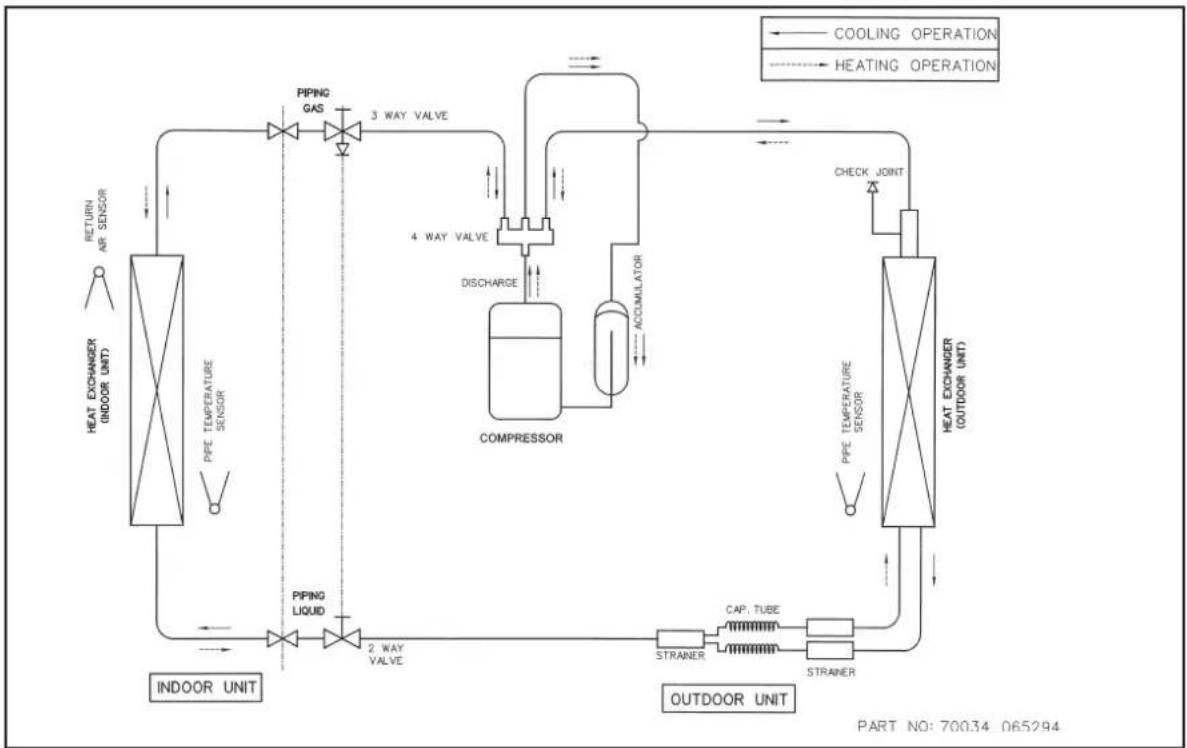

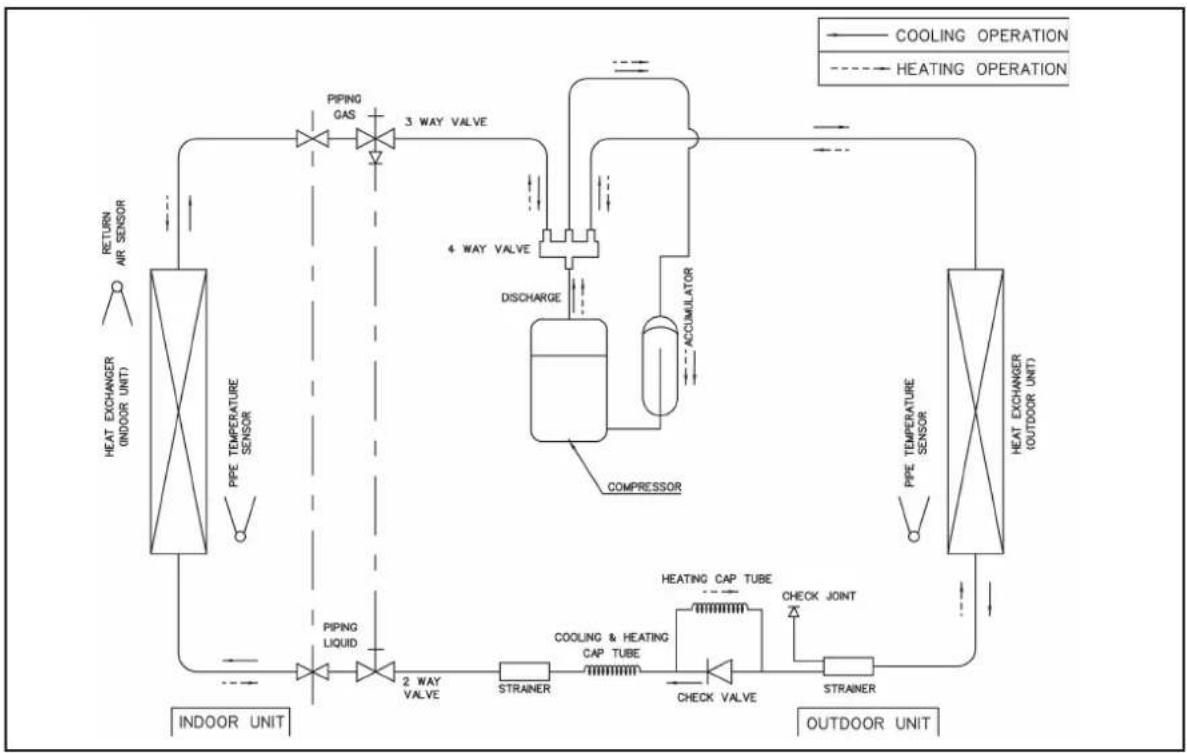

Heatpump Models

MODEL : AWM 09GR - ALC 09CR A5WM 07GR - A5LC 07CR

MODEL : AWM 10GR - ALC 10CR
A5WM 09GR - A5LC 10CR A5WM 10GR - A5LC 10CR

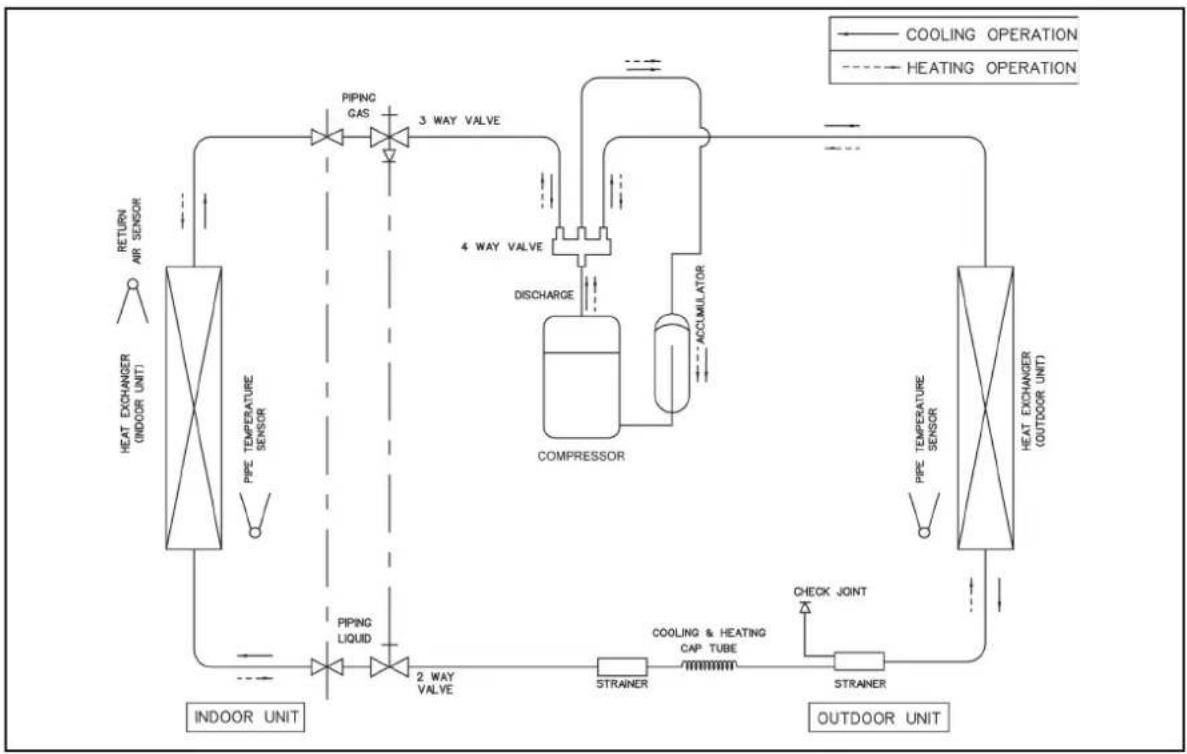

Heatpump Models

MODEL : AWM 15GR - ALC 15CR A5WM 15GR - A5LC 15CR

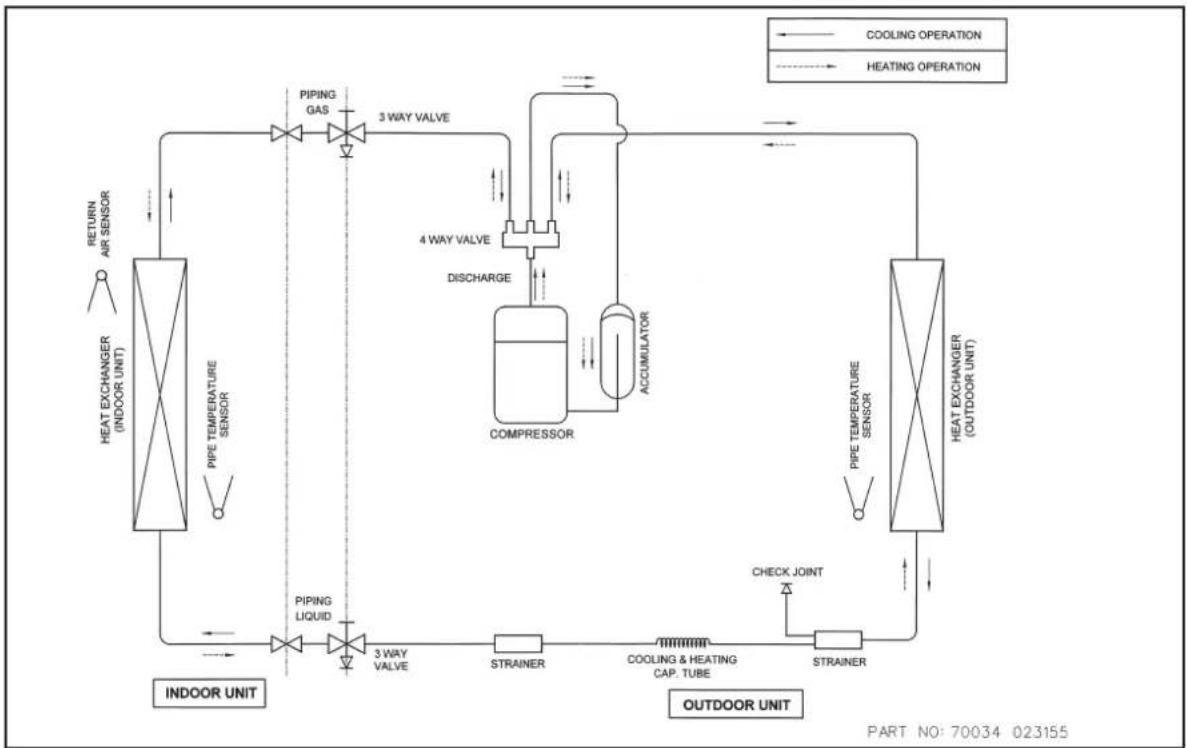

Heatpump Models

MODEL : AWM 20GR - ALC 20CR A5WM 20GR - A5LC 20CR
A5WM 25GR - A5LC 25CR

MODEL : AWM 25GR - ALC 25CR

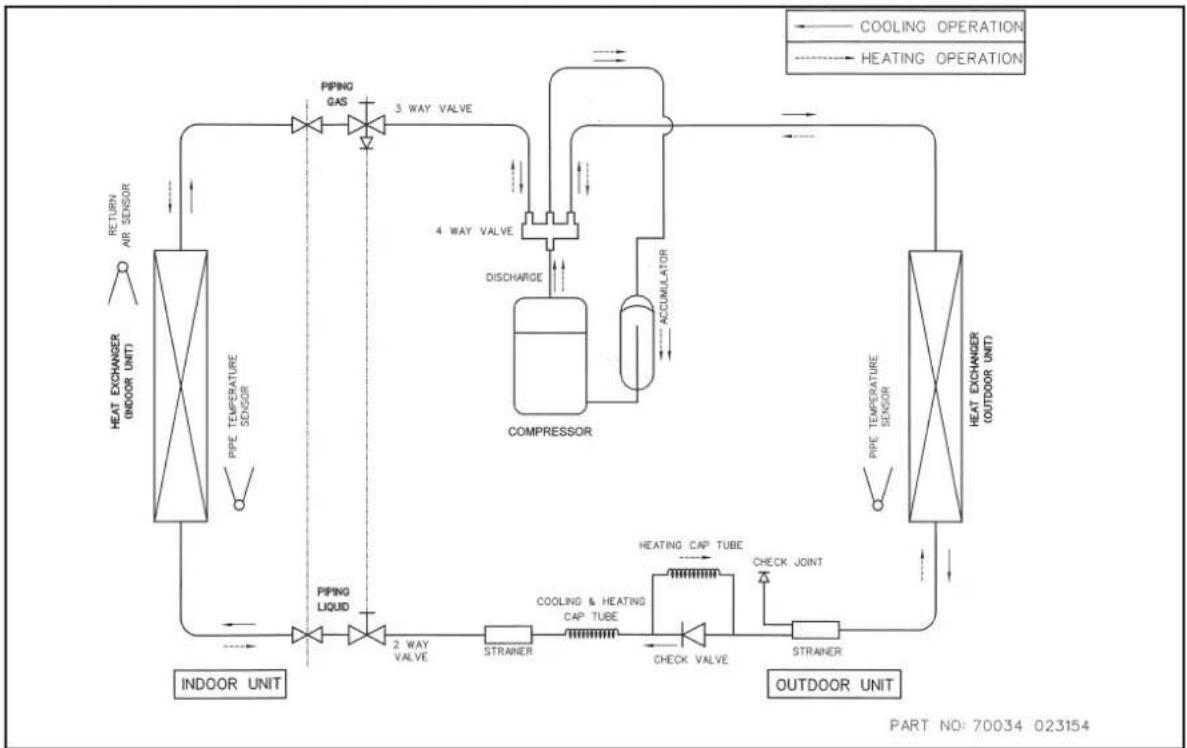

Heatpump Models

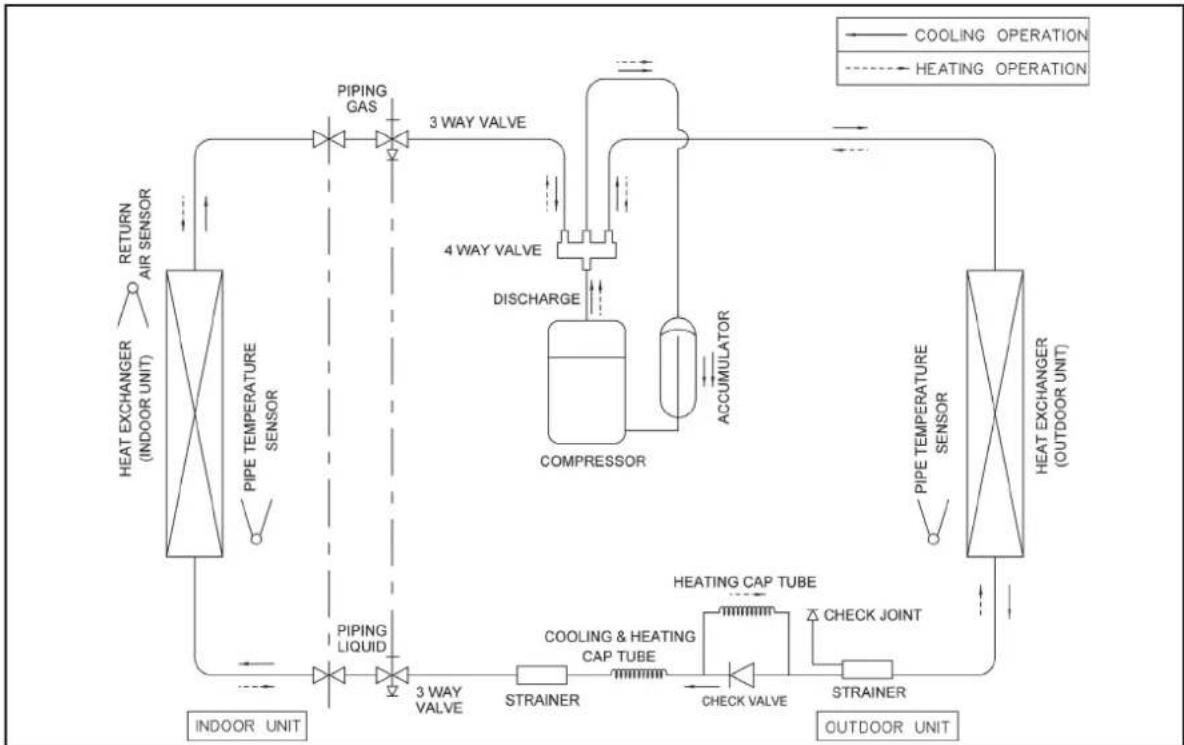

MODEL : AWM 30FR - ALC 28CR A5WM 30FR - A5LC 28CR

Controllers

G12 Remote Controller

Temperature Setting

• To set the desired room temperature, press the button to increase or decrease the set temperature.
• The temperature setting range is from 16°C to 30°C
• Press both buttons simultaneously to toggle the temperature setting between °C and °F

On/Off Button

• Press Once to start the air conditioner
• Press again to stop the unit

ON Timer Setting

• Press the SET button will activate the on timer function.
• Set the desired on time by pressing the SET button continuously.
• Press the CLR button to cancel the off timer setting

Fan Speed Selection

- Press the button until the desired fan speed is achieved.

Turbo Mode

- Press the TURBO button to achieve the required set temperature in a short time.

Automatic Air Awing

• Press the SWING button to activate the automatic air swing function.
• To distribute the air to a specific direction, press the SWING button and wait until the louver move to the desired direction and press the button once again.

lonizer

- Press the button to activate the negative lon function, which will refresh the indoor air effectively.

88 AM PM 18:88 ON OFF ON TIMER SET OFF TIMES SET ON PAN CLOCK ICMINDER SLEEP TURNO MODE TANGO

Personalised Setting

• Press and hold the button for 3s to initiate personalized setting.
• Set the individual setting e.g. MODE, SET TEMP or FAN SPEED and leave for 4s to save
  • 2 groups of settings are allowed to stored in the handset

OFF Timer Setting

• Press the SET button will activate the off timer function.
• Set the desired off time by pressing the SET button continuously.
• Press the CLR button to cancel the off timer setting

Clock Time Setting

- Press button + or - to increase or decrease the clock time.

Sleep Mode

• Press the button to activate sleep mode. This function is available under COOL, HEAT & AUTO mode.
• When it is activated in COOL mode, the set temperature will be increased 0.5°C after 30mins, 1°C after 1 hour and 2°C after 2 hours.
• When it is activated in HEAT mode, the set temperature will be decreased 1°C after 30mins, 2°C after 1 hour and 3°C after 2 hours.

Operating Mode

• Press the MODE button to select the type of operating mode.
• For Cooling only unit, the available modes are: COOL, DRY & FAN.
• For Heatpump unit, the available modes are: AUTO, COOL, DRY, FAN & HEAT.

Indicator Lights

AWM / A5WM - G SERIES

IR signal receiver

When there is infrared remote control operating signal, the signal receiver on indoor unit will made a (beep) for signal acceptance confirmation.

Cooling unit / Heatpump unit

The table below shows the LED indicator light for air conditioner unit under normal operation and fault condition. The LED indicator lights are located at the middle of the air conditioner unit.

The heat pump units is equipped with an "auto" mode, whereby the unit will provide reasonable room temperature by switching the unit automatically to either "cool" mode or "heat" mode, according to the temperature setting set by the user.

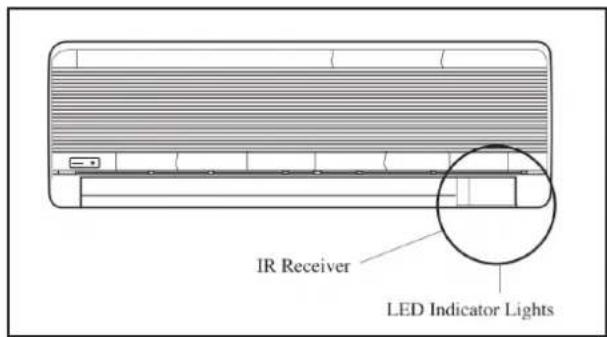

IR Receiver LED indicator lights

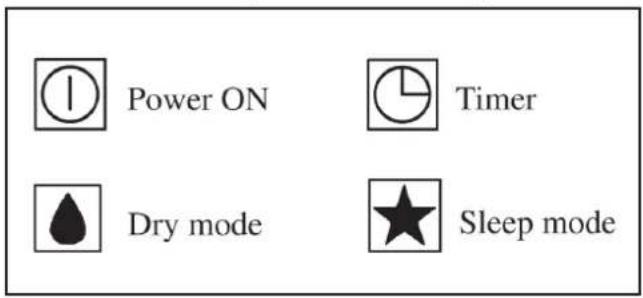

LED Indicator Lights for Cooling Unit / Heatpump Unit

Sleep Mode

Cool

Timer

Ionizer

LED Indicator Lights : Normal Operation And Faulty Indication Table

	COOL/HEAT(GREEN/RED)			Normal Operation / Fault Indication Action
	[0784]Green		[14480]	Cool mode	-
[1KBX2]	[5037]Red		[10040]	Heat mode	-
[2X67]	[6625]Red		[4440]	Auto mode in Heating operation	-
[4022]	Green		[3434]	Auto mode in Cooling operation	-
	○	○		Timer on	-
[0WSX]			[8237]	Sleep mode on	-
	○		○	Ionizer on	-
[5073]			[CC25]	Fan mode on	-
	○		○/●	Dry mode on
	1 time		[1KT08]	Room air sensor contact Loose / Short	Call your dealer
[6SKY]	3 times		[22X2]	Outdoor coil sensor open	Call your dealer
	[704W]			Indoor coil sensor open	Call your dealer
		[mean]1 time		Compressor overload /Indoor coil sensor short /Outdoor coil sensor short	Call your dealer
	○Red			Defrost operation	-
		[mean]3 times		Gas leak	Call your dealer
		[mean]5 times		Outdoor coil sensor exist (MS mode)	Call your dealer
		[mean]6 times		Hardware error (tact switch pin short)	Call your dealer

1 time
3 times
5 times
6 times

O - ON

O/●

- ON or OFF

①

- Blinking

IR Receiver LED Indicator Lights

LED Indicator Lights For Cooling Unit

Power ON Timer Dry mode Sleep mode

LED Indicator Lights : Normal Operation And Fault Conditions For Cooling Unit

Power Dry Timer Sleep				Operation / Fault Indication Action
○		○		Timer on	-
○			○	Sleep mode on	-
○	○			Dry mode on	-
Continuously				Frost prevention	Clean the filter and switch to high fan
[3C3Z once every 2 sec.				Room air sensor contact loose / short	Call your dealer
twice every 2 sec.				Indoor coil sensor contact loose / short	Call your dealer
[T8C6: 3 times every 2 sec.				Sensor contact problem, compressor overload protection trip or gas leak	Call your dealer

O - ON

O/●

- ON or OFF

- Blinking

LED Indicator Lights For Heatpump Unit

Cooling mode Dry mode Heat/Fan mode

(red/green)

Sleep mode

LED Indicator Lights : Normal Operation And Fault Conditions For Cooling Unit

Cool Dry Fan Heat				Sleep	Normal Operation / Fault Indication Action
○				○/●	Cooling mode	-
	○				Dry mode	-
		○			Fan mode	-
			○	○/●	Heat mode	-
●			○	○/●	Auto mode in heating operation	-
○			●	○/●	Auto mode in cooling operation	-
			●		Defrost operation	-
●					Compressor overload protection	Call your dealer
				●	Indoor coil sensor contact loose/short	Call your dealer
	●				Outdoor coil sensor contact loose/short	Call your dealer
		●			Room air sensor contact loose/short	Call your dealer
●	●				If the system is in cool mode or heat mode (with the sleep function off), the sensor may have a contact problem, compressor overload protection trip or gas leak.

O - ON

O/●

- ON or OFF

- Blinking

Controller Specifications

(A) 3 HOT SYSTEM (HEATING CYCLE)

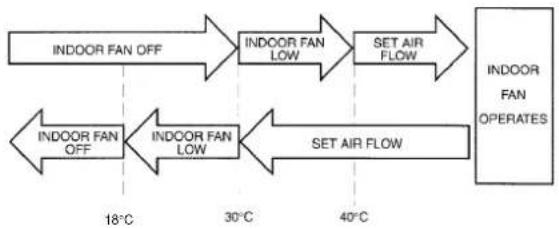

a) Hot start

At the beginning of heating operation (cold start, after defrosting or thermostat resumes operation) the indoor fan operation is controlled in accordance with the temperature of the indoor heat exchanger to send warm air from the start.

b) Hot keep (Apply to MWM030FR)

After thermostat cut out, the indoor fan operation is controlled in accordance with the indoor heat exchanger temperature to utilize the extra heat and preserve indoor comfort.

The indoor fan can be switched to ON, OFF, INTERVAL by setting the slide switch shown in the diagram. This slide switch is located at the front frame cover.

HOT KEEP OFF INTERVAL ON ON/OFF Slide Switch

Note 1 : Fan ON (default)

Note 2: Fan OFF


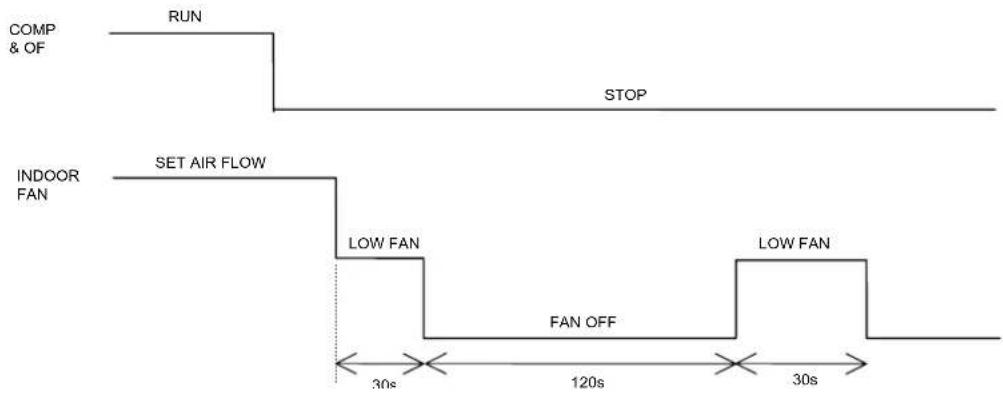

Note 3 : Interval

Hot Keep (Apply to AWM-GR)

After thermostat cut out, the indoor fan operation is controlled in accordance with the indoor heat exchanger temperature to utilize the extra heat and preserve indoor comfort.

The indoor fan can be switched to ON, OFF by setting the slide switch shown in the diagram. This slide switch is located at the front frame cover.

Multisplit Model Selection

The indoor unit can be changed to multisplit model by just selecting MS through the slide switch.

HOT KEEP OFF ON MS Slide Switch ON/OFF

Note 2: Fan OFF

Note 1: Fan ON (default)


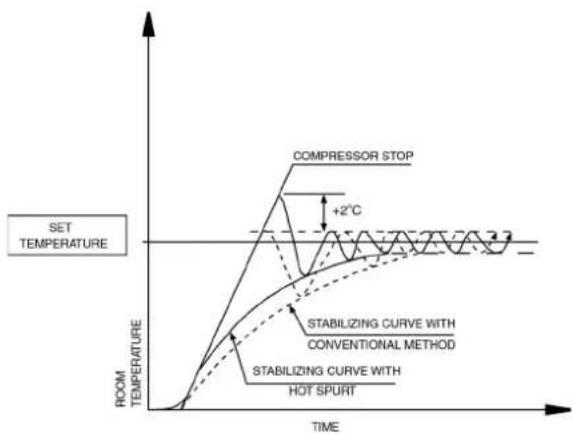

c) Hot spurt

During cold start, the set temperature of controller is increased by 2^ C to stabilize the room temperature quickly.

(B) TURBO MODE (APPLY TO AWM-GR)

TURBO function is available in COOL, HEAT and DRY modes only. When TURBO function is set, working temperature for cooling cycle is decreased by 2°C, working temperature for heating cycle is increased by 2°C. The indoor fan will force to HIGH fan. After 20 minutes, this function will clear automatically, no more offset temperature for set temperature and indoor fan will restore. Cold start will be overridden when TURBO function is activated. If TURBO and SLEEP are activated at the same time, the SLEEP mode timer will be reset, it will resume after TURBO function is cleared.

Temperature °C 20 min 30 min TURBO MODE CONVENTIONAL

(C) OVERLOAD PREVENTION IN HEATING OPERATION

During heating operation, if the room temperature and outdoor temperature are high, or when the indoor air filter is choked, the condensing pressure will increase rapidly. To prevent the burn out of compressor, the M. C. controller will stop the operation of the air conditioner under this condition.

COMP., OUTDOOR FAN & 4-WAY VALVE RUN STOP 68°C

- For manual reset type, the ON / OFF button must be pressed to reset the system.

(D) OVERLOAD PROTECTION IN COOLING OPERATION

When outdoor and indoor air temperature raise beyond the operation limit, or when the outdoor coil choked with dirt, the M.C. controller detects abnormal increase in condensing temperature. It will stop the operation to prevent compressor burn out.

COMP & OUTDOOR FAN RUN STOP 68°C

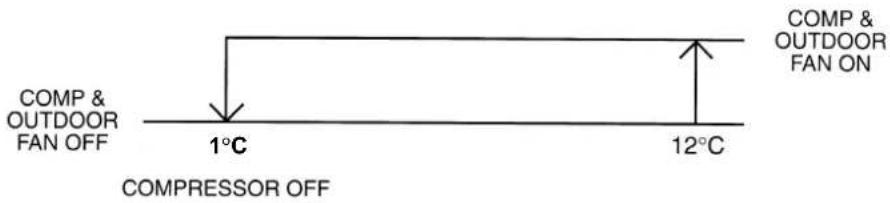

(E) FROST PREVENTION AND FILTER CHECK

In order to prevent the freezing of indoor coil, the controller will operate as follow.

COMP & OUTDOOR FAN OFF 1°C COMP & OUTDOOR FAN ON 12°C COMPRESSOR OFF

(F) AUTO RANDOM RESTART

When power resumed, the unit will automatically restart and operate at the previous setting as before power failure occurred.

Installation

Installation Diagram

Indoor Unit Air Filter Front Frame Back Housing ON/OFF Switch Air Intake Grille Indicator Light Signal Receiver Drain Hose Refrigerant Piping Air Intake Air Discharge Nozzle SLC Outdoor Unit

CAUTION: Before installing the unit, ensure that the power supply matches the power requirement of the air conditioner.

1) SELECTION OF LOCATION AND SPACE

(A) INDOOR UNIT

Install the fan coil (indoor) unit at a location with the following requirements

• Location is suitable for wiring, piping and drainage.
• No obstruction of air flow into and out of unit where cooler air can be evenly distributed.(See fig. 1)
• Ensure that air discharge is not short circuited with air intake.
• Ensure that wall is sufficiently strong, rigid, flat, perpendicular and vibration free.
• Where air filter cassette can be slid in or out easily.
  • Where there is no danger of flammable gases.
  • Where there is no direct sunlight on unit.
• Also to take into consideration a place for the installation of the Wireless LCD Remote Controller.

50.0mm Minimum 50.0mm Minimum 50.0mm Minimum Higher than eye level

MAINTENANCE & SERVICING SPACE.

AIR FLOW DIRECTION.

CAUTION : Do not install unit near the door way because excessive fresh air may cause panel condensation on the unit.

Fig. 1

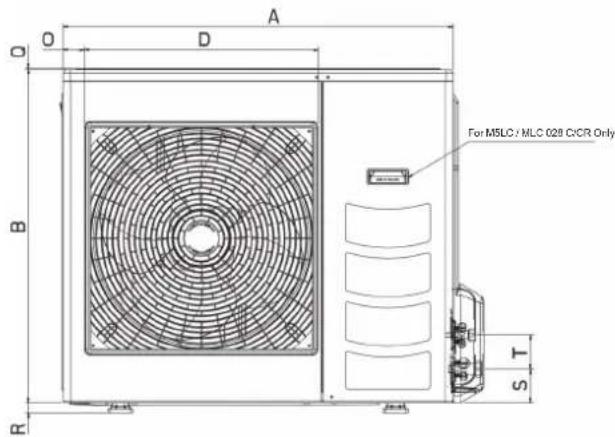

(B) OUTDOOR UNIT

As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements:

- Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.

Isometric illustration of two server racks connected by a line, with a cross symbol indicating a connection point (no text or labels present)

Isometric line drawing of two industrial cooling units connected by a piping system (no text or symbols)

- Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or discharge.

Isometric illustration of a heating unit with cooling pipes and a cylindrical tank, no text or symbols present

Isometric line drawing of server racks connected by a line, no text or symbols present

• The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus lowering the condensing temperature.
• A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
• A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.

Isometric line drawing of a small industrial or warehouse unit with brick walls and a circular gauge symbol (no text or labels)

• The location must not be susceptible to dust or oil mist.

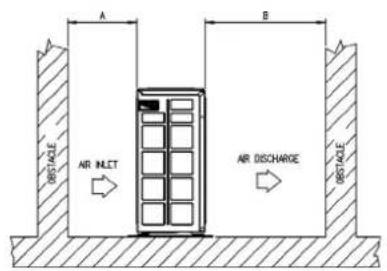

INSTALLATION CLEARANCE

- Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth air flow. Select the coolest possible place where intake air should not be hotter than the outside temperature (max. 45°C)

A B DISTACLE AIR INLET AIR DISCHARGE DISTACLE

AIR INLET SERVICE SPACE C D DISTANCE DISTANCE

ALL MODELS A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm

CAUTION : If the condensing unit is operated in an atmosphere containing oils(including machine oils), salt(coastal area), sulphide gas(near hot spring, oil refinery plant), such substances may lead to failure of the unit.

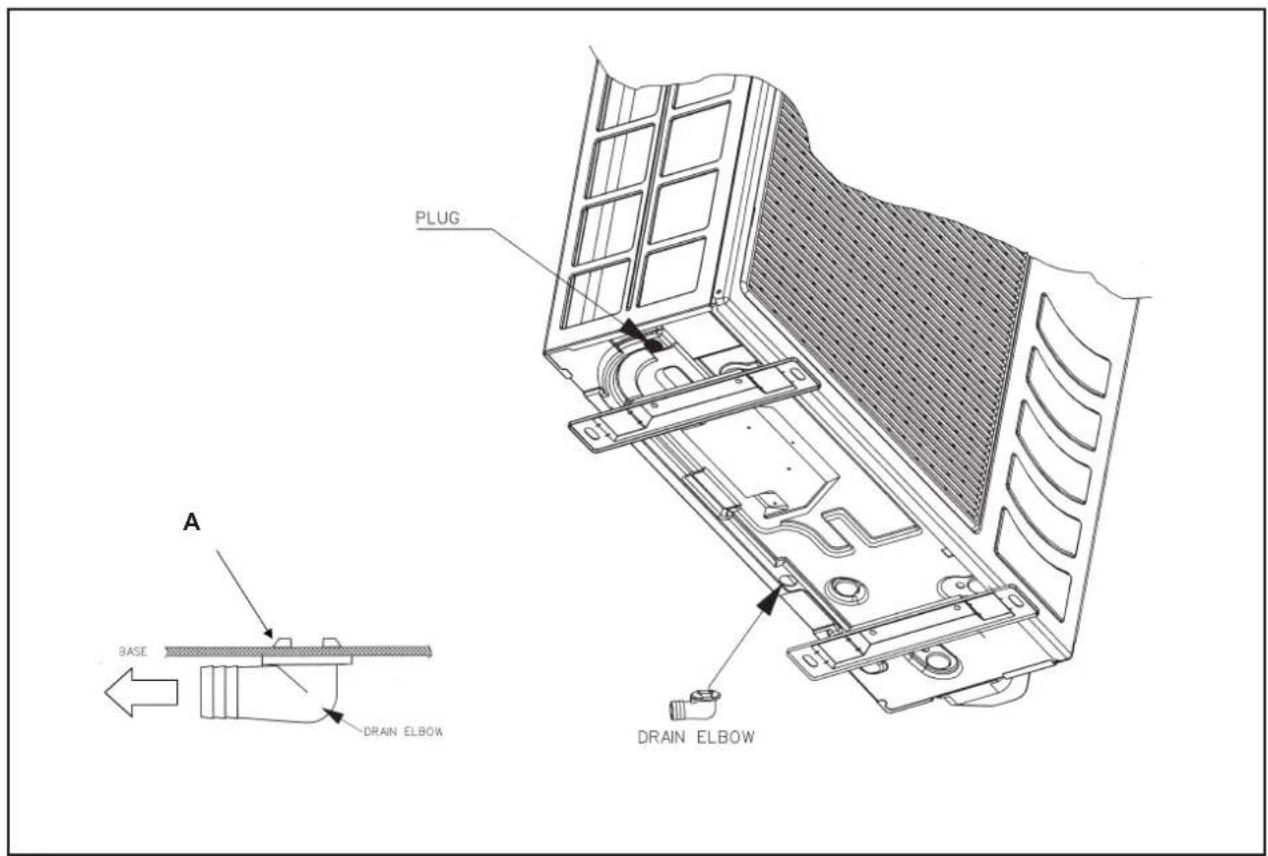

CONDENSED WATER DISPOSAL OF OUTDOOR UNIT (HEATPUMP UNIT ONLY)

• There are 2 holes on the base of outdoor unit for condensed water to flow out. Insert the drain elbow to one of the holes.
• To install the drain elbow, first insert one portion of the hook to the base (portion A), then pull the drain elbow in the direction shown by the arrow while inserting the other portion to the base. After installation, check to ensure that the drain elbow clings to base firmly.
• If the unit is installed in a snowy and chilly area, condensed water may freeze in the base. In such case, please remove plug at the bottom of unit to smooth the drainage.

A BASE DRAIN ELBOW PLUG DRAIN ELBOW

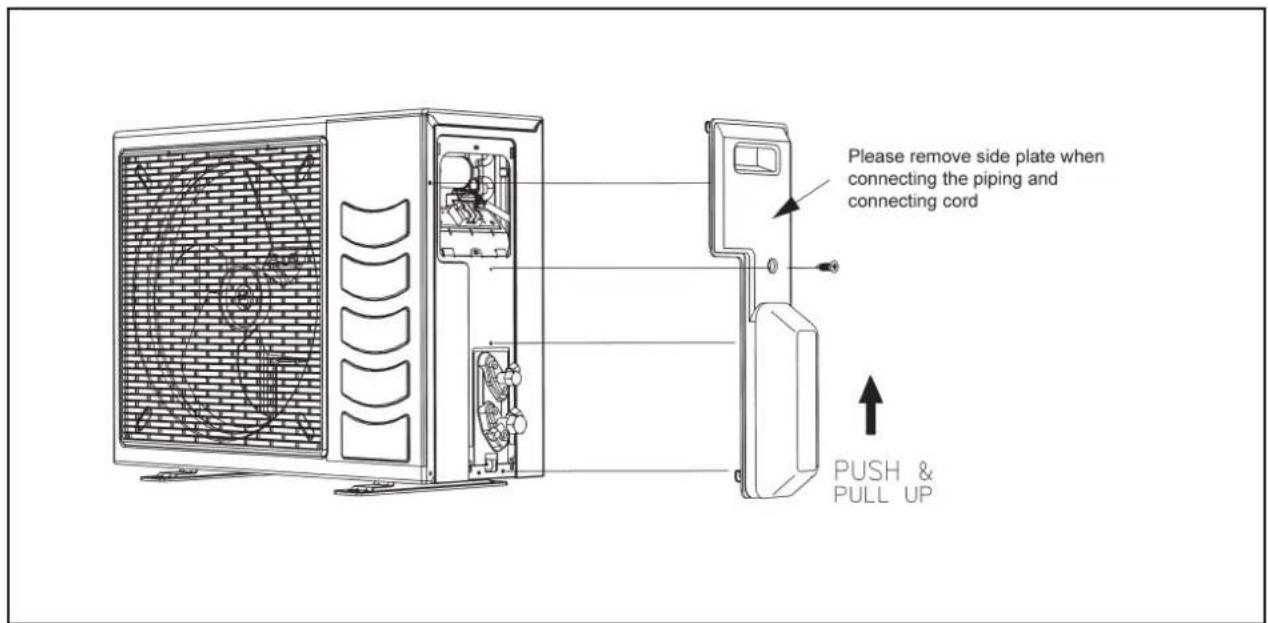

Please remove side plate when connecting the piping and connecting cord PUSH & PULL UP

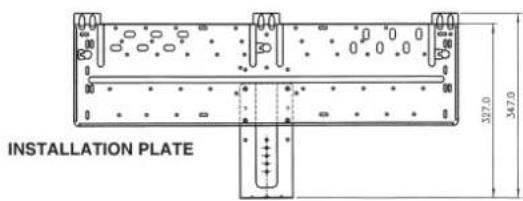

2) DRILLING HOLES AND MOUNTING INSTALLATION PLATE

CAUTION:

i) Please check the unit weight for each model. Always ensure that the wall is sufficiently strong to withstand the weight. If not, it is necessary to reinforce the wall with plate, beams or pillars.

ii) The unit cannot be directly fixed onto the wall or the likes. In all cases, the installation plate provided MUST be used.

• Paste the installation plan provided on the desired location on the wall and mark the holes location accordingly.
• Ensure that the minimum maintenance and servicing space at the top, left and right side of the unit is reserved.
• Ensure also the levelness of the installation plate.
• Drill the screw mounting holes (minimum 4 screws are required).
• Drill the pipe hole at the location as per plan. (This is only applicable for rear piping outlet installation).

Note: The hole should be drilled slightly lower at outdoor side as per figure below:--

INDOOR SIDE OUTDOOR SIDE 5°

- Fix the installation plate firmly to wall, without tilting to left or right. Use a plumb line, if available.

MODEL DIMENSION 'A'
AWM 07/09 G/GR	350.0 mm
A5WM 07/09 G/GR
AWM 10/15 G/GR	400.0 mm
A5WM 10/15 G/GR

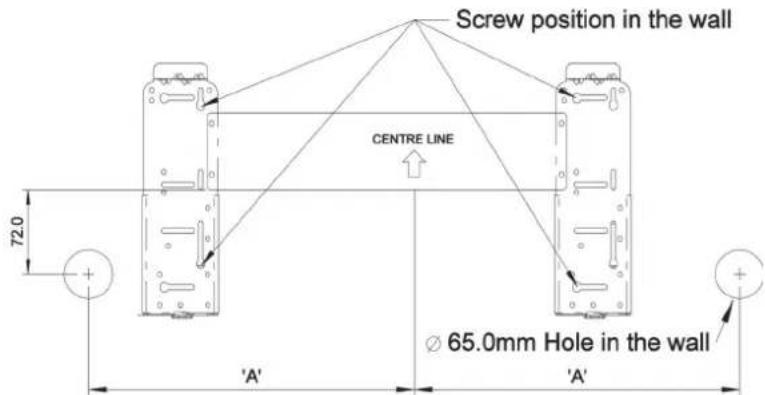

Screw position in the wall CENTRE LINE 72.0 Ø 65.0mm Hole in the wall 'A' 'A'

MODEL

AWM 20 / 25 G/GR

A5WM 20 / 25 G/GR

AWM 30F / 30FR

A5WM 31F / 30FR

Screw position in the wall

Ø 65 mm Hole in the wall

- Fixing method:-

WOODENFRAME WALL	REINFORCED CONCRETE BUILDING
	NUT ANCHOR BOLT	ANCHOR

3) INDOOR UNIT PREPARATION

- The refrigerant piping can be routed to the unit in 5 direction, by using the cut outs in the unit casing. (See fig. 1)

① ② ③ ④ ⑤ fig. 1

- Carefully bend the pipes to the required position to align with the hole. For right hand and rear side draw out, hold the bottom of the piping and fix direction before shaping it to the desired position (See fig. 2). The condensation drain hose should be taped to the pipes with vinyl tape. The electrical cable can also be taped to the pipes.

Technical line drawing of a rectangular air conditioner unit with internal tubing and connectors (no text or symbols)

fig. 2

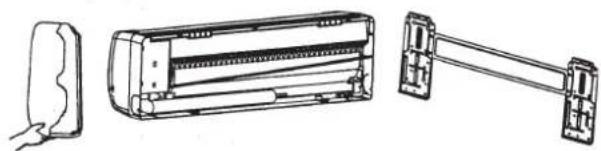

4) MOUNTING INDOOR UNIT

Hook the indoor unit onto the upper portion of installation plate. (Engage the 2 hooks of rear top of the indoor unit with the upper edge of the installation plate). Ensure the hooks are properly seated on the installation plate by moving in left and right.

Technical line drawings of a rectangular device with internal components and a separate bracket (no text or symbols)

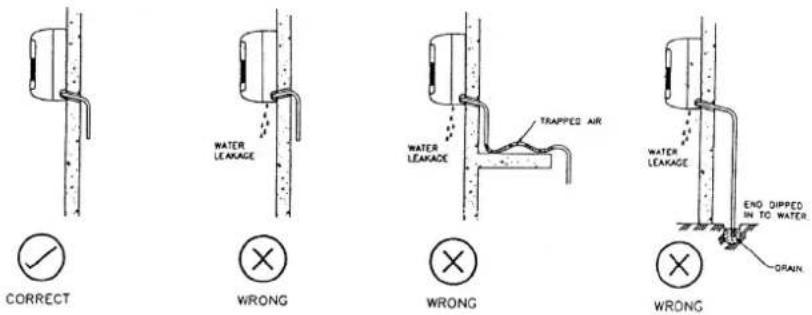

5) WATER DRAINAGE PIPING

The indoor drain pipe must be downward gradient for smooth drainage. Avoid situation as shown in figure below.

WATER LEAKAGE CORRECT WRONG WATER LEAKAGE TRAPPED AIR WRONG WATER LEAKAGE END DIPPED IN TO WATER. DRAIN WRONG

6) WIRING

ELECTRICAL CONNECTION

- Wiring regulation on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules. Be sure that installation comply with such rules and regulations.

GENERAL PRECAUTIONS

• Ensure that the rated voltage of the unit corresponds to the name plate before carrying out proper wiring according to the wiring diagram.
• Provide a power outlet to be used exclusively for each unit. A power supply disconnect and a circuit breaker for over current protection should be provided in the exclusive line.
  • The unit must be GROUNDED to prevent possible hazards due to insulation failures.
  • All wiring must be firmly connected.
• All wiring must not touch the hot refrigerant piping, compressor or any moving parts of fan motors.
• The field wires from the indoor unit must be clamped on the wire clamp as per shown in the figure.

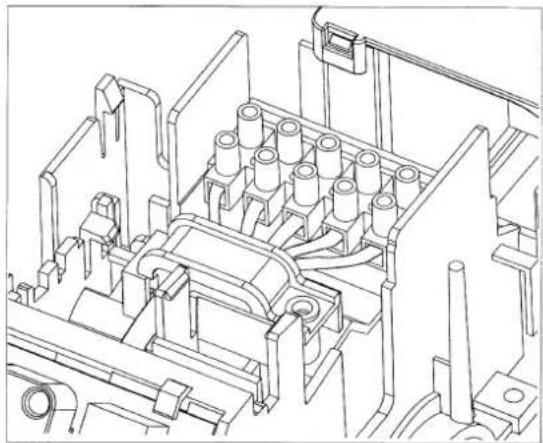

Technical line drawing of an electronic component assembly (no text or symbols visible)

7) REFRIGERANT PIPING

MAXIMUM PIPE LENGTH AND MAXIMUM NUMBER OF BENDS

Always choose the shortest path for refrigerant piping and follow the recommendations as tabulated below:

Data\Model	AWM/A5WM07G/GR	AWM 09G/GR	AWM/A5WM10G/GR	AWM/A5WM15G/GR	AWM/A5WM20G/GR	AWM/A5WM25G/GR	A5WM 311/301RAWM 301/R
Max. Length, L (m) 12 12 12	12 15 15 35
Max. Elevation, H (m) 5 5 5 5	8 8 15
Max. No. of Bends 10 10 10	10 10 10 10

FLARE CONNECTION

- Cut the pipe stages by stages, advancing the blade of pipe cutter slowly.

1/4 L 2 l

- Remove burr with the burr remover. Hold the flaring end down to prevent burrs from dropping inside pipe.

- The exact length of pipe protruding from the face of the flare die is determined by the flaring tool. The table shows the use of an imperial die and rigged die.

PIPE ∅, D (mm)	A(mm)
	IMPERIAL DIE RIGED DIE
6.35 (1/4") 1.3 0.7
9.52 (3/8") 1.6 1
12.7 (1/2") 1.9 1.3
15.88 (5/8") 2.2 1.7

Fix the pipe firmly on the flare die. Match the centers of both the flare die and the flaring punch, and tighten flaring punch fully.

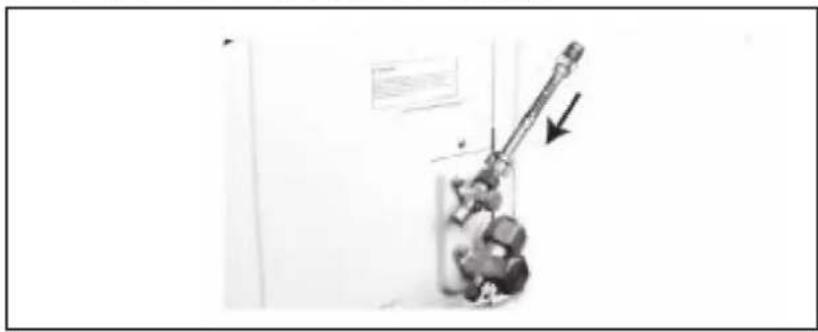

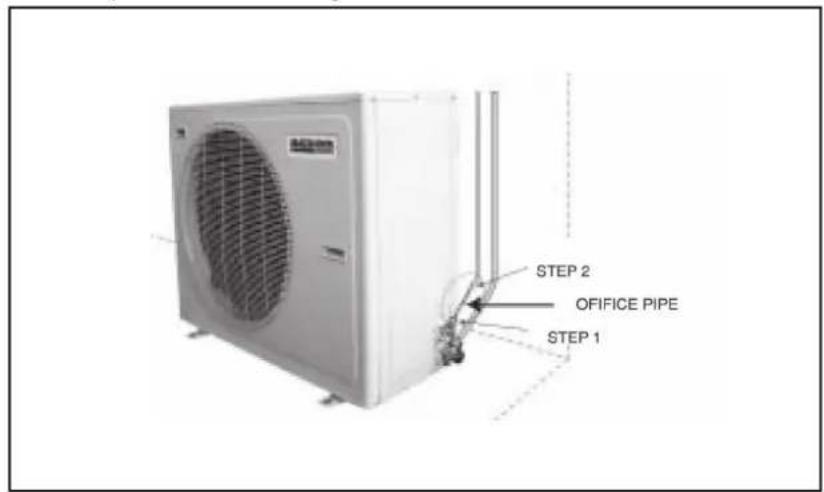

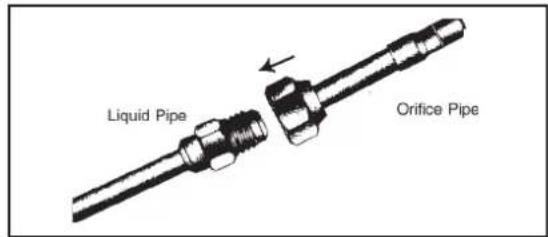

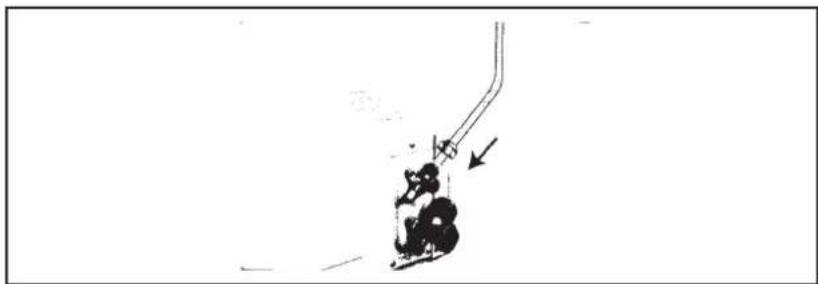

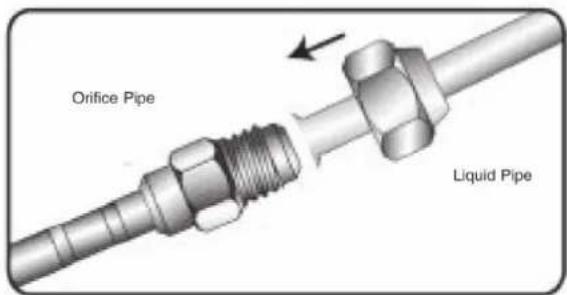

8) INSTALLATION OF SEPARATE ORIFICE KIT AT OUTDOOR

ORIFICE PIPE Outdoor Unit ① ORIFICE ② PIPE, CONNECTING ③ FLARE NUT 3/8" (Female) ④ FLARE JOINT 3/8" (Male)

i) Outdoor Unit Installation Space Is Wide Enough

STEP 2 OFIFICE PIPE STEP 1

Steps :

a) Directly connect the "Female" nut of orifice pipe to the liquid pipe.

Close-up of a mechanical device with a lever and attached components, no visible text or symbols

b) Flare the liquid pipe and connect it to the "Male" joint of the orifice pipe.

Orifice Pipe Liquid Pipe

ii) Outdoor Installation Space Is Limited

Step 4 Orifice Pipe Step 3 Step 2 Step 1

If the orifice pipe can not be connected directly to the liquid valve due to limitation space, it can be connected between the liquid pipes.

Steps :

a) Flare the liquid pipe and connect it to the liquid valve.

Simple line drawing of a person climbing a rope with an arrow indicating motion (no text or symbols)

b) Braze an addition "Male" joint to the liquid pipe.

Liquid Pipe Buzzer

c) Connect the "Female" nut of the orifice pipe to the "Male" joint.

Liquid Pipe Orifice Pipe

d) Flare another liquid pipe and connect it to the "Male" joint of the orifice pipe.

Liquid Pipe Orifice Pipe

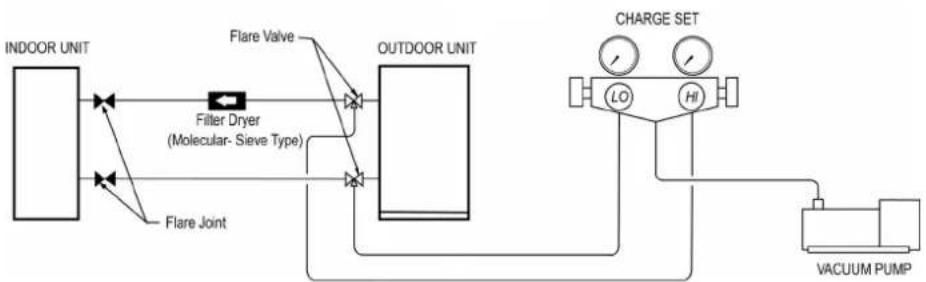

9) VACUUMING AND CHARGING

- The precharged outdoor unit does not need any vacuuming or charging. However once it is connected, the connecting pipe line and the indoor need to be vacuumed before releasing the R22/R407C/R410A from the outdoor unit.

1) Open the service port core cap.
2) Connect pressure gauge to the service port.

3) Connect the line to vacuum pump. Open the charging manifold valve and turn the pump on. Vacuum to -0.1 MPa (-760mmHg) or lower. (Evacuation time varies by the pump but averagely in 1 hour).

Note : R407C - Fix filter dryer R22 - Nil R410A - Nil

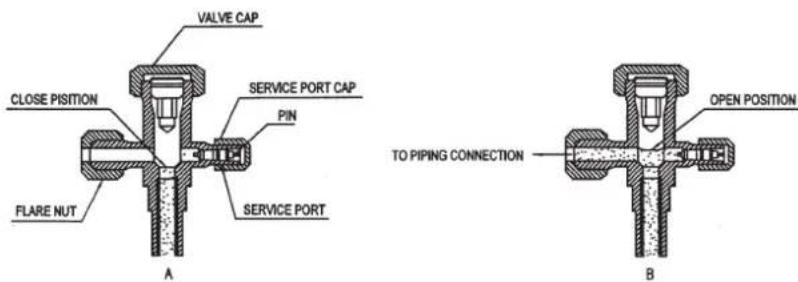

4) After evacuation, unscrew the spindle (diagram B) for the gas to run to indoor unit.

VALVE CAP CLOSE POSITION SERVICE PORT CAP PIN FLARE NUT SERVICE PORT A TO PIPING CONNECTION OPEN POSITION B

5) Decision by low side pressure. Turn compressor on for 10 or 15 min.

Model	Standard Condition		Heavy Load Condition
	Indoor 27°C / Outdoor 35°C		Indoor 32°C / Outdoor 43°C
	kg/cm2 psig kg/cm2 psig
AWM 07G	5.2 ~ 5.7 74.3 ~ 81.0	5.7 ~ 6.2 81.9 ~ 89.1
AWM 09G 4.7 ~ 5.5 66	6 ~ 78.6 5.0 ~ 5.8 71.2 ~ 83.1
AWM 10G 4.9 ~ 5.7 70	6 ~ 81.8 5.4 ~ 6.1 76.5 ~ 86.6
AWM 15G	4.7 ~ 5.2 67.6 ~ 74.7	5.2 ~ 5.6 74.0 ~ 80.4
AWM 20G 4.6 ~ 4.8 66	~ 69 4.9 ~ 5.2 70 ~ 74
AWM 25G 4.1 ~ 4.7 59	~ 67 4.7 ~ 5.1 67 ~ 73
AWM 301	4.0 ~ 4.8 56.9 ~ 68.3	4.5 ~ 5.0 64.0 ~ 71.1
AWM 07GR 5.2 ~ 5.8 74	.8 ~ 82.3 5.6 ~ 6.1 79.3 ~ 87.7
AWM 09GR 4.8 ~ 5.7 68	.9 ~ 81.4 5.2 ~ 5.9 73.7 ~ 84.8
AWM 10GR	4.9 ~ 5.9 70.5 ~ 83.7	5.4 ~ 6.3 76.5 ~ 90.7
AWM 15GR 4.9 ~ 6.3 69	.4 ~ 89.3 5.0 ~ 6.6 71.7 ~ 93.8
AWM 20GR 4.6 ~ 5.0 66	~ 72 4.9 ~ 5.4 70 ~ 77
AWM 25GR	4.2 ~ 4.8 60 ~ 68 4.7 ~ 5.1 67 ~ 73
AWM 301R	4.0 ~ 4.8 56.9 ~ 68.3	4.5 ~ 5.0 64.0 ~ 71.1
A5WM 07G 9.6 ~ 10.0	37.5 ~ 143.2 10.4 ~ 10.7 148.4	~ 153.1
A5WM 09G/10G	9.4 ~ 9.9 134.9 ~ 14	1.8 10.2 ~ 10.6 145.4 ~ 152.1
A5WM 15G 8.9 ~ 9.3 12	7.3 ~ 132.3 9.3 ~ 9.7 133.1 ~ 138.1
A5WM 20G 8.5 ~ 8.8 12	1 ~ 125 9.3 ~ 9.6 133 ~ 137
A5WM 25G	8.0 ~ 8.3 114 ~ 118	9.0 ~ 9.2 128 ~ 132
A5WM 311 8.0 ~ 8.6 11	4 ~ 122 8.7 ~ 9.4 124 ~ 133
A5WM 07GR	9.6 ~ 9.9	136.6 ~ 141.0	10.8 ~ 11.1	154.1 ~ 159.1
A5WM 09GR/10GR	9.4 ~ 9.9 134.4 ~ 14	1.9 9.9 ~ 10.5 141.4 ~ 149.7
A5WM 15GR	9.0 ~ 9.4	128.0 ~ 134.2	9.4 ~ 9.9	134.6 ~ 142.0
A5WM 20GR	8.3 ~ 8.8	119 ~ 125	8.8 ~ 9.2	125 ~ 132
A5WM 25GR	7.7 ~ 8.3 110 ~ 118	8.4 ~ 9.0 120 ~ 129
A5WM 301R	8.0 ~ 8.6	114 ~ 122	8.7 ~ 9.4	124 ~ 133

Within the value refrigerant cycle normal.

Lower than value refrigerant cycle has some leaks check, amend and top up is necessary.

Extremely low ( zero) needs evacuation and charge.

Additional Charge

• The refrigerant gas is charged in the outdoor unit and, if the piping length is 7.6m, additional charge of the refrigerant after vacuuming is not necessary.
• When the piping length is more than 7.6m, please use the table below :

Additional charge in gram.

	10m	12m	15m	25m	35m
R22 MODELS
AWM 07G / 09G / 10G / 15G	35	65 -	-	-
AWM 20G	35	65	110 -	-
AWM 25G	90	165	280 -	-
AWM 301	90	165	280	650	1030
AWM 07GR / 09GR / 10GR / 15GR	50	90 -	-	-
AWM 20GR	60	110	185 -	-
AWM 25GR	120	220	370 -	-
AWM 301R	120	220	370	870	1370
R410A MODELS
A5WM 07G / 09G / 10G / 15G	35	60 -	-	-
A5WM 20G	35	60	100 -	-
A5WM 25G	80	150	255 -	-
A5WM 311	80	150	255	600	950
A5WM 07GR / 09GR / 10GR / 15GR	45	80 -	-	-
A5WM 20GR	55	100	165 -	-
A5WM 25GR	110	200	335 -	-
A5WM 301R	110	200	335	790	1250

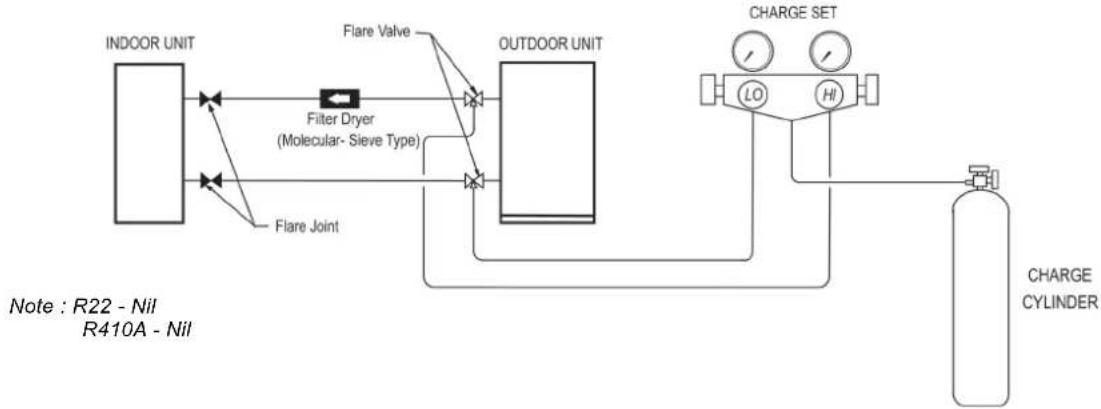

Diagram shows typical charging method.

CAUTION FOR R410A

Avoid prolong exposure of an opened compressor, or the internal part of refrigerant piping to moist air. The POE oil in the compressor and piping can absorb moisture from air.

10) FINAL CHECKING

• Ensure that steps 1 to 8 are closely followed.
• Ensure the following, in particular :-

1) The unit is mounted solidly and rigidly in position.
2) Piping and connections are leak proof after charging.
3) Proper wiring has been done.

- Trial run

1) Conduct a trial run after water drainage test and gas leakage test.
2) Watch out for the following :-

a) Is the electric plug firmly inserted into the socket?

b) Is there any abnormal sound from unit?
c) Is there any abnormal vibrations with regard to unit itself or pipings?
d) Is there smooth drainage of water?

- Check that :

1) Condenser fan is running, with warm air blowing off the condensing unit.
2) Evaporator blower is running and discharging cool air.
3) Suction (Low side) pressure as per recommended.
4) The remote controller incorporate a 3 minute delay in their circuit. Thus, it requires about 3 minutes upon cut off before the outdoor condensing unit can start up.

SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R410A UNIT

1) WHAT IS NEW REFRIGERANT R410A?

R410A is a new HFC refrigerant which does not damage the ozone layer. The working pressure of this new refrigerant is 1.6 times higher than conventional refrigerant (R22), thus proper installation / servicing is essential.

2) COMPONENTS

Mixture weight composition R32(50%) and R125(50%)

3) CHARACTERISTIC

• R410A liquid and vapor components have different compositions when the fluid evaporates or condenses. Hence, when leak occurs and only vapor leaks out, the composition of the refrigerant mixture left in the system will change and subsequently affect the system performance. DO NOT add new refrigerant to leaked system. It is recommended that the system should be evacuated thoroughly before recharging with R410A.
• When refrigerant R410A is used, the composition will differ depending on whether it is in gaseous or liquid phase. Hence when charging R410A, ensure that only liquid is being withdrawn from the cylinder or can. This is to make certain that only original composition of R410A is being charged into the system.
• POE oil is used as lubricant for R410A compressor, which is different from the mineral oil used for R22 compressor. Extra precaution must be taken not to expose the R410A system too long to moist air.

4) CHECK LIST BEFORE INSTALLATION/SERVICING

• Tubing
  Refrigerant R410A is more easily affected by dust of moisture compared with R22, make sure to temporarily cover the ends of the tubing prior to installation
• Compressor oil
  No additional charge of compressor oil is permitted.
• Refrigerant
  No other refrigerant other that R410A
• Tools (size of service port is different from R22 system)
  Tools specifically for R410A only (must not be used for R22 or other refrigerant)
  i) Manifold gauge and charging hose
  ii) Gas leak detector
  iii) Refrigerant cylinder/charging cylinder
  iv) Vacuum pump c/w adapter
  v) Flare tools
  vi) Refrigerant recovery machine

5) HANDLING AND INSTALLATION GUIDELINES

Like R22 system, the handling and installation of R410A system are closely similar. All precautionary measures; such as ensuring no moisture, no dirt or chips in the system, clean brazing using nitrogen, and thorough leak check and vacuuming are equally important requirements. However, due to its hydroscopic POE oil, additional precautions must be taken to ensure optimum and trouble free system operation.

a) During installation or servicing, avoid prolong exposure of the internal part of the refrigerant system to moist air. Residual POE oil in the piping and components can absorb moisture from the air.
b) Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal plugs only when the compressor is about to be brazed.
c) The system should be thoroughly vacuumed to 1.0 Pa (700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

d) When charging R410A, ensure that only liquid is being withdrawn from the cylinder or can. This is to ensure that only the original composition of R410A is being delivered into the system. The liquid composition can be different from the vapor composition.

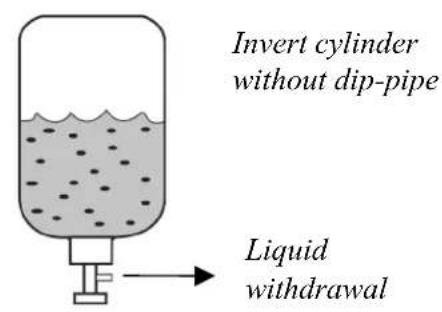

Dip-pipe

Invert cylinder without dip-pipe Liquid withdrawal

f) Normally, the R410A cylinder or can is being equipped with a dip pipe for liquid withdrawal. However, if the dip pipe is not available, invert the cylinder or can so as to withdraw liquid from the valve at the bottom.

4. SOUND DATA

Sound Pressure Level (Measured In Anechoic Room)

WALL MOUNTED FAN COIL UNIT

Model	Speed	1/1 Octave Sound Pressure Level (dB, ref 20μPa)								Overall(dBA)	NoiseCriteria
	(RPM) 125 Hz	250 Hz 5	00 Hz 1k Hz	2k Hz 4	kHz 8k Hz
AWM 07G/GR	HIGH 32 34 3	8 37 32 23	15 40 36
AWM 09G/GR	MEDIUM 27 30	34 32 26	17 14 35 31
A5WM 07G/GR	L O	W	2	4	2	7	2	9	2	6	2
A5WM 09G/GR	HIGH 28 34 3	7 36 31 22	13 39 35
	MEDIUM 27 30	33 31 25	17 12 34 30
	L O	W	2	4	2	6	2	8	2	5	1
AWM 10G/GR	HIGH 30 35 3	9 38 33 25	15 42 37
A5WM 10G/GR	MEDIUM 28 31	34 33 26	18 13 36 32
	L O	W	2	4	2	6	2	8	2	6	2
AWM 15G/GR	HIGH 37 44 4	2 37 34 25	15 43 37
A5WM 15G/GR	MEDIUM 34 40	39 34 30	21 14 40 34
	L O	W	3	0	3	5	3	5	3	0	2
AWM 20G/GR	HIGH 41 48 4	7 43 40 32	23 49 43
A5WM 20G/GR	MEDIUM 39 44	43 39 35	28 20 44 38
	L O	W	3	7	4	1	4	0	3	6	3
AWM 25G/GR	HIGH 42 46 4	5 44 41 35	28 49 43
A5WM 25G/GR	MEDIUM 40 45	44 43 35	33 27 47 42
	L O	W	3	7	4	3	4	3	4	0	3

Microphone position - A5WM/AWM-G/GR : 1m in front and 0.8m below the vertical centre line of the unit. (JIS C 9612)
- A5WM/AWM 30F/FR : 1m in front and 1m below the vertical centre line of the unit. (JIS B 8615)

Model Measuring location
AWM 07G/GR AWM 20G/GRAWM 09G/GR AWM 25G/GRAWM 10G/GRAWM 15G/GRA5WM 07G/GR A5WM 20G/GRA5WM 09G/GR A5WM 25G/GRA5WM 10G/GRA5WM 15G/GR	Standard: JIS C 9612
AWM 311/301RA5WM 311/301R	Standard: JIS B 8615

AWM 311/301R, A5WM 311/301R NC CURVES

5. ENGINEERING AND PHYSICAL DATA

General Data - Cooling Only (R22)

MODEL		INDOOR UNIT			AWM 07G	AWM 09G
		OUTDOOR UNIT			ALC 07C	ALC 09C
NOMINAL CAPACITY				Btu/h	7000 9000
				W 2050	2640
NOMINAL TOTAL INPUT POWER				W	590 919
NOMINAL RUNNING CURRENT				A 2.7 4.1
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 3.47 2.87
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm		118 / 250 130 / 275
			MEDIUM l/s / cfm		104 / 220 106 / 225
			LOW	l/s / cfm	85 / 180	83 / 175
	SOUND PRESSURE LEVEL (H/M/L)			dBA	38 / 33 / 28	40 / 35 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	799 / 31.5
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3	337 / 13.3
			WIDTH	mm/in	857 / 33.7	857 / 33.7
			DEPTH	mm/in	270 / 10.6	270 / 10.6
	UNIT WEIGHT			kg/lb	8.5 / 18.74	10/22.05
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm	321 / 680 307 / 650
	SOUND PRESSURE LEVEL			dBA	45
	UNIT DIMENSION		HEIGHT	mm/in	495/19.5
			WIDTH	mm/in	600/23.6
			DEPTH	mm/in	245/9.7
	PACKING DIMENSION		HEIGHT	mm/in	575/22.6
			WIDTH	mm/in	715/28.1
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	28/61.73
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8
	REFRIGERANT CHARGE			kg/lb	0.5/ 1.1	0.525/ 1.156

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE. 2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW: COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R22)

MODEL		INDOOR UNIT			AWM 10G	AWM 15G
		OUTDOOR UNIT			ALC 10C	ALC 15C
NOMINAL CAPACITY				Btu/h 9500 12000
				W 2780 3520
NOMINAL TOTAL INPUT POWER				W 860 1100
NOMINAL RUNNING CURRENT				A 3.8 5.4
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 3.23 3.2
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm	142 / 300 163 / 345
			MEDIUM	l/s / cfm 118 / 250 135 / 285
			LOW	l/s / cfm	94 / 200	104 / 220
	SOUND PRESSURE LEVEL (H/M/L)			dBA	39 / 34 / 28	42 / 36 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	899 / 35.4
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	957 / 37.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	12/26.46
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm 396 / 840 453 / 960
	SOUND PRESSURE LEVEL			dBA	46	49
	UNIT DIMENSION		HEIGHT	mm/in	540/21.3
			WIDTH	mm/in	700/27.6
			DEPTH	mm/in	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	620/24.4
			WIDTH	mm/in	810/31.9
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	32/70.55
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8	12.70 / 1/2
	REFRIGERANT CHARGE			kg/lb	0.63/ 1.393	0.6/ 1.327

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R22)

MODEL		INDOOR UNIT			AWM 20G	AWM 20G
		OUTDOOR UNIT			ALC 18C	ALC 20C
NOMINAL CAPACITY				Btu/h 18000 19000
				W 5280 5570
NOMINAL TOTAL INPUT POWER				W	1,810 1,807
NOMINAL RUNNING CURRENT				A	8.1 8.0
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 2.92 3.08
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm		231 / 490
			MEDIUM l/s / cfm		193 / 410
			LOW l/s / cfm		160 / 340
	SOUND PRESSURE LEVEL (H/M/L)			dBA	43 / 40 / 35
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0
			WIDTH	mm/in	1062 / 41.8
			DEPTH	mm/in	222 / 8.7
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9
			WIDTH	mm/in	1130 / 44.5
			DEPTH	mm/in	292 / 11.5
	UNIT WEIGHT			kg/lb	16 / 35.27
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			l/s / cfm	632 / 1340	614 / 1300
	SOUND PRESSURE LEVEL			dBA	51	52
	UNIT DIMENSION		HEIGHT	mm/in	651 / 25.6
			WIDTH	mm/in	855 / 33.7
			DEPTH	mm/in	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	710 / 28.0
			WIDTH	mm/in	990 / 39.0
			DEPTH	mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	58 / 127.9	59 / 130.1
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	0.85 / 1.88	1.35 / 2.99

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R22)

MODEL		INDOOR UNIT			AWM 25G	AWM 311
		OUTDOOR UNIT			ALC 25C	ALC 28C
NOMINAL CAPACITY				Btu/h 23	500 27000
				W 6,890	7913
NOMINAL TOTAL INPUT POWER				W	2,530 2732
NOMINAL RUNNING CURRENT				A 11.3	13.1
POWER SOURCE				V/Ph/Hz	220-240 /1/50
EER				W/W 2.72	2.89
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)	AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH I/s / cfm	297 / 630 316	/ 670
			MEDIUM I/s / cfm	231 / 490	297 / 630
			LOW	I/s / cfm	208 / 440 236 / 500
	SOUND PRESSURE LEVEL (H/M/L)			dBA	49 / 44 / 42	49 / 47 / 45
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0	360 / 14.2
			WIDTH	mm/in	1062 / 41.8	1200 / 47.2
			DEPTH	mm/in	222 / 8.7	200 / 7.9
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9	420 / 16.5
			WIDTH	mm/in	1130 / 44.5	1267 / 49.9
			DEPTH	mm/in	292 / 11.5	260 / 10.2
	UNIT WEIGHT			kg/lb	16 / 35.27	17 / 37.48
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			I/s / cfm	755 / 1600	632 / 1340
	SOUND PRESSURE LEVEL			dBA	52	54
	UNIT DIMENSION		HEIGHT	mm/in	750 / 29.5
			WIDTH	mm/in	855 / 33.7
			DEPTH	mm/in	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	810 / 31.9
			WIDTH	mm/in	990 / 39.0
			DEPTH	mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	62 / 136.7	68 / 149.9
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	9.52 / 3/8
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	1.5 / 3.3	2.1 / 4.63

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump Only (R22)

MODEL		INDOOR UNIT			AWM 09GR
		OUTDOOR UNIT			ALC 09CR
NOMINAL COOLING CAPACITY				Btu/h 9000
				W 2640
NOMINAL HEATING CAPACITY				Btu/h 9000
				W	2640
NOMINAL TOTAL INPUT POWER (COOLING)				W 910
NOMINAL TOTAL INPUT POWER (HEATING)				W 750
NOMINAL RUNNING CURRENT (COOLING)				A	4.0
NOMINAL RUNNING CURRENT (HEATING)				A 3.4
POWER SOURCE				V/Ph/Hz 220-240/1/50
EER				W/W 2.9
COP				W/W	3.52
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH	l/s	/ cfm 130 / 275
			MEDIUM l/s / cfm 106 / 225
			LOW l/s / cfm		83 / 175
	SOUND PRESSURE LEVEL (H/M/L)			dBA 40	35 / 29
	UNIT DIMENSION		HEIGHT mm/in	260 / 10.2
			WIDTH	mm/in	799 / 31.5
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT mm/in		337 / 13.3
			WIDTH	mm/in 857 / 33.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	10/22.05
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm	307 / 650
	SOUND PRESSURE LEVEL			dBA	45
	UNIT DIMENSION		HEIGHT mm/in		495/19.5
			WIDTH	mm/in	600/23.6
			DEPTH	mm/in	245/9.7
	PACKING DIMENSION		HEIGHT mm/in		575/22.6
			WIDTH	mm/in	715/28.1
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	28/61.73
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in 6.35 / 1/4
			GAS	mm/in	9.52 / 3/8
	REFRIGERANT CHARGE			kg/lb	0.75/1.65

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R22)

MODEL		INDOOR UNIT			AWM 10GR	AWM 15GR
		OUTDOOR UNIT			ALC 10CR	ALC 15CR
NOMINAL COOLING CAPACITY				Btu/h 9500 12000
				W 2780 3520
NOMINAL HEATING CAPACITY				Btu/h	9500 12000
				W 2780 3520
NOMINAL TOTAL INPUT POWER (COOLING)				W 837 1100
NOMINAL TOTAL INPUT POWER (HEATING)				W 757 980
NOMINAL RUNNING CURRENT (COOLING)				A 3.8 5.0
NOMINAL RUNNING CURRENT (HEATING)				A	3.4 4.5
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 3.32 3.2
COP				W/W 3.67 3.59
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm	142 / 300	163 / 345
			MEDIUM	l/s / cfm	118 / 250	135 / 285
			LOW	l/s / cfm	94 / 200	104 / 220
	SOUND PRESSURE LEVEL (H/M/L)			dBA	39 / 34 / 28	42 / 36 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	899 / 35.4
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	957 / 37.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	12/26.46
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm 396 / 840	453 / 960
	SOUND PRESSURE LEVEL			dBA	46	49
	UNIT DIMENSION		HEIGHT	mm/in	540/21.3
			WIDTH	mm/in	700/27.6
			DEPTH	mm/in	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	620/24.4
			WIDTH	mm/in	810/31.9
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	32/70.55
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8	12.70 / 1/2
	REFRIGERANT CHARGE			kg/lb	0.88/1.94	0.8/1.76

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R22)

MODEL		INDOOR UNIT			AWM 20GR	AWM 20GR
		OUTDOOR UNIT			ALC 18CR	ALC 20CR
NOMINAL COOLING CAPACITY				Btu/h 18000 19000
				W 5280 5570
NOMINAL HEATING CAPACITY				Btu/h	18400 19500
				W 5390 5720
NOMINAL TOTAL INPUT POWER (COOLING)				W 1,820 1,807
NOMINAL TOTAL INPUT POWER (HEATING)				W 1,660 1,757
NOMINAL RUNNING CURRENT (COOLING)				A 8.1 8.0
NOMINAL RUNNING CURRENT (HEATING)				A	7.4 7.8
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 2.9 3.08
COP				W/W 3.25 3.26
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH	l/s / cfm	231 / 490
			MEDIUM	l/s / cfm	193 / 410
			LOW	l/s / cfm	160 / 340
	SOUND PRESSURE LEVEL (H/M/L)			dBA	43 / 40 / 35
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0
			WIDTH	mm/in	1062 / 41.8
			DEPTH	mm/in	222 / 8.7
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9
			WIDTH	mm/in	1130 / 44.5
			DEPTH	mm/in	292 / 11.5
	UNIT WEIGHT			kg/lb	16 / 35.27
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			l/s / cfm	632 / 1340	614 / 1300
	SOUND PRESSURE LEVEL			dBA	51	52
	UNIT DIMENSION		HEIGHT	mm/in	651 / 25.6
			WIDTH	mm/in	855 / 33.7
			DEPTH	mm/in	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	710 / 28.0
			WIDTH	mm/in	990 / 39.0
			DEPTH	mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	58 / 127.9	59 / 130.1
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	0.85 / 1.88	1.35 / 2.99

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R22)

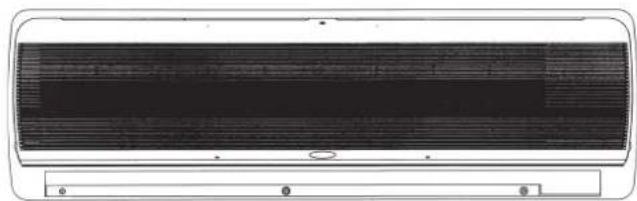

MODEL		INDOOR UNIT			AWM 25GR	AWM 301R
		OUTDOOR UNIT			ALC 25CR	ALC 28CR
NOMINAL COOLING CAPACITY				Btu/h 23	500 27000
				W	6,890 7913
NOMINAL HEATING CAPACITY				Btu/h	24,000 27000
				W	7,030 7913
NOMINAL TOTAL INPUT POWER (COOLING)				W	2,530 2778
NOMINAL TOTAL INPUT POWER (HEATING)				W 2,450	2818
NOMINAL RUNNING CURRENT (COOLING)				A 11.3	13.2
NOMINAL RUNNING CURRENT (HEATING)				A 11.1	13.3
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W	2.72 2.85
COP				W/W	2.87 2.81
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm	297 / 630	16 / 670
			MEDIUM l/s / cfm	231 / 490	297 / 630
			LOW	l/s / cfm	208 / 440 236 / 500
	SOUND PRESSURE LEVEL (H/M/L)			dBA	49 / 44 / 42	49 / 47 / 45
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0	360 / 14.2
			WIDTH	mm/in	1062 / 41.8	1200 / 47.2
			DEPTH	mm/in	222 / 8.7	200 / 7.9
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9	420 / 16.5
			WIDTH	mm/in	1130 / 44.5	1267 / 49.9
			DEPTH	mm/in	292 / 11.5	260 / 10.2
	UNIT WEIGHT			kg/lb	16 / 35.27	17 / 37.48
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			l/s / cfm	755 / 1600	632 / 1340
	SOUND PRESSURE LEVEL			dBA	52	54
	UNIT DIMENSION		HEIGHT	mm/in	750 / 29.5
			WIDTH	mm/in	855 / 33.7
			DEPTH	mm/in	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	810 / 31.9
			WIDTH	mm/in	990 / 39.0
			DEPTH	mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	62 / 136.7	68 / 149.9
	PIPE CONNECTION	TYPE			FLARE VALVE	FLARE VALVE
		SIZE	LIQUID	mm/in	9.52 / 3/8
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	1.5 / 3.3	2.1 / 4.63

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R410A)

MODEL		INDOOR UNIT			A5WM 07G	A5WM 09G
		OUTDOOR UNIT			A5LC 07C	A5LC 09C
NOMINAL CAPACITY				Btu/h 7500 9000
				W 2200 2640
NOMINAL TOTAL INPUT POWER				W 620 365
NOMINAL RUNNING CURRENT				A 2.9 3.9
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 3.54 3.05
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm		130 / 275
			MEDIUM l/s / cfm		106 / 225
			LOW	l/s / cfm	83 / 175
	SOUND PRESSURE LEVEL (H/M/L)			dBA	40 / 35 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	799 / 31.5
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	857 / 33.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	10/22.05
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm	307 / 650	396 / 840
	SOUND PRESSURE LEVEL			dBA	44	46
	UNIT DIMENSION		HEIGHT	mm/in	495/19.5	540/21.3
			WIDTH	mm/in	600/23.6	700/27.6
			DEPTH	mm/in	245/9.7	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	575/22.6	620/24.4
			WIDTH	mm/in	715/28.1	810/31.9
			DEPTH	mm/in	330/13.0	330/13.0
	UNIT WEIGHT			kg/lb	26/57.32	33/72.75
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8
	REFRIGERANT CHARGE			kg/lb	0.6/1.32	0.69/1.52

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R410A)

MODEL		INDOOR UNIT			A5WM 10G	A5WM 15G
		OUTDOOR UNIT			A5LC 10C	A5LC 15C
NOMINAL CAPACITY				Btu/h 9500 12000
				W 2780 3520
NOMINAL TOTAL INPUT POWER				W 867 1230
NOMINAL RUNNING CURRENT				A 3.9 5.5
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W 3.21 2.86
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm	142 / 300	163 / 345
			MEDIUM	l/s / cfm	118 / 250	135 / 285
			LOW	l/s / cfm	94 / 200	104 / 220
	SOUND PRESSURE LEVEL (H/M/L)			dBA	39 / 34 / 28	42 / 36 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	899 / 35.4
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	957 / 37.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	12/26.46
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm 396 / 840	453 / 960
	SOUND PRESSURE LEVEL			dBA	46	49
	UNIT DIMENSION		HEIGHT	mm/in	540/21.3
			WIDTH	mm/in	700/27.6
			DEPTH	mm/in	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	620/24.4
			WIDTH	mm/in	810/31.9
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	33/72.75
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8	12.70 / 1/2
	REFRIGERANT CHARGE			kg/lb	0.69/1.52	0.8/1.76

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R410A)

MODEL		INDOOR UNIT			A5WM 20G	A5WM 25G
		OUTDOOR UNIT			A5LC 20C	A5LC 25C
NOMINAL CAPACITY - 1∅ / <3∅>				Btu/h 18000 / <18000> 21000 / <22500>
				W 5280 / <5280> 6155 / <6590>
NOMINAL TOTAL INPUT POWER - 1∅ / <3∅>				W 1652 / <1663> 1915 / <2195>
NOMINAL RUNNING CURRENT - 1∅ / <3∅>				A 7.3 / <3.2> 8.4 / <4.2>
POWER SOURCE				V/Ph/Hz	220-240/ 1/ 50 / <380-415/ 3/ 50>
EER - 1∅ / <3∅>				W/W 3.2 / <3.17> 3.21 / <3>
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH I/s / cfm	231 / 490 397 / 630
			MEDIUM	I/s / cfm 193 / 410 231 / 490
			LOW	I/s / cfm 160 / 340 208 / 440
	SOUND PRESSURE LEVEL (H/M/L)			dBA	43 / 40 / 35	49 / 44 / 42
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0
			WIDTH	mm/in	1062 / 41.8
			DEPTH	mm/in	222 / 8.7
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9
			WIDTH	mm/in	1130 / 44.5
			DEPTH	mm/in	292 / 11.5
	UNIT WEIGHT			kg/lb	16 / 35.27
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			I/s / cfm	614 / 1300	689 / 1460
	SOUND PRESSURE LEVEL			dBA	52
	UNIT DIMENSION		HEIGHT	mm/in	651 / 25.6	750 / 29.5
			WIDTH	mm/in	855 / 33.7	855 / 33.7
			DEPTH	mm/in	328 / 12.9	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	710 / 28.0	810 / 31.9
			WIDTH	mm/in	990 / 39.0	990 / 39.0
			DEPTH	mm/in	415 / 16.3	415 / 16.3
	UNIT WEIGHT			kg/lb	59 / 130.1	62 / 136.7
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in 12.70 / 1/2	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb 1.375 / 3.03	1.54 / 3.4

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Cooling Only (R410A)

MODEL		INDOOR UNIT			A5WM 311
		OUTDOOR UNIT			A5LC 28C
NOMINAL CAPACITY - 1∅ / <3∅>				Btu/h 26000 / <26000>
				W 7620 / <7620>
NOMINAL TOTAL INPUT POWER - 1∅ / <3∅>				W 2560 / <2631>
NOMINAL RUNNING CURRENT - 1∅ / <3∅>				A 12.2 / <4.6>
POWER SOURCE				V/Ph/Hz	220-240/ 1/ 50 / <380-415/ 3/ 50>
EER - 1∅ / <3∅>				W/W 2.98 / <2.89>
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH	l/s	/ cfm 316 / 670
			MEDIUM l/s / cfm 297 / 630
			LOW l/s / cfm		236 / 500
	SOUND PRESSURE LEVEL (H/M/L)			dBA 49	47 / 45
	UNIT DIMENSION		HEIGHT mm/in		360 / 14.2
			WIDTH mm/in 1200 / 47.2
			DEPTH mm/in 200 / 7.9
	PACKING DIMENSION		HEIGHT mm/in 420 / 16.5
			WIDTH mm/in 1267 / 49.9
			DEPTH mm/in 260 / 10.2
	UNIT WEIGHT			kg/lb 17	37.48
	CONDENSATE DRAIN SIZE			mm/in 20	/ 0.79
OUTDOOR UNIT	AIR FLOW			l/s / cfm	632 / 1340
	SOUND PRESSURE LEVEL			dBA	54
	UNIT DIMENSION		HEIGHT mm/in 750 / 29.5
			WIDTH mm/in		855 / 33.7
			DEPTH mm/in 328 / 12.9
	PACKING DIMENSION		HEIGHT mm/in		810 / 31.9
			WIDTH mm/in 990 / 39.0
			DEPTH mm/in		415 / 16.3
	UNIT WEIGHT			kg/lb 68	149.9
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in 9.52 / 3/8
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb 1.75 / 3.86

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

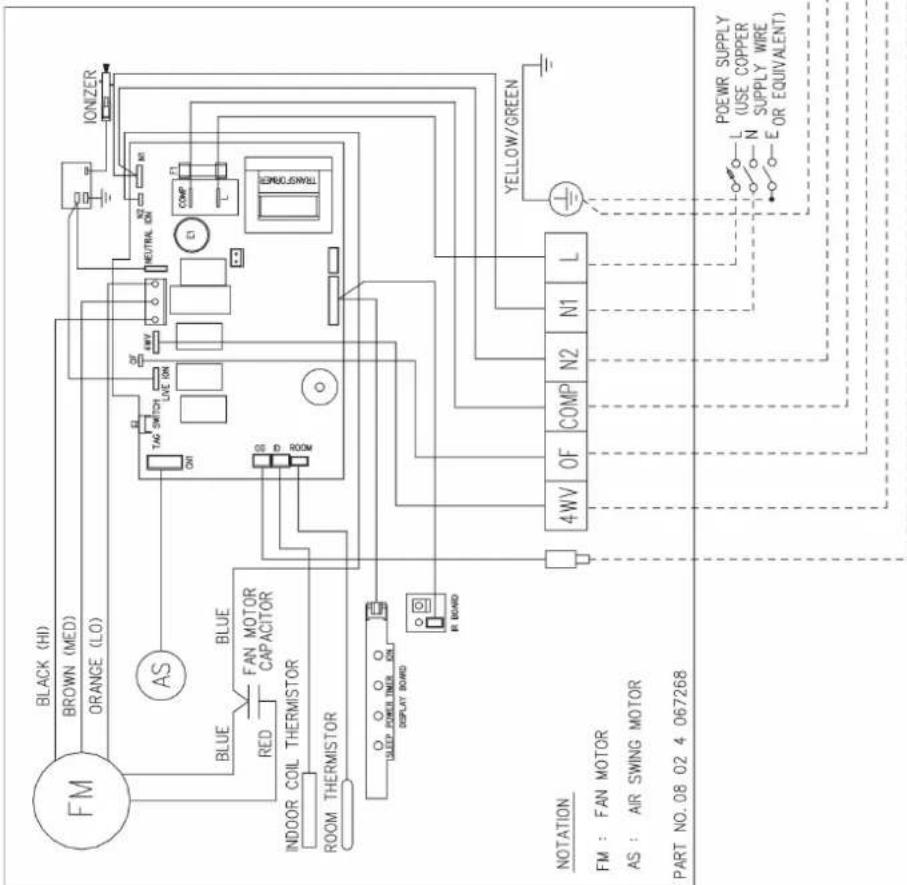

General Data - Heatpump (R410A)

MODEL		INDOOR UNIT			A5WM 07GR	A5WM 09GR
		OUTDOOR UNIT			A5LC 07CR	A5LC 09CR
NOMINAL COOLING CAPACITY				Btu/h	7500 9000
				W	2200 2640
NOMINAL HEATING CAPACITY				Btu/h 7500 9000
				W 2200 2640
NOMINAL TOTAL INPUT POWER (COOLING)				W 680 360
NOMINAL TOTAL INPUT POWER (HEATING)				W 550 745
NOMINAL RUNNING CURRENT (COOLING)				A 3.1 3.9
NOMINAL RUNNING CURRENT (HEATING)				A 2.6 3.4
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W	3.24 3.07
COP				W/W	4	3
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm		130 / 275
			MEDIUM	l/s / cfm	106 / 225
			LOW	l/s / cfm	83 / 175
	SOUND PRESSURE LEVEL (H/M/L)			dBA	40 / 35 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	799 / 31.5
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	857 / 33.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	10/22.05
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm	307 / 650	396 / 840
	SOUND PRESSURE LEVEL			dBA	44	46
	UNIT DIMENSION		HEIGHT	mm/in	495/19.5	540/21.3
			WIDTH	mm/in	600/23.6	700/27.6
			DEPTH	mm/in	245/9.7	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	575/22.6	620/24.4
			WIDTH	mm/in	715/28.1	810/31.9
			DEPTH	mm/in	330/13.0	330/13.0
	UNIT WEIGHT			kg/lb	26/57.32	33/72.75
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8
	REFRIGERANT CHARGE			kg/lb	0.8/1.76	0.73/1.61

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R410A)

MODEL		INDOOR UNIT			A5WM 10GR	A5WM 15GR
		OUTDOOR UNIT			A5LC 10CR	A5LC 15CR
NOMINAL COOLING CAPACITY				Btu/h	9500 12000
				W	2780 3520
NOMINAL HEATING CAPACITY				Btu/h 9500 12000
				W 2780 3520
NOMINAL TOTAL INPUT POWER (COOLING)				W 867 230
NOMINAL TOTAL INPUT POWER (HEATING)				W 747 1080
NOMINAL RUNNING CURRENT (COOLING)				A 3.9 5.4
NOMINAL RUNNING CURRENT (HEATING)				A 3.4 4.9
POWER SOURCE				V/Ph/Hz	220-240/1/50
EER				W/W	3.21 2.86
COP				W/W	3.72 3.26
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm	142 / 300 163 / 345
			MEDIUM	l/s / cfm	118 / 250 135 / 285
			LOW	l/s / cfm	94 / 200	104 / 220
	SOUND PRESSURE LEVEL (H/M/L)			dBA	39 / 34 / 28	42 / 36 / 29
	UNIT DIMENSION		HEIGHT	mm/in	260 / 10.2
			WIDTH	mm/in	899 / 35.4
			DEPTH	mm/in	198 / 7.8
	PACKING DIMENSION		HEIGHT	mm/in	337 / 13.3
			WIDTH	mm/in	957 / 37.7
			DEPTH	mm/in	270 / 10.6
	UNIT WEIGHT			kg/lb	12/26.46
	CONDENSATE DRAIN SIZE			mm/in	16 / 0.63
OUTDOOR UNIT	AIR FLOW			l/s / cfm 396 / 840 453 / 960
	SOUND PRESSURE LEVEL			dBA	46	49
	UNIT DIMENSION		HEIGHT	mm/in	540/21.3
			WIDTH	mm/in	700/27.6
			DEPTH	mm/in	250/9.8
	PACKING DIMENSION		HEIGHT	mm/in	620/24.4
			WIDTH	mm/in	810/31.9
			DEPTH	mm/in	330/13.0
	UNIT WEIGHT			kg/lb	32/70.55
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	9.52 / 3/8	12.70 / 1/2
	REFRIGERANT CHARGE			kg/lb	0.73/1.61	0.825/ 1.82

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R410A)

MODEL		INDOOR UNIT			A5WM 20GR	A5WM 25GR
		OUTDOOR UNIT			A5LC 20CR	A5LC 25CR
NOMINAL COOLING CAPACITY - 1∅ / <3∅>				Btu/h 17850 / <18000> 20350 / <22500>
				W 5230 / <5280> 5960 / <6590>
NOMINAL HEATING CAPACITY - 1∅ / <3∅>				Btu/h 18000 / <18500> 22000 / <23000>
				W	5280 / <5420> 6450 / <6740>
NOMINAL TOTAL INPUT POWER (COOLING) - 1∅ / <3∅>				W	1630 / <1663> 1860 / <2195>
NOMINAL TOTAL INPUT POWER (HEATING) - 1∅ / <3∅>				W	1546 / <1630> 1870 / <2106>
NOMINAL RUNNING CURRENT (COOLING) - 1∅ / <3∅>				A 7.2 / <3.2> 8.4 / <4.2>
NOMINAL RUNNING CURRENT (HEATING) - 1∅ / <3∅>				A 6.8 / <3.1> 8.4 / <4.2>
POWER SOURCE				V/Ph/Hz	220-240/ 1/ 50 / <380-415/ 3/ 50>
EER - 1∅ / <3∅>				W/W	3.21 / <3.17> 3.2 / <3>
COP - 1∅ / <3∅>				W/W	3.41 / <3.33> 3.45 / <3.2>
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			DOUBLE LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH I/s / cfm		231 / 490 397 / 630
			MEDIUM I/s / cfm		193 / 410 231 / 490
			LOW	I/s / cfm	160 / 340 208 / 440
	SOUND PRESSURE LEVEL (H/M/L)			dBA	43 / 40 / 35	49 / 44 / 42
	UNIT DIMENSION		HEIGHT	mm/in	304 / 12.0
			WIDTH	mm/in	1062 / 41.8
			DEPTH	mm/in	222 / 8.7
	PACKING DIMENSION		HEIGHT	mm/in	378 / 14.9
			WIDTH	mm/in	1130 / 44.5
			DEPTH	mm/in	292 / 11.5
	UNIT WEIGHT			kg/lb	16 / 35.27
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			I/s / cfm	614 / 1300	689 / 1460
	SOUND PRESSURE LEVEL			dBA	52
	UNIT DIMENSION		HEIGHT	mm/in	651 / 25.6	750 / 29.5
			WIDTH	mm/in	855 / 33.7	855 / 33.7
			DEPTH	mm/in	328 / 12.9	328 / 12.9
	PACKING DIMENSION		HEIGHT	mm/in	710 / 28.0	810 / 31.9
			WIDTH	mm/in	990 / 39.0	990 / 39.0
			DEPTH	mm/in	415 / 16.3	415 / 16.3
	UNIT WEIGHT			kg/lb	59 / 130.1	62 / 136.7
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.35 / 1/4
			GAS	mm/in	12.70 / 1/2	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	1.375 / 3.03	1.54 / 3.40

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

General Data - Heatpump (R410A)

MODEL		INDOOR UNIT			A5WM 311
		OUTDOOR UNIT			A5LC 28CR
NOMINAL COOLING CAPACITY - 1∅ / <3∅>				Btu/h 26000 / <26000>
				W 7620 / <7620>
NOMINAL HEATING CAPACITY - 1∅ / <3∅>				Btu/h	26000 / <26000>
				W	7620 / <7620>
NOMINAL TOTAL INPUT POWER (COOLING) - 1∅ / <3∅>				W	2560 / <2631>
NOMINAL TOTAL INPUT POWER (HEATING) - 1∅ / <3∅>				W	2442 / <2294>
NOMINAL RUNNING CURRENT (COOLING) - 1∅ / <3∅>				A 12.2 / <4.6>
NOMINAL RUNNING CURRENT (HEATING) - 1∅ / <3∅>				A 11.6 / <4.2>
POWER SOURCE				V/Ph/Hz 220-240/ 1/ 50 / <380-415/ 3/ 50>
EER - 1∅ / <3∅>				W/W 2.93 / <2.89>
COP - 1∅ / <3∅>				W/W	3.12 / <3.32>
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTO LOUVER (UP & DOWN) & GRILLE (LEFT & RIGHT)
		OPERATION			LCD REMOTE CONTROL
	AIR FLOW		HIGH l/s / cfm 316 / 670
			MEDIUM l/s / cfm 297 / 680
			LOW l/s / cfm 236 / 500
	SOUND PRESSURE LEVEL (H/M/L)			dBA 49	47 / 45
	UNIT DIMENSION		HEIGHT mm/in		360 / 14.2
			WIDTH mm/in		1200 / 47.2
			DEPTH mm/in		200 / 7.9
	PACKING DIMENSION		HEIGHT mm/in		420 / 16.5
			WIDTH mm/in 1267 / 49.9
			DEPTH mm/in 260 / 10.2
	UNIT WEIGHT			kg/lb	17 / 37.48
	CONDENSATE DRAIN SIZE			mm/in	20 / 0.79
OUTDOOR UNIT	AIR FLOW			l/s / cfm	632 / 1340
	SOUND PRESSURE LEVEL			dBA	54
	UNIT DIMENSION		HEIGHT mm/in		750 / 29.5
			WIDTH mm/in		855 / 33.7
			DEPTH mm/in		328 / 12.9
	PACKING DIMENSION		HEIGHT mm/in 810 / 31.9
			WIDTH mm/in 990 / 39.0
			DEPTH mm/in 415 / 16.3
	UNIT WEIGHT			kg/lb	68 / 149.9
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		9.52 / 3/8
			GAS	mm/in	15.88 / 5/8
	REFRIGERANT CHARGE			kg/lb	1.75 / 3.86

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

Components Data - Cooling Only (R22)

MODEL	INDOOR UNIT				AWM 07G AWM 09G
	OUTDOOR UNIT				ALC 07C ALC 09C
INDOOR FAN	TYPE				CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in	97/3.8
	LENGTH			mm/in	617.5/24.3
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in	356/14
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT			cm^3 /fl.oz.	320/11.3
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ff^2	0.201 / 2.161
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			RAISE LANCE
		THICKNESS		mm/in	0.11/0.004
		FACE AREA		m^2/ff^2	0.31/3.40
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		298/11.7
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R22)

MODEL	INDOOR UNIT				AWM 10G AWM 15G
	OUTDOOR UNIT				ALC 10C ALC 15C
INDOOR FAN	TYPE				CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		97/3.8
	LENGTH		mm/in		717.5/28.2
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		404/16
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		320 / 11.3 350 / 11.8
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.234 / 2.516
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			CORRUGATED RASE LANCE
		THICKNESS	mm/in		0.11/0.004
		FACE AREA	m^2/ft^2		0.36/3.94
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		348/13.7
			THICKNESS	mm/in	1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R22)

MODEL	INDOOR UNIT				AWM 20G AWM 20G
	OUTDOOR UNIT				ALC 18C ALC 20C
INDOOR FAN	TYPE				CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		108/4.25
	LENGTH		mm/in		810/31.9
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		600 / 21.1 1000 / 35.2
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.269 / 2.900
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (RAISE LANCE FIN)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.52 / 5.59
		ROW			1	2
		FIN PER INCH			20 18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		351/13.8
			WIDTH mm/in		386/15.2
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R22)

MODEL	INDOOR UNIT				AWM 25G	AWM 311
	OUTDOOR UNIT				ALC 25C	ALC 28C
INDOOR FAN	TYPE				CROSS FLOW FAN ANTI FUNGUS CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		108/4.25 106 / 4.17
	LENGTH		mm/in		810/31.9 950 / 37.4
INDOOR FAN MOTOR	TYPE				INDUCTION INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20 IP24
OUTDOOR FAN	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		700 / 24.6 1130 / 39.8
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276 9.52 / 0.375
		THICKNESS	mm/in		0.28 / 0.011 0.35 / 0.013
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ff^2		0.269 / 2.900 0.291 / 3.130
		ROW			2
		FIN PER INCH			18 16
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276 9.52 / 3/8
		THICKNESS	mm/in		0.28 / 0.011 0.33 / 0.013
	FIN	MATERIAL			RAISE LANCE ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in		0.127 / 0.005
		FACE AREA	m^2/ff^2		0.61 / 6.52
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER	SARANET + IONIZER
		QUANTITY		pc	2	3 X 3
		SIZE	LENGTH	mm/in	351/13.8	330/13.0
			WIDTH	mm/in	386/15.2	317/12.4
			THICKNESS	mm/in	1.5/0.06	1.8/0.07
	NEGATIVE IONIZER				YES	NO
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE	ABS
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R22)

MODEL	INDOOR UNIT				AWM 09GR
	OUTDOOR UNIT				ALC 09CR
INDOOR FAN	TYPE				ANTI FUNGUS SKEW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in	97/3.8
	LENGTH			mm/in	617.5/24.3
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in	356/14
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT			cm^3 /fl.oz.	320/11.3
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.201 / 2.161
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	9.52 / 3/8
		THICKNESS		mm/in	0.33 / 0.013
	FIN	MATERIAL			ALUMINIUM (SLIT FIN)
		THICKNESS		mm/in	0.11/0.004
		FACE AREA		m^2/ft^2	0.31/3.40
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		298/11.7
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R22)

MODEL	INDOOR UNIT				AWM 10GR AWM 15GR
	OUTDOOR UNIT				ALC 10CR ALC 15CR
INDOOR FAN	TYPE				ANTI FUNGUS SKEW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		97/3.8
	LENGTH		mm/in		717.5/28.2
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		404/16
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		320 / 11.3 350 / 11.8
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.234 / 2.516
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		9.52 / 3/8
		THICKNESS	mm/in		0.33 / 0.013
	FIN	MATERIAL			ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in		0.11/0.004
		FACE AREA	m^2/ft^2		0.36/3.94
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		348/13.7
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R22)

MODEL	INDOOR UNIT				AWM 20GR AWM 20GR
	OUTDOOR UNIT				ALC 18CR ALC 20CR
INDOOR FAN	TYPE				CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		108/4.25
	LENGTH		mm/in		810/31.9
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		600 / 21.1 1000 / 35.2
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.269 / 2.900
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276
		THICKNESS	mm/in		0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (RAISE LANCE FIN)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.52 / 5.59
		ROW			1	2
		FIN PER INCH			20 18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		351/13.8
			WIDTH mm/in		386/15.2
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R22)

MODEL	INDOOR UNIT				AWM 25GR	AWM 311R
	OUTDOOR UNIT				ALC 25CR	ALC 28CR
INDOOR FAN	TYPE				CROSS FLOW FAN ANTI FUNGUS CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		108/4.25 106 / 4.17
	LENGTH		mm/in		810/31.9 950 / 37.4
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20 IP24
OUTDOOR FAN	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				ATMOS NM56M or SUNISO 4GDID	ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.		700 / 24.6 1130 / 39.8
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7.0 / 0.276 9.52 / 0.375
		THICKNESS	mm/in		0.28 / 0.011 0.35 / 0.013
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in		0.11 / 0.0043
		FACE AREA	m^2/ft^2		0.269 / 2.900 0.291 / 3.130
		ROW			2	2
		FIN PER INCH			18 16
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in		7 / 0.275 9.52 / 3/8
		THICKNESS	mm/in		0.28 / 0.011 0.33 / 0.013
	FIN	MATERIAL			ALUMINIUM (RAISE LANCE)	ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in		0.11 / 0.0043 0.11/0.004
		FACE AREA	m^2/ft^2		0.61 / 6.52
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER	SARANET + IONIZER
		QUANTITY		pc	2	3 X 3
		SIZE	LENGTH	mm/in	351/13.8	330/13.0
			WIDTH	mm/in	386/15.2	317/12.4
			THICKNESS	mm/in	1.5/0.06	1.8/0.07
	NEGATIVE IONIZER				YES	NO
CASING	INDOOR UNIT		MATERIAL		HIGH IMPACT POLYSTYRENE	ABS
			COLOUR		LIGHT GREY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R410A)

MODEL	INDOOR UNIT			A5WM 07G A5WM 09G
	OUTDOOR UNIT			A5LC 07C A5LC 10C
INDOOR FAN	TYPE			ANTI FUNGUS SKEW FAN
	QUANTITY			1
	MATERIAL			ACRYLO NITRILE STYRENE
	DRIVE			DIRECT
	DIAMETER		mm/in	97/3.8
	LENGTH		mm/in	617.5/24.3
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP24
OUTDOOR FAN MOTOR	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER		mm/in	356/14
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY HERMETIC
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT		cm^3 /fl.oz.	300 / 10.5 350 / 12.3
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in	7.0 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m^2/ft^2	0.201 / 2.161
		ROW		2
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in	9.52 / 3/8
		THICKNESS	mm/in	0.33 / 0.013
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11/0.004
		FACE AREA	m^2/ft^2	0.31/3.40 0.36/3.94
		ROW		1
		FIN PER INCH		18
AIR QUALITY	FILTER	TYPE		NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in	304/11.9
			WIDTH mm/in	298/11.7
			THICKNESS mm/in	1.5/0.06
	NEGATIVE IONIZER			YES
CASING	INDOOR UNIT		MATERIAL	HIPS
			COLOUR	IVORY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			COLOUR	LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R410A)

MODEL	INDOOR UNIT			A5WM 10G A5WM 15G
	OUTDOOR UNIT			A5LC 10C A5LC 15C
INDOOR FAN	TYPE			ANTI FUNGUS SKEW FAN
	QUANTITY			1
	MATERIAL			ACRYLO NITRILE STYRENE
	DRIVE			DIRECT
	DIAMETER		mm/in	97/3.8
	LENGTH		mm/in	717.5/28.2
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP24
OUTDOOR FAN MOTOR	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER		mm/in	404/16
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP24
COMPRESSOR	TYPE			ROTARY HERMETIC
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT		cm^3 /fl.oz.	350 / 12.3 430 / 15.1
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in	7.0 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m^2/ft^2	0.234 / 2.516
		ROW		2
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER	mm/in	9.52 / 3/8
		THICKNESS	mm/in	0.33 / 0.013
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11/0.004
		FACE AREA	m^2/ft^2	0.36/3.94
		ROW		1
		FIN PER INCH		18
AIR QUALITY	FILTER	TYPE		NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in	304/11.9
			WIDTH mm/in	348/13.7
			THICKNESS mm/in	1.5/0.06
	NEGATIVE IONIZER			YES
CASING	INDOOR UNIT		MATERIAL	HIPS
			COLOUR	IVORY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			COLOUR	LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R410A)

MODEL	INDOOR UNIT				A5WM 20G A5WM 25G
	OUTDOOR UNIT				A5LC 20C A5LC 25C
INDOOR FAN	TYPE				ANTI FUNGUS SKEW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in	108/4.25
	LENGTH			mm/in	810/31.9
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in	457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT			cm^3 /fl.oz.	670 / 23.5 1130 / 39.7
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.269 / 2.900
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (CORR. FIN)
		THICKNESS		mm/in	0.127 / 0.005
		FACE AREA		m^2/ft^2	0.51 / 5.47 0.62 / 6.64
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		351/13.8
			WIDTH mm/in		386/15.2
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Cooling Only (R410A)

MODEL	INDOOR UNIT				A5WM 311
	OUTDOOR UNIT				A5LC 28C
INDOOR FAN	TYPE				ANTI FUNGUS CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in	106 / 4.17
	LENGTH			mm/in	950 / 37.4
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in 45	1.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT			cm^3 /fl.oz.	1130 / 39.7
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in 7.0 / 0.276
		THICKNESS		mm/in 0.23 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in 0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.30 / 3.23
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (CORR. FIN)
		THICKNESS		mm/in	0.11/0.004
		FACE AREA		m^2/ft^2	0.62 / 6.63
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			SARANET + IONIZER
		QUANTITY		pc 3 X 3
		SIZE	LENGTH mm/in 330/13.0
			WIDTH mm/in		317/12.4
			THICKNESS mm/in		1.8/0.07
	NEGATIVE IONIZER				NO
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R410A)

MODEL	INDOOR UNIT				A5WM 07GR	A5WM 09GR
	OUTDOOR UNIT				A5LC 07CR	A5LC 10CR
INDOOR FAN	TYPE				ANTI FUNGUS SKEW FAN CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		97/3.8
	LENGTH		mm/in		617.5/24.3
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		356/14
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT		cm^3 /fl.oz.		300 / 10.5 350 / 12.3
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.201 / 2.161
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in 9.5/2 / 3/8 7.0 / 0.276
		THICKNESS		mm/in	0.33 / 0.013 0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (SLIT FIN) RAISE	LANCE
		THICKNESS		mm/in	0.11/0.004 0.1/ 0.004
		FACE AREA		m^2/ft^2	0.31/3.40 0.193/ 2.112
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		298/11.7
			THICKNESS m	m/in	1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R410A)

MODEL	INDOOR UNIT				A5WM 10GR A5WM 15GR
	OUTDOOR UNIT				A5LC 10CR	A5LC 15CR
INDOOR FAN	TYPE				ANTI FUNGUS SKEW FAN CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER		mm/in		97/3.8
	LENGTH		mm/in		717.5/28.2
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN MOTOR	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER		mm/in		404/16
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT		cm^3 /fl.oz.		350 / 12.3 430 / 15.1
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.234 / 2.516
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in 7.0 / 0.276 9.52 / 3/8
		THICKNESS		mm/in	0.28 / 0.011 0.33 / 0.013
	FIN	MATERIAL			RAISE LANCE ALUMINIUM (SLIT FIN)
		THICKNESS		mm/in	0.1/ 0.004 0.11/0.004
		FACE AREA		m^2/ft^2	0.36/3.94
		ROW			1
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		304/11.9
			WIDTH mm/in		348/13.7
			THICKNESS mm/in		1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R410A)

MODEL	INDOOR UNIT				A5WM 20GR AWM 25GR
	OUTDOOR UNIT				A5LC 20CR ALC 25CR
INDOOR FAN	TYPE				CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in	108/4.25
	LENGTH			mm/in	810/31.9
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP20
OUTDOOR FAN	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in	457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT			cm^3 /fl.oz.	670 / 23.5 1130 / 39.7
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.269 / 2.900
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in	0.28 / 0.011
	FIN	MATERIAL			RAISE LANCE
		THICKNESS		mm/in	0.1 / 0.004
		FACE AREA		m^2/ft^2	0.51 / 5.47 0.62 / 6.64
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			NANO FILTER
		QUANTITY		pc	2
		SIZE	LENGTH mm/in		351/13.8
			WIDTH mm/in		386/15.2
			THICKNESS m	m/in	1.5/0.06
	NEGATIVE IONIZER				YES
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

Components Data - Heatpump (R410A)

MODEL	INDOOR UNIT				A5WM 311R
	OUTDOOR UNIT				A5LC 28CR
INDOOR FAN	TYPE				ANTI FUNGUS CROSS FLOW FAN
	QUANTITY				1
	MATERIAL				ACRYLO NITRILE STYRENE
	DRIVE				DIRECT
	DIAMETER			mm/in 106 / 4.17
	LENGTH			mm/in	950 / 37.4
INDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP24
OUTDOOR FAN	TYPE				PROPELLER
	QUANTITY				1
	MATERIAL				GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE				DIRECT
	DIAMETER			mm/in	457.2/18
OUTDOOR FAN MOTOR	TYPE				INDUCTION
	QUANTITY				1
	INDEX OF PROTECTION (IP)				IP54
COMPRESSOR	TYPE				ROTARY HERMETIC
	OIL TYPE				RB68A or Freol Alpha68M
	OIL AMOUNT			cm^3 /fl.oz.	1130 / 39.7
INDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in	7.0 / 0.276
		THICKNESS		mm/in 0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (HYDROPHILIC SLIT FIN TYPE)
		THICKNESS		mm/in	0.11 / 0.0043
		FACE AREA		m^2/ft^2	0.30 / 3.23
		ROW			2
		FIN PER INCH			18
OUTDOOR COIL	TUBE	MATERIAL			SEAMLESS INNER GROOVE COPPER TUBE
		DIAMETER		mm/in 7.0 / 0.276
		THICKNESS		mm/in 0.28 / 0.011
	FIN	MATERIAL			ALUMINIUM (CORR. FIN)
		THICKNESS		mm/in	0.11/0.004
		FACE AREA		m^2/ft^2	0.62 / 6.63
		ROW			2
		FIN PER INCH			18
AIR QUALITY	FILTER	TYPE			SARANET + IONIZER
		QUANTITY		pc 3 X 3
		SIZE	LENGTH mm/in 330/13.0
			WIDTH mm/in		317/12.4
			THICKNESS mm/in		1.8/0.07
	NEGATIVE IONIZER				NO
CASING	INDOOR UNIT		MATERIAL		HIPS
			COLOUR		IVORY
	OUTDOOR UNIT		MATERIAL		GALVANISED MILD STEEL
			COLOUR		LIGHT GREY

1) ALL SPECIFICATION ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

6. PERFORMANCE DATA

Interpolation and Extrapolation method can be used to get the total capacity, TC and sensible capacity, SC at those temperatures which are not stated out in the table.

Example:

Model: AWM 10G / ALC 10C

Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 37°C DB

Solution:

Overall

Based on the Performance table of AWM 10G / ALC 10C

1. Refer to the Indoor DB column,

- 23°C is located between 20°C and 24°C (Thus, Interpolation need to be applied)

1. Refer to the Indoor WB column,

- 15°C only available in the case of Indoor DB = 20°C. (Thus, Extrapolation between 16°C WB and 17°C WB during 24°C indoor DB is required)

1. Refer to the Outdoor DB column,

- 37°C is located between 35°C and 40°C. (Thus, Interpolation need to be applied)

Please follow the steps below in order to get the required capacity.

Details:

1 ^st Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 35°C DB

Indoor DB Indoor WB 35°C °C TC (kW) SC (kW)	Outdoor DB °C
24 16 2.6	15	x_1	y_1
	23 1.892
	17 2.687	1.794

Total capacity, TC

$$ \Rightarrow x _ {1} = 2. 5 5 8 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C Indoor DB} / 1 5 ^ {\circ} \mathrm{C Indoor WB} \& 3 5 ^ {\circ} \mathrm{C Outdoor WB}) ^ {*} $$

Sensible capacity, SC

Extrapolation Method:

$$ \begin{array}{l} \Rightarrow \frac {1 7 ^ {\circ} \mathrm{C} - 1 5 ^ {\circ} \mathrm{C}}{1 7 ^ {\circ} \mathrm{C} - 1 6 ^ {\circ} \mathrm{C}} = \frac {1 . 7 9 4 \mathrm{kW} - \mathrm{y} _ {1}}{1 . 7 9 4 \mathrm{kW} - 1 . 8 9 2 \mathrm{kW}} \ \Rightarrow \mathrm{y} _ {1} = 1. 9 9 0 \mathrm{kW} \ \end{array} $$

(b) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 40°C DB

Indoor DB Indoor WB 40°C °C TC (kW) SC (kW)	Outdoor DB °C
24 16 2.4	15	x_2	y_2
	29 1.728
	17 2.502	1.653

Total capacity, TC

$$ \Rightarrow x _ {2} = 2. 3 5 5 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C} \text { Indoor DB } / 1 5 ^ {\circ} \mathrm{C} \text { Indoor WB } \& 4 0 ^ {\circ} \mathrm{C} \text { Outdoor WB }) ^ {*} $$

Sensible capacity, SC

Extrapolation Method:

$$ \begin{array}{l} \Rightarrow \frac {1 7 ^ {\circ} \mathrm{C} - 1 5 ^ {\circ} \mathrm{C}}{1 7 ^ {\circ} \mathrm{C} - 1 6 ^ {\circ} \mathrm{C}} = \frac {1 . 6 5 3 \mathrm{kW} - \mathrm{y} _ {2}}{1 . 6 5 3 \mathrm{kW} - 1 . 7 2 8 \mathrm{kW}} \ \Rightarrow \mathrm{y} _ {2} = 1. 8 0 2 \mathrm{kW} \ \end{array} $$

* This is due to 2 different conditions with same WB temperature, will have the same level of enthalpy. For more details, please refer to psychrometrics chart

2nd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 35°C DB

Indoor DB Indoor WB 35°C °C TC (kW) SC (kW)	Outdoor DB °C
20 15 2.5	58 1.403
23 15 x		- - - - - - -	y_3
24 15 2.5	58 1.990

Total capacity, TC

x_3=2.558kW (Same as Total capacity at 20^ Indoor DB / 15^ Indoor WB & 35^ Outdoor WB) ^*

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {2 4 ^ {\circ} \mathrm{C} - 2 0 ^ {\circ} \mathrm{C}}{2 4 ^ {\circ} \mathrm{C} - 2 3 ^ {\circ} \mathrm{C}} = \frac {1 . 9 9 0 \mathrm{kW} - 1 . 4 0 3 \mathrm{kW}}{1 . 9 9 0 \mathrm{kW} - \mathrm{y} _ {3}} $$

$$ \Rightarrow \mathrm{y} _ {3} = 1. 8 4 4 \mathrm{kW} $$

(b) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 40°C DB

Indoor DB Indoor WB 40°C °C TC (kW) SC (kW)	Outdoor DB °C
20 15 2.3	55 1.215
23 15 x		4	y_4
24 15 2.3	55 1.802

Total capacity, TC

x_4=2.355kW (Same as Total capacity at 20^ Indoor DB / 15^ Indoor WB & 40^ Outdoor WB) ^*

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {2 4 ^ {\circ} \mathrm{C} - 2 0 ^ {\circ} \mathrm{C}}{2 4 ^ {\circ} \mathrm{C} - 2 3 ^ {\circ} \mathrm{C}} = \frac {1 . 8 0 2 \mathrm{kW} - 1 . 2 1 5 \mathrm{kW}}{1 . 8 0 2 \mathrm{kW} - \mathrm{y} _ {4}} $$

$$ \Rightarrow \mathrm{y} _ {4} = 1. 6 5 5 \mathrm{kW} $$

* This is due to 2 different conditions with same WB temperature will have the same level of enthalpy. For more details, please refer to psychrometrics chart

3rd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 37°C DB

Indoor DB Indoor WB 35 37 °C °C TC (kW) SC (kW)	Outdoor DB °C
	40
	TC (kW)	SC (kW)	TC (kW) SC	(kW)
23	15	- - - - -	2.558	1.844	x	y	2.355

Total capacity, TC

Interpolation Method:

$$ \Rightarrow \frac {4 0 ^ {\circ} \mathrm{C} - 3 5 ^ {\circ} \mathrm{C}}{4 0 ^ {\circ} \mathrm{C} - 3 7 ^ {\circ} \mathrm{C}} = \frac {2 . 3 5 5 \mathrm{kW} - 2 . 5 5 8 \mathrm{kW}}{2 . 3 5 5 \mathrm{kW} - x} $$

$$ \Rightarrow x = 2. 4 7 7 \mathrm{kW} $$

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {4 0 ^ {\circ} \mathrm{C} - 3 5 ^ {\circ} \mathrm{C}}{4 0 ^ {\circ} \mathrm{C} - 3 7 ^ {\circ} \mathrm{C}} = \frac {1 . 6 5 5 \mathrm{kW} - 1 . 8 4 4 \mathrm{kW}}{1 . 6 5 5 \mathrm{kW} - \mathrm{y}} $$

$$ \Rightarrow \mathrm{y} = 1. 7 6 8 \mathrm{kW} $$

R22 Models

(Cooling Only)

MODEL : AWM 07G / ALC 07C

ID DB°C	ID WB°C	Outdoor DB°C
		20 25 30 35		40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	2.4181.4	842.2491.3	352.0801.1	361.9101.0	371.7410.88	91.5380.710
	16	2.4531.3	492.2861.2	212.1191.0	941.9520.9	661.7850.83	91.5850.686
24	16	2.4531.7	992.2861.6	712.1191.5	441.9521.4	161.7851.28	81.5851.135
	17	2.4881.6	642.3231.5	582.1591.4	511.9941.3	451.8291.23	91.6321.111
	18	2.5231.5	292.3601.4	442.1981.3	592.0361.2	741.8731.18	91.6791.087
	19	2.5571.3	942.3971.3	312.2371.2	672.0771.2	3031.9171.13	91.7251.062
	20	2.5931.2	592.4371.2	102.2811.1	622.1261.1	131.9701.06	41.7831.006
28	18	2.5231.9	792.3601.8	942.1981.8	902.0361.7	241.8731.63	81.6791.536
	19	2.5571.8	442.3971.7	802.2371.7	162.0771.6	521.9171.58	91.7251.512
	20	2.5931.7	902.4371.6	602.2811.6	112.1261.5	631.9701.51	41.7831.456
	21	2.6281.5	732.4781.5	352.3281.4	982.1791.4	602.0291.42	31.8491.378
	22	2.6631.4	372.5191.4	112.3751.3	342.2311.3	582.0871.33	21.9151.300
	23	2.6991.3	012.5601.2	862.4221.2	712.2841.2	562.1461.24	11.9801.223
	24	2.7341.1	652.6021.1	612.4691.1	572.3371.1	542.2051.15	02.0461.145
30	20	2.5931.9	342.4371.8	852.2811.8	362.1261.7	881.9701.73	91.7831.680
	21	2.6281.7	982.4781.7	602.3281.7	232.1791.6	852.0291.64	81.8491.603
	22	2.6631.6	622.5191.6	362.3751.6	092.2311.5	832.0871.55	71.9151.525
	23	2.6991.5	262.5601.5	112.4221.4	962.2841.4	812.1461.46	61.9801.448
	24	2.7341.3	902.6021.3	862.4691.3	322.3371.3	792.2051.37	52.0461.370

MODEL : AWM 09G / ALC 09C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35		40 46
		TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
20	15	3.0341.9	162.8291.7	422.6231.5	682.4181.3	932.2131.2	91.9661.0	10
	16	3.1141.7	482.9031.5	972.6921.4	452.4801.2	942.2691.1	22.0160.96	1
24	16	3.1142.2	572.9032.1	1052.6921.9	542.4801.8	22.2691.6	12.0161.46	9
	17	3.1942.0	882.9771.9	602.7601.8	312.5431.7	332.3261.5	42.0651.42	0
	18	3.2741.9	203.0511.8	152.8281.7	92.6051.6	32.3821.4	72.1151.37	1
	19	3.3541.7	523.1251.6	692.8961.5	362.6681.5	42.4391.4	12.1641.32	1
	20	3.4351.5	833.2051.5	192.9761.4	542.7471.3	892.5171.3	42.2421.24	6
28	18	3.2742.4	293.0512.3	232.8282.2	172.6052.1	122.3822.0	62.1151.87	9
	19	3.3542.2	613.1252.1	782.8962.0	952.6682.0	122.4391.9	92.1641.83	0
	20	3.4352.0	923.2052.0	272.9761.9	622.7471.8	972.5171.8	32.2421.75	5
	21	3.5161.9	233.2891.8	733.0631.8	232.8371.7	32.6111.7	32.3391.66	3
	22	3.5971.7	543.3741.7	193.1501.6	332.9271.6	482.7041.6	32.4361.57	1
	23	3.6781.5	853.4581.5	643.2381.5	443.0181.5	242.7981.5	32.5331.47	9
	24	3.7591.4	163.5421.4	103.3251.4	4043.1081.3	992.8911.3	32.6311.38	7
30	20	3.4352.3	463.2052.2	812.9762.2	162.7472.1	522.5172.0	72.2422.00	9
	21	3.5162.1	773.2892.1	273.0632.0	772.8372.0	272.6111.9	72.3391.91	7
	22	3.5972.0	083.3741.9	733.1501.9	382.9271.9	022.7041.8	672.4361.82	5
	23	3.6781.8	393.4581.8	193.2381.7	983.0181.7	782.7981.7	572.5331.73	3
	24	3.7591.6	703.5421.6	643.3251.6	593.1081.6	532.8911.6	482.6311.64	1

R22 Models

(Cooling only)

MODEL : AWM 10G / ALC 10C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30						35 40				46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	3.169 1.968	2.966 1.780	2.762	1.592	2.558	1.403	2.355	1.215	2.11	0.989
	16	3.206 1.800	3.012 1.635	2.817	1.470	2.623	1.306	2.429	1.141	2.195	0.943
24	16	3.206 2.386	3.012 2.222	2.817	2.057	2.623	1.892	2.429	1.728	2.195	1.530
	17	3.243 2.218	3.058 2.077	2.872	1.936	2.687	1.794	2.502	1.653	2.280	1.484
	18	3.280 2.049	3.104 1.932	2.928	1.814	2.752	1.697	2.576	1.579	2.364	1.438
	19	3.317 1.881	3.150 1.787	2.983	1.693	2.816	1.599	2.649	1.505	2.449	1.392
	20	3.353 1.711	3.193 1.635	3.033	1.559	2.873	1.483	2.713	1.407	2.521	1.315
28	18	3.280 2.636	3.104 2.518	2.928	2.401	2.752	2.283	2.576	2.166	2.364	2.025
	19	3.317 2.467	3.150 2.373	2.983	2.279	2.816	2.186	2.649	2.092	2.449	1.979
	20	3.353 2.298	3.193 2.222	3.033	2.146	2.873	2.070	2.713	1.993	2.521	1.902
	21	3.389 2.128	3.235 2.066	3.080	2.004	2.925	1.942	2.771	1.879	2.585	1.805
	22	3.426 1.959	3.276 1.910	3.127	1.862	2.978	1.814	2.828	1.765	2.649	1.707
	23	3.462 1.789	3.318 1.754	3.174	1.720	3.030	1.686	2.886	1.651	2.713	1.610
	24	3.499 1.619	3.360 1.599	3.221	1.578	3.082	1.558	2.943	1.537	2.776	1.513
30	20	3.353 2.591	3.193 2.515	3.033	2.439	2.873	2.363	2.713	2.287	2.521	2.195
	21	3.389 2.422	3.235 2.359	3.080	2.297	2.925	2.235	2.771	2.173	2.585	2.098
	22	3.426 2.252	3.276 2.204	3.127	2.155	2.978	2.107	2.828	2.059	2.649	2.001
	23	3.462 2.082	3.318 2.048	3.174	2.013	3.030	1.979	2.886	1.945	2.713	1.903
	24	3.499 1.912	3.360 1.892	3.221	1.872	3.082	1.851	2.943	1.831	2.776	1.806

MODEL : AWM 15G / ALC 15C

ID DB°C	ID WB°C	Outdoor DB°C
		20 25 30 35								40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	4.051 2.	628 3.785 2.	373 3.519	2.118 3.253	1.863 2.987	1.608 2.668	1.302
	16	4.086 2.	387 3.834 2.	156 3.582	1.925 3.330	1.694 3.078	1.464 2.776	1.186
24	16	4.086 3.	056 3.834 2.	825 3.582	2.594 3.330	2.363 3.078	2.133 2.776	1.855
	17	4.120 2.	315 3.882 2.	608 3.645	2.402 3.407	2.195 3.169	1.988 2.884	1.740
	18	4.155 2.	574 3.931 2.	392 3.707	2.209 3.484	2.026 3.260	1.843 2.991	1.624
	19	4.189 2.	333 3.980 2.	175 3.770	2.016 3.560	1.858 3.351	1.699 3.099	1.509
	20	4.223 2.	093 4.025 1.	961 3.826	1.830 3.627	1.699 3.428	1.568 3.190	1.410
28	18	4.155 3.	243 3.931 3.	061 3.707	2.878 3.484	2.695 3.260	2.513 2.991	2.293
	19	4.189 3.	002 3.980 2.	844 3.770	2.685 3.560	2.527 3.351	2.368 3.099	2.178
	20	4.223 2.	762 4.025 2.	631 3.826	2.499 3.627	2.368 3.428	2.237 3.190	2.079
	21	4.257 2.	521 4.067 2.	420 3.877	2.318 3.687	2.216 3.498	2.115 3.270	1.993
	22	4.291 2.	281 4.110 2.	209 3.929	2.137 3.748	2.065 3.567	1.993 3.349	1.906
	23	4.325 2.	041 4.153 1.	998 3.980	1.956 3.808	1.913 3.636	1.871 3.429	1.819
	24	4.359 1.	301 4.195 1.	788 4.032	1.775 3.868	1.761 3.705	1.748 3.508	1.733
30	20	4.223 3.	096 4.025 2.	965 3.826	2.834 3.627	2.703 3.428	2.571 3.190	2.414
	21	4.257 2.	356 4.067 2.	754 3.877	2.653 3.687	2.551 3.498	2.449 3.270	2.327
	22	4.291 2.	516 4.110 2.	544 3.929	2.471 3.748	2.399 3.567	2.327 3.349	2.241
	23	4.325 2.	375 4.153 2.	333 3.980	2.290 3.808	2.248 3.636	2.205 3.429	2.154
	24	4.359 2.	135 4.195 2.	122 4.032	2.109 3.868	2.096 3.705	2.083 3.508	2.067

R22 Models

(Cooling only)

MODEL : AWM 20G / ALC 18C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35		40									46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	5.954 3.	645 5.566 3.	311 5.179	2.977 4.791	2.642 4.404	2.308 3.909	1.907
	16	6.132 3.	309 5.730 3.	009 5.329	2.709 4.927	2.409 4.525	2.109 4.043	1.749
24	16	6.132 4.	352 5.730 4.	052 5.329	3.752 4.927	3.451 4.525	3.151 4.043	2.791
	17	6.310 4.	016 5.894 3.	750 5.478	3.484 5.062	3.218 4.646	2.952 4.147	2.633
	18	6.488 3.	680 6.058 3.	448 5.628	3.216 5.198	2.985 4.767	2.753 4.251	2.475
	19	6.667 3.	344 6.222 3.	147 5.778	2.949 5.333	2.751 4.888	2.554 4.355	2.317
	20	6.846 3.	008 6.397 2.	846 5.947	2.684 5.498	2.521 5.049	2.359 4.510	2.164
28	18	6.488 4.	723 6.058 4.	491 5.628	4.259 5.198	4.027 4.767	3.795 4.251	3.517
	19	6.667 4.	387 6.222 4.	189 5.778	3.991 5.333	3.794 4.888	3.596 4.355	3.359
	20	6.846 4.	051 6.397 3.	889 5.947	3.726 5.498	3.564 5.049	3.401 4.510	3.206
	21	7.026 3.	715 6.578 3.	589 6.131	3.462 5.683	3.336 5.235	3.209 4.698	3.058
	22	7.206 3.	380 6.760 3.	289 6.314	3.199 5.868	3.108 5.422	3.017 4.886	2.909
	23	7.386 3.	044 6.942 2.	989 6.497	2.935 6.053	2.880 5.608	2.826 5.075	2.760
	24	7.567 2.	708 7.124 2.	689 6.681	2.671 6.238	2.652 5.795	2.634 5.263	2.611
30	20	6.846 4.	572 6.397 4.	410 5.947	4.247 5.498	4.085 5.049	3.923 4.510	3.728
	21	7.026 4.	236 6.578 4.	110 6.131	3.984 5.683	3.857 5.235	3.731 4.698	3.579
	22	7.206 3.	901 6.760 3.	810 6.314	3.720 5.868	3.629 5.422	3.539 4.886	3.430
	23	7.386 3.	565 6.942 3.	511 6.497	3.456 6.053	3.401 5.608	3.347 5.075	3.281
	24	7.567 3.	229 7.124 3.	211 6.681	3.192 6.238	3.174 5.795	3.155 5.263	3.133

MODEL : AWM 20G / ALC 20C

ID DB°C	ID WB°C	Outdoor DB°C
		20 25 30 35								40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	5.778 3.	640 5.473 3.	396 5.169	3.153 4.864	2.909 4.559	2.666 4.194	2.373
	16	6.026 3.	334 5.701 3.	125 5.376	2.917 5.051	2.709 4.726	2.501 4.336	2.251
24	16	6.026 4.	248 5.701 4.	040 5.376	3.832 5.051	3.624 4.726	3.416 4.336	3.166
	17	6.274 3.	942 5.929 3.	770 5.583	3.597 5.238	3.424 4.892	3.252 4.478	3.044
	18	6.523 3.	636 6.157 3.	499 5.791	3.362 5.425	3.224 5.059	3.087 4.620	2.922
	19	6.771 3.	330 6.384 3.	228 5.998	3.126 5.612	3.025 5.225	2.923 4.762	2.800
	20	7.019 3.	023 6.614 2.	947 6.210	2.870 5.805	2.794 5.400	2.718 4.915	2.626
28	18	6.523 4.	551 6.157 4.	414 5.791	4.276 5.425	4.139 5.059	4.002 4.620	3.837
	19	6.771 4.	245 6.384 4.	143 5.998	4.041 5.612	3.939 5.225	3.837 4.762	3.715
	20	7.019 3.	938 6.614 3.	861 6.210	3.785 5.805	3.709 5.400	3.633 4.915	3.541
	21	7.268 3.	630 6.846 3.	572 6.424	3.515 6.003	3.458 5.581	3.401 5.075	3.332
	22	7.516 3.	321 7.077 3.	283 6.639	3.245 6.200	3.207 5.761	3.169 5.235	3.123
	23	7.765 3.	013 7.309 2.	994 6.853	2.975 6.398	2.956 5.942	2.937 5.395	2.914
	24	8.013 2.	705 7.541 2.	705 7.068	2.705 6.595	2.705 6.123	2.705 5.556	2.705
30	20	7.019 4.	395 6.614 4.	319 6.210	4.242 5.805	4.166 5.400	4.090 4.915	3.998
	21	7.268 4.	087 6.846 4.	030 6.424	3.973 6.003	3.915 5.581	3.858 5.075	3.789
	22	7.516 3.	779 7.077 3.	741 6.639	3.703 6.200	3.664 5.761	3.626 5.235	3.581
	23	7.765 3.	471 7.309 3.	452 6.853	3.433 6.398	3.414 5.942	3.394 5.395	3.372
	24	8.013 3.	163 7.541 3.	163 7.068	3.163 6.595	3.163 6.123	3.163 5.556	3.163

R22 Models

(Cooling only)

MODEL : AWM 25G / ALC 25C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35		40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	7.657 5.	145 7.196 4	692 6.735	4.238 6.275	3.785 5.814	3.331 5.261	2.787
	16	7.728 4.	693 7.300 4	280 6.873	3.867 6.446	3.454 6.019	3.042 5.507	2.546
24	16	7.728 5.	352 7.300 5	439 6.873	5.026 6.446	4.614 6.019	4.201 5.507	3.705
	17	7.798 5.	400 7.405 5	028 7.011	4.656 6.618	4.283 6.224	3.911 5.752	3.464
	18	7.869 4.	948 7.509 4	617 7.149	4.285 6.789	3.953 6.430	3.621 5.998	3.223
	19	7.940 4.	496 7.613 4	205 7.287	3.914 6.961	3.623 6.635	3.332 6.243	2.982
	20	8.008 4.	045 7.701 3	803 7.394	3.560 7.086	3.318 6.779	3.075 6.410	2.784
28	18	7.869 6.	107 7.509 5	776 7.149	5.444 6.789	5.112 6.430	4.781 5.998	4.383
	19	7.940 5.	655 7.613 5	364 7.287	5.073 6.961	4.782 6.635	4.491 6.243	4.142
	20	8.008 5.	205 7.701 4	962 7.394	4.720 7.086	4.477 6.779	4.235 6.410	3.944
	21	8.076 4.	754 7.778 4	566 7.479	4.377 7.181	4.189 6.883	4.000 6.525	3.774
	22	8.144 4.	304 7.855 4	169 7.565	4.035 7.276	3.900 6.986	3.766 6.639	3.604
	23	8.212 3.	354 7.931 3	773 7.651	3.693 7.370	3.612 7.090	3.532 6.754	3.435
	24	8.279 3.	403 8.008 3	377 7.737	3.350 7.465	3.324 7.194	3.297 6.868	3.265
30	20	8.008 5.	784 7.701 5	542 7.394	5.299 7.086	5.057 6.779	4.814 6.410	4.523
	21	8.076 5.	334 7.778 5	145 7.479	4.957 7.181	4.768 6.883	4.580 6.525	4.354
	22	8.144 4.	383 7.855 4	749 7.565	4.614 7.276	4.480 6.986	4.345 6.639	4.184
	23	8.212 4.	433 7.931 4	353 7.651	4.272 7.370	4.192 7.090	4.111 6.754	4.015
	24	8.279 3.	983 8.008 3	956 7.737	3.930 7.465	3.903 7.194	3.877 6.868	3.845

MODEL : AWM 311 / ALC 28C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35		40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	7.657 5.1	145 7.196 4	692 6.735	4.238 6.275	3.785 5.814	3.331 5.261	2.787
	16	7.728 4.3	93 7.300 4	280 6.873	3.867 6.446	3.454 6.019	3.042 5.507	2.546
24	16	7.728 5.3	852 7.300 5	439 6.873	5.026 6.446	4.614 6.019	4.201 5.507	3.705
	17	7.798 5.4	00 7.405 5	028 7.011	4.656 6.618	4.283 6.224	3.911 5.752	3.464
	18	7.869 4.9	48 7.509 4	617 7.149	4.285 6.789	3.953 6.430	3.621 5.998	3.223
	19	7.940 4.4	96 7.613 4	205 7.287	3.914 6.961	3.623 6.635	3.332 6.243	2.982
	20	8.008 4.0	45 7.701 3	803 7.394	3.560 7.086	3.318 6.779	3.075 6.410	2.784
28	18	7.869 6.1	107 7.509 5	776 7.149	5.444 6.789	5.112 6.430	4.781 5.998	4.383
	19	7.940 5.5	55 7.613 5	364 7.287	5.073 6.961	4.782 6.635	4.491 6.243	4.142
	20	8.008 5.2	05 7.701 4	962 7.394	4.720 7.086	4.477 6.779	4.235 6.410	3.944
	21	8.076 4.7	54 7.778 4	566 7.479	4.377 7.181	4.189 6.883	4.000 6.525	3.774
	22	8.144 4.3	04 7.855 4	169 7.565	4.035 7.276	3.900 6.986	3.766 6.639	3.604
	23	8.212 3.3	54 7.931 3	773 7.651	3.693 7.370	3.612 7.090	3.532 6.754	3.435
	24	8.279 3.4	03 8.008 3	377 7.737	3.350 7.465	3.324 7.194	3.297 6.868	3.265
30	20	8.008 5.7	84 7.701 5	542 7.394	5.299 7.086	5.057 6.779	4.814 6.410	4.523
	21	8.076 5.3	34 7.778 5	145 7.479	4.957 7.181	4.768 6.883	4.580 6.525	4.354
	22	8.144 4.3	83 7.855 4	749 7.565	4.614 7.276	4.480 6.986	4.345 6.639	4.184
	23	8.212 4.4	33 7.931 4	353 7.651	4.272 7.370	4.192 7.090	4.111 6.754	4.015
	24	8.279 3.9	83 8.008 3	956 7.737	3.930 7.465	3.903 7.194	3.877 6.868	3.845

R22 Models

(Heatpump)

MODEL : AWM 09GR / ALC 09CR

COOLING MODE

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35			40 46
		TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
20	15	3.163	2.063	2.934	1.852	2.705	1.641	2.476	1.430	2.247	1.219	1.972	0.966
	16	3.205	1.896	2.978	1.704	2.752	1.513	2.525	1.322	2.299	1.130	2.027	0.901
24	16	3.205	2.420	2.978	2.228	2.752	2.037	2.525	1.846	2.299	1.654	2.027	1.425
	17	3.246	2.252	3.022	2.081	2.798	1.909	2.574	1.737	2.351	1.565	2.082	1.359
	18	3.287	2.085	3.066	1.933	2.845	1.781	2.624	1.629	2.402	1.476	2.137	1.294
	19	3.329	1.918	3.110	1.785	2.891	1.653	2.673	1.520	2.454	1.388	2.192	1.228
	20	3.370	1.750	3.158	1.637	2.947	1.524	2.735	1.410	2.523	1.297	2.268	1.161
28	18	3.287	2.609	3.066	2.457	2.845	2.305	2.624	2.153	2.402	2.001	2.137	1.818
	19	3.329	2.442	3.110	2.309	2.891	2.177	2.673	2.044	2.454	1.912	2.192	1.752
	20	3.370	2.274	3.158	2.161	2.947	2.048	2.735	1.934	2.523	1.821	2.268	1.685
	21	3.413	2.107	3.210	2.012	3.007	1.918	2.805	1.823	2.602	1.729	2.359	1.615
	22	3.455	1.939	3.261	1.864	3.068	1.788	2.875	1.713	2.681	1.637	2.449	1.546
	23	3.497	1.772	3.313	1.715	3.129	1.658	2.945	1.602	2.761	1.545	2.540	1.477
	24	3.539	1.605	3.364	1.567	3.190	1.529	3.015	1.491	2.840	1.453	2.631	1.408
30	20	3.370	2.536	3.158	2.423	2.947	2.310	2.735	2.196	2.523	2.083	2.268	1.947
	21	3.413	2.369	3.210	2.274	3.007	2.180	2.805	2.085	2.602	1.991	2.359	1.877
	22	3.455	2.201	3.261	2.126	3.068	2.050	2.875	1.975	2.681	1.899	2.449	1.808
	23	3.497	2.034	3.313	1.977	3.129	1.921	2.945	1.864	2.761	1.807	2.540	1.739
	24	3.539	1.867	3.364	1.829	3.190	1.791	3.015	1.753	2.840	1.715	2.631	1.670

HEATING MODE

ID DB°C	Outdoor WB°C
	-9 -6 -5 6 12			15												18
	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
15 1.131	1.181	1.471	1.471	1.568	1.568	2.630	2.630	3.210	3.210	3.500	3.500	3.790	3.790
17	1.154	1.154	1.442	1.442	1.538	1.538	2.591	2.591	3.123	3.123	3.402	3.402	3.682	3.682
19 1.126	1.126	1.413	1.413	1.508	1.508	2.552	2.552	3.035	3.035	3.305	3.305	3.574	3.574
21	1.098	1.098	1.383	1.383	1.479	1.479	2.512	2.512	2.948	2.948	3.207	3.207	3.466	3.466
23 1.094	1.094	1.360	1.360	1.449	1.449	2.416	2.416	2.860	2.860	3.110	3.110	3.359	3.359
25	1.090	1.090	1.337	1.337	1.419	1.419	2.320	2.320	2.773	2.773	3.012	3.012	3.251	3.251
27 1.086	1.086	1.314	1.314	1.389	1.389	2.224	2.224	2.686	2.686	2.914	2.914	3.143	3.143

R22 Models

(Heatpump)

MODEL : AWM 10GR / ALC 10CR

COOLING MODE

		Outdoor DB°C
		20 25 30 35		40								46ID DB°C ID WB°C
		TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
20	15	3.169	1.968	2.966	1.780	2.762	1.592	2.558	1.403	2.355	1.215	2.1	11 0.989
	16	3.206	1.800	3.012	1.635	2.817	1.470	2.623	1.306	2.429	1.141	2.1	95 0.943
24	16	3.206	2.386	3.012	2.222	2.817	2.057	2.623	1.892	2.429	1.728	2.1	95 1.530
	17	3.243	2.218	3.058	2.077	2.872	1.936	2.687	1.794	2.502	1.653	2.280	1.484
	18	3.280	2.049	3.104	1.932	2.928	1.814	2.752	1.697	2.576	1.579	2.364	1.438
	19	3.317	1.881	3.150	1.787	2.983	1.693	2.816	1.599	2.649	1.505	2.449	1.392
	20	3.353	1.711	3.193	1.635	3.033	1.559	2.873	1.483	2.713	1.407	2.521	1.315
28	18	3.280	2.636	3.104	2.518	2.928	2.401	2.752	2.283	2.576	2.166	2.364	2.025
	19	3.317	2.467	3.150	2.373	2.983	2.279	2.816	2.186	2.649	2.092	2.449	1.979
	20	3.353	2.298	3.193	2.222	3.033	2.146	2.873	2.070	2.713	1.993	2.521	1.902
	21	3.389	2.128	3.235	2.066	3.080	2.004	2.925	1.942	2.771	1.879	2.585	1.805
	22	3.426	1.959	3.276	1.910	3.127	1.862	2.978	1.814	2.828	1.765	2.649	1.707
	23	3.462	1.789	3.318	1.754	3.174	1.720	3.030	1.686	2.886	1.651	2.713	1.610
	24	3.499	1.619	3.360	1.599	3.221	1.578	3.082	1.558	2.943	1.537	2.776	1.513
30	20	3.353	2.591	3.193	2.515	3.033	2.439	2.873	2.363	2.713	2.287	2.521	2.195
	21	3.389	2.422	3.235	2.359	3.080	2.297	2.925	2.235	2.771	2.173	2.585	2.098
	22	3.426	2.252	3.276	2.204	3.127	2.155	2.978	2.107	2.828	2.059	2.649	2.001
	23	3.462	2.082	3.318	2.048	3.174	2.013	3.030	1.979	2.886	1.945	2.713	1.903
	24	3.499	1.912	3.360	1.892	3.221	1.872	3.082	1.851	2.943	1.831	2.776	1.806

HEATING MODE

ID DB°C	Outdoor WB°C
	9 -6						-5 6			12		15				18
	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
15 1.2	74	1.274	1.577	1.577	1.678	1.678	2.789	2.789	3.395	3.395	3.698	3.698	4.001	4.001
17	1.246	1.246	1.546	1.546	1.646	1.646	2.743	2.743	3.302	3.302	3.595	3.595	3.887	3.887
19 1.2	19	1.219	1.516	1.516	1.615	1.615	2.697	2.697	3.210	3.210	3.492	3.492	3.773	3.773
21	1.191	1.191	1.485	1.485	1.583	1.583	2.652	2.652	3.113	3.118	3.388	3.388	3.659	3.659
23 1.1	34	1.184	1.460	1.460	1.551	1.551	2.554	2.554	3.025	3.025	3.285	3.285	3.546	3.546
25	1.178	1.178	1.434	1.434	1.520	1.520	2.457	2.933	3.2933	3.138	3.318	3.318	3.432	3.432
27 1.1	72	1.172	1.409	1.409	1.488	1.488	2.359	2.359	2.841	2.841	3.079	3.079	3.318	3.318

FROST REGION

R22 Models

(Heatpump)

MODEL : AWM 15GR / ALC 15CR

COOLING MODE

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30							35 40 46
		TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)
20	15	3.852	2.383	3.608	2.179	3.365	1.974	3.121	1.769	2.877	1.564	2.584	1.318
	16	4.062	2.259	3.784	2.056	3.506	1.852	3.228	1.648	2.950	1.445	2.616	1.201
24	16	4.062	2.917	3.784	2.713	3.506	2.510	3.228	2.306	2.950	2.103	2.616	1.858
	17	4.271	2.793	3.959	2.590	3.647	2.388	3.335	2.186	3.022	1.983	2.647	1.741
	18	4.481	2.668	4.134	2.467	3.788	2.266	3.441	2.065	3.095	1.864	2.679	1.623
	19	4.691	2.544	4.310	2.344	3.929	2.145	3.548	1.945	3.168	1.745	2.711	1.505
	20	4.902	2.421	4.503	2.227	4.103	2.034	3.704	1.841	3.305	1.648	2.826	1.416
28	18	4.481	3.326	4.134	3.125	3.788	2.924	3.441	2.723	3.095	2.522	2.679	2.281
	19	4.691	3.202	4.310	3.002	3.929	2.803	3.548	2.603	3.168	2.403	2.711	2.163
	20	4.902	3.078	4.503	2.885	4.103	2.692	3.704	2.499	3.305	2.306	2.826	2.074
	21	5.115	2.955	4.707	2.773	4.300	2.590	3.893	2.407	3.485	2.224	2.996	2.005
	22	5.328	2.832	4.912	2.660	4.497	2.487	4.081	2.315	3.666	2.142	3.167	1.935
	23	5.540	2.709	5.117	2.547	4.693	2.385	4.270	2.222	3.846	2.060	3.338	1.866
	24	5.753	2.586	5.321	2.434	4.890	2.282	4.458	2.130	4.026	1.978	3.508	1.796
30	20	4.902	3.407	4.503	3.214	4.103	3.021	3.704	2.828	3.305	2.635	2.826	2.403
	21	5.115	3.284	4.707	3.101	4.300	2.919	3.893	2.736	3.485	2.553	2.996	2.334
	22	5.328	3.161	4.912	2.989	4.497	2.816	4.081	2.644	3.666	2.471	3.167	2.264
	23	5.540	3.038	5.117	2.876	4.693	2.714	4.270	2.551	3.846	2.389	3.338	2.195
	24	5.753	2.915	5.321	2.763	4.890	2.611	4.458	2.459	4.026	2.307	3.508	2.125

HEATING MODE

	Outdoor WB°C
										6		1		215		I
	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)	TC(kW)	SC(kW)
15	1.533	1.533	1.925	1.925	2	055	2.055	3.489	3.489	4.271	4.271	4.662	4.662	5.053	5.053
17	1.494	1.494	1.885	1.885	2.016	2.016	3.442	3.442	4.154	4.531	4.531	4.909	4.909
19	1.454	1.454	1.846	1.846	1	976	1.976	3.396	3.396	4.038	4.038	4.401	4.401	4.765	4.765
21	1.414	1.414	1.806	1.806	1.937	1.937	3.350	3.350	3.921	3.921	4.271	4.271	4.621	4.621
23	1.413	1.413	1.776	1.776	1	898	1.898	3.215	3.215	3.805	3.805	4.141	4.141	4.478	4.478
25	1.411	1.411	1.746	1.746	1.858	1.858	3.081	3.081	3.688	3.688	4.011	4.011	4.334	4.334
27	1.409	1.409	1.717	1.717	1	819	1.819	2.946	2.946	3.572	3.572	3.881	3.881	4.190	4.190

FROST REGION

R22 Models

(Heatpump)

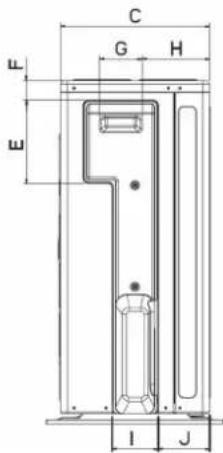

L K L N M C P N

A D Q B For A5LC / ALC 25 C/CR S T R

C G H F E I J

Note : Dimension in mm

M O D	E	L		A	B	C	D	E	F	G	H		I		J	K	L	M	N	O
ALC 18C/20C/20CR A5LC 20C/20CR	855	628 328	508 18	1 44 93	149 1	01 113	603 125	164	17 49 32	3 23 73	75
ALC 25C/25CR A5LC 25C/25CR	855	730 328	513 18	2 44 93	149 1	01 113	603 125	164	17 47 32	3 23 73	75

INDOOR UNIT

MODEL : A5WM 311 / 301R

1200.0 200.0

TOP VIEW

Front view of a black air vent with ventilation grilles and ventilation ducts (no text or symbols visible)

FRONT VIEW

SIDE VIEW

INSTALLATION PLATE 327.0 347.0

Note : Dimension in mm

OUTDOOR UNIT

L K L N M C P N

A D O B For M5LC / MLC 028 CICR Only S T R

C G H E I J

Note : Dimension in mm

M O D

E

L

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

ALC 28C/28CR A5LC28C/28CR

855

730 328

513 18

2 44 98

149 1

01 113

603 126

164 1

7 47 32

3 23 73

75

P Q R

8. ELECTRICAL DATA

MODEL	INDOOR UNIT		AWM 07G	AWM 09G
	OUTDOOR UNIT		ALC 07C	ALC 09C
INDOOR MOTOR	INSULATION GRADE E		E
	POWER SOURCE V/Ph/Hz 220-240/1/50220	240/1/50
	RATED INPUT POWER W 2324
	RATED RUNNING CURRENT A	0.11	0.11
	MOTOR OUTPUT	W	8	8
	POLES		4	4
OUTDOOR MOTOR	INSULATION GRADE		B	B
	POWER SOURCE V/Ph/Hz		220-240/1/50220-240/1/50
	RATED INPUT POWER W		4145
	RATED RUNNING CURRENT A		0.19	0.2
	MOTOR OUTPUT	W	2020
	POLES		6	6
COMPRESSOR	INSULATION GRADE E		E
	POWER SOURCE V/Ph/Hz 220-240/1/50220	240/1/50
	CAPACITOR	mF	2030
	RATED INPUT POWER W	526	850
	RATED RUNNING CURRENT	A	2.45	3.8
	LOCKED ROTOR AMP.	A	11.3	18

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 10G	AWM 15G
	OUTDOOR UNIT		ALC 10C	ALC 15C
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W 2629
	RATED RUNNING CURRENT A	0.11	0.13
	MOTOR OUTPUT	W	9	13
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		5259
	RATED RUNNING CURRENT A		0.23	0.26
	MOTOR OUTPUT	W 3535
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR	mF	3030
	RATED INPUT POWER W		783	1112
	RATED RUNNING CURRENT	A	3.5	5
	LOCKED ROTOR AMP.	A	1921

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 20G	AWM 20G
	OUTDOOR UNIT		ALC 18C	ALC 20C
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		47
	RATED RUNNING CURRENT A		0.22
	MOTOR OUTPUT W		20
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		120 120
	RATED RUNNING CURRENT A		0.53 0.53
	MOTOR OUTPUT W		64 64
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		60 60
	RATED INPUT POWER W		1643 1640
	RATED RUNNING CURRENT	A	7.37 7.2
	LOCKED ROTOR AMP.	A	32 32

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 25G	AWM 311
	OUTDOOR UNIT		ALC 25C	ALC 28C
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W	66 71
	RATED RUNNING CURRENT A	0.29	0.30
	MOTOR OUTPUT W		25 40
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		124	142
	RATED RUNNING CURRENT A		0.54	0.62
	MOTOR OUTPUT W		75	75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		50	50
	RATED INPUT POWER W		2340	2519
	RATED RUNNING CURRENT	A	10.5	12.2
	LOCKED ROTOR AMP.	A	54	66

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 09GR
	OUTDOOR UNIT		ALC 09CR
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		24
	RATED RUNNING CURRENT A		0.11
	MOTOR OUTPUT W		8
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		40
	RATED RUNNING CURRENT A		0.18
	MOTOR OUTPUT W		20
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		25
	RATED INPUT POWER (COOLING) W		846
	RATED INPUT POWER (HEATING) W		686
	RATED RUNNING CURRENT (COOLING) A		3.7
	RATED RUNNING CURRENT (HEATING) A		3.1
	LOCKED ROTOR AMP. A		18

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 10GR	AWM 15GR
	OUTDOOR UNIT		ALC 10CR	ALC 15CR
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W	26	29
	RATED RUNNING CURRENT	A	0.11	0.13
	MOTOR OUTPUT W 9		13
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		52	59
	RATED RUNNING CURRENT	A	0.23	0.26
	MOTOR OUTPUT W 35		35
	POLES		6	6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		30	35
	RATED INPUT POWER (COOLING)	W	759	1012
	RATED INPUT POWER (HEATING)	W	679	892
	RATED RUNNING CURRENT (COOLING)	A	3.4	4.7
	RATED RUNNING CURRENT (HEATING)	A	3.0	4.1
	LOCKED ROTOR AMP. A		19	24

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 20GR	AWM 20GR
	OUTDOOR UNIT		ALC 18CR ALC 20CR
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		47
	RATED RUNNING CURRENT A		0.22
	MOTOR OUTPUT W		20
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		120 120
	RATED RUNNING CURRENT A		0.53 0.53
	MOTOR OUTPUT W		64 75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		60 60
	RATED INPUT POWER (COOLING) W		1653	1640
	RATED INPUT POWER (HEATING)	W	1493	1590
	RATED RUNNING CURRENT (COOLING)	A	7.4	7.2
	RATED RUNNING CURRENT (HEATING)	A	6.7	7
	LOCKED ROTOR AMP.	A	32

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		AWM 25GR	AWM 311R
	OUTDOOR UNIT		ALC 25CR ALC 28CR
INDOOR MOTOR	INSULATION GRADE		B	B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		66 71
	RATED RUNNING CURRENT A		0.29	0.30
	MOTOR OUTPUT W 25
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		124	142
	RATED RUNNING CURRENT A		0.54	0.62
	MOTOR OUTPUT W		75
	POLES		6
COMPRESSOR	INSULATION GRADE			E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		50	50
	RATED INPUT POWER (COOLING)	W	2340	2570
	RATED INPUT POWER (HEATING)	W	2260	2610
	RATED RUNNING CURRENT (COOLING)	A	10.49	12.3
	RATED RUNNING CURRENT (HEATING)	A	10.24	12.4
	LOCKED ROTOR AMP.	A	54 66

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 07G A5WM 09G
	OUTDOOR UNIT		A5LC 07C A5LC 10C
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		24
	RATED RUNNING CURRENT A		0.11
	MOTOR OUTPUT W		8
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		40 52
	RATED RUNNING CURRENT A		0.18 0.23
	MOTOR OUTPUT W		20 35
	POLES		6
COMPRESSOR	INSULATION GRADE E		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		15	25
	RATED INPUT POWER W	556	789
	RATED RUNNING CURRENT	A	2.6	3.6
	LOCKED ROTOR AMP.	A	12 19

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 10G A5WM 15G
	OUTDOOR UNIT		A5LC 10C A5LC 15C
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W	26 29
	RATED RUNNING CURRENT A	0.11	0.13
	MOTOR OUTPUT W		9	13
	POLES		4	4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		52 59
	RATED RUNNING CURRENT A		0.23	0.26
	MOTOR OUTPUT W 35 35
	POLES		6	6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF 25 30
	RATED INPUT POWER W		789	1142
	RATED RUNNING CURRENT	A	3.6	5.1
	LOCKED ROTOR AMP.	A	19 24

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 20G A5WM 25G
	OUTDOOR UNIT		A5LC 20C A5LC 25C
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W 47 66
	RATED RUNNING CURRENT A 0.22 0.29
	MOTOR OUTPUT W 20 25
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		120	132
	RATED RUNNING CURRENT A		0.53 0.58
	MOTOR OUTPUT W		64 75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR	mF	45 / - 45 / -
	RATED INPUT POWER W		1485 / <1496>	1717 / <1997>
	RATED RUNNING CURRENT	A	6.5 / <3.0>	7.5 / <3.9>
	LOCKED ROTOR AMP.	A	27 / <19>	32 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 311
	OUTDOOR UNIT		A5LC 28C
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		71
	RATED RUNNING CURRENT A		0.30
	MOTOR OUTPUT W		IP24
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		142
	RATED RUNNING CURRENT A		0.62
	MOTOR OUTPUT W		75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR	mF	45 / -
	RATED INPUT POWER W		2360 / <2423>
	RATED RUNNING CURRENT	A	11.27 / <4.29>
	LOCKED ROTOR AMP.	A	63 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 07GR	A5WM 09GR
	OUTDOOR UNIT		A5LC 07CR	A5LC 10CR
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		24
	RATED RUNNING CURRENT A		0.11
	MOTOR OUTPUT W		8
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		40 52
	RATED RUNNING CURRENT A		0.18 0.23
	MOTOR OUTPUT W		20
	POLES		6
COMPRESSOR	INSULATION GRADE E		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF		15	25
	RATED INPUT POWER (COOLING) W		616	784
	RATED INPUT POWER (HEATING)	W	486	669
	RATED RUNNING CURRENT (COOLING)	A	2.8	3.6
	RATED RUNNING CURRENT (HEATING)	A	2.4	3.1
	LOCKED ROTOR AMP.	A	12 19

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 10GR	A5WM 15GR
	OUTDOOR UNIT		A5LC 10CR	A5LC 15CR
INDOOR MOTOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		26 29
	RATED RUNNING CURRENT A		0.11 0.13
	MOTOR OUTPUT W 9		13
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		52 59
	RATED RUNNING CURRENT A		0.23 0.26
	MOTOR OUTPUT W		35 35
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220-240/1/50
	CAPACITOR mF 25		35
	RATED INPUT POWER (COOLING) W		789 1142
	RATED INPUT POWER (HEATING)	W	669	992
	RATED RUNNING CURRENT (COOLING)	A	4	5.23
	RATED RUNNING CURRENT (HEATING)	A	3	4.59
	LOCKED ROTOR AMP.	A	19 24

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 20GR	A5WM 25GR
	OUTDOOR UNIT		A5LC 20CR	A5LC 25CR
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W 47 66
	RATED RUNNING CURRENT A 0.22 0.29
	MOTOR OUTPUT W 20 25
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		120	132
	RATED RUNNING CURRENT A		0.53 0.58
	MOTOR OUTPUT W		64 75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR	mF	45 / - 50 / -
	RATED INPUT POWER (COOLING)	W	1463 / <1496>	1662 / <1997>
	RATED INPUT POWER (HEATING)	W	1379 / <1463>	1672 / <1908>
	RATED RUNNING CURRENT (COOLING)	A	6.4 / <3.0>	7.5 / <3.9>
	RATED RUNNING CURRENT (HEATING)	A	6.1 / <2.9>	7.5 <3.7>
	LOCKED ROTOR AMP.	A	27 / <19>	26 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

MODEL	INDOOR UNIT		A5WM 301R
	OUTDOOR UNIT		A5LC 28CR
INDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		71
	RATED RUNNING CURRENT A		0.30
	MOTOR OUTPUT W		IP24
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		B
	POWER SOURCE V/Ph/Hz		220-240/1/50
	RATED INPUT POWER W		142
	RATED RUNNING CURRENT A		0.62
	MOTOR OUTPUT W		75
	POLES		6
COMPRESSOR	INSULATION GRADE		E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR	mF	45 / -
	RATED INPUT POWER (COOLING)	W	2360 / <2423>
	RATED INPUT POWER (HEATING)	W	2242 / 2086>
	RATED RUNNING CURRENT (COOLING)	A	11.27 / 4.29>
	RATED RUNNING CURRENT (HEATING)	A	10.7 / <3.86>
	LOCKED ROTOR AMP.	A	63 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

9. WIRING DIAGRAMS

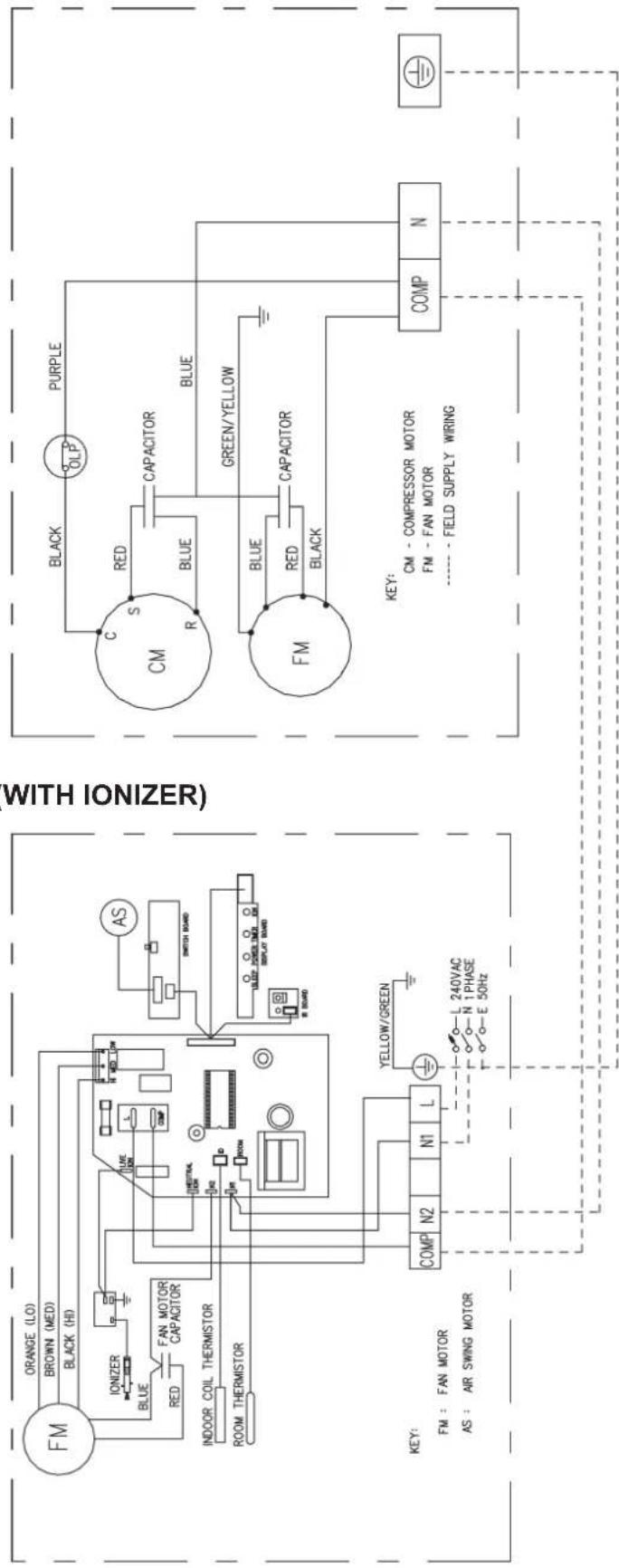

COOLING ONLY MODELS

OUTDOOR UNIT

MODEL : ALC 09C / 010C , A5LC 07C / 10C / 15C

PURPLE OLB CAPACITOR BLUE GREEN/YELLOW BLUE CAPACITOR BLUE RED BLACK COMP N CM - COMPRESSOR MOTOR FM - FAN MOTOR OLP - OVERLOAD PROTECTOR FELD SUPPLY WIRING PART NO.: 08 02 4 055052 KEY: S R CM FM

INDOOR UNIT

MODEL : AWM 09G / 10G , A5WM 07G / 09G / 10G / 15G (WITH IONIZER)

BLACK (HI) BROWN (MED) ORANGE (LO) AS BLUE RED FAN MOTOR CAPACITOR INDOR COIL THERMISTOR ROOM THERMISTOR ONIONER MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI

COOLING ONLY MODELS

OUTDOOR UNIT

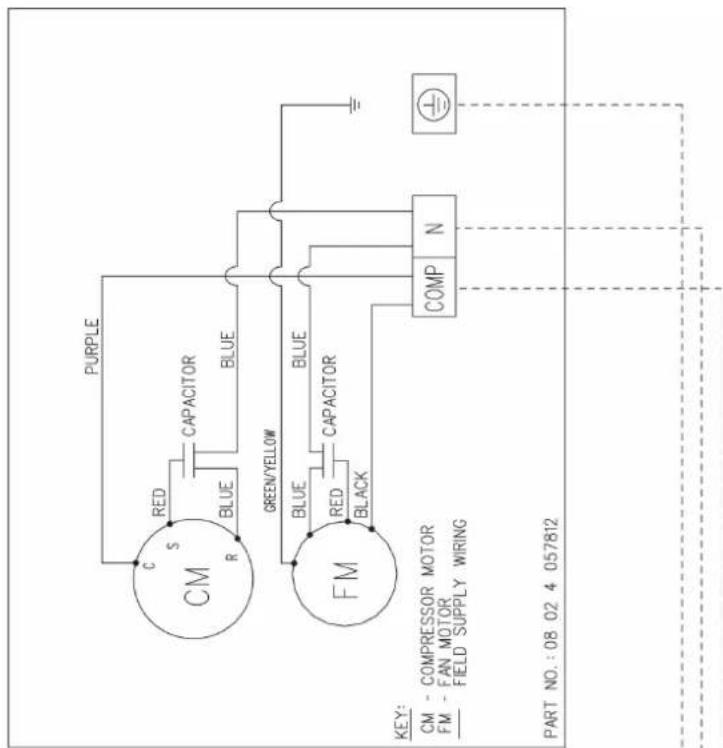

MODEL : ALC 15C

PURPLE CM S RED CAPACITOR BLUE BLUE GREEN/YELLOW FM BLUE BLUE RED CAPACITOR BLACK COMP N PART NO.: 08 02 4 057812 KEY: CM - COMPRESSOR MOTOR FM - FAN MOTOR FIELD SUPPLY WIRING

INDOOR UNIT

MODEL : AWM 15G (WITH IONIZER)

BLACK (HI) BROWN (MED) ORANGE (LO) FM AS BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR 15LEDP POWER TIMER ON F DISPLAY BOARD I# BOARD TAG SWITCH ON NOOD N1 NEUTRAL ON E1 COMP TRAVEL GROWL YELLOW/GREEN NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO. 08 02 4 064741 L 240VAC N 1 PHASE E 50Hz

COOLING ONLY MODELS

OUTDOOR UNIT

MODEL : ALC / A5LC 20C / 25C

PURPLE C S RED CAPACITOR R BLUE BLUE GREEN/YELLOW FM BLUE CAPACITOR RED BLACK COMP N KEY: CM - COMPRESSOR MOTOR FM - FAN MOTOR ---- FIELD SUPPLY WIRING

INDOOR UNIT
MODEL : AWM / A5WM 20G / 25G (WITH IONIZER)

ORANGE (LO) BROWN (MED) BLACK (HI) IONIZER BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR LIVE ON COMP NEUTRAL LOW IN2 IN3 ROOM AS SWITCH BOARD YELLOW/GREEN P BOARD DISPLAY BOARD 240VAC N 1 PHASE E 50Hz NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR

COOLING ONLY MODELS

OUTDOOR UNIT

MODEL : ALC 18C

FM ORANGE (LO) BROWN (MED) BLACK (HI) IONIZER BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR AS N2 L N1 L YELLOW/GREEN COMP N2 N1 L HEATRICAL LOCK AS R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0 R0

INDOOR UNIT

MODEL : AWM 20G (WITH IONIZER)

COOLING ONLY MODELS

OUTDOOR UNIT

MODEL : ALC 28C, A5LC 28C

SWITCH BOARD DISPLAY BOARD INDOOR COIL THERMISTOR ROOM THERMISTOR MAIN BOARD COMP AS RED CAPACITOR FAN MOTOR BLUE BLUE WHITE BLUE RED ORANGE (LO) BROWN (MED) YELLOW (HD) COMP N2 N1 L YELLOW/GREEN NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO. 08 02 4 052609 A5WM 311 PURPLE C S R RED CAPACITOR BLUE BLUE BLUE GREEN/YELLOW BLUE CAPACITOR RED BLACK COMP N KEY: CM - COMPRESSOR MOTOR FM - FAN MOTOR ---- FIELD SUPPLY WIRING PART NO. 08 02 4 072886

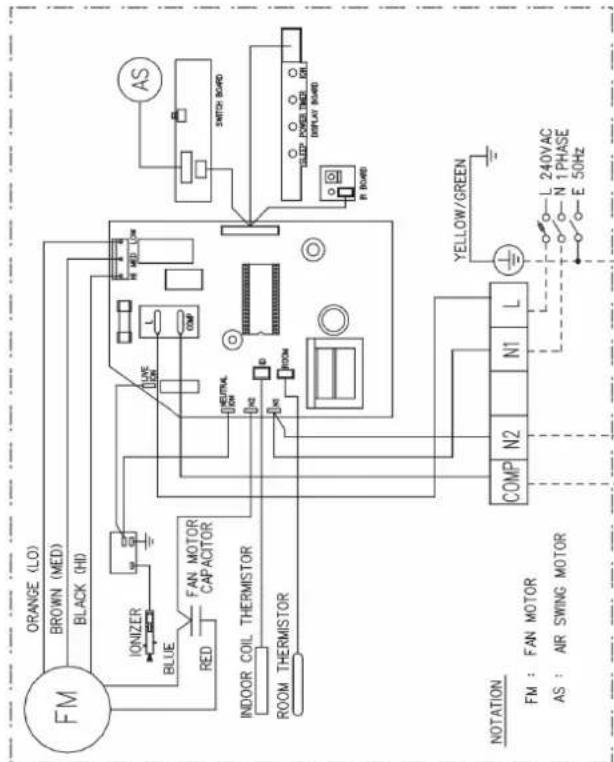

INDOOR UNIT

MODEL : AWM 311, A5WM 311

HEATPUMP MODELS

OUTDOOR UNIT

MODEL : ALC 09CR / 10CR , A5LC 07CR / 10CR / 15CR

PURPLE PURPLE OLP C S RED CAPACITOR CM R BLUE BLUE GREEN/YELLOW FM BLUE BLUE CAPACITOR RED BLACK BLACK TH2 BLACK 4WV 4WV OF COMP N TH2 - OUTDOOR THERMISTER FIELD SUPPLY WIRING PART NO.: 08 02 4 059666 KEY: CM - COMPRESSOR MOTOR FM - FAN MOTOR OLP - OVERLOAD PROTECTOR 4WV - 4 WAY VALVE TH2 - OUTDOOR THERMISTER FIELD SUPPLY WIRING

INDOOR UNIT

MODEL : AWM 09GR / 10GR , A5WM 07GR / 10GR / 15GR (WITH IONIZER)

BLACK (HI) BROWN (MED) ORANGE (LO) FM AS BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR SLEEP POWER TIMER ON1 DISPLAY BOARD R BOARD TAD SWITCH OFF LIVE, ION 4WV NEUTRAL ION E1 COMP TRANSFORMER YELLOW/GREEN NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO. 08 02 4 067268 POEWR SUPPLY (USE COPPER SUPPLY WIRE OR EQUIVALENT)

HEATPUMP MODELS

OUTDOOR UNIT

MODEL : ALC 15CR

PURPLE CM RED CAPACITOR BLUE GREEN/YELLOW FM BLUE BLUE CAPACITOR BLACK BLACK TH2 BLACK 4WV 4WV OF COMP N TH2 - OUTDOOR THERMISTER FIELD SUPPLY WIRING PART NO.: 08 02 4 059667

INDOOR UNIT

MODEL : AWM 15GR (WITH IONIZER)

FM BLACK (HI) BROWN (MED) ORANGE (LO) AS BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR SLEEP POWER TIMER ONI DISPLAY BOARD R-BOARD TAD SWITCH LIVE ION ON OFF ENV NEUTRAL ION M1 E1 COMP TRANSITIONER YELLOW/GREEN NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO. 08 02 4 067268 POEW R SUPPLY (USE COPPER SUPPLY WIRE OR EQUIVALENT)

HEATPUMP MODELS

OUTDOOR UNIT

MODEL : ALC / A5LC 20CR / 25CR

5WM 20GR / 25GR (WITH IONIZER) NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR ORANGE (LO) BROWN (MED) BLACK (HI) ICNIZER BLUE FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR 4WV OF COMP N2 N1 L YELLOW/GREEN L 240VAC N 1 PHASE E 50Hz AS SWITCH BOARD BLUE POWER ONER ONI DEPLAY BOARD PURPLE CM RED CAPACITOR BLUE GREEN/YELLOW PMK R BLUZ BLUE CAPACITOR FR SODD TH2 BLACK 4WV OF COMP N N KEY:CM - COMPRESSOR MOTOR FM - FAN MOTOR 4WV - 4 WAY VALVE TH2 - OUTDOOR THERMISTER ---- FIELD SUPPLY WIRING

INDOOR UNIT
MODEL : AWM / A5WM 20GR / 25GR (WITH IONIZER)

ORANGE (LO) BROWN (MED) BLACK (HD) IONIZER BLUE RED FAN MOTOR CAPACITOR INDOOR COIL THERMISTOR ROOM THERMISTOR NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR 4WV OF COMP N2 N1 L YELLOW/GREEN L 240VAC N 1 PHASE E 50Hz

HEATPUMP MODELS

OUTDOOR UNIT

MODEL : ALC 28CR, A5LC 28CR

A5WM 301R PART NO. 08 02 4 052645 RED CAPACITOR FAN MOTOR BLUE N2 COMP N YELLOW (HI) BROWN (MED) ORANGE (LO) BLUE BLK BROWN WHITE AS ROOM THERMISTOR INDOOR COIL THERMISTOR YELLOW/GREEN TO OUTDOOR THERMISTOR POWER SUPPLY 240VAC/1 PHASE/50Hz (USE COPPER SUPPLY WIRE OR EQUIVALENT) E PURPLE CM S RED CAPACITOR BLUE GREEN/YELLOW BLUE CAPACITOR BLUE BLACK TH2 BLACK 4W V OF COMP N FIELD SUPPLY WIRING PART NO.=08 02 4 077240

INDOOR UNIT

MODEL : AWM 301R, A5WM 301R

10. SERVICING AND MAINTENANCE

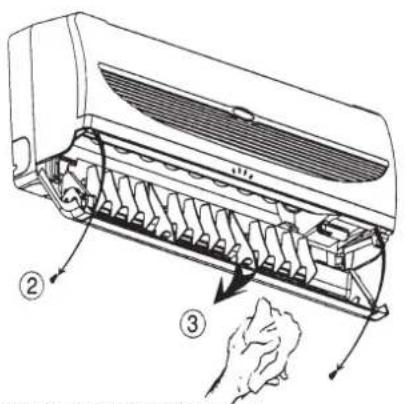

Technical diagram of an air conditioner unit with labeled parts and directional arrows indicating airflow or movement.

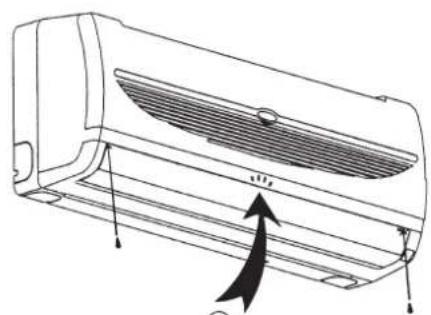

Line drawing of a hooded air conditioner unit with ventilation grille and mounting base (no text or symbols)

① Off the unit
② Unscrew the air discharge housing
③ Flip open the air discharge housing
④ Clean the blower
⑤ Close the air discharge housing and tighten it with screw

The unit is designed to give a long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention.

Components Maintenance Procedure Recommended Schedule
Indoor Air Filter	1. Remove any dust adhering on the filter by using a vacuum cleaner or wash in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent.2. Rinse the filter well and dry before placing it back onto the unit.3. Do not use gasoline, volatile substances or chemicals to clean the filter.	At least once every 2 weeks.More frequently if necessary.
Indoor Unit 1. Clean any dirt or dust on the grille or panel by wiping it with a soft cloth soaked in lukewarm water (below 40°C/104°F) and a neutral detergent solution.2. Do not use gasoline, volatile substances or chemicals to clean the indoor unit.		At least once every 2 weeks.More frequently if necessary
Condensate Drain Pan and Pipe	1. Check and clean. Every 3 months.
Indoor Fan 1. Check for unusual noise. As necessary.
Indoor/Outdoor Coil	1. Check and remove dirt which are clogged between fins.2. Check and remove obstacles which hinder air flow in and out of indoor/outdoor unit.	Every month.Every month.
Electrical 1. Check voltage, current and wiring.2. Check faulty contacts caused by loose connections, foreign matters, etc.		Every 2 months.Every 2 months.
Compressor	1. No maintenance needed if refrigerant circuit remains sealed. However, check for refrigerant leak at joints and fittings.	Every 6 months.
Compressor Lubrication	1. Oil is factory charged. Not necessary to add oil if circuit remains sealed.	No maintenance required.
Fan Motors Lubrication	1. All motors pre-lubricated and sealed at factory. No maintenance required.

PRE START UP MAINTENANCE (AFTER EXTENDED SHUTDOWN)

• Inspect thoroughly and clean indoor and outdoor units.
  – Clean or replace air filters.
  – Clean condensate drain line.
  – Clean clogged indoor and outdoor coils.
• Check fan imbalance before operation.
  – Tighten all wiring connections and panels.
  – Check for refrigerant leakage.

The design of the ALC outdoor series allows servicing to be carried out readily and easily. The removal of the top/front and back panel make almost every part accessible.

ASSEMBLY PANEL LEFT ASSEMBLY VALVE PLATE ASSEMBLY PANEL RIGHT ASSEMBLY VALVE COVER ASSEMBLY TOP/FRONT PANEL

Under normal circumstances, these outdoor units only require a check and cleaning of air intake coil surface once quarterly. However, if a unit is installed in areas subjected to much oil mist and dust, the coils must be regularly cleaned by qualified Air Conditioner Service Technicians to ensure sufficient heat exchange and proper operation. Otherwise, the systems life span may be shortened.

CAUTION!

Do not charge OXYGEN, ACETYLENE OR OTHER FLAMMABLE and poisonous gases into the unit when performing a leakage test or an airtight test. These gases could cause severe explosion and damage if exposed to high temperature and pressure.

It is recommended that only nitrogen or refrigerant be charged when performing the leakage or airtight test.

11. TROUBLESHOOTING

When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures.

The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer. DO NOT attempt to troubleshoot the unit by yourself.

No	Fault conditions Possible causes / corrective actions
1	The air conditioner unit will not resume after power failure.	· The auto restart function is not functioning. Please turn on the unit with the wireless / wired controller.
2	The compressor does not operate 3 minutes after the air conditioner unit is started.	· Protection against frequent starting. · Wait for 3 or 4 minutes for the compressor to start operating by it self.
3	The airflow is too slow or room cannot be cooled sufficiently.	· The air filter is dirty. · The doors and windows are opened. · The air suction and discharge of both indoor and outdoor units are clogged or blocked. · The regulated temperature or temperature setting is not low enough.
4	Discharge airflow has bad odor.	· Cigarettes, smoke particles, perfume and others, which might have adhered onto the coil, may cause odor. · Contact your nearest dealer.
5	Condensation on the front air grille of the indoor unit.	· This is caused by air humidity after an extended period of operation. · The set temperature is too low. Increase the temperature setting and operate the unit at high fan speed.
6	Water flowing out from the air conditioner.	· Switch off the unit and contact your nearest dealer. This might be due to tilted installation.
7	Hissing airflow sound from the air conditioner unit during operation.	· Liquid refrigerant flowing into the evaporator coil.
8	The wireless controller display is dim.	· The batteries are discharged. · The batteries are not correctly inserted. · The assembly is not good.
9	Compressor operates continuously.	· Dirty air filter. Clean the air filter. · Temperature setting too low (cooling). Use higher temperature setting. · Temperature setting too high (heating), Use lower temperature setting.
10	No cool air comes out during cooling cycle, or no hot air comes out during heating cycle.	· Temperature setting too high (cooling). Use lower temperature setting. · Temperature setting too low (heating). Use higher temperature setting.
11	On heating cycle, warm air does not come out.	· Unit is in defrost mode. Heating operation will resume after defrost cycle ends.

Diagnostic Guidelines

By means of pressure reading:

DataCircuit	Pressure					Probable cause
	Too low	A little low	Normal	A little high	Too high
High sideLow side					●●	1. Overcharged with refrigerant.2. Non-condensable gases in refrigerant circuit (e.g. air)3. Obstructed air-intake / discharge.4. Hot air short circuiting in outdoor unit.
High sideLow side	●				●	1. Poor compression / no compression (compressor defective)2. Reversing valve leaking.
High sideLow side	●	●				1. Undercharged with refrigerant.2. Refrigerant leakage.3. Air filter clogged / dirty (indoor unit).4. Indoor fan locked / seized.5. Defective defrost control, outdoor coil freeze up (heating).6. Outdoor fan locked / seized (heating).
High sideLow side				●	● 1.	Outdoor fan blocked (cooling).2. Outdoor coil dirty (cooling).3. Indoor fan locked / seized (heating).4. Indoor air filter clogged / dirty (heating).5. Non-condensable gases in refrigerant circuit (e.g. air)
High sideLow side				●	●	1. Air intake temperature of indoor unit too high.

By means of diagnostic flow chart:

Generally, there are two kinds of problems, i.e. starting failure and insufficient cooling/heating. "Starting failure" is caused by electrical defect while improper application or defects in refrigerant circuit causes "Insufficient cooling / heating".

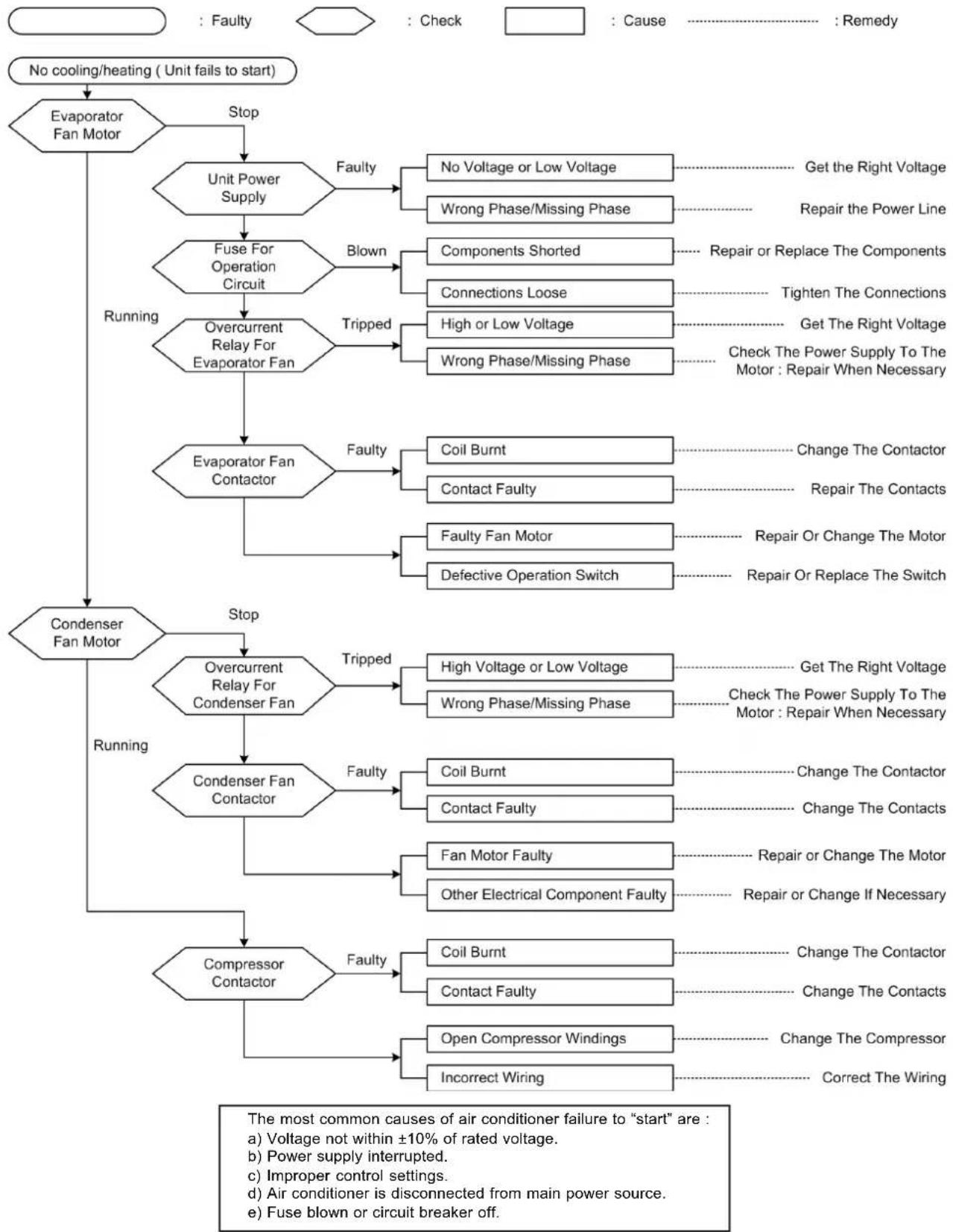

i) Diagnosis of Electric Circuit

    subgraph Failure Cases
        L1["No Voltage or Low Voltage"] --> M1["Get the Right Voltage"]
        L2["Wrong Phase/Missing Phase"] --> M2["Repair the Power Line"]
        M1 --> N1["Blown"]
        M2 --> N2["Components Shorted"]
        M2 --> N3["Tighten The Connections"]
        N1 --> O1["Connections Loose"]
        N2 --> O2["High or Low Voltage"]
        N2 --> O3["Wrong Phase/Missing Phase"]
        O1 --> P1["Check The Power Supply To The Motor: Repair When Necessary"]
        O2 --> P2["Change The Contactor"]
        O3 --> P3["Repair The Contacts"]
        P1 --> Q1["Faulty"]
        P2 --> Q2["Change The Motor"]
        P3 --> Q3["Repair Or Change The Motor"]
        P3 --> Q4["Repair Or Replace The Switch"]
        Q1 --> R1["Coil Burnt"]
        Q2 --> R2["Contact Faulty"]
        Q3 --> R3["Faulty Fan Motor"]
        Q4 --> R4["Defective Operation Switch"]
    end

    S1["Overcurrent Relay For Condenser Fan"] --> T1["Tripped"]
    T1 --> U1["High Voltage or Low Voltage"] --> V1["Get The Right Voltage"]
    T1 --> W1["Wrong Phase/Missing Phase"] --> X1["Check The Power Supply To The Motor: Repair When Necessary"]
    T1 --> Y1["Faulty"]
    Y1 --> Z1["Coil Burnt"]
    Y1 --> AA["Contact Faulty"]
    Y1 --> AB["Fan Motor Faulty"]
    Y1 --> AC["Other Electrical Component Faulty"]
    Y1 --> AD["Faulty"]
    AD --> AE1["Coil Burnt"]
    AD --> AE2["Contact Faulty"]
    AD --> AF["Open Compressor Windings"]
    AD --> AG["Incorrect Wiring"]
    AE1 --> AH1["Change The Contactor"]
    AE2 --> AH2["Change The Contacts"]
    AE3 --> AH3["Change The Compressor"]
    AE4 --> AH4["Correct The Wiring"]

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#ffc,stroke:#333
    style H fill:#ffc,stroke:#333
    style I fill:#ffc,stroke:#333
    style J fill:#ffc,stroke:#333
    style K fill:#ffc,stroke:#333
    style L fill:#ffc,stroke:#333
    style M fill:#ffc,stroke:#333
    style N fill:#ffc,stroke:#333
    style O fill:#ffc,stroke:#333
    style P fill:#ffc,stroke:#333
    style Q fill:#ffc,stroke:#333
    style R fill:#ffc,stroke:#333
    style S fill:#ffc,stroke:#333
    style T fill:#ffc,stroke:#333
    style U fill:#ffc,stroke:#333
    style V fill:#ffc,stroke:#333
    style W fill:#ffc,stroke:#333
    style X fill:#ffc,stroke:#333
    style Y fill:#ffc,stroke:#333
    style Z fill:#ffc,stroke:#333
    style AA fill:#ffc,stroke:#333
    style AB fill:#ffc,stroke:#333
    style AC fill:#ffc,stroke:#333
    style AD fill:#ffc,stroke:#333
    style AE fill:#ffc,stroke:#333
    style AF fill:#ffc,stroke:#333
    style AG fill:#ffc,stroke:#333

ii) Diagnosis of Refrigerant Circuit / Application

There might be some causes where the unit starts running but does not perform satisfactorily, i.e. insufficient cooling. Judgement could be made by measuring temperature difference of indoor unit's intake and discharge air as well as running current.

Satisfactory operation with temperature difference of air intake & discharge of indoor unit 8°C to 13°C. *

(* value is for reference only)

Satisfactory operation with temperature difference of air intake & discharge of indoor unit 14°C to 20°C. *

(* value is for reference only)

12. EXPLODED VIEW AND PARTS LIST

INDOOR UNIT

MODEL: A5WM / AWM 07G / 07GR / 09G / 09GR / 10G / 10GR / 15G / 15GR

Exploded view diagram of air conditioner components with numbered parts for identification

A5WM / AWM 07G / 09G / 10G / 15G

No	Descriptions Part No No Descriptions	Part No
1	Assy., Chassis 12 Air Discharge Housing
	A5WM / AWM 07/09G R50124064147	A5WM / AWM 07/09G R50124062325
	A5WM / AWM 10/15G R50124064151	A5WM / AWM 10/15G R50124062326
2	Fan, Motor 13 Lower Louver
	A5WM / AWM 07/09G R03034064425	A5WM / AWM 07/09G R12014060538
	A5WM / AWM 10/15G R03034064426	A5WM / AWM 10/15G R12014061364
3	Cross Flow Fan 14 Upper Louver
	A5WM / AWM 07/09G R03029019462	A5WM / AWM 07/09G R12014060537
	A5WM / AWM 10/15G R03029019461	A5WM / AWM 10/15G R12014061363
4	Fan, Bush R11014029514 15 Saranet Air Filter
5	Assy., Coil A5WM / AWM 07/09G R12014062320	4062320
	A5WM / AWM 07/09G R50024063765	A5WM / AWM 10/15G R12014062321
	A5WM / AWM 10/15G R50024064225	16 Assy., Front Cover
6	Piping, Clamp	R12014060544 A5WM / AWM	07/09G R50124084805
7	Assy., Drain Pan		A5WM / AWM 10/15G R50124064675
	A5WM / AWM 07/09G R50124064148	17 Assy., Negative Ionizer		R04239019730
	A5WM / AWM 10/15G R50124064152	18 G12 handset		R04084065327
8	Drain Hose	R10024018204 19	Air Swing Motor	R03039021375
9	Assy., Control Box	R50044085731 20	Assy, Mounting Plate
10	Assy., Control Box Cover	R50124064666 A5WM / AWM	07/09G R50014061333
11	L2 Control Module		A5WM / AWM 10/15G R50014062324
	A5WM / AWM 07/09G R04084064635
	A5WM / AWM 10/15G R04084064635

A5WM / AWM 07GR / 09GR / 10GR / 15GR

No	Descriptions Part No No Descriptions	Part No
1	Assy., Chassis 12 Air Discharge Housing
	A5WM / AWM 07/09GR	R50124064147 A5WM / AWM	07/09GR	R50124062325
	A5WM / AWM 10/15GR	R50124064151 A5WM / AWM	10/15GR	R50124062326
2	Fan, Motor 13 Lower Louver
	A5WM / AWM 07/09GR	R03034064425 A5WM / AWM	07/09GR	R12014060538
	A5WM / AWM 10/15GR	R03034064426 A5WM / AWM	10/15GR	R12014061364
3	Cross Flow Fan 14 Upper Louver
	A5WM / AWM 07/09GR	R03029019462 A5WM / AWM	07/09GR	R12014060537
	A5WM / AWM 10/15GR	R03029019461 A5WM / AWM	10/15GR	R12014061363
4	Fan, Bush R11014029514 15 Saranet Air Filter
5	Assy., Coil A5WM / AWM 07/09GR	R12014062320
	A5WM / AWM 07/09GR	R50024063765 A5WM / AWM	10/15GR	R12014062321
	A5WM / AWM 10GR	R50024064225 16 Assy., Front Cover
	A5WM / AWM 15GR	R50024066054 A5WM / AWM	07/09GR	R50124084806
6	Piping, Clamp	R12014060544 A5WM / AWM	10/15GR	R50124064675
7	Assy., Drain Pan		17 Assy., Negative Ionizer		R04239019730
	A5WM / AWM 07/09GR	R50124064148 18 G12 handset		R04084067315
	A5WM / AWM 10/15GR	R50124064152 19 Air Swing Motor		R03039021375
8	Drain Hose	R10024018204 20 Assy, Mounting Plate
9	Assy., Control Box	R50044085737 A5WM / AWM	07/09GR	R50014061333
10	Assy., Control Box Cover	R50124074570		A5WM / AWM 10/15GR	R50014062324
11	L2 Control Module	R04084067263

Exploded view diagram of a wall-mounted air conditioner with numbered parts for identification

Model : A5WM / AWM 20G / 25G

No	Descriptions Part No No Descriptions	Part No
1	Assy., Chassis R50124068170 8 Drain H	Hose R10024015319
2	Fan, Motor 9 Assy., Control Box R50044	071955
	AWM 20G R03034074205 10 Assy.,	Control Box Cover
	AWM 25G R03034074204 11 Assy.,	Front Cover
3	Cross Flow Fan	R03029209158
4	Fan, Bush	R11014023775
5	Assy., Coil
	AWM 20G R50024072203 15 Saranet Air Filter
	AWM 25G R50024072204 16 L2 Control Module
	A5WM 20G	R50024074031
	A5WM 25G	R50024074032
6	Piping, Clamp	R12014071297
7	Assy., Drain Pan	R50124068171

R50124071418
R50124071425
12	Air Discharge Housing	R50124071426
13	Lower Louver	R12014066821
14	Upper Louver	R12014066820
R12014066832
R04084071971
17	Assy., Negative Ionizer	R04239022932
18	G12 handset	R04084065327
19	Air Swing Motor	R03039022933
20	Assy, Mounting Plate	R50014036133

Model : A5WM / AWM 20GR / 25GR

No	Descriptions Part No No Descriptions	Part No
1	Assy., Chassis R50124068170 8 Drain H	Hose R10024015319
2	Fan, Motor 9 Assy., Control Box R50044	071960
	AWM 20GR	R03034074205
	AWM 25GR	R03034074204
3	Cross Flow Fan	R03029209158
4	Fan, Bush	R11014023775
5	Assy., Coil
	AWM 20GR	R50024072203
	AWM 25GR	R50024072204
	A5WM 20GR	R50024074031
	A5WM 25GR	R50024074032
6	Piping, Clamp	R12014071297
7	Assy., Drain Pan	R50124068171

10	Assy., Control Box Cover	R50124071419
11	Assy., Front Cover	R50124071425
12	Air Discharge Housing	R50124071426
13	Lower Louver	R12014066821
14	Upper Louver	R12014066820
15	Saranet Air Filter	R12014066832
16	L2 Control Module	R04084071973
17	Assy., Negative Ionizer	R04239022932
18	G12 handset	R04084067315
19	Air Swing Motor	R03039022933
20	Assy, Mounting Plate	R50014036133

Exploded view diagram of an air conditioner assembly with numbered parts for identification

MODEL : A5WM 311 / AWM 311

No	Descriptions Part No No Descriptions	Part No
1	ASSY, INSTALLATION BRACKET R50014050721 11 ASSY, CONTROL BOX	R50044090264
2	ASSY. CHASSIS R50124050703 12 LED LIGHT BRACKET R12014050679
3	PING CLAMP R07014024546 13 G12 HANDSET R04084065328
4	FAN BUSH BRACKET	R12014050709 14 CONTROL BOX COVER	R12014050681
5	CROSS FLOW FAN	R03029013842 15 ASSY. DRAIN HOSE	R10024015319
6	FAN BUSH	R11019013841 16 AIR SWING MOTOR	R03039007088
7	ASSY., INDOOR COIL		17 AIR LOUVER	R12014050717
	AWM 311	R50024050710 18 ASSY. AIR DISCHARGE HOUSING	R50124050712
	A5WM 311	R50024084359 19 COIL SENSOR OR CLIP	R07054021183
8	SERVICE PANEL	R12014050685 20 ASSY. FRONT COVER	R50124050723
9	CONTROL MODULE	R04084090222 21 SARANET FILTER	R12014050726
10	FAN MOTOR	R03034052105	22 THERMISTOR HOLDER	R12014016707

MODEL : A5WM 301R / AWM 301R

No	Descriptions Part No No Descriptions	Part No
1 A	ASSY, INSTALLATION BRACKET R50014	050721 11 ASSY, CONTROL BOX	R500	44090014
2 A	ASSY. CHASSIS R50124050703 12 LED LIGHT BRACKET R12014050679
3 P	PING CLAMP R07014024546 13 G12 HANDSET R04084073477
4 F	AN BUSH BRACKET	R12014050709 14 CONTROL BOX	COVER	R12014050681
5 C	ROSS FLOW FAN	R03029013842 15 ASSY. DRAIN	HOSE	R10024015319
6 F	AN BUSH	R11019013841 16 AIR SWING MOTOR	R03039007088
7 A	ASSY., INDOOR COIL		17 AIR	LOUVER	R12014050717
	AWM 311R	R50024050710 18 ASSY. AIR	DISCHARGE HOUSING	R50124050712
	A5WM 311R	R50024084359 19 COIL SENSOR	CLIP	R07054021183
8 S	SERVICE PANEL	R12014050685 20 ASSY. FRONT	COVER	R50124050723
9 U	1.5 CONTROL MODULE	R04084090162 21 SARANET FILTER		R12014050726
10	FAN MOTOR	R03034052105	22	THERMISTOR HOLDER	R12014016707

Exploded view diagram of an air conditioning unit with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	ASSY,PAN BASE SL07C R50014057372	12 PANEL,LEFT
2	COMPRESSOR, 2RS122D5BC02Matsushita	R04019029041
3	ASSY., OUTDOOR COIL - (5)SL09C7MM RL	R50024087206
4	VALVE,BRACKET R01014051164 16 ASSY,VALVE COVER
5	ASSY, PARTITION SL07C/09C(R) R50064084355 17 ASSY
6	ASSY SUCTION TUBE	R50024091725
7	ASSY DISCHARGE TUBE	R50024091724
8	ASSY., CAP. TUBE - SL07C	R50024091764
9	BRACKET,FAN MOTOR R01014052516
10	MOTOR, MSL 09C-502-WLWELLING	R03039028206
11	FAN PROPELLER SL09C ∅355.0 x115mm	R03019020744

R01014052

510
13	PANEL,RIGHT(SL07/09C/CR)(639.4FL)	R01014084434
14	ASSY,CONTROL PANEL SL07C R500	4092695
15	PANEL,TOP/FRONT R01014052512
5172
RILLE	R50124056905
Parts not showed in diagram
	Fan CAPACITOR 2.OMFD	R04029007797
	CAPACITOR, CMPSR 2uF/450(TAB187)Shizuki	R04029026755
	CAPACITOR, CMPSR 20uF/450VAC Shizuki	R04029026772
	Assy, 2 way flare valve 1/4"	R50054054950
	Assy, 3 way flare valve 3/8"	R50054054951

Exploded view diagram of a refrigerator internal components with numbered labels for identification.

No	Descriptions Part No No Descriptions	Part No
1 A	SSY,PAN BASE SL07C R50014057372	10 PANEL,LEFT
2	ASSY., OUTDOOR COIL - (5)SL09C 7MM RL	R50024087206
3 V	ALVE BRACKET R01014051164 12 AS	SSY,CONTROL PA
4	COMPRESSOR, 2PS156D3CB02 MATSUSHITA	R04019027628
5	ASSY, PARTITION SL07C/09C(R) R50064084355 15 AS
	ASSY,CAPILLARY TUBE (SL09C-7.0MM COIL)	R50024079624
6	ASSY,CAPILLARY TUBE (SL09C-2PS156D COMP)	R50024087403
7 B	RACKET,FAN MOTOR R01014052516
8	MOTOR, MSL 09C-502-WL WELLING	R03039028206
9	FAN PROPELLER SL09C	R03019020744

R01014052

NEL SL09C

SY,FRONT

510
11	PANEL,RIGHT(SL07/09C/CR)(639.4FL)	R01014084434
R500	44089886
13	PANEL,TOP/FRONT R01014052512
14	ASSY,VALVE COVER R50124055172
GRILLE	R50124056905
16	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948
Parts not showed in diagram
	Comp. CAPACITOR, F 30.0μF440VAC	R04024012931
	Fan CAPACITOR 2.OMFD	R04029007797
	Assy, 2 way flare valve 1/4"	R50054054950
	Assy, 3 way flare valve 3/8"	R50054054951

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	SSY,PAN BASE SL10/15C R5001405	158 14 ASSY,VALV
2 A	SSY,OUTDOOR COIL SL15C/CR R50	024087838 PANEL
3	COMPRESSOR, 2PS206D2AF02 MATSUSHITA	R04019027709 AS
4	VALVE BRACKET R01014051164
	Assy, 2 way flare valve 1/4" R500540	54950
5 P	ARTITION	R01014051165
6	ASSY,CAPILLARY TUBE (SL15C) 2PS206D2AF02	R50024087757
7	ASSY.,TUBE DISCHARGE SL15C(2PS206D2AF02)	R50024087928
8	ASSY,SUCTION TUBE (SL15C) (2PS206D2AF02)	R50024087761
9 P	ANEL,LEFT	R01014051166 AS
10	PANEL,RIGHT	R01014051167
11	BRACKET,FAN MOTOR R010140511	62
12	MOTOR, MSL15C-501 24W B.OCEAN	R03039015323
13	ASSY,CONTROL PANEL SL09C/10C/5SL15C	R50044086056

'E COVER TOP/FRON SSY,FRON

R501	24051173
T R0	014051171
15 T GR	LLE (SL10C/15C)	R50124056700
16	FAN PROPELLER, DIA401.0 OZ42000 SHUNDE	R03019015339
Parts not showed in diagram
RAPH	CAPACITOR, CMPSR 35uF/450VAC Shizuki	R04029026776
	CAPACITOR, CMPSR 30uF/450VAC Shizuki	R04029026775
	CAPACITOR, CMPSR 2uF/450 (TAB187)Shizuki	R04029026755
	Y R50044070393
	ASSY, PARTITION O2	R50064070384
	AIR FILTER, OXYGEN ENRICHMENT MEMBRANE	R03089020671
	PUMP, O2 ENRICHMT VACUM DAL-12S-04 ULVAC	R04139020673
	CAPACITOR, E 0.9μF 480V +10-5% 50/60Hz	R04029020674

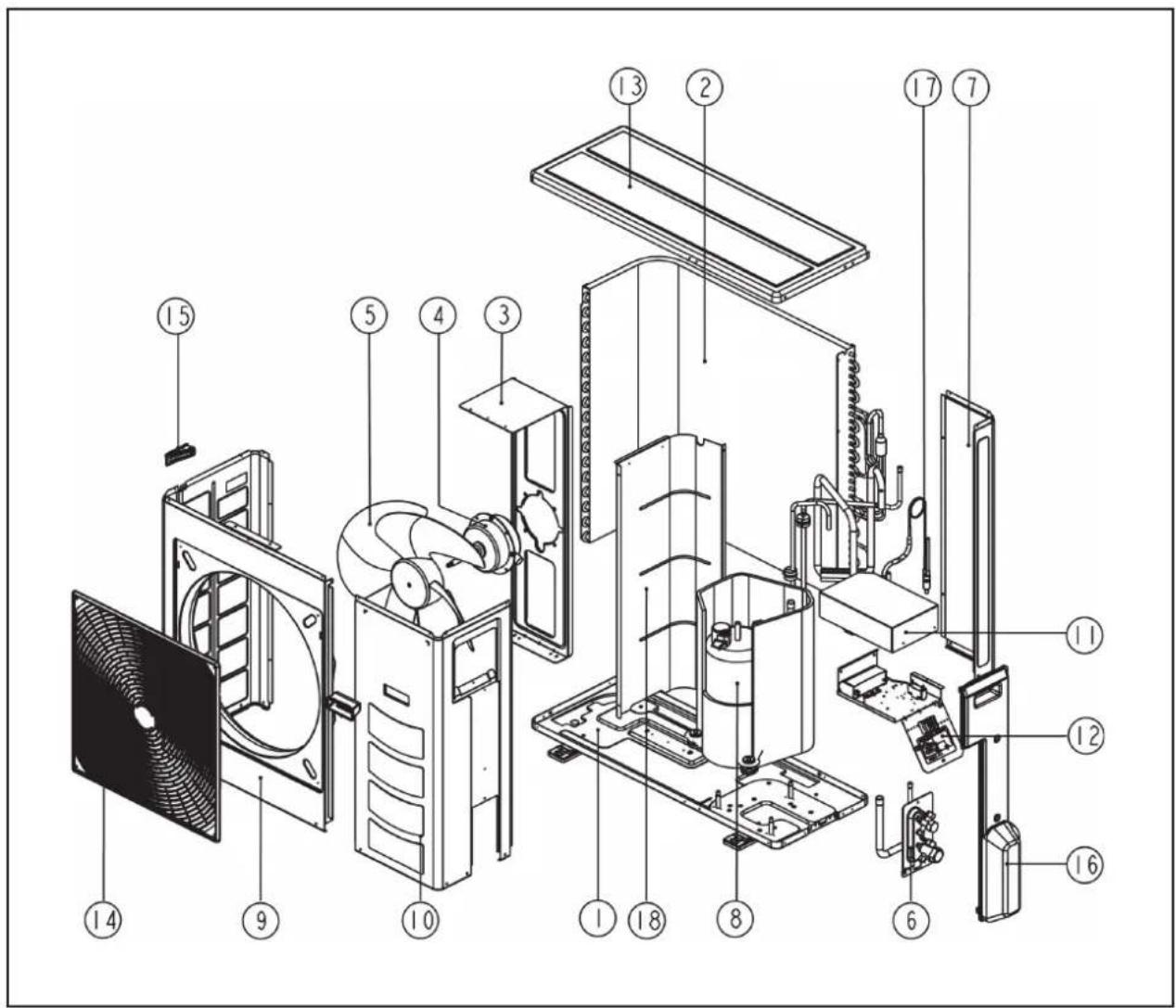

Exploded view diagram of an air conditioning system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	SSY,PAN BASE (5SL20C/CR) R50014	078281 13 PANEL
2	ASSY,OUTDOOR COIL 7mm coil
	MLC 018C R50024089940
	MLC 020C R50024084570
3 B	RACKET MOTOR (SL20C/CR) R0101	070601
4	MOTOR, YDK64-6C/MSL25C-501-WL	R03039024539
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHINA	R03019023393
6	ASSY VALVE BRACKET (SL20C/CR)-R22	R50014072861
7 P	PANEL RIGHT BACK (SL20C/CR) R010	014070599
8	COMPRESSOR, 2KS324D5AA04 Matsushita	R04019027266
9 P	ANEL FRONT/LEFT (SL20C/CR)	R01014070597
10	PANEL SERVICE (SL20C/CR)	R01014070598
11	PANEL TERMINAL COVER (SL20C/25C/28C/CR)	R01014070838
12	ASSY CONTROL PANEL (SL20C/25C)	R50044086133

TOP (SL20

C/25C	/28C/CR) R01014070596
14	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
15	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948
16	ASSY VALVE COVER (SL20C/CR) R50124072885
17	ASSY. CAP TUBE DIET COMP
	MLC 018C R50024089926
	MLC 020C R50024087066
18	PARTITION (SL20C/CR) R01014070603
Parts not showed in diagram
	ASSY FLARE VALVE 3WAY(5/8")SL20C/25C/28	R50054072863
	ASSY,VALVE 2 WAY(1/4")JA28493-1MA HANGJI	R50059022156
	CAPACITOR, CMPSR 60uF/450VShizuki	R04029026782
	BACK GRILLE WITH PAINT(SL18C/20C/CR)	R50019026515

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	ASSY,PAN BASE (5SL20C/CR) R50014	078281 13 PANEL
2	ASSY. OUTDOOR COIL (SL25C)7MM COIL DIET	R50024089206
3 B	RACKET MOTOR (SL25C/28C/CR)	R01014070948
4	MOTOR, MSL25C-502-WLWELLING	R03039028207
5	FAN PROPELLER, ¥460 0Z40700SUNWILL CHINA	R03019023393
6	ASSY VALVE BRACKET(SL25C/28C/CR)R22	R50014073890
7	PANEL RIGHT BACK(SL25C/28C/CR)	R01014070950
8	COMPRESSOR, ASSY48B180JV2JH SAMSUNG	R50049022614
8	COMPRESSOR, 2JS438D3AA04MATSUSHITA	R04019027570
9 P	ANEL FRONT / LEFT R01014070947
10 F	ANEL SERVICE (SL25C/28C/CR) R01	014070949
11	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
12 A	ASSY CONTROL PANEL (5SL20C) R5	0044086076

TOP (SL20C/250

C/25C	/28C/CR) R01014070596
14	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
15	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948
16	ASSY VALVE COVER(SL25C/28C/CR)	R50124073905
17	ASSY. CAP TUBE SL25C/CR (7MM COIL) DIET	R50024090095
18	PARTITION (SL25C/28C/CR) R01014070951
Parts not showed in diagram
	ASSY FLARE VALVE 3WAY(5/8")SL20C/25C/28	R50054072863
	ASSY, 3 WAYS VALVE (3/8")90.0mmL HANGJI	R50059022577
	FELT, COMPRESSOR (SL20/25CCOMP)	R06074084746
	BACK GRILLE WITH PAINT(SL25C/28C/CR)	R50019026514
	CAPACITOR, CMPSR 50uF/450VACShizuki	R04029026779

Exploded view diagram of air conditioner unit with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy., Base Pan R50014057372 10 Fan	Blade R03019004131
2	Assy., Condenser Coil R50024064204 11 Left Panel R01014052510
3	Valve Bracket R01014051164 12 Right	Panel R01014052509
4	Compressor 13 Assy. Control Panel R50044059032
	ALC 09CR	R50049016211 14 Assy., Front Panel R01014052512
5	Assy., Partition	R50064065275 15 Assy., Valve Cover R50124055172
6	Assy., 4 Way Vlave		16	Assy., Front Grille	R50124056905
	ALC 09CR	R50024065011 17 Plastic, Handle R12014057948
7	Assy., Cap Tube		18 Rubber Grommet R11059016218
	ALC 09CR	R50024065046	19	Assy., Flare Valve 2 Ways 1/4"	R50054054950
8	Bracket, Fan Motor	R01014052516	20	Assy., Flare Valve 3 Ways 3/8"	R50054054951
9	Fan Motor R03039015324	21 Sensor, Outdoor Defrost		R50134039416

Exploded view diagram of a refrigerator assembly with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1 A	Assy., Base Pan R50014051158 11 Left	Panel R01014051166
2 A	Assy., Condenser Coil 12 Right Panel R01014051167
	ALC 10CR R50024065601 13 Assy., Front Panel R01014051171
	ALC 15CR R50024060071 14 Assy. Control Panel
3 Valve Bracket R01014051164		ALC 10CR R50044059033
4 Compressor			ALC 15CR R50044059034
	ALC 10CR R04019019550 15 Assy., Valve Cover		R50124051173
	ALC 15CR R04019019125 16 Assy., Front Grille		R50124056700
5 Assy., Partition		R01014051165 17 Plastic, Handle		R12014057948
6 Assy., 4 Way Valve		R05019004157 18 Rubber Grommet
7 Assy., Cap Tube			ALC 10CR R11059000271
	ALC 10CR R50024065311	ALC 15CR R11054000272
	ALC 15CR R50024064508 19 Assy., Flare Valve 2 Ways 1/4"		R50051054950
8 Bracket, Fan Motor		R01014051162 20 Assy., Flare Valve 3 Ways 3/8"
9 Fan Motor			ALC 10CR R50054054951
	ALC 10CR	R03039016104		Assy., Flare Valve 3 Ways 1/2"
	ALC 15CR R03039015323	ALC 15CR R50054064042
10	Fan Blade	R03019015339	21	Sensor, Outdoor Defrost	R50134039416

Exploded view diagram of an air conditioning unit with numbered components for identification

No	Descriptions Part No No Desriptions	Part No
1 A	SSY,PAN BASE (5SL20C/CR) R50014	078281 13 PANEL
2 A	SSY,OUTDOOR COIL 7mm coil
	ALC 18CR R50024090296
	ALC 20CR R50024075143
3 B	RACKET MOTOR (SL20C/CR) R0101	4070601
4	MOTOR, YDK64-6C/MSL25C-501-WL	R03039024539
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHINA	R03019023393
6	ASSY VALVE BRACKET (SL20C/CR)-R22	R50014072861
7 P	ANEL RIGHT BACK (SL20C/CR)	R01014070599
8	COMPRESSOR, 2KS324D5AA04 Matsushita	R04019027266
9 P	ANEL FRONT/LEFT (SL20C/CR)	R01014070597
10	PANEL SERVICE (SL20C/CR)	R01014070598
11	PANEL TERMINAL COVER (SL20C/25C/28C/CR)	R01014070838
12	ASSY. CONTROL PANEL (SL20CR/25CR)	R50044086143

TOP (SL20)

C/25C	/28C/CR) R01014070596
14	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
15	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948
16	ASSY VALVE COVER (SL20C/CR) R50124072885
17	ASSY. CAP TUBE DIET COMP
	ALC 18CR R50024089931
	ALC 20CR R50024087058
18	PARTITION (SL20C/CR) R01014070603
Parts not showed in diagram
	ASSY FLARE VALVE 3WAY(5/8")SL20C/25C/28	R50054072863
	ASSY,VALVE 2 WAY(1/4")JA28493-1MA HANGJI	R50059022156
	CAPACITOR, CMPSR 60uF/450VShizuki	R04029026782
	BACK GRILLE WITH PAINT(SL18C/20C/CR)	R50019026515

Exploded view diagram of an air conditioning unit with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	ASSY,PAN BASE (5SL20C/CR) R50014	078281 13 PANEL
2	ASSY. OUTDOOR COIL(SL25CR)2 ROW 7MM COIL	R50024088731
3 B	BRACKET MOTOR (SL25C/28C/CR) R01014070948
4	MOTOR, MSL25C-502-WL WELLING	R03039028207
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHINA	R03019023393
6	ASSY VALVE BRACKET (SL25C/28C/CR)R22	R50014073890
7	PANEL RIGHT BACK (SL25C/28C/CR)	R01014070950
8	COMPRESSOR, ASSY 48B180JV2JH SAMSUNG	R50049022614
8	COMPRESSOR, 2JS438D3AA04 MATSUSHITA	R04019027570
9 P	ANEL FRONT / LEFT R01014070947
10 F	ANEL SERVICE (SL25C/28C/CR) R01014070949
11	PANEL TERMINAL COVER (SL20C/25C/28C/CR)	R01014070838
12	ASSY. CONTROL PANEL (5SL20CR)	R50044086136

TOP (SL20

C/250	/28C/CR) R01014070596
14	ASSY FRONT GRILLE (SL20C/25C/28C/CR)	R50124072880
15	PLASTIC,HANDLE SL07C/09C/10C/15C/CR	R12014057948
16	ASSY VALVE COVER (SL25C/28C/CR)	R50124073905
17	ASSY. CAP TUBE SL25C/CR (7MM COIL)	R50024088789
18	PARTITION (SL25C/28C/CR) R01014070951
Parts not showed in diagram
	ASSY FLARE VALVE 3 WAY(5/8")SL20C/25C/28	R50054072863
	ASSY, 3 WAYS VALVE (3/8") 90.0mmL HANGJI	R50059022577
	FELT, COMPRESSOR (SL20/25C COMP)	R06074084746
	BACK GRILLE WITH PAINT (SL25C/28C/CR)	R50019026514
	CAPACITOR, CMPSR 50uF/450VAC Shizuki	R04029026779

OUTDOOR UNIT

MODEL: A5LC 07C

Exploded view diagram of household air conditioner unit with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy., Base Pan R50014057372 10 Left	Panel R010140525
2	Assy., Condenser Coil R50024064720 1	1 Right Panel R010
3	Valve Bracket R01014051164 12 Assy.	Control Panel R500
4	Compressor R04019019592 13 Assy., Front Panel R010140
5	Assy., Partition	R50064065275 14
6	Assy., Cap Tube	R50024064527 15
7	Bracket, Fan Motor	R01014052516 16
8	Fan Motor R03039015324 17 Rubber Grommet
9	Fan Blade	R03019004131

e Cover	R50124055172
Grille	R50124056905
dle	R12014057948
11059011558
18	Assy., Flare Valve 2 Ways 1/4"	R50059019453
19	Assy., Flare Valve 3 Ways 3/8"	R50059019454

Exploded view diagram of a refrigerator assembly with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy., Base Pan R50014051158 11 Right Panel R01014051167
2	Assy., Condenser Coil R50024064721 12 Assy., Front Panel R01014051171
3	Valve Bracket R01014051164 13 Assy. Control Panel
4	Compressor A5LC 10C R50044058195
	A5LC 10C R04019019590	A5LC 15C R50044057994
	A5LC 15C	R04019019594 14 Assy., Valve Cover R50124051173
5	Assy., Partition	R50064055063	15	Assy., Front Grille	R50124056700
6	Assy., Cap Tube		16 Plastic, Handle R12014057948
	A5LC 10C R50024056101 17 Rubber Grommet
	A5LC 15C R50024054807	A5LC 10C R11054000272
7	Bracket, Fan Motor	R01014051162	A5LC 15C R11054000271
8	Fan Motor		18 Assy., Flare Vlave 2 Ways 1/4" R50059019453
	A5LC 10C	R03039016104 19 Assy., Flare Valve 3 Ways 3/8"
	A5LC 15C R03039015323	A5LC 10C R50059019454
9	Fan Blade	R03019015339		Assy., Flare Valve 3 Ways 1/2"
10	Left Panel	R01014051166		A5LC 15C	R50054019452

Exploded view diagram of an air conditioning system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy. Base Pan 10 Compressor
	ALC 18C R50014077978 ALC 18C R5	0049022614
	A5LC/ALC 20C R50014013884 ALC 20C R04019018334
2	Assy. Outdoor Coil A5LC 20C R04019021361
	ALC 18C R50024077968 11 Front Panel, Left R010140706
	ALC 20C R50024070651 12 Service Panel
	A5LC 20C R50024079078 13 Terminal Cover Panel
3	Motor Bracket	R01014070601 14
4	Fan Motor
	ALC 18C R03039024539 ALC 20C
	A5LC/ALC 20C R03039023391 A5LC	20C R5004407287
5	Fan Blade	R03019023393 15
6	Valve Bracket	R50014072861 16
7	Assy. Flare Valve 3 Ways 5/8"
	ALC 18C/20C	R50054072863 15
	Assy. Flare Valve 3 Ways 1/2"
	A5LC 20C R50059023335 ALC 18C
8	Assy. Flare Valve 2 Ways 1/4"
	ALC 18C/20C	R50059022156 A
9	Assy. Flare Valve 2 Ways 1/4"
	A5LC 20C R50059023334
	Back Panel, Right	R01014070599

R0101	4070598
R010	14070838
ALC 18C		R50044077990
R500440	73902
R0101	4070596
Grille	R50124072880
17	Plastic Handle	R12014057948
R50024	077976
ALC 20C		R50024077257
R50024	079156
20 Partition		R01014070603

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions Part No
1 A	Assy. Base Pan R50014073884 11 Front Panel, Left R01014070947
2 A	Assy. Outdoor Coil 12 Service Panel R01014070949
	ALC 25C/28C R50024070959 13 Terminal Cover Panel R0101407088
	A5LC 25C/28C R50024079238 14 Assy. Control Panel
3 M	Motor Bracket R01014070948	A5LC/ALC 25C	R50044073902
4 F	Pan Motor		ALC 28C	R50044080172
	A5LC/ALC 25C	R03039023391		R50044080648
	A5LC/ALC 28C	R03039024538 15 Top Panel	R01014070596
5 F	Pan Blade	R03019023393 16 Assy. Front	Grille	R50124072880
6 V	Valve Bracket R50014073890 17 Plastic	Handle, Side	R12014057948
7	Assy. Flare Valve 3 Ways 5/8"		18	Assy. Valve Cover
	ALC 25C/28C R50054072863 19 Assy. Cap Tube
	A5LC 25C/28C R50059023336	ALC 25C		R50024073895
8 A	Assy. Flare Valve 2 Ways 3/8"		A5LC 25C	R50024078311
	ALC 25C/28C R50059022577	A5LC 28C		R50024079593
	A5LC 25C	R50059023334 20 Partition		R01014070951
	Assy. Flare Valve 3 Ways 3/8"		21	Plastic Handle, Front
	A5LC 28C	R50059024820
9 B	Black Panel, Right	R01014070950
10	Compressor
	ALC 25C	R04019019032
	ALC 28C	R04019012828
	A5LC 25C/28C R04019020449

Exploded view diagram of household air conditioner unit with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy., Base Pan R50014057372 12 Right	Panel R01014052
2	Assy., Condenser Coil R50024064720 13	Assy. Control Par
3	Valve Bracket R01014051164 14 Assy.,	Front Panel R0101
4	Compressor R04019019592 15 Assy., Valve Cover R50124
5	Assy., Partition	R50064065275
6	Assy., 4 Way Vlave	R50024066259 17
7	Assy., Cap Tube	R50024066452 18
8	Bracket, Fan Motor	R01014052516
9	Fan Motor	R03039015324
10	Fan Blade	R03019004131
11	Left Panel R01014052510

509 el R50044 052512 055172 Plastic, Har Rubber Gro

59032
16	Assy., Front Grille	R50124056905
dle	R12014057948
mmet	R11059011558
19	Assy., Flare Valve 2 Ways 1/4"	R50059019453
20	Assy., Flare Valve 3 Ways 3/8"	R50059019454
21	Sensor, Outdoor Defrost	R50134039416

Exploded view diagram of a refrigerator assembly with numbered parts for identification

No	Descriptions Part No No Descriptions	Part No
1 A	Assy., Base Pan R50014051158 11 Left	Panel R01014051166
2 A	Assy., Condenser Coil 12 Right Panel R01014051167
	A5LC 10CR R50024064721 13 Assy.,	Front Panel R01014051171
	A5LC 15CR R50024066517 14 Assy.	Control Panel
3 Valve Bracket R01014051164		A5LC 100R R5004405903$
4 Compressor			A5LC 15CR		R50044059034
	A5LC 10CR R04019019590 15 Assy.,	Valve Cover	R50124051173
	A5LC 15CR R04019019594 16 Assy.,	Front Grille	R50124056700
5 Assy., Partition		R01014051165 17 Plastic, Handle		R12014057948
6 Assy., 4 Way Valve		R50024066173 18 Rubber Grommet
7 Assy., Cap Tube			A5LC 10CR		R11054000272
	A5LC 10CR	R50024066256		A5LC 15CR	R11054000271
	A5LC 15CR R50024066493 19 Assy.,	Flare Valve 2 Ways 1/4"	R50059019453
8 Bracket, Fan Motor		R01014051162 20 Assy., Flare	Valve 3 Ways 3/8"
9 Fan Motor			A5LC 10CR		R50059019454
	A5LC 10CR	R03039016104		Assy., Flare Valve 3 Ways 1/2"
	A5LC 15CR	R03039015323		A5LC 15CR	R50054019452
10 Fan Blade		R03019015339	21	Sensor, Outdoor Defrost	R50134039416

Exploded view diagram of an air conditioning system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	Assy. Base Pan R50014073884 11 Front Panel, Left R0101
2	Assy. Outdoor Coil 12 Service Panel R0101	1014070598
	ALC 20CR R50024077089 13 Terminal Cover Panel R010
	A5LC 20CR R50024075143 14 Assy. Control Panel
3	Motor Bracket R01014070601	ALC 20CR
4	Pan Motor	R03039023391
5	Pan Blade	R03019023393 15
6	Valve Bracket R50014072861 16 Assy. Front Grille
7	Assy. Flare Valve 3 Ways 5/8"
	ALC 20CR R50054072863 18 Assy. Valve Cover
	Assy. Flare Valve 3 Ways 1/2"
	A5LC 20CR R50059023335	ALC 20CR
8	Assy. Flare Valve 2 Ways 1/4"
	ALC 20CR R50059022156 20 Assy. 4 Way Valve
	A5LC 20CR R50059023334	ALC 20CR
9	Back Panel, Right	R01014070599
10	Compressor
	ALC 20CR R04019018334
	A5LC 20CR R04019021361

7198
A5LC 20CR R50044077200
	R01014070596
R50124072880
17	Plastic Handle	R12014057948
R50124072885
19	Assy.Cap Tube
	R50024076304
A5LC 20CR R50024078285
	R05019004158
A5LC 20CR R05019016937
21 Partition		R01014070603

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	Assy. Base Pan R50014073884 11 Front	Panel, Left R01014070947
2 A	Assy. Outdoor Coil 12 Service Panel R01014070949	Terminal Cover Panel R01014070838
	ALC 25CR/28CR R50024077092 13
	A5LC 25CR/28CR R50024075147 14	Assy. Control Panel
3 M	Motor Bracket	R01014070948	A5LC/ALC 25CR R50044077198
4 F	Pan Motor		ALC 28CR		R50044080649
	A5LC/ALC 25CR	R03039023391		A5LC 28CR	R50044080650
	A5LC/ALC 28CR	R03039024538 15 Top Panel		R01014070596
5 F	Pan Blade	R03019023393 16	Grille	R50124072880
6 V	Valve Bracket R50014073890 17 Plastic	Handle, Side	R12014057948
7 A	Assy. Flare Valve 3 Ways 5/8"		18 Assy. Valve Cover R50124073905
	ALC 25CR/28CR R50054072863 19	Assy.Cap Tube
	A5LC 25CR/28CR R50059023336	ALC 25CR		R50024077286
8 A	Assy. Flare Valve 2 Ways 3/8"		ALC 28CR		R50024080186
	ALC 25CR/28CR R50059022577	A5LC 25CR		R50024078311
	A5LC 25CR	R50059023334		A5LC 28CR	R50024080312
	Assy. Flare Valve 3 Ways 3/8"		20	Assy. 4 Way Valve
	A5LC 28CR	R50059024820		ALC 25CR/28CR	R05019004158
9 B	Black Panel, Right	R01014070950	A5LC 25CR/28CR R05019016937
10	Compressor		21 Partition		R01014070951
	ALC 25CR	R04019019032 22 Plastic Handle, Front R12014070955
	ALC 28CR	R04019012828
	A5LC 25CR/28CR R04019020449

Model : A5LC 20C (3 PHASE)

Exploded view diagram of a refrigerator internal components with numbered labels

No	Descriptions Part No No Descriptions	Part No
1 A	ASSY,PAN BASE (5SL20C/CR) R50014	078281
2	ASSY,OUTDOOR COIL(5SL20C)2RX28THX18FPI	R50024079078
3 B	RACKET MOTOR (SL20C/CR) R01014	070601 16 ASSY,C
4	MOTOR,MSL20C/25C-501 64WWELLING CHINA	R03039023391
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET(5SL20C/CR)	R50014078280
7 P	PANEL RIGHT BACK (SL20C/CR) R0101	14070599
8	COMPRESSOR, 5KS205PAB01 MATSUSHITA	R04019029246
9 P	PANEL FRONT/LEFT (SL20C/CR) R0101	14070597
10	PANEL SERVICE (SL20C/CR)	R01014070598
11	ASSY CONTROL PANEL (5SL20C 3PH)	R50044092272
12	PANEL TOP (SL20C/25C/28C/CR)	R01014070596
13	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880

APILLARY

14	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948
15	ASSY VALVE COVER (SL20C/CR) R50124072885
TUBE	(5SL20C) R50024081921
17	PARTITION (SL20C/CR) R01014070603
Parts Not In The Diagram
	ASSY,VALVE 3-WAY(1/2")JB48420-1MA(R410A)	R50059023335
	ASSY,VALVE 2-WAY(1/4")JA28493-2MA(R410A)	R50059023334
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR3.5uF/450V(TAB250)Shizu	R04029026759
	CAPACITOR, CMPSR 50uF/450VACShizuki	R04029026779
	CLAMP, CAPACITOR 126.0mm	R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	ASSY PAN BASE (SL20/25/28C(R)) R5	0014073884
2	ASSY,OUTDOOR COIL(5SL25C)2RX34THX18FPI	R50024079238
3	BRACKET MOTOR (SL25C/28C/CR)	R01014070948
4	MOTOR, MSL20C/25C-501 64WWELLING CHINA	R03039023391
5	FAN PROPELLER, ¥460 0Z40700SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET(5SL25C/25CR)	R50014078321
7	PANEL RIGHT BACK(SL25C/28C/CR)	R01014070950
8	COMPRESSOR, 5JS270PAB01MATSUSHITA	R04019029248
9	PANEL FRONT / LEFT R01014070947
10	PANEL SERVICE (SL25C/28C/CR) R0	014070949
11	ASSY CONTROL PANEL (5SL25C3PH)	R50044092273
12	PANEL TOP (SL20C/25C/28C/CR) R0	014070596
13	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
14	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948

15	ASSY VALVE COVER(SL25C/28C/CR)	R50124073905
16	ASSY,CAPILLARY TUBE (5SL25C-3PHASE)	R50024092169
17	PARTITION (SL25C/28C/CR) R01014070951
18	PLASTIC HANDLE FRONT(SL25C/28C/CR)	R12014070955
Parts Not In The Diagram
	ASSY,VALVE 3 WAY(5/8")JB58264-2MA-R410	R50059023336
	ASSY,VALVE 2-WAY(1/4")JA28493-2MA(R410A)	R50059023334
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR3.5uF/450V(TAB250)Shizu	R04029026759
	CAPACITOR, CMPSR 45uF/450VACShizuki	R04029026778
	CLAMP, CAPACITOR 126.0mm R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834

Model : A5LC 28C (3 PHASE)

Exploded view diagram of a refrigerator internal components with numbered labels

No	Descriptions Part No No Descriptions	Part No
1	ASSY PAN BASE (SL20/25/28C(R))	R50014073884
2	ASSY,OUTDOOR COIL(5SL25C)2RX34THX18FPI	R50024079238
3	BRACKET MOTOR (SL25C/28C/CR)	R01014070948
4	MOTOR, YDK75-6S/MSL28C-501-WL	R03039024538
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET(5SL28C/CR)	R50014080371
7	PANEL RIGHT BACK(SL25C/28C/CR)	R01014070950
8	COMPRESSOR, 5JS315PAB01 MATSUSHITA	R04019029629
9	PANEL FRONT / LEFT R01014070947
10	PANEL SERVICE (SL25C/28C/CR) R01	014070949
11	ASSY CONTROL PANEL (5SL28C 3PH)	R50044092274
12	PANEL TOP (SL20C/25C/28C/CR) R01	014070596
13	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
14	PLASTIC,HANDLE SL07C/09C/10C/15C/CR	R12014057948

15	ASSY VALVE COVER(SL25C/28C/CR)	R50124073905
16	ASSY,CAPILLARY TUBE (5SL28C) R50024079593
17	PARTITION (SL25C/28C/CR) R01014070951
18	PLASTIC HANDLE FRONT(SL25C/28C/CR)	R12014070955
Parts Not In The Diagram
	ASSY,VALVE 3 WAY(5/8")JB58264-2MA-R410	R50059023336
	ASSY,3 WAY VALVE(3/8")5SL28C/CR	R50059024820
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR 5uF/450V50/60Hz Shizuk	R04029026966
	CAPACITOR, CMPSR 45uF/450VACShizuki	R04029026778
	CLAMP, CAPACITOR 126.0mm R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834

Model : A5LC 20CR (3 PHASE)

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1 A	SSY,PAN BASE (5SL20C/CR) R50014	078281 15 ASSY V
2	ASSY,OUTDOOR COIL (5SL20C/CR-2RX28TH)	R50024075143
3 B	RACKET MOTOR (SL20C/CR) R0101	4070601
4	MOTOR,YDK64-6C/MSL25C-501-WL	R03039023391
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET (5SL20C/CR)	R50014078280
7 P	ANEL RIGHT BACK (SL20C/CR)	R01014070599
8 C	OMPRESSOR, 5KS205PAB01 MAT R	04019029246
9 P	ANEL FRONT/LEFT (SL20C/CR) R01	014070597
10 P	ANEL SERVICE (SL20C/CR)	R01014070598
11	ASSY CONTROL PANEL (5SL20CR 3PH)	R50044092275
12	PANEL TOP (SL20C/25C/28C/CR)	R01014070596
13	ASSY FRONT GRILLE (SL20C/25C/28C/CR)	R50124072880
14	PLASTIC,HANDLE SL07C/09C/10C/15C/CR	R12014057948

ALVE COV

ER (SL20C/CR) R50124072885
16	ASSY,CAPILLARY TUBE (5SL20CR)	R50024081904
17	ASSY,TUBING 4-WAY VALVE(5SL20CR)	R50024080655
18	ASSY PARTITION (SL20C/CR) R50064072871
Parts Not In The Diagram
	ASSY,VALVE 3-WAY(1/2")JB48420-1MA(R410A)	R50059023335
	ASSY,VALVE 2-WAY(1/4")JA28493-2MA(R410A)	R50059023334
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR3.5uF/450V(TAB250)Shizu	R04029026759
	CAPACITOR, CMPSR 50uF/450VACShizuki	R04029026779
	CLAMP, CAPACITOR 126.0mm	R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	VALVE, REV 4 WAY SHF-7H-34U(RK) SHANHUA	R05019016937
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834

Model : A5LC 25CR (3 PHASE)

Exploded view diagram of an air conditioning system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	ASSY PAN BASE (SL20/25/28C(R))	R50014073884
2	ASSY. OUTDOOR COIL(5SL25CR/28CR)	R50024075147
3	BRACKET MOTOR (SL25C/28C/CR)	R01014070948
4	MOTOR, MSL20C/25C-501 64WWELLING CHINA	R03039023391
5	FAN PROPELLER, ¥460 0Z40700SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET(5SL25C/25CR)	R50014078321
7	PANEL RIGHT BACK(SL25C/28C/CR)	R01014070950
8	COMPRESSOR, 5JS270PAB01MATSUSHITA	R04019029248
9	PANEL FRONT / LEFT R01014070947
10	PANEL SERVICE (SL25C/28C/CR) R01	014070949
11	ASSY CONTROL PANEL (5SL25CR3PH)	R50044092276
12	PANEL TOP (SL20C/25C/28C/CR) R01	014070596 CLAMP
13	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
14	PLASTIC,HANDLESL07C/09C/10C/15C/CR	R12014057948

15	ASSY VALVE COVER(SL25C/28C/CR)	R50124073905
16	ASSY,CAPILLARY TUBE (5SL25CR-3PHASE)	R50024092178
17	ASSY,TUBING 4-WAY VALVE(5SL25CR)	R50024080572
18	ASSY PARTITION (SL25C/28C/CR) R50064073900
19	PLASTIC HANDLE FRONT(SL25C/28C/CR)	R12014070955
Parts Not In The Diagram
	ASSY,VALVE BRACKET(5SL25C/25CR)	R50014078321
	ASSY,VALVE 3 WAY(5/8")JB58264-2MA-R410	R50059023336
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR3.5uF/450V(TAB250)Shizu	R04029026759
	CAPACITOR, CMPSR 45uF/450VACShizuki	R04029026778
DR 12	6.0mm R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834

CAPACIT

Model : A5LC 28CR (3 PHASE)

Exploded view diagram of an air conditioner system with numbered components for identification

No	Descriptions Part No No Descriptions	Part No
1	ASSY PAN BASE (SL20/25/28C(R))	R50014073884
2	ASSY. OUTDOOR COIL(5SL25CR/28CR)	R50024075147
3	BRACKET MOTOR (SL25C/28C/CR)	R01014070948
4	MOTOR, YDK75-6S/MSL28C-501-WL	R03039024538
5	FAN PROPELLER, ¥460 0Z40700 SUNWILL CHIN	R03019023393
6	ASSY,VALVE BRACKET(5SL28C/CR)	R50014080371
7	PANEL RIGHT BACK(SL25C/28C/CR)	R01014070950
8	COMPRESSOR, 5JS315PAB01 MATSUSHITA	R04019029629
9	PANEL FRONT / LEFT R01014070947
10	PANEL SERVICE (SL25C/28C/CR) R0	014070949 CLAMP
11	ASSY CONTROL PANEL (5SL28CR 3PH)	R50044092277
12	PANEL TOP (SL20C/25C/28C/CR)	R01014070596
13	ASSY FRONT GRILLE(SL20C/25C/28C/CR)	R50124072880
14	PLASTIC,HANDLE SL07C/09C/10C/15C/CR	R12014057948

15	ASSY VALVE COVER(SL25C/28C/CR)	R50124073905
16	ASSY,CAPILLARY TUBE (5SL25CR-3PHASE)	R50024092178
17	ASSY, TUBING 4WV (5SL28CR) R500	24080540
18	ASSY PARTITION (SL25C/28C/CR) R50	0064073900
19	PLASTIC HANDLE FRONT(SL25C/28C/CR)	R12014070955
Parts Not In The Diagram
OR 12	ASSY,3 WAY VALVE(3/8")5SL28C/CR	R50059024820
	ASSY,VALVE 2-WAY(1/4")JA28493-2MA(R410A)	R50059023334
	PANEL TERMINAL COVER(SL20C/25C/28C/CR)	R01014070838
	CAPACITOR, CMPSR 5uF/450V50/60Hz Shizuk	R04029026966
	26.0mm R07054028872
	ASSY TERMINAL PANEL(SL20C/25C/28C/CR)	R50014072877
	PHASE PROTECTOR, PP1.03 NOSENSOR EXPORT	R04089018834
