USER MANUAL ST42 HANNSPREE

Regulatory Information 3

Description of Warning Symbols 4

Safety Notices.... 5

Important Safety Instructions 6

Preface....9

Warranty and Service 9

1. Getting Started .... 12

1.1 Package Contents ...... 12

1.2 Introducing the TV....13

1.2.1 Features ......13

1.3 Control Panel 14

1.4 Input and Output Jacks....15

1.5 Remote Control ....17

1.6 Inserting the Remote Control Batteries....19

1. Setting up your TV 21

2.1 Basic Connections....21

2.1.1 Power Connection 21

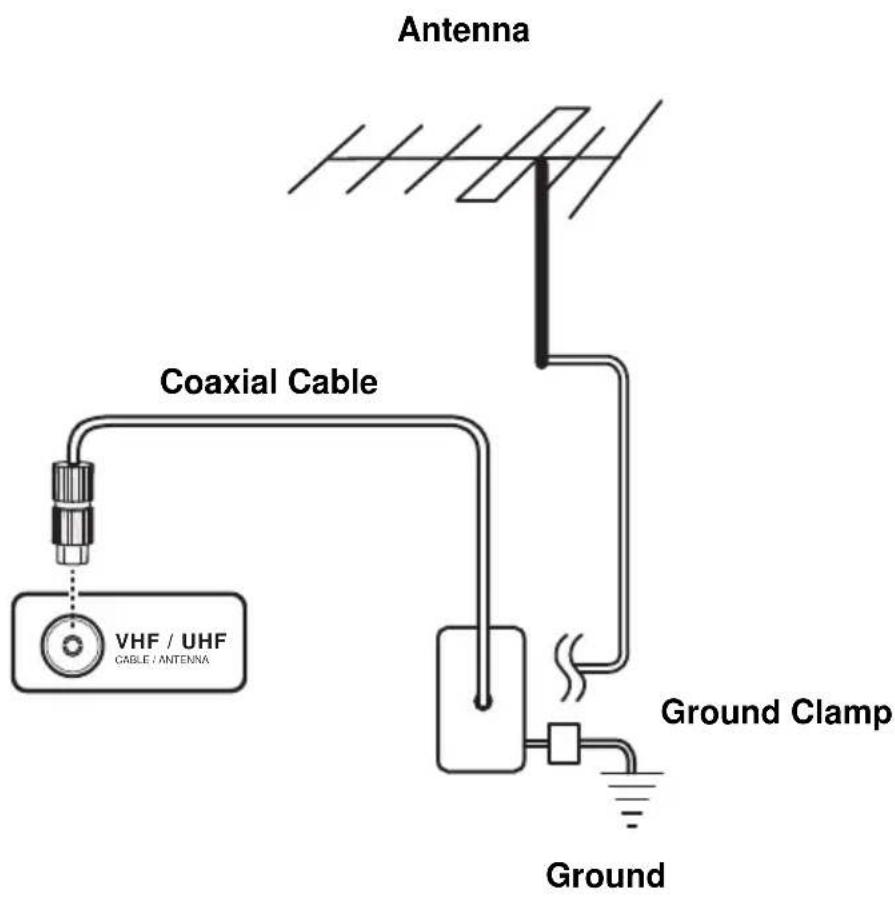

2.1.2 Connecting an Antenna or Cable TV....21

2.2 Connecting External Devices 22

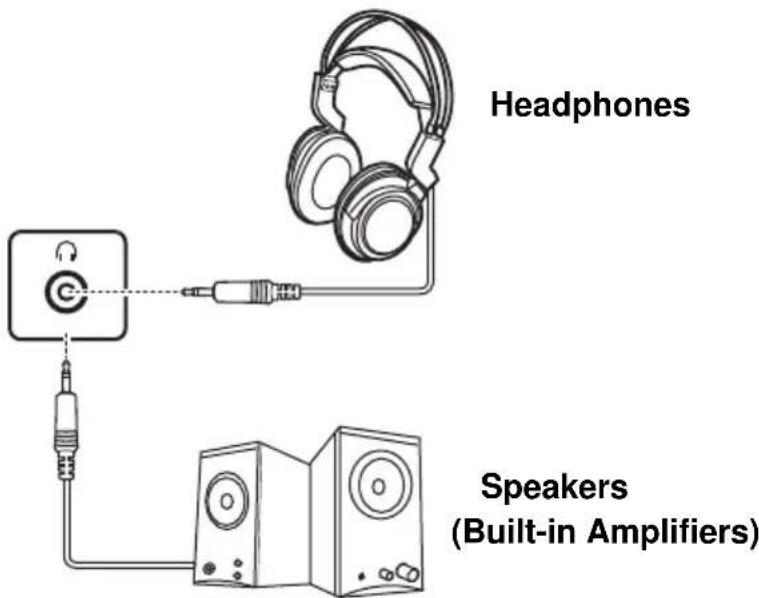

2.2.1 Connecting External Earphones 22

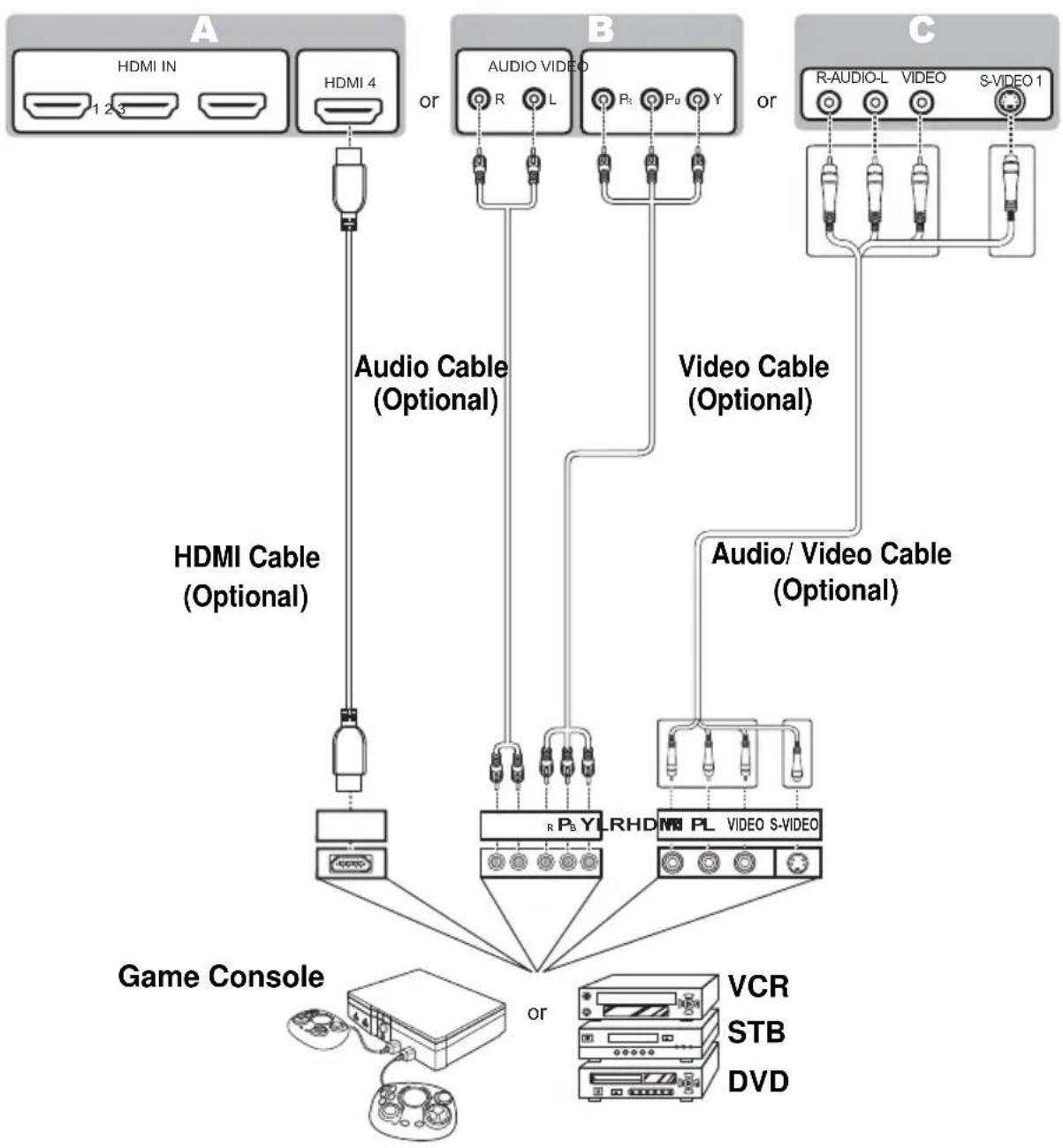

2.2.2 Connecting to AV Devices....23

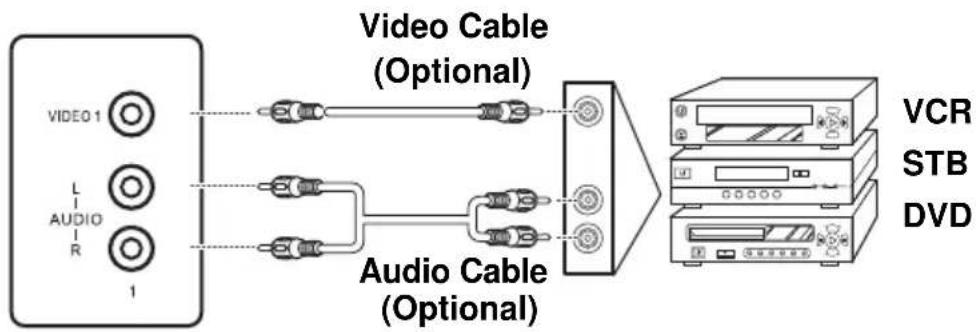

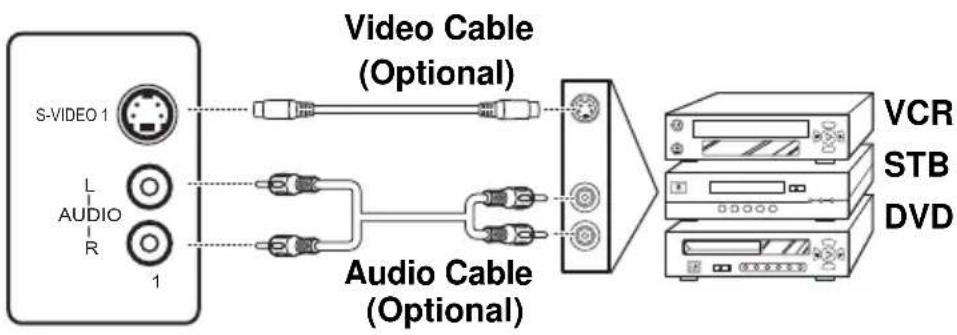

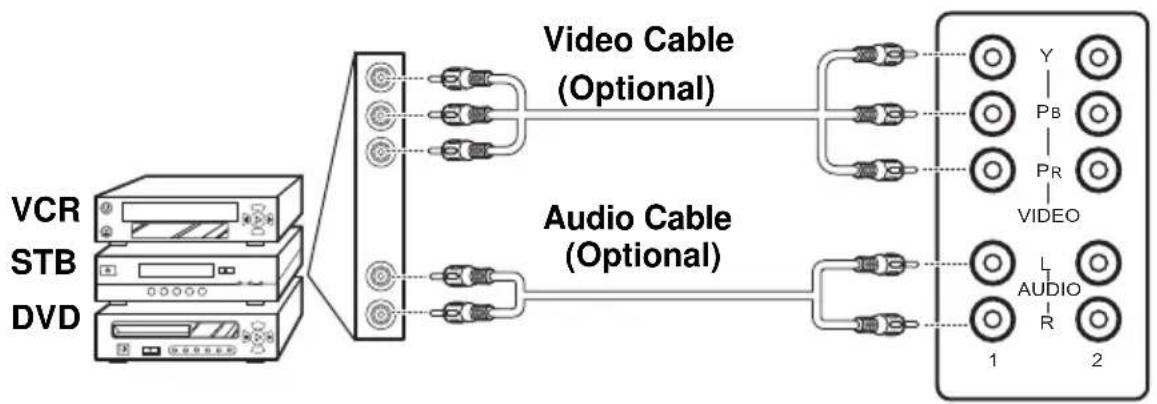

2.2.3 Connecting a VCR/ Set-top box/ DVD Player Using Video Inputs 24

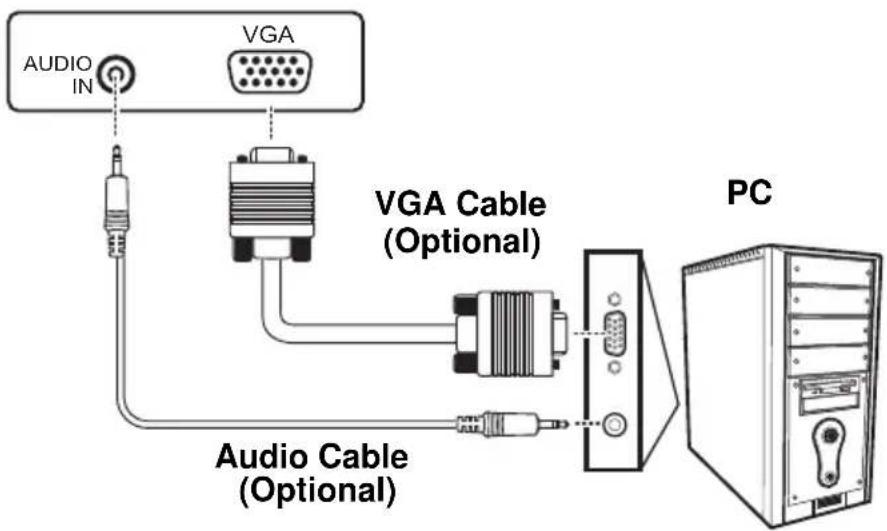

2.2.4 Connecting a PC using VGA 25

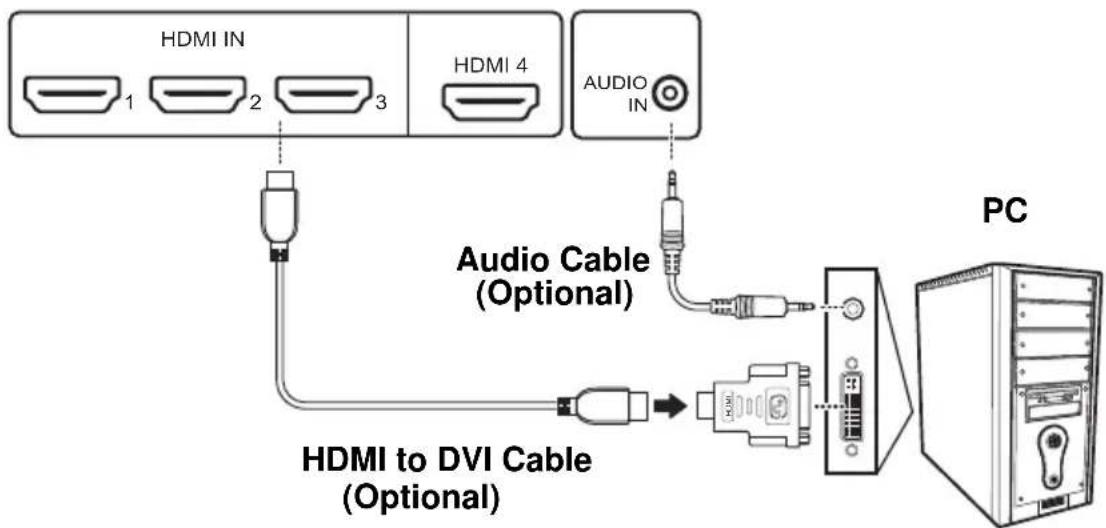

2.2.5 Connecting a PC using DVI....25

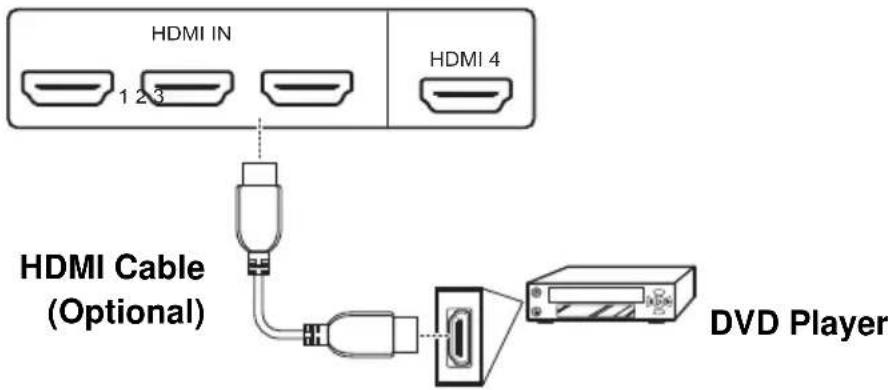

2.2.6 Connecting HDMI 26

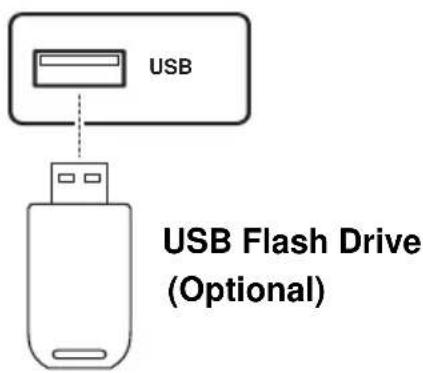

2.2.7 Connecting USB 26

2.3 Using the TV 27

2.3.1 Turning the TV On and Off 27

2.3.2 Switching Source Signals....27

2.3.3 Performing an Automatic Channel Search......27

2.3.4 Selecting Channels....27

2.3.5 Adjusting the Volume......28

2.3.6 Editing Channel Table or Favorite Channel......28

Table of Contents

1. Adjusting On-Screen Display (OSD) Settings 29

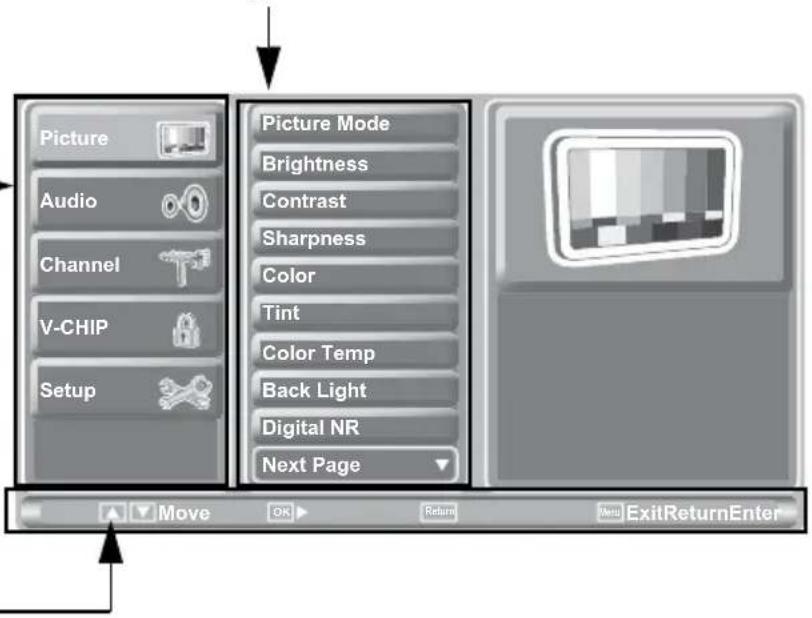

3.1 OSD Setting Menus 30

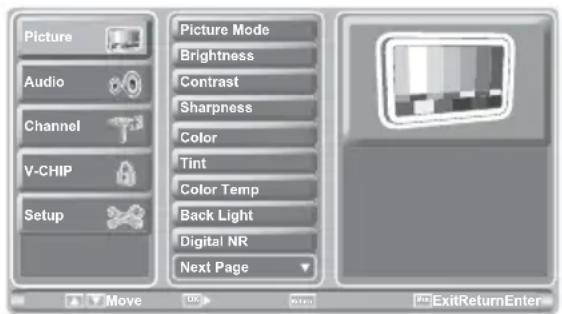

3.2 Adjusting Picture Settings....30

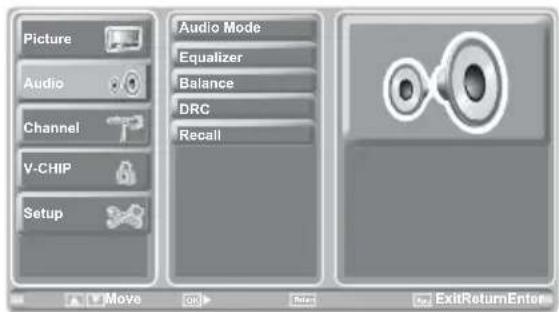

3.3 Adjusting Audio Settings....31

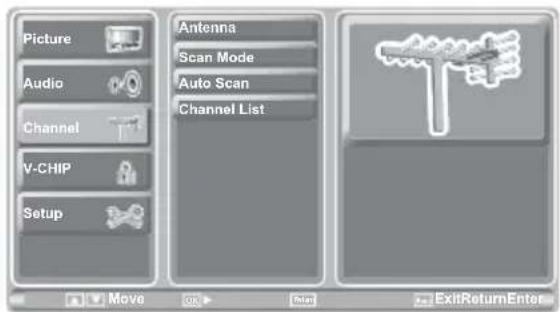

3.4 Adjusting Channel Settings 32

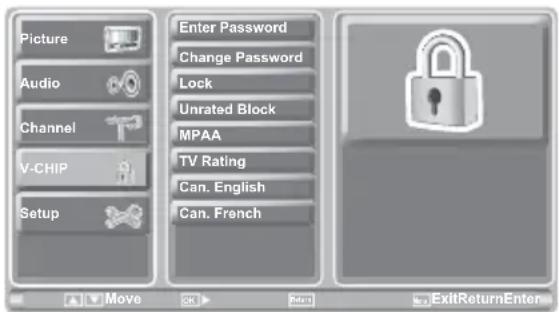

3.5 Adjusting V-CHIP Settings 33

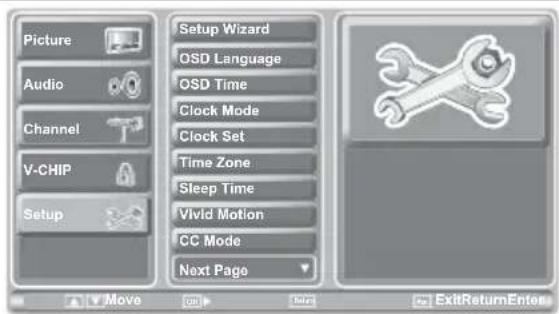

3.6 Adjusting Setup Settings 34

1. Troubleshooting .... 35

2. Specifications ....36

3. Appendix: Remote Control Guide....38

6.1 Introduction....38
6.1.2 Setting Program Codes....38
6.1.3 Searching Codes 39
6.1.4 Setting Volume Lock....40
6.1.5 Setting Channel Lock....40
6.1.6 Factory Setting Mode....41
6.1.7 Description....43

6.2 Other Descriptions ....43

6.2.1 Double Clicking 43
6.2.2 Buttons Information 43
6.2.3 Power-out Protection Capability 43

6.3 Component Program Codes ....44

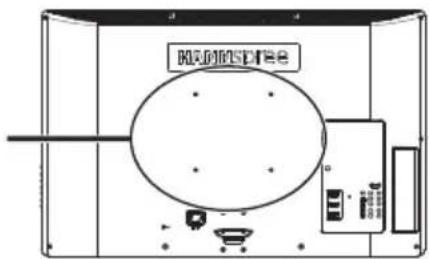

1. Setting the TV on the Wall....51

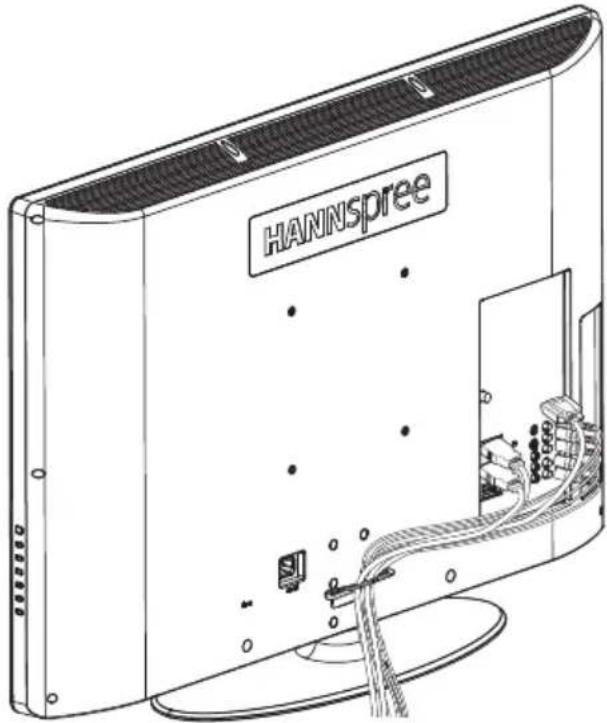

2. Using the Cable Organizer ....52

FCC Compliance Statement ^1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Additional Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced technician for help

Warning: The Federal Communications Commission warns that changes or modifications of the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

DOC Compliance Notice ^2

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This device complies with Canada ICES-003 Class B.

1. applies only to products purchased in the United States of America
2. applies only to products purchased in Canada

Black triangular warning symbol with white lightning bolt and downward arrow (no text)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with an exclamation mark (no text or numbers)

WARNING

This symbol is used to alert users to pay attention to important descriptions regarding usage, maintenance (repair), and additional important information related to this TV.

CAUTION

This symbol is used to alert users to the risk of electric shocks due to dangerous and uninsulated components.

Installation Safety Notes

Location

Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Notes:

• The LCD TV is for entertainment use only and visual display tasks are excluded.
• This device uses a VGA connector to connect to a PC. To reduce the influence of main frequency on the source signal, use a VGA monitor cable with ferrite shield.

Important Safety Instructions

1.	Read these instructions.
2.	Keep these instructions.
3.	Heed all warnings.
4.	Follow all instructions.
5.	Do not use this apparatus near water.
6.	Clean only with dry cloth.
7.	Do not block any ventilation openings. Install in accordance with manufacturer's instructions.
8.	Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9.	Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.NOTE: Applies to US only.
10.	Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11.	Only use attachments/accessories specified by the manufacturer.
12.	Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.	Unplug this apparatus during lightning storms or when unused for long periods of time.
14.	Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.	WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16.	The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
17.	Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
18.	The apparatus should be used in moderate climate.
19.	The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Personal safety

1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable.

2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing.

3. Do not place or drop metals, small objects, or flammable materials into the vent of the TV.

4. If the TV is dropped, falls down, or is otherwise damaged, unplug the power cord immediately and contact an authorized service technician.

5. If any fluid is sprayed or dropped into the TV, contact an authorized service technician.

6. The screen of the TV is made of glass. Avoid hitting or scraping it. If the screen is broken, do not touch the broken glass.

7. Do not allow children to use the TV unattended.

8. Be careful when disconnecting the power plug. Hold the plug. Do not attempt to disconnect the plug by pulling on the power cord.

Installation

1. Do not place the TV in locations where there is excessive steam or dust.

2. Avoid blocking the TV's vents, do not place the TV on a bed, sofa, carpet, or in a sealed cabinet.

3. Install the outdoor antenna away from power transmission lines to avoid possible danger.

Thank you for purchasing a Hannspree Liquid Crystal Display Television (LCD TV). Your new TV will allow you to enjoy superior audio and video while enriching your lifestyle with advanced technology.

Please carefully read this manual in its entirety before setting up, using or operating your TV. To ensure the safe and correct installation and operations of the TV, it is important that the safety and operation instructions in this manual are followed.

This instruction manual is designed to assist you in setting up and using the TV. The information in this manual has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this manual is subject to change without notice.

To the extent allowed by applicable law, Hannspree, Inc. (“Hannspree”) shall not be liable for direct, indirect, special, exemplary, incidental or consequential damages arising from any defect or omission in this manual, even if advised of the possibility of such damages in advance.

Warranty and Service

For complete warranty service information, please refer to the "Warranty card" enclosed with your TV.

As an ENERGY STAR ^® Partner, Hannspree has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Recycling Information

We care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substance.

We strongly encourage you to visit our website or call to find out recycling information and services available in your area.

http://www.hannspree.com/us

888.808.6789

Copyright

© Copyright 2010 Hannspree, Inc.

All rights reserved. This manual is protected by copyright and distributed under licenses restricting its use, copying and distribution. No part of this manual may be reproduced in any form by any means without the prior written authorization of Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software. Accordingly, and to the extent allowed by applicable law, any copyrighted software contained in the product described herein shall not be distributed, modified, reverse engineered, or reproduced in any manner without the prior written authorization of Hannspree (or of other third parties).

The Hannspree logos presented herein are trademarks of Hannspree. All other product names, trademarks or logos mentioned herein are used for identification purpose only, and may be the trademarks or registered trademarks of their respective owners.

The purchase of the product described herein shall not be deemed to grant, either directly or by implication, estoppel or otherwise, any license under the copyrights, patents, patent applications or trademarks of Hannspree, except for the normal, non-exclusive use that arises by operation of law in the sale of a product.

Trademark Notice

HDMI Hannspree products incorporate High-Definition Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

License Notice and Trademark Acknowledgment

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

1

Getting Started

1.1 Package Contents

Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged.

• TV
- Power cord
- User's manual
- Quick start guide
- Warranty card
- Attention notice card
- Cleaning cloth
- HDMI cable

- Remote control and batteries

1.2 Introducing the TV

You can watch NTSC/ATSC broadcast, cable, or digital television channels, and easily connect a VCR, set-top box, or DVD player to the standard CVBS, S-Video, component, and HDMI input ports (location of these ports depends on model). You can also use the TV as a monitor for your PC by connecting it through the VGA or DVI port.

Convenient control buttons located on the TV and a handy remote control let you change channels, adjust the volume, and change display settings through an easy-to-use on-screen display menu system. The built-in stereo speakers provide full rich sound and a convenient audio output port lets you connect to an external audio system or earphones.

1.2.1 Features

• Built-in TV tuner
  • Audio/ Video support:

• PC audio input

• YPBPR input
• AV or Composite input
• S-Video input
• 3.5 mm stereo earphone output
• VGA input
• HDMI input
• USB

• One set for R/L audio inputs for AV or Composite/S-Video and the other one for YPbPr.

• On-Screen Display (OSD) menu system
  • 120 Hz refresh rate (Vivid Motion)
  • Built-in stereo speakers
  • Digital Noise reduction
  • 3 D c o m b f i l t e r

• De-interlace Image
  • DTV/ Scalar solution
  • 3:2/ 2:2 Pull down

Note:

The supporting devices mentioned in this manual may vary on different models.

1.3 Control Panel

Description Button Function
Power		Power button. Press to turn the TV on or off.
Input source INPUT		Press to open the input source list or mark an item on the OSD menu.
Menu MENU Press to open the OSD menu.
Channel select	CH ▲	Press to increase the channel number or move upward to the previous item on the OSD menu.
Channel select	CH ▼	Press to decrease the channel number or move downward to the next item on the OSD menu.
Volume adjust	VOL+	Press to increase the volume or move to the right on the OSD menu.
Volume adjust	VOL-	Press to decrease the volume or move to the left on the OSD menu.
Remote IR sensor		Receive incoming remote control commands.
Power/ Standby indicator		Indicate power or standby status.
Speakers Deliver high-quality sounds.

1.4 Input and Output Jacks

Description Connector Function
Power connector	AC IN	Connect to the included power cord.
Cable/ Antenna	VHF / UHFC ALE / ANTEIN A	Connect to an antenna or cable TV.
HDMI 1 input	HDMI IN 1	Connect to an external device, such as a DVD player, set-top box, or a PC's DVI/ HDMI port.
HDMI 2 input	HDMI IN 2	Connect to an external device, such as a DVD player, a set-top box, or a PC's DVI/ HDMI port.
HDMI 3 input	HDMI IN 3	Connect to an external device, such as a DVD player, set-top box, or a PC's DVI/ HDMI port.
HDMI 4 input	HDMI 4	Connect to an external device, such as a DVD player, set-top box, or a PC's DVI/ HDMI port.
VGA (PC) input		Connect to a PC's VGA port.
Audio input (PC)	AUDIO IN [IMAGE]	Connect to a PC's audio port
Component inputs (video) x 2	PR [IMAGE] PB	Connect to an external device, such as a VCR, set-top box, or a DVD player.
Component inputs (audio) x 2	L A UDIOR	Connect to an external device, such as a VCR, set-top box, or a DVD player.
USB		Support JPEG and MP3 files.
S-Video 1 input	S-VIDEO 1	Connect to an external device, such as a VCR, set-top box, or a DVD player.
Composite input (video)	VIDEO 1	Connect to an external device, such as a VCR, set-top box, or a DVD player.
Composite input (audio)		Connect to an external device, such as a VCR, set-top box, or a DVD player.
S-Video 2 input	S-VIDEO 2	Connect to an external device, such as a VCR, set-top box, or a DVD player.
Composite input (video)	VIDEO 2	Connect to an external device, such as a VCR, set-top box, or a DVD player.
Composite input (audio)		Connect to an external device, such as a VCR, set-top box, or a DVD player.
Earphone output		Connect to earphones or external speakers with built-in amplifiers.

1.5 Remote Control

Description Icon Function
Power		Press to turn the TV on or off.
Input source	INPUT Press to open the input source list.
Keypad	1 2 34 5 67 8 90	Use to select a channel directly. Press 0-9 to enter the program numbers (press 1 and 0 for channel 10).
Program entry	—	Press this button for entering DTV minor channel.
Last	LAST	Press to return to the last channel selected.
Information	INFO	Press to display program information.
Menu MENU		Press to turn the on-screen display (OSD) menu on/ off; confirm the setting.
Arrows		Press up, down, left or right to scroll through the on-screen display menus.
Select OK Press to confirm the TV source selection.
Guide channel list	GUIDE Press to view the EPG screen.
Return RETURN Press to return to the previous menu.
Select channel	CH ▲CH ▼	Press ↑to increase the channel number.Press ↓to decrease the channel number.
Volume adjust	VOL+ / VOL-	Press VOL + to increase audio volume.Press VOL - to decrease audio volume.
Sleep timer	SLEEP	Press repeatedly to set the sleep time(Sleep off, 15, 30, 45, 60, 90, or 120 minutes).A Sleep Info appears on the middle of the screen to show the remaining time.Cancel the timer by pressing the button to sleep off mode.
Mute	I≡	Press to eliminate audio. Press it again or press the volume adjust buttons to restore sound.
Multichannel television sound	MTS[w=2]	Press to toggle the audio mode (Mono/ Stereo/ SAP) in ATV or the audio services in DTV.
DVD DVD		Press to select a programmed DVD player.
AUDIO AUDIO		Press to select a programmed Audio Receiver/ Amp/ Home Theatre System.
CABLE CABLE		Press to select a programmed Cable TV set-top box or a satellite TV set-top box.
TV TV Press to enter TV mode.
Favorite channels	FAV.	Press to switch to favorite channels. (if no favorite channel was set, "Not Available!" will display on the screen)
Aspect ratio	ASPECT	Press to adjust the width-to-height ratio of the image with aspect ratio Auto, Full, Normal, Zoom, Zoom-1 and Subtitle.
Closed caption	C.C.	Press to open or close the closed caption.

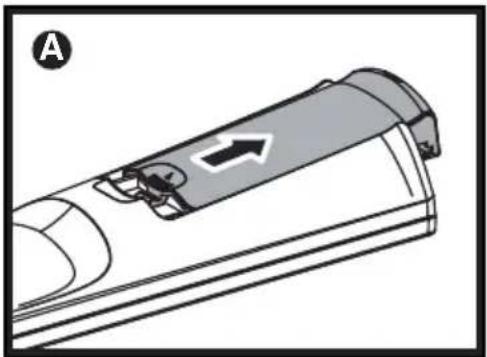

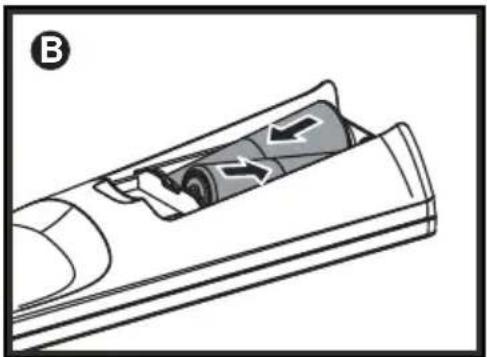

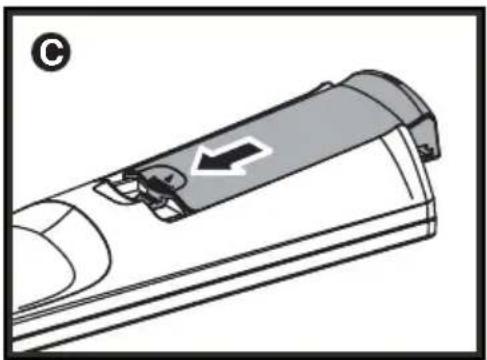

1.6 Inserting the Remote Control Batteries

1 Open the battery compartment cover at the back of the remote control (A).

Diagram of a device with a directional arrow indicating movement or flow (no text or symbols present)

2 Insert the batteries paying attention to the polarity markings inside the battery compartment (B).

Diagram of a device interior with internal components and directional arrows (no text or symbols)

3 Close the battery compartment cover (C).

Diagram of a device component with an arrow indicating a directional change, no text or symbols present

CAUTION

• If the remote control is not used for a long period, remove the batteries and store them properly.
• Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids.
• If your remote control has two batteries, do not mix new and old batteries, or the life of the new batteries will be shortened. Chemical fluids may leak from the old batteries.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.
• Refer to your local recycling or waste disposal rules and contact a local waste disposal vendor to dispose of used batteries.
• The remote control cover may have a magnet in it, so do not place magnetic sensitive items such as watches, credit cards, or flash media close to the cover.
• Do not use force when pulling the remote control cover open; you may damage the hinge.

Note:

- For best results, use the remote control within a proper distance from the front of the TV. Do not exceed an angle of 30 degrees when pointing at TV.

- The operational distance may be shortened when the signal sensor is directly exposed to strong light.

- Aim the transmitter on the remote control at the signal sensor and ensure that there are no obstacles between them.

2.1 Basic Connections

2.1.1 Power Connection

1 Connect the power cord to the AC IN input jack on the rear of the TV.
2 Insert the plug at the other end of the power cord into a power outlet.

2.1.2 Connecting an Antenna or Cable TV

Connect one end of the VHF/UHF (Antenna) or CATV cable to VHF/UHF jack on the rear of the TV.

Antenna Coaxial Cable VHF / UHF CABLE / ANTENNA Ground Clamp Ground

Note:

If you cannot receive channels after connecting to an antenna or cable TV line, try scanning for channels.

2.2 Connecting External Devices

Connect external devices such as VCRs, set-top box, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the rear of the TV.

2.2.1 Connecting External Earphones

Headphones Speakers (Built-in Amplifiers)

Note:

• External speakers or headphones are not included with the TV.
• The internal TV speakers will not output sound when headphones are plugged in.
• Use external speakers with built-in amplifiers only.
• Only one external device for sound can be connected at a time.

2.2.2 Connecting to AV Devices

2.2.3 Connecting a VCR/ Set-top box/ DVD Player Using Video Inputs

Connect the TV to a VCR/set-top box/ DVD player using the video inputs.

2.2.4 Connecting a PC using VGA

Connect the TV to your PC to use it as the monitor using the VGA port as shown.

1 Connect the VGA port of the TV to the VGA output of the PC.
2 Connect the PC LINE IN port of your TV to the line out port of the PC to listen to audio from the PC.

2.2.5 Connecting a PC using DVI

Connect the TV to your PC to use it as the monitor using the DVI port as shown.

1 Connect the HDMI 1 or HDMI 2 port of the TV to the DVI output of the PC.
2 Connect the PC LINE IN port of your TV to the line out port of the PC of your TV to listen to audio from the PC.

HDMI IN 1 2 3 HDMI 4 AUDIO IN Audio Cable (Optional) HDMI to DVI Cable (Optional) PC

2.2.6 Connecting HDMI

HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source to the TV.

Refer to the following illustration to connect an HDMI device to the TV.

HDMI IN 1 2 3 HDMI 4 HDMI Cable (Optional) DVD Player

Note:

When the HDMI cable is connected, connecting the audio cable is not necessary. However, it is necessary to do so if a HDMI to DVI cable is connected.

2.2.7 Connecting USB

Connect the USB flash drive to the TV using the USB port as shown. The JPEG and MP3 files are supported.

USB USB Flash Drive (Optional)

Note:

• The USB hub, USB card reader, and digital camera as USB mass storage device are supported.
• The USB HDD is not supported.

2.3 Using the TV

2.3.1 Turning the TV On and Off

1 Press ⏻ on the control panel or remote control. The power LED indicator on the TV changes from red to green, indicating that the TV is on.
2 Press again. The power LED changes from green to red, indicating that the TV is off.

2.3.2 Switching Source Signals

Press INPUT on the control panel or remote control to select the incoming source signal to set TV source for channel search. Press OK to confirm.

2.3.3 Performing an Automatic Channel Search

Before using the TV to view programs, you need to activate the channel search first.

1 Press MENU on the control panel or remote control, then select to enter the Channel menu.
2 Select Antenna to set the signal source. (Air or Cable, default is Air)
3 Select Auto scan, then Start option.
4 Press OK on the remote control to run the channel search.

2.3.4 Selecting Channels

• Press CH▲ on the control panel or ▲CH on the remote control to increase the channel number.
• Press CH▼ on the control panel or CH▼ on the remote control to decrease the channel number.
• Enter the specific channel number by pressing the number buttons on the remote control.

2.3.5 Adjusting the Volume

1 Press VOL+ on the control panel or +VOL on the remote control to increase the volume.
2 Press VOL- on the control panel or VOL on the remote control to decrease the volume.
3 Press to eliminate sounds, and press buttons to restore the original volume. MUTE again or press the volume

2.3.6 Editing Channel Table or Favorite Channel

1 Press MENU on the control panel or remote control, then select to enter the Channel menu.
2 Select Channel List.
3 If you want to add or remove channel from channel table, please select the channel and press OK to mark "S" column. If you want to add or remove favorite channel, please select the channel and press OK to mark "F" column.

3 Adjusting On-Screen Display (OSD) Settings

The On-Screen Display (OSD) menu system provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed through the buttons either on the control panel or the remote control.

Before going to details of each OSD item, you may get acquainted with the placement of the OSD system:

ADJUSTABLE ITEMS:

Displays the settings/ values of the adjustable items.

MAIN MENU:

Displays a list of menu items. The chosen item is marked by a different color than other menu items.

INSTRUCTIONS:

Quick instructions for adjusting the settings.

Picture Audio Channel V-CHIP Setup Picture Mode Brightness Contrast Sharpness Color Tint Color Temp Back Light Digital NR Next Page Move OK Return ExitReturnEnter

Function TV Control Panel Remote Control
OSD Menu MENU		MENU
Up	CH ▲	Arrow ^
Down	CH ▼	Arrow √
Increase	VOL +	Arrow >
Decrease VOL -		Arrow <
Select INPUT/ VOL+		OK/ Arrow >
Return MENU/ VOL-		RETURN/ Arrow <

3.1 OSD Setting Menus

Follow the instructions indicated on the bottom of the OSD Function Menu. Press CH GH/ on the control panel or ^ / ▼ arrow keys on the remote control to scroll through the menus. Press INPUT on the control panel or OK key on the remote control to select an item and then press MENU key to exit the OSD menu.

The following menus can be set by different adjustment methods.

3.2 Adjusting Picture Settings

1 Press MENU to enter the OSD Main Menu screen.
2 Press / on the remote control or CH▲ / CH▼ on the control panel to select Picture menu.
3 Press >/ OK on the remote control or INPUT on the control panel to enter the Picture menu.

Picture Audio Channel V-CHIP Setup Picture Mode Brightness Contrast Sharpness Color Tint Color Temp Back Light Digital NR Next Page Move OK ExitReturnEnter

4 Press ∧ / ∨ on the remote control or CH▲ / CH▼ on the control panel to select an item.

5 Press >/ OK on the remote control or INPUT on the control panel to enter the item.

6 Press < / > on the remote control or VOL+/VOL- on the control panel, to change the scales or press OK on the remote control or INPUT on the control panel to mark an item.

7 Press RETURN to return to the Picture menu.

8 Press MENU to exit the Picture menu.

9 The Picture menu can be used to adjust the Picture mode, Brightness, Contrast, Sharpness, Color, Tint, Color Temp, Back Light, Digital NR, X-Contrast, Aspect Ratio, and Recall settings. Brightness, Contrast, Sharpness, Color, Tint, Color Temp, and Back Light are only available for adjustments if you select User in Picture Mode. Press ◀ on the remote control or VOL+/VOL- on the control panel to adjust these settings.

• The Picture Mode can be set to Vivid, Standard, Movie, or User.
• The Color Temp can be set to Warm, Standard, or Cool.
• The Digital NR can be set to Off, Weak, Medium, or Strong.
  • The X-Contrast can be set to Off or On.
• The Aspect Ratio can be set to Full, Normal, Zoom, Subtitle, Auto, Zoom-1.
• The Recall can be used to reset to the factory defaults.

Note: The items available on the OSD may vary depending on the input signal source.

3.3 Adjusting Audio Settings

1 Press MENU to enter the OSD Main Menu screen.
2 Press / ▲ on the remote control or CH▲/CH▼ on the control panel to select Audio menu.
3 Press > / OK on the remote control or INPUT on the control panel to enter the Audio menu.
4 Press ∧ / ∨ on the remote control or CH▲ / CH▼ on the control panel to select an item.
5 Press > / OK on the remote control or INPUT on the control panel to enter the item.
6 Press < / > on the remote control or VOL+/VOL- on the control panel to change the scales or press OK on the remote control or INPUT on the control panel to mark an item.
7 Press RETURN to return to the Audio menu.
8 Press MENU to exit the Audio menu.
9 The Audio menu can be used to adjust the Audio Mode, Equalizer, Balance, DRC (DTV only), MTS (ATV only), Auto Volume (ATV only), and Recall settings. Equalizer is available for adjustment only if you select User in Audio Mode.

•The Audio Mode can be set to Dynamic, Standard, Soft, or User.
- Press < / > on the remote control or VOL+/VOL- on the control panel to adjust the scales in Equalizer and Balance.
•The DRC (Dynamic Range Control) can be set to RF mode or Line mode.
•The MTS can be set to Stereo, Mono, or SAP.
•The Recall can be used to reset the original factory settings.

Note:

The items available on the OSD may vary depending on the input signal source.

Picture Audio Channel V-CHIP Setup Audio Mode Equalizer Balance DRC Recall Move ExitReturnEnter

3.4 Adjusting Channel Settings

1 Press MENU to enter the OSD Main Menu screen.
2 Press / on the remote control or CH▲ / CH▼ on the control panel to select Channel menu.
3 Press > / OK on the remote control or INPUT on the control panel to enter the Channel menu.
4 Press ∧ / ∨ on the remote control or CH▲ / CH▼ on the control panel to select an item.
5 Press > / OK on the remote control or INPUT on the control panel to enter the item.
6 Press < / > on the remote control or VOL+/VOL- on the control panel to change the scales or press OK on the remote control or INPUT on the control panel to mark an item.
7 Press RETURN to return to the Channel menu.
8 Press MENU to exit the Channel menu.
9 The Channel menu can be used to perform a channel search and edit channel list (see "Performing an Automatic Channel Search" on page 27 and "Editing Channel Table or Favorite Channel" on page 28).

•The Antenna can be set to Air or Cable.

•The Scan Mode can be set to Auto, Analog, or Digital.

•The Auto Scan can be set to Auto, Standard, HRC, or IRC (under Cable mode only).

Note: The Channel settings are available when the signal is set to TV source.

Picture Audio Channel V-CHIP Setup Antenna Scan Mode Auto Scan Channel List Move Exit ExitReturnEnter

3.5 Adjusting V-CHIP Settings

1 Press MENU to enter the OSD Main Menu screen.
2 Press / on the remote control or CH▲ / CH▼ on the control panel to select V-CHIP menu.
3 Press > / OK on the remote control or INPUT on the control panel to enter the V-CHIP menu.
4 Enter the password to activate the menu of V-CHIP.
5 Press ∧ / ∨ on the remote control or CH▲ / CH▼ on the control panel to select an item.
6 Press > / OK on the remote control or INPUT on the control panel to enter the item.
7 Press OK on the remote control or INPUT on the control panel to mark an item.
8 Press RETURN to return to the V-CHIP menu.
9 Press MENU to exit the V-CHIP menu.
10 The V-CHIP menu can set Change Password, Lock, Unrated Block, MPAA, TV Rating, Can. English, and Can. French settings.

Note:

Super Password

Step 1: Input password "7071" (But OSD will display "Error !".)

Step 2: Input password "8512". Then OSD will display "Correct!" and V-CHIP is unlocked.

Picture Audio Channel V-CHIP Setup Enter Password Change Password Lock Unrated Block MPAA TV Rating Can. English Can. French Move ExitReturnEnter

3.6 Adjusting Setup Settings

1 Press MENU to enter the OSD Main Menu screen.
2 Press / ▲ on the remote control or CH▲/CH▼ on the control panel to select Setup menu.
3 Press > / OK on the remote control or INPUT on the control panel to enter the Setup menu.
4 Press ∧ / ∨ on the remote control or CH▲ / CH▼ on the control panel to select an item.
5 Press > / OK on the remote control or INPUT on the control panel to enter the item.
6 Press < / > on the remote control or VOL+/VOL- on the control panel to change the scales or press OK on the remote control or INPUT on the control panel to mark an item.
7 Press RETURN to return to the Setup menu.
8 Press MENU to exit the Setup menu.
9 The Setup menu can be used to adjust the Setup Wizard, OSD Language, OSD Time, Clock Mode, Clock Set, Time Zone, Sleep Time, Vivid Motion, CC Mode, Analog CC, and CC Style settings. Clock Set is only available for adjustments when Clock Mode is set to Manual; Clock Mode can be set to Auto or Manual.

• Setup Wizard can be used to set up OSD Language, Clock Mode, Time Zone, TV RF Source, and Channel Scan.
• The five available OSD languages are: English, Spanish, French, Traditional Chinese, and Simplified Chinese.
• OSD Time can be set to 10 secs, 20 secs, 30 secs, and 60 secs.
• The Time Zone can be set to Eastern, Central, Mountain, Pacific, Alaska, and Hawaii.
• The Sleep Time can be set to Sleep Off, 15 mins, 30 mins, 45 mins, 60 mins, 90 mins, and 120 mins.
  • The Vivid Motion can be set to Off, Low, Medium, and High.
• To change settings in CC Mode, Analog CC, and CC Style, press ∧ on the remote control to select the items and press > / OK to activate the item.

Note:

The items available on the OSD may vary depending on the input signal source.

Picture Audio Channel V-CHIP Setup Setup Wizard OSD Language OSD Time Clock Mode Clock Set Time Zone Sleep Time Vivid Motion CC Mode Next Page Move OK ExitReturnEnter

Situation Solution

No picture and sound.	Connect the power cord properly.Check if the power LED is on or not.Press on the control panel or remote control.Press INPUT to cycle through connected video sources.Press channel up or channel down to switch to other TV channels.Make sure all cables are connected properly.
No picture, or poor picture, sound is OK.	Check the antenna and cable connections.Adjust the brightness in the OSD menus.
Picture is not in color. • Adjust the saturation in the OSD menus.
Picture is OK, no sound.	Make sure the source device is functioning properly.Make sure the audio cable is connected securely.Turn the mute off.Press volume up on the control panel or remote control.
One of the speakers has no sound.	Adjust the balance in the OSD Audio menu.
Cannot receive some TV channels using cable TV.	Try the Auto Scan function in the OSD Channel menu.
Want to reset TV settings. • Use the Setup Wizard function in the OSD Setup menu.
Cannot operate menus.	If OSD items are colored in gray, the system is in a state such that those settings are not available.
Screen image turns over. • Make sure the video signal cable is connected properly.
Snow appears on the screen.	Adjust the location of the antenna, placing it far from roads or sources of interference.Check the antenna and the video signal line connections.
Blurred or overlapped images.	Adjust the sharpness setting.Choose programs with high quality signals.Adjust the direction of the antenna or change the video signal cable.
Remote control doesn't work.	Make sure the battery is inserted correctly.Replace the battery with a new one.Make sure the TV power cord is plugged in securely.Make sure the path between the remote control and the sensor is clear.Try operating the remote control at a closer distance to the TV.
LCD Panel Size 42 inch	TFT
Screen Format 16:9
Panel Resolution 1920	(H) x 1080 (V)
TV System ATV: NTSC	DTV: ATSC
Video System	AV (CVBS) x2
	S-Video x2
	HDMI: HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4
	HDTV (YPbPr) x2
	PC (VGA)
	120 Hz refresh rate
Photo System USB (JPEG)
Audio System	AV/S-Video: (RCA x2) R/L in
	HDTV: (RCAx2) R/L in
	HDMI: HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4
	USB (MP3)
	PC Audio in: Phone jack (Black)
	Audio out: Earphone jack (Green)
Built-in Stereo Amplifier Output	15 W x 2
Power Consumption Standby Mode under 1W, Power on 115W (Typical)
Power Supply AC Input: 100V~240V / 50Hz~60Hz
Dimension W x H x D 40.1 in x 27.8 in x 9.6 in
Weight 47.1 lb (Max.)

PC Mode Support Timing

Mode Resolution(active dot)		Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Nominal Pixel Clock (MHz)	VGA DVI to HDMI
VGA 640x480@60Hz 31.469 59.941 25.175 V V
SVGA	800x600@60Hz	37.879	60.317	40.000	V	V
XGA 1024x768@60Hz 48.363 60.004 65.000 V V
SXGA	1280x1024@60Hz	63.981	60.020	108.000	V	V
WXGA+ 1440x900@60Hz 55.935 59.887 106.500 V V
WSXGA+	1680x1050@60Hz	65.290	59.954	146.250	V	V
VESA 1920x1080@60Hz 67.500 60.000 148.500 V V

Video Mode Support Timing

Resolution(active dot)	HDMI	YPbPr
640x480p@60Hz	V
720x480i@60Hz	V	V
720x480p@60Hz	V	V
1280x720p@60Hz	V	V
1920x1080i@60Hz	V	V
1920x1080p@60Hz	V	V

6

Appendix: Remote Control Guide

6.1 Introduction

The electronic equipment type switch buttons are used for switching the current electronic equipment type on the remote control.

The remote control includes 4 electronic equipment types: DVD, AUDIO, CABLE and TV.

The remote control keypad matrix includes 4 electronic equipment type switch buttons (DVD, AUDIO, CABLE and TV). If switching the current electronic equipment is desired, just press the button of the electronic equipment type you wish to switch to, e.g., press the TV button for TV; the corresponding indicator light then comes on for 2 seconds then it goes off after, and now the current electronic equipment mode has been switched to TV.

6.1.2 Setting Program Codes

Electronic equipment code setting mode is used for setting electronic equipment codes for various types of electronic equipment. Electronic equipment codes are 4 digits. Electronic equipment codes can be looked up in the electronic equipment code list of the appendix.

Electronic equipment code setting mode has the following operating procedures:

1. Select a 4-digit code from the list (start from the first code if more than one).
2. Select the desired corresponding mode of electronic equipment type; for example, DVD players.
3. Press DVD button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered.
4. Hold the electronic equipment button, while pressing digit keys corresponding to the electronic equipment code in sequence. The indicator light will flash once each time when a digit was inputted, and if the indicator light does not come on again after going off, the input code is valid; if the indicator light comes on again after going off for 2 seconds, the code is invalid, and users will be prompted to input other electronic equipment codes.

5. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting.

6. During the setting process, only digit keys '0' through '9' are valid inputs, while other buttons are deemed invalid and do not affect the code setting. For example, inputting "02" then pressing RETURN does affect the "02" already input.

6.1.3 Searching Codes

If the desired electronic equipment code for setting can not be found on the list in the appendix, try to use the code-searching function with operating procedures as follows:

1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered.
2. Hold the electronic equipment button while pressing POWER, then input mode codes 9-9-9 in sequence. If the indicator light does not come on again after going off, the code setting is valid; otherwise the indicator light comes on again after going off for 6 seconds, prompting user to re-enter mode codes.
3. If setting is successful, the electronic equipment code-searching state is entered upon releasing the electronic equipment button. The POWER signal of all manufacturers' codes under the current electronic equipment mode is then transmitted automatically every 5 seconds.
4. During search, the indicator light will flash when the POWER signal of each electronic equipment is transmitted. When one cycle of code-searching is complete, the indicator light will come on for 6 seconds before going off, exiting search mode automatically.
5. Pressing CH+/CH- during search transmits the next/previous electronic equipment POWER signal without waiting for 5 seconds, and resets the timer to trigger another 5 seconds interval.
6. Pressing POWER during search exits search mode without saving the new electronic equipment code; pressing OK during search saves the most recently searched electronic equipment code and then exits search mode.
7. Buttons other than POWER, OK, and CH+/CH- are not functional during search.

6.1.4 Setting Volume Lock

Operating procedures are as follows:

1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered.
2. While holding the electronic equipment button, press VOL+ twice consecutively to assign volume lock to that electronic equipment (meaning the volume buttons will only transmit code values to the assigned electronic equipment even under other electronic equipment modes). The indicator light then goes off and setting mode is exited.
3. While holding the electronic equipment button, press VOL- twice consecutively to cancel volume lock under current mode (for example, if volume lock was set under TV mode and you wish to transmit code values under current DVD mode, just perform this unlock operation, while those electronic equipment modes not operated still have volume locked up). The indicator light then goes off and setting mode is exited.
4. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting.
5. Buttons other than VOL+/VOL- are not functional during search. Volume buttons include VOL+, VOL- and MUTE.

6.1.5 Setting Channel Lock

Operating procedures are as follows:

1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered.
2. While holding the electronic equipment button, press CH+ twice consecutively to assign channel lock to that electronic equipment (meaning the channel buttons will only transmit code values to the assigned electronic equipment even under other electronic equipment modes). The indicator light then goes off and setting mode is exited.
3. While holding the electronic equipment button, press CH- twice consecutively to cancel channel lock under current mode (for example, if channel lock was set under TV mode and you wish to transmit code values under current CABLE mode, just

perform this unlock operation, while those electronic equipment modes not so operated still have channel locked up). The indicator light then goes off and setting mode is exited.

1. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting.
2. Buttons other than CH+/CH- are not functional during search. Channel buttons include CH+ and CH-.

6.1.6 Factory Setting Mode

Factory setting operation procedures are as follows:

1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered.
2. While holding the electronic equipment button, first press < (left arrow), then press OK. The indicator then goes off and setting mode is exited, showing factory setting has been restored.
3. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting.
4. Pressing any of the electronic equipment buttons to enter factory setting operation mode.
5. The default current electronic equipment is TV upon first power-on.

Electronic equipment	Code Note
TV 1001		Provided by manufacturer
CABLE -- Transmit TV code
AUDIO -- Transmit TV code
DVD -- Transmit TV code

1. Default volume lock setting:

Electronic equipment	VOL+, VOL- and Mute Note
TV Transmit TV code		Provided by manufacturer
CABLE Transmit CABLE code Unlocked
AUDIO Transmit AUDIO code Unlocked
DVD Transmit DVD code Unlocked

1. Default channel lock setting:

Electronic equipment	CH+ and CH- Note
TV Transmit TV code		Provided by manufacturer
CABLE Transmit CABLE code Unlocked
AUDIO Transmit AUDIO code Unlocked
DVD Transmit DVD code Unlocked

Note:

Each re-powering restores factory setting, and all electronic equipment modes transmit TV-mode infrared (IR) signal until being set up through code setting. For example, setting the electronic equipment code of CABLE as '0001' stops transmitting TV code, whereas AUDIO and DVD continue to transmit TV code.

6.1.7 Description

There is no multi-function code setting operation under TV mode but a fixed code for the TV manufacturer. Therefore, code setting and code-searching functions are disabled under this mode; other functions such as volume lock, channel lock and code display are operable.

6.2 Other Descriptions

6.2.1 Double Clicking

At any time, only when a single button is pressed, the corresponding code is just output. Two or more buttons simultaneously pressed do not output any code.

6.2.2 Buttons Information

Except TV equipment, all the buttons on remote controls corresponding to other electronic equipments (AUDIO, CABLE, and DVD) are not necessarily functional, but most of those remote controls only include power control, channel control, volume control, etc.

6.2.3 Power-out Protection Capability

During battery replacement, all settings are only maintained by external capacitors. Data therefore may be lost after power-out, and factory setting will be restored.

6.3 Component Program Codes

Setup Code for VCR's
ABC 2102
Admiral 2012,	2022
Aiko 2025
Aiwa 2005,	2027
Alienware 2102
America Action	2025
American High	2004
Amoisonic 2027
Anam	2020, 2005, 2024, 2025
Anam National	2020
Asha 2024
Audiovox 2005,	2025
Beaumark 2024
Bell & Howell	2017
Broksonic	2021, 2018, 2022, 2001, 2027
Calix 2005
Cannon 2004
Carver 2016
CCE 2015,	2025
Changhong	2012, 2016
Citizen	2005, 2025
Colt	2015

Setup Code for VCR's
Craig	2005, 2011, 2024, 2015
Curtis Mathes	2913, 2004, 2020
Cybernex	2024
CyberPower 2102
Daewoo	2010, 2017, 2025
Dell	2102
Denon	2008
Direc TV	2059
Durabrand 2007	2006
Electrohome	2005
Electrophonic	2005
Emerex 2002
Emerson	2004, 2005, 2021, 2024, 2010, 2018, 2009, 2022, 2001, 2025, 2027
Fisher	2011, 2017
Fuji	2004, 2003
Fujitsu	2010
Gateway	2102
GE	2013, 2004, 2024
General 2010
Go Video	2026

Setup Code for VCR's
GoldStar	2005, 2022, 2006, 2023
HaoJie 2024
Harman/ Kardon	2016, 2006
Harwood 2015
Hewiett Packard	2102
HI-Q	2011
Hitachi 2005, 2008
Howard Computers	2102
HP	2102
Hughes Network Systems	2008, 2059
iBUYPOWER	2102
JVC	2010, 2014
KEC	2005, 2025
Kenwood	2014, 2006
KLH	2015
Kodak	2004, 2005
Kolin	2009
LG	2005, 2010, 2008, 2022, 2006
Logik	2015
LXI	2005
Magnavox	2004, 2007, 2016
Magnin 2024
Marantz 2004, 2016
Marta 2005
Matsushita 2004, 2020
Media Center PC	2102
MEI 2004
Memorex	2004, 2020, 2005, 2012, 2007, 2011, 2024, 2017, 2022, 2027
MGA 2024, 2009
MGN Technology	2024
Microsoft 2102
Mind 2102
Minolta 2008
Mitsubishi 2014, 2009
Motorola 2004, 2012
MTC 2024
Multitech 2015
NEC	2004, 2005, 2012, 2017, 2014, 2006
Newave 2005
Nikko 2005
Noblex 2024
Northgate	2102

Setup Code for VCR's
Olympus	2004
Optimus	2087, 2020, 2005, 2012, 2017, 2026
Orion	2021, 2022, 2001, 2027
Panasonic	2087, 2004, 2020, 2043, 2023
Penney	2004, 2005, 2024, 2008, 2006
Pentax 2008
Philco 2004, 2027
Philips	2004, 2016, 2059, 2044
Pilot	2005
Pioneer 2008, 2014
Polk Audio	2016
Profitronic	2024
Proscan	2013
Protec	2015
Puslar	2007
Qisheng	2013
Quasar	2004, 2020
Radix	2005
Randex 2005

Setup Code for VCR's
RCA	2013, 2004, 2024, 2008, 2077
Realistic	2004, 2005, 2012, 2011, 2017
Replay TV	2043
Runco	2007
Sampo	2005, 2012
Samsung	2024, 2010, 2026
Sanky 2012,	2007
Sansui	2014, 2022, 2027
Sanyo	2011, 2024, 2017
Scolt	2021, 2010, 2018, 2009
Sears	2004, 2005, 2011, 2008, 2017
Sharp 2012,	2022
Shintom	2015
Shogun	2024
Singer	2015
Sonic Blue	2043
Sony	2004, 2002, 2003, 2048, 2102
STS	2008
Sylvania	2004, 2016, 2009
Tashiko 2005
Tatung2010, 2014
Technics 2004, 2020
Teco	2004, 2005, 2012, 2006
Teknika 2004, 2005
Tivo	2048, 2044, 2098, 2059
TMK 2024
Toshiba	2010, 2008, 2014, 2009, 2098, 2079, 2102
Totevision 2005, 2024
Touch2102
Unitech 2024
Vector 2010
Vector Research	2006
Victor 2014
Video Concepts	2010
Videomagic 2005
Vidosonic 2024
Wards	2013, 2004, 2012, 2011, 2016, 2024, 2008, 2015
White Westinghouse	2022, 2015

Setup Code for VCR's
XR-1000 2004,	2015
Yamaha 2006

Setup Code for DVD's
Aiwa 2049
Akai 2062
Allegro	2076
Apex Digital	2053, 2058, 2067, 2086, 2066, 2084
Blaupunkt	2058
Blue Parade	2039
Broksonic	2055
Changhong	2046, 2086
CineVision	2076
Coby 2090
Curtis Mathes	2091
CyberHome	2082, 2081, 2094, 2070, 2093
Daewoo	2073, 2097, 2076
Denon	2028
DVD2000	2031
Emerson	2042, 2054
Enterprise	2042
Funai	2054
Gateway	2096, 2088
GE	2032. 2058

Setup Code for DVD's
Go Video	2060, 2073, 2092, 2063, 2089, 2076, 2100
Greenhill	2058
Harman/ Kardon	2041,2057
Hitachi	2040, 2052
Hiteker	2053
Initial 2058
Integra	2046
JBL	2057
JVC	2038, 2045, 2075
Kenwood	2028, 2035
KLH	2085, 2080, 2095
Koss	2051
Lasonic	2068
LG	2042, 2076, 2069
Lite-ON	2096, 2085
Loewe	2030
Magnavox	2029, 2036, 2054
Marantz	2036
Memorex	2055
Microsoft	2032
Mintek	2058
Mitsubishi	2099, 2031
Nesa	2058
Norcent 2078
Onkyo	2029, 2046, 2064
Oritron 2051
Panasonic 2028, 2101
Philips	2029, 2036, 2050
Pioneer 2033, 2039
Polarold 2090, 2086
Polk Audio 2036
Portland 2062
Proscan 2032
Qwestar 2051
RCA	2032, 2039, 2058, 2072
Rio 2076
Rotel 2045
Sampo 2061, 2056
Samsung	2028, 2040, 2089, 2071
Sansui 2055
Sanyo 2055
Sharp 2047, 2061
Sharper Image	2093
Sherwood 2062
Shinco 2058
Shinsonic 2034
Sonic Blue 2076, 2092

Setup Code for DVD's
Sony	2034, 2074, 2083
SVA 2085
Sylvania	2054
Symphonic	2054
Teac	2058
Technics	2028
Theta Digital	2039
Toshiba 2029, 2055
V, Inc.	2019
Urban Concepts	2029
Xbox	2032
Yamaha	2028, 2036, 2037
Zenith	2029, 2042, 2076

Setup Code for Cable
ABC	0002, 0003, 0006
Americast	0039
Bell & Howell	0006
Bell South	0039
Clearmaster	0038
ClearMax 0038
Coolmax	0038
Daeryung	0059, 0037, 0020, 0003

Setup Code for Cable
Digi	0024
Diector	0019
Dumont	0024
Gehua	0019
General Instrument	0019, 0033, 0015, 0002, 0006
GoldStar	0010
Hamlin	0004, 0014
Hitachi	0006
Jerrold	0019, 0033, 0015, 0002, 0005, 0006
KNC 0003
LG	0010
Memorex	0001
Motorola	0019, 0033, 0015, 0046, 0050
MultiVision	0005
Pace	0059, 0012
Panasonic	0001, 0003, 0008
Panther	0024
Paragon	0001
Philips 0017, 0049
Pioneer	0059, 0037, 0010, 0022
Pulsar	0001
Quasar 0001
RadioShack 0038
Regal 0016, 0014
Runco 0001
Samsung 0001, 0010
Scientific Atlanta	0059, 0037, 0020, 0003
Sony 0041
Starcom 0002, 0006
Supercable 0015
Supermax 0038
Tocom 0005
Torx0002
Toshiba 0001
Trans PX 0015
Tristar 0038
TS 0002
V2	0038
Viewmaster	0038
Vision	0038
Vortex View	0038
Zenith	0001, 0021, 0039

Setup Code for Satellite
AlphaStar	0030
Chaparral	0011
Crossdigital	0043

Setup Code for Satellite
DirecTV	0018, 0023, 0025, 0044, 0013, 0029, 0057, 0028, 0034, 0058, 0060, 0043, 0007, 0051, 0056, 0053, 0052, 0042
Dish Network System	0040, 0031, 0054
Dishpro	0040, 0031, 0054
Echostar	0040, 0031, 0054
Expressvu	0031
GE	0023
General Instrument	0036
GOL	0031
Hisense	0055
Hitachi	0034
HTS	0031
Hughes Network Systems	0044, 0029, 0057, 0053
I-Lo	0055
JVC	0031
LG	0052, 0045
Magnavox	0028, 0027
Memorex	0028
Mitsubishi	0029
Motorola	0036
Next Level	0036

Setup Code for Satellite
Panasonic	0013, 0026
Paysat	0028
Philips	0044, 0029, 0057, 0028, 0060, 0027, 0007, 0053
Proscan	0018, 0023
Proton 0055
RadioShack	0036
RCA	0018, 0023, 0035, 0009, 0051
Samsung	0047, 0043, 0042
Sony 0025, 0056
Star Choice	0036
Tivo	0044, 0053
Toshiba	0029, 0057, 0032, 0048
Ultimate TV	0056, 0051
Uniden	0028, 0027
US Digital	0055
USDTV	0055
Voom	0036
Zenith 0058

Setup Code for CD
Aiwa	3019
Burmester	3027
California Audio Labs	3004
Carver 3019, 3022
Dkk 3001
DMX Electronics	3019
Dynamic Bass	3022
Fisher 3022
Garrard 3027
Genexxa 3005
Harman/ Kardon	3019, 3020
Hitachi 3005
Integra 3013
JVC 3009
Kenwood	3030, 3003, 3007, 3006, 3023
Krell 3019
Linn 3019
Magnavox 3019
Marantz	3030, 3004, 3019
MCS 3004
Miro 3001
Mission 3019
MTC 3027
NSM 3019
Onkyo 3013
Optimus	3001, 3005, 3007, 3027, 3022

Setup Code for CD
Panasonic	3004
Parasound	3027
Philips	3030, 3019
Pioneer 3038,	3005
Polk Audio	3019
Proton	3019
QED 3019
Quad	3004
RCA	3038, 3005,3027, 3022,3008
Realistic	3027, 3022
Rotel	3019, 3027
SAE 3019
Sansui 3019
Sanyo 3022
SAST	3049
Sharp	3007
Silsonic 3006
Sonic Frontiers	3019
Sony	3028, 3001,3012
TAG Mclaren	3019
Tascam 3027
Teac	3027
Technics	3004
Victor	3009
Wards 3019,	3008

Setup Code for CD
Yamaha	3006
Zonda	3019

Setup Code for Audio Amp's
Bose	3033
GE	3011
JVC 3059
NEC	3024
Optimus	3026
Realistic	3026
Shure	3024
Sony	3034
Soundesign	3011
Victor	3059
Wards	3011
Yamaha	3025, 3016

Setup Code for Audio Amp / Tuner's
ADC	3029
Aiwa 3052, 3015
Anam	3057, 3039
Audiotronic	3042
Bose	3043
Capetronic	3027
Carver 3042
Denon 3051, 3040
Fonmix 3051
Harman/ Kardon	3014
Hitachi 3047
Integra 3017
JBL 3014
JVC 3010
Kenwood 3050, 3056
KLH 3053
Magnavox	3042, 3046, 3029
Marantz 3042, 3046
Onkyo 3035, 3017
Optimus	3036, 3018, 3002, 3031, 3029
Proscan 3044
Qisheng 3057
RCA	3036, 3057, 3044, 3029, 3039
Silsonic 3021
Sony	3037, 3054, 3045, 3058
Soundesign	3032
Stereophonics	2025
Sunfire	3050

Setup Code for Audio Amp / Tuner's
Teac	3049
Technics	3043, 3055
Thorens	3042
Victor 3010
Wards	3002
Yamaha	3021, 3048, 3041

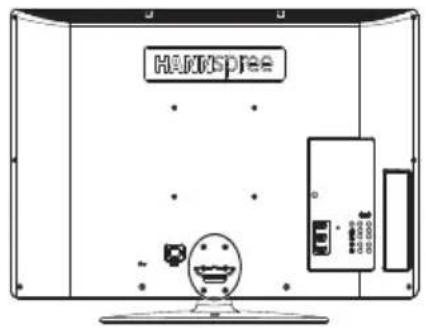

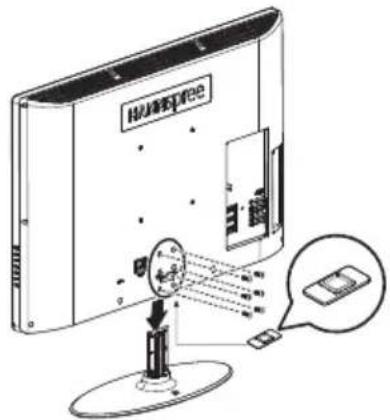

Dissembling the stand base:

1 Disconnect all the cables and cords from the TV to prevent breakage.
2 Carefully place the TV face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to the TV.
3 Remove the six (6) screws so that the stand base can be removed.
4 Gently remove the stand base.
5 Please add rubber cover when this TV wall mount on the wall.

HANDSPREE

( For reference only )

快拼机柜

Wall mounting the TV:

1 Purchase a VESA compatible wall bracket: VESA 200 X 200, 4 holes, M5, 12 mm, 30kg.
2 Locate your ideal TV position on the wall.
3 Fix the wall bracket firmly on the wall.
4 Secure the TV to the bracket using the 4 mount holes on the back and center of the TV.

RADIOSOURCE

Note:

• Please read the instructions of your specific wall bracket to properly wall mount the TV.
• The pitch of the mounting holes is 200mm horizontally and 200mm vertically.
  • The screws type required is metric: M5, 12mm length.
• The 42" TV stand base can be screwed on a table or a hard surface using the hole on the back of the stand base.

*Installing the LCD TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Please contact with Hannspree dealers in wall mount bracket. You can ask a qualified service personnel about using an optional bracket to mount the TV to the wall.

8

Using the Cable Organizer

1 Route the cables through the cable clamp.

HANNSPree
