| Product Type | Compact Disc Player |
| Model | XL-V130BK |
| Brand | JVC |
| Signal Detection System | Non-contact optical system (laser) |
| Sampling Frequency | 44.1 kHz |
| Power Requirements | AC 230 V ~, 50 Hz |
| Power Consumption (ON) | 10 W |
| Power Consumption (Standby) | 4 W |
| Dimensions (W x H x D) | 435 x 101 x 281 mm |
| Weight | 3.3 kg |
| Frequency Response | 2 Hz – 20,000 Hz (±1 dB) |
| Dynamic Range | >98 dB (at 1 kHz) |
| Signal-to-Noise Ratio | >106 dB |
| Total Harmonic Distortion | <0.0025% (at 1 kHz) |
| Channel Separation | >94 dB (at 1 kHz) |
| Wow and Flutter | Less than measurable limit |
| Output Level | 2.0 Vrms (at 10 kΩ) |
| Playback Modes | Normal, Program (up to 32 tracks), Random, Repeat (All/1) |
| Time Display Modes | Elapsed track, Remaining track, Total disc elapsed, Total disc remaining |
| Connections | Analog audio output (RCA), COMPU LINK-3 (SYNCHRO) |
| Supplied Accessories | Audio cord, COMPU LINK cord, AC power cord |
| Laser Safety | Class 1 laser product; invisible laser radiation when open |
| Disc Handling | Clean with soft dry cloth from center outward; do not use solvents |
| Repair Information | No user-serviceable parts; refer servicing to qualified personnel |
Frequently Asked Questions - XL-V130BK JVC
User questions about XL-V130BK JVC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your CD Player in PDF format for free! Find your manual XL-V130BK - JVC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XL-V130BK by JVC.
USER MANUAL XL-V130BK JVC
Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.
Model No.
Serial No.
Warnings, Cautions and Others
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical approved type, as originally fitted.
If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow the instructions given below:
IMPORTANT.
DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wires in the mains lead on this product are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
Caution — POWER switch!
Disconnect the mains plug to shut the power off completely. The POWER switch in any position does not disconnect the mains line.
The power can be remote controlled for XL-V230BK.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
IMPORTANT FOR LASER PRODUCTS
REPRODUCTION OF LABELS
①CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE
②WARNING LABEL, PLACED INSIDE THE UNIT
DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)
- CLASS 1 LASER PRODUCT
- DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
- CAUTION: Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel.
We would like to thank you for purchasing one of our JVC products.
Before connecting this unit to the wall outlet, please read the instructions carefully to ensure that you obtain the best possible performance.
If you have any questions, please consult your JVC dealer.
Table of contents
INTRODUCTION....1
Precautions ...... 1
About this manual ....1
Names of buttons 2
BEFORE USING FOR THE FIRST TIME .... 4
Installing the unit 4
Connecting to other equipments ....4
Supplying the power 5
To connect the AC power cord of the main unit ..... 5
Installing the batteries ....6
To install the batteries in the remote control unit ..... 6
COMPU LINK connection 6
BASIC OPERATIONS ...... 7
Basic functions for disc playback 7
Turning on the power of this unit 7
Loading a disc in the disc tray 7
Remote control operation 7
Playing a disc 8
Stopping playback 8
Locating a point to start playback ....8
Skipping to a desired track 8
Skipping to a desired index 8
Searching for a desired section 9
Specifying a desired track 9
Displaying the time 9
Switching the time display on XL-V230BK 9
Displaying the time on XL-V130BK 9
VARIOUS PLAYBACK PATTERNS .... 10
Playing tracks in a desired order 10
Playing tracks in a random order 10
Playing repeatedly .... 11
Repeating whole disc 11
Repeating one track 11
GENERAL INFORMATIONS.... 12
COMPU LINK remote control system 12
Care and handling 13
Troubleshooting 14
Specifications.... 15
INTRODUCTION
Precautions
Load compact disc only
Never insert anything other than a compact disc into any part of the player.
If a problem persists
If something goes wrong, turn off the power immediately. If the same problem reoccurs when the power is turned on once more, turn off the power again and consult your JVC dealer.
Handling the power cord
When unplugging from the wall socket, always pull the plug body, never the power cable.
Volume settings
A CD player has almost zero background noise. Because of this, the technique of listening to the background level and then setting the volume before the music starts, as used with analog turntables or tape decks, cannot be used. If you raise the volume level too high, speaker damage may result.
Condensation
The CD player uses optical components. If it is moved from a cold location to a warm one, or is used in a room subject to excessive humidity or where a fire has just been lit, condensation could form on the optical components.
This may prevent the laser beam from being properly transmitted and thus causes noise or even a malfunction.
If condensation has formed and the CD player does not function correctly, we recommend that you leave it turned on for an hour or two. If at the end of this time the CD player still does not function properly, please consult your JVC dealer.
Transporting the unit
When carrying this unit, it is best to avoid either tilting it or turning it upside-down. Where you cannot avoid doing so, please remove the disc first.
Using compact discs
Compact discs are made of plastic and can be easily damaged. If the disc is dirty, scratched, warped or otherwise damaged, the digital information may not be picked up correctly.
Applicable discs
This unit can only be used with compact discs bearing the mark below. Never use discs of other types.
About this manual
This manual covers the operating instructions for the compact disc player XL-V130BK and XL-V230BK.
There are several functions which require separate instructions for each model. Please check the model number stated on the carton box, and follow the descriptions applicable to your unit.
This manual is organized as follows:
The first part, "INTRODUCTION", gives you the precautions when using this unit, and shows you the names of buttons on the main unit and the remote control unit.
The second part, "BEFORE USING FOR THE FIRST TIME", tells you what kind of operations you should do before playing a disc. This part describes where to place the unit for best results, how to install batteries in the remote control unit and how to connect this unit to the amplifier/receiver and other components.
The third part, "BASIC OPERATIONS", describes how to load a disc, and convenient basic functions for playing disc.
The fourth part, "VARIOUS PLAYBACK PATTERNS", describes various functions for playing disc, and convenient functions for recording.
The fifth part, "GENERAL INFORMATIONS", describes the COMPU LINK remote control system which facilitates various operations between JVC components, and explains how to take care of discs.
This part also includes "Troubleshooting" which tells you how to check the unit when a malfunction occurs, and the technical informations regarding this unit.

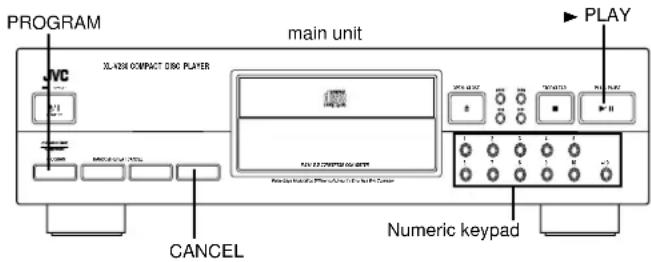

Names of buttons
Main unit
Remote control unit (XL-V230BK only)
BEFORE USING FOR THE FIRST TIME
Installing the unit
Best location
Select a location which is level, dry and neither too cold nor too hot (temperature range 5°C (41°F) to 35°C (95°F)). Also, avoid dusty locations or any location subject to vibration.
If interference occurs
If this equipment is placed near a tuner or a radio receiver tuned to AM frequencies, interference may occur. If this happens, we recommend either that you move this unit as far away as possible from the tuner or receiver or briefly turn off the power to this unit.
Connecting to other equipments
Connecting to an amplifier or receiver allows you to listen to the sound from the speakers.
Connect the OUTPUT jacks of this unit to the line input jacks of an amplifier or receiver with the supplied audio cord.
Notes
- Never connect the OUTPUT jacks to the PHONO jacks of the amplifier or receiver. This may cause damage to the components.
- Make sure that the same channels are connected between this unit and the amplifier or receiver: LEFT to LEFT and RIGHT to RIGHT.
- Do not connect the power plug until all connections are complete.
- Connect the plugs firmly. Loose connections may cause noise or malfunction.
Supplying the power
To connect the AC power cord of the main unit
The AC power cord is supplied separately and must be connected to the unit.
Plug the AC power cord into the AC POWER CORD inlet of this unit and connect to the wall outlet after all connections are complete.
Note
When using the COMPU LINK Remote Control System, do not connect the power cord to the SWITCHED AC OUTLET of an amplifier or receiver.
Installing the batteries
(XL-V230BK Only)
To install the batteries in the remote control unit
Before operating the remote control unit, install two batteries.
- Remove the rear cover of the remote control unit by pressing down and simultaneously pulling it backwards.
Incorrect use of batteries can cause corrosion or damage. Note the following points to lengthen battery life.
• Install batteries observing the correct polarity, (+) and (−).
- Do not use new and old batteries simultaneously.
- Batteries with similar shapes may have different voltage ratings. Be sure to use the correct batteries.
- Remove batteries from the remote control unit if it will not be used for a long period of time.
- Do not expose batteries to heat or flame.
Battery replacement
Service life of batteries depends on the condition of use; standard life is about one year. When the batteries become weak, the operating distance of the remote control unit becomes short. If this happens, replace the batteries R03(UM-4)/AAA(24F) with new ones.
Note
• The lower the temperature, the shorter the battery life.
COMPU LINK connection
JVC's COMPU LINK Remote Control System provides unified control over system components connected with COMPU LINK. Connecting JVC audio components with the COMPU LINK jacks automatically controls relative operations between components and facilitates various operations. With the COMPU LINK connection to an amplifier or receiver, you can operate XL-V130BK/XL-V230BK with the amplifier or receiver's remote control unit. Synchronized recording is also available with this feature.
Connecting the COMPU LINK cord
The COMPU LINK-3 SYNCHRO jacks are used to output and input the control signal for the COMPU LINK remote control system.
COMPU LINK-compatible products are provided with the jacks marked COMPU LINK-1, COMPU LINK-2 or COMPU LINK-3, referring to the COMPU LINK version. XL-V130BK/XL-V230BK is equipped with COMPU LINK-3. You can connect XL-V130BK/XL-V230BK also to a component with a lower COMPU LINK versions. But, in that case, only the lower versions' features will be available.
Plug the supplied COMPU LINK cord into the COMPU LINK-3 SYNCHRO jack on the rear panel of XL-V130BK/XL-V230BK. Plug the other end into the COMPU LINK jack of the other component. If there are two COMPU LINK jacks, plug it into either of them.
Connecting the COMPU LINK system components with the COMPU LINK cords
Supplied COMPU LINK cord
CD player
Cassette deck Turntable
BASIC OPERATIONS
Basic functions for disc playback
Turning on the power of this unit
Press the ⏻/1 (STANDBY/ON) button to turn on this unit. The STANDBY indicator is turned off and the display is turned on.
Remote control unit (XL-V230BK ONLY)
Main unit
Press again to turn the power off and activate the standby mode. The STANDBY indicator is lit.
The power is automatically turned on also by;
- Pressing the ▲ OPEN/CLOSE button.
- Pressing the ▶ button on the remote control unit or the ▶/II PLAY/PAUSE button on the main unit.
Notes
- A small amount of power (4 watts) is consumed even in the standby mode.
- To turn the power off completely, disconnect the power cord from the wall outlet.
Loading a disc in the disc tray
Use the ▲ OPEN/CLOSE button to open and close the disc tray.
Remote control unit (XL-V230BK ONLY)
Main unit
OPEN/CLOSE
- Open the disc tray by pressing the ▲ OPEN/CLOSE button.
- Place a disc on the disc tray according to the groove with its label side up.
- Close the disc tray by pressing the ▲ OPEN/CLOSE button.
Note
- When loading a disc in the disc tray, be sure to put the disc according to the groove. Otherwise, the disc will be damaged when the disc tray is closed, and the disc cannot be removed from the unit.
Remote control operation (XL-V230BK Only)
Point the remote control unit towards the remote sensor and operate it steadily and carefully. The remote control unit can be used within a range of about 7 meters (23 feet) from the remote sensor, and at angles of up to about 30 degrees.
Playing a disc
Press the ▶ button on the remote control unit or the ▶/II PLAY/PAUSE button on the main unit.
Remote control unit (XL-V230BK ONLY)
Main unit
The ▶ indicator lights on the display and playback starts. When no disc is loaded in the unit, the disc tray opens.
To stop playback temporarily, press the II button on the remote control unit or the ▶/II PLAY/PAUSE button on the main unit.
The Ⅱ indicator lights on the display and playback stops temporarily. To resume playback, press the ▶ button on the remote control unit or the ▶/Ⅱ PLAY/PAUSE button on the main unit.
Stopping playback
Press the ■ button.
Remote control unit (XL-V230BK ONLY)
Main unit
Locating a point to start playback
Skipping to a desired track
Use the ◀◀◀/▶▶▶ buttons.
Remote control unit (XL-V230BK ONLY) AUTO SEARCH/CHECK
Main unit
To skip back to the beginning of the track being played, tap the I◄◄ button. When the beginning of the track is reached, tapping this button again skips to the previous track.
To skip to the next track, tap the ▶▶I button.
When using the ◀◀▶▶▶ buttons on the main unit, tap them until the desired track appears.
Skipping to a desired index (XL-V230BK Only) (for a disc with INDEX)
Use the / INDEX buttons.
Remote control unit
To skip back to the beginning of the index being played, tap the ← INDEX button. When the beginning of the index is reached, tapping this button again skips to the previous index.
To skip to the next index, tap the INDEX button.
Searching for a desired section
Keep the ◀◀/▶▶ SEARCH buttons on the remote control unit or the ◀◀/▶▶ SEARCH buttons on the main unit pressed during playback.
Playback advances or reverses rapidly.
While the ◀ button is kept pressed, playback rapidly reverses toward the beginning of the track. While the ▶ button is kept pressed, playback rapidly advances toward the end of the track. When the desired section is reached, release the button. The player resumes normal playback from that point.
Note
Two speeds are available for fast forward and fast backward. Pressing and holding the button provides the faster speed.

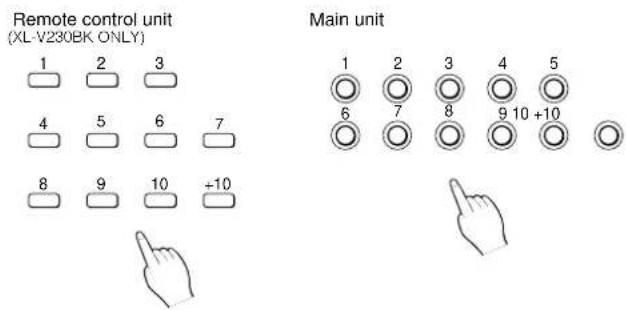

Specifying a desired track
To specify the desired track number, use the numeric keypad (1-10, +10).
The unit searches for the selected track and playback starts automatically.
When selecting track number 10 or less, press the corresponding numeric button. When selecting track number 11 or above, use the [+10] button.
Example: To select track number 12, press [+10] and then [2].
To select track number 25, press [+10] twice and then [5].
To select track number 30, press [+10] twice and then [10].
Note
The track number which does not exist on the selected disc, cannot be selected.
Displaying the time
Switching the time display on XL-V230BK
Each time the DISPLAY MODE button is pressed, the time display changes as the following.
Remote control unit
The corresponding indicator lights in each time mode.
EACH: Shows the elapsed time of the track being played.
EACH REMAIN: Shows the remaining playback time of the track being played.
TOTAL: Shows the total playing time of the disc being played.
TOTAL REMAIN: Shows the remaining playback time of the disc being played.
Displaying the time on XL-V130BK
The XL-V130BK has the following time displays.
EACH: Shows the elapsed time of the track being played.
EACH REMAIN: Shows the remaining playback time of the track being played.
TOTAL: Shows the total playing time of the disc being played.
VARIOUS PLAYBACK PATTERNS
Playing tracks in a desired order
You can play only the favorite tracks in any desired order.
- In stop mode, press the PRAGRAM button so that "PRGM" lights on the display.
- Select the track number with the numeric keypad.
Refer to "Specifying a desired track" on page 9 for entering the track number.
The selected track number is programmed and the following display appears.
Display shows the track number selected for step 1.
- If you want to cancel the displayed program step, press the CANCEL button and then enter the new track number.
- Repeat step 2 for other tracks to be programmed.
You can program up to 32 tracks.
- Start playback by pressing the ▶ button.
The programmed tracks are played in the programmed order.
- You can skip to a desired program step with the ◀◀ or ▶▶ button.
- You can add tracks in the program during the playback.
To check the program contents
Press the ◀◀ or ▶▶◆ button during stop mode. Each time the ◀◀◀ or ▶▶◆ button is pressed, the program contents are displayed in the programmed order or the reverse order.
To clear the entire program
In stop mode, press the ■ STOP/CLEAR button on the main unit. The program contents will be cleared, however, the program mode is not canceled.
To exit program mode
Press the PROGRAM button again, and the program mode is cancelled.
Playing tracks in a random order
You can select and play tracks in a random order. Selections are made so that each track in the disc is played only once.
- Press the RANDOM button so that the "RANDOM" indicator lights on the display.
●To skip to the track to be played next, press the ▶▶▶ button.
To exit random playback
Press the stop button, and the random mode is cancelled.
Playing repeatedly
You can repeatedly play the whole disc or one track. It is also possible to utilize this function in combination with random/program playback function.
Repeating whole disc
Press the REPEAT (ALL/1) button so that the REPEAT indicator lights on the display.
All tracks are played repeatedly.
Repeating one track
Press the REPEAT (ALL/1) button so that the REPEAT 1 indicator lights on the display.
The displayed track is played repeatedly.
To cancel repeat mode
Press the REPEAT (ALL/1) button so that the REPEAT and REPEAT 1 indicators go out.
GENERAL INFORMATIONS
COMPU LINK remote control system
The COMPU LINK Remote Control System controls relative operations between components automatically and facilitates various operations.
This is a system originated and developed by JVC for facilitating various system operations.
The following is a brief explanation of this system:
Automatic source selection
When the supplied COMPU LINK cord is utilized to connect this unit to others equipped with COMPU LINK jacks, switching-in of each system component can be performed with a single touch on the source selector button located on a JVC amplifier or receiver.
When selection is carried out in this manner, the corresponding unit will automatically start operation.
Upon pressing of the play button, the source selector of the amplifier or receiver changes automatically. When a new unit is switched in, the previously selected component stops operation within five seconds.
Synchronized recording
Synchronized recording refers to the process in which a JVC cassette deck starts recording, synchronized with this unit. Synchronized recording is carried out as follows:
- Set the cassette deck to the recording pause mode in accordance with its instructions.
- To record only certain tracks, program the tracks in any order, as desired.
- Press the ▶/□ PLAY/ PAUSE button on the front panel of this unit. The cassette deck automatically starts recording, synchronized with this unit.
Notes
- Synchronized recording stops automatically when this unit stops playback.
- To cancel synchronized recording, press the ■ STOP button of this unit or the cassette deck.
- To properly operate the synchronized recording, the buttons/controls other than POWER, ■ STOP and OPEN do not function.
- If the recording pause mode is set on the cassette deck by pressing the II PAUSE button after pressing the ● REC and ▶ PLAY buttons simultaneously, synchronized recording is not possible. For details, refer to the instructions for the cassette deck.
Automatic power on/off function
This function is to control the power on/off of the receiver/amplifier or this unit respectively as the following.
- When this unit enters playback mode, the power of the receiver or amplifier is turned on.
- When the source selector of the receiver/amplifier is set to CD function mode, the power of this unit is turned on.
Notes
- Abnormal operation may result if the power supply of the component(s) is interrupted. If this happens, you must start over again.
- Ensure that the COMPU LINK jacks of the each component are connected with the supplied COMPU LINK cord. Also, be sure to fully read the instructions for each component.
- When the power of the amplifier or receiver is switched off, this unit is also turned off automatically.
Care and handling
How to handle CDs
When handling compact discs, do not touch the surface of the disc (reflective silver side - the side without the label).
Since compact discs are made of plastic, they are easily damaged. If the disc gets dirty, dusty, scratched or warped, the sound will not be picked up correctly and, in addition, such discs may cause the CD player to malfunction.
Do not damage the label side, stick paper to or use any adhesive on this surface.
Make sure that discs are kept in their cases. If discs are piled one on top of another without their protective cases, they can be damaged. Do not put discs in any location where they can be exposed to direct sunlight - or in any place where humidity or temperature is high. Avoid leaving discs in your car!
When there are fingerprints or other dirt adhering to a disc, wipe the disc with a soft, dry cloth with a movement going from the inside outwards.
If difficult to clean, wipe the disc with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.
What appears to be a malfunction may not always be serious. Please go through the following list before requesting service.
| Symptom Possible cause Remedy | ||
| The unit is not operative. | Power plug is disconnected from the AC outlet. | Connect the plug to an AC outlet. |
| The AC power cord plug is disconnected from the AC power cord inlet of this unit. | Connect the plug to an AC power cord inlet. | |
| Disc is not loaded. | Load a disc in the disc tray. | |
| The remote control unit does not function.(XL-V230BK only) | Batteries are exhausted. | Replace both batteries. |
| There is an obstacle between remote control unit and the remote sensor of the main unit. | Remove the obstacle. | |
| Direct sunlight shines on the remote sensor of the main unit. | Shade the unit from the direct sunlight. | |
| Playback is not possible. | Disc is inserted upside down. | Load a disc with its label-side up in the disc tray. |
| Disc is not loaded in the correct position. | Load the disc according to the groove of the disc tray. | |
| Moisture is condensed inside the unit. | Leave the unit turned on until the moisture evaporates. | |
| The reproduced sound includes noise. | Disc is dirty. | Wipe off the disc surface with a soft cloth. |
| Disc is warped. | Replace the disc with a new one. | |
| The sound is intermittent. | Disc is scratched. | Replace the disc with a new one. |
GENERAL INFORMATIONS
Specifications
General
System: Compact disc player
Signal detection system: Non-contact optical system
Sampling frequency: 44.1 kHz
Power requirements AC 230 V ∼, 50Hz
Power consumption: 10watts (POWER ON)
4 watts (STANDBY)
Dimensions (W x H x D): 435 x 101 x 281 mm
Mass: 3.3 kg
Audio performance
Frequency response: 2 Hz to 20,000 Hz ( ± 1 dB)
Dynamic range: More than 98 dB (at 1 kHz)
Signal to noise ratio: More than 106 dB
Total harmonic distortion: Less than 0.0025% (at 1 kHz)
Channel separation: More than 94 dB (at 1 kHz)
Wow and flutter: Less than measurable limit
Output level 2.0Vrms (at 10 kohms)
Accessories
Remote control unit (RM-SX230EU)(XL-V230BK only) 1
Battery R03(UM-4)/AAA(24F) (XL-V230BK only) 2
Audio cord 1
COMPU LINK cord 1
AC POWER cord 1
Design and specifications subject to change without notice.
VICTOR COMPANY OF JAPAN, LIMITED
- For Customer Use:
- Warnings, Cautions and Others
- IMPORTANT for the U.K.
- IMPORTANT.
- Caution — POWER switch!
- CAUTION
- IMPORTANT FOR LASER PRODUCTS
- REPRODUCTION OF LABELS
- Table of contents
- INTRODUCTION....1
- BEFORE USING FOR THE FIRST TIME .... 4
- BASIC OPERATIONS ...... 7
- VARIOUS PLAYBACK PATTERNS .... 10
- GENERAL INFORMATIONS.... 12
- INTRODUCTION
- Precautions
- Load compact disc only
- If a problem persists
- Handling the power cord
- Volume settings
- Condensation
- Transporting the unit
- Using compact discs
- Applicable discs
- About this manual
- This manual is organized as follows:
- Names of buttons
- BEFORE USING FOR THE FIRST TIME
- Installing the unit
- Best location
- If interference occurs
- Connecting to other equipments
- Notes
- Supplying the power
- To connect the AC power cord of the main unit
- Note
- Installing the batteries
- To install the batteries in the remote control unit
- Battery replacement
- COMPU LINK connection
- Connecting the COMPU LINK cord
- Connecting the COMPU LINK system components with the COMPU LINK cords
- BASIC OPERATIONS
- Basic functions for disc playback
- Turning on the power of this unit
- Loading a disc in the disc tray
- Remote control operation (XL-V230BK Only)
- Playing a disc
- Stopping playback
- Locating a point to start playback
- Skipping to a desired track
- Skipping to a desired index (XL-V230BK Only) (for a disc with INDEX)
- Searching for a desired section
- Specifying a desired track
- Displaying the time
- Switching the time display on XL-V230BK
- Displaying the time on XL-V130BK
- VARIOUS PLAYBACK PATTERNS
- Playing tracks in a desired order
- To check the program contents
- To clear the entire program
- To exit program mode
- Playing tracks in a random order
- To exit random playback
- Playing repeatedly
- Repeating whole disc
- Repeating one track
- To cancel repeat mode
- GENERAL INFORMATIONS
- COMPU LINK remote control system
- Automatic source selection
- Synchronized recording
- Automatic power on/off function
- Care and handling
- How to handle CDs
- Even on label side
- Storage
- Maintenance of discs
- Troubleshooting
- Specifications
- General
- Audio performance
- Accessories
- JVC
Brand : JVC
Model : XL-V130BK
Category : CD Player
