VERTICAL GPU MOUNTING KIT

GPU HOLDER & PCIE 4.0 RISER CABLE

TABLE OF CONTENTS

VERSION 1.0

1. COMPONENTS LIST 02

2. INSTALLATION 04

3. HARDWARE INTRODUCTION...03

4. APPENDIX A-1

1. COMPONENTS LIST

VERTICAL GPU MOUNTING KIT

A. Steel GPU Bracket & 175 mm PCIe Gen 4 x16 Riser Cable

×1

Line drawing of a mechanical device with no visible text or symbols

B. #6-32UNC Screws

×3

2. HARDWARE INTRODUCTION

VERTICAL GPU MOUNTING KIT

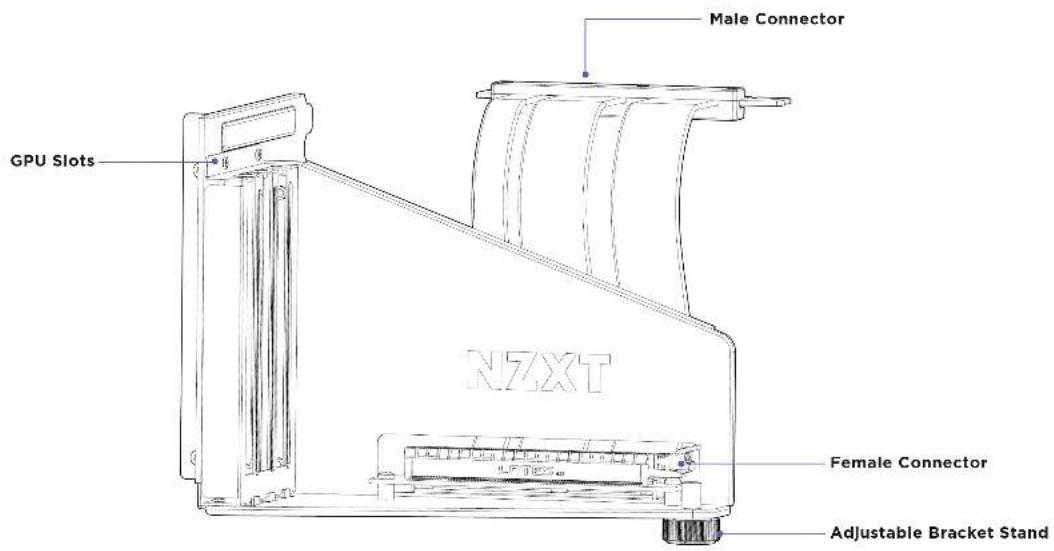

Male Connector GPU Slots NZXT Female Connector Adjustable Bracket Stand

3. INSTALLATION

VERTICAL GPU MOUNTING KIT

STEP 1

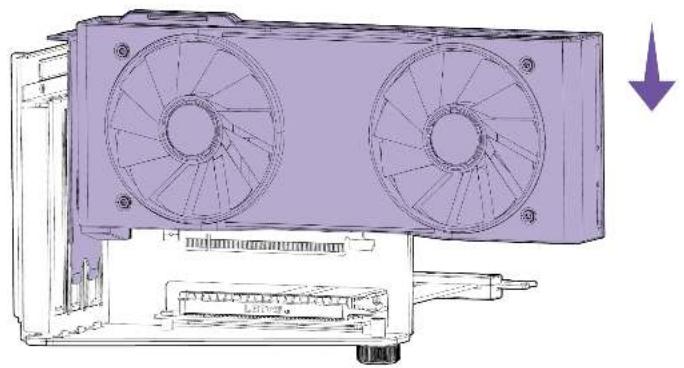

Insert the GPU into the riser cable female connector, making sure the GPU clicks into place.

Technical diagram of a dual fan assembly with measurement scale and directional arrow (no text or symbols)

STEP 2

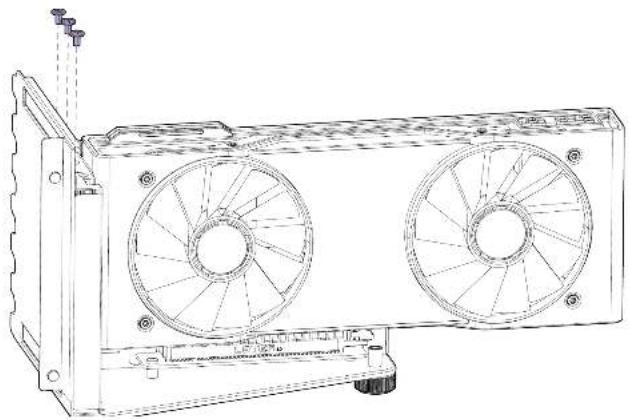

Secure the GPU to the bracket with the #6-32UNC screws.

Technical line drawing of a dual-flame HVAC unit with mounting bracket and fan blades (no text or symbols)

STEP 3

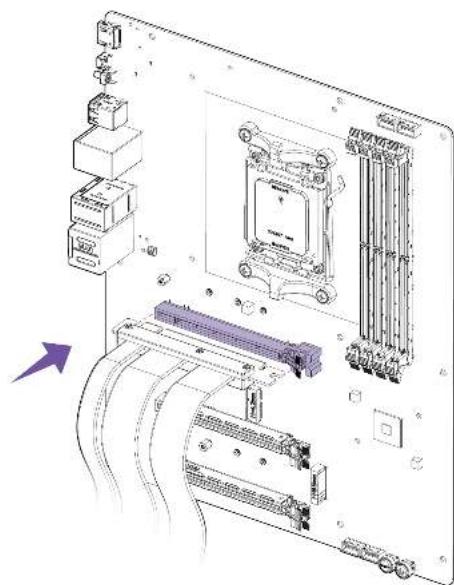

Insert the PCIe Riser Cable male connector into the chosen PCIe slot on the motherboard.

Technical diagram of an electronic device rear panel with internal components and connectors (no text or labels visible)

STEP 4

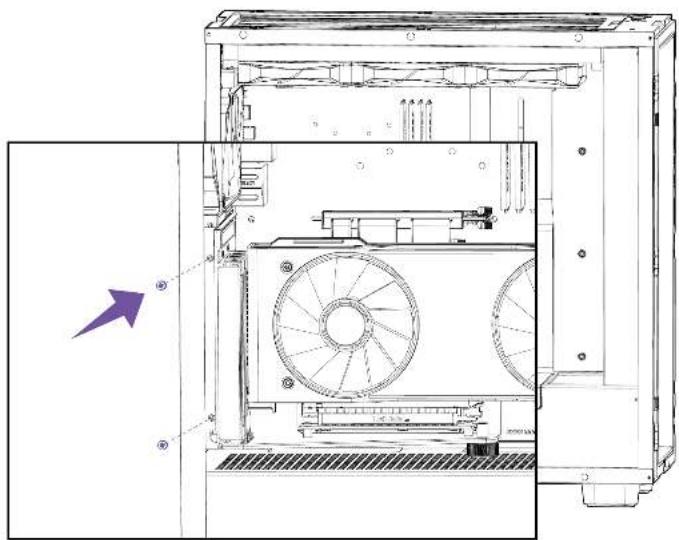

Mount the bracket with the GPU in the case and secure it to the case's GPU slots.

Technical line drawing of an internal machine or enclosure with visible fan and door components (no text or symbols)

STEP 5

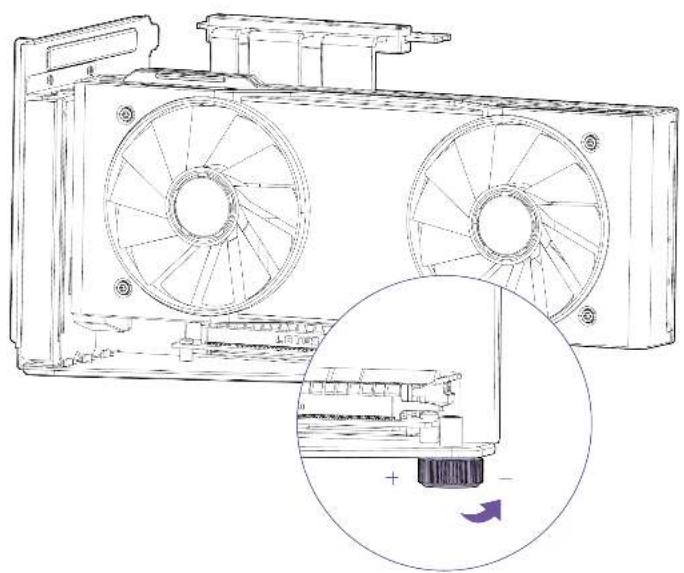

Rotate the adjustable bracket stand to give extra support to the bracket.

Technical line drawing of a mechanical fan assembly with an inset showing a component detail (no text or symbols)

NOTE

* For a PCIe Gen 4 GPU, please make sure the Riser Cable is connected to the motherboard's PCIe Gen 4 slot and that the BIOS settings are set to Auto Mode.
